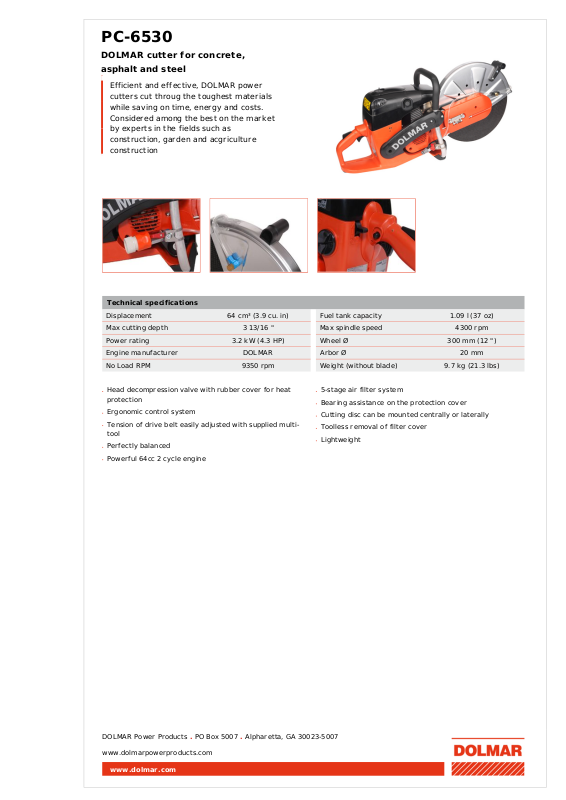

PC-6530
DOLMAR cutter for concrete,
asphalt and steel
Efficient and effective, DOLMAR power
cutters cut throug the toughest materials
while saving on time, energy and costs.
Considered among the best on the market
by experts in the fields such as
construction, garden and acgriculture
construction
Technical specifications
Displacement 64 cm³ (3.9 cu. in) Fuel tank capacity 1.09 l (37 oz)
Max cutting depth 3 13/16 " Max spindle speed 4300 rpm
Power rating 3.2 kW (4.3 HP) Wheel Ø 300 mm (12 ")
Engine manufacturer DOLMAR Arbor Ø 20 mm
No Load RPM 9350 rpm Weight (without blade) 9.7 kg (21.3 lbs)
Head decompression valve with rubber cover for heat
protection
Ergonomic control system
Tension of drive belt easily adjusted with supplied multi-
tool
Perfectly balanced
Powerful 64cc 2 cycle engine
5-stage air filter system
Bearing assistance on the protection cover
Cutting disc can be mounted centrally or laterally
Toolless removal of filter cover
Lightweight
DOLMAR Power Products . PO Box 5007 . Alpharetta, GA 30023-5007
www.dolmarpowerproducts.com
www.dolmar.com
