1993 Dodge Grand Caravan ES
1993 Dodge Grand Caravan ES
WIRING DIAGRAMS 1993 WIRING DIAGRAMS Chrysler Corp.
WIRING DIAGRAMS 1993 WIRING DIAGRAMS Chrysler Corp.
WIRING DIAGRAMS
1993 WIRING DIAGRAMS Chrysler Corp.
IDENTIFICATION
COMPONENT LOCATION MENU
COMPONENT LOCATIONS
Component Location (Fig. No.)

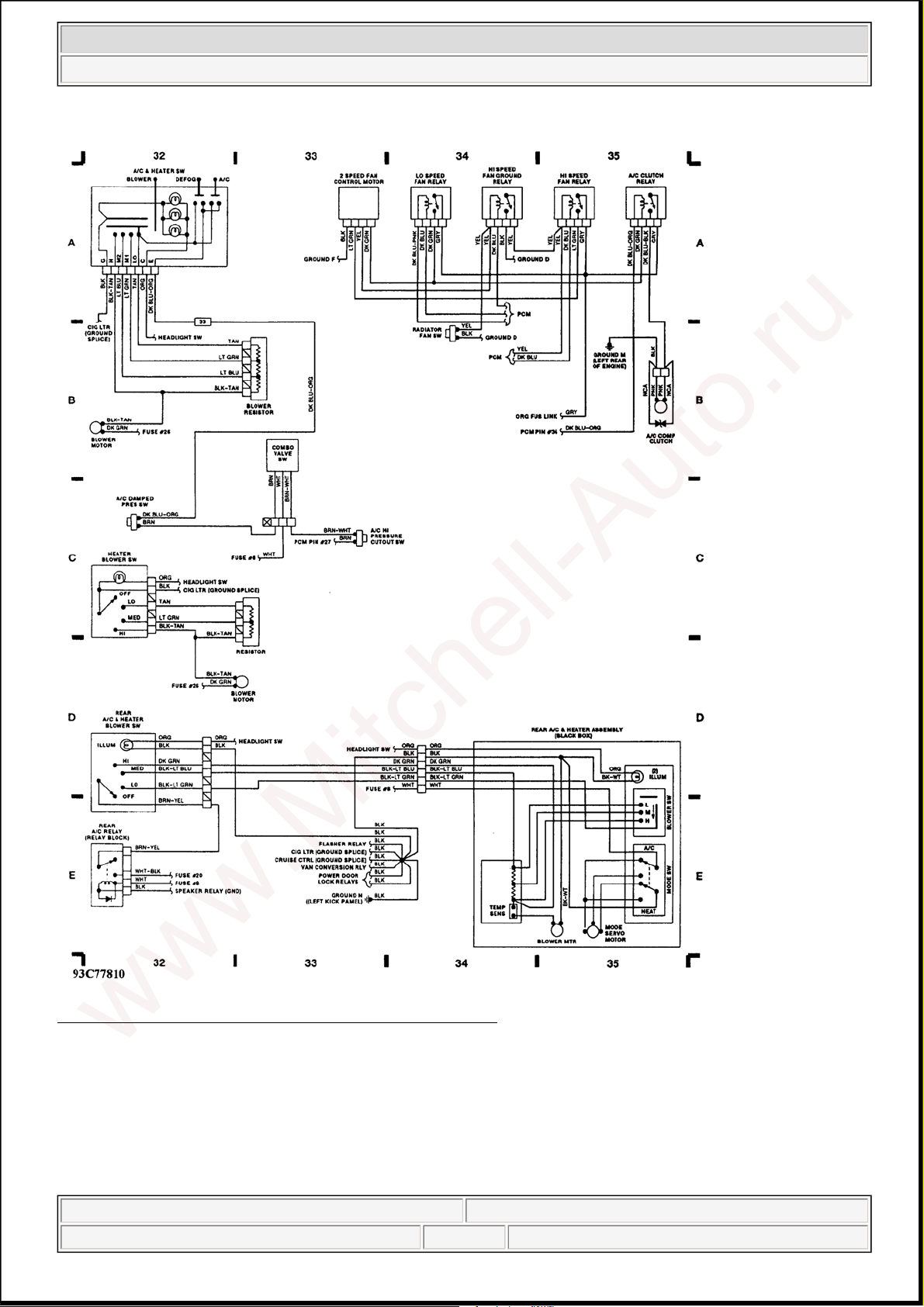

A/C HEATER RADIATOR FAN SYSTEM A-E 32-35 (9)
AIRBAG MODULE A 23 (6)
ALTERNATOR D 3 (1)

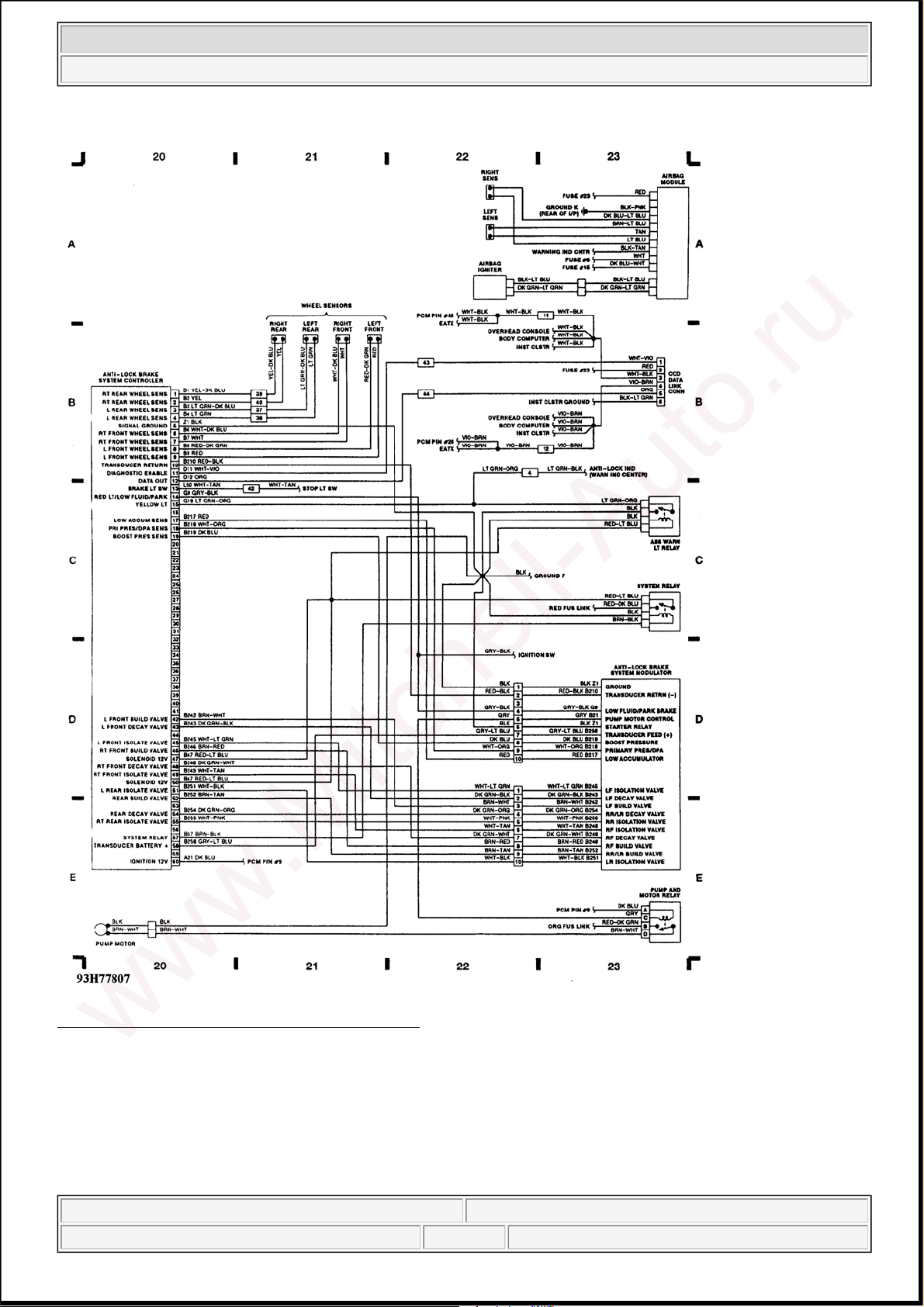

ANTI-LOCK BRAKE SYSTEM B-E 20-23 (6)
ASHTRAY LIGHT A 31 (8)
AUTO SHUTDOWN RELAY (3.0L) A-B 11 (3)
AUTO SHUTDOWN RELAY (3.3L) A-B 15 (4)
BACK-UP LIGHT RELAY B 24 (7)
BACK-UP LIGHT SWITCH (M/T) C 2 (1)
BATTERY A 2 (1)
BODY COMPUTER A-C 36 (10)
BRAKE WARNING INDICATOR SWITCH A 16 (5)
BUS DIAGNOSTIC CONNECTOR B 23 (6)
CIG LIGHTER A 31 (8)
CLUTCH SWITCH (M/T) B 16 (5)
COOLANT TEMPERATURE SENSORS B 38 (10)
CRUISE CONTROL SYSTEM C-E 24-27 (7)
DEFOG SWITCH A 43 (11)
DIRECTIONAL (DIR) SWITCH B 3 (1)

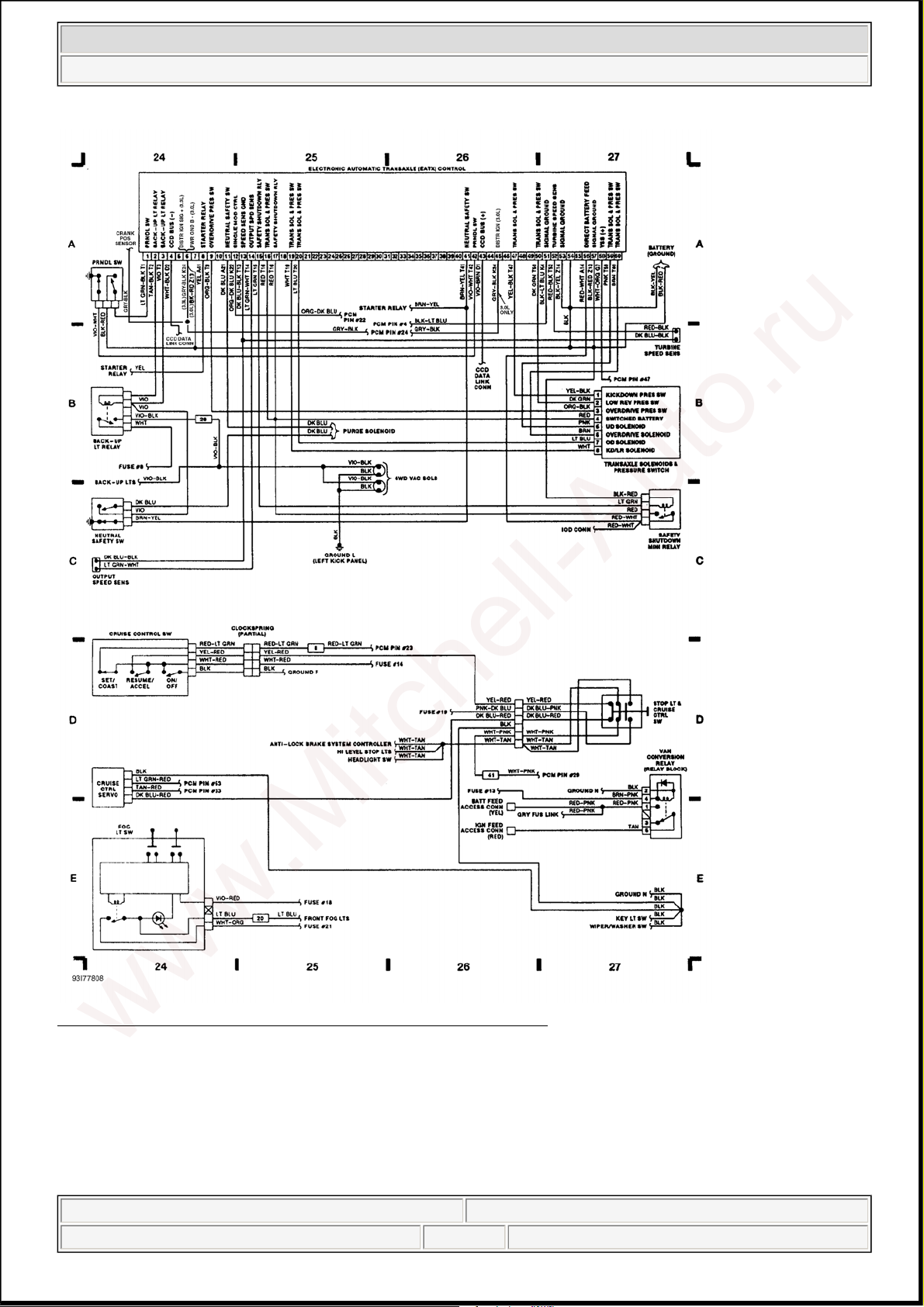

ELECTRONIC AUTOMATIC TRANSAXLE (EATX) CONTROL A 24-27 (7)
ENGINE DIAGNOSTIC CONN (2.5L) D 7 (2)
ENGINE DIAGNOSTIC CONN (3.0L) C-D 11 (3)
ENGINE DIAGNOSTIC CONN (3.3L) C-D 15 (4)
FLASHER RELAY B 31 (8)
FOG LIGHT SWITCH E 24 (7)
FUEL PUMP RELAY (2.5L) A 7 (2)
FUEL PUMP RELAY (3.0L) A 11 (3)
FUEL PUMP RELAY (3.3L) A 15 (4)
FUEL TANK UNIT E 42 (11)
FUSE LINK A 2 (1)
FUSE LINKS C-D 2-3 (1)
FUSE BLOCK B-D 16-19 (5)
GLOVE BOX LIGHT E 16 (5)
HAZARD SWITCH B 28 (8)
www.Mitchell-Auto.ru
www.Mitchell-Auto.ru
5 ноября 2006 г. 14:28:16 Page 1 © 2005 Mitchell Repair Information Company, LLC.
5 ноября 2006 г. 14:28:21 Page 1 © 2005 Mitchell Repair Information Company, LLC.
www.Mitchell-Auto.ru
1993 Dodge Grand Caravan ES
WIRING DIAGRAMS 1993 WIRING DIAGRAMS Chrysler Corp.
HEADER LIGHT SWITCH C 38 (8)
HEADLIGHT DIMMER SWITCH C 31 (8)
HEADLIGHT SWITCH A-C 28 (8)
HI SPEED FAN RELAY A 35 (9)
HORN RELAY D-E 3 (1)
IGNITION OFF DRAW (IOD) CONNECTION D 2 (1)
IGNITION SWITCH A 17-18 (5)
ILLUMINATED ENTRY DOOR SWITCHES C 38 (10)
INSTRUMENT CLUSTER A 39 (10)

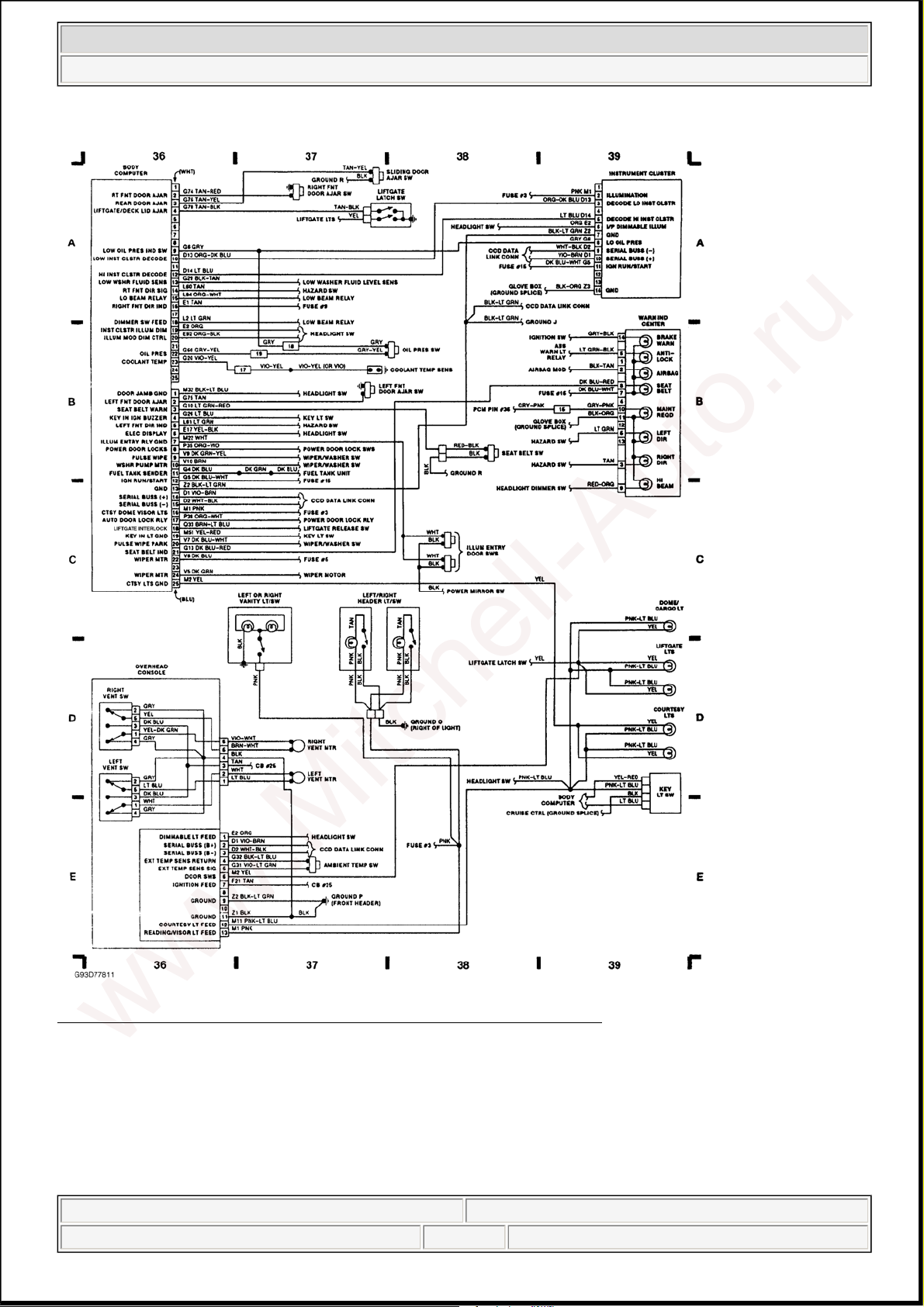

INTERIOR LIGHTS C-E 36-39 (10)
KEY LIGHT SWITCH D-E 39 (10)
LEFT FRONT DOOR AJAR SWITCH B 38 (10)
LIFTGATE LIGHTS D 39 (10)
LIFTGATE RELEASE SWITCH B 43 (11)
LOW BEAM RELAY C-D 31 (8)
NEUTRAL START/BACK-UP LIGHT SWITCH (A/T) A-B 2 (1)
OIL PRESSURE SWITCH B 38 (10)
OVERHEAD CONSOLE D-E 36 (10)
PARK BRAKE SWITCH A 16 (5)
PARK LIGHT RELAY D 31 (8)
POWER DOOR LOCK SYSTEM D-E 42-43 (11)
POWER MIRROR SYSTEM A 40-42 (11)
POWER SEAT SYSTEM B-C 40 (11)
POWER WINDOW SYSTEM C-D 40-41 (11)
POWERTRAIN CONTROL MODULE (PCM) (2.5L) A-D 4 (2)
POWERTRAIN CONTROL MODULE (PCM) (3.0L) A-D 8 (3)
POWERTRAIN CONTROL MODULE (PCM) (3.3L) A-D 12 (4)
PUMP MOTOR RELAY E 23 (6)
PURGE SOLENOID (2.5L) E-5 (2)
PURGE SOLENOID (3.0L) D-E 8 (3)
PURGE SOLENOID (3.3L) E 12 (4)
REAR WIPER/WASHER MODULE E 40 (11)
REAR WIPER/WASHER SWITCH E 31 (8)
RELAY BLOCK D-E 17-18 (5)
RIGHT FRONT DOOR AJAR SWITCH A 37 (10)
SAFETY SHUTDOWN MINI RELAY C 27 (7)
SEAT BELT SWITCH B 38 (10)
SPEAKER RELAY E 19 (5)
STARTER RELAY A 3 (1)
STOP LIGHT SWITCH D 27 (7)
TRANS EMCC SOL B 2 (1)
UNDERHOOD LIGHT SWITCH E 3 (1)
VAN CONVERSION RELAY D-E 27 (7)
VANITY LIGHT SWITCH C 37 (10)
www.Mitchell-Auto.ru
5 ноября 2006 г. 14:28:17 Page 2 © 2005 Mitchell Repair Information Company, LLC.
www.Mitchell-Auto.ru
1993 Dodge Grand Caravan ES
WIRING DIAGRAMS 1993 WIRING DIAGRAMS Chrysler Corp.
VENT SWITCHES D-E 36 (10)
WARNING INDICATOR CENTER B 39 (10)
WASHER LOW FLUID LEVEL SENSOR C-D 29 (8)
WASHER MOTOR D 29 (8)
WIPER/WASHER SYSTEM D-E 28-30 (8)
2 SPEED FAN CTRL MOTOR A 33(9)
4WD VACUUM SOLENOID B-C 25-26 (7)
GROUND LOCATIONS
Component Location (Fig. No.)
GROUNDA: (UPPER LEFT OF ENGINE) A 1 (1)
GROUNDB: (LEFT SIDE REAR OF ENGINE) A 2 (1)
GROUNDC: (LEFT FENDER SHIELD REAR OF BATTERY) A 2 (1)
GROUNDD: (RIGHT SIDE SHIELD) B 2 (1)
GROUNDE: (CENTER OF TRANSMISSION) C 2 (1)
GROUNDF: (LEFT SIDE OF CLOSURE PANEL
FRONT OF BATTERY) E 1-2 (1)
GROUNDG: (TOP REAR OF ENGINE) B 7 (2)
GROUNDH: (TOP REAR OF ENGINE) B 11 (3)
GROUNDI: (LEFT SIDE OF ENGINE) B 15 (4)
GROUNDJ: (RIGHT KICK PANEL) A 19 (5)
GROUNDK: (REAR OF I/P) A 23 (6)
GROUNDL: (LEFT KICK PANEL) C 25 (7)
GROUNDM: (LEFT REAR OF ENGINE) B 35 (9)
GROUNDN: (LEFT KICK PANEL) E 33 (9)
GROUNDO: (RIGHT OF LIGHT) D 38 (10)
GROUNDP: (FRONT HEADER) E 37 (11)
GROUNDQ: (THRU LIFTGATE PANEL) B 42 (11)
GROUNDR: (RIGHT REAR QTR PANEL) B 42 (11)
GROUNDS: (LEFT SIDE OF LIFTGATE) C 42 (11)
WIRING DIAGRAMS
www.Mitchell-Auto.ru
5 ноября 2006 г. 14:28:17 Page 3 © 2005 Mitchell Repair Information Company, LLC.
)
www.Mitchell-Auto.ru
1993 Dodge Grand Caravan ES
WIRING DIAGRAMS 1993 WIRING DIAGRAMS Chrysler Corp.
Fig. 1: Engine Compartment & Headlights (Grids 1-3
www.Mitchell-Auto.ru
5 ноября 2006 г. 14:28:17 Page 4 © 2005 Mitchell Repair Information Company, LLC.
)
www.Mitchell-Auto.ru
1993 Dodge Grand Caravan ES
WIRING DIAGRAMS 1993 WIRING DIAGRAMS Chrysler Corp.
Fig. 2: Electronic Control Module (2.5L) (Grids 4-7
www.Mitchell-Auto.ru
5 ноября 2006 г. 14:28:17 Page 5 © 2005 Mitchell Repair Information Company, LLC.
