Alarm Horn Relay: Testing and Inspection

Horn Relay And Theft Alarm Horn Relay Continuity Check

Horn Relay And Theft Alarm Horn Relay Continuity Check Table

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Antitheft Relay > Component Information > Locations > Theft Alarm Starter Relay

Theft-alarm Starter (A/T & M/T), Power Windows And Theft-alarm Horn Relays

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Antitheft Relay > Component Information > Locations > Theft Alarm Starter Relay > Page 12

Theft-alarm Starter (A/T & M/T), Power Windows And Theft-alarm Horn Relays

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Ignition Shut Down Relay (For Antitheft) > Component Information > Testing and Inspection > Automatic Transmission

Ignition Shut Down Relay (For Antitheft): Testing and InspectionAutomatic Transmission

Theft Alarm Starter Relay Continuity Check

Theft Alarm Starter Relay Continuity Check Table

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Ignition Shut Down Relay (For Antitheft) > Component Information > Testing and Inspection > Automatic Transmission > Page 17

Ignition Shut Down Relay (For Antitheft): Testing and InspectionManual Transmission

Theft Alarm Starter Relay Continuity Check

Theft Alarm Starter Relay Continuity Check Table

> Relays and Modules > Relays and Modules - Body and Frame > Heated Mirror Relay > Component Information > Locations

Door Mirror Heated Relay

> Relays and Modules > Relays and Modules - Body and Frame > Power Door Lock Relay > Component Information > Locations > Door Lock Power Relay 1

Starter Relay And Door Lock Power Relay 1

> Relays and Modules > Relays and Modules - Body and Frame > Power Door Lock Relay > Component Information > Locations > Door Lock Power Relay 1 > Page 26

Front Seat Belt (Left Side) And Door Lock Power Relay 2

> Relays and Modules > Relays and Modules - Body and Frame > Sunroof / Moonroof Module > Component Information > Locations

Sunroof-ECU

> Relays and Modules > Relays and Modules - Brakes and Traction Control > ABS Main Relay > Component Information > Testing and Inspection

ABS Main Relay: Testing and Inspection

ABS Relay Check: Checking Continuity Between Terminals

1. Remove the splash shield 2. Remove the water proof cover.3. Use a flat-tipped screwdriver to remove the Hydraulic Unit Connector from the Hydraulic Unit bracket.4. Remove all of the relays from the relay box and check the continuity between the terminals when power is not supplied and when power is
supplied.

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Locations

ABS-ECU

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Locations > Page 37

Electronic Brake Control Module: Testing and Inspection

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Locations > Page 38

Avenger L4-122 2.0L DOHC VIN Y SFI (1997)

Terminal Voltage Check Chart

TERMINAL VOLTAGE CHECK CHART

Measuring ABS-ECU Voltage With Voltmeter Probe

1. Connect a needle-nosed wire probe (paper clip etc.) to a voltmeter probe.2. Insert the needle-nosed wire probe into each of the Antilock Brake System - Electronic Control Module connector terminals from(ABS) (ECU)

the wire side, and measure the voltage while referring to the check chart.

NOTE:

a. Measure voltage with the ABS-ECU connectors connected.b. You may find it convenient to pull out the ABS-ECU to make it easier to reach the connector terminals.c. Checks don't have to be carried out in the order given in the chart.

CAUTION:

Do not connect the positive (+) probe between connector terminal and ground. Other wise a wiring, the sensor, or ABS-ECU will bedamaged.

3. If voltmeter shows any division from standard value, check the corresponding sensor, actuator and related electrical wiring, then repair or replace.4. After repair or replacement, recheck with the voltmeter to confirm that the repair has corrected the problem.

ABS-ECU Connector Terminal Arrangement

ABS-ECU Connector Terminal Arrangement

CAUTION:

1. Use the special tool (MB991356) to check the ABS-ECU terminal voltage and resistance.2. The ABS-ECU connector terminal arrangement for troubleshooting is different from that on the special tool connector. So take the
readings from the terminal numbers of the special tool when checking.

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Locations > Page 39

Avenger L4-122 2.0L DOHC VIN Y SFI (1997)

Terminal Resistance And Continuity Check Chart

TERMINAL RESISTANCE AND CONTINUITY CHECKS

1. Turn the ignition switch to OFF.2. Disconnect the ABS-ECU connector.3. Measure the resistance and check for continuity between the terminals of the ABS-ECU harness-side connector while referring to the check chart.

a. When measuring resistance and checking continuity, a harness for checking contact pin pressure should be used instead of inserting a testNOTE:

probe.

b. Checks do not have to be carried out in the order given in this chart.

CAUTION:

If resistance or continuity checks are performed on the wrong terminals, damage to the vehicle wiring, sensors, ABS-ECU, and/orohmmeter may occur. Use care to prevent this!

4. If the ohmmeter shows any deviation from the normal condition, check the corresponding sensor, actuator and related electrical wiring, and then
repair or replace.

5. After repair or replacement, recheck with the ohmmeter to confirm that the repair or replacement has corrected the problem.

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Locations > Page 40

Electronic Brake Control Module: Service and Repair

ABS-ECU Removal And Installation

REMOVAL

1. Remove RH Cowl side trim and front scuff plate.2. Remove control unit cover.3. Remove Antilock Brake System Electronic Control Module.

INSTALLATION

1. Follow removal procedure in reverse order.

> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations

Radiator Fan (HI 1, HI 2 & LO), Condenser Fan (HI & LO) Relays

> Relays and Modules > Relays and Modules - Cooling System > Radiator Cooling Fan Motor Relay > Component Information > Locations > Page 45

Radiator Cooling Fan Motor Relay: Testing and Inspection

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Module > Component Information > Locations

Cruise Control Module: Locations

Sensor Location Overviews

Solenoid And Solenoid Valves - Overall View

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Module > Component Information > Locations > Page 50

Avenger L4-122 2.0L DOHC VIN Y SFI (1997)

Solenoid And Solenoid Valve Views A - E

Name Symbol

Auto-cruise speed control assembly A

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations

Auto Cruise Control Relay

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > Page 54

Cruise Control Relay: Testing and Inspection

> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations

Blower Motor Relay

> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations > Page 59

Blower Motor Relay: Testing and Inspection

Blower Motor Relay

Power Relay Check

Test relay as shown in image and verify relay continuity is as described in chart.

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations

Power Relay Check

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Page 63

Compressor Clutch Relay: Testing and Inspection

Power Relay Check

Power Relay Check

Test relay as shown in image and verify relay continuity is as described in chart.

> Relays and Modules > Relays and Modules - HVAC > Condenser Fan Motor Relay, HVAC > Component Information > Locations

Power Relay Check

> Relays and Modules > Relays and Modules - HVAC > Condenser Fan Motor Relay, HVAC > Component Information > Locations > Page 67

Condenser Fan Motor Relay: Testing and Inspection

Power Relay Check

Power Relay Check

Test relay as shown in image and verify relay continuity is as described in chart.

> Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Locations

Control Module HVAC: Locations

Blower Assembly And Resistor Replacement

#3 in the image.

Automatic Compressor - ECM

> Relays and Modules > Relays and Modules - Instrument Panel > Audible Warning Device Control Module > Component Information > Locations

ETACS-ECU

> Relays and Modules > Relays and Modules - Lighting and Horns > Daytime Running Lamp Control Unit > Component Information > Locations

DRL-ECU

> Relays and Modules > Relays and Modules - Lighting and Horns > Fog/Driving Lamp Relay > Component Information > Locations

Radiator Fan (HI/LO), Condenser Fan (HI/LO), A/C Compressor Clutch, Horn, Fog Light, Taillight And Headlight Relays

> Relays and Modules > Relays and Modules - Lighting and Horns > Fog/Driving Lamp Relay > Component Information > Locations > Page 82

Fog/Driving Lamp Relay: Testing and Inspection

Fog Light Switch Continuity Check

Fog Light Switch Continuity Check Table

> Relays and Modules > Relays and Modules - Lighting and Horns > Hazard Flasher Relay > Component Information > Locations

Turn Signal And Hazard Flasher Relay

> Relays and Modules > Relays and Modules - Lighting and Horns > Headlamp Relay > Component Information > Locations

Headlight Relay

> Relays and Modules > Relays and Modules - Lighting and Horns > Headlamp Relay > Component Information > Locations > Page 89

Conditions For Switch ON Of Headlight Relay

> Relays and Modules > Relays and Modules - Lighting and Horns > Headlamp Relay > Component Information > Locations > Page 90

Headlamp Relay: Testing and Inspection

Headlight Relay

Headlight Relay Continuity Check Table

> Relays and Modules > Relays and Modules - Lighting and Horns > High Beam Relay > Component Information > Locations

High Beam Relay: Locations

High Beam Relay

> Relays and Modules > Relays and Modules - Lighting and Horns > High Beam Relay > Component Information > Locations > Page 94

High Beam Relay: Testing and Inspection

Lower Beam Relay And Upper Beam Relay

High Beam Relay Continuity Check Table

> Relays and Modules > Relays and Modules - Lighting and Horns > Horn Relay > Component Information > Locations

Radiator Fan (HI/LO), Condenser Fan (HI/LO), A/C Compressor Clutch, Horn, Fog Light, Taillight And Headlight Relays

> Relays and Modules > Relays and Modules - Lighting and Horns > Horn Relay > Component Information > Locations > Page 98

Horn Relay: Testing and Inspection

Horn Relay And Theft Alarm Horn Relay Continuity Check

Horn Relay And Theft Alarm Horn Relay Continuity Check Table

> Relays and Modules > Relays and Modules - Lighting and Horns > Tail Lamp Relay > Component Information > Locations

Taillight Relay

> Relays and Modules > Relays and Modules - Lighting and Horns > Tail Lamp Relay > Component Information > Locations > Page 102

Tail Lamp Relay: Testing and Inspection

Headlight Relay

Taillight Relay Continuity Check Table

> Relays and Modules > Relays and Modules - Lighting and Horns > Turn Signal Relay > Component Information > Locations

Turn Signal And Hazard Flasher Relay

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Body Control Module > Component Information > Locations

Body Control Module: Locations

ETACS-ECU

ETACS-ECU

ETACS-ECU

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component Information > Locations

Powertrain Control Module

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component Information > Diagrams > Diagram Information and

Instructions

Engine Control Module: Diagram Information and Instructions

How to Find System & Component Diagrams

Group Index

When trying to find the diagram for a specific component or system, use the information or the under Alphabetic Index to Wiring Diagrams Electrical

Group Index Diagrams By Sheet Number

Whenever a reference exists to another sheet or figure, find the corresponding diagram using the , , or . The reference number for the subsequent diagram will match a listed group shown.Diagrams By Figure Number

Circuit Diagrams

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Diagrams > Diagram Information and Instructions > Page 116

Avenger L4-122 2.0L DOHC VIN Y SFI (1997)

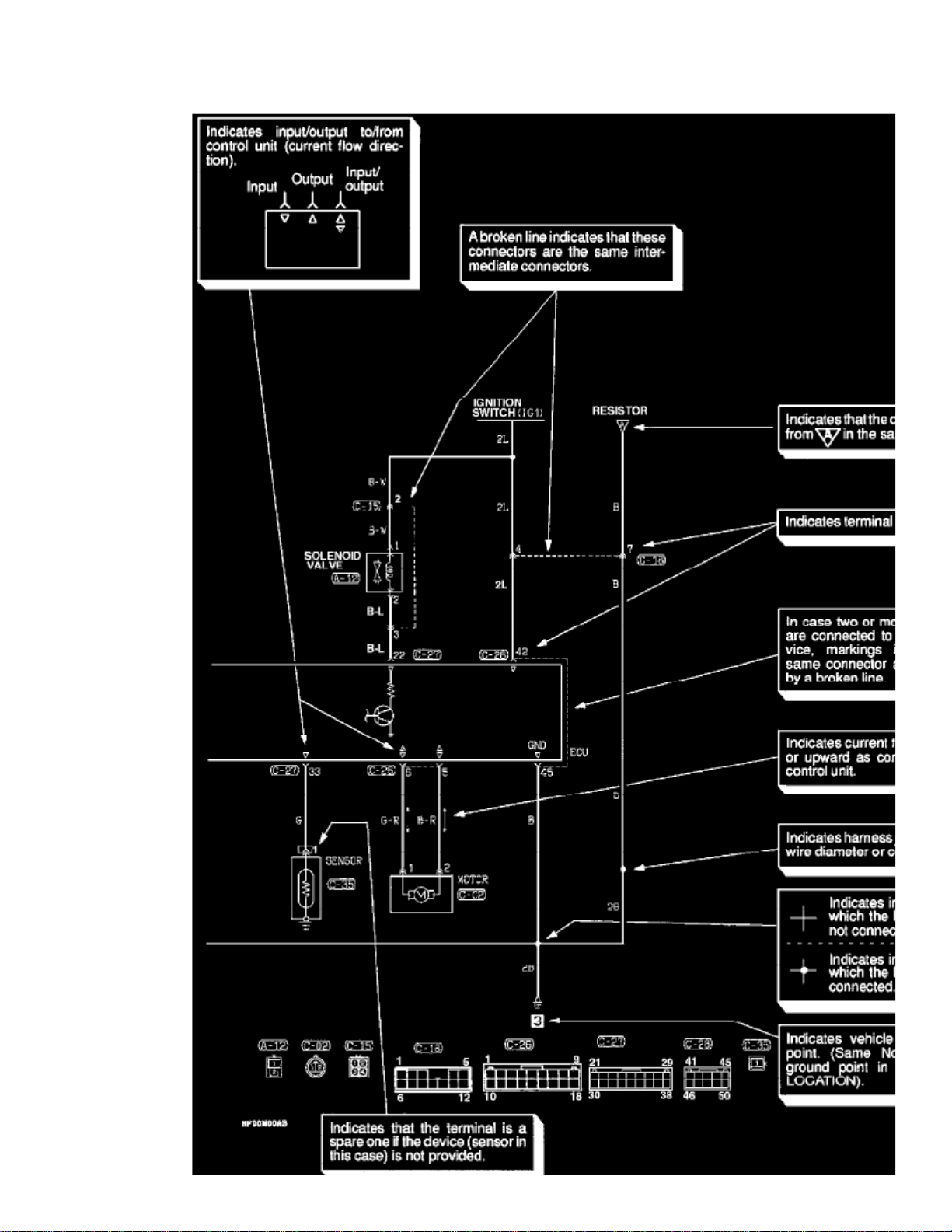

How To Read Circuit Diagrams (Part 1 Of 2)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Diagrams > Diagram Information and Instructions > Page 117

Avenger L4-122 2.0L DOHC VIN Y SFI (1997)

How To Read Circuit Diagrams (Part 2 Of 2)

The circuit of each system from the fuse (or fusible link) to ground is shown. The power supply is shown at the top and the ground at the bottom tofacilitate understanding of how the current flows.

Connector/Grounding Indications

Connector/Grounding Indications

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Diagrams > Diagram Information and Instructions > Page 118

Avenger L4-122 2.0L DOHC VIN Y SFI (1997)

Connector/Grounding Indications

Connector And Terminal Markings

Connector and Terminal Markings
