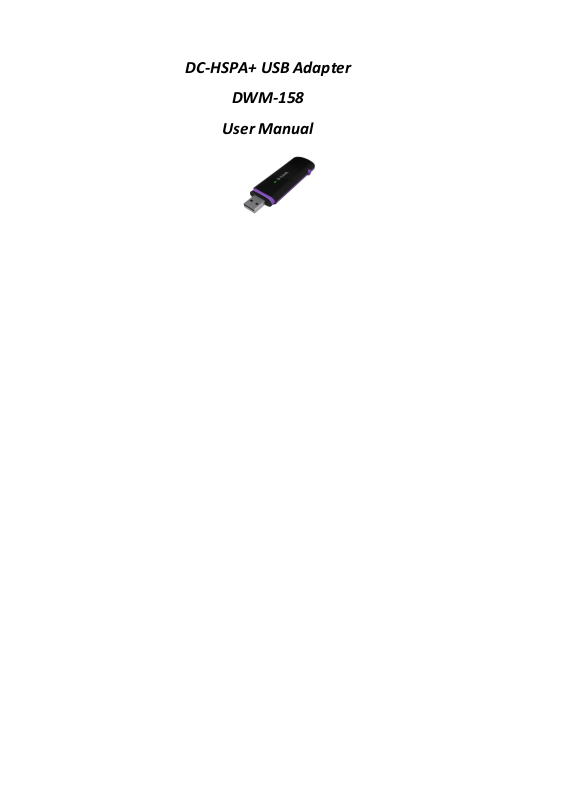

DC HSPA+ USB Adapter
DWM 158
User Manual
Index |
|
DC HSPA+ USB Adapter Introduction |
............................2 |
Internet service.............................................................. |
5 |
SMS service .................................................................... |
6 |

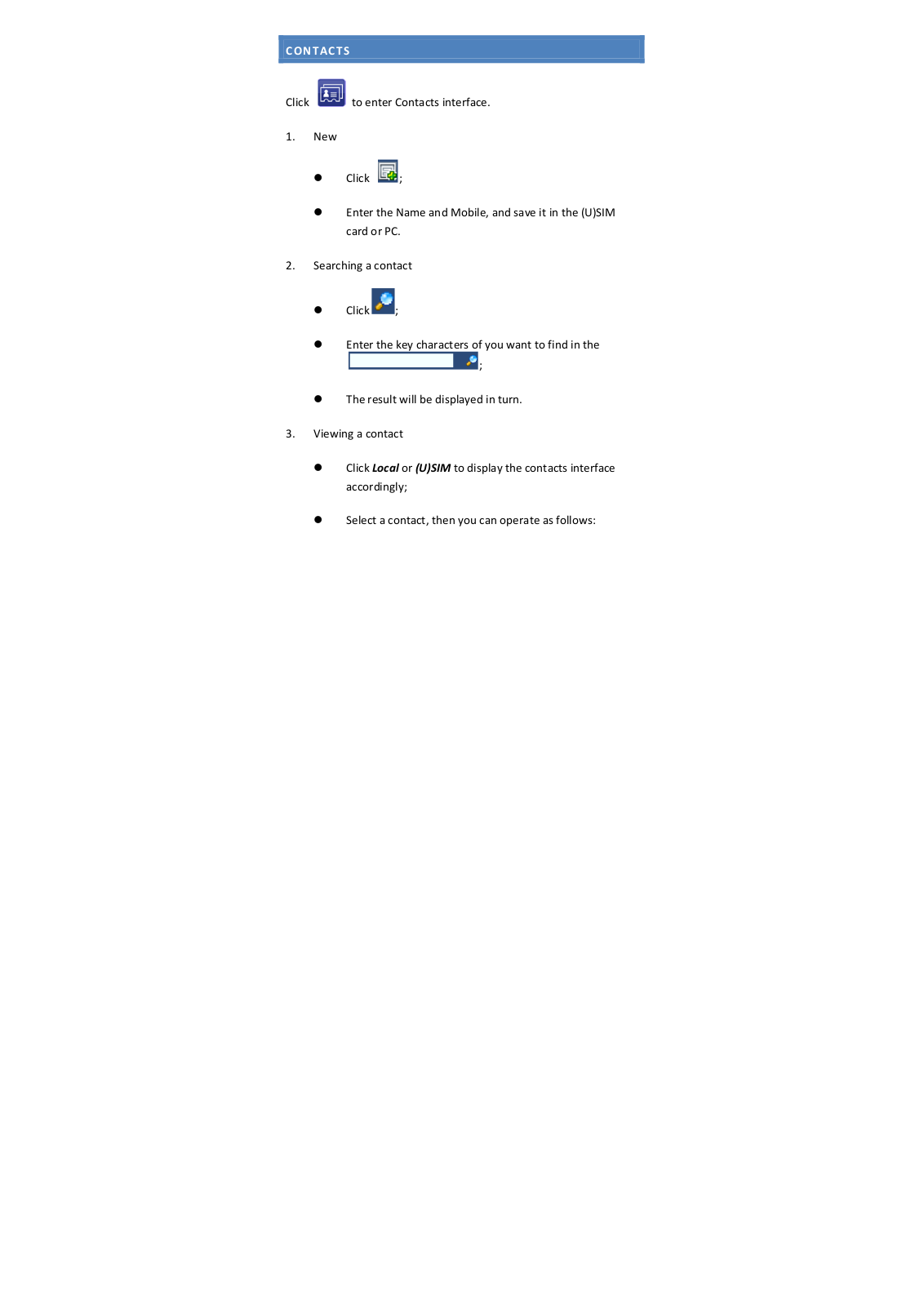

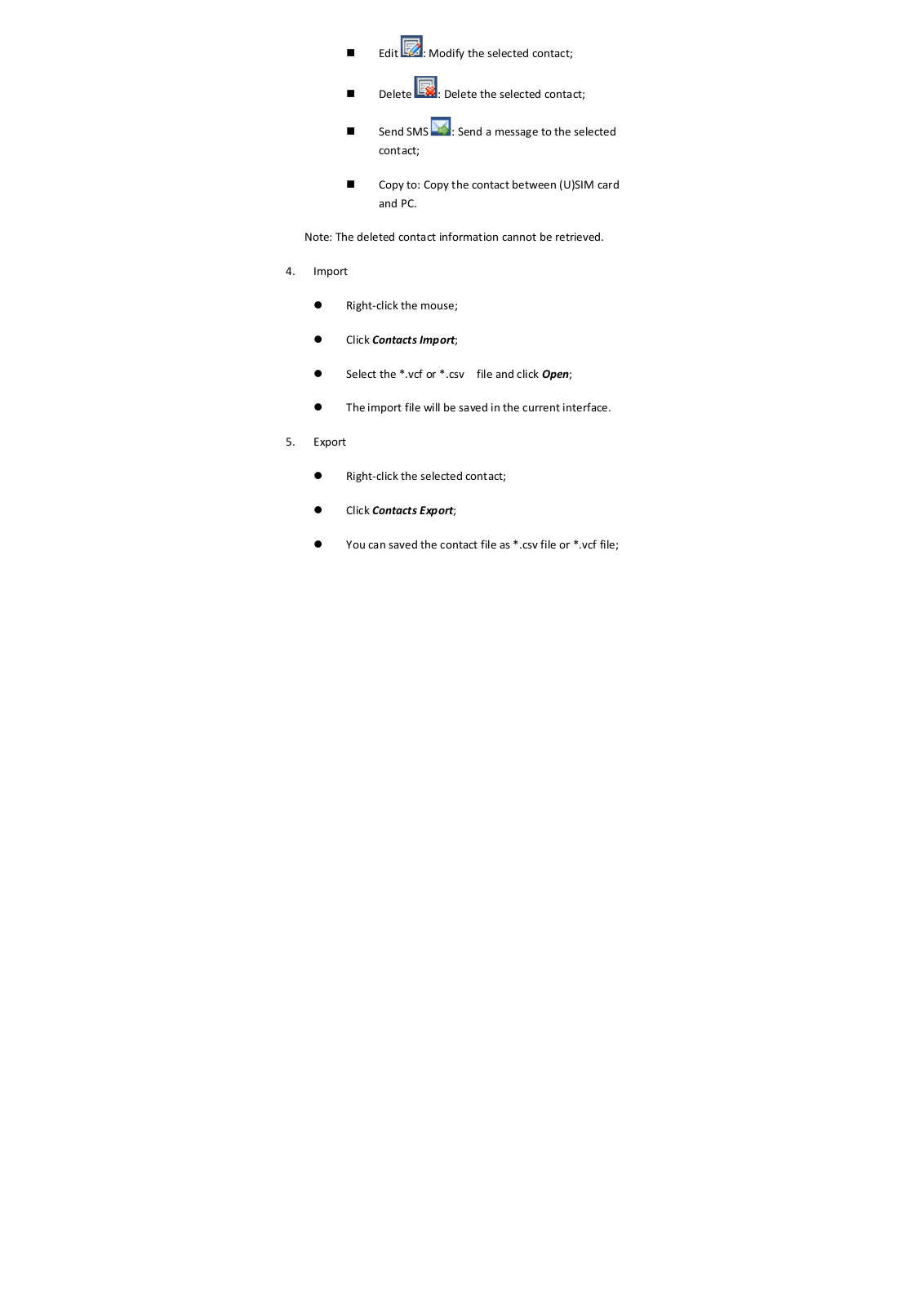

Contacts ....................................................................... |
10 |

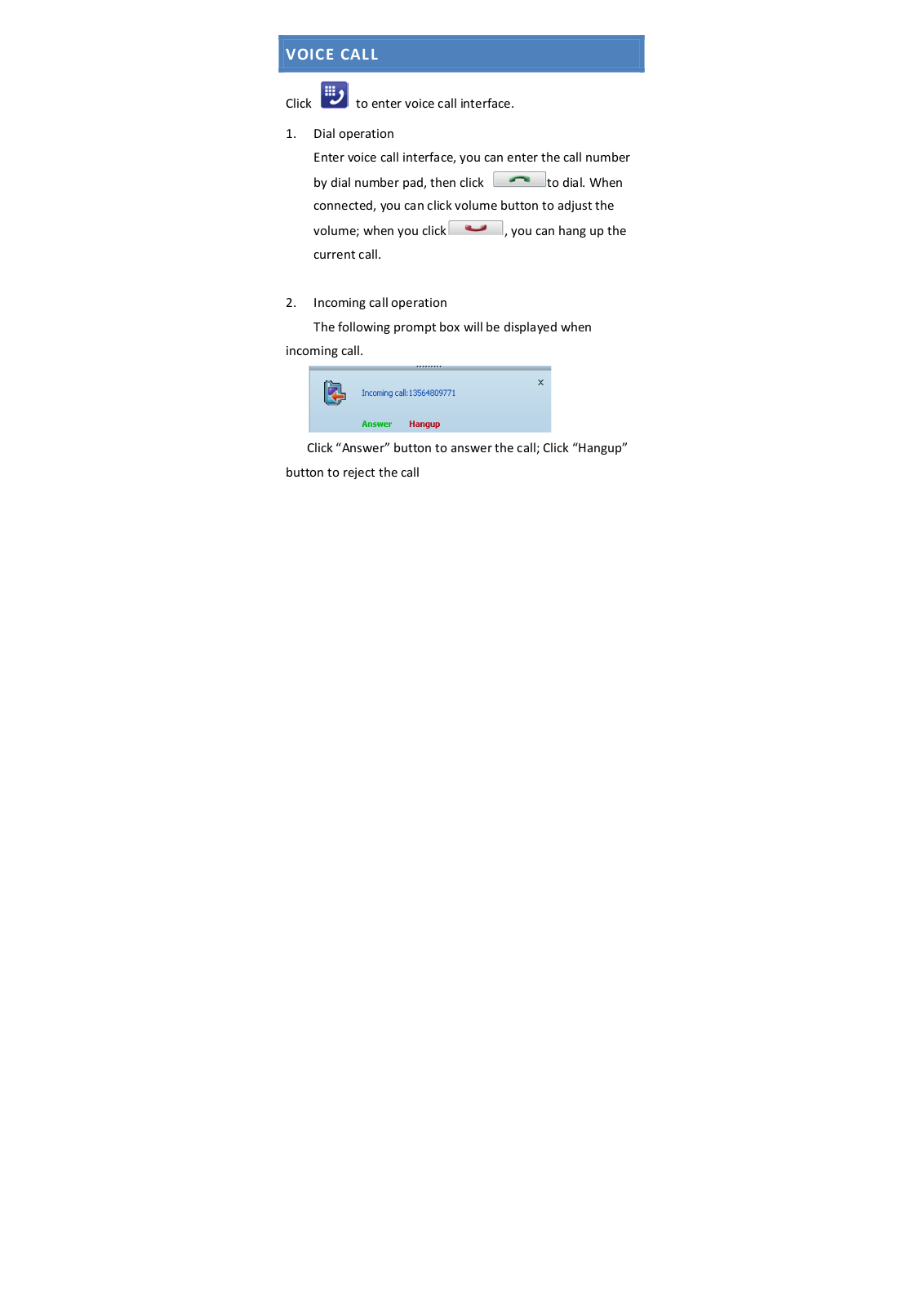

Voice Call...................................................................... |
13 |

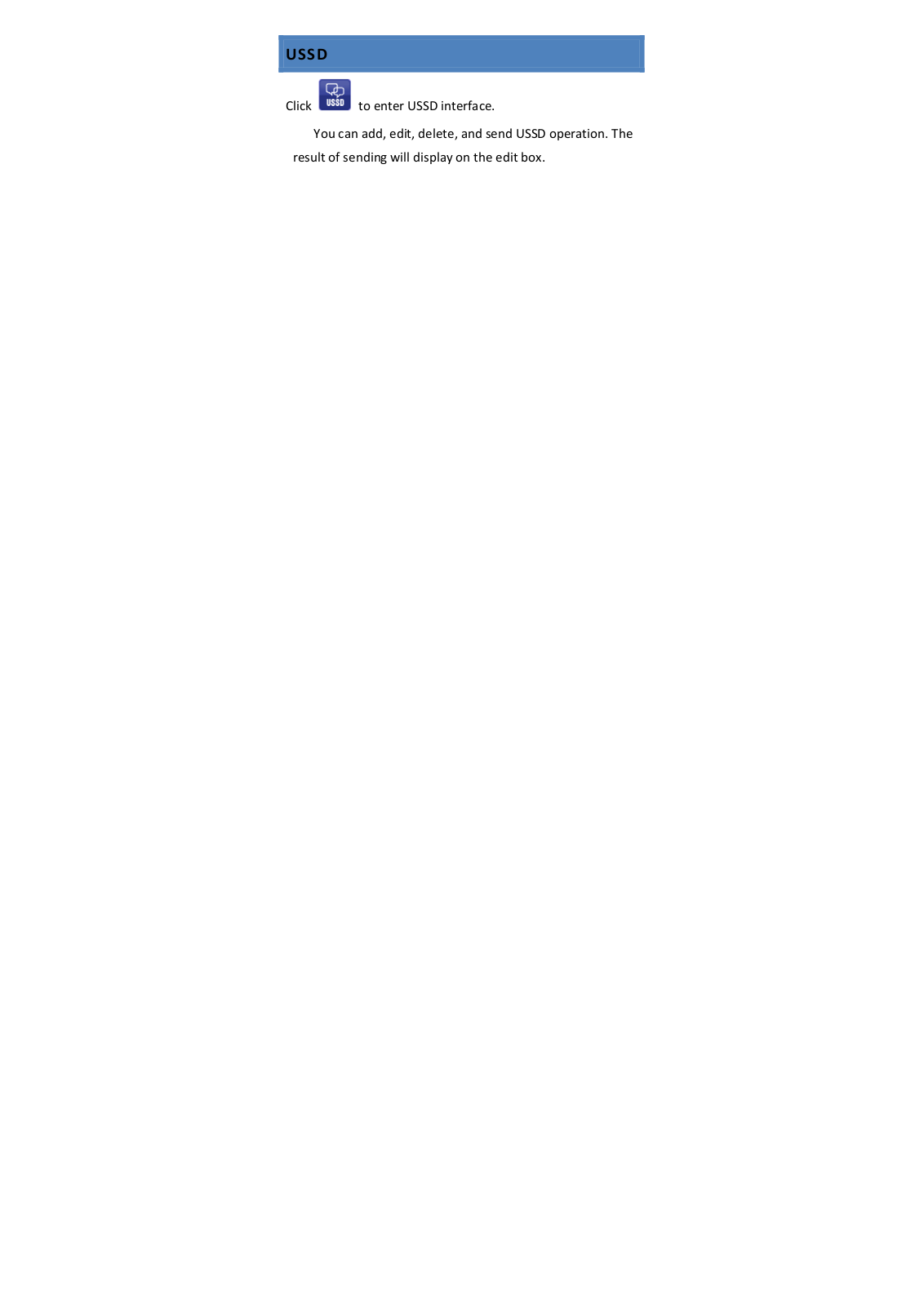

USSD............................................................................. |
14 |

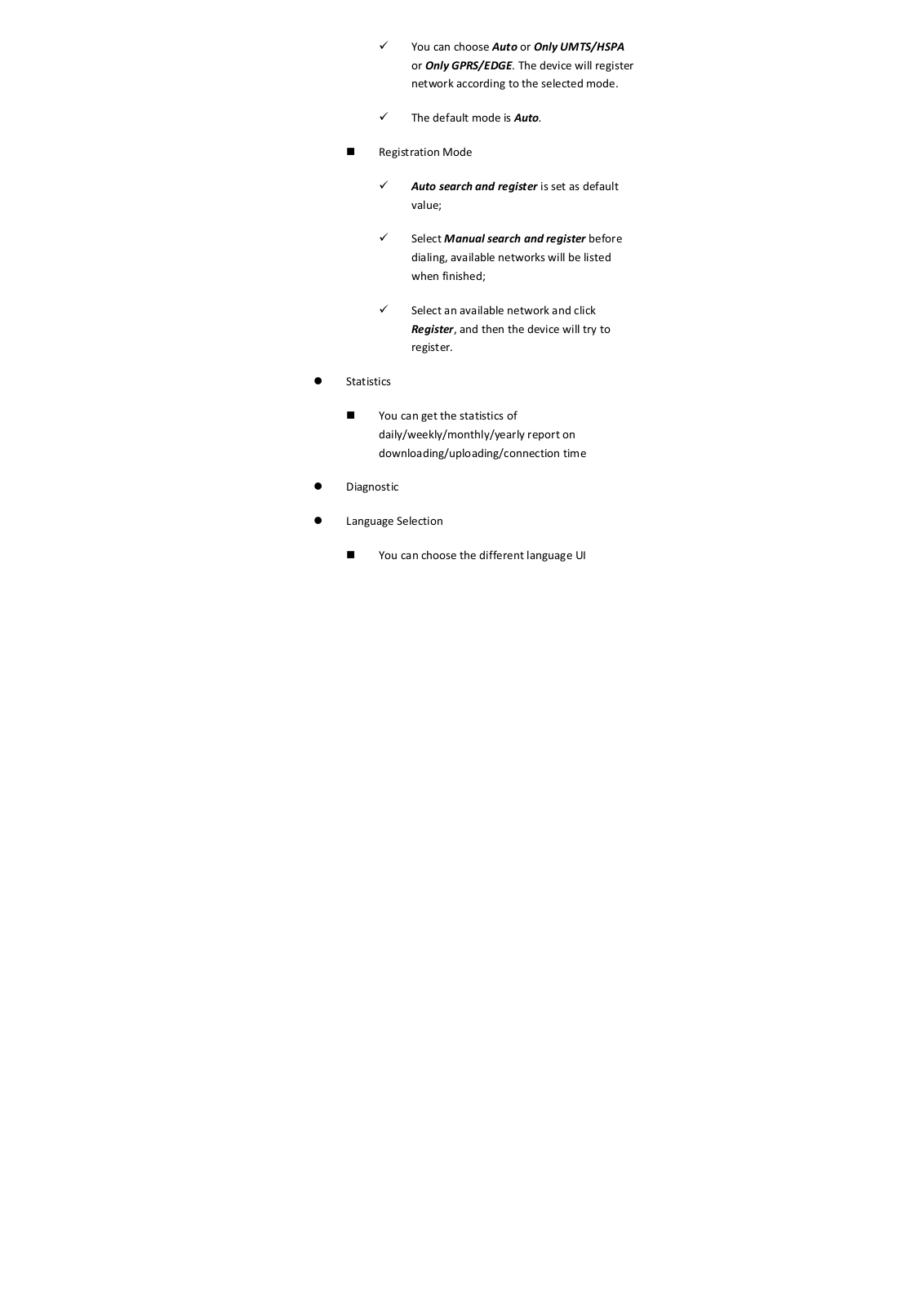

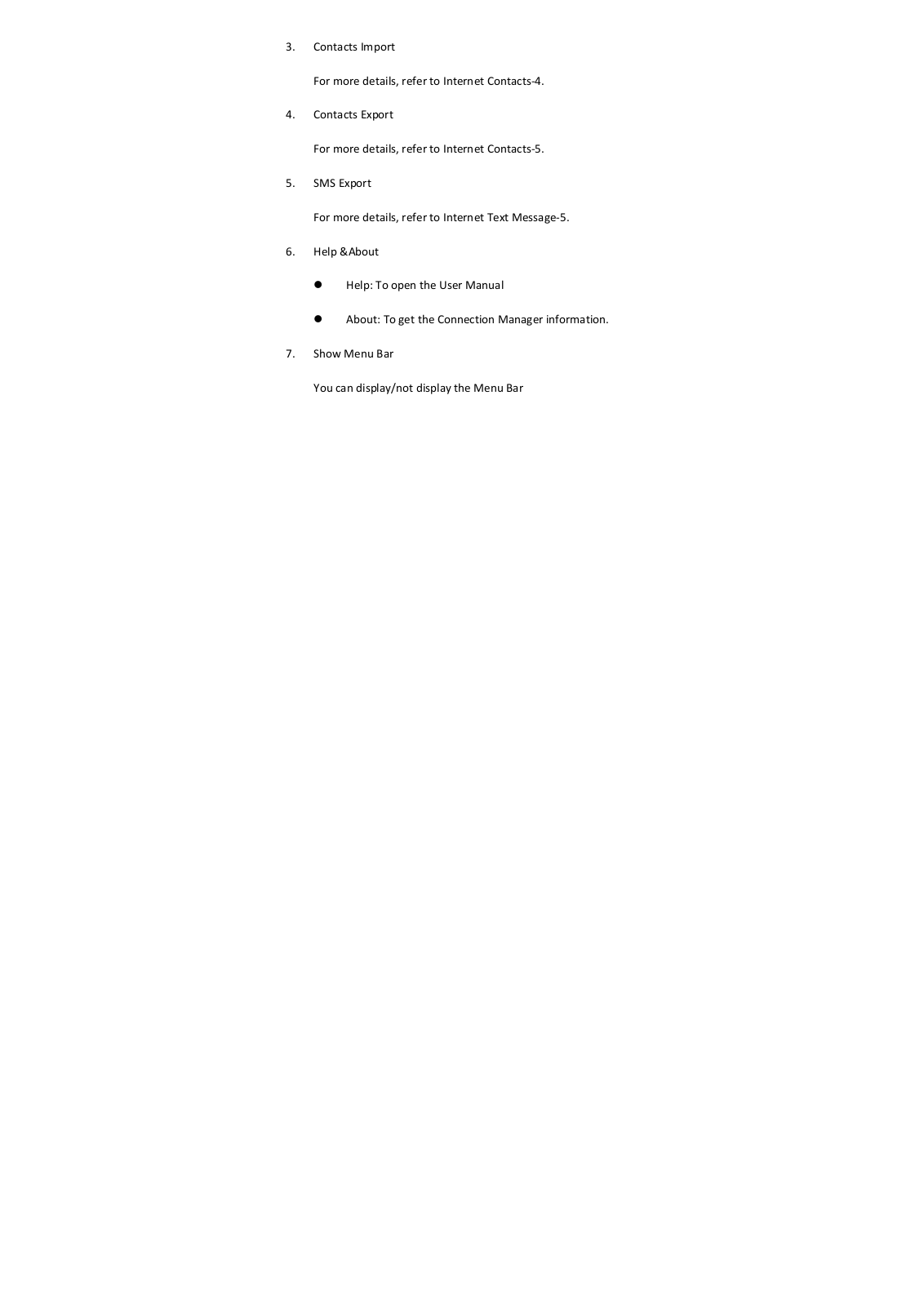

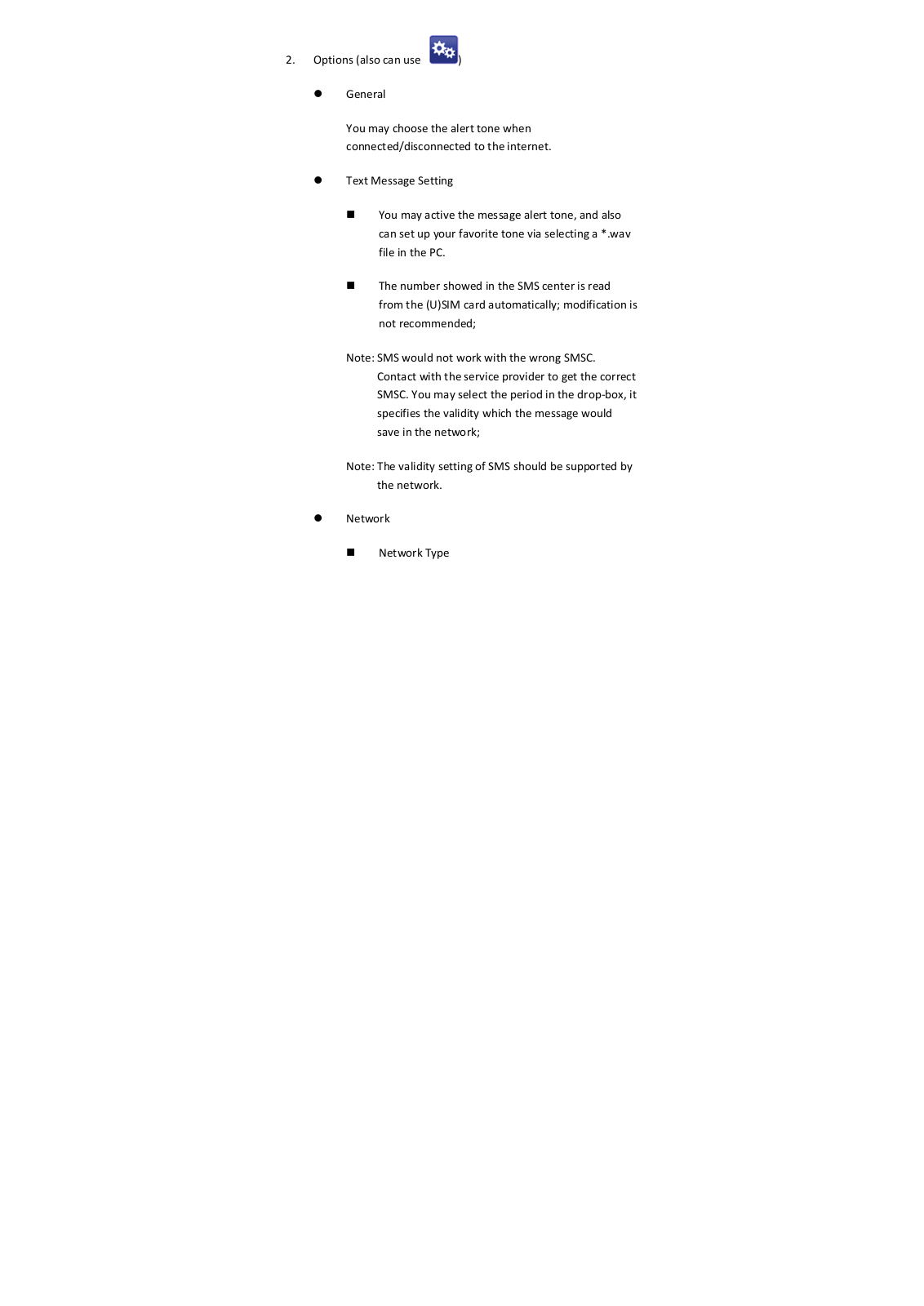

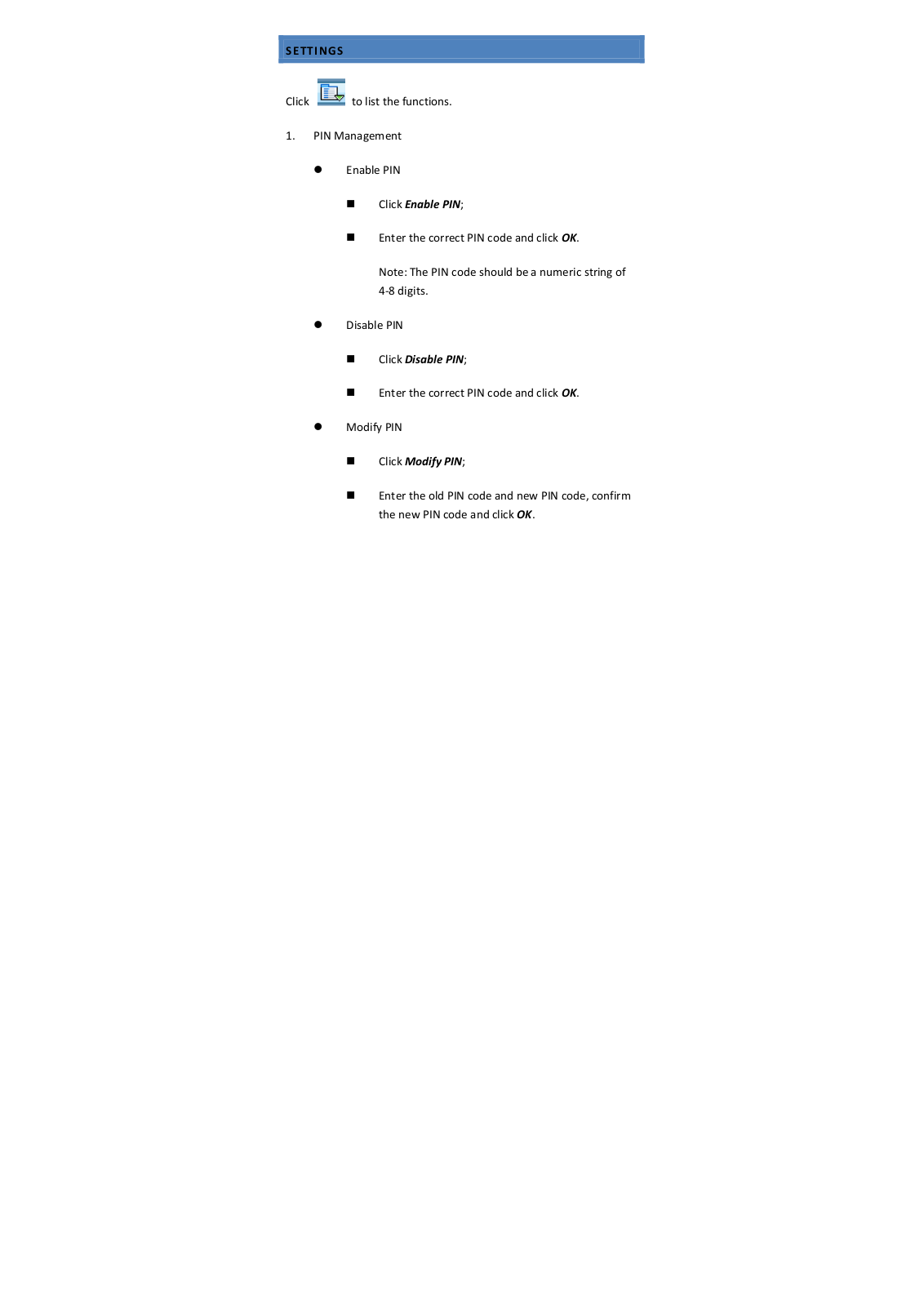

Settings ........................................................................ |
15 |

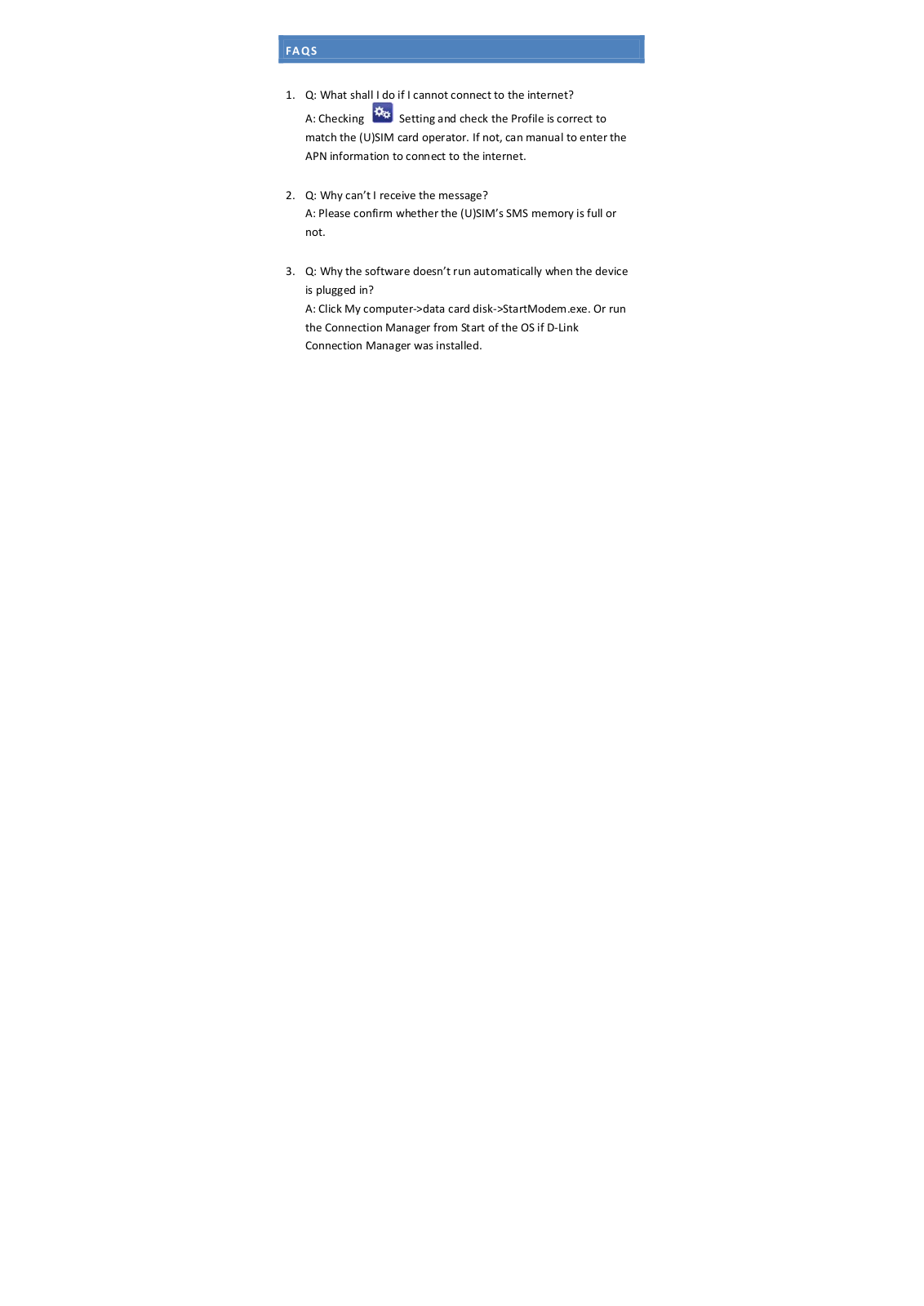

FAQs............................................................................. |
19 |
DC HSPA+ USB ADAPTER INTRODUCTION
1.To launch the Network Connect, double click the shortcut icon on the desktop. It should be noted that:
If the PIN code enabled, enter the correct one, then click OK. The (U)SIM will be locked after three retries of incorrect PIN code inputting;
Enter the correct PUK to retrieve the default PIN code. After ten retries of incorrect PUK code inputting, please contact with your service provider;
With the wrong PIN and PUK, all the network services are unavailable.
2.Main interface introduction
: Connection
: Access to the Text Message
: Access to the Phonebook interface
Access to Voice call interface
: Access to USSD
: Access to check usage statistics
: Set parameters options
: Help (User Manual)
3.Status information
Status |
Description |
|
|
New message |
New message(s) arrived. |
|
|
Message full |
Indicates the (U)SIM’s storage of SMS |
No device |
Indicates that system cannot find the |
|
device. |
|
|
Initializing |
Indicates that the device is in the process |
|
|
Searching |
The device is searching for the network. |
|
|
No service |
No suitable network. |
|
|
No (U)SIM card |
(U)SIM card not inserted or the device |
||
|
|
|
|
Invalid (U)SIM card |
The (U)SIM is out of service. |
|
|
|
|
|
|
Network signal |
Indicate the signal strength of |
||
|
|||
Network type |
GSM/GPRS, |
UMTS. |
|
|
|
||
Data service |
EDGE available, |
HSPA |
|
|
4.LED Indicator description
State of LED indicator |
Description |
|
|
RED Solid On |
No SIM card/ Error |
|
|
Green Solid On |
Register to network (not connect) |
|
|
Green blinking |
Connected to network |
|
|
*Green blinking: Flash once every 0.5 seconds)
INTERNET SERVICE
1.Connecting with the default connection profile
Click to set up the connection;
2.Statistics information
The following window will be displayed at lower right corner of main interface when connecting to the internet.
3.Disconnect from the internet
Click to disconnect the internet connection.
SMS SERVICE
Click to enter SMS (Short Message Service) service interface.
1. Creating and sending a message.
Click :
Input the recipient number by one of the following options:
Enter the number directly;
Click Send to, choose the recipient number from the phonebook and add to the sending list , then click OK.
Enter the message content;
Click Send or Save to Draft. The message will be saved in the Draft when failed to send.
Note:
You can group send a message at most 100 recipients;
Each number should be separated by “,”;
The message cannot expand 2,048 characters at most.
2.Inbox
The following prompt box will be displayed when received a new message;
Reply : Access the edit interface, write the content, click Send or Save to Draft;
Forward : Forward the selected message;
Delete : Delete the selected message.
Note:
The new message will be saved in PC when Connect running only, else in (U)SIM instead.
You can use “Shift” or “Ctrl” to selected several messages;
3.Outbox
The message in the Outbox can be deleted or forwarded.
