Section 1 - Product Overview
ProductPackageOverviewContents
•D-Link DWA-643 Xtreme N™ Notebook ExpressCard™
•Manual and Warranty on CD
•D-Link Wireless Connection Manager on CD
System Requirements
•A laptop computer with an available 64-bit ExpressCard™ slot
•Windows® 2000 (Service Pack 4) or XP (Service Pack 2)
•CD-ROM Drive
•20MB Hard Disk Space
•A draft 802.11n, 802.11g or 802.11b access point (for Infrastructure mode), or another 802.11n, 802.11g or 802.11b wireless adapter (for Ad-Hoc networking mode.)
D-Link DWA-643 User Manual
Section 1 - Product Overview
Introduction
The D-Link Xtreme N™ Notebook ExpressCard™ (DWA-643) is a draft 802.11n client device that delivers unrivaled wireless performance for your notebook computer.With the DWA-643, you can add or upgrade your notebook’s wireless connectivity without having to purchase a new notebook. Once connected, access your network’s high-speed Internet connection while sharing photos, files, music, video, printers, and storage. Get a better Internet experience with a faster wireless connection so you can enjoy digital phone calls, gaming, downloading, and video streaming.
Powered by Xtreme N™ technology, the DWA-643 provides a faster wireless connection and superior reception than 802.11g*. The DWA-643 is designed for use in bigger homes and for those that demand higher networking. Maximize wireless performance by connecting this notebook ExpressCard™ to a Xtreme N™ router and stay connected from virtually anywhere in the home. This notebook ExpressCard™ supports WEP, WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed.
D-Link’s Quick Setup Wizard guides you step-by-step through the installation process. The D-Link Wireless Manager is included with this product to keep track of all your most frequently accessed networks.
With unmatched wireless performance, reception, and security protection, the D-Link Xtreme N™ Notebook ExpressCard™ (DWA-643) is the best choice for easily adding or upgrading wireless connectivity to your notebook computer.
*Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range.
**All devices in the wireless network must be enabled with D-Link Xtreme N™ Technology
D-Link DWA-643 User Manual
Section 1 - Product Overview
Features
•Faster Wireless Networking - Enable wireless connectivity on your notebook computer with the DWA-643. With the performance of D-Link’s Xtreme N™ line of wireless products, the DWA-643 delivers an unsurpassed wireless experience. Perform multiple network tasks at once with the speed provided by this Wireless Adapter.
•Compatible with 802.11b and 802.11g Devices - Fully compatible with the IEEE 802.11b and 802.11g standards, the DWA-643 can connect with existing 802.11b or 802.11g compliant routers, access points and cards. That means you can still communicate with colleagues and friends while you have the ability to link to even more wireless networks.
•Better Security with 802.1x and WPA - With the DWA-643 in your laptop PC you can securely connect to a wireless network using 802.1x for wireless authentication, as well as WPA (Wi-Fi Protected Access) providing you a much higher level of security for your data and communication than has previously been available.
•64-bit Cardbus Performance/Plug & Play Connectivity - The DWA-643 is a powerful 64-bit Notebook ExpressCard™ that installs quickly and easily into laptop PCs, and when used with other D-Link Xtreme N™ products will automatically connect to the network out of the box.
•Total Performance - Upgrade your notebook with the latest draft 802.11n technology.
•Total Wireless Portection - Connect to secure wireless networks using WEP, and WPA.
•Total Connection - Get reception throughout your home by connecting to a Xtreme N™ router.
D-Link DWA-643 User Manual |
|
Section 1 - Product Overview
Hardware Overview
LEDs
Activity LED
A blinking light indicates data is being transmitted.
D-Link DWA-643 User Manual
Section 2 - Installation
Installation
This section will walk you through the installation process. If you have a built-in wireless adapter, please disable it in device manager before installing your D-Link adapter. Also, if you have previously installed another wireless adapter, please make sure any software is uninstalled.
Getting Started
Before installing your new D-Link wireless adapter, please verify the following:
•Remove any previous installations of wireless adapters
•Disable any built-in wireless adapters
•Verify the settings such as the SSID and security settings of the network(s) you want to connect to
Remove Existing Installations
If you’ve installed a different manufacturer’s adapter or a different model D-Link adapter, make sure the software is uninstalled before installing the new software. Some utilities may cause a conflict with the new software. If you plan to use multiple adapters at different times, make sure the utilities are not set to load when your computer boots up. Windows® XP users may use the built-in wireless utility for all adapters.
To remove any old software:
Windows® XP users: Click Start > Control Panel > Add or Remove Programs.
Windows® 2000 users: Click Start > Settings > Control Panel > Add or Remove Programs.
D-Link DWA-643 User Manual |
|
Section 2 - Installation
Disable Other Wireless Adapters
Most newer laptops may include a built-in wireless adapter. To prevent any conflicts with the D-Link wireless adapter, it is recommended to disable the wireless adapter (as well as any unused Ethernet adapters).
From the desktop, right-click on the My Computer icon and select
Properties.
Click the Hardware tab and then click Device Manager. Scroll down the list and click the + sign to the left of Network Adapters.
Right-click the adapter you would like to disable and select
Disable.
D-Link DWA-643 User Manual |
|
Section 2 - Installation
Click Yes to disable the adapter.
The adapter is now disabled. When disabled, a red X will be displayed.
Disabling the adapter will not remove the drivers. If you would like to use the adapter, simply right-click it and select Enable.
D-Link DWA-643 User Manual |
|
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless adapter lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range.Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link adapter and other network devices to a minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible.The base transmits a signal even if the phone in not in use.
D-Link DWA-643 User Manual |
10 |
Section 2 - Installation
Adapter Installation
Warning: Do NOT install the DWA-643 Notebook ExpressCard™ into your computer before installing the driver software from the D-Link CD.
Turn on the computer and Insert the D-Link DWA-643 Driver CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows® XP. The steps and screens are similar for the other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\DWA643.exe” (where D: represents the drive letter of your CD-ROM drive).
When the autorun screen appears, click Install Drivers.
Click Install Drivers
D-Link DWA-643 User Manual |
11 |
Section 2 - Installation
The InstallShield Wizard window will appear.
Click Next
By default setup will install to the default location: C:\Program Files\D-Link\DWA-643, where C: represents the drive letter of your hard drive. To install to a different location click Browse and specify the location.
Click Next
Select the Program Files folder location.
Click Next
D-Link DWA-643 User Manual |
12 |
Section 2 - Installation
Insert the adapter into an available cardbus slot on your computer.
If the Found New Hardware Wizard appears, click Cancel.
Click Next
The D-Link configuration wizard will now appear.
If you are using Windows® XP (SP2), you will have the option to use either the D-Link manager or the built-in Windows® Wireless utility.
Click Next
Enter the network name (SSID) manually. If you enter the SSID incorrectly, you will automatically be brought to the site survey page. Click Scan to display the site survey page.
Click Next
D-Link DWA-643 User Manual |
13 |
Section 2 - Installation
Click on the network name (SSID) and click Next.
Click Next
Click Finish to continue. If you are prompted to reboot your computer, select Yes, I want to restart my computer now.
Click Finish
D-Link DWA-643 User Manual |
14 |
Section 3 - Configuration
Configuration
This section will show you how to configure your new D-Link wireless adapter using the D-Link Utility as well as the Windows® XP Zero Configuration Utility.
D-Link Wireless Connection Manager
The D-Link DWA-643 uses the Wireless Connection Manager as the management software. The manager provides the user an easy interface to change any settings related to the wireless adapter. Clicking on the Wireless Connection Manager icon on the desktop will start the Configuration .
If you are using Windows® XP, please skip to page 22.
Double-click the Wireless Conection
Manager icon on your desktop.
D-Link DWA-643 User Manual |
15 |
Section 3 - Configuration
Wireless Networks
The Wireless Networks (Site Survey) page will display all wireless networks that are available in your area. To connect to a network, simply highlight the wireless network (SSID) and click Connect.
SSID: The SSID (Service Set Identifier) is the name of the wireless network.
MAC: Displays the MAC address of the wireless device.
Signal: Displays the Link Quality of the wireless connection.
Security: If there is a “lock” icon, this means the wireless network is secure.You must know the encryption key/security settings to connect.
Channel: Displays the channel of the wireless network.
Refresh Button: Rescans for available wireless networks in your area.

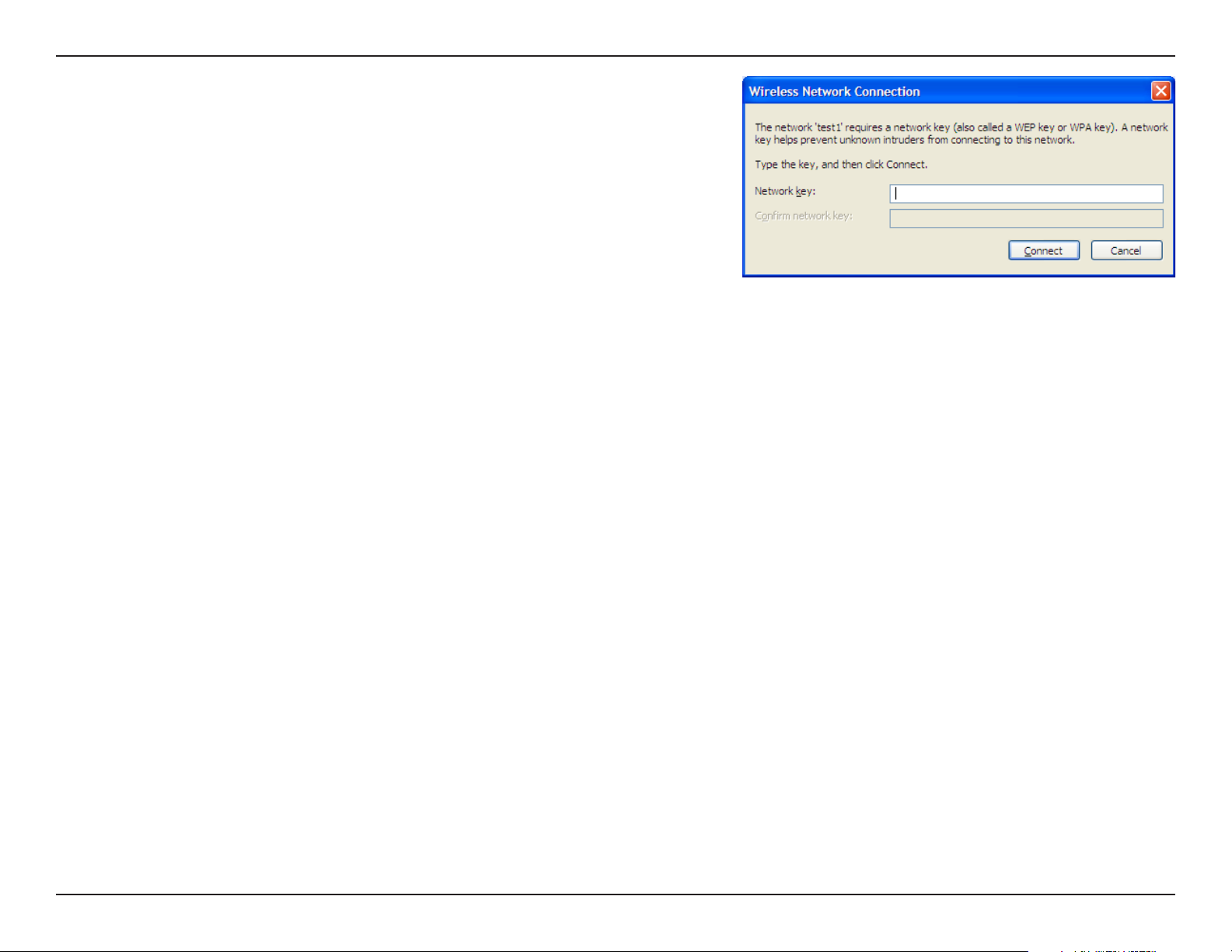

Connect Button: Highlight a wireless network and click the Connect button. If the network is secure, a pop-up window will appear. Enter the security information to connect (refer to the Wireless Security section for more information).
Activate Button: Select a wireless network profile from the drop-down menu and click Activate to connect. Allow up to 30 seconds to connect.
D-Link DWA-643 User Manual |
16 |
Section 3 - Configuration

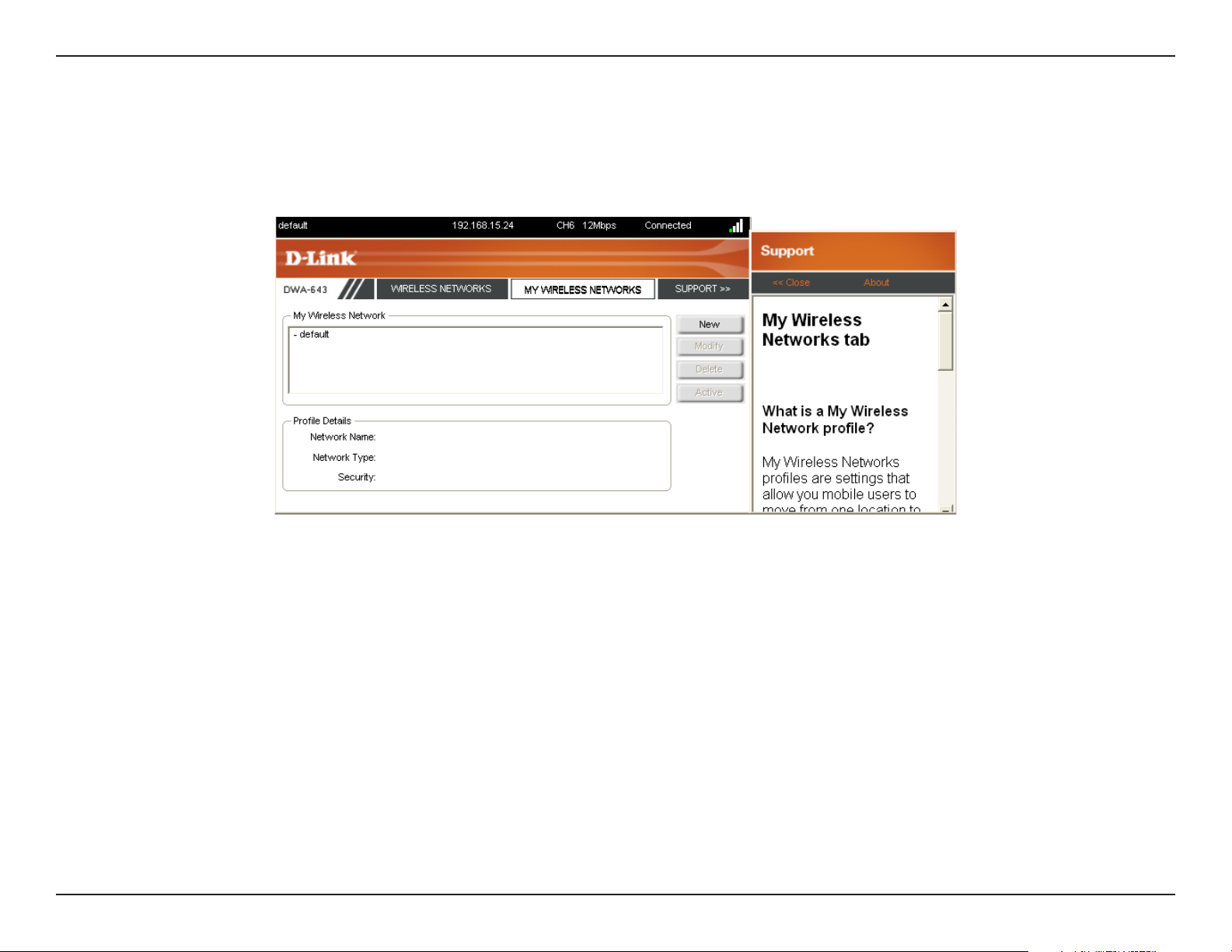

My Wireless Networks
The My Wireless Networks page will allow you to create, edit, and delete wireless network profiles. Every time you connect to a network using the Wireless Networks page, a profile will automatically be created.
New Button:
Modify:
Delete:
Activate:
Profile Details:
Click New to create a new wireless network profile (refer to page 18).
Click Modify to edit a current profile (refer to page 19).
Click Delete to remove a profile.
Click Activate to use a profile. Allow up to 30 seconds to connect to the wireless network.
The Profile Details section will display information about the wireless network such as the network name (SSID), network type (Infrastructure or Ad-Hoc), and if the network is secured.
D-Link DWA-643 User Manual |
17 |
