It’s easy to get started with your Vonage VWR Device!
For assistance with installation or troubleshooting common problems, please refer to this
User Manual or Quick Start Guide.
Please visit www.vonage.co.uk/vwr to obtain the most up-to-date Configuration Guide
and a description of the latest VWR features.
Activation
If you purchased your Vonage VWR Device from a retail store, you must first activate
your Vonage phone service by visiting www.vonage.co.uk/activate.
After activation, wait 30 minutes before checking for a dial tone.
You will need your MAC ID, which is located on your Vonage VWR Device. The MAC ID is
a combination of twelve letters and numbers. Be sure to enter all of the characters. After
you have chosen a plan and activated, please follow the step-by-step installation guide
to set up your equipment.
ID-Link VWR User Manual
Table of Contents
Table of Contents
Welcome to Vonage! ...................................................................................................... I
Appendix B - Technical Specifications ..................................................................... 43
IIID-Link VWR User Manual
Chapter 1 - Product Overview
Chapter 1 - Product Overview
Product Overview
1
1D-Link VWR User Manual
Chapter 1 - Product Overview
Vonage VWR
Package Contents
Wireless Router
Telephone Jack Adaptors
(Doungle)
CD-ROM with
Yellow Ethernet Cable
Blue Ethernet Cable
User Guide
System Requirements
Any high speed DSL or Cable connection
A valid Vonage account
If you purchased your D-Link VWR at a retail location, make sure
to first activate your device at www.vonage.co.uk/activate. Please
wait 30 minutes before checking for a dial tone.
Power Adapter
2D-Link VWR User Manual
Chapter 1 - Product Overview
PowerInternetWirelessEthernet (1-4)Phone (1-2)
When the power light
stops blinking and is a
solid green, this indicates
that your adapter has
started up properly. Note
that both the power light
and the phone light must
be solid in order to make
a phone call.
Front Panel
A solid light indicates
connection on the
Internet port. This
light blinks during
data transmission.
A solid light indicates
that the wireless
segment is ready.
This light blinks
during wireless data
transmission.
A solid light indicates
a connection to an
Ethernet-enabled
computer on ports
1-4. This light
blinks during data
transmission.
Solid light indicates
that the phone
line is ready for
Vonage Internet
telephone or FAX
calls. A slow blinking
light indicates that
voicemail is present.
When the line is in
use or ringing, the
light will blink rapidly.
Note: When the Vonage Device is downloading/upgrading firmware from Vonage,the lights will blink rapidly in unison.
Rear Panel
Phone (1 & 2)Ethernet (1-4)InternetResetPower
Plug your phone into
port #1 and if you’ve
signed up for a second
Vonage phone line, an
optional phone or FAX
machine into phone
port #2.
Connect to other
Ethernet devices such
as computers using
standard Ethernet
cables.
This port is the
connection for the
Ethernet cable to the
Cable or DSL modem.
Press the reset button
for at least 10 seconds
to reset the Vonage
VWR Device back to
the default settings.
Plug in the
supplied power
adapter.
3D-Link VWR User Manual
Chapter 1 - Product Overview
Installation
2
4D-Link VWR User Manual
Chapter 2 - Installation
Network Overview
Please refer to your Quick Start Guide included with your Vonage VWR Device for
basic installation instructions.
5D-Link VWR User Manual
Chapter 3 - Configuration

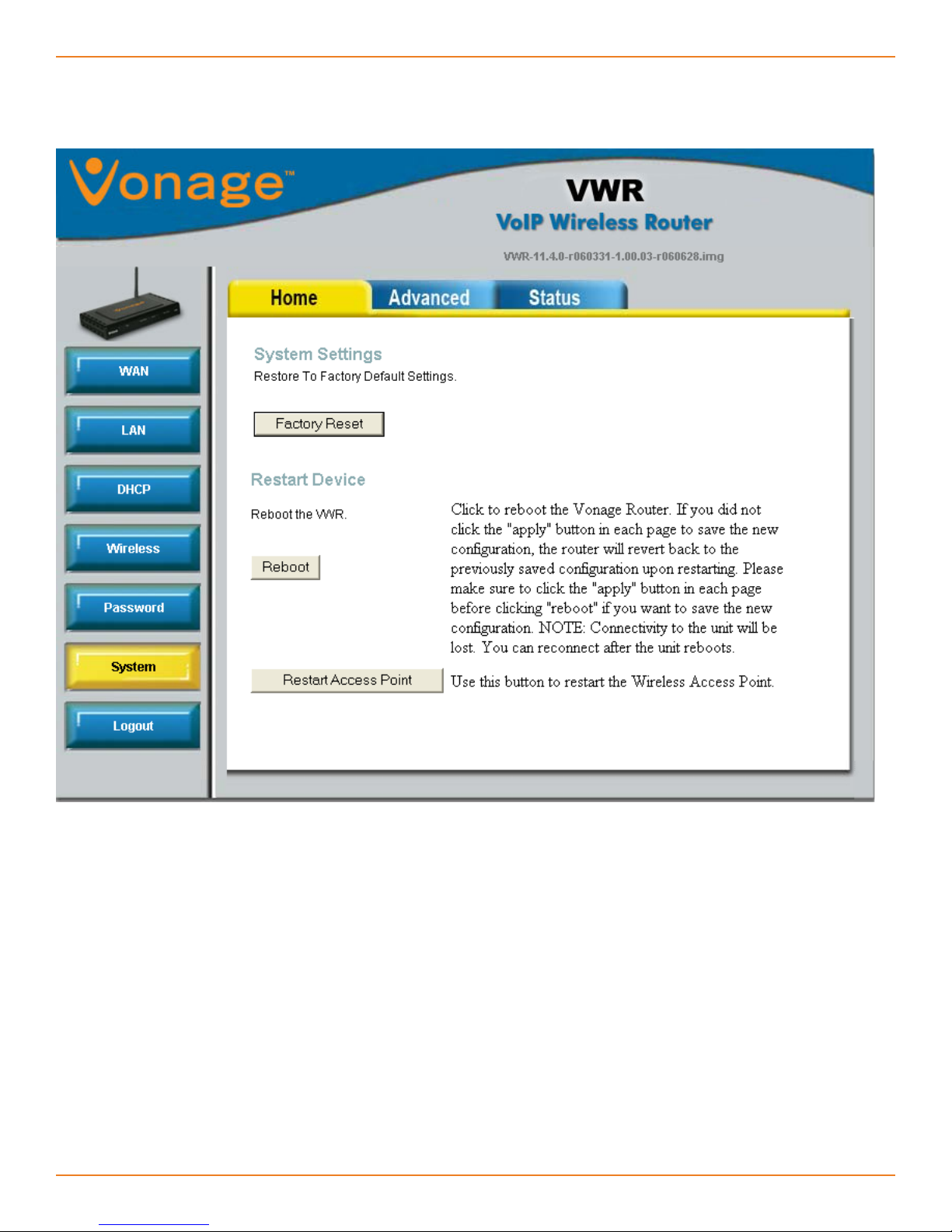

Configuration
Chapter 3 - Configuration
3
6D-Link VWR User Manual
Chapter 3 - Configuration
Login
Open a web browser such as Internet Explorer and enter the IP address (e.g. 192.168.15.1)
of the Vonage VWR router.
Enter user for the username and your password (default password is user). Click the
Login button.
7D-Link VWR User Manual
Chapter 3 - Configuration
WAN
Dynamic IP Address
Select Dynamic IP Address to obtain IP Address information automatically from your
ISP. Select this option if your ISP does not give you any IP numbers to use. This option is
commonly used for cable modem and satellite services.
Name - The host name is optional but may be required by some ISPs.
MAC Address - The default MAC Address is set to the Internet port’s physical interface
MAC address on the Vonage Router. It is not recommended that you change the default
MAC address unless required by your ISP. You can enter your PC’s MAC Address
manually to replace the Internet port’s MAC address with the MAC address of your
Ethernet card.
Apply ISP DNS and SNTP - Check this box to use the DNS servers and time server
(SNTP) supplied by your ISP.
8D-Link VWR User Manual
Chapter 3 - Configuration
Static IP Address
If you want to statically assign an IP address, click Static IP Address.
Select Static IP Address if all the Internet port’s IP information is provided to you by your
ISP. You will need to enter in the IP address, subnet mask, gateway address, and DNS
address(es) provided to you by your ISP. Each IP address entered in the fields must be
in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Vonage
VWR Device will not accept the IP address if it is not in this format.
IP Address - Enter the IP address assigned by your ISP.
Subnet Mask - Enter the Subnet Mask assigned by your ISP.
Default Gateway Address - Enter the Gateway assigned by your ISP.
DNS1/DNS2 - The DNS server information will be supplied by your ISP.
Apply ISP DNS and SNTP - Check this box to use the DNS servers and time server
(SNTP) supplied by your ISP.
9D-Link VWR User Manual
Chapter 3 - Configuration
LAN
IP Address - Enter the IP address of the Vonage VWR Device. The default IP address is
192.168.15.1. If you statically assign the IP settings on your computer(s), this IP address
must be the default gateway address and a DNS server address on your computer(s).
Note: If you change the IP address, once you click Apply, you will need to enter the new
IP address in your browser to get back into the configuration utility.
Subnet Mask - Enter the Subnet Mask. The default subnet mask is 255.255.255.0.
HostName - Enter a host name (Optional).
Domain - Enter your network domain name (Optional).
10D-Link VWR User Manual
Chapter 3 - Configuration
DHCP
DHCP stands for Dynamic Host Control Protocol. The Vonage VWR Device has a
built-in DHCP server. The DHCP Server will automatically assign an IP address to the
computers on the LAN/private network. Be sure to set your computers to be DHCP
clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you
turn your computers on, they will automatically load the proper TCP/IP settings provided
by the Vonage VWR Device. The DHCP Server will automatically allocate an unused
IP address from the IP address pool to the requesting computer. You must specify the
starting and ending address of the IP address pool.
11D-Link VWR User Manual
