D Link SPW320A1 User Manual
DSP-W320
Outdoor Wi-Fi Smart Plug

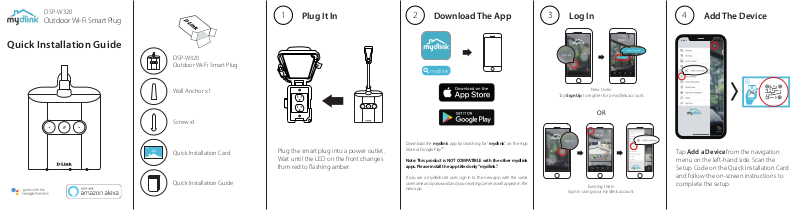

Quick Installation Guide
DSP-W320
Outdoor Wi-Fi Smart Plug
1
Plug It In
2 3 4
Download The App Log In Add The Device
mydlink
Wall Anchor x1
Screw x1
Quick Installation Card
Quick Installation Guide
Plug the smart plug into a power outlet.
Wait until the LED on the front changes
from red to flashing amber.
Download the mydlink app by searching for "mydlink" on the App
Store or Google PlayTM.
Note: This product is NOT COMPATIBLE with the other mydlink
apps. Please install the app titled only "mydlink."
If you are a mydlink Lite user, sign in to the new app with the same
username and password and your existing cameras will appear in the
new app.
Tap Sign Up to register for a mydlink account.
New Users:
OR
Existing Users:
Sign in using your mydlink account.
Tap Add a Device from the navigation
menu on the left-hand side. Scan the
Setup Code on the Quick Installation Card
and follow the on-screen instructions to
complete the setup.
Mounting
i
Device Information
!
Minimum Requirements
?
FAQPrecautions
Support
1 /
2 /
3 /
4 /
Place at the desired location at
least 2 feet from the ground.
Use a pencil to mark the hole
behind the mounting tab.
Use a 15/64" drill bit to drill
a 1-inch deep hole over the
pencil mark. Insert the plastic
anchor to support the screw.
Twist the screw into the
anchor. Leave 1/4" of the screw
exposed from the wall.
Align the screw with the hole
on the mount. Slide the mount
down to lock into place,
allowing it to hang.
Do not over tighten the screw.
Left Socket
Power Button
/ Power Status LED
System Status LED
Booting up / Resetting
Connected to Wi-Fi
Ready for setup / Disconnected
Firmware being upgraded
Right Socket
Power Button
/ Power Status LED
Reset Button
/ System Status LED
Power Status LED
Switched on
Switched off
Electric shock can cause serious injury or
death. Install only in a dry environment.
Do not place near any source of water or
potential flooding zones.
• Plug into a grounded electrical outlet. Do not
plug into an extension cord or power strip.
• If plugged into an outlet controlled by a wall
switch, assure that the switch is left in the on
position and is never turned off.
• Ensure that the plugs in the housing are facing
downwards.
• Do not exceed the electrical ratings.
• Keep away from children and pets.
• Do not open the unit to modify or repair it.
• Unplug from wall socket before cleaning.
To install this product, you will need:
• A 802.11n/g router
• An Internet connection
• An e-mail account (required to register for
mydlink service)
• The mydlink™ app is available for iPhone®, iPad®
and Android™ devices. Please refer to the mobile
app's store page to check whether your device is
compatible.
• An available power outlet
• Wall space under the outlet to mount the device
What do I do if my smart plug is not working
properly?
Reset the smart plug and reinstall the smart plug.
To reset your smart plug, press and hold the Reset
button until the LED turns solid red.
During installation, ensure that:
• you have an Internet connection on your router
• your router’s Wi-Fi is on
• your mobile device is connected to the Internet
How can I use voice commands to control my
smart plug?
The smart plug will work with both Amazon Alexa and
the Google Assistant. For setup instructions on these
services, visit the following websites:
Alexa:
https://www.dlink.com/en/alexa
The Google Assistant:
https://www.dlink.com/en/google-assistant
For troubleshooting tips and more
information, visit:
Canada - http://support.dlink.ca
USA - support.dlink.com
©2019 All rights reserved. D-Link and the D-Link logo
are registered trademarks of D-Link Corporation or its
subsidiaries. Product specification, size and shape are
subject to change without notice, and actual product
appearance may differ from that depicted on the
package. Visit dlink.ca for more details.
Version 1.00 (CA)_70X110 || June 6, 2019
