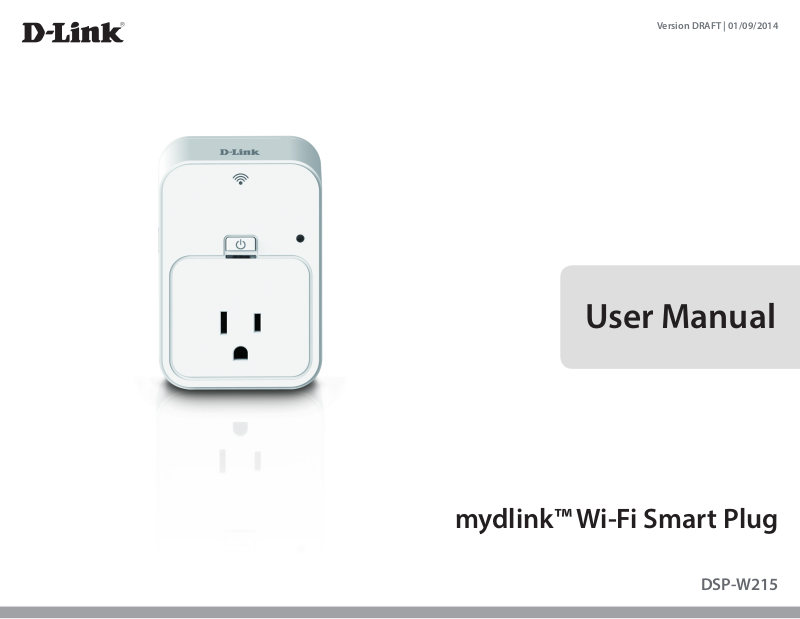

D Link SPW215A1 User Manual
Version DRAFT | 01/09/2014
User Manual
mydlink™ Wi-Fi Smart Plug
DSP-W215
Table of Contents
Table of Contents
Product Overview .............................................................................. 3
Package Contents ...........................................................................................3
Minimum Requirements ............................................................................... 3
Introduction ...................................................................................................... 4
Hardware Overview ........................................................................................ 5
LEDs and Buttons ................................................................................... 5
Installation Considerations .......................................................................... 6
Safety ................................................................................................................... 6
Wireless Installation Considerations ........................................................7
Installation and Setup ....................................................................... 8
Troubleshooting .............................................................................. 16
Technical Specications .................................................................. 17
Contacting Technical Support ........................................................18
Warranty ........................................................................................... 19
Registration .....................................................................................25
2D-Link DSP-W215 User Manual
Section 1 - Product Overview
DSP-W215 mydlink Wi-Fi Smart Plug
Quick Install Guide
If any of the above items are missing, please contact your reseller.
Product Overview
Package Contents
Minimum Requirements
Requirements
• IEEE 802.11n or 802.11g wireless router with Internet service
• An available power outlet
• Mobile device or tablet with iOS 6.0 - 7.0 or Android 4.0 - 4.3.
3D-Link DSP-W215 User Manual
Section 1 - Product Overview
Introduction
The DSP-W215 mydlink Wi-Fi Smart Plug is a multi-purpose, compact, and easy-to-use device that allows you to monitor and control your home’s
electronic devices from wherever you are. Scheduling provides a helpful way to save power while you’re at work or asleep, and the mydlink app provides
an easy way to check usage, set up alerts, or turn a device on or o. Most importantly, the DSP-W215 will safeguard against damage to your home and
appliances due to overheating, giving you peace of mind.
Control Your Power Usage From Anywhere
With the DSP-W215 mydlink Wi-Fi Smart Plug, you’ll have the ability to control the power supply to electronic devices in your home. Set a schedule that
turns your TV o when you’re asleep, have your hi- wake you up in the morning, or ensure that your desk lamps aren’t left on when you’re at work. The
handy mydlink smartphone app will allow you to switch your appliances on or o in an instant, or change your power schedules on-the-go, ensuring
that you won’t have to worry about leaving something on when you’re away.
Compact and Convenient
20% smaller than traditional plug-in timers, the DSP-W215 blends seamlessly into your wall outlet without needlessly taking up extra space. No extra
cables are necessary as the mydlink Wi-Fi Smart Plug simply layers over your existing plug socket, helping you keep your home free of clutter.
Easy to Set Up
Get set up in a snap; simply push the Wi-Fi Protected Setup (WPS) button on the DSP-W215 and on your home mydlink router, to establish a secure
connection in an instant. The mydlink Wi-Fi Smart Plug will automatically be added to your list of devices on the mydlink smartphone app, allowing
you to get started right away.
4D-Link DSP-W215 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs and Buttons
3
1
2
1 WPS/Reset Button
2 ON/OFF Button Press to turn the device ON or OFF.
3 Status LED
4 Power LED
5 Plug Connect your appliances, lamps, and other devices to monitor.
WPS Press for one second to start the WPS connection process. The Status LED will start to blink.
Reset Press and hold for 10 seconds to reset the device back to the factory default settings.
Solid Green The device is successfully connected to your network.
Blinking Green During the WPS process.
Blinking Orange The device is attempting to communicate with your wireless network.
Solid Red During power on/boot process or device is defective.
O The device is powered o. Press the on/o button to turn on.
Solid Green The device is powered on.
O
The device is turned o or not receiving power. Press the on/o button to turn on. If the device
will not power on, try another outlet.
4
5
5D-Link DSP-W215 User Manual
Section 1 - Product Overview
Installation Considerations
Plan the location of your Smart Plug devices:
1. Connect Smart Plug devices into electrical outlets that are not controlled by a wall switch. This will help you to avoid
accidentally turning o power to the device.
2. Verify that your Smart Plug devices are electrically rated to operate with the power available in your location.
3. Be sure to plug the power cables into properly grounded electrical outlets in order to help prevent against electrical
shock.
Safety
Please read all of the safety and operating instructions before using your device:
1. Do not open the device or attempt to repair or service it.
2. Use the device in a dry location, and avoid placing it in a humid environment.
3. Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect from
the power outlet and use a damp towel.
4. Keep the device out of direct sunlight.
5. Do not cover or block the vents on the device.
6. Make sure that the device has adequate room for ventilation.
7. Avoid placing the device near a heater or a radiator.
6D-Link DSP-W215 User Manual
Section 1 - Product Overview
Wireless Installation Considerations
The Smart Plug lets you access your network using a wireless connection from anywhere within the operating range of your wireless network. Keep
in mind the number and thickness of walls and ceilings, as well as the location of other objects that the wireless signals must pass through, may
limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The
key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the Smart Plug and other network devices to a minimum. Each wall or ceiling can reduce your
adapter’s range by 3-90 feet (1-30 meters). Position your devices so that the number of walls or ceilings is minimized.
2. Strive for a direct line between network devices. A wall that is 1.5 feet thick, at a 45-degree angle, will appear to be almost three feet thick. At a
two-degree angle it appears to be over 42 feet thick! Position your devices so that the signal will travel straight through a wall or ceiling, instead
of at an angle, for the best reception.
3. Be aware of the type of building materials separating your devices. A solid metal door or aluminum studs may have a negative eect on range.
Try to position the Smart Plug and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass,
steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least three to six feet) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or wireless products such as ceiling fans, lights, and home security systems, your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base
transmits a signal even when the phone is not in use.
7D-Link DSP-W215 User Manual
Section 2 - Installation and Setup
Installation and Setup
To install your Smart Plug, download and install the mydlink Wi-Fi Smart Plug app. This app will walk you through installing and conguring your
Smart Plug.
Step 1
Download the app from the App Store (iOS) or Google Play (Android).
Step 2
Once installed, launch the app.
Step 3
Plug in your Smart Plug in an available outlet. If the Power LED does not come on, press the On/O Button. The Power LED will turn on. Press Next
to continue.
8D-Link DSP-W215 User Manual
