AX3200 SMART ROUTER
R32
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes.
Manual Revisions
Hardware Revision Date Description
A1 v1.00 2022/2/21 Initial release
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other
countries. App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2022 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from
D-Link Corporation, Inc.
iD-Link R32 User Manual
ErP Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a powersaving Network Standby mode within 1 minute of no packets being transmitted.
R32 Network Standby: 6.55W
iiD-Link R32 User Manual
Table of Contents
Table of Contents
Product Overview ..............................................................1
Package Contents .........................................................................1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features .................................................................................... 3
Hardware Overview .....................................................................4
LED Indicators ........................................................................ 4
Back Panel ...............................................................................5
Installation ......................................................................... 6
Before you Begin ...........................................................................6
Wireless Installation Considerations ......................................7
Setup ................................................................................................. 8
EAGLE PRO AI Setup ............................................................ 9
Hardware Setup ..................................................................10
Setup Wizard ........................................................................13
Conguration ................................................................... 20
Home ..............................................................................................21
Internet ...................................................................................22
R32 ...........................................................................................23
Connected Clients ..............................................................24
Settings ..........................................................................................26
Wizard .....................................................................................26
Internet - IPv4 .......................................................................27
IPv4 - Dynamic IP (DHCP) ............................................28
IPv4 - Static IP ..................................................................29
IPv4 - PPPoE .....................................................................30
IPv4 - PPTP ........................................................................32
IPv4 - L2TP ........................................................................34
IPv4 - DS-Lite ...................................................................36
Internet - IPv6 .......................................................................37
IPv6 - Auto Detection ...................................................38
IPv6 - Static IPv6 .............................................................40
IPv6 - Auto Conguration (SLAAC/DHCPv6) ........ 42
IPv6 - PPPoE .....................................................................45
IPv6 - 6rd ...........................................................................49
IPv6 - Local Connectivity Only ..................................51
Internet - VLAN ....................................................................52
Wireless ..................................................................................54
Guest Zone .......................................................................60
Network ..................................................................................62
D-Link Cloud .........................................................................64
Operation Mode ..................................................................65
Features ..................................................................................66
Parental Control ..................................................................66
QoS Engine............................................................................69
Firewall ...................................................................................71
Firewall Settings - IPv4/IPv6 Rules ................................73
Port Forwarding ..................................................................75
Port Forwarding - Virtual Server ....................................77
Static Routes - IPv4 .............................................................79
Static Routes - IPv6 .............................................................80
Dynamic DNS .......................................................................81
Quick VPN ..............................................................................83
iiiD-Link R32 User Manual
Table of Contents
Management ................................................................................84
Time & Schedule - Time ....................................................84
Time & Schedule - Schedule ...........................................85
System Log ............................................................................86
System Admin - Admin .....................................................88
System Admin - System .................................................... 89
User ..........................................................................................90
Upgrade .................................................................................91
Statistics .................................................................................92
EAGLE PRO AI ...................................................................93
Voice Control .................................................................... 97
Link D-Link Cloud Service to Other Services ....................98
Google Home Setup ..........................................................98
Amazon Alexa Setup ...................................................... 103
Amazon Alexa Voice Commands ............................... 106
Windows 8.1/8 .......................................................................... 122
VPN Setup Instructions .................................................. 122
Connect or Disconnect .................................................. 127
Windows 10 ............................................................................... 128
VPN Setup Instructions .................................................. 128
Connect or Disconnect .................................................. 130
Android ....................................................................................... 131
VPN Setup Instructions .................................................. 131
Connect or Disconnect .................................................. 133
Connect a Wireless Client to your Router ....................134
WPS Button ................................................................................134
Windows® 10 ............................................................................. 135
Windows® 8 ................................................................................136
Windows® 7 ................................................................................138
Troubleshooting ............................................................ 140
The Google Assistant Setup .........................................107
Google Assistant Voice Commands .......................... 109
Quick VPN ....................................................................... 110
Important Information .......................................................... 111
iOS Devices ................................................................................ 112
VPN Setup Instructions .................................................. 112
Connect or Disconnect .................................................. 114
Mac OS X ..................................................................................... 115
VPN Setup Instructions .................................................. 115
Connect or Disconnect .................................................. 117
Windows 7 ..................................................................................118
VPN Setup Instructions .................................................. 118
Connect or Disconnect .................................................. 121
Wireless Basics ...............................................................142
Networking Basics .........................................................146
Wireless Security ...........................................................148
Technical Specications ................................................149
Wall Mounting ...............................................................150
Regulatory Statements .................................................151
ivD-Link R32 User Manual
Section 1 - Product Overview
R32 AX3200 Smart Router
Power Adapter (12V, 2A)
Ethernet Cable ( RJ45, 1m)
Product Overview
Package Contents
Quick Installation Guide
If any of the above items are missing or damaged, please contact your local reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the router will cause damage and void the warranty for this product.
1D-Link R32 User Manual
Section 1 - Product Overview
Network Requirements
Web-based
Conguration Utility
Requirements
System Requirements
• An Ethernet-based cable, DSL or ber modem
• IEEE 802.11ax/ac/n/g/b/a wireless clients
• 10/100/1000 Ethernet
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 11 or later
• Firefox 28 or later
• Safari 6 or later
• Chrome 28 or later
EAGLE PRO AI APP
Requirements
• iOS® or Android™ device (Please refer to the description of the
app’s page to check whether your device is compatible.)
2D-Link R32 User Manual
Section 1 - Product Overview
Introduction
Introducing the R32 AX3200 Wi-Fi 6 AI Router, the high-performance router with Next-Gen Wi-Fi 6 technology. The advanced AX3200 Wi-Fi blankets every
square inch of your home, fast and reliably, making it perfect for large homes with lots of connected devices. With R32, you can enjoy Wi-Fi that’s stable,
consistent, and truly intelligent. Thanks to the integrated voice assistant compatibility with Amazon Alexa and Google Assistant, you can control your network
with voice commands.
Features
High-speed Wireless Performance With Wireless 802.11ax Technology
Thanks to the latest wireless AX technology, the R32 supports bi-directional MU-MIMO technology as well as OFDMA technology to handle more devices
while reducing network latency, allowing users to participate in real-time activities online, such as video streaming, online gaming, and more with smooth
performance.
Intelligent Quality of Service Features
The Quality of Service (QoS) allows you to prioritize important trac to ensure that real-time applications are receiving optimal bandwidth. Moreover,
the built-in AI engine collects and analyzes trac data and noties administrators of high bandwidth consumption so that they can take prompt
action.
Smooth Wireless Connectivity with Maximized Bandwidth
The innovative AI Trac Optimizer provides weekly usage report to inform administrators of the consumption of network bandwidth along with heavy
users. It also rates the overall condition of the wireless network and states the number of times the engine has optimized the network automatically based
on the network conditions and usage data.
Always Up-to-Date with the Latest Features
The R32 will automatically check updates daily to make sure that the device always has the latest features and the most secure rmware. For an extra
peace of mind, in the event of failure during the rmware update, the router will store a backup system image in the memory before proceeding
with the update.
3D-Link R32 User Manual
Section 1 - Product Overview
Hardware Overview

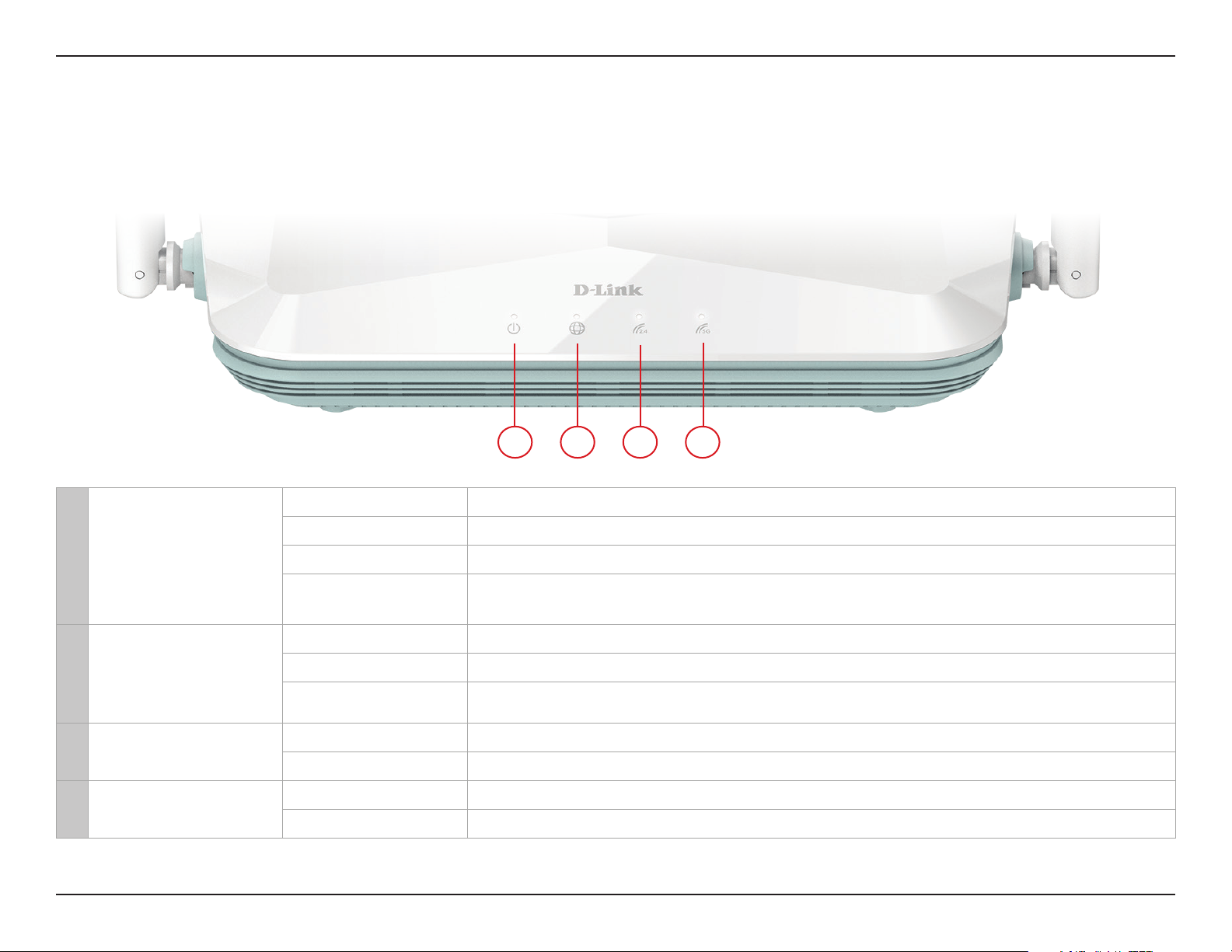

LED Indicators
1 2 3 4
1 Power
2 Internet
3 Wireless (2.4 GHz)
4 Wireless (5 GHz)
Solid White The device is on and the system is healthy.
Solid Orange The device is booting up or performing factory reset.
Blinking Orange The device is under recovery mode.
White/Orange
Interchanging
Solid White The Internet connection is established.
Solid Orange The device cannot connect to the Internet.
Blinking Orange Internet access has been paused.
Solid White The 2.4 GHz wireless band is enabled.
Blinking White The device is transmitting data or WPS is being processed.
Solid White The 5 GHz wireless band is enabled.
Blinking White The device is transmitting data or WPS is being processed.
The device is performing rmware upgrade.
4D-Link R32 User Manual
Section 1 - Product Overview
Back Panel
1
1
2 Gigabit WAN Port Connect your broadband modem to the WAN port.
3 Reset Button
4 WPS Button
5 Power Connector Connector for the supplied power adapter.
6 Power Button Press the power button to power the device on or o.
Gigabit LAN Ports
(1- 4)
Connect Ethernet devices such as computers, switches, storage (NAS) devices, and game
consoles.
Press the Reset button with a paperclip until the power indicator turns orange to reset your
device.
Press to start the WPS process and automatically create an encrypted connection to a WPS
client.
2 345
6
5D-Link R32 User Manual
Section 2 - Installation
Installation
This section will walk you through the installation of your R32.
Before you Begin
• Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, attic, or
garage.
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that it is
connected to the Internet before connecting additional devices.
• If your ISP provides you with a modem/router combo, you will need to set it to bridge or router mode depending on your
usage requirements. Please contact your ISP or refer to the user manual for your modem/router device.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then
you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the
router, then turn the modem back on. In some cases, you may need to call your Internet Service Provider (ISP) to change
connection types (USB to Ethernet).
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service
Provider handy. This information is likely to include your DSL account's username and password. Your ISP may also supply
you with additional WAN conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to label
each cable or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoET,
BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.
6D-Link R32 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or
ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or
ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so
that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try
to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways.
Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and
concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is
as far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use.
7D-Link R32 User Manual
Section 2 - Installation
Setup
There are several ways you can congure your router to connect to the Internet
• EAGLE PRO AI - Use your compatible iOS or Android device to install and congure your router. Refer to EAGLE PRO AI
Setup on page 9.
• Hardware Setup - This section explains how to set up your R32. Refer to Hardware Setup on page 10.
• D-Link Setup Wizard - This wizard will launch when you log in to the router using your browser for the rst time. Refer to
Setup Wizard on page 13.
• Manual Setup - Log in to the router to manually congure your router. Refer to Conguration on page 20
8D-Link R32 User Manual
Section 2 - Installation
EAGLE PRO AI Setup
The EAGLE PRO AI allows you to install and congure your R32 from your compatible Android or iOS device.
Note: The screenshots may dier depending on your mobile device’s OS version. However, the process is the same.
Step 1
Search and install the free EAGLE PRO AI available on the App Store or on
Google Play.
Step 2
Launch the EAGLE PRO AI from the home screen of your device.
Step 3
Tap Install New Device. Scan the setup code on the device label on the
bottom of the router. Follow the on-screen instructions to complete the
setup.
9D-Link R32 User Manual
Section 2 - Installation

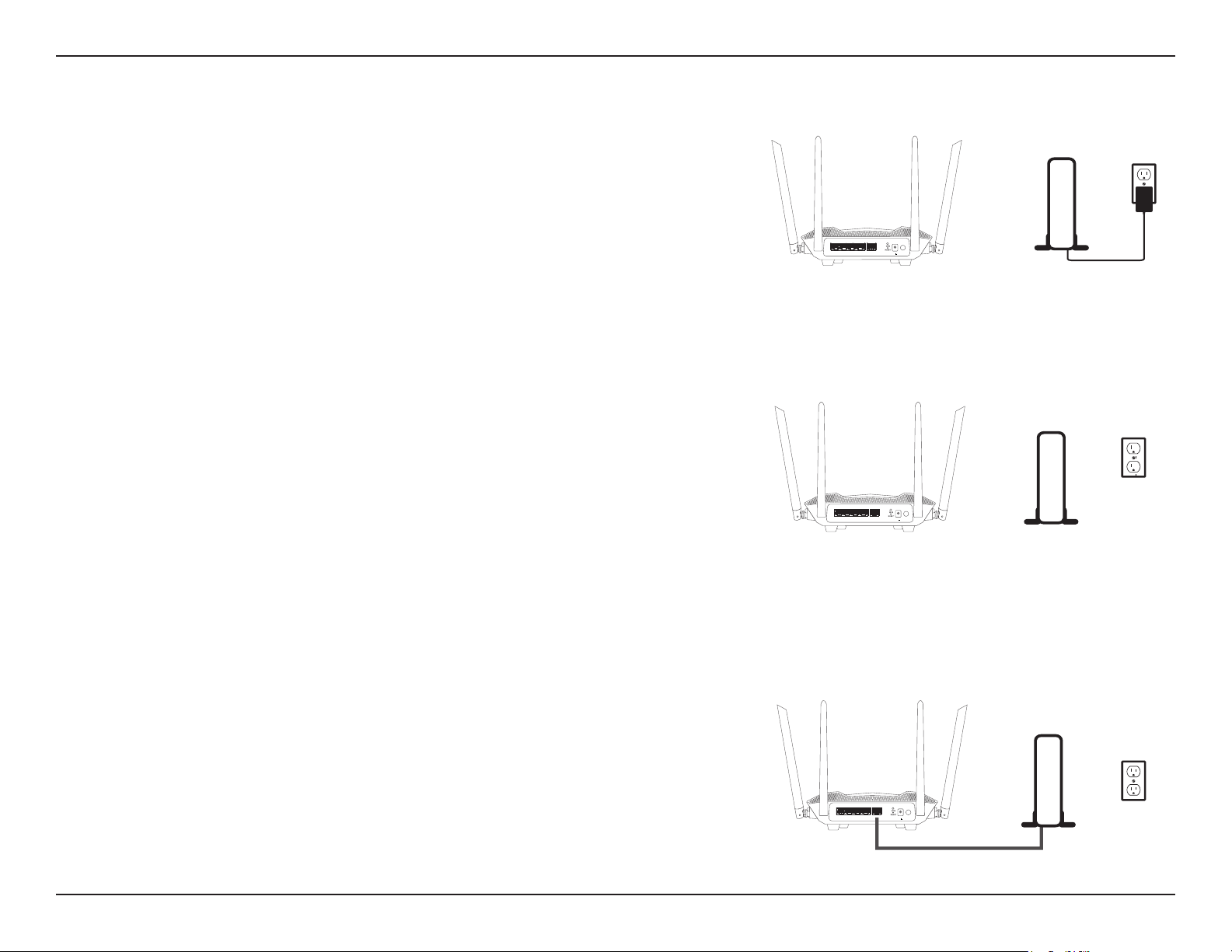

Hardware Setup
Step 1
Position your R32 near your Internet-connected modem.
Step 2
Turn o or unplug your DSL broadband modem. This is required. In some
cases, you may need to turn it o for up to ve minutes.
Modem
INTERNET
3
4
2 1
DC IN
POWER
2A
12V
Modem
INTERNET
3
4
2 1
DC IN
POWER
2A
12V
Step 3
Connect your modem to the INTERNET port on the router with an Ethernet
cable.
INTERNET
3
4
2 1
DC IN
POWER
2A
12V
10D-Link R32 User Manual
Modem
Section 2 - Installation
Step 4
Plug in the power and turn your modem back on and wait approximately
one minute before proceeding with the procedure.
Step 5
Connect the supplied power adapter to the router and a power outlet, and
wait approximately one minute until the LED indicator on the front of the
device changes from orange to solid white.
INTERNET
3
4
2 1
DC IN
POWER
2A
12V
Modem
Modem
INTERNET
3
4
2 1
DC IN
POWER
2A
12V
Step 6
If you are conguring the router wirelessly from a PC, connect to the Wi-Fi network name printed on the label attached to
the bottom of your router. Note: The Wi-Fi name (SSID), Wi-Fi password, and device password are printed on the device
label on the bottom of the device.
SSID:
Password:
INTERNET
3
4
2 1
DC IN
POWER
2A
12V
Modem
11D-Link R32 User Manual
Section 2 - Installation
If you are conguring the router from a PC with a wired Ethernet connection, plug one end of an Ethernet cable into the
port labelled 1 on the back of the router, and the other end into the Ethernet port on your computer.
INTERNET
3
4
2 1
DC IN
POWER
2A
12V
Step 7
If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already. Try
opening a web browser and connecting to a website. If the website does not load, visit Setup Wizard on page 13 for
further instructions.
Modem
12D-Link R32 User Manual
Section 2 - Installation
Setup Wizard
The setup wizard is designed to guide you through a step-by-step process of conguring your new R32 for Internet connection.
If this is your rst time installing the router, open your web browser and
enter http://XXXX.devicesetup.net/ into the browser (XXXX represents the
last 4 digits of the MAC address). Enter the Admin Password and click Log In
to start the configuration process. The web address and device password are
printed on the device label on the bottom of the device.
Agree to the Terms of Use and Privacy Policy before proceeding.
http://xxxx.devicesetup.net/
13D-Link R32 User Manual
Section 2 - Installation

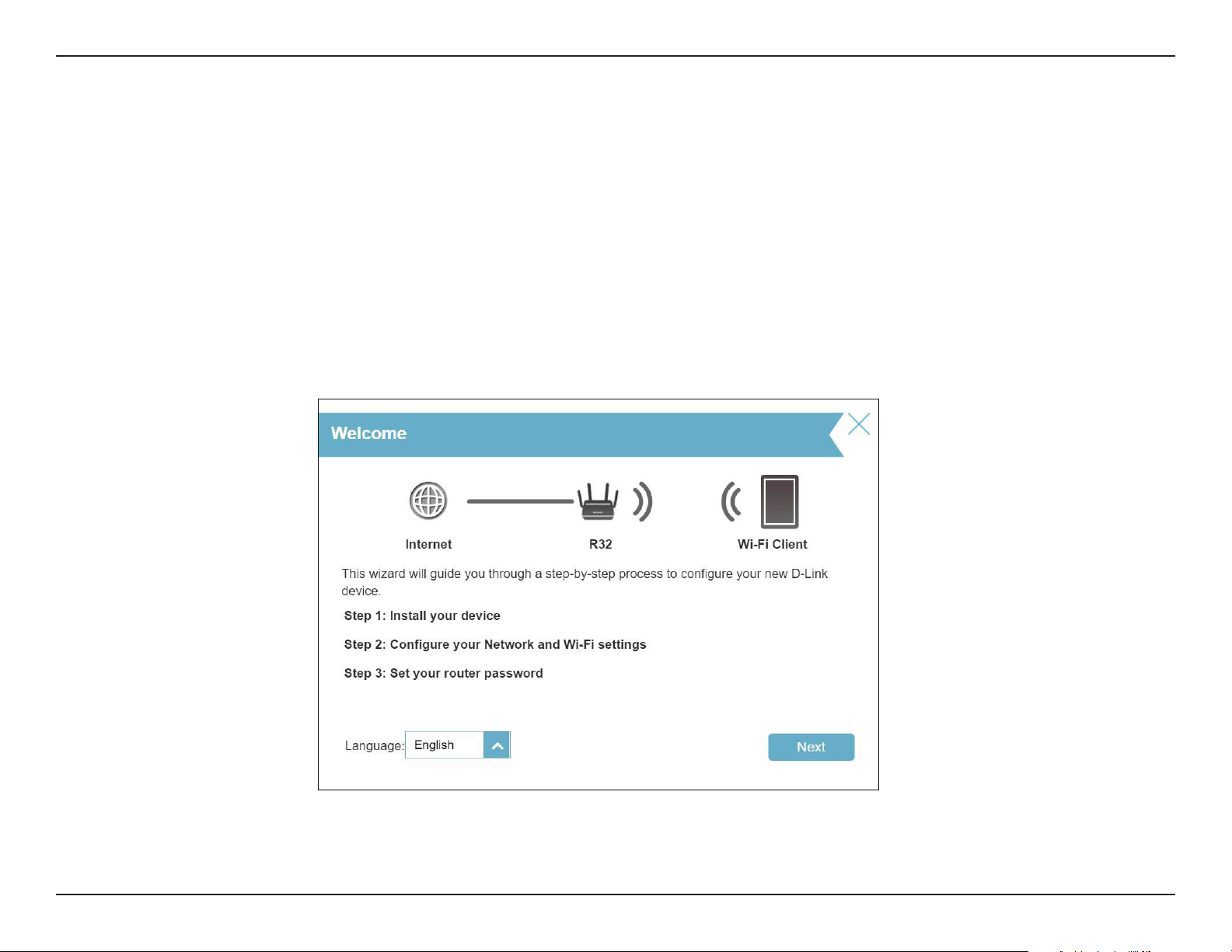

Follow the on-screen instructions to congure your new D-Link router and
connect to the Internet.
Click Next to continue.
Connect the router and the modem with an Ethernet cable.
14D-Link R32 User Manual
Section 2 - Installation

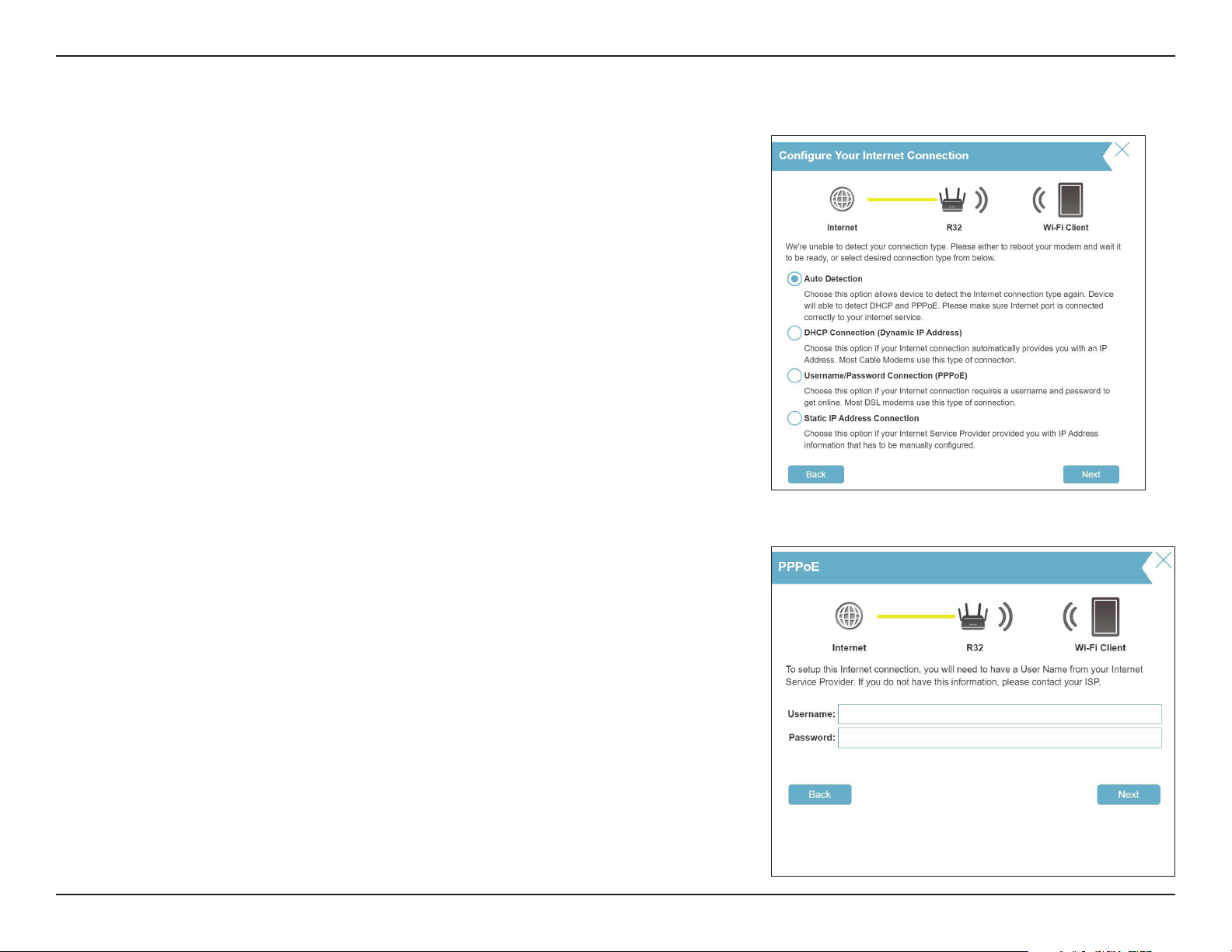

If the router does not detect a valid Internet connection, a list of connection
types will be displayed. Select your Internet connection type (this information
can be obtained from your Internet Service Provider).
Click Next to continue.
If the router detects or you select PPPoE, enter your PPPoE username and
password. If you do not have this information, please contact your ISP.
Click Next to continue.
Note: Be sure to remove all other existing PPPoE software from your computer.
The software is no longer needed and will not work through a router.
15D-Link R32 User Manual
Section 2 - Installation
If the router detects or you select Static, enter the IP and DNS settings supplied
by your ISP. If you do not have this information, please contact your ISP.
Click Next to continue.
Type in a Wi-Fi Network Name and Wi-Fi Password to set up your Wi-Fi
network. Your wireless clients will need this network password to be able to
connect to your wireless network.
Click Next to continue.
Note: The router's Smart Connect feature presents a single wireless network. When
connecting clients to an extended network, they will be automatically added to
the best band, either 2.4 GHz or 5 GHz. To disable the Smart Connect feature and
individually congure 2.4 GHz and 5 GHz networks, refer to Wireless on page 54.
16D-Link R32 User Manual
Section 2 - Installation

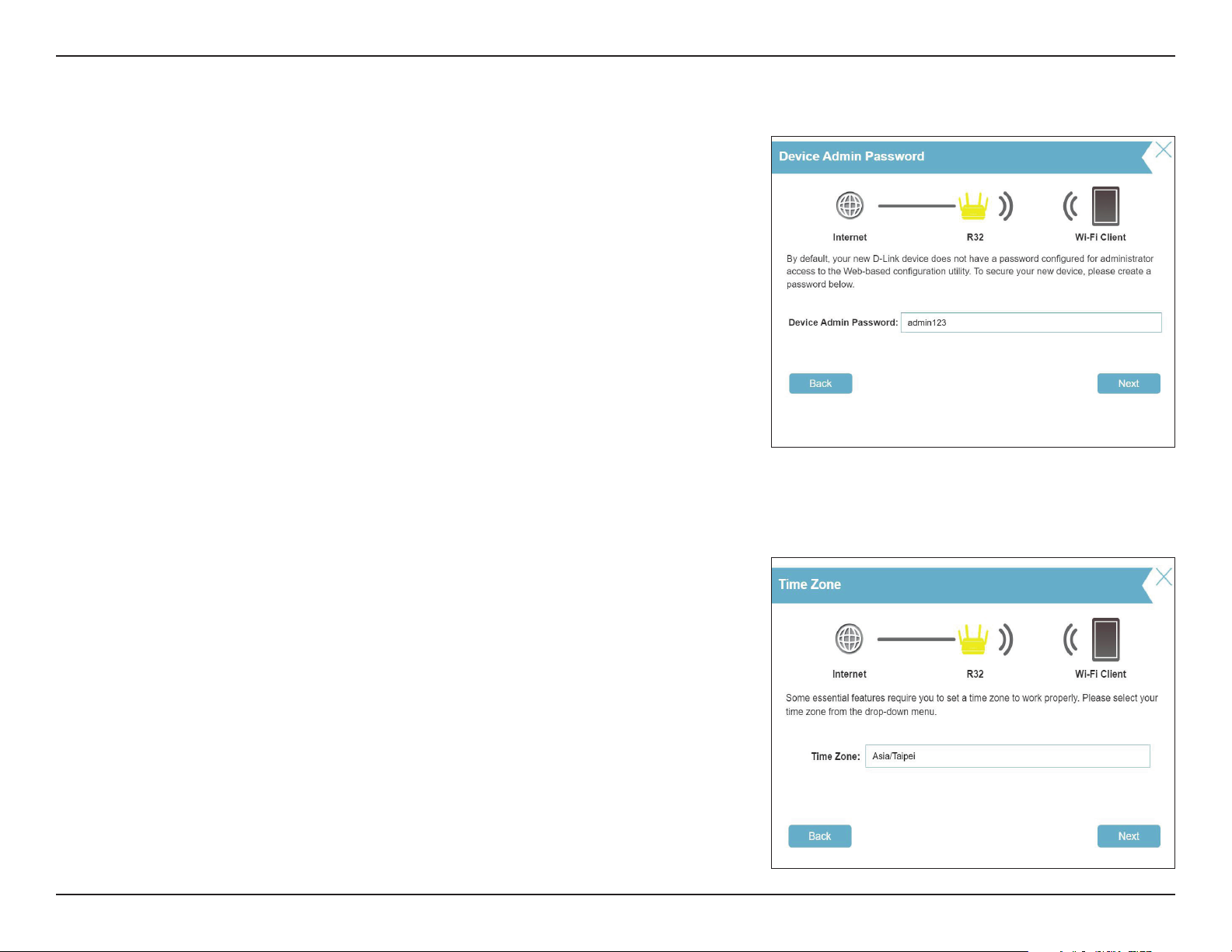

In order to better protect the router's conguration page, please enter a
password. You will be prompted for this password every time you log in to
the router’s web conguration utility. Password must be 8-15 characters and
contains both numbers and letters.
Note: It is strongly recommended that you change the default device password
for accessing the router's conguration page.
Click Next to continue.
Select your time zone from the drop-down menu.
Click Next to continue.
17D-Link R32 User Manual
Section 2 - Installation

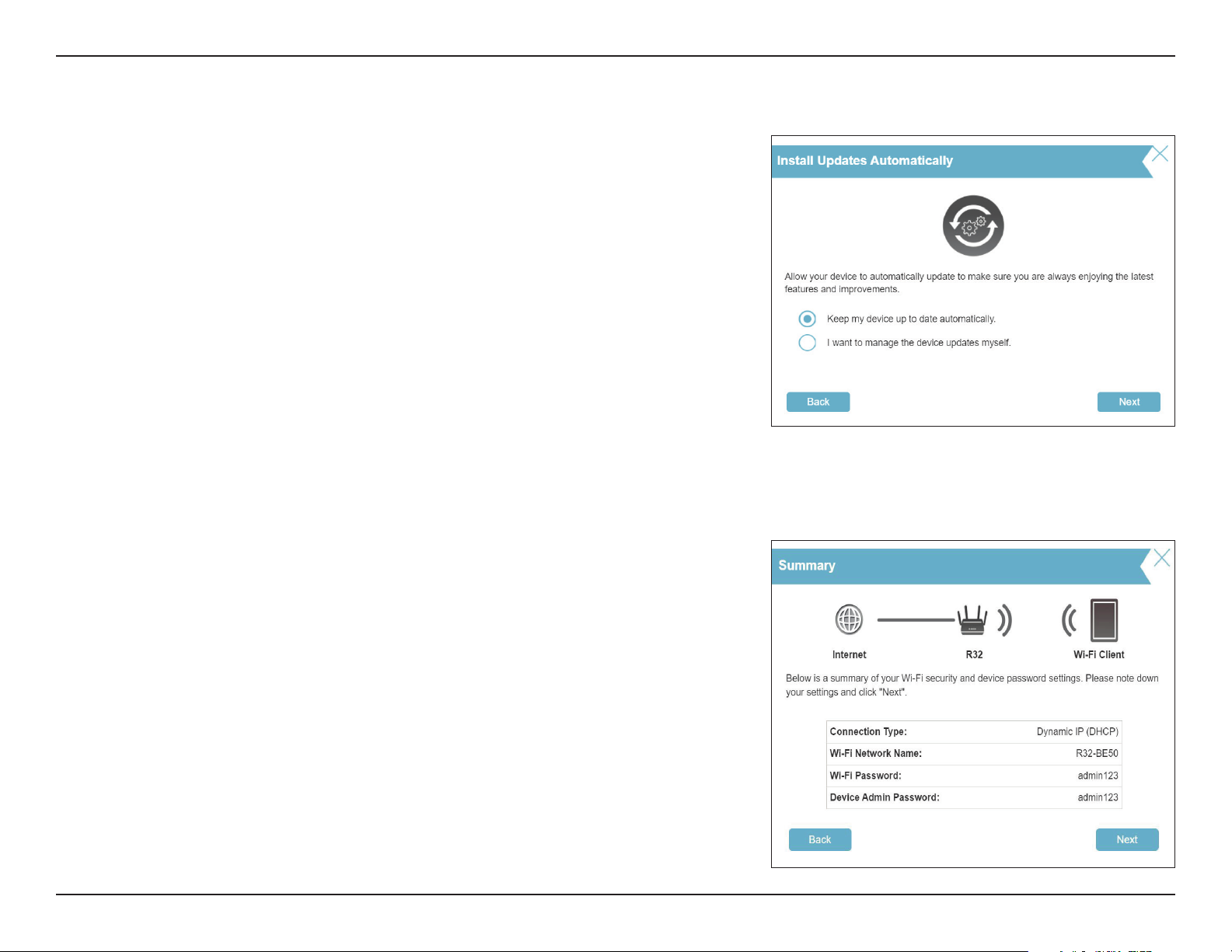

Keeping your router's rmware up-to-date provides you with the latest security
upgrades and new features over the air. Choose whether to keep your device
up-to-date automatically or to manage the device updates by yourself.
Click Next to continue.
You will be presented with a summary of your settings.
Click Next to apply the settings or Back to make changes.
18D-Link R32 User Manual
Section 2 - Installation

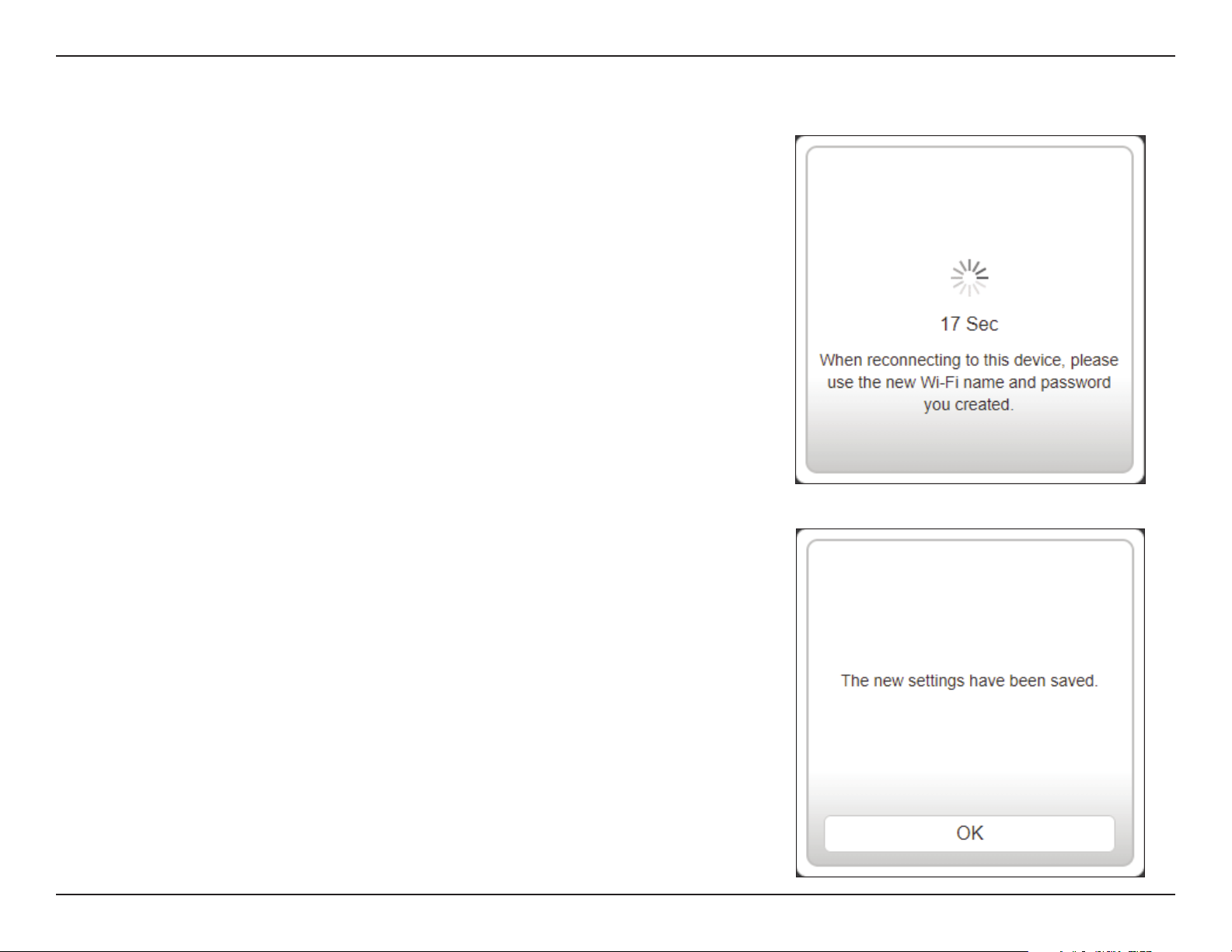

Please wait while the device settings are saved.
Do not turn o or unplug your router during this time.
Your new settings have been saved and your router is now congured.
Click OK to close the Setup Wizard.
Congratulations, your device has been successfully congured!
You can log in to the web conguration interface with the Admin Password.
19D-Link R32 User Manual
Section 3 - Conguration
Conguration
If this is your rst time installing the router, open your web browser and
enter the default management address at
(where XXXX represents the last 4 digits of the MAC address).
Note: If you forgot your password for login, press the Reset button on the back
of the device to restore the router to its default settings.
The router’s home page displays its current connection status.
http://XXXX.devicesetup.net/.
http://xxxx.devicesetup.net/
You can access Settings, Features, and Management functions from the
menu on the left. The AI Assistant (An AI-assisted notication center for
reports on Wi-Fi conditions and bandwidth utilization) can be accessed by
clicking
bee turned on to receive messages.
Note: The system will automatically log out after a period (180 seconds) of
inactivity.
from the top right. Note that the AI-assisted functions needs to
20D-Link R32 User Manual
Section 3 - Conguration
Home

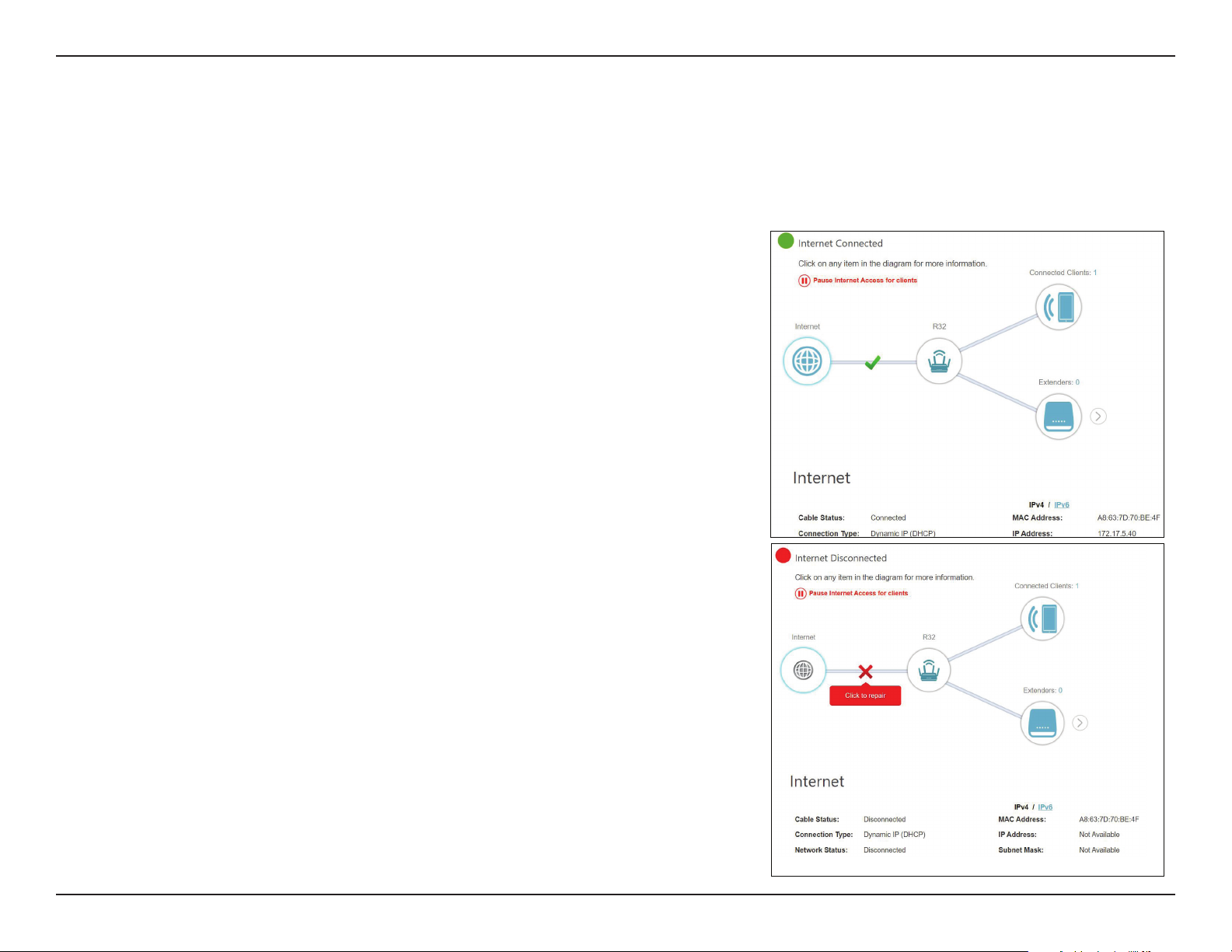

The Home page displays the status of the router in the form of an interactive diagram. You can click each icon to display
information about the components of the network at the bottom of the screen. The left pane allows you to quickly navigate
to other pages.
The Home page displays whether the router is currently connected to the
Internet.
If it is disconnected, click Click to repair to bring up the setup wizard, refer
to the Setup Wizard on page 13 for more information.
21D-Link R32 User Manual
Section 3 - Conguration
Internet

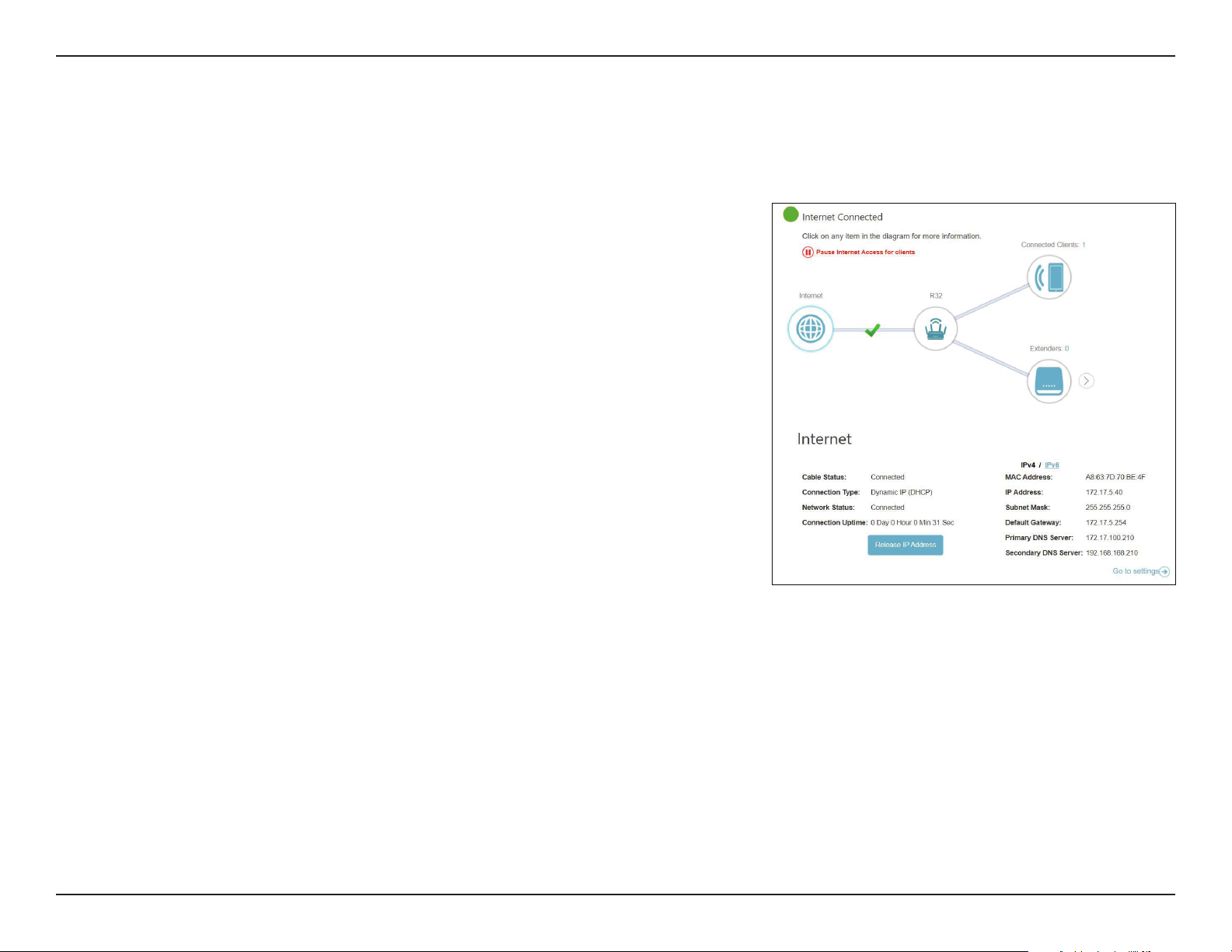

To bring up more details about your Internet connection, click on the Internet icon.
Click IPv4 or IPv6 to see details of the IPv4 connection and IPv6 connection
respectively.
Click Release IP Address to disconnect from the Internet. To reconnect, click
Renew IP Address.
To recongure the Internet settings, refer to Internet - IPv4 on page 27.
22D-Link R32 User Manual
Section 3 - Conguration
R32
Click on the R32 icon to view details about the router and its wireless settings.
Here you can see the router’s current Wi-Fi network name and password, as
well as the router's MAC address, IPv4 address, and IPv6 address.
To recongure network settings, either click Go to settings at the bottom of
the page, or click Settings > Network (in the left pane). Refer to Network on
page 62 for more information.

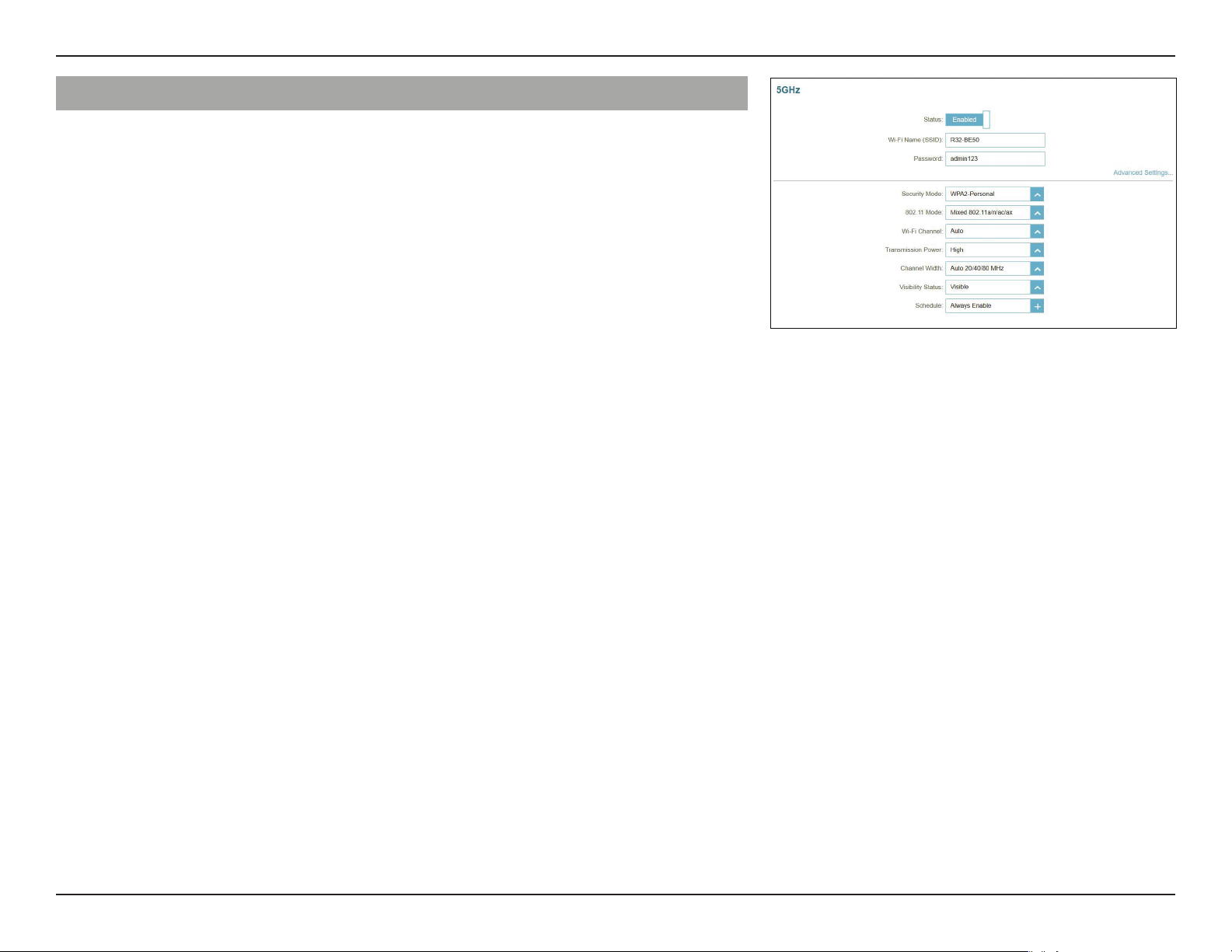

To recongure wireless settings, either click Go to settings, on the lower
right, or click Settings > Wireless menu (in the left pane). Refer to Wireless
on page 54 for more information.
23D-Link R32 User Manual
Section 3 - Conguration
Connected Clients
Click on the Connected Clients icon to obtain information about the connected clients of the router.
On this page you can see all the clients currently connected to the router
along with their IP addresses and device manufacturers.
To view more information about a client or edit a client’s settings such as IP
reservation and parental control, click
on the client you want to edit.
24D-Link R32 User Manual
Section 3 - Conguration
Click Save when you are done.

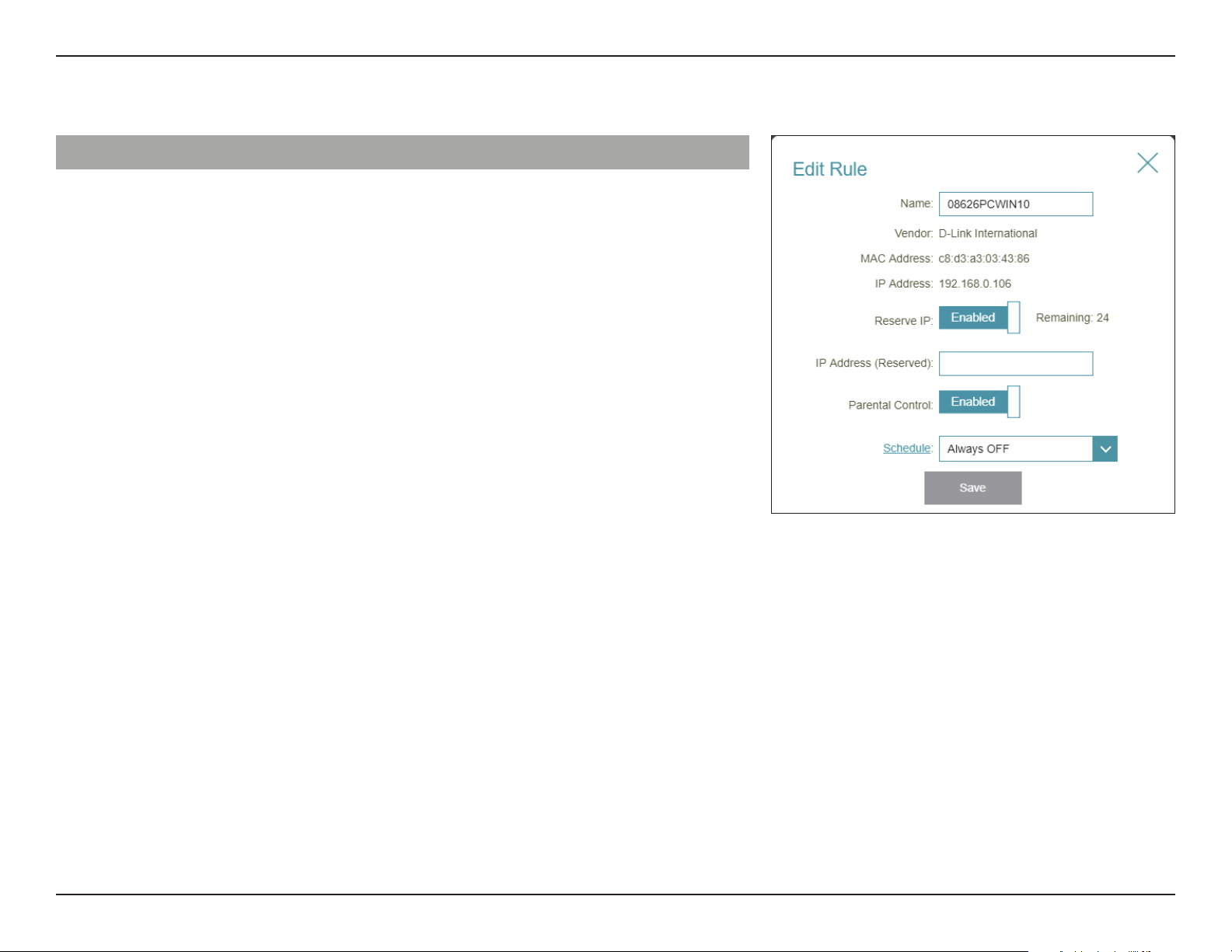

Edit Rule
Name Enter a custom name for this client.
Vendor Displays the vendor of the client.
MAC Address Displays the MAC address of the client.
IP Address Displays the current IP address of the client.
Reserve IP Click Enable to reserve an IP address for the client.
IP Address (Reserved) Specify an IP address for the router's DHCP server to assign.
Parental Control Enable Parental Control and select a prole to control the
client's Internet access. Make sure that this device is also on
the device list of the selected prole.
Prole Use the drop-down menu to select a prole to be used for
Parental Control. The prole can be set to Always Block to
have this client blocked from accessing the Internet, or you
can create your own proles to specify the times that the
client can access the network. You can also block access to
unwanted websites. Refer to Features > Parental Control
on page 66 for more information.
25D-Link R32 User Manual
Section 3 - Conguration
Settings
Wizard
Go to Settings > Wizard to open the setup wizard. This is the same wizard that appears when you start the router for the
rst time. Refer to Setup Wizard on page 13 for details.
Note: When the Wizard is opened, the router will disconnect from the Internet.
26D-Link R32 User Manual
Section 3 - Conguration
Internet - IPv4
Go to Settings > Internet to see the Internet conguration options for IPv4 connection.

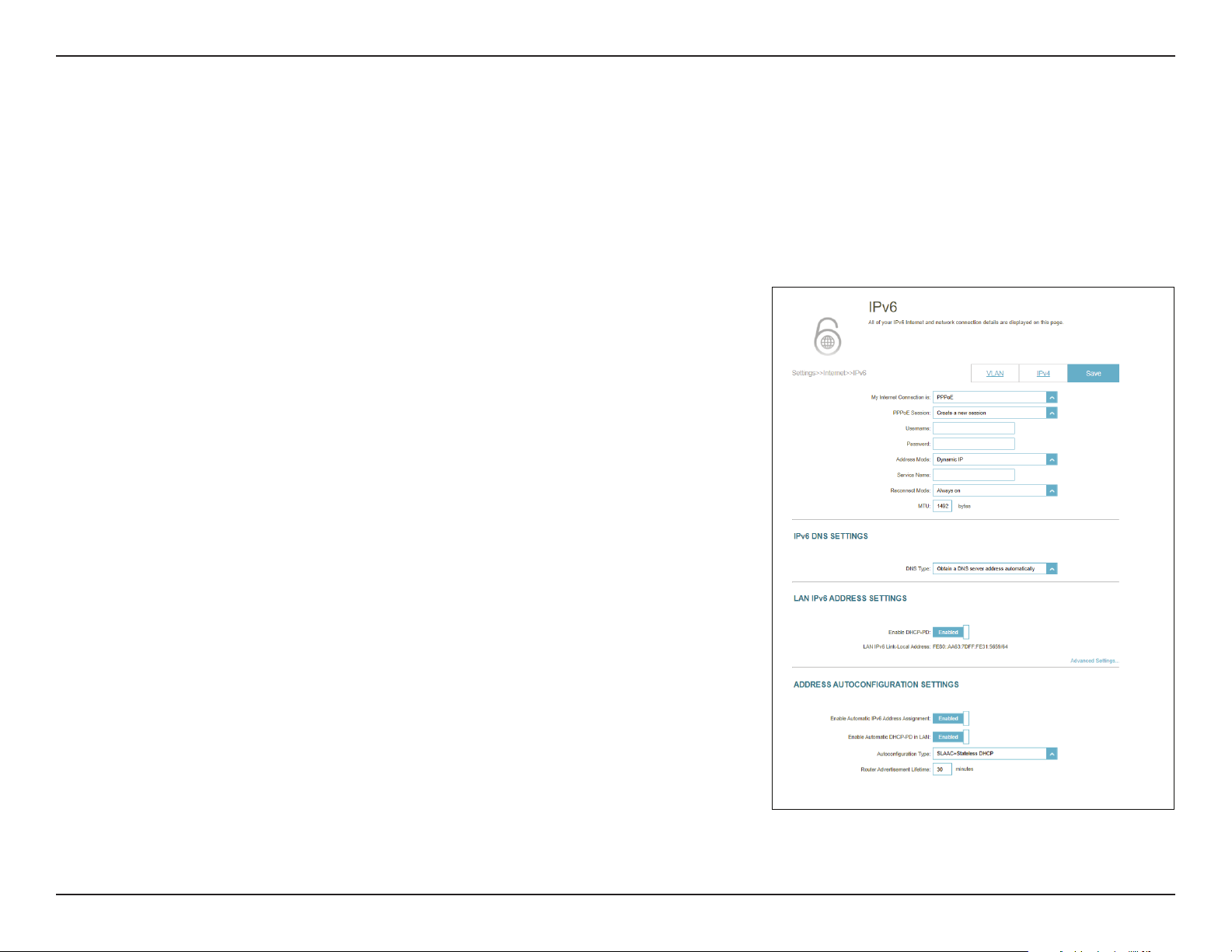

To congure IPv6 Internet and network connection details, click the IPv6 tab. Refer to Internet - IPv6 on page 37.

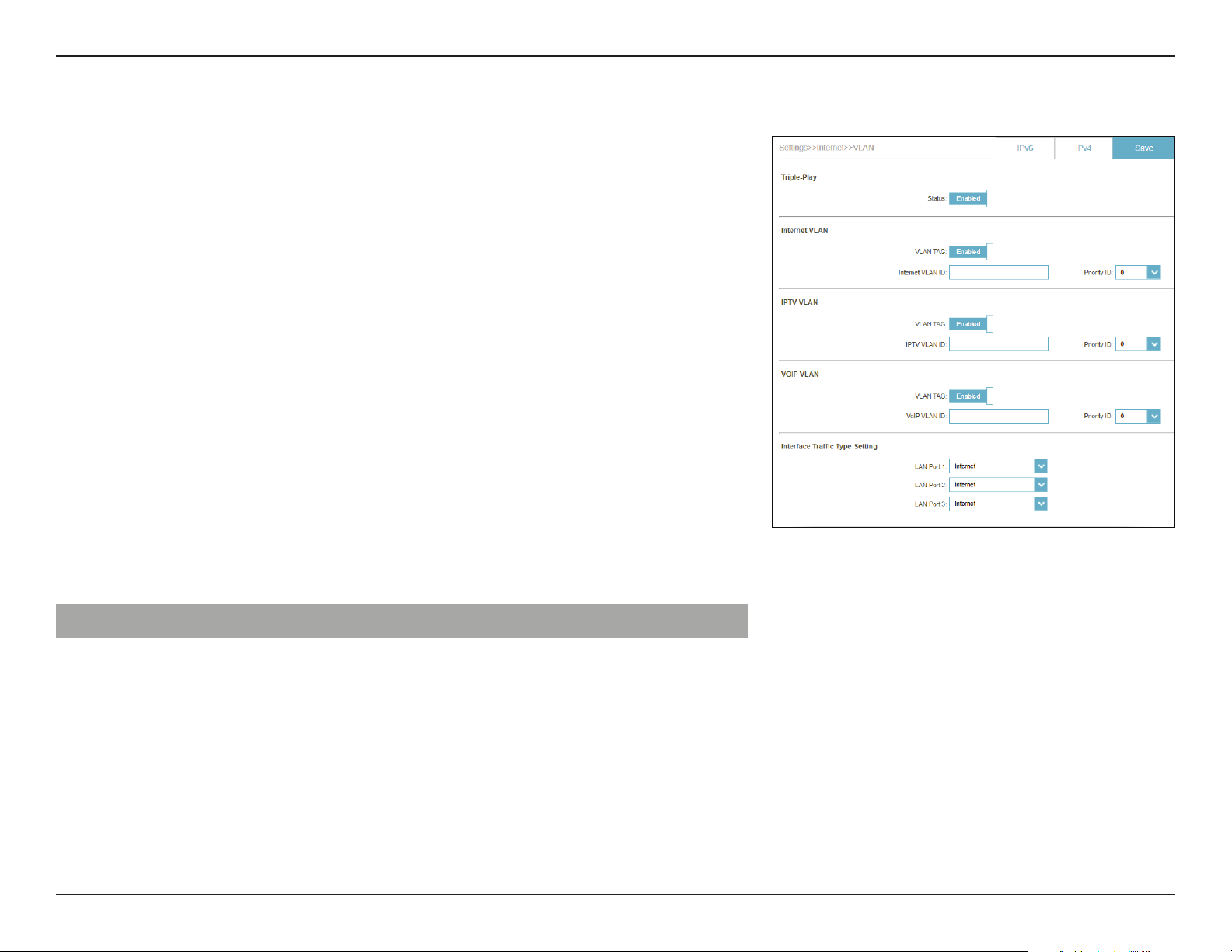

To congure VLAN connection details, click the VLAN link. Refer to Internet - VLAN on page 52.
Click Save at any time to save the changes you have made on this page.
My Internet
Connection is
Choose your Internet connection type from the drop-down menu.
You will be presented with more options for your connection type.
For IPv4 - Dynamic IP (DHCP) refer to page 28
For IPv4 - Static IP refer to page 29
For IPv4 - PPPoE refer to page 30
For IPv4 - PPTP refer to page 32
For IPv4 - L2TP refer to page 34
For IPv4 - DS-Lite refer to page 36
27D-Link R32 User Manual
Section 3 - Conguration
IPv4 - Dynamic IP (DHCP)
Select Dynamic IP (DHCP) to obtain IP address information automatically from your Internet Service Provider (ISP). Select
this option if your ISP does not specify an IP address to use. Click Save at any time to save the changes you have made on this
page.
Advanced Settings...
Host Name The host name is optional but may be required by some ISPs.
Leave it blank if you are not sure.
Primary DNS Server Enter the primary DNS server IP address assigned by your ISP.
This address is usually lled in automatically.
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP. This address is usually lled in automatically.
MTU Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your ISP. The default is 1500.
MAC Address Clone
Secure DNS
DNS over HTTP Provider
Allow Fall-back
The default MAC address is set to the Internet port’s physical
interface MAC address on the router. You can replace the
Internet port’s MAC address with the MAC address of a
connected client.
Enable this option to use public DNS with encryption via DNSover-HTTPS (DoH).
Select the public DNS service provider: Google or Cloudare.
Use your primary or secondary DNS server as an alternative if
the congured provider is not working.
28D-Link R32 User Manual
Section 3 - Conguration

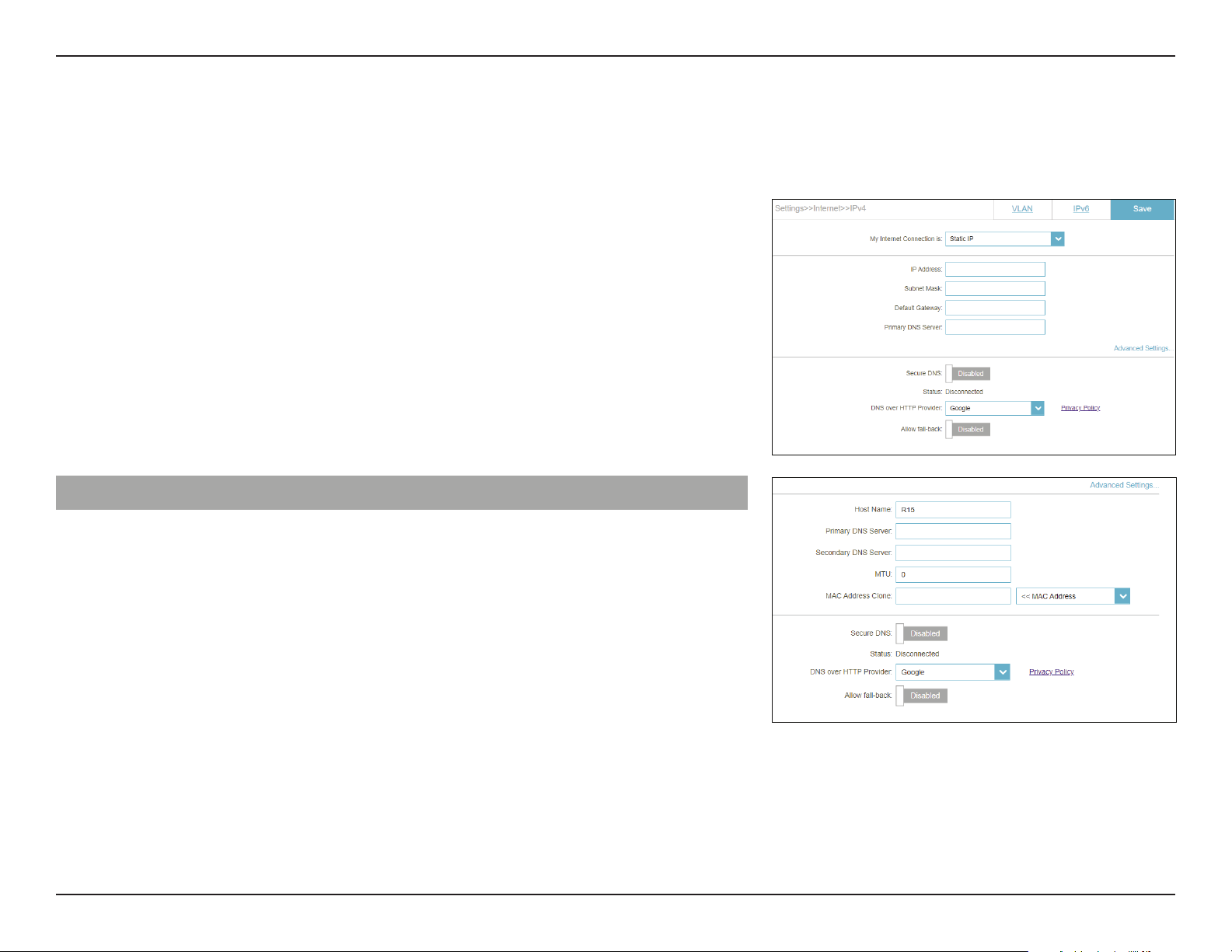

IPv4 - Static IP
Select Static IP if your IP information is provided by your Internet Service Provider (ISP). Click Save at any time to save the
changes you have made on this page.
IP Address Enter the IP address provided by your ISP.
Subnet Mask Enter the subnet mask provided by your ISP.
Default Gateway Enter the default gateway address provided by your ISP.
Primary DNS Server Enter the primary DNS server IP address provided by your ISP.
Advanced Settings...
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP.
MTU Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your ISP.
MAC Address Clone
Secure DNS
DNS over HTTP Provider
Allow Fall-back
The default MAC address is set to the Internet port’s physical
interface MAC address on the router. You can replace the
Internet port’s MAC address with the MAC address of a
connected client.
Enable this option to use public DNS with encryption via DNSover-HTTPS (DoH).
Select the DNS-over-HTTPS (DoH) service provider: Google
or Cloudare.
Use your primary or secondary DNS server as an alternative if
the congured provider is not working.
29D-Link R32 User Manual
Section 3 - Conguration
IPv4 - PPPoE
Select PPPoE (Point-to-Point Protocol over Ethernet) if your ISP requires you to enter a PPPoE username and password in
order to connect to the Internet. Click Save at any time to save the changes you have made on this page.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Reconnect Mode Select either Always on, On Demand, or Manual.
Maximum Idle Time Congurable when On Demand is selected. Enter a maximum
idle time during which the Internet connection is maintained
during inactivity. To disable this feature, select Always on or
Manual as the reconnect mode. The default is 5 minutes.
Advanced Settings...
Address Mode Select Static IP if the following information has been provided
by your ISP: IP address, MTU, and DNS server addresses. In most
cases, select Dynamic IP.

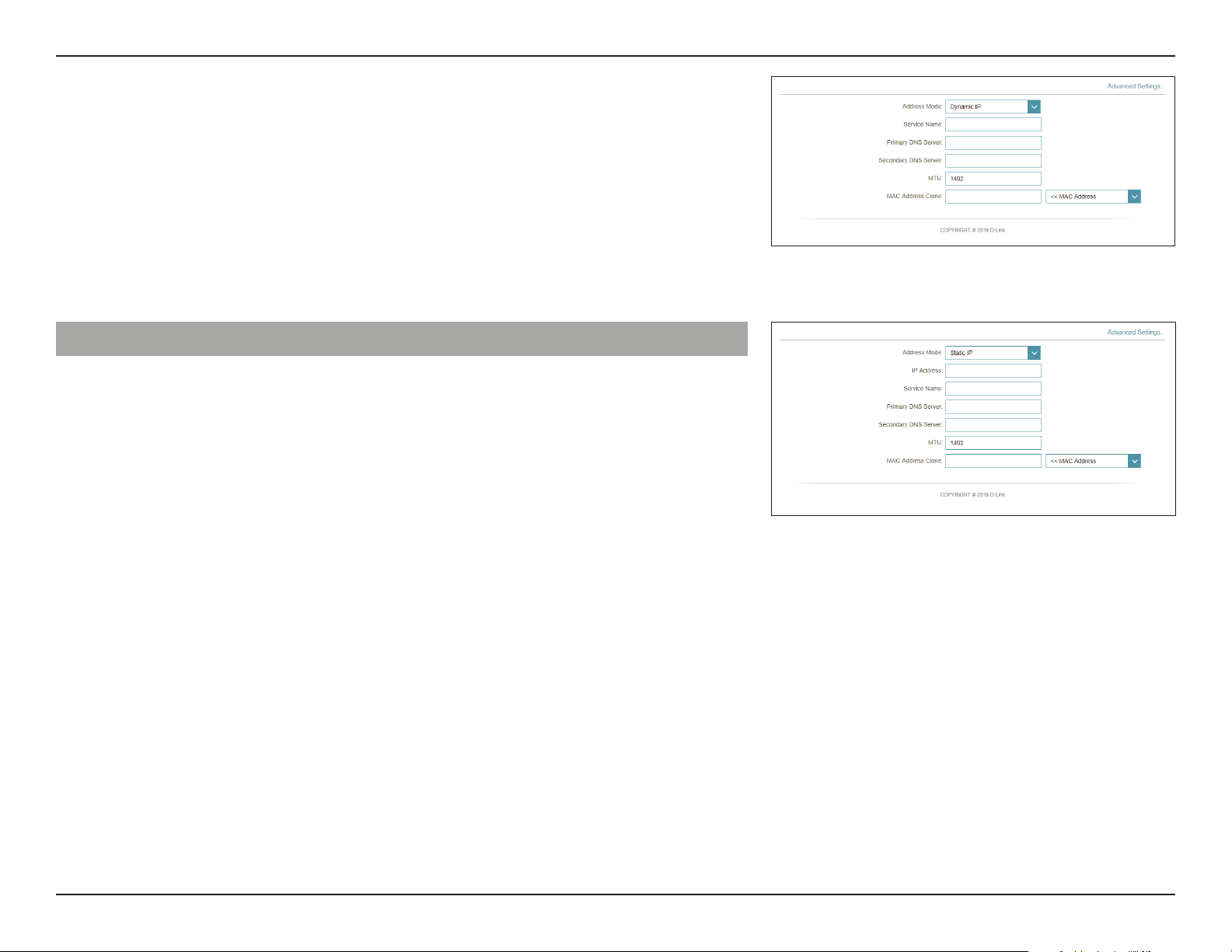

Advanced Settings... - Dynamic IP
Address Mode Shows your chosen address mode.
Service Name Enter the ISP service name (optional)
Primary DNS Server Enter the primary DNS server IP address assigned by your ISP.
30D-Link R32 User Manual
Section 3 - Conguration
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP.
MTU Maximum Transmission Unit (1280~1500)- you may need to
change the MTU for optimal performance with your ISP. The
default is 1500.
MAC Address Clone The default MAC address is set to the Internet port’s physical
interface MAC address on the router. You can replace the
Internet port’s MAC address with the MAC address of a
connected client.

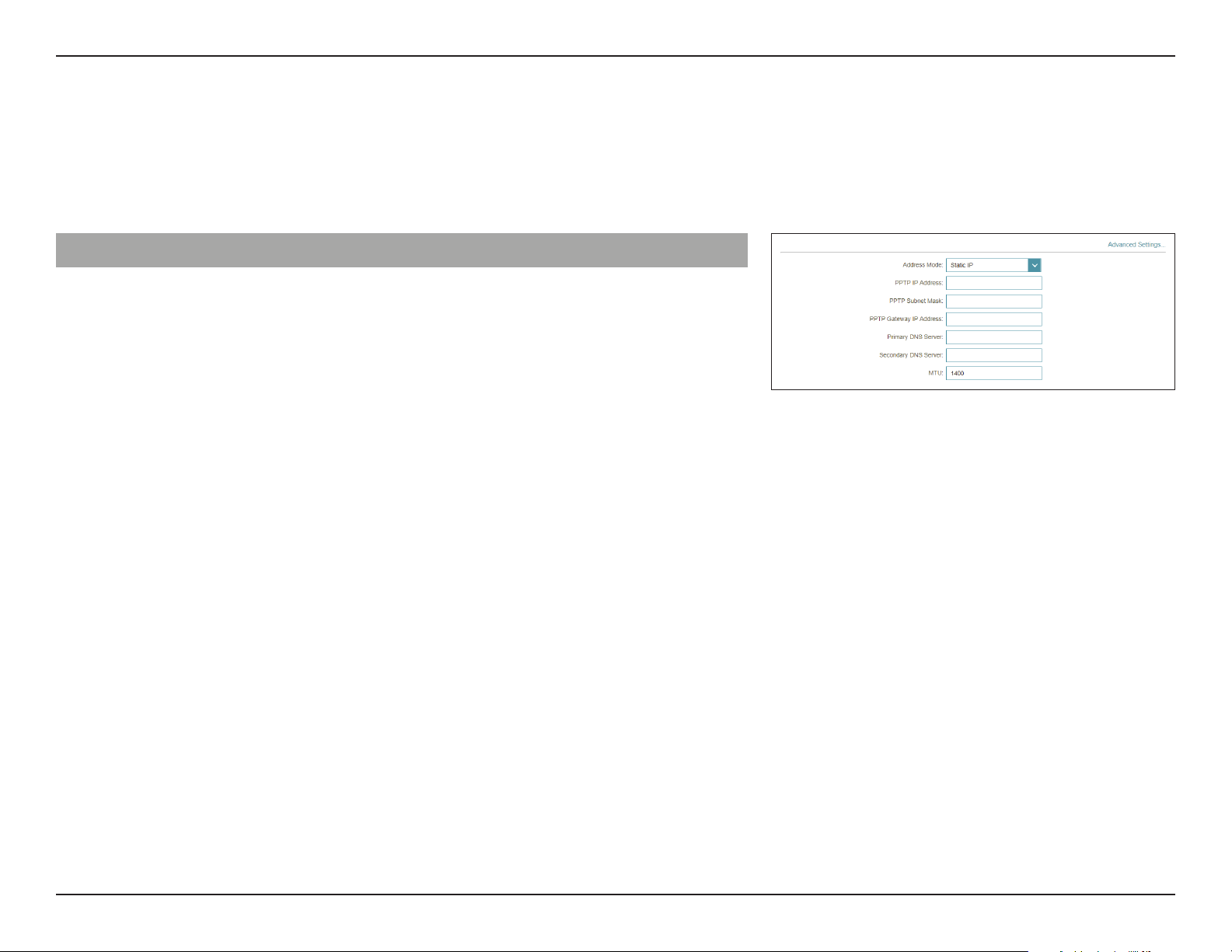

Advanced Settings... - Static IP
Address Mode Displays your chosen address mode.
IP Address Enter the IP address provided by your ISP.
Service Name Enter the ISP service name (optional)
Primary DNS Server Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP.
MTU Maximum Transmission Unit (1280~1492)- you may need to
change the MTU for optimal performance with your ISP. The
default is 1492.
MAC Address Clone
Secure DNS
DNS over HTTP Provider
Allow Fall-back
The default MAC address is set to the Internet port’s physical
interface MAC address on the router. You can replace the
Internet port’s MAC address with the MAC address of a
connected client.
Enable this option to use public DNS with encryption via DNSover-HTTPS (DoH).
Select the DNS-over-HTTPS (DoH) service provider: Google
or Cloudare.
Use your primary or secondary DNS server as an alternative if
the congured provider is not working.
31D-Link R32 User Manual
Section 3 - Conguration
IPv4 - PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol) if your Internet Service Provider (ISP) uses a PPTP connection. Your ISP will
provide you with a username and password. Click Save at any time to save the changes you have made on this page.
PPTP Server Enter the PPTP server's IP address or name provided by your
ISP.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Reconnect Mode Select Always on, On Demand, or Manual.
Maximum Idle Time Congurable when On Demand is selected. Enter a maximum
idle time during which the Internet connection is maintained
during inactivity. To disable this feature, select Always on as
the reconnect mode.
Advanced Settings...
Address Mode Select Static IP if the following information is given by your ISP:
IP address, subnet mask, gateway, and DNS server addresses.
In most cases, select Dynamic IP.
Advanced Settings... - Dynamic IP
Address Mode Shows your chosen address mode.
Primary DNS Server Enter the primary DNS server IP address assigned by your ISP.
32D-Link R32 User Manual
Section 3 - Conguration
PPTP Gateway IP Address
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP.
MTU Maximum Transmission Unit (1280~1460) - you may need to
change the MTU for optimal performance with your ISP. The
default is 1400.
Advanced Settings... - Static IP
Address Mode Displays your chosen address mode.
PPTP IP Address Enter the IP address provided by your ISP.
PPTP Subnet Mask Enter the subnet mask provided by your ISP.
Enter the gateway IP address provided by your ISP.
Primary DNS Server Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP.
Secure DNS
DNS over HTTP Provider
Allow Fall-back
MTU Maximum Transmission Unit (1280~1460) - you may need to
change the MTU for optimal performance with your ISP. The
default is 1400.
Enable this option to use public DNS with encryption via DNSover-HTTPS (DoH).
Select the DNS-over-HTTPS (DoH) service provider: Google
or Cloudare.
Use your primary or secondary DNS server as an alternative if
the congured provider is not working.
33D-Link R32 User Manual
Section 3 - Conguration
IPv4 - L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your Internet Service Provider (ISP) uses an L2TP connection. Your ISP will
provide you with a username and password. Click Save at any time to save the changes you have made on this page.
L2TP Server Enter the L2TP server IP address provided by your ISP.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Reconnect Mode Select Always on, On Demand, or Manual.
Maximum Idle Time Congurable when On Demand is selected. Enter a maximum
idle time during which the Internet connection is maintained
during inactivity. To disable this feature, select Always on or
Manual as the reconnect mode. The default is 5 minutes.
Advanced Settings...
Address Mode Select Static IP if the following information is given by your ISP:
IP address, subnet mask, gateway, and DNS server addresses.
In most cases, select Dynamic IP.
Advanced Settings... - Dynamic IP
Address Mode Shows your chosen address mode.
Primary DNS Server Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP.
34D-Link R32 User Manual
Section 3 - Conguration
L2TP Gateway IP Address
MTU Maximum Transmission Unit (1280~1460) - you may need to
change the MTU for optimal performance with your ISP. The
default is 1400
Advanced Settings... - Static IP
Address Mode Shows your chosen address mode.
L2TP IP Address Enter the IP address provided by your ISP.
L2TP Subnet Mask Enter the subnet mask provided by your ISP.
Enter the gateway IP address provided by your ISP.
Primary DNS Server Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS Server Enter the secondary DNS server IP address assigned by your
ISP.
MTU Maximum Transmission Unit (1280~1460) - you may need to
change the MTU for optimal performance with your ISP. The
default is 1400.
Secure DNS
DNS over HTTP Provider
Allow Fall-back
Enable this option to use public DNS with encryption via DNSover-HTTPS (DoH).
Select the DNS-over-HTTPS (DoH) service provider: Google
or Cloudare.
Use your primary or secondary DNS server as an alternative if
the congured provider is not working.
35D-Link R32 User Manual
Section 3 - Conguration
Gateway
the congured provider is not working.
IPv4 - DS-Lite
DS-Lite allows local IPv4 packets to travel through an IPv6 network. After selecting DS-Lite, the following parameters will be
available for conguration. Click Save at any time to save the changes you have made on this page.
Advanced Settings...
DS-Lite Conguration Select DS-Lite DHCPv6 Option to let the router allocate
the AFTR IPv6 (Address Family Transition Router) address
automatically. Select Manual Conguration to enter the AFTR
IPv6 address manually.
Advanced Settings... - DS-Lite DHCPv6 Option
B4 IPv4 Address Enter the B4 (Basic Bridging Broadband) IPv4 address that
will be encapsulated into IPv6 packets to transmit over an
IPv6 network.
WAN IPv6 Address Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN Default
Once connected, the IPv6 WAN default gateway address will
be displayed here.
Advanced Settings... - Manual Conguration Option
AFTR IPv6 Address Enter the Address Family Transition Router (AFTR) IPv6 address.
This is where an IPv6 packet will be decapsulated.
B4 IPv4 Address Enter the B4 IPv4 address.
WAN IPv6 Address Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN Default
Gateway
Secure DNS
DNS over HTTP Provider
Allow Fall-back
Once connected, the IPv6 WAN default gateway address will
be displayed here.
Enable this option to use public DNS with encryption via DNSover-HTTPS (DoH).
Select the DNS-over-HTTPS (DoH) service provider: Google
or Cloudare.
Use your primary or secondary DNS server as an alternative if
36D-Link R32 User Manual
Section 3 - Conguration
Internet - IPv6
Go to Settings > Internet to see the Internet conguration options for IPv4 , then click the IPv6 tab to access the
conguration options for IPv6.
To congure the IPv4 Internet and network connection details, click the IPv4 tab. Refer to Internet - IPv4 on page 27
To congure the VLAN connection details, click the VLAN tab. Refer to Internet - VLAN on page 52
Click Save at any time to save the changes you have made on this page.
My Internet
Connection is
Choose your Internet connection type from the drop-down
menu. You will be presented with the appropriate options for
your connection type.
For IPv6 - Auto Detection refer to page 38
For IPv6 - Static IPv6 refer to page 40
For IPv6 - Auto Conguration (SLAAC/DHCPv6) refer to page 42
For IPv6 - PPPoE refer to page 45
For IPv6 - 6rd refer to page 49
For IPv6 - Local Connectivity Only refer to page 51
37D-Link R32 User Manual
Section 3 - Conguration
If
IPv6 - Auto Detection
Select Auto Detection to automatically detect the IPv6 connection method
used by your Internet Service Provider (ISP). If Auto Detection fails, you can
manually select another IPv6 connection type. Click Save at any time to save
the changes you have made on this page.
IPv6 DNS Settings
DNS Type Select either Obtain DNS server address automatically or
Use the following DNS address.
Primary DNS Server If you select Use the following DNS address, enter the
primary DNS server address.
Secondary DNS Server Enter the secondary DNS server address as a backup.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable DHCP prex delegation.
LAN IPv6 Link-Local
Address
Enable DHCP-PD is disabled, enter the following:
LAN IPv6 Address Enter a valid LAN IPv6 address.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address, which is used only
within the local network.
Displays the router’s LAN link-local address.
38D-Link R32 User Manual
Section 3 - Conguration
If you select
If you select

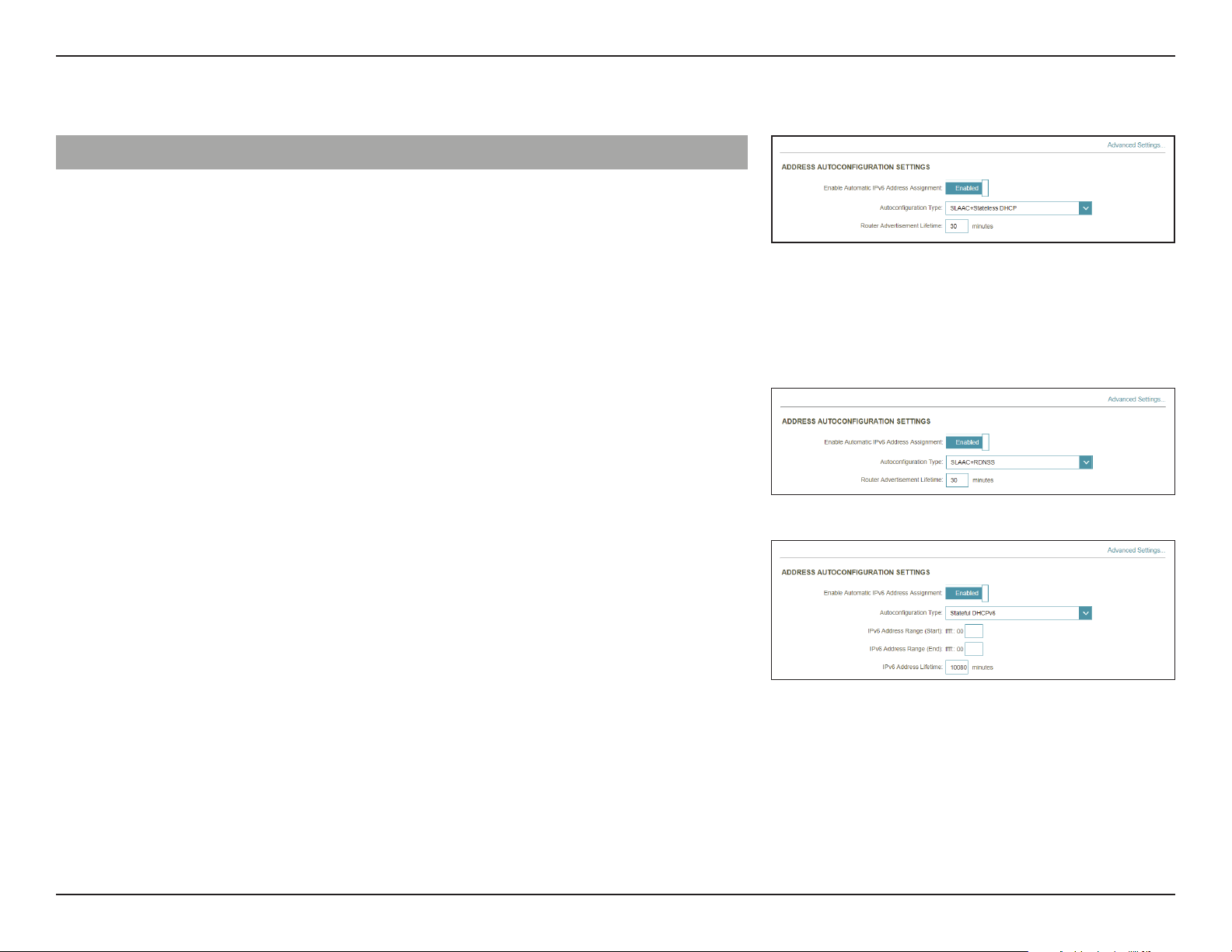

Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable Automatic
DHCP-PD in LAN
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Stateful DHCPv6 as the Autoconguration Type:
Enable or disable the Automatic IPv6 Address Assignment
feature.
Enable or disable DHCP-PD for other IPv6 routers connected
to the LAN interface.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
IPv6 Address Lifetime
IPv6 Address
Range (Start)
IPv6 Address
Range (End)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
Enter the dynamic IP's retention time. The default is 10080
minutes.
39D-Link R32 User Manual
Section 3 - Conguration
Use Link-Local Address
IPv6 - Static IPv6
Select Static IP if your IPv6 information is provided by your Internet Service Provider (ISP). Click Save at any time to save the
changes you have made on this page.
Enable or disable link-local address.
IPv6 Address Congurable when Use Link-Local Address is disabled. Enter
the address supplied by your ISP.
Subnet Prex Length Congurable when Use Link-Local Address is disabled. Enter
the subnet prex length (1~128) supplied by your ISP.
Default Gateway Enter the default gateway for your IPv6 connection.
Primary DNS Server Enter the primary DNS server address.
Secondary DNS Server Enter the secondary DNS server address.
LAN IPv6 Address Enter the LAN (local) IPv6 address for the router.
LAN IPv6 Link-Local
LAN IPv6 Address Settings
Displays the router’s LAN link-local address.
Address
40D-Link R32 User Manual
Section 3 - Conguration
If you select
If you select
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
IPv6 Address
Range (End)
Enable or disable the Automatic IPv6 Address Assignment
feature.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address Lifetime Enter the dynamic IP's retention time. The default is 10080
minutes.
41D-Link R32 User Manual
Section 3 - Conguration
If
IPv6 - Auto Conguration (SLAAC/DHCPv6)
Select Auto Conguration if your ISP assigns an IPv6 address when your router requests one from the ISP’s server. Some
ISPs require you to congure relevant settings in advance before your router can connect to the IPv6 Internet. Click Save at
any time to save the changes you have made on this page.
IPv6 DNS Settings
DNS Type Select either Obtain DNS server address automatically or
Use the following DNS address.
Primary DNS Server If you select Use the following DNS address, enter the
primary DNS server address.
Secondary DNS Server If you select Use the following DNS address, enter the
secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable prex delegation.
LAN IPv6 Link-Local
Address
Enable DHCP-PD is disabled, congure the following:
LAN IPv6 Address Enter a valid LAN IPv6 address.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address.
Displays the router’s LAN link-local address for the local
network only.
42D-Link R32 User Manual
Section 3 - Conguration
If
If you select
If you select
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable DHCP-PD is enabled in the previous LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Stateful DHCPv6 as the Autoconguration Type:
Enable or disable the Automatic IPv6 Address Assignment
feature.
Enable or disable DHCP-PD for other IPv6 routers connected
to the LAN interface.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
IPv6 Address
Range (Start)
IPv6 Address
Range (End)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
43D-Link R32 User Manual
Section 3 - Conguration
If
If you select
If you select
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable DHCP-PD is disabled in the previous LAN IPv6 Address Settings:
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enable or disable the Automatic IPv6 Address Assignment
feature.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address Lifetime Enter the IP address retention period in minutes. The default
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
is 10080 minutes.
44D-Link R32 User Manual
Section 3 - Conguration
IPv6 - PPPoE
Select PPPoE if your ISP requires you to enter a PPPoE username and password to connect to the Internet. Click Save at any
time to save the changes you have made on this page.
PPPoE Session Create a new PPPoE session.
Username Enter the username provided by your ISP.
Password Enter the password provided by your ISP.
Address Mode Select either Dynamic IP or Static IP.
IP Address Configurable if Static IP is chosen. Enter the IP address
provided by your ISP.
Service Name Enter the ISP service name (optional).
Reconnect Mode Select either Always On or Manual.
MTU Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your ISP. The default is
1492 bytes.
45D-Link R32 User Manual
Section 3 - Conguration
IPv6 DNS Settings
DNS Type Select either Obtain DNS server address automatically or
Use the following DNS address.
Primary DNS Server If you select Use the following DNS address, enter the
primary DNS server address.
Secondary DNS Server If you select Use the following DNS address, enter the
secondary DNS server address as a backup.
LAN IPv6 Address Settings
Enable DHCP-PD Enable or disable prex delegation.
LAN IPv6 Address Congurable if the above DHCP-PD is disabled. Enter the IP
address provided by your ISP.
LAN IPv6 Link-Local
Address
Displays the router’s LAN link-local address for the local
network only.
46D-Link R32 User Manual
Section 3 - Conguration
If
If you select
If you select
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable DHCP-PD is enabled in the previous LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Stateful DHCPv6 as the Autoconguration Type:
Enable or disable the Automatic IPv6 Address Assignment.
Enable or disable DHCP-PD for other IPv6 routers connected
to the LAN interface.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes).
IPv6 Address
Range (Start)
IPv6 Address
Range (End)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
47D-Link R32 User Manual
Section 3 - Conguration
If
If you select
If you select
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Enable DHCP-PD is disabled in the previous LAN IPv6 Address Settings:
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
Enable or disable the Automatic IPv6 Address Assignment
feature.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
IPv6 Address Lifetime Enter the IPv6 address lifetime (in minutes). The default is
IPv6 Address
Range (End)
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
10080 minutes.
48D-Link R32 User Manual
Section 3 - Conguration
If you select
IPv6 - 6rd
IPv6 6rd (rapid deployment) allows IPv6 packets to be transmitted over an IPv4 network. Click Save at any time to save the
changes you have made on this page.
Assign IPv6 Prex Currently unsupported.
Primary DNS Server Enter the primary DNS server address.
Secondary DNS Server Enter the secondary DNS server address as a backup.
Enable Hub and Spoke
6rd Border Relay IPv4
6rd Manual Conguration
Enable this option if you want to minimize the number of
Mode
6rd Conguration Choose the 6rd DHCPv4 Option to automatically discover
Manual Conguration as the 6rd Conguration:
6rd IPv6 Prex Enter the 6rd IPv6 network address and prex length (1~128)
WAN IPv4 Address Enter the IPv4 network prex.
Address
routes to the destination by using a hub and spoke method
of networking.
and populate the data values, or Manual Conguration to
enter the settings yourself.
supplied by your ISP.
Enter the 6rd border relay IPv4 address settings supplied by
your ISP.
49D-Link R32 User Manual
Section 3 - Conguration
If you select
If you select
LAN IPv6 Address Settings
LAN IPv6 Address Displays the router’s LAN IPv6 address.
LAN IPv6 Link-Local
Address
Advanced Settings... - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment
Autoconguration
Type
SLAAC+RDNSS or SLAAC+Stateless DHCP as the Autoconguration Type:
Router
Advertisement
Lifetime
Displays the router’s LAN link-local address.
Enable or disable the Automatic IPv6 Address Assignment
feature.
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful
DHCPv6.
Enter the router advertisement lifetime (in minutes). The
default is 30 minutes.
IPv6 Address Lifetime Enter the IPv6 address lifetime (in minutes). The default is
Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start)
IPv6 Address
Range (End)
Enter the start IPv6 address for the DHCP server’s IPv6
assignment.
Enter the end IPv6 address for the DHCP server’s IPv6
assignment.
10080 minutes.
50D-Link R32 User Manual
Section 3 - Conguration

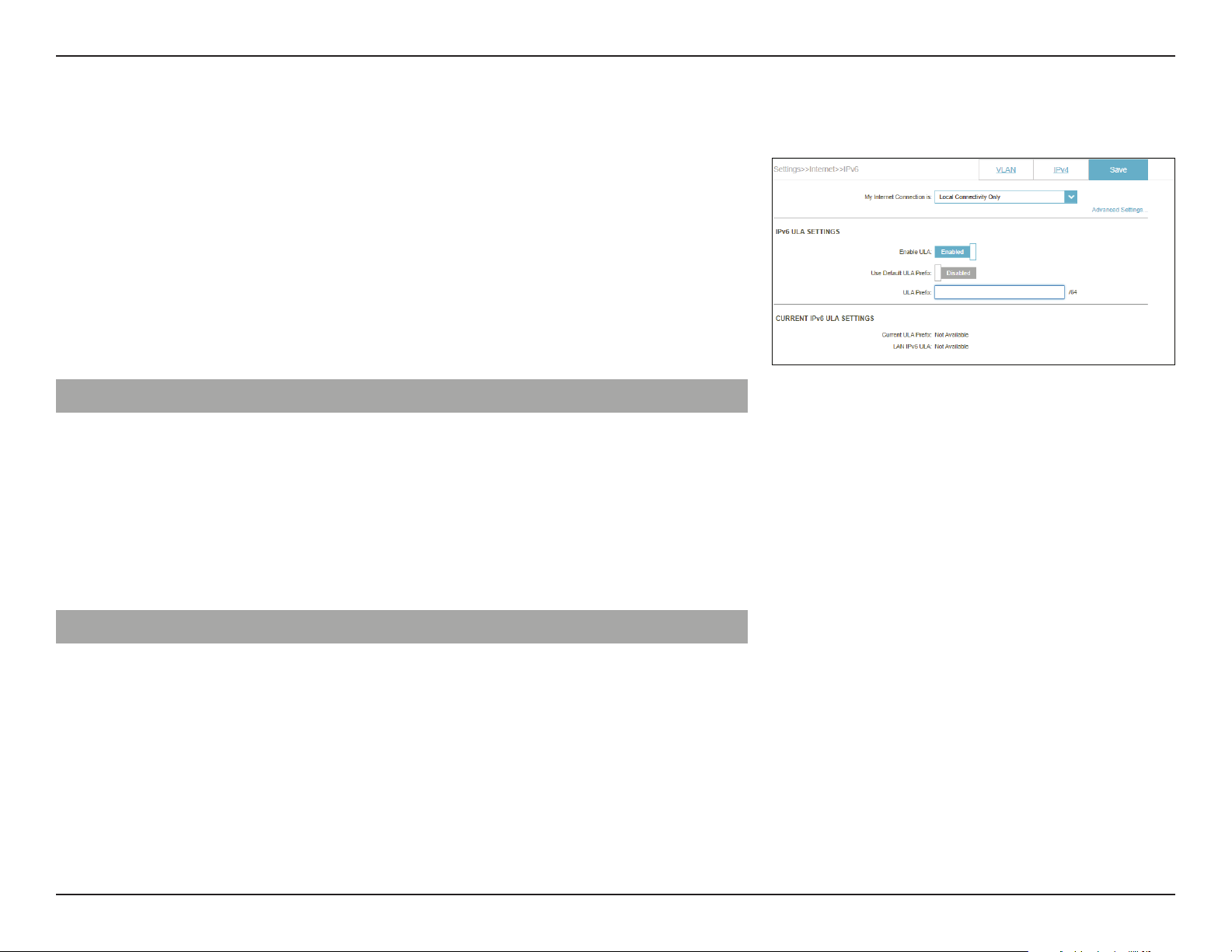

IPv6 - Local Connectivity Only
Local Connectivity Only allows you to set up an IPv6 connection that will
not connect to the Internet. Click Save at any time to save the changes you
have made on this page.
Advanced Settings... - IPv6 ULA Settings
Enable ULA Click here to enable Unique Local IPv6 Unicast Addresses
settings.
Use Default ULA Prex Enable this option to use the default ULA prex.
ULA Prex If you disable Use Default ULA Prex, enter your own ULA
prex.
Advanced Settings... - Current IPv6 ULA Settings
Current ULA Prex Displays the current ULA prex.
LAN IPv6 ULA Displays the LAN's IPv6 ULA.
51D-Link R32 User Manual
Section 3 - Conguration
Internet - VLAN
Go to Settings > Internet, then click the VLAN link to access the conguration options for the VLAN.
VLAN allows Triple-Play services to be dierentiated by dividing a network into segments and allowing access to these
services by devices only in the assigned segment.
To congure the IPv4 Internet and network connection details, click the IPv4 link. Refer to Internet - IPv4 on page 27
To congure the IPv6 Internet and network connection details, click the IPv6 link. Refer to Internet - IPv6 on page 37
Click Save at any time to save the changes you have made on this page.
Status Click to enable or disable the Triple-Play VLAN feature. More
conguration options will be available if the Status is enabled.
52D-Link R32 User Manual
Section 3 - Conguration
If Triple-Play is
Enabled:
VLAN TAG Enable VLAN TAG to enter VLAN ID, as provided by your ISP
Internet VLAN ID Enter the VLAN ID for your Internet connection, as provided
IPTV VLAN ID Enter the VLAN ID for your IPTV service, as provided by your ISP.
VOIP VLAN ID Enter the VLAN ID for your VoIP network, as provided by your
Priority ID Enable or disable trac priority ID for the Internet, IPTV, and
by your ISP.
ISP.
VoIP VLANs. Select a priority ID from the drop-down menus
to assign to the corresponding VLAN (0-7). Higher priority ID
trac takes precedence over trac with a low priority ID tag.
Interface Trac Type Setting
LAN Port 1-3 Select the type of connection (Internet, IPTV, or Voice over
IP) coming from the WAN connection to each interface on
the router.
53D-Link R32 User Manual
Section 3 - Conguration
Wireless
Go to Settings > Wireless to see your wireless network settings for your router.
Click Save at any time to save the changes you have made on this page.
Wi-Fi Mesh
Status Enable or disable Wi-Fi mesh if you plan to build a mesh
network in your environment. The mesh network is able to nd
the shortest and fasted path to your gateway/router in a mesh
network topology. Hence, it enhances eciency and reliability.
Smart Connect
Status Enable or disable the Smart Connect Feature. The Smart
Connect feature presents a single wireless network. When
connecting clients to the extended network, the clients will be
automatically added to the best band, either 2.4 GHz or 5 GHz.
If Smart Connect is Enabled:
Wireless
Wi-Fi Name (SSID) Create a name for your wireless network. Up to 32 characters
are allowed.
Password Create a Wi-Fi password. Wireless clients will need to enter this
password to successfully connect to the network.
54D-Link R32 User Manual
Section 3 - Conguration
Wireless - Advanced Settings...
Security Mode Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/
WPA3-Personal, or WPA3-Personal. WPA3 provides the
highest level of encryption among these. Note that WPS will
be disabled if WPA3 is used.
Transmission Power Select the desired wireless transmission power: High, Medium,
or Low.
Schedule Select the time during which the wireless network will be
available. The schedule may be set to Always Enable or you
can add your own schedule.

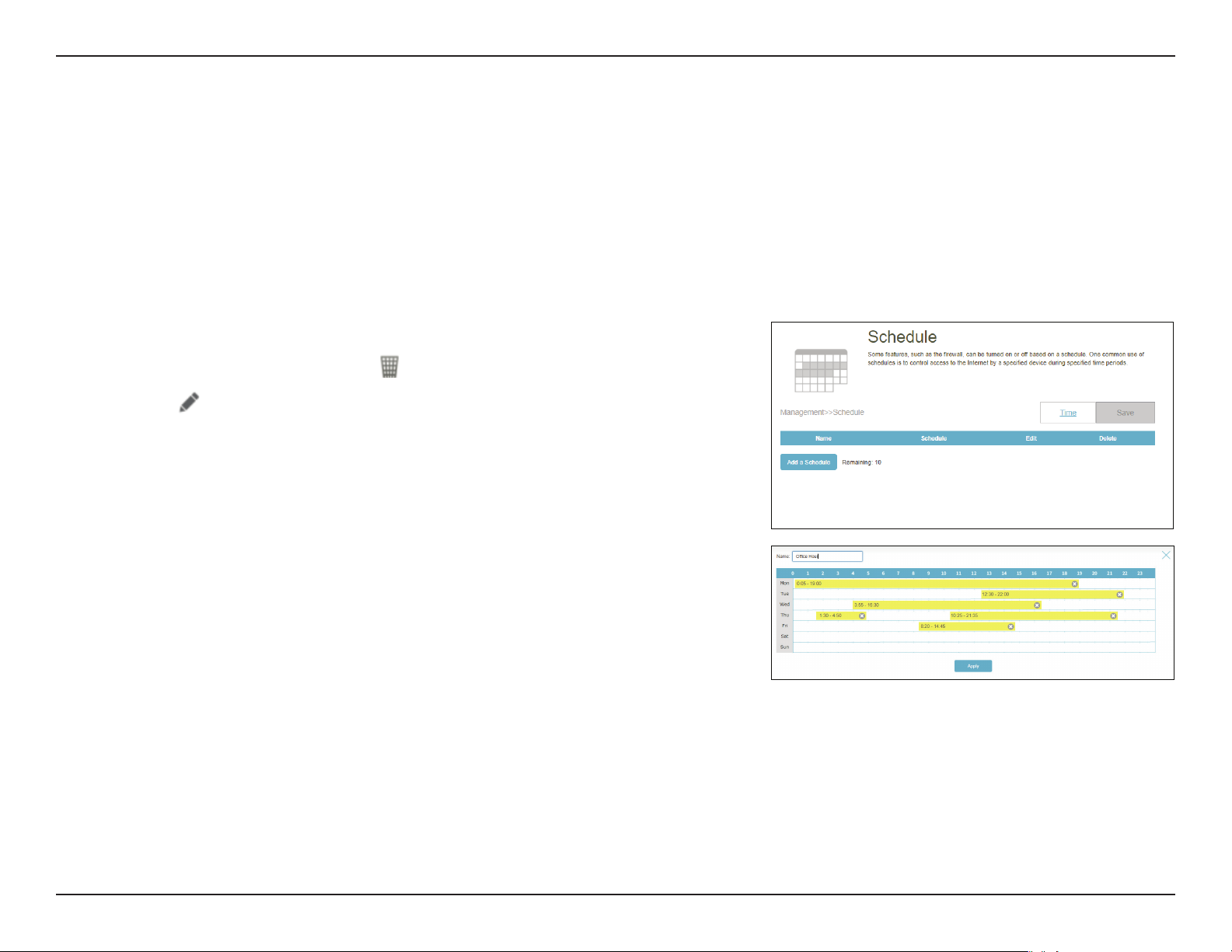

To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule.
55D-Link R32 User Manual
Section 3 - Conguration
If Smart Connect is
Disabled:
2.4GHz / 5GHz
Status Enable or disable the 2.4GHz / 5GHz wireless network.
Wi-Fi Name (SSID) Create a name for your wireless network. Up to 32 characters
are allowed.
Password Create a Wi-Fi password. Wireless clients will need to enter this
password to connect to the network.
56D-Link R32 User Manual
Section 3 - Conguration
Security Mode
Wi-Fi Channel
Channel Width
HT20/40 Coexistence
Visibility Status

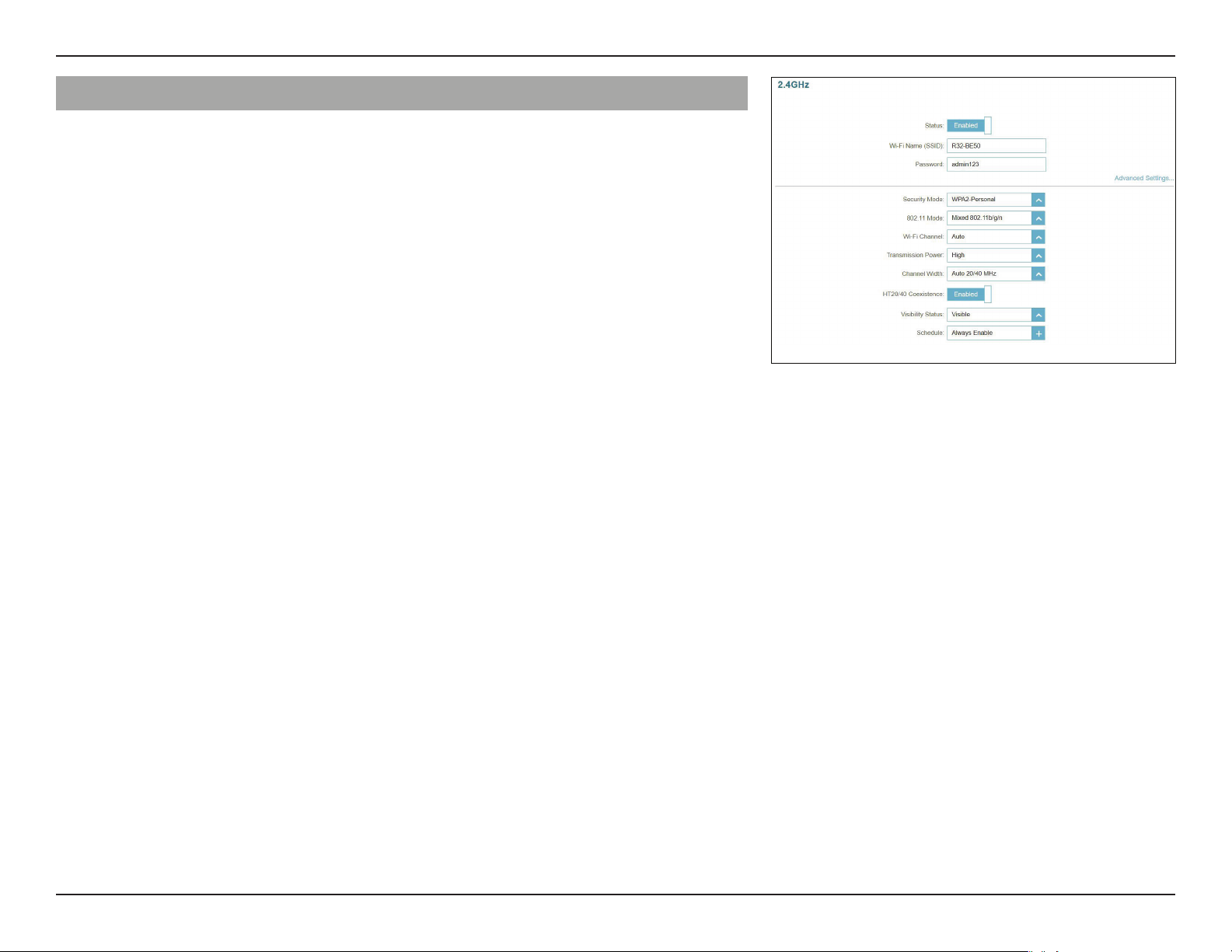

2.4GHz - Advanced Settings...
Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/
WPA3-Personal, or WPA3-Personal. WPA3 provides the
highest level of encryption among these. Note that WPS will
be disabled if WPA3 is used.
802.11 Mode (2.4GHz) Select the desired wireless networking standards to use in
your environment.
The available options for the 2.4 GHz wireless network are
Mixed 802.11b/g/n, Mixed 802.11b/g, Mixed 802.11g/n,
802.11b only, 802.11g only, and 802.11n only.
Select the desired channel:1-11. The default is Auto
(recommended).
Transmission Power Select the desired wireless transmission power: High, Medium,
or Low.
Select Auto 20/40 MHz if you are using both 802.11n and
(2.4GHz)
non-802.11n (802.11b/g) devices, or select 20 MHz if you are
using a mix of 802.11b/g devices.
(2.4GHz)
Schedule Select the time during which the wireless network will be
Enable or disable the existence of both 20 MHz and 40 MHz
channel width. Keep it enabled to achieve the maximum
operability of wireless products using dierent standards in
your environment. However, it might prevent your 802.11n
devices from reaching the maximum performance.
The default setting is Visible. Select Invisible if you do not
want to broadcast the SSID of your wireless network.
available. The schedule may be set to Always Enable or you
can add your own schedule.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule.
57D-Link R32 User Manual
Section 3 - Conguration
5GHz - Advanced Settings...
Security Mode Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/
WPA3-Personal, or WPA3-Personal. WPA3 provides the
highest level of encryption among these. Note that WPS will
be disabled if WPA3 is used.
802.11 Mode (5GHz) Select the desired wireless networking standards to use.
The available options for the 5 GHz wireless network are Mixed
802.11a/n/ac/ax, Mixed 802.11a/n/ac, Mixed 802.11a/n,
802.11ac only, 802.11a only, and 802.11n only.
Wi-Fi Channel Select the desired channel: 36, 40, 44, 48, 149, 153, 157, 161,
or 165. The default is Auto (recommended).
Transmission Power Select the desired wireless transmission power: High, Medium,
or Low.
Channel Width (5GHz) Select Auto 20/40/80 MHz if you are using 802.11ax, 802.11ac,
802.11n, and 802.11a devices, select Auto 20/40 if you are
using 802.11n and 802.11a devices, or select 20 MHz if you
are using 802.11a devices.
Visibility Status The default setting is Visible. Select Invisible if you do not
want to broadcast the SSID of your wireless network.
Schedule Select the time during which the wireless network will be
available. The schedule may be set to Always Enable or you
can add your own schedule.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule.
58D-Link R32 User Manual
Section 3 - Conguration
The easiest way to connect your wireless devices to the router is with Wi-Fi Protected Setup (WPS).
AI-assisted Wi-Fi Optimizer intelligently assists in bandwidth optimization in your home or
oce network. It automatically adopts the "cleanest" channel and utilizes beamforming
technology to improve signal eciency and reduce interference. It also provides push
notications about weekly network bandwidth utilization and network management
advice on prioritizing clients to maintain the overall Internet quality. Refer to
AI
Once this is turned on, you will start receiving weekly reports on Wi-Fi conditions through
AI Assistant.
on page 93 for more information.
AI Wi-Fi Optimizer
EAGLE PRO
AI Wi-Fi Optimizer
Choose Optimization
Time
Enable or disable AI Wi-Fi Optimizer functionality.
Enable or disable scheduled optimization. Select the time at
which the AI Wi-Fi Optimizer will start.
Wi-Fi Protected Setup
WPS-PBC Status Enable or disable WPS-PBC (Push Button Configuration)
functionality. Press to establish a connection with another
WPS compatible device.
59D-Link R32 User Manual
Section 3 - Conguration
If Smart Connect is
radio frequencies. If it is
Guest Zone
Go to Settings > Wireless, then click the Guest Zone tab to congure your guest Wi-Fi.
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These
zones will be separate from your main wireless network. You may congure dierent zones for the 2.4 GHz and 5 GHz
wireless bands.
Click Save at any time to save the changes you have made on this page.
Enabled in the previous Wireless settings, congure the following for both
Disabled, congure the following for 2.4GHz and 5GHz individually.
Wireless
Status Enable or disable the Guest Zone feature. The status is disabled
by default.
Wireless Name (SSID) Create a name for your wireless network using up to 32
characters.
Password Create a Wi-Fi password. Your password must be between 8-63
characters in length.
Schedule Select the time during which the wireless network will be
available. The schedule may be set to Always Enable or you
can add your own schedule.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule.
60D-Link R32 User Manual
Section 3 - Conguration
Advanced Settings
Security Mode Choose None, WPA/WPA2-Personal, WPA2-Personal, WPA2/
WPA3-Personal, or WPA3-Personal. WPA3 provides the
highest level of encryption among these. Note that WPS will
be disabled if WPA3 is used.
Home Network Access
Internet Access Only Enabling this option will conne connectivity to the Internet
and prevent guests from accessing other local network devices.
61D-Link R32 User Manual
Section 3 - Conguration
Network
Go to Settings > Network to change the local network settings of the router and congure the DHCP settings.
Click Save at any time to save the changes you have made on this page.
Network Settings
LAN IP Address Enter the IP address of the router. The default IP address is
192.168.0.1. If you change the IP address, you will need to
enter the new IP address in your browser to log in to the web
conguration.
Subnet Mask Enter the subnet mask of the router. The default subnet mask
is 255.255.255.0.
Management Link The default address to access the router’s conguration is
http://R32-XXXX.local./ (where XXXX represents the last 4
digits of your router's MAC address). You can replace
R32-XXXX with a name of your choice.
Local Domain Name Enter the domain name (optional).
Enable DNS Relay Disable this option to transfer the DNS server information from
your ISP to network clients for setting DNS server. If enabled,
network clients will instead set the router's IP address as the
DNS server.
62D-Link R32 User Manual
Section 3 - Conguration
IPv4 Multicast Streams
IPv6 Multicast Streams

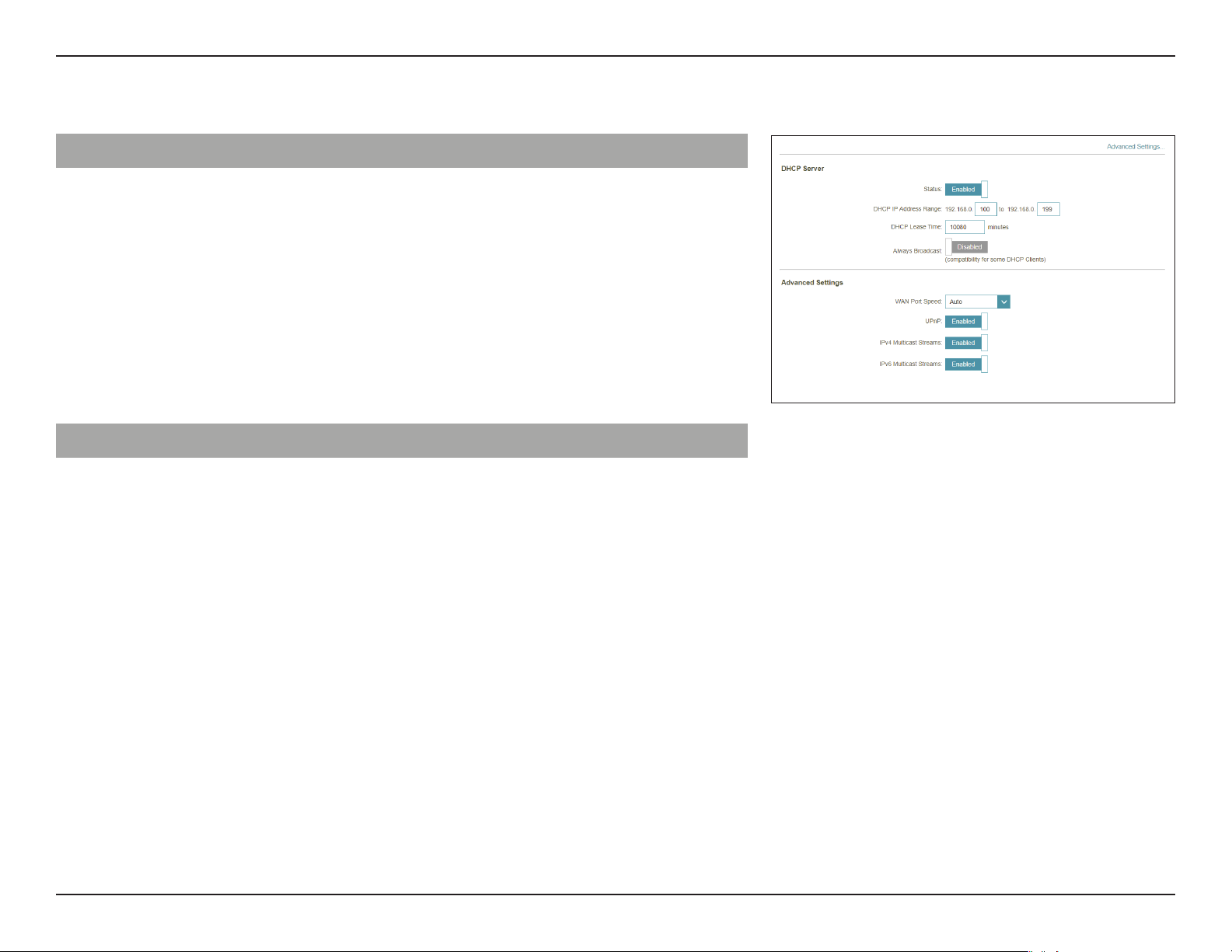

Status Enable or disable the DHCP server.
DHCP Server
DHCP IP Address
Range
DHCP Lease Time Enter the length of time for the IP address lease in minutes.
Always Broadcast Enable this feature to broadcast your network's DHCP server
Enter the start and end IP addresses for the DHCP server's IP
assignment. Note: If you statically assign IP addresses to your
computers or devices, make sure the IP addresses are outside of
this range or you may have an IP conict.
The default is 10080 minutes.
to LAN/WLAN clients.
Advanced Settings
WAN Port Speed You may set the link speed of the Internet port to 10 Mbps,
100 Mbps, 1000 Mbps, or Auto (recommended).
UPnP Enable or disable Universal Plug and Play (UPnP). UPnP
provides compatibility with networking equipment, software,
and peripherals. This is enabled by default.
Allow or disallow IPv4 multicast trac to pass through the
router from the Internet. This is enabled by default.
Allow or disallow IPv6 multicast trac to pass through the
router from the Internet. This is enabled by default.
63D-Link R32 User Manual
Section 3 - Conguration

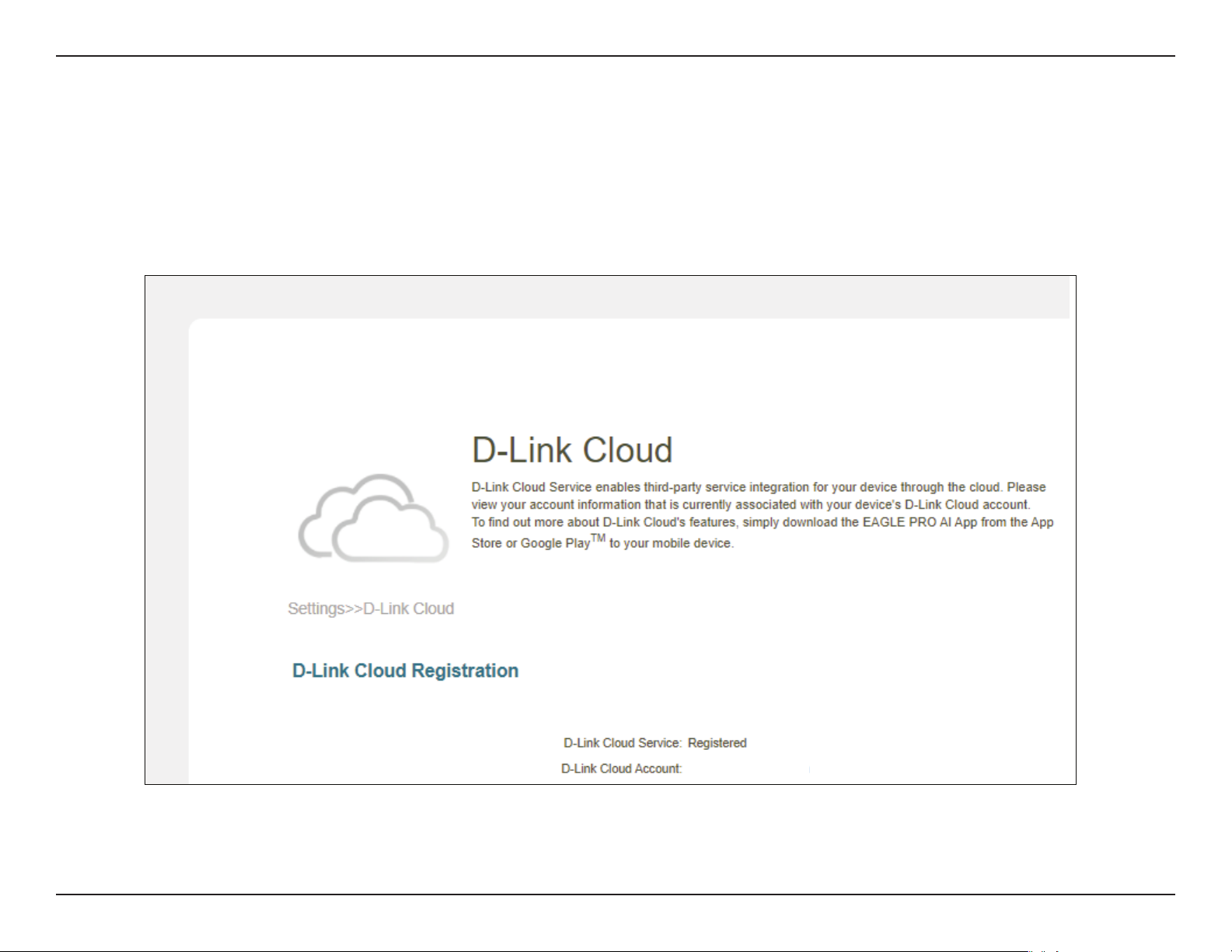

D-Link Cloud
Go to Settings > D-Link Cloud to see your D-Link Cloud Service details. This page lists whether you are registered with
D-Link Cloud Service and email address associated with the account. It enables you to manage your device anytime,
anywhere and check the status of your router. Use the EAGLE PRO AI to nd out more about D-Link Cloud's features.
64D-Link R32 User Manual
Section 3 - Conguration
Operation Mode
Go to Settings > Operation Mode to select your operation mode. Depending on your network architecture, you can
congure the router to function as one of the following types of network device: router, extender, or bridge.
Router Mode: In this mode, the R32 directly connects to the Internet provided by your ISP (Internet Service Provider). All
client devices from a network group are connected and managed under this router. This is the default mode.
Bridge Mode: In this Mode, the R32 extends your existing network and improves overall Wi-Fi coverage, meaning that you
already have a router on the premises. Under this mode, the DHCP Server, Parental Control, QoS, and Firewall settings rely
on the existing router.
Extender Mode: In this mode, this device acts as an extender to connect your wireless devices, expanding Wi-Fi coverage.
It provides connectivity between various wireless devices. This can be useful if you already have an existing wireless router.
You can then manage the extender through the main router under this mode.
65D-Link R32 User Manual
Section 3 - Conguration
A maximum of 12 proles can be dened.
To add a prole, congure the following:
Features
Parental Control
Go to Features > Parental Control to congure parental control policies. You can congure schedules that set time limits
for Internet access and prevent access to certain websites.
Click Save at any time to save the changes you have made on this page.
This page displays a list of proles with the following information:
Prole Name The name describes this prole.
Device Count The number of devices that this policy will be applied to.
State Displays the current status of Internet accessibility, i.e. Normal,
Schedule Paused, or Paused on Demand.
Edit Edit this access prole.
Delete Remove this access prole.
Prole Name Enter a name for this prole.
Allow Internet Access
Time
Click Enabled and dene the schedule to allow Internet access.
Select the time during which the Internet will be available.
To add a schedule:
Each box represents half an hour, with the clock time (0~23) at
the top of each column. To add a time period to the schedule,
simply click on the start time and drag to the end time. You
can add multiple days and multiple periods per day to the
schedule. If no time periods are selected, all devices in this
prole will be denied Internet access.
Schedule
66D-Link R32 User Manual
Section 3 - Conguration
You can also modify an existing schedule by clicking
Click
You can also modify or delete an existing rule by clicking Edit or Delete respectively.
Click
list of connected devices to which the access policy should be applied, then click
close the screen. Click
to the prole list. You can also modify or delete an existing prole by clicking
respectively.On the Edit page for a selected prole, you can click
Internet access to specied devices of the prole immediately.
Block Internet Access
During Bedtime
Allow Slow Internet
Access
Click Enabled and dene the schedule to block Internet access
during bedtime.
To add a bedtime schedule:
Select the time during which bedtime schedule will be active.
Select the days of the week, then select the pause time and
the resume time for the period during which Internet access
will be blocked. To specify dierent time periods for days of
the week, click Add another Bedtime schedule... A maximum
of 2 schedules can be dened.
Enable this option to allow slow Internet access with reduced
speed during restricted hours set above.
Website Filter
Add Rule to add a new website to be blocked:
Website Name
Enter the name for the website. This blocks access to websites
based on a website's address. For example, enter "ABC.com"
or "www.ABC.com."
Edit.
URL Keyword
This blocks access to websites based on the keywords with
matching URLs. For example, use "ABC" to block "www.ABC.
com" and "xxx.ABC.com" and other URLs containing ABC. Enter
the same website name as the above in this eld to block only
the specic URL.
Device
Add Device to add devices to be in the dened prole. Select the devices from the
Save to save your prole settings and the new prole will be added
Edit or Delete
Apply to
to pause
67D-Link R32 User Manual
Section 3 - Conguration
For these access controls:
Bedtime Schedule
Click Settings to view the messages displayed to the device users whose
Internet access has been restricted.
Blocked Webpage Message
Manual Pause Control, Website Filter, Custom Schedule, and
, you can view and customize the messages as well as the titles:
Title
Description
Reset this message
Preview this message
Enter the title of the message in the text box.
State the message to inform the user about the restricted
access.
Click this button to reset the modied message to its factory
default.
Display the presentation of the message on a new webpage.
68D-Link R32 User Manual
Section 3 - Conguration

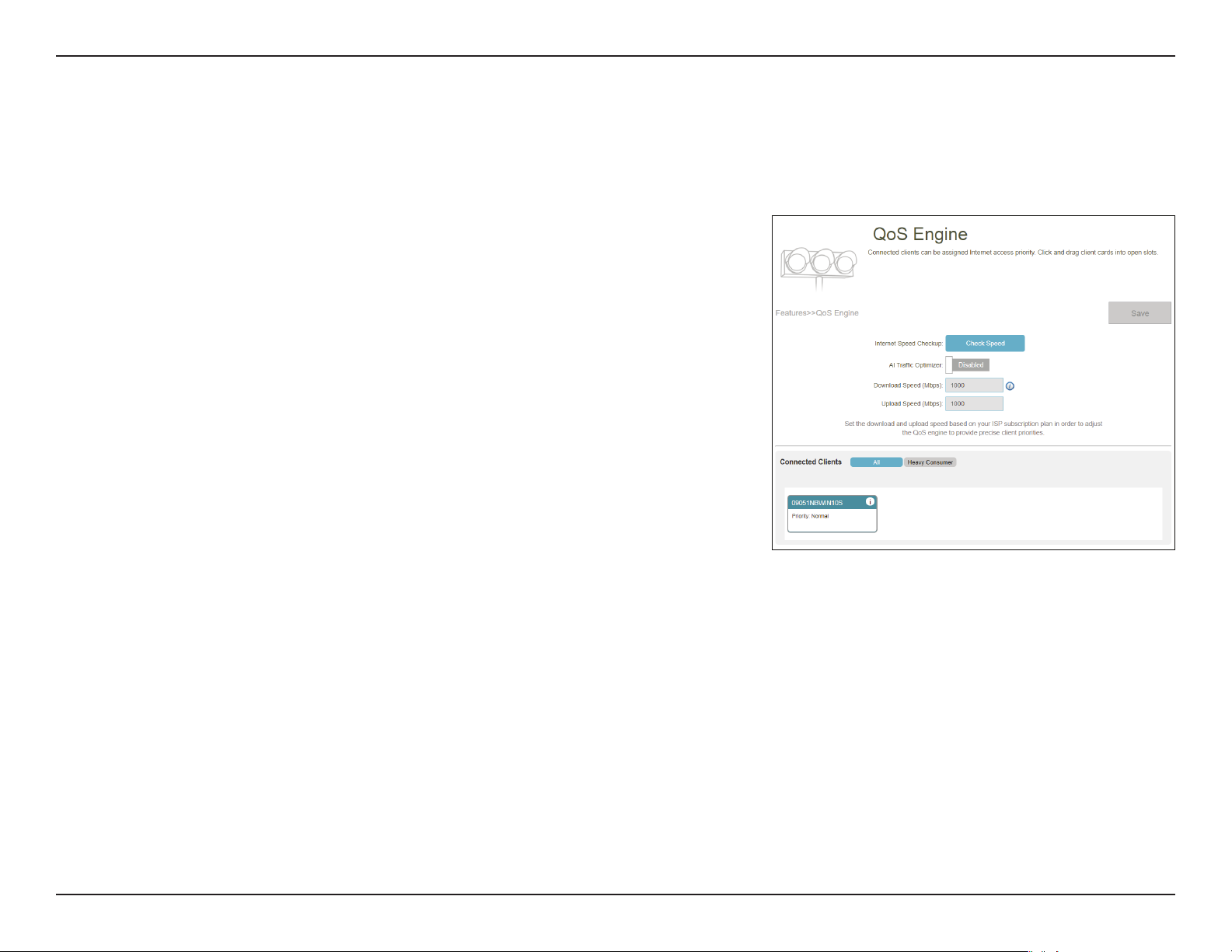

QoS Engine
Go to Features > QoS Engine to congure clients' Internet access priorities. It aims to optimize Internet trac to enhance
the overall user experience.
Click Save at any time to save the changes you have made on this page.
Click Check Speed to run a speed check to determine how to distribute WiFi bandwidth to prioritized devices. The speed test helps the QoS engine to
distribute Wi-Fi bandwidth to prioritized devices (congured in the device
cards below).
AI Trac Optimizer
Upload Speed
Download Speed
The intelligent QoS Engine lists devices consuming
comparatively large resources and will intelligently adjust
bandwidth to these devices by assigning a low priority. It will
also allocate appropriate bandwidth to connected devices
based on their priorities to maintain quality online experience.
Once this is turned on, you will start receiving weekly reports
on bandwidth usage through AI Assistant.
The rate at which the content is being transferred to the
Internet.
The rate at which the content is being transferred to the router.
Click Apply to QoS after the Speed Test to automatically ll
in the above information.
69D-Link R32 User Manual
Section 3 - Conguration
This Quality of Service (QoS) Engine allows you to prioritize particular
clients over others, so that these clients receive higher bandwidth. For
example, if one client is streaming a movie and another is downloading a
bulk of les, you might want to assign the former device a higher priority
than the latter so that the movie streaming is not disrupted.
Under Connected Clients, you will see device cards representing each
connected client. Click All to see all connected devices and Heavy
Consumer to see clients that are particularly active on the Internet.
To assign a priority level to a device, enable AI Trac Optimizer rst.
Then click the client to open its information page. It shows the following
information:
Device Name: The name that describes the client device
MAC Address: The MAC address of the client device
IPv4/IP v6 Address: The IP address in IPv4 and IPv6 addressing mechanism
of the client device.
Priority: Select the priority for the client device with the following
categories:
Normal; High: Always Enable, for 1 Day, for 4 Hours, for 2 Hours, or for
1 Hour; Low: Always Enable, for 1 Day, for 4 Hours, for 2 Hours, or for 1
Hour.
Trac Statistics
It shows trac statistics for these activities: TCP ow, UDP ow, and
Download and Upload speeds in megabit per second.
Real-Time & Weekly Trac
Two graphs: Real-time Trac represents real-time data speeds in megabyte
per second or kilobyte per second. Weekly Trac represents daily download
and upload data volume for the past week in kilobyte or megabyte.
If no devices are explicitly assigned a priority, they will all be treated with
equal priority.
70D-Link R32 User Manual
Section 3 - Conguration
Firewall
Go to Features > Firewall to congure the router’s rewall settings. The rewall feature helps protect your network from
malicious attacks over the Internet.
To congure the IPv4 rewall rules, click the IPv4 Rules tab. Refer to Firewall Settings - IPv4/IPv6 Rules on page 73
To congure the IPv6 rewall rules, click the IPv6 Rules tab. Refer to Firewall Settings - IPv4/IPv6 Rules on page 73
Click Save at any time to save the changes you have made on this page.
Enable DMZ Enable or disable Demilitarized Zone (DMZ). Devices in this
zone are completely exposed to threats over the Internet.
This is not recommended unless they are servers that must
be exposed to the WAN.
DMZ IP Address If you enable DMZ, enter the IP address of the client to be
placed in this zone, or use the drop-down menu to quickly
select one of the clients.
Enable SPI IPv4 Enabling Stateful Packet Inspection (SPI) or dynamic packet
ltering helps prevent cyber attacks by tracking more states
per session to validate that the trac passing through the
session conforms to the protocol.
Enable Anti-spoof
Checking
IPv6 Simple Security Enable or disable IPv6 simple security. A simple firewall
IPv6 Ingress Filtering Enable or disable IPv6 ingress ltering for incoming packets
Enable this feature to help protect your network from certain
kinds of “spoong” attacks.
conguration that denies access directly to computers behind
the router.
to prevent suspicious senders.
71D-Link R32 User Manual
Section 3 - Conguration
Dierent ALGs provide special handling for specic protocols or
applications. A number of ALGs for common applications are enabled by
default as stated below.
Advanced Settings... - Application Level Gateway (ALG) Conguration
PPTP Allows multiple machines on the LAN to connect to their
corporate network using the PPTP protocol.
IPSec (VPN) Allows multiple VPN clients to connect to their corporate
network using IPSec. Some VPN clients support traversal of
IPSec through NAT. This Application Level Gateway (ALG)
may interfere with the operation of such VPN clients. If you
are having trouble connecting with your corporate network,
try turning this ALG off. Please check with the system
administrator of your corporate network whether your VPN
client supports NAT traversal.
RTSP Allows applications that uses Real Time Streaming Protocol
(RTSP) to receive streaming media from the Internet.
SIP Allows devices and applications using VoIP (Voice over IP)
to communicate across NAT. Some VoIP applications and
devices have the ability to discover NAT devices and work
around them. This ALG may interfere with the operation of
such devices. If you are having trouble making VoIP calls, try
turning this ALG o.
72D-Link R32 User Manual
Section 3 - Conguration

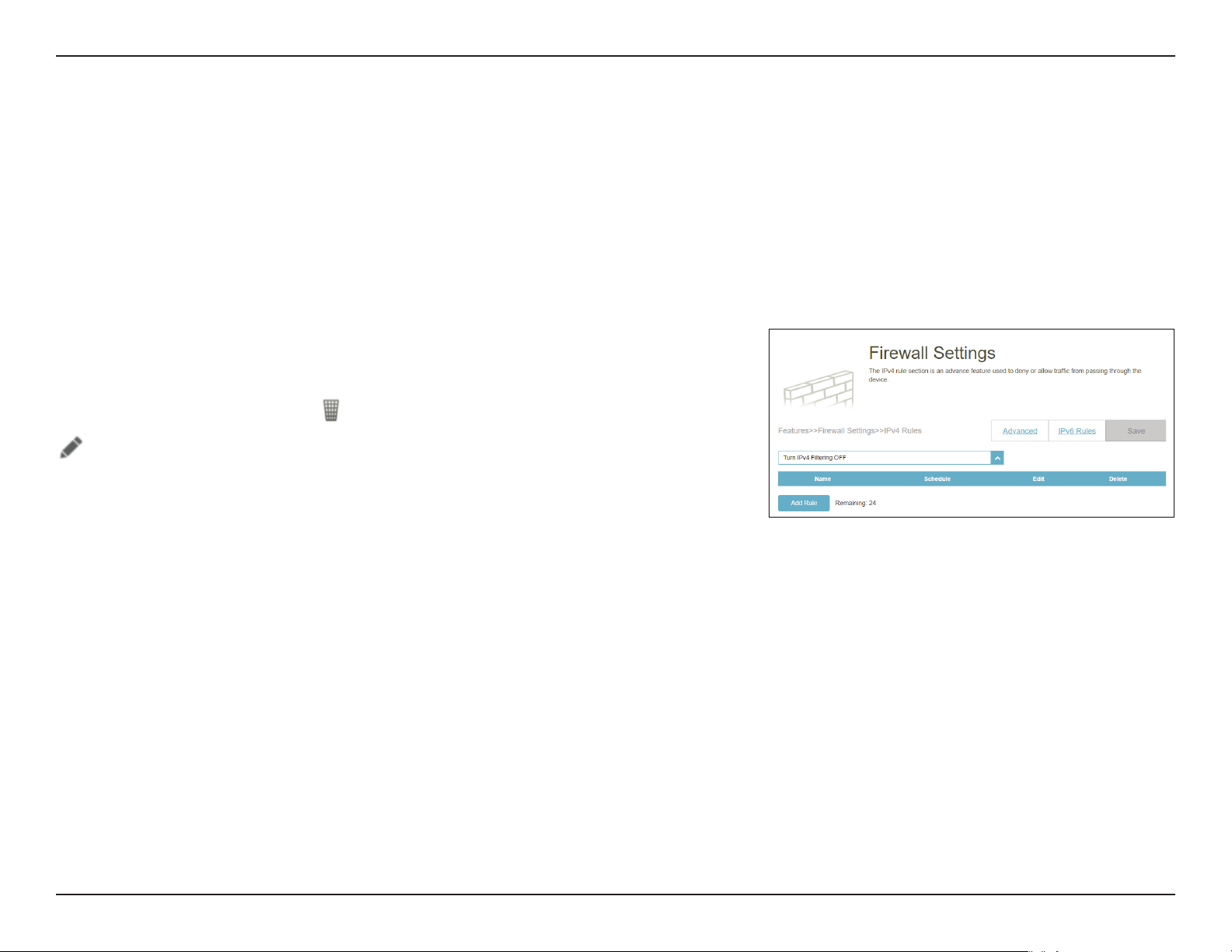

Firewall Settings - IPv4/IPv6 Rules
Go to Features > Firewall, then click the IPv4 Rules tab or the IPv6 Rules tab to congure rules for trac ltering.
To congure the Firewall Advanced settings, click the Advanced link. Refer to Firewall on page 71
Click Save at any time to save the changes you have made on this page.
To begin, use the drop-down menu to select whether it is an ALLOW or DENY rule. You can
also choose to turn ltering OFF.
If you want to remove a rule, click
in the Edit column. If you wish to create a new rule, click the Add Rule button.
in the Delete column. If you wish to edit a rule, click
73D-Link R32 User Manual
Section 3 - Conguration
If you click
A maximum of 24 rules can be dened.
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Source IP Address
Range
Destination IP Address
Range
Protocol & Port Range Select the protocol of the trac to allow or deny (Any, TCP, or
Schedule Use the drop-down menu to select the time schedule for the
Enter the source IP address range (e.g. 1.1.1.1-1.1.1.2 for IPv4
or 2001::1-2001::2 for IPv6) that the rule will apply to. Using
the drop-down menu, specify whether it is a WAN or LAN IP
address. Both a single IP address and a range of IP addresses
can be entered.
Enter the destination IP address range (e.g. 1.1.1.1-1.1.1.2
for IPv4 or 2001::1-2001::2 for IPv6) that the rule will apply
to. Using the drop-down menu, specify whether it is a WAN
or LAN IP address. Both a single IP address and a range of IP
addresses can be entered.
UDP) and then enter the range of ports (e.g. 21-23) that the
rule will apply to. Select Any to allow/deny all types of trac
regardless of the port number.
rule. The schedule may be set to Always Enable, or you can
create your own schedules in the Schedules section. Refer to
Management > Time & Schedule - Schedule on page 85
for more information.
74D-Link R32 User Manual
Section 3 - Conguration
Port Forwarding
Go to Features > Port Forwarding to specify a port or range of ports to open for specic devices on the network. This
might be necessary for certain applications to connect through the router. For example, access from the Internet can be
redirected to a DMZ host using Port Forwarding.
To congure the Virtual Server settings, click the Virtual Server link. Refer to Port Forwarding - Virtual Server on page
77.
Click Save at any time to save the changes you have made on this page.
If you want to remove a rule, click in the Delete column. If you want to edit a rule, click
in the Edit column. If you want to create a new rule, click the Add Rule button.
75D-Link R32 User Manual
Section 3 - Conguration
If you click
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Local IP Enter the IP address of the computer on your local network to
TCP Port Enter the TCP ports that you want to open. You can enter a
UDP Port Enter the UDP ports that you want to open. You can enter a
Schedule Use the drop-down menu to select the time schedule for the
which you want to direct the incoming service. Alternatively,
select the device from the drop-down menu.
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
rule. The schedule may be set to Always Enable, or you can
create your own schedules in the Schedules section. Refer to
Management > Time & Schedule - Schedule on page 85
for more information.
76D-Link R32 User Manual
Section 3 - Conguration
Port Forwarding - Virtual Server
Go to Features > Port Forwarding then click the Virtual Server tab to congure its settings and specify a public port on
your router for redirection to an internal LAN IP with the mapped port. This might be necessary if you are hosting services
behind the router.
To congure the Port Forwarding settings, click the Port Forwarding link. Refer to Port Forwarding on page 75
Click Save at any time to save the changes you have made on this page.
If you wish to remove a rule, click in the Delete column. If you wish to edit a rule, click
in the Edit column. If you wish to create a new rule, click the Add Rule button.
77D-Link R32 User Manual
Section 3 - Conguration
If you click on
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule. Alternatively, select the protocol/
Local IP Enter the IP address of the computer on your local network
Protocol Select the protocol of the trac to allow or deny (TCP, UDP,
Protocol Number If you entered Other above, enter the protocol number. Refer
Application Name from the drop-down menu. Depending on
the requested service, the router redirects the external service
request to the appropriate internal host.
that you want to direct the incoming service to. Alternatively,
select the device from the drop-down menu.
Both, or Other).
to https://www.iana.org/assignments/protocol-numbers/
protocol-numbers.xhtml for Assigned Internet Protocol
Numbers.
External Port Enter the public port you want to open.
Internal Port Enter the private port you want to open.
Schedule Use the drop-down menu to select the time schedule for the
rule. The schedule may be set to Always Enable, or you can
create your own schedules in the Schedules section. Refer
to Time & Schedule - Schedule on page 85 for more
information.
78D-Link R32 User Manual
Section 3 - Conguration
If you click on
Static Routes - IPv4
Go to Features > Static Routes to dene custom routes to control how trac moves around your network.
To congure the Static Route IPv6 settings, click the IPv6 tab. Refer to Static Routes - IPv6 on page 80
Click Save at any time to save the changes you have made on this page.
If you wish to remove a rule, click
click
Destination Network Enter the destination IP address of the subnetwork.
in the Edit column. If you wish to create a new rule, click the Add Rule button.
Edit or Add Route, the following options will appear:
Name Enter a name for the route.
Mask Enter the subnet mask of the destination address.
Gateway Enter the IP address of the next hop, which is the gateway to
the remote network.
Metric Enter a route metric value between 1 and 16. This value
indicates the cost of using this route.
in the Delete column. If you wish to edit a rule,
Interface Select the interface that the IP packet will use to transit out of
the router when this route is used.
79D-Link R32 User Manual
Section 3 - Conguration
If you click on
Static Routes - IPv6
Go to Features > Static Routes, then click IPv6 to congure the IPv6 Static Routes.
To congure the Static Route IPv4 settings, click the IPv4 tab. Refer to Static Routes - IPv4 on page 79.
Click Save at any time to save the changes you have made on this page.
If you wish to remove a rule, click
in the Edit column. If you wish to create a new rule, click the Add Rule button.
Edit or Add Route, the following options will appear:
Name Enter a name for the route.
DestNetwork Enter the destination IPv6 address of the subnetwork or the
prex, for example, 2010:db9:abcd:1234::
PrexLen Enter the prex length, which is the number of prex bits of
the IPv6 address. Enter a value between 64 and 128.
Gateway Enter the IP address of the next hop, which is the gateway to
the remote network.
in the Delete column. If you wish to edit a rule, click
Metric Enter a route metric value between 1 between 128. This value
indicates the cost of using this route.
Interface Select the interface that the IP packet will use to transit out of
the router when this route is used.
80D-Link R32 User Manual
Section 3 - Conguration

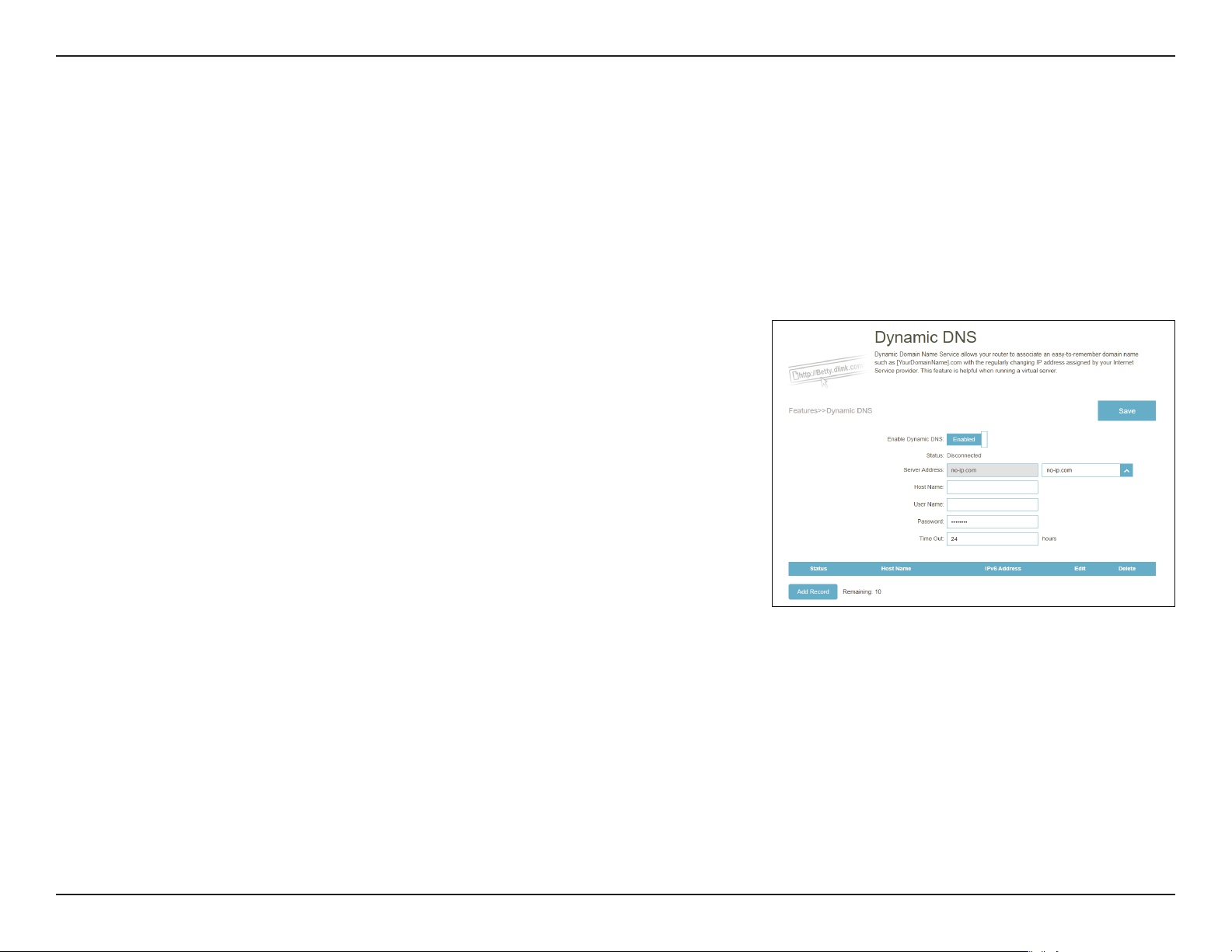

Dynamic DNS
Go to Features > Dynamic DNS. This page allows your router to associate an easy-to-remember domain name such as
[YourDomainName].com with a regularly changing IP address assigned by your Internet Service provider. This feature is
helpful when running a virtual server.
Click Save at any time to save the changes you have made on this page.
Enable Dynamic DNS Enable or disable dynamic DNS. Enable this feature to display
more conguration options.
Status Displays the current dynamic DNS connection status.
Server Address Select the DDNS service provider from the drop-down menu.
Host Name Enter the host name that you registered with your dynamic
DNS service provider.
User Name Enter your dynamic DNS account name.
Password Enter your dynamic DNS account password.
Time Out Enter a time-out value (in hours) to indicate how often the
router should update its Dynamic DNS settings.
81D-Link R32 User Manual
Section 3 - Conguration
A maximum of 10 records can be dened.
At the bottom of the page are the IPv6 host settings.
If you wish to remove a record, click
click
in the Edit column. If you wish to create a new record, click the Add Record button.
Host Name Enter the host name that you registered with your dynamic
DNS service provider.
IPv6 Address Enter the IPv6 address of your host or server for DDNS
conguration. Alternatively, select the network interface for
DDNS conguration.
in the Delete column. If you wish to edit a record,
82D-Link R32 User Manual
Section 3 - Conguration
Quick VPN
Go to Features > Quick VPN. This page will help you congure the Quick VPN feature of your router. For more information,
refer to Quick VPN on page 110. Before proceeding, ensure that your Internet connection is working properly. We
recommend conguring Dynamic DNS before proceeding with Quick VPN setup. If your router is assigned an IP address
from your ISP using DHCP, it may frequently change, requiring connection parameters to be set accordingly and a DDNS
address can avoid this hassle.
To congure the User settings and grant users with VPN permission, go to Management > User. Refer to User on page
90.
Click Save at any time to save the changes you have made on this page.
L2TP over IPSec Enable or disable the Quick VPN server. Quick VPN uses L2TP
protocol.
Username Enter a username.
Password Enter a password containing both numbers and letters with
PSK Enter a Pre-shared Key between 6 and 64 characters.
VPN Prole for iOS
Device and MAC OS X
Authentication
Protocol
MPPE Select the encryption cipher strength for Microsoft Point-to-
8 to 64 characters in length.
Click Export to save the VPN prole settings le for iOS devices
and Mac OS X.
Advanced Settings...
Choose the authentication protocol type: MSCHAPv2, PAP,
or CHAP. MSCHAPv2 is the default.
Point (MPPE) Encryption: None, RC4-40, or RC4-128. None
is the default.
83D-Link R32 User Manual
Section 3 - Conguration
Management
Time & Schedule - Time
Go to Management > Time & Schedule. The Time page allows you to congure, update, and maintain the correct time on
the internal system clock. From here you can set the time zone and the Network Time Protocol (NTP) server.
To congure the Schedule settings, click the Schedule tab. Refer to Time & Schedule - Schedule on page 85
Click Save at any time to save the changes you have made on this page.
Time Conguration
Time Zone Select your time zone from the drop-down menu.
Time Displays the current date and time of the router.
Automatic Time Conguration
NTP Server Select from the drop-down menu to use one of the following
servers to synchronize the time and date for your router:
D-Link NTP Server or Google NTP Server.
Choose Manual to set the NTP server's IP address or server
name.
84D-Link R32 User Manual
Section 3 - Conguration
Time & Schedule - Schedule
Go to Management > Time & Schedule, then click the Schedule tab. The Schedule page allows you to control some of the
functions based on a pre-congured schedule, for example, Port Forwarding in Features > Port Forwarding and Firewall
Settings in Features > Firewall as well as sending Syslog via email in Management > System Log.
To congure the Time settings, click the Time tab. Refer to Time & Schedule - Time on page 84
Click Save at any time to save the changes you have made on this page.
If you wish to remove a schedule, click in the Delete column. If you wish to edit a
schedule, click
a Schedule button.
On the Schedule creation page, enter the name of your schedule in the Name eld.
Each box represents half an hour, with the clock time (0~23) at the top of each column. To
add a time period to the schedule, simply click on the start time and drag to the end time.
You can add multiple days and multiple periods per day to the schedule.
To remove a time period from the schedule, click on the cross icon.
Click Apply to save and close the page. Then click Save when you are done creating
schedules.
in the Edit column. If you wish to create a new schedule, click the Add
85D-Link R32 User Manual
Section 3 - Conguration
System Log
Go to Management > System Log. The router keeps a running log of events. This log can be sent to a Syslog server or to
your email address.
Click Save at any time to save the changes you have made on this page.
Log Settings
System Log Click the Check System Log button to download a text le
containing the system log. You can view the log entries by
opening with any text editing applications such as WordPad
on Windows.
Enable Logging to
Syslog Server
SysLog Server IP
Address
SysLog Settings
Check this box to send the router logs to a SysLog Server.
Congurable if Enable Logging to Syslog Server is enabled.
Enter the IP address of the Syslog server. If the Syslog server is
connected to the router, select it from the drop-down menu
to automatically populate the eld.
86D-Link R32 User Manual
Section 3 - Conguration
If you enable
Email Settings
Enable E-mail
Notication
Enable E-mail Notication, congure the following:
From E-mail Address Enter the sender's email address of the SysLog messages.
To E-mail Address Enter the recipient's email address.
SMTP Server Address Enter the SMTP server address.
SMTP Server Port Enter the SMTP server port. The default is 25.
Enable Authentication Enable this if your SMTP server requires authentication.
Account Name Enter your SMTP account name.
Password Enter your SMTP account's password.
Enable this option if you want the logs to be automatically
sent to an email address.
E-mail Log When Full or On Schedule
Send When Log Full If enabled, this option will set the router to send the log when
the log buer is full. The email account for sending logs is
congured in the above section.
Send on Schedule If enabled, this option will set the router to send the log
according to a set schedule periodically, so the administrator
is always up to date on the operation of the router. The email
account for sending logs is congured in the above section.
Schedule If you enable Send On Schedule, use the drop-down menu to
select a schedule to apply. The schedule may be set to Always
Enable, or you can create your own schedules in the Schedules
section. Refer to Time & Schedule - Schedule on page 85
for more information.
87D-Link R32 User Manual
Section 3 - Conguration

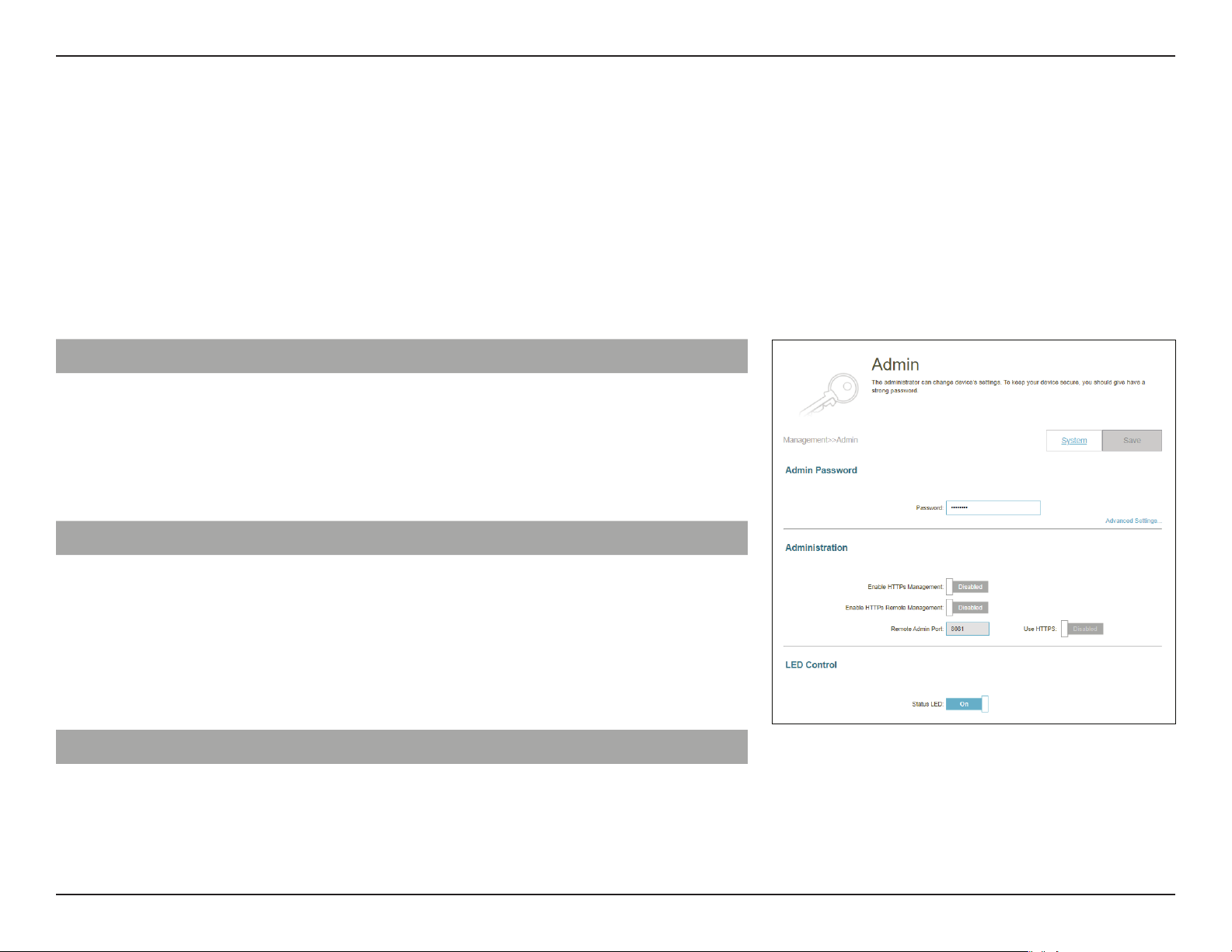

System Admin - Admin
Go to Management > System Admin. The Admin page will allow you to change the administrator (Admin) password.
To congure the System settings, click the System tab. Refer to System Admin - System on page 89
Click Save at any time to save the changes you have made on this page.
Admin Password
Password Enter a new password for the administrator account. You will
need to enter this password whenever you congure the
router using a web browser or add the router to EAGLE PRO
AI. It is recommended that you change the default device
password printed on the device label on the bottom of the
device.
Advanced Settings... - Administration
Enable HTTPS
Management
Enable HTTPS Remote
Management
Remote Admin Port Specify the port number for accessing the web conguration
Enable router management using an encrypted HTTP
connection.
Enable remote management over the Internet using an
encrypted HTTP connection.
interface. The default is 8081.
LED Control
Status LED Turn the LED status lights on or o.
88D-Link R32 User Manual
Section 3 - Conguration

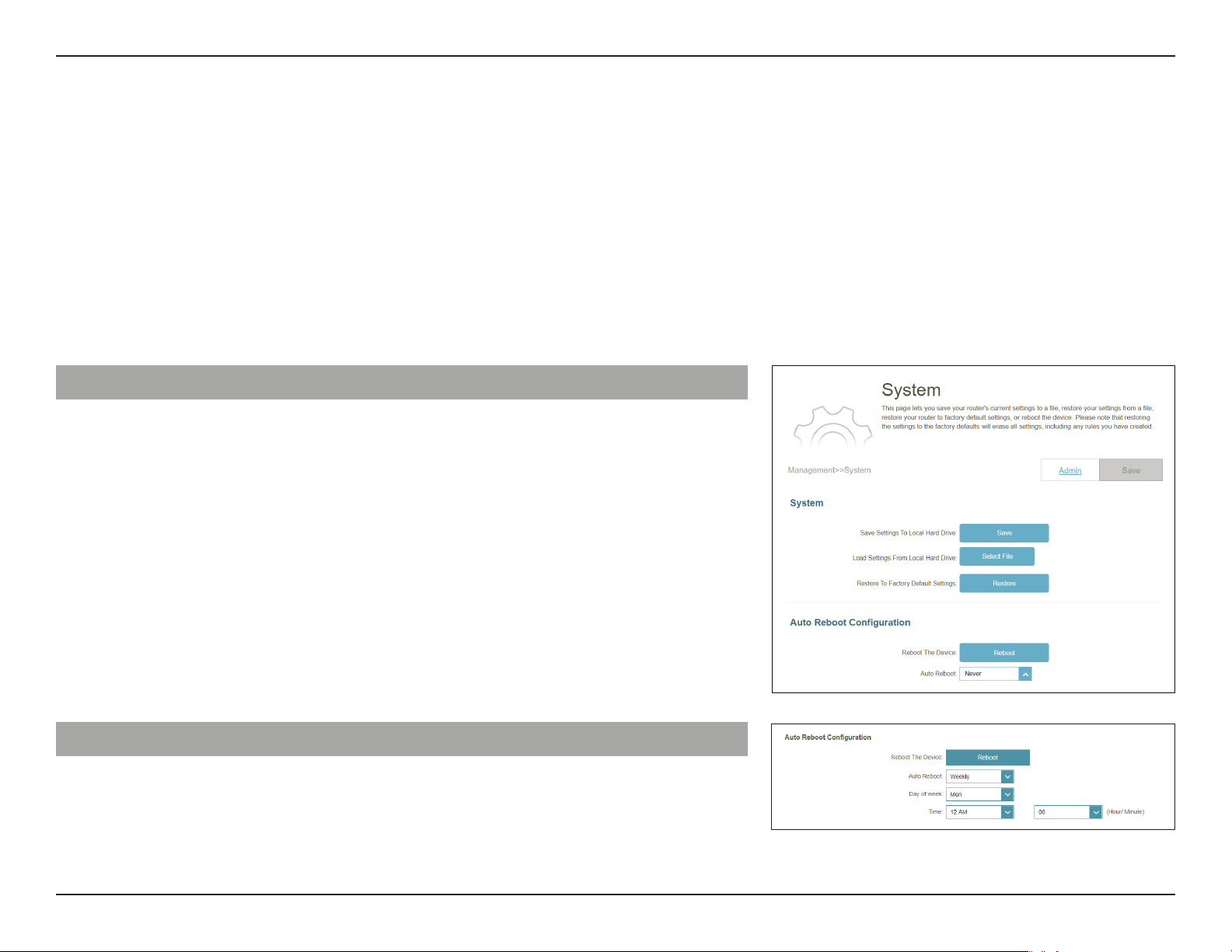

System Admin - System
Go to Management > System Admin, then click System. This page allows you to save the router’s current conguration,
load a previously saved conguration, reset the router to its factory default settings, or reboot the router.
To congure the Admin settings, click the Admin tab. Refer to System Admin - Admin on page 88
Click Save at any time to save the changes you have made on this page.
System
Save Settings to Local
Hard Drive
Load Settings from
Local Hard Drive
Restore to Factory
Default Settings
This option will save the current router conguration settings
to a le (bin type) on your computer.
This option will load a previously saved router conguration
le. This will overwrite the router’s current conguration.
This option will restore the router back to the default
congurations stored in the rmware. Any settings that have
not been saved will be lost, including any rules that you have
created. If you want to back up the current router conguration
settings before restoring to factory defaults, use the Save
Settings to Local Hard Drive function above.
Auto Reboot Conguration
Reboot the Device Click this button to reboot the router immediately.
Auto Reboot You may set the router to automatically reboot at a set time.
The options are Never, Daily, or Weekly. You may set the day,
and hour and minute of the day for automatic reboot.
89D-Link R32 User Manual
Section 3 - Conguration
To create a user, click
A maximum of 9 users (not including the Admin) can be created. Click

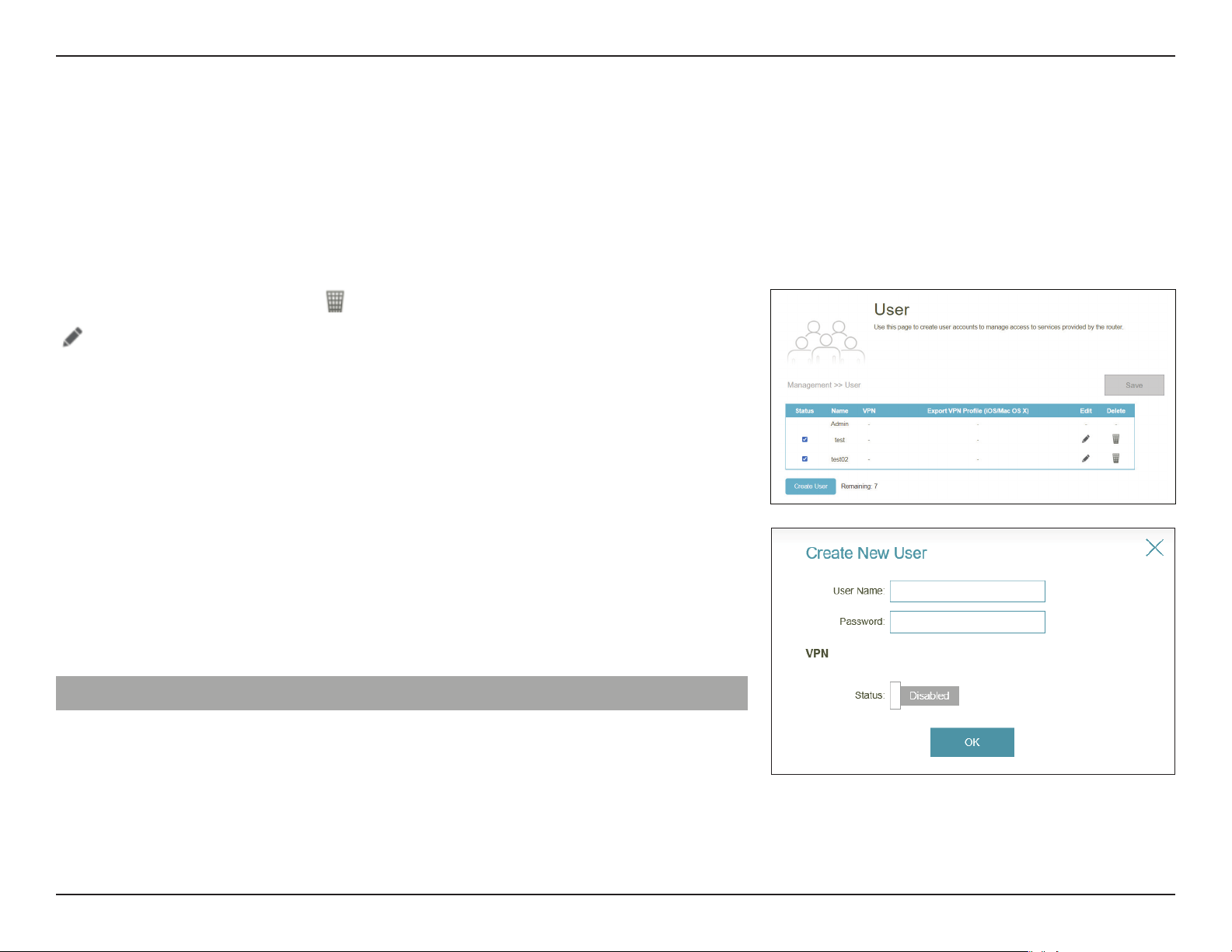

User
Go to Management > User. The User page is used to create, manage, and delete user accounts with VPN connection
permission.
Click Save at any time to save the changes you have made on this page.
If you wish to remove a user, click in the Delete column. If you wish to edit a user, click
in the Edit column. If you wish to create a new user, click the Create User button.
Create User and congure the following:
User Name Enter a username for the new user account.
Maximum length: 20 characters.
Password Enter a password for the new user account.
Maximum length: 32 characters.
VPN
Status Enable or disable Virtual Private Network (VPN) functionality
for this user.
OK to close the screen.
90D-Link R32 User Manual
Section 3 - Conguration
Upgrade
Go to Management > Upgrade. This page allows you to upgrade the router’s rmware, either automatically or manually. To
manually upgrade the rmware, you must rst download the rmware le from http://support.dlink.com.
Click Save at any time to save the changes you have made on this page.
Firmware Information
Current Firmware
Version
Check for New
Firmware
Device Name Select the device in the mesh network for manual update.
Select File If you wish to upgrade manually, rst download the rmware
Automatic Upgrade If enabled, the router will automatically upgrade to the newest
Choose Upgrade Time Enable this function to set the router to automatically upgrade
Displays the current rmware version for both the main router
as well as the extenders.
Click this button to prompt the router to automatically check
for a new rmware version. If a newer version is found, it will
prompt you to install it.
Advanced Settings...Upgrade Manually
le. Then, click the Select File button and locate the le to
install the new rmware.
Automatic Firmware Upgrade
rmware. The system will automatically upgrade to the latest
rmware every day at 3:30-4:00 AM.
its rmware at a set time every day.
Upgrade Time Congurable if Choose Upgrade Time is enabled. Set the hour
and minute to automatically upgrade the router.
91D-Link R32 User Manual
Section 3 - Conguration
You can view the
tab at the top. The real-time graph of network trac in
To clear the information on the graph, click
The table below for each interface and radio frequency shows the total number of packets
and data that are sent and received through the interface.
The trac counter will reset if the device is rebooted.
Click the Extender tab to view the above information about the extender.

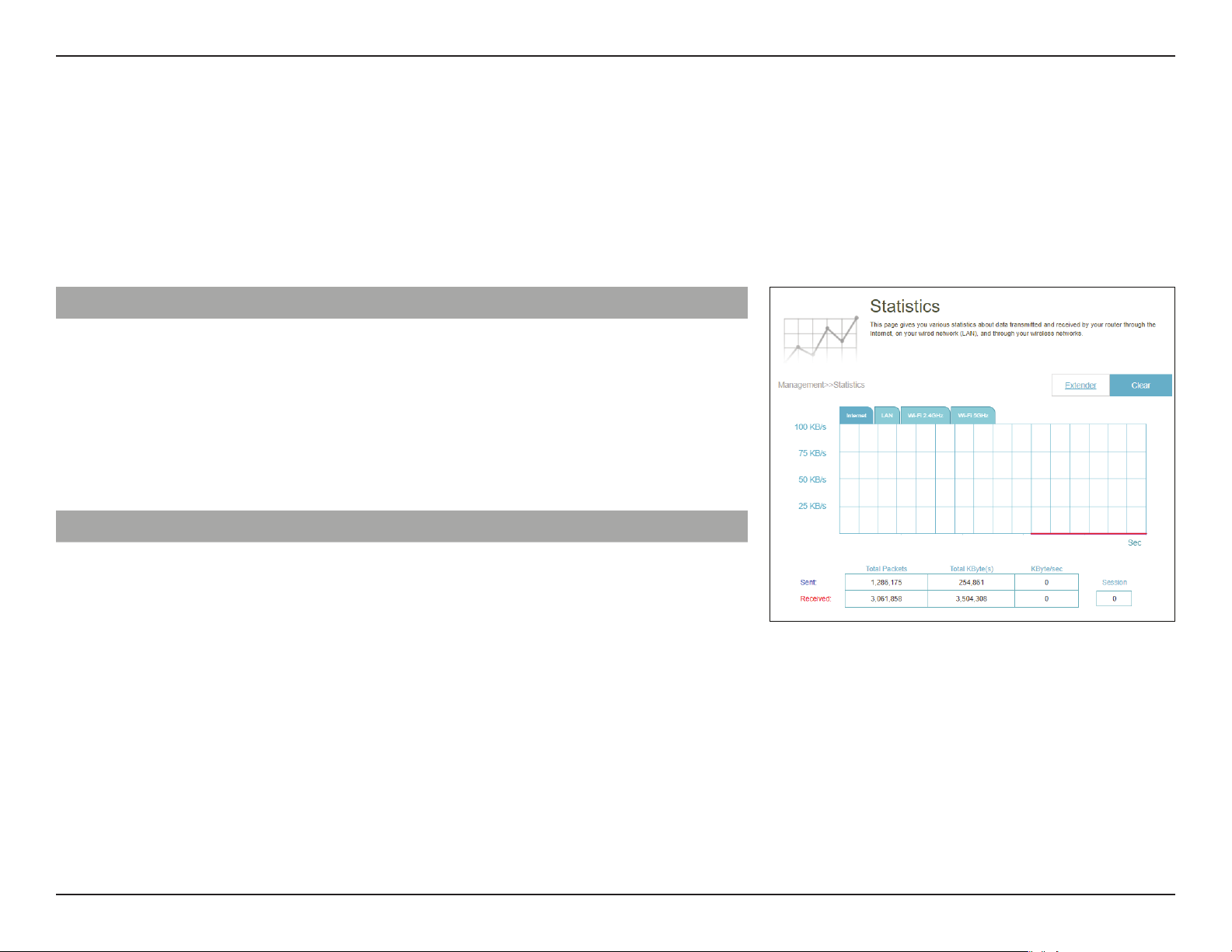

Statistics
Go to Management > Statistics. On the Statistics page you can view the amount of trac that passes through the router on the
Internet and LAN interfaces as well as the trac from Wi-Fi 2.4 GHz and Wi-Fi 5GHz networks.
Router
Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5 GHz by clicking the respective
kilobyte per second will be shown.
Clear.
Extender
92D-Link R32 User Manual
Section 3 - Conguration
EAGLE PRO AI
With the EAGLE PRO AI on your smart devices, you can get the R32 up and running quickly. Just plug in the router, open
the app and build your home network by following the easy instructions on the screen. The new EAGLE PRO AI is especially
designed to ease your management work with the following features:
AI Wi-Fi Optimizer: Enable this feature to always connect to the cleanest Wi-Fi Channel using the breakthrough
beamforming technology and receive information about automatic optimization for continuous improvement in the Wi-Fi
environment.
AI Trac Optimizer: The QoS engine controls the trac ow intelligently by automatically assigning heavy trac with
a low priority to improve the overall user experience. It also generates information about bandwidth usage of individual
devices and aggregate utilization data.
AI Assistant: The message center reports Internet trac volume and provides usage notications when clients are
transmitting a large amount of data or overly active at night in the weekly bandwidth report. It also enables you to prioritize
connected devices to reduce trac congestion along with the report. Moreover, every improvement made by the Wi-Fi
Optimizer will also be recorded to inform administrators about conditions of the wireless environment.
AI Parental Control: The Parental Control provides the highest exibility of Internet accessibility control and website
ltering. It allows administrators to control the availability of Internet access and speed on individual devices during the
designated time periods.
R32
AI Wi-Fi Optimizer:
To enable this function, open the app. From the Home screen, tap Wi-Fi and tap .
Then tap the slider for AI Wi-Fi Optimizer. Turn on Wi-Fi Optimizer to have your wireless
connection adopting an interference-free channel automatically and receive weekly Wi-Fi
environment report every Monday at 8 AM local time.
R32
93D-Link R32 User Manual
Section 3 - Conguration

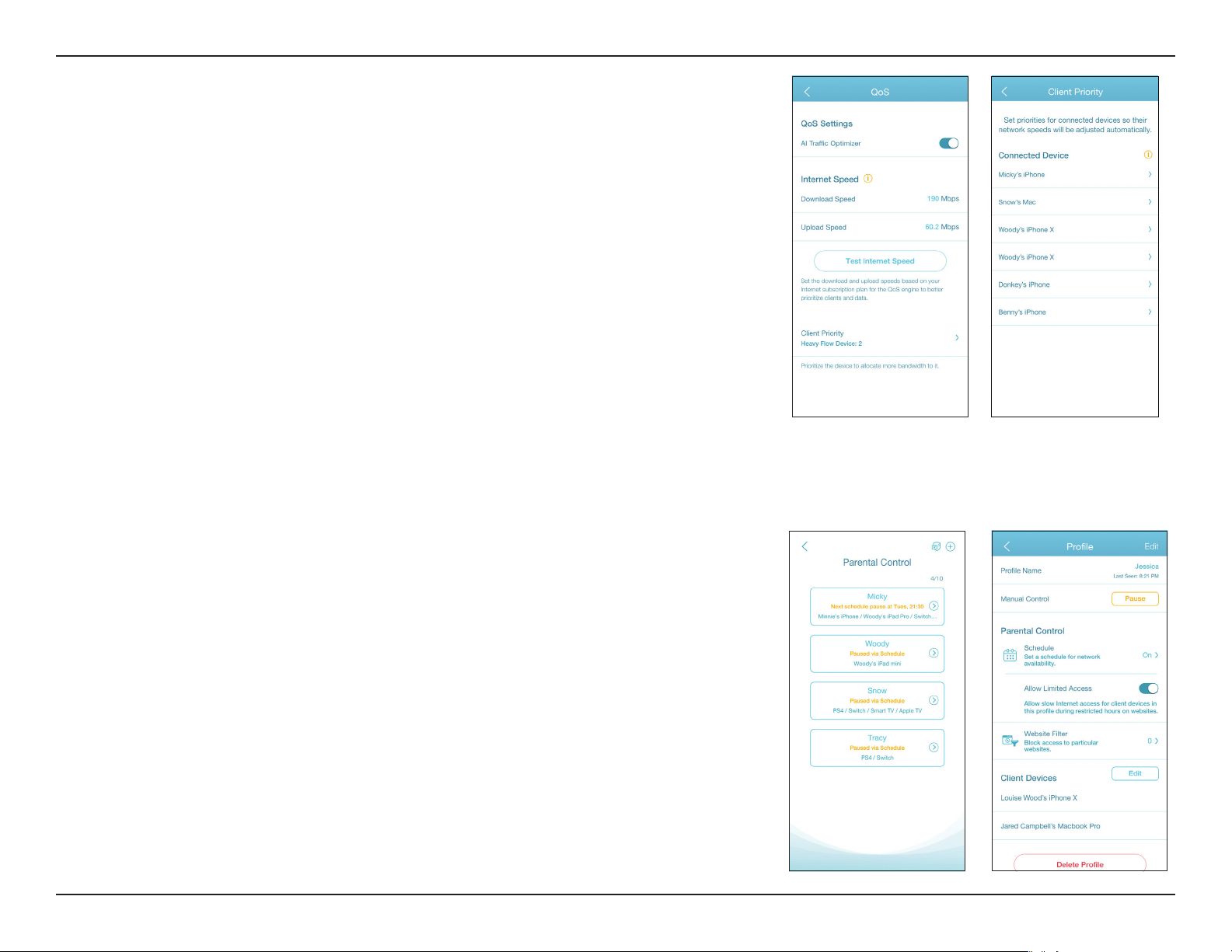

AI Trac Optimizer:
To enable this function, open the app. From the Home screen, tap the main router, scroll
down the Device Info screen to Settings, and tap QoS. Then tap the slider for AI Trac
Optimizer.
Before you start the AI Trac Optimizer, run Speed Test from the Home screen (go to
Home> Internet Speed) to set the download and upload speeds to assist the QoS engine
in distributing the bandwidth to prioritized clients.
To prioritize clients, tap Client Priority from the Home screen. Tap a client device and assign
a priority level with eective duration to this device. High priority devices running online
games, video conferences, or other real-time programs will have the best access. The Red
bar on the left indicates heavy users.
AI Parental Control:
To enable this function, open the app. From the Home screen, tap Parental Control.
Then use the following procedure to add a new control prole:
1. Tap Start.
2. Name this prole. Then tap Next to continue.
3. Select client devices to which the prole will be applied.
4. Tap Done to proceed.
5. The prole summary will be displayed. On this page you can tap Pause to pause Internet
immediately to the devices specied in the prole.
You can set schedules to restrict Internet access.
Use Block Bedtime Internet Access to block Internet access during the specied days with
time periods. Up to two schedules can be dened. Use Allow Scheduled Internet Access
to allow Internet access only during the specied days and times. Users cannot access
the Internet except during the hours that you specify. Note that bedtime restriction takes
precedence over the allowed schedules here.
94D-Link R32 User Manual
Section 3 - Conguration
You can also block specic websites on this page to prevent the specied devices from
accessing certain websites. To do this, tap Website Filter, tap Add Website, then enter the
website name and the domain keyword, for example, enter violent.com to block all access
to this site and violent to block domain names that contain this keyword. Then tap Add at
the top right.
AI Assistant:
Tap AI Assistant to display the weekly reports on bandwidth consumption with
information about heavy users. Weekly reports also give information on the number of
times the system performs trac management automatically when congestion occurs and
provides qualitative rating on your Wi-Fi environment. Furthermore, the Nighttime Internet
Activity informs you about the overly active Internet access during nighttime.
This app enables you to proactively improve sleep quality by restricting Internet access
during nighttime. Tap Health Mode to set the bedtime during which Internet access will
be blocked on all devices within the network.
Note: The Bedtime scheduling also restricts local access by disabling Wi-Fi connectivity.
However, remote management through the Internet is allowed.
95D-Link R32 User Manual
