Page 1
D-Link
AirPre mier AG
DWL-AG530
11a/11g Dualband (2.4GHz/5GHz)
Wireless 108Mbps PCI Adapter
Manual
TM
Building Networks for People
Page 2
Contents
Pack age Contents.................................................................................3
Introduction............................................................................................4
Features ...............................................................................................5
Wireless Basics ....................................................................................6
Getting Started....................................................................................10
Using the Configuration Utility..............................................................13
Networking Ba sics ..............................................................................22
Troubleshooting...................................................................................35
T echnical Spe cifications......................................................................4 0
Contacting T e chnical Support ..............................................................42
Warra nty and Registration....................................................................43
Appendix ............................................................................................46

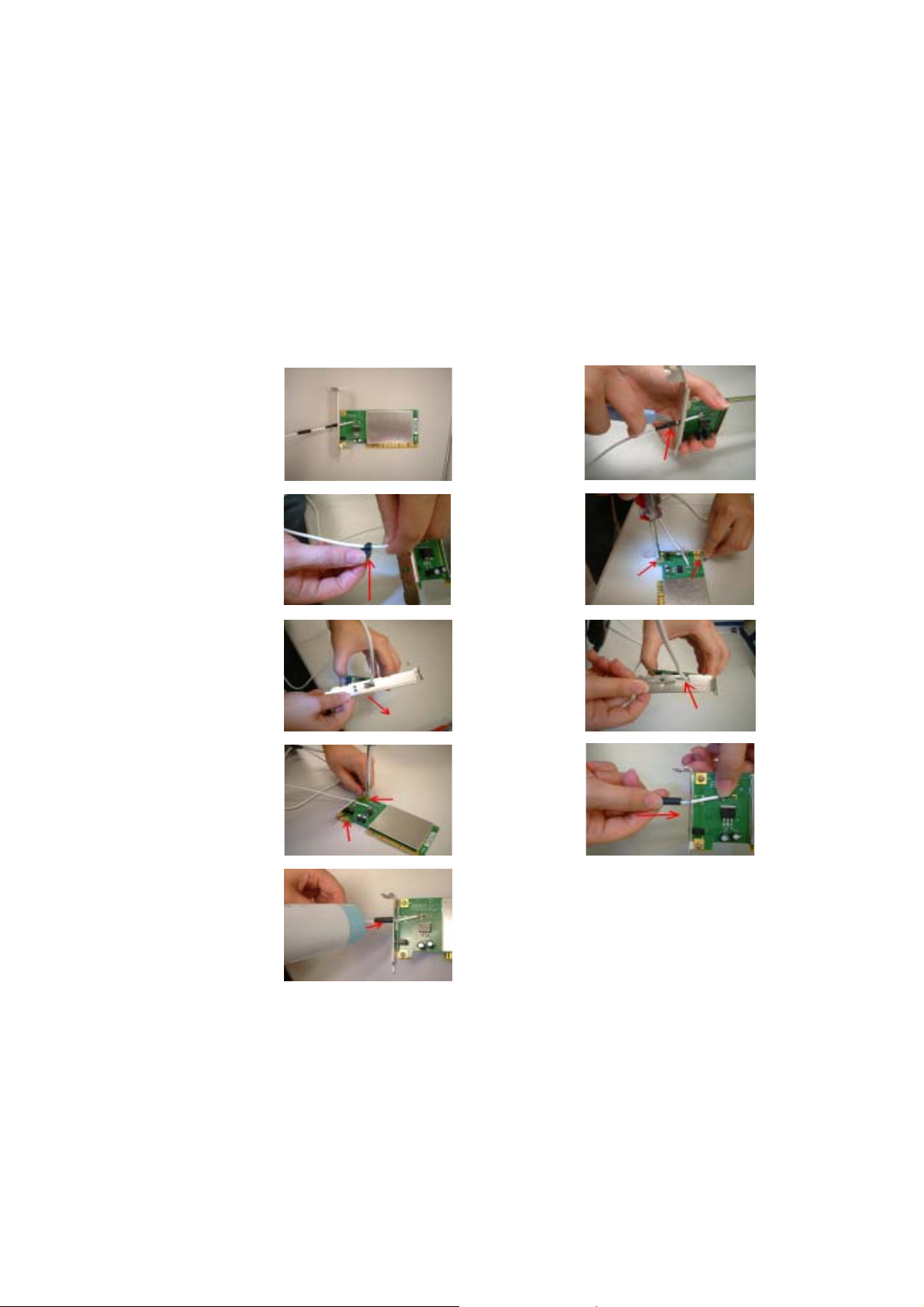

How to Replace the Bracket
EAP Types
Definitions of Configuration Terms
2
Page 3
Package Contents
Contents of Package:
D-Link AirPremier AGTM DWL-AG530
1 1a/11g Dualba nd (2.4GHz/5GHz)
Wireless 108Mbps PCI Adapter
Ma nual, W arranty a nd Drivers on CD
Printed Quick Installation Guide
Low Prefile Bracket
If any of the above items are missing, please contact your reseller.
System Requirements for Configuration:
A desktop computer with a n available 32-bit PCI 2.2
slot
Windows XP/2000
At least 128MB of memory and a 500MHz processor
An 802.11a, 802.11b or 802.11g access point (for Infrastruc-
ture mode) or another 802.11a, 802.1 1b, or 802.11g wireless
ada pter (for Ad-Hoc; Peer-to-Peer networking mode).
* Due to DFS (Dynamic Frequency Selection), 802.11a SSID broadcast (Ad-Hoc mode) is always
disabled.
3
Page 4
Introduction
At up to fifteen times the speed of previous wireless devices (up to 108Mbps in
Super AG mode), you ca n work faster a nd more efficiently , increa sing productivity .
With the DWL-AG530, bandwidth-intensive applications like graphics or
multimedia will benef it significantly be cause large files are a ble to move a cross
the network quickly .
Inclusion of all three standards (802.11g; 802.11a; 802.11b) means that the
DWL-AG530 is versatile enough to allow connection to almost any 802.11
network or device.
The D WL-AG530 ha s the newest, strongest a nd most adva nced security features
available today. When used with other 802.11 WPA/WPA2 (Wi-Fi Protected
Access/Wi-Fi Protected Access 2
network with a RADIUS server, the security features include:
WPA/WPA2: Wi-Fi Protected Access/Wi-Fi Protected Access 2
authorizes and identifie s users based on a se cret key that changes automatically
at regular intervals. WPA/WPA2 uses TKIP (T emporal Key Integrity Protocol)
to change the temporal key every 10,000 pa ckets (a pa cket is a kind of message
transmitted over a network.) This ensures much greater security than the
standard WEP security. (By contrast, the previous WEP encryption
implementations required the keys to be changed manually.)
802.1X: Authentication which is a first line of defen se against intrusion. In the
authentication process, the Authentication Server* verifies the identity of the
client attempting to connect to the network. Unfamiliar clients would be denied
access.
TM
) and 802.1X compatible products in a
TM
which
For home users that will
security for the DWL-AG530, used in conjunction with other WPA/WPA2compatible 802.1 1 products, will still be much stronger than ever before. Utilizing
the Pre- Shared Key mode of WPA/WPA2, the D WL-AG530 will obtain a new
security key every time it connects to the 802.11 network. You only need to
input your encryption information once in the configuration menu. No longer will
you have to manually input a new WEP key frequently to en sure se curity. With
the DWL-AG530, you will automatically receive a new key every time you
connect, vastly increasing the safety of your communication.
*Not all servers can provide Authentication
not incorporate a RADIUS server in their network, the
4
Page 5
Feature s
Faster Wireless Networking with speeds up to 108Mbps in T urbo
mode -
AG530 in your PC, you will have the flexibility of wireless networking speeds
that save you time and money .
* IEEE 802.1 1a standard to provide wireless 54Mbps data rate, and
up to 108Mbps (only for USA and Singapore) if enable Super A/G
mode with D-Link AirPremier AG
* IEEE 802.1 1g standard to provide wireless 54Mbps data rate, and
up to 108Mbps if enable Super A/G mode with D-Link
AirPremier AG
* D-Link 108AG performance results are based on testing with other
D-Link 108AG enabled devices utilizing Packet Bursting,
FastFrames, Turbi Mode and Compression techniques. Data
already compressed may not benefit from the D-Link 108AG
Compatible with 802.11a, 802.11b and 802.11g Devices - Fully compat-
ible with the IEEE 802.1 1a, 802.11b a nd 802.1 1g standards, the D WL-AG530
can connect with existing 802.11b, 802.1 1g- or 802.11a- complia nt routers,
access points and cards. That means you can still communicate with colleagues and friends while you have the a bility to link to even more wireless
Better Security with 802.1X and WPA/WPA2 -With the DWL-AG530 in
your desktop PC you can securely connect to a wireless network using
802.1x for wireless authentication, a s well as WP A/WPA2 (Wi-Fi Protected
Access/Wi-Fi Protected Access 2
security for your data and communication than has previously been available.
Versatility - The DWL-AG530 is fully compatible with IEEE 802.11a and
802.1 1b standards, ma king it interoperable with 802.1 1a a nd 802.1 1b wireless routers and access points in your office, home or at public wireless
hotspots.
32-bit PCI Performance/Plug & Play Connectivity -The D WL-AG530
is a powerful 32-bit PCI ada pter that installs quickly a nd ea sily into desktop PCs, and when used with other D-Link Air Premier AG
will automatically connect to the network out of the box.
Fa ster data tra n s fers me a n incre ased productivity . With the DWL-
TM
and AirPlus XtremeGTM products.
TM
and AirPlus XtremeGTM products.
TM
) providing you a much higher level of
TM
products
Wi-Fi CERTITIEDTM for WMMTM (Wi-Fi Multimedia) -The D WL-AG530
delivers quality of service (QoS) for voice, audio, and video use over
wireless networks. It will prioritizing pa ckets with voice, audio, and video
data and make sure these packets are delivered ahead of less important traf f ic. This is a built in fe ature under Window 2000 and XP.
5
Page 6
LEDs
LED stands for Light-Emitting Diode. The DWL-AG530 ha s the f ollowing LEDs:
Activity
A blinking light indicates data is being
transmitted
Link
A ste ady light indicates a connection to a n
access point
Wireless Basics
D-Link wireless products are based on industry standards to provide easy-touse and compatible high-speed wirele ss connectivity within your home, business
or public access wireless networks. D-Link wireless products will allow you
access to the data you want, when and where you want it. You will be able to
enjoy the freedom that wireless networking brings.
A wireless local area network (WLAN) is a computer network that transmits
and receives data with radio signals instead of wires. WLANs are used
increasingly in both home and office environments, and public areas such as
airports, coffee shops and universities. Innovative ways to utilize WLAN
technology are helping people to work and communicate more efficiently.
Increased mobility and the absence of cabling and other fixed infrastructure
have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network.
Wireless adapter cards used on laptop a nd de sktop syste ms support the same
protocols as Ethernet adapter cards.
6
Page 7
Wireless Basics (continued)
People use WLAN technology for many different purposes:
Mobility – Productivity increases when people have access to data in any
location within the operating range of the WLAN. M anage ment decisions ba sed
on real-time information can significantly improve worker efficiency.
Low Implementation Costs – WLANs are easy to set up, manage, change
and relocate. Networks that frequently cha nge can benef it from WLANs ea se of
implementation. WLANs can operate in locations where installation of wiring
may be impractical.
Installation and Network Expansion - Installing a WLAN system can be
fa st and ea sy a nd can eli minate the need to pull cable through walls a nd ceilings.
Wireless technology allows the network to go where wires cannot go - even
outside the home or office.
Inexpensive Solution – Wireless network devices are a s competitively priced
a s conventional Ethernet network devices.
Scalability – WLANs ca n be configured in a variety of ways to meet the needs
of specific a pplications a nd installations. Configurations are ea sily cha nged a nd
range from Peer-to-Peer networks suita ble for a small number of users to larger
Infrastructure networks to accommodate hundreds or thousands of users,
depending on the number of wireless devices deployed.
The DWL-AG530 is compatible with the f ollowing wirele ss products:
D-Link AirPremier
Wireless Cardbus Adapters used with laptop computers
D-Link AirPremier
Wireless Access Points
D-Link AirPremier
Wireless Broadband Routers
The DWL-AG530 is also interoperable with other 802.11g and
802.1 1b a nd 802.11a sta ndards-compli ant devices.
TM
AG DWL-AG660
TM
AG DWL-7100AP
TM
AG DI-784
7
Page 8
Wireless Basics (continued)
Standards-Based Technology
The DWL-AG530 Wireless PCI Adapter utilizes the 802.11a, 802.1 1b and 802.1 1g
standard.
The IEEE 802.11g sta ndard is a n extension of the 802.1 1b sta ndard. It increa ses
the data rate up to 54 Mbps within the 2.4GHz band utilizing OFDM technology.
This mean s that in most environments, within the specified ra nge of this device,
you will be able to transfer large files quickly or even watch a movie in MPEG
format over your network without noticeable delays. This technology works by
tran smitting high-speed digital data over a radio wave utilizing OFDM (Orthogonal
Frequency Division Multiplexing) technology . OFDM works by splitting the ra dio
signal into multiple smaller sub-signals that are then tra nsmitted simulta neously
at different frequencies to the receiver . OFDM reduces the a mount of crosstalk
(interference) in signal transmission s. The D-Link D WL-AG530 will automatically
sense the best possible connection speed to ensure the greatest speed and
range possible.
802.11g offers the most advanced network security features available today,
including: WPA, WP A2, 802.1x, TKIP, AES and Pre-Shared Key mode.
The DWL-AG530 is backwards compatible with 802.11b devices. This means
that if you have an existing 802.1 1b network, the device s in that network will be
compatible with 802.1 1g devices at speeds up to 1 1Mbps in the 2.4GHz ra nge.
8
Page 9
Wireless Basics (continued)
Installation Considerations
The D-Link AirPremier AG DWL-AG530 lets you acce ss your network, using a
wireless connection, from virtually a nywhere within its operating range. Kee p in
mind, however, that the number, thickness and location of walls, ceilings, or
other objects that the wireless signals must pa ss through, may limit the range.
Typical ranges vary depending on the types of materials and background RF
(radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
Keep the number of walls and ceilings between the DWL-AG530 and
1
other network devices to a minimum - each wall or ceiling can reduce
your D WL-AG530’s range from 3-90 feet (1-30 meters.) Position your
devices so that the number of walls or ceilings is minimized.
Be aware of the direct line between network devices. A wall that is 1.5
2
feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a
wall or ceiling (instead of at an angle) for better rece ption.
3
Building materials can impede the wireless signal - a solid metal door
or aluminum studs may have a negative effect on range. Try to position
wireless devices a nd computers with wireless ada pters so that the signal
passes through drywall or open doorways and not other materials.
TM
Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
4
devices or appliances that generate RF noise.
9
Page 10
Getting Started
There are basically two modes of networking:
Infrastructure – using an access point or wireless router
such as the DWL-7100AP.
Ad-Hoc – directly connecting to a nother computer, for Peer-
to-Peer communication, using wireless network adapters on
each computer, such as two or more DWL-AG530 Wireless
PCI Adapters.
On the following pages we will show you an example of an Infrastructure
Network and a n Ad-Hoc Network.
An Infrastructure network contains an access point or a wireless router.
The Infra structure Network example shown on the following page contains
the following D-Link network devices (your existing network may be
comprised of other devices):
TM
A wirele ss router - D-Link AirPremier
AG DI-784
A laptop computer with a wireless adapter -
D-Link Air Premier
A desktop computer with a wireless adapter -
D-Link Air Premier
A ADSL modem - D-Link DSL-300T
* Due to DFS (Dynamic Frequency Selection), 5GHz Ad-Hoc mode is always disable in EEC countries.
TM
AG D WL-AG660
TM
AG D WL-AG530
10
Page 11
Getting Started (continued)
Setting up a Wireless Infrastructure Network
2
1
For a typical wireless setup at home
(a s shown here),
please do the
following:
3
7
DWL-AG530
DI-
6
Y ou will need broa dband Internet a cce ss (a Cable or DSL-subscriber line
into your home or office).
784
5
DWL-AG660
with Laptop PC
4
Consult with your Cable or DSL provider f or proper installation of the modem.
Connect the Cable or DSL modem to your broadband router. (See the
Quick Installation Guide included with your router).
TM
Install the D-Link AirPremier
an availa ble PCI slot on your desktop computer.
(See the Quick Installation Guide included with the network adapter).
Install the D-Link DWL-AG660 Wirele ss Cardbus Adapter into a laptop
computer.
(See the Quick Installation Guide included with the DWL-AG660).
If you wish, you may connect a computer that is equipped with a n Ethernet
network adapter (such as a DFE-528TX) to the router also.
A RADIUS server is optional. Connect a RADIUS server to your network
to use all the features of WP A. (Without a RADIUS server you ca n still use
the WPA Pre-Shared Key mode.) RADIUS Authentication can also be
provided by another service provider over the Internet a nd remote to your
network site.
AG D WL-AG530 Wireless PCI Adapter into
11
Page 12
Getting Started (continued)
Setting up a Wireless Ad-Hoc Network
DWL-AG530
Install the D-Link DWL-AG530 Wireless PCI Adapter into the de sktop
computer. (See the Quick Installation Guide included with the DWL-
AG530).
Install the DWL-AG660 into a la ptop computer. (See the Quick
Installation Guide included with the DWL-AG660).
DWL-AG660
Set the wireless configuration for the adapters to Ad-Hoc mode, set
the adapters to the same channel, and assign an IP address to each
computer on the Ad-Hoc network. (See box below).
IP Addre ss
When assigning IP addresses to the computers on the network, please
remember that the IP address for each computer must be in the same
IP address range as all the computers in the network, and the subnet
mask must be exactly the same for all the computers in the network.
For exa mple: If the f irst computer is assigned an IP a ddre ss of 192.168.0.2
with a subnet mask of 255.255.255.0, then the second computer can be
a ssigned an IP a ddress of 192.168.0.3 with a subnet ma sk of 255.255.255.0,
etc.
IMPORTANT: If computers or other devices are assigned the same IP
address, one or more of the devices may not be visible on the network.
12
Page 13
Using the Configuration Utility
D-Link AirPremierAGTM DWL-AG530 uses the Configuration Utility as the
manage ment software. The utility provides the user a n ea sy interface to cha nge
any settings related to the wireless adapter. After you have completed the
installation of the D WL-AG530 (refer to the Quick Installation Guide that ca me
with your purcha se) whenever you start the computer, the Conf iguration Utility
starts automatically and the system tray icon is loaded in the toolbar (see
illustration below*.) Clicking on the utility icon will start the Configuration Utility.
Another way to start the Configuration Utility is to click on Start>Programs>D-
Link AirPremierAG
If you are using Windows XP, you ca n use either the Zero Configuration Utility
or the D-Link Conf iguration Utility .
T o use the D-Link Configuration Utility with XP, right-click
on the wireless network icon in the tas kbar in the lower
right-hand corner of your computer screen.
In the window that appears, select
View Available Wireless Networks
and click the Advanced button. The
screen at right will a ppe ar.
TM
> D-Link AirPre mier AGTM Utility .
Select the Wireless Networks tab.
Uncheck the box in the properties window
that enables windows configuration.
To access the WPA/WPA2 security
features of the D WL-AG530 you must
install the Aegis software (included on
the installation CD) before inserting the
Adapter into your la ptop PC.
After you have done this, you can then use the D-Link
Configuration Utility with XP by clicking on the D-Link
Configuration Utility icon.
If the icon does not display in the tas kbar, then click on
this icon on your desktop to open.
13
*Configuration Utility icon
in the system tray
Page 14
Using the Configuration Utility (continued)
After clicking on the Configuration Utility icon, the Link Info screen will display
the settings for the DWL-AG530:
Status:
Displays the MAC address of
the access point or router to
which the DWL-AG530 is asso-
ciated.
SSID:
The Service Set Identifier is the
name assigned to the wireless
network. The factory SSID set-
ting is default.
Frequency:
802.1 1b indicates that the D WLAG530 is communicating in the
2.4GHz band.
Wireless Mode:
Either Infrastructure or Ad-Hoc will be displayed here. (Plea se see the Getting
Started section in this manual for an expla n ation of the se two modes.)
Encryption:
You can see if WEP (Wired Equivalent Privacy) is Enabled or Disabled here.
Connection Info:
The connection status is displayed here.
Tx Rate:
Tx Rate settings are automatically determined for an optimal speed up to a
maximum of 54Mbps (108Mbps in T urbo mode).
Channel:
The channel selection is automatically determined by the D WL-AG530.
Link Info
Signal Strength/Link Quality:
Displays the Link Quality for the DWL-AG530 wireless connection to the access point. The signal strength represents the wireless signal between the
access point and the DWL-AG530. The percentage coincides with the graphical bar.
Packet Count:
Displays the statistics of the data packets that are transmitted and received.
Rescan Button:
Rescans for the strongest signal in your environment and associates with that
access point or router.
* Due to DFS (Dynamic Frequency Selection), 5GHz Ad-Hoc mode is always disable in EEC countries.
14
Page 15
Using the Configuration Utility (continued)
SSID:
Service Set Identifier is a na me that identif ies a
wireless network. Access points and wireless
devices attempting to connect to a specific
WLAN (Wireless Local Area Network) must use
the sa me SSID. The default setting is default.
Wireless Mode:
Click on the pull-down menu; select from the
following options:
Infrastructure - Conne cting to the WLAN
using an a ccess point. (This is the default
setting).
Ad-Hoc - Wireless mode used when
connecting directly to a computer equipped with a wireless adapter in a
Peer-to-Peer environment.
Data Encryption:
Select Enabled or Disabled.
Authentication:
Choose one of the following modes:
Open Authentication - The DWL-AG530 is visible to all devices on the
network.
Shared Authentication- Allows communication only with other device s
with identical WEP settings.
WPA/WPA2* - Select to enable WPA/WP A2. Click Athentication Conf ig.
WPA-PSK/WPA2-PSK* - Sele ct to enable WPA-PSK/WP A2-PSK. Click
Authentication Config.
*(See the following pages for more detailed configuration instructions.)
Key Length:
Select the key length and e ither ASCII or hexadecimal format.
IEEE802.1x:
Enable 802.1x in this field. (802.1x is automatically enabled when WPA/WPA2
or WPA-PSK/WPA2-PSK is selected.)
Keys 1-4:
Select the default key .
Hexadecimal digits consist of the numbers 0-9 a nd the letters A-F.
ASCII (America n Sta ndard Code f or Information Intercha nge) is a code for
representing English letters as numbers from 0-127.
Configuration
IP Settings:
When you click IP Settings in the Configuration window, the pop-up screen
shown on the next page will a ppear. Configure the IP settings in that window.
Click Apply to save cha nges.
15
Page 16
Using the Configuration Utility (continued)
Configuration > IP Settings
Obtain an IP Address Automatically:
Choose this option to obtain an IP a ddre ss automatically through a DHCP
server.
Assign the following IP Address:
Choose this option to assign a static IP address.
Obtain DNS Server Address Automatically:
Choose this option to obtain a DNS server address automatically.
Use the following DNS Server address:
If you make this selection, enter the Preferred DNS server and the Alternate
DNS server in the a ppropriate fields.
16
Page 17
Using the Configuration Utility (continued)
Authentication > WPA/WPA2 >802.1X
Configuration>WPA/WPA2
Select WPA/WPA2 in
the Authentication field.
When you select WPA/
WPA2, 802.1X is Enabled.
Click
Authentication Config
The Advanced Security Set-
tings screen will appear, as
shown below.
Advanced Security Settings
Select the EAP Type you
want to use. Configure the
information needed for
authenticating.
Inner Authentication
Protocol.
For an expla nation of
the terms shown in
this window plea se see the
appendix.
Trusted CA List.
Click OK. The WPA/WPA2
configuration is complete
!
17
Page 18
Using the Configuration Utility (continued)
Authentication > WPA-PSK/WPA2-PSK > 802.1X
Configuration > WPA-PSK/WPA2-PSK
Select WPA-PSK/WPA2PSK in the Authentication
field.
When you select WPA-PSK/
WPA2-PSK, 802.1X is Dis-
abled.
Click
Authentication Config
WP A-PSK/
WP A2-PSK
not re-
does
quire a RADIUS
server in the network.
Advanced Security Settings
Enter the WPA/WPA2
passphrase.
Click OK. The WPA-
PSK/WPA2-PSK
configuration is
complete
!
18
Page 19
Using the Configuration Utility (continued)
Frequency:
Select the network frequency from these options:
Auto; b 2.4GHz; b/g
2.4GHz; or a 5GHz.
Super A/G:
Enable or Disable.
Starting Ad-Hoc Network:
If you are configuring an
Ad-Hoc network, select
2.4GHz or 5GHz.
Ad-Hoc Channel:
Select Auto or 1-11.
Profile IP Settings:
You can Ena ble or Disable the IP Settings portion of your profile here. If you
select Disable you will need to configure the IP address information ea ch
time you connect to a network. If you select Enable you will maintain the
same IP address information each time you connect to a network.
Advanced
-
Power Mode:
Disable - Saves no power.
Fast Save - Moderate power-saving.
Max Save - Saves the most power.
Data Packet Parameter:
Set the Fragmentation Threshold and the RTS Threshold. Please see below.
Fragmentation Threshold:
This value should remain at its default setting of 2346. If you experience a high
packet error rate, you may slightly incre a se your fragmentation threshold within
the value range of 256 to 2346. Setting the fragmentation thre shold too low may
result in poor performance.
RTS Threshold:
This value should remain at its default setting of 2346. If inconsistent data flow
is a problem, only a minor modification should be made.
* Due to DFS (Dynamic Frequency Selection), 5GHz Ad-Hoc mode is always disable in EEC countries.
Launch Utility on Startup:
Select Enable or Disable.
19
Page 20
Using the Configuration Utility (continued)
Available Network:
The top section of the window displays the Availa ble Networks. Scroll up and
down the list and highlight the network to which you wish to connect. Click on
the Connect button.
Profile:
In the lower half of the screen, you can manage the profiles that you have created for the wireless network at home, at the office and in public places. Scroll
up and down a nd highlight the profile that you wish to configure. Y ou ca n Add or
Remove a profile, or configure the Properties of the profile in order to connect
with an availa ble network.
Refresh:
Click on Refresh to get
the most updated list of
available networks.
Configure:
Highlight an existing
network and click Config-
ure; the configuration
window on the next page
will a ppear.
Advanced:
Highlight a network; click
Advanced and the screen
on the next page will a ppear.
Add:
Click Add and the screen on the next page will a ppear.
Remove:
Highlight a network profile; click Remove to remove a network from the profile
list.
Properties:
Highlight a network profile; click Properties and the screen on the next page
will a ppear.
Site Survey
Connect:
Highlight a network profile; click Connect to connect to that network.
Rescan:
Click Rescan to rescan and connect to the strongest signal.
20
Page 21
Using the Configuration Utility (continued)
Site Survey > Advanced, Add, Configuration or Properties
Advanced
In this window you can select the type
of network connection that a pplie s.
Click OK to save the changes.
Add, Configuration, Properties
If you clicked on Add, you can configure, in this window, all the propertie s
of a profile that you wish to add to the
network.
If you clicked on Configuration or
Properties you ca n configure, in this
window, all the propertie s of a profile
that already exists in the network.
The About screen displays information regarding your DWL-AG530, including the MAC address, Utility version, Driver version, a nd Support Frequency .
About
21
Page 22
Networking Ba sics
Using the Network Setup Wizard in Windows XP
In this section you will learn how to establish a network at home or work, using
Microsoft Windows XP.
Note: Plea se refer to websites such as
and
http://www.microsoft.com/windows2000 f or information a bout networking
computers using Windows 2000/Me/98SE.
Go to Start>Control Panel>Network Connections
Select Set up a home or small office network
http://www.homenethelp.com
When this screen appears, click Next.
22
Page 23
Networking Basics (continued)
Please follow all the instructions in this window:
Click Next.
In the following window , select the best description of your computer . If your
computer connects to the Internet through a gateway/router, select the
second option as shown.
Click Next.
23
Page 24
Networking Basics (continued)
Enter a Computer description and a Computer name (optional.)
Click Next.
Enter a Workgroup na me. All computers on your network should have the
same Workgroup name.
Click Next.
24
Page 25
Networking Basics (continued)
Please wait while the Network Setup Wizard applies the changes.
When the changes are complete, click Next.
Please wait while the Network Setup Wizard configures the computer.
This may take a few minutes.
25
For
Page 26
Networking Basics (continued)
In the window below, sele ct the option that f its your needs. In this example,
Create a Network Setup Disk has been selected. You will run this disk on
each of the computers on your network. Click Next.
Insert a disk into the Floppy Dis k Drive, in this case drive A.
Plea se wait whi
Click Next.
26
Page 27
Networking Basics (continued)
Plea se re a d the inf ormation under Here’s how in the screen below. After you
complete the Network Setup Wizard you will use the Network Setup Dis k to
run the Network Setup Wizard once on each of the computers on your network. To continue click Next.
27
Page 28
Networking Basics (continued)
Please read the information on this screen, then click Finish to complete the
Network Setup Wizard.
The new settings will take effect when you restart the computer. Click Yes to
restart the computer.
You have completed configuring this computer. Next, you will need to run the
Network Setup Dis k on all the other computers on your network. After running
the Network Setup Disk on all your computers, your new wireless network will
be ready to use.
28
Page 29
Networking Basics (continued)
Na ming your Computer
To na me your computer in W indows XP, please follow these dire ctions:
Click Start (in the lower left corner of the screen).
Right-click on My Computer.
Select Properties and click.
Select the Computer
Name Tab in the System Properties window.
Y ou may enter a Computer Description if
you wish; this field is
optional.
To rename the computer
and join a domain, click
Change.
29
Page 30
Networking Basics (continued)
Na ming your Computer
In this window, enter the
Computer name.
Select Workgroup and enter
the name of the Workgroup.
All computers on your
network must have the same
Workgroup nam e.
Click OK.
Checking the IP Addre ss in Windows XP
The wireless ada pter-equi pped computers in your network must be in the sa me
IP address range (see Getting Started in this manual for a definition of IP address range). T o check on the IP address of the ada pter , plea se do the following:
Right-click on the
Local Area
Connection
icon in the task
bar.
Click on Status.
30
Page 31
Networking Basics (continued)
Checking the IP Address in Windows XP
This window will a ppe a r.
Click the
Support tab.
Click
Close.
Assigning a Static IP Address in Windows XP/2000
Note: DHCP-ca pa ble routers will automatically a ssign IP a ddresse s to the computers on the network, using DHCP (Dyna mic Host Configuration Protocol) technology. If you are using a DHCP-capable gateway/router you will not need to
assign static IP addresses.
If you are not using a DHCP capable gateway/router, or you need to assign a
static IP address, please follow these instructions:
Go to Start.
Double-click
on Control
Panel.
31
Page 32
Networking Basics (continued)
Assigning a Static IP Address in Windows XP/2000
Cl
(TC
Double-click
on Network
Connections.
Right-click on Local Area
Connections.
Cl
Select Us
address
Protocol
window (s
h
Double-click on
Properties.
32
Page 33
Networking Basics
(continued)
Assigning a Static IP Address
Windows XP/2000
in
Click on Internet
Protocol (TCP/IP).
Click Properties.
In the window below,
select Use the following
IP address. Input your IP
address and subnet
mask. (The IP addresses
on your network must be
within the same ra nge. For
example, if one computer
has an IP address of
192.168.0.2, the other
computers should have IP addresses that are sequential, like
192.168.0.3 and 192.168.0.4. The subnet mask must be the same
for all the computers on the
network).
Client for
Microsoft Networks
Internet Protocol
(TCP/IP)
IP Addre ss:
e.g., 192.168.0.2
Subnet Mask:
255.255.255.0
Default Gateway:
Enter the LAN IP
address of the wireless
router. (D-Link wireless
routers have a LAN IP
address of 192.168.0.1).
Select Use the
following DNS server
addresses. Enter the
LAN IP address of the
wireless router. (D-Link
wireless routers have a
LAN IP address of
192.168.0.1).
Click OK.
You have completed the assignment of a
static IP address. (You do not need to assign a static IP a ddress if you have a DHCPcapa ble gateway/router).
33
Page 34
Networking Basics (continued)
Checking the W ireless Connection by Pinging in Windows XP/2000
Go to Start > Run
> type cmd. A
window similar to
this one will a ppear . T ype ping
xxx.xxx.xxx.xxx,
where xxx is the
IP address of the
wireless router or
acce ss point. A
good wireless
connection will
show four replies
from the wireless
router or access
point, as shown.
Checking the Wirele ss Connection by
Go to Start >
Run > type
command. A
window similar to
this will a ppe ar .
Type ping
xxx.xxx.xxx.xxx
where xxx is the
IP address of the
wireless router or
acce ss point. A
good wireless
connection will
show four replies
from the wireless
router or access
point, as shown.
34
Pinging in Windows Me/98SE
Page 35
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DWL-AG530. Read the following descriptions if you
are having problems. (The examples below are illustrated in Windows XP. If
you have a different operating system, the screenshots on your computer will
look similar to the following examples).
1. How do I check that the drivers for the DWL-AG530 are in stalled properly?
Go to Start >
My Computer >
Properties.
Select the
Hardware
Tab.
Click Device
Manager.
35
Page 36
Troubleshooting (continued)
Double-click
on Network
adapters.
Right-click on D-Link
AirPremier
AG530 Wireless PCI
Adapter.
Select Proper-
ties to check
that the drivers
are installed
properly .
TM
D WL-
D-Link AirPro D WL-AB650 Wireless Cardbus Adapter
D-Link AirPremier D WL-AG530 Wireless PCI Ad apter
D-Link Air PremierTM DWL-AG530
Look under Device
Status to check that
the device is working
properly.
Click OK.
D-Link AirPremier DWL-AG530
11a/11g Dualband Wireless 108Mbps PCI Adapter
TM
PCI
36
Page 37
Troubleshooting (continued)
2. I cannot connect to the access point or the wireless router.
Make sure that the SSID on the D-Link DWL-AG530 Wirele ss PCI
Adapter is exactly the same as the SSID on the access point or
wireless router.
Move the DWL-AG530 and access point or wireless router into the
same room and then test the wireless connection.
Disable all security settings. (WEP, MAC Address Control, AES).
Make sure that the access point/router is not set to a different
frequency.
Turn off your access point and the computer with the D WL-AG530.
Turn on the access point, and then turn on the computer with the
DWL-AG530.
Refresh the D WL-AG530 Utility.
Make sure that the 802.11a access point and the adapter is set
to channel 52 a nd above in the 802.1 1a ba nd, because the D WLAG530 does not support channels 36-48 in the 802.11a band.
3. The DWL-AG530 Power and Link lights are not on.
Check to see if the DWL-AG530 PCI adapter is firmly inserted into
the PCI slot of your la ptop computer.
4. I forgot my Encryption key.
Reset the acce ss point to its factory default settings and restore the
D WL-AG530 PCI a dapter to the factory default settings.
5.
The computer does not recognize the D-Link DWL-AG530 Wireless PCI Adapter.
Make sure that the D-Link DWL-AG530 Wireless PCI Adapter is
properly seated in the computer PCI slot.
If Windows does not detect the hardware upon insertion of the
adapter, make sure to completely remove drivers that were
previously loaded. To remove the drivers, do the f ollowing:
37
Page 38
Troubleshooting (continued)
A. Under Tools> select Folder Options...> select View >
under Hidden file s a nd folders > select Show hidden
files and folders.
B. Uncheck Hide extension for known file types > click
on Apply.
C. Search for previously loaded driver files. Remove these
files from the INF and SYSTEM32 (DRIVERS) folders
in the Windows directory. Note: Windows XP and
Windows 2000 will rename .inf files that have not
received WHQL certification into oem.inf files (e.g.,
oem1.inf).
6. The computer with the DWL-AG530 installed is unable to connect
to the wireless network and/or the Internet.
Check that the LED indicators for the broadband modem are
indicating normal activity. If not, there may be a problem with the
broadband conne ction.
Check that the LED indicators on the wireless router are functioning
properly. If not, check that the AC power and Ethernet cables are
firmly connected.
Check that the IP address, subnet ma sk, gateway , a nd DNS settings
are correctly entered for the network.
In Infrastructure mode, make sure the same Service Set
Identifier (SSID) is specified on the settings for the wireless clients
and access points. The SSID factory default setting for the D-Link
products is default. (Double-click on the WLAN icon in the ta s kbar .
The Link Info screen will display the SSID setting).
In Ad-Hoc mode, both wireless clients will need to have the same
SSID. Plea se note that it might be nece ssary to set up one client to
establish a BSS (Ba sic Service Set) a nd wait briefly before setting
up other clients. This prevents several clients from trying to establish
a BSS at the same time, which ca n result in multiple singular BSSs
being established, rather than a single BSS with multiple clients
associated to it.
38
Page 39
Troubleshooting (continued)
Check that the Network Connection for the wireless client is
configured properly. Select AP (Infrastructure) when connecting
to an access point and select Ad-Hoc mode when connecting
without an access point. Double-click on the WLAN icon in the
taskbar > click on Configuration to change the settings for the
wireless adapter.
If Security is enabled, make sure that the correct encryption keys
are entered on both the DWL-AG530 and the a cce ss point. Doubleclick on the WLAN icon in the ta skbar > click Encryption. Check to
see that the key selected is set to the sa me key a s other devices on
the network.
If SuperA/G is enabled, make sure that Turbo mode is enabled on
all Turbo mode compatible devices in your network, in order to
communicate.
7. How can I avoid connection problems using the DWL-AG530?
Move the DWL-AG530 and the access point or wireless router into
the same room and then test the wireless connection.
Change the channel of the access point.
Move devices within the line of sight.
* Due to DFS (Dynamic Frequency Selection), 5GHz Ad-Hoc mode is always disable in EEC countries.
39
Page 40
Technical Specifications
Standards
IEEE 802.1 1
IEEE 802.1 1a
IEEE 802.1 1b
IEEE 802.1 1g
Bus Type
PCI 2.2
PCI 32-bit interface
Temperature
Operating: 32
Humidity:
95% maximum, non-condensing
Internal Antenna Type:
Omni Direction al Dipole Antenn a with 2~4 dbi gain
Security:
O
F to 131OF (0OC to 55OC)
64, 128-bit WEP
802.1X
WPA/WPA2 - (Wi-Fi Protected Access/Wi-Fi Protected Access
TM
2
), 64-,128-bit WEP with TKIP, MIC, IV Expansion, Shared Key
Authentication
Supports Advanced Encryption Standard (AES)
Physical Dimensions:
L = 5.24 inches (133mm)
W = 4.27 inches (120mm)
H = 0.87 inches (22mm)
Weight:
0.15 lb. (66 grams)
40
Page 41
Technical Specifications (continued)
Data Rates:
With Automatic Fallback
108Mbps (Turbo Mode); 54Mbps; 48Mbps; 36Mbps; 24Mbps; 18Mbps;
12Mbps; 1 1Mbps; 9Mbps; 6Mbps; 5.5Mbps; 2Mbps; 1Mbps
Media Access Control:
CSMA/CA with ACK
Frequency Range:
2.420GHz to 2.4835GHz
5.150GHz to 5.875GHz
Range:
Indoors: Up to 328 feet (100 meters)
Modulation Technology:
Orthogonal Frequency Division Multiplexing (OF DM)
Complementary Code Keying (CCK)
Direct Sequence Spread Spectrum (DSSS)
Receiver Sensitivity:
54Mbps OFDM, 10% PER,-73dBm
48Mbps OFDM, 10% PER,-76dBm
36Mbps OFDM, 10% PER,-82dBm
24Mbps OFDM, 10% PER,-85dBm
18Mbps OFDM, 10% PER,-88dBm
12Mbps OFDM, 10% PER,-89dBm
LEDs:
Link
Activity
Transmitter Output Power:
15dBm ± 2dB
41
11Mbps CCK, 8% PER, -91dBm
9Mbps OFDM, 10% PER,-90dBm
6Mbps OFDM, 10% PER,-91dBm
5.5Mbps CCK, 8% PER,-92dBm
2Mbps QPSK, 8% PER,-93dBm
1Mbps BPSK, 8% PER,-94dBm
Page 42
W arra nty and Registration
(USA only)
Subject to the terms and conditions set forth here in, D-Link Systems, Inc. (“D-Link”) provides this Limited
warranty for its product only to the person or entity that originally purchased the product from:
• D-Link or its authorized reseller or distributor and
• Products purchased and delivered within the fifty states of the United States, the District of
Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an
APO or FPO.
Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described below
will be free from material defects in workmanship and materials from the date of original retail purchase
of the product, for the period set forth below applicable to the product type (“Warranty Period”), except
as otherwise stated herein.
3-Year Limited Warranty for the Product(s) is defined as follows:
• Hardware (excluding power supplies and fans) Three (3) Years
• Power Supplies and Fans One (1) Year
• Spare parts and spare kits Ninety (90) days
D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period
at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement
will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not
be new or have an identical make, model or part. D-Link may in its sole discretion replace the defective
Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is
substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or
replacement Hardware will be warranted for the remainder of the original Warranty Period from the date
of original retail purchase. If a materi al defe ct is incapable of correction, or if D-Link determine s in its sole
discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original
purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective
Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is
refunded, shall become the property of D-Link upon replacement or refund.
Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)
will substantially conform to D-Link’s then current functional specifications for the Software, as set
forth in the applicable documentation, from the date of original retail purchase of the Software for a
period of ninety (90) days (“Warranty Period”), provided that the Software is properly installed on
approved hardware and operated as contemplated in its documentation. D-Link further warrants that,
during the Warranty Period, the magnetic media on which D-Link delivers the Software will be free of
physical defects. D-Link’s sole obligation shall be to replace the non-conforming Software (or defective
media) with software that substantially conforms to D-Link’s functional specifications for the Software
or to refund at D-Link’s sole discretion. Except as otherwise agreed by D-Link in writing, the replacement
Software is provided only to the original licensee, and is subject to the terms and conditions of the
license granted by D-Link for the Software. Software will be warranted for the remainder of the original
Warranty Period from the date or original retail purchase. If a material non-conformance is incapable of
correction, or if D-Link determine s in its sole discretion that it is not pra ctical to repla ce the non-conf orming
Software, the price paid by the original licensee for the non-conforming Software will be refunded by DLink; provided that the non-conforming Software (and all copies thereof) is first returned to D-Link. The
license granted respecting any Software for which a refund is given automatically terminates.
Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software
of D-Link’s products will not be applied to and does not cover any refurbished product and any product
purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case,
the product is being sold “As-Is” without any warranty whatsoever including, without limitation, the
Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.
Submitting A Claim: The customer shall return the product to the original purchase point based on its
return policy. In case the return policy period has expired and the product is within warranty, the
customer shall submit a claim to D-Link as outlined below:
42
Page 43
• The customer must submit with the product as part of the claim a written description of the
Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm
the same.
• The original product owner must obtain a Return Material Authorization (“RMA”) number from
the Authorized D-Link Service Office and, if requested, provide written proof of purchase of
the product (such as a copy of the dated purchase invoice for the product) before the warranty
service is provided.
• After an RMA number is issued, the defective product must be packaged securely in the
original or other suitable shipping package to ensure that it will not be damaged in transit, and
the RMA number must be prominently marked on the outside of the pa ckage. Do not include a ny
manuals or accessories in the shipping package. D-Link will only replace the defective portion
of the Product and will not ship back any accessories.
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery
(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the
property of D-Link. Products shall be fully insured by the customer. D-Link will not be held
responsible for any packages that are lost in transit to D-Link. The repaired or replaced
packages will be shipped to the customer via UPS Ground or any common carrier selected by
D-Link, with shipping charges prepaid. Expedited shipping is available if shipping charges are
prepaid by the customer and upon request.
• Return Merchandise Ship-To Address
USA: 17595 Mt. Herrmann, Fountain Valley, CA 92708-4160
Canada: 2180 Winston Park Drive, Oakville, ON, L6H 5W1 (Visit
warranty information within Canada)
D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The
product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product
that is not packaged and shipped in accordance with the foregoing requirements, or that is determined by
D-Link not to be defective or non-conforming.
What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s
judgment, have been subjected to abuse, accident, alteration, modif ication, ta mpering, negligence, misuse,
faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the
documentation for the product, or if the model or serial number has been altered, tampered with, defaced
or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance;
Damage that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage;
Any hardware, software, firmware or other products or services provided by anyone other than DLink; Products that have been purchased from inventory clearance or liquidation sales or other sales in
which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the
product. Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this
Warranty.
Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE
PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY W ARRANTY OF ANY KIND WHATSOEVER INCLUDING,
WITHOUT LIMIT ATION, ANY WARRANTY OF MERCHANT ABILITY , FIT NESS FOR A P ARTICULAR PURPOSE
AND NON-INFRINGEMENT . IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY
WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED W ARRANTY SHALL BE LIMITED TO
NINETY (90) DA YS. EXCEPT AS EXPRESSL Y COVERED UNDER THE LIMITED WARRANTY PROVIDED
HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS
WITH THE PURCHASER OF THE PRODUCT .
Limitation of Liability: T O THE MAXIMUM EXTENT PERMITTED BY LA W , D-LIN K IS NOT LIABLE UNDER
ANY CONTRACT , NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY
LOSS OF USE OF THE PRODUCT , INCON VENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER
DIRECT , SPECIAL, INCIDENT AL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR
LOSS OF GOOD WILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER FAILURE OR
MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S
PRODUCT IS CONNECTED WITH, LOSS OF INFORMA TION OR DA T A CONT AINED IN, STORED ON, OR
INTEGRA TED WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING
FROM THE USE OF THE PRODUCT, RELATING TO W ARRANTY SERVICE, OR ARISING OUT OF ANY
BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN AD VISED OF THE POSSIBILITY OF
SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY I S
REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT . THE MAXIMUM
http://www.dlink.ca for detailed
43
Page 44
LIABILITY OF D-LINK UNDER THIS W ARRANTY IS LIMITED T O THE PURCHASE PRICE OF THE PRODUCT
COVERED BY THE W ARRANTY . THE FOREGOING EXPRESS W RITTEN W ARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ANY OTHER W ARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR
STATUTORY.
Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some
states do not allow exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This limited
warranty provides specific legal rights and the product owner may also have other rights which vary
from state to state.
Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered
trademarks are the property of their respective manufacturers or owners.
Copyright Statement: No part of this publication or documentation accompanying this Product may
be reproduced in any form or by any means or used to make any derivative such as translation,
transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as
stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior
notice. Copyright
CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
FCC Statement: This equipment has been tested and found to comply with the limits f or a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
©
2002 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
For detailed warranty outside the United State s, ple ase contact corresponding local
D-Link office.
FCC Caution:
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment; such modifications could void the user’s authority to operate the
equipment.
(1) The devices are restricted to indoor operations within the 5.15 to 5.25GHz range. (2) For this
device to operate in the 5.15 to 5.25GHz range, the device must use integral antennas.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. The antenna(s) used for this equipment must be installed to provide a separation
distance of at least eight inches (20 cm) from all persons.
This equipment must not be operated in conjunction with any other antenna.
Register your D-Link product online at http://support.dlink.com/register/
44
Page 45
Canada IC Statement:
"To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropically radiated power (EIRP) is not more than that
required for successful communication"
"The installer of this radio equipment must ensure that the antenna is located or pointed such
that it does not emit RF field in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb"
"This device has been designed to operate with an antenna having a maximum
gain of 4 dB.
Antenna having a higher gain is strictly prohibited per regulations of
Industry Canada.
The required antenna impedance is 50 ohms."
45
Page 46
Appendix
How to Replace the Bracket
1.
Take the DWL-
AG530.
3.
Peel off the
tubing.
5.
Take apart the
bracket.
7.
Turn the screws
to the RIGHT to
tighten them.
2.
Incise the heatshrinkable tubing
4.
Turn the screws to
the LEFT to loosen
them.
6.
Assemble the low
profile bracket.
8.
Fix the cable and
bone of bracket
with the backup
tubing.
9.
Heat the tubing
with hair dryer
around 3
minutes.
46
Page 47
Appendix
EAP Types
Configuration > Adva nced Se curity Settings > EAP Types
EAP Type
EAP-TLS
LEAP
EAP-TTLS
Inner Authentication
Protocol
PAP
CHAP
MSCHAP
Information needed
for Authenticating
Certificate
User Name
User Name
Password
TTLS Identity
User Name
Password
TTLS Identity
User Name
Password
TTLS Identity
User Name
Password
Domain Name
MSCHAPv2
TTLS Identity
User Name
Password
Domain Name
47
Page 48
Appendix
EAP Types (continued)
EAP Type
EAP-TTLS
PEAP
Inner Authentication
Protocol
EAP-MD5
EAPGeneric T oken Card
EAP-MSCHAPv2
EAP-MD5
EAP-MSCHAPv2
Information needed
for Authenticating
TTLS Identity
User Name
Password
TTLS Identity
User Name
Password
TTLS Identity
User Name
Password
Domain Na me
User Name
Password
User Name
Password
Domain Name
EAPGeneric T oken Card
User Name
Password
Definitions of Terms
Validate Server Certificate:
Check Validate Server Certificate to verify the identity of the authentication
server based on its certificate when using EAP-TTLS, PEAP, and EAP-TLS.
(This is checked by default.)
Certain protocols, such a s EAP-TTLS, PEAP, and EAP-TLS, allow you to
verify the identity of the authentication server as the server verif ies your
identity . This is called mutual authentication.
Y ou can select trusted authentication server certificates using the Add button
at the Trusted CA List (at the bottom of the Advanced Security Settings
page).
48
Page 49
Appendix
Definitions of Terms (continued)
Domain Name:
Each server has a domain na me that uniquely identifie s it. That domain na me is
normally contained in the Subject CN field of the server certificate. A server
domain name ends with the name of a larger administrative domain, to which
the server belongs.
TTLS Identity:
EAP-TTLS has a unique feature that other protocols do not offer. Because it
sets up an encrypted tunnel for your credentials, it is also able to pass your
login name through that tunnel. That means that not only are your credentials
secure from eavesdropping, but your identity is protected as well. Thus, with
EAP-TTLS you have two identities: an inner one, and an outer one. The inner
identity is your actual user name. Your outer identity can be completely
anonymous. Set your outer identity in the TTLS Identity field.
Trusted CA List:
The Trusted CA List allows you to configure which authentication servers
you trust for the purpose of logging you in to the network.
Click Add at the Trusted CA List at the bottom of the Adva nced Security Settings
page. Select the T rusted CA that you want to add and click OK.
(5/19/2005)
49
Loading...
