D-Link DVG-G5402SP User Guide

DVG-G5402SP
VoIP Wireless Router
User’s Manual
Version 1.0
(10 June 2008)
Inc.; Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. D-Link Corporation disclaims any proprietary interest in trademarks and trade names other than its own.
Warranty: please contact your D-Link Authorized Reseller or the D-Link Branch Office nearest your place of purchase for information about the warranty offered on your D-Link product.
Information in this document is subject to change without notice.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
‧ Reorient or relocate the receiving antenna. ‧ Increase the separation between the equipment and receiver. ‧ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‧ Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.
Warnung!
Dies ist ein Produkt der Klasse B. Im Wohnbereich kann dieses Produkt Funkstoerungen verursachen. In diesem Fall kann vom Benutzer verlangt werden, angemessene Massnahmen zu ergreifen.
Precaución!
Este es un producto de Clase B. En un entorno doméstico, puede causar interferencias de radio, en cuyo case, puede requerirse al usuario para que adopte las medidas adecuadas.
Attention!
Ceci est un produit de classe B. Dans un environnement domestique, ce produit pourrait causer des interférences radio, auquel cas l`utilisateur devrait prendre les mesures adéquates.
Attenzione!
Il presente prodotto appartiene alla classe B. Se utilizzato in ambiente domestico il prodotto può causare interferenze radio, nel cui caso è possibile che l`utente debba assumere provvedimenti adeguati.
Contents
1. Introduction ........................................................................................................................................................4
1-1 Product Overview .......................................................................................................................................4
1-2 Hardware Description.................................................................................................................................5
2. VoIP Router Web Configuration (continued)...................................................................................................7
2-1 SETUP........................................................................................................................................................9
2-1-1 Internet Setup...................................................................................................................................9
2-1-2 Wireless Setup...............................................................................................................................12

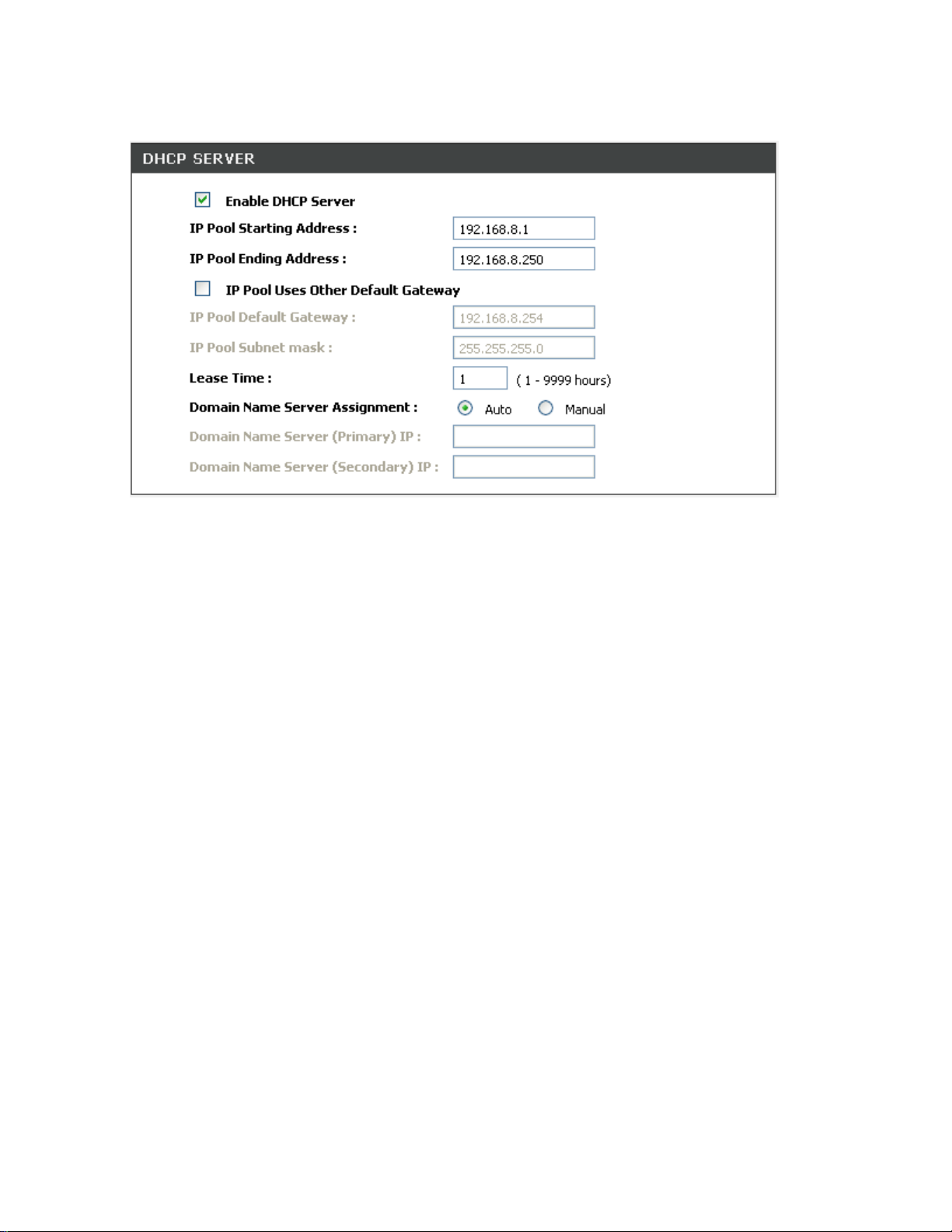

2-1-3 LAN Setup......................................................................................................................................16
2-2 ADVANCED..............................................................................................................................................18

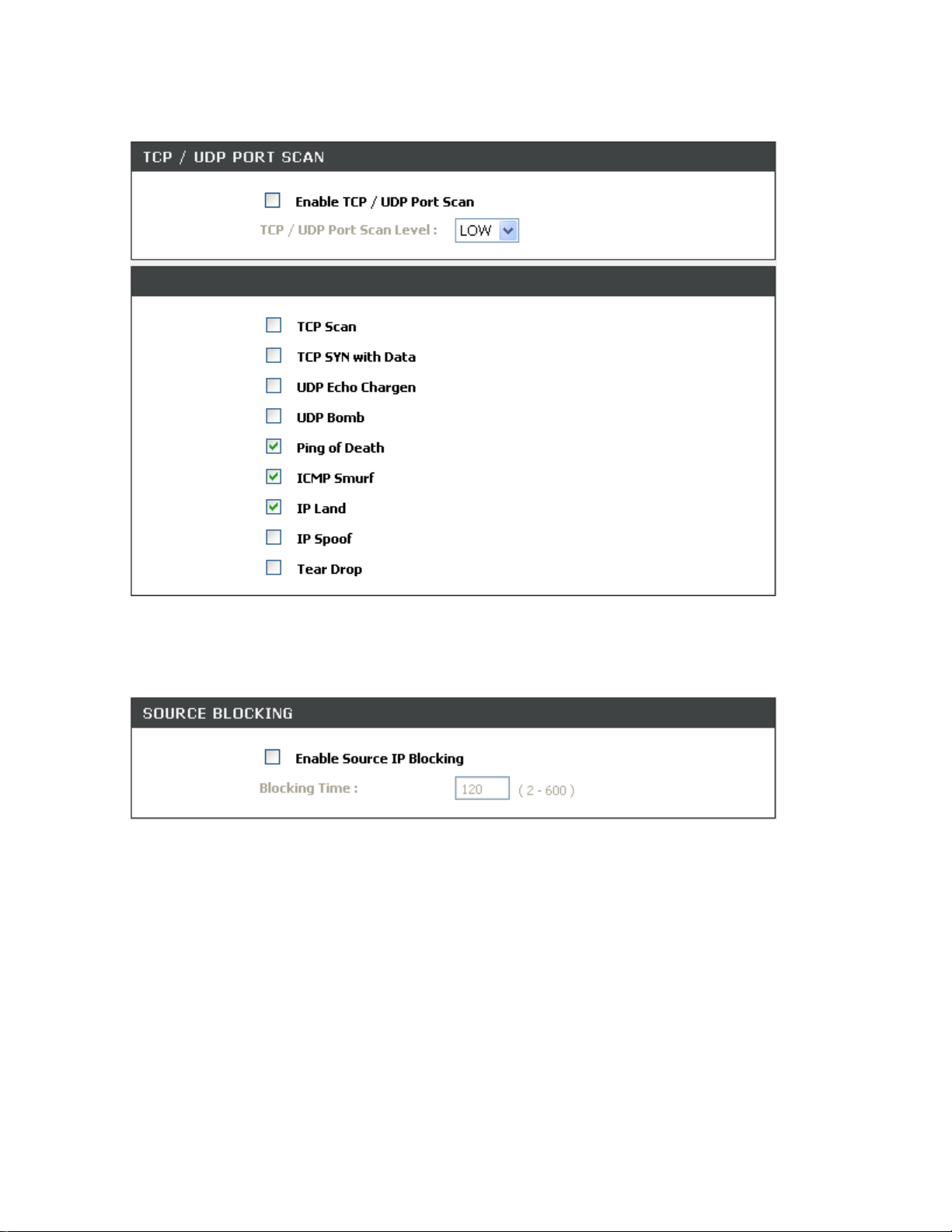

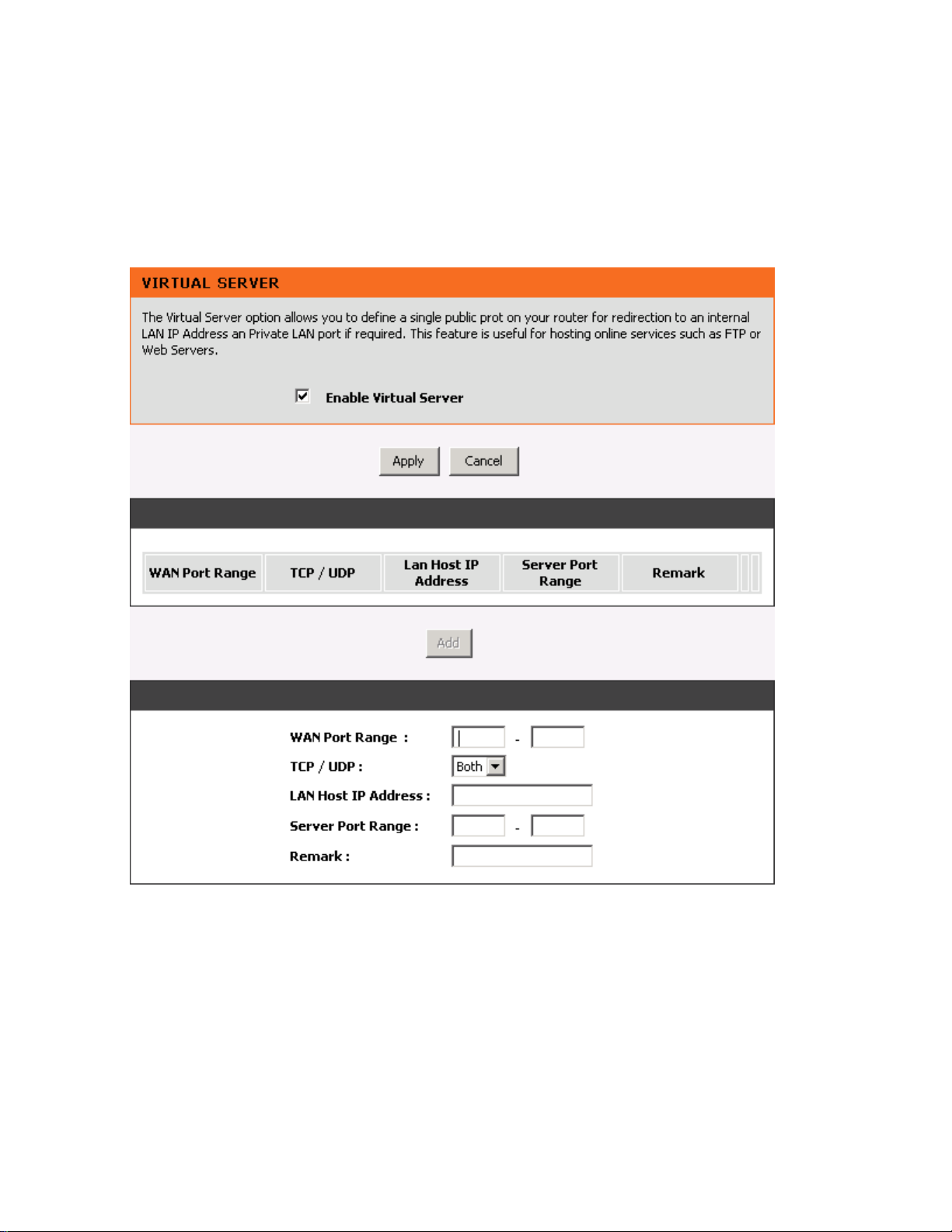

2-2-1 Firewall and DMZ...........................................................................................................................18
2-2-2 Advanced Wireless.........................................................................................................................24
2-2-3 Advanced Network.........................................................................................................................27
2-3 MAINTENANCE........................................................................................................................................29
2-3-1 Device Management......................................................................................................................29
2-3-2 Backup and Restore.......................................................................................................................29
2-3-3 Dynamic DNS.................................................................................................................................31

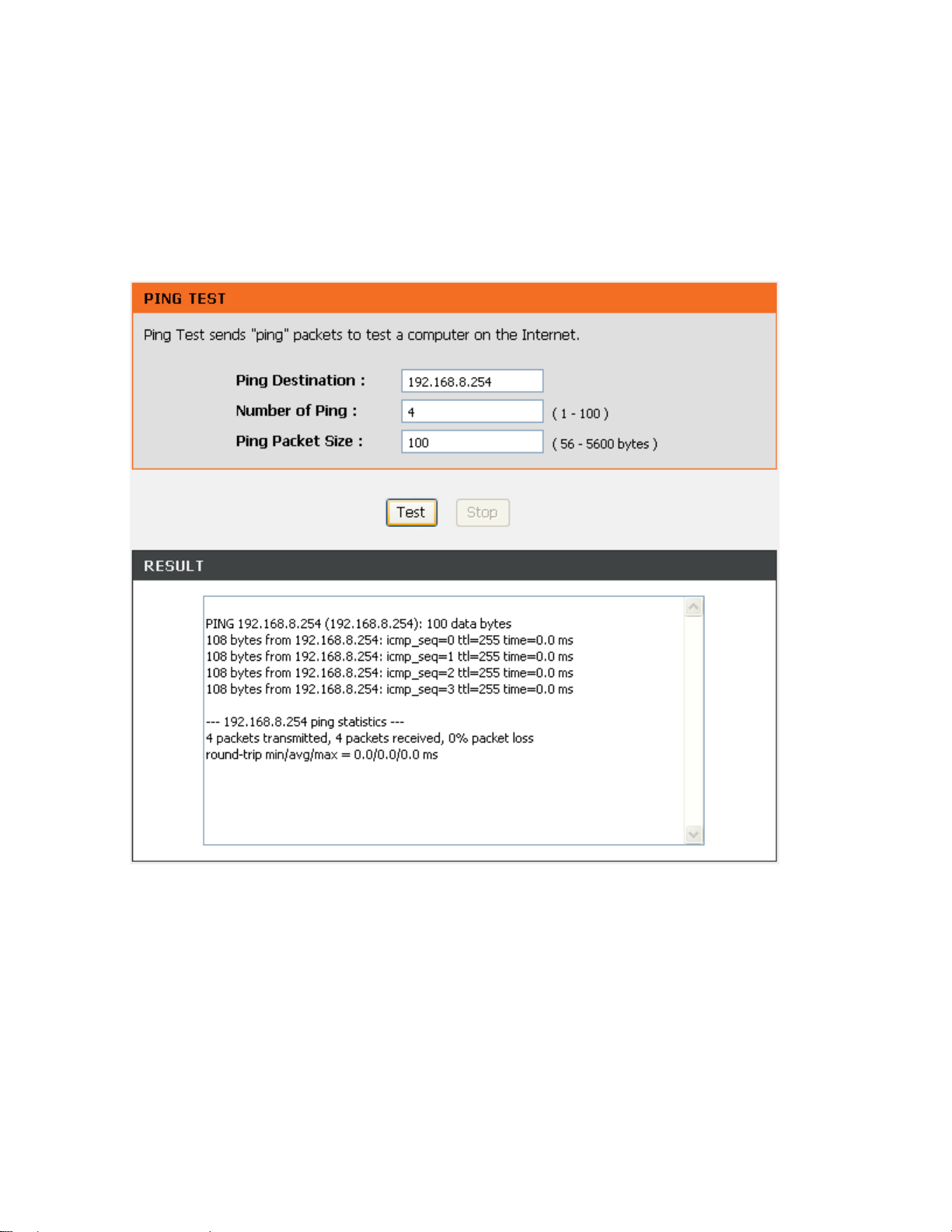

2-3-4 Diagnostics.....................................................................................................................................32
2-4 STATUS....................................................................................................................................................33

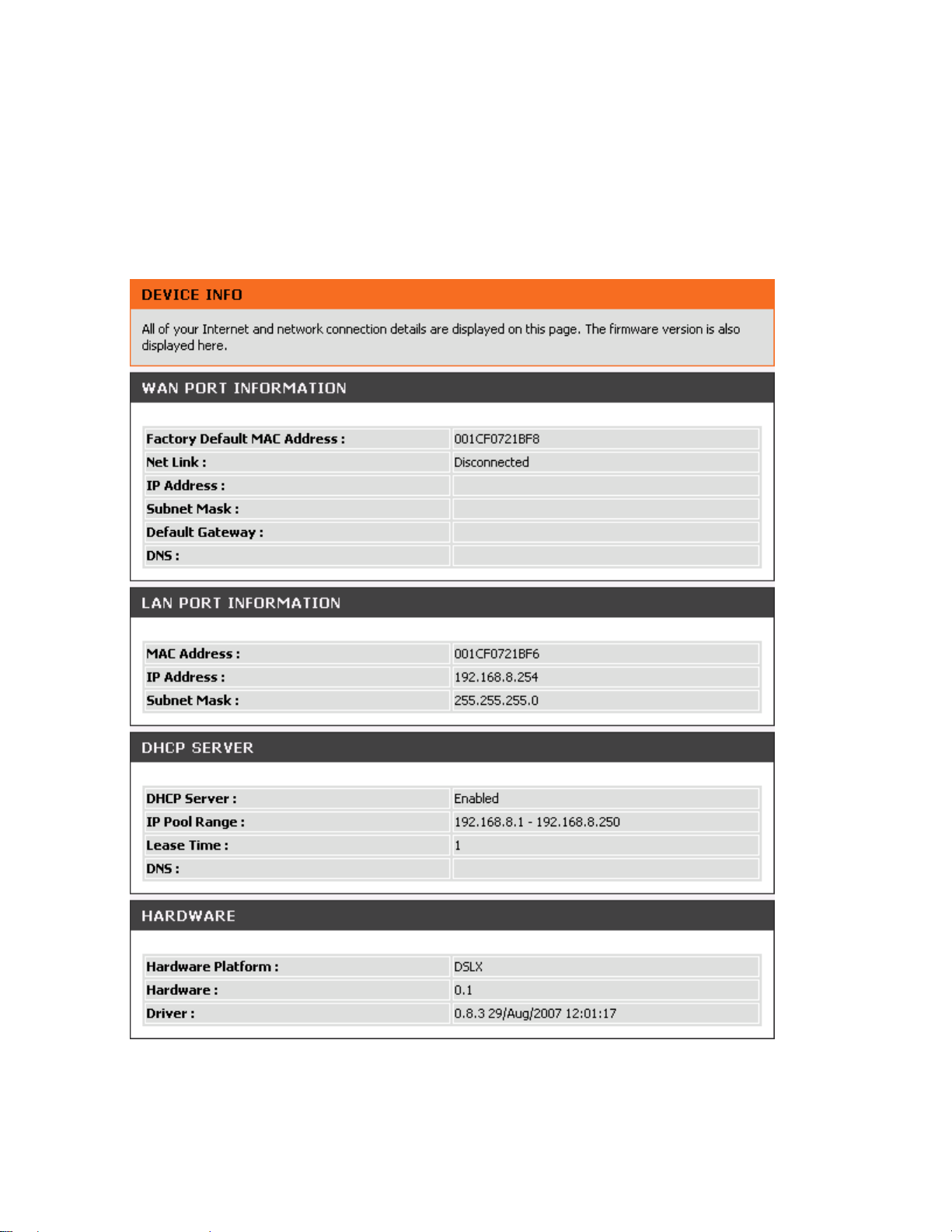

2-4-1 Device Info .....................................................................................................................................33

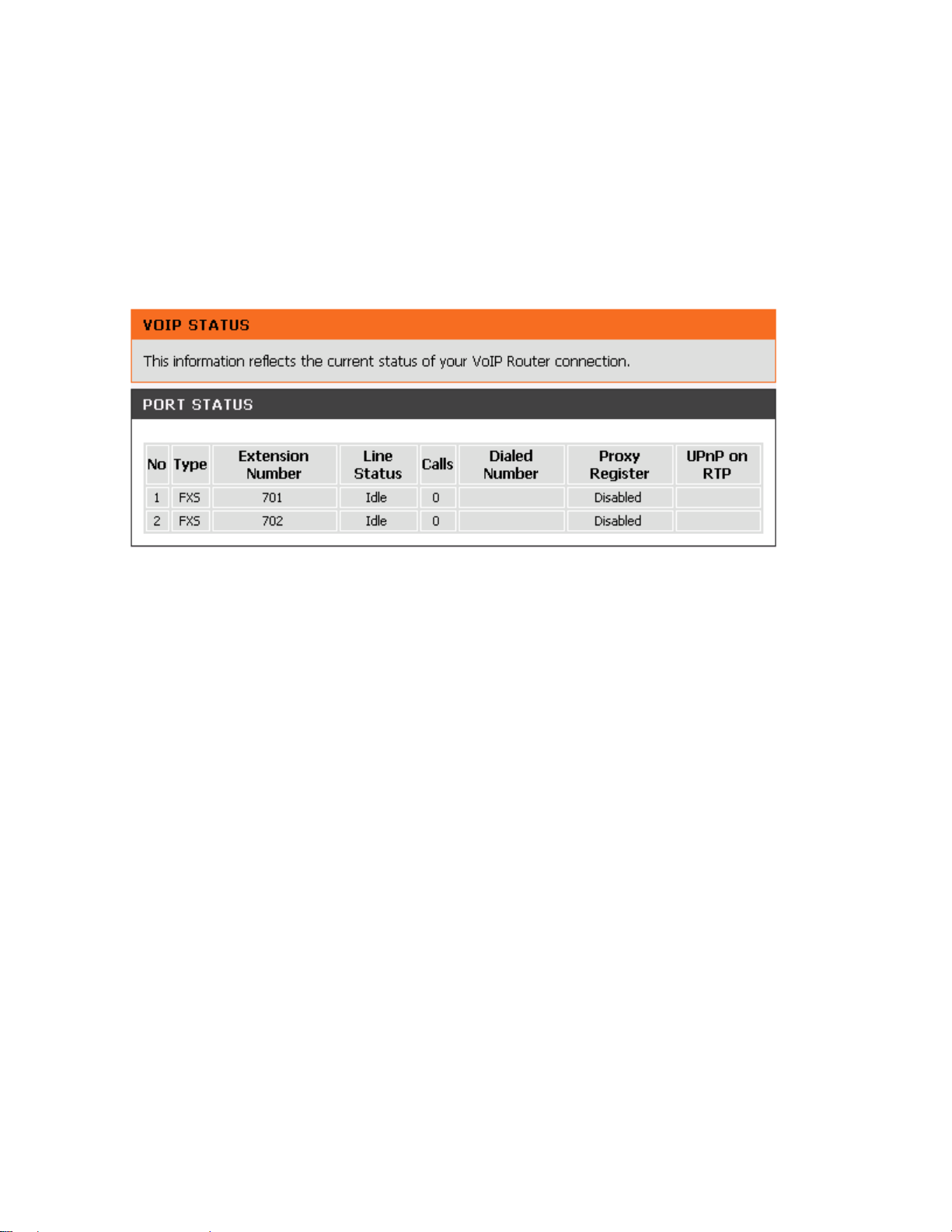

2-4-2 VoIP Status.....................................................................................................................................34
2-4-3 LAN Client......................................................................................................................................35
2-4-4 Stat istics.........................................................................................................................................36
2-4-5 Logout ............................................................................................................................................36
Appendix...............................................................................................................................................................37
Product Features ............................................................................................................................................37
DVG-G5402SP User’s Manual Product Overview
1. Introduction
1-1 Product Overview
The DVG-G5402SP is designed to carry both voice and facsimile over the IP network and wirelessly share Internet access. It uses the industry standard SIP call control protocol so as to be com patible with free regist ration services or V oIP service providers’ systems. As a standard user agent, it is comp atible with all common Soft Switches and SIP proxy servers. While running optional server software, the VoIP Router can be configured to establish a private VoIP network over the Internet without a third-party SIP Proxy Server.
The DVG-G5402SP can be seamlessly integrated into an existing network by connecting to a phone set and fax machine. With only a broadband connection such as an ADSL bridge/router, a Cable Modem or a leased-line router, the VoIP Router allows you to use voice and fax services over IP in order to reduce the cost of all long distance calls.
The DVG-G5402SP is also an 802.11b/g wireless access point. Allow wireless clients to connect to it and share your broadband Internet connection. A built-in 4-port switch makes it possible to connect up to 4 Ethernet-enabled computers or devices to also share your Internet connection.
The DVG-G5402SP can be configured a fixed IP address or it can have one dynamically assigned by DHCP or PPPoE. It adopts either the G.711, G.726, G.729A or G.723.1 voice compression format to save network bandwidth while providing real-time, toll quality voice transmission and reception.
D-Link Systems, Inc. 4
DVG-G5402SP User’s Manual Telephone Interface Description
1-2 Hardware Description
Front Panel
Power: Power LED. A steady light indicates a proper connection to a power source. Prov./Alm.: A blinking light indicates the VoIP Router is attempting to connect with the Provisioning server.
Once the service connects, the LED will turn off. The LED will light solid if the self-test or boot-up fails. Register: The Register LED will turn on when the VoIP Router is connected to a VoIP service provider. The
LED will turn off if not connected to a service provider. WAN: When a connection is established the 10 or 100 LED will light up solid. The LED will blink to indicate
activity. If the 10 or 100 LED does not light up when a cable is connected, verify the cable connections and make sure your devices are powered on.
WLAN: A steady light indicates a wireless connection. A blinking light indicates that the VoIP Router is receiving/transmitting from/to the wireless network.
LAN: When a connection is established the 10 or 100 LED (bottom) will light up solid on the appropriate port. The LEDs will blink to indicate activity. If the 10 or 100 LED does not light up when a cable is connected, verify the cable connections and make sure your devices are powered on.
Phone: This LED displays the VoIP status and Hook/Ringing activity on the phone port that is used to connect your normal telephone(s). If a phone connected to a phone port is off the hook or in use, this LED will light solid. When a phone is ringing, the indicator will blink.
Line: Light on means the line is in use (off-hook), and vice versa.
D-Link Systems, Inc. 5
DVG-G5402SP User’s Manual Telephone Interface Description
Rear Panel
1. Line: Connect to your original telephone line on the wall jack with RJ-11 cable.
2. Phone Port (1-2): Connect to your phones using standard phone cabling (RJ-11).
3. LAN: Connect to your Ethernet enabled computers using Ethernet cabling.
4. WAN: Connect to your broadband modem using an Ethernet cable.
5. Power Receptor: Receptor for the provided power adapter.
6. Ground: A conducting connection with the earth. Connect with the ground so as to make the earth a part of an electrical circuit using metal wire.
7. Antenna: Connect to a wireless network.
WARNING: DO NOT (1) connect the phone ports to each other (FXS to FXS) or (2) connect any phone port directly to a PSTN line (FXS to PSTN) or to an internal PBX line (FXS to PBX extension). Doing so may damage your VoIP Router.
Use Reset Button to restore factory default settings:
1. Power on.
2. Press and hold the reset button for 5 seconds.
3. Release the reset button. Factory settings will be restored.
D-Link Systems, Inc. 6
DVG-G5402SP User’s Manual SETUP
2. VoIP Router Web Configuration (continued)
During configuration, please follow the Setup Hint for some specific procedure in case the VoI P Router fail s to make the changes active.
Situation 1: (example: Internet Setup)
Setup Hint:
1. Select DHCP WAN Setup.
2. Click “Apply”.
3. Click “Save and Restart” to make change take effect.
D-Link Systems, Inc. 7
DVG-G5402SP User’s Manual SETUP
1
Situation 2: (example: Enable IP Filtering)
Setup Hint:
1. Click “Enable IP Filtering” check box to open the main screen.
2. Click “Add” to enter an entry.
3. After Adding an entry, you have to click “Apply”.
4. Don’t forget to click “Apply” which in the filed of “Enable IP Filtering”.
5. After settings, save and reboot.
4
2
3
D-Link Systems, Inc. 8
DVG-G5402SP User’s Manual SETUP
2-1 SETUP
2-1-1 Internet Setup
WAN (Wide Area Network) Settings are used to connect to your ISP (Internet Service Provider). The WAN settings are provided to you by your ISP and oftentimes referred to as "public settings". Please select the appropriate option for your specific ISP.
IP Configuration (Setting WAN Port)
There are five methods of obtaining a WAN port IP address:
1. DHCP, which means a Dynamic IP (Cable Modem)
2. Static IP
3. PPPoE (dial-up ADSL)
Methods for using DHCP and PPPoE for obtaining an IP address may vary. If you are not familiar with creating a network connection, please contact your local ISP.
After selecting the suitable option, click Accept at the bottom of the screen to save the settings. You need to save the changes and restart the VoIP Router to make the changes active. Saving the settings:
Click MAINTENANCE and select Save/Restart in System from the left menu. Tick Save Settings and Restart, then click Accept. Wait for about 40 seconds before the VoIP Router obtaining an IP address by the method you selected.
Note: When the system has obtained a new IP address, and you are using a WAN port to enter the Web Configuration Screen, the new IP address has to be used before you can get connected to the VoIP Router. The same principle applies to the next two settings.
D-Link Systems, Inc. 9
DVG-G5402SP User’s Manual SETUP
SETUP → Internet Setup
SETUP → Internet Setup
DHCP: Select this option if your ISP (Internet Service Provider) provides you an IP address automatically. Cable modem providers typically use dynamic assignment of IP Address. The Host Name field is optional but may be required by some Internet Service Providers.
SETUP → Internet Setup
Static IP: Select this option if your ISP (Internet Service Provider) provides you a Static IP address. Enter the IP address, Subnet Mask and Default Gateway IP.
D-Link Systems, Inc. 10
DVG-G5402SP User’s Manual SETUP
SETUP → Internet Setup
PPPoE: Select this option if your ISP requires you to use a PPPoE (Point-to-Point Protocol over Ethernet) connection. Enter the PPPoE Account, PPPoE Password and re-enter Password to confirm.
SETUP → Internet Setup
Domain Name Server Assignment: Select Auto or Manual to get the IP address of Domain Name Server assigned by ISP or manually.
Domain Name Server IP: Enter the primary and secondary IP address of Domain Name Server if Domain Name Server Assignment is Manual. Otherwise, the VoIP Router will not be able to access hosts using hostnames instead of IPs.
D-Link Systems, Inc. 11
DVG-G5402SP User’s Manual SETUP
2-1-2 Wireless Setup
This section instructs you how to setup your wireless network on the VoIP Router device.
Setup Hint:
1. Every device in the same wireless network must use the same SSID.
2. To avoid wireless network overlap, a specific and different channel is needed.
3. Make sure security used by every device in the same wireless network is compatible with the wirel ess AP.
2-1-2-1 Wireless Basic
SETUP -> Wireless Setup -> Wireless Basic
Enable Wireless LAN Interface: Enable wireless basic settings on LAN interface. Wireless Network Name (SSID): SSID is the name of your wireless network. All wireless-equipped
devices share the same SSID to communicate with each other. It must be unique to identify separated wireless network. For security, you should change the default SSID to a special ID.
Wireless Channel: Select a clear and appropriate channel for your wireless network. A device on your wireless network must use a specific channel to transmit and receive data. If wireless network has overlap, change a different channel number.
802.11 Mode: The VoIP Router can operate in 2.4GHz ISM band with different speed of wireless
connection, Select the wireless band of your network.
802.11b only - Allow all 802.11B compliant wireless devices to associate with the wireless AP.
802.11g only - Allow all 802.11G compliant wireless devices to associate with the wireless AP. Mixed 802.11g and 802.11b - Allow a mix of both IEEE802.11b and IEEE802.11g compliant wireless
devices to associate with the wireless AP.
D-Link Systems, Inc. 12
