D-Link DSL-G624T User Manual 2

DSL-G624T

Wireless ADSL Router

User’s Guide

May 2005

Table Of Contents

About This User’s Guide...............................................................................................................................................iii

BEFORE YOU START .......................................................................................................III

Installation Overview.......................................................................................................................................iii

The Setup Wizard .......................................................................................................................................................... iii

Packing List ................................................................................................................................................................... iv

Installation Requirements...............................................................................................................................iv

Introduction.......................................................................................................................................................1

Router Description and Operation .................................................................................................................................. 1

Standards Compatibility and Compliance ......................................................................................................................3

Front Panel Display ........................................................................................................................................................4

Rear Panel Connections.................................................................................................................................................. 5

Wireless LAN Basics........................................................................................................................................6

About 802.11g Wireless .................................................................................................................................................7

HARDWARE INSTALLATION ............................................................................................8

Choosing the Best Location for Wireless Operation....................................................................................8

Power on Router ............................................................................................................................................................. 9

Factory Reset Button ......................................................................................................................................................9

Wired Network Connections ..........................................................................................................................................9

BASIC ROUTER CONFIGURATION ................................................................................12

Configuring IP Settings on Your Computer ................................................................................................................. 13

Access the Configuration Manager ............................................................................................................ 17

Login to Home Page..................................................................................................................................................... 17

Configure the Router..................................................................................................................................... 18

Using the Setup Wizard................................................................................................................................................ 19

HOME................................................................................................................................27

Wireless LAN Setup....................................................................................................................................... 27

Configure Basic Wireless Settings ............................................................................................................................... 28

Wireless Security.......................................................................................................................................................... 28

WEP Encryption........................................................................................................................................................... 30

Configure WAN Connection ......................................................................................................................... 33

PPPoE and PPPoA Connection for WAN ....................................................................................................................34

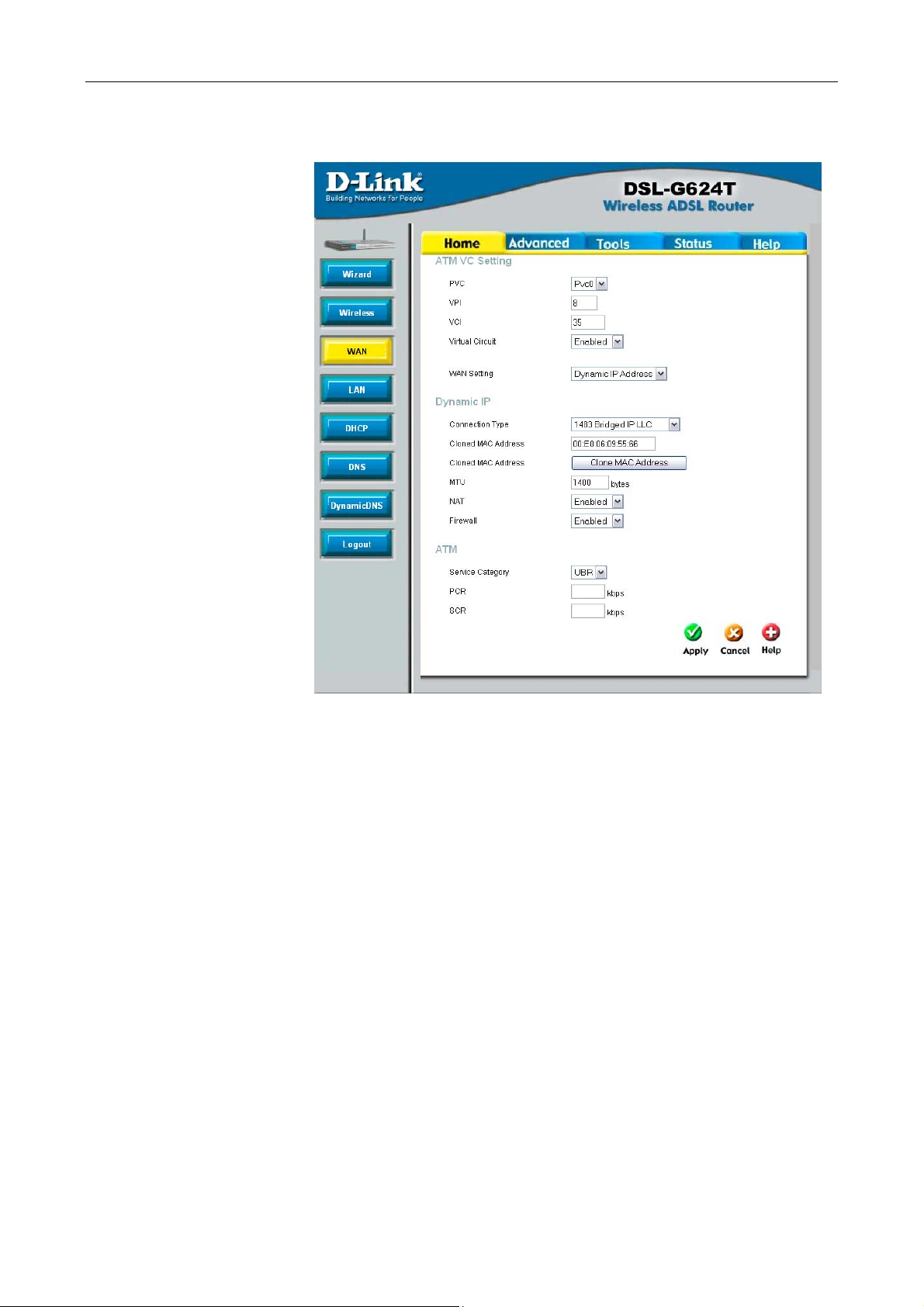

Dynamic IP Address Connection for WAN..................................................................................................................36

Bridged Connection for WAN...................................................................................................................................... 38

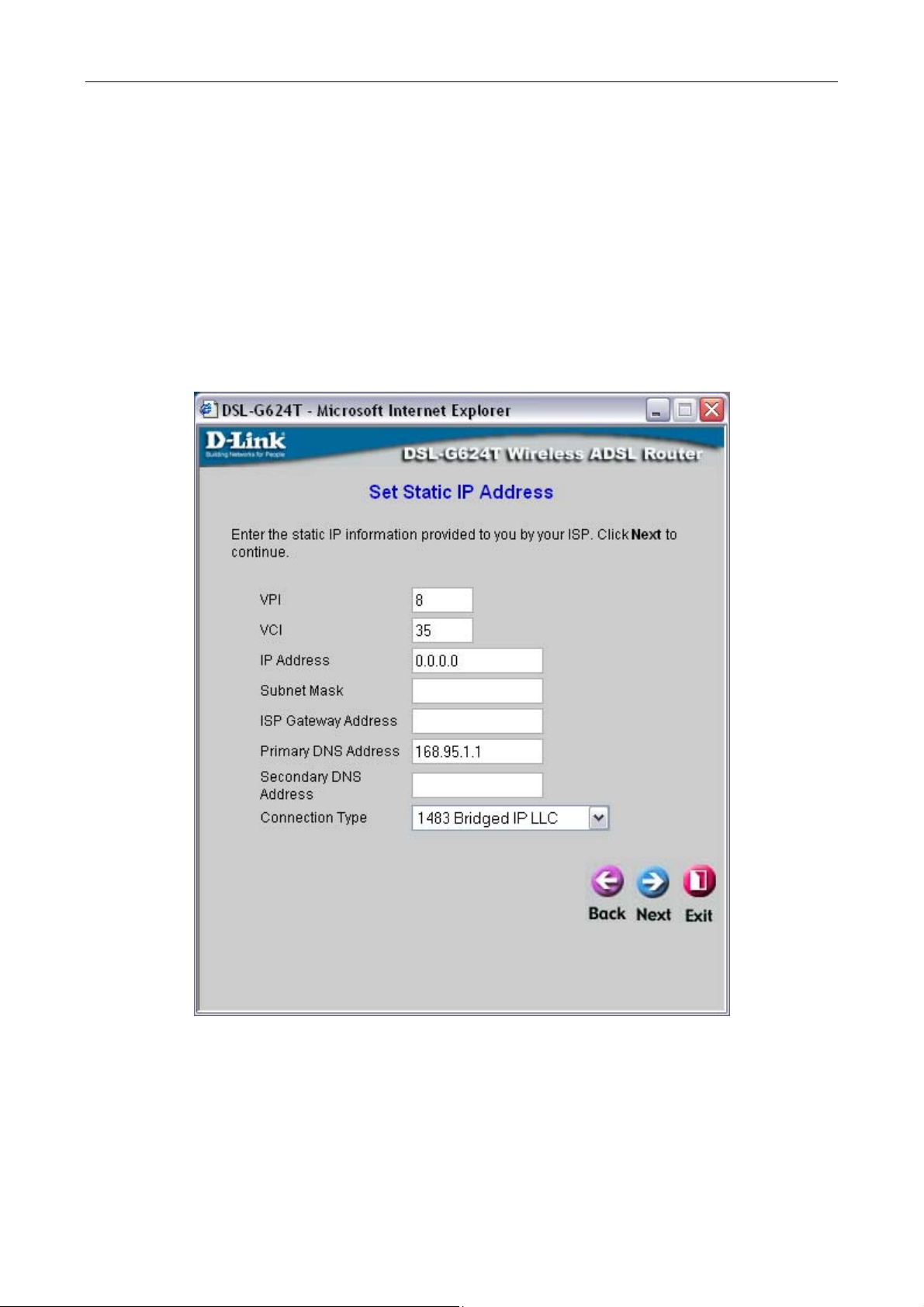

Static IP Address for Connection WAN....................................................................................................................... 39

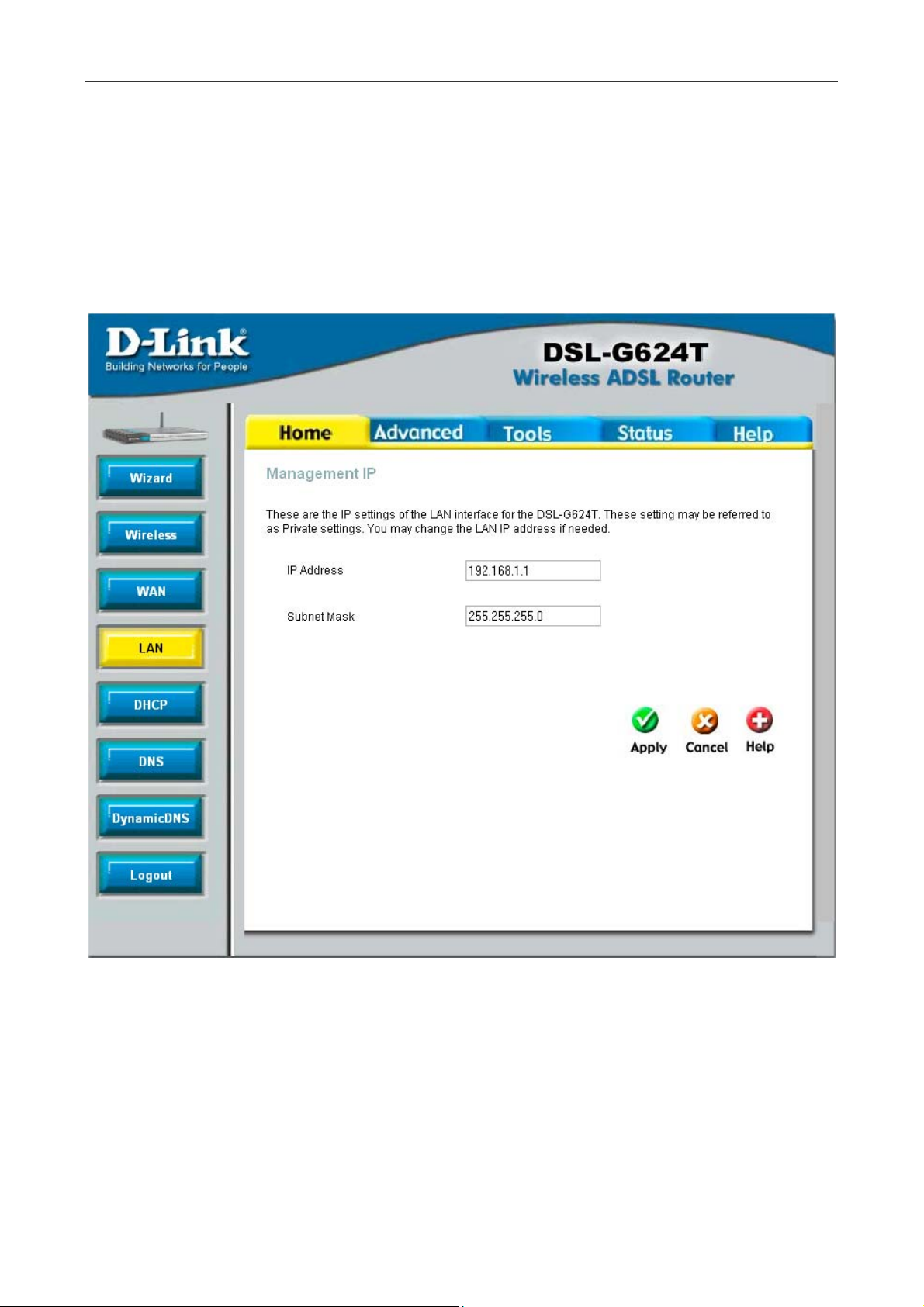

LAN IP Settings.............................................................................................................................................. 43

DHCP Server Settings for the LAN .............................................................................................................. 44

Static IP Settings for the LAN...................................................................................................................................... 45

DNS Server Settings..................................................................................................................................................... 46

Dynamic DNS ................................................................................................................................................. 47

Save Settings and Reboot ............................................................................................................................ 48

ADVANCED ROUTER MANAGEMENT ...........................................................................49

UPnP............................................................................................................................................................................. 50

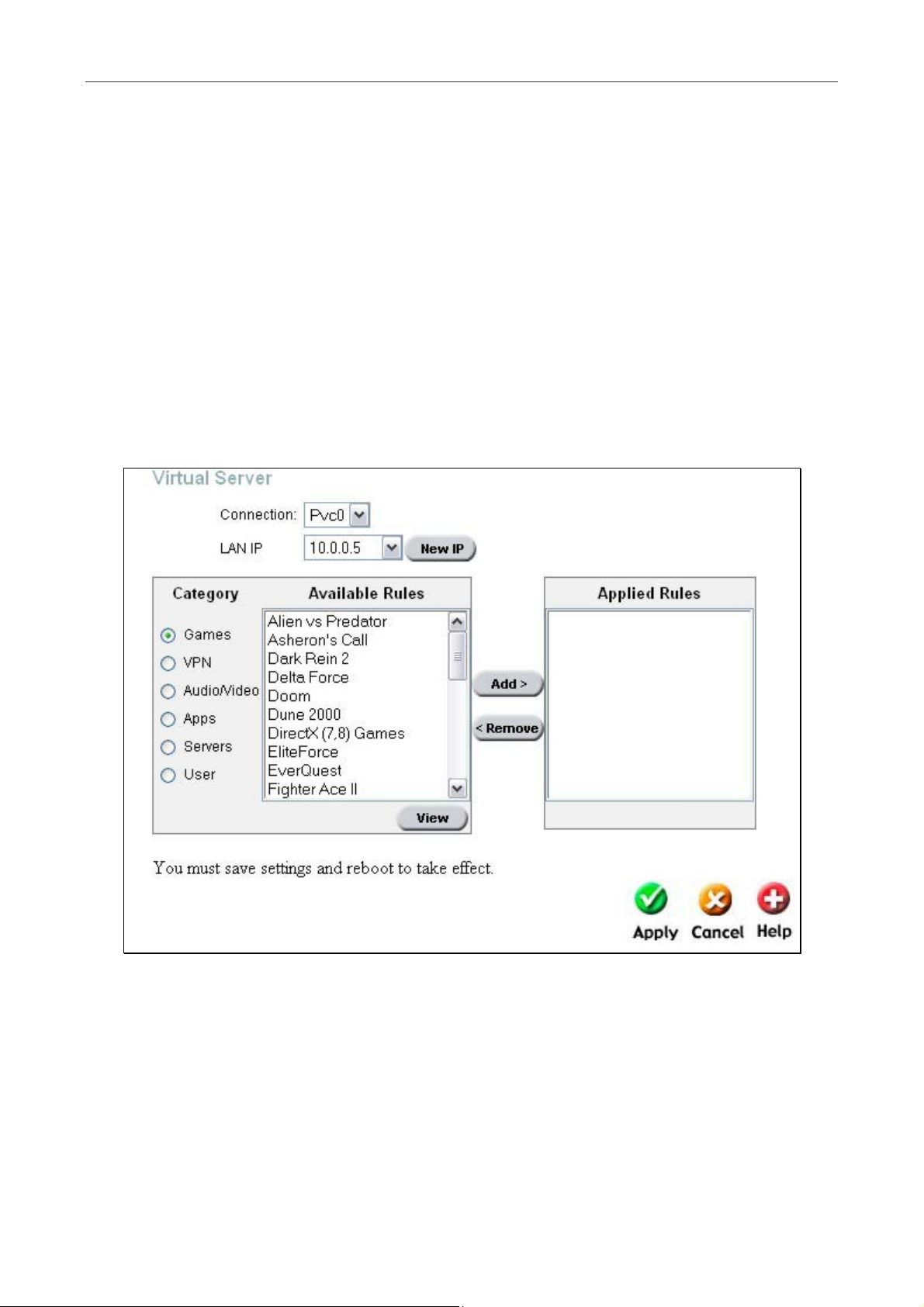

Virtual Server ............................................................................................................................................................... 51

LAN Clients.................................................................................................................................................................. 53

SNMP ........................................................................................................................................................................... 54

Filters............................................................................................................................................................................ 55

Bridge Filters ................................................................................................................................................................ 57

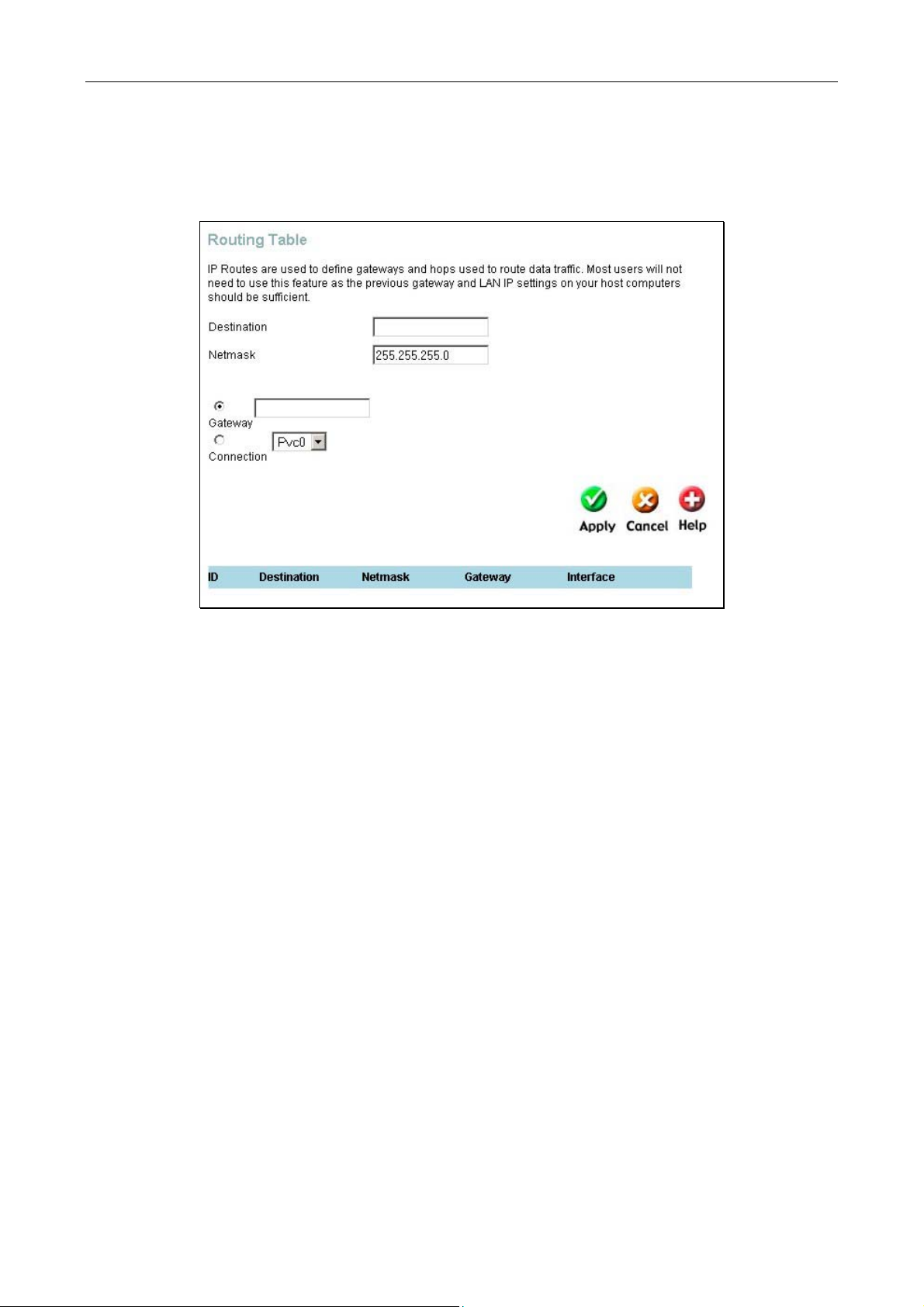

Routing ......................................................................................................................................................................... 58

DMZ .............................................................................................................................................................................59

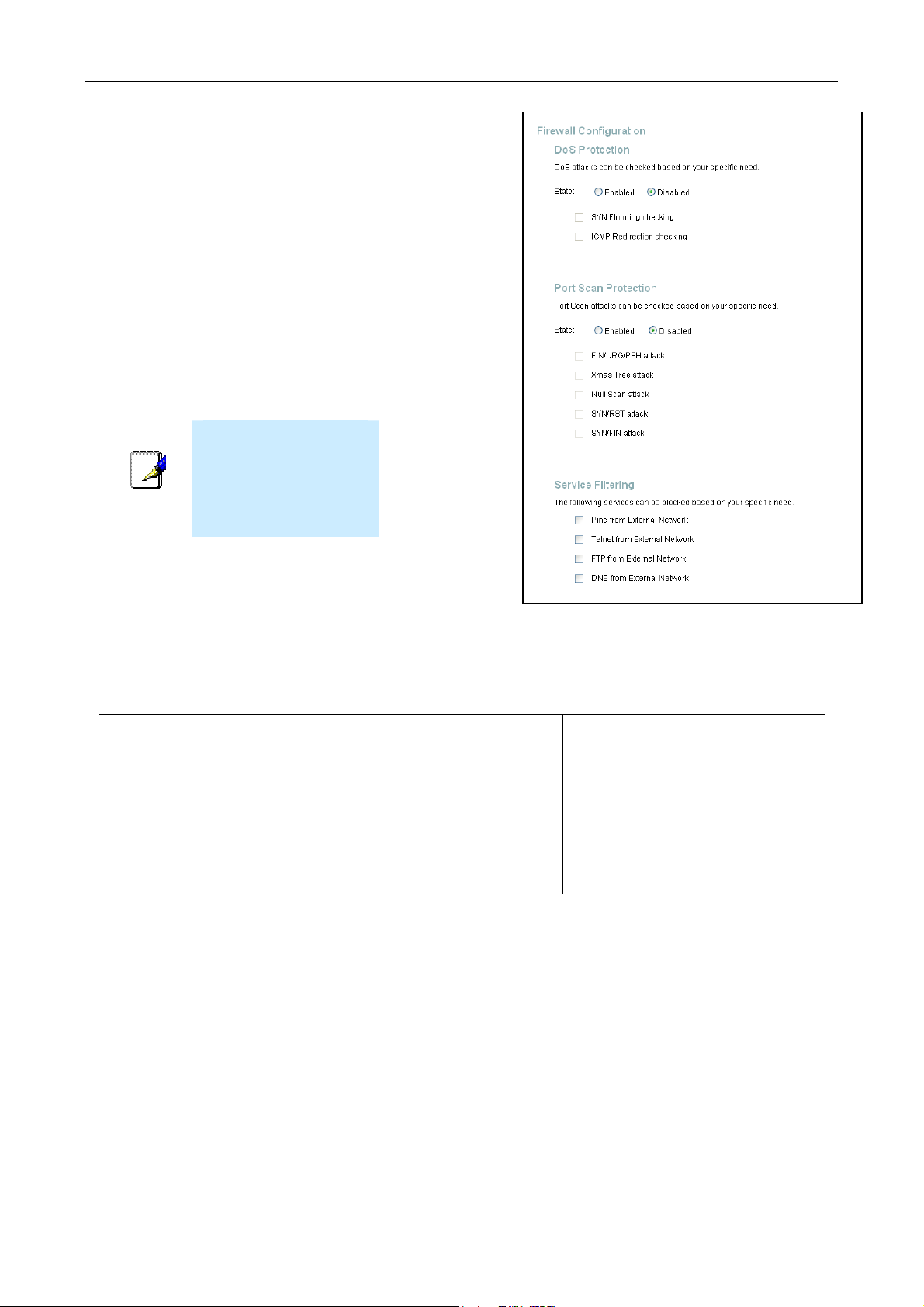

Firewall........................................................................................................................................................................ 60

RIP................................................................................................................................................................................ 61

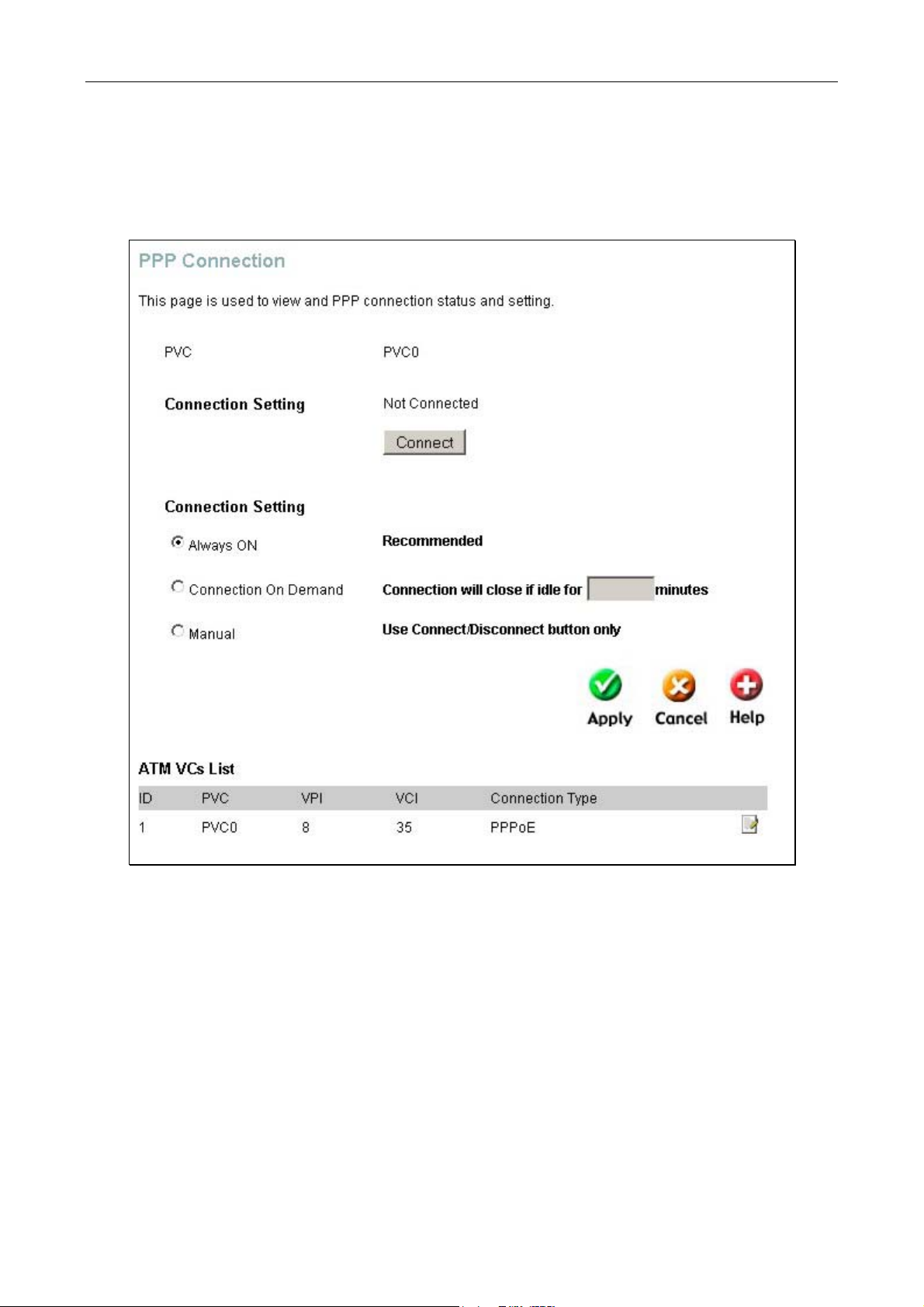

PPP ............................................................................................................................................................................... 62

ADSL............................................................................................................................................................................ 63

ATM VCC .................................................................................................................................................................... 64

QoS............................................................................................................................................................................... 65

Wireless Management ..................................................................................................................................................66

Wireless Performance................................................................................................................................................... 67

TOOLS ..............................................................................................................................68

Change System Password............................................................................................................................................. 69

Remote Web Management and Telnet Access .............................................................................................................69

Time.............................................................................................................................................................................. 70

Remote Log ..................................................................................................................................................................71

System ..........................................................................................................................................................................72

Firmware....................................................................................................................................................................... 73

Ping Test (Miscellaneous) ............................................................................................................................................74

Test ...............................................................................................................................................................................75

Status Information ........................................................................................................................................................76

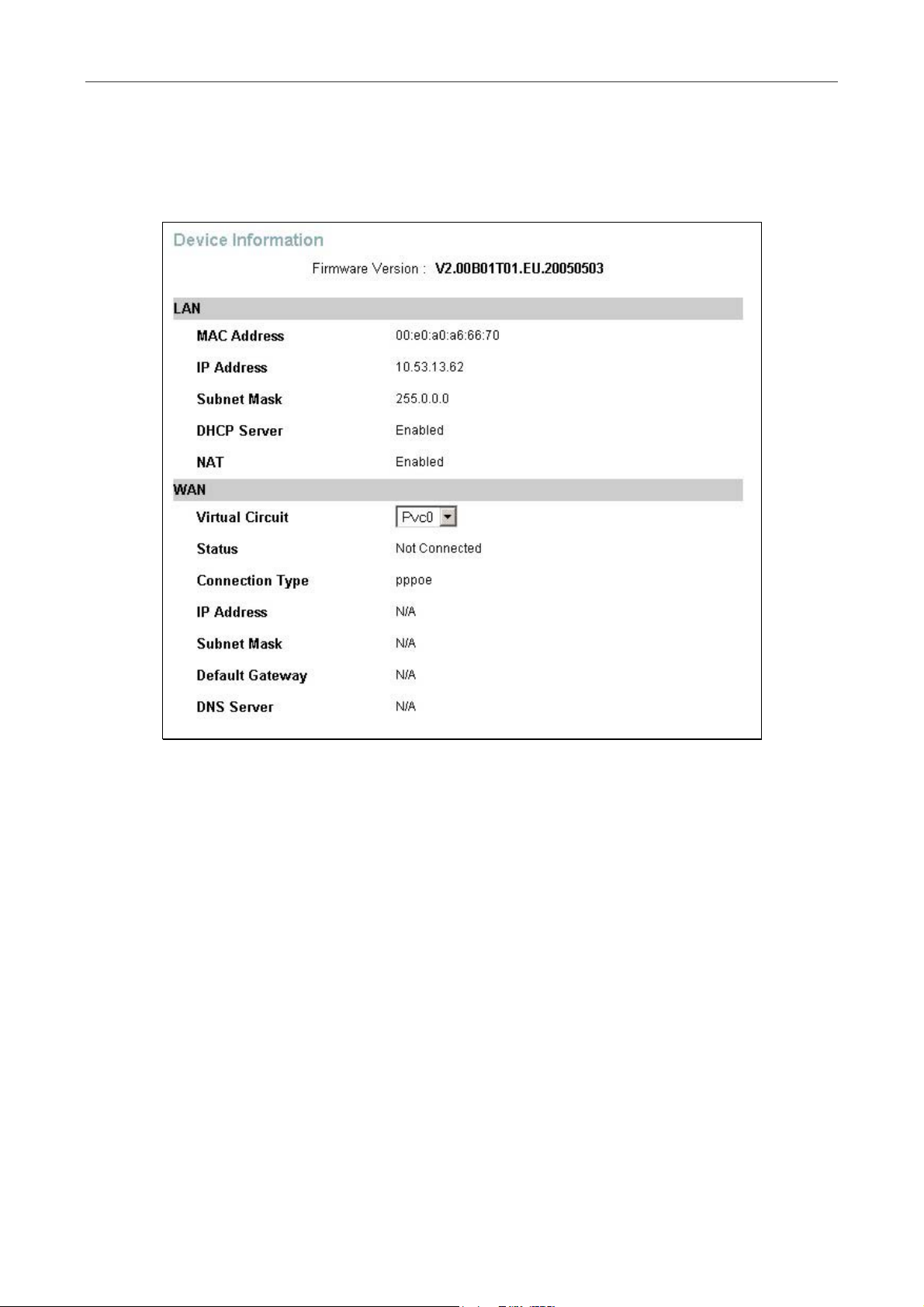

Device Information Display.......................................................................................................................................... 77

DHCP Clients ............................................................................................................................................................... 78

Log................................................................................................................................................................................ 79

Traffic ........................................................................................................................................................................... 80

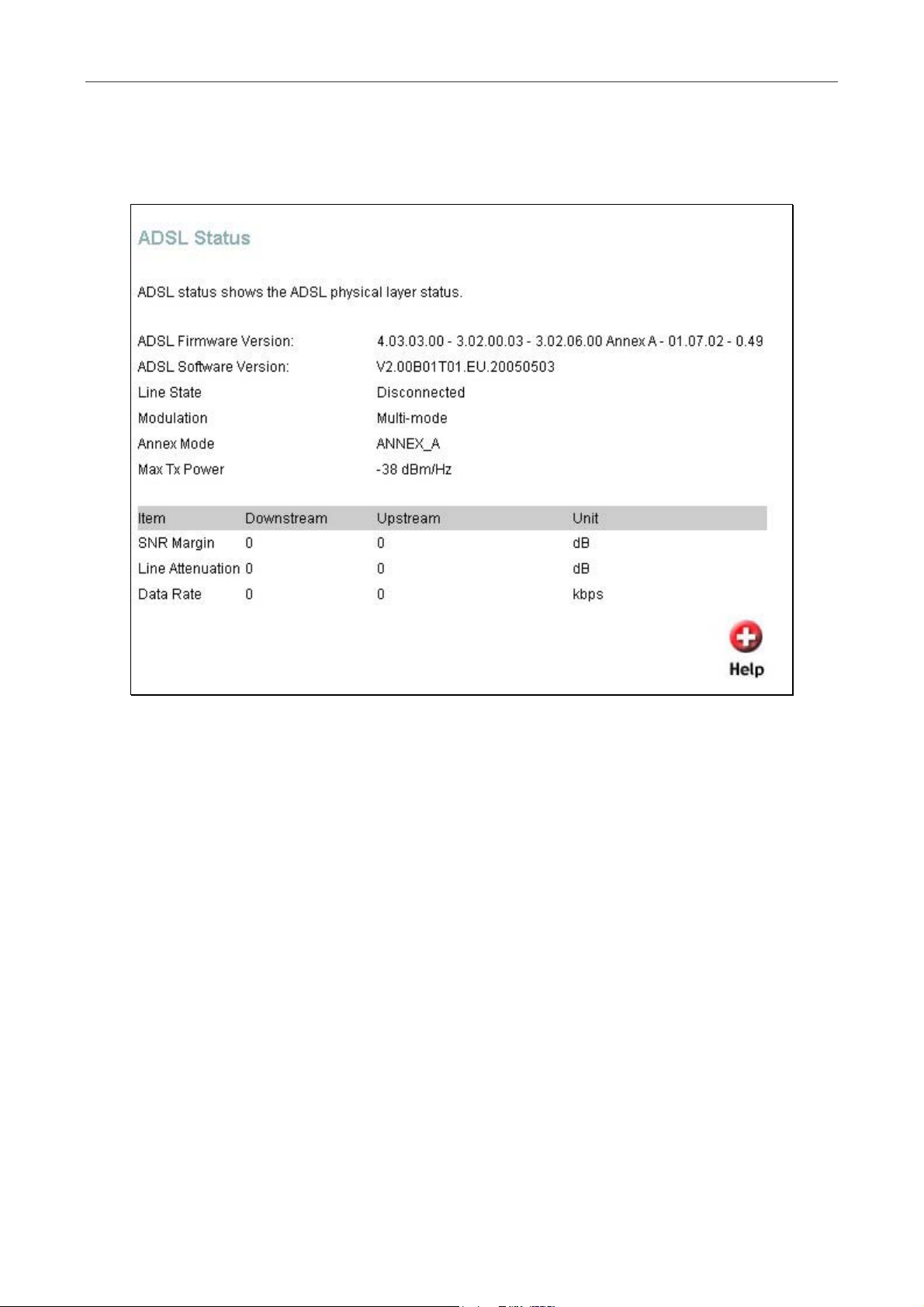

ADSL............................................................................................................................................................................ 81

TECHNICAL SPECIFICATIONS .......................................................................................82

IP ADDRESS SETUP........................................................................................................84

IP CONCEPTS ..................................................................................................................86

MICRO FILTERS AND SPLITTERS..................................................................................88

DSL-G624T Wireless A DSL Router User’s Guide

About This User’s Guide

This user’s guide provides instructions on how to install the DSL-G624T Wireless ADSL Router and use it to provide Internet access for an Ethernet or 802.11g/802.11b wireless LAN.

If you are using a computer with a functioning Ethernet port, the quickest and easiest way to set up the DSL-G624T is to insert the Installation CD into the CD-ROM drive of your computer and follow the instructions provided in the Quick Installation Guide.

Before You Start

Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and equipment on hand before beginning the installation.

Installation Overview

The procedure to install the Router can be described in general terms in the following steps:

1. Gather information and equipment needed to install the device. Before you begin the actual installation make sure you have all the necessary information and equipment.

2. Install the hardware, connect the cables to the device and connect the power adapter.

3. Check the IP settings on your computer and change them if necessary so the computer can access the webbased software built into the Router.

4. Use the web-based management software to configure the device to suit the requirements of your ADSL service and wireless LAN.

The Setup Wizard

Once you access the web interface use the Setup Wizard to configure your Internet connection.

iii

DSL-G624T Wireless A DSL Router User’s Guide

Packing List

Open the shipping carton and carefully remove all items. Make sure that you have the items listed here.

1. One DSL-G624T 802.11g Wireless ADSL Ethernet Router

2. One CD-ROM containing the User’s Guide

3. One twisted-pair telephone cable used for ADSL connection

4. One straight-through Ethernet cable

5. One AC power adapter suitable for your electric service

6. One Quick Installation Guide

Installation Requirements

In order to establish a connection to the Internet it will be necessary to provide information to the Router that will be stored in its memory. For some users, only their account information (Username and Password) is required. For others, various parameters that control and define the Internet connection will be required. You can print out the two pages below and use the tables to list this information. This way you have a hard copy of all the information needed to setup the Router. If it is necessary to reconfigure the device, all the necessary information can be easily accessed. Be sure to keep this information safe and private.

Low Pass Filters

Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to avoid mutual interference. A low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy to install passive devices that connect to the ADSL device and/or telephone using standard telephone cable. Ask your service provider for more information about the use of low pass filters with your installation.

Operating Systems

The DSL-G624T uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, and Windows XP.

Web Browser

Any common web browser can be used to configure the Router using the web configuration management software. The program is designed to work best with more recently released browsers such as Opera, Microsoft Internet Explorer® version 5.0, Netscape Navigator® version 4.7, or later versions. The web browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not been disabled by other software (such as virus protection or web user security packages) that may be running on your computer.

Ethernet Port (NIC Adapter)

Any computer that uses the Router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection and therefore requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port already installed. Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your computer does not have an Ethernet port, you must install an Ethernet NIC adapter before you can use the Router. If you must install an adapter, follow the installation instructions that come with the Ethernet NIC adapter.

Wireless LAN Configuration

Wireless LAN settings for 802.11g and 802.11b wireless operation must be enabled using the Setup Wizard before it can be configured. Basic wireless settings including the Channel and SSID can be configured through the Setup Wizard. Advanced wireless security settings can also be configured with the Setup Wizard.

DSL-G624T Wireless A DSL Router User’s Guide

Security for wireless communication can be accomplished in a number of ways. The DSL-G624T supports WEP, WPA and WPA -PSK.

Additional Software

It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if you are using the device a simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is stored on another computer or gateway device, not in the Router itself.

If your ADSL service is delivered through a PPPoE, PPPoA or Static IP connection, the information needed to establish and maintain the Internet connection can be stored in the Router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some settings in the device, including account information used to identify and verify the connection.

Information you will need from your ADSL service provider:

Username

Password

WAN Setting /

Connection Type

VPI

This is the Username used to log on to your ADSL service provider’s network. It is commonly in the form − user@isp.com. Your ADSL service provider uses this to identify your account.

This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the identity of your account.

These settings describe the method your ADSL service provider uses to transport data between the Internet and your computer. Most users will use the default settings. You may need to specify one of the following WAN Setting and Connection Type configurations (Connection Type settings listed in parenthesis):

PPPoE/PPoA (PPPoE LLC, PPPoA LLC or PPPoA VC-MUX)

Bridge Mode (1483 Bridged IP LLC or 1483 Bridged IP VC-MUX)

Static IP Address (Bridged IP LLC, 1483 Bridged IP VC-MUX, 1483 Routed IP LLC, 1483 Routed IP VC-MUX or IPoA)

Dynamic IP Address (1483 Bridged IP LLC or 1483 Bridged IP VC-MUX)

Default = PPPoE/PPPoA (PPPoE LLC)

Most users will not be required to change this setting. The Virtual Path Identifier (VPI) is used in conjunction with the Virtual Channel Identifier (VCI) to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN menu of the web management interface. Default value = 8

Record info

here

Most users will not be required to change this setting. The Virtual Channel Identifier (VCI) used in conjunction with the VPI to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for

VCI

multiple virtual connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN menu of the web management interface. Default value = 35

DSL-G624T Wireless A DSL Router User’s Guide

The Setup Wizard can be used to configure the Internet connection for most users. If you are using a PPPoE or PPPoA type connection use the Setup Wizard to establish the Internet

Note

connection.

Information you will need about your DSL-G624T ADSL Router:

This is the Username needed access the Router’s management interface. When you attempt to connect to

Username

Password

LAN IP addresses for the DSL-G624T

LAN Subnet Mask for the DSL-G624T

the device through a web browser you will be prompted to enter this Username. The default Username for the Router is admin. The user cannot change this.

This is the Password you will be prompted to enter when you access the Router’s management interface. The default Password is admin. The user may change this.

This is the IP address you will enter into the Address field of your web browser to access the Router’s configuration graphical user interface (GUI) using a web browser. The default IP address is 192.168.1.1. This may be changed to suit any IP address scheme the user desires. This address will be the base IP address used for DHCP service on the LAN when DHCP is enabled.

This is the subnet mask used by the DSL-G624T, and will be used throughout your LAN. The default subnet mask is 255.255.255.0. This can be changed later.

Information you will need about your LAN or computer:

Record info here

If your computer has an Ethernet NIC, you can connect the DSL-G624T to this Ethernet port using an

Ethernet NIC

DHCP Client status

It is recommended that your collect and record this information here, or in some other secure place, in case you have to re-configure your ADSL connection in the future.

Once you have the above information, you are ready to setup and configure your DSL-G624T ADSL Router.

Ethernet cable. You can also use the Ethernet ports on the DSL-G624T to connect to other computer or Ethernet devices.

Your DSL-G624T ADSL Router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask, and a default gateway address to computers on your LAN. The default range of IP addresses the DSL-G624T will assign are from 192.168.1.2 to 192.168.1.254. Your computer (or computers) needs to be configured to Obtain an IP address automatically (that is, they need to be configured as DHCP clients.)

Record info here

DSL-G624T Wireless A DSL Router User’s Guide

Introduction

This section provides a brief description of the Router, its associated technologies and a list of Router features.

Router Description and Operation

The DSL-G624T Router is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet or 802.11g/802.11b wireless network. The Router combines high-speed ADSL Internet connection, IP routing for the LAN and wireless connectivity in one package.

The Router is easy to install and use. The DSL-G624T connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address. The advanced security enhancements, packet filtering and port redirection, can help protect your network from potentially devastating intrusions by malicious agents from outside your network.

ADSL

Asymmetric Digital Subscriber Line (ADSL) is a broadband network technology that utilizes standard twisted-pair copper wire telephone lines to enable broadband high-speed digital data transmission and bandwidth hungry applications for business and residential customers.

ADSL routers and modems provide faster downloads and more reliable connectivity to the user without loss of quality or disruption of voice/fax telephone capabilities.

ADSL service operates at speeds of up to 8 Mbps downstream and up to 640 Kbps upstream. A secure dedicated pointto-point connection is established between the user and the central office of the service provider.

802.11g Wireless

The embedded 802.11g wireless access point provides Internet access and connectivity to the Ethernet for 802.11g and

802.11b wireless workstations. IEEE 802.11g is fully compatible with IEEE 802.11b wireless devices. The 802.11g standard supports data transfer rates of up to 54 Mbps. The Router’s wireless access point supports common security protocols used for wireless LAN including WEP encryption, 802.1x and WPA.

Router Features

The DSL-G624T Wireless ADSL Router utilizes the latest ADSL enhancements to provide a reliable Internet portal suitable for most small to medium sized offices. DSL-G624T advantages include:

• 802.11g Wireless Access Point – The built-in 802.11g wireless access point connects 802.11g and 802.11b wireless devices to the Internet and the Ethernet.

• PPP (Point-to-Point Protocol) Security – The DSL-G624T ADSL Router supports PAP (Password Authentication Protocol) and CHAP (Challenge Handshake Authentication Protocol) for PPP connections.

• DHCP Support – Dynamic Host Configuration Protocol automatically and dynamically assigns al LAN IP settings to each host on your network. This eliminates the need to reconfigure every host whenever changes in network topology occur.

• Network Address Translation (NAT) – For small office environments, the DSL-G624T allows multiple users on the LAN to access the Internet concurrently through a single Internet account. This provides Internet access to everyone in the office for the price of a single user.

NAT improves network security in effect by hiding the private network behind one global and visible IP address. NAT address mapping can also be used to link two IP domains via a LAN-to-LAN connection.

• TCP/IP (Transfer Control Protocol/Internet Protocol) – The DSL-G624T supports TCP/IP protocol, the language used for the Internet. It is compatible with access servers manufactured by major vendors.

DSL-G624T Wireless A DSL Router User’s Guide

• RIP-1/RIP-2 – The DSL-G624T supports both RIP-1 and RIP-2 exchanges with other routers. Using both versions lets the Router to communicate with all RIP enabled devices.

• Static Routing – This allows you to select a data path to a particular network destination that will remain in the routing table and never “age out”. If you wish to define a specific route that will always be used for data traffic from your LAN to a specific destination within your LAN (for example to another router or a server) or outside your network (to a ISP defined default gateway for instance).

• Default Routing – This allows you to choose a default path for incoming data packets for which the destination address is unknown. This is particularly useful when if the Router functions as the sole connection to the Internet.

• ATM (Asynchronous Transfer Mode) – The DSL-G624T supports Bridged Ethernet over ATM (RFC1483), IP over ATM (RFC1577) and PPP over ATM (RFC 2364).

• Precise ATM Traffic Shaping – Traffic shaping is a method of controlling the flow rate of ATM data cells. This function helps to establish the Quality of Service for ATM data transfer.

• G.hs (Auto-handshake) – This allows the Router to automatically choose either the G.lite or G.dmt ADSL connection standards.

• High Performance – Very high rates of data transfer are possible with the Router. Up to eight Mbps downstream bit rate using the G.dmt standard.

• Full Network Management – The DSL-G624T incorporates SNMP (Simple Network Management Protocol) support for web-based management and text-based network management via an RS-232 or Telnet connection.

• Telnet Connection – The Telnet enables a network manager to access the Router’s management software remotely.

• Easy Installation – The DSL-G624T uses a web-based graphical user interface program for convenient management access and easy set up. Any common web browser software can be used to manage the Router.

DSL-G624T Wireless A DSL Router User’s Guide

Standards Compatibility and Compliance

The DSL-G624T complies with or is compatible with the following standards as recognized by their respective agencies.

• ITU G.992.2 (G.lite) compliant

• ITU-T Rec. I.361 compliant

• RFC 791 Internet Protocol compliant

• RFC 792 UDP compliant

• RFC 826 Address Resolution Protocol compliant (ARP) compliant

• RFC 1058 Routing Information Protocol (RIP) compliant

• RFC 1213 MIB II for IP compliant

• RFC 1334 PPP Authentication Protocol compliant

• RFC 1389 Routing Information Protocol 2 (RIP2) compliant

• RFC 1483 IP over AAL5/ Bridged Ethernet over AAL5 compliant

• RFC 1557 Classical IP over ATM (IPoA) compliant

• RFC 1661 Point to Point Protocol (PPP) compliant

• RFC 1877 Automatic IP assignment compliant

• RFC 1994 Challenge Handshake Authentication Protocol compliant

• Supports RFC 2131 and RFC 2132 DHCP functions including: automatic assignment of IP address, use of subnet

mask and default gateway and provision of DNS server address for all hosts

• RFC 2364 PPP over ATM compliant (PPPoA) compliant

• RFC 2516 PPP over Ethernet compliant (PPPoE) compliant

• RFC 2684 Bridged/Routed Ethernet over ATM compliant

• IEEE 802.3 compliant

• IEEE 802.3u compliant

• IEEE 802.1d compliant

• IEEE 802.11g compliant

• IEEE 802.3x compliant

• Embedded web server support

• Supports Dynamic Learning

• Supports Static Routing

• Supports NAPT for up to 4096 connections

• Supports DHCP for up to 253 hot connections

• Supports IGMP

• Supports ATM Forum UNI 3.1/4.0

• Supports ATM VCC (Virtual Channel Circuit) for up to eight sessions

• Supports TELNET and TFTP

• Supports back pressure for half-duplex

DSL-G624T Wireless A DSL Router User’s Guide

Front Panel Display

Place the Router in a location that permits an easy view of the LED indicators on the front panel.

The LED indicators on the front panel include the Power, Status, ADSL and WLAN and Ethernet (1-4) Link/Act indicators. The ADSL, WLAN and Ethernet indicators monitor link status and activity (Link/Act).

Power

Status

ADSL (Link/Act)

WLAN (Link/Act)

Ethernet (Link/Act) 1 - 4

Steady green light indicates the unit is powered on. When the device is powered off this remains dark.

Lights steady green during power on self-test (POST). Once the connection status has been settled, the light will blink green. If the indicator lights steady green after the POST, the system has failed and the device should be rebooted.

Steady green light indicates a valid ADSL connection. This will light after the ADSL negotiation process has been settled. A blinking green light indicates activity on the WAN (ADSL) interface.

Steady green light indicates a wireless connection. A blinking green light indicates activity on the WLAN interface.

A solid green light indicates a valid link on startup. This light will blink when there is activity currently on the Ethernet ports.

DSL-G624T Wireless A DSL Router User’s Guide

Rear Panel Connections

All cable connections to the Router are made at the rear panel. Connect the power adapter here to power on the Router. Use the Reset button to restore the settings to the factory default values in the next chapter for instructions on using the reset button).

Antenna

For wireless

operation, mount

the antenna on

the threaded

antenna post.

ADSL port

Use the ADSL

cable to connect

to the your

telephone line

(RJ-11 port)

Reset button

To manually

reset, depress

button with the

power on for at

least seven

Ethernet ports

Use the Ethernet ports

to connect the Router

to your Ethernet LAN

or Ethernet devices

seconds

Power insert

Use the adapter shipped with the

Router to

connect to

power source

Note

To manually reboot the Router, disconnect and then reconnect the power.

DSL-G624T Wireless A DSL Router User’s Guide

Wireless LAN Basics

Some basic understanding of 802.11b/g wireless technology and terminology is useful when you are setting up the Router or any wireless access point. If you are not familiar with wireless networks please take a few minutes to learn the basics.

Radio Transmission

Wireless LAN or WLAN devices use electromagnetic waves within a broad, unlicensed range of the radio spectrum to transmit and receive radio signals. When a wireless access point is present, it becomes a base station for the WLAN nodes in its broadcast range. WLAN nodes transmit digital data using FM (frequency modulation) radio signals. WLAN devices generate a carrier wave and modulate this signal using various techniques. Digital data is superimposed onto the carrier signal. This radio signal carries data to WLAN devices within range of the transmitting device. The antennae of WLAN devices listen for and receive the signal. The signal is demodulated and the transmitted data extracted. The transmission method used by the access point is called Direct Sequence Spread Spectrum (DSSS) and operates in a range of the radio spectrum between 2.4GHz and 2.5GHz for transmission. See the technical specifications for more details on wireless operation.

Range

Range should not be a problem in most homes or small offices. If you experience low or no signal strength in some areas, consider positioning the Router in a location between the WLAN devices that maintains a roughly equal straightline distance to all devices that need to access the Router through the wireless interface. Adding more 802.11g access points to rooms where the signal is weak can improve signal strength. Read the section about placement of the Router titled Location in the next chapter, Hardware Installation, for more information.

SSID

Wireless networks use an SSID (Service Set Identifier) to allow wireless devices to roam within the range of the network. Wireless devices that wish to communicate with each other must use the same SSID. Several access points can be set up using the same SSID so that wireless stations can move from one location to another without losing connection to the wireless network.

The DSL-G624T operates in Infrastructure mode. It controls network access on the wireless interface in its broadcast area. It will allow access to the wireless network to devices using the correct SSID after a negotiation process takes place. By default he DSL-G624T broadcasts its SSID so that any wireless station in range can learn the SSID and ask permission to associate with it. Many wireless adapters are able to survey or scan the wireless environment for access points. An access point in Infrastructure mode allows wireless devices to survey that network and select an access point with which to associate. You may disable SSID broadcasting in the web manager’s wireless menu.

Wireless Security

Various security options are available on the DSL-G624T including open or WEP and WPA (including WPA-PSK). Authentication may use an open system or a shared key. For details on these methods and how to use them, please read the wireless LAN configuration information in chapters 3 (Basic Router Configuration) and 4 (Advanced Router Configuration) below.

DSL-G624T Wireless A DSL Router User’s Guide

About 802.11g Wireless

Today's 11-megabits-per-second 802.11b wireless networks are fine for broadband Internet access (which typically tops out at about 1 mbps) but rather slow for large internal file transfers or streaming video. However, 54-mbps, corporateoriented 802.11a is expensive--and because its radio uses the 5-GHz band and 802.11b uses the 2.4-GHz band, upgrading to an 802.11a network means either scrapping 802.11b gear or buying even-pricier hardware that can support both standards.

But 802.11g promises the same speed as 802.11a and the ability to coexist with 802.11b equipment on one network, since it too uses the 2.4-GHz band.

802.11g is an extension to 802.11b, the basis of many wireless LANs in existence today. 802.11g will broaden

802.11b's data rates to 54 Mbps within the 2.4 GHz band using OFDM (orthogonal frequency division multiplexing)

technology. Because of backward compatibility, an 802.11b radio card will interface directly with an 802.11g access point (and vice versa) at 11 Mbps or lower depending on range. You should be able to upgrade the newer 802.11b access points to be 802.11g compliant via relatively easy firmware upgrades.

Similar to 802.11b, 802.11g operates in the 2.4GHz band, and the transmitted signal uses approximately 30MHz, which is one third of the band. This limits the number of non-overlapping 802.11g access points to three, which is the same as

802.11b.

DSL-G624T Wireless A DSL Router User’s Guide

Hardware Installation

The DSL-G624T maintains three separate interfaces, an Ethernet LAN, a wireless LAN and an ADSL (WAN) interface. Place the Router in a location where it can be connected to the various devices as well as to a power source. The Router should not be located where it will be exposed to moisture or excessive heat. Make sure the cables and power cord are placed safely out of the way so they do not create a tripping hazard. As with any electrical appliance, observe common sense safety procedures.

The Router can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for troubleshooting.

Choosing the Best Location for Wireless Operation

Many environmental factors can affect the effective wireless function of the DSL-G624T. If this is your first time setting up a wireless network device, read and consider the points listed below.

The access point can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for troubleshooting.

Designed to go up to 100 meters indoors and up to 300 meters outdoors, Wireless LAN lets you access your network from anywhere you want. However, the number of walls, ceilings, or other objects that the wireless signals must pass through can limit signal range. Typical ranges vary depending on the types of materials and background RF noise in your home or business. For optimum range and signal strength, use these basic guidelines:

1. Minimize the number of walls and ceilings between access points and clients:

The signal emitted from Wireless LAN devices can penetrate through ceilings and walls. However, each wall

or ceiling can reduce the range of Wireless LAN devices from 1 to 30M. Position your wireless devices so that

the number of walls or ceilings obstructing the signal path is minimized.

2. Consider the direct line between access points and workstations: A wall that is 0.5 meters thick, at a 45-

degree angle appears to be almost 1 meter thick. At a 2-degree angle, it is over 14 meters thick. Be careful to

position access points and client adapters so the signal can travel straight through (90º angle) a wall or ceiling

for better reception.

3. Building Materials make a difference: Buildings constructed using metal framing or doors can reduce

effective range of the device. If possible, position wireless devices so that their signal can pass through drywall

or open doorways, avoid positioning them so that their signal must pass through metallic materials. Poured

concrete walls are reinforced with steel while cinderblock walls generally have little or no structural steel.

4. Position the antennas for best reception. Play around with the antenna position to see if signal strength

improves. Some adapters or access points allow the user to judge the strength of the signal.

5. Keep your product away (at least 1-2 meters) from electrical devices:

Position wireless devices away from electrical devices that generate RF noise such as microwave ovens,

monitors, electric motors, etc.

DSL-G624T Wireless A DSL Router User’s Guide

Power on Router

CAUTION: The Router must be used with the power adapter included with the device.

To power on the Router:

1. Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the Router and plug the adapter into a suitable nearby power source.

2. You should see the Power LED indicator light up and remain lit. The Status LED should light solid green and begin to blink after a few seconds.

3. If the Ethernet port is connected to a working device, check the Ethernet Link/Act LED indicators to make sure the connection is valid. The Router will attempt to establish the ADSL connection, if the ADSL line is connected and the Router is properly configured this should light up after several seconds. If this is the first time installing the device, some settings may need to be changed before the Router can establish a connection.

Factory Reset Button

The Router may be reset to the original factory default settings by depressing the reset button for a few seconds while the device is powered on. Use a ballpoint or paperclip to gently push down the reset button. Remember that this will wipe out any settings stored in flash memory including user account information and LAN IP settings. The device settings will be restored to the factory default IP address 192.168.1.1 and the subnet mask is 255.255.255.0, the default management Username is admin and the default Password is admin.

Wired Network Connections

Wired network connections are provided through the ADSL port and the four Ethernet ports on the back of the Router. See the Rear Panel diagram above and the illustrations below for examples.

Connect ADSL Line

Use the ADSL cable included with the Router to connect it to a telephone wall socket or receptacle. Plug one end of the cable into the ADSL port (RJ-11 receptacle) on the rear panel of the Router and insert the other end into the RJ-11 wall socket. If you are using a low pass filter device, follow the instructions included with the device or given to you by your service provider. The ADSL connection represents the WAN interface, the connection to the Internet. It is the physical link to the service provider’s network backbone and ultimately to the Internet.

Connect Router to Ethernet

The Router may be connected to a single computer or Ethernet device through the 10/100 BASE-TX Ethernet port on the rear panel. Any connection to an Ethernet concentrating device such as a switch or hub must operate at a speed of 10/100 Mbps only. When connecting the Router to any Ethernet device that is capable of operating at speeds between 0~100Mbps, be sure that the device has auto-negotiation (NWay) enabled for the connecting port.

Use standard twisted-pair cable with RJ-45 connectors. The RJ-45 port on the Router is a crossed port (MDI-X). Follow standard Ethernet guidelines when deciding what type of cable to use to make this connection. When connecting the Router directly to a PC or server use a normal straight-through cable. You should use a crossed cable when connecting the Router to a normal (MDI-X) port on a switch or hub. Use a normal straight-through cable when connecting it to an uplink (MDI-II) port on a hub or switch.

The rules governing Ethernet cable lengths apply to the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 meters.

DSL-G624T Wireless A DSL Router User’s Guide

Hub or Switch to Router Connection

Connect the Router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable as shown in the diagram below:

If you wish to reserve the uplin

ort on the switch or hub fo another device, connect to any o the other MDI-X ports (1x, 2x, etc.) with a crossed cable.

Computer to Router Connection

You can connect the Route directly to a 10/100BASE-TX Ethernet adapter card (NIC) installed on a PC using the Etherne cable provided as shown in this diagram.

DSL-G624T Wireless A DSL Router User’s Guide

The illustration below shows the DSL-G624T connected to Ethernet LAN devices, Wireless LAN devices and the Internet.

DSL-G624T Wireless A DSL Router User’s Guide

Basic Router Configuration

The first time you setup the Router it is recommended that you configure the WAN connection using a single computer making sure that both the computer and the Router are not connected to the LAN. Once the WAN connection is functioning properly, you may continue to make changes to Router configuration including IP settings and DHCP setup. This chapter is concerned mainly with using your computer to configure the WAN connection. Instructions are also provided for basic Wireless LAN configuration. The following chapter describes how to set up the advanced features of the Router.

Configuration Summary

1. Connect to the Router To configure various settings used by the Router for Internet and Wireless LAN access it is first necessary to access the Router’s management HTML-based interface. This is done using an ordinary web browser. Your computer must be able to “see” the Router before it can manage it using a browser. If the Router is in the same “neighborhood” or subnet as the Router, you should be able to access the management software. Therefore you must first make sure your computer has IP settings that place it in the same subnet as the Router. The easiest way to make sure your computer has the correct IP settings is to configure it to use the DHCP server in the Router. The DHCP server will automatically enable your computer to use a browser to manage the Router. The next section describes how to change the IP configuration for a computer running a Windows operating system to be a DHCP client. If you are running another operating system, make sure your computer is configured as a DHCP client so it can automatically obtain IP settings from the Router. Some operating systems will automatically select the best IP settings. Consult the user manual for the operating system (OS) if you are unsure.

2. Configure the Internet (WAN) Connection Most users will be able to complete this process using the Setup Wizard. The Setup Wizard can be launched once you have successfully connected with the Router’s management software. There are different methods used to establish the WAN connection to the service provider’s network and ultimately to the Internet. Your Router may already have most of the settings configured by default. However you will probably at least have to type in a user name and password given to you by your ISP. You may also need to know the encapsulation and connection type required to use for your ADSL service. Your service provider should provide all the information needed to configure the WAN connection.

3. Configure the Wireless Connection Use the Wireless Settings menu to configure the SSID, Channel and Security settings for your 802.11g wireless network.

DSL-G624T Wireless A DSL Router User’s Guide

Configuring IP Settings on Your Computer

In order to configure your system to receive IP settings from the Router it must first have the TCP/IP protocol installed. If you have an Ethernet port on your computer, it probably already has TCP/IP protocol installed. If you are using Windows XP the TCP/IP is enabled by default for standard installations. Below is an illustrated example of how to configure a Windows XP system to automatically obtain IP settings from the Router. Following this example is a stepby-step description of the procedures used on the other Windows operating systems to first check if the TCP/IP protocol has been installed; if it is not, instructions are provided for installing it. Once the protocol has been installed you can configure the system to receive IP settings from the Router.

For computers running non-Windows operating systems, follow the instructions for your OS that configure the system to receive an IP address from the Router, that is, configure the system to be a DHCP client.

If you are using this Router to provide Internet access for more than one computer, you can use these instructions later to change the IP settings for the other computers. However, you cannot

Note

Configure Windows XP for DHCP

Use the following steps to configure a computer running Windows XP to be a DHCP client.

use the same IP address since every computer must have its own IP address that is unique on the local network.

1. From the Start menu on your desktop, go to Settings, then click on Network Connections.

DSL-G624T Wireless A DSL Router User’s Guide

2. In the Network Connections window, right-click on LAN (Local Area Connection), then click Properties.

3. In the General tab of the Local Area

Connection Properties menu, highlight Internet Protocol (TCP/IP) under “This connection uses

the following items:” by clicking on it once. Clic on the Properties button.

4. Select “Obtain an IP address automatically” b clicking once in the circle. Click the OK button. You computer is now ready to use the Router’s DHCP server.

DSL-G624T Wireless A DSL Router User’s Guide

Windows 2000

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Network and Dial-up Connections icon.

3. In the Network and Dial-up Connections window, right-click the Local Area Connection icon, and then select Properties.

4. The Local Area Connection Properties dialog box displays with a list of currently installed network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled, skip ahead to Configure Windows 2000 for DHCP.

5. If Internet Protocol (TCP/IP) does not display as an installed component, click Install.

6. In the Select Network Component Type dialog box, select Protocol, and then click Add.

7. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click OK.

8. You may be prompted to install files from your Windows 2000 installation CD or other media. Follow the instructions to install the files.

9. If prompted, click OK to restart your computer with the new settings.

Configure Windows 2000 for DHCP

1. In the Control Panel, double-click the Network and Dial-up Connections icon.

2. In Network and Dial-up Connections window, right-click the Local Area Connection icon, and then select Properties.

3. In the Local Area Connection Properties dialog box, select Internet Protocol (TCP/IP), and then click Properties.

4. In the Internet Protocol (TCP/IP) Properties dialog box, click the button labeled Obtain an IP address automatically.

5. Double-click OK to confirm and save your changes, and then close the Control Panel.

Your computer is now ready to use the Router’s DHCP server.

Windows 95 and Windows 98

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel. Double-click the Network icon.

2. The Network dialog box displays with a list of currently installed network components. If the list includes TCP/IP, and then the protocol has already been enabled, skip to Configure IP Information Windows 95, 98.

3. If TCP/IP does not display as an installed component, click Add. The Select Network Component Type dialog box displays.

4. Select Protocol, and then click Add. The Select Network Protocol dialog box displays.

5. Click on Microsoft in the Manufacturers list box, and then click TCP/IP in the Network Protocols list box.

6. Click OK to return to the Network dialog box, and then click OK again. You may be prompted to install files from your Windows 95/98 installation CD. Follow the instructions to install the files.

7. Click OK to restart the PC and complete the TCP/IP installation.

Configure Windows 95 and Windows 98 for DHCP

1. Open the Control Panel window, and then click the Network icon.

2. Select the network component labeled TCP/IP, and then click Properties.

3. If you have multiple TCP/IP listings, select the listing associated with your network card or adapter.

4. In the TCP/IP Properties dialog box, click the IP Address tab.

5. Click the Obtain an IP address automatically option.

DSL-G624T Wireless A DSL Router User’s Guide

6. Double-click OK to confirm and save your changes. You will be prompted to restart Windows.

7. Click Yes.

When it has restarted, your computer is ready to use the Router’s DHCP server.

Windows ME

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Network and Dial-up Connections icon.

3. In the Network and Dial-up Connections window, right-click the Network icon, and then select Properties.

4. The Network Properties dialog box displays with a list of currently installed network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled. Skip ahead to Configure Windows ME for DHCP.

5. If Internet Protocol (TCP/IP) does not display as an installed component, click Add.

6. In the Select Network Component Type dialog box, select Protocol, and then click Add.

7. Select Microsoft in the Manufacturers box.

8. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click OK.

9. You may be prompted to install files from your Windows Me installation CD or other media. Follow the instructions to install the files.

10. If prompted, click OK to restart your computer with the new settings.

Configure Windows ME for DHCP

1. In the Control Panel, double-click the Network and Dial-up Connections icon.

2. In the Network and Dial-up Connections window, right-click the Network icon, and then select Properties.

3. In the Network Properties dialog box, select TCP/IP, and then click Properties.

4. In the TCP/IP Settings dialog box, click the Obtain and IP address automatically option.

5. Double-click OK twice to confirm and save your changes, and then close the Control Panel.

Your computer is now ready to use the Router’s DHCP server.

Windows NT 4.0 Workstations

First, check for the IP protocol and, if necessary, install it:

1. In the Windows NT task bar, click the Start button, point to Settings, and then click Control Panel.

2. In the Control Panel window, double-click the Network icon.

3. In the Network dialog box, click the Protocols tab.

4. The Protocols tab displays a list of currently installed network protocols. If the list includes TCP/IP, then the protocol has already been enabled. Skip to “Configure IP Information”

5. If TCP/IP does not display as an installed component, click Add.

6. In the Select Network Protocol dialog box, select TCP/IP, and then click OK. You may be prompted to install files from your Windows NT installation CD or other media. Follow the instructions to install the files.

7. After all files are installed, a window displays to inform you that a TCP/IP service called DHCP can be set up to dynamically assign IP information.

8. Click Yes to continue, and then click OK if prompted to restart your computer.

Configure Windows NT 4.0 for DHCP

1. Open the Control Panel window, and then double-click the Network icon.

2. In the Network dialog box, click the Protocols tab.

3. In the Protocols tab, select TCP/IP, and then click Properties.

4. In the Microsoft TCP/IP Properties dialog box, click the Obtain an IP address automatically option.

DSL-G624T Wireless A DSL Router User’s Guide

5. Click OK twice to confirm and save your changes, and then close the Control Panel.

Your computer is now ready to use the Router’s DHCP server.

Access the Configuration Manager

Now that your computer’s IP settings allow it to communicate with the Router, you can access the configuration software.

Be sure that the web browser on your computer is not configured to use a proxy server in the Internet settings. In Windows Internet Explorer, you can check if a proxy server is enabled using the following procedure:

1. In Windows, click on the Start button, go to Settings and choose Control Panel.

Note

2. In the Control Panel window, double-click on the Internet Options icon.

3. Click the Connections tab and click on the LAN Settings button.

4. Verify that the “Use proxy server” option is NOT checked. If it is checked, click in the checked box to deselect the option and click OK.

Alternatively, you can access this Internet Options menu using the Tools pulldown menu in Internet Explorer.

To use the web-based management software, launch a suitable web browser and direct it to the IP address of the Router. Type in http:// followed by the default IP address, 192.168.1.1 in the address bar of the browser. The URL in the address bar should read: http://192.168.1.1.

A dialog box prompts for the User Name and Password. Type in the default User Name admin and default Password admin and click the OK button to access the web-based manager.

Enter Password

You should change the web-based manager access user name and password once you have verified that a connection can be established. The user name and password allows any PC within the same subnet as the Router to access the webbased manger.

The user name and password used to access the web-based manager is NOT the same as the ADSL account user name and password needed for PPPoE/PPPoA connections to access the

Note

Internet.

DSL-G624T Wireless A DSL Router User’s Guide

Configure the Router

When you successfully connect to the web manager, the Home directory tab will display the Setup Wizard menu. You can launch the Setup Wizard from this page or use the menu buttons located in the left panel of the web page to view other menus used for basic configuration.

Click on a directory tab to view the menus available

in that directory

Click the Run Wizard

button to launch the

Setup Wizard

Click on a menu button to

use or view the menu

Web Manager – First Time Log On

All configuration and management of the Router is done using the web-based management interface pictured in the above example. The various menus are accessed by clicking on one of the directory tabs, Home, Advanced, Tools, Status and Help. Each tab displays menu buttons located in the left hand panel of the web interface. Basic setup of the Router can be completed in the menus accessed from the Home directory. The menus accessed from the Home directory include the following: Setup Wizard, Wireless Settings used to configure the 802.11g wireless access point, WAN Settings used to configure the Internet connection, LAN Settings used to configure the Management IP address for the Router, DHCP Settings for automatic assignment of IP addresses used by workstations or servers on your LAN, and the DNS Configuration menu used for setting up DNS relay and Dymaic DNS for setting the DDNS settings..

DSL-G624T Wireless A DSL Router User’s Guide

Using the Setup Wizard

To use the Setup Wizard, click the Run Wizard button in the first browser window and follow the instructions in the pop-up dialog box that appears.

The initial dialog box summarizes the setup process. Click the Next button to proceed. You may stop using the Setup Wizard at any time by clicking the Exit button. If you exit the wizard you will return to the Setup Wizard page without saving any of the settings changed during the process.

The first window of the Setup Wizard lists the basic steps in the process. These steps are as follows:

1. Set the system time.

2. Configure the connection to the Internet.

3. Save the new configuration settings and reboot the system.

DSL-G624T Wireless A DSL Router User’s Guide

Using the Setup Wizard - Choose Time Zone

Choose the time zone you are in from the pull-down menu and click Next. This sets the system time used for the Router. If you wish to return to the previous menu during the setup process, click the Back button.

DSL-G624T Wireless A DSL Router User’s Guide

Using the Setup Wizard - Choose Connection Type

Now select the Connection Type used for the Internet connection. Your ISP has given this information to you. The connection types available in the Setup Wizard menu are PPPoE/PPPoA, Dynamic IP Address, Static IP Address and Bridge Mode. Each connection type has different settings that are configured in the next dialog box of the Setup wizard.

Select the Connection Type specific to your service and click Next to go to the next Setup Wizard menu. Follow the instructions below for the type of connection you have selected.

DSL-G624T Wireless A DSL Router User’s Guide

Using the Setup Wizard - For PPPoE/PPPoA connections:

1. Type in the Username and Password used to identify and verify your account to the ISP.

2. Select the specific Connection Type from the drop-down menu. The available PPP connection and encapsulation types are PPPoE LLC, PPPoA LLC and PPPoA VC-MUX.

3. If you are instructed to change the VPI or VCI number, type in the correct setting in the available entry fields. Most users will not need to change these settings. The Internet connection cannot function if these values are incorrect.

4. Click Next to go to the next menu, which is the Set Wireless LAN Connection window. Here the user can set the parameters for the wireless settings for the Router. Enter the SSID and choose the correct wireless channel.

5. Once completed, click Next to go the Setup Completed window.

+ 67 hidden pages
