D-Link DSL-G604T User Manual

DSL-G604T

Wireless ADSL Router

(Sep. 2005)

DSLG604TAUB3

v2.00B02.AU

User’s Guide

DSL-G604T Wireless ADSL Router Manual

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

DSL-G604T Wireless ADSL Router Manual

Warranty and Registration

WARRANTIES EXCLUSIVE

IF THE D-LINK PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT DLINK'S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. D-LINK NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF D-LINK'S PRODUCTS. D-LINK SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY THE CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD.

LIMITATION OF LIABILITY

IN NO EVENT WILL D-LINK BE LIABLE FOR ANY DAMAGES, INCLUDING LOSS OF DATA, LOSS OF PROFITS, COST OF COVER OR OTHER INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES ARISING OUT THE INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE OR INTERRUPTION OF A D- LINK PRODUCT, HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY. THIS LIMITATION WILL APPLY EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. IF YOU PURCHASED A D-LINK PRODUCT IN THE UNITED STATES, SOME STATES DO NOT ALLOW THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

Limited Warranty

Hardware:

D-Link warrants each of its hardware products to be free from defects in workmanship and materials under normal use and service for a period commencing on the date of purchase from D-Link or its Authorized Reseller and extending for the length of time stipulated by the Authorized Reseller or D-Link Branch Office nearest to the place of purchase.

This Warranty applies on the condition that the product Registration Card is filled out and returned to a D-Link office within ninety (90) days of purchase. A list of D-Link offices is provided at the back of this manual, together with a copy of the Registration Card.

If the product proves defective within the applicable warranty period, D-Link will provide repair or replacement of the product. D-Link shall have the sole discretion whether to repair or replace, and replacement product may be new or reconditioned. Replacement product shall be of equivalent or better specifications, relative to the defective product, but need not be identical. Any product or part repaired by D-Link pursuant to this warranty shall have a warranty period of not less than 90 days, from date of such repair, irrespective of any earlier expiration of original warranty period. When D-Link provides replacement, then the defective product becomes the property of D-Link.

Warranty service may be obtained by contacting a D-Link office within the applicable warranty period, and requesting a Return Material Authorization (RMA) number. If a Registration Card for the product in question has not been returned to D-Link, then a proof of purchase (such as a copy of the dated purchase invoice) must be provided. If Purchaser's circumstances require special handling of warranty correction, then at the time of requesting RMA number, Purchaser may also propose special procedure as may be suitable to the case.

After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package. The package must be mailed or otherwise shipped to D-Link with all costs of mailing/shipping/insurance prepaid. D-Link shall never be responsible for any software, firmware, information, or memory data of Purchaser contained in, stored on, or integrated with any product returned to D-Link pursuant to this warranty.

Any package returned to D-Link without an RMA number will be rejected and shipped back to Purchaser at Purchaser's expense, and D-Link reserves the right in such a case to levy a reasonable handling charge in addition mailing or shipping costs.

Software:

Warranty service for software products may be obtained by contacting a D-Link office within the applicable warranty period. A list of D-Link offices is provided at the back of this manual, together with a copy of the Registration Card. If a Registration Card for the product in question has not been returned to a D-Link office, then a proof of purchase (such as a copy of the dated purchase invoice) must be provided when requesting warranty service. The term "purchase" in this software warranty refers to the purchase transaction and resulting license to use such software.

D-Link warrants that its software products will perform in substantial conformance with the applicable product documentation provided by D-Link with such software product, for a period of ninety (90) days from the date of purchase from D-Link or its Authorized Reseller. D-Link warrants the magnetic media, on which D-Link provides its software product, against failure during the same warranty period. This warranty applies to purchased software, and to replacement software provided by D-Link pursuant to this warranty, but shall not apply to any update or replacement which may be provided for download via the Internet, or to any update which may otherwise be provided free of charge.

D-Link's sole obligation under this software warranty shall be to replace any defective software product with product which substantially conforms to D-Link's applicable product documentation. Purchaser assumes responsibility for the selection of appropriate application and system/platform software and associated reference materials. D-Link makes no warranty that its software products will work in combination with any hardware, or any application or system/platform software product provided by any third party, excepting only such products as are expressly represented, in D-Link's applicable product documentation as being compatible. D-Link's obligation under this warranty shall be a reasonable effort to provide compatibility, but D-Link shall have no obligation to provide compatibility when there is fault in the third-party hardware or software. D-Link makes no warranty that operation of its software products will be uninterrupted or absolutely error-free, and no warranty that all defects in the software product, within or without the scope of D-Link's applicable product documentation, will be corrected.

iii

TABLE OF CONTENTS

About This User’s Guide......................................................................................................................................6

Before You Start ..................................................................................................................................................6

Installation Requirements.....................................................................................................................................6

INTRODUCTION .........................................................................................................8

Router Description and Operation........................................................................................................................8

Front Panel .........................................................................................................................................................11

Rear Panel ..........................................................................................................................................................12

Wireless LAN Basics .........................................................................................................................................12

About 802.11g Wireless.....................................................................................................................................13

HARDWARE INSTALLATION ..................................................................................15

Location .............................................................................................................................................................15

Network Connection ..........................................................................................................................................15

Choosing the Best Location for Wireless Operation..........................................................................................17

Power On Router................................................................................................................................................18

Factory Reset Button..........................................................................................................................................18

CONFIGURING THE ROUTER FOR THE FIRST TIME ...........................................19

Configuring IP Settings on Your Computer.......................................................................................................19

Configure IP Settings .........................................................................................................................................20

ACCESSING THE CONFIGURATION MANAGER...................................................23

Configure the Router with the Configuration Wizard........................................................................................24

HOME........................................................................................................................30

Wireless..............................................................................................................................................................30

WAN Configuration...........................................................................................................................................31

WAN Configuration...........................................................................................................................................32

LAN Configuration ............................................................................................................................................41

DHCP.................................................................................................................................................................42

DNS....................................................................................................................................................................43

Dynamic DNS ....................................................................................................................................................44

ADVANCED CONFIGURATION ...............................................................................45

UPnP ..................................................................................................................................................................45

Virtual Server.....................................................................................................................................................46

LAN Clients .......................................................................................................................................................46

SNMP.................................................................................................................................................................47

Filters .................................................................................................................................................................49

Bridge Filters......................................................................................................................................................50

Routing...............................................................................................................................................................50

DMZ...................................................................................................................................................................51

Firewall ..............................................................................................................................................................52

RIP .....................................................................................................................................................................54

PPP.....................................................................................................................................................................54

ADSL .................................................................................................................................................................55

ATM VCC..........................................................................................................................................................56

Wireless Management........................................................................................................................................57

Wireless Performance ........................................................................................................................................60

TOOLS ......................................................................................................................62

Admin ................................................................................................................................................................62

Time ...................................................................................................................................................................63

Remote Log........................................................................................................................................................64

System................................................................................................................................................................66

Firmware ............................................................................................................................................................67

Miscellaneous.....................................................................................................................................................68

Test.....................................................................................................................................................................69

STATUS ....................................................................................................................71

Device Info.........................................................................................................................................................71

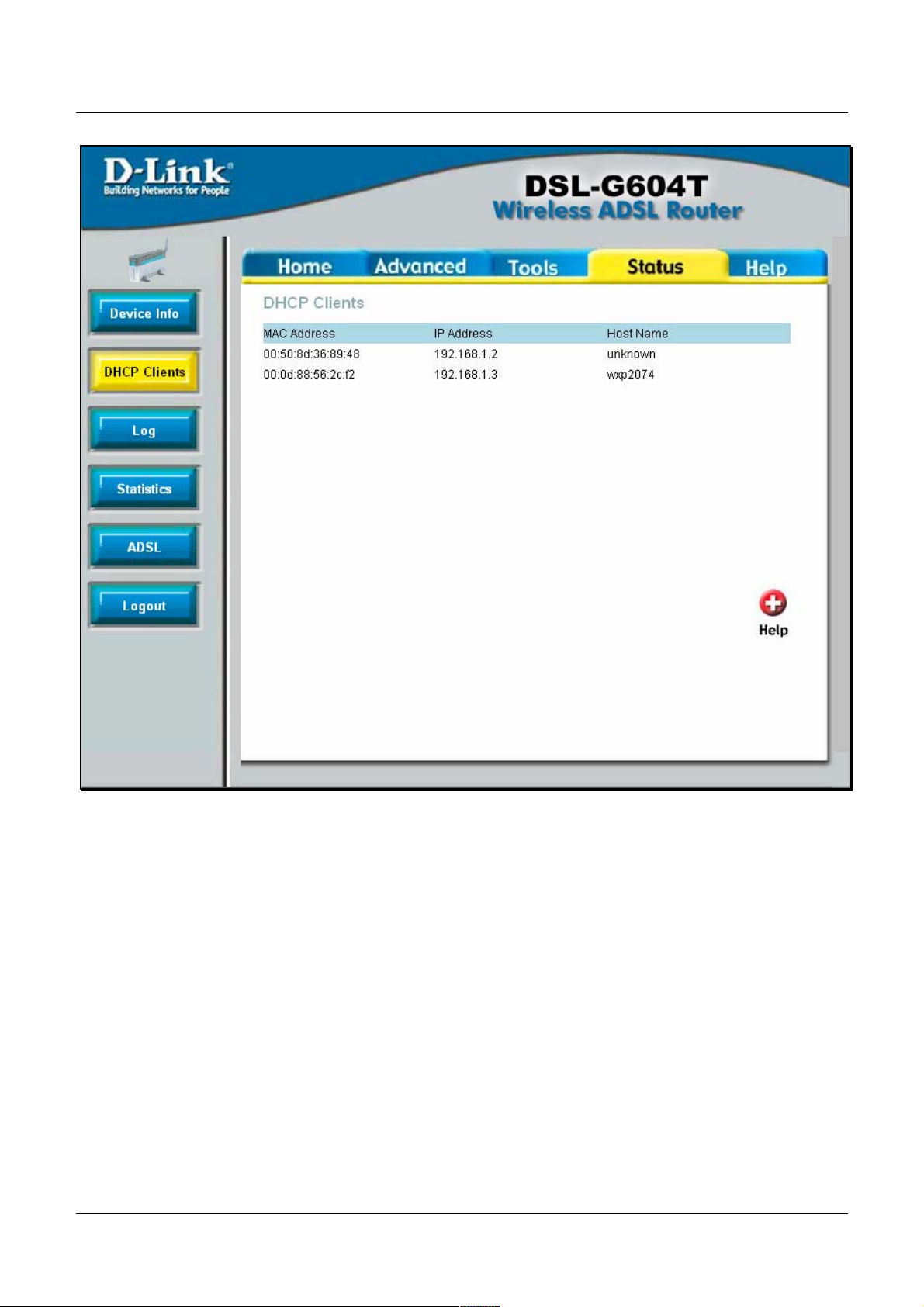

DHCP Clients.....................................................................................................................................................72

Log .....................................................................................................................................................................73

Statistics .............................................................................................................................................................75

ADSL .................................................................................................................................................................76

HELP .........................................................................................................................78

TECHNICAL SPECIFICATIONS...............................................................................79

IP ADDRESS SETUP................................................................................................81

IP CONCEPTS ..........................................................................................................84

MICROFILTERS AND SPLITTERS ..........................................................................88

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

About This User’s Guide

This manual provides instructions on how to install the DSL-G604T ADSL Router and use it to connect a computer or Ethernet LAN to the Internet.

Before You Start

Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and equipment on hand before beginning the installation.

Installation Overview

The procedure to install the Router can be described in general terms in the following steps:

1. Gather information and equipment needed to install the device. Before you begin the actual installation make sure

you have all the necessary information and equipment.

2. Install the hardware, that is, connect the cables (Ethernet and telephone) to the device and connect the power

adapter.

3. Check the IP settings on your computer and change them if necessary so the computer can access the web-based

software built into the Router.

4. Use the web-based management software to configure the device to suit the requirements of your ADSL account.

Installation Requirements

Information you will need from your ADSL service provider:

This is the Username that is used to log on

Username

Password

Connection Protocol

VPI

VCI

to your ADSL service provider’s network. It is commonly in the form ! user@isp.com.

This is the Password that is used, in conjunction with the Username above, to log on to your ADSL service provider’s network.

This is the method that your ADSL service provider uses to send and receive data between the Internet and your computer.

This is the Virtual Path Identifier (VPI). It is used in conjunction with the Virtual Channel Identifier (VCI) below, to identify the data path between your ADSL service provider’s network and your computer.

This is the Virtual Channel Identifier (VCI). It is used in conjunction with the VPI above to identify the data path between your ADSL service provider’s network and your computer.

Record your info here.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Information you will need about your DSL-G604T ADSL Router:

This is the Username you will be prompted

Username

to enter when you access the DSL-G604T’s configuration screens using a Web browser. The default Username is admin.

Record your info here.

This is the Password you will be prompted to

Password

enter when you access the DSL-G604T’s configuration screens using a Web browser. The default Password is admin.

This is the IP address you will enter into the

LAN IP address for the DSL-G604T

Address field of your Web browser to

access the DSL-G604T’s configuration screens using a Web Browser. The default IP address is 10.1.1.1.

LAN Subnet Mask for the DSL-G604T

This is the subnet mask used by the DSLG604T, and will be used throughout your LAN. The default subnet mask is 255.0.0.0.

Information you will need about your LAN or computer:

If your computer has an Ethernet NIC, you can connect the DSL-G604T to this Ethernet

Ethernet NIC

port using an Ethernet cable. You can also use the Ethernet port on the DSL-G604T to connect to other Ethernet devices, such as a Wireless Access Point.

Record your info here.

Your DSL-G604T ADSL Router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask, and a default gateway address

DHCP Client status

to computers on your LAN. The range of IP addresses the DSL-G604T will assign are from 10.1.1.2 to 10.1.1.254. Your computer (or computers) needs to be configured to Obtain an IP address automatically (that is, they need to be configured as DHCP clients.)

It is recommended that your collect and record this information here, or in some other secure place, in case you have to re-configure your ADSL connection in the future. Once you have the above information, you are ready to setup and configure your DSL-G604T ADSL Router.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Introduction

This section provides a brief description of the Router, its associated technologies and a list of Router features.

What is ADSL?

Asymmetric Digital Subscriber Line (ADSL) is an access technology that utilizes ordinary copper telephone lines to enable broadband high-speed digital data transmission and interactive multimedia applications for business and residential customers. For ADSL services, it is not necessary to install expensive new cabling or condition the line in any way. ADSL greatly increases the signal carrying capacity of copper telephone lines without interfering with regular telephone services. For the ADSL user, this means faster downloads and more reliable connectivity. ADSL devices make it possible to enjoy benefits such as high-speed Internet access without experiencing any loss of quality or disruption of voice/fax telephone capabilities. ADSL provides a dedicated service over a single telephone line operating at speeds of up to 8 Mbps downstream and up to 640 Kbps upstream, depending on local telephone line conditions. A secure point-to-point connection is established between the user and the central office of the service provider. D-Link ADSL devices incorporate the recommendations of the ADSL Forum regarding framing, data format, and upper layer protocols.

Router Description and Operation

The DSL-G604T ADSL Router is designed to provide a simple, cost-effective and secure ADSL Internet connection for your small- to medium-sized private network. The DSL-G604T combines the benefits of high-speed ADSL connection technology and TCP/IP routing with a conventional Ethernet interface in one compact and convenient package. ADSL connection technology enables many interactive multi-media applications such as video conferencing and collaborative computing. The Router is easy to install and use. The DSL-G604T connects to an Ethernet LAN via a standard Ethernet 10BASE-T interface using RJ-45 connectors. The ADSL connection is made using ordinary twisted-pair telephone line with standard RJ-11 connectors. This arrangement means that several PCs can be networked and connected to the Internet using a single WAN interface and IP address.

Low Pass Filters

Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to avoid mutual interference. A low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy to install passive devices that connect to the ADSL device and/or telephone using standard telephone cable. Ask your service provider for more information about the use of low pass filters with your installation. Appendix B provides illustrated examples of how to install two common styles of low pass filters.

Operating Systems

The DSL-G604T uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, and Windows XP.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Web Browser

Any common web browser can be used to configure the Router using the web configuration management software. The program is designed to work best with more recently released browsers such as Mozilla, Firefox, Opera, Microsoft Internet Explorer® version 5.0, Netscape Navigator® version 4.7, or later versions. The web browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not been disabled by other software (such as virus protection or web user security packages) that may be running on your computer.

Ethernet Port (NIC Adapter)

Any computer that uses the Router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection and therefore requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port already installed. Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your computer does not have an Ethernet port, you must install an Ethernet NIC adapter before you can use the Router. If you must install an adapter, follow the installation instructions that come with the Ethernet NIC adapter.

Additional Software

It may be necessary to install software on your computer that enables the computer to access the Internet. Additional software must be installed if you are using what is called a “bridged” connection. For a bridged connection, the information needed to make and maintain the Internet connection is stored on your computer, not in the Router. This type of connection is similar to the arrangement used for analogue dial-up modems, but the connection speed is much faster. Various terms are to describe a bridged ADSL connection including the term “RFC 1483 Bridge” which is used in this guide.

About Bridged Ethernet Connections (RFC 1483)

Using this method, the DSL-G604T acts as a transparent bridge, and is invisible to other devices on both the WAN and LAN side of the bridge. It is therefore necessary to provide some means of acquiring global IP settings for your account. All connections to the Internet require a unique global IP address. For bridged connections, the global IP settings must reside in a TCP/IP enabled device on the LAN side of the bridge, such as a PC, server or firewall hardware. The IP address can be assigned in a number of ways. Your network service provider will give you instructions about any additional connection software or NIC configuration that may be required.

Account Information (User Name and Password)

Most users will need to supply a user name and password used to access the service provider’s network (and ultimately, the Internet). This information is stored either in the Router’s memory or on your computer depending on the type of ADSL connection you have.

ACCOUNT INFORMATION (PPP Connections Only)

User Name:

Password:

Router Features

The D-Link DSL-G604T ADSL Router provides the following features:

" Data rates up to 24 Mbps for downstream and 1Mbps for upstream

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

" Friendly web-based graphical user interface for configuration and management " Supports up to eight simultaneous virtual connections for a single ADSL account " Supports T1.413 issue 2, G.dmt and G.lite for the ADSL standard " Supports G.dmt.bis and G.lite.bis for the ADSL2 standard " Supports G.dmt.bisplus for the ADSL2+ standard " Supports G.992.5 for the ADSL standard " Auto-handshake and rate adaptation for different ADSL flavours " Widest range of DSLAM interoperability " Built-in MIBs for SNMP management " Upgradeable firmware through HTTP

Packing List

Open the shipping carton and carefully remove all items. In addition to this User's Guide, ascertain that you have:

" One DSL-G604T ADSL2/2+ Modem/Router

" One twisted-pair telephone cable used for ADSL connection

" One CAT-5 Ethernet cable

" One AC power adapter suitable for your electric service

" This Manual on CD ROM

" One Quick Installation Guide

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Front Panel

Place the Router in a location that permits an easy view of the LED indicators on the front panel. The LED indicators on the front panel include the Power, Status, ADSL Link/Act, WLAN Link/Act, and Ethernet Link/Act indicators.

Power

Status

Steady green light indicates the unit is powered on. When the device is powered off this remains dark.

Lights steady green during power on self-test (POST). Once the connection status has been settled, the light will blink green. If the indicator lights steady green after the POST, the system has failed and the device should be rebooted.

ADSL (Link/Act)

WLAN (Link/Act)

Ethernet (Link/Act) 1 - 4

Steady green light indicates a valid ADSL connection. This will light after the ADSL negotiation process has been settled. A blinking green light indicates activity on the WAN (ADSL) interface.

Steady green light indicates a wireless connection. A blinking green light indicates activity on the WLAN interface.

A solid green light indicates a valid link on startup. This light will blink when there is activity currently passing through the Ethernet ports.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Rear Panel

Connect the AC power adapter cord and network cables on the rear panel. The power switch and reset button are also located on the back of the device. Connect the antennas to the antenna posts.

All cable connections to the Router are made at the rear panel. The power switch and factory reset button is located here as well.

ADSL Port

Use the ADSL cable to connect to the your telephone line (RJ-11 port)

Reset button

To manually reset, depress button with the power on for a 10 seconds

Antenna

For wireless operation, mount the antenna on the threaded antenna post

Ethernet ports

Use the Ethernet ports to connect the Router to your Ethernet LAN or Ethernet devices

Power Insert

Use the adapter shipped with the Router to connect to power source

Wireless LAN Basics

Some basic understanding of 802.11g wireless technology and terminology is useful when you are setting up the Router or any wireless access point. If you are not familiar with wireless networks please take a few minutes to learn the basics.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Radio Transmission

Wireless LAN or WLAN devices use electromagnetic waves within a broad, unlicensed range of the radio spectrum to transmit and receive radio signals. When a wireless access point is present, it becomes a base station for the WLAN nodes in its broadcast range. WLAN nodes transmit digital data using FM (frequency modulation) radio signals. WLAN devices generate a carrier wave and modulate this signal using various techniques. Digital data is superimposed onto the carrier signal. This radio signal carries data to WLAN devices within range of the transmitting device. The antennae of WLAN devices listen for and receive the signal. The signal is demodulated and the transmitted data extracted. The transmission method used by the access point is called Direct Sequence Spread Spectrum (DSSS) and operates in a range of the radio spectrum between 2.4GHz and 2.5GHz for transmission. See the technical specifications for more details on wireless operation.

Range

Range should not be a problem in most homes or small offices. If you experience low or no signal strength in some areas, consider positioning the Router in a location between the WLAN devices that maintains a roughly equal straight-line distance to all devices that need to access the Router through the wireless interface. Adding more 802.11g access points to rooms where the signal is weak can improve signal strength. Read the section about placement of the Router titled Location in the next chapter, Hardware Installation, for more information.

SSID

Wireless networks use an SSID (Service Set Identifier) to allow wireless devices to roam within the range of the network. Wireless devices that wish to communicate with each other must use the same SSID. Several access points can be set up using the same SSID so that wireless stations can move from one location to another without losing connection to the wireless network. The DSL-G604T operates in Infrastructure mode. It controls network access on the wireless interface in its broadcast area. It will allow access to the wireless network to devices using the correct SSID after a negotiation process takes place. By default the DSL-G604T broadcasts its SSID so that any wireless station in range can learn the SSID and ask permission to associate with it. Many wireless adapters are able to survey or scan the wireless environment for access points. An access point in Infrastructure mode allows wireless devices to survey that network and select an access point with which to associate. You may disable SSID broadcasting in the web manager’s wireless menu.

Wireless Security

Various security options are available on the DSL-G604T including open or WEP, WPA, and WPAPSK. Authentication may use an open system or a shared key. For details on these methods and how to use them, please read the wireless LAN configuration information in chapters 3 (Basic Router Configuration) and 4 (Advanced Router Configuration) below.

About 802.11g Wireless

Today's 11-megabits-per-second 802.11b wireless networks are fine for broadband Internet access (which typically tops out at about 1 Mbps) but rather slow for large internal file transfers or streaming video. However, 54-Mbps, corporate-oriented 802.11a is expensive--and because its radio uses the 5GHz band and 802.11b uses the 2.4-GHz band, upgrading to an 802.11a network means either scrapping 802.11b gear or buying even-pricier hardware that can support both standards. But 802.11g promises the same speed as 802.11a and the ability to coexist with 802.11b equipment on one network, since it too uses the 2.4-GHz band.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

802.11g is an extension to 802.11b, the basis of many wireless LANs in existence today. 802.11g will broaden 802.11b's data rates to 54 Mbps within the 2.4 GHz band using OFDM (orthogonal frequency division multiplexing) technology. Because of backward compatibility, an 802.11b radio card will interface directly with an 802.11g access point (and vice versa) at 11 Mbps or lower depending on range. You should be able to upgrade the newer 802.11b access points to be 802.11g compliant via relatively easy firmware upgrades. Similar to 802.11b, 802.11g operates in the 2.4GHz band, and the transmitted signal uses approximately 30MHz, which is one third of the band. This limits the number of non-overlapping

802.11g access points to three, which is the same as 802.11b.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Hardware Installation

The DSL-G604T functions on two separate networks, as an Ethernet LAN and as an ADSL WAN. When deciding where to put the Router, the user must take into account the fact that it is connected to these two networks with three types of media. Ethernet cables connect the Router to computers and network devices, Wireless cards connect the computers and network devices to the Router, and the ADSL line connects it to a wall socket. In addition, the device must be near an AC outlet for power. How to accommodate these wired connections is often not a complicated matter, however, the added dimension of wireless communication does complicate the decision of Router placement.

Location

The Router can be placed on a shelf or desktop and ideally you should be able to see the LED indicators on the front if you need to view them for troubleshooting.

Network Connection

Complete the connection to the network through the ADSL port and the Ethernet port on the back of the Router.

Connect ADSL Line

Use the ADSL cable included with the Router to connect it to a telephone wall socket. Plug one end of the cable into the ADSL port (RJ-11 receptacle) on the rear panel of the Router and insert the other end into the RJ-11 wall socket. If you are using a low pass filter device, follow the instructions included with the device or given to you by your service provider. The ADSL connection represents the WAN interface. It is the physical link to the ISP’s network backbone and ultimately to the Internet.

Connect Router to Ethernet

The Router may be connected to any 10/100BASE-TX Ethernet LAN. Any connection to an Ethernet concentrating device such as a switch or hub must operate at a speed of 10/100 Mbps only. When connecting the Router to any Ethernet device that is capable of operating at speeds higher than 10Mbps, be sure that the device has auto-negotiation (NWay) enabled for the connecting port. Use standard twisted-pair cable with RJ-45 connectors. The RJ-45 port on the Router is a crossed port (MDI-X). Follow standard Ethernet guidelines when deciding what type of cable to use to make this connection. When connecting the Router directly to a PC or server use a normal straight-through cable. You should use a crossed cable when connecting the Router to a normal (MDI-X) port on a switch or hub. Use a normal straight-through cable when connecting it to an uplink (MDI-II) port on a hub or switch.

The rules governing Ethernet cable lengths apply to the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 metres.

Hub or Switch to Router Connection

Connect the Router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable as shown in the diagram below:

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

If you wish to reserve the uplink port on the switch or hub for another device, connect to any on the other MDI-X ports (1x, 2x, etc.) with a cross-over cable.

Computer to Router Connection

Figure 2- 1. Hub or Switch to Router

You can connect the Router directly to a 10/100BASE-TX Ethernet adapter card (NIC) installed on a PC using the Ethernet cable provided as shown in this diagram.

Figure 2- 2. Computer to Router Connection

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

The illustration below shows the DSL-G604T connected to Ethernet LAN devices, Wireless LAN devices and the Internet.

Choosing the Best Location for Wireless Operation

Many environmental factors can affect the effective wireless function of the DSL-G604T. If this is your first time setting up a wireless network device, read and consider the points listed below.

The access point can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for troubleshooting. Designed to go up to 100 metres indoors and up to 300 metres outdoors, Wireless LAN lets you access your network from anywhere you want. However, the number of walls, ceilings, or other objects that the wireless signals must pass through can limit signal range. Typical ranges vary depending on the types of materials and background RF noise in your home or business. For optimum range and signal strength, use these basic guidelines:

1. Keep the number of walls and ceilings to a minimum:

The signal emitted from Wireless LAN devices can penetrate through ceilings and walls. However, each wall or ceiling can reduce the range of Wireless LAN devices from 1 to 30M. Position your wireless devices so that the number of walls or ceilings obstructing the signal path is minimised.

2. Consider the direct line between access points and workstations: A wall that is 0.5 metres

thick, at a 45-degree angle appears to be almost 1 metre thick. At a 2-degree angle, it is over 14 metres thick. Be careful to position access points and client adapters so the signal can travel straight through (90º angle) a wall or ceiling for better reception.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Building Materials make a difference: Buildings constructed using metal framing or doors can reduce effective range of the device. If possible, position wireless devices so that their signal can pass through drywall or open doorways, avoid positioning them so that their signal must pass through metallic materials. Poured concrete walls are reinforced with steel while cinderblock walls generally have little or no structural steel.

4. Position the antennas for best reception. Play around with the antenna position to see if

signal strength improves. Some adapters or access points allow the user to judge the strength of the signal.

5. Keep your product away (at least 1-2 metres) from electrical devices:

Position wireless devices away from electrical devices that generate RF noise such as microwave ovens, monitors, electric motors, etc.

Power On Router

To power on the Router:

1. Insert the AC Power Adapter cord into the power receptacle located on the rear panel of the Router

and plug the adapter into a suitable nearby power source.

2. You should see the Power LED indicator light up and remain lit. The Status LED should light solid

green and begin to blink after a few seconds.

3. If you have the Router connected to your network you can look at the Ethernet Link/Act LED

indicators to make sure they have valid connections. The Router will attempt to establish the ADSL connection, if the ADSL line is connected and the connection is properly configured this should light up after several seconds.

Factory Reset Button

The Router may be reset to the original factory default settings by depressing the reset button for 10 seconds while the device is powered on. Use a ballpoint pen or paperclip to push down the reset button. Remember that this will wipe out any settings stored in flash memory including IP settings. The factory default IP address of the Router is 10.1.1.1 and the subnet mask is 255.0.0.0.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Configuring the Router for the First Time

The first time you setup the Router it is recommended that you configure the WAN connection using a single computer making sure that both the computer and the Router are not connected to the LAN. Once the WAN connection is functioning properly you may continue to make changes to the Router configuration including the IP settings. This chapter is concerned with using your computer to configure the WAN connection. The following chapter describes the various menus used to configure and monitor the Router including how to change IP settings. This chapter discusses the steps to first establish the WAN connection. The remaining features, not directly concerned with establishing the initial connection, are explained in Chapter 4, Web-based Management. It is recommended that you install and configure the Router using one non-networked computer. This allows you to verify that the ADSL service is functioning and that you are able to communicate with the device. Once the initial ADSL connection is established, you can proceed to build an Ethernet LAN around the device or incorporate it into an existing LAN.

WAN Configuration Summary

1. Connect to the Router To configure the WAN connection used by the Router it is first

necessary to communicate with the Router through its management interface, which is HTMLbased and can be accessed using a web browser. To access the management software your computer must be able to “see” the Router. Your computer can see the Router if it is in the same “neighbourhood” or subnet as the Router. This is accomplished by making sure your computer has IP settings that place it in the same subnet as the Router. The easiest way to make sure your computer has the correct IP settings is to configure it to use the DHCP server of the computer. The next section describes how to change the IP configuration for a computer running a Windows operating system to be a DHCP client.

2. Configure the WAN Connection Once you are able to access the configuration software you

can proceed to change the settings required to establish the ADSL connection and connect to the service provider’s network. There are different methods used to establish the connection to the service provider’s network and ultimately to the Internet. You should know what Encapsulation and connection type you are required to use for your ADSL service. It is also possible that you must change the PVC settings used for the ADSL connection. Your service provider should provide all the information you need to configure the WAN connection.

Configuring IP Settings on Your Computer

In order to configure your system to receive IP settings from the Router it must first have the TCP/IP protocol installed. If you have an Ethernet port on your computer, it probably already has TCP/IP protocol installed. If you are using Windows XP the TCP/IP is enabled by default for standard installations. Below is an illustrated example of how to configure a Windows XP system to automatically obtain IP settings from the Router. Following this example is a step-by-step description of the procedures used on the other Windows operating systems to first check if the TCP/IP protocol has been installed; if it is not, instructions are provided for installing it. Once the protocol has been installed you can configure the system to receive IP settings from the Router. For computers running non-Windows operating systems, follow the instructions for your OS that configure the system to receive an IP address from the Router, that is, configure the system to be a DHCP client.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Configure IP Settings

You must now enable your computer to access the Router’s configuration software. To do this you will need to configure the IP settings on your computer. Follow these instructions to configure the IP settings for the operating system installed on your computer.

Windows XP

1. In the Windows task bar, click the Start button, and then click Control Panel.

2. Double-click the Network Connections icon.

3. In the LAN or High-Speed Internet window, right-click on icon corresponding to your network

interface card (NIC) and select Properties. (This icon may be labelled Local Area Connection).

4. The Local Area Connection dialog box displays with a list of currently installed network items.

5. Make sure that the check box to the left of the item labelled Internet Protocol TCP/IP is

checked, and click

6. In the Internet Protocol (TCP/IP) Properties dialog box, click the button labelled Use the

following IP address:

7. Type in IP settings as follows, IP address: 10.1.1.2 and Subnet mask: 255.0.0.0.

8. Click

Windows 2000

twice to confirm your changes, and close the Control Panel.

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click Control

Panel.

2. Double-click the Network and Dial-up Connections icon.

3. In the Network and Dial-up Connections window, right-click the Local Area Connection icon,

and then select Properties.

4. The Local Area Connection Properties dialog box displays with a list of currently installed

network components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled. Skip to step 3.

5. If Internet Protocol (TCP/IP) does not display as an installed component, click

6. In the Select Network Component Type dialog box, select Protocol, and then click

7. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click

8. You may be prompted to install files from your Windows 2000 installation CD or other media.

Follow the instructions to install the files.

9. If prompted, click

Next, configure IP information:

to restart your computer with the new settings.

1. In the Control Panel, double-click the Network and Dial-up Connections icon.

2. In Network and Dial-up Connections window, right-click the Local Area Connection icon, and

then select Properties.

3. In the Local Area Connection Properties dialog box, select Internet Protocol (TCP/IP), and

then click

4. In the Internet Protocol (TCP/IP) Properties dialog box, click the button labelled Use the

following IP address:

5. Type in IP settings as follows, IP address: 10.1.1.2 and Subnet mask: 255.0.0.0.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

6. Click twice to confirm and save your changes, and then close the Control Panel.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Windows Me

1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Network and Dial-up Connections icon.

3. In the Network and Dial-up Connections window, right-click on the Network icon, then select

Properties.

4. The Network Properties dialog box displays with a list of currently installed network

components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled. Skip to step 3.

5. If Internet Protocol (TCP/IP) does not display as an installed component, click .

6. In the Select Network Component Type dialog box, select Protocol, and then click .

7. Select Microsoft in the Manufacturers box.

8. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click .

9. You may be prompted to install files from your Windows Me installation CD or other media.

Follow the instructions to install the files.

10. If prompted, click to restart your computer with the new settings.

Next, configure the IP information:

1. In the Control Panel, double-click the Network and Dial-up Connections icon.

2. In Network and Dial-up Connections window, right-click the Network icon, and then select

Properties.

3. In the Network Properties dialog box, select TCP/IP, and then click

4. In the TCP/IP Settings dialog box, click the Specify IP address option.

5. Type in IP settings as follows, IP address: 10.1.1.2 and Subnet mask: 255.0.0.0.

6. Click

Windows 95, Windows 98 and Windows 98SE

1. First, check for the IP protocol and, if necessary, install it:

2. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel.

3. Double-click the Network icon.

4. The Network dialog box displays with a list of currently installed network components. If the

twice to confirm and save your changes, and then close the Control Panel.

list includes TCP/IP, and then the protocol has already been enabled. Skip to step 2.

5. If TCP/IP does not display as an installed component, click .

6. The Select Network Component Type dialog box displays.

7. Select Protocol, and then click .

8. The Select Network Protocol dialog box displays.

9. Click on Microsoft in the Manufacturers list box, and then click TCP/IP in the Network

Protocols list box.

10. Click to return to the Network dialog box, and then click again.

11. You may be prompted to install files from your Windows 95/98 installation CD. Follow the

instructions to install the files.

12. Click to restart the PC and complete the TCP/IP installation.

Next, configure the IP information:

1. Open the Control Panel window, and then click the Network icon.

2. Select the network component labelled TCP/IP, and then click .

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

If you have multiple TCP/IP listings, select the listing associated with your network card or adapter.

4. In the TCP/IP Properties dialog box, click the IP Address tab.

5. Click the Specify an IP address option.

6. Type in IP settings as follows, IP address: 10.1.1.2 and Subnet mask: 255.0.0.0.

7. Click twice to confirm and save your changes.

8. You will be prompted to restart Windows.

9. Click .

Windows NT 4.0

1. First, check for the IP protocol and, if necessary, install it:

2. In the Windows NT task bar, click the Start button, point to Settings, and then click Control

Panel.

3. In the Control Panel window, double click the Network icon.

4. In the Network dialog box, click the Protocols tab.

5. The Protocols tab displays a list of currently installed network protocols. If the list includes

TCP/IP, then the protocol has already been enabled. Skip to step 3.

6. If TCP/IP does not display as an installed component, click .

7. In the Select Network Protocol dialog box, select TCP/IP, and then click .

8. You may be prompted to install files from your Windows NT installation CD or other media.

Follow the instructions to install the files.

9. After all files are installed, a window displays to inform you that a TCP/IP service called DHCP

can be set up to dynamically assign IP information.

10. Click to continue, and then click if prompted to restart your computer.

Next, configure the IP information:

1. Open the Control Panel window, and then double-click the Network icon.

2. In the Network dialog box, click the Protocols tab.

3. In the Protocols tab, select TCP/IP, and then click

4. In the Microsoft TCP/IP Properties dialog box, click the Specify an IP address option.

5. Type in IP settings as follows, IP address: 10.1.1.2 and Subnet mask: 255.0.0.0.

Click

twice to confirm and save your changes, and then close the Control Panel.

Accessing the Configuration Manager

Now that your computer’s IP settings allow it to communicate with the Router, you can access the configuration software.

Note: Be sure that the web browser on your computer is not configured to use a proxy server in the Internet settings. In Windows Internet Explorer, you can check if a proxy server is enabled using the following procedure:

1. In Windows, click on the Start button, go to Settings and choose Control Panel.

2. In the Control Panel window, double-click on the Internet Options icon.

3. Click the Connections tab and click on the LAN Settings button.

4. Verify that the “Use proxy server” option is NOT checked. If it is checked, click in the checked box to deselect the option and click OK.

Alternatively you can access this Internet Options menu using the Tools pull-down menu in Internet Explorer.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

To use the web-based management software, launch a suitable web browser and direct it to the IP address of the Router. Type in http:// followed by the default IP address, 10.1.1.1 in the address bar of the browser. The URL in the address bar should read: http://10.1.1.1. Once entered, the user will be prompted to enter the username and password to access the Configuration Manager, as show below. A new window will appear and you will be prompted for a user name and password to access the webbased manager. Use the default user name “admin” and password “admin” for first time setup. You should change the web-based manager access password once you have verified that a connection can be established. The user name and password allows any PC within the same subnet as the Router to access the web-based manger.

NOTE: Do not confuse the user name and password used to access the web-based manager with the ADSL account user name and password needed for PPP connections to access the service provider’s network.

Figure 3-1. Enter Network Password dialog box.

Configure the Router with the Configuration Wizard

The first page that appears after you successfully login displays information about the Router’s Setup Wizard. Tabs across the top of the screen show other available menus: Home, Advanced, Tools, Status, and Help.

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Figure 3-2. Home – Setup

When the Router is used to provide Internet access it actually must first access your service provider’s network, that is, it must communicate with computers and other modems owned by your service provider. These computers and modems then provide access to the Internet. The Router must be configured to communicate with the systems that give it access to the larger network. The quickest way for you to connect to the Internet is by using the Setup Wizard. Click the Run Wizard button the following window will appear:

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

The Setup window has four options listed, which will run through in the order given. Each step will be explained in detail. Click Next to access Step 1. You may click Back during the Setup procedure to return to the previous screen in the Setup Wizard, or Exit to exit the Setup Wizard at any time during the procedure.

Figure 3-3. Opening Setup window

Step 1: Set your new Password

In Step 1, you must choose a new password to access the Web Interface with. Once you have entered the appropriate password click Next to go on to Step 2.

Figure 3-4. Set Password window

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

Step 2: Setting the Time Zone

In Step 2, you must choose the time zone that best corresponds to the area you are living in by using the pull down menu. Choose the appropriate setting and click Next to go on to Step 3.

Figure 3-5. Set Time Zone window

Step 3: PPPoE/PPPoA

PPP or Point-to-Point protocol is a standard method of establishing a network connection/session between networked devices. Different forms of PPP include PPPoA and PPPoE, and they involve an authentication process that requires a username and password to gain access to the network. PPPoE (Point to Point Protocol over Ethernet), as described in RFC 2516, is a method of using PPP through the Ethernet network. PPPoA (Point to Point Protocol over ATM) configuration requires the same basic information as the previously discussed PPPoE and both configuration menus are identical. To configure the connection for PPPoE/PPPoA, perform the steps listed below. After setting the values listed, click the Next button to go to Step 4 of the Configuration Wizard.

Figure 3-6. Set PPPoE window

DSL-G604T 54Mbps Wireless ADSL2/2+ Modem/Router Manual

VPI/VCI

Username & Password

Connection Type

If you are told to change the VPI or VCI values, type in the values given to you by your service provider. Many users will be able to use the default settings.

Type the Username and Password used to verify the identity of your account. Typically, the Username is an account number assigned by your ISP. See your ISP for further information.

Choose between PPPoE LLC, PPPoA LLC or PPPoE VC-Mux depending on the instructions of your ISP.

Step 4: Set Wireless LAN Connection

To set the Wireless LAN connection, we need to enable the Wireless LAN feature. Click on the “Enable Wireless LAN” box then click Next. If you do not want to setup a wireless connection at this time click the Next button to go to Step 5 of the Configuration Wizard.

Figure 3-7. Set Wireless Configuration window

+ 64 hidden pages
