Version 1.00 | 05/17/2017
User Manual
Wireless N300 ADSL2+/VDSL2 Modem Router
DSL-G225
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Manual Revisions
Revision Date Description
1.00 May 17, 2017 • Release for revision J1
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2017 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
iD-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Table of Contents
Table of Contents
Product Overview .............................................................. 1
Package Contents .........................................................................1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ............................................................................................4
Hardware Overview ..................................................................... 5
Front LED Panel ..................................................................... 5
Back............................................................................................ 6
Installation ......................................................................... 7
Before you Begin ...........................................................................7
Wireless Installation Considerations ......................................8
Manual Setup ................................................................................. 9
Getting Started ................................................................ 12
Web-based Conguration Utility ..........................................13
Wizard .............................................................................................14
Step 1: Change Device Login Password......................15
Step 2: Set Time and Date ................................................16
Step 3: Setup Internet Connection ...............................17
Step 4: Congure Wireless Network .............................19
Step 5: Save and Completed ...........................................20
Conguration ................................................................... 21
Setup ...............................................................................................22
Wizard .....................................................................................22
Internet Setup ......................................................................23
Add an Ethernet WAN Connection .......................... 24
Add an ADSL WAN Connection ................................29
Add a VDSL WAN Connection ....................................33
Wireless Connection ..........................................................36
Wireless Connection Setup Wizard..........................37
Add Wireless Device with WPS .................................. 38
3G/4G Network ....................................................................39
Connecting a 3G/4G USB Dongle ............................41
Failover ...................................................................................42
Local Network ......................................................................43
IPv6 Local Network.............................................................45
Time and Date ......................................................................46
Logout ....................................................................................47
Advanced ......................................................................................48
Wireless Settings .................................................................49
Wireless Basics ................................................................50
Advanced Settings ........................................................51
MAC Filtering ...................................................................54
Security Settings ............................................................55
Port Forwarding ..................................................................56
Port Triggering .....................................................................58
DMZ .........................................................................................59
Parental Control ..................................................................60
Block Website ..................................................................60
Block MAC Address .......................................................61
Filtering Options .................................................................62
Incoming IP Filtering ....................................................63
Outgoing IP Filtering ....................................................64
iiD-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Table of Contents
Bridge Filtering ...............................................................65
Firewall Settings ..................................................................66
DNS ..........................................................................................67
Dynamic DNS .......................................................................68
Storage Device Information ............................................69
Storage Device Information .......................................69
Storage User Account ...................................................69
Network Tools ......................................................................70
Port Mapping ..................................................................71
IGMP ...................................................................................73
Quality of Service ........................................................... 74
Queue Cong ..................................................................75
QOS Classication ..........................................................76
UPNP ...................................................................................78
DSL ......................................................................................79
SNMP ..................................................................................80
TR-069 ................................................................................81
Services ..............................................................................96
IP Address .........................................................................97
Diagnostics .......................................................................98
System Log .......................................................................99
Status ........................................................................................... 100
Device Info ......................................................................... 101
Wireless Clients .................................................................102
DHCP Clients ..................................................................... 103
Logs ...................................................................................... 104
Statistics .............................................................................. 105
Route Info ........................................................................... 106
Help .............................................................................................. 107
Connect and Share a USB Device..................................108
Connect and Share a USB Storage Device ......................108
Connecting from a Windows Based PC ................... 110
Connecting from a Mac ................................................. 115
Certicates .......................................................................82

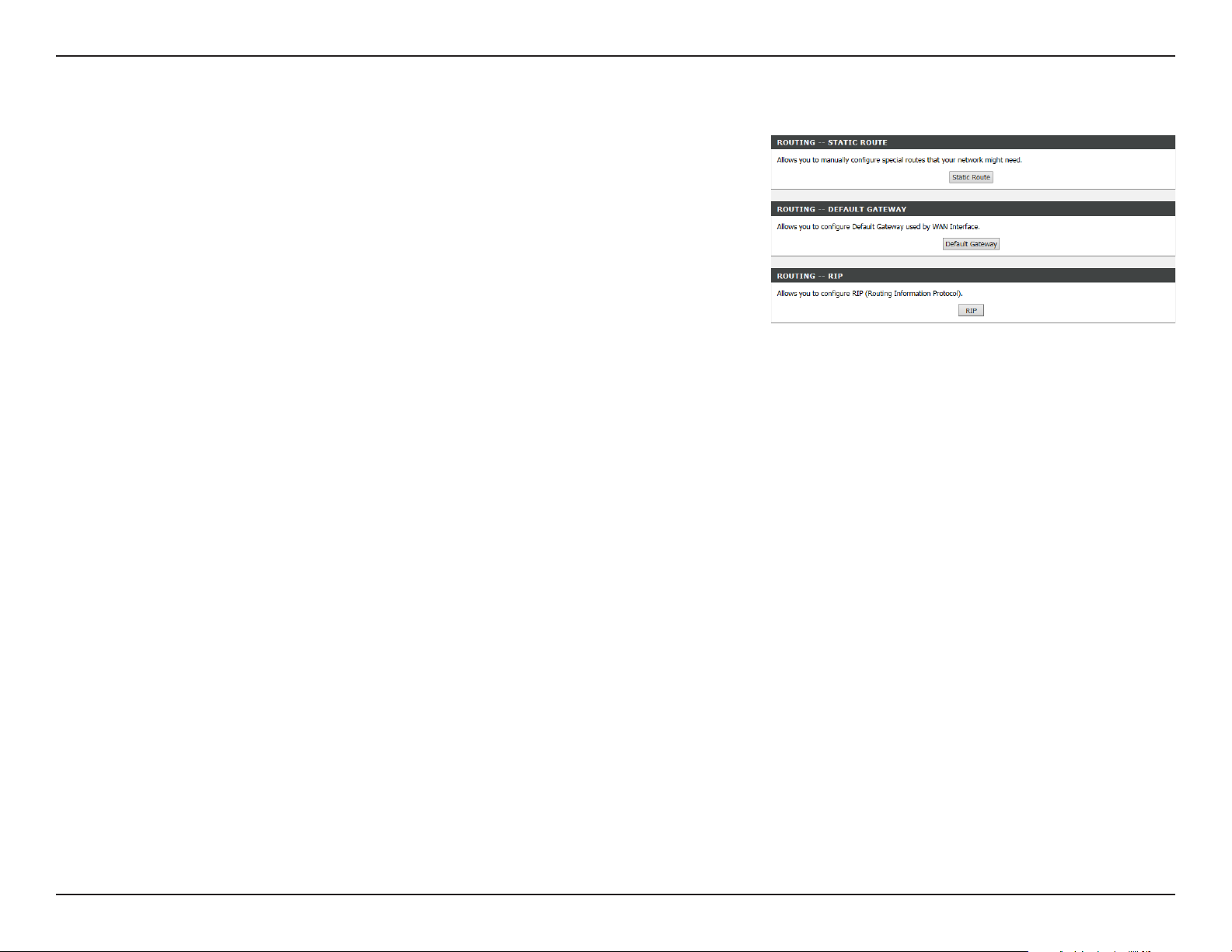

Routing ...................................................................................85
Static Route ......................................................................86
Default Gateway .............................................................87
RIP ........................................................................................88
Schedules ..............................................................................89
Print Server ............................................................................90
Maintenance ................................................................................91
System ....................................................................................92
Firmware Update ................................................................93
Access Controls ....................................................................94
Account Password .........................................................95
Connect a Wireless Client to your Router ....................119
WPS Button ................................................................................ 119
Windows® 10 ............................................................................ 120
Windows® 8 ................................................................................122
WPA/WPA2 .........................................................................122
Windows® 7 ................................................................................124
WPA/WPA2 .........................................................................124
Windows Vista® .........................................................................127
WPA/WPA2 .........................................................................128
Windows® XP .............................................................................130
WPA/WPA2 .........................................................................131
iiiD-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Table of Contents
Troubleshooting ............................................................133
Wireless Basics ...............................................................137
What is Wireless? ...................................................................... 138
Tips ................................................................................................ 140
Wireless Modes .........................................................................141
Networking Basics .........................................................142
Check your IP address ............................................................ 142
Statically assign an IP address .............................................143
Technical Specications ................................................144
ivD-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 1 - Product Overview
DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router
Power Adapter
Ethernet Cable
Product Overview
Package Contents
xDSL Microlter/Splitter & Cable
Quick Install Guide
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage rating than the one included with the device will cause damage and void the warranty for this product.
1D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 1 - Product Overview
Network Requirements
Web-based Conguration
Utility Requirements
System Requirements
• Wired 10/100 Ethernet Devices/Computers or Wireless Ethernet
802.11 n/g/b Devices/Computers
• A DSL enabled Internet Connection with a subscription to an
Internet Service Provider
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 9 or higher
• Firefox 23 or higher
• Safari 7 or higher
• Chrome 28 or higher
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
2D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 1 - Product Overview
Introduction
The DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router is everything you need for high-speed Internet access in your home. It combines a
VDSL2 modem and high-end wireless router together to create a single, easy-to-use device that connects to the Internet, and shares that connection
with all of your devices. Plug in a USB storage drive to eortlessly share your documents, video, photos, and music or connect to a printer.
Combination ADSL2+/VDSL2 Modem and Router
The DSL-G225 combines the functionality of a high-speed VDSL2 broadband modem and a wireless router in one device, meaning there is no need
for separate modem and wireless router devices. Connect to your VDSL2 Internet Service Provider and share the Internet connection with both
wireless and wired devices. Lastly, the DSL-G225 gives you the option to connect to your broadband modem using the WAN Ethernet port so you
have the exibility to access the Internet via DSL, Cable, or other connection types.
Fast and Reliable Home Network
With the Wireless N300 ADSL2+/VDSL2 Modem Router, you can create a home network with high-speed wireless, for a reliable connection to wireless
devices, and Fast Ethernet LAN ports for quick wired connection speeds. 802.11n wireless gives you the bandwidth to stream HD multimedia and
feature-rich content across your home, so you can browse the Internet and stream digital media at combined speeds of up to 300 Mbps1. Using
Quality of Service (QoS) technology the DSL-G225 can be congured to give certain devices network priority over others so their Internet connection
is always optimized.
USB Port for Additional Connectivity
The DSL-G225 features a built-in USB port to provide additional functionality for your network. Attach a printer or portable hard drive to share les
with everyone, or even plug in a 3G/4G USB modem to enjoy Internet connectivity in places without a wired Internet connection.
Easy to Set Up
Get the DSL-G225 up and running in no time using the intuitive web-based conguration utility. Simply connect the DSL-G225 to your computer,
launch the conguration utility, and follow a few easy steps to get your home network congured. You can also set up a encrypted network with
the touch of a button using Wi-Fi Protected Setup (WPS). Simply press the WPS button to eortlessly establish an encrypted connection to a new
device. Protect your network with WPA/WPA2 wireless encryption and a built-in NAT rewall, so you can shop online and do your online banking
with condence.
* Maximum wireless signal rate derived from IEEE Standard 802.11b, 802.11g, and 802.11n specications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual
data throughput rate. Environmental conditions will adversely aect wireless signal range.
3D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DSL-G225 provides up to 300 Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio.
• Compatible with 802.11b and 802.11g Devices - The DSL-G225 is still fully compatible with the IEEE 802.11b
and g standards, so you can use keep your existing 802.11b and g devices.
• Precise ATM Trac Shaping - Trac shaping is a method of controlling the ow rate of ATM data cells. This
function helps to establish Quality of Service for ATM data transfer.
• High Performance - Very high rates of data transfer are possible with the router-providing up to 100 Mbps
downstream for VDSL2
Features
• Full Network Management - The DSL-G225 incorporates SNMP (Simple Network Management Protocol) support
for web-based management and text-based network management via a Telnet connection.
• Easy Installation - The DSL-G225 can be congured and managed easily using a web-based UI. Any common
web browser software can be used to manage the router.
• USB Support - The DSL-G225 provides a USB port for easy le sharing and printer sharing. The DSL-G225
supports USB storage devices to share les through a SAMBA le server. It also supports sharing USB printers
to network members. Besides the sharing function, the DSL-G225 also supports connection to the Internet via
a USB 3G/4G modem.
* Maximum wireless signal rate derived from IEEE Standard 802.11b, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will
adversely aect wireless signal range.
4D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 1 - Product Overview
Hardware Overview
Front LED Panel
1 2 3 4 5 76
1 Power LED
2 LAN LEDs 1-4 A solid green light indicates a connection to a device. The light will blink during data transmission.
3 WLAN LED
4 WPS LED The light will blink during the WPS process.
5 USB LED A solid green light indicates a connection to a USB device.
6 DSL LED A solid green light indicates a proper connection to the ADSL/VDSL enabled telephone line.
7 Internet
A solid green light indicates the unit is powered on. A red light indicates device malfunction.
A solid green light indicates that the Wi-Fi is ready.
A solid green light indicates a proper connection to a broadband service. A red light indicates that IP
assignment has failed.
5D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 1 - Product Overview
Hardware Overview
Back
43 6 7
8 921
5
1 DSL Port Connect to an DSL-enabled telephone line and with the supplied microlter/splitter.
2 WAN Port If using an external modem, connect your broadband modem to this port.
3 LAN Ports (1-4) Connect Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
4 WPS Button Press to start the WPS process and automatically create a secure connection to a WPS client.
5 Reset Button
6 Wireless On/O Press and hold this button for about 10 seconds to enable or disable the Wi-Fi network.
7 Power Connector Connector for the supplied power adapter.
8 Power Button Press to power the router on or o.
9 USB Port Connect a USB storage device to this port to share media to your network.
Insert a paperclip in the hole on the bottom of the device located the serial number sticker and wait for
several seconds to reset the router to default settings.
6D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 2 - Installation
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, attic, or garage.
Note: This installation section is written for users who are setting up their home Internet service with the DSL-G225
Wireless N300 ADSL2+/VDSL2 Modem Router for the rst time. If you are replacing an existing DSL modem and/or router, you
may need to modify these steps.
Before you Begin
• Make sure to have your DSL service information provided by your Internet Service Provider handy. This information
is likely to include your DSL account's Username and Password. Your ISP may also supply you with additional WAN
conguration settings which are necessary to establish a connection. This information may include the connection
type (DHCP IP, Static IP, PPPoE, or PPPoA) and/or ATM PVC details.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time
to label each cable or take a picture of your existing setup before making any changes.
• We suggest setting up your DSL-G225 from a single device and verifying that it is connected to the Internet before
connecting additional devices.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE connection software
such as WinPoET, BroadJump, or EnterNet 300 from your computer as the DSL-G225 will be providing this
functionality.
7D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or
ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or
ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears
to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the
signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to
position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials
and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will
degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems),
your wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away
from your wireless devices as possible. The base transmits a signal even if the phone in not in use.
8D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 2 - Installation
Position your router close to a wall jack which provides DSL service. Place the router in an open area of your
1
2
intended work area for better wireless coverage.
Connect your existing phone cable from a telephone outlet to the LINE port on the microsplitter and your
telephone handset into the PHONE port.
Caution: - To reduce the risk of re, use only No. 26 AWG or larger telecommunication line cord.
Manual Setup
Telephone Outlet
PHONE
3
Microlter
Connect the Phone cable from the DSL port on the microsplitter to the DSL port of the modem router.
DSL-G225
Microlter
Phone Cable
9D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 2 - Installation
If you wish to use a wired connection, connect the Ethernet cable from a LAN port of the DSL-G225 to the
4
Ethernet port on your computer.
Plug the power adapter into your modem router and connect to an available power outlet or surge protector.
5
Computer
DSL-G225
Ethernet
Cable
Caution: - Use only the included power adapter with this product.
DSL-G225
Computer
Power Adapter
10D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 2 - Installation
6
7
Press the power button and verify that the power LED is lit. Allow 1 minute for the router to boot up.
If connecting to the DSL-G225 wirelessly, access the wireless utility on your computer or mobile device. Scan
for available Wi-Fi networks (SSID). Select and join a Wi-Fi network and use the password which corresponds
to the information printed on the bottom of the device.
11D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 3 - Getting Started
Getting Started
There are three dierent ways you can congure your router to connect to the Internet and connect to your clients:
• D-Link One Touch App - Use your Android device, iPhone, iPad, or iPod touch to congure your modem router.
Refer to One-Touch App Setup on page 12.
• Web-based Setup Wizard - This wizard will launch when you log into the modem router for the rst time.
Refer to Web-based Conguration Utility on page 12.
• Manual Setup - Log into the router and manually congure your router. Refer to Manual Setup on page 12.
12D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 3 - Getting Started
Web-based Conguration Utility
This section will show you how to congure your D-Link wireless router using the web-based conguration utility.
If you wish to change the default settings or adjust the conguration of the
DSL-G225 you may use the web-based conguration utility.
To access the conguration utility, open a web browser such as Internet Explorer
and enter http://192.168.1.1 in the address eld.
Select admin from the drop-down menu and then enter your password. The
default password is admin.
On your rst login you will be directed to the Setup Wizard page.
If you want to congure the router manually without running the wizard, skip
to Conguration on page 13.
13D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 3 - Getting Started
Wizard
Use the Setup Wizard to quickly and easily congure the DSL-G225. This wizard
is designed to guide you through a step-by-step process to congure your new
D-Link router and connect to the Internet.
Click the Setup Wizard button to continue.
If you want to congure the router manually without running the wizard, skip
to Conguration on page 14.
SETUP WIZARD
The Setup Wizard will guide you through the following steps:
Step 1: Change Device Login Password
Step 2: Set Time and Date
Step 3: Setup Internet Connection
Step 4: Congure Wireless Network
Step 5: Completed and Restart
Click Next to begin.
14D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 3 - Getting Started
Step 1: Change Device Login Password
This step of the wizard allows you to congure your password settings.
Enter a new Password and Verify Password to secure your modem router.
Click Next to continue. Otherwise, click Skip to leave the password unchanged.
15D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 3 - Getting Started
Step 2: Set Time and Date
This step of the wizard allows you to congure your Time and Date settings.
Check Automatically synchronize with Internet time servers to enable
time and date setup, and select your Time Zone from the drop-down menu.
Daylight saving time will be automatically congured for your time zone.
Check Enable Daylight Saving only if you want to override the default
settings for your time zone.
If necessary, change the Network Time Protocol (NTP) servers.
Click Next to continue.
16D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 3 - Getting Started
Step 3: Setup Internet Connection
This step of the wizard allows you to congure your Internet connection type.
If you have an ADSL connection, select ADSL. If you have a VDSL connection,
select VDSL. If you have a cable or NBN Fiber connection and are connecting
via the WAN port, select ETH WAN.
If you selected ADSL or VDSL, choose your Country and Internet Service
Provider (ISP) from the drop-down menu. The necessary settings will
automatically populate.
If you cannot nd your country or ISP, select Others. You will need to enter
the data provided by your ISP manually. Select the Protocol used by your ISP:
Dynamic IP, Static IP, PPPoE, PPPoA, or Bridged. Also select the Connection
Type, and input the VPI and VCI settings for ADSL, or VLAN and VLAN ID
for VDSL.
If you selected ETH WAN, select and congure the Internet Protocol used by
your ISP: Dynamic IP, Static IP, PPPoE, or Bridged.
If you selected Dynamic IP or Bridged, click Next to continue.
17D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 3 - Getting Started
PPPoE/ PPPoA
If the router detected or you selected PPPoE or PPPoA, a box will appear to
enter your PPPoE/PPPoA username and password. Once you have entered
your PPPoE/PPPoA credentials, click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The software
is no longer needed and will not work through a router.
STATIC IP
If you selected Static IP, enter your Static IP information as supplied by your
ISP. Click Next to continue.
18D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 3 - Getting Started
Step 4: Congure Wireless Network
This step of the wizard allows you to congure your Wireless network settings.
By default, wireless is enabled. If you want to disable the DSL-G225’s wireless
capability, uncheck Enable Your Wireless Network.
Under Wireless Network Name (SSID) you can change the SSID of your
wireless network, for easier identication by wireless clients. If Visibility
Status is set to Visible, this name will show up when a client in range scans
for wireless networks. Otherwise, if your network is Invisible, clients will have
to enter the SSID in order to connect.
Choose the best security level that is compatible with your wireless
clients. WPA2-PSK is recommended. Unless you chose None (this is NOT
recommended), you will need to enter a key below. Wireless clients requesting
a connection with the network will need to enter this key in order to connect.
Click Next to continue.
19D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 3 - Getting Started
Step 5: Save and Completed
Congratulations! You have completed the setup of your modem router. You
will see a summary of the settings you chose. It is recommended that you
make a note of this information for future reference.
If you are satised with these settings, click Save/Apply to complete the
setup wizard.
Otherwise, click Back to return to the previous step(s) or Cancel to exit the
wizard without saving your changes.
20D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Conguration
This section will show you how to congure your D-Link wireless router using the web-based conguration utility.
If you wish to change the default settings or adjust the conguration of the
DSL-G225 you may use the web-based conguration utility.
To access the conguration utility, open a web browser such as Internet Explorer
and enter http://192.168.1.1 in the address eld.
Select admin from the drop-down menu and then enter your password. The
default password is admin.
Once logged in you will see the that the user interface is divided into ve
horizontal tabs, each with a vertical menu bar running along the left side.
21D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Setup
The Setup Tab provides access to congure the most commonly used settings of your DSL-G225.
Wizard
If you wish to congure the router using the wizard, refer to Wizard on page 22.
22D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Internet Setup
Click Internet Setup on the left menu to congure your connection manually.
This section is only recommended for advanced users. It is recommended to
use the Setup Wizard to set up your Internet connection.
Select whether to use an Ethernet WAN connection, ADSL, or VDSL connection.
Click the Add button to reveal the DSL/Ethernet WAN conguration options,
or click Edit to change an existing conguration. Click Delete to remove a
connection.
For instructions on adding an Ethernet WAN connection refer to Add an
Ethernet WAN Connection on page 23.
For instructions on adding a DSL connection refer to Add an ADSL WAN
Connection on page 23.
23D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Add an Ethernet WAN Connection
If you are adding an Ethernet WAN connection you will be presented with the
following conguration options.
CONNECTION TYPE
Protocol: Select the protocol type MAC Encapsulation Routing (MER), PPP
over Ethernet (PPPoE), or Bridging from the dropdown menu.
Multiple Vlan: If you wish to Enable Multiple Vlan Over One Connection, check
the box.
802.1P Priority
[0-7]:
802.1Q VLAN ID
[0-4094]:
Enter the 802.1P priority number.
Enter the VLAN ID.
24D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
PPP USERNAME AND PASSWORD
If you selected PPP over Ethernet (PPPoE), enter your PPP details and proceed to the
Network Address Translation Settings.
NETWORK ADDRESS TRANSLATION SETTINGS
Enable NAT: Check this to enable the router to use NAT to assign IP addresses
for your devices.
Enable Firewall: Check to enable the firewall.
Enable IGMP
Multicast:
Enable MLD
Proxy:
Service Name: Enter the service name.
Check to enable IGMP Multicast.
Check to enable the MLD proxy.
Click Next to continue.
25D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
WAN IP SETTINGS
If you selected MAC Encapsulation Routing (MER), enter your IPv4 and/or IPv6 details
and proceed to the Network Address Translation Settings.
NETWORK ADDRESS TRANSLATION SETTINGS
Enable NAT: Check this to enable the router to use NAT to assign IP addresses
for your devices.
Enable Firewall: Check to enable the firewall.
Enable IGMP
Multicast:
Enable MLD
Proxy:
Service Name: Enter the service name.
Check to enable IGMP Multicast.
Check to enable the MLD proxy.
Click Next to continue.
26D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
BRIDGE SETTINGS
If you selected Bridging, conrm the Service Name and click Next to continue.
Click Next to continue.
27D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Add Ethernet WAN Summary
Once you have input your Ethernet WAN settings, you will be presented with a summary screen. Click Apply to apply your
Ethernet WAN settings or Back to make adjustments.
28D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Add an ADSL WAN Connection
If you are adding an ADSL WAN connection you will be presented with the following conguration options.
ATM PVC CONFIGURATION
VPI: Virtual path identifier (VPI) is the virtual path between two points
in an ATM network. Its valid value is between 0 and 255. Enter the
correct VPI provided by your ISP. By default, VPI is set to 8.
VCI: Virtual channel identifier (VCI) is the virtual channel between two
points in an ATM network. Its valid value is between 1 and 65535.
Enter the correct VCI provided by your ISP. By default, VCI is set to 8.
Service Category: Select the Quality of Service types for this Virtual Circuit. The ATM
QoS types include CBR (Constant Bit Rate), VBR (Variable Bit Rate)
and UBR (Unspecified Bit Rate). These QoS types are all controlled
by the parameters specified below, including PCR, SCR and MBS.
Peak Cell Rate: Peak cell rate (PCR) is the maximum rate at which cells can be
transmitted along a connection in the ATM network.
Sustainable Cell
Rate:
Maximum Burst
Size:
Sustainable cell rate (SCR) is the maximum rate that traffic can pass
over PVC without the risk of cell loss.
Maximum burst size (MBS) is the maximum number of cells that
can be transmitted at the PCR.
29D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
IP QOS SCHEDULER ALGORITHM
Select whether to use Strict Priority or Weighted Fair Queuing.
If you selected Strict Priority, enter the precedence of the queue (0-8).
If you selected Weighted Fair Queueing, enter the Weight Value
of the queue and the MPAAL Group Precedence.
CONNECTION TYPE
Protocol: Select the protocol type MAC Encapsulation Routing (MER), PPP
over Ethernet (PPPoE), or Bridging from the dropdown menu.
Multiple Vlan: If you wish to Enable Multiple Vlan Over One Connection, check
the box.
802.1P Priority
[0-7]:
802.1Q VLAN ID
[0-4094]:
Enter the 802.1P priority number.
Enter the VLAN ID.
30D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
PPP USERNAME AND PASSWORD
If you selected PPP over Ethernet (PPPoE), enter your PPP details and proceed to the
Network Address Translation Settings.
NETWORK ADDRESS TRANSLATION SETTINGS
Enable NAT: Check this to enable the router to use NAT to assign IP addresses
for your devices.
Enable Firewall: Check to enable the firewall.
Enable IGMP
Multicast:
Enable MLD
Proxy:
Service Name: Enter the service name.
Check to enable IGMP Multicast.
Check to enable the MLD proxy.
Click Next to continue.
31D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Add DSL WAN Summary
Once you have input your DSL WAN settings, you will be presented with a summary screen. Click Apply to apply your Ethernet
WAN settings or Back to make adjustments.
32D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Add a VDSL WAN Connection
If you are adding an VDSL WAN connection you will be presented with the following conguration options.
PTM CONFIGURATION
Select DSL
Latency:
Enable or disable Fast and Interleaved DSL latency settings.
IP QOS SCHEDULER ALGORITHM
Select whether to use Weighted Round Robin and Weighted Fair Queing.
Specify the Default Queue Weight, Default Queue
Precedence, VC WRR Weight, and VC Precendence.
CONNECTION TYPE
Protocol: Select the protocol type MAC Encapsulation Routing (MER), PPP
over Ethernet (PPPoE), or Bridging from the dropdown menu.
Enable Multiple
Vlan Over One
Connection
802.1P Priority
[0-7]:
Check the box to enable this feature.
Enter the 802.1P priority number.
802.1Q VLAN ID
[0-4094]:
Enter the VLAN ID if Multiple VLAN is enabled.
33D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
PPP USERNAME AND PASSWORD
If you selected PPP over Ethernet (PPPoE), enter your PPP details and proceed to the
Network Address Translation Settings.
NETWORK ADDRESS TRANSLATION SETTINGS
Enable NAT: Check this to enable the router to use NAT to assign IP addresses
for your devices.
Enable Firewall: Check to enable the firewall.
Enable IGMP
Multicast:
Enable MLD
Proxy:
Service Name: Enter the service name.
Check to enable IGMP Multicast.
Check to enable the MLD proxy.
Click Next to continue.
34D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Add VDSL WAN Summary
Once you have input your DSL WAN settings, you will be presented with a summary screen. Click Apply to apply your Ethernet
WAN settings or Back to make adjustments.
35D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Wireless Connection
If you want to congure the wireless settings on your router using a guided wizard, click Wireless Connection Setup Wizard.
Click Add Wireless Device with WPS if you want to add a wireless device using
Wi-Fi Protected Setup (WPS).
If you want to manually congure the wireless settings on your router, click
Manual Wireless Connection Setup. Refer to Wireless Basics on page 36.
Finally, to reset the wireless conguration to the default settings, click Reset
to Uncongured.
36D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Wireless Connection Setup Wizard
If you clicked Wireless Connection Setup Wizard, the opening screen of the
wizard will be displayed.
Enter a unique Network Name (SSID) to identify your network.
Choose either Automatically assign a network key and Manually assign a
network key. Automatic is recommended.
Unless your clients do not support WPA encryption, it is recommended that you
check Use WPA encryption instead of WEP as WPA encryption is more robust.
Click Next when you are done.
If you selected Manually assign a network key, you will
be prompted to enter your own network key.
Enter a Network Key that adheres to the stated guidelines and click Next.
Finally, you will see a summary of your chosen wireless conguration.
If you are satised with these settings, click Save, or click Prev to go back and
amend your choices.
37D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Add Wireless Device with WPS
If you clicked Add Wireless Device with WPS, the opening screen of the Wi-Fi
Protected Setup (WPS) wizard will be displayed.
To connect a WPS client, select Auto.
If you select Manual, you will see a summary of your current wireless security
settings. Clients will need to input these settings manually if they wish to
connect to your wireless network.
Click Next to continue.
If you selected Auto, then if WPS is not already enabled you will be prompted
to enable it. Click Yes to enable WPS.
Choose whether you want to connect via Personal Identication Number (PIN)
or Push Button Conguration (PBC).
If you selected PIN, simply enter your PIN of your wireless device.
Click Connect to proceed to the next step.
Press the button on your wireless client device within the indicated time period
and wait for the connection to be established.
38D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
3G/4G Network
This page is used to congure a 3G/4G connection. If you want to access the Internet using a 3G connection, a 3G USB dongle
is required. Refer to Connecting a 3G/4G USB Dongle on page 39 for more information.
3G/4G SETTINGS
Enable: Check the box to enable a 3G connection.
ISP SETTINGS
Country: Select the country you are operating the DSL-G225 in.
ISP: Select your mobile Internet Service Provider.
Default APN: Select whether to use the default APN.
Telephone: Enter the telephone number if applicable.
APN: Enter the APN.
Username: Enter your username if applicable.
Password: Enter your password if applicable.
39D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
CONNECTION SETTINGS
Connection: Select either Always-on, On-Demand and set the idle time, or
Connect Manually. Mobile data charges may apply.
PPP
Select a proper authentication method in the drop-down list. You can
Authentication:
Default Route: Select to use the Default Route.
NAT Enable: Check this to enable the router to use NAT to assign IP addresses
MTU: If you experience connection issues, you may need to change the
select Auto, PAP, or CHAP.
for your devices.
MTU setting for optimal performance with your specific ISP. 1492 is
the default MTU.
Click Save/Apply when you are done.
40D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Connecting a 3G/4G USB Dongle
If you want to connect to the Internet using a 3G/4G connection on your DSL-G225, a 3G/4G USB dongle and SIM card with a
subscription to a mobile ISP is required. The following 3G/4G USB dongles have been tested to work with rmware 1.0.2. Refer
to www.dlink.com for the latest available rmware and information on compatible 3/4G USB dongles.
Manufacturer Compatible USB Dongle Models
ZTE AC796
Huawei EC169 EC315 EC397
D-Link DWM-156 A3
3G/4G Dongle Installation and Conguration
Step 1 - Refer to your USB dongle’s documentation for SIM card installation instructions.
Step 2 - Connect your compatible 3G/4G USB dongle to the USB port on the DSL-G225. Conrm the USB light on the display
panel is lit solid green.
USB Port
Step 3 - Using the information provided by your ISP, navigate to Setup > 3G in the web conguration utility to congure your
connection. Refer to 3G/4G Network on page 41 for more information.
Step 4 - Navigate to Status > Device Info > Internet Info > Enabled WAN Connections to conrm your 3G/4G dongle is properly
installed, congured, and connected to the Internet.
Step 5 - Navigate to Setup > Failover to congure your 3G/4G connection as either the primary link or backup connection.
Refer to Failover on page 41 for more information.
Step 6 - Congratulations. Your 3G/4G USB dongle is now congured to work with your DSL-G225.
USB 3G/4G Dongle
SIM Card
41D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Failover
This section will allow you to congure your Internet failover priority. In the event that your primary Internet connection method
fails, this device can automatically fall back to using a secondary connection in order to maintain Internet connectivity.
FAILOVER SETTINGS
Primary Uplink Select the primary Internet connection.
Backup Uplink: Select the backup Internet connection.
Enable Fallback: Check this box to enable Internet connection failover. The
following options will appear:
Probe Criterion: Enable fallback to the backup connection after the allotted number
of failures.
Probe Cycle: Test for Internet connectivity for the following interval.
Probe Rule: Select the method of testing for Internet connectivity.
Click Save/Apply when you are done.
42D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Local Network
This optional section allows you to congure the local network and DHCP settings of your device. The DHCP service supplies IP
settings to clients congured to automatically obtain IP settings that are connected to the device through the Ethernet port.
ROUTER SETTINGS
Interface Group: Select the interface group used locally by the router. Leave this as
the default if you are not sure.
Router IP Address: Enter the IP address of the router. The default IP address is 192.168.1.1.
Note: If you change the IP address, once you click Apply you will need
to enter the new IP address in your browser in order to access the
conguration utility.
Subnet Mask: Enter the subnet mask. The default subnet mask is 255.255.255.0.
Configure
the second IP
Address...:
If you wish to add another IP address to use to configure the router,
check this box and enter the IP address and subnet mask.
DHCP SERVER SETTINGS OPTIONAL
Enable/Disable
DHCP Server:
DHCP IP Address
Range:
DHCP Lease Time: Note: If you statically (manually) assign IP addresses to your
Click Apply when you are done.
By default, DHCP is enabled. You can disable DHCP if required.
Enter the starting and ending IP addresses for the DHCP server’s IP
assignment.
computers or devices, make sure the IP addresses are outside of
this range or you may experience an IP address conflict.
43D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
CONNECTED CLIENT LIST
This table lists each DHCP client, including its hostname, MAC address, IP address, and
expiration time.
DHCP RESERVATIONS LIST
A list of DHCP reservations is displayed. Click Remove Entries to delete the selected
reservation(s) and Add Entries to bring up the Add DHCP Reservation panel.
ADD DHCP RESERVATIONS OPTIONAL
IP Address: Enter the IP address you want to assign to the computer or device.
This IP address must be within the DHCP IP address range.
MAC Address: Enter the MAC address of the computer or device. Click Copy Your
PC’s MAC Address to copy the MAC address of the computer you
are currently using into the MAC address field.
Click Apply when you are done.
44D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
IPv6 Local Network
This section enables you to specify various IPv6 settings.
STATIC LAN IPV6 ADDRESS CONFIGURATION
Interface Address: Use this option to specify a static IPv6 Address.
STATIC LAN IPV6 ADDRESS CONFIGURATION
Enable DHCPv6
Server:
LAN Address
Config Mode:
Start/End
Interface ID:
Leased Time: The lease time determines the period that the host retains the
Enable or disable the DHCPv6 server function.
Select either stateless (host requests) or stateful (server provisions)
LAN IPv6 addressing.
Enter the range of IP addresses the DHCPv6 server can issue from.
assigned IP addresses before the IP addresses change.
SITE PREFIX CONFIGURATION
Enable RADVD: Enable or disable the Router Advertisement Daemon.
Enable ULA Prefix
Advertisement
Select whether to enable ULA Prex advertisement. If selected, choose
to either Randomly Generate the ULA Prex or Statically Congure
the ULA Prex by inputting the Prex, Preferred Life Time in hours,
and Valid Life Time in hours.
Enable MLD
Snooping
Click Save/Apply when you are done.
Select to enable Multicast Listener Discovery.
45D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Time and Date
This section enables you to use an international time server to set the internal time and date for the router.
TIME SETTINGS
Automatically
Synchronize:
Enable or disable automatic synchronisation with an Internet Time
Server.
1st NTP Time Server:
2nd NTP Time
Server:
Specify an address for the primary Internet Time Server.
Specify an address for the secondary Internet Time Server.
TIME CONFIGURATION
Current Local Time:
Time Zone:
Enable Daylight
Saving:
Daylight Saving
Start/End:
Click Apply when you are done.
Displays the current local time.
Select your time zone from the drop down menu.
Enable or disable daylight saving.
Specify the time and date when daylight saving should start/end.
46D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Logout
Click Logout when you are done conguring your router.
47D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Advanced
The Advanced tab provides access to congure the less commonly used settings of your DSL-G225.
48D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Wireless Settings
This page allows you to manually congure the router’s wireless connectivity and security.
For details, see Wireless Connection on page 49.
This page allows you to manually congure the router’s wireless connectivity and security.
For basic wireless settings, click Wireless Basics.
For advanced wireless settings, click Advanced Settings.
To congure MAC address ltering, click MAC Filtering.
To congure the router's wireless security, click Security Settings.
49D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Wireless Basics
WIRELESS NETWORK SETTINGS
Enable
Wireless:
Wireless
Network
Name (SSID):
Visibility
Status:
Country: Select the country in which your router resides. This will automatically
Wireless
Channel:
Check this box to enable the router’s wireless functionality. The Wireless
On/Off button on the back of the DSL-G225 performs the same function.
Create a name for your wireless network using up to 32 characters.
The SSID is case-sensitive. Choose something for easy identification by
wireless clients.
Visible networks conveniently advertise their existence to devices
looking for Wi-Fi networks to join. Invisible, or hidden, networks do not.
To join an invisible network users must manually input its SSID.
Note: Making a network Invisible is not a form of security alone.
configure the transmit power, frequencies, and available channels the
router’s wireless radios will use. This is based on the regulation provisions
set by each country.
Select the desired channel you wish your wireless network to operate on.
Auto is the default and recommended setting. The router will
automatically select the clearest wireless channel available. The current
channel in use is displayed to the right of the selection box.
Advanced users may wish to manually select a channel. This is typically
for areas with a large number of wireless networks nearby, in order to
improve wireless transmission.
802.11
Mode:
Bandwidth: Use the drop-down menu to select the channel bandwidth.
Select from the desired 802.11 mode of operation you desire.
802.11n auto is the default and recommended setting.
Auto or 20 MHz are the default and recommended settings.
Note: Not all wireless devices support 40 MHz bandwidth.
Click Apply when you are done.
50D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Advanced Settings
ADVANCED WIRELESS SETTINGS
Multicast
Rate:
Fragmentation
Threshold:
RTS
Threshold:
DTIM
Interval:
Beacon
Interval:
Global
Max Clients:
Auto is the default and recommended setting.
2346 is the default and recommended setting. Packets exceeding this
threshold, in bytes, will be fragmented before transmission.
Advanced users may wish to adjust this value to improve performance in
the presence of radio frequency (RF) interference.
2347 is the default and recommended setting. Advanced users may wish
to make minor adjustments if data flow problems exist.
1 is the default and recommended setting. Delivery traffic indication
messages inform wireless clients of how often to listen for buered multicast
or broadcast data.
100 is the default and recommended setting. Specify a value for the
beacon interval. Beacons are packets sent to synchronize a wireless
network.
16 is the default and recommended setting. Specify the maximum
number of wireless clients allowed to connect.
Transmit
Power:
WMM(Wi-Fi
Multimedia):
100% is the default and recommended setting. You may set the transmit
power from 20-100% in 20% increments.
WMM (Wi-Fi Multimedia) is a QoS (Quality of Service) system for
improving the quality of video and voice applications on your wireless
network. Enable is the default and recommended setting.
51D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
SSID
Enable
Wireless:
Wireless
Network
Name (SSID):
Visibility
Status:
User
Isolation:
Disable
WMM
Advertise:
Enable
Wireless
Multicast
Forwarding
(WMF):
Check this box to enable the router’s wireless functionality. The Wireless
On/Off button on the back of the DSL-G225 performs the same function.
Create a name for your wireless network using up to 32 characters.
The SSID is case-sensitive. Choose something for easy identification by
wireless clients.
Visible networks conveniently advertise their existence to devices
looking for Wi-Fi networks to join. Invisible, or hidden, networks do not.
To join an invisible network users must manually input its SSID.
Note: Making a network Invisible is not a form of security alone.
Off is the default and recommended setting. Turning on user isolation will
prevent wireless clients from communicating with each other. This may be
desired if the DSL-G225 will be used in a public setting.
WMM (Wi-Fi Multimedia) is a QoS (Quality of Service) system for
improving the quality of video and voice applications on your wireless
network.
Enable or Disable Wi-Fi Wireless Multicast Forwarding (WMF). The
transmission quality of video service such as IPTV may be improved with
this option enabled.
Global
Max Clients:
Click Apply when you are done.
16 is the default and recommended setting. Specify the maximum
number of wireless clients allowed to connect.
52D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
GUEST/VIRTUAL ACCESS POINT 13
Enable
Wireless
Guest
Network:
Guest (SSID): Create a name for your wireless network using up to 32 characters.
Visibility
Status:
User Isolation: Off is the default and recommended setting. Turning on user isolation will
Disable WMM
Advertise:
Check Enable to create a guest wireless network. This network will be
separate from your main wireless network.
The SSID is case-sensitive. Choose something for easy identification by
wireless clients.
Visible networks conveniently advertise their existence to devices
looking for Wi-Fi networks to join. Invisible, or hidden, networks do not.
To join an invisible network users must manually input its SSID.
Note: Making a network Invisible is not a form of security alone.
prevent wireless clients from communicating with each other. This may be
desired if the DSL-G225 will be used in a public setting.
WMM (Wi-Fi Multimedia) is a QoS (Quality of Service) system for
improving the quality of video and voice applications on your wireless
network.
Enable
Wireless
Multicast
Forwarding
(WMF):
Global
Max Clients:
Click Apply when you are done.
Enable or Disable Wi-Fi Wireless Multicast Forwarding (WMF). The
transmission quality of video service such as IPTV may be improved with
this option enabled.
16 is the default and recommended setting. Specify the maximum
number of wireless clients allowed to connect.
53D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
MAC Filtering
Check Enable Wireless MAC Filtering Policy to begin denying or allowing wireless access to a specic list of devices based
on their MAC address.
WIRELESS MAC FILTERING LIST
This list displays the current devices allowed or denied access (based on your selection
above) to the specied wireless network.
Click Add to add a device to the list.
MAC FILTERING
Enter the MAC Address of the device you wish to add to the list along with the SSID you
wish to apply the rule to. You may specify the SSID from the drop down box.
Click Apply to add the rule to the list.
54D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Security Settings
This page allows you to manually congure the router’s wireless security settings. The page will change depending on the
selected authentication type.
WPS SETUP
Enable WPS: If you want to enable Wi-Fi Protected Setup (WPS), select Enable from the
drop-down menu.
Add Client: Select the desired WPS connection method, and click Add Enrollee to add
a new device using WPS. See Add Wireless Device with WPS on page 55
for more details.
Set WPS
AP Mode:
Device PIN: If applicable, enter the WPS PIN.
Select the desired WPS AP mode.
WIRELESS SSID
Select SSID: Select your wireless SSID.
WIRELESS SECURITY MODE
Network
Authentication:
Click Apply when you are done.
Select the desired security type. The remaining settings on the page will
change depending on the type you select. Fill out these settings as required.
55D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Port Forwarding
This page allows you to manually congure the router’s Port Forwarding settings.
This function is used to open ports in your device and re-direct data through those ports to
a single PC on your network (WAN-to-LAN trac). It allows remote users to access services
on your LAN, such as FTP for le transfers or SMTP and POP3 for e-mail. The device accepts
remote requests for these services at your global IP address. It uses the specied TCP or UDP
protocol and port number, and redirects these requests to the server on your LAN with the
LAN IP address you specify. Note that the specied private IP address must be within range.
On this page you will see a list of current port forwarding congurations. Click Add to add
a virtual server.
PORT FORWARDING SETUP
This list displays the currently forwarded ports.
Click Add to add a new rule or edit to edit an existing rule.
56D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
PORT FORWARDING
WAN
Connection:
Select a
Service:
Schedule: Select a schedule or choose Always.
Server
IP Address:
External Port
Start/End:
Protocol: Select TCP or UDP.
Internal Port
Start/End:
LAN
Loopback:
Select the interface to use with the rule.
Select an service for a preset application or enter a name in Custom
Server.
Enter an IP address to appoint the corresponding client to receive
forwarded packets.
Enter the external port(s).
Enter the internal port(s).
Check the box to enable the LAN loopback feature.
Click Apply when you are done.
57D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Port Triggering
This page allows you to manually congure the router’s Port Triggering settings.
PORT TRIGGERING
On this page you will see a list of current port forwarding congurations. Click Add to add
a port trigger
Use Interface: Select the interface to use with the rule.
Select an
application:
Schedule: Select a schedule or choose Always.
Trigger Port Start/
End:
Trigger Protocol: Select TCP or UDP.
Open Port Start/
End:
Click Apply when you are done.
Select an application you want to setup for port triggering or enter
a name in Custom application.
Enter the trigger port(s).
Enter the port(s) to open.
58D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
DMZ
This page allows you to manually congure the router’s DMZ settings.
To congure a DMZ host, enter the DMZ Host IP Address. If the eld is blank, then no DMZ
will be congured.
Click Apply when you are done.
59D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Parental Control
This page allows you to manually congure the router’s Parental Control settings.
This page provides two useful tools for restricting the Internet access. Block Websites
allows you to quickly create a list of all websites that you wish to stop users from accessing.
Block MAC Address allows you to control when clients or PCs connected to the device are
allowed to access the Internet.
To set controls based on URL, click Block Website.
To set controls based on MAC address, click Block MAC Address.
Block Website
BLOCK WEBSITE
Displays a list of currently blocked URLs and their schedule.
Click Add to add a website to the blocked list.
BLOCK WEBSITE
Enter the website to be blocked in the URL eld. Select the Schedule from the drop-down
list, or select Manual Schedule and input the desired schedule.
Click Apply to add the website to the blocked list.
60D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Block MAC Address
BLOCK MAC ADDRESS
Displays a list of currently blocked MAC Addresses and their schedule.
Click Add to add a new restriction.
TIME OF DAY RESTRICTION
Enter a User Name for the blocked user. Select either the Current PC’s MAC Address or
an Other MAC Address (which you will need to input into the text eld). Enter the desired
schedule for the restriction below.
Click Apply to add the MAC Address to the blocked list.
61D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Filtering Options
This page allows you to manually congure the router’s Filtering settings.
Some applications require multiple connections, such as Internet gaming, video conferencing,
Internet telephony and others. These applications have diculties working through NAT
(Network Address Translation). The Filtering Options section is an advanced option that lets
you congure what kind of trac is allowed to pass through the network.
62D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Incoming IP Filtering
The screen allows you to create a lter rule to identify incoming IP trac by specifying a
new lter name and at least one condition below. All of the specied conditions in this lter
rule must be satised for the rule to take eect.
By default, all incoming IP trac from WAN is blocked when the rewall is enabled, but some
IP trac can be ACCEPTED by setting up lters.
ACTIVE INBOUND IP FILTERING.
The current active inbound IP lters will be listed here.
Click Add to add a new rule to the inbound lter list.
INCOMING IP FILTERING.
Enter the incoming IP lter rules.
Click Apply when you are done.
63D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Outgoing IP Filtering
This screen allows you to create a lter rule to identify outgoing IP trac by specifying a
new lter name and at least one condition below. All of the specied conditions in this lter
rule must be satised for the rule to take eect.
By default, all outgoing IP trac from LAN is allowed, but some IP trac can be BLOCKED
by setting up lters.
ACTIVE OUTGOING IP FILTERING.
The current active outgoing IP lters will be listed here.
Click Add to add a new rule to the outgoing lter list.
OUTGOING IP FILTERING.
Enter the outgoing IP lter rules.
Click Apply when you are done.
64D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Bridge Filtering
Bridge Filtering only eects ATM PVCs congured for Bridge mode. ALLOW means that all
MAC layer frames will be ALLOWED except those matching with any of the specied rules
in the following table. DENY means that all MAC layer frames will be DENIED except those
matching with any of the specied rules in the following table.
Set the Bridge Filtering Global Policy to either ALLOW or DENY the following rules. Click
Apply after changing the setting.
BRIDGE FILTER SETUP
The current active bridge lters will be listed here.
Click Add to add a new rule to the bridge lter list.
ADD BRIDGE FILTER
Enter the Bridge Filter rules.
Click Apply when you are done.
65D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Firewall Settings
The router’s rewall protects your network from malicious Denial of Service (DoS) attacks over the Internet. If you suspect your
network to be the target of a DoS attack you may enable these.
FIREWALL CONFIGURATION
Enable Attack
Prevent:
ICMP Echo: Check to enable ICMP echo protection.
Fraggle: Check to enable UDP echo (port 7) protection.
Echo Chargers: Check to enable UDP character generator (port 19) protection.
IP Land: Check to enable Local Area Network Denial attack protection.
Port Scan: Check to enable Port Scan protection.
TCP Flags:
“SYN FIN”:
TCP Flags:
“SYN RST”:
TCP Flags:
“FIN RST”:
Select the interface to use with the rule.
Check to enable SYN FIN protection.
Check to enable SYN RST protection.
Check to enable FIN RST protection.
TCP DoS Check to enable TCP DoS protection.
TCP DoS Max Rate: Enter the maximum number of packets per second to prevent DoS
attacks.
Click Apply when you are done.
66D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
DNS
This page allows you to manually congure the router’s DNS settings.
Domain Name System (DNS) is an Internet service that translates domain names into IP
addresses. Because domain names are alphanumeric, they are easier to remember. The
Internet, however, is actually based on IP addresses. Each time you use a domain name, a
DNS service must translate the name into the corresponding IP address. For example, the
domain name www.example.com might be translated to 198.105.232.4.
The DNS system is, in fact, its own network. If one DNS server does not know how to translate
a particular domain name, it asks another one, and so on, until the correct IP address is
returned.
If you are using the device for DHCP service on the LAN or if you are using DNS servers on
the ISP network, select Obtain DNS Info from a WAN interface.
If you have DNS IP addresses provided by your ISP, select Use the following DNS server
addresses and enter these IP addresses in the available entry elds of the Preferred DNS
server and the Alternate DNS server.
Click Apply when you are done.
67D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Dynamic DNS
This page allows you to manually congure the router’s Dynamic DNS settings.
The DDNS (Dynamic Domain Name System) feature allows you to host a server (e.g. a Web, FTP,
or game server) using a domain name that you have purchased (www.whateveryournameis.
com) with your dynamically assigned IP address. Most broadband Internet Service Providers
assign dynamic (changing) IP addresses. Using a DDNS service provider, your friends can
enter your domain name to connect to your server no matter what your IP address is.
DYNAMIC DNS
This list displays the current dynamic DNS settings including the hostname, username,
DNS service provider, and the interface the account is associated to.
Click Add to add a Dynamic DNS account.
ADD DYNAMIC DNS
DDNS provider: Select one of the Dynamic DNS organizations from the menu.
Hostname: Enter the hostname you registered with the Dynamic DNS provider.
Interface: Select the appropriate interface.
Username: Enter the username for your Dynamic DNS account.
Click Apply when you are done.
68D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Storage Device Information
The Storage Service allows you to remotely access storage devices connected to your router.
To view information about connected storages, click Storage Device Info.
To congure user accounts to manage storage, click Storage User Account.
Storage Device Information
STORAGE DEVICE INFORMATION
Storage Device Info displays a detailed list of connected storage devices.
Storage User Account
STORAGE USER ACCOUNT
Storage User Account allows you to add or remove an account.
Click Add to add a Storage User Account.
ADD STORAGE USER ACCOUNT
Username: Enter the username for your Storage User Account.
Password: Enter the password for your Storage User Account.
Confirm Password: Re-enter the password for your Storage User Account.
Click Apply to add the Storage User Account.
69D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Network Tools
This page allows you to congure the device's routing settings. Clicking each button will
take you to a new page to congure the relevant network tools category.
70D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Port Mapping
PORT MAPPING SETUP
To congure WAN and LAN interfaces groupings, click Port Mapping.
A list of the currently-congured groups will appear. Click Add to bring up the Add Port
Mapping panel.
71D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
PORT MAPPING CONFIGURATION
Enter the Group Name. Next, select a WAN Interface you wish to use for the group. Finally,
from the Available LAN Interfaces box, click the left arrow to move any LAN interfaces
you want to include in the group into the Grouped LAN Interfaces box.
Click Apply when you are done.
72D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
IGMP
IGMP SETUP
Check the box to enable Internet Group Management Protocol (IGMP) snooping for extra
network trac security.
Click Apply when you are done.
73D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Quality of Service
QOS SETUP
To enable Quality of Service (QoS), click Quality of Service.
Under Select Default DSCP Mark, select the required DSCP mark or leave the default setting
in place.
Click Apply when you are done.
74D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Queue Cong
QOS SETUP
To set up the QoS queue, click Queue Cong.
A list of the currently-congured queues will appear. Click Add to add a new queue, Enable
to enable the selected queues, or Remove to remove the selected queues.
ADD QUEUE CONFIG
If you clicked Add, the following page will be displayed.
Enter a name for your queue under Queue Name, Enable or Disable it, and choose the
Interface that the queue will use and the Queue Precedence.
Click Save/Apply when you are done.
75D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
QOS Classication
QOS CLASSIFICATION SETUP
To set up network trac classes, click QoS Classication.
A list of the currently-congured classes will appear. Click Add to add a new class, Enable
to enable the selected classes, Edit to edit an existing class, or Remove to remove the
selected classes.
76D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
ADD NETWORK TRAFFIC CLASS RULE
If you clicked Add, the following page will be displayed.
Under Trac Class Name enter the name of your class. Choose one or more criteria for
the classication and congure it accordingly.
SPECIFY CLASSIFICATION CRITERIA
Dene your QoS Criteria here.
NETWORK TRAFFIC CLASSIFICATION RESULTS
Enter your classication results.
Click Apply/Save when you are done.
77D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
UPNP SETUP
To enable or disable Universal Plug and Play (UPnP), click UPnP.
Check the box to Enable UPnP.
Click Apply when you are done.
UPNP
78D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
ADSL SETTINGS
To congure the ADSL-VDSL modulation, click DSL Settings.
In most cases you can leave the settings at their default values.
Click Apply when you are done.
DSL
79D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
SNMP
SNMP CONFIGURATION
To congure the Simple Network Management Protocol, click SNMP.
Check the box to Enable SNMP Agent. This will unlock the SNMP conguration options.
Click Apply when you are done.
80D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
TR-069
TR069 CLIENT CONFIGURATION
To congure the WAN management protocol (TR-069), click TR-069.
TR-069 allows an Auto-Conguration Server (ACS) to perform auto-conguration, provision,
collection, and diagnostics on this device.
Check the box to Enable WAN Management Protocol (TR-069). This will unlock the TR-
069 conguration options.
Click Apply when you are done.
81D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Certicates
To congure the certicates, click Certicates.
Click Local Cert to import local certicates that are used by peers to verify your identity.
Click Trusted CA to import the CA certicates used by you to verify peers’ identities.
Local Cert
LOCAL CERTIFICATES
On this page, you can acquire the local certicate by creating a certicate request or
importing a certicate. You may also create or remove a certicate.
Click Create a New Certicate Request to bring up the Create New Certicate Request
page.
Click Import Certicate to import a local certicate.
CREATE NEW CERTIFICATE REQUEST
If you clicked Create a New Certicate Request, you will see the following page.
The Common Name is the “fully qualied domain name,” (or FQDN) used for DNS lookups
of your server (for example, www.mydomain.com). Browsers use this information to identify
your web site. Some browsers will refuse to establish a secure connection with your site
if the server name does not match the common name in the certicate. Please do not
include the protocol symbol “http://”, port numbers, or pathnames in the common name.
Do not use wildcard characters such as “*” or “?”, and do not use an IP address.
Click Apply when you are done. You will see the generated certicate request.
82D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
LOCAL CERTIFICATES
The certicate request needs to be submitted to a certication authority to sign the request.
Once you have a signed request click Load Signed Certicate to bring up the Load
Certicate page.
LOAD CERTIFICATE
Paste the signed certicate into the Certicate eld.
To create the new signed certicate, click Apply.
83D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Trusted CA
CERTIFICATES TRUSTED CA
If you clicked Trusted CA, you will see the following page.
You will see a list of trusted CA certicates. Click Import Certicate to import a CA
certicate.
IMPORT CA CERTIFICATE
If you clicked Import Certicate, you will see the following page.
Enter the Certicate Name, and paste in the Certicate.
Click Apply to save the certicate.
84D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Routing
This page allows you to congure the device's routing settings. Clicking each button will
take you to a new page to congure the relevant routing category.
85D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Static Route
ROUTING STATIC ROUTE
To congure a static route, click Static Route.
You will see a list of current routes. Click Add to open the Static Route Add panel.
STATIC ROUTE ADD
Destination
Network Address:
Subnet Mask Enter the subnet mask.
Use Gateway IP
Address:
Use Interface Select the correct interface for the rule.
Click Apply when you are done.
Enter the destination address.
Enter the Gateway IP address.
86D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Default Gateway
If Enable Automatic Assigned Default Gateway checkbox is selected, this router will accept
the rst received default gateway assignment from one of the PPPoA, PPPoE, or MER/DHCP
enabled PVC(s). If the checkbox is not selected, enter the static default gateway OR a WAN
interface.
Click the Apply/Save button to save your settings.
87D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
RIP
From this page advanced users can congure the router to use the Routing Internet Protocol
(RIP). RIP is an Internet protocol you can set up to share routing table information with other
routing devices on your LAN, at your ISP’s location, or on remote networks connected to
your network via the ADSL line.
88D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Schedules
SCHEDULES RULES
This page allows you to dene schedules that can be used by certain functions (such as port
forwarding, port triggering, etc.). You will see a list of all the currently congured schedules.
To add a new schedule, click Add to make the Add Schedule Rule panel appear.
ADD SCHEDULES RULE
Enter the schedule Name, the Day(s), the Start Time and the End Time.
Click Apply to save your settings or Cancel to discard them.
89D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Print Server
PRINT SERVER SETTINGS
Enable onboard
print
server:
Printer name: Enter a custom name for the printer.
Make and model: Enter the make and model number of the printer.
This page allows you to enable an on-board print server.
Click Apply/Save when you are done.
90D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Maintenance
The Maintenance tab provides access to administration related settings of the DSL-G225.
91D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
System
This page allows you to reboot the device, backup your settings, or restore settings either from a le or to their default values.
SYSTEM REBOOT
Reboot: Click this button to reboot the device.
SYSTEM BACKUP SETTINGS
Backup Settings: Click this button to save the current router configuration settings to a
file on the hard disk of the computer you are using. You will see a file
dialog, where you can select a location and file name for the settings.
SYSTEM UPDATE SETTINGS
Update Settings: To restore a saved conguration, use the Browse... button to nd the
previously saved conguration le. Then, click the Update Settings
button to transfer those settings to the device.
RESTORE ROUTER SETTINGS TO THE FACTORY DEFAULTS.
Restore Default
Settings:
Click this button to restore all configuration settings back to the
settings that were in effect at the time the device was shipped
from the factory. Any settings that have not been saved will be lost,
including any rules that you have created.
Warning: Do not turn o your device or press the Reset button while
an operation in this page is in progress.
92D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Firmware Update
This page allows you to upgrade the rmware of your router. Make sure the rmware you want to use is on the local hard drive
of the computer and then click Browse to upload the le.
FIRMWARE UPDATE
Current Firmware
Version:
Current Firmware
Date:
Firmware File
Name:
Displays your current firmware’s version.
Displays your current rmware’s release date.
After you have downloaded a new rmware, click Browse... and
locate the rmware on your computer. To begin the rmware update
process, click Update Firmware. The update process takes about two
minutes to complete.
Warning: You must use a computer with a wired connection to the
device to upload the rmware le; do not use a wireless client. During
the upgrade process, do not power o your computer or router, and
do not refresh the browser window until the upgrade is complete.
93D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Access Controls
This page allows you to manage access to your router.
Click the Account Password, Services, or IP Address buttons to reveal the associated
conguration options.
94D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
Section 4 - Conguration
Account Password
ADMINISTRATOR SETTINGS
To change an account’s password, click Account Password. Select the username (admin
or user), and enter the password details below.
WEB IDLE TIME OUT SETTINGS
You can also set the Web Idle Time Out in minutes. This will automatically log the user or
administrator out if they are idle for the specied amount of time.
Click Apply when you are done.
95D-Link DSL-G225 Wireless N300 ADSL2+/VDSL2 Modem Router User Manual
