D-Link DMP-110 User Manual

DMP-110

32MB MP3 Player/Recorder

User’s Manual

Rev. 01 (Sep. 2000)

FCC Certifications

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
You are cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void your authority to operate the
equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including interference
that may cause undesired operation.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.

VCCI Warning

LIMITED WARRANTY

D-Link Systems, Inc. (“D-Link”) provides this limited warranty for its product only to the
person or entity who originally purchased the product from D-Link or its authorized reseller
or distributor.

Limited Hardware Warranty: D-Link warrants that the hardware portion of the D-Link
products described below (“Hardware”) will be free from material defects in workmanship
and materials fr om the date of original retail purchase of the Hardware, for the period set
forth below applicable to the product type (“Warranty Period”) if the Hardware is used and
serviced in accordance with applicable documentation; provided that a completed
Registration Card is returned to an Authorized D-Link Service Office within ninety (90)
days after the date of original retail purchase of the Hardware. If a completed Registration
Card is not received by an authorized D-Link Service Office within such ninety (90) period,
then the Warranty Period shall be ninety (90) days from the date of purchase.

Product Type Warranty Period

Product (excluding power supplies and fans), if
purchased and delivered in the fifty (50) United
States, or the District of Columbia (“USA”)

Product purchased or delivered outside the USA One (1) Year
Power Supplies and Fans One (1) Year
Spare parts and spare kits Ninety (90) days

D-Link’s sole obligation shall be to repair or replace the defective Hardware at no charge to
the original owner. Such repair or replacement will be rendered by D-Link at an Authorized
D-Link Service Office. The replacement Hardware need not be new or of an identical make,
model or part; D-Link may in its discretion may replace the defective Hardware (or any part
thereof) with any reconditioned product that D-Link reasonably determines is substantially
equivalent (or superior) in all material respects to the defective Hardware. The Warranty
Period shall extend for an additional ninety (90) days after any repaired or replaced
Hardware is delivered. If a material defect is incapable of correction, or if D-Link
determines in its sole discretion that it is not practical to repair or replace the defective
Hardware, the price paid by the original purchaser for the defective Hardware will be
refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware (or
part thereof) that is replaced by D-Link, or for which the purchase price is refunded, shall
become the property of D -Link upon replacement or refund.

Limited Software Warranty: D-Link warrants that the software portion of the product
(“Software”) will substantially conform to D-Link’s then current functional specifications
for the Software, as set forth in the applicable documentation, from the date of original
delivery of the Software for a period of ninety (90) days (“Warranty Period”), if the
Software is properly installed on approved hardware and operated as contemplated in its
documentation. D-Link further warrants that, during the Warranty Period, the magnetic

As long as the
original purchaser
still owns the
product

media on which D-Link delivers the Software will be free of physical defects. D-Link’s sole
obligation shall be to replace the non-conforming Software (or defective media) with
software that substantially conforms to D-Link’s functional specifications for the Software.
Except as otherwise agreed by D-Link in writing, the replacement Software is provided only
to the original licensee, and is subject to the terms and conditions of the license granted by
D-Link for the Software. The Warranty Period shall extend for an additional ninety (90)
days after any replacement Software is delivered. If a material non-conformance is
incapable of correction, or if D-Link determines in its so le discretion that it is not practical
to replace the non-conforming Software, the price paid by the original licensee for the non­conforming Software will be refunded by D-Link; provided that the non-conforming
Software (and all copies thereof) is first returned to D-Link. The license granted respecting
any Software for which a refund is given automatically terminates.

What You Must Do For Warranty Service:

Registration Card. The Registration Card provided at the back of this manual must be
completed and returned to an Authorized D-Link Service Office for each D-Link product
within ninety (90) days after the product is purchased and/or licensed. The
addresses/telephone/fax list of the nearest Authorized D-Link Service Office is provided in
the back of this manual. FAILURE TO PROPERLY COMPLETE AND TIMELY
RETURN THE REGISTRATION CARD MAY AFFECT THE WARRANTY FOR THIS
PRODUCT.

Submitting A Claim. Any claim under this limited warranty must be submitted in writing
before the end of the Warranty Period to an Authorized D-Link Service Office. The claim
must include a written description of the Hardware defect or Software nonconformance in
sufficient detail to allow D-Link to confirm the same. The original product owner must
obtain a Return Material Authorization (RMA) number from the Authorized D-Link Service
Office and, if requested, provide written proof of purchase of the product (such as a copy of
the dated purchase invoice for the product) before the warranty service is provided. After an
RMA number is issued, the defective product must be packaged securely in the original or
other suitable shipping package to ensure that it will not be damaged in transit, and the RMA
number must be prominently marked on the outside of the package. The packaged product
shall be insured and shipped to D-Link, 53 Discovery Drive, Irvine CA 92618, with all
shipping costs prepaid. D-Link may reject or return any product that is not packaged and
shipped in strict compliance with the foregoing requirements, or for which an RMA number
is not visible from the outside of the package. The product owner agrees to pay D-Link’s
reasonable handling and return shipping charges for any product that is not packaged and
shipped in accordance with the foregoing requirements, or that is determined by D-Link not
to be defective or non-conforming.

What Is Not Covered:

This limited warranty provided by D-Link does not cover:
Products that have been subjected to abuse, accident, alteration, modification, tampering,

negligence, misuse, faulty installation, lack of reasonable care, repair or service in any way
that is not contemplated in the documentation for the product, or if the model or serial
number has been altered, tampered with, defaced or removed;

Initial installation, installation and removal of the product for repair, and shipping costs;

Operational adjustments covered in the operating manual for the product, and normal
maintenance;

Damage that occurs in shipment, due to act of God, failures due to power surge, and
cosmetic damage; an d

Any hardware, software, firmware or other products or services provided by anyone other
than D-Link.

Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY
SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY
WARRANTY OF ANY KIND INCLUDING, WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE
DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE
DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO NINETY (90)
DAYS. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY
PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND
PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OF THE
PRODUCT.

Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS
NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR
OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE
PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER
DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT
LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, WORK STOPPAGE,
COMPUTER FAILURE OR MALFUNCTION, LOSS OF INFORMATION OR DATA
CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT
RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING FROM THE USE
OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF
ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A
BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT
OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT.

GOVERNING LAW : This Limited Warranty shall be governed by the laws of the state of
California.

Some states do not allow exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions
may not apply. This limited warranty provides specific legal rights and the product owner may
also have other rights which vary from state to state.

Table of Contents

DMP-110.................................................................................................................1

FILE SPECIFICATION ............................................................................................1

PACKAGE CONTENTS...........................................................................................1

DMP-110 DIAGRAM...........................................................................................2

SYSTEM REQUIREMENTS .....................................................................................3

CONNECTING TO PC............................................................................................3

Caution:........................................................................................................3

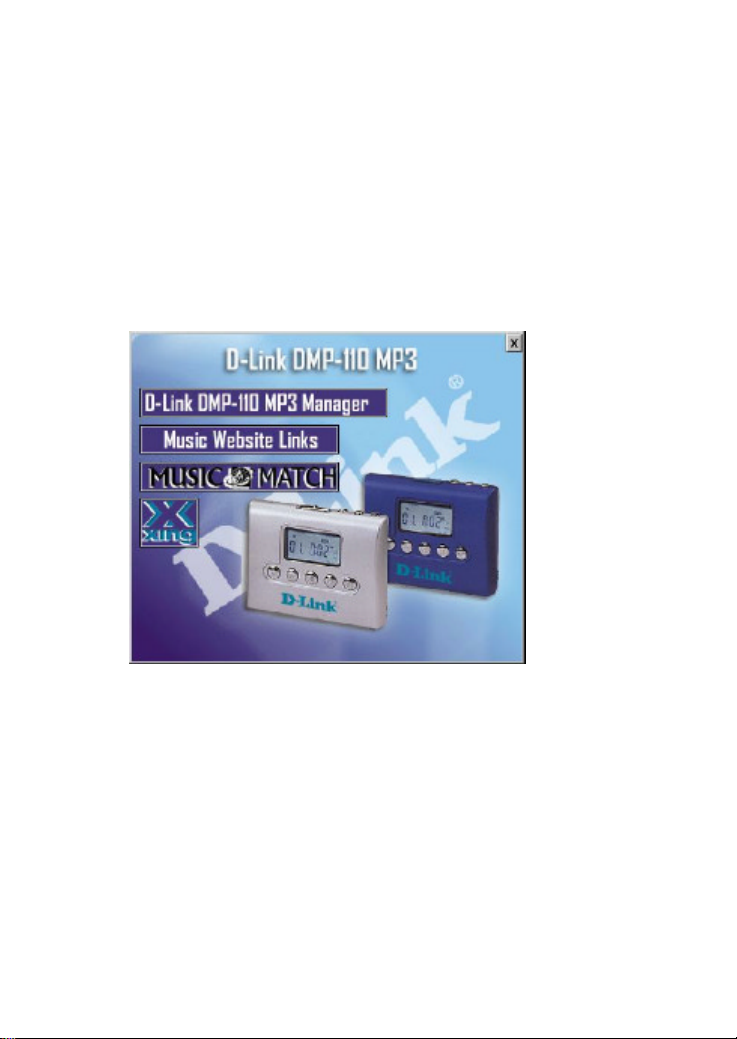

MP3 MANAGER INSTALLATION AND USE............................................................ 3

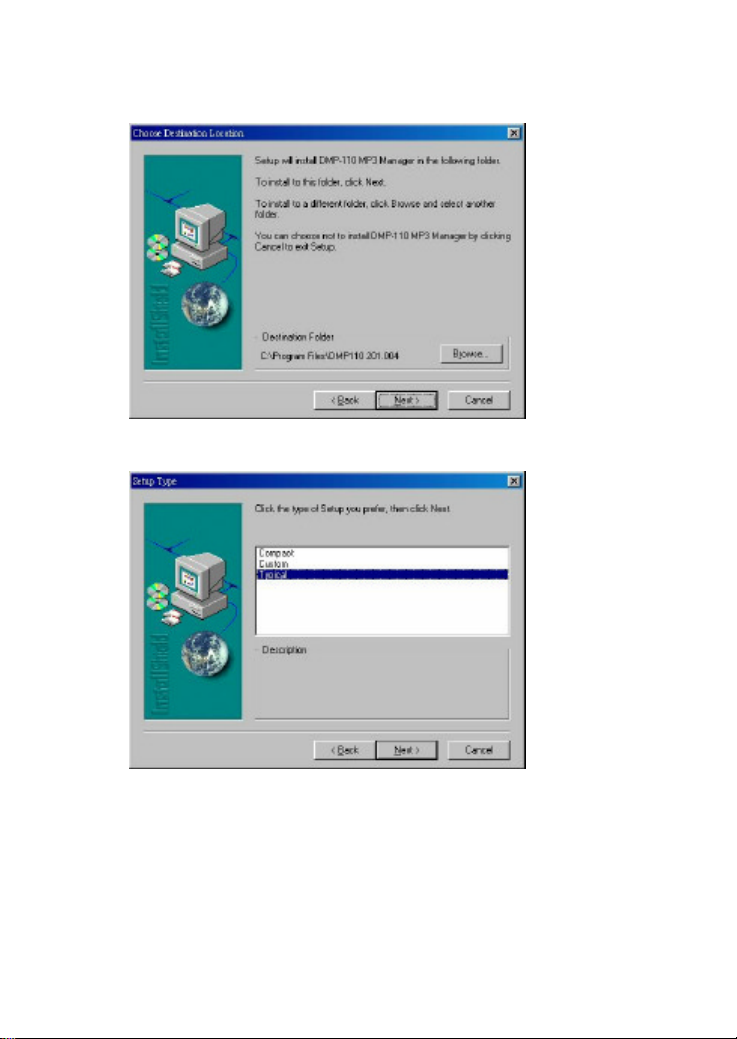

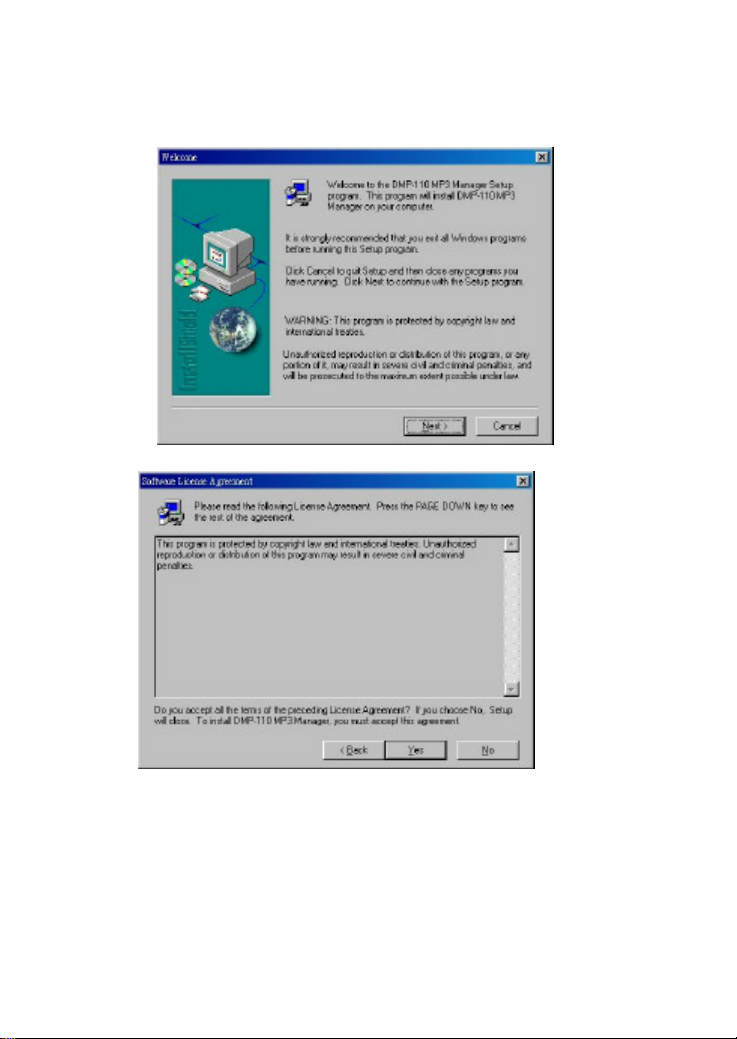

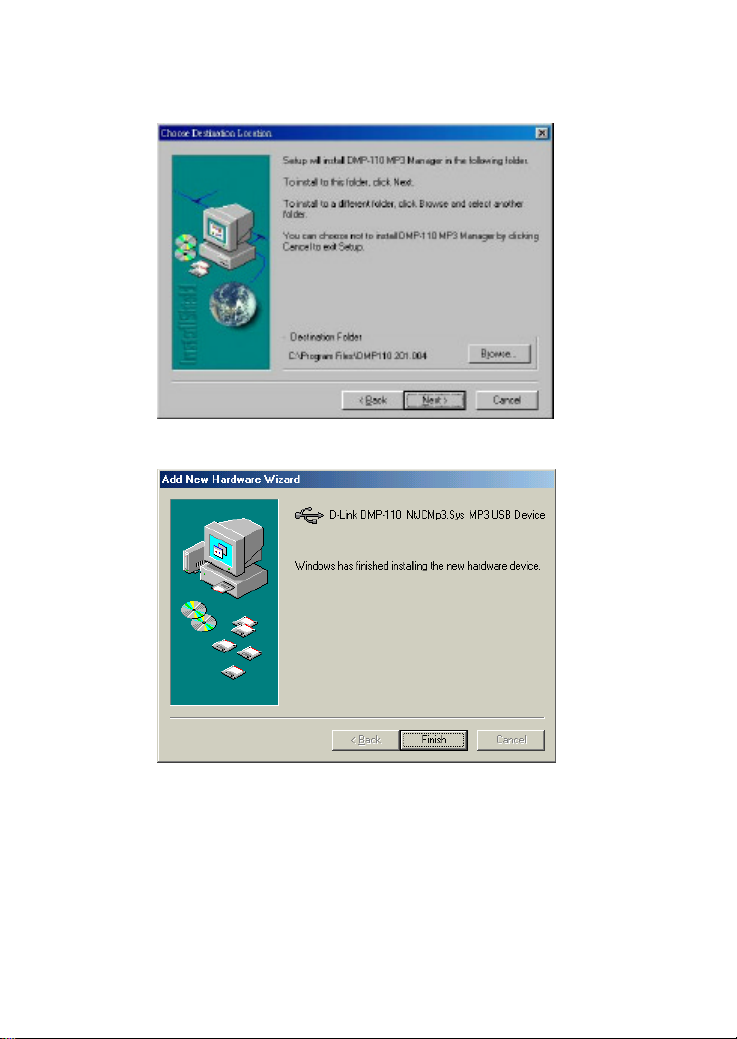

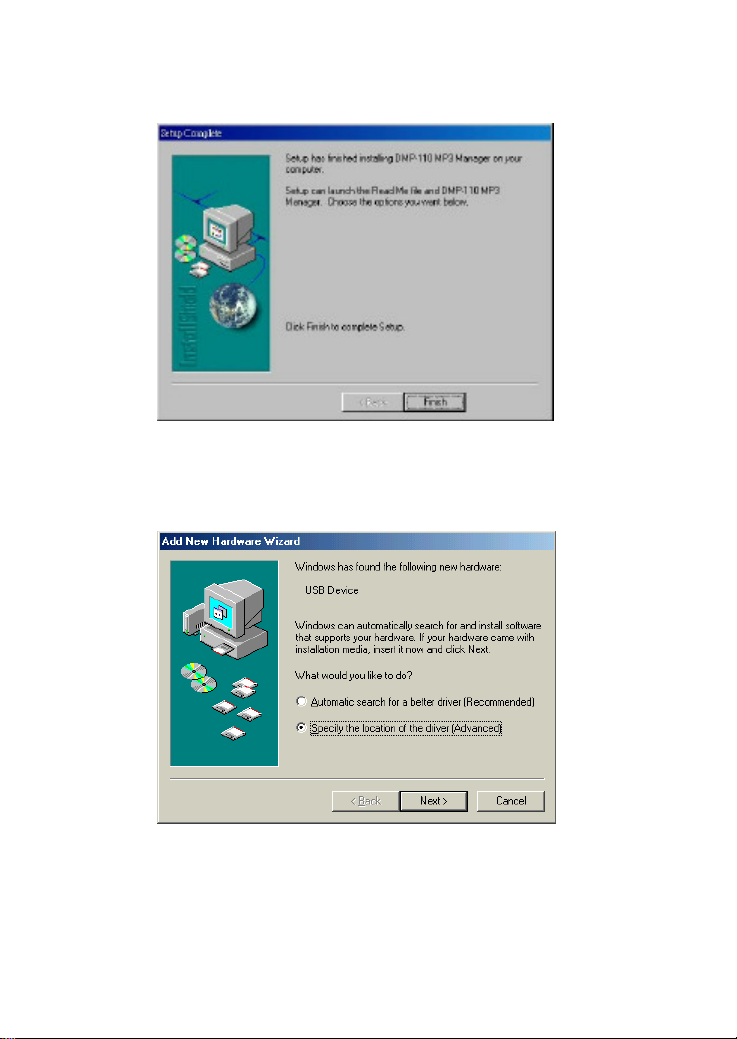

Installing MP3 Manager...............................................................................4

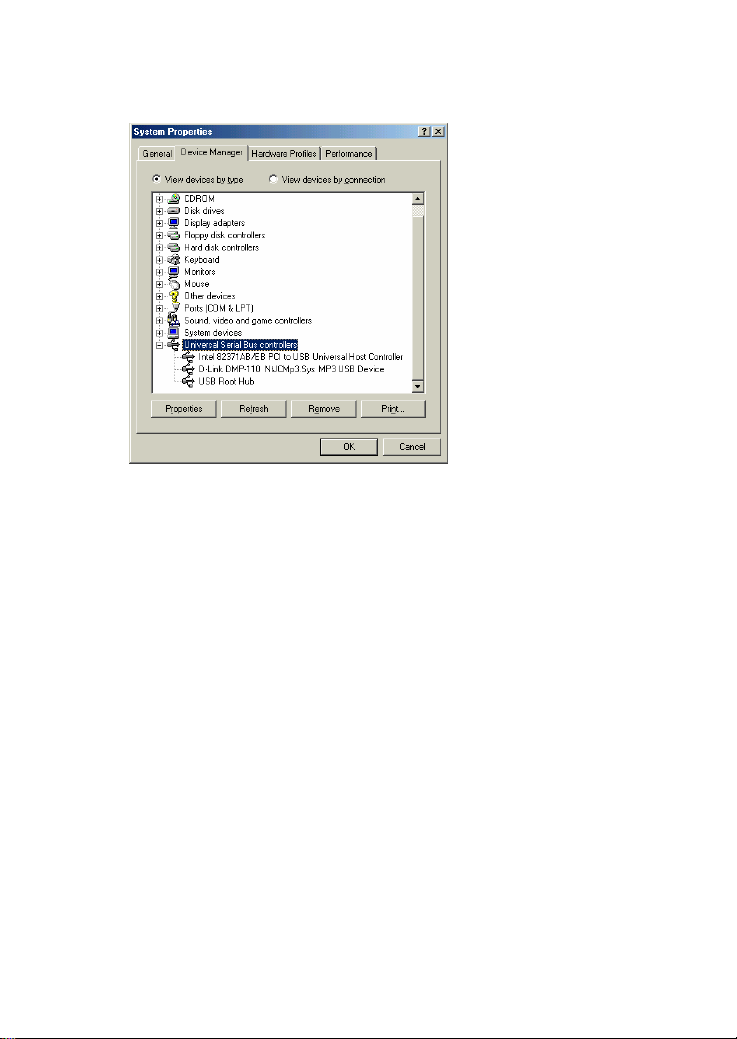

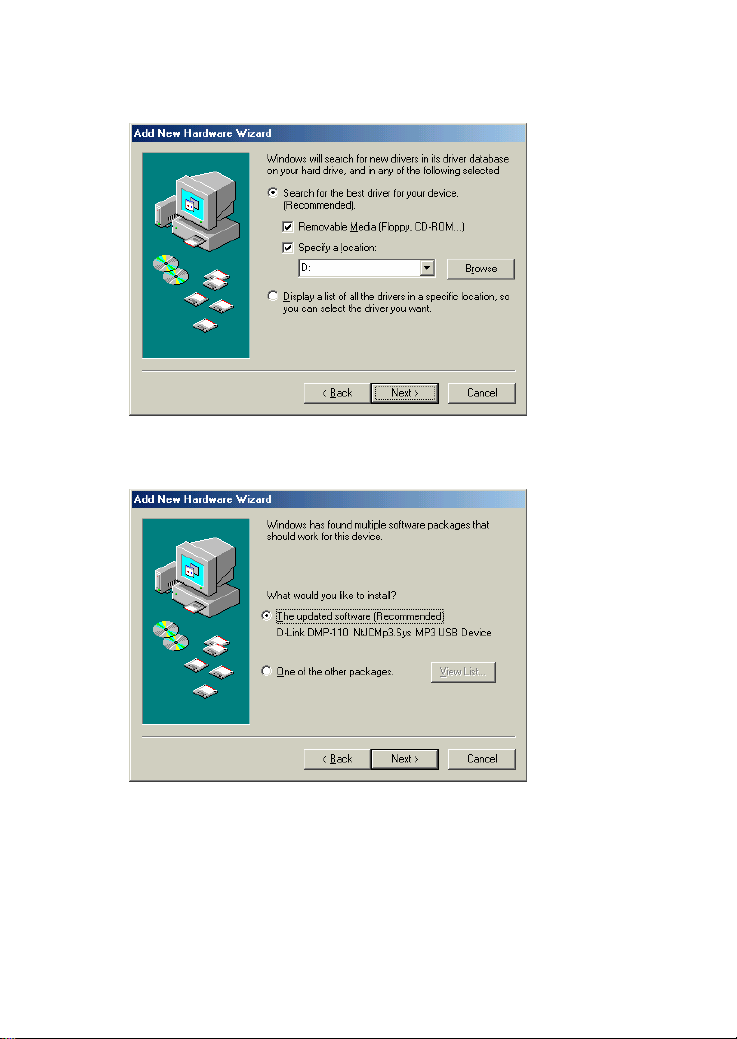

Installing Drivers..........................................................................................7

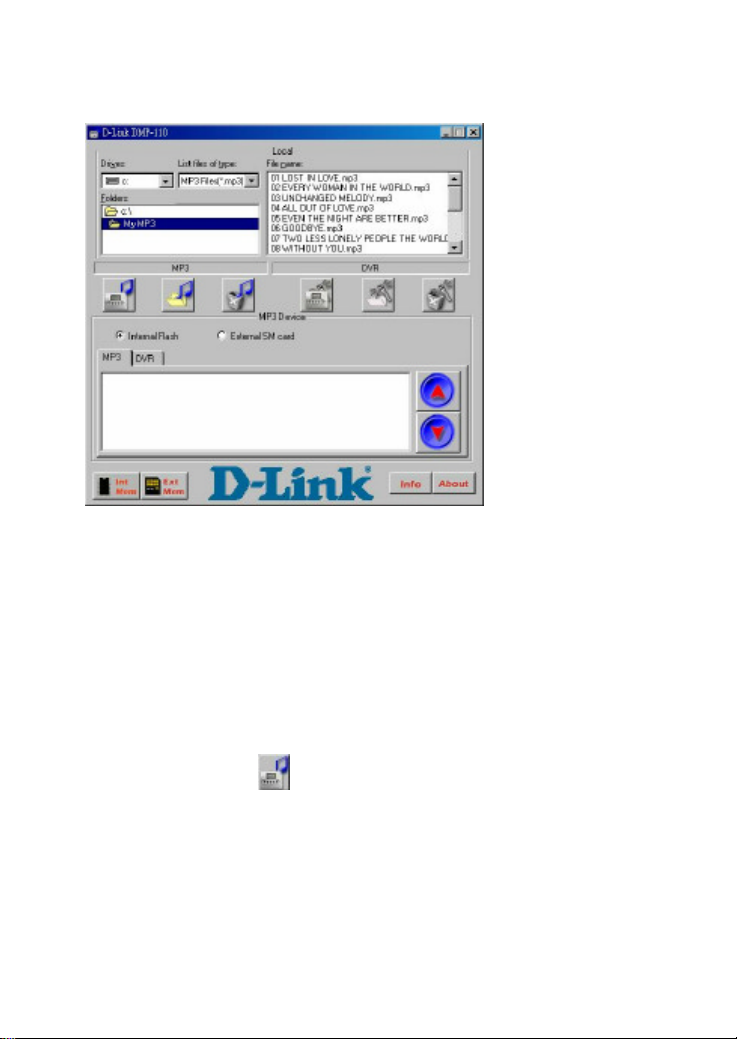

Using MP3 Manager ..................................................................................10

MP3 File Management ...............................................................................11

? Download MP3 Files............................................................11

? Delete MP3 Files ..................................................................11

? MP3 Files Index....................................................................12

Managing Voice Files.................................................................................12

? Download DVR Files ...........................................................12

? Uploading DVR Files ...........................................................12

? Deleting DVR Files ..............................................................12

? DVR File Index.....................................................................13

Others.........................................................................................................13

? Initialize Internal Memory....................................................13

? Initialize External Memory...................................................13

• About....................................................................................13

? Info........................................................................................13

LCD Display Overview...............................................................................14

Voice Recording ..........................................................................................15

Voice File Playback Procedure .................................................................. 15

Delete Voice files: ....................................................................................... 15

TROUBLESHOOTING...........................................................................................16

Memory.......................................................................................................17

Internal Memory................................................................................17

External Memory...............................................................................17

TECHNICAL SUPPORT.........................................................................................18

SPECIFICATIONS.............................................................................................19

DMP-110

Thank you for purchasing the D-Link DMP-110 MP-3 Player. The DMP­110 is designed to bring you the latest technology and high quality sound.
Please follow this User Manual to install and enjoy your favorite music
with the DMP-110.
MP3 is short for MPEG-1 audio, layer 3. MP3 is a format that allows you
to compress and store music files on your computer. Most people cannot
hear the difference between MP3 and Audio-CD music. This is because
MP3 removes certain frequencies during the compression process. The
human ear is less sensitive to the frequencies that have been removed.
Resulting files are small in size (about 1/10~1/12 of original size ), yet
retain high quality. Typically a 1 MB MP3 file will represent one minute
of music or several minutes of Digital Voice Recording. These high­quality, small files enable efficient storage of music on a hard drive,
reasonable file download times via the Internet, and portability of files on
hardware devices. The compression bit rate and other variables can also
affect the quality of an MP3 file. To obtain good quality MP3 files, close
all the resident files and software before encoding.
The Digital Voice Recording (DVR) feature enables roughly 4 minutes of
voice data storage per MB at 8Khz sampling rate which is then played
back at a rate of 32Kbps.

File Specification

Items MP3 File Voice File
File Format Filename.MP3 xx._DR(xx:0-99)
Max. Tracks 99* 99*
Sampling Rate 32/44.1/48 KHz 8KHz
Bit Rate(Kbps) Support all MPEG 1 bit rates 32

* Please note: The DMP-110 can access a maximum combination of 128
tracks of MP3 and Voice files. The DMP-110 can access a maximum of
99 tracks of MP3 or Voice files when only one format is stored in
memory.

Package Contents

The DMP -110 package includes all of the contents shown below:

1

n DMP-110
n Earphone
n Installation Software CD
n User's Manual
n USB Cable
n 2 AAA-Size Batteries

DMP-110 Diagram

The diagram below shows the controls and some of the features of the
DMP-110, see Figure 1.

Figure 1: Diagram of the DMP-110

2

System Requirements

Your computer must meet the following requirements in order to use the
DMP-110:

• Pentium 90MHz or faster

• 40MB hard disk space

• 16MB RAM or higher

• Windows 98 or higher

• CD-ROM drive

• 1 available USB port (USB Ver. 1.x)

Connecting to PC

To download MP3 files from PC to DMP-110, the DMP-110 must be
connected to the PC's USB port.

1.Turn on the DMP-110 and plug the provided USB cable into the data
port of the DMP -110.

2. Connect the USB cable provided to the USB port of your PC.

3. Power the DMP-110 off by disconnecting it from your PC.

Caution:

• Always power on your DMP-110 before connecting the USB

cable.

• Please do not remove the SmartMedia Card when the DMP-110

is running.

• Do not remove the USB cable during download. If USB cable is

removed during download, MP3 files may be deleted or
corrupted.

MP3 Manager Installation and Use

The Installation CD includes:

• MP3 Manager to download MP3 files from your PC to the

Player.

• MusicMatch or Xing AudioCatalyst software to create and play

MP3 files on your PC.

3

• MP3 Music Web Sites where MP3 songs, technologies, and

resources can be obtained.

Installing MP3 Manager

Follow these ste ps to install the MP3 Manager for the DMP-110:

1. Insert the MP3 Manager installation CD into your CD-ROM

drive. The Auto Play feature will start the disc automatically.
Click “ D-Link DMP-110 MP3 Manager” to install the MP3
Manager.

Click “D-Link DMP-110 MP3 Manager” to install MP3
Manager.

4

2. The Welcome screen appears.

Click Next

Click Yes

3. Please select the directory which you wish to install the program.

Click Next to accept the default destination folder or click
Browse to select another folder. The D-Link recommends using
the default directory.

5

Click Next

4. Choose which software type you want to install.

Select the type and click Next.

5. When all the installation procedure is completed, click on the

Finish button to exit the setup program.

6

Click Finish

Installing Drivers

1. Verify that “Specify the location of the driver (Advanced) ” is

checked.

Click Next

2. Click “Search for the best driver for your device

(Recommended)” and verify that “Removable Media” and
“Specify a location” are checked.

7

Browse to the location of the CD ROM if necessary and click
Next

3. Verify that “The updated software (Recommended) ” is checked.

Click Next to continue

4. Click Next to accept the default destination folder or click

Browse to select another folder.

8

Click Next

5. Click “Finish” to complete the installation.

Click Finish to complete the installation

6. Click Start > Settings > Control Panel > System > Device

Manager tab > click on the plus (+) sign to the left of Universal
Serial Bus controllers to verify that the drivers have been
installed correctly.

9

Click OK

Using MP3 Manager

Launch the MP3 Manager by choosing the MP3 Manager icon from the
desktop, Start menu or in the Program Manager. Then MP3 Manager
Main Screen appears as Figure 2.

* Please note: You must power on the DMP-110 and then connect to the
PC before launching the MP3 Manager program.

10

Figure 2: DMP-110 MP3 Manager Main Screen

MP3 File Management

• Download MP3 Files

Follow these steps to download your MP3 Files from PC to the DMP­110:

1. From Main Screen, please select the "MP3" tab and the memory

of the DMP -110.

2. Browse to the folder that you want to store the MP3 files in.

Select the target files from the right window on the Main Screen.

3. Please cli ck icon to download files to the DMP-110.

4. The progress window appears. Once the file exists on the DMP -

110, please rename the file to continue downloading or exit to
cancel.

• Delete MP3 Files

Follow these steps to delete MP3 files:

11

1. Select files to be deleted.

2. Please click icon to erase files.

• MP3 Files Index

Follow these steps to use the MP3 index.

1. Click or to move file up one track in the list.

2. Select the desired file from the window.

3. Click or to move file down one track.

4. All files are re -indexed.

Managing Voice Files

• Download DVR Files

Follow these steps to download DVR files from PC to the DMP-110:

1. From Main Screen, please select the "DVR" tab and the memo ry

of the DMP -110.

2. Search for and select the target folder. Select the target files from

the right window on Main Screen.

3. Please click icon to download files to the DMP-110.

4. The progress window appears.

• Uploading DVR Files

Follow these steps to save DVR files to PC:

1. Select the desired files from the Player.

2. Please click icon to upload files to your PC.

• Deleting DVR Files

Follow these steps to delete DVR files:

1. Select files to be deleted.

2. Please click icon to erase files.

12

• DVR File Index

Follow these steps to use the DVR File Index:

1. Select desired files from the DMP-110.

2. Click or to move up or down to the next track. All

files will be re-indexed.

Others

• Initialize Internal Memory

Click icon to re-format the internal memory.
Please Note: This will remove all the files from internal memory.

• Initialize External Memory

Click icon to re-format the external memory.

*Please Note: This will remove all the files from external memory.

• About

Click the icon to show you the copyright and version of this
manager. Click OK to close this window and return to the MP3
Manager main screen.

• Info

Click the icon to show you the product, manufacturer
information and memory status. Check here to make sure that you have
available memory before downloading files. Click OK to close this
window and return to the MP3 Manager Main Screen

13

3

8

10 11

LCD Display Overview

12

9

1. EQ Mode: Indicates Equalizer modes: Flat, Classic, Rock, Jazz

and H.Metal.

2. Battery Status: Flashes when the capacity of batteries is low.

3. Hold: Indicates when the Hold switch is enabled.

4. IN / EX Mode: Indicates whether internal memory or external

SmartMedia Card is selected.

5. Play / Pause: Play arrow or vertical Pause displays depending

on mode.

6. Displays the current information; file's track number, playback

time...etc.

7. Mode: Indicates play mode: Repeat/Repeat all/ Random/ Repeat

All.

8. Shows the current MP3 file's encoded bit-rate (kbps: kilo bits

per second).

9. Vol.: Indicates volume level.

10. A-B: Indicates if A-B select is selected.

11. Record: Will flash indicating download is in progress.

12. MP3/DVR: Indicates the player is in MP3 or DVR mode.

14

Voice Recording

Follow these steps to record Voice:

1. Make sure the LCD display shows Stop. Press Select button to

enter the DVR mode. The default memory is internal (In). Or
press the Select button again to use the external SmartMedia
Card.

2. Press Rec button until the LCD displays Record. The DMP-110

starts to record.

3. During recording, you may press Rec again to pause recording,

or again to continue recording on the same track.

4. Press the stop button to stop recording.

The DMP -110 will automatically generate a new track if one voice file
extends into internal and external flash memory. This will create two
separate tracks for the one voice file.

The LCD will display Mem FULL (Memory full) and stop recording once
the DMP -110 detects no free memory.

Voice File Playback Procedure

Follow these steps to playback Voice files:

1. Set the Player to DVR mode by pressing the Select button.

2. Press the Play button to playback the selected voice file.

3. During playback, you may press the play button again to pause

the DMP -110. Press the play button again to release the pause
function.

4. To stop the playback, please press the Stop button.

In DVR mode, the EQ button will not function.

Delete Voice files:

Follow these steps to del ete Voice files:

1. Set the DMP -110 to DVR mode by pressing Select button.

15

2. Press the FF or REW button to select the file.

3. Press the Erase button twice to delete the voice file.

4. The playback sequence of voice files will be re-index after the

file is erased.

The DMP -110 is able to delete a voice file during playback. The file
length must be at least 5 seconds.

Troubleshooting

DMP-110 cannot play back files:

The files may be corrupted. You must initialize internal memory. You can
initialize memory by doing the following procedure:

1. Make sure that the power in OFF.

2. Press and hold the EQ and ERASE buttons then press and hold

PLAY button at the same time, after 5 seconds the display
showing INIT that means memory has been initialized.

3. You should be now able to transfer and play MP3 files or record

and play voice files.

Unable to download MP3 files or connect to the PC.

• Please check the condition of the batteries first.

• If this doesn't work, re-attach the USB cable and reboot the

computer.

The DMP-110 does not work or the LCD display is blank.

• Check the batteries.

• Check the polarity (+,-) of the batteries.

The buttons are not functioning.

• Check if the Hold switch is down.

• While the Hold switch is down, the buttons will not work.

No sound when the play button is pressed.

• Check if the earphones are attached.

16

• Verify that MP3 files have been stored in the internal flash

memory or the external SmartMedia Card.

The file on the SmartMedia Card is not being recognized.

• Files stored on a SmartMedia card by an MP3 player other than

DMP-110 cannot be used is because the data format is
incompatible. (Using MP3 Manager, you can initialize the
SmartMedia Card and copy the file(s) again.)

DMP-110 powers OFF due to high static electricity.

• This may occur in very dry climates when first making contact

with the DMP-110. The DMP-110 is designed to shut down in
this situation to protect itself. To reset the DMP -110, press
PLAY to turn the DMP-110 back on and continue to use.

Memory

Internal Memory

If you are not able to download MP3 files into internal memory, please
check that the memory is valid and recognized by the DMP-110.

The "Total Size" listed in the "Info" window should be 32M or equal to
the amount of memory you have loaded in the DMP-110.

External Memory

If you are not able to download MP3 files into external memory, verify
that you are using a SmartMedia Card (SMC) which is 3.3V and
SmartMedia compliant. The DMP-110 is compatible with the following
SmartMedia Cards:

• Samsung 16MB/3.3V

• Samsung 32MB/3.3V

• Samsung 64MB/3.3V

• Kingston 16MB/3.3V

• Kingston 32MB/3.3V

• Kingston 64MB/3.3V

If you are uncertain, you may format internal memory (INT)and/or
external memory (EXT) in the MP3 Manager.

17

After formatting memory, you can download MP3 files to the DMP -110.
Please remove batteries from the DMP-110 when not using for a long
period in order to avoid any potential damage due to battery leakage.

Technical Support

D-Link welcomes all technical support inquiries about our product s.
However, D-Link manufactures products for the world market, and not
every country carries every D-Link product. This form is for contacting
technical support serving the United States. We may be unable to answer
questions about products which are not carried in the United States. If you
are a D-Link customer outside the United States and Canada, please visit
D-Link "International Offices" to receive in-country technical
support services.

D-Link Technical Support hours are 6 a.m to 6 p.m. (PST). We can be
reached by telephone at 949 -788-0805, by e-mail at

[email protected] , or with the form below.

If your product was purchased through D-Link Shop (www.d­linkshop.com) within 30 days or less, please visit D-Link Shop at

http://www.d-linkshop.com/store.cfm? a=cust. At D-

Link Shop, any questions you have regarding returns, shipping, or billing,
will be answered.

If you have had the product for more than 30 days, please fill-in the form
below with any technical or warranty questions you may have.

Please provide as much detailed information as possible. This will
minimize the number of e-mail communications betw een you and D­Link's Network Engineers and enable them to provide you with an
accurate and timely response.

18

Specifications

Memory Capacity Built -in 32 MB memory
Memory Slot SmartMedia Card slot
LCD Display TN-type, 37x25 (mm)
Signal to Noise Ratio: 90dB
Earphone Output 5 mWx2
Frequency Range 20Hz ~ 20KHz
Battery 2 x AAA
(Alkaline type recommended)
Dimensions 65 x 89 x 17 mm
Weight: 80g (Without batteries)

19

Offices

AUSTRALIA D-LINK AUSTRALASIA

Unit 16, 390 Eastern Valley Way, Roseville, NSW 2069, Australia
TEL: [phone] FAX: [phone]
TOLL FREE: 1800-177-100 (Australia), 0800- 900900 (New Zealand)
URL: www.dlink.com.au E-MAIL: [email protected] , [email protected]

CANADA D-LINK CANADA

2180 Winston Park Drive, Oakville, Ontario L6H 5W1 Canada
TEL: [phone] FAX: [phone] BBS: 1-965-279-8732 FREE CALL: 1-800-354-6522
URL: www.dlink.ca E-MAIL: [email protected]

CHILE D-LINK SOUTH AMERICA

Isidora Goyenechea #2934 of.702, Las Condes, Santiago, Chile
TEL: [phone] FAX: [phone] URL: www.dlink.cl
E-MAIL: [email protected], [email protected]
CHINA D-LINK CHINA
2F., Sigma Building, 49 Zhichun Road, Haidian District, 100080 Beijing, China
TEL: [phone] FAX: [phone]
URL: www.dlink.com.cn

DENMARK D-LINK DENMARK

Naverland 2, DK-2600 Glostrup, Copenhagen, Denmark
TEL:[phone] FAX:[phone] URL: www.dlink.dk
E-MAIL: [email protected]

EGYPT D-LINK MIDDLE EAST

7 Assem Ebn Sabet Street, Heliopolis Cairo, Egypt
TEL: [phone] FAX: [phone] URL: www.dlink-me.com
E-MAIL: [email protected], [email protected]

FRANCE D-LINK FRANCE

Le Florilege #2, Allee de la Fresnerie
78330 Fontenay Le Fleury France
TEL: [phone] FAX: [phone] URL: www.dlink-france.fr
E-MAIL: [email protected]

GERMANY D-LINK GERMANY

Bachstrae 22, D -65830 Kriftel Germany
TEL: 49 -(0)6192-97110 FAX: [phone]
URL: www.dlink.de BBS: 49-(0)6192-971199 (Analog) 49-(0)6192- 971198 (ISDN)
INFO LINE: 00800-7250- 0000 (toll free) HELP LINE: 00800-7250-4000 (toll free)
REPAIR LINE: 00800 -7250-8000 E-MAIL: [email protected], [email protected]

INDIA D-LINK INDIA

Plot No.5, Kurla -Bandra Complex Road,
Off Cst Road, Santacruz (E), Bombay - 400 098 India
TEL: [phone] FAX: [phone] URL: www.dlink-india.com
E-MAIL: [email protected]

ITALY D-LINK ITALIA

Via Nino Bonnet No. 6/b, 20154 Milano, Italy
TEL: [phone] FAX: [phone] URL: www.dlink.it
E-MAIL: [email protected]

JAPAN D-LINK JAPAN

10F, 8-8- 15 Nishi-Gotanda, Shinagawa-ku, Tokyo 141 Japan
TEL: [phone] FAX: [phone] URL: www.d-link.co.jp
E-MAIL: [email protected]

RUSSIA D-LINK RUSSIA

Michurinski Prospekt 49, 117607 Moscow, Russia
TEL: [phone] FAX: [phone]
E-MAIL: [email protected]

SINGAPORE D-LINK INTERNATIONAL

1 International Business Park, #03 -12 The Synergy, Singapore 609917
TEL: [phone] FAX: [phone]
URL: www.dlink-intl.com E- MAIL: [email protected]

S. AFRICA D-LINK SOUTH AFRICA

Unit 2, Parkside 86 Oak Avenue
Highveld Technopark Centurion, Gauteng, Republic of South Africa
TEL: [phone] FAX: [phone] CELL NO: 0826010806 (Bertus Moller)
CELL NO: 0826060013 (Attie Pienaar) E-MAIL: [email protected], [email protected]

SWEDEN D-LINK SWEDEN

P.O. Box 15036, S- 167 15 Bromma Sweden
TEL: 46 -(0)8564-61900 FAX: [phone] E-MAIL: [email protected]
URL: www.dlink.se

TAIWAN D-LINK TAIWAN

2F, No. 119 Pao-Chung Road, Hsin-Tien, Taipei, Taiwan, R.O.C.
TEL: [phone] FAX: [phone] URL: www.dlinktw.com.tw
E-MAIL: [email protected]

U.K. D-LINK EUROPE

4th Floor, Merit House, Edgware Road, Colindale, London, NW9 5AB, U.K.
TEL: [phone] FAX: [phone]
URL: www.dlink.co.uk E-MAIL: [email protected]

U.S.A. D-LINK U.S.A.

53 Discovery Drive, Irvine, CA 92618 USA
TEL: [phone] FAX: [phone] INFO LINE: 1-800-326-1688
BBS: 1-949- 455-1779, 1-949-455-9616
URL: www.dlink.com E-MAIL: [email protected], [email protected]

Registration Card

Print, type or use block letters.

Your name: Mr./Ms _____________________________________________________________________________
Organization: ________________________________________________ Dept. ____________________________
Your title at organization: ________________________________________________________________________
Telephone: _______________________________________ Fax:________________________________________
Organization's full address: ______________________________________________________________________
____________________________________________________________________________________________
Country: _____________________________________________________________________________________
Date of purchase (Month/Day/Year): _______________________________________________________________

Product Model Product Serial No. * Product installed in type of

computer (e.g., Compaq 486)

(* Applies to adapters only)

Product was purchased from:

Reseller's name: ______________________________________________________________________________
Telephone: _______________________________________ Fax:________________________________________
Reseller's full address: _________________________________________________________________________
_________________________________________________________________________
_________________________________________________________________________

Answers to the following questions help us to support your product:

1. Where and how will the product primarily be used?

oHome oOffice oTravel oCompany Business oHome Business o Personal Use

2. How many employees work at installation site?

o1 employee o2-9 o10-49 o50-99 o 100-499 o 500-999 o1000 or more

3. What network protocol(s) does your organization use ?

oXNS/IPX oTCP/IP oDECnet oOthers_____________________________

4. What network operating system(s) does your organization use ?

oD-Link LANsmart oNovell NetWare oNetWare Lite oSCO Unix/Xenix oPC NFS o3Com 3+Open
oBanyan Vines oDECnet Pathwork oWindows NT oWindows NTAS o Windows '95
oOthers__________________________________________

5. What network management program does your organization use ?

oD-View oHP OpenView/Windows oHP OpenView/Unix o SunNet Manager oNovell NMS
oNetView 6000 o Others________________________________________

6. What network medium/media does your organization use ?

oFiber-optics oThick coax Ethernet oThin coax Ethernet o10BASE-T UTP/STP
o100BASE-TX o 100BASE-T4 o 100VGAnyLAN oOthers_________________

7. What applications are used on your network?

oDesktop publishing oSpreadsheet oWord processing oCAD/CAM
oDatabase management oAccounting oOthers_____________________

8. What category best describes your company?

oAerospace o Engineering oEducation oFinance oHospital oLegal o Insurance/Real Estate
oManufacturing
oRetail/Chainstore/Wholesale o Government oTransportation/Utilities/Communication oVAR
oSystem house/company oOther________________________________

9. Would you recommend your D-Link product to a friend?

oYes oNo oDon't know yet

10.Your comments on this product?

____

* Product installed in

computer serial No.
