Page 1
DMC-G01LC
10/100/1000BASE-T to SFP
Media Converter
Version 1.00Version 1.00
Page 2
FCC Class A Certification
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with this user’s guide, may c ause har mful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user
will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.
VCCI Class A Compliance (Japan)
This is a product of VCCI Class A Compliance
2
Page 3
Introduction
Thank you for choosing the 10/100/1000BASE-T to SFP
Gigabit Ethernet Media Converter, The Converter introduced
here provides one channel media conversion between
10BASE-T, 100BASE-TX, 1000BASE-T and 100BASE-FX,
1000BASE-SX/LX/ZX through mini-GBIC module.
About Media Converter
The Media Converter is a network technology specified by
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX,
IEEE 802.3ab 1000BASE-T and IEEE 802.3z
1000BASE-SX/LX/ZX standards.
Product Features
Used as a stand-alone converter
Compliance with IEEE802.3 10BASE-T, IEEE802.3u
100TX/FX, IEEE802.3ab 1000BASE-T and IEEE802.3z
1000BASE-SX/LX/ZX
One-channel media conversion between
10/100/1000BASE-T and 100BASE-FX &
1000BASE-SX/LX/ZX SFP module
Extends network connection to various lengths depending
on SFP transceiver capability
Auto negotiation of speed and duplex mode on TX port
Auto MDI/MDI-X for TX port
Provides intelligent functions such as LLR (Link Loss
Return) and LLCF (Link Loss Carry Forward)
Front panel status LEDs
3
Page 4
Installation
This chapter gives step-by-step installation instructions for
the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment
where it will not be subjected to extreme temperatures,
humidity, or electromagnetic interference. Specifically, the
site you select should meet the following requirements:
1. The ambient temperature should be between 32 and
122 degrees Fahrenheit (0 to 50 degrees Celsius).
2. The relative humidity should be less than 90 percent,
non-condensing.
3. Surrounding electrical devices should not exceed the
electromagnetic field (RFC) standards for IEC 801-3,
Level 2 (3V/M) field strength.
4. Make sure that the equipment receives adequate
ventilation. Do not block the ventilation holes on each
side of the switch or the fan exhaust port on the side
or rear of the equipment.
5. The power outlet should be within 1.8 meters of the
switch.
Connecting to Power
1. This Converter is a plug-and-play device.
2. Connect the supplied AC to DC power adaptor with a
power voltage of 5VDC/1A to the DC-Jack on the
converter, and then attach the plug into a standard AC
outlet.
4
Page 5
LED Indicators
The LED indicators give you instant feedback on status of the conver ter :
LED Color Status Description
Light on Power On
Power
(per system)
Green
Light off Power Off
Light on Connection (or link) at 1000Mbps
Green
Blinking
Reception or transmission at
1000Mbps
Light on Connection (or link) at 10/100Mbps
Link/Act/ Speed
(10/100/1000Mbps
port)
Amber
Blinking
Reception or transmission at
10/100Mbps
Light on Connection (or link) at 1000Mbps
Green
Blinking
Reception or transmission at
1000Mbps
Light on Connection (or link) at 100Mbps
Link/Act/ Speed
(Fiber port)
Amber
Blinking
Reception or transmission at
100Mbps

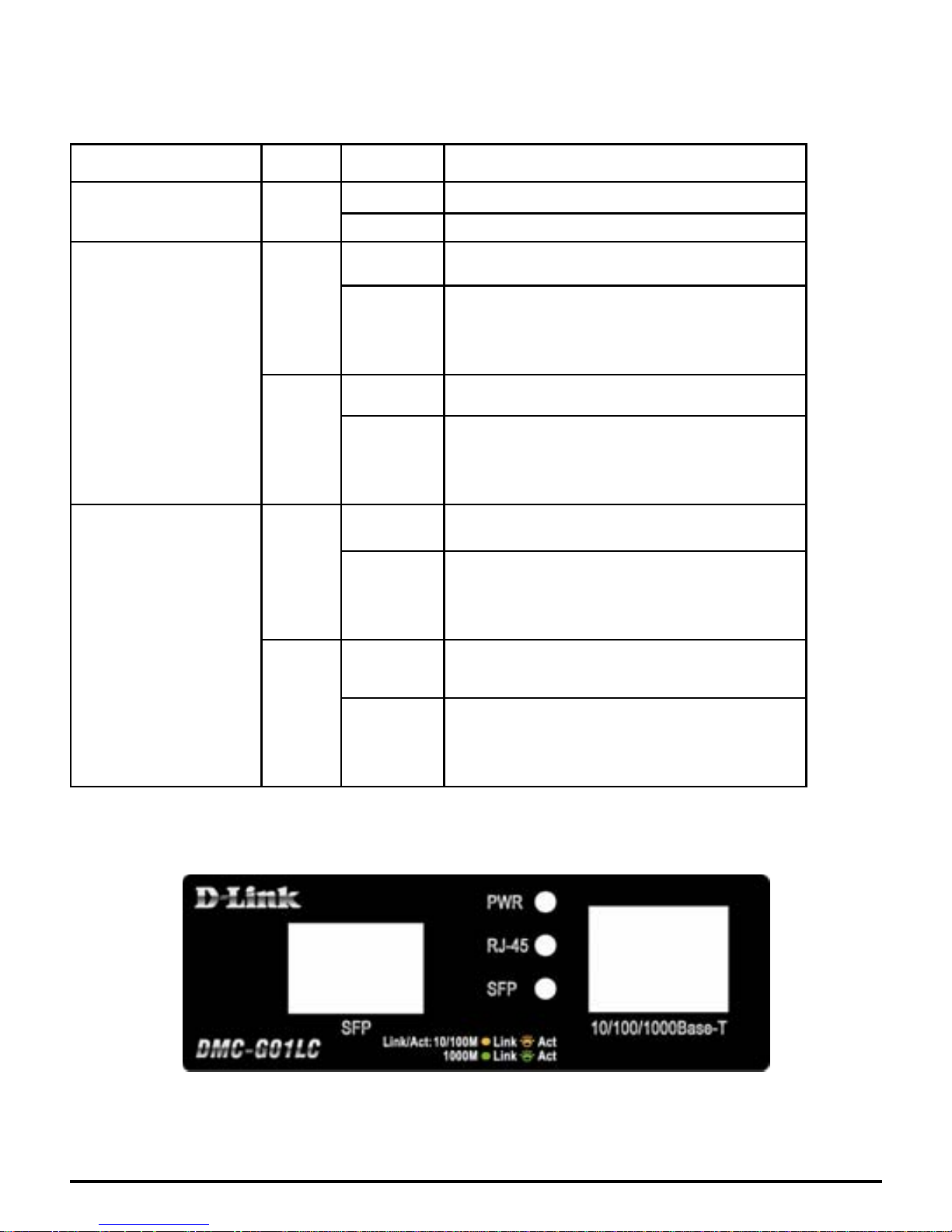

Refer to figure 1 to check the LED location on the front panel.
figure 1
5
Page 6
Specifications
Standards: IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-SX/LX/ZX
Data Transfer Rate: 10/20Mbps, 100/200Mbps, 2000Mbps
Duplex Mode: Half/Full Duplex Mode
LED indicators: PWR, RJ-45, SFP
Supported SFP
Transceivers
DGS-712: 1000BASE-T Copper SFP
Transceiver
DEM-310GT:(1000Base-LX, Single-mode,
10km)
DEM-311GT:(1000ase-SX, Mutli-mode,
550m)
DEM-312GT2:(1000Base-SX, Multi-mode,
2km)
DEM-314GT:(1000BASE-LHX,
Single-mode, 50km)
DEM-315GT:(1000BASE-ZX, Single-mode,
80km)
DEM-330T/R:(Gig abit WDM tr ansceiver,
Single-Mode 10km)
DEM-331T/R:(Gig abit WDM tr ansceiver,
Single-Mode 40km)
DEM-211:(100Base-FX, Multi-mode, 2km)
DEM-210:(100Base-FX, Single-mode,
15km)
DEM-220T:(100Base-BX WDM
transceiver, Single-mode, 20km)
DEM-220R (100Base-BX WDM
transceiver, Single-mode, 20km)
Dimensions L95 × W70 × H25 mm
Power 5V/1A
Media Interface: RJ-45, mini-GBIC
Temperture:
Storage: -10C ~ 70C
Operating: 0C ~ 50C
6
Page 7
Humidity: 10% ~90% non-condensing
Power Consumption: 3.46 Watts (maximum)
EMI Compatiblity: FCC part 15 Class A
CE Certification, Class A
VCCI Class A
Safety Compatiblity: UL/cUL/LVD
7
Page 8
Ver. 1.00(WW)
2012/05/07
29071600DG01LC0
