D-Link DIR-850L User Manual

Download

Version 1.0 | April 19, 2013

User Manual

Wireless AC1200

Dual Band Cloud Router

DIR-850L

Preface

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

Manual Revisions

Revision Date Description

1.0 April 19, 2013 • Initial release for Revision A1

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.

iD-Link DIR-850L User Manual

Table of Contents

Preface ................................................................................. i

Manual Revisions ........................................................................... i

Trademarks ...................................................................................... i

Product Overview .............................................................. 1

Package Contents .........................................................................1

System Requirements ................................................................. 2

Introduction ................................................................................... 3

Hardware Overview ..................................................................... 4

Connections ........................................................................... 4

LEDs ........................................................................................... 5

Installation ......................................................................... 6

Before you Begin ...........................................................................6

Wireless Installation Considerations ......................................7

Connect to your Network .......................................................... 8

Connect to an Existing Router ...............................................11

Conguration ................................................................... 13

Quick Setup Wizard ....................................................................14

QRS Mobile App ..........................................................................21

SharePort Mobile App ..............................................................22

Web-based Conguration Utility ..........................................26

Internet Connection Setup .............................................27

Static (assigned by ISP) ................................................28

Dynamic (Cable) .............................................................29

PPPoE (DSL) ......................................................................30

PPTP ....................................................................................31

L2TP ....................................................................................33

DS-Lite ...............................................................................35

Internet Connection Setup Wizard .......................................36

Wireless Settings .................................................................41

Wireless Connection Setup Wizard..........................42

Add Wireless Device with WPS Wizard ...................44

Manual Wireless Settings ............................................46

802.11n/g (2.4GHz) ..................................................46

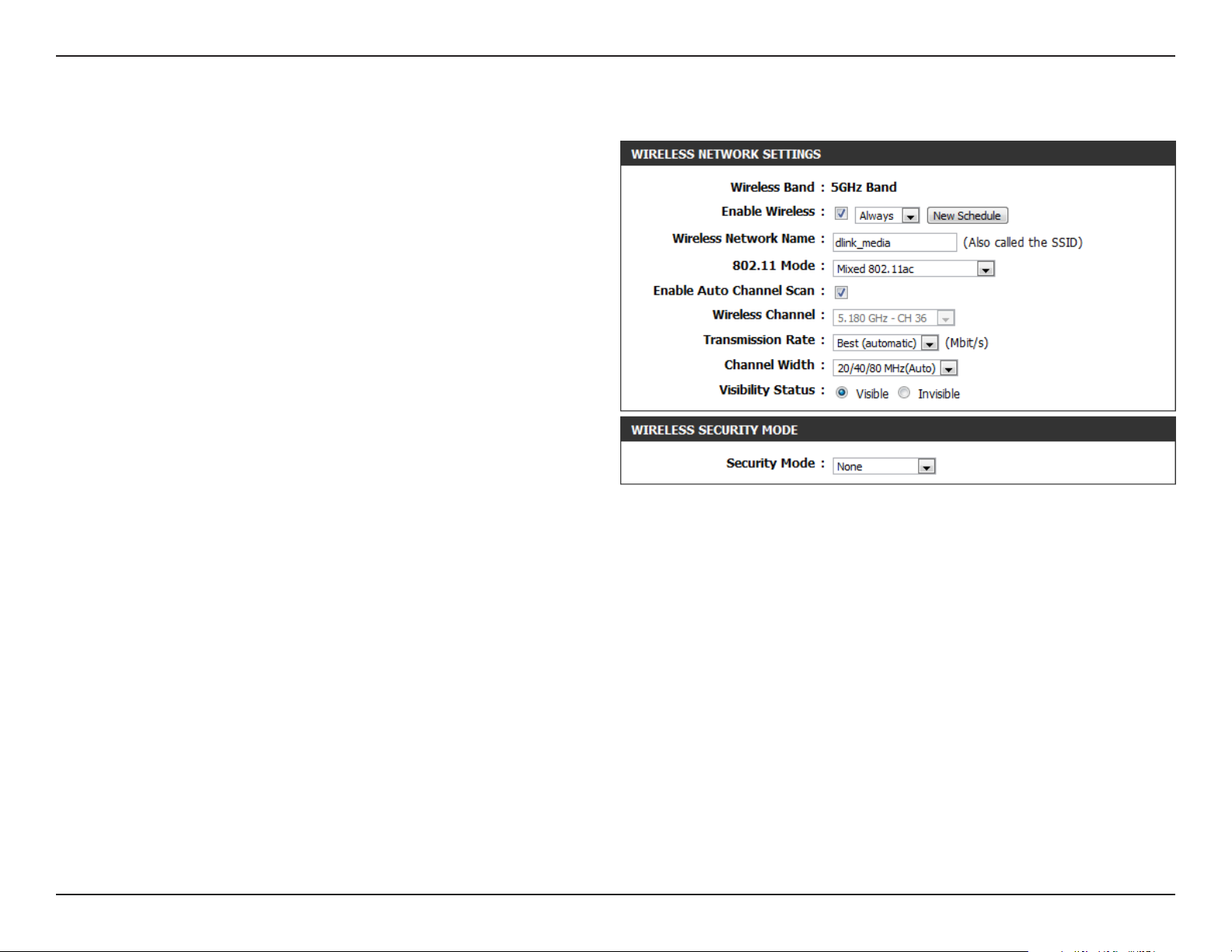

802.11ac/n/a (5GHz) ...............................................47

Wireless Security .................................................................48

What is WPA? ...................................................................48

WPA/WPA2-Personal (PSK) .........................................49

Congure WPA/WPA2-Enterprise (RADIUS)..........50

Network Settings ................................................................52

Router Settings ...............................................................52

DHCP Server Settings ................................................... 53

DHCP Reservation .........................................................55

Storage ...................................................................................56

Access Files from the Internet ...................................57

IPv6 ..........................................................................................58

IPv6 Internet Connection Setup Wizard ................60

IPv6 Manual Setup.........................................................65

Auto Detection .........................................................65

Static IPv6 ...................................................................66

Autoconguration ...................................................67

iiD-Link DIR-850L User Manual

Table of Contents

PPPoE............................................................................68

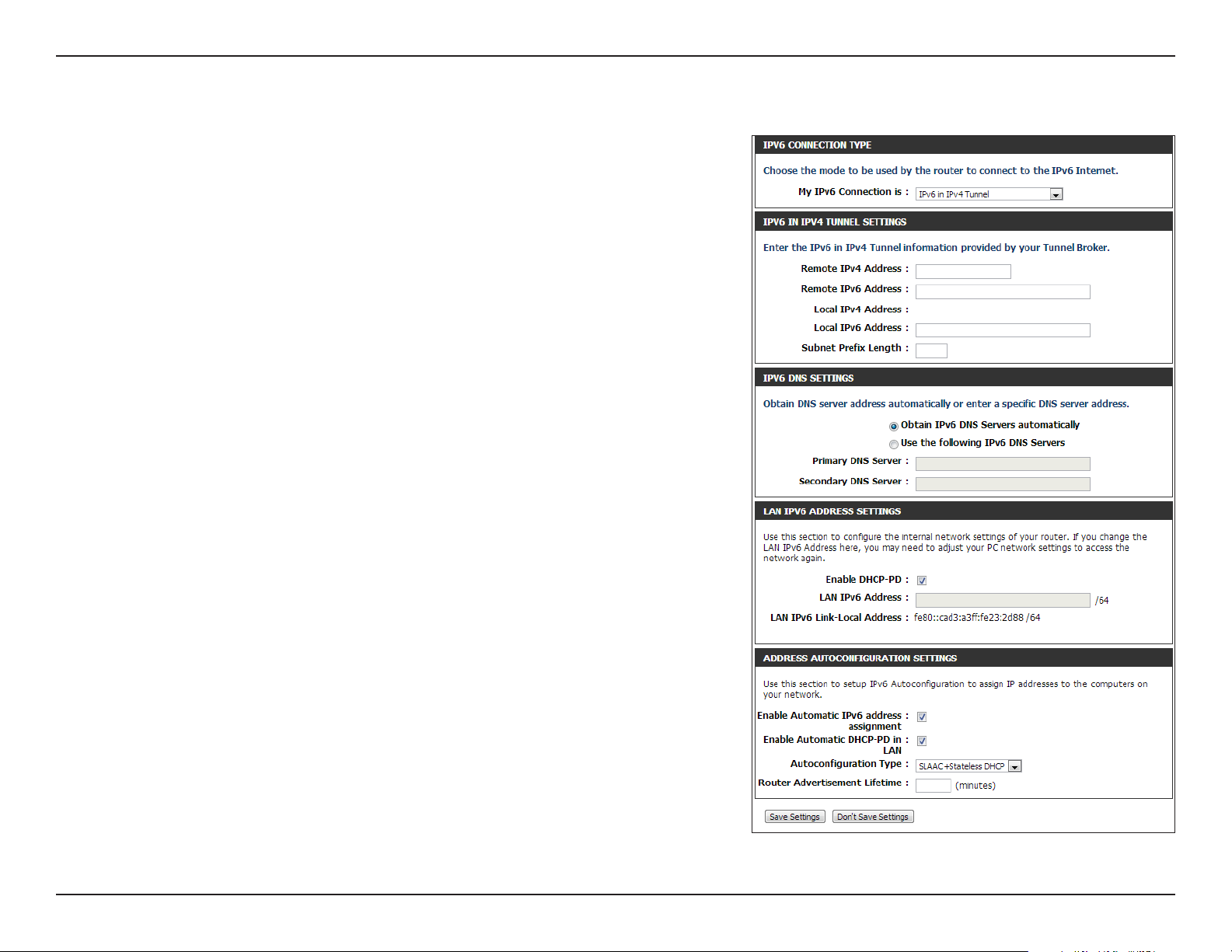

IPv6 in IPv4 Tunneling ............................................ 70

6 to 4 Tunneling ........................................................ 71

6rd .................................................................................72

Local Connectivity ...................................................73

mydlink Settings .................................................................74

Advanced ...............................................................................75

Virtual Server ................................................................... 75

Port Forwarding .............................................................76

Application Rules ...........................................................77

QoS Engine .......................................................................78

Network Filters ................................................................80

Access Control .................................................................81

Access Control Wizard ............................................81

Website Filters .................................................................84

Inbound Filters ................................................................85

Firewall Settings .............................................................86

SysLog ................................................................................98

Email Settings..................................................................99

System ............................................................................ 100

Firmware ........................................................................ 101

Language Pack Upgrade .......................................... 101

Dynamic DNS ............................................................... 102

System Check ............................................................... 104

Schedules ...................................................................... 105

Status ................................................................................... 106

Device Info .................................................................... 106

Logs..................................................................................107

Statistics ......................................................................... 108

Internet Sessions ......................................................... 109

Wireless...........................................................................110

Routing ........................................................................... 111

IPv6 .................................................................................. 112

IPV6 Routing ................................................................. 113

Routing ..............................................................................88

Advanced Wireless ........................................................89

Wi-Fi Protected Setup (WPS) .....................................90

WPS Button ................................................................91

Advanced Network Settings ......................................92

Guest Zone .......................................................................93

IPv6 Firewall .....................................................................94

IPv6 Routing ....................................................................95

Tools ........................................................................................96

Admin.................................................................................96

Time ....................................................................................97

Support ............................................................................... 114

Connect a Wireless Client to your Router ....................115

WPS Button ................................................................................ 115

Windows® 8 ................................................................................116

Windows® 7 ................................................................................118

WPA/WPA2 .........................................................................118

WPS ....................................................................................... 121

Windows Vista® .........................................................................125

WPA/WPA2 .........................................................................126

WPS/WCN 2.0 .................................................................... 128

iiiD-Link DIR-850L User Manual

Table of Contents

Windows® XP .............................................................................129

WPA/WPA2 .........................................................................130

Troubleshooting ............................................................132

Reset Router/Forgot Password ........................................... 133

Wireless Basics ...............................................................136

What is Wireless? ...................................................................... 137

Tips ................................................................................................ 139

Wireless Modes .........................................................................140

Networking Basics .........................................................141

Check your IP address ............................................................ 141

Windows® 8 Users ............................................................ 141

Windows® 7/Vista® Users............................................... 141

Windows® XP Users ......................................................... 141

Statically Assign an IP Address ...........................................142

Windows® 8 Users ............................................................ 142

Windows® 7/ Vista® Users .............................................. 143

Windows® XP Users ......................................................... 144

Technical Specications ................................................145

Contacting Technical Support ......................................151

GPL Code Statement......................................................152

Warranty ......................................................................... 164

Registration ...................................................................171

ivD-Link DIR-850L User Manual

Section 1 - Product Overview

DIR-850L Wireless AC1200 Dual Band Cloud Router

Ethernet Cable

Power Adapter

Product Overview

Package Contents

Wi-Fi Conguration Card

Quick Install Guide

If any of the above items are missing, please contact your reseller.

Note: Using a power supply with a dierent voltage rating than the one included with the DIR-850L will cause damage and void the warranty for this product.

1D-Link DIR-850L User Manual

Section 1 - Product Overview

Network Requirements • An Ethernet-based broadband modem

Web-based Conguration

Utility Requirements

System Requirements

Computer with the following:

• Windows®, Macintosh, or Linux-based operating system

• An installed Ethernet adapter or wireless adapter

Supported Browsers:

• Internet Explorer 7 or higher

• Firefox

• Safari 4 or higher

• Chrome

Windows® Users: Make sure you have the latest version of Java installed. Visit www.java.com to download the latest version.

mydlink Requirements

• iPhone/iPad/iPod Touch (iOS 3.0 or higher)

• Android device (1.6 or higher)

• Computer with the following browser requirements:

• Internet Explorer 7 or higher

• Firefox

• Safari 5 or higher

• Chrome

iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.

2D-Link DIR-850L User Manual

Section 1 - Product Overview

Introduction

The D-Link® DIR-850L Wireless AC1200 Dual Band Cloud Router provides revolutionary Gigabit 802.11ac wireless speed - up to 1200Mbps – for awless HD video streaming to multiple devices.

With ground-breaking mydlink Cloud Services, you can monitor your home network from anywhere on your iPhone, iPad, and Android device. See websites that are being visited, block unwanted devices and receive automatic email alerts when unauthorized connections are attempted.

With SharePort Mobile, wirelessly access your media on your iPhone, iPad or Android device from any connected USB drive. Best of all, the apps for network management and le access are free.

* Maximum wireless signal rate derived from IEEE Standard 802.11ac (draft), 802.11a, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range.

3D-Link DIR-850L User Manual

Section 1 - Product Overview

Hardware Overview

Connections

1 USB Port Connect a USB ash drive to share content throughout your network.

2 WPS Button Press to start the WPS process. The Power LED will blink during this process.

3 LAN Ports (1-4) Connect 10/100/1000 Ethernet devices such as computers, switches, storage (NAS) devices, and game consoles.

4 Internet Port Using an Ethernet cable, connect your broadband modem to this port.

5 Power Button Press the power button to power on and o.

6 Power Receptor Receptor for the supplied power adapter.

7 Reset Button Press and hold until the Power LED turns orange to reset the device back to the default factory settings.

4D-Link DIR-850L User Manual

Section 1 - Product Overview

Hardware Overview

LEDs

1 Power LED

2 Internet LED

A solid green light indicates a proper connection to the power supply. The light will be solid orange during boot-up and will blink green during the WPS process.

A solid light indicates a connection to the Internet port. If the LED is orange, the connection is good but the router cannot connect to the Internet. If this LED is blinking orange, this indicates that the “on demand” connection type is set and the Internet connection is idle.

5D-Link DIR-850L User Manual

Section 2 - Installation

Installation

This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in the attic or garage.

Before you Begin

• Please congure the router with the computer that was last connected directly to your modem.

• Users with DSL providers - If you are using a PPPoE connection, you will need your PPPoE user name and password. If you do not have this information, contact your Internet provider. Do not proceed until you have this information.

• Users with Cable providers - Make sure you unplug the power to your modem. In some cases, you may need to turn it o for up to 5 minutes.

• Advanced Users - If your ISP provided you with a modem/router combo, you will need to set it to “bridge” mode so the DIR-850L router can work properly. Please contact your ISP or refer to the user manual for your modem/router device.

6D-Link DIR-850L User Manual

Section 2 - Installation

Wireless Installation Considerations

The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.

7D-Link DIR-850L User Manual

Section 2 - Installation

Connect to your Network

1. Turn o and unplug your DSL or Cable modem. This is required.

Modem

2. Connect an Ethernet cable from the Internet port of the router to the Ethernet port on your DSL or Cable modem.

Ethernet Port

Modem

Ethernet Cable

DIR-850L

USB

WPS

LAN

INTERNET

POWER

12V

Internet Port (yellow)

8D-Link DIR-850L User Manual

Section 2 - Installation

12V

USB

WPS

LAN

INTERNET

POWER

3. Connect another Ethernet cable from the Ethernet port on your computer to one of the LAN ports on the router.

Ethernet Cable

Computer

DIR-850L

4. Plug the power back into your DSL or Cable modem. Please wait about one minute before continuing.

Computer

Modem

USB

WPS

LAN

INTERNET

POWER

12V

DIR-850L

9D-Link DIR-850L User Manual

Section 2 - Installation

5. Plug the power adapter into your router and connect to an available power outlet or surge protector. If the Power LED does not light up, press the Power button on the back of the router.

USB

WPS

LAN

INTERNET

POWER

12V

Power Button

Computer

Modem

DIR-850L

6. After the router has powered up, verify that the power (green) and Internet (orange or green) LEDs are both lit. Please skip to page 13 to congure your router and use the manual setup procedure to congure your network and wireless settings. If you did not connect to the Internet, use the D-Link Setup Wizard (refer to page 14).

10D-Link DIR-850L User Manual

Section 2 - Installation

Connect to an Existing Router

Note: It is strongly recommended to replace your existing router with the DIR-850L instead of using both. If your modem is a combo router, you may want to contact your ISP or manufacturer’s user guide to put the router into Bridge mode, which will ‘turn o’ the router (NAT) functions.

If you are connecting the DIR-850L router to an existing router to use as a wireless access point and/or switch, you will have to do the following to the DIR-850L before connecting it to your network:

• Disable UPnP

• Disable DHCP

• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept a DHCP address from your other router.

To connect to another router, please follow the steps below:

1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics section for more information. If you need to change the settings, write down your existing settings before making any changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have to do anything to your computer.

2. Open a web browser, enter http://192.168.0.1 (or http://dlinkrouter.local./) and press Enter. When the login window appears, set the user name to Admin and leave the password box empty. Click Log In to continue.

3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.

™

4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server checkbox. Click Save Settings to continue.

11D-Link DIR-850L User Manual

Section 2 - Installation

5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your settings. Use this new IP address to access the conguration utility of the router in the future. Close the browser and change your computer’s IP settings back to the original values as in Step 1.

6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.

7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything into the Internet (WAN) port of the D-Link router.

8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless network, open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security sections for more information on setting up your wireless network.

12D-Link DIR-850L User Manual

Section 2 - Installation

Conguration

There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:

• QRS Mobile App - Use your iPhone, iPad, or Android device to congure your router. Refer to page 21

• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page 14.

• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to page 27.

13D-Link DIR-850L User Manual

Section 3 - Conguration

Quick Setup Wizard

If this is your rst time installing the router, launch your web browser (e.g., Internet Explorer), and you will automatically be directed to the Wizard Setup Screen.

If you have already congured your settings and you would like to access the conguration utility, please refer to page 26.

If this is your rst time logging into the router, this wizard will start automatically.

This wizard is designed to guide you through a step-by-step process to congure your new D-Link router and connect to the Internet.

Click Next to continue.

Please wait while your router detects your internet connection type. If the router detects your Internet connection, you may need to enter your ISP information such as username and password (PPPoE).

14D-Link DIR-850L User Manual

Section 3 - Conguration

If the router does not detect a valid Ethernet connection from the Internet port, this screen will appear. Connect your broadband modem to the Internet port and then click Next.

If the router detects an Ethernet connection but does not detect the type of Internet connection you have, this screen will appear. Click Guide me through the Internet Connection Settings to display a list of connection types to choose from.

Select your Internet connection type. You can select DHCP Connection (Dynamic IP Address) if your Internet connection automatically provides you with an IP Address. This option is commonly used for cable modem services. Click Next to continue.

15D-Link DIR-850L User Manual

Section 3 - Conguration

If the router detected or you selected PPPoE, enter your PPPoE username and password and click Next to continue.

Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.

If the router detected or you selected PPTP, enter your PPTP username, password, and other information supplied by your ISP. Click Next to continue.

If the router detected or you selected L2TP, enter your L2TP username, password, and other information supplied by your ISP. Click Next to continue.

16D-Link DIR-850L User Manual

Section 3 - Conguration

If the router detected or you selected Static, enter the IP and DNS settings supplied by your ISP. Click Next to continue.

For both the 2.4GHz and 5GHz segments, create a wireless network name (SSID) using up to 32 characters.

Create a wireless security passphrase or key (between 8-63 characters). Your wireless clients will need to have this passphrase or key entered to be able to connect to your wireless network.

Click Next to continue.

In order to secure your router, please enter a new password. Check the Enable Graphical Authentication box to enable CAPTCHA authentication for added security. Click Next to continue.

17D-Link DIR-850L User Manual

Section 3 - Conguration

Select your time zone from the drop-down menu and click Next to continue.

The Conrm Wi-Fi Settings window will display your wireless settings. Click Save to continue.

If you want to create a bookmark to the router, click OK. Click Cancel if you do not want to create a bookmark.

If you clicked Yes, a window may appear (depending on what web browser you are using) to create a bookmark.

18D-Link DIR-850L User Manual

Section 3 - Conguration

To use the mydlink service (mydlink.com or the mydlink Lite app), you must have an account. Select if you do have a mydlink account or if you need to create one. Click Next to continue.

If you do not want to register at this time, click Cancel.

If you clicked Yes, I have a mydlink account enter your mydlink account name (E-mail address) and password. Click Login to register your router.

If you clicked No, I want to register and login with a new mydlink account ll out the requested information and click Next to create your mydlink account. This is a free service. Refer to www.mydlink.com for more information.

19D-Link DIR-850L User Manual

Section 3 - Conguration

The mydlink App will allow you to receive notices, browse network users, and congure your router from an iPhone/iPad/iPod Touch (iOS 3.0 or higher), or Android device (1.6 or higher).

To download the "mydlink lite" app, visit the Apple Store, Google Play or http://mydlink.com/Lite.

PC and Mac users can use the mydlink portal at http://mydlink.com.

20D-Link DIR-850L User Manual

Section 3 - Conguration

QRS Mobile App

D-Link oers an app for your iPad, iPhone (iOS 4.3 or higher) or Android device to install and congure your router.

Step 1

From your iOS device, go to App Store, or from your Android device, go to Google Play and search for ‘D-Link’. Select QRS Mobile and then download it.

You may also scan this code to download.

iOS Android

Step 2

Once your app is installed, you may now congure your router. Connect to the router wirelessly by going to your wireless utility on your device. Scan for the wireless network name (SSID) as listed on the supplied info card. Select and then enter your security password (Wi-Fi Password).

Step 3

Once you connect to the router, launch the QRS mobile app and it will guide you through the installation of your router.

Wi-Fi Name(SSID) 2.4Ghz: dlink-2c19 Wi-Fi Name(SSID) 5GHz: dlink-2C1B-media Password:gccnu80856

21D-Link DIR-850L User Manual

Section 3 - Conguration

SharePort Mobile App

The SharePort Mobile app will allow you to access les from a USB thumb drive that is plugged into your router. You must enable le sharing from the Setup > Storage page (refer to page 51) for this app to work properly.

1. Insert your USB ash drive into DIR-850L.

2. Scan the bar code to download the SharePort Mobile app from the app store to your iPhone, iPad, or Android device.

3. From your iOS mobile device, click Settings.

iOS

Android

Settings

22D-Link DIR-850L User Manual

Section 3 - Conguration

4. Click Wi-Fi, select the wireless network (SSID) that you created in the setup and then enter your Wi-Fi password.

5. Once connected, click on the SharePort Mobile icon.

6. The following screen will appear.

23D-Link DIR-850L User Manual

Section 3 - Conguration

7. Click on Settings icon located on the right top corner of the screen. Click Edit to enter your User Name and Password. Once you nish, click Done

to continue.

8. For the Movie section, click the movie icon to play your movie from your USB ash drive.

9. For the Music section, click the music icon to play your music from your USB ash drive.

24D-Link DIR-850L User Manual

Section 3 - Conguration

10. For the Photo section, click the photo icon to view your photos from

your USB ash drive.

11. For the Files section, click on the les icon to view your les from your

USB ash drive.

12. For the Folder section, click the folder icon to view your folders

from your USB ash drive.

25D-Link DIR-850L User Manual

Section 3 - Conguration

Web-based Conguration Utility

Open a web browser (e.g., Internet Explorer, Chrome, Firefox , or Safari) and enter http://dlinkrouter.local./ or http://192.168.0.1.

Enter your password and click Login.

Note: If you did not create a password with the Setup Wizard, leave the password blank by default.

26D-Link DIR-850L User Manual

Section 3 - Conguration

Internet Connection Setup

If you want to congure your router to connect to the Internet using the wizard, click Internet Connection Setup Wizard. Refer to page 36.

If you consider yourself an advanced user, click Manual Internet Connection Setup to configure your connection manually. (Instructions for manual setup begin below.)

The next few pages will explain each of the ISP connection types. You can select the type from the My Internet Connection is drop-down menu.

27D-Link DIR-850L User Manual

Section 3 - Conguration

Manual Internet Setup

Static (assigned by ISP)

Select Static IP if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.

My Internet Connection:

IP Address:

Subnet Mask:

Default Gateway:

DNS Servers:

MTU:

MAC Address:

Select Static IP to manually enter the IP settings supplied by your ISP.

Enter the IP address assigned by your ISP.

Enter the Subnet Mask assigned by your ISP.

Enter the Gateway assigned by your ISP.

The DNS server information will be supplied by your ISP (Internet Service Provider.)

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default MTU.

The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.

28D-Link DIR-850L User Manual

Section 3 - Conguration

Internet Setup

Dynamic (Cable)

My Internet

Connection:

Host Name:

Use Unicasting:

Primary/Secondary

DNS Server:

MTU:

MAC Address:

Select Dynamic IP (DHCP) to obtain IP Address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for cable modem services.

The Host Name is optional but may be required by some ISPs. Leave blank if you are not sure.

Check the box if you are having problems obtaining an IP address from your ISP.

Enter the Primary and secondary DNS server IP addresses assigned by your ISP. These addresses are usually obtained automatically from your ISP. Leave blank if you did not specically receive these from your ISP.

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default MTU.

29D-Link DIR-850L User Manual

Section 3 - Conguration

Internet Setup

PPPoE (DSL)

Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.

My Internet

Connection:

Address Mode:

IP Address:

User Name:

Password:

Service Name:

Reconnect

Mode:

Maximum Idle

Time:

Select PPPoE (Username/Password) from the drop-down menu.

Select Static IP if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the IP address (Static PPPoE only).

Enter your PPPoE user name.

Enter your PPPoE password and then retype the password in the next box.

Enter the ISP Service Name (optional).

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Autoreconnect.

DNS Mode:

MTU:

MAC Address:

Select Receive DNS from ISP to automatically use your ISP’s DNS servers or select Enter DNS Manually and enter the Primary and Secondary DNS Server Addresses of your choice.

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default MTU.

30D-Link DIR-850L User Manual

Section 3 - Conguration

Internet Setup

PPTP

Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.

My Internet

Connection:

Address Mode:

PPTP IP Address:

PPTP Subnet

Mask:

PPTP Gateway IP

Address:

PPTP Server IP

Address:

Username:

Password:

Select PPTP (Username/Password) from the drop-down menu.

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the IP address (Static PPTP only).

Enter the Primary and Secondary DNS Server Addresses (Static PPTP only).

Enter the Gateway IP Address provided by your ISP.

Enter the Server IP provided by your ISP (optional).

Enter your PPTP username.

Enter your PPTP password and then retype the password in the next box.

Reconnect

Mode:

Maximum Idle

Time:

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

31D-Link DIR-850L User Manual

Section 3 - Conguration

DNS Servers:

MTU:

MAC Address:

The DNS server information will be supplied by your ISP (Internet Service Provider.)

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default MTU.

32D-Link DIR-850L User Manual

Section 3 - Conguration

Internet Setup

L2TP

Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.

My Internet

Connection:

Address Mode:

L2TP IP Address:

L2TP Subnet

Mask:

L2TP Gateway IP

Address:

L2TP Server IP

Address:

Username:

Password:

Select L2TP (Username/Password) from the drop-down menu.

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the L2TP IP address supplied by your ISP (Static only).

Enter the Subnet Mask supplied by your ISP (Static only).

Enter the Gateway IP Address provided by your ISP.

Enter the Server IP provided by your ISP (optional).

Enter your L2TP username.

Enter your L2TP password and then retype the password in the next box.

Reconnect

Mode:

Maximum Idle

Time:

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

33D-Link DIR-850L User Manual

Section 3 - Conguration

DNS Servers:

MTU:

MAC Address:

Enter the Primary and Secondary DNS Server Addresses (Static L2TP only).

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default MTU.

34D-Link DIR-850L User Manual

Section 3 - Conguration

Internet Setup

DS-Lite

DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following parameters will be available for conguration:

My Internet

Connection is:

DS-Lite

Conguration:

AFTR IPv6

Address:

B4 IPv4 Address: Enter the B4 IPv4 address value used here (optional).

WAN IPv6

Address:

IPv6 WAN

Default Gateway

Select DS-Lite from the drop-down menu.

Select the DS-Lite DHCPv6 Option to let the router allocate the AFTR IPv6 address automatically. Select the Manual Configuration option to enter the AFTR IPv6 address in manually.

After selecting the Manual Configuration option above, enter the AFTR IPv6 address used here.

Once connected, the WAN IPv6 address will be displayed here.

Once connected, the IPv6 WAN Default Gateway address will be displayed here.

35D-Link DIR-850L User Manual

Section 3 - Conguration

Internet Connection Setup Wizard

If you did not initially choose to install your router with the

Quick Setup Wizard, you can click on Internet Connection Setup Wizard from the Setup > Internet screen.

This wizard is designed to guide you through a step-by-step process to congure your new D-Link router and connect to the Internet.

Click Next to continue.

36D-Link DIR-850L User Manual

Section 3 - Conguration

In order to secure your router, enter a new password. Click Next to continue.

Select your time zone from the drop-down menu and click Next to continue.

37D-Link DIR-850L User Manual

Section 3 - Conguration

If you selected DHCP Connection (Dynamic IP Address) you can click on Clone Your PC’s MAC Address to copy your computer’s MAC address to your router. Click Next to continue.

If you selected PPPoE, enter your PPPoE username and password and click Next to continue.

Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.

38D-Link DIR-850L User Manual

Section 3 - Conguration

If you selected PPTP, enter your PPTP username, password, and other information supplied by your ISP. Click Next to continue.

If you selected L2TP, enter your L2TP username, password, and other information supplied by your ISP. Click Next to continue.

39D-Link DIR-850L User Manual

Section 3 - Conguration

If you selected Static, enter the IP and DNS settings supplied by your ISP. Click Next to continue.

When the setup process is completed, you will see this screen. Click on Connect to save your settings.

40D-Link DIR-850L User Manual

Section 3 - Conguration

Wireless Settings

If you want to congure the wireless settings on your router using the wizard, click Wireless Connection Setup Wizard and refer to the next page.

Click Add Wireless Device with WPS if you want to add a wireless device using Wi-Fi Protected Setup (WPS) and refer to page 44.

If you want to manually congure the wireless settings on your router click Manual Wireless Connection Setup and refer to page 46.

41D-Link DIR-850L User Manual

Section 4 - Security

Wireless Connection Setup Wizard

To run the security wizard, click on Setup > Wireless Settings. Click on the Wireless Connection Setup Wizard button.

Enter a name for your wireless network (SSID), one for the 2.4GHz frequency and another for the 5GHz frequency. Do not use personal information as your SSID since users with wireless devices within range of your router will be able to see this information.

Then select one of the following options:

Automatically: Select this option to automatically generate the router’s network key and click Next.

Manually: Select this option to manually enter your network key and click Next.

42D-Link DIR-850L User Manual

Section 4 - Security

If you selected Automatically, the summary window will display your settings. Write down the security key and enter this on your wireless clients. Click Save to save your settings.

If you selected Manually, the following screen will appear.

Create a passphrase for your Wireless Security Password. Click Next to continue.

Note: The security password/passphrase must be between 8 and 63 characters and is case-sensitive. You will need to enter this passphrase on your wireless clients exactly or it will not connect.

43D-Link DIR-850L User Manual

Section 4 - Security

Add Wireless Device with WPS Wizard

From the Setup > Wireless Settings screen, click Add Wireless Device with WPS.

Select Auto to add a wireless client using WPS (Wi-Fi Protected Setup) and then click Next. Skip to the next page.

If you select Manual, a settings summary screen will appear. Write down the security key and enter this on your wireless clients. Click Wireless Status to nish. This will take you to the Wireless Status screen.

44D-Link DIR-850L User Manual

Section 4 - Security

PIN: Select this option to use PIN method. In order to use this method you must know the wireless client’s 8 digit PIN and click

Connect.

PBC: Select this option to use PBC (Push Button) method to add a

wireless client. Click Connect.

Once you click Connect, you will have a 120 second time limit to apply the settings to your wireless client(s) and successfully establish a connection.

Click Wireless Status to nish. This will take you to Wireless Status screen.

45D-Link DIR-850L User Manual

Section 3 - Conguration

Manual Wireless Settings

802.11n/g (2.4GHz)

Enable Wireless:

Schedule:

Wireless Network

Name:

802.11 Mode:

Enable Auto Channel

Scan:

Wireless Channel:

Check the box to enable the wireless function. If you do not want to use wireless, uncheck the box to disable all the wireless functions.

Select the time frame that you would like your wireless network enabled. The schedule may be set to Always. Any schedule you create will be available in the drop-down menu. Click New Schedule to create a schedule.

Service Set Identier (SSID) is the name of your wireless network. Create a name for your wireless network using up to 32 characters. The SSID is case-sensitive.

Select one of the following:

802.11b Only - Select only if all of your wireless clients are 802.11b.

802.11g Only - Select only if all of your wireless clients are 802.11g.

802.11n Only - Select only if all of your wireless clients are 802.11n. Mixed 802.11g and 802.11b - Select if you are using both 802.11g and

802.11b wireless clients.

Mixed 802.11n and 802.11g - Select if you are using both 802.11n and 802.11g wireless clients. Mixed 802.11n, 11g, and 11b - Select if you are using a mix of 802.11n, 802.11g, and 802.11b wireless clients.

The Auto Channel Scan setting can be selected to allow the DIR-850L to choose the channel with the least amount of interference.

Indicates the channel setting for the DIR-850L. The Channel can be changed to t the channel setting for an existing wireless network or to customize the wireless network. If you check Enable Auto Channel Scan, this option will be greyed out.

Channel Width:

Visibility Status:

Wireless Security:

Select the Channel Width:

20/40MHz(Auto) - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices. 20MHz - Select if you are not using any 802.11n wireless clients.

Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-850L. If Invisible is selected, the SSID of the DIR-850L will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-850L in order to connect to it.

Refer to page 48 for more information regarding wireless security.

46D-Link DIR-850L User Manual

Section 3 - Conguration

802.11ac/n/a (5GHz)

Enable Wireless:

Schedule:

Wireless Network

Name:

802.11 Mode:

Enable Auto Channel

Scan:

Wireless Channel:

Check the box to enable the wireless function. If you do not want to use wireless, uncheck the box to disable all the wireless functions.

Service Set Identier (SSID) is the name of your wireless network. Create a name for your wireless network using up to 32 characters. The SSID is case-sensitive.

Select one of the following:

802.11a Only - Select if all of your wireless clients are 802.11a.

802.11n Only - Select only if all of your wireless clients are 802.11n. Mixed 802.11a and 802.11n - Select if you are using both 802.11n

and 802.11a wireless clients. Mixed 802.11ac - Select if you are using 802.11ac, 802.11n and

802.11a wireless clients.

The Auto Channel Scan setting can be selected to allow the DIR-850L to choose the channel with the least amount of interference.

Channel Width:

Visibility Status:

Wireless Security:

Select the Channel Width:

20MHz - Select if you are not using any 802.11n wireless clients. 20/40MHz(Auto) - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices. 20/40/80MHz(Auto) - Select if you are using 802.11ac, 802.11n and non-802.11n wireless devices. This option is only available when the 802.11 Mode is set

to Mixed 802.11ac.

Refer to page 48 for more information regarding wireless security.

47D-Link DIR-850L User Manual

Section 4 - Security

Wireless Security

This section will show you the dierent levels of security you can use to protect your data from intruders. The DIR-850L oers the following types of security:

• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)

• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)

What is WPA?

WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).

The 2 major improvements over WEP:

• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.

• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be snied out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.

WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or access point.

WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized network users can access the network.

48D-Link DIR-850L User Manual

Section 4 - Security

WPA/WPA2-Personal (PSK)

It is recommended to enable wireless security on your wireless router before your wireless network adapters. Please establish wireless connectivity before enabling encryption.

1. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Setup and then click Wireless Settings on the left side.

2. Next to Security Mode, select WPA-Personal.

3. Next to WPA Mode, select Auto(WPA or WPA2), WPA2 Only, or WPA Only. Use Auto if you have wireless clients using both WPA and WPA2.

4. Next to Cypher Type, select TKIP and AES, TKIP, or AES.

5. Next to Group Key Update Interval, enter the amount of time before the group key used for broadcast and multicast data is changed (3600 is default).

6. Next to Pre-Shared Key, enter a key (passphrase). The key is entered as a pass-phrase in ASCII format at both ends of the wireless connection. The pass-phrase must be between 8-63 characters.

7. Click Save Settings to save your settings. If you are conguring the router with a wireless adapter, you will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the router.

49D-Link DIR-850L User Manual

Section 4 - Security

Congure WPA/WPA2-Enterprise (RADIUS)

It is recommended to enable wireless security on your wireless router before your wireless network adapters. Please establish wireless connectivity before enabling encryption.

1. Log into the web-based conguration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Setup and then click Wireless Settings on the left side.

2. Next to Security Mode, select WPA-Enterprise.

3. Next to WPA Mode, select Auto(WPA or WPA2), WPA2 Only, or W PA Only. Use Auto if you have wireless clients using both WPA and WPA2.

4. Next to Cypher Type, select TKIP and AES, TKIP, or AES.

5. Next to Group Key Update Interval, enter the amount of time before the group key used for broadcast and multicast data is changed (3600 is default).

6. Next to RADIUS Server IP Address enter the IP Address of your RADIUS server.

50D-Link DIR-850L User Manual

Section 4 - Security

7. Next to RADIUS Server Port, enter the port you are using with

your RADIUS server. 1812 is the default port.

8. Next to RADIUS Server Shared Secret, enter the security key.

9. Click Advanced to enter settings for a secondary RADIUS Server.

10. Click Save Settings to save your settings.

51D-Link DIR-850L User Manual

Section 3 - Conguration

Network Settings

This section will allow you to change the local network settings of the router and to congure the DHCP settings.

Router Settings

Router IP Address:

Default Subnet

Mask:

Host Name:

Local Domain

Name:

Enable DNS Relay:

Enter the IP address of the router. The default IP address is 192.168.0.1.

If you change the IP address, once you click Save Settings, you will need to enter the new IP address in your browser to get back into the conguration utility.

Enter the Subnet Mask. The default subnet mask is

255.255.255.0.

Enter a name for the router.

Enter the Domain name (Optional).

Uncheck the box to transfer the DNS server information from your ISP to your computers. If checked, your computers will use the router for a DNS server.

52D-Link DIR-850L User Manual

Section 3 - Conguration

DHCP Server Settings

DHCP stands for Dynamic Host Control Protocol. The DIR-850L has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided by the DIR-850L. The DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.

Enable DHCP

Server:

DHCP IP Address

Range:

DHCP Lease Time:

Always

Broadcast:

NetBIOS

Announcement:

Learn NetBIOS

from WAN:

Check this box to enable the DHCP server on your router. Uncheck to disable this function.

Enter the starting and ending IP addresses for the DHCP server’s IP assignment.

Note: If you statically (manually) assign IP addresses to your computers or devices, make sure the IP addresses are outside of this range or you may have an IP conict.

The length of time for the IP address lease. Enter the Lease time in minutes.

Enable this feature to broadcast your DHCP server to LAN/ WLAN clients.

NetBIOS allows LAN hosts to discover all other computers within the network, enable this feature to allow the DHCP Server to oer NetBIOS conguration settings.

Enable this feature to allow WINS information to be learned from the WAN side; disable to allow manual conguration.

NetBIOS Scope:

This feature allows the conguration of a NetBIOS ‘domain’ name under which network hosts operates. This setting has no eect if the ‘Learn NetBIOS information from WAN’ is activated.

53D-Link DIR-850L User Manual

Section 3 - Conguration

NetBIOS Node

Type:

WINS IP

Address:

Select the dierent type of NetBIOS node; Broadcast only, Point-to-Point, Mixed-mode, and Hybrid.

Enter your WINS Server IP address(es).

54D-Link DIR-850L User Manual

Section 3 - Conguration

DHCP Reservation

If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP address only to that computer or device.

Note: This IP address must be within the DHCP IP Address Range.

Enable:

Computer Name:

IP Address:

MAC Address:

Clone Your PC’s

MAC Address:

Save:

DHCP

Reservations List:

Check this box to enable the reservation.

Enter the computer name or select from the drop-down menu and click <<.

Enter the IP address you want to assign to the computer or device. This IP Address must be within the DHCP IP Address Range.

Enter the MAC address of the computer or device.

You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.

Click Save to save your entry. You must click Save Settings at the top to activate your reservations.

DHCP Reservations List

Displays any reservation entries. Displays the host name (name of your computer or device), MAC Address, and IP address.

Enable:

Edit:

Delete:

Check to enable the reservation.

Click the edit icon to make changes to the reservation entry.

Click to remove the reservation from the list.

55D-Link DIR-850L User Manual

Section 3 - Conguration

Storage

This page will allow you to access les from a USB external hard drive or thumb drive that is plugged into the router from your local network or from the Internet using either a web browser or an app for your smartphone or tablet. You can create users to be allowed to access these les.

Enable SharePort

Web Access:

HTTP Access Port:

HTTPS Access

Port:

Allow Remote

Access:

User Name:

Password:

Verify Password:

User List:

Check to enable sharing les on your USB storage device that is plugged in your router.

Enter a port (8181 is default). You will have to enter this port in the URL when connecting to the shared les. For example: (http://192.168.0.1:8181).

Enter a port (4433 is default). You will have to enter this port in the URL when connecting to the shared les. For example: (https://192.168.0.1:4433).

Check this option the allow remote access to this router.

To create a new user, enter a user name.

Enter a password for this account.

Re-enter the password. Click Add/Edit to create the user.

Displays the accounts. The Admin and Guest accounts are built-in to the router.

Number of

Devices:

Displays the USB device plugged into the router.

56D-Link DIR-850L User Manual

Section 3 - Conguration

Access Files from the Internet

Below are step-by-step instructions on how to access les that are on your USB thumb drive or external hard drive that is connected to your router:

Step 1 - Enable SharePort Web Access

Check the Enable SharePort Web Access checkbox to enable. Then select if you want to use HTTP or HTTPS (secure) and enter the port(s) you want to use. The default for HTTP is 8181 and HTTPS is 4433.

Step 2 - Create a User Account

Under User Creation, enter a username and password, and then click

Add/Edit.

Step 3 - Congure your Access Path

Under User List, click the Modify icon for the user you just created. Here you can browse to the folder on your USB storage device you want to assign the Access Path to.

Step 4 - Save Settings

If you want to add more users, repeat steps 2 and 3. Once you are nished, click the Save Settings button at the top to save your settings.

Note that under the HTTP Storage Link (at the bottom) will display the URL(s) you can use to connect. Also if you selected HTTPS, you must type in HTTPS:// instead of HTTP:// to get a secure connection.

For example, if you selected HTTPS and changed the port to 3200, and your WAN IP address is 1.2.3.4, then you would enter HTTPS://1.2.3.4:3200 to connect.

57D-Link DIR-850L User Manual

Section 3 - Conguration

IPv6

On this page, the user can congure the IPv6 Connection type. There are three ways to set up the IPv6 Internet connection.

For the beginner user that has not congured a router before, click on the IPv6 Internet Connection Setup Wizard button and the router will guide you through a few simple steps to get your network up and running. (Refer to page 60.)

For the advanced user that has congured a router before, click on the Manual IPv6 Internet Connection Setup button to input all the settings manually. (Refer to page 65.)

If you would like to manually congure the IPv6 local connectivity settings of your router, click on IPv6 Local Connectivity Settings.

58D-Link DIR-850L User Manual

Section 3 - Conguration

Click on Enable ULA. You can check Use default ULA prex, or you can leave the box unchecked and enter the prex manually in the ULA Prex text box.

59D-Link DIR-850L User Manual

Section 3 - Conguration

IPv6 Internet Connection Setup Wizard

On this page, the user can congure the IPv6 Connection type using the IPv6 Internet Connection Setup Wizard.

Click the IPv6 Internet Connection Setup Wizard button and the router will guide you through a few simple steps to get your network up and running.

Click Next to continue to the next page. Click Cancel to discard the changes made and return to the main page.

The router will try to detect whether its possible to obtain the IPv6 Internet connection type automatically. If this succeeds then the user will be guided through the input of the appropriate parameters for the connection type found.

60D-Link DIR-850L User Manual

Section 3 - Conguration

However, if the automatic detection fails, the user will be prompt to either Try again or to click on the Guide me through the IPv6 settings button to initiate the

manual continual of the wizard.

There are several connection types to choose from. If you are unsure of your connection method, please contact your IPv6 Internet Service Provider.

Note: If using the PPPoE option, you will need to ensure that any PPPoE client software on your computers has been removed or disabled. The three options available on this page are IPv6 over PPPoE, Static IPv6 address and Route, and Tunneling Connection (6rd).

Choose the required IPv6 Internet Connection type and click on the Next button to continue. Click on the Prev button to return to the previous page. Click on the Cancel button to discard all the changes made and return to the main page.

61D-Link DIR-850L User Manual

Section 3 - Conguration

IPv6 over PPPoE

After selecting the IPv6 over PPPoE option, the user will be able to congure the IPv6 Internet connection that requires a username and password to get online. Most DSL modems use this type of connection.

The following parameters will be available for conguration:

PPPoE Session: Select the PPPoE Session value used here. This

option will state that this connection shares it’s information with the already congured IPv6 PPPoE connection, or the user can create a new PPPoE connection here.

User Name: Enter the PPPoE username used here. If you do not

know your user name, please contact your ISP.

Password: Enter the PPPoE password used here. If you do not

know your password, please contact your ISP.

Verify Password: Re-enter the PPPoE password used here.

Service Name: Enter the service name for this connection here.

This option is optional.

62D-Link DIR-850L User Manual

Section 3 - Conguration

Static IPv6 Address Connection

This mode is used when your ISP provides you with a set IPv6 addresses that does not change. The IPv6 information is manually entered in your IPv6 conguration settings. You must enter the IPv6 address, Subnet Prex Length, Default Gateway, Primary DNS Server, and Secondary DNS Server. Your ISP provides you with all this information.

Use Link-Local

Address:

IPv6 Address:

Subnet Prex

Length:

Default Gateway:

Primary DNS

Address:

Secondary DNS

Address:

LAN IPv6 Address:

The Link-local address is used by nodes and routers when communicating with neighboring nodes on the same link. This mode enables IPv6-capable devices to communicate with each other on the LAN side.

Enter the WAN IPv6 address for the router here.

Enter the WAN subnet prex length value used here.

Enter the WAN default gateway IPv6 address used here.

Enter the WAN primary DNS Server address used here.

Enter the WAN secondary DNS Server address used here.

These are the settings of the LAN (Local Area Network) IPv6 interface for the router. The router’s LAN IPv6 Address conguration is based on the IPv6 Address and Subnet assigned by your ISP. (A subnet with prex /64 is supported in LAN.)

63D-Link DIR-850L User Manual

Section 3 - Conguration

Tunneling Connection (6rd)

After selecting the Tunneling Connection (6rd) option, the user can congure the IPv6 6rd connection settings.

The following parameters will be available for conguration:

6rd IPv6 Prex: Enter the 6rd IPv6 address and prex value used

here.

IPv4 Address: Enter the IPv4 address used here.

Mask Length: Enter the IPv4 mask length used here.

Assigned IPv6 Prex: Displays the IPv6 assigned prex value here.

6rd Border Relay IPv4

Address:

IPv6 DNS Server: Enter the primary DNS Server address used here.

The IPv6 Internet Connection Setup Wizard is complete.

Click on the Connect button to continue. Click on the Prev button to return to the previous page. Click on the Cancel button to discard all the changes made and return to the main page.

Enter the 6rd border relay IPv4 address used here.

64D-Link DIR-850L User Manual

Section 3 - Conguration

IPv6 Manual Setup

There are several connection types to choose from: Auto Detection, Static IPv6, Autoconguration (SLAAC/DHCPv6), PPPoE, IPv6 in IPv4 Tunnel, 6to4, 6rd, and Local Connectivity Only. If you are unsure of your connection method, please

contact your IPv6 Internet Service Provider.

Note: If using the PPPoE option, you will need to ensure that any PPPoE client software on your computers has been removed or disabled.

Auto Detection

Select Auto Detection to have the router detect and automatically congure your IPv6 setting from your ISP.

Click Save Settings.

65D-Link DIR-850L User Manual

Section 3 - Conguration

Static IPv6

My IPv6 Connection is:

WAN IPv6 Address

Settings:

LAN IPv6 Address:

LAN IPv6 Link-Local

Address:

Enable Automatic IPv6

address assignment:

Autoconguration Type:

IPv6 Address Range

Start:

IPv6 Address Range

End:

Router Advertisement

Lifetime:

Select Static IPv6 from the drop-down menu.

Enter the address settings supplied by your Internet provider (ISP).

Enter the LAN (local) IPv6 address for the router.

Displays the Router’s LAN Link-Local Address.

Check to enable the Autoconguration feature.

Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.

Enter the start IPv6 Address for the DHCPv6 range for your local computers.

Enter the end IPv6 Address for the DHCPv6 range for your local computers.

Enter the Router Advertisement Lifetime (in minutes).

Click Save Settings.

66D-Link DIR-850L User Manual

Section 3 - Conguration

Autoconguration

My IPv6 Connection is:

IPv6 DNS Settings:

Primary/Secondary DNS

Server:

LAN IPv6 Address:

LAN IPv6 Link-Local

Address:

Enable Automatic IPv6

address assignment:

Autoconguration Type:

IPv6 Address Range

Start:

Select Autoconguration (Stateless/DHCPv6) from the drop-down menu.

Select either Obtain DNS server address automatically or Use the following DNS Address.

Enter the primary and secondary DNS server addresses.

Enter the LAN (local) IPv6 address for the router.

Displays the Router’s LAN Link-Local Address.

Check to enable the Autoconguration feature.

Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.

Enter the start IPv6 Address for the DHCPv6 range for your local computers.

IPv6 Address Range

End:

Router Advertisement

Lifetime:

Enter the end IPv6 Address for the DHCPv6 range for your local computers.

Enter the Router Advertisement Lifetime (in minutes).

Click Save Settings.

67D-Link DIR-850L User Manual

Section 3 - Conguration

PPPoE

My IPv6 Connection is:

PPPoE Internet

Connection Type:

PPPoE Session:

Address Mode:

IP Address:

User Name:

Password:

Service Name:

Reconnect Mode:

Maximum Idle Time:

Select PPPoE from the drop-down menu.

Enter the PPPoE account settings supplied by your Internet provider (ISP).

Select Create a new session if you have IPv6.

Select Static IP if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic IP.

Enter the IP address (Static PPPoE only).

Enter your PPPoE user name.

Enter your PPPoE password and then retype the password in the next box.

Enter the ISP Service Name (optional).

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

MTU:

IPv6 DNS Settings:

Primary/Secondary DNS

Servers:

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default MTU.

Select either Obtain IPv6 DNS servers automatically or Use the

following IPv6 DNS Servers

Enter the primary and secondary DNS server addresses.

68D-Link DIR-850L User Manual

Section 3 - Conguration

Enable DHCP-PD:

LAN IPv6 Address:

LAN IPv6 Link-Local

Address:

Enable Automatic IPv6

address assignment:

Enable Automatic DHCP-

PD in LAN:

Autoconguration Type:

IPv6 Address Range Start:

IPv6 Address Range End:

Router Advertisement

Lifetime:

Check to enable DHCP-PD.

Enter the LAN (local) IPv6 address for the router.

Displays the Router’s LAN Link-Local Address.

Check to enable the IPv6 Autoconguration.

Check to enable delegation of previxes for router addresses.

Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.

Enter the start IPv6 Address for the DHCPv6 range for your local computers.

Enter the end IPv6 Address for the DHCPv6 range for your local computers.

Enter the Router Advertisement Lifetime (in minutes).

Click Save Settings.

69D-Link DIR-850L User Manual

Section 3 - Conguration

IPv6 in IPv4 Tunneling

My IPv6 Connection is:

IPv6 in IPv4 Tunnel

Settings:

IPv6 DNS Settings:

Primary/Secondary

DNS Servers:

LAN IPv6 Address:

LAN IPv6 Link-Local

Address:

Enable Automatic IPv6

Address Assignment:

Enable Automatic

DHCP-PD in LAN:

Autoconguration

Type:

Select IPv6 in IPv4 Tunnel from the drop-down menu.

Enter the settings supplied by your Internet provider (ISP).

Select either Obtain IPv6 DNS servers automatically or Use

the following IPv6 DNS Servers

Enter the primary and secondary DNS server addresses.

Enter the LAN (local) IPv6 address for the router.

Displays the Router’s LAN Link-Local Address.

Check to enable the Autoconguration feature.

Check to enable delegation of prexes for router addresses.

Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.

IPv6 Address Range

Start:

IPv6 Address Range

End:

Router Advertisement

Lifetime:

Enter the start IPv6 Address for the DHCPv6 range for your local computers.

Enter the end IPv6 Address for the DHCPv6 range for your local computers.

Enter the Router Advertisement Lifetime (in minutes).

Click Save Settings.

70D-Link DIR-850L User Manual

Section 3 - Conguration

6 to 4 Tunneling

My IPv6 Connection is:

WAN IPv6 Address

Settings:

Primary/Secondary

DNS Servers:

LAN IPv6 Address:

LAN IPv6 Link-Local

Address:

Enable Automatic IPv6

Address Assignment:

Autoconguration

Type:

IPv6 Address Range

Start:

IPv6 Address Range

End:

Select 6 to 4 from the drop-down menu.

Enter the IPv6 settings supplied by your Internet provider (ISP).

Enter the primary and secondary DNS server addresses.

Enter the LAN (local) IPv6 address for the router.

Displays the Router’s LAN Link-Local Address.

Check to enable the Autoconguration feature.

Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.

Enter the start IPv6 Address for the DHCPv6 range for your local computers.

Enter the end IPv6 Address for the DHCPv6 range for your local computers.

Router Advertisemt

Lifetime:

Enter the Router Advertisement Lifetime (in minutes).

Click Save Settings.

71D-Link DIR-850L User Manual

Section 3 - Conguration

6rd

My IPv6 Connection is:

WAN IPv6 Address

Settings:

LAN IPv6 Address:

LAN IPv6 Link-Local

Address:

Enable Automatic IPv6

address assignment:

Autoconguration Type:

Router Advertisement

Lifetime:

Select 6rd from the drop-down menu.

Enter the address settings supplied by your Internet provider (ISP).

Enter the LAN (local) IPv6 address for the router.

Displays the Router’s LAN Link-Local Address.

Check to enable the Autoconguration feature.

Select Stateful (DHCPv6), SLAAC+RDNSS or SLAAC + Stateless

DHCPv6.

Enter the Router Advertisement Lifetime (in minutes).

Click Save Settings.

72D-Link DIR-850L User Manual

Section 3 - Conguration

Local Connectivity

My IPv6 Connection is:

LAN IPv6 Link-Local

Address:

Select Local Connectivity Only from the dropdown menu.

Displays the IPv6 address of the router.

Click Save Settings.

73D-Link DIR-850L User Manual

Section 3 - Conguration

mydlink Settings

The DIR-850L features a cloud service that pushes information such as rmware upgrade notications, user activity, and intrusion alerts to the mydlink™ app on Android and Apple mobile devices. To insure that your router is up-to-date with the latest features, mydlink™ will notify you when an update is available for your router. You can also monitor a user’s online activity with real-time website browsing history, maintaining a safe and secure environment, especially for children at home.

On this page the user can congure the mydlink™ settings for this router. This feature will allow us to use the mydlink cloud services that includes online access and management of this router through the mydlink portal website or portable device applications like iOS apps and Android applications.

In the mydlink section, we can view the registration status of the mydlink account service. The mydlink Service eld will either display Registered or Non-Registered. In the Register mydlink Service section, we can register or modify a mydlink account. Click on the Register mydlink Service button to initiate this procedure.

mydlink Service:

mydlink E-mail:

Settings:

Displays whether your device is registered with a mydlink account or not. If you are registered, your mydlink e-mail address will be displayed.

If you are registered, your mydlink E-mail address will be displayed.

Click to go to the mydlink website to register or edit your settings. Please refer to page 19 for the registration steps.

74D-Link DIR-850L User Manual

Section 3 - Conguration

Advanced

Virtual Server

This will allow you to open a single port. If you would like to open a range of ports, refer to the next page.

Name:

IP Address:

Private Port/

Public Port:

Protocol Type:

Schedule:

Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the elds.

Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the “Computer Name” drop-down menu. Select your computer and click <<.

Enter the port that you want to open next to Private Port and Public Port. The private and public ports are usually the same. The public port is the port seen from the Internet side, and the private port is the port being used by the application on the computer within your local network.

Select TCP, UDP, or Both from the drop-down menu.

The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.

Inbound Filter:

Select Allow All (most common) or a created Inbound lter. You may create your own inbound lters in the Advanced > Inbound Filter page.

75D-Link DIR-850L User Manual

Section 3 - Conguration

Port Forwarding

This will allow you to open a single port or a range of ports.

Name:

IP Address:

TCP/UDP:

Schedule:

Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the elds.

Enter the TCP and/or UDP port or ports that you want to open. You can enter a single port or a range of ports. Separate ports with a comma.

Example: 24,1009,3000-4000

Inbound Filter:

Select Allow All (most common) or a created Inbound lter. You may create your own inbound lters in the Advanced > Inbound Filter page.

76D-Link DIR-850L User Manual

Section 3 - Conguration

Application Rules

Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications have diculties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the DIR-850L. If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port” eld, select the protocol type as TCP or UDP, then enter the rewall (public) ports associated with the trigger port to open them for inbound trac.

The DIR-850L provides some predened applications in the table on the bottom of the web page. Select the application you want to use and enable it.

Name:

Trigger:

Trac Type:

Firewall:

Trac Type:

Schedule:

Enter a name for the rule. You may select a pre-dened application from the drop-down menu and click <<.

This is the port used to trigger the application. It can be either a single port or a range of ports.

Select the protocol of the trigger port (TCP, UDP, or Both).

This is the port number on the Internet side that will be used to access the application. You may dene a single port or a range of ports. You can use a comma to add multiple ports or port ranges.

Select the protocol of the rewall port (TCP, UDP, or Both).

The schedule of time when the Application Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.

77D-Link DIR-850L User Manual

Section 3 - Conguration

QoS Engine

The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS Engine settings are disabled and application priority is not automatically classied. The QoS section contains a queuing mechanism, trac shaping and classication. It supports two kinds of queuing mechanisms. Strict Priority Queue (SPQ) and Weighted Fair Queue (WFQ). SPQ will process trac based on trac priority. Queue1 has the highest priority and Queue4 has the lowest priority. WFQ will process trac based on the queue weight. Users can congure each queue’s weight. The sum of all the queue’s weight must be 100. When surng the Internet, the system will do trac shaping based on the uplink and downlink speed. The classication rules can be used to classify trac to dierent queues, then SPQ or WFQ will do QoS based on the queue’s priority or weight.

Enable QoS:

Uplink Speed:

Downlink Speed:

Queue Type:

Queue ID:

Queue Priority:

Queue Weight:

This option is disabled by default. Enable this option for better performance and experience with online games and other interactive applications, such as VoIP.

The speed at which data can be transferred from the router to your ISP. This is determined by your ISP.

The speed at which data can be transferred from the Internet to your router. This is determined by your ISP.

Select either Strict Priority Queue (rank in order) or Weighted Fair Queue (percentage).

The Queue ID used will be displayed in the rst column.

When Strict Priority Queue is selected, the Queue Priority will be displayed in the second column.

When the Weighted Fair Queue option is selected, you will be able to manually enter the Queue Weight for each individual Queue ID in the second column.

78D-Link DIR-850L User Manual

Section 3 - Conguration

After specifying the QoS framework used, in the QoS setup section, the user can now create individual rules for scenarios that require the use of trac control and data priority manipulation.

Classication

Rules:

Name:

Queue ID:

Protocol:

Local IP Range:

Local Port

Range:

Remote IP

Range:

Remote Port

Range:

Application Port:

The QoS Engine supports overlaps between rules, where more than one rule can match for a specic message ow. If more than one rule is found to match the rule with the highest priority will be used.

Create a name for the rule that is meaningful to you.

The priority of the message ow is entered here -- 1 receives the highest priority (most urgent) and 255 receives the lowest priority (least urgent).

The protocol used by the messages.

The rule applies to a ow of messages whose LAN-side IP address falls within the range set here.

The rule applies to a ow of messages whose LAN-side port number is within the range set here.

The rule applies to a ow of messages whose WAN-side IP address falls within the range set here.

The rule applies to a ow of messages whose WAN-side port number is within the range set here.

Select a service or port you want to assign to this rule.

Click on the Save Settings button to accept the changes made or click on the Don’t Save Settings button to discard the changes made.

79D-Link DIR-850L User Manual

Section 3 - Conguration

Network Filters

Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses from accessing the network. You can either manually add a MAC address or select the MAC address from the list of clients that are currently connected to the Broadband Router.

Congure MAC

Filtering:

MAC Address:

DHCP Client List:

Schedule:

Select Turn MAC Filtering O, Allow MAC addresses listed below, or Deny MAC addresses listed below

from the drop-down menu.

Enter the MAC address you would like to lter.

To nd the MAC address on a computer, please refer to the Networking Basics section in this manual.

Select a DHCP client from the drop-down menu and click << to copy that MAC Address.

Select a pre-dened or user created schedule from the drop-down menu, or click New Schedule to create a new schedule. You set a specic time frame for the MAC lter rule to be active.

80D-Link DIR-850L User Manual

Section 3 - Conguration

Access Control

The Access Control section allows you to control access in and out of your network. Use this feature as Parental Controls to only grant access to approved sites, limit web access based on time or dates, and/or block access from applications like P2P utilities or games.

Enable Access

Control:

Check the Enable Access Control box, and then click on Add Policy to start the Wizard.

Click Next to continue with the wizard.

Access Control Wizard

81D-Link DIR-850L User Manual

Section 3 - Conguration

Enter a name for the policy and then click Next to continue.

Select a schedule (i.e., Always) from the drop-down menu and then click Next to continue.

Enter the following information and then click Next to continue.

• Address Type - Select IP address, MAC address, or Other Machines.

• IP Address - Enter the IP address of the computer you want to apply the rule to.

• Machine Address - Enter the PC MAC address or click on Clone Your PCs MAC Address.

Click Add and then click Next to continue.

Select the ltering method.

If you choose to Block Some Access, check Apply Web Filter and/or

Apply Advanced Port Filters.

Click Next to continue.

82D-Link DIR-850L User Manual

Section 3 - Conguration

Add Port Filter Rules: Enable - Check to enable the rule.

Name - Enter a name for your rule. Dest IP Start - Enter the starting IP address. Dest IP End - Enter the ending IP address. Protocol - Select the protocol. Dest Port Start - Enter the starting port number. Dest Port End - Enter the ending port number.

To enable web logging, click Enabled.

Click Save to save the access control rule.

Your newly created policy will now show up under Policy Table.

83D-Link DIR-850L User Manual

Section 3 - Conguration

Website Filters

Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network. To use this feature select to Allow or Deny, enter the domain or website and click Save Settings. You must also select Apply Web Filter under the Access Control section (page 81).

Congure

Website Filter:

Website URL/

Domain:

Select either DENY computers access to ONLY these sites or ALLOW computers access to ONLY these sites.

Enter the keywords or URLs that you want to allow or block. Click Save Settings.

84D-Link DIR-850L User Manual

Section 3 - Conguration

Inbound Filters

The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can congure inbound data ltering rules that control data based on an IP address range. Inbound Filters can be used with Virtual Server, Port Forwarding, or Remote Administration features.

Name:

Action:

Remote IP

Range: Enable:

Remote IP Start:

Remote IP End:

Add:

Inbound Filter

Rules List:

Enter a name for the inbound lter rule.

Select Allow or Deny.

Check to enable rule.

Enter the starting IP address. Enter 0.0.0.0 if you do not want to specify an IP range.

Enter the ending IP address. Enter

255.255.255.255 if you do not want to specify and IP range.

Click the Add button to apply your settings. You must click Save Settings at the top to save the settings.

This section will list any rules that are created. You may click the Edit icon to change the settings or enable/disable the rule, or click the Delete icon to remove the rule.

85D-Link DIR-850L User Manual

Section 3 - Conguration

Firewall Settings

A rewall protects your network from the outside world. The DIR-850L oers a rewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world.

Enable SPI:

Anti-Spoof

Checking:

Enable DMZ:

DMZ IP Address:

SPI (Stateful Packet Inspection, also known as dynamic packet ltering) helps to prevent cyber attacks by tracking more state per session. It validates that the trac passing through the session conforms to the protocol.

Enable this feature to protect your network from certain kinds of “spoong” attacks.

If an application has trouble working from behind the router, you can expose one computer to the Internet and run the application on that computer.

Note: Placing a computer in the DMZ may expose that computer to a variety of security risks. Use of this option is only recommended as a last resort.

Specify the IP address of the computer on the LAN that you want to have unrestricted Internet communication. If this computer obtains it’s IP address automatically using DHCP, be sure to make a static reservation on the Setup > Network Settings page so that the IP address of the DMZ machine does not change.

PPTP:

IPSEC (VPN):

Allows multiple machines on the LAN to connect to their corporate network using PPTP protocol.

Allows multiple VPN clients to connect to their corporate network using IPSec. Some VPN clients support traversal of IPSec through NAT. This ALG may interfere with the operation of such VPN clients. If you are having trouble connecting with your corporate network, try turning this ALG o. Please check with the system administrator of your corporate network whether your VPN client supports NAT traversal.

86D-Link DIR-850L User Manual

Section 3 - Conguration

RTSP:

SIP:

Allows application that uses Real Time Streaming Protocol to receive streaming media from the Internet. QuickTime and Real Player are some of the common applications using this protocol.

Allows devices and applications using VoIP (Voice over IP) to communicate across NAT. Some VoIP applications and devices have the ability to discover NAT devices and work around them. This ALG may interfere with the operation of such devices. If you are having trouble making VoIP calls, try turning this ALG o.

87D-Link DIR-850L User Manual

Section 3 - Conguration

Routing

The Routing option is an advanced method of customizing specic routes of data through your network.

Name:

Destination IP:

Netmask:

Gateway:

Metric:

Interface:

Enter a name for your route.

Enter the IP address of packets that will take this route.

Enter the netmask of the route, please note that the octets must match your destination IP address.

Enter your next hop gateway to be taken if this route is used.

The route metric is a value from 1 to 16 that indicates the cost of using this route. A value 1 is the lowest cost and 15 is the highest cost.

Select the interface that the IP packet must use to transit out of the router when this route is used.

88D-Link DIR-850L User Manual

Section 3 - Conguration

Advanced Wireless

Transmit Power:

WLAN Partition:

WMM Enable:

Short GI:

HT20/40 Coexistence:

Set the transmit power of the antennas.

This enables 802.11d operation. 802.11d is a wireless specication developed to allow implementation of wireless networks in countries that cannot use the

802.11 standard. This feature should only be enabled if you are in a country that requires it.

WMM is QoS for your wireless network. This will improve the quality of video and voice applications for your wireless clients.

Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss.

Enable this option to reduce interference from other wireless networks in your area. If the channel width is operating at 40MHz and there is another wireless network’s channel over-lapping and causing interference, the router will automatically change to 20MHz.

89D-Link DIR-850L User Manual

Section 3 - Conguration

Wi-Fi Protected Setup (WPS)

Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well as the “Add New Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufactures. The process is just as easy as pressing a button for the Push-Button Method or correctly entering the 8-digit code for the Pin Code Method. The time reduction in setup and ease of use are quite benecial, while the highest wireless Security setting of WPA2 is automatically used.

Enable:

WiFi Protected

Setup:

Lock WPS-PIN

Setup:

PIN Settings:

PIN:

Reset PIN to

Default:

Enable the Wi-Fi Protected Setup feature.

Note: if this option is unchecked, the WPS button on the side of the router will be disabled.

Displays the current WPS status.

Locking the WPS-PIN Method prevents the settings from being changed by any external registrar using its PIN. Devices can still be added to the wireless network using the Wi-Fi Protected Setup Push Button Conguration (WPS-PBC). It is still possible to change wireless networks settings with Manual Wireless Network Setup or Wireless Network Setup Wizard.

A PIN is a unique number that can be used to add the router to an existing network or to create a new network. Only the Administrator (“admin” account) can change or reset the PIN.

Shows the current PIN.

Click to restore the default PIN of the router.

Generate New PIN:

Create a random number that is a valid PIN. This becomes the router’s PIN. You can then copy this PIN to the user interface of the wireless client.

90D-Link DIR-850L User Manual

Section 3 - Conguration

Add Wireless

Station:

Connect Your

Wireless Device:

This Wizard helps you add wireless devices to the wireless network.

The wizard will either display the wireless network settings to guide you through manual conguration, prompt you to enter the PIN for the device, or ask you to press the conguration button on the device. If the device supports Wi-Fi Protected Setup and has a conguration button, you can add it to the network by pressing the conguration button on the device and then the on the router within 60 seconds. The status LED on the router will ash three times if the device has been successfully added to the network.

There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A registrar only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup button on the device. The router acts as a registrar for the network, although other devices may act as a registrar as well.

Click to start the wizard and skip to page 44.

WPS Button

You can also simply press the WPS button on the side of the router, and then press the WPS button on your wireless client to automatically connect without logging into the router.

Refer to page 115 for more information.

WPS Button

91D-Link DIR-850L User Manual

Section 3 - Conguration

Advanced Network Settings

Enable UPnP IGD:

Enable WAN Ping

Response:

WAN Port Speed:

Enable IPV4

Multicast Streams:

Enable IPV6

Multicast Streams:

To use the Universal Plug and Play (UPnP™) feature check the box. UPnP provides compatibility with networking equipment, software and peripherals.

Checking the box will allow the DIR-850L to respond to pings. Unchecking the box may provide some extra security from hackers.

You may set the port speed of the Internet port to 10Mbps, 100Mbps, 1000Mbps, or Auto (recommended).

Check the box to allow multicast trac to pass through the router from the Internet (IPv4).

Check the box to allow multicast trac to pass through the router from the Internet (IPv6).

92D-Link DIR-850L User Manual

Section 3 - Conguration

Guest Zone

The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones will be separate from your main wireless network. You may congure dierent zones for the 2.4GHz and 5GHz wireless bands.

Enable Routing

Between Zones:

Enable Guest

Zone:

Schedule:

Wireless

Network Name:

Security Mode:

Check to allow network connectivity between the dierent zones created.

Check to enable the Guest Zone feature.

The schedule of time when the Guest Zone will be active. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section or click New Schedule.

Enter a wireless network name (SSID) that is dierent from your main wireless network.

Select the type of security or encryption you would like to enable for the guest zone.

93D-Link DIR-850L User Manual

Section 3 - Conguration

IPv6 Firewall

The DIR-850L’s IPv6 Firewall feature allows you to congure which kind of IPv6 trac is allowed to pass through the device. This feature functions in a similar way to the IP Filters feature.

Enable IPv6

Simple Security:

Congure IPv6

Filtering below:

Name:

Schedule:

Source:

IP Address Range:

Dest:

Check the box to enable the IPv6 rewall simple security.

Select an action from the drop-down menu.

Enter a name to identify the IPv6 rewall rule.

Use the drop-down menu to select the time schedule that the IPv6 Firewall Rule will be enabled on. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.

Use the Interface drop-down menu to specify the interface that connects to the source IPv6 addresses of the rewall rule.

Enter the source IPv6 address range in the adjacent IP Address Range eld.

Use the Interface drop-down menu to specify the interface that connects to the destination IP addresses of the rewall rule.

Protocol:

Port Range:

Select the protocol of the rewall port (All, TCP, UDP, or ICMP).

Enter the rst port of the range that will be used for the rewall rule in the rst box and enter the last port in the eld in the second box.

94D-Link DIR-850L User Manual

Section 3 - Conguration

IPv6 Routing

This page allows you to specify custom routes that determine how data is moved around your network.

Route List:

Name:

Destination IP/

Prex Length:

Metric:

Interface:

Gateway:

Check the box next to the route you wish to enable.

Enter a specic name to identify this route.

This is the IP address of the router used to reach the specied destination or enter the IPv6 address prex length of the packets that will take this route.

Enter the metric value for this rule here.

Use the drop-down menu to specify if the IP packet must use the WAN or LAN interface to transit out of the Router.

Enter the next hop that will be taken if this route is used.

95D-Link DIR-850L User Manual
