Dlink DIR-660 User Manual

2D-Link DIR-660 User Manual

Table of Contents

Product Overview ........................................................4

Package Contents....................................................4

System Requirements .............................................4

Introduction ..............................................................5

Features ...................................................................6

Hardware Overview ................................................. 7

Connections .......................................................7

LEDs .................................................................. 8

Installation .................................................................... 9

Before you Begin ..................................................... 9

Wireless Installation Considerations ......................10

Getting Started ......................................................11

Conﬁguration .............................................................12

Web-based Conﬁguration Utility ............................ 12

Setup Wizard ...................................................13

Manual Conﬁguration ....................................... 17

Dynamic (Cable)...........................................17

PPPoE (DSL) ...............................................18

PPTP ............................................................19

L2TP ............................................................. 21

Static (assigned by ISP) ...............................23

Big Pond ....................................................... 24

Wireless Settings ............................................. 25

Network Settings .............................................. 27

DHCP Server Settings .................................28

DHCP Reservation .......................................29

Virtual Server ...................................................30

Port Forwarding ...............................................32

Application Rules ............................................. 33

QoS Engine .....................................................34

Network Filters .................................................36

Access Control ................................................. 37

Access Control Wizard .................................37

Website Filters ................................................. 40

Inbound Filters ................................................. 41

Firewall Settings ...............................................42

ALG Conﬁguration ...........................................43

VPN Passthrough ......................................... 43

RTSP ............................................................ 43

H.323 ............................................................ 43

SIP (VoIP) .....................................................43

MMS .............................................................43

Router Settings ................................................ 44

Advanced Wireless Settings ............................45

Transmit Power ............................................. 45

802.11d Mode ..............................................45

WISH Settings .................................................46

Wi-Fi Protected Setup ...................................... 48

Advanced Network Settings ............................. 50

UPnP ............................................................50

Internet Ping Block ....................................... 50

Internet Port Speed ...................................... 50

Multicast Streams ......................................... 50

Table of Contents

3D-Link DIR-660 User Manual

Table of Contents

Administrator Settings ...................................... 51

Change Password ........................................ 51

Remote Management ................................... 51

Time Settings ...................................................52

SysLog .............................................................53

Email Settings ..................................................54

System Settings ...............................................55

Update Firmware .............................................56

DDNS ............................................................... 57

System Check .................................................. 58

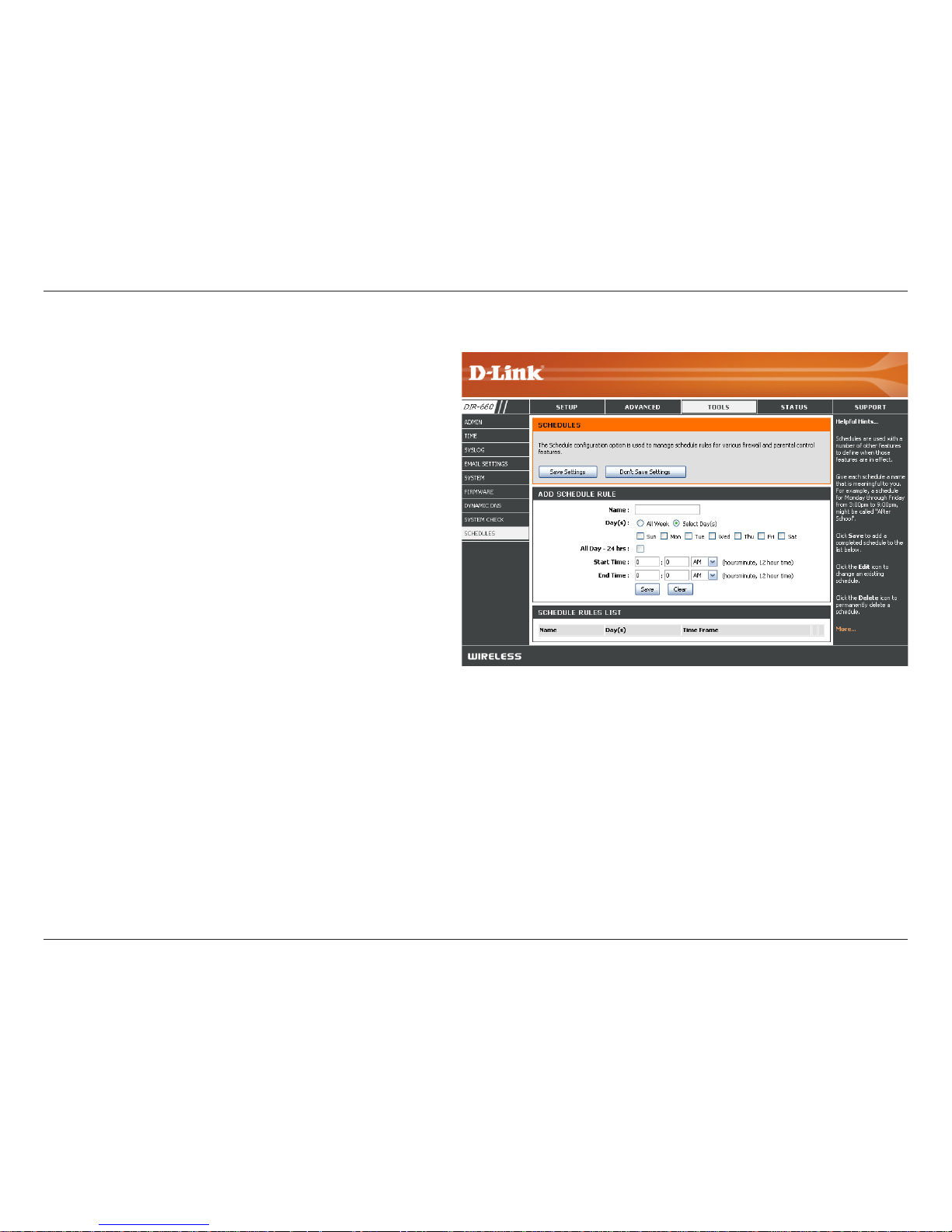

Schedules ........................................................ 59

Device Information ...........................................60

Logs ................................................................. 61

Statistics ..........................................................62

Internet Sessions ............................................. 62

Wireless ........................................................... 63

WISH Sessions ................................................63

Support ............................................................64

Wireless Security ....................................................... 65

What is WEP? ........................................................65

What is WPA? ........................................................ 66

Wireless Security Setup Wizard ............................67

Conﬁgure WEP ......................................................70

Conﬁgure WPA-Personal (PSK) .............................71

Conﬁgure WPA-Enterprise (RADIUS) ....................72

Connect to a Wireless Network ................................ 74

Using Windows® XP ...............................................74

Conﬁgure WEP ......................................................75

Conﬁgure WPA-PSK .............................................. 77

Troubleshooting .........................................................79

Wireless Basics ......................................................... 83

What is Wireless? ..................................................84

Tips ........................................................................86

Wireless Modes ..................................................... 87

Networking Basics ....................................................88

Check your IP address ..........................................88

Statically Assign an IP address .............................89

Technical Speciﬁcations ...........................................90

Contacting Technical Support ..................................91

Warranty .....................................................................92

Registration ................................................................ 98

4D-Link DIR-660 User Manual

Section 1 - Product Overview

• D-Link DIR-660 Xtreme N™ Gigabit Router

• 3 Detachable Antennas

• Power Adapter

• CAT5 Ethernet Cable

• CD-ROM with Installation Wizard, User Manual, and Special Offers

System Requirements

• Ethernet-based Cable or DSL Modem

• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet adapter

• Internet Explorer Version 6.0, Mozilla 1.7.12 (5.0), or Firefox 1.5 and above (for conﬁguration)

• Installation Wizard requires Windows® XP with Service Pack 2

Product Overview

Package Contents

Note: Using a power supply with a different voltage rating than the one included with the DIR-660 will cause damage and void the warranty for this product.

5D-Link DIR-660 User Manual

Section 1 - Product Overview

Introduction

TOTAL PERFORMANCE

Combines award winning router features and Draft 802.11n wireless technology to provide the best wireless performance

TOTAL SECURITY

The most complete set of security features including Active Firewall and WPA2 to protect your network against outside intruders

TOTAL COVERAGE

Provides greater wireless signal rates even at farther distances for best-in-class Whole Home Coverage.

ULTIMATE PERFORMANCE

The D-Link Xtreme N™ Gigabit Router (DIR-660) is a draft 802.11n compliant device that delivers real world performance of up to 14x faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless network to share photos, ﬁles, music, video, printers, and network storage throughout your home. Connect the Xtreme N™ Gigabit Router to a cable or DSL modem and share your high-speed Internet access with everyone on the network. In addition, this Router includes a Quality of Service (QoS) engine that keeps digital phone calls (VoIP) and online gaming smooth and responsive, providing a better Internet experience.

EXTENDED WHOLE HOME COVERAGE

Powered by Xtreme N™ technology, this high performance router provides superior Whole Home Coverage while reducing dead spots. The Xtreme N™ Gigabit Router is designed for use in bigger homes and for users who demand higher performance networking. Add a Xtreme N™ notebook or desktop adapter and stay connected to your network from virtually anywhere in your home.

TOTAL NETWORK SECURITY

The Xtreme N™ Gigabit Router supports all of the latest wireless security features to prevent unauthorized access, be it from over the wireless network or from the Internet. Support for WPA and WEP standards ensure that you’ll be able to use the best possible encryption method, regardless of your client devices. In addition, this Xtreme N™ Gigabit Router utilizes dual active ﬁrewalls (SPI and NAT) to prevent potential attacks from across the Internet.

* Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n speciﬁcations. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trafﬁc, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range.

6D-Link DIR-660 User Manual

Section 1 - Product Overview

• Faster Wireless Networking - The DIR-660 provides up to 300Mbps* wireless connection with other

802.11n wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio. The performance of this 802.11n wireless router gives you the freedom of wireless networking at speeds 14x faster than 802.11g.

• Compatible with 802.11b and 802.11g Devices - The DIR-660 is still fully compatible with the IEEE

802.11b standard, so it can connect with existing 802.11b PCI, USB and Cardbus adapters.

• LCD Display - The LCD display screen provides information regarding the router.

• Advanced Firewall Features - The Web-based user interface displays a number of advanced network management features including:

• Content Filtering - Easily applied content ﬁltering based on MAC Address, URL, and/or Domain Name.

• Filter Scheduling - These ﬁlters can be scheduled to be active on certain days or for a duration of hours or minutes.

• Secure Multiple/Concurrent Sessions - The DIR-660 can pass through VPN sessions. It supports multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-660 can securely access corporate networks.

• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DIR-660 lets you control what information is accessible to those on the wireless network, whether from the Internet or from your company’s server. Conﬁgure your router to your speciﬁc settings within minutes.

Features

7D-Link DIR-660 User Manual

Section 1 - Product Overview

Hardware Overview

Connections

USB Connect a USB 1.1 or 2.0 ﬂash drive to conﬁgure the wireless settings using WCN.

Reset Pressing the Reset button restores the router to its original factory default settings.

Gigabit LAN Ports (1-4) Connect Ethernet devices such as computers, switches, and hubs.

Internet Port The auto MDI/MDIX Internet port is the connection for the Ethernet cable to the cable or DSL modem.

Power Receptor

Receptor for the supplied power adapter.

8D-Link DIR-660 User Manual

Section 1 - Product Overview

Hardware Overview

LEDs

WLAN LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data transmission.

Status LED

A blinking light indicates that the DIR-660 is ready.

Internet LED A solid light indicates connection on the Internet port. This LED blinks during data transmission.

Power LED A solid light indicates a proper connection to the power supply.

Local Network LEDs

A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during data transmission.

WCN LED Insert a USB ﬂash drive with WCN information. The LED will blink 3 times if it successfully transfers the wireless settings.

LCD Screen

Displays information regarding the router.

9D-Link DIR-660 User Manual

Section 2 - Installation

Before you Begin

Installation

This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in the attic or garage.

Please conﬁgure the router with the computer that was last connected directly to your modem. Also, you can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).

If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.

10D-Link DIR-660 User Manual

Section 2 - Installation

Wireless Installation Considerations

The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum

- each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a

45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on

range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (ﬁsh tanks), mirrors, ﬁle cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that

generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and

home security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.

11D-Link DIR-660 User Manual

Section 2 - Installation

The DIR-660 includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process.

Insert the Quick Router Setup Wizard CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows® XP. The steps and screens are similar for the other Windows operating systems.

If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\DIR660.exe” (where D: represents the drive letter of your CD-ROM drive).

When the autorun screen appears, click the orange Install Router button.

Getting Started

Note: It is reccomended to write down the SSID and Security Key, followed by the login password on the provided CD holder.

12D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Conﬁguration

This section will show you how to conﬁgure your new D-Link wireless router using the web-based conﬁguration utility.

Web-based Conﬁguration Utility

To access the conﬁguration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.0.1).

Select Admin from the drop-down menu and then enter your password. Leave the password blank by default.

If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section for assistance.

13D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Setup Wizard

You may click Setup Wizard to quickly conﬁgure your router.

If you want to enter your settings without running the wizard, click Manual Conﬁguration and skip to page 17.

Click Launch Internet Connection Setup Wizard to begin.

If you want to conﬁgure your wireless settings, click Launch Wireless Security Setup Wizard and skip to page 65.

Click Next to continue.

14D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Create a new password and then click Next to continue.

Select your time zone from the drop-down menu and then click Next to continue.

Select the type of Internet connection you use and then click Next to continue.

15D-Link DIR-660 User Manual

Section 3 - Conﬁguration

If you selected Dynamic, you may need to enter the MAC address of the computer that was last connected directly to your modem. If you are currently using that computer, click Clone Your PC’s MAC Address and then click Next to continue.

The Host Name is optional but may be required by some ISPs. The default host name is the device name of the Router and may be changed.

If you selected PPPoE, enter your PPPoE username and password. Click Next to continue.

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses.

Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.

If you selected PPTP, enter your PPTP username and password. Click Next to continue.

16D-Link DIR-660 User Manual

Section 3 - Conﬁguration

If you selected L2TP, enter your L2TP username and password. Click Next to continue.

If you selected Static, enter your network settings supplied by your Internet provider. Click Next to continue.

Click Connect to save your settings. Once the router is ﬁnished rebooting, click Continue. Please allow 1-2 minutes to connect.

Close your browser window and reopen it to test your Internet connection. It may take a few tries to initially connect to the Internet.

17D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Select Dynamic IP (DHCP) to obtain IP Address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for Cable modem services.

The Host Name is optional but may be required by some ISPs.

Check the box if you are having problems obtaining an IP address from your ISP.

Enter the Primary DNS ser ver IP address assigned by your ISP.

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1500 is the default MTU.

The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.

My Internet

Connection:

Host Name:

MAC Address:

Manual Conﬁguration

Dynamic (Cable)

DNS Addresses:

MTU:

Use Unicasting:

18D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Select PPPoE (Username/Password) from the drop-down menu.

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the IP address (Static PPPoE only).

Enter your PPPoE user name.

Enter your PPPoE password and then retype the password in the next box.

Enter the ISP Service Name (optional).

Select either Always-on, On-Demand, or Manual.

Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1492 is the default MTU.

My Internet

Connection:

Address Mode:

IP Address:

User Name:

Password:

Service Name:

Reconnection Mode:

Maximum Idle Time:

DNS Addresses:

MTU:

MAC Address:

Internet Setup

PPPoE (DSL)

Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.

19D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the IP address (Static PPTP only).

Enter the Primary and Secondary DNS Server Addresses (Static PPTP only).

Enter the Gateway IP Address provided by your ISP.

Enter the Server IP provided by your ISP (optional).

Enter your PPTP username.

Enter your PPTP password and then retype the password in the next box.

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

The DNS server information will be supplied by your ISP (Internet Service Provider.)

Address Mode:

PPTP IP Address:

PPTP Subnet

Mask:

PPTP Gateway:

PPTP Server IP:

Internet Setup

PPTP

Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.

Username:

Password:

Reconnect Mode:

Maximum Idle

Time:

DNS Servers:

20D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1452 is the default MTU.

MTU:

MAC Address:

21D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the L2TP IP address supplied by your ISP (Static only).

Enter the Subnet Mask supplied by your ISP (Static only).

Enter the Gateway IP Address provided by your ISP.

Enter the Server IP provided by your ISP (optional).

Enter your L2TP username.

Enter your L2TP password and then retype the password in the next box.

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

Enter the Primary and Secondary DNS Server Addresses (Static L2TP only).

Address Mode:

L2TP IP Address:

L2TP Subnet Mask:

L2TP Gateway:

L2TP Server IP:

Username:

Password:

Reconnect Mode:

Maximum Idle Time:

DNS Servers:

Internet Setup

L2TP

Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.

22D-Link DIR-660 User Manual

Section 3 - Conﬁguration

MTU:

Clone MAC

Address:

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1464 is the default MTU.

23D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Enter the IP address assigned by your ISP.

Enter the Subnet Mask assigned by your ISP.

Enter the Gateway assigned by your ISP.

The DNS server information will be supplied by your ISP (Internet Service Provider.)

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1500 is the default MTU.

IP Address:

Subnet Mask:

Default Gateway:

DNS Servers:

MTU:

MAC Address:

Internet Setup

Static (assigned by ISP)

Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the ﬁelds must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.

24D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Enter the IP address of the login server.

Enter your BigPond username.

Enter your BigPond password and then retype the password in the next box.

The DNS server information will be supplied by your ISP (Internet Service Provider.)

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1500 is the default MTU.

The default MAC Address is set to the Internet’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.

BigPond Server:

BigPond Username:

BigPond Password:

DNS Servers:

MTU:

MAC Address:

Internet Setup

Big Pond

25D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Check the box to enable the wireless function. If you do not want to use wireless, uncheck the box to disable all the wireless functions.

Service Set Identiﬁer (SSID) is the name of your wireless network. Create a name using up to 32 characters. The SSID is case-sensitive.

The Auto Channel Scan setting can be selected to allow the DIR-660 to choose the channel with the least amount of interference.

Indicates the channel setting for the DIR-660. By default the channel is set to 6. The Channel can be changed to ﬁt the channel setting for an existing wireless network or to customize the wireless network. If you enable Auto Channel Scan, this option will be greyed out.

Select one of the following:

802.11g Only - Select if all of your wireless clients are 802.11g. Mixed 802.11g and 802.11b - Select if you are using both 802.11b and 802.11g wireless clients.

802.11b Only - Select if all of your wireless clients are 802.11b.

802.11n Only - Select only if all of your wireless clients are 802.11n.

Mixed 802.11n, 802.11b, and 802.11g - Select if you are using a mix of 802.11n, 11g, and 11b wireless clients. Mixed 802.11n and 802.11g - Select if you are using a mix of 802.11n and 802.11g wireless clients.

Enable Wireless:

Enable Auto

Channel Scan:

Wireless Settings

Wireless Network

Name:

Wireless Channel:

802.11 Mode:

26D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Select the Channel Width:

Auto 20/40 - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices. 20MHz - Select if you are not using any 802.11n wireless clients.

Select the transmit rate. It is strongly suggested to select Best (Auto) for best performance.

Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-660. If Invisible is selected, the SSID of the DIR-660 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-660 in order to connect to it.

Refer to page 65 for more information regarding wireless security.

Visibility Status:

Wireless Security:

Transmission Rate:

Channel Width:

27D-Link DIR-660 User Manual

Section 3 - Conﬁguration

This section will allow you to change the local network settings of the router and to conﬁgure the DHCP settings.

Network Settings

Enter the IP address of the router. The default IP address is 192.168.0.1.

If you change the IP address, once you click Apply, you will need to enter the new IP address in your browser to get back into the conﬁguration utility.

Enter the Subnet Mask. The default subnet mask is

255.255.255.0.

Enter the Domain name (Optional).

Un check t he box to transfer the DNS server infor mation from your ISP to your computers. If checked, your computers will use the router for a DNS server.

IP Address:

Subnet Mask:

Local Domain:

Enable DNS Relay:

28D-Link DIR-660 User Manual

Section 3 - Conﬁguration

Check this box to enable the DHCP server on your router. Uncheck to disable this function.

Enter the starting and ending IP addresses for the DHCP server’s IP assignment.

Note: If you statically (manually) assign IP addresses to your computers or devices, make sure the IP addresses are outside of this range or you may have an IP conﬂict.

The length of time for the IP address lease. Enter the Lease time in minutes.

Enable this feature to broadcast your networks DHCP server to LAN/ WLAN clients.

NetBIOS allows LAN hosts to discover all other computers within the network, enable this feature to allow the DHCP Server to offer NetBIOS conﬁguration settings.

Enable this feature to allow WINS information to be learned from the WAN side, disable to allow manual conﬁguration.

This feature allows the conﬁguration of a NetBIOS ‘domain’ name under which network hosts operates. This setting has no effect if the ‘Learn NetBIOS information from WAN’ is activatede.”

Select the different type oif NetBIOS node; Broadcast only, Point-to-Point, Mixed-mode and Hybrid.

Enter your WINS IP address

Enable DHCP

Server:

DHCP IP Address

Range:

DHCP Lease Time:

Always Broadcast:

NetBIOS

Announcement:

Learn NetBIOS

from WAN:

NetBIOS Scope:

NetBIOS Node:

WINS IP Address:

DHCP Server Settings

DHCP stands for Dynamic Host Control Protocol. The DIR-660 has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided by the DIR-660. The DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.

29D-Link DIR-660 User Manual

Section 3 - Conﬁguration

DHCP Reservation

If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP address only to that computer or device.

Note: This IP address must be within the DHCP IP Address Range.

Check this box to enable the reservation.

Enter the computer name or select from the drop-down menu and click <<.

Enter the IP address you want to assign to the computer or device. This IP Address must be within the DHCP IP Address Range.

Enter the MAC address of the computer or device.

If you want to assign an IP address to the computer you are currently on, click this button to populate the ﬁelds.

Click Save to save your entry. You must click Save Settings at the top to activate your reservations.

Enable:

Computer Name:

IP Address:

MAC Address:

Copy Your PC’s

MAC Address:

Save:

30D-Link DIR-660 User Manual

Section 3 - Conﬁguration

The DIR-660 can be conﬁgured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network).

The DIR-660 ﬁrewall feature ﬁlters out unrecognized packets to protect your LAN network so all computers networked with the DIR-660 are invisible to the outside world. If you wish, you can make some of the LAN computers accessible from the Internet by enabling Virtual Server. Depending on the requested service, the DIR-660 redirects the external service request to the appropriate server within the LAN network.

The DIR-660 is also capable of port-redirection meaning incoming trafﬁc to a particular port may be redirected to a different port on the server computer.

Each virtual service that is created will be listed at the bottom of the screen in the Virtual Servers List. There are pre-deﬁned virtual services already in the table. You may use them by enabling them and assigning the server IP to use that particular virtual service.

For a list of ports for common applications, please visit http://support.dlink.com/faq/view.asp?prod_id=1191.

Virtual Server

+ 68 hidden pages
