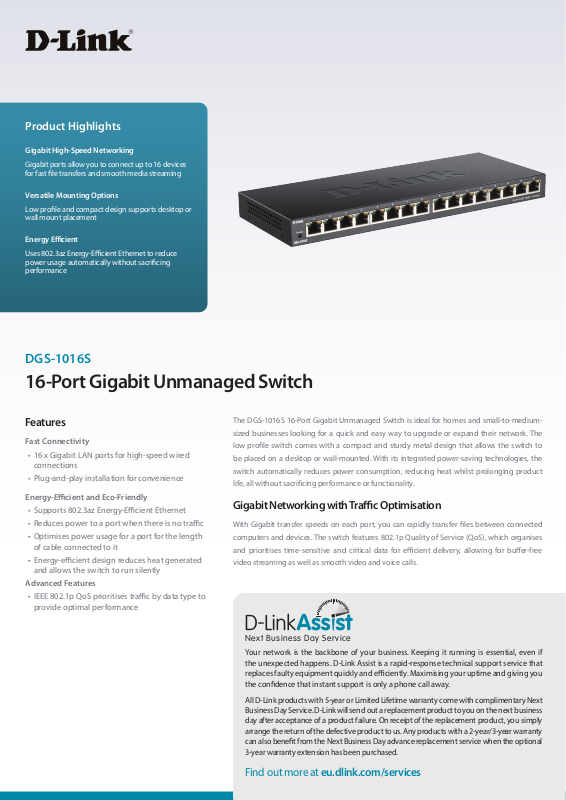

Page 1
Product Highlights
Next Business Day Service
Gigabit High-Speed Networking
Gigabit ports allow you to connect up to 16 devices
for fast le transfers and smooth media streaming
Versatile Mounting Options
Low prole and compact design supports desktop or
wall mount placement
Energy Ecient
Uses 802.3az Energy-Ecient Ethernet to reduce
power usage automatically without sacricing
performance

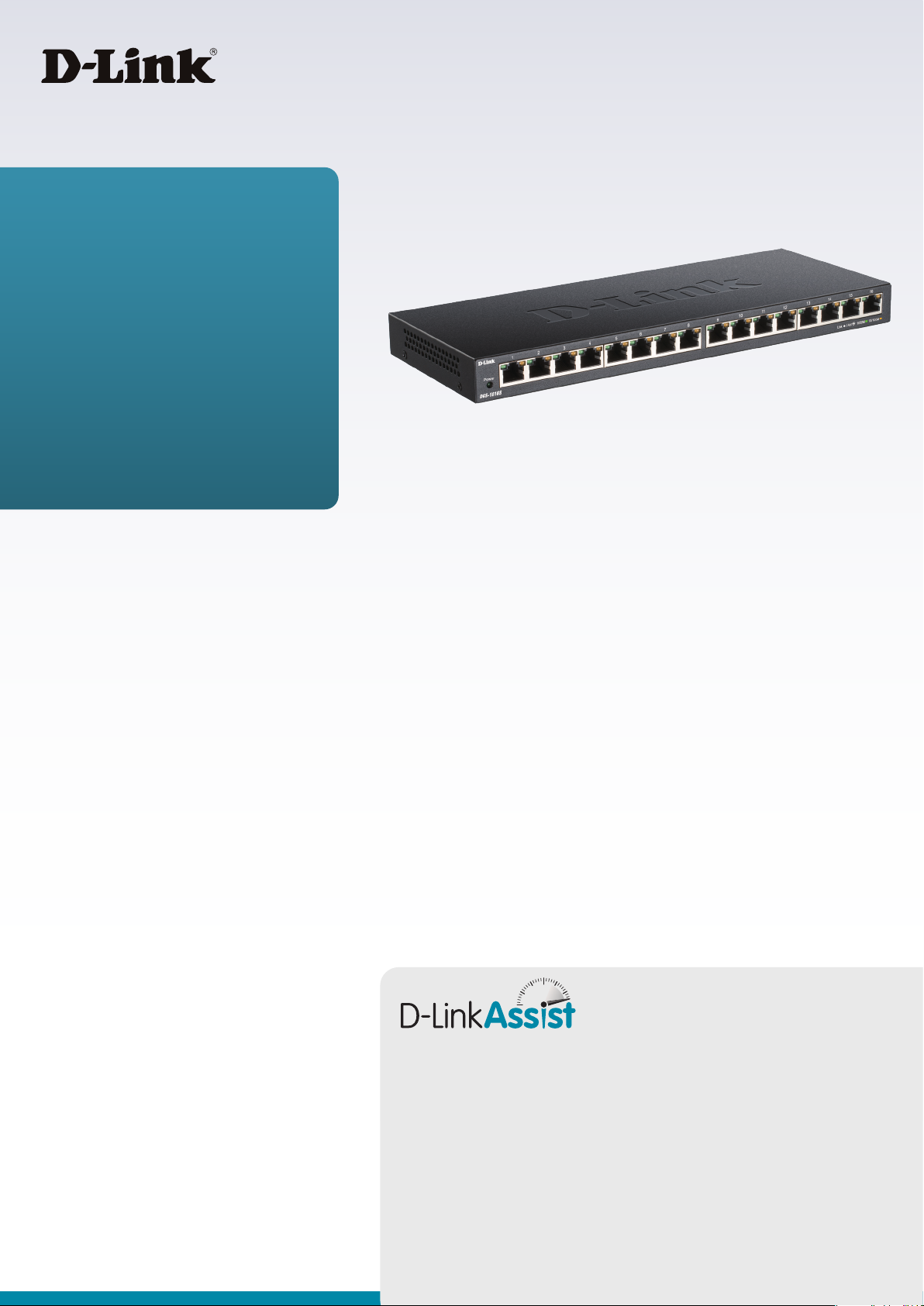

DGS-1016S
16-Port Gigabit Unmanaged Switch
Features
Fast Connectivity
• 16 x Gigabit LAN ports for high-speed wired
connections
• Plug-and-play installation for convenience
Energy-Ecient and Eco-Friendly
• Supports 802.3az Energy-Ecient Ethernet
• Reduces power to a port when there is no trac
• Optimises power usage for a port for the length
of cable connected to it
• Energy-ecient design reduces heat generated
and allows the switch to run silently
Advanced Features
• IEEE 802.1p QoS prioritises trac by data type to
provide optimal performance
The DGS-1016S 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-
sized businesses looking for a quick and easy way to upgrade or expand their network. The
low prole switch comes with a compact and sturdy metal design that allows the switch to
be placed on a desktop or wall-mounted. With its integrated power-saving technologies, the
switch automatically reduces power consumption, reducing heat whilst prolonging product
life, all without sacricing performance or functionality.
Gigabit Networking with Trac Optimisation
With Gigabit transfer speeds on each port, you can rapidly transfer les between connected
computers and devices. The switch features 802.1p Quality of Service (QoS), which organises
and prioritises time-sensitive and critical data for ecient delivery, allowing for buer-free
video streaming as well as smooth video and voice calls.
Your network is the backbone of your business. Keeping it running is essential, even if
the unexpected happens. D-Link Assist is a rapid-response technical support service that
replaces faulty equipment quickly and eciently. Maximising your uptime and giving you
the condence that instant support is only a phone call away.
All D-Link products with 5-year or Limited Lifetime warranty come with complimentary Next
Business Day Service. D-Link will send out a replacement product to you on the next business
day after acceptance of a product failure. On receipt of the replacement product, you simply
arrange the return of the defective product to us. Any products with a 2-year/3-year warranty
can also benet from the Next Business Day advance replacement service when the optional
3-year warranty extension has been purchased.
Find out more at eu.dlink.com/services
Page 2
DGS-1016S 16-Port Gigabit Unmanaged Switch
Technical Specications
General
Device Interfaces • 16 x 10/100/1000 Mbps LAN ports
Standards • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
Functionality
Switching Capacity • 32 Gbps
Advanced Features • Auto-MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9,216 byte jumbo frames
Data Transfer Rates • Ethernet:
• 10 Mbps (half-duplex)
• 20 Mbps (full-duplex)
• Fast Ethernet:
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
Transmission Method • Store-and-forward
MAC Address Table Size • 8K entries
Packet Filtering/Forwarding Rates • Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
RAM Buffer • 512 KB per device
Physical
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Auto-negotiation for each port
• Quality of Service (8 queues, strict mode)
• Gigabit Ethernet
• 2000 Mbps (full-duplex)
• Gigabit Ethernet: 1,488,000 pps per port
LED Indicators • Per port: Link/Activity/Speed • Per device: Power
Media Interface Exchange • Auto-MDI/MDIX adjustment for all ports
Dimensions • 280 x 110 x 25 mm (11.02 x 4.33 x 0.98 in)
Weight • 0.77 kg (1.7 lbs)
Power Input • 12 V / 1 A
Power Consumption • Standby: 3.37 W • Maximum: 8.89 W
Temperature • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -40 to 70 °C (-40 to 158 °F)
Humidity • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing
MTBF • 564,658 hours
Maximum Heat Dissipation • 30.32 BTU/h
Emissions (EMI) • CE Class A
• FCC Class A
Safety • LVD
• ICES 003
• RCM
For more information: www.dlink.com
D-Link European Headquarters. D-Link (Europe) Ltd., First Floor, Artemis Building, Odyssey Business Park, West End Road, South Ruislip HA4 6QE, United Kingdom.
Specications are subject to change without notice. D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries.
All other trademarks belong to their respective owners. ©2020 D-Link Corporation. All rights reserved. E&OE.
Updated September 2020
