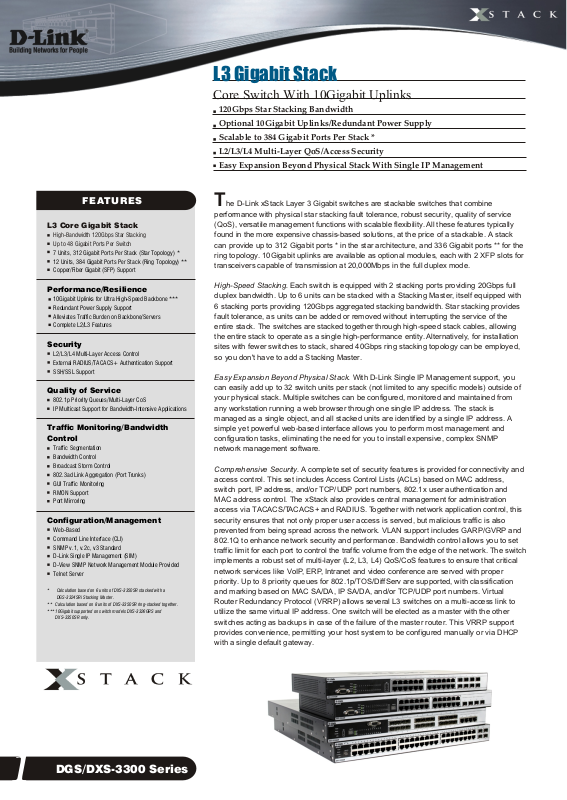

D-link DEM-CB100 BROCHURE

L3 Gigabit Stack

Core Switch With 10Gigabit Uplinks

120Gbps Star Stacking Bandwidth

Optional 10Gigabit Uplinks/Redundant Power Supply

Scalable to 384 Gigabit Ports Per Stack *

L2/L3/L4 Multi-Layer QoS/Access Security

Easy Expansion Beyond Physical Stack With Single IP Management

FEATURES

L3 Core Gigabit Stack

High-Bandwidth 120Gbps Star Stacking
Up to 48 Gigabit Ports Per Switch
7 Units, 312 Gigabit Ports Per Stack (Star Topology) *

12 Units, 384 Gigabit Ports Per Stack (Ring Topology) **
Copper/Fiber Gigabit (SFP) Support

Performance/Resilience

10Gigabit Uplinks for Ultra High-Speed Backbone ***
Redundant Power Supply Support
Alleviates Traffic Burden on Backbone/Servers
Complete L2/L3 Features

Security

L2/L3/L4 Multi-Layer Access Control
External RADIUS/TACACS+ Authentication Support
SSH/SSL Support

Quality of Service

802.1p Priority Queues/Multi-Layer CoS
IP Multicast Support for Bandwidth-Intensive Applications

Traffic Monitoring/Bandwidth
Control

Traffic Segmentation
Bandwidth Control
Broadcast Storm Control

802.3ad Link Aggregation (Port Trunks)
GUI Traffic Monitoring
RMON Support
Port Mirroring

Configuration/Management

Web-Based
Command Line Interface (CLI)
SNMP v.1, v.2c, v.3 Standard
D-Link Single IP Management (SIM)
D-View SNMP Network Management Module Provided
Telnet Server

* Calculation based on 6 units of DXS-3350SR stacked with a
DGS-3324SRi Stacking Master.
** Calculation based on 8 units of DXS-3350SR ring-stacked together.
*** 10Gigabit supported on switch models DXS-3326GRS and
DXS-3350SR only.

he D-Link xStack Layer 3 Gigabit switches are stackable switches that combine

T

performance with physical star stacking fault tolerance, robust security, quality of service
(QoS), versatile management functions with scalable flexibility. All these features typically
found in the more expensive chassis-based solutions, at the price of a stackable. A stack
can provide up to 312 Gigabit ports * in the star architecture, and 336 Gigabit ports ** for the
ring topology. 10Gigabit uplinks are available as optional modules, each with 2 XFP slots for
transceivers capable of transmission at 20,000Mbps in the full duplex mode.

High-Speed Stacking. Each switch is equipped with 2 stacking ports providing 20Gbps full
duplex bandwidth. Up to 6 units can be stacked with a Stacking Master, itself equipped with
6 stacking ports providing 120Gbps aggregated stacking bandwidth. Star stacking provides
fault tolerance, as units can be added or removed without interrupting the service of the
entire stack. The switches are stacked together through high-speed stack cables, allowing
the entire stack to operate as a single high-performance entity. Alternatively, for installation
sites with fewer switches to stack, shared 40Gbps ring stacking topology can be employed,
so you don't have to add a Stacking Master.

Easy Expansion Beyond Physical Stack. With D-Link Single IP Management support, you
can easily add up to 32 switch units per stack (not limited to any specific models) outside of
your physical stack. Multiple switches can be configured, monitored and maintained from
any workstation running a web browser through one single IP address. The stack is
managed as a single object, and all stacked units are identified by a single IP address. A
simple yet powerful web-based interface allows you to perform most management and
configuration tasks, eliminating the need for you to install expensive, complex SNMP
network management software.

Comprehensive Security. A complete set of security features is provided for connectivity and
access control. This set includes Access Control Lists (ACLs) based on MAC address,
switch port, IP address, and/or TCP/UDP port numbers, 802.1x user authentication and
MAC address control. The xStack also provides central management for administration
access via TACACS/TACACS+ and RADIUS. Together with network application control, this
security ensures that not only proper user access is served, but malicious traffic is also
prevented from being spread across the network. VLAN support includes GARP/GVRP and

802.1Q to enhance network security and performance. Bandwidth control allows you to set
traffic limit for each port to control the traffic volume from the edge of the network. The switch
implements a robust set of multi-layer (L2, L3, L4) QoS/CoS features to ensure that critical
network services like VoIP, ERP, Intranet and video conference are served with proper
priority. Up to 8 priority queues for 802.1p/TOS/DiffServ are supported, with classification
and marking based on MAC SA/DA, IP SA/DA, and/or TCP/UDP port numbers. Virtual
Router Redundancy Protocol (VRRP) allows several L3 switches on a multi-access link to
utilize the same virtual IP address. One switch will be elected as a master with the other
switches acting as backups in case of the failure of the master router. This VRRP support
provides convenience, permitting your host system to be configured manually or via DHCP
with a single default gateway.

1

DGS/DXS-3300 Series

Product Specifications

Interface

10/100/1000BASE-T Ports

Auto-Negotiation of Network Speed

Auto-MDI/MDIX

802.3x Flow Control

SFP

Open Slot for 10Gigabit Uplink Module

CompactFlash Slot

RS-232 Console Port

Physical Stacking

SIO Stacking Ports

Stacking Port Speed

No. of Units Per Stack (Star Topology) ***

No. of Units Per Stack (Ring Topology) ****

DGS-3324SRi

24

8 *

-

1

6

20Gbps (Full-Duplex)

7

12

DGS-3324SR

24

4 *

-

-

1

2

20Gbps (Full-Duplex)

7

12

DXS-3326GSR

4**

24

-

1

2

20Gbps (Full-Duplex)

7

12

DXS-3350SR

48

4*

-

1

2

20Gbps (Full-Duplex)

7

8

10Gigabit Uplink Module

XFP Slots

10GBASE-SR (300 m Multi-Mode Fiber) Support

10GBASE-LR (10 km Single-Mode Fiber) Support

Performance

Switch Fabric

Packet Forwarding Rate

Packet Buffer Size

IP Address Table

MAC Address Table

Max. Jumbo Frame Size

Power

Power Supply

Power Consumption (Max.)

Optional Redundant Power Supply

Diagnostic LED

Power, Stacking Master, Console, RPS (Per Device)

SIO (Per SIO Stacking Port)

1000Mbps (Per 10/100/1000BASE-T Port)

Link/Activity (Per Port)

Stack ID No.

Physical/Environmental

BTU/Hr.

Dimensions

Size

Weight (Without Optional Module)

Operating Temperature

Storage Temperature

Humidity

EMI

Safety

MTBF

-

-

-

186Gbps

125Mpps

2MB

3K

16K

9KBytes

90 Watts

-

307.1 307.1

441 x 207 x 44 mm

3.15 kg

oo

0 to 40 C

o o

-25 to 55C

5% to 95% Non-Condensing

FCC Class A, CE, C-Tick

CSA International

171,528 Hours

-

-

-

88Gbps

65.5Mpps

2MB

3K

16K

9KBytes

100 to 120VAC, 200 to 240VAC, 50/60Hz, Internal Power Supply

90 Watts

441 x 207 x 44 mm

19-Inch Rack-Mount Width, 1U Height

3.15 kg

oo

0 to 40 C

o o

-25 to 55C

5% to 95% Non-Condensing

FCC Class A, CE, C-Tick

CSA International

156,302 Hours

* Combo with 10/100/1000BASE-T ports.
** Combo with SFP slots.
*** Including DGS-3324SRi Stacking Master. Star stacking requires a DGS-3324SRi Stacking Master.
**** In the ring stacking scheme, maximum 12 units per stack if only DGS-3324SR, DES-3352SR
and DXS-3326GSR (any combination) are used. If DXS-3350SR is included in the stack, maximum
number of units per stack will be less than 12.

2

128Gbps

95Mpps

2MB

3K

16K

9KBytes

140 Watts

-

477.7

441 x 430 x 44 mm

6.5 kg

oo

0 to 40 C

o o

-25 to 55C

5% to 95% Non-Condensing

FCC Class A, CE, C-Tick

CSA International

143,111 Hours

2

176Gbps

131Mpps

4MB

3K

16K

9KBytes

143 Watts

-

487.9

441 x 430 x 44 mm

6.41 kg

oo

0 to 40 C

o o

-25 to 55C

5% to 95% Non-Condensing

FCC Class A, CE, C-Tick

CSA International

93,994 Hours

2

DGS/DXS-3300 Series

Software Functions

IP Routing Spanning Tree Protocol RMON Groups

IP v.4 support 802.1D Spanning Tree compatible 1, 2, 3, 9 (Alarm, Statistics, History, Event)
IP Fragmentation support 802.1w Rapid Spanning Tree
Multiple IP interfaces per VLAN 802.1s Multiple Spanning Tree IP Number Self-identification
Routing protocols supported: Through DHCP client, Bootp client
Static routing IP Multicast
RIP v.1, RIP v.2 IGMP v.2 Firmware Upgrade
OSPF v.2 DVMRP TFTP
PIM Dense mode
VLAN PIM Sparse mode*
Port-based VLAN VRRP
IEEE 802.1Q Tagged VLAN
GARP/GVRP Port Trunk
Maximum number of VLANs Maximum number of ports per trunk: 8
Dynamic: 255 Maximum number of trunks per stack: 32
Static: 4K Operation mode support: load sharing

802.3ad compatible Link Aggregation (LACP)

Priority Queues (CoS)

Standard: IEEE 802.1p Transmission Method
Maximum number of queues: 8 Store-and-Forward

Traffic Classification (CoS) Jumbo Frame

Can be based on user-definable application types:

9KB (max.)

MAC address
TOS
Diffserv (DSCP)
IP address
Packet protocol type
TCP/UDP port number (user-definable application
types)
TCP/UDP payload (user-definable packet content)
IP v.6 address
IP v.6 traffic class
IP v.6 flow label

Access Security

802.1x port-based access control

802.1x MAC-based access control
Port security
SSH
SSL

Access Control List

Multi-layer ACL based on:

MAC address
TOS
Diffserv (DSCP)
IP address
Packet protocol type
TCP/UDP port number (user-definable application
types)
TCP/UDP payload (user-definable packet content)

Per port ACL definition
IP v.6 address
IP v.6 traffic class
IP v.6 flow label
CPU interface filtering

Configuration & Management

Management Support

D-Link SIM (Single IP Management)
SNMP v.1, v.2c, v.3
Web-based management
Web GUI traffic monitoring
Web-based MAC address browsing
CLI (command line interface)
RMON monitoring
Telnet server (up to 8 sessions)
TACACS/TACACS+ authentication on switch admin access
RADIUS authentication on switch admin access
SYSLOG
DHCP/Bootp relay
DNS relay
Dual Images
Port description
CPU utilization monitoring

MIBs

MIB-II (RFC 1213)
Bridge MIB (RFC 1493)
RMON MIB (RFC 1757)

802.1p Priority Queues (RFC 2674)

802.1Q VLAN MIB (RFC 2674)
IGMP MIB (RFC 2933)
If MIB (RFC 2233)
Ethernet-like MIB (RFC 1643)
RIP MIB (RFC 1724)
OSPF MIB (RFC 1850)
CIDR MIB (RFC 2096)
D-Link enterprise MIB

Optional Products

Optional Management Software

DS-510S D-View 5.1 SNMP Network Management
Program (standard version)
DS-510P D-View 5.1 SNMP Network Management
Program (professional version)

Optional 10Gigabit Uplink Modules

DEM-420X 2-slot 10Gigabit XFP uplink module
DEM-420CX 2-port 10Gigabit CX4 uplink module

Optional 10Gigabit XFP Transceivers

DEM-421XT XFP transceiver for 10GBASE-SR, multi­ mode fiber, max. distance 300 m, 3.3/5V
DEM-422XT XFP transceiver for 10GBASE-LR, single­ mode fiber, max. distance 10 km, 3.3/5V
DEM-423XT XFP transceiver for 10GBASE-ER, single­ mode fiber, max. distance 40 km, 3.3/5V

Optional SFP Transceivers

DEM-310GT SFP transceiver for 1000BASE-LX, single­ mode fiber, max. distance 10 km, 3.3V
DEM-311GT SFP transceiver for 1000BASE-SX, multi­ mode fiber, max. distance 550 m, 3.3V
DEM-312GT2 SFP transceiver for 1000BASE-SX, multi­ mode fiber, max. distance 2 km, 3.3V
DEM-314GT SFP transceiver for 1000BASE-LHX, single-
mode fiber, max. distance 50 km, 3.3V
DEM-315GT SFP transceiver for 1000BASE-LX, single­ mode fiber, max. distance 80 km, 3.3V

Optional Redundant Power Supply

DPS-500 140-watt redundant power supply
DPS-800 2-slot redundant power supply chassis
DPS-900 8-slot redundant power supply chassis

* Function available in future firmware upgrade

3

D-Link Worldwide Offices

U.S.A.
Canada
Europe (U. K.)
Germany
France
Netherlands
Belgium
Italy
Sweden
Denmark
Norway
Finland
Spain
Portugal
Czech Republic

Switzerland
Greece

TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]

TEL: [phone]
TEL: [phone]

DGS/DXS-3300 Series

FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]

FAX: [phone]
FAX: [phone]

Luxemburg
Poland
Hungary
Singapore
Australia
India
Middle East (Dubai)
Turkey
Egypt
Israel
LatinAmerica
Brazil
South Africa
Russia
China
Taiwan
Headquarters

D-Link is a registered trademark of D-Link Corporation/D-Link System Inc. All other trademarks belong to their proprietors.

TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]
TEL: [phone]

FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone]
FAX: [phone] #350
FAX: [phone]
FAX: [phone]
FAX: [phone]

Specifications subject to change without prior notice.

Rev. 08 (Aug. 2007)

DGS-3324SRi Stacking Master

DGS-3324SR

DXS-3326GSR

DXS-3350SR

DES-3526

Server Farm

DES-3526

DES-3526
DES-3550

Gigabit

Switches

Workstations

Stacking With Single IP Management

DES-3526

L2 Access
Layer Switches

V

i

r

t

u

a

Gigabit
Switches

Gigabit
Master

l

t

S

c

a

k

4

xStack - Ring (Bus) Architecture

TM

DGS/DXS-3300 Series

Gigabit
Switches

xStack - Star Architecture

TM
