dji MAVIC User Manual

Download

Page 1

V1.0

2016.09

User Manual

MAVIC

PRO

Page 2

Using this manual

Legends

Warning Important Hints and Tips Reference

Read Before the First Flight

Read the following documents before using the MAVICTM Pro:

1. In the Box

2. Mavic Pro User Manual

3. Mavic Pro Quick Start Guide

4. Mavic Pro Disclaimer and Safety Guidelines

5. Mavic Pro Intelligent Flight Battery Safety Guidelines

We recommend that you watch all tutorial videos on the ofcial DJITM website and read the Disclaimer before you y. Prepare for your rst ight by reviewing the Mavic Pro Quick Start Guide and refer to the

User Manual for more details.

Video Tutorials

Please watch the tutorial videos at the link below, which demonstrates how to use Mavic Pro safely:

http://www.dji.com/mavic

Download the DJI GO App

Download and install the DJI GO app before using the aircraft. Scan the QR code to the right to download the latest version.

The Android version of the DJI GO app is compatible with Android 4.1.2 or later. The iOS version of the DJI GO app is compatible with iOS 8.0 or later.

Searching for Keywords

Search for keywords such as “battery” and “install” to nd a topic. If you are using Adobe Acrobat

Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search.

Navigating to a Topic

View a complete list of topics in the table of contents. Click on a topic to navigate to that section.

Printing this Document

This document supports high resolution printing.

Page 3

Contents

Using this manual

Legends

Read Before the First Flight

Video Tutorials

Download the DJI GO App

Product Prole

Introduction

Features Highlights

Preparing the Aircraft

Aircraft Diagram

Remote Controller Diagram

Aircraft

Flight Controller

Flight Mode

Flight Status Indicator

Return-to-Home (RTH)

TapFly

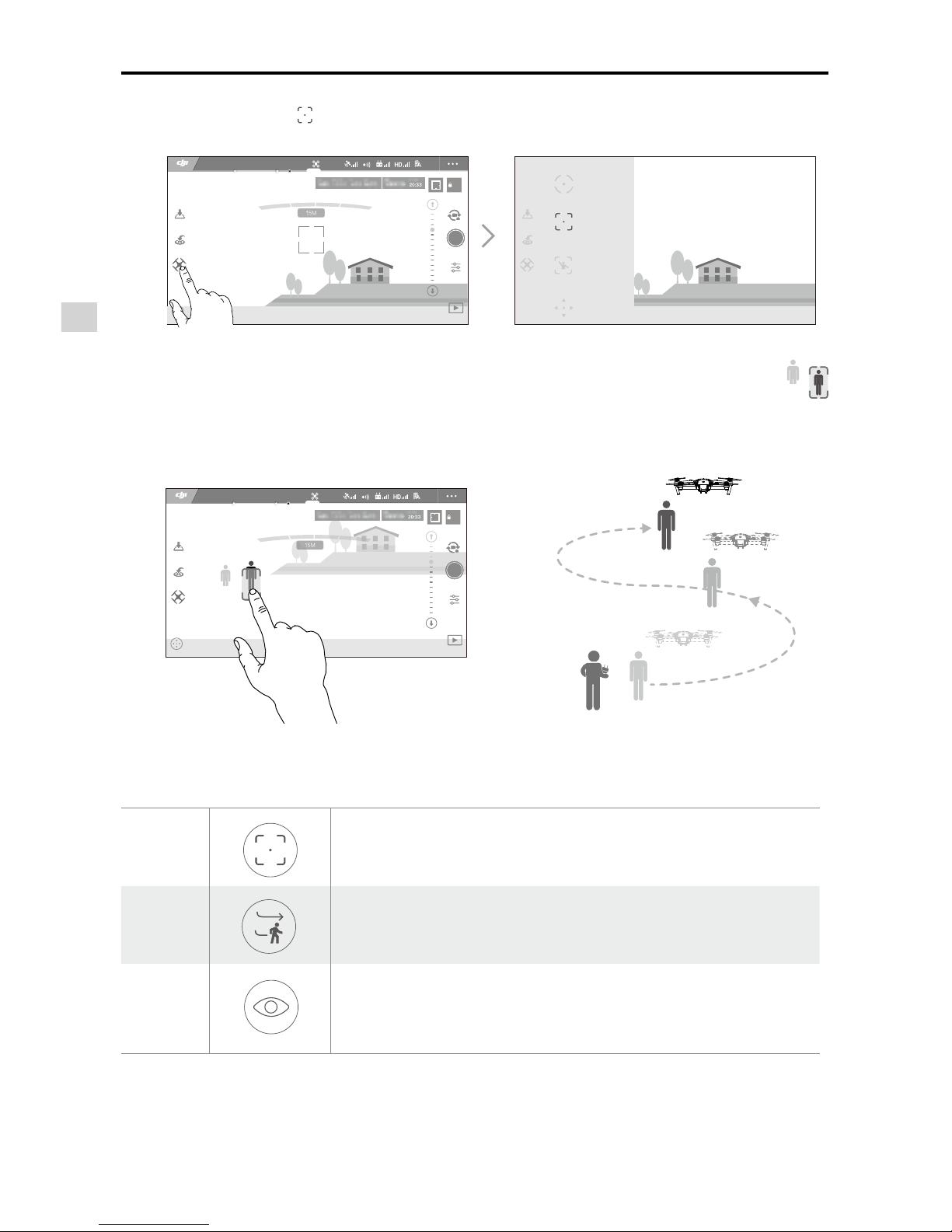

ActiveTrack

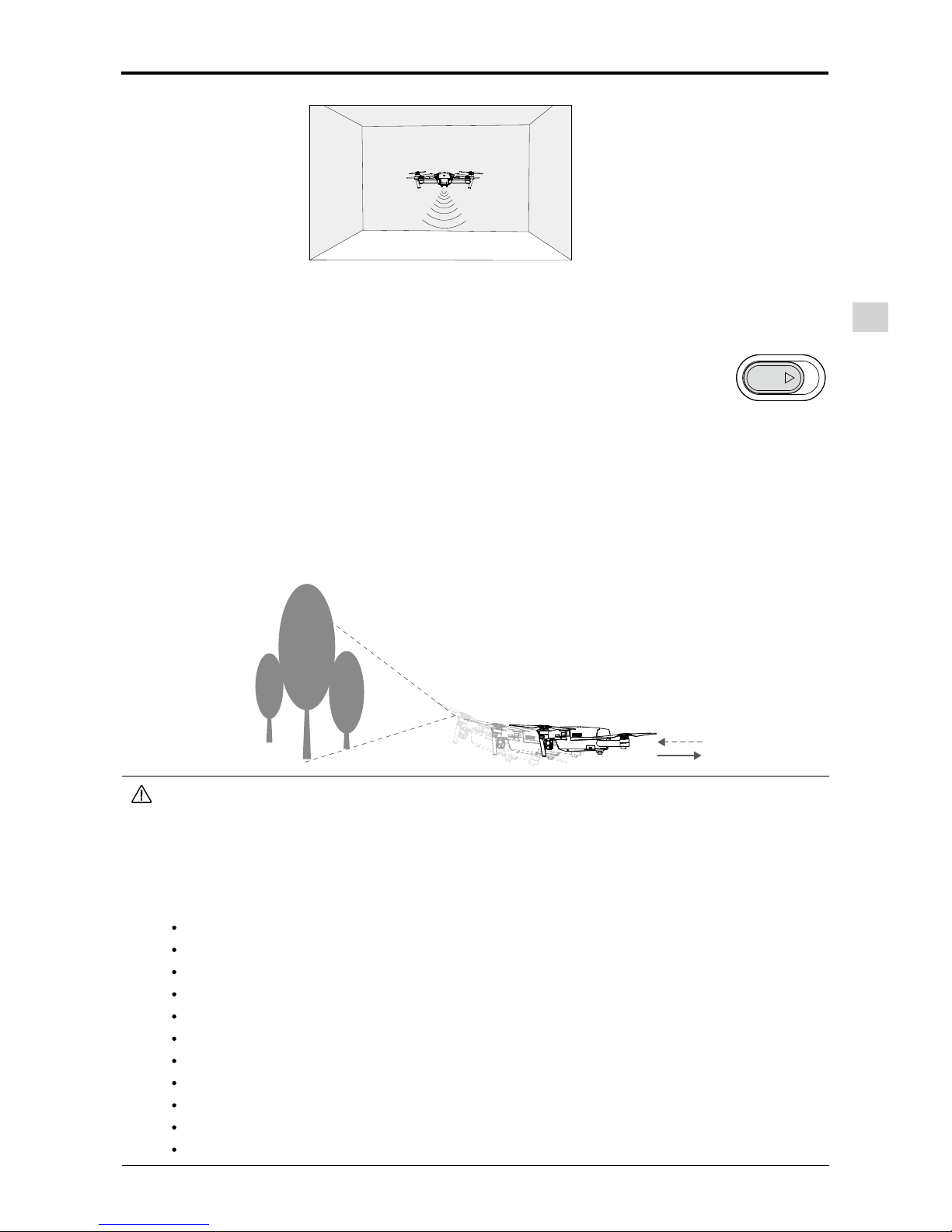

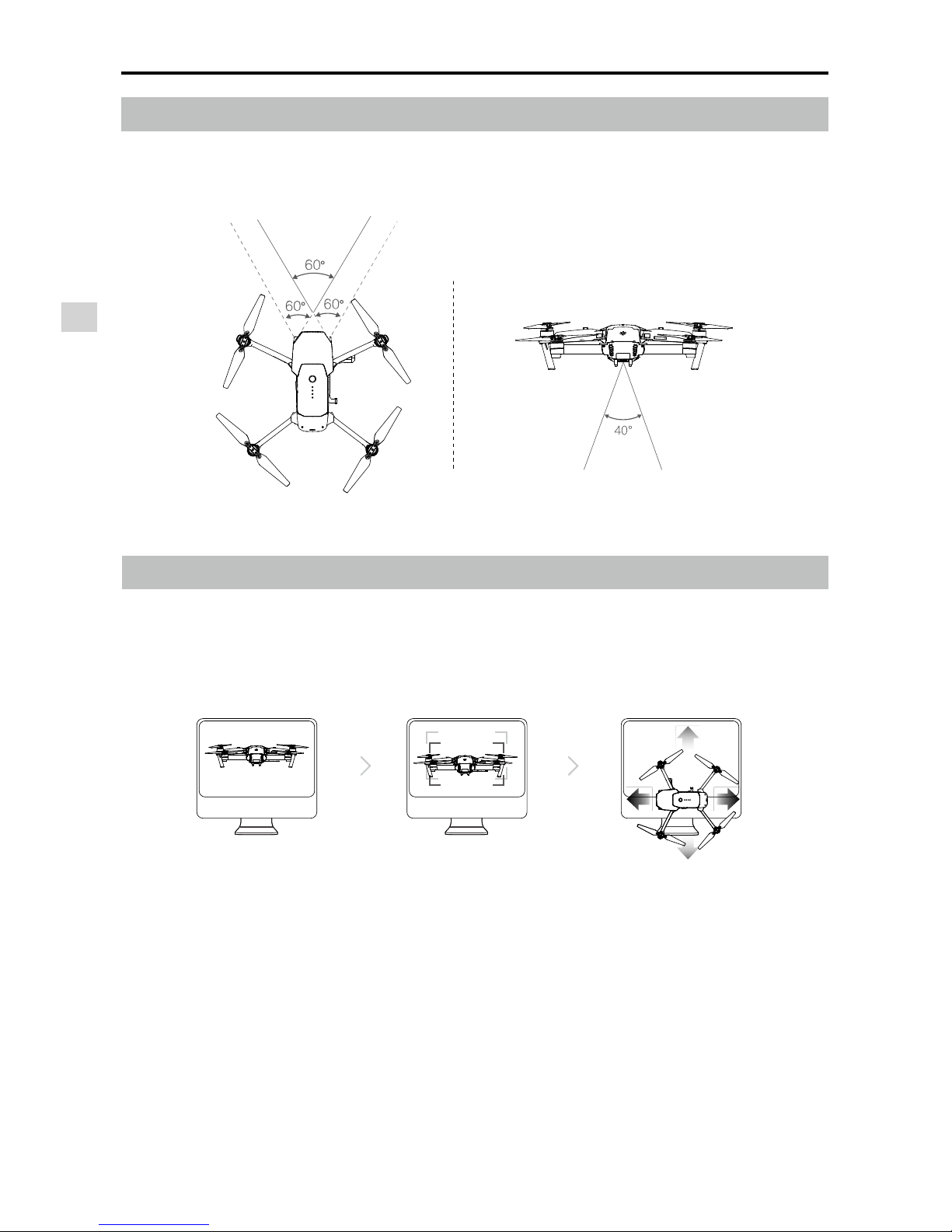

Forward and Downward Vision System

Detection Range

Calibrating Front Sensors

Flight Recorder

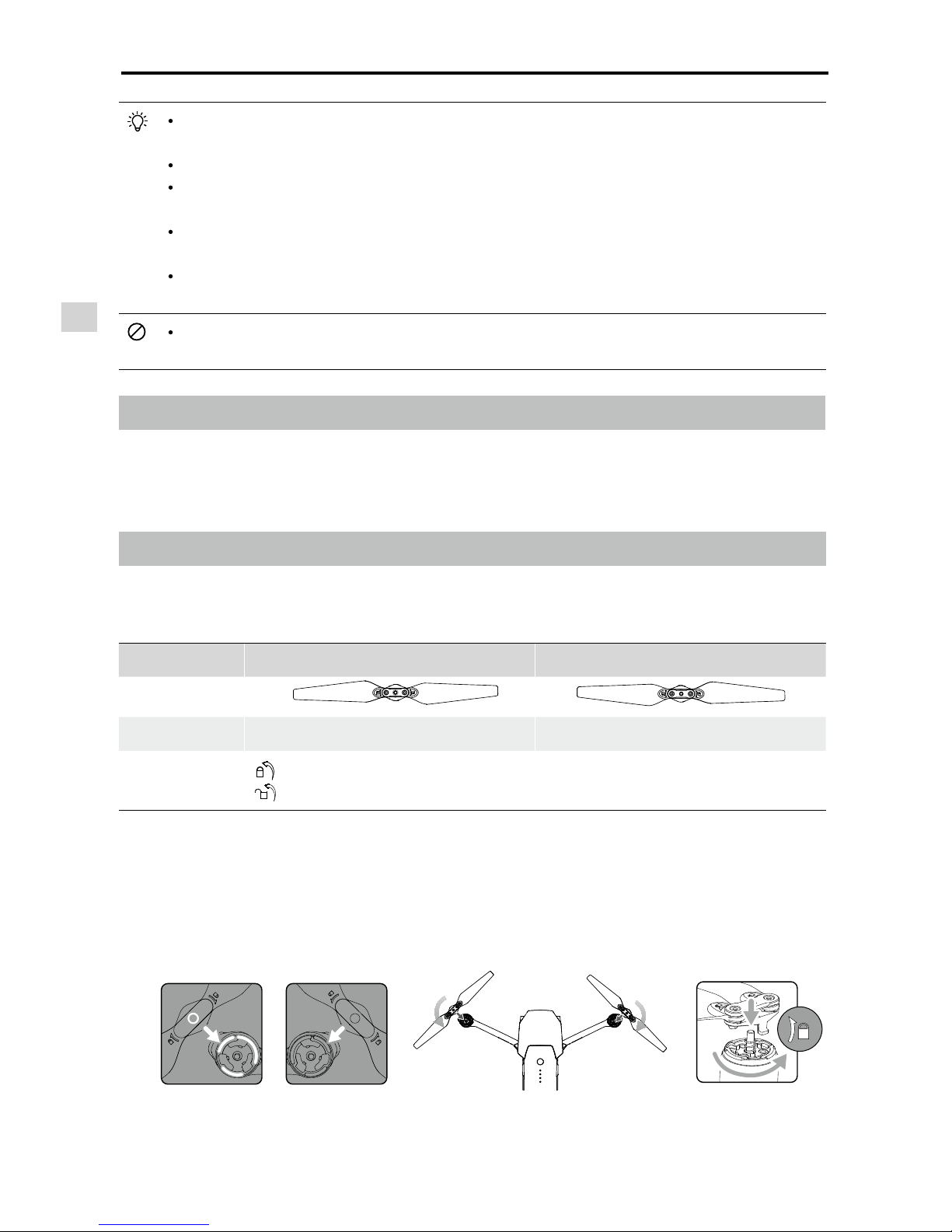

Attaching and Detaching the Propellers

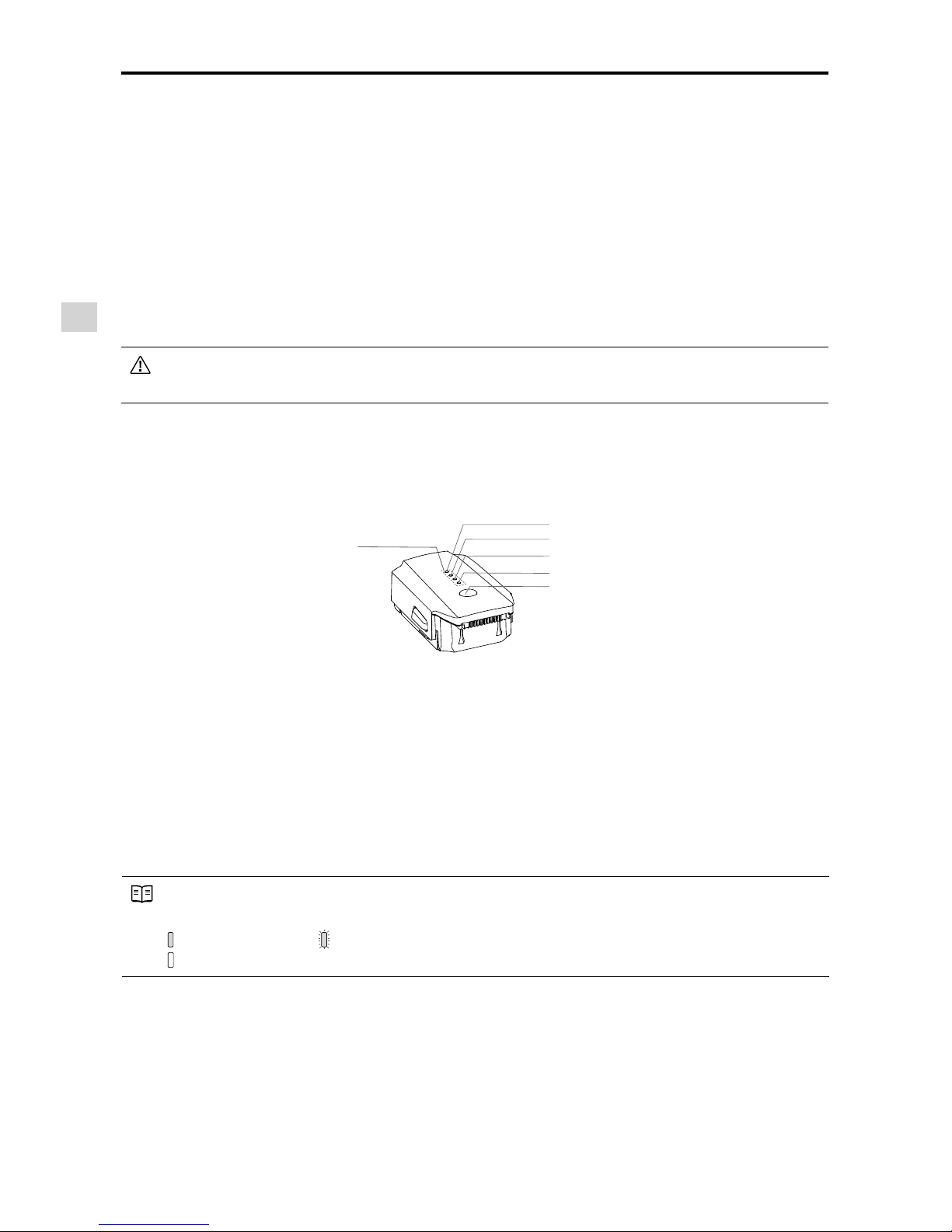

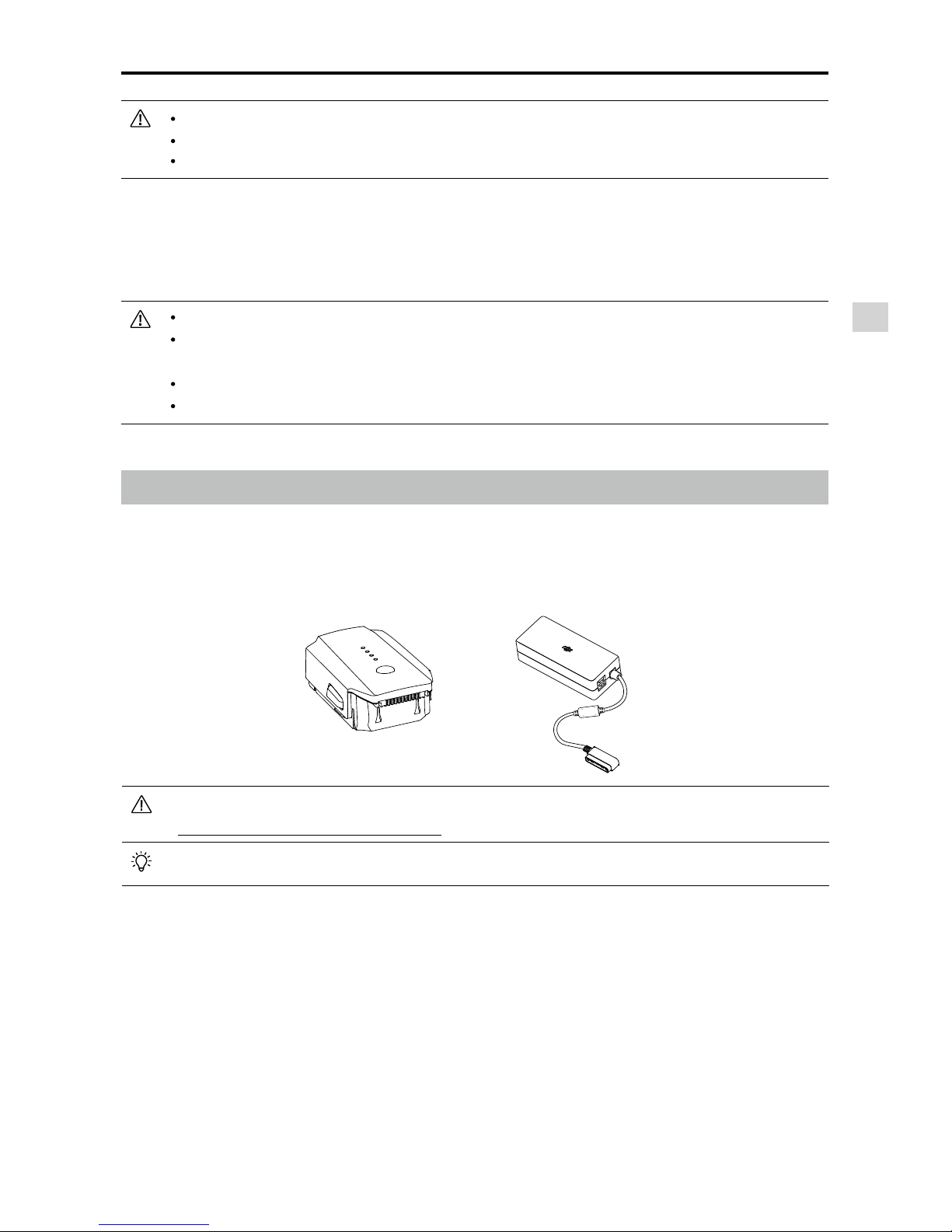

Intelligent Flight Battery

Remote Controller

Remote Controller Prole

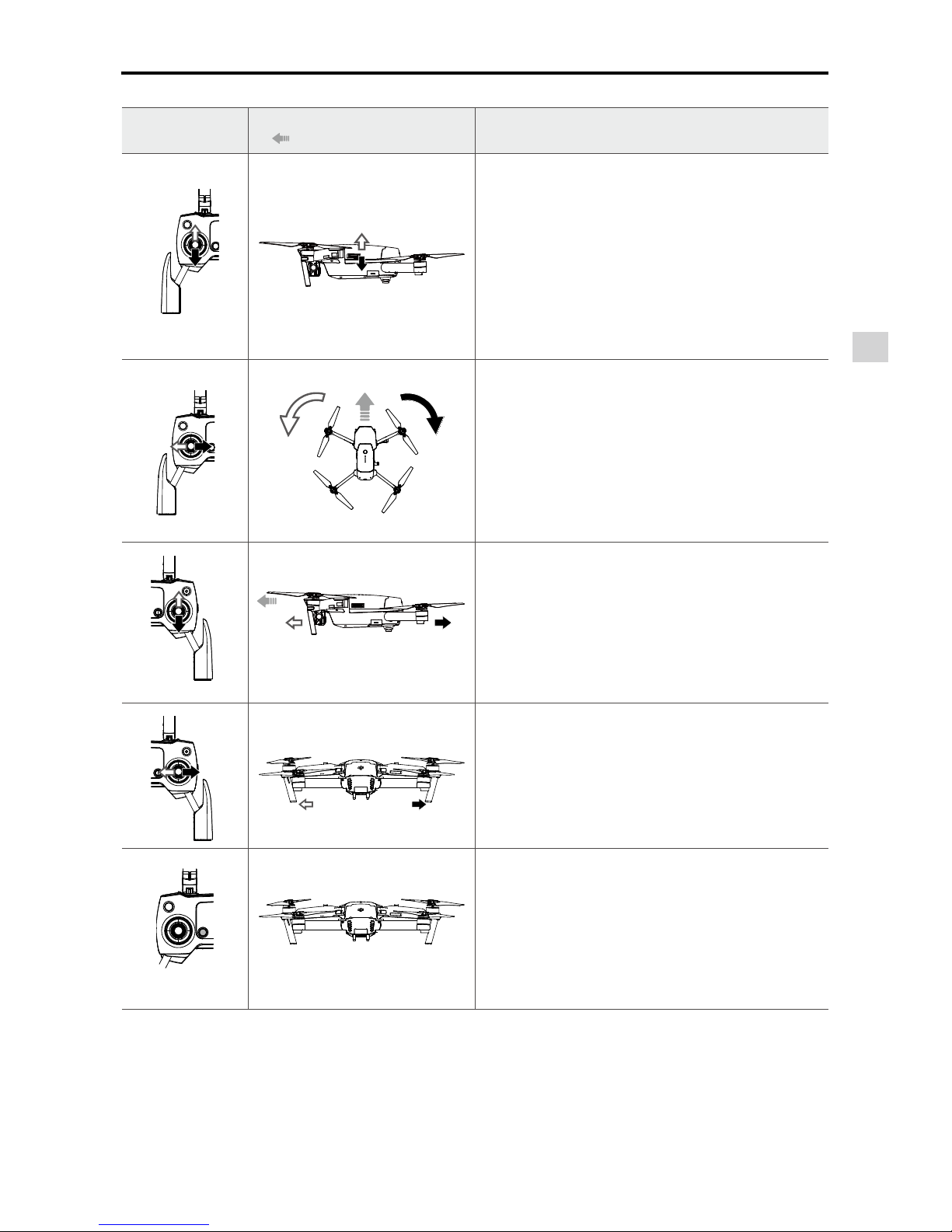

Using the Remote Controller

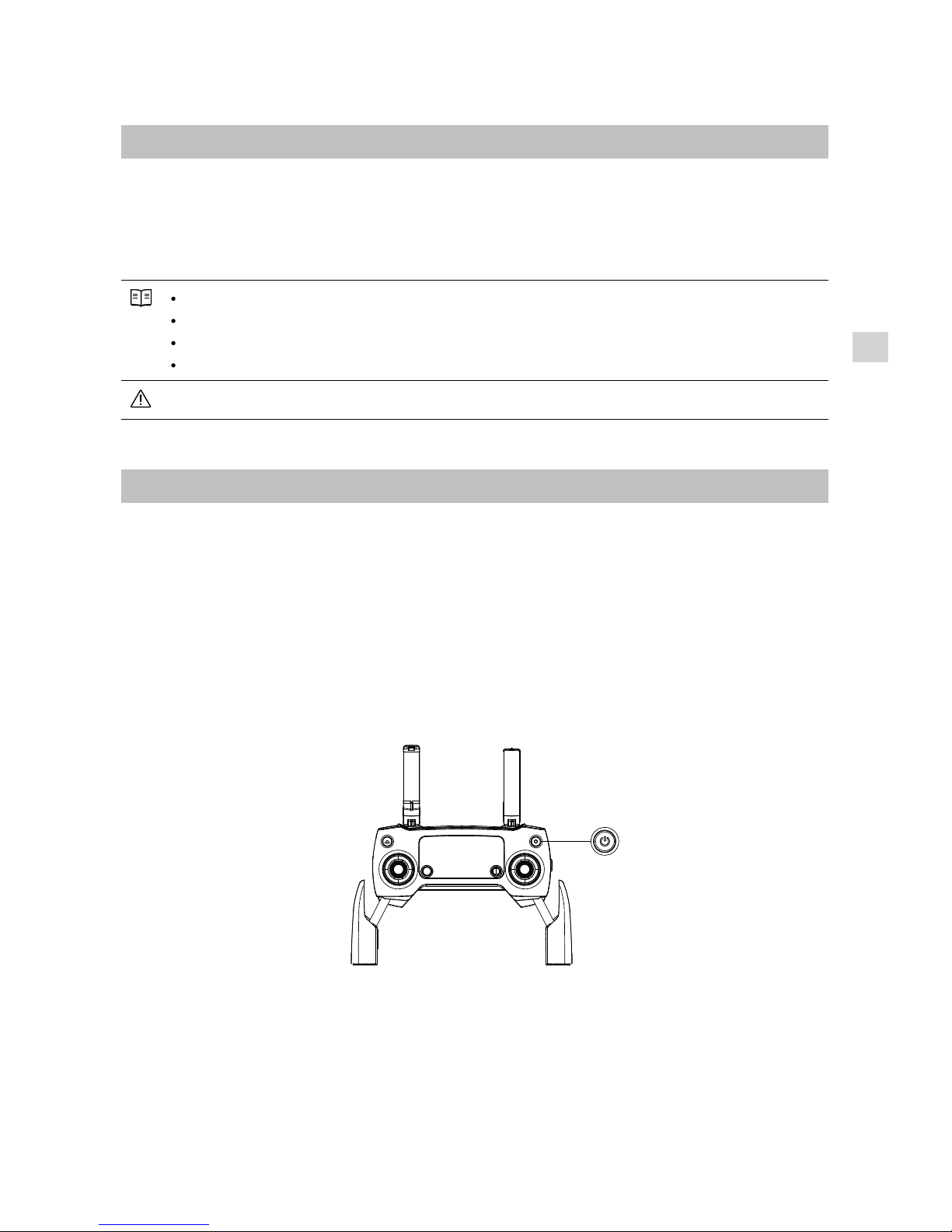

Linking the Remote Controller

Camera and Gimbal

Camera Prole

Gimbal

Page 4

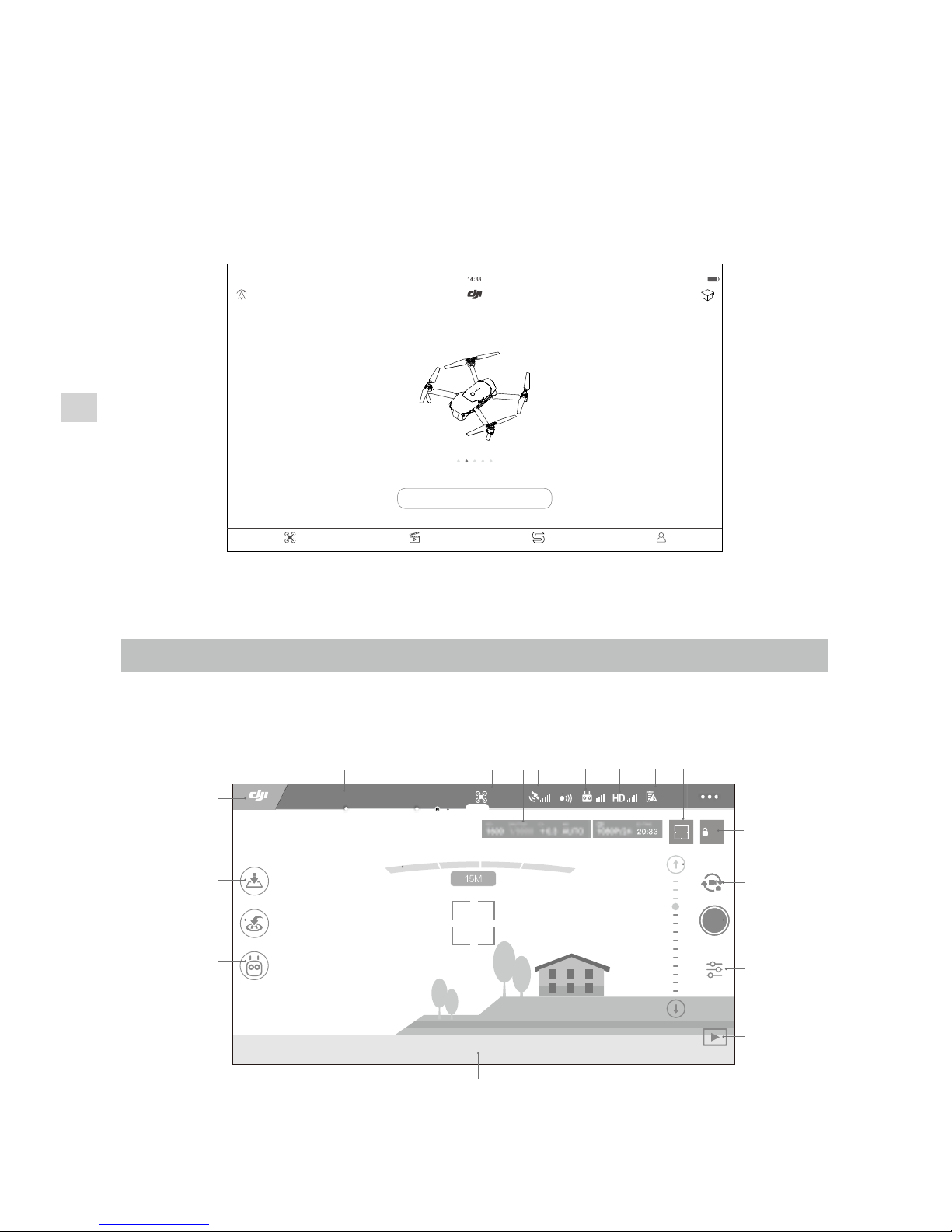

DJI GO App

Equipment

Using Mobile Device to Control Aircraft

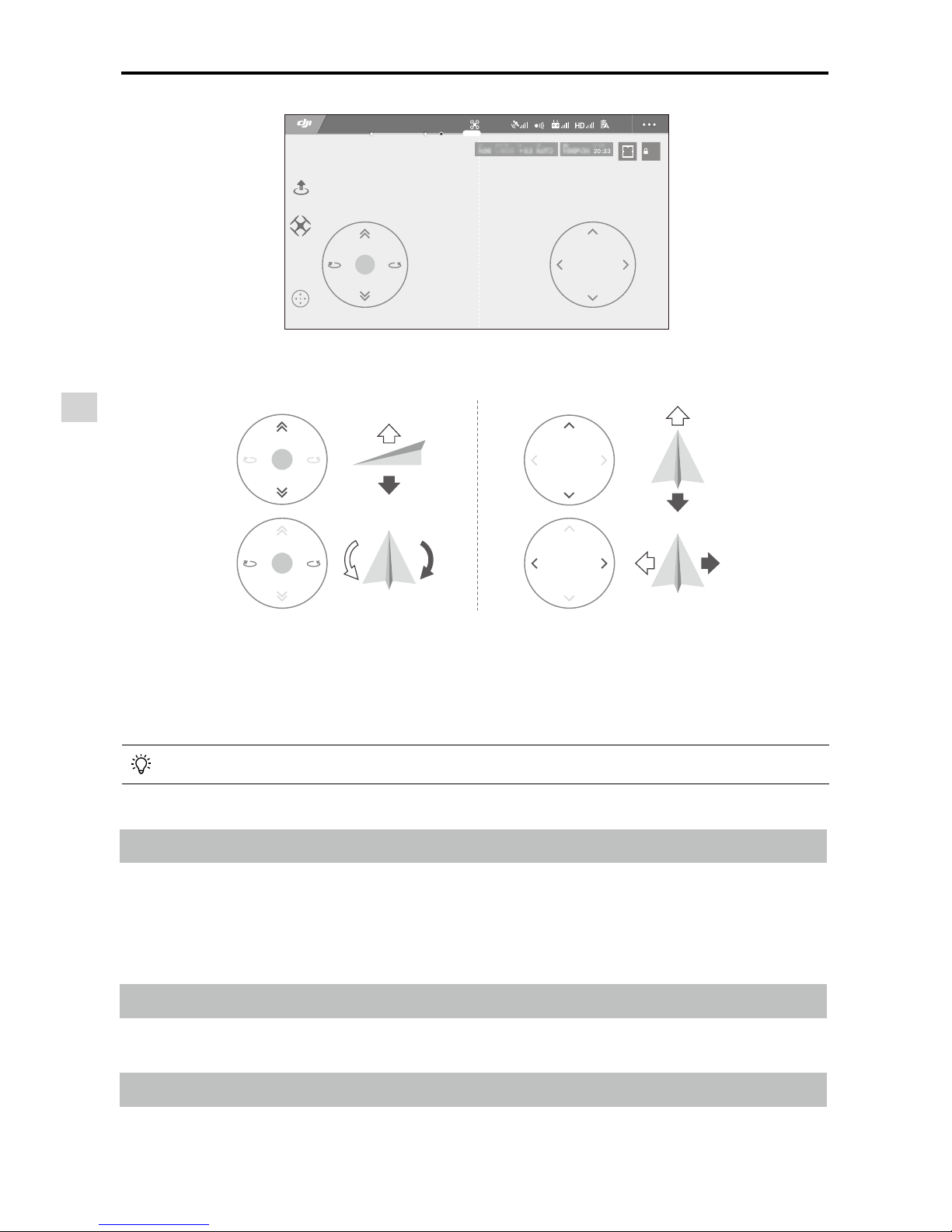

Using Virtual Joysticks

Editor

SkyPixel

Flight

Flight Environment Requirements

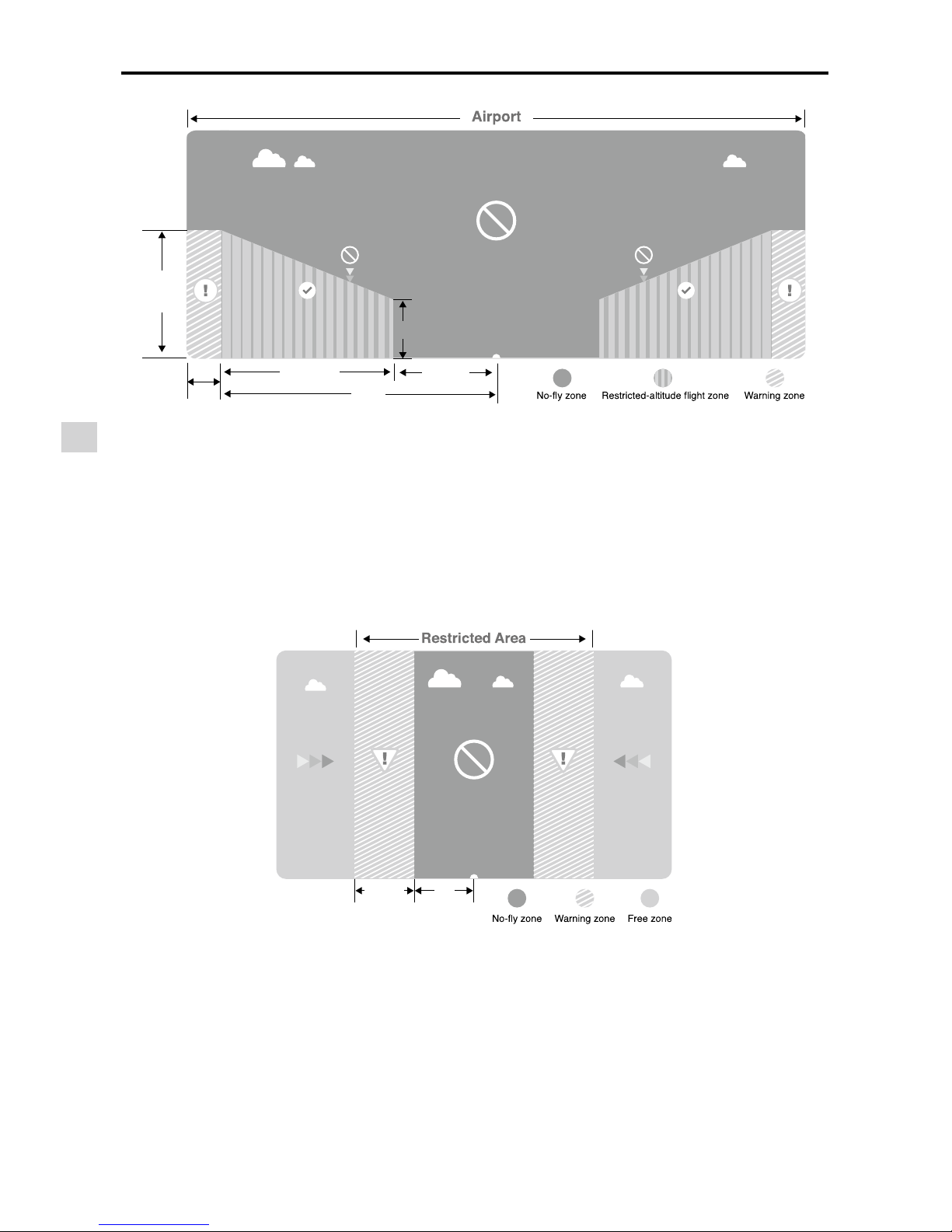

Flight Limits and No-Fly Zones

Preight Checklist

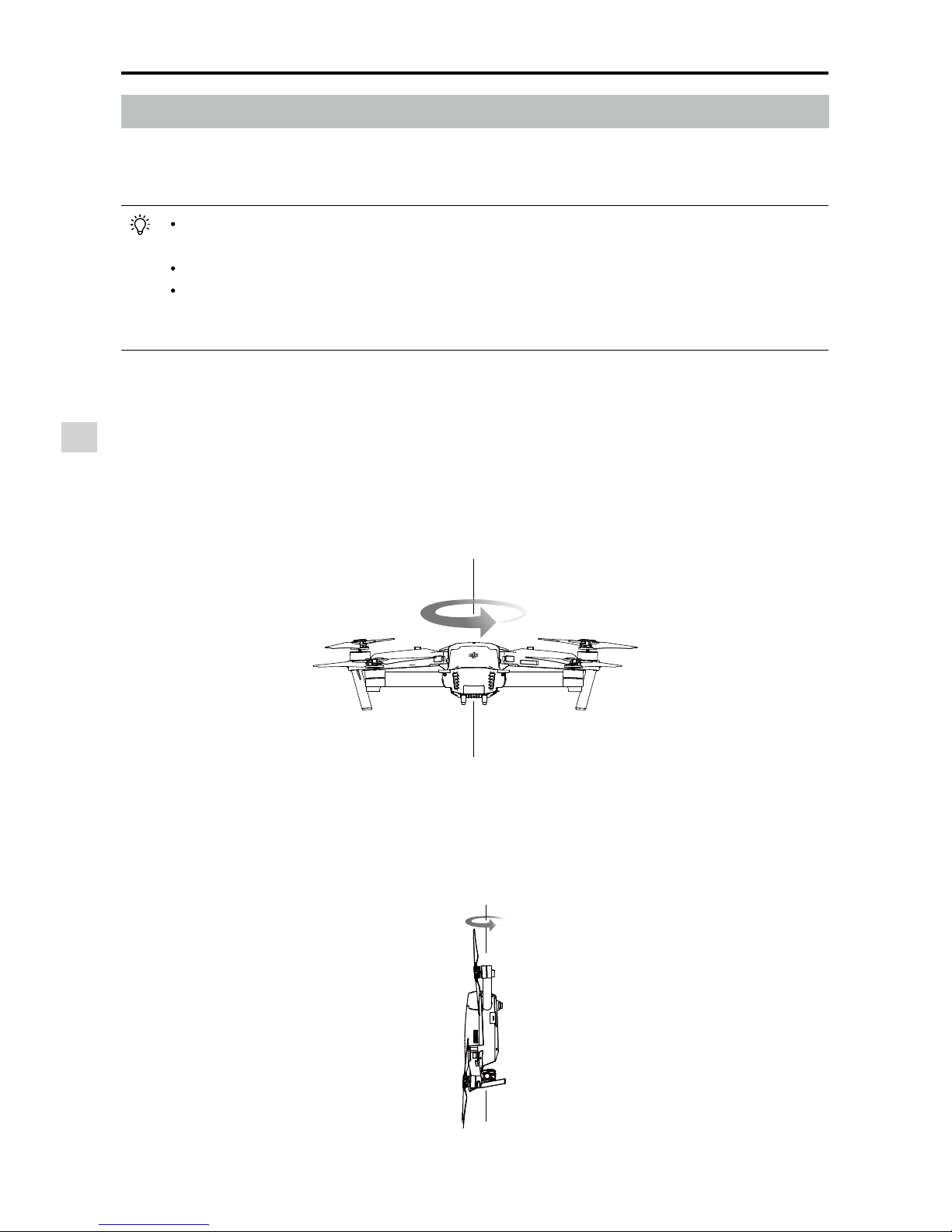

Calibrating the Compass

Auto Takeoff and Auto Landing

Flight Test

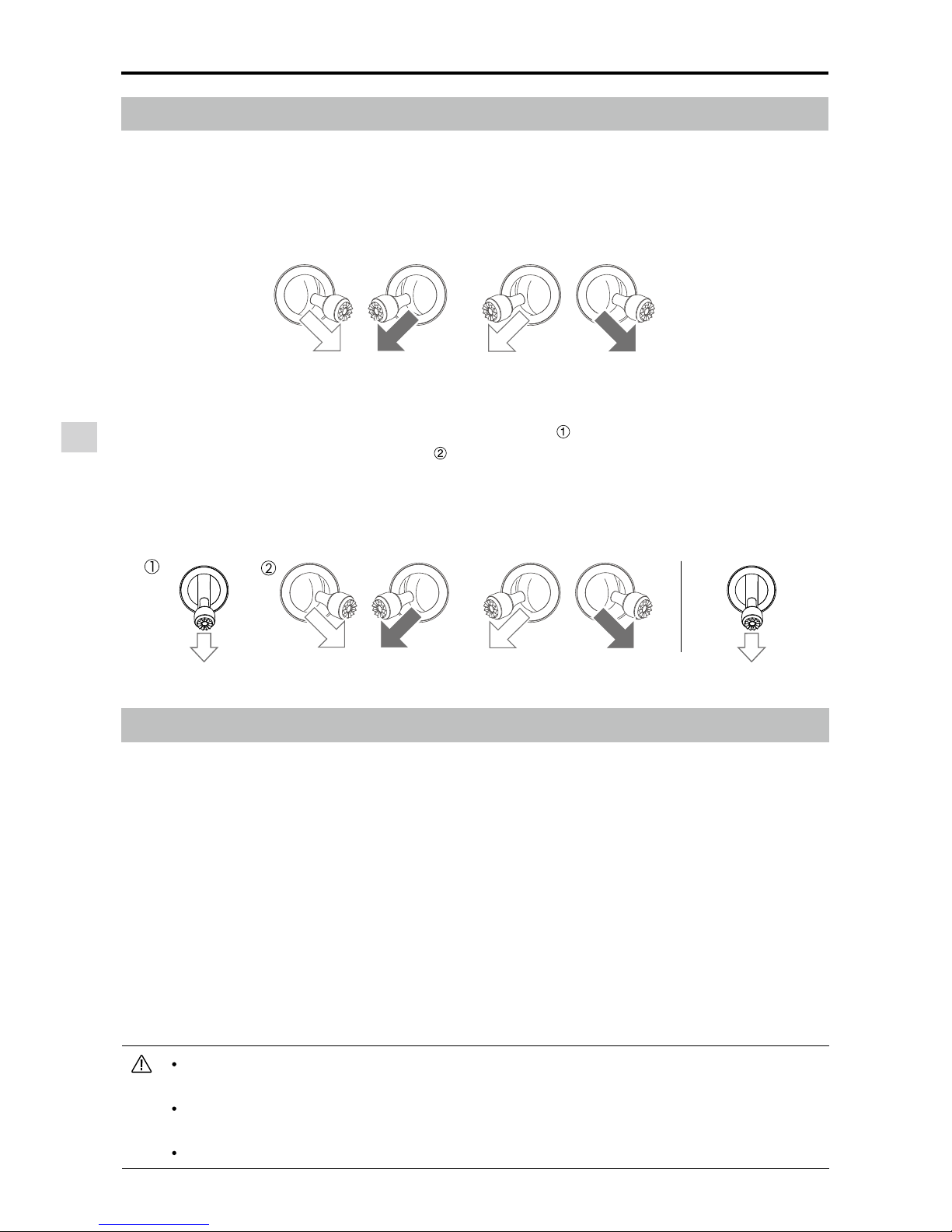

Starting/Stopping the Motors

Appendix

Specications

Aircraft Status Indicator Description

Firmwares Update

Intelligent Flight Mode

After-Sales Information

FCC Compliance 60

Page 5

Product Prole

This section introduces the Mavic Pro and lists the components of the aircraft and remote controller.

Page 6

Product Profile

Product Prole

Introduction

The DJI Mavic is a portable aircraft with a revolutionary folding design. Its intuitive smart device powered controls, gimbal stabilized camera, Forward and Downward Vision System makes it easy for you to capture moments to share and amaze. It captures super sharp 4K video or 12.35

megapixel photos. Use TapFly and ActiveTrack modes to y anywhere you can see on your device, or track a moving subject effortlessly. Maximum ight speed is up to 65 km/h with maximum ight

time is around 27 minutes.

Features Highlights

The Mavic Pro is a ultra-portable aircraft thanks to its revolutionary folding design.

Camera and Gimbal: With the Mavic Pro,you are shooting 4K video at up to 30 frames per second and capturing 12 megapixel photos that look crisper and cleaner than ever, all powered by the compact onboard gimbal.

Flight Controller: The next-generation ight controller has been updated to provide a safer, more reliable ight experience. The aircraft is able to automatically return to its home point when transmission signal

is lost or battery level is low. Apart from being able to hover in door at low altitude, aircraft is also able to sense and avoid obstacles on its route, which brings safety enhancements. which brings safety enhancements.

HD Video Downlink: The low-latency long range HD downlink is powered by an enhanced version of DJI Lightbridge. Built into the Remote Controller is DJI’s latest long-range transmission technology OCUSYNCTM, making it possible to control your aircraft up to 4.3 mi (7 km) away.

Preparing the Aircraft

All arms of the aircraft are folded on delivery. Follow the instruction below to unfold all the arms.

Preparing Aircraft

Remove the gimbal cover and gimbal clamp from the camera.

* The maximum run-time is tested under laboratory environment, only for your reference.

The gimbal cover is used to protect the gimbal. Remove it when necessary.

Page 7

Product Profile

Mavic Pro

User Manual

Attaching the Propellers:

Mount the propellers with black propeller rings to the motors with black dots. Mount the propellers with sliver propeller rings to the motors without black dots. Press the propeller down onto the mounting plate and rotate in the lock direction until it is secured in its position.

Preparing the Remote Controller:

Unfold the mobile device clamps and the antennas.

1. Unfold the mobile device clamps, and insert the mobile device into secure position.

2. Choose an appropriate RC cable based on the type of mobile device.

Check that all the propellers are secure before each ight.

Choose and purchase different type of RC cable from DJI Store.

Marked Unmarked

1. Unfold the front arms, follow by the rear arms of the aircraft as the gure shown.

2. Unfold all propeller blades.

3. The Intelligent Flight Battery must be fully charged before using it for the rst time.

Page 8

Product Profile

Mavic Pro

User Manual

Aircraft Diagram

Remote Controller Diagram

1. GPS

2. Propeller

3. Motor

4. Front LED Indicator

5. Forward Vision System

6. Antennas

7. Gimbal and Camera

8. Intelligent Flight Battery

9. Link Button

10. Linking Status Indicator

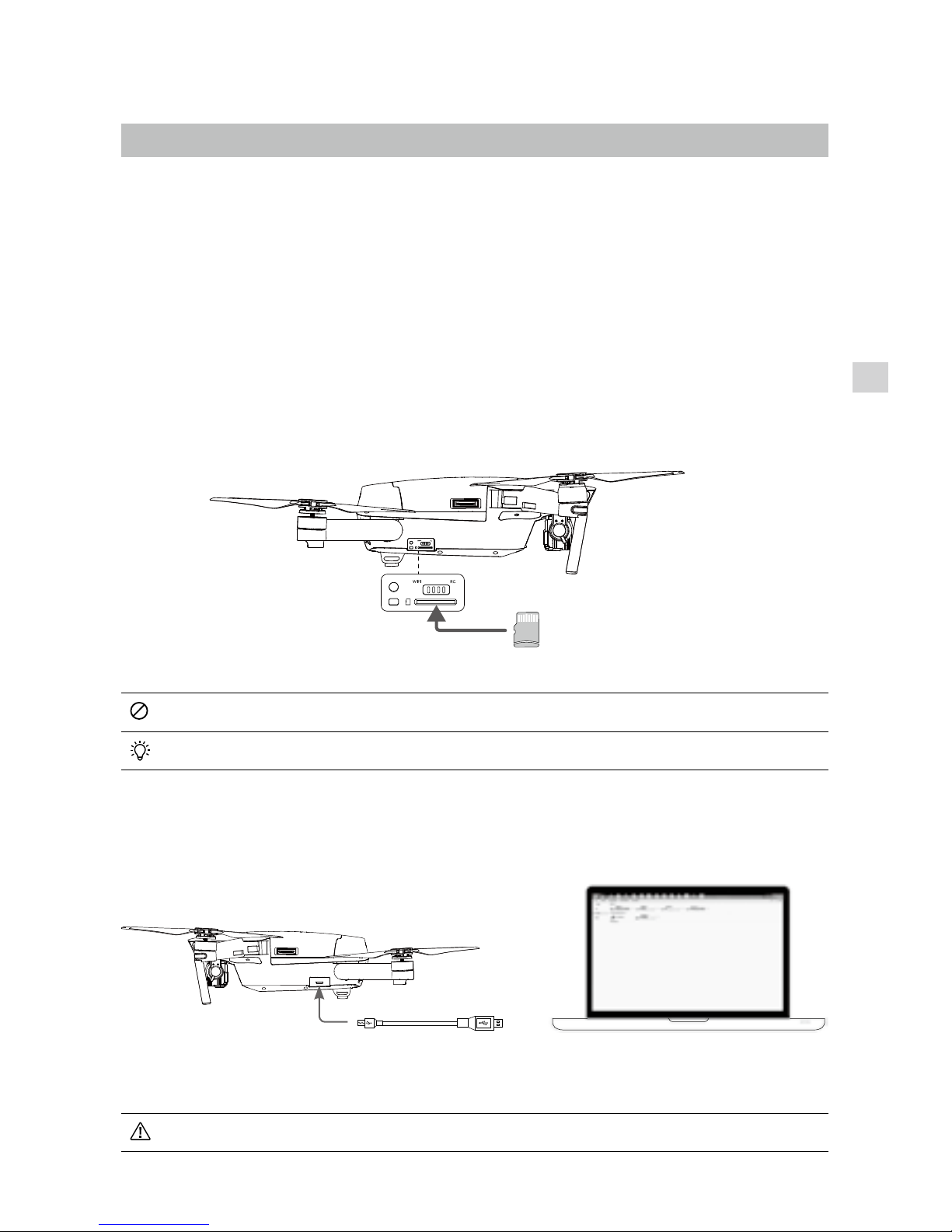

11. Camera Micro SD Card Slot

12. Control Mode Switch

13. Micro USB Port

14. Aircraft Status Indicators

15. Downward Vision System

3 4

5 6

1514

3 5

1. Antennas

Relays aircraft control and video

signal.

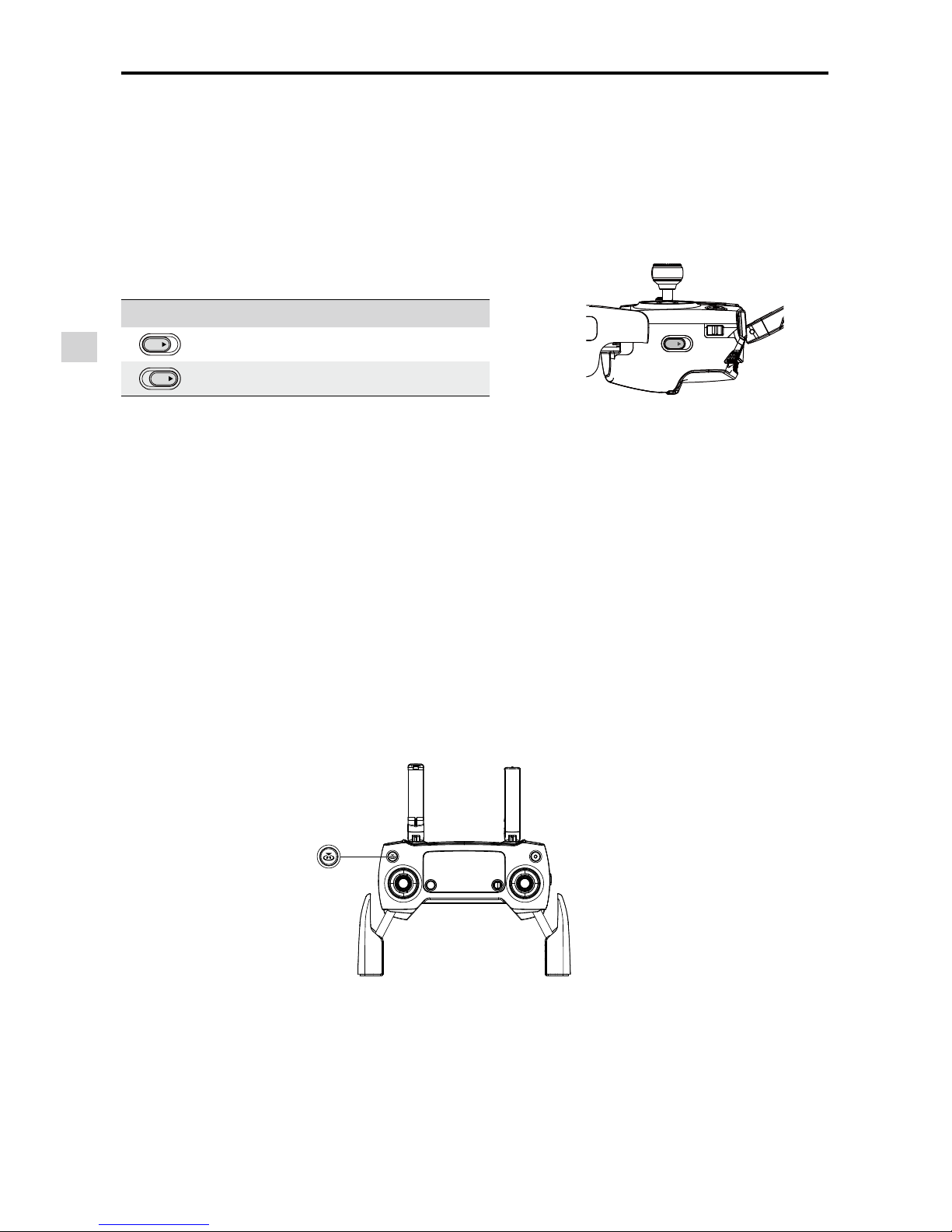

2. Return Home (RTH) Button

Press and hold the button to initiate

Return to Home (RTH). Press once

again to cancel RTH.

3. Power Button

Used to turn the remote controller on

and off.

4. Control Stick

Controls the orientation and

movement of the aircraft.

Page 9

Product Profile

Mavic Pro

User Manual

1716

10. C1 Button

Press once to focus at center.

12. C2 Button

Press once to playback.

13. Camera Settings Dial

Turn the dial to adjust camera settings.

(Only functions when the remote controller is

connected to a mobile device running the DJI

GO app)

14. Video Recording Button

Press to start recording video. Press again to

stop recording.

15. Shutter Button

Press to take a photo. If burst mode is

selected, the set number of photos will be

taken with one press.

5. Status LED

Displays the remote controller's system status.

6. Pause Button

Press once for emergency breaking.

7. 5D Button

Left: Zoom Out

Right: Zoom In

Up: OK

Down: Cancel

Press inward: Call out Intelligent Flight menu in

DJI GO app.

8. Mobile Device Clamp

Securely mounts your mobile device to the

remote controller.

9. USB Port

Connect to mobile device for running the DJI

GO app.

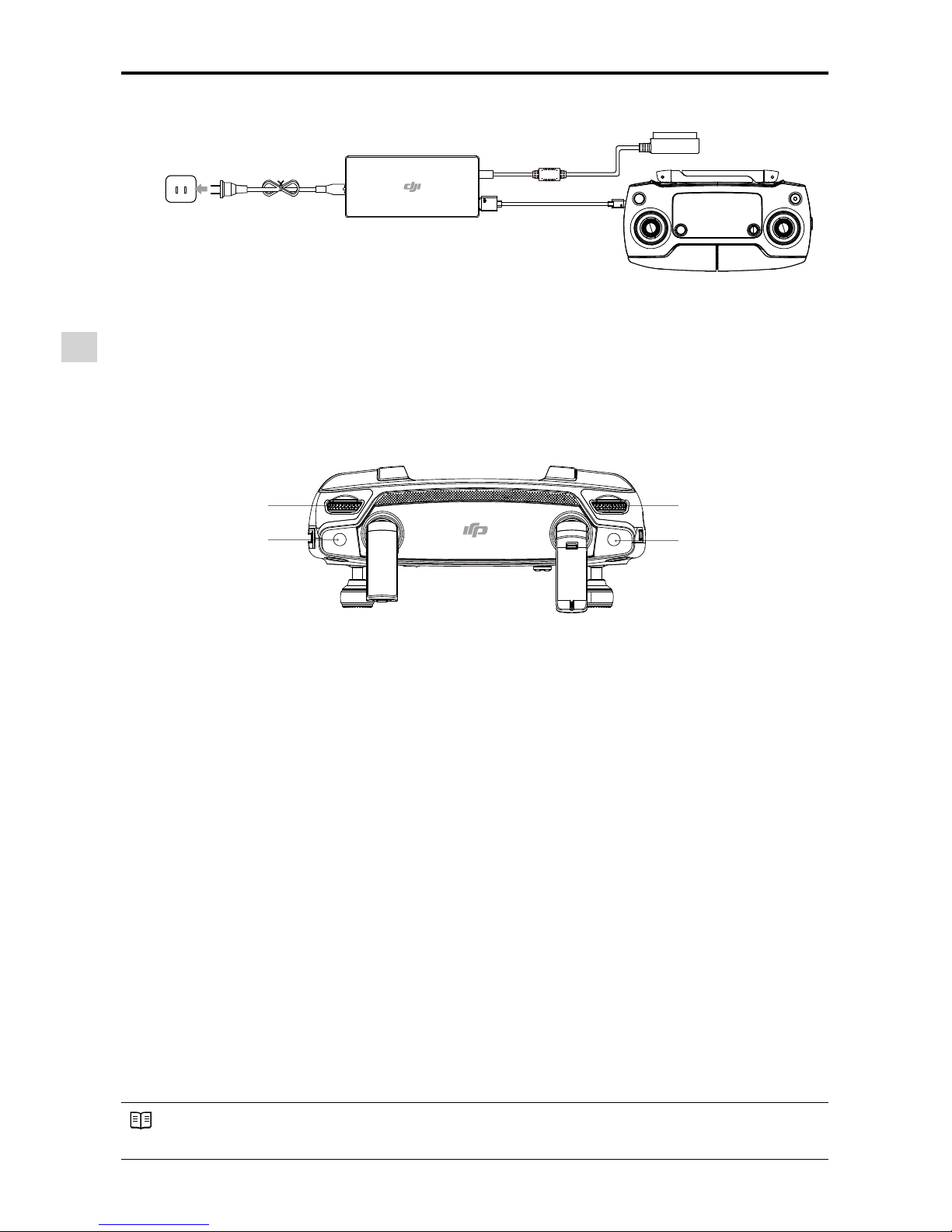

16. Power Port

Connect to the Charger to charge the battery

of the remote controller.

17. Flight Mode Switch

Switch between P-mode, S-mode.

Page 10

Aircraft

This section introduces the features of the Flight Controller, Forward and Downward Vision System, and the Intelligent Flight Battery

Page 11

Aircraft

Flight Controller

The Mavic Pro aircraft comprise of a ight controller, video downlink , propulsion system and a Intelligent Flight Battery. This section introduces the features of the ight controller, video downlink and the rest of

the component of the aircraft.

Flight Mode

The following ight modes are available for Mavic Pro:

P-mode (Positioning):

P-mode works best when the GPS signal is strong. The aircraft utilizes the GPS and

Forward and Downward Vision System to automatically stabilize itself, navigate between obstacles or track a moving object. Advanced features such as TapFly and ActiveTrack are enabled in this mode. Note that handling gain values are reduced in P-mode.

S-mode(Sport):

The aircraft is using GPS for positioning. Handling gain values of the aircraft are

also adjusted in order to enhance manoeuvrability and increase the maximum ight

speed. Since Forward and Downward Vision System is disabled, the aircraft will not be able to sense and avoid obstacle in S-mode.

The aircraft will automatically switch to ATTI mode when the GPS signal is weak and lighting conditions are too dark for the Forward and Downward Vision System. The aircraft will only use its barometer for positioning to control the altitude.

The Forward Vision System is disabled in S-mode (Sport), which means the aircraft will not be able to automatically avoid obstacles on its route.

The aircraft’s maximum speed and braking distance are signicantly increased in S-mode

(Sport). A minimum braking distance of 20 meters is required in windless conditions.

The descending speed is signicantly increased in S-mode(Sport). A minimum breaking

distance of 20 meters is required in windless conditions.

The aircraft’s responsiveness is signicantly increased in S-mode (Sport), which means a small

stick movement on the remote controller will translate into a large travel distance of the aircraft.

Be vigilant and maintain adequate maneuvering space during ight.

Use the Flight Controller mode switch to change the ight mode of the aircraft, refer to the

“Flight Mode Switch” on Page 34 for more information. Use the Flight Controller mode switch to change the ight mode of the aircraft, refer to the “Flight Mode Switch” on Page 34 for more information.

Page 12

Aircraft

Mavic Pro User Manual

Flight Status Indicator

The Mavic Pro has Front LEDs and Aircraft Status Indicators. The positions of these LEDs are shown in

the gure below:

The Front LEDs show the orientation of the aircraft. The Front LEDs glow solid red when the aircraft is turned on to indicate the front (or nose) of the aircraft. The Aircraft Status Indicators communicate the

system status of the ight controller. Refer to the table below for more information about the Aircraft Status

Indicators.

Aircraft Status Indicator Description

Normal

Red, Green and Yellow Flash

Alternatively

Turning On and Self Diagnostic Testing

Yellow Flashes Slowly Warming Up

Green Flashes Slowly

Safe to Fly (P-mode or S-mode with GPS , Forward and Downward Vision System)

X2 Green Flashes Twice

Safe to Fly (P-mode or S-mode with GPS , Forward and Downward Vision System)

Yellow Flashes Slowly

Safe to Fly (No GPS and Forward and Downward Vision System)

Warning

Fast Yellow Flashing Remote Controller's Signal Lost

Slow Red Flashing Low Battery Warning

Fast Red Flashing Critical Battery Warning

Red Flashing Alternatively IMU Error

— Solid Red Critical Error

Red and Yellow Flash Alternatively Compass Calibration Required

Rapid Green Blinking Breaking

Front LED

Aircraft Status Indicator

Page 13

Aircraft

Mavic Pro User Manual

Return-to-Home (RTH)

The Return-to-Home (RTH) function brings the aircraft back to the last recorded Home Point. There are three types of RTH procedures: Smart RTH, Low Battery RTH, and Failsafe RTH. This section describes these three scenarios in detail.

GPS

Description

Home Point

If a strong GPS signal was acquired before takeoff, the Home Point is the location from which the aircraft was launched. The GPS signal strength is indicated by the GPS icon ( ). The aircraft status indicator will blink rapidly when the home point is recorded.

Failsafe RTH

If the Home Point was successfully recorded and the compass is functioning normally, Failsafe RTH will be automatically activated if the remote controller signal is lost for more than three seconds. The Returnto-Home process may be interrupted and the operator may regain control of the aircraft if the remote controller signal connection is re-established.

Failsafe Illustration

Height over HP<=10m

RTH (adjustable altitude)

Fast Blinking Yellow

1 Record Home Point

Blinking Green

3 Remote Controller Signal Lost

Fast Blinking Yellow

2 Conrming Home Point

Blinking Green

6 Landing (after hovering for 5 secs)

Fast Blinking Yellow

Signal Lost Lasts (after 2 mins.)

Fast Blinking Yellow

Height over HP>10m

Elevate to 10m

10m

>2 mins

Aircraft cannot return to the Home Point when GPS signal is weak ( [ ] displays grey) or

unavailable.

The aircraft cannot avoid obstruction during the Failsafe RTH when Forward Vision System is

disabled, therefore, it is important to set an suitable Failsafe altitude before each ight. Launch

the DJI GO app and enter “Camera” and select “MODE > Advanced Settings > Failsafe mode” to set the Failsafe altitude.

User cannot control the aircraft while the aircraft is ascending to its failsafe altitude. However,

user can press RTH button once to exit ascending and regain control.

Aircraft can sense and avoid obstacles when Forward Vision System is enabled and the lighting

conditions is sufcient. The aircraft will automatically climb up to avoid obstacle and y to the

Home Point at the new altitude.

Page 14

Aircraft

Mavic Pro User Manual

Battery Level

Warning

Remark

Aircraft Status

Indicator

DJI GO App Flight Instructions

Low battery level warning

The battery power is low. Please land the aircraft.

Aircraft status indicator blinks RED slowly.

Tap “Go-home” to have the aircraft return to the Home point and land automatically, or “Cancel” to resume normal flight. If no action is taken, the aircraft will automatically go home and land after 10 seconds. Remote controller will sound an alarm.

Fly the aircraft back and land it as soon as possible, then stop the motors and replace the battery.

Low Battery RTH

The low battery level failsafe is triggered when the DJI Intelligent Flight Battery is depleted to a point that may affect the safe return of the aircraft. Users are advised to return home or land the aircraft immediately when prompted. The DJI GO app will display a notice when a low battery warning is triggered. The aircraft will automatically return to the Home Point if no action is taken after a ten-second countdown. The user can cancel the RTH procedure by pressing the RTH button on the remote controller. The thresholds for these warnings are automatically determined based on the aircraft’s current altitude and distance from the Home Point.

The aircraft will land automatically if the current battery level can only support the aircraft long enough to descend from its current altitude. The user can still use the remote controller to alter the aircraft’s orientation during the landing process.

The Battery Level Indicator is displayed in the DJI GO app, and is described below:

Battery level Indicator

Critical Low battery level warning(Red)

Low battery level warning(Yellow)

Sufcient battery

level(Green)

Remaining ight time

Power requires to return home

12:29

Smart RTH

Use the RTH button on the remote controller (refer to “RTH button” on page 34 for more information) or tap the RTH button in the DJI GO app and follow the on-screen instructions when GPS is available to initiate Smart RTH. The aircraft status indicator blinks to display the current status. The aircraft will sense

and avoid obstacles on its ight path during Smarth RTH. The aircraft may chose to navigate or hover in

place to avoid collision. User can manually navigate the aircraft to avoid obstacles if the Forward Vision System is disabled when light condition is not ideal. In addition, user can also immediately exit from Smart RTH by using the Pause button on the remote controller or press the Stop icon on the DJI GO app.

Page 15

Aircraft

Mavic Pro User Manual

Critical Low battery level warning

The aircraft must land immediately.

Aircraft status indicator blinks RED quickly.

The DJI GO app display will

ash red and the aircraft will

start to descend. The remote controller will sound an alarm.

Allow the aircraft to descend and land automatically.

Estimated remaining

ight time

Estimated

remaining ight

based on current battery level.

N/A N/A N/A

When Critical battery level warning is triggered and the aircraft begins to land automatically,

you may push the left stick upward to make the aircraft hover at its current altitude, giving you an opportunity to navigate to a more appropriate landing location.

The colored zones and markers on the battery level indicator bar reect the estimated

remaining ight time. They are automatically adjusted according to the aircraft’s current

location and status.

Precision Landing

The aircraft will automatically scan and attempt to match the terrain features underneath during RTH. As

soon as the current terrain features are match with the home point terrain features, the aircraft will start

landing immediately, in the attempt to achieve precision landing. The DJI GO app will prompt terrain

feature matching failure, if the matching is failed.

The performance of Precision Landing is subject to the following conditions:

a. Home point is recorded upon take off, and it will not be refreshed during the ight.

b. Aircraft must take off vertically and the take off altitude is greater than 7 meters. c. Home point terrain feature remains largely unchanged. d. Home point terrain with no distinctive feature will affect the performance. e. Light condition cannot be too light nor too dark. The following actions are available during landing: a. Pull throttle down to accelerate landing speed. b. Push throttle elsewhere to abort the current landing.

Page 16

Aircraft

Mavic Pro User Manual

Obstacle Avoidance During RTH

Aircraft can now sense and actively attempt to avoid obstacle during FailSafe RTH, provided that the light condition is ideal for the Forward Vision System. The details on how the aircraft will behave during obstacle avoid is listed below:

1. Aircraft decelerates when an obstacle is sensed at 65 feet (20 meters) ahead.

2. Aircraft stops and hover then start ascending vertically to avoid the obstacle. Eventually, the aircraft will stop climbing when it is at least 16 feet (5 meters) above the detected obstacle.

3. Failsafe RTH procedure resume, the aircraft will continue ying to the Home Point at the current

altitude.

The aircraft cannot avoid obstruction during the Failsafe RTH when the Forward Vision System is disabled. Therefore, it is important to set an suitable Failsafe

altitude before each ight. Launch the DJI GO app and enter “Camera” and

select “MODE > Advanced Settings > Failsafe mode” to set the Failsafe altitude.

10 m

5 m

If Failsafe RTH (including Smart RTH, Lower Battery RTH) triggered and Forward Vision System is activated:

1. If aircraft's current altitude is greater than 10 meters (32 feet), the aircraft will return to the home point at the current altitude.

2. If aircraft's current altitude is lower than 10 meters (32 feet), the aircraft will

rst automatically ascend to 10 meters (32 feet) from the current altitude.

The aircraft will start landing immediately if the Forward Vision System is deactivated. Note that the Forward Vision System status is determined when Failsafe RTH is triggered.

5 m

Aircraft automatically descends and lands if RTH is triggered when the aircraft flies within a 5 meters (16 feet) radius of the Home Point. Aircraft will stop ascending and immediately return to the Home Point if you move the left stick if the aircraft reaches 5meters (16 feet) altitudes or beyond during Failsafe.

Aircraft cannot return to the Home Point when GPS signal is weak ( [ ] displays grey) or unavailable.

Press the Pause button once to allow the aircraft to exit from Failsafe. The aircraft will stop the current ascending process and hovers.

Failsafe Safety Notices

Page 17

Aircraft

Mavic Pro User Manual

15 meters

5 meters

TapFly

Introduction

With the TapFly feature, user now can tap on the mobile device screen to guide the aircraft to y toward the

designated direction without using the remote controller. Aircraft can automatically avoid obstacle or initiate

break and then hover automatically during the ight, provided that the lighting is not too dark ( < 300 lux) nor

too bright ( > 10,000 lux).

To ensure the aircraft is heading towards the static direction, you cannot rotate the aircraft during FailSafe RTH while Forward Vision System is enabled. The aircraft cannot avoid the obstacle that is direct above the aircraft.

3 meters

SPORT

Using TapFly

Ensure the battery level is more than 50 % for the Intelligent Flight Battery. And the aircraft is in P-mode.

Then follow the steps below to use TapFly:

Take off and ensure the aircraft is ying at least 9 feet (3 meters) above the ground.

Page 18

Aircraft

Mavic Pro User Manual

Launch DJI GO app and tap

at the bottom of the camera view, read and understand the prompt

statements.

Tap once on the target direction and wait for icon to appear. Tap again to conrm the selection and

the aircraft will automatically y towards the target direction.

DO NOT guide the aircraft to fly towards people, animals, small and fine objects (e.g. tree

branches and power lines) or transparent objects (e.g. glass or water surface).

Watch for the obstacles that is on the ight path and stay clear of them. There may be deviations between the expected and the actual ight path of Tapy selection.

The selectable range for the target direction is limited. You cannot make TapFly selection that is

close to the upper or lower edge of the screen.

TapFly mode may not work properly when the aircraft is ying over water surface or snow

covered area.

Be extra cautions when ying in extremely dark (< 300 lux ) or bright (>10,000 lux) environments.

09:29

61%

P-GPS

H 10.0M D 30M V 11.0M/S

TapFly

ActiveTrack

Gesture

Joystick

SAFE TO FLY (GPS)

09:29

61%

P-GPS

H 10.0M D 30M V 11.0M/S

SAFE TO FLY (GPS)

Tapt

After conrmed with the TapFly selection, the aircraft will y automatically towards the area marked by

icon. Note that you can still use the control stick to control the movement of the aircraft during the ight.

Page 19

Aircraft

Mavic Pro User Manual

09:29

61%

P-GPS

H 10.0M D 30M V 11.0M/S

STOP

SAFE TO FLY (GPS)

Note that the aircraft will also automatically adjust its speed when it senses there is obstacle at the front

of the aircraft or it is ying too close to the ground. However, the user should not rely on this feature to

navigate the aircraft between the obstacles. Meanwhile the FailSafe procedure will override the TapFly

operation, given that if the GPS signal is weak; the aircraft will exit the autonomous ight from TapFly and

y back to the Home Point automatically.

Exit TapFly

Use the following methods to exit TapFly:

1. Press once on the Intelligent Flight Pause button on the remote controller or pull back the pitch stick on the remote controller.

2. Tap “STOP” button on the screen.

STOP

Aircraft will stop and hover after exit from TapFly. You may either tap a new target direction to proceed to

the next ight or bring back the aircraft to the Home Point manually.

ActiveTrack

ActiveTrack allows you to mark and track a moving object on your mobile device screen. The aircraft will

automatically avoid obstacles in its ight path. No external tracking device is required during the whole

tracking process.

Using ActiveTrack

Ensure the Intelligent Flight Battery has more than 50% power and the aircraft is in either P-mode. Then follow the steps below to use ActiveTrack:

1. Take off and hover at least 9 feet (3 meters) above the ground.

OR OR

Intelligent Flight Pause button

3 meters

SPORT

Page 20

Aircraft

Mavic Pro User Manual

2. In the DJI GO app, tap to bring up the ight modes and then select.

3. Drag a box around the object you want to track and tap it to conrm the selection. The box will turn green when tracking is in progress. If the box turns red, the object was not identied and you

should try again.

09:29

61%

P-GPS

H 10.0M D 30M V 11.0M/S

SAFE TO FLY (GPS)

TapFly

ActiveTrack

Gesture

Joystick

09:29

61%

P-GPS

H 10.0M D 30M V 11.0M/S

智能跟随

SAFE TO FLY (GPS)

Trace

This mode is identical to ActivTrack.

Prole

Aircraft moves in parallel with the subject in the frame.

Spotlight

Camera always focus on the subject in the frame.

ActiveTrack includes following sub functions:

Page 21

Aircraft

Mavic Pro User Manual

DO NOT select an area containing people, animals, small, ne objects (e.g. tree branches

and power lines) or transparent objects (e.g. glass or water surface).

Stay clear of obstacles near the ight path, particularly when the aircraft is ying backward.

Be extra vigilant when using ActiveTrack in any of the following situations:

a) The tracked subject is not moving on a level plane.

b) The tracked subject changes shape drastically while moving.

c) The tracked subject could be blocked or out of sight for a long time.

d) The tracked subject is moving on a snowy surface.

e) The lighting is extremely low (< 300 lux) or high (> 10,000 lux).

f) The tracked subject has a similar color or pattern as its surrounding environment.

You must follow local privacy laws and regulations when using ActiveTrack.

The aircraft will sense and avoid obstacles on its ight path.

If the aircraft loses track of the subject, because it is moving too fast or obscured, re-select the subject to resume tracking.

Exiting ActiveTrack

There are two ways to exit ActiveTrack:

1. Press the Intelligent Flight Pause button on the remote controller.

2. Pull the pitch stick backward.

After exiting ActiveTrack, the aircraft will stop and hover in place, at which point you may choose to start a

new mission or bring the aircraft back to the Home Point.

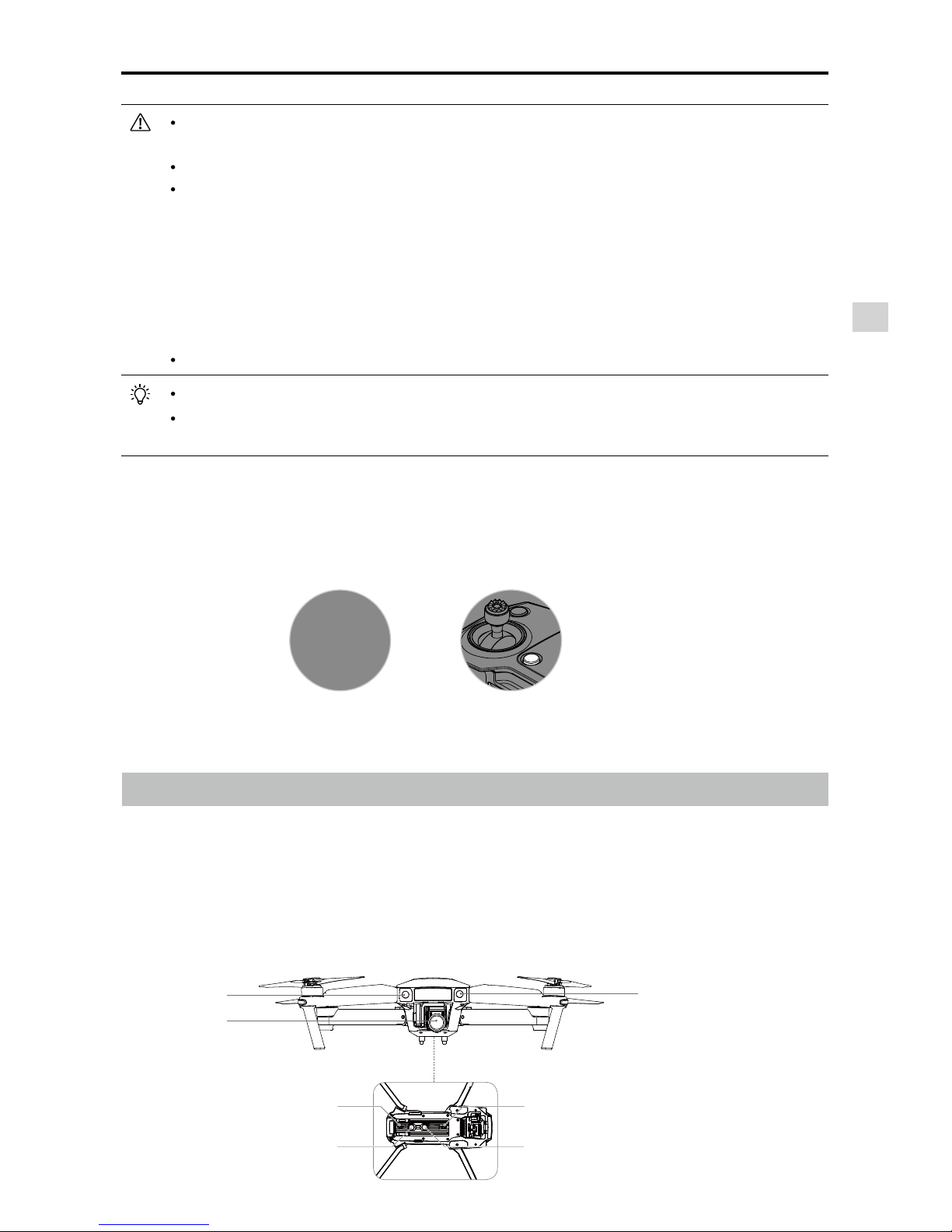

Forward and Downward Vision System

The Mavic Pro is equipped with an Forward and Downward Vision System that constantly scans for obstacles in front of it, allowing it to avoid collisions by going around, over or hovering. Downward Vision System uses ultrasound and image data to help the aircraft maintain its current position. With the help of Downward Vision System, your Mavic Pro can hover in place more precisely and ﬂy indoors or in other environments where a GPS signal is not available. The main components of the Forward and Downward Vision System are located on the bottom of your Mavic Pro; they include [3] two ultrasonic sensors and [1] [2] four monocular sensors.

STOP

4 4

Page 22

Aircraft

Mavic Pro User Manual

Point the aircraft toward the screen

Align the boxes

Pan and tilt the aircraft

Calibrating Front Sensors

Forward and Downward Vision Systems cameras that installed on landing gear are calibrated on delivery. However these camera are vulnerable to excessive impact, hence it will require calibration via DJI Assistant 2 or DJI GO app from time to time. Follow the steps below to calibrate the camera when the DJI GO app prompt you to do so.

Detection Range

The detection range of the Forward and Downward Vision System is depicted as follow. Note that the

aircraft cannot sense and avoid the obstacles that are not within the detection range.

Using Downward Vision System Downward Vision System

is activated automatically when the aircraft is turned on. No further action is required. Downward Vision System is typically used in indoor environments, where GPS is unavailable. Using the sensors that are built into the Downward Vision System, the aircraft can hover precisely even without GPS.

Page 23

Aircraft

Mavic Pro User Manual

Follow the steps below to use Downward Vision System:

1. Toggle the ight mode switch to P-mode.

2. Place the aircraft on a at surface. Note that the Downward Vision System cannot work

properly on surfaces without clear pattern variations.

3. Turn on the aircraft. The aircraft status indicator will ash green two times, which

indicates the Downward Vision System is ready. Gently push the left stick up to lift off and the aircraft will hover in place.

The performance of your Forward and Downward Vision System are affected by the surface over

which it is ying. The ultrasonic sensors may not be able to accurately measure distances when

operating above sound-absorbing materials. In addition, the camera may not function correctly in suboptimal environments. The aircraft will switch from P-mode to Atti mode automatically if neither GPS nor Forward and Downward Vision System are available. Operate the aircraft with great caution in the following situations:

Flying over monochrome surfaces (e.g. pure black, pure white, pure red, pure green). Flying over a highly reective surfaces. Flying at high speeds(over 10 m/s at 2 meters or over 5 m/s at 1 meter). Flying over water or transparent surfaces. Flying over moving surfaces or objects. Flying in an area where the lighting changes frequently or drastically. Flying over extremely dark (lux < 10) or bright (lux > 100,000) surfaces. Flying over surfaces that can absorb sound waves (e.g. thick carpet). Flying over surfaces without clear patterns or texture. Flying over surfaces with identical repeating patterns or textures (e.g. tiles with the same design). Flying over inclined surfaces that will deect sound waves away from the aircraft.

Assisted Brakingfrom Forward Vision System

are detected direct ahead of the aircraft. Note that Forward and Downward Vision System works best when

light condition is ideal and the obstacle does not have feature-less pattern. In addition, the aircraft speed

cannot exceed over 10 meter/second so that the aircraft can break and stop at the safe distance.

3m以上

SPORT

Page 24

Aircraft

Mavic Pro User Manual

Flight Recorder

Flight data is automatically recorded to the internal storage of the aircraft. This includes flight telemetry, aircraft status information, and other parameters. To access these data, connect the aircraft to the PC through the Micro USB port and launch the DJI GO app.

Attaching and Detaching the Propellers

Use only DJI approved propellers with your Mavic Pro. The grey and black ring on the propeller indicate where they should be attached and in which direction whey should spin.

Propellers White Ring No Ring

Figure

Attach On Motors with white marks Motors without white marks

Legends

Lock : Turn the propellers in the indicated direction to mount and tighten. Unlock : Turn the propellers in the indicated direction to loosen and remove.

Keep the sensors clean at all times. Dirt or other debris may adversely affect the effectiveness

of the sensors.

Downward Vision System is only effective when the aircraft is at altitudes of 0.3 to 10 meters.

The Forward and Downward Vision System may not function properly when the aircraft is ying

over water.

The Forward and Downward Vision System may not be able to recognize pattern on the ground

in low light conditions (less than 100 lux).

Do not use other ultrasonic devices with frequency of 40 KHz when Forward and Downward

Vision System is in operation.

Keep the animals away from the aircraft when Downward Vision System is activated. The sonar

sensor emits high frequency sounds that are only audible to some animals.

Attaching the Propellers

Attach the white ringed propellers to the mounting base with white marks. Press the propeller down onto the mounting plate and rotate in the lock direction until it is secured in its position. Attach the other pair propellers to the mounting based without sliver marks. Unfold all the propellers blades.

Marked Unmarked

Page 25

Aircraft

Mavic Pro User Manual

DJI Intelligent Flight Battery Functions

1. Battery Level Display: The LED indicators display the current battery level.

2. Battery Life Display: The LEDs display the current battery power cycle.

3. Auto-Discharging Function: To prevent swelling, the battery automatically discharges to below 65% of total power when it is idle for more than ten days. It takes around two days to discharge the battery to 65%. It is normal to feel moderate heat being emitted from the battery during the discharge process. Discharge thresholds can be set in the DJI GO app.

4. Balanced Charging: Automatically balances the voltage of each battery cell when charging.

5. Overcharge Protection: Charging automatically stops when the battery is fully charged.

6. Temperature Detection: The battery will only charge when the temperature is between 5°C (41°F) and 40°C (104°F).

The Intelligent Flight Battery must be fully charged before using it for the first time. Refer to “Charging the Intelligent Flight Battery” for more information.

Be aware that the output power of the supplied Mavic Pro charger is 100W.

Intelligent Flight Battery

Introduction

The DJI Intelligent Flight Battery has a capacity of 3830 mAh, a voltage of 13.05 V,and a smart charge/ discharge functionality. With its power energy compact battery cell, it provides tremendous power source for the aircraft. It should only be charged using an appropriate charger that has been approved by DJI.

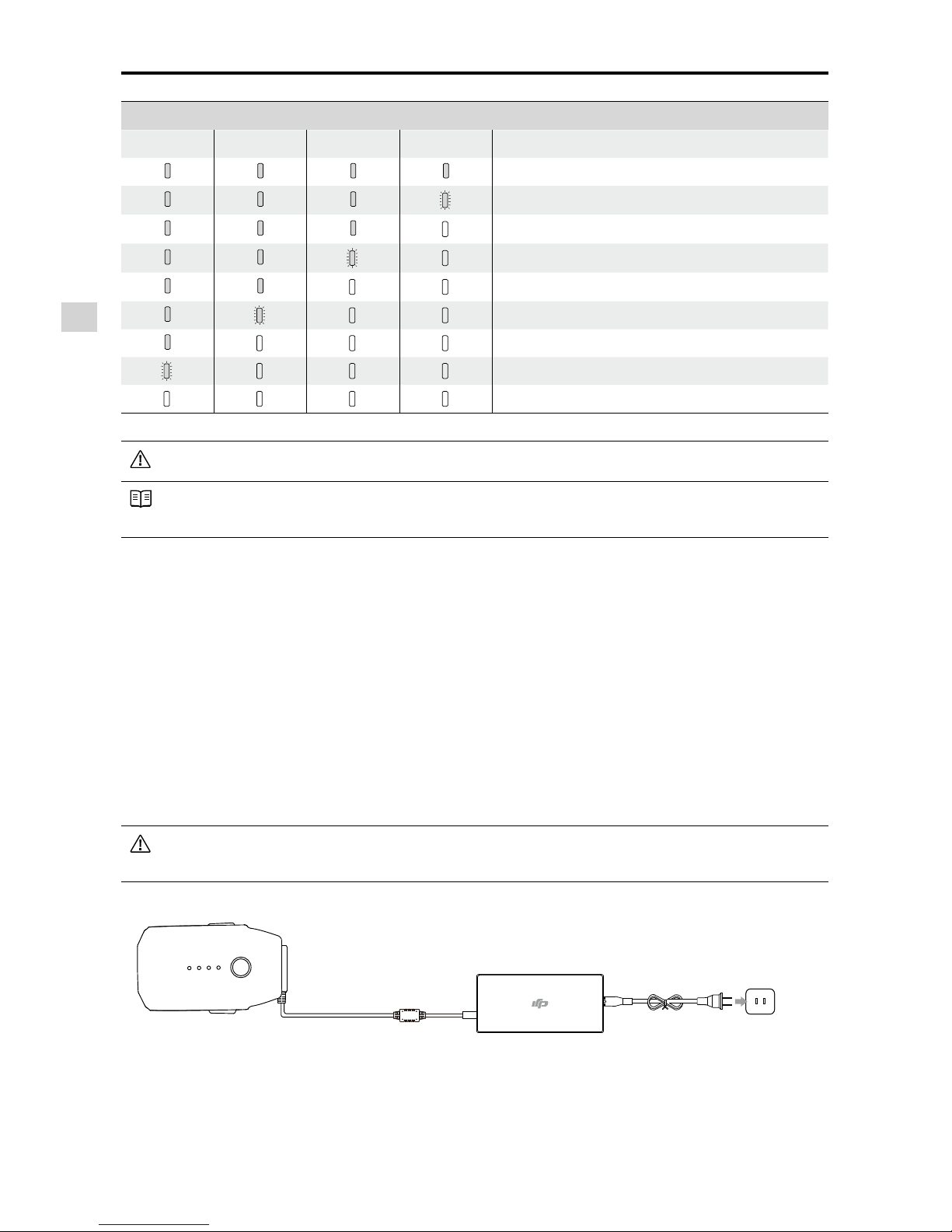

Intelligent Flight Battery Charger

Be aware of the sharp edges of the propellers. Handle with care. Use only the DJI approved propellers. Do not intermix the propellers types. Stand clear of the motors and DO NOT touch the propellers when they are spinning.

Detaching the Propellers

Press down the propellers onto the motor mount, rotate the propeller according to the marked direction to unlock the propeller.

Check that the propellers and motors are installed correctly and rmly before every ight. Ensure that all propellers are in good condition before each ight. DO NOT use aged, chipped,

or broken propellers.

To avoid injury, STAND CLEAR of and DO NOT touch propellers or motors when they are spinning.

ONLY use original DJI propellers for a better and safer ight experience.

Page 26

Aircraft

Mavic Pro User Manual

Using the Battery

The Battery Level Indicators will also show the current battery level during charging and

discharging. The indicators are dened below.

: LED is on. : LED is ashing. : LED is off.

7. Over Current Protection: The battery stops charging when high amperage (more than 8.5 A) is detected.

8. Over Discharge Protection: To prevent over-discharge damage, discharging automatically stops.

9. Short Circuit Protection: Automatically cuts the power supply when a short circuit is detected.

10. Battery Cell Damage Protection: The DJI GO app displays a warning message when a damaged

battery cell is detected.

11. Sleep Mode: To save power, the battery will cut off power supply and enters sleep mode after 20

minutes of inactivity.

12. Communication: Information pertaining to the battery’s voltage, capacity, current, etc. is transmitted to

the aircraft’s main controller.

Refer to

Mavic Pro Intelligent Flight Battery Safety Guidelines

before use. Users take full

responsibility for all operations and usage.

LED2

LED1

LED3 LED4

Battery Level Indicators

Power Button (Built-in LED)

Turning ON/OFF

Turning On:

Press the Power Button once, then press again and hold for 2 seconds to turn on. The Power

LED will turn red and the remote controller system status screen will display the current battery level.

Turning Off:

Press the Power Button once, then press again and hold for 2 seconds to turn off. The battery

power LED will ash when powering off the aircraft to allow for video recording to be stopped,

if the recording was not stopped prior to powering off.

Page 27

Aircraft

Mavic Pro User Manual

Low Temperature Notice:

1. Battery capacity is signicantly reduced when ying in low temperature (< 0°C) environments.

2. It is not recommended that the battery be used in extremely low temperature (< -10°C) environments. Battery voltage should reach the appropriate level when operating environment with temperatures between -10°C and 5°C.

3. End the ight as soon as the DJI GO app displays the “Low Battery Level Warning” in low temperature

environments.

4. Keep the battery indoors to warm it before ying in low temperature environments.

5. To ensure optimal performance of the battery, keep the battery temperature above 20°C.

6. The charger will stop charging the battery if the battery cell’s temperature is not within the operating range (0°C ~ 40°C ).

In cold environments, insert the battery into the battery compartment and allow the aircraft for approximately 1-2 minutes to warm up before taking off.

Checking the Battery Level

The Battery Level Indicators display how much power remains. When the battery is turned off, press the Power Button once. The Battery Level Indicators will light up to display the current battery level. See below for details.

Battery Level

LED1 LED2 LED3 LED4 Battery Level

87.5%~100%

75%~87.5%

62.5%~75%

50%~62.5%

37.5%~50%

25%~37.5%

12.5%~25%

0%~12.5%

=0%

Battery life

Battery life refers to how many more times the battery can be discharged and recharged before it must be replaced. When the battery is turned off, press and hold the Power Button for 5 seconds to check the battery life. The Battery Level Indicators will light up and/or blink for two seconds, as shown below:

Page 28

Aircraft

Mavic Pro User Manual

Charger

Intelligent Flight Battery

Power Outlet

Charging the Intelligent Flight Battery

1. Connect the Battery Charger to a power source (100-240 V 50-60 Hz).

2. Connect the one end of the Battery Charger to the supplied Charging Hub to start charging.

3. The Battery Level Indicator will display the current battery level as it is charging.

4. The Intelligent Flight Battery is fully charged when the Battery Level Indicators are all off. The Battery Level Indicators will turn off when charging is complete. Detach the batteries from the Charging Hub.

5. Allow its temperature to drop to room temperature before storing it for an extended period.

6. The charger will stop charging the battery if the battery cell’s temperature is not within the operating range (5°C to 40°C ).

Always turn off the battery before inserting it or removing it from the Mavic Pro. Never insert or remove a battery when it is turned on.

Battery Life

LED1 LED2 LED3 LED4 Battery Life

90%~100%

80%~90%

70%~80%

60%~70%

50%~60%

40%~50%

30%~40%

20%~30%

below 20%

When battery life reaches 0%, it can no longer be used.

For more information about the battery, launch the DJI GO app and check the information that is listed under the battery tab.

Page 29

Aircraft

Mavic Pro User Manual

Battery Level Indicators While Charging

LED1 LED2 LED3 LED4 Battery Level

0%~25%

25%~50%

50%~75%

75%~100%

Fully Charged

Battery Protection LED Display

The table below shows battery protection mechanisms and corresponding LED patterns.

Battery Level Indicators while Charging

LED1 LED2 LED3 LED4 Blinking Pattern Battery Protection Item

LED2 blinks twice per second Over current detected

LED2 blinks three times per second Short circuit detected

LED3 blinks twice per second Over charge detected

LED3 blinks three times per second Over-voltage charger detected

LED4 blinks twice per second Charging temperature is too low

LED4 blinks three times per second Charging temperature is too high

After these issues are resolved, press the Power Button to turn off the Battery Level Indicator. Unplug the Intelligent Flight Battery from the charger and plug it back in to resume charging. Note that you do not need to unplug and plug in the charger in the event of a room temperature error; the charger will resume charging when the temperature is within the allowable range.

DJI does not take any responsibility for damage caused by third-party chargers.

How to discharge the Intelligent Flight Battery before transport the batteries for long trip: Slow :

Place the Intelligent Flight Battery into the Mavic Pro’s Battery Compartment and turn it on. Leave it on until there is less than 8% of power left, or until the battery can no longer be turned on. Launch the DJI GO app to check battery levels.

Rapid :

Fly the Mavic Pro outdoors until there is less than 8% of power left, or until the battery

can no longer be turned on.

Page 30

Remote Controller

This section describes the features of the remote controller and includes instructions for controlling the aircraft and the camera.

Page 31

Remote Controller

Remote Controller Prole

The Mavic Pro remote controller is a multi-function wireless communication device that integrates the video downlink system and aircraft remote control system. The video downlink and aircraft remote control system operate at 2.4 GHz. The remote controller features a number of camera control functions, such as taking and previewing photos and videos, as well as controlling gimbal motion. The battery level is displayed via LCD Screen of the remote controller.

Compliance Version:

The remote controller is compliant with local compliance and regulations.

Operating Mode:

Control can be set to Mode 1 or Mode 2, or to a custom mode.

Mode 1:

The right stick serves as the throttle.

Mode 2:

The left stick serves as the throttle.

To prevent transmission interference, do not operate more than three aircrafts in the same area.

Using the Remote Controller

Turning the Remote Controller On and Off

The Mavic Pro remote controller is powered by a 2S rechargeable battery that has a capacity of 6000 mAh. The battery level is indicated via the Battery Level LEDs on the front panel. Follow the steps below to turn on your remote controller:

1. When the remote controller is turned off, press the Power Button once. The LCD Screen will display the current battery level.

2. Press and hold the Power Button to turn on the remote controller.

3. The remote controller will beep when it is turned on.

4. Repeat Step 2 to turn off the remote controller.

Charging the Remote Controller

Charge the remote controller using the included charger. Refer to the gure on next page below for more

details.

Page 32

Remote Controller

Mavic Pro User Manual

Charger

Power Outlet

Controlling the Camera

Shoot videos/pictures, view recorded images, and adjust camera settings via the Shutter Button, Camera Settings Dial, Playback Button, and Video Recording Button on the remote controller.

1. Camera Settings Dial

Turn the dial to adjust camera settings such as ISO, shutter speed, and aperture without letting go of the remote controller.

2. Shutter Button

Press to take a photo. If burst mode is activated, multiple photos will be taken with a single press.

3. Video Recoding Button

Press once to start recording video, then press again to stop recording.

4. Gimbal Dial

Use this dial to control the tilt of the gimbal.

Controlling Aircraft

This section explains how to control the orientation of the aircraft through the remote controller. The Remote Control is set to Mode 2 by default.

Stick Neutral/Mid-Point: Control sticks are in the center position. Moving the Control Stick: The control stick is pushed away from the center position.

Page 33

Remote Controller

Mavic Pro User Manual

Remote Controller

(Mode 2)

Aircraft

(

Indicates Nose Direction)

Remarks

Moving the left stick up and down changes the aircraft’s elevation. Push the stick up to ascend and down to descend. When both sticks are centered, the Mavic Pro will hover in place. The more the stick is pushed away from the center position, the faster the Mavic Pro will change elevation. Always push the stick gently to prevent sudden and unexpected elevation changes.

Moving the left stick to the left or right controls the rudder and rotation of the aircraft. Push the sick left to rotate the aircraft counterclockwise, push the stick right to rotate the aircraft clockwise. If the stick is centered, the Mavic Pro will maintain its current orientation. The more the stick is pushed away from the center position, the faster the Mavic Pro will rotate.

Moving the right stick up and down changes the aircraft’s forward and backward pitch. Push the stick up to fly forward and down to fly backward.

Mavic Pro

will hover in place if the stick is centered. Push the stick further away from the center position for

a larger pitch angle (maximum 30˚) and faster ight.

Moving the right stick control left and right changes the aircraft’s left and right pitch. Push left to y left and right to y right. The Mavic Pro will hover in place if the stick is centered.

Press the Intellighent Flight Pause button once to exit from the ActiveTrack, TapFly and Intelligent

Navigation ight mode. The aircraft will hover at

the current position.

Page 34

Remote Controller

Mavic Pro User Manual

Position Flight Mode

SPORT

P-mode

SPORT

S-mode

Flight Mode Switch

Toggle the switch to select the desired flight mode. You may choose between; P-mode, S-mode.

P-mode (Positioning)

P-mode works best when the GPS signal is strong. The aircraft utilizes the GPS and Forward Vision System to automatically stabilize itself, navigate between obstacles or track a moving object. Advanced features such as TapFly and ActiveTrack are enabled in this mode.

S-mode (Sport)

：

The handling gain values of the aircraft are adjusted in order to enhance the

maneuverability of the aircraft in S-mode. The maximum ight speed of the aircraft is increased to

20 m /s in this mode. Note that Forward Vision System is disabled in this mode.

RTH Button

Press and hold the RTH button to start the Return-to-Home (RTH) procedure. The aircraft will then return to the last recorded Home Point. Press this button again to cancel the RTH procedure and regain control of the aircraft.

Adjusting Controller Sticks

Hold and twist the controller sticks clockwise or counter clockwise to adjust the length of the controller sticks. A proper length of controller sticks can improve the controlling accuracy.

SPORT

Page 35

Remote Controller

Mavic Pro User Manual

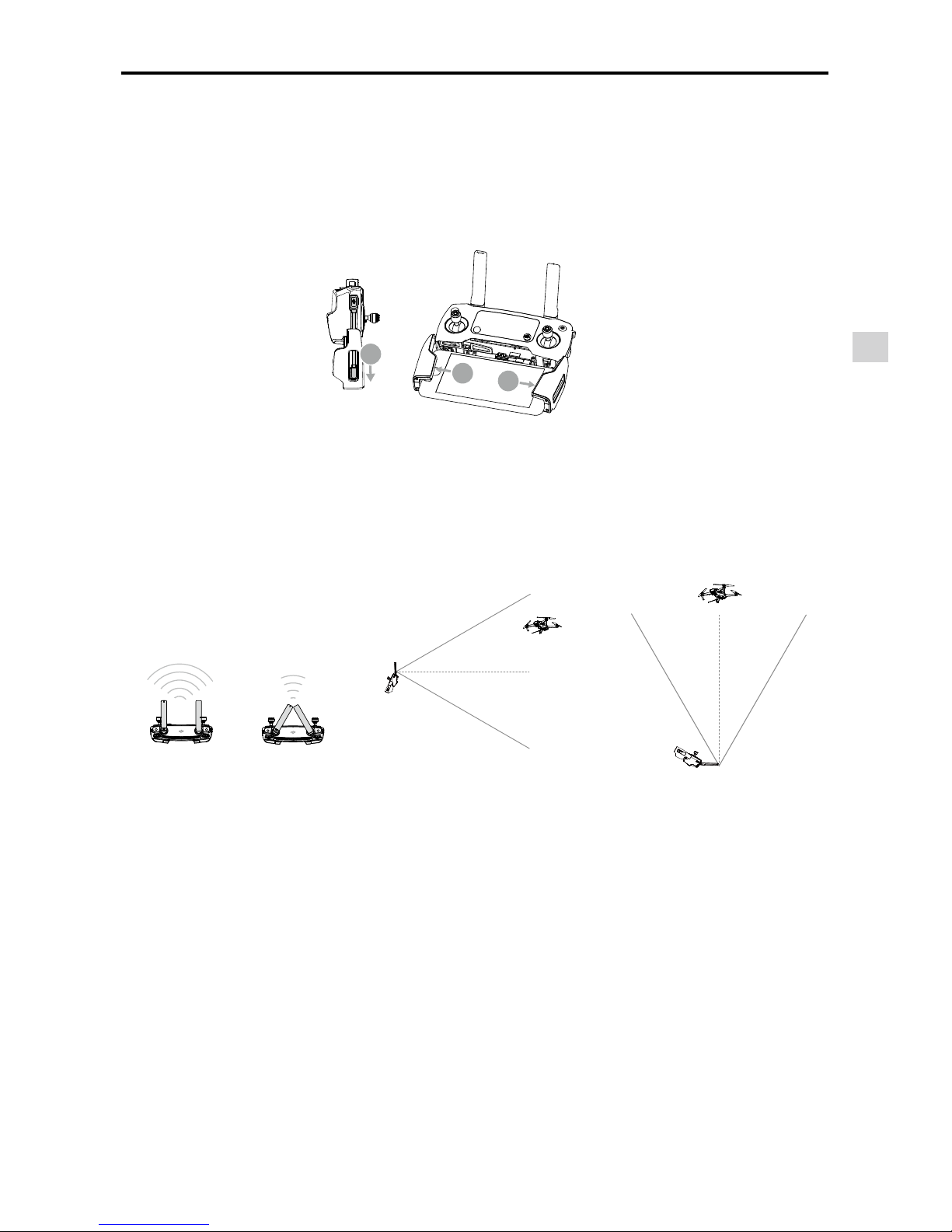

Connecting Your Mobile Device

Tilt the mobile device clamp to the desired position and then place your mobile device into the cradle. Adjust the clamp down to secure the mobile device. To connect your mobile device to the remote controller using a USB cable, plug one end of the cable into your mobile device and the other end into the USB port on the back of the remote controller.

Optimal Transmission Range

The transmission signal between the aircraft and the remote controller is most reliable within the area that is depicted in the image below:

Optimal Transmission Range

Ensure that the aircraft is ying within the optimal transmission zone. To achieve the best transmission

performance, maintain the appropriate relationship between the operator and the aircraft.

strong weak

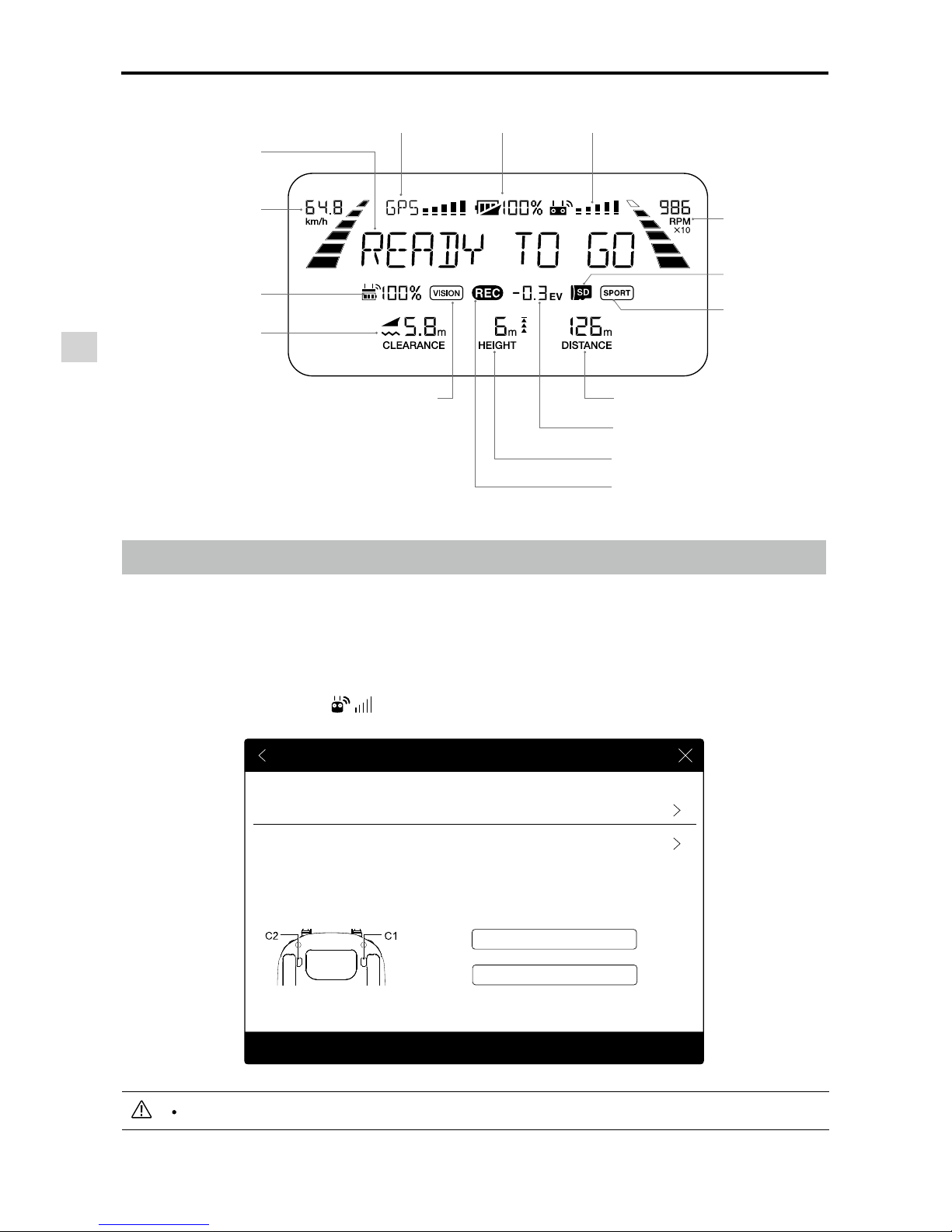

LCD Screen

LCD Screen displays various system statuses such as ight telemetries, battery level in real time. Refer to the gure below for the meaning of each icons in the LCD Screen.

Page 36

Remote Controller

Mavic Pro User Manual

RC Control Setting

RC Calibration

Stick Mode

Button Customization

Not DefinedC1

C2 Not Defined

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled. Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back of the RC.

Linking RC

Linking the Remote Controller

The remote controller is linked to your aircraft before delivery. Linking is only required when using a new

remote controller for the rst time. Follow these steps to link a new remote controller:

1. Turn on the remote controller and connect to the mobile device. Launch the DJI GO app.

2. Turn on the Intelligent Flight Battery.

3. Enter “Camera” and tap on and then tap “Linking RC” button as shown below.

Flight speed

Aircraft battery level GPS signal strength RC signal strength

Motor rotation speed

System status prompt

RC battery level

Distance to the ground

Vision System

Camera status

Flight altitude

Exposure compensation

Flight distance

Sport modes

Micro SD placement

Toggle the Control Mode switch to RC mode before linking.

Page 37

Remote Controller

Mavic Pro User Manual

The remote controller will un-link itself from an aircraft if a new remote controller is linked to the

same aircraft.

RC Calibration

Stick Mode

Button Customization

Not DefinedC1

C2 Not Defined

Default stick mode is Mode 2, changing stick modes alters the way the aircraft is controlled. Do not change unless familiar with your new mode.

You can customize the C1 and C2 buttons on the back of the RC.

RC Control Setting

Linking RC

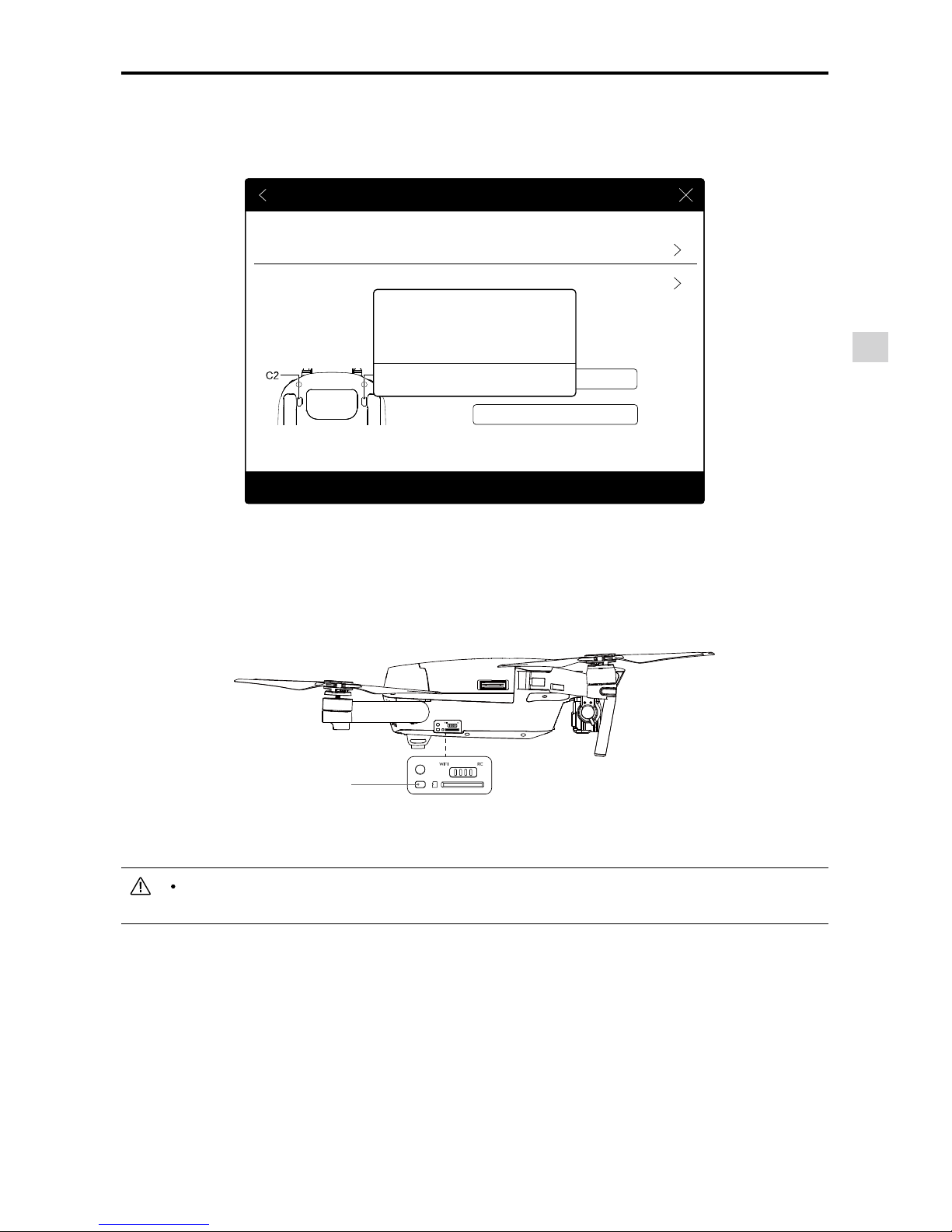

Searching for aircraft frequency,

timeout in 54 seconds

Cancel

Press the linking button on the aircraft

to link this remote controller

5. Locate the linking button on the side of the aircraft, as shown in the gure below. Press the link button

to start linking. The Remote Controller Status Indicator LED will display a solid green once the remote controller is successfully linked to the aircraft.

4. The remote controller is ready to link. The Remote Controller Status Indicator blinks blue and a beep is

emitted.

Link Button

Page 38

Camera and Gimbal

This section provides the technical

specications of the camera and

explains the gimbal’s operation modes.

Page 39

Gimbal Camera

Camera and Gimbal

Camera Prole

The on-board camera uses the 1/2.3 inch CMOS sensor to capture video (up to 4096×2160p at 24fps or 4K at up to 30 fps with the Mavic Pro and 12 megapixel stills. You may choose to record the video in either MOV or MP4 format. Available picture shooting modes include burst, continuous, and time-lapse mode. A live preview of what the camera sees can be monitored on the connected mobile device via the DJI GO app.

Camera Micro SD Card Slot

To store your photos and videos, insert the Micro SD card into the slot, as shown below, before turning on the Mavic Pro. The Mavic Pro comes with a 16 GB Micro SD card and supports Micro SD cards up to 64 GB. A UHS-1 Micro SD card is recommended due to their fast read and write speeds allowing you to save high-resolution video data.

Do not remove the Micro SD card from the Mavic Pro when it is turned on.

To ensure the stability of the camera system, single video recordings are capped at 30 minutes.

Camera Data Port

Turn on the Mavic Pro and connect a USB cable to the Camera Data Port to download photos and videos to your computer.

The aircraft must be turned on before attempting to access the les on the Micro SD card.

Page 40

Gimbal Camera

Mavic Pro User Manual

Camera Operation

Use the Shutter and Video Recording buttons on the remote controller to shoot the images or videos through the DJI GO app. For more information about how to use these buttons, refer to “Controlling the Camera Page 32”.

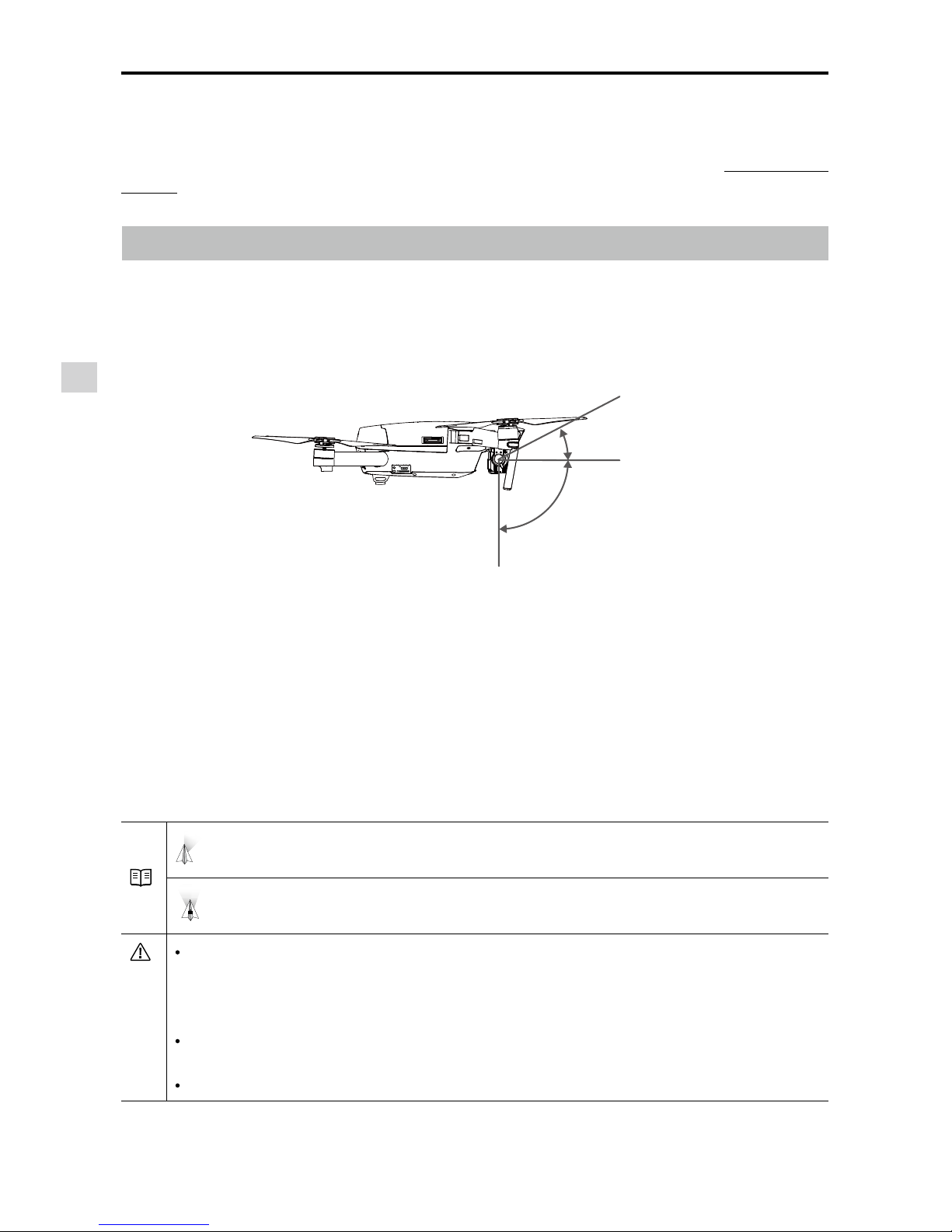

Gimbal

Gimbal Prole

The 3-axis gimbal provides a steady platform for the attached camera, allowing you to capture clear,

stable images and video. The gimbal can tilt the camera within a 120˚ range.

Use the gimbal dial on the remote controller to control the tilt movement of the camera.

-90°

0°

30°

Gimbal Operation Modes

Two gimbal operation modes are available. Switch between the different operation modes on the camera settings page of the DJI GO app. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details:

Follow Mode

The angle between gimbal’s orientation and aircraft’s nose remains constant at all times.

FPV Mode

The gimbal will synchronize with the movement of the aircraft to provide a

rst-person perspective ying experience.

A gimbal motor error may occur in these situations:

(1) the aircraft is placed on uneven ground or the gimbal’s motion is obstructed (2) the gimbal has been subjected to an excessive external force, such as a collision. Please

take off from at, open ground and protect the gimbal at all times.

Flying in heavy fog or clouds may make the gimbal wet, leading to temporary failure. The

gimbal will recover full functionality after it dries.

It is normal for the gimbal to produce short pulse of beeping tone upon initialization.

Page 41

DJI GO app

This section introduces the four main functions of the DJI GO app.

Page 42

DJI GO App

The DJI GO app is a mobile application designed specically for DJI equipment. Use this app to control

the gimbal, camera, and other aircraft functions. The app features Equipment, Editor, Explorer and Me

sections, which are used for conguring your aircraft , editing and sharing your photos and videos with

others.

Connect your DJI device

Mavic Pro

Use AEB shoot to get more dynanic image

Learn more

Camera

80%

Equipment Editor Skypixel Me

Equipment

Enter Camera view by tapping on the Equipment icon from the main GUI.

Camera View

09:29

61%

P-GPS

H 10.0M D 30M V 11.0M/S

SAFE TO FLY (GPS)

14 15

10 118 97654321

Page 43

DJI GO App

Mavic Pro User Manual

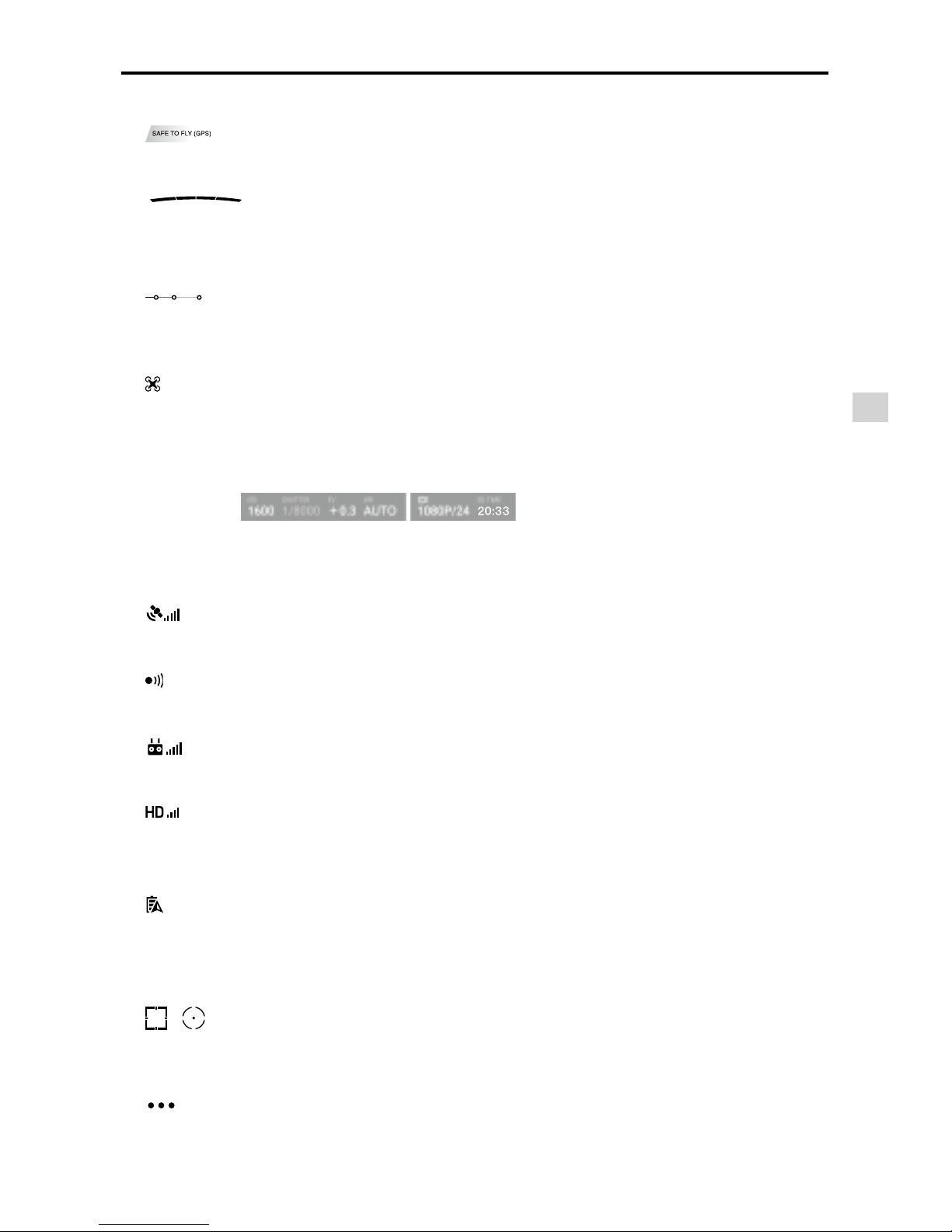

1. System Status

: This icon indicates aircraft ight status and various warning messages.

2. Forward Vision System Status

:Red bars are displayed when approaching obstacles. Orange bars are displayed

when obstacles are away from the aircraft.

3. Battery Level Indicator

: The battery level indicator provides a dynamic display of the battery level. The colored

zones on the battery level indicator represent the power levels needed to carry out different functions.

4. Flight Mode

: The text next to this icon indicates the current ight mode.

Tap to congure the MC (Main Controller) Settings. These settings allow you to modify ight limits and

set the gain values.

5. Camera Parameters

Displaying camera settings parameters and capacity of the Micro SD card.

6. GPS Signal Strength

: Shows the current GPS signal strength. White bars indicate adequate GPS strength.

7. Forward Vision System Status

: Tap into this button to enable or disable features provided by the Forward Vision System.

8. Remote Controller Signal

: This icon shows the strength of remote controller’s signal.

9. HD Video Link Signal Strength

: This icon shows the strength of the HD video downlink connection between the aircraft and the

remote controller.

10. Battery Level

61%

: This icon shows the current battery level.

Tap to view the battery information menu, set the various battery warning thresholds, and view the battery warning history.

. Focus/Metering Button

/ : Tap to switch between focus and metering mode. Tap to select object for focusing or

metering.

12. General Settings

: Tap to enter general setting menu for setting metrics, enabling live stream and display ight

routes and so on.

Page 44

DJI GO App

Mavic Pro User Manual

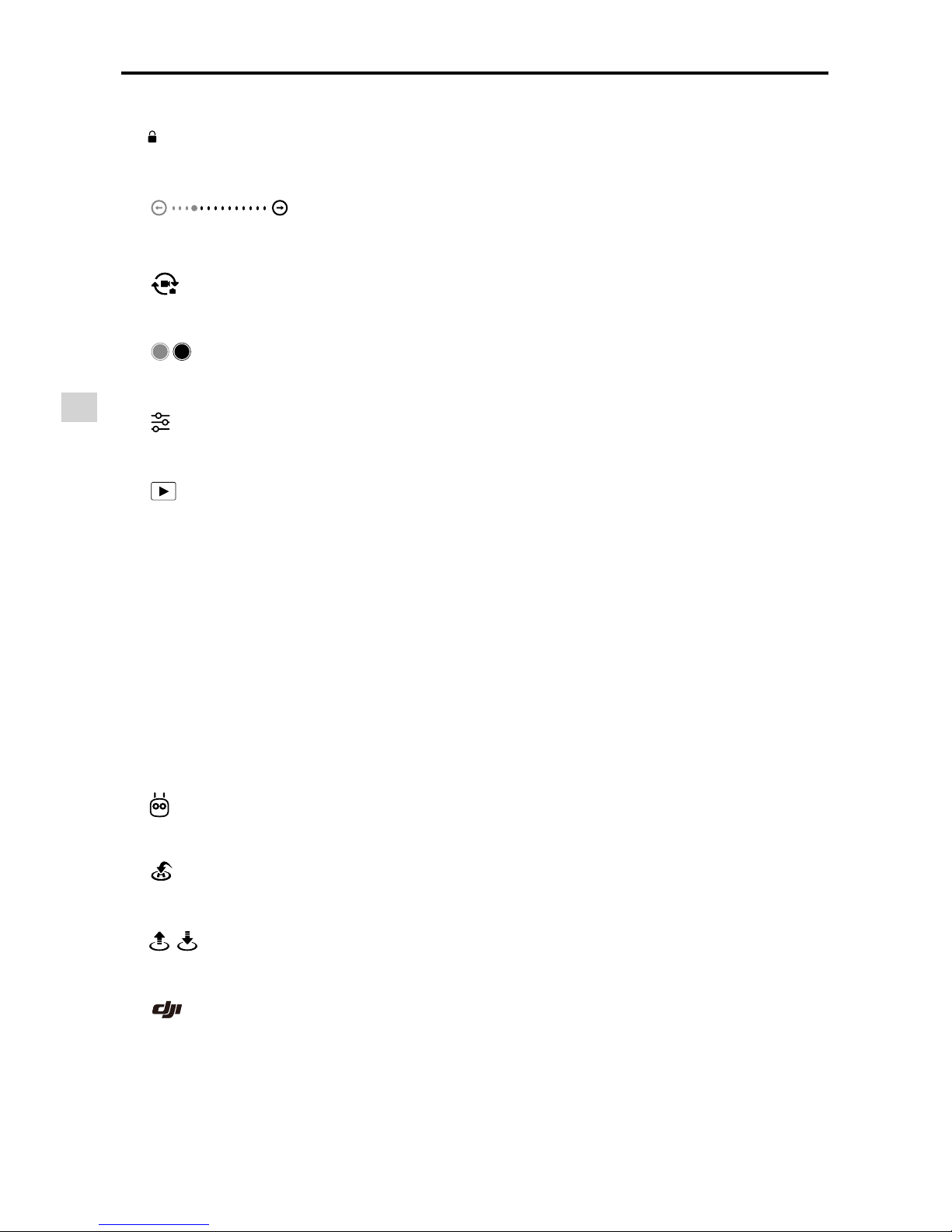

13. Auto Exposure Lock

: Tap to lock the exposure value.

14. Gimbal Slider

: Slide up or down to adjust the pitch of the gimbal camera.

15. Photo/Video Button

: Tap to switch between photo and video recording mode.

16. Shoot / Record Button

/ : Tap to start shooting photos or recording video clips.

17.

Camera Settings

: Tap to set ISO, shutter and auto exposure values of the camera.

18.

Playback

: Tap to enter the playback page. You can preview photos and videos as soon as they are

captured.

19. Flight Telemetry

H 10.0M D 30M V 11.0M/S

Distance: distance between the aircraft and the Home Point. Height: height from the ground. Vertical speed: aircraft vertical speed.

Flight distance: Distance between the aircraft the remote controller.

20. Intelligent Flight Mode

: Icon is solid when Intelligent Flight Mode is in use.

21. Smart RTH

: Initiate RTH home procedure. Tap to have the aircraft return to the last recorded home point.

22.

Auto Takeoff/Landing

/ : Tap to initiate auto takeoff or landing.

23. Back

: Tap this icon to return to the main menu.

Page 45

DJI GO App

Mavic Pro User Manual

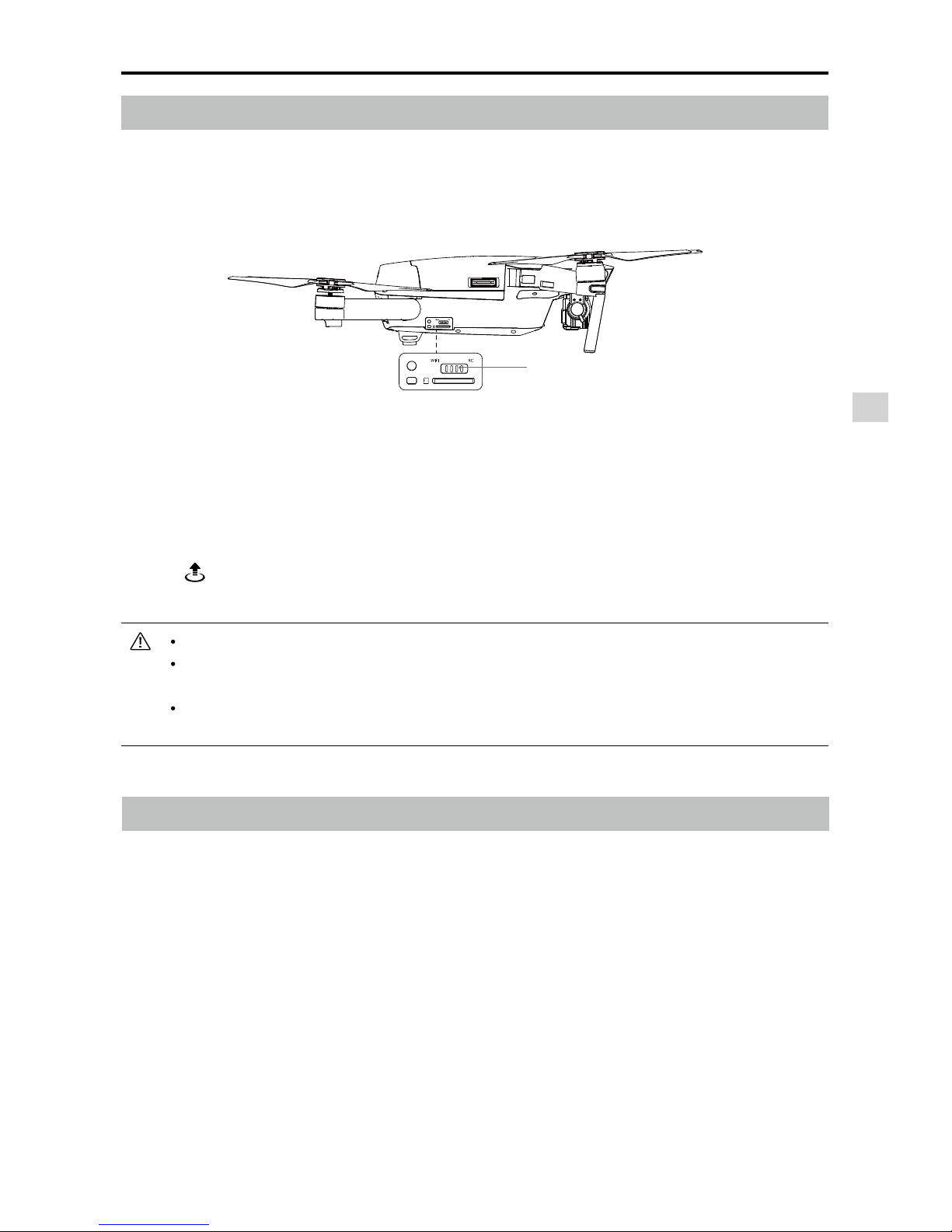

Control Mode Switch

Using Mobile Device to Control Aircraft

Apart from using the included remote controller, you may use the WiFi connection on the mobile device to control the aircraft. Follow the instructions below to learn how to control the aircraft via WiFi connection.

1. Power off the aircraft, then toggle the Control Mode Switch to the “WIFI” position.

2. Power on the aircraft.

3. Enable the WiFi network on the mobile device, wait for 30 seconds and select “Mavic_XXX” from the network list. Input the default connection password printed on the arms of the aircraft.

4. Launch the DJI GO app and enter “Camera View” from the main menu. If you are able to see video feed from the gimbal camera, that indicates the mobile devices is connected to the aircraft successfully.

5. Tap icon to take off the aircraft automatically.Tap on the screen and use the Virtual Joysticks to navigate the aircraft.

Select 2.4G or 5G WiFi transmoission frequency from the mobile device. Press and hold the linking button for more than 5 seconds to reset the WiFi password to

“12341234”.

Launch DJI GO app and tap on the QR scanner to scanner the QR code on the arms of

the aircraft to connect the mobile device to the aircraft upon rst use.

Using Virtual Joysticks

Ensure the mobile device has been connected to the aircraft before using the Virtual Joysticks. The illustrations below is based on Mode 2 (left stick as throttle). Launch the DJI GO app and tap on the screen from “Camera View”.

Page 46

DJI GO App

Mavic Pro User Manual

Editor

An intelligent video editor is built into the DJI GO app. After recording several video clips and downloading them to your mobile device, go to Editor on the home screen. You can then select a

template and a specied number of clips which are automatically combined to create a short lm that can

be shared immediately.

SkyPixel

Find out about our latest events, featured products and trending Skypixel uploads in the Explore page.

If you already have a DJI account, you will be able to participate in forum discussions, earn Credits in the DJI Store, and share your artwork with the community.

Left Right

09:29

61%

P-GPS

SAFE TO FLY (GPS)

Virtual Joysticks GUI

Move the aircraft upwards, downwards or rotate to the left or right by press on the controlling area on the

left plane.

Move the aircraft forwards, backwards or rotate to the left or right by press on the controlling area on the

right plane.

The area beyond the white cycle is also responsive to the handling commands.

Page 47

Flight

This section describes safe ight practices and ight restrictions.

Page 48

Flight

Once pre-ight preparation is complete, it is recommended that you use the ight simulator in the DJI GO app to hone your ight skills and practice ying safely. Ensure that all ights are carried out in an open

area.

Flight Environment Requirements

1. Do not use the aircraft in severe weather conditions. These include wind speeds exceeding 10 m/s , snow, rain and fog.

2. Only y in open areas. Tall structures and large metal structures may affect the accuracy of the on-

board compass and GPS system.

3. Avoid obstacles, crowds, high voltage power lines, trees, and bodies of water.

4. Minimize interference by avoiding areas with high levels of electromagnetism, including base stations and radio transmission towers.

5. Aircraft and battery performance is subject to environmental factors such as air density and temperature.

Be very careful when ying at altitudes greater than 19, 685 feet (6000 meters) above sea level, as the

performance of the battery and aircraft may be affected.

6. The Mavic Pro cannot operate within the polar areas.

Flight Limits and No-Fly Zones

All unmanned aerial vehicle (UAV) operators should abide by all regulations set forth by government and

regulatory agencies including the ICAO and the FAA. For safety reasons, ights are limited by default,

which helps users operate this product safely and legally. Flight limitations include height limits, distance limits, and No-Fly Zones. When operating in P-mode, height limits, distance limits, and No-Fly Zones function concurrently to manage flight safety. In A-mode, only height limits are in effect, which by default prevent the aircraft altitude from exceeding 1640 feet (500 m) .

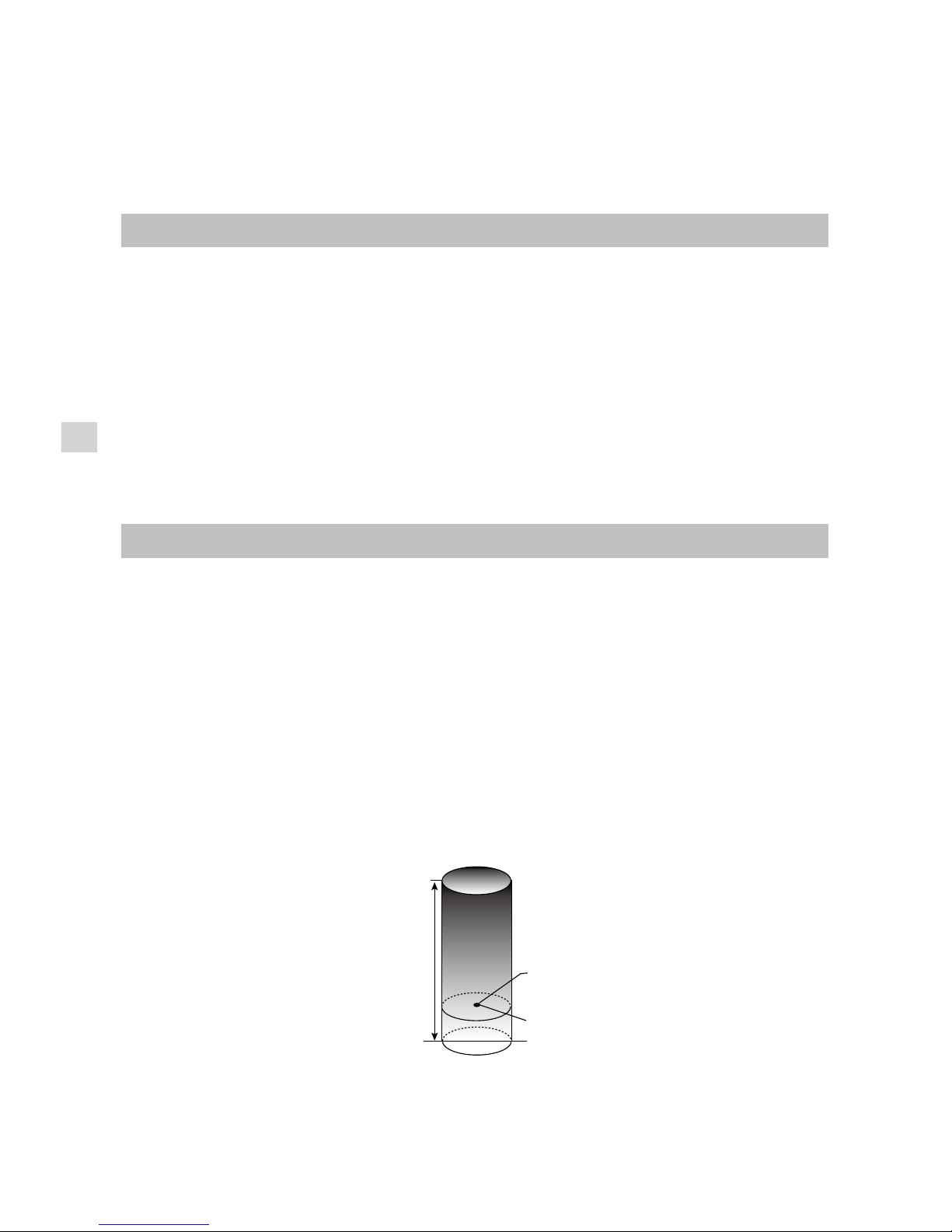

Maximum ight altitude & Radius Limits

Maximum ight altitude and radius limits may be changed in the DJI GO app. Be aware that the maximum ight altitude cannot exceed 1640 feet (500 meters). In accordance with these settings, your Mavic Pro will y in a restricted cylinder, as shown below:

Maximum Flight Altitude

Max Radius

Home Point

Height of aircraft when turned on

Page 49

Flight

Mavic Pro User Manual

GPS Signal Weak Blinking Yellow

Flight Limits DJI GO app Aircraft Status Indicator

Maximum Flight Altitude

Height is restricted to 26 feet (8 meters)when the GPS signal is weak and Downward Vision System is activated. Height is restricted to 164 feet (50 meters) when the GPS signal is weak and Downward Vision System is inactivated.

Warning: Height limit reached.

None.

Max Radius No limits

If the aircraft ies out of the limit, you can still control the aircraft, but you cannot y it any

farther.

If the aircraft ies out of the max radius it will y back within range automatically when GPS

signal is strong.

No-Fly Zones

All No-Fly Zones are listed on the DJI official website at http://www.dji.com/flysafe/no-fly. No-Fly Zones are divided into Airports and Restricted Areas. Airports include major airports and flying

elds where manned aircraft operate at low altitudes. Restricted Areas include border lines between

countries or sensitive institute. The details of the No-Fly Zones are explained as follow:

Airport

(1) Airport No-Fly Zone are comprised of Take-off Restricted zones and Restricted Altitude Zones. Each

zone features circles of various sizes.

(2) R1 miles (value of the R1 depends on the size and shape of the airport) around the airport is a Take-

off restricted zone, inside of which take off is prevented.

(3) From R1 mile to R1 + 1 mile around the airport the ight altitude is limited to a 15 degree inclination.

Starting at 65 feet (20 meters) from the edge of airport and radiating outward. The ight altitude is

limited to 1640 feet (500 meters) at R1+1 mile

(4) When the aircraft enters within 320 feet (100 meters) of No-Fly Zones, a warning message will appear

on the DJI GO app.

GPS Signal Strong Blinking Green

Flight Limits DJI GO app Aircraft Status Indicator

Maximum Flight Altitude

Aircraft's altitude cannot

exceed the specied value.

Warning: Height limit reached.

None.

Max Radius

Flight distance must be within the max radius.

Warning: Distance limit reached.

Rapid red ashing

when close to the

max radius limit.

Page 50

Flight

Mavic Pro User Manual

Restricted Area

(1) Restricted Areas does not have ight altitude restrictions.

(2) R miles around the designated restriction area is a Take-off Restricted area. Aircraft cannot take off

within this zone. The value of R varies based on the denition of the restricted areas.

(3) A “warning zone” has been set around the Restricted Area. When the aircraft approaches within 0.062

miles (100 m) of this zone, a warning message will appear on the DJI GO app.

66 feet

1 mile

320 feet

1640

feet

66 feet

1 mile

100 m

Page 51

Flight

Mavic Pro User Manual

GPS Signal Strong Blinking Green

Zone Restriction DJI GO app Prompt

Aircraft Status Indicator

No-y Zone

Motors will not start.

Warning: You are in a No-fly zone. Take off prohibited.

Red ashing

If the aircraft enters the restricted area in A-mode, but is switched to P-mode, the aircraft will automatically descend, land, and stop its motors.

Warning: You are in a no-y zone.

Automatic landing has begun.

Restricted-

altitude ight

zone

If the aircraft enters the restricted area in A-mode, but is switched to P-mode, it will descend to an appropriate altitude and hover 15 feet below the altitude limit.

R1: Warning: You are in a restricted zone. Descending to safe altitude. R2: Warning: You are in a

restricted zone. Maximum ight

altitude is restricted to between 20m and 500m. Fly cautiously.

Warning zone

No ight restriction applies, but

there will be a warning .

Warning: You are approaching a restricted zone, Fly cautiously.

Free zone

No restrictions. None. None.

Preight Checklist

1. Remote controller, Intelligent Flight Battery, and mobile device are fully charged.

2. Propellers are mounted correctly and rmly.

3. Micro SD card has been inserted, if necessary.

4. Gimbal is functioning normally.

5. Motors can start and are functioning normally.

6. The DJI GO app is successfully connected to the aircraft.

7. Ensure that the sensors for the Forward and Downward Vision System are clean.

Semi-automatic descent: All stick commands are available except the left stick command during the descent and landing process. Motors will stop automatically after landing.

When ying in a safety zone, the aircraft's status indicator will blink red rapidly and continue for

3 seconds, then switch to indicate current ying status and continue for 5 seconds at which

point it will switch back to blinking red.

For safety reasons, please do not y close to airports, highways, railway stations, railway lines,

city centers, or other sensitive areas. Fly the aircraft only within your line of sight.

Page 52

Flight

Mavic Pro User Manual

Calibrating the Compass

Only calibrate the compass when the DJI GO app or the status indicator prompt you to do so. Observe the following rules when calibrating your compass:

DO NOT calibrate your compass where there is a chance of strong magnetic interference, such

as magnetite, parking structures, and steel reinforcements underground. DO NOT carry ferromagnetic materials with you during calibration such as cellular phones. The DJI GO app will prompt you to resolve the compass issue if the compass is affected by

strong interference after calibration is complete. Follow the prompted instructions to resolve the

compass issue.

Calibration Procedures

Choose an open area to carry out the following procedures.

1. Ensure that the compass is calibrated. If you did not calibrate the compass as part of your pre-ight

preparations, or if you have moved to a new location since the last calibration, tap the Aircraft Status Bar in the app and select “Calibrate”, then follow the on-screen instructions.

2. Hold the aircraft horizontally and rotate 360 degrees. The Aircraft Status Indicators will display a solid green light.

3. Hold the aircraft vertically, with nose pointing downward, and rotate it 360 degrees around the center axis. Recalibrate the compass if the Aircraft Status Indicator glows solid red.

Page 53

Flight

Mavic Pro User Manual

If the Aircraft Status Indicator blinks red and yellow after the calibration procedure, move your

aircraft to a different location and try again.

Calibrate the compass before each ight. Launch the DJI GO app and follow the on-screen

instructions to calibrate the compass. DO NOT calibrate the compass near metal objects such as a metal bridge, cars, scaffolding.

If the aircraft status indicators is blinking red and yellow alternately after placing the aircraft on

the ground, the compass has detected magnetic interference. Change your location.

When to Recalibrate

1.When compass data is abnormal and the Aircraft Status Indicator is blinking green and yellow.

2.When ying in a new location or in a location that is different from the most recent ight.

3.When the mechanical or physical structure of the Mavic Pro has been changed.

4.When severe drifting occurs in ight, i.e. Mavic Pro does not y in straight line.

Auto Takeoff and Auto Landing

Auto Takeoff Use auto takeoff only if the Aircraft Status Indicators are blinking green. Follow the steps below to use the auto takeoff feature:

1. Launch the DJI GO app, and enter “Camera” page.

2. Ensure the aircraft is in P- mode.

3. Complete all steps on the pre-ight checklist.

4. Tap“ ”, and conrm that conditions are safe for ight. Slide the icon to conrm and takeoff.

5. Aircraft takes off and hovers at (1.2 meters) above ground.

Aircraft Status Indicator blinks rapidly when it is using the Vision Position System for stabilization. The aircraft will automatically hover below 3 meters. It is recommended to wait until there is

sufcient GPS lock before using the Auto Take-off feature.

4. Re-calibrate the aircraft if the aircraft status indicators blink red.

Auto-Landing Use auto-landing only if the Aircraft Status Indicators are blinking green. Follow the steps below to use the auto-landing feature:

1. Ensure the aircraft is in P- mode.

2. Check the landing area condition before tapping “ ”, to begin landing. Then follow the on-screen instructions.

Page 54

Flight

Mavic Pro User Manual

Stopping the Motors

There are two methods to stop the motors. Method 1: When Mavic Pro has landed, push the left stick down , then conduct the same CSC that was used to start the motors, as described above . Motors will stop immediately. Release both sticks once motors stop. Method 2: When the aircraft has landed, push and hold the left stick down. The motors will stop after three seconds.

Starting/Stopping the Motors

Starting the Motors

A Combination Stick Command (CSC) is used to start the motors. Push both sticks to the bottom inner or outer corners to start the motors. Once the motors have started spinning, release both sticks simultaneously.

Method 1 Method 2

Flight Test

Takeoff/Landing Procedures

1. Place the aircraft in an open, at area with the battery level indicators facing towards you.

2. Turn on the remote controller and your mobile device, then turn on the Intelligent Flight Battery.

3. Launch the DJI GO app and enter the Camera page.

4. Wait until the Aircraft Indicators blink green. This means the Home Point is recorded and it is now safe

to y. If they ash yellow, the Home Point has not been recorded.

5. Push the left stick up slowly to take off or use Auto Takeoff.

6. Shoot photos and videos using the DJI GO app.

7. To land, hover over a level surface and gently pull down on the left stick to descend.

8. After landing, execute the CSC command or hold the left stick at its lowest position until the motors stop.

9. Turn off the Intelligent Flight Battery rst, then the Remote Controller.

When the Aircraft Status Indicators blink yellow rapidly during ight, the aircraft has entered Failsafe

mode.

A low battery level warning is indicated by the Aircraft Status Indicators blinking red slowly or

rapidly during ight.

Watch our video tutorials for more ight information.

Page 55

Flight

Mavic Pro User Manual

Video Suggestions and Tips

1. Go through the full pre-ight checklist before each ight.

2. Select the desired gimbal operation mode in the DJI GO app.

3. Only shoot video when ying in P-mode.

4. Always y in good weather and avoid ying in rain or heavy wind.

5. Choose the camera settings that suit your needs. Settings include photo format and exposure compensation.

6. Perform ight tests to establish ight routes and preview scenes.

7. Push the control sticks gently to keep the aircraft’s movement smooth and stable.

Page 56

Appendix

Page 57

Appendix

Specications

Aircraft

Weight 1.62 lbs (734 g)

Weight (including gimbal cover) 1.64 lbs (743 g)

Max Ascent Speed 16.4 ft/s (5 m/s) in Sport Mode

Max Descent Speed 9.8 ft/s (3 m/s)

Max Speed 40.4 mph (65 kph) in Sport Mode without wind

Max Service Ceiling Above Sea Level 16404 feet (5000 m)

Max Flight Time

Max ight time: 27 minutes (at 7 m/s cruising speed, 0% battery left)

Max indoors hovering time: 25 minutes (0% battery left)

Avg. ight time: 21 minutes (general ight, 15% battery left)

Max Hovering Time 24 minutes (0 wind)

Max Flight Distance 8 mi (13 km, 0 wind)

Operating Temperature 32° to 104° F (0° to 40° C)

Satellite Positioning Systems GPS/GLONASS

Gimbal

Controllable Range Pitch: -90° to +30°, Roll: 0°or 90° (Horizontally and vertically)

Forward Vision System

Sensing Range

Precision measurement range: 2 ft (0.7 m) to 49 ft (15 m)

Detectable range: 49 ft (15 m) to 98 ft (30 m)

Operating Environment Surfaces with clear patterns and adequate lighting (lux > 15)

Downward Vision System

Velocity Range ≤ 22.4 mph (36 kph) at 6.6 ft (2 m) above ground

Altitude Range 1 - 43 feet (0.3 - 13 m)

Operating Range 1 - 43 feet (0.3 - 13 m)

Operating Environment Surfaces with a clear patterns and adequate lighting (lux > 15)

Camera

Sensor

1/2.3” CMOS Effective pixels:12.35 Megapixels

(Total pixels: 12.71 M)

Lens

78.8° FOV, 28 mm (35 mm format equivalent) f/2.2

TV distortion <1.5% Focus from 0.5 m to ∞

ISO Range 100 - 3200 (video), 100 - 1600 (photo)

Electronic Shutter Speed 8 s to 1/8000 s

Max Image Size 4000×3000

Still Photography Modes

Single shot

Burst shooting: 3/5/7 frames

Auto Exposure Bracketing (AEB):

3/5 bracketed frames at 0.7EV Bias

Interval

Page 58

Appendix

Mavic Pro User Manual

Remote Controller

Operating Frequency 2.400 GHz to 2.4835 GHz

Max Transmission Distance

FCC Compliant: 4.3 mi (7 km); CE Compliant: 2.5 mi (4 km)

Unobstructed and free of interference.

Operating Temperature 32° to 104° F (0° to 40° C)

Battery 2970 mAh

Transmitter Power ( EIRP ) FCC: ≤ 26 dBm; CE: ≤ 20 dBm

Operating Voltage 950 mA @ 3.7 V

Supported Mobile Device Size

Thickness supported: 6.5 - 8.5 mm, Max length: 160 mm

Supported USB port types:

Lightning, Micro USB (Type-B), USB Type-C

Charger

Voltage 13.05 V

Rated Power 50 W

Intelligent Flight Battery

Capacity 3830 mAh

Voltage 11.4 V

Battery Type LiPo 3S

Energy 43.6 Wh

Net Weight Approx. 0.5 lbs (240 g)

Operating Temperature 41° to 104° F (5° to 40° C)

Max. Charging Power 100 W

Aircraft Status Indicator Description

Normal

Red, Green and Yellow Flash

Alternatively

Turning on and Self-Diagnostics

Yellow Flashes Slowly Aircraft Warming Up

Green Flashes Slowly

Safe to Fly (P-mode with GPS and Forward and Downward Vision System)

Video Recording Modes

C4K: 4096×2160 24p, 4K: 3840×2160 24/25/30p

2.7K: 2704×1520 24/25/30p

FHD: 1920×1080 24/25/30/48/50/60/96p

HD: 1280×720 24/25/30/48/50/60/120/180p

Video Storage Bitrate 60 Mbps

Supported File Systems FAT32 (≤ 32 GB), exFAT (> 32GB)

Photo JPEG, DNG

Video MP4, MOV (MPEG-4 AVC/H.264)

Supported SD Cards Micro SDTM. Max capacity: 64GB Class 10 or UHS-1 rating required.

Page 59

Appendix

Mavic Pro User Manual

Firmwares Update

Use DJI Assistant 2 or DJI GO app to update aircraft and remote controller. Follow the instructions

below to update the rmware through DJI Assistant 2:

1. Connect the aircraft to a computer with a USB cable.

2. Launch DJI Assistant 2 and login with your DJI account.

3. Select “Mavic Pro” and click on the “Firmware Updates” on the left panel.

4. Select the rmware version that you wish to update.

5. Wait for the rmware to be downloaded and rmware update will start automatically.

6. Reboot the aircraft after the rmware update is complete.

The rmware update will take around 15 minutes. It is normal that the gimbal go limp, aircraft

status indicator blinks abnormally and the aircraft reboots. Please wait patiently until the update

is complete. There will be no sound prompts during the update. Ensure the computer has access to the Internet. Ensure the battery level is adequate for the Intelligent Flight Battery.

Do not disconnect the aircraft from the computer during rmware update.

Intelligent Flight Mode

Intelligent Flight mode includes Course Lock, Home Lock, Point of Interest (POI), Follow Me and

Waypoints features to assist users to create professional shoots during the ight. Course Lock and Home

Point lock helps to lock the orientation of aircraft so that the user can focus more on other operations.

Point of Interest, Follow Me and Waypoints mode enable aircraft to y automatically according to the pre-set ight maneuvers.

X2 Green Flashes Twice

Safe to Fly (P-mode with Forward and Downward Vision System but without GPS)

Yellow Flashes Slowly

Safe to Fly (A-mode but No GPS and Forward and Downward Vision System)

Warning

Fast Yellow Flashing Remote Controller Signal Lost

Slow Red Flashing Low Battery Warning

Fast Red Flashing Critical Battery Warning

Red Flashing Alternatively IMU Error

— Solid Red Critical Error

Red and Yellow Flash Alternatively Compass Calibration Required

Page 60

Appendix

Mavic Pro User Manual

After-Sales Information

Visit the following pages to learn more about After-sales policy and warranty information:

1. After-sales Policy: http://www.dji.com/service

2. Refund Policy: http://www.dji.com/service/refund-return

3. Paid Repair Service: http://www.dji.com/service/repair-service

4. Warranty Service: http://www.dji.com/service/warranty-service

FCC Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired

operation.

Changes or modications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

Compliance Information

FCC Warning Message

Any changes or modications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator&

Course Lock

Lock the current nose direction as the aircraft’s forward direction. The aircraft will move in the locked directions regardless of its orientation (yaw angle).

Home Lock Pull the pitch stick backward to move the aircraft toward its recorded Home Point.

Point of Interest

The aircraft will orbit around the subject automatically to allow the operator can be more focus on framing their shoot on the subject in Point of Interest.

Follow Me

A virtual tether is created between the aircraft and the mobile device so that the aircraft can track your movement as you move. Note that Follow Me performance is subject to the GPS accuracy on the mobile device.

Waypoints

Record a ight path, then the aircraft will y along the same path repeatedly while you control the camera and orientation. The ight path can be saved and re-apply

in the future.

Enable Multiple Flight Mode by launching the DJI GO app > Camera View > > Advanced Settings >

Multiple Flight Mode before using the Intelligent Flight Mode for the rst time.

Page 61

Appendix

Mavic Pro User Manual

your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

IC RSS warning

This device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent areil est conforme aux CNR d'Industrie Canada licables aux areils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes: (1) l'areil ne doit pas produire de brouillage, et (2) l'utilisateur de l'areil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

IC Radiation Exposure Statement:

This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.

Any Changes or modications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

KCC Warning Message

“해당무선설비는 운용 중 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다 .” “해당 무선설비는 운용 중 전파혼신 가능성이 있음”

NCC Warning Message

低功率電波輻射性電機管理辦法第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

Page 62

This content is subject to change.

Download the latest version from

http://www.dji.com/mavic

If you have any questions about this document, please contact DJI by sending a message to

DocSupport@dji.com

DJI Support http://www.dji.com/support

MAVIC

is a trademark of DJI.

dji MAVIC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
