DJI E300 User Manual

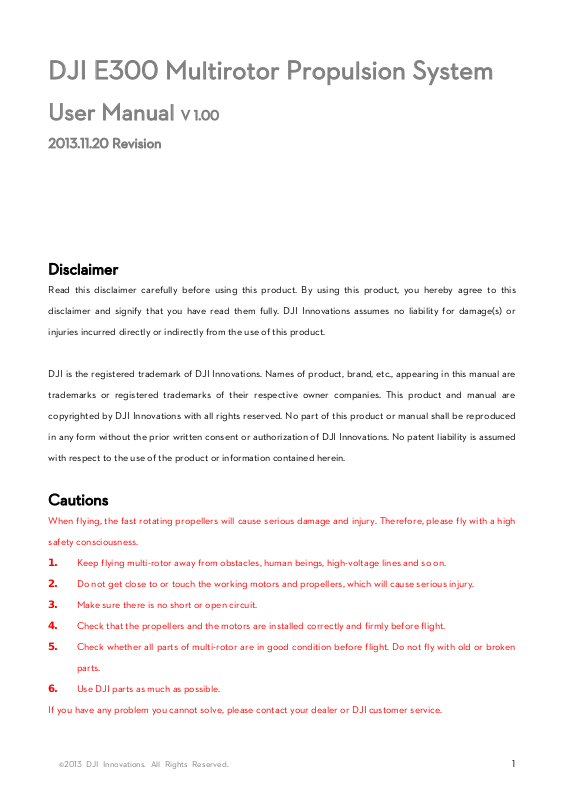

DJI E300 Multirotor Propulsion System

User Manual V 1.00

2013.11.20 Revision

Disclaimer

Read this disclaimer carefully before using this product. By using this product, you hereby agree to this

disclaimer and signify that you have read them fully. DJI Innovations assumes no liability for damage(s) or

injuries incurred directly or indirectly from the use of this product.

DJI is the registered trademark of DJI Innovations. Names of product, brand, etc., appearing in this manual are

trademarks or registered trademarks of their respective owner companies. This product and manual are

copyrighted by DJI Innovations with all rights reserved. No part of this product or manual shall be reproduced

in any form without the prior written consent or authorization of DJI Innovations. No patent liability is assumed

with respect to the use of the product or information contained herein.

Cautions

When flying, the fast rotating propellers will cause serious damage and injury. Therefore, please fly with a high

safety consciousness.

1. Keep flying multi-rotor away from obstacles, human beings, high-voltage lines and so on.

2. Do not get close to or touch the working motors and propellers, which will cause serious injury.

3. Make sure there is no short or open circuit.

4. Check that the propellers and the motors are installed correctly and firmly before flight.

5. Check whether all parts of multi-rotor are in good condition before flight. Do not fly with old or broken

parts.

6. Use DJI parts as much as possible.

If you have any problem you cannot solve, please contact your dealer or DJI customer service.

©2013 DJI Innovations. All Rights Reserved. 1

In the Box

Motor(Clock-wise rotation)

Motor(Counter clock-wise rotation)

Propeller Pair

ESC

Accessories Pack

Power Hub,
Screws ( M2.5*Φ5*1.3*1) , Screws ( M3*Φ4.9*6.8), Screws ( M3*Φ5.5*4.5),
Wrench for propeller fix, 2.0mm hexagonal wrench, Double side tape, etc.

Tool

Function

Electric Soldering Iron & Soldering Tin

Connects the ESCs’ power cables to the power hub.

1. Please solder the ESC to the power pads on the power hub as the figure shows. Make sure the welding

spot is firmly attached on the power pads and no short circuit. Do not damage the protector of the red

cable to avoid short circuit.

2. Connect the signal cable to your controller.

3. Connect the motor to the ESC. Make sure the rotation direction of each motor is the same as the way of

defined rotation direction. If not, switch any of two cables that connecting the motor and the ESC to

change its rotation direction.

E300

To the controller

The outer power pads are for the GND cables, and the
inner power pads are for the power cables. Make sure to
solder them correctly. Try to make the cables firmly
soldered on the power hub with suited length (Should not
leave any outside the power hub), and outward-facing.

Make sure there is no short or open circuit.

It is recommended to solder a power connector on the power hub.

Tools Needed

Soldering the ESC

©2013 DJI Innovations. All Rights Reserved. 2
