Dish Network 123698, Duo 322 User Manual

Contents

Safety Instructions............................................................. iii

Chapter 1 - Introduction .....................................................1

Welcome to DISH NetworkTM.....................................................1

Overview......................................................................................1

If You Need More Assistance ......................................................2

Quick Start Guide ........................................................................2

Quick Tour of the Menus .............................................................4

About Satellite Television ............................................................7

About MDU ..................................................................................7

Chapter 2 - Receiver Description and Installation .......................9

The Receiver Front Panel............................................................ 9

The Receiver Back Panel Connections .....................................10

Remote Control.......................................................................... 11

Remote Control Settings............................................................13

Connecting Your Receiver......................................................... 14

Performing the QAM Frequency Scan.......................................15

Connecting Your Receiver to a Phone Line...............................19

Chapter 3 Using the System ............................................21

Using the Remote Control .........................................................21

Changing Channels ................................................................... 24

Using the Menus........................................................................24

Using the Program Guide ..........................................................27

Using the Browse Banner ..........................................................29

Ordering Pay Per View Programs..............................................31

Using Themes............................................................................ 32

DISH Home Interactive TV Applications ....................................33

Using Favorites Lists .................................................................33

Using Timers.............................................................................. 36

Setting Up the Receiver to Control a VCR.................................42

Setting Up a VCR for VCR Timers.............................................43

Using Locks ...............................................................................43

Using Caller ID........................................................................... 51

Resetting to Factory Defaults .................................................... 52

Changing Program Languages.................................................. 53

Control Other Devices with the Remote .................................... 53

Testing the System ....................................................................61

Page i

Contents

Chapter 4 Reference .........................................................63

Troubleshooting Tables .............................................................63

Device Codes.............................................................................70

Appendix ............................................................................75

Limited Warranty........................................................................75

Residential Customer Agreement ..............................................78

Staying Legal .............................................................................84

FCC Compliance........................................................................84

Index ...................................................................................87

Page ii

Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.

11. Use only attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long periods
of time.

13. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as the power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.

Apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be placed on the
apparatus.

Page iii

Safety

Safety Tips

• Unplug the receiver from the AC power outlet before cleaning.

• The use of accessories or attachments not recommended by the receiver
manufacturer will void the Limited Warranty.

•Do not place the receiver in an enclosure such as a cabinet without proper
ventilation.

• Do not install the receiver in any area where the temperature can be less than
40°F or more than 113°F.

•Do not stack the receiver on top of or below other electronic devices.

• Operate the receiver using only the type of power source indicated on the
marking label. Unplug the receiver power cord by gripping the power plug, not
the cord.

•Do not overload wall outlets or extension cords, as this can result in a risk of
fire or electrical shock.

• Never insert objects of any kind into the receiver through openings, as the
objects may touch dangerous voltage points or short out parts. This could cause
fire or electrical shock.

•Do not attempt to service the receiver yourself, as opening or removing covers
may expose you to dangerous voltage, and will void the Limited Warranty.
Refer all servicing to your dwelling custodian, manager or owner.

• Use an outlet that contains surge suppression or ground fault protection. For
added protection during a lightning storm, or when the receiver is left
unattended and unused for long periods of time, unplug the power cord from the
wall outlet, disconnect the lines between the receiver and the antenna, and
disconnect the telephone line. This will provide some protection against
damage caused by lightning or power line surges.

Page iv

Chapter 1

Introduction

Welcome to DISH NetworkTM

Congratulations! You are about to experience the excitement and convenience
of Digital Video Broadcast - the digital transmission technology that allows the
absolute best in picture and sound quality.

The DISH Network consistently provides state-of-the-art, satellite-delivered
products and services — with high performance, ease of operation, and a wide
variety of entertainment options.

Overview

Information

For information on the receiver and how to connect it, read Chapter 2, Receiver
Description and Installation.

For information on any specific feature or function, including how to use the
remote control, read Chapter 3, Using The System.

If you have a problem operating the system, or receive an error message, read

Chapter 4, Troubleshooting Tables.

You can also ask your network operator for assistance or call the Commercial
Customer Service Center at 1-800-454-0843.

Tips

In the margins of pages throughout this guide are tips and other information to
make using your satellite receiver easier.

Conventions Used in This Guide

To make it easy for you to use this guide, we use the following conventions:

• The names of remote control buttons and modes are all uppercase.

Example: Press the SAT button.

• Menus and options that appear on the TV screen are in bold type.

Example: Open the Program Guide.

• Select means to move the highlight to an on-screen option or choice in a list

and press the SELECT button on the remote control.
Example: Select the Locks option.

• Connections on the back of the receiver are in small capital letters.

Example: S

IGNAL INPUT.

Page 1

Chapter 1

Introduction

Tip: Channels
that appear in red
cannot be viewed
because they are
not part of your
subscription. You
can add channels
to your subscrip­tion simply by
calling the Com­mercial Cus­tomer Service
Center at 1-800­454-0843.

If You Need More Assistance

If you need help after you read this guide, call your network operator or the
Commercial Customer Service Center at 1-800-454-0843.

Quick Start Guide

After your system has been installed, order and watch your programming using
the following steps:

Ordering Your Programming

1. Using your remote control, press SAT, and then press the
blank POWER button. Make sure the TV is also on.

2. Press GUIDE.
Program Guide appear in white. These channels can be
viewed immediately. However, many channels will be in red.
You cannot view these channels until you order programming.

3. Display the Important System Information screen by
pressing the SYS INFO button on your remote.

Note: The screen shown here is just an example. The screen
that you will actually see will contain numbers and information
unique to your receiver.

You will see that some channels in the

Page 2

4. Call the Commercial Customer Service Center at 1-800-454-0843. A
customer service representative will help you with your system and will
discuss the various programming packages available.

5. Choose a package and the representative will authorize your programming.

6. Press either SELECT or CANCEL to close the Important
System Information screen.

Quick Start Guide

7. Press GUIDE

. Wait a few minutes and the channels you

purchased will turn from red to white, and can now be viewed.

Finding Programs To Watch

First, make sure the receiver is turned on. Press the POWER
button on the remote or press the POWER button on the
receiver. There are two ways to find information on programs.

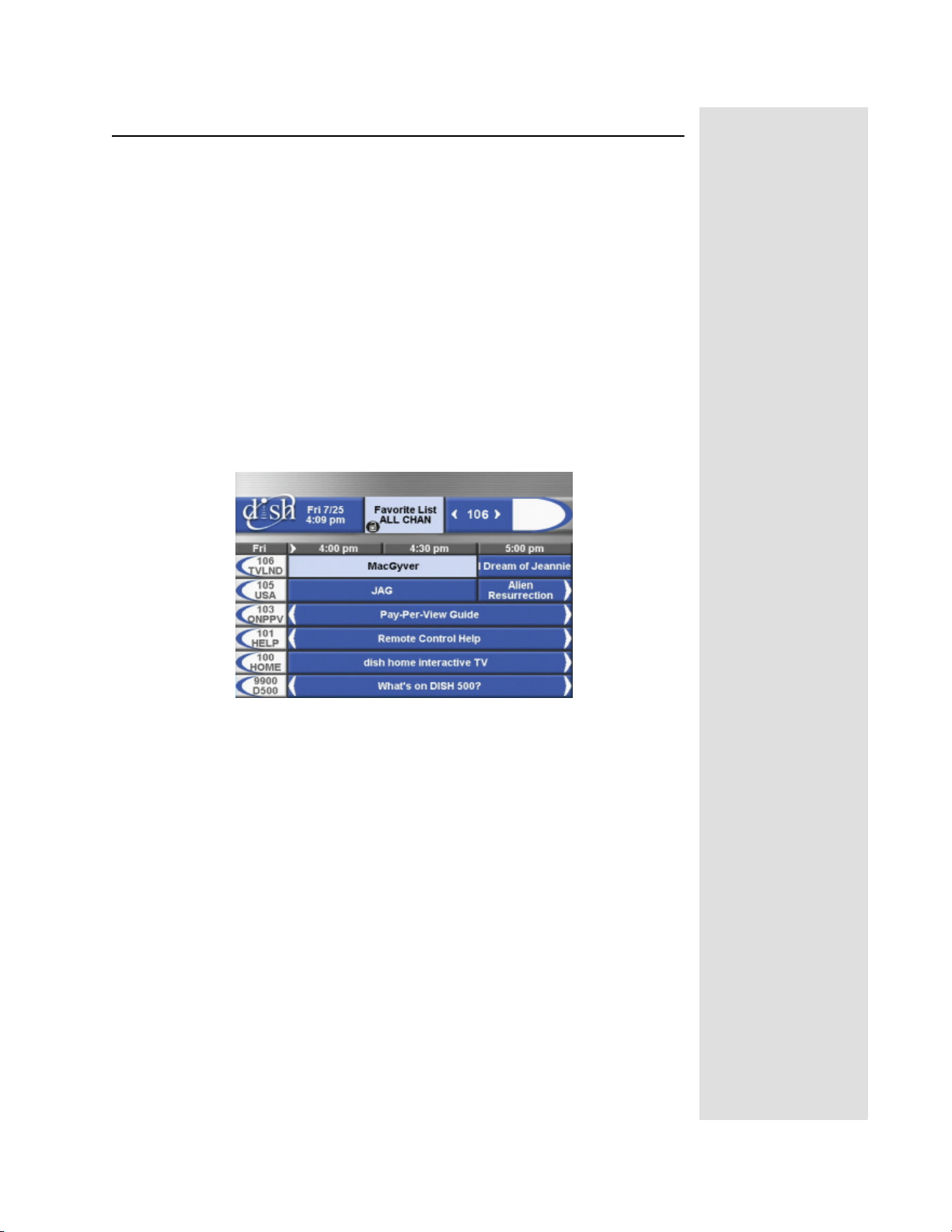

1. Press GUIDE. When the Program Guide opens, use the
UP or DOWN ARROW to view information on other
channels. After you have highlighted a program in the

Program Guide, press SELECT to watch it.

Note: The Program Guide

programs available on all channels, including those that are not
in your subscription (these channels have red backgrounds).

2. While viewing a program, press the BROWSE (RIGHT

ARROW) button. Then press either the UP or DOWN
ARROW. The information on other channels will appear

in the Browse Banner at the bottom of the screen. Press
SELECT to watch the program.

provides a complete listing of all

Tip: The system
automatically
displays
programs based
on the current day
and time. You can
advance the Guide
to view informa­tion on future
programs, but not
programs that
have already
ended.

Page 3

Chapter 1

Introduction

Quick Tour of the Menus

This tour guides you quickly through the basic features available through the
Main Menu. See Chapter 3, Using the System for more information about these
and other features.

1.

Press the MENU button to open the Main Menu.

2. Press the 1 button to select the Program Guide option on the
Menu.

This opens the Program Guide on the TV screen. You can use the Program
Guide to find and select a program to watch. For now though, go on with this

tour.

3. Press the MENU button to go back to the Main Menu

.

Main

Page 4

4. Press the 2 button to select the Themes option on the Main Menu.

This menu allows you to search for programming by Theme Categories.

5. Press the MENU button to go back to the Main Menu.

6. Press the 4 button to open the Favorites menu.

Quick Tour of the Menus

This menu allows you to set up lists of your favorite channels to make finding
what you want to watch more convenient.

7. Press MENU to go back to the Main Menu.

8. Press the 5 button to select the Locks option on the Main Menu.

Page 5

Chapter 1

Introduction

This menu allows you to apply password-protected locks on programming
based on rating, or even on a channel-by-channel basis.

9. Press MENU to go back to the Main Menu.

10. Press the 6 button to select the System Setup option on the Main Menu.

Use this menu to set up the system the way you want.

11. Press MENU to go back to the

12. Press the 7 button to select the Timers

Main Menu.

option on the Main Menu.

Page 6

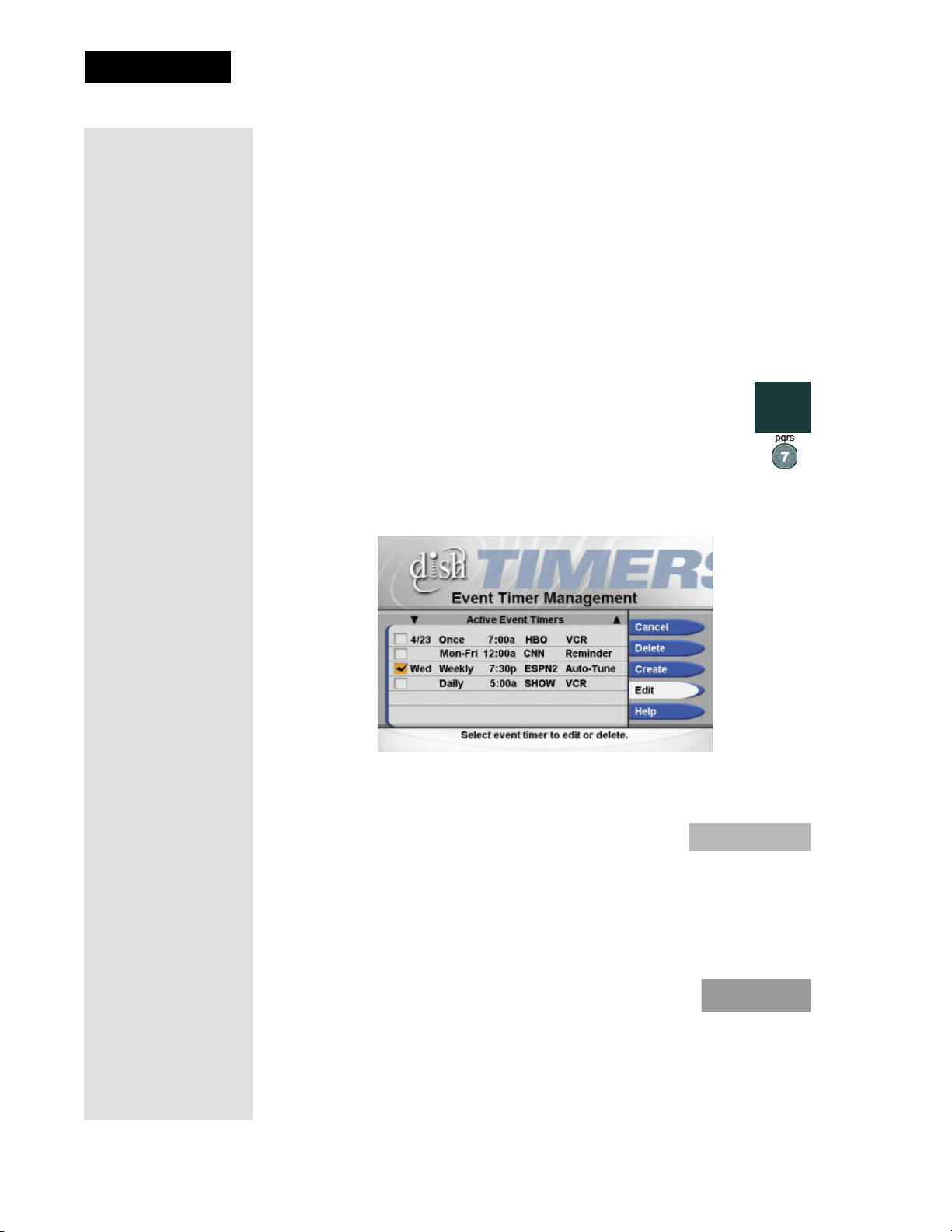

This menu is used for creating and changing timers used to trigger auto-

matic channel changes, reminders, or VCR recordings.

13. Press MENU to go back to the Main Menu.

About Satellite Television

About Satellite Television

Satellite television uses satellites in a stationary orbit over the Earth to deliver
television and audio programming. This type of orbit enables the satellites to
stay aligned over one place on the surface of the Earth.

On rare occasions, heavy rain, snow, or cloud cover can block the satellite
signal, which can interrupt the programming service. The service will return
after the weather condition has passed.

Twice a year, in Spring and Autumn, the sun moves to a position behind the
satellites as they orbit the Earth. Solar interference lasts for a few minutes a day
for a few days.This is an unavoidable natural event for all television involving
the use of satellites. During these brief periods, you will not be able to see
programs, but once the sun has moved from behind the satellite, the programs
will reappear.

About MDU

Your apartment, condominium or other clustered housing is defined as a
Multiple Dwelling Unit (MDU).

Your television signal is transmitted to you through master multiplexing
distribution equipment located in a central area in your dwelling complex. This
distribution equipment is owned and maintained by the dwelling complex
owners or managers.

The distribution equipment receives the satellite signals using a single master
antenna and distributes the signal to each dwelling unit through a pre-wired wall
outlet. When you purchase your receiver, have it connected and activated, you
will receive your subscribed programming.

Page 7

Chapter 1

Introduction

Notes

Page 8

Chapter 2

Receiver Description and Installation

The Receiver Front Panel

Smart Card Door

Behind this door is a slot for a future smart card. No smart card is included with
this receiver.

Up and Down Arrow Buttons

The UP and DOWN buttons change the channel on the receiver.

IR Sensor and IR Blaster

The IR SENSOR receives IR signals from the remote control. The IR
BLASTER transmits IR signals to control a VCR in order to perform automated

recordings.

Power Button and Light

The GREEN LIGHT on the front panel lights up when you press the receiver’s
POWER button ON and goes out when you press the POWER button OFF.

Page 9

Chapter 2

Receiver Description and Installation

The Receiver Back Panel Connections

Tighten the connections by hand only. If you use a wrench you
might over-tighten the connections and cause damage that
would not be covered by the Limited Warranty.

The back panel of the receiver provides the connections that you use to
connect the receiver to other electronic devices. It also provides the receiver
power cord and telephone jack. Depending on the setup that you have, you
may only use some of these connections.

Signal Input

The television signal enters your receiver through this
connection. Connect an RG-6 coaxial cable from your wall
outlet to the S
color coded black. Remember to tighten by hand only. Wrap the black label,
located inside the front cover, around the end of the cable to identify it.

IGNAL INPUT connection. The connector is

Tip: Using cable
labels makes it
easy to tell which
cables connect to
the receiver ports.

TV Set

Use the TV SET connector as the primary means of
connecting your receiver to your TV. Use either an RG-6 or
an RG-59 coaxial cable. The connector is color coded white.
Remember to tighten by hand only. Wrap the white label, located inside the
front cover, around the end of the cable to identify it.

Channel 3/4 Switch

If you use the TV SET connection as described above, set the

HANNEL 3/4 SWITCH to the channel for the signal output.

C

Select a channel that is not being used by a cable or local
television channel.

S-Video

The S-VIDEO connection provides high quality standard
definition video output. If you use this output for video, you
must connect the audio with the two RCA A
(color coded Red and White).

UDIO OUTPUTS

Phono (RCA) Audio/Video Outputs

These color coded RCA A/V OUTPUT connectors
provide good quality standard definition video and
audio. Use a Phono RCA-type cable to connect these
outputs to your TV or other device.

Page 10

Telephone Jack

Connect a telephone cable with a standard RJ-11 telephone connector
to the receiver here, and then connect the cable to an active telephone
line.

Note: The receiver must be connected at all times to an active telephone line.

Remote Control

The remote control gives you easy access to the features of your satellite
receiver.

Basic remote control setup is explained here, using the SAT button on the
remote.

Complete instructions on how to use the remote, as well as the rest of the
system, are in Chapter 3.

Remote Control

Tip: If you have
the receiver
connected to a
DSL (Digital
Subscriber Line)
phone line and it
cannot dial out,
you may have to
install a DSL filter
between the
receiver and the
telephone jack
on the wall.

Page 11

Chapter 2

Receiver Description and Installation

Remote Control Batteries

The remote control comes with AAA batteries, which need to be
installed when you first receive your system. When you replace
old batteries, you should replace all of the batteries. Use
batteries of the same kind, for example, alkaline or carbon zinc;
and don’t mix batteries of different kinds. Alkaline batteries last
longer than carbon zinc.

1. Press down on the top of the battery cover and push in the
direction of the arrow. The cover will snap off.

2. Take out all of the old batteries.

3. Put the new batteries in. Make sure you match the plus (“+”)
ends with the plus markings on the battery case.

4. Fit the battery cover’s bottom tab back into the slot at the bottom of the
battery case, and slide the cover back into place.

On Screen Low Remote Battery Warning

When you see a low battery warning message below the Program
Banner

replaced.

, the batteries in your remote control are weak and need to be

Page 12

Remote Control Settings

Change the Address

The remote control and receiver can operate on any one of 16 addresses;
however, they must both be on the same address for the remote to control the
receiver. This section explains how to change the address in both devices.

Note: Do not change the address of the remote unless absolutely necessary
because the remote cannot control the receiver if the two devices have different
addresses.

Remote Control Settings

1. Press SYS INFO button on your remote control. The

Information

Write down this address: _____________

2. Press and hold the SAT button on your remote control for about

three seconds, until all of the mode buttons light up, and then let
go of the SAT button.

3. Use the NUMBER PAD buttons to enter any num-

ber between 1 and 16, but not the one you wrote in
step 1.

Write down the number you entered:___________

4. Press the POUND (#) button. If you entered the
address correctly, the SAT mode will flash three times.

5. Press the RECORD button.

Note: Make sure the
System Information screen is the same as the one you

entered in step 3. If it isn't, the remote cannot control the
receiver.

6. Press the SELECT button to close the System Information
screen.

screen displays and shows the Remote Address.

Remote Address you see on the

System

Checking the Remote Control Address

1. Press and hold the SAT mode button for three seconds, until all
of the mode buttons light up, and then let go of the SAT button.

2. Press the POUND (#) button twice. The SAT mode button will
flash the same number of times as the address number (for
example: three flashes means address 3).

Page 13

Chapter 2

Receiver Description and Installation

Connecting Your Receiver

Connection Diagram Example

The diagram below is an example of how to connect your receiver, TV, and
VCR.

Tip: Using cable
labels makes it
easy to tell which
cables connect
to the receiver
ports. Inside the
front cover of
this guide are
stickers that are
color coded the
same way as the
coaxial
connections.

Typical Connection Procedure

Tighten all the coaxial cable connections only by hand. Using a
wrench may over-tighten the connections, causing damage. Such
damage is not covered by the Limited Warranty.

IGNAL INPUT - Connect a coaxial cable between the wallplate

S
and S

IGNAL INPUT on the back of the receiver. Peel off the black

sticker and affix it to the cable close to where it connect to the S

NPUT connection on the back of the receiver.

I

TV SET to a TV - Connect a coaxial cable between the TV SET

output on the receiver and the TV’s tuner input. Be sure to tune the
TV to the channel you use to watch satellite TV (either Channel 3 or 4
as indicated on the
it to the cable close to where it connect to the TV SET connection on
the back of the receiver.

TV SET to a VCR (Optional) - Connect a coaxial cable between the
TV SET output on the receiver and the VCR’s tuner input. Connect

another cable between the VCR’s modulator output and the TV’s
tuner input. Be sure to set the
VCR to the same channel (either 3 or 4) you use to watch satellite TV.
Tune your TV and VCR to the same channel you selected on the

CH 3/4 switch. Peel off the white sticker and affix it to the cable close

to where it connect to the TV SET connection on the back of the
receiver.

CH 3/4 switch). Peel off the white sticker and affix

IGNAL

CH 3/4 switch on the receiver and on the

Page 14

Performing the QAM Frequency Scan

Performing the QAM Frequency Scan

Note: When you turn your receiver on it may display the QAM Frequency
Scan and Signal Strength screen automatically. If it does, then skip down

to Step 5.

1. Press the MENU button to open the Main Menu.

2. Select the System Setup option on the Main Menu. The Sys-
tem Setup Menu screen is displayed.

Page 15

Chapter 2

Receiver Description and Installation

3. Select the Installation option on the System Setup Menu.
The Installation and Setup Menu screen is displayed.

4. Select the QAM Scan/Signal option. The QAM Fre-
quency Scan and Signal Strength screen is displayed.

Page 16

5. Select the Scan option.

While scanning, the receiver displays the QAM Frequency

Scan Progress screen. The scan can take a few minutes.

Note: The receiver creates a table of available satellite

transponders with the corresponding QAM frequencies. This
table is required for correct operations.

Performing the QAM Frequency Scan

The receiver will again display the QAM Frequency Scan and Signal
Strength screen.

Observe that the signal strength bar is now green and displays the word

Locked.

6. To see the completed scan, select the Scan Results button. The receiver
displays the QAM Frequency Scan Results screen.

Page 17

Chapter 2

Receiver Description and Installation

Note: If the Results menu displays No Transponders have been
found, check your cable connections and return to step 5 to repeat the

scan.

If the second scan does not find any transponders, ask your dwelling
complex owner for assistance or call the Commercial Customer Service
Center at 1-800-454-0843.

7. Select the Cancel option to exit the Results menu.

8. Select the Cancel option to exit the Scan and Signal Strength

screen.

9. The receiver will display an Attention message pop up asking you to

verify that the satellite signal is locked and the QAM frequency scan
has been completed successfully. Select the Yes option.

The receiver will begin accepting a transmission or, download, of the
latest software. You will see the message shown below:

A progress bar across the bottom of the screen will show the software
upgrade as it downloads. Once the download is complete, you will see a
second message that the receiver’s memory is now being programmed.

Note: This message may disappear and your screen may go blank for a
few minutes. This is normal and does not indicate a problem with the
receiver.

Your receiver will now display the Preview Channel, which tells you
about available programs, channels and services.

To activate your programming on your receiver you must call the

Commercial Customer Service Center at 1-800-454-0843. See the
Quick Start Guide in Chapter 1 for complete instructions.

Page 18

Connecting Your Receiver to a Phone Line

Connecting Your Receiver to a Phone Line

Yo u must keep your receiver connected to an active telephone line. Otherwise,
you may not be able to order pay per view programs or use all of the DISH
Interactive features. Run the RJ-11 telephone cable supplied with your receiver
from your receiver's back panel P

Note: You may be able to use a wireless telephone extender. However, this may
not support all the features of some receivers, such as Caller ID.

You must also set up your receiver for your telephone system (touchtone or
rotary/pulse), and set a telephone number prefix, if you need a prefix to make an
outside call.

1. Press the

MENU button.

2. Select the Installation and Setup option.

3. Select the Telephone System

Setup

menu.

4. Select the Touch Tone or the Rotary/Pulse
list.

5. If you do not need a dialing prefix to call outside your premises, select the
Save option, and stop here. If you do need to set a prefix to dial outside
your premises (for example, dial 9 to get an outside line), go to step 5.

HONE jack to an active telephone connection.

option to display the Telephone System

option in the Phone Type

Tip: If yo u h av e
the receiver c on­nected to a Digi­ta l Su bscrib e r
Line (DSL) on
th e phone line,
you may need to
install a DSL fil­ter between the
receiver and the
te lep h o ne jac k .
You can obtain
th e fi lte r f ro m
your DSL pro­vider.

Page 19

Chapter 2

Receiver Description and Installation

Note: Usually, you need a telephone number prefix only for business
installations. For most residential installations, all you need to do is set
the telephone system type.

6. Move the highlight to the Outside Line Prefix list. Press the
SELECT button to select the highlighted option.

7. Select the
of boxes (highlighting the first box) where you must enter the digits.
Use the Number Pad to enter the prefix code. As you enter each num­ber, the highlight moves to the next box.

Prefix Code option. The receiver displays the same number

8. When you have completed entering all of your numbers, the
Telephone System Setup screen will return. Select the
option to save the settings.

Save

Page 20

Chapter 3

Using the System

Using the Remote Control

This section describes how to use the remote control in the SAT mode to
control your satellite receiver. If you want to use the remote to control your TV
and other devices, see Control Other Devices with the Remote later in this
chapter.

Sat Mode Button

Press this button to set the remote to SAT mode, to control the
receiver. The SAT mode button's back light turns ON briefly to show
that the remote is set to SAT mode.

Note: Make sure to keep the remote in SAT mode to use the buttons that are
described here.

Power Buttons

Press the blank POWER button to turn the receiver ON or
OFF. Press the TV POWER button to turn the TV ON and
OFF even when the remote control is in SAT mode.

Note: You must program the remote to control your TV for the TV POWER
button to work as described. See Control Other Devices with the Remote later in
this chapter.

Menu Button

Press this button to open the Main Menu.

Page Up And Page Down (Arrow) Buttons

Press the PAGE UP button or the PAGE DO WN button to scan,
page by page, through the Program Guide

Categories

of channels.

Mute Button

Press this button to turn off the TV sound. Press it again to restore
the TV sound.

Note: You must program the remote to control your TV for both the

VOLUME and MUTE buttons to work as described. See Control
Other Devices with the Remote later in this chapter.

list, a Favorites List, an Event Timers list, or a list

, a Theme

Page 21

Chapter 3

Using the System

Tip: The arrow but­tons can be used
to quickly navigate
through menus
and the program
guide. When you
find a program or
menu option you
would like to
access, just press
SELECT.

Tip: To open some
of the menus, use
the matching but­tons on the
remote control.
For example,
press the LEFT
ARROW button to
quickly open the
Themes Menu.

Volume Button

Press the minus (-) side of this button to lower the TV
sound. Press the plus (+) side of this button to raise the
TV sound.

Note: You can program this button to control the volume on a TV or
amplifier. See Using TV or Amplifier Volume Control later in this chapter
for instructions.

Guide Button

Press the GUIDE button to open the Program Guide. When
the Program Guide is open, press this button to switch among

Favorites Lists.

Arrow Buttons

When using a menu, press these buttons to move
the highlight to an option.

• When watching a program, press the RIGHT

ARROW button to open the Browse Ban-
ner or the UP or DOWN ARROW button to

change channels.

•When the Browse Banner is open, press the UP or DOWN ARROW
button to see the Browse Banner

•When the

Browse Banner is open, press the RIGHT or LEFT

ARROW button to obtain information on the next program that will be

on that channel.

• When a menu offers a list of choices, press the UP or DOWN ARROW
button to see more choices.

•When the

Program Guide is open, press these buttons to move the

highlight among the programs.

• When watching a program, press the LEFT ARROW button to open the

Theme Categories menu.

for the next channels

Tip: When you're in
the Program Guide,
a Theme Category
or a Favorites List,
use the INFO but­ton to get a
description of the
program, the
names of the
actors, and other
important details.

Page 22

Select Button

Press the SELECT button to select a highlighted option or
program in a menu.

Recall Button

Press the RECALL button to return to the last channel you
were watching. Press it again to switch between the last two
channels that you watched.

Info Button

Press this button for more information when the Program
Guide or the
program.

Browse Banner is open, or when watching a

• When a menu is open that includes a Help option, press this button to see
help information for that menu.

• Highlight a program in a

Theme Categories list and then press this button

for more information on that program.

• When the receiver is off, press this button to open the

Information

menu.

Important System

TV/Video Button

If your TV is connected to the TV SET output, pressing the
TV/VIDEO button will cause the TV S

ET output to switch between

either DISH Network programming on the modulated channel or any
broadcast channels from an off-air antenna that may be provided by your
dwelling distribution system.

Note: These local broadcast channels may not be available on your system.

Cancel Button

Press this button to cancel a procedure and to return to either the
previous menu or to the program last watched.

Using the Remote Control

Record Button

Press this button to conveniently set up a timer to automatically start
recording a later program on a connected VCR.

Note: To use this feature with a VCR, you must set up the remote to
control the VCR. See Control Other Devices with the Remote in
Chapter 3.

Number Pad Buttons

When watching a program or with the Program Guide
open, use these buttons to enter a channel number to
change to that channel.

•When the
and then back a number of hours. Just enter the number
you want to skip ahead (or back), and then press the
RIGHT (or LEFT) ARROW button.

• Use these buttons to enter menu option numbers instead of highlighting the
option and then pressing the SELECT button.

• Use these buttons to enter numbers in a menu.

• Highlight the place where you want to enter the first number, and press the
appropriate number buttons on the remote.

• Use the LEFT or RIGHT ARROW button to move the highlight to the next
place where you want to enter a number. When you are done entering num­bers, press SELECT.

Program Guide is open, you can skip ahead

Tip: You can quickly
change channels by
using the NUMBER
buttons on the
remote. Just enter
the numbers for the
channel you would
like to view next.

DISH Home Button

Press the DISH button on your remote control to use the DISH Home

Interactive TV Applications

news and weather, and even play games.

. You can order channels, check the

Page 23

Chapter 3

Using the System

Recover Button

Press the RECOVER button if you accidentally change the
channel or video input on your TV and cannot get the picture
back from your satellite receiver. When you press the
RECOVER button as described below, the remote control sends commands
to your TV to change channels or video inputs to try to get you back to
watching satellite programming. This procedure works only if you have
accidentally changed the TV channel or video input. It does not recover lost
satellite signal (See Chapter 4 - Reference for troubleshooting information).
RECOVER only works if the remote control has been set up to control the
TV and/or VCR, if connected.

Note: You may need to press the RECOVER button up to 30 times to
recover your satellite TV video.

1. Press and hold the RECOVER button until all four mode buttons light,
and then let go of the button. The SAT mode button flashes twice and
then all four mode buttons flash three times.

2. Press the RECOVER button. Wait for the TV mode button to flash
once and then all four mode buttons to flash once.

3. If you see the Important System Information screen, press the
SELECT button to close the screen. You have recovered your satellite
video.

4. If you do not see the
steps 2 and 3 until you have recovered your satellite video.

Important System Information screen, repeat

Tip: The channel
you select may
display one of
several program
information
symbols. If the
program is on a
channel that is
not part of your
subscription, the
channel will be in
red.

Changing Channels

There are three basic ways to change channels while watching a program:

• Press the remote control

UP or DOWN ARROW

buttons to get to the desired channel.

• Use the remote control NUMBER PAD buttons to enter

the desired channel number.

• Press the GUIDE button and select a program from the

Program Guide. See page 27 for more information.

Using the Menus

Menus displayed on the TV screen make using the receiver and selecting
programs quick and easy. Use the menus to control the receiver and to use
its features such as; setting locks, choosing a program, or creating a
Favorites List.

Page 24

Opening the Menus

You can open the menus in either of two ways:

• Press MENU to open the Main Menu
from the Main Menu

• Use the matching button on the remote control. For example, to open the
Program Guide, press GUIDE.

.

, then select any of the other menus

Closing the Menus

To close a menu and return to watching a program, press the VIEW TV button,
or the CANCEL

Note: The menu closes if you do not do anything in a menu for several minutes.
Any unsaved changes you made will be lost.

button.

Menu Options

A menu option looks like this.

Highlighting a Menu Option

Use the ARROW buttons to move the on-screen highlight to the menu option.
The selected option then appears lighter than the other options.

The highlight is like the one you may have seen on a computer screen.

Compare the highlighted menu option with the non­highlighted menu option in the previous example.

Selecting a Menu Option

Using the Menus

Tip: To quickly go
to any menu
option with a
number next to it,
just press the
number on the
remote that
matches that
option number.

When you select a menu option, that option takes effect right away. You can
select a menu option in either of two ways:

• If the option has a number next to it, press the same number on the remote’s
NUMBER PAD. If you do this, you do not need to highlight the option
first.

• Move the highlight to the menu option using the ARROW buttons. Then
press the SELECT button.

Lists of Choices in the Menus

When you make a choice in a list, the receiver does not apply the change until
you select the
select the Cancel option to discard all the changes made in the menu.

There are two types of lists:

•A single choice list allows you to select only one choice at a time. If you
select another choice, your previous choice is deselected.

•A multiple choice list allows you to select more than one choice at one
time. If you select another choice, your previous choice(s) stays selected.

Save or OK option. If you do not want to save any changes,

Page 25

Chapter 3

Using the System

Highlighting a Choice in a Menu List

Use the ARROW buttons to move the highlight to the desired item in the
list. The black arrows on the list show where you can move the highlight.

Selecting a Choice in a Menu List

To select a choice in a list, highlight the choice and then press the SELECT
button. Make sure you select the Save or OK option to save your choice.
Select the Cancel option to discard your choice.

When you highlight a choice in a single choice list, it looks like this. In this

example, the English option is highlighted.

Tip: You can
cancel out of any
menu option or
the program guide
at any time, and

immediately
return to viewing a
program by

pressing the VIEW
TV button.

When you highlight a choice in a multiple choice list, it looks like this. In
this example, the LIFE - 108 option is highlighted.

When you select a choice in a list, it looks like this:

or

Canceling a Procedure

To cancel a procedure, press the CANCEL or VIEW TV button before you
do the last step of the procedure. If this
procedure.

does not work, you must finish the

Page 26

Using the Program Guide

The on-screen Program Guide provides a complete listing of the available
channels and programs. You can use the Program Guide
to see what programs are scheduled, and to buy pay per view programs. The
Program Guide shows which Favorites List is active.

to change channels,

Using the Program Guide

•The

Program Guide displays only the channels in the active Favorites

List (see page 33).

• All Chan - Displays all of the channels in the

• All Sub - Displays the channels in your subscription.

• Favorites Lists

the channels you want to see. For more information on creating
Favorites Lists, see page 34.

- You can add four Favorites Lists that show only

Program Guide.

•A red background behind a channel shows that you have not subscribed to

that channel. You cannot tune to this channel.

•The

• You can set up the Program Guide to hide adult channels. See Hiding

Program Guide shows programs that are on now and that are

scheduled up to two days in advance. The guide does not show programs
that have ended. You can set up the Program Guide to list channels in

ascending order, with the highest channel number at the top, or in
descending order, with the highest channel number at the bottom. To do

this, open the Main Menu. Then, select the System Setup option.
Finally, select the Channel Order option, select the Ascending or
Descending option, and select the Save

Adult Channels on page 49.

option.

Page 27

Chapter 3

Using the System

Tip: If the program
is on some time in
the future, the
receiver will open
the Create An Event
Timer menu.

Tip: The Program
Guide can display
programs
scheduled for
some time beyond
the present, but
cannot display
programs that
have ended.

Opening the Program Guide

There are two ways to open the Program Guide:

• Press the GUIDE button.

• Press the MENU button and then select the Program

Guide option.

Selecting a Program in the Program Guide

1. Use the NUMBER PAD buttons to enter the desired channel number.
The Program Guide
that you just entered.

2. Use the ARROW buttons to move the
highlight to the desired program.

Note: Press the PAGE UP or PAGE DOWN
ARROW button to scan, page by page,

through the listing of channels.

3. Press the INFO button for more information
about the highlighted program. Press the CANCEL button
to return to the Program Guide.

4. Press the SELECT button to change to the new channel.

displays a block of channels including the one

Page 28

5. You may skip the Program Guide forward or backward many hours at

one time. To do this, enter the number of hours that you want to skip
using the NUMBER PAD buttons. Then press the LEFT or RIGHT
ARROW button to move back or forward, respectively. For example:
To move forward one day, press numbers

2 and 4, then press RIGHT

ARROW.

Closing The Program Guide

To close the Program Guide and not change the channel, press the remote
control CANCEL button. The receiver displays the program you were watching
before you opened the

Program Guide.

Using the Program Banner

The Program Banner provides information about the program you are
watching. The receiver displays the Program Banner for a few seconds at the
top of the TV screen every time you change the channel or press the VIEW TV
button.

Using the Browse Banner

Using the Browse Banner

You can use the Browse Banner to change channels, or to see what other
programs are available without changing the program that you are watching.
The receiver displays information on the program you are watching at the top
and Browse Banner
UP or DOWN ARROW to see what programs are playing on the channels
above or below the one you are viewing. Information on these programs
appears at the bottom of the TV screen.

Note: Only the channels listed in the active Favorites List will display in the
Browse Banner. For example, if the All Chan
Browse Banner displays all the channels. If the All Sub list is active, the
Browse Banner displays only the channels in your subscription.

If you have set up the Program Guide to hide adult channels and the receiver
is locked, the

To use the

1. Press the remote control RIGHT ARROW button to open the
Browse Banner for the program that you are watching.

Browse Banner does not display such channels.

Browse Banner:

information at the bottom of the TV screen. Press the

Favorites List is active, the

Tip: You can use
the Browse
Banner to see what
other programs are
available without
leaving the
program you are
watching.

Page 29

Chapter 3

Using the System

2. Change the channel:

• Enter the channel number for the program

that you want, using the NUMBER PAD
buttons

•Press the UP or DOWN ARROW button to

display the channel that you want.

3. Press the RIGHT ARROW button to display the
next program. Press the LEFT ARROW button to
return to the current program.

: The Browse Banner displays programs that

Note

are on now. If you press the RIGHT ARROW, it will
display information on the program that is on next on the same channel.
It does not display information for any other programs in the future and
cannot display programs that have ended.

4. You may press the INFO button for more information about
the program highlighted.

5. Press the SELECT button to change to the highlighted
program.

6. To close the Browse Banner, press the remote control
CANCEL button. The receiver stays tuned to the program
you are watching.

Page 30

Ordering Pay Per View Programs

Ordering Pay Per View Programs

1. Highlight the desired pay per view program in the Program Guide. The
pay per view programs are listed with the channel number as PPV in the

Program Guide.

Note: The appearance of this screen may be different on your receiver. This

screen shows the full Program Guide without quarter screen program
viewing.

2. Press the SELECT button.

3. To buy the pay per view program, select the

Yes option. The

receiver displays a confirmation menu. Go on to step 4.

Tip: If any lock is
in effect that
covers the pay
per view program,
you must enter
the password
using the

NUMBER PAD

buttons. As soon
as you enter the
fourth digit of the
password, the
receiver
highlights OK.

If you do not want to buy the pay per view program, select the No or
Cancel option.

Note: The appearance of this screen may be different on your receiver. This

screen shows the full

Program Guide without quarter screen program

viewing.

Page 31

Chapter 3

Using the System

At the confirmation menu:

4. Select the Yes option to confirm the purchase. The pay per view fee

will be added to your bill. Select the

No or Cancel option to cancel the

purchase.

Note: Once you confirm an order for a pay per view program, you
cannot cancel the order and you will be billed for it.

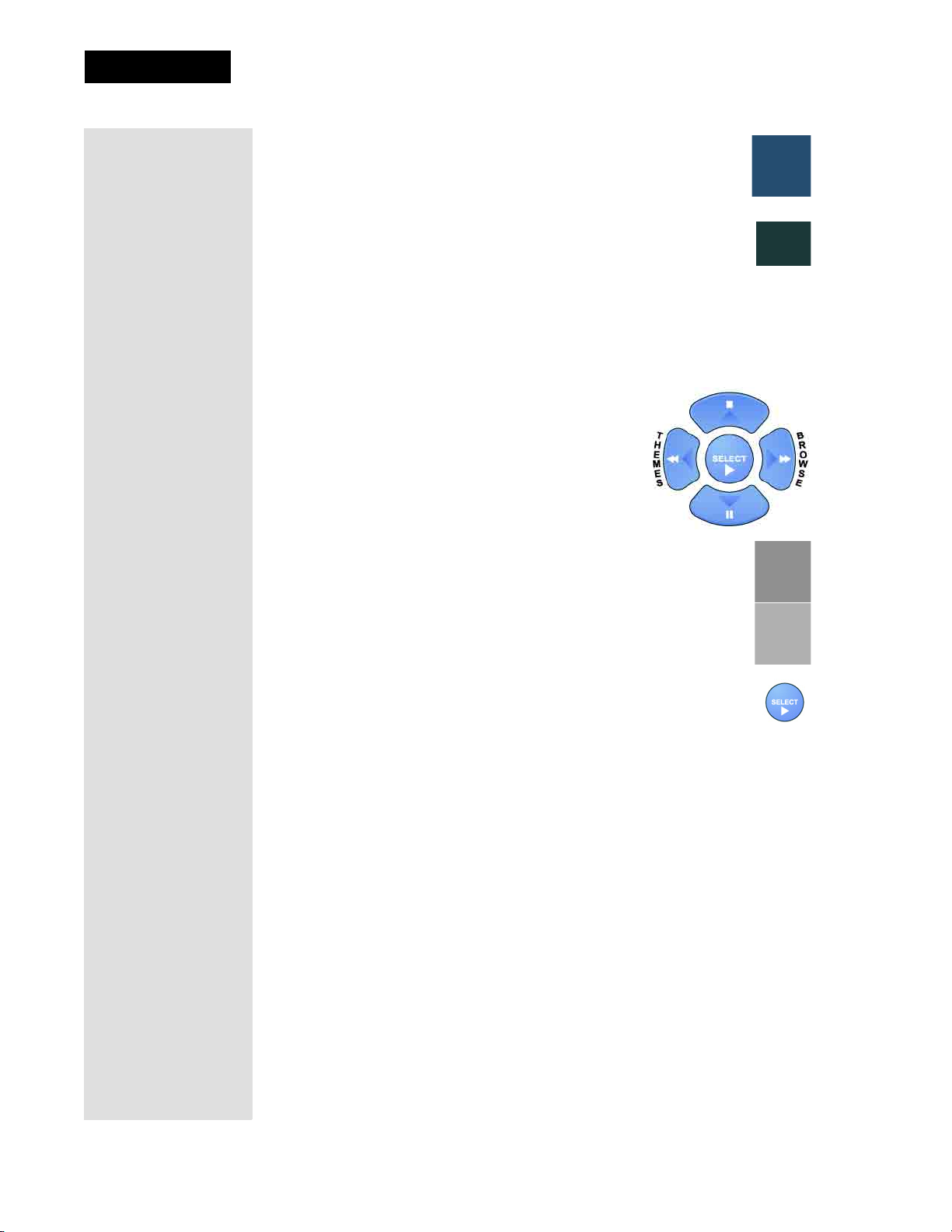

Using Themes

Tip: Want to see
what movies or
sports events are
available for
viewing? Just
press the

ARROW

THEMES

(
button) and use
the arrows to
move to the
theme that
interests you.
Press
and you’ll see
what’s playing.

LEFT

button

SELECT

Themes

You can list and choose programs by the theme of their contents (for
example, just movies or just sports). You can then quickly list programs
based on that theme, and choose the program you want.

1. To open the Themes menu, press the LEFT ARROW
button or press MENU and then select Themes.

2. Move through the Themes menu by using the ARROWS.
You can also move a page at a time using PAGE UP or
PAGE DOWN.

3. Highlight the desired program in the program list.

4. Press the SELECT button to watch the program.

Note: If the program you highlighted is on some time in the
future, the receiver will open the Create An Event Timer
menu. See page 36 for information on using timers.

Page 32

DISH Home Interactive TV Applications

DISH Home Interactive TV Applications

Press the DISH button on your remote control to use the Dish Home
Interactive TV Applications. You can order channels, check the

news and weather, and even play games.

Using Favorites Lists

Favorites Lists allow you to display only your favorite channels in

the Program Guide. You can create and change the lists yourself, adding and
removing channels as you wish. Channels saved as favorite channels must be
grouped into no more than four lists.

• When you make a Favorites List active, the Program Guide displays

only the channels in that list. Also, the receiver skips channels that are not
on the list when you use the remote control UP or DOWN ARROW button
to change channels.

•The All Chan

any changes to the

•The All Sub
subscription. You cannot make any changes to the All Sub list, except by
changing your subscription.

• Each Favorites List has a unique color in the
give each list a name. When you first get the receiver, the four lists are
named List 1
channels to them.

Favorites List contains all the channels. You cannot make

All Chan list.

Favorites List contains all the channels in your

Program Guide. You can

, List 2, List 3, and List 4. The lists are empty until you add

Tip: Favorite lists
let you create lists
of your favorite
channels. Press
the

GUIDE button

until the name of
your list appears.
This way you can
quickly see what
programs are
playing on just
those channels
and not every
channel in your
subscription.

Page 33

Chapter 3

Using the System

Creating or Changing a Favorites List

You can create, add channels to, and remove channels from, a Favorites
List.

1. Press the MENU button.

2. Select the

3. Select the Favorites

4. Select the Modify List

Note

Favorites option.

List that you want to create or change.

option.

: At any time you can select the Clear List option to remove all

channels from the current list. This option does not apply to the All

and All Sub.

Chan

5. In the Channels list, highlight a channel you want to add to the

Favorites List.

Page 34

: You can use the number pad buttons to enter the

Note

channel number, or select the PAGE UP or PAGE DOWN
option to move quickly through the list.

6. Press the SELECT button to add the highlighted channel to

Favorites List. A check mark appears next to the

the
channel.

7. Repeat steps 5 and 6 until you have added all the channels
that you want.

8. To delete a channel from the Favorites Lists, select the channel in the
list. The check mark next to the channel disappears.

9. Select the Save option to save all changes to the Favorites List.

Making a Favorites List Active

Using Favorites Lists

If the Program Guide is open, press the GUIDE button to select the next
Favorites List. Press the GUIDE button again to scan through all the

available lists.

Changing the Name of a Favorites List

1. Press the MENU button.

2. Select the Favorites option.

3. Select the Favorites List that you want to change.

4. Select the Edit List Name option to open the virtual keyboard.

Note: You cannot change the name of the All Chan or All Sub list.

5. Select a letter in the keypad area on the screen. Repeat to spell out the
desired name. You can enter up to eight characters, including spaces. If
needed, select the space option to insert a space in the name or the <back
option to correct a letter.

Note: A list must have at least one character. Two lists cannot have the
same name.

Tip: You can
activate a Favorites
List only if you have
added channels to
the list. If you have
not created any
Favorites List,
pressing the

GUIDE button

switches the
receiver between
the All Chan and All
Sub.

Tip: If you try to
make an empty
Favorites Lists
active, the receiver
displays an Error
message. You must
add at least one
channel to this
Favorites List
before you can
make it active.

Note: At any time, you can select Clear to clear the name.

6. Select Save.

Page 35

Chapter 3

Using the System

Tip: Most TV
programs and
films are
copyrighted. In
some cases,
copyright law may
apply to private, in­home recording.

Tip: You can use
an Auto-Tune
event timer to
remind you that a
program is about
to start and then
automatically tune
the receiver to the
right channel.

Using Timers

Event timers let you to set up the receiver to tune in future programs and/or
record them on a VCR. An “event” is a program, sports event, pay per view
movie or anything else on satellite TV.

• You can set an automatic event timer for a program listed with start and

stop times in the Program Guide.

•A manual event timer lets you set custom start and stop times for a
timer.

Note: If you want to have the Event Timer record to a VCR, you must set
up the receiver to control the VCR. See Connecting your Receiver in
Chapter 2.

Event Timer Types

Reminder - Reminds you that a program is about to start.
Auto-Tune

receiver to the program when it begins.

- Reminds you that a program is about to start; tunes the receiver to

VCR

the program when it begins; starts a VCR to record the program.
Note: You can record only the program to which the receiver is tuned. If

you open any menu while recording a program on videotape, the menu will
also be recorded. If you change the volume or press the mute button, the
volume change may be recorded - depending on how your TV and VCR are
set up. If a start/stop program time changes by more than 24 hours, the timer
will not activate.

- Reminds you that a program is about to start; tunes the

Event Timer Frequencies

Once - Applies to a one-time program. If the program time changes, this

timer operates at the new time. The receiver deletes this timer after the timer
operates.

Mon.-Fri.

Friday on the same channel at the same time each day.

Daily

on the same channel at the same time each day.
Weekly - Applies to a program that is scheduled for once a week on the

same channel at the same time on the same day.

Note:

you open any menu (including the
program on videotape, the menu also will be recorded. If a program time
changes by more than 24 hours, the timer will not operate.

- Applies to a program that is scheduled for Monday through

- Applies to a program that is scheduled for Monday through Sunday

You can record only the program to which the receiver is tuned. If

Program Guide) while recording a

Page 36

Before an Event Timer Operates

Five minutes before an event timer operates, the receiver displays a small
blinking “clock” symbol on the TV screen. This symbol disappears when the
program begins. While the symbol is displayed, you may do either one of the
following.

• Press the CANCEL button to clear the symbol from the TV

screen. This does not affect the timer; it will still operate.

• Press the INFO button to display an overlay on the screen where

you can choose one of three options:

Using Timers

Select either the OK or the Cancel
event timer, or select Stop Timer to stop the event timer.

Note: This stops only this instance of a Mon.-Fri., Daily or Weekly timer. The
timer will operate the next time it is scheduled. To stop all operations of such a
timer, you must delete the timer. For a Reminder Event Timer, instead of having
the option to stop the timer, you have the option to tune to the program.

option to continue with the

Setting Up an Automatic Event Timer

1. Choose a future program with the SELECT button in the

Browse Banner, Themes Menu

or the Program Guide.

2. Select a Timer Type option.

Page 37

Chapter 3

Using the System

Tip: You may start
any timer one
minute early. But if
you set back-to­back event timers
and the second one
starts early, the first
one will end early.
An event timer
cannot start early
for a pay per view
program. If you try
to set a timer for
overlapping events,
you will get an error
message.

3. Select a Timer Frequency option. Notice that a check mark displays

in the box selected.

4.

Select the Create option to save the event timer.

5. The receiver displays a timer symbol in the Program Guide, and also

when you press the INFO button to get information about the program.

Setting Up a Manual Event Timer

Tip: Use the
Program Guide or
your printed
television guide
to see when the
program(s) starts
and stops —
before you go to
the Set Date/TIme
for Manual Timer
menu.

1. Press the MENU button.

2. Select the Timers option.

3. Select the

Create option. The receiver displays the Create

a Manual Event Timer menu.

4. Select a Timer Type

option.

5. Select a Timer Frequency option.

6. Select a channel:

• Highlight a channel using the UP or DOWN
ARROW button. Then, press the SELECT button.

• Enter a channel number using the NUMBER PAD
buttons.

7. Select the

Date/Time option. The receiver displays

the Set Date/Time for Manual Timer menu.

8. Use the NUMBER PAD buttons to enter the Start Time (this includes
selecting AM or PM) and the End Time (this includes selecting

AM or

PM).

Page 38

9. Use the NUMBER PAD buttons to enter the

Date.

10. Select the Create Timer option.

11. To create another event timer select the Create option again.

Note: You cannot set a manual event timer for a pay per view event.

Using Timers

Quick Record

You can quickly create a one-time VCR Event Timer. Do the following.

1. Highlight a future program in the Browse Banner, the Program Guide
or a Themes menu.

2. Press the RECORD button.

3. The receiver displays the Create an Event Timer

menu.

Tip: For this
record function to
work, you must
set up the
receiver to
control your VCR.
See the section

Control a VCR or
a DVD Player later

in this Chapter for
more information.

Overlapping Event Timers

If you try to create event timers for overlapping programs, the receiver displays
a menu with the dates and times of both programs. The receiver also displays
this menu if a program time has changed, causing one timer to overlap another.
Yo u must delete or edit one of the timers.

Page 39

Chapter 3

Using the System

Maximum Number of Event Timers

Tip: The receiver
deletes the “Freq:
Once” event
timers when they
operate. You must
delete all other
types of event
timers yourself.

You cannot create an unlimited number of event timers. If you try to create
too many, the receiver displays a menu giving you the option to delete an
existing timer. If you do not delete an existing timer, you will not be able to
create any new ones.

Editing an Event Timer

• You can edit almost any feature of an event timer.

• You can edit both automatic and manual event timers.

• Editing an automatic event timer converts the timer to a manual event
timer that operates at the times you set, not the actual program times.

1. Press the MENU button.

2. Select the Timers option.

3. The receiver displays the Event Timer Management menu.

Tip: Remember
that editing an
automatic event
timer converts
the timer to a
manual event
timer. This is why
the receiver
displays the Edit
a Manual Event
Timer menu.

Page 40

4. Select the event timer that you want to edit. A check mark appears in

the box next to the event timer. Select the Edit option.

5. You may change the Timer Type

To do this, select each option that you want.

, Timer Frequency, or Channel.

6. If you want to change the Start Time, the End Time, or the Date,

select the Date/Time option to display the Set Date/Time

for

Manual Timer menu. Otherwise, skip to step 9, below.

7. Use the NUMBER PAD buttons to enter the Start Time (this includes
selecting AM

or PM) and the End Time (this includes selecting AM or

PM).

8. Use the NUMBER PAD buttons to enter the Date.

9. Select the Create Timer option.

Using Timers

10. To edit another event timer either highlight that timer and select the
option again, or

if you do not want to edit another event timer, press the

CANCEL button.

Deleting an Event Timer

1. Press the MENU button.

2. Select the Timers option.

The receiver displays the Event Timer Management menu.

3. Select an event timer that you want to delete. A check mark appears in the
box next to the event timer.

Edit

4. Move to Delete and press SELECT on the remote.

Do this again for any other timer(s) that you want to delete.

Special Consideration When Using Event Timers

For Locked Programs - You must enter the receiver password before you

can create an automatic event timer. You can create a manual event timer for a
locked program without entering the password. However, if you do this, when
the event timer operates the receiver may display only an error or password
entry menu. If you have set a VCR Event Timer, the VCR will record only that
menu.

For Pay Per View Programs

before you can create a timer for it.

For Blacked Out Programs

out in your area, when the event timer operates the receiver may display only an
error. If you have set a VCR Event Timer, the VCR will record only that
menu.

- You must order a pay per view program

- If you set a timer for a program that is blacked

Page 41

Chapter 3

Using the System

Event Timer Performance when the Receiver is Off

If the receiver is off at the time an Auto-Tune or VCR Event Timer is
scheduled to operate, the receiver will turn on. Once the event has ended,
the receiver will turn off, unless you pressed any remote control or receiver
front panel buttons during the time that the timer was active.

If the receiver is off at the time a Reminder Event Timer is scheduled to
operate, the timer will turn the receiver on and tune it to the channel you last
watched. The receiver will then display the reminder menu. You will have a
few seconds to respond. If you do not respond to the reminder menu, the
receiver will turn off.

Setting Up the Receiver to Control a VCR

Tip: For
information on
programming the
remote, please
turn to the section
titled Control Other

Devices with the
Remote that

begins on page 53.

The receiver uses an IR blaster on the front panel which sends a signal to
control the VCR. This signal is much stronger than the signal the remote
uses, so it can bounce off walls or other objects on its way to the VCR. This
works in most home setups. However, shelves or smoked glass doors
between the receiver and the VCR may block the signal. Also, if the signal
must cross a very large room, or bounce off curtains, it may not be strong
enough to control the VCR. Make sure that nothing blocks the signal, and
that the signal can bounce off relatively nearby, light-colored, smooth
surfaces.

1. Press the MENU

2. Select the

System Setup option.

button.

3. Select the Installation option.

4. Select the VCR Setup option.

5. Find the brand name of the VCR in the table in Chapter 4.

Page 42

6. Set the code for the VCR using one of the following:

• Enter the first 3-digit code number from the table using the

NUMBER PAD buttons or,

• Highlight each digit of the first VCR code, and

then press the UP or DOWN ARROW button
until you reach the correct number and then
press SELECT.

7. Make sure the VCR is connected to one of the
receiver outputs and is set to display on your TV.
Consult your VCR user’s guide.

Setting Up a VCR for VCR Timers

8. Make sure the VCR is turned on. Insert a rewound tape on which you want
to record.

Note: The receiver only starts and stops the VCR recording, but does not
turn on the VCR. You must turn on the VCR yourself.

9. To test the new code, highlight the
message warning you to make sure the VCR is turned on.

10. Press the SELECT button to start the test. Your VCR records for a
few seconds, stops, and then rewinds. The receiver displays a
message saying that your VCR test is complete. Follow the
instructions on the message.

11. If your VCR did not do the test, enter another code from the table, and then
repeat steps 9 through 11.

12. Once you have found the correct VCR code select the Save
the VCR code you entered, and return to the
menu.

Test option. The receiver displays a

option to save

Installation and Setup

Setting Up a VCR for VCR Timers

After you have properly set up the receiver to control the VCR, complete the
following to set up the VCR to operate when you set a VCR timer.

1. Turn the VCR on. Make sure you keep the VCR on because the receiver
cannot turn the VCR on for you.

2. Insert a tape. A blank, rewound tape makes the best recording.

3. If you need to change the VCR settings (tape length or channel), see the
instructions that came with your VCR.

Using Locks

First you set the locks; then you lock the receiver. Lock the
receiver in order to put any locks into effect. If you unlock the
receiver, leave the locks unchanged, and then lock the receiver
again, the same locks will be in effect as before.

How to Set Locks: A Two Step Process

1. Create the locks that you want.

2. Lock the receiver.

Once the receiver is locked, anyone who wants to access locked items must
enter the password.

Page 43

Chapter 3

Using the System

When You Have Locked the Receiver

If you try to access a locked item or open the Parental and System
Locks

password.

The receiver allows you three tries to enter the correct password. If you fail
to enter the correct password, the receiver does not allow more tries for
several minutes.

If you enter the correct password, you can access the locked item or open
the Parental and System Locks menu.

If you exit a locked item or close the Parental and System Locks
menu, you must enter the password again to access the item or open the
menu again.

menu, the receiver displays a message prompting you to enter the

If you forget your password, call the Commercial Customer
Service Center. You may need to provide the following
information: (1) your name; (2) your address; (3) your
telephone number; (4) the receiver serial identification
number; and (5) your Personal Identification Number (PIN),
if used.

Tip: Be sure to

make a note of the
password you
create and store it
in a secure place.

Locking and Unlocking the Receiver

Lock the receiver for any receiver Parental and System Locks you set
to take effect. To lock the receiver, you must first create a password. If you
forget your password, you will need to call the Customer Service Center.

1. Press the MENU button to display the Main menu.

2. Select the
menu.

Note: If this option appears as Unlock System, the receiver is
already locked. If this option appears as Lock System, the receiver is
unlocked.

3. Select the Lock System
appropriate. The receiver displays a message prompting you
to enter a password.

Note:

already locked.

Locks option to display the Parental and System Locks

or Unlock System option as

If this option appears as Unlock System instead, the receiver is

Page 44

4. Enter and verify a password, using the number pad buttons. The receiver
displays stars as you enter the digits of the password.

5. Memorize your password! From now on, you must enter this password to
lock or unlock the receiver.

Using Locks

6. Highlight and select the OK
you have set are now in effect.

option. Re-enter the password. All the locks

Creating or Changing Rating (Content) Code Locks

The locks use the codes that the original program providers
assigned to the programs. The actual content of the programs may
differ from their assigned ratings. No rating system can guarantee
that all objectionable material is screened out. Like all other
locks, these locks are only in effect when the receiver is locked.
You can lock any program, including pay per view programs. The
locks built into some televisions do not apply to satellite
programs. Television program ratings differ from movie ratings.

Rating Codes:

G: General Audience. Suitable for young children.

PG: Parental Guidance suggested.

PG-13: Parental Guidance suggested. Not recommended for

children under 13.

R: Restricted. Not recommended for children under 17 unless

accompanied by an adult.

NC-17: Not recommended for Children under the age of 17.

NR/AO: Not Rated/Adult Oriented

Expanded Ratings:

L: Language. Adult language.

V: Violence. Graphic Violence.

SC: Sexual Content. Sexual scenes.

N: Nudity. Nude scenes.

Page 45

Chapter 3

Using the System

Use the following instructions to set program locks based on rating codes.
When the receiver is locked, only someone who knows the password can
watch these programs.

1. Press the MENU button.

2. Select the Locks option.

If the receiver is locked, enter the password using the number
pad buttons. The receiver displays stars (*) as you enter the
digits of the password. As soon as you enter the fourth digit of the
password, the receiver highlights the
button.

OK option. Press the SELECT

3. Select the Ratings Locks

Highlight the rating that corresponds to the lowest acceptable
audience age. Press the SELECT button to lock the
highlighted rating.

: All ratings that are more restrictive than the selected rating are

Note

also selected. For example, if you lock PG-13 rated programs, then all
programs with the R, NC-17, and NR/AO ratings are also locked.

4. Select the expanded rating code(s), if you want to also lock these
ratings.

option.

Page 46

5. To unlock a rating code, highlight the code and press SELECT.

6. Select the Save option to save the changes.

7. If the receiver is not locked, you must lock it to put the locks you just
created into effect.

Creating or Changing Channel Locks

Note: You can lock any channel, including pay per view channels.

1. Press the MENU button.

Using Locks

2. Select the

3. If the receiver is locked, enter the password using the number pad
buttons. The receiver displays stars (*) as you enter the digits of
the password. As soon as you enter the fourth digit of the password, the
receiver highlights the OK

4. Select the Channel Locks option.

5. Highlight the channel that you want to lock. If necessary,
press the UP or DOWN ARROW button to see the desired
channel. You can also enter each channel number using the
number pad buttons.

Locks option.

option. Press the SELECT button.

6. Press the SELECT button to lock or unlock the
highlighted channel. If the checkbox next to the channel has a checkmark,
the channel is locked.

7. Select the Save

8. If the receiver is not already locked, you must lock it to put the locks you
just created into effect.

option to save the changes.

Page 47

Chapter 3

Using the System

Locking or Unlocking the Front Panel Buttons

This keeps anyone from changing the channel using the front panel buttons,
but it does not lock the remote control buttons.

To lock the receiver front panel buttons, do the following:

Tip: If this option
appears as Unlock
PPV instead, pay
per view programs
are already locked.

1. Press the MENU

2. Select the

Locks option.

button.

If the receiver is locked, enter the password using the number
pad buttons. The receiver displays stars (*) as you enter the
digits of the password. As soon as you enter the fourth digit of
the password, the receiver highlights the OK

option. Press the

SELECT button.

3. Select the

Front Panel Lock option.

4. A message will display asking whether you want to lock or

unlock use of your front panel buttons. Select the Yes option as
appropriate.

5. If the receiver is not locked, you must lock it to put the lock you just
created into effect.

Unlocking or Locking Pay Per View Programs

This feature locks or unlocks all pay per view channels.

You also can lock one or more pay per view channels by using channel
locks or rating locks.

1. Press the MENU

button.

Tip: If the receiver
displays a
message
prompting you to
enter a password,
it already has
been locked.

Page 48

2. Select the Locks option. If the receiver is locked, enter the
password using the NUMBER PAD buttons. The receiver
displays stars (*) as you enter the digits of the password. As
soon as you enter the fourth digit of the password, the receiver
highlights the OK

option.

3. Press the SELECT button.

4. Select the Lock PPV or Unlock PPV option as appropriate.

Note: If this option appears as Unlock PPV

, pay per view

programs are already locked. If this option appears as Lock
PPV,

pay per view programs are unlocked.

5. If the receiver is not locked, you must lock it to put the lock you just created
into effect.

Hiding and Unhiding Adult Channels

This option keeps the Program Guide, Themes lists, and the Browse
Banner from displaying adult channels. It keeps anyone from choosing such

channels by using the UP or DOWN ARROW buttons or the remote control
NUMBER PAD buttons.

To hide adult channels, do the following:

Using Locks

1. Press the MENU

button.

2. Select the Locks option.

If the receiver is locked, enter the password using the number pad
buttons. The receiver displays stars (*) as you enter the digits of the
password. As soon as you enter the fourth digit of the password, the receiver
highlights the OK option.

3. Press the SELECT button.

4. Select the Hide Adult option.

To unhide adult channels, repeat steps 1, 2 and 3 above, then select the

Unhide Adult option.

Hiding and Unhiding Locked Channels

This option keeps the Program Guide, Themes lists, and the Browse
Banner from displaying locked channels.

1. Press the MENU button.

2. Select the
If the receiver is locked, enter the password using the number pad
buttons. The receiver displays stars (*) as you enter the digits of
the password. As soon as you enter the fourth digit of the
password, the receiver highlights the OK option.

3. Press the SELECT button.

Locks option.

Tip: If the receiver
displays a
message
prompting you to
enter a password,
it already has been
locked.

Tip: If this option
appears Unhide
Adult instead, the
adult channels are
already hidden.

4. Select the

Hide Lock option.

To unhide locked channels, repeat steps 1, 2 and 3 above, then select the

Page 49

Chapter 3

Using the System

Unhide Lock option.

Changing the Receiver Password

1. Press the MENU button.

2. Select the
If the receiver is locked, enter the password using the number
pad buttons. The receiver displays stars (*) as you enter the
digits of the password. As soon as you enter the fourth digit of
the password, the receiver highlights the OK option.

3. Press the SELECT button.

4. Select the

5. Enter the current password using the number pad buttons.
As soon as you enter the fourth digit of the password, the
receiver highlights the

6. Press the SELECT button.

7. Enter the new password using the number pad buttons.
As soon as you enter the fourth digit of the password, the receiver
highlights the OK option.

8. Select the OK

Locks option.

Change Password option.

OK option.

option to change the password.

Page 50

9. Enter the new password again, using the NUMBER PAD buttons. The
receiver displays stars (*) as you enter the digits of the password. As
soon as you enter the fourth digit of the password, the receiver
highlights the OK

Memorize the new password. From now on, you must enter this
password to lock or unlock the receiver.

option. Press the SELECT button.

Personal Identification Number

You can set up a Personal Identification Number (PIN) for call-in requests
only. Anyone calling the Customer Service Center must provide this PIN to
make any changes to your account. You may call the Customer Service
Center at any time to set up a PIN.

If you forget your PIN, you will need to call the Customer Service Center.
The representative may ask for more information to make sure that you are
authorized to make changes to your account.

Using Caller ID

Caller ID displays on your TV the names of people as they call you if you

subscribe to Caller ID from your local phone company. To use this feature,
make sure you have a phone line connected to the receiver and that the Caller

ID

feature is enabled. After you turn on Caller ID, it stays on until you decide

to turn it off.

Note

: For best performance, make sure your system is properly grounded.

Caller ID Screens

When you receive a call, you will see a Caller ID popup screen.

Using Caller ID

You can select OK to eliminate the message. If you do nothing, it will disappear
after 20 seconds.

If you are in a menu when a call comes in, you will see a different Caller ID
popup screen.

Attention

Incoming call:

Name: DOE JOHN
Phone: [phone]

OK

Page 51

Chapter 3

Using the System

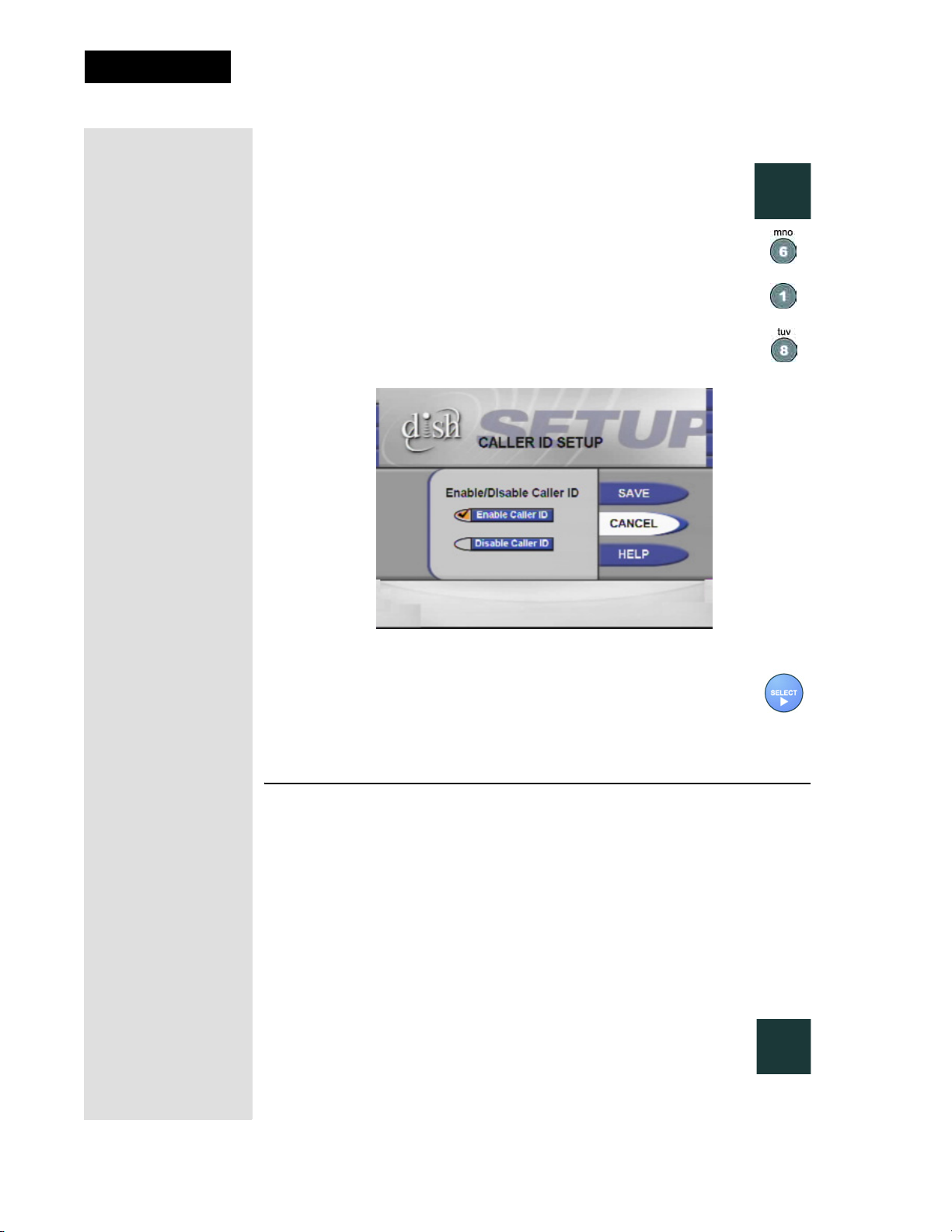

To Turn the Caller ID On and Off

1. Press MENU.

2. Select the System Setup option.

3. Select the

4. Select the Caller ID option. The following screen will
display.

5. Highlight Enable Caller ID or Disable Caller ID and press
the SELECT button.

6. Select Save.

Installation option.

Page 52

Resetting to Factory Defaults

Use these instructions if you want to reset the receiver to be the same as
when it was shipped.

Note

: Resetting the receiver discards all Favorites Lists except the All

Chan and

Note: If you have set any locks on the receiver, and the receiver is locked,

these locks will be kept. If the receiver is unlocked, any such locks will be
lost. You cannot reset the receiver to factory default settings to discard a
password you have forgotten. Only the Customer Service Center can reset
the receiver to bypass a receiver lock.

1. Press the

All Sub lists.

MENU button.

2. Select the System Setup option.

3. Select the Installation option.

4. Select the Factory Defaults option.The receiver displays a

Warning message, prompting you to confirm that you want to

reset the receiver.

5. Select the Yes option to confirm the reset. The receiver resets, and then

displays the

Installation and Setup menu.

Changing Program Languages

You may be able to change the language of some programs. An alternate
language may not be available for all programs. Some programs, such as
movies, show at the start whether an alternate language is available. An
alternate language applies only to the audio part of a program and does not
change the language used in the menus displayed by the receiver.

1. Press the MENU button.

2. Select the System Setup option.

3. Select the

Alternate Audio option.

Changing Program Languages

Tip: You can
choose an alter­nate language (if
available) but this
applies only to the
audio part of a
program and does
not change the
language used in
the menus
displayed by the
receiver.

4. Select the language you want in the Languages list.

Note: Alternate provides visually-impaired customers with an audio

description of the program, if available.

5. Select Save to save your language choice. The receiver displays the

System Setup

6. Press VIEW TV to exit the

menu.

System Setup menu.

Control Other Devices with the Remote

Remote Control Modes

You can set the remote to four different modes to control the receiver or other
devices. This section explains how to set up the remote to control a device, such
as a satellite TV receiver, a TV, a VCR, a DVD player, a tuner, or an amplifier.

To set the remote to the right mode for a device, use the remote control’s mode
buttons, SAT (satellite receiver), TV, VCR (for a VCR or a DVD player), and
AUX (“auxiliary,” for a DVD player, or an audio amplifier). To change the
mode, press the button for the device you want the remote to control. The mode
button flashes once to show you’ve set the remote to that mode.

Page 53

Chapter 3

Using the System

Limited Mode

You can program your remote control in limited mode to keep from
accidentally changing the channel on your TV or VCR. When you use the
remote to control your TV in limited mode, you will only be able to use the
POWER, MUTE, and VOLUME buttons. Also, when you use the remote to
control your VCR in limited mode, you will only be able to use the
POWER and VCR tape control buttons.

Set Up the Remote Control

You can set up the remote to control other devices using the device codes
listed in the Using the Remote Control section of Chapter 4.

1. Turn the device on. Use the device’s front panel buttons

or its remote control.

2. Find the brand name of the
device in the tables in Chapter

4.

3. Press and hold the mode
button until all the other mode
buttons light up, and then let
go of the button.

The mode button flashes.

4. For AUX mode only. Press 0
for a second TV, or 1 for a
VCR or DVD player, or 2 for
a tuner, or amplifier.

5. Enter one of the three-digit
device codes from the table
using the number buttons.

6. If you want to program
limited mode, press 1. If not
skip to step 7.

7. Press the POUND (#) button.
If you are programming a TV/
VCR or TV/DVD
combination, repeat step 3
with the remote control in
VCR mode.

If the brand isn’t listed, see Scan for
Device Codes in the next section of
this chapter.

For example, hold the TV mode
button for a TV until all of the other
mode buttons light. When you let
go, the TV mode light will flash.

This step is for programming which
kind of device that should be
programmed in AUX mode. If
you’re not programming in AUX
mode, skip to step 5.

The three-digit device code should
be for the brand name of your device
that you found in step 2.

See Limited Mode for more
information.

If you entered the code correctly, the
mode button flashes three times.

Page 54

8. Press the POWER button to
turn off the device. If the
device does not turn off, go to
step 10.

If the code works, the device should
turn off.

Control Other Devices with the Remote

9. Turn the device back on and
try some other buttons to
make sure they work. If the
code works for other buttons,
stop here.

10. If the code doesn’t work, redo
steps 3 through 8 with another
device code from the tables.

11. If you can’t find a code that
works try Scan for Device
Codes below.

Sometimes the POWER button
works when other buttons don’t.

Try every code listed for your brand
until one works for your device.

Scan for Device Codes

If the code for your device is not listed in the tables in Chapter 4, use this
procedure to scan the remote control’s memory for the device code.

1. Turn the device on. Use the device’s front panel buttons

or its remote control.

2. Press and hold the mode
button until all the other mode
buttons light up, and then let
go of the button.

For example, hold the TV mode
button for a TV until all of the other
mode buttons light. When you let
go, the TV mode light will flash.

The mode button flashes.

3. For AUX mode only. Press 0
for a second TV, or 1 for a
VCR or DVD player, or 2 for
a tuner, or amplifier. Press the
STAR (*) button.

4. Press the POWER button. This puts your remote in the scan

5. Press the either the UP or
DOWN ARROW button
repeatedly until the device
turns off.

6. Press the POUND (#) button. This stores the code you found.

This step is for programming which
kind of device that should be
programmed in AUX mode. If
you’re not programming in AUX
mode, skip to step 4.

mode.

As you press the UP or DOWN
ARROW button, the remote is
trying each code in the memory to
see if it can turn off your device.
When the device turns off, you have
found a code that might work.

: The mode button for the

Note

device will flash rapidly eight times
when you’ve scanned all the codes
for that device.

Page 55

Chapter 3

Using the System

Tip: This
procedure
explains how to
find out what the
device code is
that you set for
each remote
control mode.

Tip: Some of the
features
described in this
section may not
work with your
VCR or DVD
player. If a
remote control
button is not
described in this
user guide, it
will not work
with the device
you want to
control.

7. Turn the device back on and
try some other buttons to
make sure they work.

Press the POWER button to turn the
device back on. Try some other
buttons to make sure they work.
Sometimes, the POWER button
works when other buttons don’t.

8. Repeat this procedure until
you’ve tried all the codes.

You may need to repeat the scan to
find the best code for your device.

Check the Device Codes

You can find out what device code you’ve set for each remote mode.

1. Press and hold the mode
button until all the other mode
buttons light up, and then let
go of the button.

The mode button flashes.

2. Press the POUND (#) button
twice. Watch the mode light to
determine your code. The
mode button flashes the
number for each digit of the
device code, with a pause
between the groups of flashes.
A quick flash is for zero.

For example, hold the TV mode
button for a TV until all of the other
mode buttons light. When you let
go, the TV mode light will flash.

For example, if the code is 570, the
mode button flashes five times,
pauses, flashes seven times, pauses,
and flashes once quickly.

3. For AUX mode only. The first
group of flashes tells you what
the AUX mode controls. A
quick flash (zero) before the
three-digit code is for a TV;
one regular flash is for a VCR

For example, if the TV code is 570,
the AUX mode button flashes once
quickly (indicating 0 for TV),
pauses, flashes five times, pauses,
flashes seven times, pauses, and

flashes once quickly.
or DVD player; and two
flashes is for a tuner, or
amplifier.

Control a TV (or a Second TV)

TV Mode Button

To use the remote to operate a television, you must press the TV
mode button to set the remote to TV mode. The TV mode button’s
back light turns ON to show that the remote is set to TV mode.
Make sure to keep the remote in TV mode to use the buttons as
described in this section.

Power Button

Press the POWER button to turn the television ON or OFF.

Page 56

Control Other Devices with the Remote

Mute Button

Press the MUTE button to turn off the sound. Press it again to
restore the sound.

Volume Button

Press the minus (-) side of this button to lower the sound
volume. Press the plus (+) side of this button to raise the
sound volume.

Select Button

The SELECT button works as the Enter button for a TV.

Up/Down (Arrow) Buttons

Use the UP/DOWN ARROW buttons to change channels on the
TV.

Recall Button

Press the RECALL button to return to the last channel you were
watching. Press it again to switch between the last two channels that
you watched.

Number Buttons

Use the NUMBER buttons to enter numbers in a menu, or
to go directly to a new channel.

Control a VCR or a DVD Player

Some of the features described below may not apply to the device.
See your device owner’s manual for details about its features. If a
remote control button is not described in this section, it does not
work in VCR mode.

VCR Mode Button

To use the remote to operate a VCR or DVD player, first set up the
remote, then press the VCR mode button to set the remote to VCR
mode. The VCR mode button’s back light turns ON to show that the remote is
set to VCR mode. Make sure to keep the remote in VCR mode to use the
buttons as described in this section.

Tip: To operate
another device
such as a VCR,
you must first set
up the remote to
control the VCR,
and then press the
VCR mode button
on the remote.

Page 57

Chapter 3

Using the System

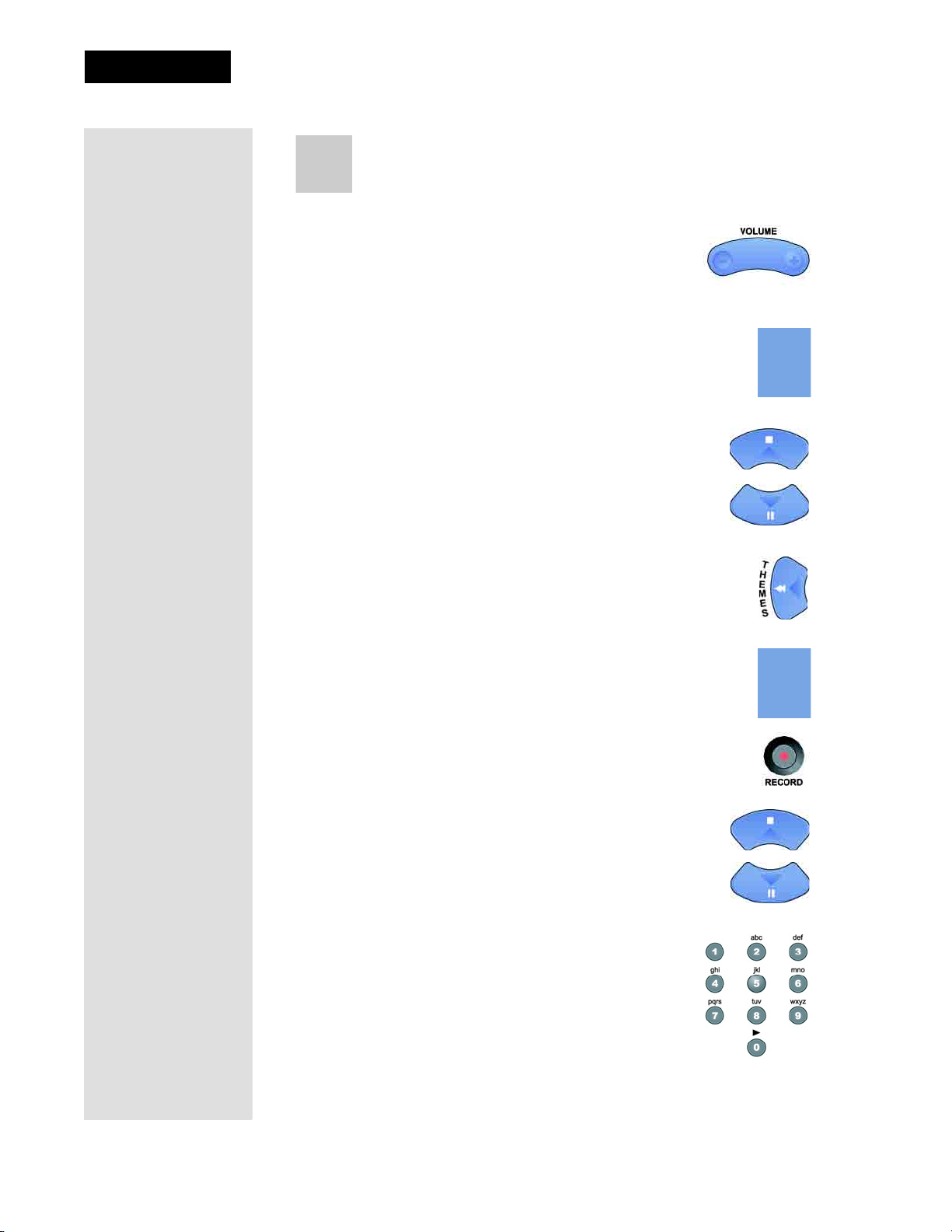

You must use the remote control’s VCR mode to control a DVD
player.

Power Button

Press the blank POWER button to turn the VCR ON
or OFF.

VCR/DVD Buttons

•The RIGHT ARROW button is used to play, or to resume

playing, a videotape or DVD.

•The UP ARROW button is used to stop a videotape or

DVD.

•The DOWN ARROW button is used to pause a videotape
or DVD. Press this button or the SELECT button to
restart the videotape or DVD.

•The LEFT ARROW button is used to rewind a videotape
or reverse a DVD.

•Press the RIGHT ARROW button to forward a videotape or
DVD.

•Press the RECORD button to start recording on a VCR.

Page Up and Page Down Buttons

Use the UP ARROW and DOWN ARROW buttons to
change channels on a VCR.

Number Pad Buttons

Use the NUMBER PAD buttons to enter numbers
in a menu.

Page 58

Control Other Devices with the Remote

Control a Tuner or Amplifier

Some of the features described below may not apply to your tuner
or amplifier. See the device owner’s manual for details about the
device’s features. If a remote control button is not described in this
section, it does not work for a tuner or amplifier.

AUX Mode Button

To use the remote to operate a tuner or amplifier, first set up the
remote to control the device, then press the AUX mode button to set
the remote to AUX mode. The AUX mode button’s backlight turns ON to show
that the remote is set to AUX mode. Make sure to keep the remote in AUX
mode to use the buttons as described in this section.

Power Button

Press the blank POWER button to turn the tuner or amplifier
ON or OFF.

Select Button

This SELECT button works as the Input Select button for a tuner
or amplifier.

Up/Down (Arrow) Buttons

Use UP/DOWN ARROW buttons to change channels on the
tuner or amplifier.

Mute Button

Press the MUTE button to turn off the sound. Press it again to
restore the sound.

Volume Button

Press the minus (-) side of this button to lower the sound
volume. Press the plus (+) side of this button to raise the
sound volume.

Switching Between TV and Device Volume Control

When you set up the remote to control a TV, the MUTE and VOLUME buttons
control the TV volume. However, if you want to use the AUX mode to control a
tuner or amplifier and the device has a volume setting, you can set up the
remote to control the device’s volume instead of the TV volume.

To set the remote to control the device’s volume:

1. Press and hold the AUX mode button for four seconds, and then let
go of it. The AUX mode button will blink.

2. Press the POUND (#) button.

Page 59

Chapter 3

Using the System

3. Press the plus (+) side of the VOLUME button.

4. Press the 0 number button.

5. Press the POUND (#) button.
The AUX mode button flashes three times.

6. Press the SAT mode button.

7. Press the plus (+) and minus (-) sides of the
VOLUME button.
The device’s volume changes and the aux mode
button lights instead of the TV mode button.

To set the remote back to control the TV volume:

1. Press and hold the TV mode button for four seconds, and then

let go of it. The TV mode button will blink.

2. Press the POUND (#) button.

3. Press the plus (+) side of the VOLUME button.

4. Press the 0 number button.

5. Press the POUND (#) button.
The TV mode button flashes three times.

6. Press the SAT mode button.

7. Press the plus (+) and minus (-) sides of the
VOLUME button.
The TV’s volume changes and the TV mode button
lights instead of the AUX mode button.

Page 60

Testing the System

Starting a Test

1. Press the MENU button.

Testing the System

2. Select the

3. Select the Diagnostics option.

System Setup option.

Telephone Connection Test

This test checks that the receiver telephone connection is correct. Select the
Connection option to begin the test. The receiver displays a message asking
you to wait until the test is done.

• If the telephone connection is correct, the receiver displays a

Connection OK message.

• Select the Dial Out option so the receiver can make a toll-free call to the
Customer Service Center. Press the SELECT button to start the call. When
the call is done, select the

• If the telephone line is not connected properly, the receiver displays a
failure message. Check the telephone connection and then repeat the test.

Note: If you have the receiver connected to a DSL (Digital Subscriber
Line) phone line, it may cause this test to fail. If so, you will need to install
a DSL filter between the receiver and the phone jack on the wall. You can
get a DSL filter from your Internet Service Provider or a local electronics
parts store.

Cancel option to exit the test menu.

Phone

Page 61

Chapter 3

Using the System

Notes

Page 62

Chapter 4

Reference

Troubleshooting Tables

Use these tables if you have problems using the system before calling the
Customer Service Center. Many problems arise from misunderstandings of how
the system works, especially when you are just becoming familiar with it. These
tables cover many problems, usually with a simple solution for each one. To
solve a particular problem, do the following:

1. Review the section in this Guide that relates to the problem.

2. If you cannot find a solution, then find the section in the following tables
that relates to the problem.

•Read the What’s Happening column until you find the problem.

• Read the information in the Possible Reason column.

• Try each of the suggested solutions in the What to Do column.

3. For more information, call the Commercial Customer Service Center at
1-800-454-0843.

Note: Before calling the Service Center, have ready the date of purchase and
either your customer account number, the receiver conditional access number,
or the receiver model number. Display the Important System Information menu
to find these numbers (See Ordering your Programming). Also, write down any
error messages that the receiver displays on the television screen.

Page 63

Chapter 4

Reference

On-Screen Messages

This table describes some on-screen messages in the order of their message numbers. Find the message
number in the upper right corner of the message displayed on your TV screen, and then find the matching
number in this table.

Message Number Possible Reason What to Do

112

005

006

008

011, 012

013, 014

Heavy rain, snow, or cloud cover
may be interfering with transmission
of the satellite signal, or there may
be other interference.

The receiver may not yet have been
electronically linked with the Smart
Card, via the satellite signal. The
satellite dish may have moved so
that it is no longer picking up the
satellite signal. The cable
connections may have loosened or
have moisture inside. There may be
an interruption of the satellite signal.

The receiver may not be connected
to an active telephone line.
The Smart Card credit limit may
have been suspended.

Phone signal not working correctly. If connected with DSL phone line, install a DSL filter between the

Viewers in specific areas are
prohibited from watching certain
programs.
For example, viewers who live close
to a particular football stadium may
be prohibited from watching football
games that are played in that
stadium.

You may have tried to tune to a
program on a channel which you
have not bought.

Note the local weather conditions. Contact your MDU building
manager for further information/instructions

If you have authorized the receiver, wait a few minutes to see if the
message is removed. Make sure that all required cables are in place,
and check that all cable connections are tight and dry (for outdoor
cables).
Check that the Signal Strength bar in the QAM/Signal menu is
green and displays the word Locked. If not, contact your MDU
building manager. If you have not authorized the receiver, call the
Commercial Customer Service Center for help.

You must connect the receiver to an active telephone connection at
all times. If you install two or more receivers, you must connect
each receiver to an active telephone connection at all times.
Review your pay per view purchases to check the Smart Card credit
limit.

receiver and the telephone wall jack. You can obtain the filter from
your DSL provider.

Remember that the program providers specify which programs
are “blacked out” for which viewers, not DISH Network.

You must buy a channel before you can tune to a program on that
channel. Call the Customer Service Center to buy the channel, or if
you believe this message was displayed by mistake.

Page 64

015

018

022

You may have just plugged in the
receiver, and it is acquiring the
satellite signal. Or, the receiver may
have temporarily lost the signal.

The receiver may not be connected
to an active telephone line.
The Smart Card credit limit may
have been exceeded.

The receiver may not yet have been
electronically linked with the Smart
Card, via the satellite signal. The
satellite dish may have moved so
that it is no longer picking up the
satellite signal. The cable
connections may have loosened or
have moisture inside. There may be
an interruption of the satellite signal.

Wait a few minutes to see if the message is removed. Make sure that
all required cables are in place, and check that all cable connections
are tight and dry (for outdoor cables).
Check that the Signal Strength bar in the QAM/Signal menu is
green and displays the word Locked. If not, contact your MDU
building manager.

You must connect the receiver to an active telephone connection at
all times. If you install two or more receivers, you must connect
each receiver to an active telephone connection at all times.
Review your pay per view purchases to check the Smart Card credit
limit.
Call the Customer Service Center for help checking the credit limit,
and/or to get authorization to make a purchase.

If you have authorized the receiver, wait a few minutes to see if the
message is removed. Make sure that all required cables are in place,
and check that all cable connections are tight and dry (for outdoor
cables).

Check that the Signal Strength bar in the QAM/Signal menu is
green and displays the word Locked. If not, contact your MDU
building manager.

Troubleshooting Tables

026

028

061

074

078, 079, 080

The receiver may have temporarily
lost the satellite signal.

The receiver may need to get new
software before you can use it to
order pay per view programs.

You may have interrupted the
transmission (a “download”) of the
latest operating software via the
satellite signal.

The receiver gives you three chances
to enter the correct password. If you
fail to do so, the receiver “times out”
and will not allow you to try again
for several minutes.

You may not have connected the
receiver to an active telephone line.
Or, the telephone line may be
defective.

Maybe the receiver is connected to a
DSL (Digital Subscriber Line)
phone line.

Wait a few minutes to see if the message is removed. Make sure that
all required cables are in place, and check that all cable connections
are tight and dry (for outdoor cables).
Check that the Signal Strength bar in the QAM/Signal menu is
green and displays the word Locked. If not, contact your MDU
building manager.

Turn the receiver off. Doing this allows the receiver to “download”
new software via the satellite signal. The download may take
several minutes; do not disturb or unplug the receiver during this
time. When the download is done, you will be able to use it to order
pay per view programs.

It is very important for the receiver to get the latest operating
software, so let the receiver do so. The “download” may take
several minutes. Do not disturb or unplug the receiver during this
time.

Wait a few minutes and then try again to enter the password.
Note: The “time out” feature is designed to prevent someone from
trying password after password until he or she happens to guess the
right one and so gains unauthorized access to the receiver.

Connect the receiver to an active telephone line.
Make sure that the telephone line to which you connect the receiver
is working properly.
Note: To be able to order pay per view programs, you must keep
the receiver connected to an active telephone line at all times. If
your setup includes more than one receiver, this applies to each
receiver. The receiver uses the telephone line to make toll-free
calls, usually in the middle of the night, to send information to the
Customer Service Center.

Install a DSL filter between the receiver and the telephone
wall jack.

You may have set up the receiver to
reset itself back to the “factory

093

defaults,” that is, the settings it had
when it was shipped from the
factory.

Using the Remote Control

What Is

Happening

You cannot find the
remote control.

When you press a button
on the remote control, the
receiver does not do what
you expect.

When you press the
remote control Power
button to turn the receiver
ON, the green ON light on
the receiver front panel
does not light up.

Possible Reason What to Do

N/A Use the receiver front panel Control Buttons to control the

The remote control may be missing
batteries, the batteries may be
incorrectly placed in the remote, or
the batteries may be weak or dead.

The remote address and the receiver
address may not match.

Other lights are too bright.

Remote control not operating
properly or the batteries are weak or
dead.
The receiver power cord not plugged
into a power outlet, or there may be
a problem with the power.

If you want to reset the receiver to its factory default settings, select
the Yes option. If not, select the No option.

receiver until you find the remote. If the remote control is
permanently lost or too damaged to use, call the Service Center to
order a replacement.

If the batteries are missing or dead, insert fresh AAA-size batteries.
If the remote has fresh batteries, check whether they are placed
according to the label diagram. If not, remove them and place
correctly.

Press the SYS INFO button on the remote to bring up the
Important System Information screen. Aim the remote at the
receiver front panel and press the RECORD button to match up the
code on the remote with the one in the receiver.

Try other remote control buttons to see if the receiver is responding.
Replace the remote batteries with fresh ones.

Check that the receiver power cord is not damaged, and that the
plug is inserted correctly into the outlet.

Page 65

Chapter 4

Reference

Hearing A Program

What Is

Happening

There is a good picture on
the TV set, but you do not
hear any sound.

You hear a foreign
language with a program.

Possible Reason What to Do

You may have muted the sound, or
set the volume so low that you
cannot hear it.

You may have set the receiver to
select an alternate audio language.

Watching A Program

What Is

Happening

A “black box” fills almost
all of the TV screen.

The TV screen is all blue. You may have connected the

Possible Reason What to Do

You may have turned on the Closed
Captioned feature on the TV, and put
that feature into Text mode.

Receiver may have captions on and
not set to Service1.

receiver to an input on the TV that is
incorrect for the signal output from
the receiver.

Using the Menus

Check the volume level on the TV or audio device. Turn off the
mute or turn up the volume, as required.
Check the TV speakers or the sound system.

Press MENU-6-2 and select the language that you prefer.

Using the TV remote control and/or menus displayed by the TV
(not the receiver remote control or the menus displayed by the
receiver), turn off the closed captioned feature.

Turn off captions by pressing the MENU button, selecting System
Setup, then Closed Caption or, reset default caption options
using same menu.

Check your TV owner’s manual for the correct TV input to use for
the signal output from the receiver.

What Is

Happening

You were using a menu,
and it suddenly closed.

Possible Reason What to Do

The receiver has a time-out feature
that closes any menu after several
minutes of no activity. This will
discard any changes you have made,
but otherwise does no harm to the
receiver.

Start over again.

Using the Program Guide or the Browse Banner

What Is

Happening

In the Program Guide,
some channels have a red
background.

You try to display future
programs in the Program

Guide or Browse
Banner, but find you

cannot.

You try to display
programs that have ended
in the Program Guide or
Browse Banner, but
find you cannot.

Possible Reason What to Do

Red means that you have not bought
the program. You must buy a
channel before you can tune the
receiver to it.

The Program Guide and Browse
Banner can display programs
scheduled for an extended, but not
unlimited time beyond the present.

The Program Guide and Browse

Banner can display only programs
that have not yet ended. These
features cannot display a time earlier

than the present.

If you want to buy a channel, call the Commercial Customer
Service Center at 1-800-454-0843.

Try displaying the Program Guide again later. By that time, it
may show programs for the time and date you want.

Contact the program providers for details on past programs.

Page 66

Troubleshooting Tables

When you are using the

Program Guide or
Browse Banner, some

channels are missing.

Using Locks

What Is

Happening

You set a lock (for
example, a lock on

programs by ratings), but
the lock does not take
effect.

You forgot the password,
so that you are unable to
unlock the receiver.

Changing Channels

You may have applied a Favorite
List other than the list named All
Chan.
You may have set up the Program
Guide so that when the receiver is
locked, the Guide hides adult
channels.

You can change the applied Favorite List while using the Program
Guide, by pressing the remote control Guide button. You can
choose another custom Favorite List, the All Chan list, which
includes all the channels, or the All Sub list, which includes all
subscribed channels. Unlock the receiver for the Program Guide
to display adult channels.

Possible Reason What to Do

You may not have locked the
receiver.

You may not have written down the
password, to keep it in a safe place.

You must lock the receiver to apply any lock that you have set.

Call the Customer Service Center. You must provide the following
information: (1) your name; (2) your address; (3) your telephone
number;
(4) the receiver serial identification number; and (5) your Personal
Identification Number (PIN), if you use one.

The CSC will send an Unlock code, targeting your receiver.

What Is

Happening

You enter a desired
channel number. The
channel changes, but the
new channel is not exactly
the channel you entered.
You are scanning up or
down through the
channels, and the receiver
is skipping channels that
you know you have
bought.

Using Favorite Lists

What Is

Happening

You press the remote

Guide button while the
Program Guide is

displayed. You find that
you can apply only the All
Chan list or the All Sub
list.

Possible Reason What to Do

You may have made a mistake
entering the channel number, or the
channel number you entered may be
invalid.
If so, the channel displayed is the
closest possible to the channel you
entered.
If you entered the number for a
channel that you have not bought,
the receiver will change to the
channel and allow you to buy the
channel or display a message.
If a Favorite List other than All
Chan is applied, the receiver will
skip channels that are not on the
applied list.
If you have set up the Program
Guide to hide adult channels and
the receiver is locked, the receiver
will skip such channels.

Carefully retry entering the channel number you want.
Press the remote control Recall button to return to the previous
channel number. Select All Chan as the active Favorite List.
Unlock the receiver so that it does not skip adult channels.
If you want to buy a channel, call the Customer Service Center.

Possible Reason What to Do

If you have not added channels to
any custom Favorite List, you will
be able to apply only the All Chan
list or the All Sub list.

You must add channels to a custom Favorite List before you can
apply it.

Page 67

Chapter 4

Reference

You try to change the

All Chan list or the All
Sub list. The receiver

displays an ERROR
message.

You try to apply an empty
Favorite List. The receiver
displays an ERROR
message.

A Favorite List does not
show channels that you
know you have added to it.

The receiver will not allow you to
change the All Chan list or the All
Sub list.

The receiver will not allow you to
apply an empty list.

If you have set up the Program
Guide to hide adult channels and
the receiver is locked, the Favorite
List will not show such channels.

Buying a Pay Per View Program

What Is

Happening

Someone orders a pay per
view program without
your permission.

You find that you are not
able to order a pay per
view program.

Possible Reason What to Do

You may have been away from the
receiver, and someone else used it.

The receiver may not be connected
to an active telephone line.
Your credit limit may have been
exceeded.

Choose another list to change.
Note: You can change the All Sub list by changing what channels
you buy.

Choose another list to apply, or add at least one channel to the
empty list.

Unlock the receiver for the list to show adult channels.

Lock the purchase of pay per view programs. Remember that you

are responsible for all pay per view purchases, whether or not you
authorize such purchases. If you lock pay per view purchases, then

anyone who wants to order a pay per view program must enter the
password.

You must connect the receiver to an active telephone connection at
all times. If you install two or more receivers, you must connect
each receiver to an active telephone connection at all times.
Review your pay per view purchases to check the Smart Card credit
limit.

You find that you are not
able to cancel a pay per
view program.

Your setup includes more
than one receiver. You
order a pay per view
program, but it does not
appear via all of the
receivers.

You ordered a pay per view
program, and then decided not to
watch it.

You ordered a pay per view
program, and want it to be available
via all the receivers in your setup.

You cannot cancel an order for a pay per view program, whether it
was just ordered or ordered earlier.

If you want to watch a pay per view program on TVs connected to
up to six receivers, you must order the program for each receiver
but you only pay for the program once.

Using the Telephone for Voice/Data/FAX

What Is Happening Possible Reason What to Do

While you are making a
telephone call, you hear
“clicks.”

The receiver cannot connect
to DISH Network.

You pick up the telephone to
make a call, but you do not
hear a dial tone.

Your computer or facsimile
(FAX) machine tries to send
a FAX or modem
transmission, but fails.

The receiver may have tried to call the
Customer Service Center to send pay
per view purchase information. When
the receiver found that the telephone
was busy, it automatically
disconnected.

Maybe the receiver is connected to a
DSL (Digital Subscriber Line) phone
line.

The receiver was calling the Customer
Service Center to send pay per view
information. When the receiver found
that the telephone was busy, it
automatically disconnected.

The receiver was calling the Customer
Service Center to send pay per view
information. When the receiver found
that the telephone was busy, it
automatically disconnected. The FAX
or modem found that there was no dial
tone, and cancelled the transmission.

You do not have to do anything. You can always use your telephone
line, because the receiver automatically hangs up if it finds the line is
busy.

Install a DSL filter between the receiver and the telephone wall jack.

Hang up, and then pick up the telephone again to get a dial tone.

Resend the FAX or modem transmission.

Page 68

Troubleshooting Tables

Your computer or FAX
machine was receiving a
FAX or modem
transmission, but an error
occurred.

The receiver may have tried to call the
Customer Service Center to send pay
per view purchase information during
the FAX or mode call. When the
receiver found that the telephone was
busy, it automatically disconnected.
This generated “clicks” that caused an
error in the FAX or modem
transmission.

Have the sender resend the FAX or modem transmission.

Using Event Timers

What Is Happening Possible Reason What to Do

You try to set up an event
timer and the receiver
displays a message noting
that the program is locked.

You try to set up an event
timer and the receiver
displays a message noting
that the program is a pay per
view event.

You try to set up an event
timer, but the receiver
displays an Error message
giving you the option to
delete an event timer that
was set up earlier.

You set up an event timer,
but the receiver does not
tune to the channel of the
program.

You set up an event timer
for a program that is
repeated (such as a regularly
scheduled program), but the
timer does not operate for a
showing of the program.

You set up an event timer,
but the timer does not
operate at all.

You set up a Once event
timer, but the timer
at a time different from what
you expect.

You stop the operation of an
event timer for one showing
of a program that is repeated
(such as a regularly
scheduled program), but the
timer operates for the next
showing.

operates

You must enter the password before
you can create an event timer for a
locked program.

You must order a pay per view event
before you can create an event timer
for it.

You already have set up the maximum
number of event timers.

You may have set up a Reminder
Event Timer but what you should have
set up is an Auto-Tune Event Timer.

You may have set up a timer with an
incorrect frequency.

The program time may have changed
so that the event timer overlapped
another event timer.
The program time may have changed
by more than twenty-four hours.

The program time changed. A Once event timer always operates at the actual time of the program.

Stopping the event timer applies only
to the current showing of the program.

To be able to set up an event timer for the program, first enter the
password.

To be able to set up an event timer for the event, first order it.

To be able to set up a new event timer, delete one of the event timers
you set up earlier.

Remember that a Reminder Event Timer just reminds you that the
program is about to start. An Auto-Tune Event Timer reminds you and
tunes the receiver to the channel of the program.

Remember that a Once event timer operates just one time. A Mon.-
Fri. event timer operates Monday through Friday on the same
channel at the same time. A Daily event timer does the same, Monday
through Sunday. A Weekly event timer operates once a week on the
same channel at the same time.

If the receiver is ON and finds an event timer overlap, it will display
the Event Timer Scheduling Conflict menu. You must edit or
delete one of the overlapping event timers.
No event timer will operate if the program time changes by more than
twenty-four hours.

To stop all operations of a repeated event timer, you must delete the
event timer.
Note: The receiver deletes a Once event timer when it operates.

Page 69

Chapter 4

Reference

Device Codes

These tables contain the manufacturer codes for programming the remote to control your TV, VCR, DVD
player, or audio amplifier. Every attempt has been made to include all codes. If your device brand is not
listed or if the codes do not work, the remote may not control your device. In some cases codes may
operate some, but not all, buttons shown in this guide.

TV Codes

Programming in AUX mode:

Press 0 before entering the TV
code.

TV Codes

A Mark 670

Action 662

Admiral 514, 521, 605, 668,

Aiko 727

Aiwa 751

Akai 570, 573, 659, 660,

A-Mark 620

Amtron 657

Anam National 509, 541, 620, 651,

AOC 505, 506, 519, 520,

Apex 743, 744, 745

Archer 620

Audiovox 620, 657, 662, 672

Bell & Howell 590, 669, 675

Broksonic 752, 659, 661, 748

Capehart 519, 627

Citizen 506, 516, 523, 524,

Classic 659

Colortyme 573, 627, 652, 654,

Contec/Cony 541, 655, 657, 661,

Craig 536, 541, 657, 661,

Crown 526, 536, 657, 666, 670

Curtis Mathes 506, 516, 526, 573,

669, 675

657, 661, 663, 698

573, 620, 627, 652,
653, 654, 659, 664,
665, 670, 672

525, 526, 590, 652,
654, 657, 658, 680, 727

660, 667, 668, 671,
674, 679, 681

662, 726

662, 666, 667, 694

590, 641, 645, 650,
652, 654, 658, 659,
660, 664, 665, 667,
668, 670, 674, 680,
703, 708

TV Codes

Daewoo 505, 524, 526, 529,

Daytron 526, 627, 652, 654,

Dimensia 645, 650

DISH Network 742

Dixi 566, 620

Dumont 501, 627, 652

Echostar 722

Electrohome 526, 573, 651, 652,

Emerson 526, 534, 535, 536,

Envision 506, 573, 652, 654,

Fisher 542, 590, 683

Fujitsu 534, 682, 694

Funai 534, 541, 657, 661,

GE 508, 509, 543, 544,

Goldstar 505, 523, 526, 545,

Gradiente 660, 671

Granada 627, 670, 671

Grundig 670, 673

Hallmark 627, 652, 654, 659

Harmon/Kardon 561, 659

Hinari 534

530, 531, 573, 652,
653, 654, 658, 659,
663, 664, 665, 670,
672, 674, 684, 698,
719, 727

658, 665, 670, 672

654, 656, 659, 660,
665, 670, 709, 728

537, 538, 539, 541,
573, 590, 627, 636,
642, 648, 652, 654,
655, 657, 658, 659,
660, 661, 662, 665,
666, 667, 669, 670,
677, 679, 682, 692,
696, 699, 720

660, 664

662, 677, 682, 694

630, 645, 646, 650,
651, 652, 654, 659,
661, 663, 665, 667,
668, 670, 673, 676,
681, 690, 691, 698,
701, 715, 716, 725,
728, 742

546, 566, 573, 652,
653, 654, 655, 656,
658, 659, 660, 664,
665, 670, 671, 678,
693, 730, 747

TV Codes

Hitachi 523, 526, 548, 549,

Infinity 566, 671

JBL 566, 671

JC Penney 505, 506, 516, 525,

Jensen 556, 573, 652, 654, 660

JVC 508, 557, 559, 642,

Kawasho 548, 561, 573, 652,

Kenwood 506, 573, 652, 654,

Kloss Novabeam 657, 663, 698, 723, 724

Konka 753

KTV 526, 539, 541, 573,

Lloyds 627, 679

Loewe 566

Logik 675

Luxman 523, 652, 654

LXI 563, 566, 590, 595,

Magnasonic 573, 659, 660, 669,

Magnavox 506, 520, 525, 536,

Majestic 675

Marantz 506, 566, 573, 652,

Megatron 627, 654

553, 554, 555, 585,
597, 626, 636, 638,
643, 648, 652, 654,
655, 665, 668, 669,
670, 672, 673, 702,
718, 726

526, 543, 546, 631,
645, 646, 650, 652,
653, 654, 658, 659,
664, 667, 668, 670,
673, 676, 678, 680,
690, 691, 701, 725,
726, 728, 730

649, 655, 667, 673,
676, 726, 735, 736, 737

654, 664

656, 659, 660, 664,
679, 681

657, 658, 661, 662,
664, 665, 670, 696

667, 631, 635, 645,
646, 650, 654, 659,
668, 678, 683, 691,
701, 725

672, 677

566, 567, 568, 573,
610, 652, 654, 656,
659, 660, 664, 665,
666, 669, 671, 673,
674, 677, 723, 724, 729

654, 660, 664, 665,
671, 678, 681

Page 70

Device Codes

TV Codes

Memorex 590, 627, 653, 654,

MGA 504, 505, 506, 542,

Mitsubishi 504, 505, 542, 570,

Montgomery Ward 675

Motorola 521, 605, 651

MTC 505, 506, 516, 523,

Multitech 657

NAD 502, 617, 627, 631,

National 509

NEC 505, 506, 507, 517,

Nikkai 612

Nikko 654, 672, 727

Onwa 541, 657, 661

Optimus 637

Optonica 521, 605, 607

Orion 694

Osaki 612

Panasonic 508, 509, 510, 512,

Philco 505, 506, 525, 536,

Philips 525, 566, 651, 652,

Pioneer 502, 548, 576, 636,

Portland 505, 526, 573, 652,

Price Club 680

Prism 676

Proscan 645, 646, 650, 668,

Proton 513, 519, 526, 536,

659, 675, 678, 720

571, 573, 627, 652,
653, 654, 656, 660, 728

571, 572, 573, 597,
623, 627, 652, 653,
654, 656, 659, 660,
664, 665, 670, 671,
705, 728

573, 627, 652, 653,
654, 659, 664, 667,
672, 680

635, 637, 654

523, 573, 627, 651,
652, 653, 654, 660,
664, 665, 679, 681,
731, 732

566, 644, 651, 662,
663, 668, 672, 673,
676, 685, 689, 698,
700, 716, 234, 247

568, 573, 610, 651,
652, 653, 654, 655,
656, 659, 660, 664,
665, 666, 669, 671,
672, 674, 677, 723,
724, 729

655, 656, 671, 690,
723, 724, 729

637, 648, 652, 654,
663, 665, 681, 708

654, 658, 659, 664,
665, 670, 727

691, 725, 742

585, 627, 652, 654,
655, 659, 660, 665,
666, 668, 670, 678

TV Codes

Quasar 508, 509, 651, 663,

Radio Shack/Realistic 526, 541, 590, 607,

RCA 503, 505, 548, 586,

Realistic 590, 645

Runco 501

Sampo 506, 519, 652, 654,

Samsung 505, 506, 516, 523,

Sansui 754

Sanyo 542, 590, 652, 683

SBR 566

Schneider 566

Scott 526, 534, 537, 541,

Sears 523, 534, 542, 563,

Sharp 521, 526, 585, 605,

Signature 675

Solavox 612

Sony 500, 578, 640, 670, 690

Soundesign 525, 536, 541, 627,

Starlite 657

Supra 523

Sylvania 506, 525, 536, 566,

Symphonic 632, 657, 662, 677,

Tandy 521, 605

673, 676, 698, 700, 747

612, 645, 650, 652,
654, 655, 657, 658,
661, 662, 663, 668,
670, 683, 698, 730

630, 633, 634, 636,
641, 645, 646, 648,
650, 651, 652, 653,
654, 656, 661, 663,
665, 667, 668, 670,
681, 691, 698, 701,
708, 715, 716, 725,
742, 749

658, 663, 664, 665,
698, 730, 746

526, 566, 573, 612,
627, 647, 652, 653,
654, 655, 656, 658,
659, 664, 665, 667,
669, 670, 679, 680,
704, 717, 730, 738

600, 652, 654, 655,
657, 661, 662, 665,
670, 677, 682, 696, 701

590, 595, 601, 604,
617, 627, 631, 635,
645, 646, 650, 652,
654, 656, 659, 661,
668, 670, 682, 683,
688, 691, 703, 725, 726

607, 628, 629, 652,
654, 655, 658, 669,
670, 674, 679, 739,
740, 741

652, 654, 657, 659,
661, 665, 666, 682

568, 569, 573, 600,
610, 652, 654, 656,
659, 660, 664, 665,
666, 671, 672, 674,
677, 723, 724, 729, 733

692, 694

TV Codes

Tatung 509, 651, 663, 698

Technics 508, 673, 676

Techwood 523, 573, 652, 654,

Teknika 504, 505, 512, 516,

Telefunken 679

Toshiba 516, 590, 617, 631,

Totevision 526, 658, 668

Ultra 672

Universal 543, 690

Vector, Research 506

Video Concepts 570, 661

Wards 536, 573, 607, 645,

White, Westinghouse 659, 664, 670, 672, 674

Yamaha 505, 506, 573, 652,

660, 676

523, 524, 525, 526,
534, 536, 541, 573,
644, 652, 653, 654,
655, 657, 658, 661,
662, 664, 665, 666,
670, 672, 675, 680,
681, 682, 685, 726, 727

635, 667, 678, 680,
683, 688, 750

650, 652, 653, 654,
656, 659, 664, 665,
666, 667, 668, 669,
674, 675, 677, 678,
682, 690, 715, 723,
724, 729

653, 654, 656, 664,
666, 672, 679

VCR Codes

Programming in AUX mode:

Press 1 before entering the
VCR code.

VCR CODES

Aiwa 588, 622, 623

Akai 513, 514, 515, 516,

Alba 546

Amstrad 588

ASA 556

Audiovox 676

Bell & Howell 581

Broksonic 559, 748

Bush 589

Calix 676

Canon 554, 678, 679

Capehart 546

CCE 681

Citizen 534, 591, 592, 594,

Colortyme 592,

517, 518, 520, 568, 682

675, 676, 677, 684

Page 71

Chapter 4

Reference

VCR CODES

Craig 591, 658, 675, 676,

Curtis Mathes 554, 592, 594, 605,

Daewoo 506, 534, 546, 547,

Daytron 546

Denon 686

Dimensia 607

Dumont 549

Electrohome 512, 676, 687

Emerson 505, 506, 508, 509,

Finlandia 549

Finlux 549, 556, 588

Fisher 548, 549, 581, 584,

Fuji 678

Funai 588

Garrard 588

GE 550, 551, 552, 554,

Go Video 557, 558, 620, 685

Goldstar 592, 594, 676, 687, 747

Goodmans 585, 589

Gradiente 588, 687

Granada 549, 581

Grundig 556

Harmon/Kardon 568, 592

Harwood 681

Hinari 589

Hitachi 536, 538, 539, 540,

ITT 518

JC Penney 554, 581, 591, 592,

Jensen 595, 680, 682

JVC 561, 562, 563, 581,

Kenwood 562, 581, 592, 594,

KLH 681

Kodak 676, 678

Lloyds 683, 688

Logik 589, 681, 685

Luxor 518

LXI 676

681, 685, 687, 688

607, 675, 677, 678,
679, 683, 684

559, 588, 684

511, 512, 534, 559,
568, 588, 590, 618,
676, 678, 684, 687

588, 608, 610, 684, 688

572, 591, 605, 607,
675, 678, 679

588, 595, 597, 680,
682, 686

594, 595, 600, 674,
675, 676, 678, 679,
680, 681, 685, 686, 687

592, 594, 600, 674,
682, 686

600, 674, 677, 682, 683

VCR CODES

Magnasonic 685, 687

Magnavox 527, 533, 554, 556,

Marantz 554, 556, 581, 585,

Matsushita 678

Memorex 507, 533, 549, 554,

MGA 512, 567, 568

Minolta 595, 680, 686

Mitsubishi 512, 562, 567, 568,

Motorola 678

MTC 544, 588, 675, 685

Multitech 579, 588, 675, 677, 681

NAD 573

NEC 562, 581, 592, 594,

Nikko 676

Noblex 675

Olympus 678

Optimus 676, 687

Optonica 585

Orion 506, 684, 687

Panasonic 523, 554, 598, 614,

Pentax 592, 595, 677, 680,

Pentex Research 594

Perdio 588

Philco 554, 678, 679, 686

Philips 554, 556, 585, 678, 684

Pioneer 562, 573, 574, 575,

Portland 546, 677

Proscan 605, 607,

Proton 685

Quasar 554, 678, 679, 747,

Radio Shack 512, 607, 608, 610, 687

Radio Shack/Realistic 581, 584, 588, 608,

Radix 676

RCA 518, 525, 527, 528,

Realistic 534, 549, 554, 581,

Ricoh 502

678, 679, 684, 685

592, 594, 600, 602,
674, 677, 678, 683

566, 581, 585, 588,
608, 675, 676, 678,
686, 687, 688

570, 571, 595, 680, 687

600, 602, 674, 677,
682, 683

628, 633, 678, 679,
684, 685, 688, 747

683, 686

576, 600, 674, 680,

675, 676, 678, 679

591, 595, 605, 607,
615, 631, 649, 675,
678, 680, 686

584, 585, 588, 608,
675, 678, 679, 687, 688

VCR CODES

Runco 533

Saisho 506

Salora 567, 581

Samsung 515, 517, 534, 579,

Sansui 544, 562, 600, 674,

Sanyo 549, 581, 582, 583,

SBR 556

Schneider 589

Scott 508, 534, 559, 590,

Sears 548, 549, 581, 584,

Sentra 546

Sharp 512, 585, 607, 625

Shintom 589, 595, 681, 685

Singer 678, 681, 685

Sony 500, 501, 502, 504

STS 678

Sylvania 554, 556, 567, 588,

Symphonic 588, 594, 683, 688

Tandy 581, 588

Tashiko 588, 676

Tatung 594, 682,

Teac 588, 594, 682

Technics 554, 633, 678,

Teknika 554, 588, 676, 678, 687

Toshiba 534, 535, 567, 584,

Totevision 591, 675, 676, 687

Unitech 675,

Vector Research 534, 592, 600, 674,

Video Concepts 534, 568, 592, 600,

Wards 534, 588, 595, 608,

XR-1000 588, 678, 681

Yamaha 581, 592, 594, 600,

Zenith 500, 501, 533, 747

591, 675

682, 685

608, 675, 688

684, 687

595, 608, 610, 676,
678, 680, 683, 684,
686, 687, 688

678, 679

590, 680, 684, 688

677, 683

674, 677, 683,

675, 676, 678, 680,
681, 684, 687, 688

674, 682, 683

Page 72

Device Codes

TV/VCR Combo

Programming for
combination devices

:

Program the remote control in
TV mode and then in VCR
mode.

TV/VCR Codes

Broksonic 748

Goldstar 747

Panasonic 747

Quasar 747

Zenith 747

DVD Player Codes

Programming in AUX mode:

Press 1 before entering the
DVD code.

DVD Players Codes

Aiwa 634, 694, 751

Alpine 653

Apex 654, 655, 743, 744

Broksonic 656, 752

Clarion, 696

Classic 695

Daewoo 657

Denon 697, 698, 699, 700

Emerson 658, 701

Fisher 659

Funai 658

GE 702, 703

Go Video 692, 693

GPX 704

Hitachi 632, 635, 660, 705,

JVC 636, 689, 708, 711

Konka 637, 638, 753

Koss 745

Magnavox 626, 661

Memorex 709

706, 707

DVD Players Codes

Mintek 710

Mitsubishi 629

NAD 701

Norcent 762

Onkyo 713

Oritron 723

Panasonic 639, 662, 663, 714,

Philips 640, 641

Pioneer 665, 718, 719

Proscan 720

Qwestar 721, 723

RCA 627, 650, 666, 690,

Sampo 724

Samsung 651, 652, 667, 668,

Sansui 725, 754

Sanyo 643, 726

Sharp 669, 727, 746

Sherwood 728

Sony 617, 644, 645, 670,

Sylvania 658

Teac 732

Technics 733

Techwood 664

Toshiba 616, 646, 647, 672,

Yamaha 737, 738, 739

Zenith 648, 673

715, 716, 717, 734

742, 749

691, 740, 741

671, 729, 730, 731

735, 736, 750,

Tuner/Amplifier Codes

Programming in AUX mode:

Press 2 before entering the
tuner/amplifier code.

Tuner/Amplifier Codes

Aiwa 636, 641, 656, 687,

Carver 653

718, 720, 724, 775,
726

Tuner/Amplifier Codes

Citizen 709

Curtis Mathes 734

Denon 647, 674

Fisher 653, 741

GE 711

Goldstar 677, 690

Harmon/Kardon 640, 672, 751

Hitachi 717, 754

JBL 640

JVC 637, 683, 703, 725

Kenwood 649, 676, 691, 726,

Luxman 752

Magnavox 654, 705, 740

Marantz 651, 740, 742, 743

NAD 739

Nakamichi 671, 748, 750

NEC 716, 739

Onkyo 642, 660, 662, 678

Optimus 648, 664, 734, 744,

Panasonic 643, 644, 652, 742,

Pioneer 658, 667, 668, 679,

Proton 654, 705

Quasar 652, 742, 746

Radio Shack 744

RCA 635, 638, 704, 727

Sansui 753

Sanyo 741

Sharp 712, 713, 714, 715,

Sherwood 646, 670, 736, 738,

Sony 639, 645, 650, 687,

Teac 684, 737

Technics 643, 644, 652, 742,

Toshiba 710

728, 745

749

746

702, 734

749

744

728, 729, 730

746

Page 73

Chapter 4

Reference

Tuner/Amplifier Codes

Yamaha 663, 730, 731, 732,

733, 745, 747

DVD/VCR Combo

DVD/VCR Codes

Go Video 692,693

JVC 689

RCA 690

Samsung 667,691

TV/DVD Combo Codes

Programming for
combination devices

the remote control in TV mode
and then in VCR (or AUX ­press 1 before entering the DVD
code) mode.

TV/DVD Codes

Aiwa 751

Broksonic 752

Konka 753

Panasonic 734

: Program

RCA 749

Sansui 754

Tos hib a 7 50

Page 74

Index

A

Audio

Changing Program Languages

Automatic Event Timer

36

B

Back Panel, Receiver 10
Banner, Browse
Banner, Program
Browse Banner

Displaying Information on Other

Programs

Using the Browse Banner

Buttons

Locking the Receiver Front Panel

Control Buttons

Receiver Front Panel Control

Buttons

29

29

29

29

48

9

C

Caller ID 51
Changing Channels
Changing Program Languages 53
Channel Locks
Channels, Changing
Closing the Menus 25
Closing the Program Guide
Coaxial Cable Connections
Connecting Your Receiver to a Phone

Line

19

Connecting Your Receiver to an HDTV

or HD Monitor
Control a TV with the Remote
Control a VCR (VideoCassette

Recorder) or Second VCR
Control a VCR or a DVD Player
Control a VCR with the Remote
Control Buttons, Receiver Front Panel
Control Other Devices with the Remote

53
Control, Remote
Controlling a Device
Customer Service

24

47

24

29
10

13

56

57

11

53

63

57

57

53

Check the Device Codes
Scan for Device Codes
Tuner/Amplifier
TV 70
TV/DVD Combo
VCR

Dish Home Interactive TV Applications

Displaying Program Information

71

33

Using the Browse Banner
Using the Program Banner

73

56

55

74

29

29

29

E

Event Timers

Automatic Event Timer
Before an Event Timer Operates 37
Editing an Event Timer
Event Timer Frequencies
Event Timer Types 36
Manual Event Timer
Maximum Number of Event Timers

40
Quick Record
Setting Up the Receiver and VCR to

Use a VCR Event Timer

Events (Programs)

39

36

36

40

36

36

42

F

Favorite Lists

Changing the Name of a Favorite

List

35

Creating or Modifying a Favorite

List

34

Making a Favorite List Active 35
Using Favorite Lists

Favorites Lists

How Resetting the Receiver Affects

Favorites Lists

FCC

9

84

Federal Communications Commission

(FCC) Compliance

Radio Interference
Telephone Communication

Front Panel, Receiver

33

52

85

84

9

D

Device Code Scan 55
Device Codes

Page 87

Index

G

Guide, Program 27

H

Highlighting a Choice in a Menu List 26
Highlighting a Menu Option

25

I

Information

Problems and Solutions Tables 63

L

Legal Notices 84
Lists of Choices in the Menus

Multiple Choice Lists
Single Choice Lists 25

Locks

Accessing a Locked Item or Opening

the Locks Menu

Creating or Changing Channel

Locks

Creating or Changing Rating

Entering the Password
Hiding Adult Channels 49
How Resetting the Receiver Affects

How to Set Locks - A Two Step

Locking Pay Per View Programs
Locking the Receiver Front Panel

Opening the Locks Menu
Personal Identification Number

47

(Content) Code Locks

Locks

52

Process

Control Buttons

(PIN)

43

50

25

44

45

44

48

44

M

Manual Event Timer 36
Menu Options

Highlighting a Menu Option
Selecting a Menu Option

Menus

Browse Banner
Closing the Menus
Displaying Program Information
Highlighting a Choice in a Menu List

26
Lists of Choices in the Menus
Menu Options
Opening the Menus
Program Guide
Selecting a Choice in a Menu List
Selecting a Menu Option

25

25

29

25

25

25

27

25

25

25

48

29

26

Time-Out Feature
Using the Menus

25

24

O

On-Screen Messages 64
Opening the Menus
Opening the Program Guide
Options, Menu
Ordering Pay Per View Programs 31
Overview

1

25

28

25

P

Parental and System Locks Menu

(Locks Menu)

Opening the Menu When You Have

Locked the Receiver

Pay Per View

Stay Legal

Pay Per View Programs

Locking Pay Per View Programs

Personal Identification Number (PIN)

50

PIN (Personal Identification Number)

50
Power Light
Problems and Solutions Tables

Using the Remote Control 65

Program Banner

Using the Program Banner

Program Guide

Closing the Program Guide
Opening the Program Guide
Selecting a Program in the Program

Guide

Using the Program Guide

Programs

Events

84

9

28

36

44

48

63

29

29

28

27

Q

Quick Record 39
Quick Start Guide
Quick Tour of the Menus

2

4

R

Radio Interference 85
Rating (Content) Code Locks
Receiver

Back Panel
Front Panel 9
Radio Interference
Resetting the Receiver

Telephone Communication
Receiver Back Panel
Receiver Front Panel

10

10

9

45

85

52

84

Page 88

Index

Control Buttons 9
Locking the Front Panel Control

Buttons

Power Light

Smart Card Access Door 9

Remote Control

Device Codes, Check the
Device Codes, Scan for
Remote Control Buttons
Using the Remote Control

Remote Control Modes
REN 84
Resetting the Receiver
Ringer Equivalence Number (REN)

84

48

9

11

55

53

52

S

Selecting a Choice in a Menu List 26
Selecting a Menu Option
Selecting a Program in the Program

Guide

28

Service, Customer
Setting Up the Receiver and VCR to

Use a VCR Event Timer

Setting up the Remote to Control

Other Devices

Smart Card Access Door 9
Staying Legal

53

84

25

63

42

T

Telephone Connection

Testing the Telephone

Connection

Testing the System

Starting a Test
Telephone Connection 61

The Receiver Back Panel

Connections

The Receiver Front Panel 9
Theme Categories (Themes)

Using Themes

Themes (Theme Categories)

Using Themes

Timers, Event

Setting Up the Receiver and VCR

to Use a VCR Event Timer

Troubleshooting

Problems and Solutions Tables

63

Testing the System

Trouble-Shooting Tables

Buying a Pay Per View Program

68
Changing Channels
On-Screen Messages
Using Event Timers
Using Favorite Lists
Using Locks
Using the Menus
Using the Program Guide or the

61

61

61

10

32

32

61

67

64

69

67

67

66

56

21

65

42

Browse Banner

Using the Telephone for Voice/

Data/FAX

Troubleshooting Tables
Tuner/Amplifier Codes 73
TV - Controlling with the Remote
TV Codes
TV/DVD Combo Codes

70

66

68

63

56

74

U

Use the Remote to Control a TV 56
Using 32
Using Caller ID
Using Favorite Lists
Using Favorites Lists 33
Using Locks
Using the Menus

Closing the Menus 25
Displaying Program Information

29

Highlighting a Choice in a Menu

List

Highlighting a Menu Option
Lists of Choices in the Menus 25
Menu Options
Opening the Menus
Selecting a Choice in a Menu List

26

Selecting a Menu Option

Using the Program Guide 27
Using the Remote Control
Using Timers

51

33

43

24

26

25

25

21, 65

36

25

25

V

VCR Codes 71

W

Warranty 75

Page 89

Index

Notes

Page 90

Notes

Index

Page 91

Index

Notes

Page 92

Appendix

Limited Warranty

This Limited Warranty is a legal document. Keep it in a safe place. Remember to retain

your Bill of Sale for warranty service! Any items returned without a copy of the Proof of

Purchase will be considered out of warranty.

What the Warranty Covers

This warranty extends only to the original user of the equipment and is limited to the
purchase price of each part. EchoStar Technologies Corporation and its affiliated
companies ("EchoStar") warrant this system against defects in materials or
workmanship as follows:

• LABOR: For a period of one (1) year from the original date of purchase, if EchoStar

determines that the equipment is defective subject to the limitations of this warranty, it will be
replaced at no charge for labor. EchoStar warrants any such work done against defects in
materials or workmanship for the remaining portion of the original warranty period.

•

Parts: For a period of one (1) year from the original date of purchase, EchoStar will supply,

at no charge, new or re-manufactured parts in exchange for parts determined to be defective
subject to the limitations of this warranty. EchoStar warrants any such replacement parts
against defects in materials or workmanship for the remaining part of the original warranty
period.
Note: “Parts” means items included in this package, which may include the satellite dish
assembly, receiver, LNBF, remote control, or dish mounting hardware. It does not include
other parts purchased separately.

What the Warranty Does Not Cover

• This warranty does not cover installation of the system. If applicable, such installation will be
warranted under a separate installation agreement.

• This warranty does not cover consumer instruction, physical setup or adjustment of any
consumer electronic devices, remote control batteries, signal reception problems, loss of use of
the system, or unused programming charges due to system malfunction.

• This warranty does not cover cosmetic damage, damage due to lightning, electrical or
telephone line surges, battery leakage, fire, flood, or other acts of Nature, accident, misuse,
abuse, repair or alteration by other than authorized factory service, use of accessories not
recommended by the receiver manufacturer, negligence, commercial or institutional use, or
improper or neglected maintenance.

• This warranty does not cover equipment sold AS IS or WITH ALL FAULTS, shipping and
handling, removal or reinstallation, shipping damage if the equipment was not packed and
shipped in the manner prescribed, nor equipment purchased, serviced, or operated outside the
continental United States of America.

Page 75

Appendix

Legal Limitations

REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE
REMEDY. ECHOSTAR SHALL NOT BE HELD LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESSED OR IMPLIED
WARRANTY ON THIS SYSTEM, NOR FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF, OR INABILITY TO USE, THIS SYSTEM.
UNDER NO CIRCUMSTANCES SHALL ECHOSTAR'S LIABILITY, IF ANY, EXCEED THE
PURCHASE PRICE PAID FOR THIS SYSTEM. EXCEPT TO THE EXTENT PROHIBITED
BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ON THIS SYSTEM IS LIMITED IN DURATION
TO THE PERIOD OF THIS WARRANTY. ECHOSTAR RESERVES THE RIGHT TO REFUSE
TO HONOR THIS WARRANTY IF ECHOSTAR DETERMINES ANY OF THE ABOVE
EXCEPTIONS TO HAVE CAUSED THIS SYSTEM NOT TO HAVE PERFORMED
PROPERLY. THIS WARRANTY SHALL BE VOID IF ANY FACTORY-APPLIED
IDENTIFICATION MARK, INCLUDING BUT NOT LIMITED TO SERIAL OR
CONDITIONAL ACCESS NUMBERS, HAS BEEN ALTERED OR REMOVED. THIS
WARRANTY SHALL ALSO BE VOID IF THE RECEIVER HAS BEEN OPENED BY AN
UNAUTHORIZED PERSON.

If You Need Assistance

1. Call the Commercial Customer Service Center at 1-800-454-0843. Have the date of
purchase and either your customer account number, the receiver conditional access
number, or the receiver model number ready. Display the Important System
Information menu to find these numbers.

2. A Commercial Customer Service Representative will assist you.

3. If the Representative determines you should return any equipment, you will be directed
to call a Return Authorization representative. Before shipping any equipment, you
must talk to a Return Authorization representative and must obtain a Return
Authorization (RA) number.

4. You will be given the appropriate address for which to return your equipment. Whether
under warranty or not, you will be responsible for the cost of shipping back the
defective equipment. For faster service, see the Advance Exchange Program below.

5. Returned equipment must be packaged properly, using either the original shipping
materials or the packaging in which the replacement equipment is shipped. Include a
copy of the Bill of Sale. Any items returned without a copy of the Proof of Purchase
will be considered out of warranty. Follow the instructions given to you by the
Customer Service Representative.

6. Write the RA number in large, clearly visible characters on the outside of the shipping
box that you use to return the equipment. To avoid confusion and misunderstandings,
shipments without an RA number clearly visible on the outside of the box will be
returned to you at your expense.

Page 76

Advance Exchange Program

The Advance Exchange Program allows you to have replacement equipment
shipped immediately to you (depending upon where you live, it could take three to
five business days). Along with replacement equipment, you will receive a prepaid
shipping label and instructions on how to return the defective equipment.

The shipping charge, for receiving replacement equipment and returning the
defective equipment, is a one-time fee based on EchoStar's competitive bulk
shipping rates (additional charges may apply outside of the continental US). This
fee will be charged to your billing account or your valid credit card.

If you do not ship the defective equipment to EchoStar within ten days after
receiving the replacement, your billing account or credit card will be charged the
market price of the replacement. If you return the defective equipment after ten
days, you will receive a full refund less an administrative fee.

If your equipment is out of warranty and can be repaired your billing account or
credit card will be charged the standard repair fee for the replacement. If damage
to the defective equipment is found, which EchoStar in its sole discretion
determines has voided the warranty, or makes the equipment unrepairable, billing
account or credit card will be charged the market price of the replacement.

Post Receipt Exchange Program

You may choose to ship the equipment to us at your cost. To provide faster service,
upon receipt of your equipment you will be shipped a replacement. Your original
equipment will not be available for return.

The equipment you return will be checked to verify whether it is covered under
this warranty. If the defective equipment is covered under this warranty, it will be
replaced and shipped back to you at no additional cost (additional charges may
apply outside of the continental US).

If your equipment is out of warranty and can be repaired your billing account or
credit card will be charged the standard repair fee for the replacement. If damage
to the defective equipment is found, which EchoStar in its sole discretion
determines has voided the warranty, or makes the equipment unrepairable, your
billing account or credit card will be charged the market price of the replacement.

Limited Warranty

Accessory Warranty

An accessory is any DISH Network branded equipment, displaying the DISH
Network logo, excluding the receiver, cables and hookups, and non-mechanical
components. A one-year warranty becomes effective upon the activation of the
DISH system or date of purchase, if bought separately. A proof of purchase is
required to verify the purchase date. If an accessory has an expired warranty, no
exchange will be issued. You may purchase replacement accessories from DISH
Network or your local retailer.

Page 77

Appendix

Residential Customer Agreement

THIS RESIDENTIAL CUSTOMER AGREEMENT IS EFFECTIVE UNTIL REPLACED.
THIS DOCUMENT DESCRIBES THE TERMS AND CONDITIONS UNDER WHICH
DISH NETWORK WILL PROVIDE ITS SERVICE TO YOU. IF YOU DO NOT ACCEPT
THESE TERMS AND CONDITIONS, PLEASE NOTIFY US IMMEDIATELY AND WE
WILL CANCEL YOUR SERVICE. IF YOU ARE A NEW DISH NETWORK
CUSTOMER, YOUR ACTIVATION OF A DISH NETWORK ACCOUNT AND RECEIPT
OF DISH NETWORK SERVICES SHALL CONSTITUTE YOUR ACCEPTANCE OF
THIS AGREEMENT AND ITS TERMS AND CONDITIONS WILL BE LEGALLY
BINDING UPON YOU.

IF YOU ARE AN EXISTING DISH NETWORK CUSTOMER, YOUR CONTINUED
RECEIPT OF DISH NETWORK SERVICES FOLLOWING RECEIPT OR PUBLICATION
BY DISH NETWORK ON ITS WEB SITE OF THIS AGREEMENT SHALL
CONSTITUTE YOUR ACCEPTANCE OF ITS TERMS AND CONDITIONS, AND,
ACCORDINGLY, THEY WILL BE LEGALLY BINDING ON YOU.

Thank you for choosing DISH Network for your television service provider.

DISH Network is happy to answer any questions you may have and to provide you with
technical and other customer support through the following toll-free number and email
address:

1-800-454-0843

[e-mail]

or you may write to:

DISH Network

Customer Service Center

P.O. Box 33577

Northglenn, CO 80233

and, for general knowledge, try our website at www.dishnetwork.com.

"DISH Network" is a trademark of EchoStar Satellite L.L.C.

1. THE DISH NETWORK SERVICE

A. Services Defined. DISH Network offers a wide variety of video and audio
programming and other services and we are constantly striving to add new services to our
lineup. For purposes of this Agreement the term "Services" shall mean the programming
available on DISH Network (whether subscription based or pay per view based) and any
other services that we may provide to consumers either now or in the future. For purposes
of this Agreement the terms "You" or "Your" refer to you, the DISH Network subscriber.

B. Programming Changes
change your programming selection at any time by notifying us. A fee may apply to such
changes (Change of Service Fee). In addition, you may be charged a fee (Service Access
Fee) if you fail to subscribe to one of DISH Network's basic programming packages which
include America's Top 60, America's Top 120, America's Top 180, DISH Latino or DISH
Latino Max.

. Except as otherwise set forth in this Agreement, you may

Page 78

Residential Customer Agreement

C. Programming Availability. Certain Services transmitted by us, including but not
limited to some subscription Services, sporting events and broadcast network Services, may
be blacked out in your area of reception. If you circumvent or attempt to circumvent any of
these blackouts, you may be subject to legal action. You must be at least 18 years of age, or
the applicable age of majority where you reside, in order to receive adult-oriented
programming services.

D. Ordering Pay Per View
using your on-screen Program Guide and remote control unit to select the movies and other
events we offer. To order DISH Network pay-per-view Services, your DISH Network DBS
digital receiver must be connected to a telephone outlet. You may also order DISH Network
special events and pay-per-view Services over the telephone by calling the Commercial
Customer Service Center or by using our automated system through the following toll-free
number:

1-877-DISH-PPV (347-4778) for ordering movies

A fee will apply for use of the automated system (Pay-Per-View Automated Fee) or the
Commercial Customer Service Center (Pay-Per-View Fee).

E. Private Viewing
viewing, use and enjoyment. You agree that the Services provided will not be viewed outside
of your private residence. You are permitted to exhibit the Services solely in your private
residence and not in any other areas. The Services may not be rebroadcast, transmitted,
recorded or performed, nor may admission be charged for listening to or viewing any
Services provided by us. If we later determine that you utilized your DISH Network
Equipment (including any additional DISH Network receivers) or sold, leased or otherwise
gave possession of the same to a third party who you knew or reasonably should have known
intended to use it to permit the viewing of the Services in a commercial establishment or any
other area open to the public, we may terminate the Services and in addition to all other
applicable fees, you agree to pay us the difference between the price actually paid for the
Services and the full commercial rate for such Services, regardless of whether we have or
had the commercial rights to distribute such Services in a commercial establishment. The
payment of that amount and/or the termination of Services shall not prejudice our ability to
exercise any other rights and remedies we may have under this Agreement, at law, in equity,
or otherwise.

. You may order DISH Network pay-per-view Services by

. DISH Network provides Services to you for your private home

F. Additional Receivers
receivers on your account. Each additional receiver would be authorized to receive the same
Services as your initial receiver. Unless your receiver is rented from DISH Network in which
case a monthly rental fee will apply, DISH Network will charge you a monthly Additional
Outlet Programming Access Fee for each additional receiver added to your account. This
option is only available if your initial DISH Network receiver and all additional receiver(s)
are located at the same residence and are continuously connected to the same telephone line.
If you desire to receive Services at two different locations, you must open a separate account
for each location. You agree that you will not directly or indirectly use a single account for
the purpose of authorizing Services for multiple DISH Network receivers that are not all
located in the same residence and connected to the same phone line. If we later determine
that you did, we may terminate your Services and, in addition to all other applicable fees,
you agree to pay us the difference between the amounts actually received by us and the full
retail price for the Services authorized for each DISH Network DBS receiver on the account,
whether owned by you or not. The payment of that amount and/or the termination of
Services shall be in addition to any other rights and remedies we may have under this
Agreement, at law, in equity, or otherwise.

G. Changes in Services offered
that we offer, and our prices or fees related to such Services at any time. If the change affects
you, we will provide you notice of the change and its effective date. The notice may be
provided on your billing statement or by other communication permitted under Section 9B.
In the event of a change in the contents of any programming, programming packages or
other Services, you understand and agree that we have no obligation to replace or

. DISH Network will allow you to place up to five additional

. DISH Network reserves the right to change the Services

Page 79

Appendix

supplement the programming, programming packages or other Services previously offered
that have been deleted, rearranged or otherwise changed. You further understand and agree
you will not be entitled to any refund because of a change in the contents of any
programming, programming packages, or other Services previously offered.

H. Multi-Month Subscriptions
Services only at the time of renewal. You may not downgrade the Services during the term of
the multi-month subscription.

I. Fees for Receivers that Independently Support Multiple Televisions
may apply for a receiver which supports independent viewing of programming on multiple
televisions.

. For multi-month subscriptions, you may downgrade the

. Additional fees

2. BILLING POLICIES AND PAYMENTS FOR SERVICES

A. You agree to pay all amounts billed for Services and to pay all taxes, fees and other
charges, if any, which are now or may in the future be assessed on the Services you receive
from us. Unless you prepay for a multi-month subscription to Services, we will bill you each
month, in advance, for Services ordered by you or anyone who uses your DISH Network
Equipment, whether with or without your permission, until you cancel the Services. The bills
you receive will show the total amount due, the payment due date, payments, credits,
purchases and other charges to your account.

B. You agree to pay us in full monthly by the payment due date for the Services and for
any other charges due us, including any fees set forth in this Section 2. Payment of your bill
after the due date will result in you paying us a Late Payment Fee. Other fees and charges
may also be assessed. If partial payments are made, they will be applied first to the oldest
outstanding bill. If you send checks or money orders marked "payment in full," we can
accept them without losing any of our rights to collect any other amounts owed by you,
notwithstanding your characterization of the payment. DISH Network does not extend credit
to our customers, and the Late Payment Fee is not interest, a credit service charge or a
finance charge. You understand and agree that in the case of late payment or nonpayment for
any Services ordered by you or for any of the charges stated below, we may report such late
payment or nonpayment to credit reporting agencies. If you do not pay your bill by the due
date, we have the right to disconnect your Services at any time thereafter, in our sole
discretion. DISH Network may require you to pay all past due charges, a Reconnect Fee, a
deposit equal to a minimum of one month's advance charges and all outstanding balances
accrued through the date of deactivation, before we reconnect your Services. Deposits will
not be held segregated from other funds and shall not earn or accrue interest.

C. If you at any time fail, neglect, or refuse to make timely payments hereunder, or if a
petition in bankruptcy shall be filed on your behalf or against you, or if you take advantage
of any insolvency law or become insolvent or make an assignment for the benefit of
creditors, or if a receiver, liquidator, or trustee is appointed for your property or affairs, we
shall be wholly relieved from our obligations hereunder.

D. If you paid for an annual or other multi-month subscription to any Services and your
account is past due for any amounts owed to us, at our option we may suspend any or all
Service until payment is received, and/or convert your annual or other multi-month
subscription to a monthly subscription. If we convert your multi-month subscription to a
monthly subscription, we will first apply the amount you paid for your multi-month
subscription to any past due amounts and then any remaining amounts to future obligations.
If we elect to offset the amount paid for the remaining portion of a multi-month subscription
against amounts past due, you agree to pay, in addition to all other applicable fees, the Offset
Fee set forth below for each month and partial month that the multi-month subscription was
previously received.

E. If we use a collection agency or attorney to collect money you owe us or to assert any
other right which we may have against you, you agree to pay the reasonable costs of
collection or other action. These costs might include, but are not limited to, the costs of a
collection agency, reasonable attorney's fees and court costs. If there are billing errors or

Page 80

Residential Customer Agreement

other requests for credit, you can contact our Commercial Customer Service Center by
telephone or in writing. You must contact us within sixty (60) days of the time you receive
the billing statement for which you are seeking corrections. Failure to timely notify us of a
dispute shall constitute acceptance of the bill. Undisputed portions of the billing statement
must be paid before the next billing statement is issued to avoid an administrative fee for late
payment. All payments for Services must be made directly by you to us. DISH Network
shall have no obligation to provide Services for which payment is made by you to a third
party.

F. In addition to the amounts due for Services, you agree to pay the fees referenced
below ("Fees") when applicable. DISH Network reserves the right to increase these Fees or
add additional Fees in the future, in our sole discretion:

Smart Card Replacement Fee $50.00

Additional Outlet Programming Access Fee (monthly, per receiver)$4.99

Late Payment Fee $5.00

Change of Service Fee $5.00

Duplicate Billing Statement Fee $2.00

Overnight Delivery Fee $18.00

Restart Fee $25.00

Returned Payment Fee $25.00

Service Access Fee (monthly) $5.00

Offset Fee $2.00

Ledger Request Fee $5.00

Pay-Per-View Automated Fee $1.00

Pay-Per-View Fee $5.00

3. CANCELLATION OF SERVICE

A. Your Service will continue until cancelled as provided for herein. Your subscription
will be automatically renewed unless you contact us to cancel as provided for in the next
paragraph.

B. You have the right to cancel your Service for any reason at any time by notifying us
via telephone or in writing at the phone number or address set forth on page 1, above. Please
be aware that certain promotional offers have a minimum subscription commitment (usually
12 months) and if you cancel your service prior to the expiration of that commitment, certain
early termination fees may apply.

C. DISH Network has the right to terminate your Services at any time without
providing notice to you if: (i) you fail to pay your bill when it is due; (ii) we receive
confirmation that you have received the Services, or any part of the Services without paying
for them; or (iii) you otherwise violate the terms of this Agreement.

D. If your Service is cancelled for any reason, you are still responsible for payment of
all outstanding balances accrued, including any applicable Fees.

E. You understand that charges for Services, once charged to your account, are
nonrefundable. For monthly subscriptions, the cancellation will be effective at the end of the
period covered by the last monthly bill. No refunds or credits will be provided in connection
with the cancellation of monthly subscriptions. For annual or other multi-month
subscriptions, the cancellation will be effective as of the date the multi-month subscription
expires. Because you are receiving a discounted price in exchange for your agreement to pay
for your services on an annual or other multi-month basis, in the event you cancel the
Services prior to expiration of your multi-month subscription, you understand and agree that
you are not entitled to any refund or credit for the unused portions of the multi-month
subscription and that we have the right to retain any prepaid monies as liquidated damages.

Page 81

Appendix

4. EQUIPMENT

A. In order to receive the Services it will be necessary for you to purchase or lease
certain reception equipment consisting primarily of a DISH Network compatible satellite
receiver, and remote control ("Equipment"). You may also be provided with a conditional
access card ("Smart Card") that is inserted into your satellite receiver. The Smart Card
remains the property of EchoStar Satellite L.L.C. Any tampering or other unauthorized
modification to the Smart Card is strictly prohibited and may result in, and subject you to,
legal action. You agree to return the Smart Card to us upon request.

B. Smart Cards are nontransferable. Your Smart Card will only work in the DISH
Network receiver to which it was assigned by DISH Network. If you report to the
Commercial Customer Service Center that your Smart Card was lost, damaged, defective or
stolen we will replace it, as long as there is no evidence of unauthorized tampering or
modification. A replacement fee will apply. In addition, in order to minimize downtime for
your Equipment, DISH Network will, upon your request, deliver a replacement Smart Card
to you via overnight delivery. Our Overnight Delivery Fee will apply.

C. DISH Network reserves the right to alter software in your DISH Network receiver,
and provide content to DVR products, through periodic downloads. DISH Network will use
commercially reasonable efforts to schedule these downloads to minimize interference with
or interruption to your Service.

D. Your DISH Network receiver contains certain components and software which are
proprietary to DISH Network. You agree that you will not try to reverse-engineer, decompile
or disassemble any software or hardware contained within your receiver or our Smart Card.
Such actions are strictly prohibited and may result in the termination of your Services and/or
legal action.

E. For proper operation of your Equipment, DISH Network requires that you connect
each DISH Network receiver on your account to a telephone line. For accounts containing
multiple receivers, each receiver must be connected to the same telephone line. Failure to
comply with this requirement may result in interruption of service.

F. If your DISH Network Equipment is stolen or otherwise removed from your
premises without your authorization, you must notify our Commercial Customer Service
Center immediately, but in any event not more than three (3) business days after such
removal to avoid liability for payment for unauthorized use of the DISH Network
Equipment. You will not be liable for unauthorized use after we have received your timely
notification.

Page 82

5. LEASED EQUIPMENT

A. If you decide to lease your Equipment from DISH Network, the terms and
conditions of the lease agreement shall apply, in addition to the terms and conditions of this
Agreement. Such Equipment shall at all times remain the sole and exclusive property of
DISH Network and we will have the right, at our discretion, to replace it with new or
reconditioned equipment and to remove, or require the return of, the equipment upon
termination of Services. None of the equipment shall be deemed fixtures or part of your
realty. Our ownership of the equipment may be displayed by notice contained on the
equipment. You shall have no right to pledge, sell, mortgage, give away or remove, relocate,
alter or tamper with the equipment (or any notice of our ownership thereon) at any time. Any
reinstallation, return of or change in location of the equipment shall be performed by us at
the service rates in effect at the time of service. You shall not attach any electrical or other
devices to or otherwise alter the equipment without our prior written consent. DISH Network
shall have the right to make such filings as are necessary to evidence our ownership rights in
the equipment, and you agree to execute any and all documents as are necessary for us to
make such filings. Upon termination of Services, you must notify our Commercial Customer
Service Center to schedule the return the Equipment.

Residential Customer Agreement

B. You shall notify us promptly of any defect in, damage to, or accident involving the
equipment. All maintenance and repair of the equipment shall be performed by us or our
designees. DISH Network may charge you for any repairs that are necessitated by any
damage to, or misuse of, the Equipment.

6. TRANSFER OF ACCOUNT, SERVICES OR EQUIPMENT

DISH Network may sell, assign or transfer your account to a third party without notice
to you. You may not assign or transfer your Services without our written consent which will
not be unreasonably withheld. We may, however, refuse to allow you to assign or transfer
your Services if you lease your Equipment or if your account has an outstanding balance.

7. LIMITATION OF OUR LIABILITY

A. WE WILL NOT BE LIABLE FOR ANY INTERRUPTIONS IN SERVICE OR
LIABLE FOR ANY DELAY OR FAILURE TO PERFORM, IF SUCH DELAY OR
NONPERFORMANCE ARISES IN CONNECTION WITH THE TERMINATION OF ALL
OR A PORTION OF THE SERVICES, THE RELOCATION OF ALL OR A PORTION OF
THE SERVICES TO DIFFERENT SATELLITE(S), A CHANGE IN THE FEATURES
AVAILABLE WITH YOUR DISH NETWORK DBS EQUIPMENT OR ANY ACTS OF
GOD, FIRES, EARTHQUAKES, FLOODS, POWER OR TECHNICAL FAILURE, ACTS
OF ANY GOVERNMENTAL BODY OR ANY OTHER CAUSE BEYOND OUR
CONTROL. WE WILL NOT BE LIABLE FOR ANY DAMAGE RESULTING FROM
LOSS OF RECORDED MATERIAL OR THE PREVENTION OF RECORDING DUE TO
ANY FAULT, FAILURE, DEFICIENCY OR DEFECT IN SERVICES OR EQUIPMENT.
WE MAKE NO WARRANTY, EITHER EXPRESSED OR IMPLIED, REGARDING THE
DISH NETWORK DBS EQUIPMENT OR ANY SERVICES FURNISHED TO YOU. ALL
SUCH WARRANTIES ARE EXPRESSLY EXCLUDED. IN NO EVENT SHALL WE
HAVE ANY LIABILITY FOR SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RELATING TO THE DBS EQUIPMENT OR
RESULTING FROM OUR FURNISHING OR FAILURE TO FURNISH ANY SERVICES
OR EQUIPMENT TO YOU, OR FROM ANY FAULT, FAILURE, DEFICIENCY OR
DEFECT IN SERVICES OR EQUIPMENT FURNISHED TO YOU.

B. It is your responsibility to impose any restrictions on viewing by you, other members
of your household, or guests, and we shall have no liability to anyone due to or based on the
content of any of the Services furnished to you.

8. WARNING AGAINST PIRACY

It is a violation of several U.S. federal and state laws to receive any Services, or any
portion of such Services, without paying for them. The penalties for violating such laws can
range from imprisonment to civil damage awards of up to $110,000 per violation.

9. MISCELLANEOUS

A. Physical Address/Change of Address. When setting up your DISH Network account,
you agree to provide us with the physical street address where the Equipment will be located.
A post office box does not constitute a physical address and is not sufficient to meet this
requirement. You agree to give us prompt notice of your change of name, mailing address,
physical address where the Equipment is located or telephone number. You may do this by
notifying our Commercial Customer Service Center by telephone or in writing.

B. Notice
Mail, addressed to you at your billing address or hand-delivered to you. Our notice to you
will also be effective if provided on your billing statement or by telephone. If you give notice
to us, it will be deemed given when received by us at the address listed on the first page of
this Agreement.

. If we send you notice, it will be considered given when deposited in the U.S.

Page 83

Appendix

C. Applicable Law. This Agreement, including all matters relating to its validity,
construction, performance and enforcement, shall be governed by applicable federal law, the
rules and regulations of the Federal Communications Commission, and the laws and
regulations of the state and local area where Service is provided. These terms and conditions
are subject to amendment, modification or termination if required by such regulations or
laws. If any provision in this Agreement is declared to be illegal or in conflict with any law
or regulation, that provision may be deleted or modified, without affecting the validity of the
other provision.

D. Other
and DISH Network, including without limitation an installation agreement, lease agreement
or promotional agreement. Any and all prior oral or written representations or agreements
are superseded by this Agreement and such other written agreements. No salesperson,
installer, customer service representative, authorized retailer, or other similarly situated
individual is authorized to change the terms and conditions set forth herein. DISH Network
may, however, change the terms and conditions of this Agreement in the future and will
notify you if that occurs. The terms of this Agreement, which either are expressly stated to
survive or by their nature would logically be expected to survive termination, shall continue
thereafter until fully performed.

. This Agreement is in addition to any other written agreement between You

Staying Legal

Title 47, Section 605(e)4, United States Code (U.S.C.) makes it a federal crime to
modify this receiver to enable it to receive encrypted (scrambled) television
programming without payment of required subscriptions. Conviction can result in
a fine of up to $500,000 and imprisonment for five years, or both. Any owner of
this receiver who procures or willfully causes its modification is an accessory to
that offense and may be punishable in the same manner. Investigative authority for
violations lies with the Federal Bureau of Investigation (FBI).

This product may incorporate copyright protection technology that is protected by
U.S. patents and other intellectual property rights. Use of such copyright
protection technology must be authorized by Macrovision, and is intended for
home and other limited pay-per-view uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is prohibited.

U.S. Patent No’s 4631603, 4577216, 4819098 are licensed for limited pay per
view only.

Page 84

FCC Compliance

The following text is extracted from Federal Communications
Commission (FCC) regulations, as of the publication date of this
Guide. Contact the FCC (see following) or your library for the
complete text of the regulations.

Telephone Communication

This equipment complies with Part 68 of the FCC rules and the requirements
adopted by the ACTA. On the back panel of this equipment is a label that
contains, among other information, a product identifier in the format:
US:AAAEQ##TXXXX. If requested, this number must be provided to the
telephone company.

The REN is used to determine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone line may result in the devices not
ringing in response to an incoming call. In most but not all areas, the sum of RENs
should not exceed five (5.0). To be certain of the number of devices that may be
connected to a line, as determined by the total RENs, contact the local telephone
company. For products approved after July 23, 2001, the REN for this product is
part of the product identifier that has the format US:AAAEQ##TXXXX. The digits
represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).

For earlier products, the REN is separately shown on the label.

This equipment uses the following Universal Service Order Code (USOC) jacks:
RJ-11C.

A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant telephone cord and modular plug
is provided with this product. It is designed to be connected to a compatible
modular jack that is also compliant. See installation instructions for details.

Connection to party line service is subject to state tariffs. Contact the state public
utility commission, public service commission or corporation commission for
information.

If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this equipment does not disable your alarm equipment. If
you have questions about what will disable alarm equipment, consult your
telephone company or a qualified installer.

If this equipment causes harm to the telephone network, the telephone company
will notify you in advance that temporary discontinuance of service may be
required. If advance notice is not practical, the telephone company will notify the
customer as soon as possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations,
or procedures that could affect the operation of the equipment. If this happens, the
telephone company will provide advance notice in order for you to make the
necessary modifications in order to maintain uninterrupted service.

If you experience trouble with this equipment, please contact Commercial
Customer Service at 1-800-454-0843 for repair and warranty information. If the
trouble is causing harm to the telephone network, the telephone company may
request you remove the equipment from the network until the problem is resolved.

There are no customer repairable parts inside. Any attempts to repair
the receiver will void your authorization to use it.

FCC Compliance

Radio Interference

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including interference that
may cause undesired operation.

Modifying this receiver may void your authority to use the equipment. This
equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Page 85

Appendix

Refer to Troubleshooting in Chapter 4 for a detailed description of recommended
customer actions. If none of the remedies on the previous page stops the radio
interference, you should contact a licensed radio/television technician, your
satellite dealer, or call the Commercial Customer Service Center at 1-800-454­0843, for assistance.

Page 86

Write the following information in the spaces provided below. You may need to provide this information if you call
the Service Center. To get the Conditional Access Numbers, display the Important System Information menu
(see Ordering Your Program Packages on page 2).

Purchase Location Name:

Purchase Location Telephone Number:

Receiver Serial Number:

Receiver Conditional Access Number

Smart Card Conditional Access Number:
