3A ADJUSTABLE LOW VOLTAGE LOW DROPOUT CMOS REGULATOR
Description
The PAM3131 is a 3A CMOS adjustable LDO regulator that features
a low quiescent current, ultra low input, output, and dropout voltages,
as well as over temperature protection. It is available in TO-263 and
PSOP-8 (Exposed Pad) packages. The output voltage is adjustable
from 0.9V to 3.3V. The PAM3131 is stable with a ceramic output
capacitor of 1.0μF or higher.
This family of regulators can provide either a stand alone power
supply solution or act as a post regulator for switch mode power
supplies. They are particularly well suited for applications requiring
low input and output voltages.
Features
• Low-Dropout Regulator Supports Input Voltages Down to 1.4V
• Low Dropout Voltage: 300mV@ 3A
• Output Voltage Adjustable from 0.9V-3.3V
• Stable with a Ceramic Output Capacitor of 1.0μF or Higher
• Low Quiescent Current
• Current Limit
• Over Temperature Shutdown
• Short Circuit Current Protection
• Low Temperature Coefficient
• Standard TO-263 and PSOP-8 (Exposed Pad) Packages
• Pb-Free Package
Pin Assignments
Applications
A Product Line o
Diodes Incorporated
PAM3131
Typical Applications Circuit
• DSP, FPGA, and Microprocessor Power Supplies
• 1.2V Core Voltage for DSPs
• SATA Power Supply
• LCD TV/ Monitors
• Wireless Devices
• Communication Devices
• Portable Electronics
• Post Regulator for SMPS
PAM3131
Document number: DSxxxxx Rev. 1 - 1
1 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 2
f
Pin Description
Pin Name
VIN
EN
ADJ
VOUT
GND 3 1, 4, 8 Ground
PWRGD — 5 Power Good
Pin Number
TO263-5L PSOP-8(EPD)
1 2 Input
2 3 Enable Pin
4 6 Adjustable Pin
5 7 Output
Function
Functional Block Diagram
A Product Line o
Diodes Incorporated
PAM3131
Absolute Maximum Ratings (@T
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.
Parameter Rating Unit
Input Voltage 4.0 V
Output Pin Voltage
Operation Temperature Range -40 to +85 °C
Operation Junction Range -40 to +125 °C
Maximum Output Current
Storage Temperature -65 to +150 °C
Maximum Junction Temperature 150 °C
Soldering Temperature 300, (5sec) °C
PAM3131
Document number: DSxxxxx Rev. 1 - 1
= +25°C, unless otherwise specified.)
A
-0.3 to V
P
/(VIN–VO)
D
+0.3
IN
2 of 14
www.diodes.com
V
—
October 2012
© Diodes Incorporated
Page 3
f
Diodes Incorporated
Recommended Operating Conditions (@T
Parameter Rating Unit
Supply Voltage Range 1.4 to 3.6 V
Operation Temperature Range -40 to +85
Junction Temperataure Range -40 to +125
= +25°C, unless otherwise specified.)
A
Thermal Information
Parameter Symbol Package Max Unit
Thermal Resistance (Junction to Case)
Thermal Resistance (Junction to Ambient)
Internal Power Dissipation (TA = 25°C) PD
θ
θ
PAM3131
Document number: DSxxxxx Rev. 1 - 1
JC
JA
www.diodes.com
TO-263 7
PSOP-8 10
TO-263 35
PSOP-8 50
TO-263 2800
PSOP-8 2000
3 of 14
A Product Line o
°C
°C/W
mW
PAM3131
October 2012
© Diodes Incorporated
Page 4
f
A Product Line o
Diodes Incorporated
PAM3131
Electrical Characteristics (@T
Parameter Symbol Test Conditions Min Typ Max Units
Input Voltage Range
ADJ Reference Voltage
Dropout Voltage
Short Circuit Current
Output Current
Quiescent Current
Ground Pin Current
Line Regulation LNR
Load Regulation LDR
Over Temperature Shutdown OTS 150 °C
Over Temperature Hysteresis OTH 50 °C
Temperature Coefficient
Power Supply Ripple Rejection PSRR
Output Noise Vn f = 10Hz to 100kHz 40
Notes: 1. The minimum input voltage ( ) of the PAM3131 is determined by output voltage and dropout voltage. The minimum input voltage is defined as:
2. Output current is limited by P
PAM3131
Document number: DSxxxxx Rev. 1 - 1
D
= +25°C, VIN = VO +1V, CIN = 4.7µF, CO = 4.7µF, unless otherwise specified.)
A
V
IN
IO = 100mA
V
REF
= 500mA
I
O
V
DROP
IO = 3.0A
I
VO < 0.3V
SC
3.0 Note 2 A
IO = 0mA
VO > 0.8V
V
≤ 2.5V, IO = 10mA
O
= VO +0.5V to VO +1.5V
V
IN
I
GND
I
O
I
Q
VO > 2.5V, IO = 10mA
= 3.3V to 3.6V
V
IN
I
= 1mA to 3.0A, VIN = V
O
T
, maximum IO = PD/(V
40 ppm/°C
C
= 100mA, VO = 1.5V
I
O
IN(MAX)
-VO).
V
= 0.9V
O
VO = 1.0V
2.5V > VO ≥ 1.2V
VO ≥ 2.5V
= 0.9V
V
O
VO = 1.0V
2.5V > VO ≥ 1.2V
VO ≥ 2.5V
+0.5A
O
f = 100Hz 64
f = 1kHz 58
Note 1 3.6 V
0.882 0.900 0.918 V
330 500
220 400
50 200
40 150
500
400
350
300
1.0 A
90 150 µA
1.0 mA
0.2 1.0 %/V
0.5 2 %/A
4 of 14
www.diodes.com
October 2012
© Diodes Incorporated
µV
mV
dB
RMS
Page 5
f
Typical Performance Characteristics (@T
A Product Line o
Diodes Incorporated
= +25°C, CIN =4.7µF, CO = 2.2µF, unless otherwise specified.)
A
PAM3131
PAM3131
Document number: DSxxxxx Rev. 1 - 1
5 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 6
f
Typical Performance Characteristics (cont.) (@T
A Product Line o
Diodes Incorporated
PAM3131
= +25°C, CIN =4.7µF, CO = 2.2µF, unless otherwise specified.)
A
PAM3131
Document number: DSxxxxx Rev. 1 - 1
6 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 7
f
Typical Performance Characteristics (cont.) (@T
A Product Line o
Diodes Incorporated
PAM3131
= +25°C, CIN =4.7µF, CO = 2.2µF, unless otherwise specified.)
A
PAM3131
Document number: DSxxxxx Rev. 1 - 1
7 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 8
f
Typical Performance Characteristics (cont.) (@T
A Product Line o
Diodes Incorporated
PAM3131
= +25°C, CIN =4.7µF, CO = 2.2µF, unless otherwise specified.)
A
PAM3131
Document number: DSxxxxx Rev. 1 - 1
8 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 9
f
Typical Performance Characteristics (cont.) (@T
A Product Line o
Diodes Incorporated
PAM3131
= +25°C, CIN =4.7µF, CO = 2.2µF, unless otherwise specified.)
A
PAM3131
Document number: DSxxxxx Rev. 1 - 1
9 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 10
f
A Product Line o
Diodes Incorporated
PAM3131
Application Information
The PAM3116 family of low-dropout (LDO) regulators have several features that allow them to apply to a wide range of applications. The family
operates with very low input voltage and low dropout voltage (typically 300mV at full load), making it an efficient stand-alone power supply or
post regulator for battery or switch mode power supplies. The 1.5A output current make the PAM3116 family suitable for powering many
microprocessors and FPGA suppl ies. The PAM3116 family also has low output noise (typically 50μVRMS with 4.7μF output capacitor), making it
ideal for use in telecom equipment.
External Capacitor Requirements
A 4.7μF or larger ceramic input bypass capacitor, connected between VIN and GND and located close to the PAM3116, is required for stability. A
4.7µF minimum value capacitor from V
additional 1 0μF or larger, low ESR capacitor is recommended at the output. A higher-value, low ESR output capacitor may be necessary if large,
fast-rise-time load transients are anticipated and the device is located several inches from the power source, especially if the minimum input
voltage of 2.5V is used.
Regulator Protection
The PAM3116 features internal current limiting, thermal protection and short circuit protection. During normal operation, the PAM3116 limits
output current to about 2.5A. When current limiting engages, the output voltage scales back linearly until the over current condition ends. While
current limiting is designed to prevent gross device failure, care should be taken not to exceed the power dissipation ratings of the package. If the
temperature of the device exceeds +150°C, thermal-protection circuitry will shut down. Once the device has cooled down to approximatel y +40°C
below the high temp trip point, regulator operation resumes. The short circuit current of the PAM3116 is about 0.7A when its output pin is shorted
to ground.
Thermal Information
The amount of heat that an LDO linear regulator generates is:
All integrated circuits have a maximum allowable junction temperature (T
must design the operating environment so that the operating junction temperature (T
). The two main environmental variables that a designer can use to improve thermal performance are air flow and external heat sinks.
(T
J(MAX)
The purpose of thi s information is to aid the designer in determining the proper operating environment for a linear regulator that is operating at a
specific power level.
In general, the maximum expected power (P
Where:
• V
• V
• I
• I
For most LDO regulators, the quiescent current is insignificant compared to the average output current; therefore, the term V
neglected. The operating junction temperature is computed by adding the ambient temperature (T
regulator's power dissipation. The temperature rise is computed by multiplying the maximum expected power dissipation by the sum of the
thermal resistances between the junction and the case R
resistances are measures of how effectively an object dissipates heat. Typically, the larger the device, the more surface area available for power
dissipation so that the object’s thermal resistance will be lowers.
()
−=
IVVP
OOIND
is the average input voltage.
I(AVG)
is the average output voltage.
O(AVG)
is the average output current.
O(AVG)
is the quiescent current.
(Q)
to GND is also required. To improve transient response, noise rejection, and ripple rejection, an
O
) above which normal operation is not assured. A system designer
J(MAX)
) does not exceed the maximum junction temperature
J
) consumed by a linear regulator is computed as:
D(MAX)
xIQ can be
I(AVG)
) and the increase in temperature due to the
A
), the case to heatsink (R
θJC
), and the heatsink to ambient (R
θCS
). Thermal
θSA
PAM3131
Document number: DSxxxxx Rev. 1 - 1
10 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 11
f
Ordering Information
A Product Line o
Diodes Incorporated
PAM3131
Part Number Package Type Standard Package
PAM3131AMBR TO236-5L 800 Units/Tape&Reel
PAM3131BECR PSOP-8 2500 Units/Tape&Reel

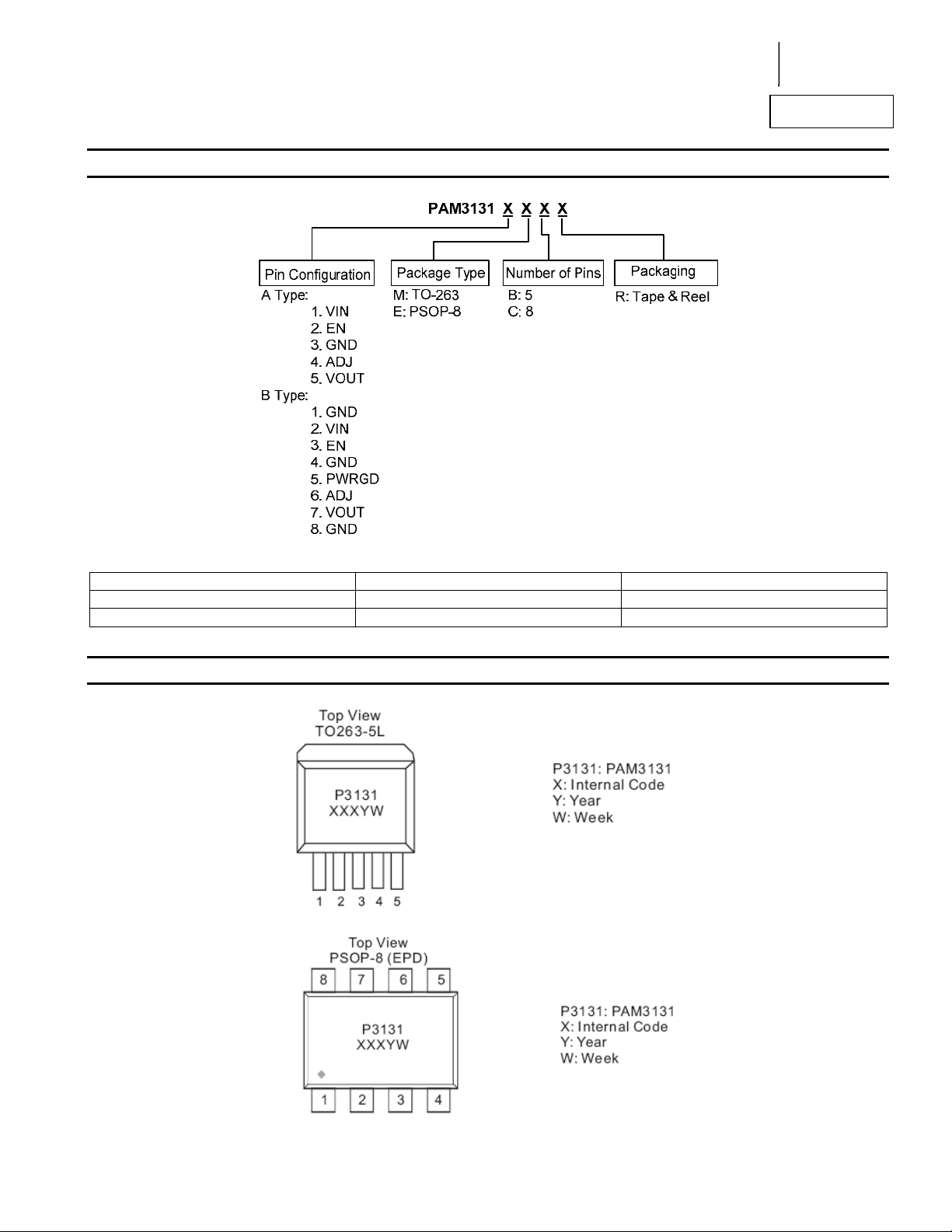

Marking Information
PAM3131
Document number: DSxxxxx Rev. 1 - 1
11 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 12
f
Package Outline Dimensions (All dimensions in mm.)
TO263-5L
A Product Line o
Diodes Incorporated
PAM3131
PAM3131
Document number: DSxxxxx Rev. 1 - 1
12 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 13
f
Package Outline Dimensions (cont.) (All dimensions in mm.)
PSOP-8
A Product Line o
Diodes Incorporated
PAM3131
PAM3131
Document number: DSxxxxx Rev. 1 - 1
13 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Page 14
f
A Product Line o
Diodes Incorporated
PAM3131
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales
channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or fo reign p atents pending. Product names a nd markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and
any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or
systems.
Copyright © 2012, Diodes Incorporated
www.diodes.com
IMPORTANT NOTICE
LIFE SUPPORT
PAM3131
Document number: DSxxxxx Rev. 1 - 1
14 of 14
www.diodes.com
October 2012
© Diodes Incorporated
Loading...
