PROFESSIONAL DJ CONTROLLER
BOOTH VOLUME
AM4252
USER’S MANUAL
TABLE OF CONTENTS
WARNINGSAFTEY INSTRUCTIONS...................................................................
SETTING UP.................................................................................................. ...
Unpacking................................... ....
System requirements.................... ...
INSTALLATION OPERATION .................... .. .. ....................................................
SOFTWARE INSTALLATION........................................................................... ...
Installation PC.................................
Installation MAC......................... ....
RUNNING FOR THE FIRST TIME.................................................................... ...

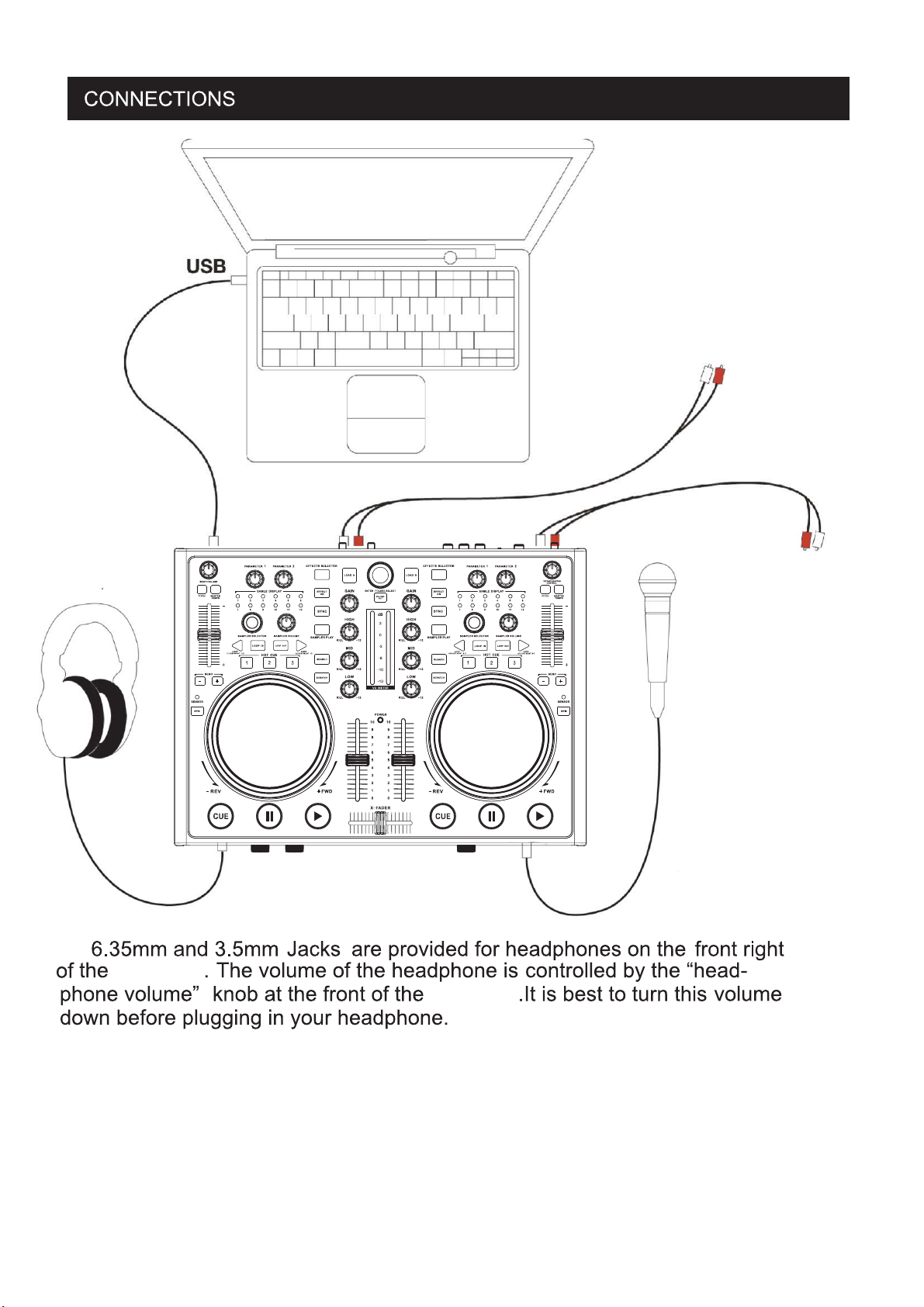

CONNECTIONS(HARDWARE)............ ............................................................. .
FRONT AND REAR PANEL OVERVIEW........................................................... ...
INTERFACE(SOFTWARE)............................................................................. ...
BROWSER................................................................................................... ...

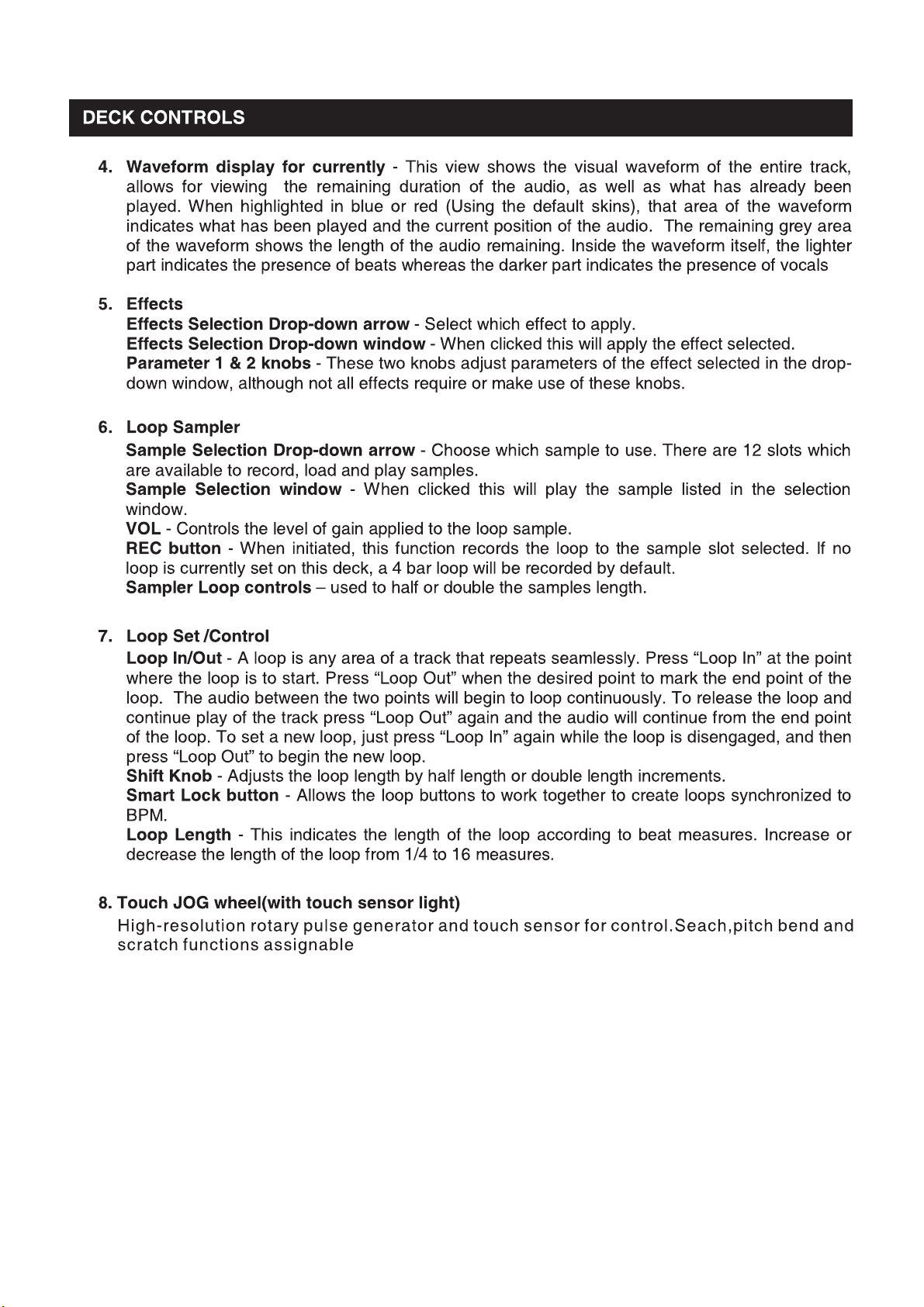

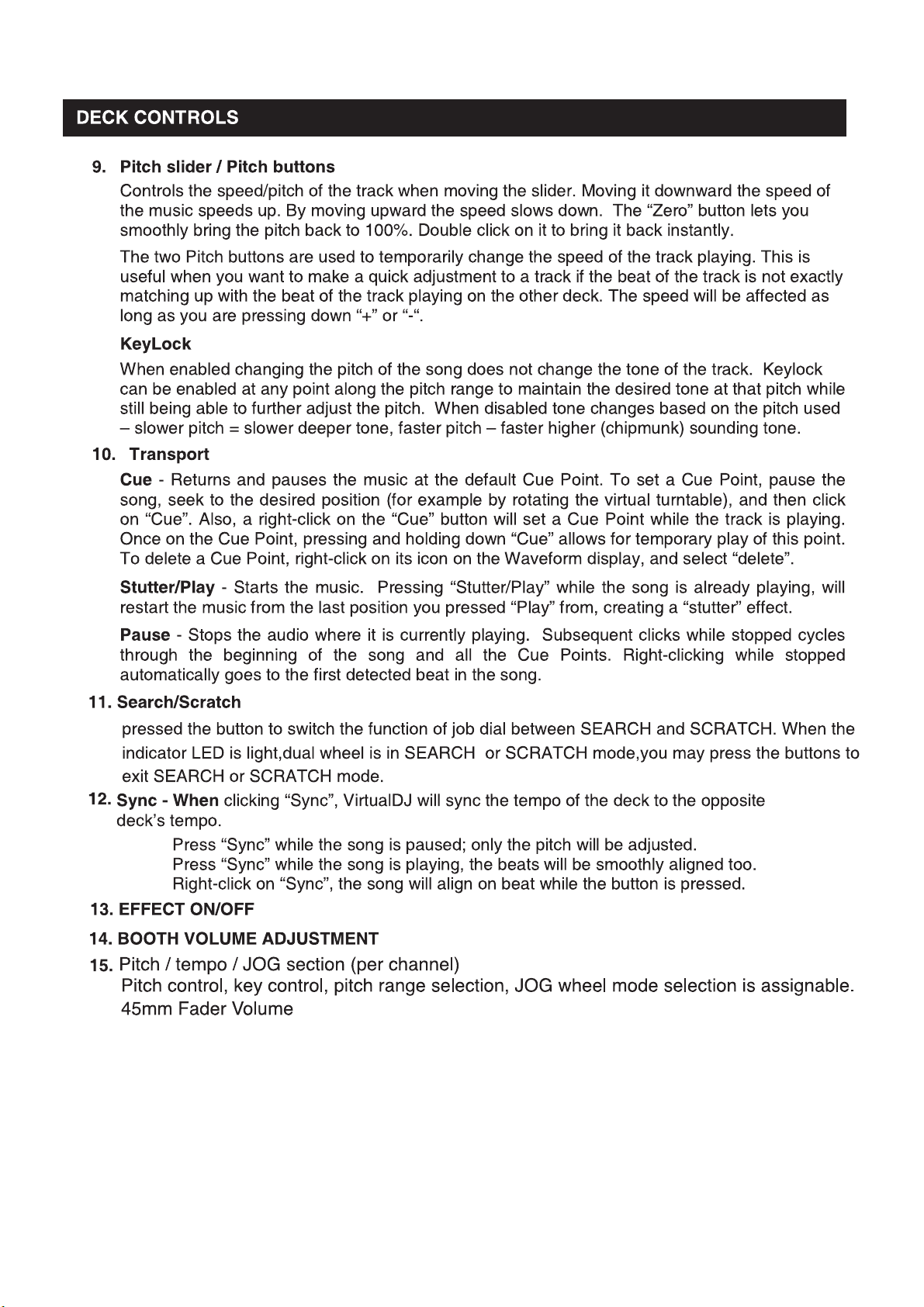

SOFTWARE AND HARDWARE CONTROL................................................
14.15.16
2
3
3
3
4.5
6
6
7.8
9
10
11
12
13

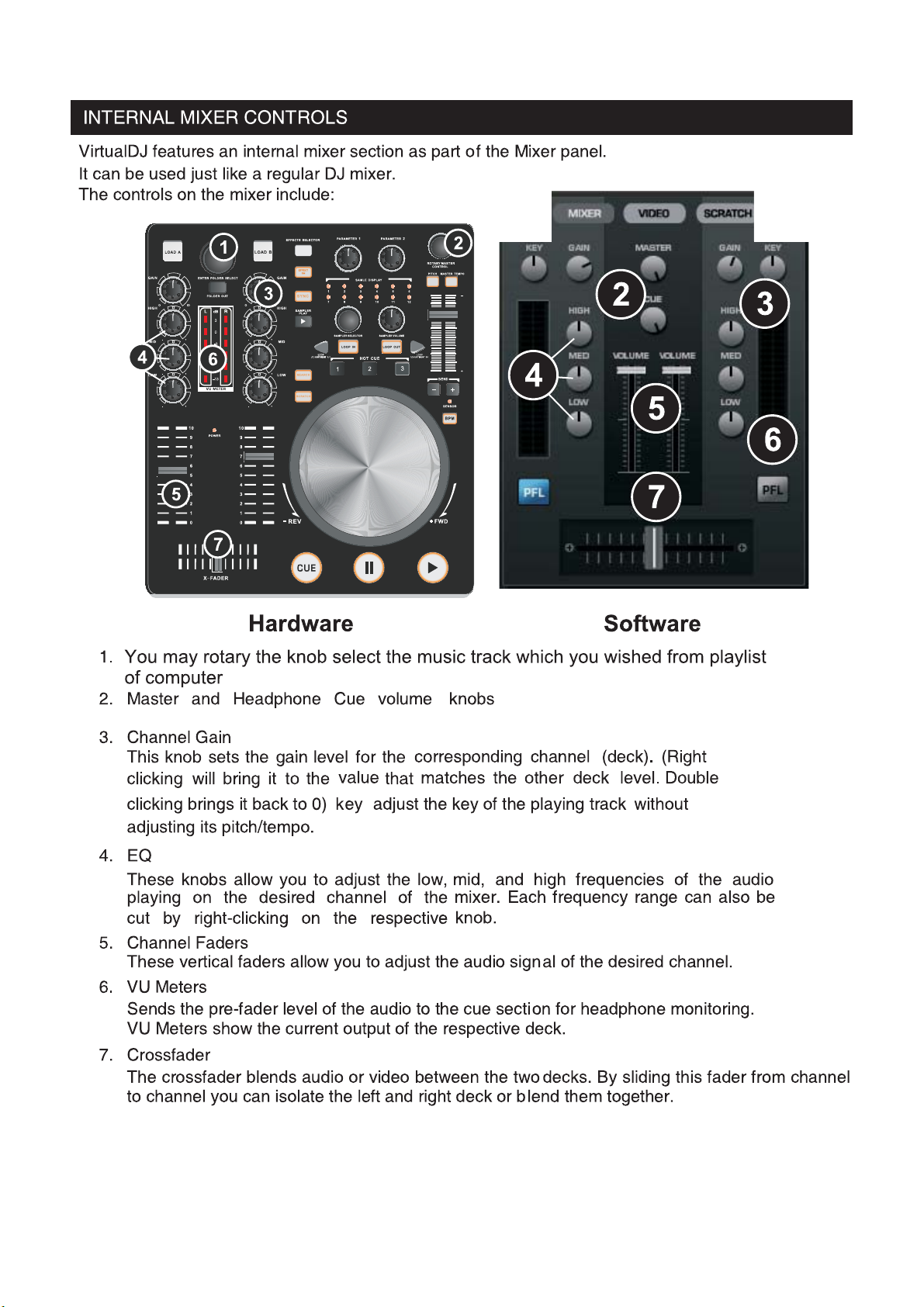

MIXER CONTROL......................................................................................... ...
BROWSER..................................................................................................
SUPPORT........... ............................................................................................
Software support ..................... ......
Hardware support ................... .......
18.19
17
20
20
20
1
WARNINGSAFTEY INSTRUCTIONS
2
SETTING UP
UNPACKING.
Your package should include:
This printed Manual.
AM4252
USB Cable
Installation CD.
SYSTEM REQUIREMENTS.
The minimum system requirements are:
MAC
G4 1.5GHz processor or better.
OSX 10.4.11 or higher.
Hard disk space for music.
WINDOWS XP
Pentium 4 mobile 2 GHz processor or better.
Service Pack 2 or higher
Hard disk space for music.
WINDOWS VISTA
Core Duo 1.6 GHz processor or better.
Service Pack 2 or higher
Hard disk space for music.
1 GB RAM.
Avaikabke USB port.
1 GB RAM.
Avaikabke USB port.
1 GB RAM.
Avaikabke USB port.
POWER SOURCE
Power supply:~100-240V,60/50Hz.
Optional DC adapter voltage:5V DC 1000mA.
SOFTWARE INSTALLATION.
Free updates to the VIRTUAL DJ software are available from
http://www.virtualdj.com.
3
INSTALL AND OPERATION
USB PORT
AM4252
DC IN
DC
AM4252
AM4252
4
AM4252
AM4252
AM4252
AM4252
AM4252
AM4252
5
SETTING UP(PC)
FROM CD.
Insert the virtualDJ Installation CD-ROM into your system.The
installation should start automatically.if not,browse the CD-ROM
and double click on the file install_virtualdj_v6.exe”
Follow the steps below to continue installation......
A.Allow the installation to run D.End user License Agreement–
”
Please read thoroughly...then next
to agree with the terms and conditions
of the license
B.Select language....Next
C.Welcome screen....Next
E.Application Path....next
F.Finish Installation....Finish
6
SETTING UP(MAC)
FROM CD.
Insert the virtualDJ Installation CD-ROM into your system.The installation should start
automatically.if not,browse the CD-ROM and double click on the file install_virtualdj_v6.exe”
Follow the steps below to continue installation......
A.Dialog will open with the virtualdj
install package displayed.double
click on the install package.
Follow the steps below to continue
installation.....
A.Click continue to begin the installation
B.Click Continue after reading the License
agreement
C.Click Agree” to accept the license
agreement.
”
7
8
RUNNING FOR THE FIRST TIME....
Opening virtualDJ for the first time......
A.double click on the virtualDJ icon on
the desk-top.
B.Enter the serial number you received
with your purchase...OK.
PC MAC
C.VirtualDJ will then check for a new
version(this can be disabled in the
configuration section).
D.VirtualDJ splash screen...showing the
initialization of the software’s compon ents.
E. The first tab presented is the soundcard
tab.here you will select your sound card
and channel assignments.we will look at
the basic options for using your computers
internal sound card.
There are more than these three
possible setups for a sound card
and vitualDJ.
If you have a unique setup that
you would like help with--please
visit us at http://www.virtualdj.com
/forums/
E.VirtualDJ user interface(skin).
9
AUX IN
(SOME EXAMPLES ARE)
● POWERED SPEAKERS
● AMPLIFIER
● DJ MIXER
AUX IN
(SOME EXAMPLES ARE)
● CD PLAYER
● MP3 PLAYER
● DJ MIXE R
AM4252
AM4252
10
FRONT AND BACK PANEL OVERVIEW(HARDWARE)
HEADPHONE
VOLUME
321
4
MIC VOLU ME
5
6
1.3.5mm and 6.35 jacks for headphone connection.
2.The volume of the headphone is controlled by the “headphone volume”knob.
3.Control the headphone output chanels.
4.C.F.curve control volume
The cross fader curve control. The curve is gentle and suitable for long mixes when it’s
at the minimum,and sharp and suitable for scratching when it’s at the maximum.
5.Hardware microphone input gain control before sending to software.
6.Microphone input socket.
LEFT
BALANCE D
OUTPUT
RIGHT
78 9
10 11 12 13
7.Hardware AUX input gain control before sending to software.
8.RCA connections for auxiliary sound source.
9.RCA MASTER REC and BOOTH output.
10.To power hardware with optional DC adapter:5V DC 1000mA.
11.Select between adapter,off,and USB power for unit.
12.For connecting the AM4252 to your computer.
13.Balanced output.
14.Adjust balanced ouput volume.
14
11
12131415161718
19
SUPPORT
SOFTWARE UPDATES AND ONLINE SUPPORT
For Virtual DJ software updates and online support vist the Virtual DJ
website:http://www.virtualdj.com
USER GUIDE.
.
HARDWARE SUPPORT
AM4252
AM4252
. and download
AM4252
20
