Devolo dLAN 85 HSmini User Manual

© 2009 devolo AG Aachen (Germany)
While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. devolo shall be liable only to the degree specified in the terms of sale and delivery.
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from devolo. We reserve the right to make any alterations that arise as the result of technical development.
Trademarks
®
Linux
Ubuntu
Mac
Windows
dLAN
is a registered trademark of HomePlug Powerline Alliance.
®
is a registered trademark of Linus Torvalds.
®
is a registered trademark of Canonical Ltd.
®
and Mac OS X® are registered trademarks of Apple Computer, Inc.
®
and Microsoft® are registered trademarks of Microsoft, Corp.
®
, devolo and the devolo logo are registered trademarks of devolo AG.
All other names mentioned may be trademarks or registered trademarks of their respective owners.
Subject to change without notice. No liability for technical errors or omissions.
devolo AG
Charlottenburger Allee 60
52068 Aachen
Germany
www.devolo.com
Aachen, December 2009

Contents

Contents
1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Thank you for placing your trust in this devolo product.. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 What exactly is dLAN? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 dLAN 85 HSmini at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Sample applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Initial use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 System requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Connecting the dLAN 85 HSmini . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5 Software installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5.1 Software for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5.2 Software for Mac OS X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.5.3 Software for Linux (Ubuntu) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Security in the dLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 dLAN network encryption using the dLAN Configuration Wizard . . . . . . . . . . . . . . . . . . . . 16
4.2 devolo Informer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.1 Bandwidth optimization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.2 Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.3 Disposal of old devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
5.4 Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
devolo dLAN 85 HSmini
Contents
devolo dLAN 85 HSmini
Preface 4

1Preface

1.1 Thank you for placing your trust in this devolo product.

By purchasing the dLAN 85 HSmini, you have chosen a latest-generation high-speed dLAN device that networks your computers and extends the Internet through the entire house. The dLAN technology uses the household power grid as a "long network ca­ble"—with a range of 200 m (656")! Thus you can use it to set up a home network in no time at all wi­thout routing additional cables. Resistances such as walls or ceilings are likewise unimportant. The ultra­compact housing design and the reduced power consumption in operation mode complete the user­friendly profile of the dLAN 85 HSmini.
Surfing on the Internet is fast and secure with trans­fer rates of up to 85 Mbps and DESpro encryption with the dLAN 85 HSmini. It is also fully compatible with first-generation high-speed dLAN adapters (14 or 85 Mbps).
About this manual
After a brief introduction to "dLAN" basics in chapter 2, chapter 3 will cover successfully setting up your
dLAN 85 HSmini. Chapter 4 explains how to configure
your dLAN network. Tips for bandwidth optimisation, safety notes and our warranty conditions can be found in chapter 5 and conclude the manual.
Description of the symbols
Here we briefly describe the meaning of the symbols used in this manual.
Very important note. Failure to obser­ve this note may result in damage.
Important note that should be obser­ved.
Additional information, background material and configuration tips for your device.
If you have any further ideas or suggestions related to our products, we would be delighted to hear from you at support@devolo.com
devolo on the Internet
For detailed information on our products, visit
www.devolo.com
contains product descriptions and documentation, but also updates of devolo software and your device's firmware.
!
. The Service centre area not only
devolo dLAN 85 HSmini
5 Preface
devolo dLAN 85 HSmini
Introduction 6

2Introduction

dLAN is an intelligent, secure technology that lets you
set up a home network easily, quickly and economical­ly via your household electrical wiring, without the need for complex and expensive dedicated cabling.
The available performance and effort required for the installation also compares favourably to traditional methods—dLAN technology now attains speeds you would expect from other LAN technologies, and instal­ling it is a breeze!
devolo dLAN 85 HSmini
7 Introduction

2.1 What exactly is dLAN?

dLAN (direct Local Area Network) uses the household
power grid to transfer data between computers equip­ped with suitable adapters and other network compon­ents. As a result, any power outlet can be used as a network access point. The data is modulated prior to transfer and sent as a signal via household power lines. State-of-the-art technology ensures that the power and data networks do not interfere with one another. Networking via dLAN is fast and secure. The data is en­crypted using a key to prevent easy interception by third parties.

2.2 dLAN 85 HSmini at a glance

Ultra-compact housing design for discreet and
versatile positioning
Reduced power consumption in operation modeHigh-speed HomePlug device with high transfer
rates of up to 85 Mbps, making it perfectly suited for Online gaming, Voice over IP and Internet media.
Long range of 200 m (656") in buildings: The
dLAN technology uses the household power grid as a "long network cable".
Perfectly informed with the clearly arranged 3 LED
status display.
No configuration is necessary—plug the
dLAN 85 HSmini into the power outlet, connect it to your computer via the network cable and you are ready to go!
Maximum data security using the powerful
DESpro encryption
User-friendly software for PC ((Windows XP
(32 bit), Windows Vista Home Premium (32 bit/64 bit), Windows 7 Home Premium (32 bit/64 bit)), Mac OS X and Linux (Ubuntu) allows individual network encryption for even more security.
Full compatibility with devolo adapters of the first
dLAN generation (14 or 85 Mbps).
devolo dLAN 85 HSmini
Introduction 8

2.3 Sample applications

Networking between two computers (fig. 1)
fig. 1
Extending Internet over the electrical wiring (fig. 2)
fig. 2
devolo dLAN 85 HSmini
9 Introduction
Realizing Internet TV over the electrical wiring (fig. 3)
fig. 3
Connecting game consoles to a modem/router over the electrical wiring (fig. 4)
fig. 4
devolo dLAN 85 HSmini
Introduction 10
Voice over IP and mobile home networking (notebook) (fig. 5)
fig. 5
devolo dLAN 85 HSmini
11 Introduction
devolo dLAN 85 HSmini
Initial use 12

3Initial use

This chapter covers everything you need to know to set up your dLAN 85 HSmini. We will describe the functions and connection of the device, introduce the included devolo software and guide you through its in­stallation.

3.1 Package contents

Please ensure that the delivery is complete before be­ginning with the installation of your dLAN 85 HSmini.
Single Kit:
dLAN 85 HSmini Network cable Hard copy of installation guideCD containing software and online documen-
tation
or
Starter Kit:
Two dLAN 85 HSmini Two network cables Hard copy of installation guideCD containing software and online documen-
tation
or
Network Kit:
Three dLAN 85 HSmini Three network cables Hard copy of installation guideCD containing software and online documen-
tation
devolo AG reserves the right to change the package contents without prior notice.

3.2 System requirements

Operating systems: Windows XP (32-bit), Win-
dows Vista Home Premium (32-bit/64-bit), Win­dows 7 Home Premium (32-bit/64-bit), Linux (Ubuntu), Mac OS X and all operating systems with network support
Network connection
Please note that your computer or other de­vice must feature a network adapter with a network port.
devolo dLAN 85 HSmini
13 Initial use
Please note that dLAN devices such as the devolo dLAN duo (14 Mbps) and devolo dLAN 85 HSmini (85 Mbps) can be used on the same household electrical wiring as dLAN 200 AV devices (200 Mbps) without interference, but they will not be able to communicate directly with one another. More valuable information about dLAN is available in the Info centre section of our website at
www.devolo.com
.
devolo dLAN 85 HSmini
Initial use 14

3.3 Functions

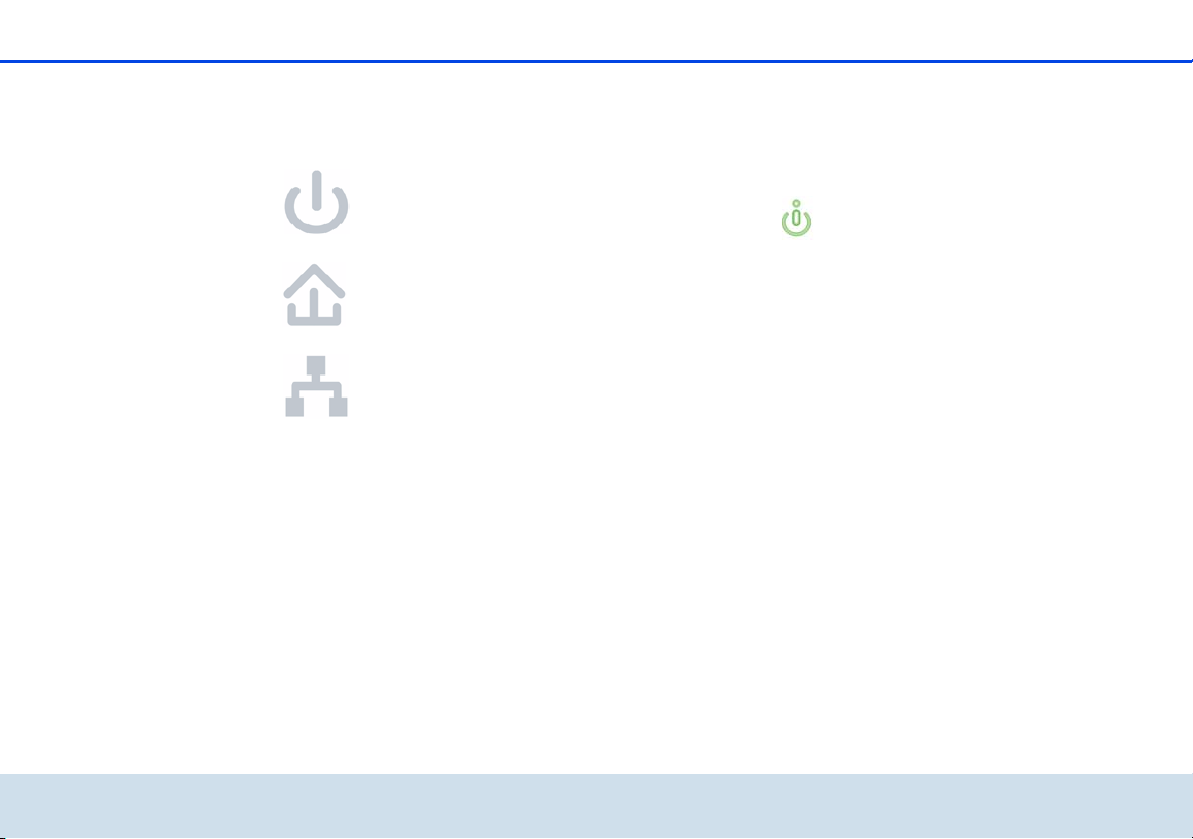

The dLAN 85 HSmini features 3 control LEDs as well as a network port:
Power
green: Lit steady when the dLAN 85 HSmini is ready
for operation.
dLAN
green: A connection to the dLAN network consists;
flashes when data is being transmitted.
Ethernet
green: A 100 Mbps or 10 Mbps connection to the
Ethernet network exists; flashes when data is being transmitted.
Network connection
This is the connection point on the dLAN 85 HSmini for connecting it to a computer or another network device with the network cable (included).

3.4 Connecting the dLAN 85 HSmini

This section describes how to connect your dLAN 85 HSmini to a computer or to a network.
Use the included network cable to connect the
dLAN 85 HSmini to the network port of your run­ning computer or other network device.
Plug the dLAN 85 HSmini into a wall socket.
If possible, do not plug the adapter into a po­wer strip. This may impair the transmission of the dLAN signals. A free wall outlet is prefe­rable.
Once you have connected at least two
dLAN 85 HSmini devices as described in
, your dLAN network has been set up. To pro-
tect your dLAN network individually from unauthorised access, you should first write down the security IDs of the dLAN devices. This unique identifier of each dLAN device is located on the label on the housing. Then, continue with the configuration of your network as described in chapter 4 Security in the dLAN.
and

3.5 Software installation

3.5.1 Software for Windows

Use the installation wizard to set up the following soft­ware components for using the adapter with the Win­dows operating system:
devolo dLAN 85 HSmini
15 Initial use
The devolo dLAN Configuration Wizard lets you
set up custom encryption for your dLAN network.
devolo Informer finds dLAN adapters in a dLAN
network and displays information on the devices found.
To install the software, insert the included CD-ROM in the CD drive of your computer. If autoplay is installed on your computer, the installation will start automati­cally. Otherwise, open the folder with the Windows Ex­plorer by right-clicking on Start and selecting Explorer from the context menu. Double-click to start the instal­lation wizard manually.
During the installation process, you will be given the choice of installing all software components (Standard
installation) or selecting individual ones (Custom in­stallation).
To take full advantage of the functions of your device, we recommend installing all of the applications.
You will be asked for permission to transfer anonymous performance data related to your dLAN adapter to de­volo. The data sent to devolo pertains only to the per­formance values of your dLAN devices. The data is anonymized and will be used exclusively for statistical purposes. By providing it, you can help us improve our
products. You can find the installed software applicati­ons in the Start Programs devolo program group.

3.5.2 Software for Mac OS X

The software mac folder contains the dLAN configu- ration software.

3.5.3 Software for Linux (Ubuntu)

The software linux folder contains the dLAN confi­guration software.
devolo dLAN 85 HSmini
Security in the dLAN 16

4 Security in the dLAN

Data communication via the household power grid is encrypted to ensure the privacy of your dLAN network. The following section describes data encryption using the dLAN Configuration Wizard.

4.1 dLAN network encryption using the dLAN Configuration Wizard

After successfully installing the devolo software, you can launch the dLAN Configuration Wizard via the
Start Programs devolo program group and the Device Start dLAN Configuration Wizard of the
devolo Informer.
Before beginning with this step, make a note of the se­curity IDs of all existing dLAN adapters. This unique identifier of each dLAN device is located on the label of the housing. It consists of 4 x 4 letters separated by da­shes (e.g. ANJR-KMOR-KSHT-QRUV). Ensure that all dLAN adapters are connected to the power grid and computers or other network components as appropria­te.
If the dLAN Configuration Wizard cannot find a dLAN device in your network even though one is plugged tightly into a power outlet, follow the instructions for bandwidth optimisation in the Appendix.
Configuring your dLANs using the dLAN Configuration Wizard consists of three steps:
Scan for local adapter
After launching the wizard, it initially scans for a dLAN adapter connected directly to your computer.
Entering a network password (fig. 6)
If your dLAN adapter has been found that is reachable directly from your computer, you can select a network password in the next step to be valid for this and all other specified adapters in your personal home net­work.
devolo dLAN 85 HSmini
17 Security in the dLAN
fig. 6
devolo dLAN 85 HSmini
You can choose between your own password, a ran­dom password and the default password. To define your own password with a length of at least eight cha­racters, enter this into the Network password (min. 8 characters) text field. Alternatively, you can have a ran­domly selected, highly secure password assigned using the Random password button. Pressing the Default password key resets the password of the dLAN adap­ter to the factory setting. Normally, the display of the password is hidden for security reasons. If you enable
the option Show characters, the current password is displayed in legible form in the text field.
The factory default password is HomePlug. Assi­gning a specific password to a single adapter will ex­clude it from the remaining dLAN network.
Configuring additional dLAN adapters (fig. 7)
After setting up the local dLAN adapter, you can, if you want, assign the selected dLAN password to other
Security in the dLAN 18
dLAN devices in your network in order to form a closed dLAN network.
fig. 7
You will need the 16-character Security IDs of the va­rious adapters from the label on the housing. Enter the code without hyphens in the 4 text boxes and confirm by clicking Define password. If a security ID is correct and the device is reachable in the dLAN, the device is added to the list of already configured adapters.
When launching the dLAN Configuration Wizard again after a successful initial installation—when integra-
devolo dLAN 85 HSmini
ting a new adapter into the network, for example— the application will remember devices and security IDs entered in previous sessions if you have encryp-
ted them with a personal network password or the default password. In this case, you do not need to
enter the devices again.
However, if the random password was used to encrypt the network during the last installation, if you want to
19 Security in the dLAN
integrate a new adapter into the network, you must re­register all previously entered dLAN adapters using the security ID.
Once you have entered the security IDs of your dLAN adapters, your dLAN network is complete. All compu­ters and other network devices connected to the adap­ters by cable should now be able to communicate with one another in the network.
devolo dLAN 85 HSmini
Security in the dLAN 20

4.2 devolo Informer

devolo Informer can detect all available dLAN adapters in your home network and display device information in an overview. After installing the devolo software, it can be found in the Start Programs devolo pro­gram group.
When the Informer is launched, it initially scans your home network for all available dLAN devices. This may take a moment. All found adapters are listed with their names and MAC addresses in the overview window. Their firmware versions are also displayed, as are the transfer speeds of active connections between the ad-
apters. devolo Informer generally updates the list of found dLAN devices automatically. If newly-added ad­apters do not appear in the window, refresh the display with F5 or via the View menu.
Use the Device menu or the context menu that opens with a right-click on the name of the displayed dLAN device to rename the adapter or launch the dLAN Con­figuration Wizard.
Multiple instances of devolo Informer installed in your network can be set to exchange information about found dLAN adapters under View Options…. You may also specify whether information on the perfor­mance of your dLAN adapters will be transferred to de­volo here. The data sent to devolo pertains only to the performance values of your dLAN devices. The data is anonymized and will be used exclusively for statistical purposes. By providing it, you can help us improve our products.
devolo dLAN 85 HSmini
21 Security in the dLAN
devolo dLAN 85 HSmini
Appendix 22

5 Appendix

5.1 Bandwidth optimization

We recommend observing the following connection ru­les to eliminate possible sources of interference:
Avoid extension strips. This may impair the trans-
mission of the dLAN signals. Free wall outlets are preferable.
Also position the adapter away from your compu-
ter, as it may interfere with the adapter’s opera­tion.
Plug the devices into different outlets and avoid
using the same extension strip.
For the permitted voltage range for operating the device and the power consumption, refer to the label on the rear side of the device.
For the CE declaration for this product, refer to the accompanying product CD under CE. Additional technical information is available under Service centre at www.devolo.com
.

5.2 Important safety instructions

All safety and operating instructions should be read and understood before using the device, and should be kept for future reference.
Never open the device. There are no user-service-
able parts inside the device.
Do not try to service this product yourself! Contact qualified technicians each and every time your device needs maintenance. There is a risk of electric shock!
Use the device in a dry location only. Always use the included network cable to connect
the device.
Do not insert any objects into the openings of the
device.
To disconnect the device from the power supply
grid, pull the power plug.
Do not keep the device in direct sunlight.Slots and openings on the case serve as ventila-
tion. Never block or cover them.
Never set up the device near a heater or radiator. The device should be located only where sufficient
ventilation can be ensured.
devolo dLAN 85 HSmini
23 Appendix
Disconnect the device from the power supply grid
before cleaning. Use a moist towel to clean the device. Never use water, paint thinner, benzene, alcohol or other strong cleaning agents when cle­aning the device, as these could damage the case.
Never use the device with a power supply that
does not meet the specifications provided on the rating plate. If you do not know what type of power supply you have at home, contact your dealer or energy supplier.
In the event of damage, disconnect the device
from the power supply grid and contact customer service. This applies, for example, if
the power cable or plug is damaged.liquid has been spilled on the device or
objects have fallen into the device.
the device has been exposed to rain or water.the device does not work, even though the
operating instructions have been followed properly.
the device’s case is damaged.

5.3 Disposal of old devices

German Electrical and Electronic Equipment Act. Since 24 March 2006, these types of devices may no longer be disposed of with household waste. Rather, in Ger­many, they can be given to a municipal collection point free of charge. Contact your municipal government to find out the address and hours of the nearest collection point.
devolo dLAN 85 HSmini
The icon with crossed-out wastebasket on the device means that this adapter is an electrical or electronic device that falls within the scope of application of the
Appendix 24

5.4 Warranty conditions

The devolo AG warranty is given to purchasers of devolo products in addition to the warranty conditions provided by law and in accor­dance with the following conditions:
1 Warranty coverage
a) The warranty covers the equipment delivered and all its parts.
Parts will, at devolo's sole discretion, be replaced or repaired free of charge if, despite proven proper handling and adhe­rence to the operating instructions, these parts became defec­tive due to fabrication and/or material defects. Alternatively, devolo reserves the right to replace the defective product with a comparable product with the same specifications and fea­tures. Operating manuals and possibly supplied software are excluded from the warranty.
b) Material and service charges shall be covered by devolo, but
not shipping and handling costs involved in transport from the buyer to the service station and/or to devolo.
c) Replaced parts become property of devolo.
d) devolo is authorized to carry out technical changes (e.g. firm-
ware updates) beyond repair and replacement of defective parts in order to bring the equipment up to the current techni­cal state. This does not result in any additional charge for the customer. A legal claim to this service does not exist.
2 Warranty period
The warranty period for this devolo product is three years. This period begins at the day of delivery from the devolo dealer. War­ranty services carried out by devolo do not result in an extension of the warranty period nor do they initiate a new warranty period. The warranty period for installed replacement parts ends with the war­ranty period of the device as a whole.
3Warranty procedure
a) If defects appear during the warranty period, the warranty
claims must be made immediately, at the latest within a period of 7 days.
b) In the case of any externally visible damage arising from trans-
port (e.g. damage to the housing), the person carrying out the transportation and the sender should be informed immedia­tely. On discovery of damage which is not externally visible, the transport company and the sender are to be immediately informed in writing, at the latest within 3 days of delivery.
c) Transport to and from the location where the warranty claim is
accepted and/or the repaired device is exchanged, is at the purchaser's own risk and cost.
d) Warranty claims are only valid if a copy of the original
purchase receipt is returned with the device. devolo reserves the right to require the submission of the original purchase receipt.
4 Suspension of the warranty
All warranty claims will be deemed invalid
a) if the label with the serial number has been removed from the
device,
b) if the device is damaged or destroyed as a result of acts of
nature or by environmental influences (moisture, electric shock, dust, etc.),
c) if the device was stored or operated under conditions not in
compliance with the technical specifications,
d) if the damage occurred due to incorrect handling, especially to
non-observance of the system description and the operating instructions,
e) if the device was opened, repaired or modified by persons not
contracted by devolo,
f) if the device shows any kind of mechanical damage, or
g) if the warranty claim has not been reported in accordance with
3a) or 3b).
devolo dLAN 85 HSmini
25 Appendix
5Operating mistakes
If it becomes apparent that the reported malfunction of the device has been caused by unsuitable hardware, software, installation or operation, devolo reserves the right to charge the purchaser for the resulting testing costs.
6 Additional regulations
The above conditions define the complete scope of devolo's legal liability.
a) The warranty gives no entitlement to additional claims, such as
any refund in full or in part. Compensation claims, regardless of the legal basis, are excluded. This does not apply if e.g. injury to persons or damage to private property are specifically covered by the product liability law, or in cases of intentional act or culpable negligence.
b) Claims for compensation of lost profits, indirect or consequen-
tial detriments, are excluded.
c) devolo is not liable for lost data or retrieval of lost data in
cases of slight and ordinary negligence.
d) In the case that the intentional or culpable negligence of
devolo employees has caused a loss of data, devolo will be lia­ble for those costs typical to the recovery of data where peri­odic security data back-ups have been made.
e) The warranty is valid only for the first purchaser and is not
transferable.
f) The court of jurisdiction is located in Aachen, Germany in the
case that the purchaser is a merchant. If the purchaser does not have a court of jurisdiction in the Federal Republic of Ger­many or if he moves his domicile out of Germany after conclu­sion of the contract, devolo's court of jurisdiction applies. This is also applicable if the purchaser's domicile is not known at the time of institution of proceedings.
g) The law of the Federal Republic of Germany is applicable. The
UN commercial law does not apply to dealings between devolo and the purchaser.
devolo dLAN 85 HSmini

Index

Index
B
Bandwidth optimization 22
C
CE declaration 22
Control LEDs
D
Data encryption 16
Default password Disposal of old devices dLAN Configuration Wizard
I
Important safety instructions 22
Informer
L
Linux 15
M
Mac OS X 15
N
Network connection 14
Network password
P
Package contents 12
R
Random password 17
14
17
23
16
20
17
S
Security ID 18
Software installation System requirements
U
Ubuntu 15
W
Warranty 24
Windows
14
14 12
devolo dLAN 85 HSmini
Index
devolo dLAN 85 HSmini
Loading...
