Preface 7

1Preface

Thank you!
The dLAN 500 WiFi combines the latest technology and unobtrusive design with the best Internet con­nection. As a dLAN adapter, the dLAN 500 WiFi uses the internal power line and, in doing so, brings the Internet to any room. The integrated Wireless LAN ensures additional Internet coverage.
The WiFi Move Technology provides for even more freedom: All terminal devices are automatically con­nected to the network; in other words, there is auto­matically the best Wi-Fi reception in all rooms and on all floors!
With the help of the dLAN Cockpit App for smart­phones and tablets, you have all dLAN and Wi-Fi de­vices of your home network in view at any time and from anywhere.

1.1 About this manual

In addition to a brief introduction to the basics of "dLAN" and "Wi-Fi" and a presentation of dLAN 500 WiFi devolo products with the WiFi Move Technology and dLAN Cockpit App in Chapter 2, Chapter 3 describes how to quickly set up the dLAN 500 WiFi.
In Chapter 4, you will learn about how to successfully start up the dLAN 500 WiFi and how you can down­load dLAN Cockpit App from the respective store. What you need to do to integrate your dLAN 500 WiFi into the dLAN network and how you can manage it us­ing the dLAN Cockpit App or the dLAN Cockpit soft­ware is covered in Chapter 5. Chapter 6 describes configuration options in detail for the built-in configuration interface, including access to the Wi-Fi. Bandwidth optimisation, information about environ­mental compatibility of the device and our warranty terms in Chapter 7 concludes the manual.
Description of the symbols
Here we briefly describe the meaning of the symbols used in this manual.
Very important note. Failure to ob­serve this note may result in damage.
Important note that should be ob­served.
Additional information, background mate­rial and configuration tips for your device.
devolo dLAN 500 WiFi
8 Preface

1.1.1 Intended use

Use the adapter as described in these instructions to prevent damage and injuries.
The device is designed for indoor use only.

1.1.2 CE conformity

This product complies with the technical requirements of the directive 1999/5/EC (R&TTE), the EMC directive
2004/108/EC and the other relevant provisions of the FTEG.
This product is designed for use in the EU, Switzerland and Norway.
The product is class A equipment. Class A devices may cause interference when used in residential environ­ments.
"99/05/CE" (R&TTE directive) is a directive sim­ilar to the EMC directive. It applies to radio equipment and telecommunication terminal equipment.Observance of these directives is verified by the use of harmonized European norms.
For the permitted voltage range for operating the device and the power consumption, refer to the label on the rear side of the device. Addi­tional technical information is available at
www.devolo.com
For the CE declaration for this product, refer to the accompanying product CD under CE.
.
devolo dLAN 500 WiFi
Preface 9

1.1.3 Safety notes

It is essential to have read and understood all safety and operating instructions before the devolo device is used for the first time; keep them safe for future refer­ence.
DANGER due to electricity
Users should never open devolo devices. Opening the device poses a risk of electric shock!
Users do not need to carry out any maintenance on de­volo devices. In the event of damage, disconnect the devolo device from the mains supply by pulling it or its plug out of the power outlet. Then contact qualified specialist personnel (after-sales service) exclusively. Damage is deemed to have occurred, for example,
if the power cable or plug is damagedif the devolo device has been showered with liq-
uid (e.g. rain or water).
if the devolo device is inoperable. if the housing of the devolo device is damaged.
devolo devices may only be operated using a mains power supply, as described on the nameplate. Only
use the power cable or mains adapter included for the mains supply.
To disconnect devolo devices from the mains supply, pull the device itself or its mains plug from the power outlet. The power outlet and all connected network
devices should be easily accessible so that you can pull the mains plug quickly if needed.
devolo devices are designed for indoor use only.
Only use devolo devices at a dry location.
Disconnect devolo devices from the mains supply to clean! Avoid solvent cleaning agents since they can
cause damage to the housing. Only use a dry towel for cleaning.
DANGER due to overheating
Batteries should never be exposed to large amounts of heat, such as direct sunlight, fire or other heat sources.
Multiple devolo devices must not be interlocked.
devolo devices should only be installed at locations that guarantee adequate ventilation. Slots and open­ings on the housing are used for ventilation:
Do not cover devolo devices when operating.Do not place any objects on devolo devices.
devolo dLAN 500 WiFi
10 Preface
Do not insert any objects into the openings of
devolo devices.
devolo devices must not be placed directly next
to an open flame (such as fire or candles).
devolo devices must not be exposed to direct
heat radiation (e.g. radiator, direct sunlight).

1.2 devolo on the Internet

For detailed information on our products or "dLAN", visit www.devolo.com tains downloadable product descriptions and docu­mentation, as well as updates to devolo software and device firmware.
If you have any further ideas or suggestions related to our products, we would be delighted to hear from you at support@devolo.com
. The Service Centre area con-
!
devolo dLAN 500 WiFi
Introduction 11

2Introduction

dLAN is an intelligent, secure technology that lets you
set up a home network easily, quickly and economical­ly via your household electrical wiring, without the need for complex and expensive dedicated cabling.

2.1 What exactly is dLAN?

dLAN (direct Local Area Network) uses the household
power grid to transfer data between computers equipped with suitable adapters and other network components. As a result, any power outlet can be used as a network access point. The data is modulated prior to transfer and sent as a signal via household power lines. State-of-the-art technology ensures that the power and data networks do not interfere with one an­other. Networking via dLAN is fast and secure. The data is encrypted using a key to prevent interception by third parties.

2.2 What is WLAN?

WLAN (Wireless Local Area Network) refers to the use
of radio technology to network computers and other devices. While it is possible to wirelessly connect com­puters in pairs (peer-to-peer, p2p), a central access point is required to set up a network of multiple devic-
es. Such access points are frequently combined in a single device with modems for Internet access and routers to manage network traffic.
The wireless network established by an access point using a specific channel (from 1 to 13) and name (SSID) has a limited range. The range of the access point, which is also known as a "radio cell", is impeded by building walls. In some cases, stable connections are often only possible between WLAN devices within a single room.
As it is not possible to rely on hardware such as net­work cables (in a LAN) or household wiring (in a dLAN) to control access to a WLAN, wireless networking nat­urally presents special security challenges. WLANs therefore use a number of security measures, such as a concealed network name, data encryption and access control via the MAC addresses of the network adapt­ers.

2.2.1 Wi-Fi or WLAN?

Wi-Fi is an invented brand name of the Wi-Fi Alliance,
a consortium that certifies devices with wireless interfaces. In many countries, Wi-Fi is also used synonymously with WLAN, which if taken strictly, is incorrect, because Wi-Fi designates the wireless standard and WLAN the wireless network.
devolo dLAN 500 WiFi
12 Introduction

2.3 dLAN 500 WiFi

The dLAN 500 WiFi unites the technologies of LAN, Wi-Fi (wireless) and dLAN in one case:
Your home network from the power outlet.

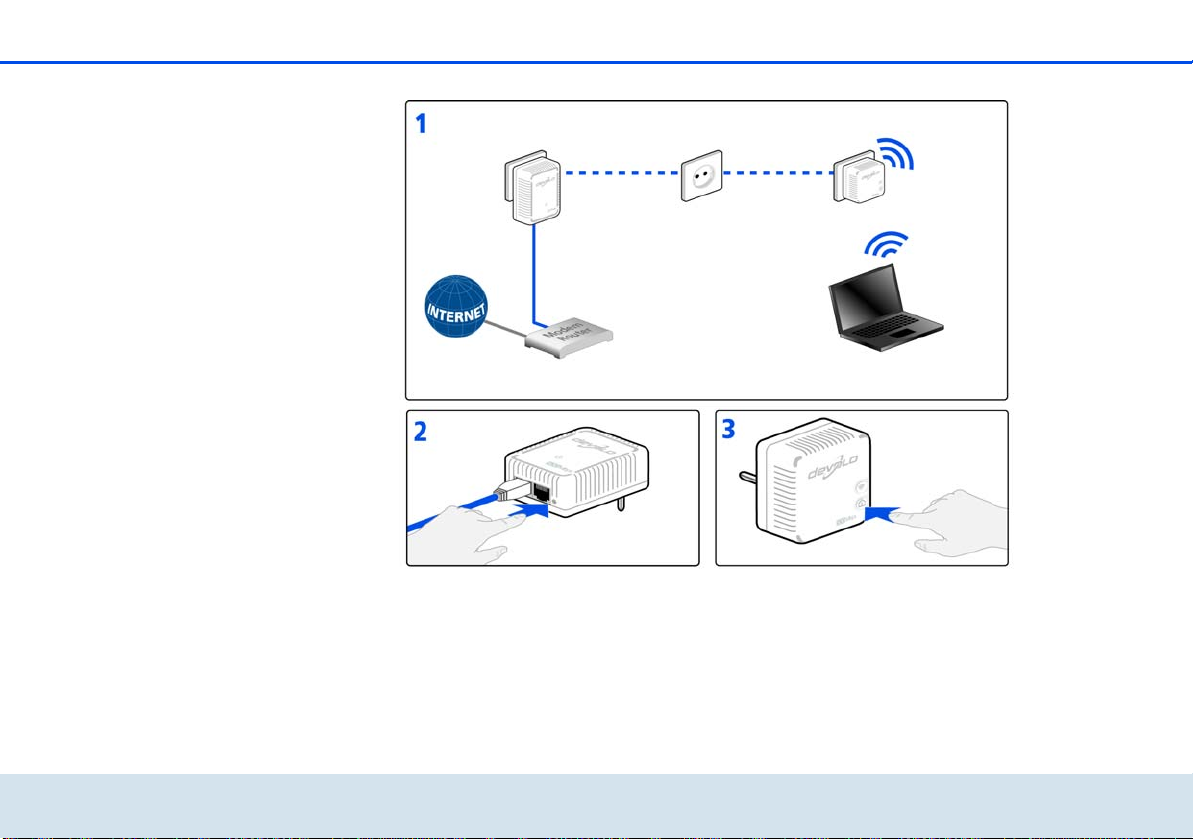

Unpack. Plug it in. Get started! The easy way to connect using your home's power lines. Turn any power outlet you want into Internet access.
High-speed data transmission at speeds of up to
500 Mbps and a fast Ethernet connection for con­necting an additional terminal device (such as a computer, Smart TV, game console, etc.)
The power outlet is also the new Wi-Fi access
point – with WiFi Move Technology, you have optimal Wi-Fi reception for smartphones, laptops and tablets in the entire home – completely auto­matically (at least two dLAN 500 WiFi adapters required; see Network Kit:).
Automatic encryption! Protection from unauthor-
ised access at the touch of a button for Wi-Fi (WPS)
Automatic phase shift: This is how the Internet
gets to each room and becomes your home net­work.
Share the use of your printer and hard drives.
Access your music, photos and data or stream HD videos in the highest quality.
Easy management of the dLAN home network via
dLAN Cockpit App or dLAN Cockpit software for the home network configuration on the computer (Windows, Mac OS X and Linux)
Automatic encryption! Protection from unauthor-
ised access at the touch of a button for dLAN (AES).
Minimum energy consumption, intelligently and
automatically.
Compatible with all dLAN adapters (200 Mbps or
500 Mbps)
Handy design for convenient placement through-
out the home, at any power outlet.

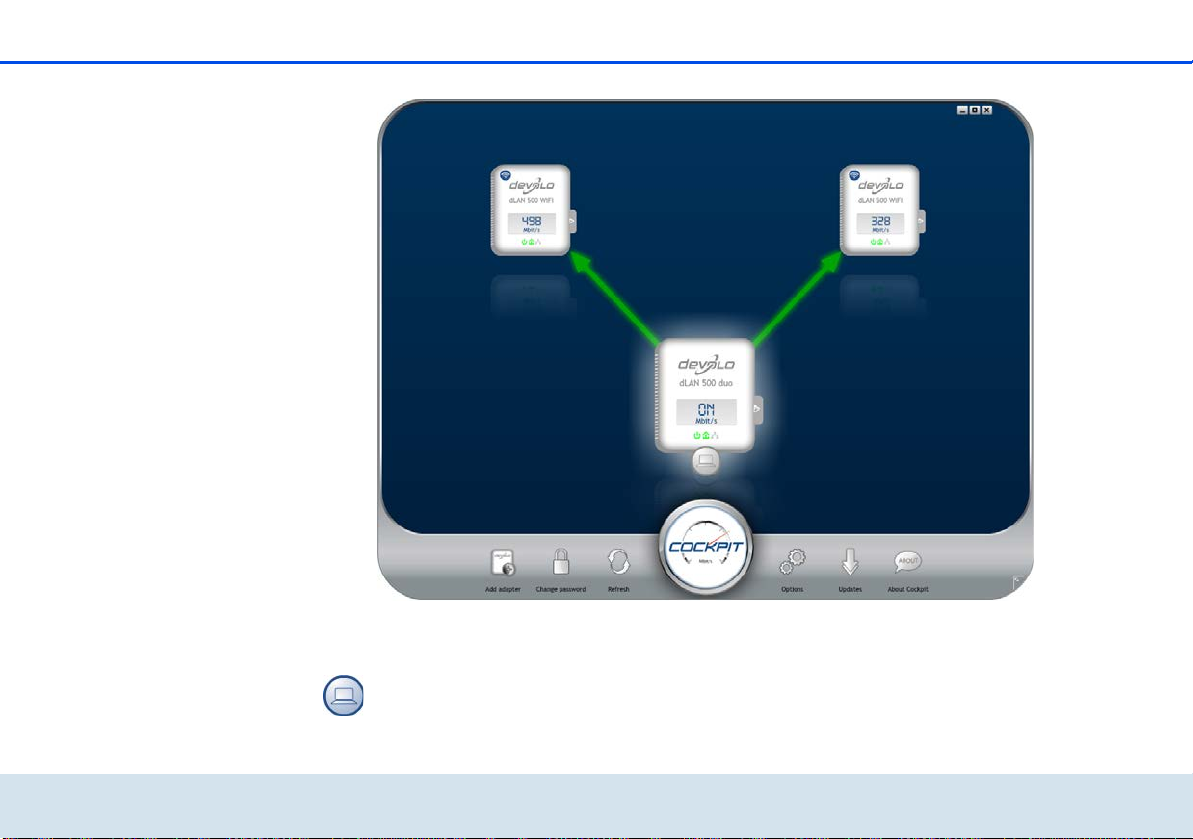

2.3.1 dLAN Cockpit App

dLAN Cockpit App is devolo's free app, for checking
and configuring Wi-Fi, dLAN and LAN connections for the dLAN 500 WiFi via smartphone or tablet computer. The smartphone or tablet connects to the dLAN 500 WiFi at home via Wi-Fi.

2.3.2 WiFi Move Technology

WiFi Move Technology is a function of the
dLAN 500 WiFi for automatic synchronisation of the entire Wi-Fi settings of all dLAN 500 WiFi adapters connected to your home network. WiFi Move Technology is activated easily at the touch
devolo dLAN 500 WiFi
Introduction 13
Fig. 1
of a button on the adapter. For more information, refer to Chapter 3 Quick start.

2.4 Sample applications

dLAN 500 WiFi completes your home network
On the one hand, you connect fixed network devices, (as shown in illustration 1), such as computers and In­ternet access devices, by dLAN. On the other hand, you include devices such as smartphones, laptops and tab­lets in your home network via Wi-Fi. Each additional dLAN 500 WiFi adapter (e.g. one on every storey) makes it easy for you to enable full Internet access eve­rywhere in the home via Wi-Fi and/or dLAN.
devolo dLAN 500 WiFi
14 Introduction
Fig. 2
WiFi Move Technology
Thanks to WiFi Move Technology, an automatic syn­chronisation of the Wi-Fi settings takes place between all dLAN 500 WiFi adapters, freeing you of the hassle of configuring of each individual dLAN 500 WiFi adapter (see illustration 2).
devolo dLAN 500 WiFi
Quick start 15

3Quick start

This chapter covers everything you need to know to quickly set up your dLAN 500 WiFi in the dLAN and Wi-Fi network. In addition, we will lead you through the installation of the devolo software.

3.1 Package contents

Please ensure that the delivery is complete before be­ginning with the installation of your dLAN 500 WiFi.
Single Kit:
dLAN 500 WiFi Hard copy of installation guideCD containing software and online documen-
tation
or
Starter Kit:
dLAN 500 WiFidLAN 500 duo Network cable Hard copy of installation guideCD containing software and online documen-
tation
or
Network Kit:
Two dLAN 500 WiFidLAN 500 duo Network cable Hard copy of installation guideCD containing software and online documen-
tation
devolo AG reserves the right to change the package contents without prior notice.

3.2 System requirements

Operating systems: Windows XP (32-bit), Win-
dows Vista Home Premium (32-bit/64-bit), Win­dows 7 Home Premium (32-bit/64-bit), Windows 8, Linux (Ubuntu), Mac OS X, Mac iOS, Android
Network connection
Please note that your computer or other device must feature a network adapter with a network port.
To set up a dLAN (AV) network, you need at least two dLAN (AV) devices (200 Mbps or 500 Mbps).
devolo dLAN 500 WiFi
16 Quick start

3.3 Connecting the dLAN 500 WiFi

The device is designed for indoor use only.
Expanding an existing dLAN network by adding a new dLAN 500 WiFi (single kit)
Take note of the Wi-Fi key before the networking procedure. You will find the unique adapter key on the label on the back of the housing.
Plug the dLAN 500 WiFi into a wall socket. As
soon as the indicator light of the dLAN button lights green (after approx. 45 seconds), the adapter is ready to operate.
If you only want to use the Wi-Fi function on the dLAN 500 WiFi, plug the adapter into a power outlet, without any cables whatsoever. You can also connect the dLAN 500 WiFi to the network jack of a network de­vice, such as a computer, with a com­mercially available network cable. (see 2.4 Sample applications)
The power outlet should be in range of the connected network device. The dLAN 500 WiFi with the cable­based network device should be easy to access. To switch off the dLAN 500 WiFi or disconnect it from the mains supply, pull the power plug out of the power outlet.
If you have already secured your existing dLAN
network using the encryption button, use the same method to integrate further adapters. Once you have successfully connected the new dLAN 500 WiFi, first press the encryption button (approx. 1 second) of one of your network's existing adapters, then press the encryption but­ton (approx. 1 second) of your new dLAN 500 WiFi within two minutes.
That's it! The new dLAN 500 WiFi is now inte-
grated into your existing dLAN network.
In order to connect the dLAN 500 WiFi with your
laptop, tablet or smartphone by Wi-Fi, enter the previously noted Wi-Fi key as the network security key.
devolo dLAN 500 WiFi
Quick start 17
Begin carrying out the configuration of your network in order to secure your Wi-Fi network in a customised manner. For more information, refer to Chapter 6 Network configuration.
Encrypting a new dLAN network with one or more dLAN 500 WiFis and a dLAN 500 duo (starter kit or network kit)
Note the Wi-Fi key of the dLAN 500 WiFi before the network­ing procedure. You will find the unique adapter key on the label on the back of the housing.
Connect the dLAN 500 duo to your Internet
access device's network jack.
Plug the dLAN 500 WiFi into a wall socket. As
soon as the indicator light of the dLAN button lights green (after approx. 45 seconds), the adapter is ready to operate.
If you only want to use the Wi-Fi function on the dLAN 500 WiFi, plug the adapter into a power outlet, without any cables whatsoever. You can also connect the dLAN 500 WiFi to the network jack of a network de­vice, such as a computer, with a com­mercially available network cable (see 2.4 Sample applications).
The power outlet should be in range of the connected network device. The dLAN 500 WiFi with the cable­based network device should be eas­ily accessible. To switch off the dLAN 500 WiFi or disconnect it from the mains supply, pull the power plug out of the power outlet.
After you have successfully connected both adapt-
ers, press first the encryption button of the dLAN 500 duo (approx. 1second) and then the dLAN button of the dLAN 500 WiFi (approx. 1second) within two minutes.
That's it! Your dLAN network is now protected
against unauthorised access.
devolo dLAN 500 WiFi
18 Quick start
In order to connect the dLAN 500 WiFi via Wi-Fi
with your laptop, tablet or smartphone, enter the previously noted Wi-Fi key as the network security key.
Begin carrying out the configuration of your network in order to secure your Wi-Fi network in a customised manner. For more information, refer to Chapter 6 Network configuration.
WiFi Move Technology
To integrate additional dLAN 500 WiFis into your
home network, repeat step
Within 2 minutes, first press the dLAN button
.
of the existing dLAN 500 WiFi (approx. 1 sec­ond) and finish by pressing the dLAN button of the new dLAN 500 WiFi (approx. 1second).
The existing dLAN 500 WiFi transmits its entire
Wi-Fi configuration to the new dLAN 500 WiFi adapter. The existing and the new dLAN 500 WiFi adapters are now continuously connected with each other, and from now on exchange changes to the Wi-Fi configuration automatically with each other.
For more information on the WiFi Move Technology, refer to Chapter 2 In- troduction and 6.5.7 WiFi Move Technology.

3.4 Installation of devolo software

Downloading dLAN Cockpit App
Download the dLAN Cockpit App to your smart-
phone or tablet computer from the corresponding store.
You can find the dLAN Cockpit App quickest by clicking on the magnifying glass in the store and searching directly for dLAN Cockpit.
dLAN Cockpit is placed in your smartphone's or
tablet app list as usual. Tapping on the dLAN Cockpit icon brings you to the start menu.
You can find more information in Chapter 5.2 dLAN Cockpit App.
Software for Windows
The installation wizard installs the adapter's configura­tion software as well as the devolo dLAN Cockpit on the Windows operating system.
devolo dLAN 500 WiFi
The dLAN Cockpit software finds all accessible
dLAN adapters in your dLAN network, displays
Quick start 19
information about these devices and encrypts your dLAN network individually.
You can configure your Wi-Fi network, along with
other actions, using the configuration inter­face for your dLAN 500 WiFi.
To install the software, insert the included CD-ROM in the CD drive of your computer.
If AutoPlay is active on your computer, the in­stallation will start automatically. Otherwise, open the directory with the Windows Explorer by right-clicking on Start (or the Windows lo- go) and selecting Explorer from the context menu. Then start the installation wizard manu­ally.
You will be asked for permission to transfer anonymous performance data related to your dLAN adapter to devolo. The data sent to devolo pertains only to the performance values of your dLAN devices. The data is anonymised and will be used exclusively for statistical purposes. By providing it, you can help us improve our products. You can find the installed software applications in the Start All Programs devolo program group.
Software for Linux (Ubuntu)
The SoftwareLinux folder contains the dLAN configuration software.
Software for Mac (OS X)
The software mac folder contains the dLAN config- uration software.
devolo dLAN 500 WiFi
20 Quick start
devolo dLAN 500 WiFi
Initial use 21
Fig. 3 is country-specific

4Initial use

This chapter covers everything you need to know to set up your dLAN 500 WiFi. It will explain connecting the device and its functions. We will also briefly introduce
the included devolo software and then guide you through its installation.
devolo dLAN 500 WiFi
22 Initial use

4.1 Package contents

Please ensure that the delivery is complete before be­ginning with the installation of your dLAN 500 WiFi.
Single Kit:
dLAN 500 WiFi Hard copy of installation guideCD containing software and online documen-
tation
or
Starter Kit:
dLAN 500 WiFidLAN 500 duo Network cable Hard copy of installation guideCD containing software and online documen-
tation
or
Network Kit:
Two dLAN 500 WiFidLAN 500 duo Network cable Hard copy of installation guide
CD containing software and online documen-
tation
devolo AG reserves the right to change the package contents without prior notice.

4.2 System requirements

Operating systems: Windows XP (32-bit), Win-
dows Vista Home Premium (32-bit/64-bit), Win­dows 7 Home Premium (32-bit/64-bit), Windows 8, Linux (Ubuntu), Mac OS X, Mac iOS and Android
Network connection
Please note that your computer or other device must feature a network adapter with a network port.
To set up a dLAN (AV) network, you need at least two dLAN (AV) devices (200 Mbps or 500 Mbps).
devolo dLAN 500 WiFi
Initial use 23
Fig. 4

4.3 Functions

The dLAN 500 WiFi has one Wi-Fi and one dLAN but­ton with LED status display, a network jack and a reset button.
The LED status display can be deacti­vated on the configuration interface of the dLAN 500 WiFi (see 6.4.5 LED settings).

4.3.1 Wi-Fi button

The Wi-Fi button controls the following Wi-Fi functions:
Wi-Fi On/Off:
In the factory default settings, Wi-Fi is
already enabled and Wi-Fi WPA2 encryption is configured. The default Wi-Fi key for the ini­tial installation of the dLAN 500 WiFi is the adapter's Wi-Fi key.
Before the networking procedure, take note of the Wi-Fi key of the dLAN 500 WiFi from which all Wi-Fi configurations are to be transferred to all other dLAN 500 WiFi adapters. You will find the unique key on the label on the back of the housing.
In order to switch Wi-Fi off, press and hold
the Wi-Fi button longer than 3 seconds.
devolo dLAN 500 WiFi
24 Initial use
In order to switch Wi-Fi back on, tap the
Wi-Fi button.
Wi-Fi network with WPS encryption
If the device is still on factory defaults, tap
the Wi-Fi button in order to activate WPS.
If the Wi-Fi connection was switched off
and you would like to activate WPS, press the Wi-Fi button twice; once to switch Wi­Fi on, and once to activate WPS.
WPS is one of the encryption standards devel­oped by the Wi-Fi Alliance for increasing secu­rity in a Wi-Fi home network. The objective of WPS is to make it easier to add devices to an ex­isting network. For more detailed information, refer to Chapter 6.5.6 Wi-Fi Protected Setup.
Indicator lights:
The integrated indicator lights (LEDs) show all of the Wi-Fi statuses for the dLAN 500 WiFi by illu­minating and/or flashing:
When the Wi-Fi connection is switched off,
the LED is also off.
When the Wi-Fi connection is switched on,
the LED lights green.
WPS pairing is represented by quick flash-
ing.

4.3.2 dLAN button

The dLAN button controls the following dLAN functions:
Encrypting the dLAN network
To encrypt your dLAN network individually,
press each dLAN button or encryption button on the connected devices for approx. 1 second within 2 minutes (see 5.1 dLAN network encryption at the touch of a button).
To remove a dLAN device from your network,
press the dLAN or encryption button on the corresponding device for at least 10
seconds (see 5.1 dLAN network encryp­tion at the touch of a button).
Indicator lights:
The integrated indicator lights (LEDs) show all of the dLAN statuses for the dLAN 500 WiFi by illu­minating and/or flashing:
The LED flashes slowly. There is no connec-
tion to the dLAN network.
Check whether the adapter is connected to the mains supply correctly and whether the encryp­tion process has been carried out successfully. For more information, refer to 4.4 Connecting the dLAN 500 WiFi and 5 dLAN network.
devolo dLAN 500 WiFi
Initial use 25
The LED lights green. The network connec-
tion is suitable for HD video streaming.
The LED lights orange. The network connec-
tion is suitable for SD video streaming and online gaming.
The LED lights red. The network connection is
suitable for simple data transfer and Internet access.
WiFi Move Technology
WiFi Move Technology is a function for synchronising the Wi-Fi settings of all dLAN 500 WiFi adapters con­nected to your home network.
Within 2 minutes first press the dLAN but-
ton of the existing dLAN 500 WiFi (approx. 1 second) and finish by pressing the dLAN button of the new dLAN 500 WiFi (approx. 1second).
The existing dLAN 500 WiFi transmits its
entire Wi-Fi configuration to the new dLAN 500 WiFi adapter. The existing and the new dLAN 500 WiFi adapters are now con- tinuously connected with each other, and from now on exchange changes to the Wi-Fi configuration automatically with each other.
For more information on the WiFi Move Technology, refer to Chapter 6.5.7 WiFi Move Technology.

4.3.3 Reset

The reset button (next to the network jack) has two different functions:
The device restarts if you press the Reset button
for less than 10 seconds.
To change the configuration of the
dLAN 500 WiFi back to the factory defaults, press the Reset button for more than 10 sec- onds. Keep in mind that all settings that have already been configured will be lost!
You can use the tip of a drawing pin to press the reset button.

4.3.4 Network connection

Via the LAN port, a computer or another network de­vice can be connected to the dLAN 500 WiFi via a com­mercially available network cable.

4.3.5 Wi-Fi antennas

The internal Wi-Fi antennas are for connecting to other network devices wirelessly.
devolo dLAN 500 WiFi
26 Initial use

4.4 Connecting the dLAN 500 WiFi

The device is designed for indoor use only.
This section describes how to connect your dLAN 500 WiFi to a computer or other network device.
Note the Wi-Fi key of the dLAN 500 WiFi before the network­ing procedure. You will find the unique adapter key on the label on the back of the housing.
Use a network cable to connect the
dLAN 500 WiFi to network port of your computer or other network device.
If you only want to use the Wi-Fi function on the dLAN 500 WiFi, plug the adapter into a power outlet, without any cables whatsoever. (see
2.4 Sample applications)
Plug the dLAN 500 WiFi into a wall socket. As
soon as the indicator light of the dLAN button lights green (after approx. 45 seconds), the adapter is ready to operate.
The power outlet should be in range of the connected network device. The dLAN 500 WiFi with the cable­based network device should be eas­ily accessible. To switch off the dLAN 500 WiFi or disconnect it from the mains supply, pull the power plug out of the power outlet.
A dLAN network is set up as soon as at least one
other dLAN adapter has been connected and plugged into the mains supply. To secure your dLAN network individually, continue with your dLAN network configuration. For more informa­tion, refer to the chapter 5 dLAN network.
In order to connect the dLAN 500 WiFi via Wi-Fi
with your laptop, tablet or smartphone, enter the previously noted Wi-Fi key as the network security key.
If you would like to connect additional adapters,
proceed as just described. For more information, also read Chapter 3 Quick start.
In order to secure your Wi-Fi network individually,
carry out your network configuration. For more information, refer to Chapters 5 dLAN network and 6 Network configuration.
devolo dLAN 500 WiFi
Initial use 27
Downloading dLAN Cockpit App
Download the dLAN Cockpit App to your smart-
phone or tablet computer from the corresponding store.
You can find dLAN Cockpit App quickest by clicking on the magnifying glass in the store and searching directly for dLAN Cockpit.
dLAN Cockpit is placed in your smartphone's or
tablet's app list as usual. Tapping on the dLAN Cockpit icon brings you to the start menu.
You can find more information in Chapter 5.2 dLAN Cockpit App.
Installation of devolo software
Finally, install the software for dLAN 500 WiFi as
described in the following chapter.

4.4.1 Software installation

Software for Windows
The installation wizard installs the adapter's configura­tion software as well as the devolo dLAN Cockpit on the Windows operating system.
The dLAN Cockpit software finds all accessible
dLAN adapters in your dLAN network, displays information about these devices and encrypts your dLAN network individually.
You can configure your Wi-Fi network, along with
other actions, using the configuration inter­face for your dLAN 500 WiFi.
To install the software, insert the included CD-ROM in the CD drive of your computer.
If AutoPlay is active on your computer, the in­stallation will start automatically. Otherwise, open the directory with the Windows Explorer by right-clicking on Start (or the Windows lo- go) and selecting Explorer from the context menu. Then start the installation wizard manu­ally.
You will be asked for permission to transfer anonymous performance data related to your dLAN adapter to devolo. The data sent to devolo pertains only to the performance values of your dLAN devices. The data is
devolo dLAN 500 WiFi
28 Initial use
anonymised and will be used exclusively for statistical purposes. By providing it, you can help us improve our products. You can find the installed software applications in the Start All Programs devolo program group.
Software for Mac (OS X)
The software mac folder contains the dLAN config- uration software.
Software for Linux (Ubuntu)
The SoftwareLinux folder contains the dLAN configuration software.
devolo dLAN 500 WiFi
dLAN network 29
Fig. 5

5dLAN network

Before you can use the dLAN 500 WiFi in your dLAN network, first you have to connect it to other dLAN AV devices as a home network. Two specific pieces of in­formation are especially important for this:
Shared use of a dLAN password results in a delim-
ited dLAN network.
Shared use of the dLAN password serves as access
control to the dLAN network as well as the encryption, and thereby the interception protec­tion, of the transmitted data.
The dLAN password can be set in different ways:
Automatically using the encryption button (see
5.1 dLAN network encryption at the touch of a button)
Manually using the dLAN Cockpit program (see
5.3 dLAN Cockpit) or dLAN Cockpit App pro- gram (see 5.2 dLAN Cockpit App).
By entering the dLAN password in the configu-
ration interface of the adapter (see 6 Network configuration).

5.1 dLAN network encryption at the touch of a button

To encrypt a dLAN network, in which all associated de­vices are equipped with an encryption button, simply press the encryption button located on the device. Pressing this button will encrypt your dLAN network with a randomly generated password.
The following section contains exact instructions on the basis of possible network scenarios:
Encrypting a new dLAN network with a dLAN 500 WiFi and a dLAN 500 duo
After you have successfully connected both adapters, press first the encryption button of the dLAN 500 duo (approx. 1second) and then the dLAN button of the dLAN 500 WiFi (approx. 1 second) within two minutes.
That's it! Your dLAN network is now protected against unauthorised access.
devolo dLAN 500 WiFi
30 dLAN network
Fig. 6
devolo dLAN 500 WiFi
dLAN network 31
Fig. 7
Expanding an existing dLAN network by adding a new dLAN 500 WiFi
If you have already secured your existing dLAN net­work using the encryption button, use the same meth­od to integrate further adapters. Once you have successfully connected the new dLAN 500 WiFi, first press the encryption button (approx. 1 second) of one
of your network's existing adapters, then press the en­cryption button (approx. 1 second) of your new dLAN 500 WiFi within two minutes.
That's it! The new dLAN 500 WiFi is now integrated in your network. To integrate additional adapters in your network, repeat the above steps.
devolo dLAN 500 WiFi
32 dLAN network
Fig. 8
Removing a dLAN 500 WiFi from a network
To remove a dLAN 500 WiFi adapter from an existing network, press its encryption button for at least ten seconds. The device will be assigned a new randomly generated password and will thus no longer be able to
access the network. To integrate the device into a dif­ferent dLAN network, follow the steps described above, depending on whether you are setting up a new network or adding the adapter to an existing one.
devolo dLAN 500 WiFi
dLAN network 33

5.2 dLAN Cockpit App

dLAN Cockpit App is an app for monitoring and en­cryption, which you can use to search out all other ac­cessible dLAN devices in your home network and connect them together into a secure network using the dLAN 500 WiFi – this could be considered the counterpart to the local devolo dLAN Cockpit soft- ware (see 5.3 dLAN Cockpit).
In addition, you can also use dLAN Cockpit App to access the configuration interface for the dLAN 500 WiFi and to change settings in the WLAN and dLAN network (see 6 Network configuration).
After you have integrated the dLAN 500 WiFi into
your home network as described in Chapter 4.4 Connecting the dLAN 500 AV Wireless+ and have downloaded dLAN Cockpit App, you can get to start menu just by tapping on dLAN Cockpit.
In order to connect the dLAN 500 WiFi to your
smartphone or tablet PC, select My dLAN.
the network appear with a picture and corre­sponding name.
The menu in dLAN Cockpit App automatically adjusts to the orientation (horizontal/vertical) of the smartphone or tablet P.
If your smartphone or tablet switches to power saving mode, the previously displayed view is shown again when you activate the screen again.

5.2.1 Overview page

You can page through the list of adapters by swiping across the screen (left/right or up/down).
The house icon displays the connection over dLAN.
The WLAN icon displays the connection over WLAN.
The bar graph reflects the connection quali­ty. The data rate is displayed in Mbps. Tap­ping on a respective adapter allows you to read the transfer rate for another device from the selected adapter's point of view.
As soon as your smartphone or tablet is connected
to the dLAN 500 WiFi, all of the adapters found in
devolo dLAN 500 WiFi
34 dLAN network
Tapping on the gear/arrow brings you to the configuration interface for the dLAN 500 WiFi. For more detailed informa­tion on the interface refer to Chapter 6 Net- work configuration.
Tapping on the recycle bin removes the con­nected adapters.

5.2.2 Settings menu

Tapping on the two gears brings you to the set­tings menu for the respective adapter.
Here you have the option of assigning a unique new name for yourself and to reset the respective device to the factory default settings. In addition, you can learn about device information such as the firmware version in use and the individual MAC address.

5.2.3 Menu on the bottom edge of the screen

The functions of the menu on the bottom edge of the screen are self-explanatory and can be operated intui­tively. Depending on which submenu you are in, the following functions appear:
You can always use the Refresh option to display
the current status of devices that have been found (if this hasn't happened automatically).
During the initial installation of the adapter, select
the Add adapter option.
The Troubleshooting guide contains additional
installation aids.
Security: Tapping on the key icon allows you to
change the dLAN password for either the entire dLAN network or just for the respective adapter or to reset it to the factory defaults.
The factory default password is HomePlugAV. For security reasons, we recommend setting an individualised dLAN password.

5.3 dLAN Cockpit

dLAN Cockpit is a monitoring and encryption program that detects all reachable dLAN devices in your home network and combines them in a secure network. Due to its logical graphic design, the dLAN Cockpit is easy and intuitive to operate. After installing the devolo software, it can be found in the Start Programs devolo program group.
devolo dLAN 500 WiFi
Start: dLAN Cockpit start menu
dLAN network 35
After starting the dLAN Cockpit, all reachable dLAN devices in your home network will appear. This may take a moment.
All adapters found in the network appear with as adapter icon with a corresponding product name. The adapter in the middle of the dLAN network identified
devolo dLAN 500 WiFi
with the symbol shown here symbolises your locally connected device. If you have multiple dLAN devices connected locally, you can jump back and forth be­tween them. Clicking an adapter icon with the mouse enables the corresponding dLAN device and highlights it.
36 dLAN network
The coloured connecting lines of the adapters illustrate the current transmission quality:
Green: the network connection is suitable for HD
video streaming.
Orange: the network connection is suitable for
SD video streaming and online gaming.
Red: the network connection is suitable for simple
data transfer and Internet access.
If data transmission from one device to another is ac­tually taking place, the data rate is displayed on the re­spectively highlighted adapter.
Settings and functions
You can configure settings for the respectively high­lighted device or for the network
via the buttons at the bottom edge of the screen or via tabs arranged at the side of each adapter.
You can always use the Refresh button to display the current status of devices that have been found (if this hasn't happened automatically).
By means of the Options button or the corresponding tabs of the respective adapter, you can learn device in­formation such as the firmware version used and the individual MAC address.
Options are given like assigning an additional name, resetting the respective device to the factory default settings or removing a device from the existing dLAN network.
The above-mentioned setting op­tions vary depending on the function and features of your device.
You can also specify whether information on the per­formance of your dLAN adapters will be transferred to devolo.
The data sent to devolo pertains only to the performance values of your dLAN devices. The data is anonymised and will be used exclusively for statistical purposes. By pro­viding it, you can help us improve our prod­ucts.
The Troubleshooting Guide includes installation in­structions and information about how to connect your devices optimally with one another.

5.3.1 Encrypting a network with dLAN Cockpit

If you use dLAN devices without an encryption but­ton, data can be encrypted only via dLAN Cockpit.
devolo dLAN 500 WiFi
dLAN network 37
Before the networking procedure, note the security IDs of all dLAN adapters. This unique identifier of each dLAN device is located on the label on the housing. It consists of 4 x 4 letters separated by dashes (e.g. ANJR-KMOR-KSHT-QRUV). Ensure that all dLAN adapters are connected to the power grid and computers or other network components as appro­priate.
Scan for local adapter
After dLAN Cockpit is started, it searches for the dLAN adapter connected directly to your computer first.
Adding an adapter
Add all the dLAN devices you want to your dLAN network by selecting the Add adapter button. You will need the 16-character security IDs of the adapters from the label on the housing. Enter it now in the Security ID field and confirm with OK. If a security ID is correct and the device can be reached in the dLAN network, it will be added to your network of configured adapters and also displayed in the program.
Entering a network password
After you have added all the dLAN devices you want to your dLAN network, select the Change password button to assign a shared network password that will apply for all registered adapters in your personal home network.
You can choose between your own password, a ran­dom password and the default password. To define your own password with a length of at least eight char­acters, enter this into the Network password text field. Alternatively, you can have a randomly selected, highly secure password assigned using the Generate
secure password button. Use the Factory default password button to reset the dLAN adapter to the de-
fault password. Normally, the display of the password is hidden for security reasons. If you enable the option Show characters, the current password is displayed in legible form in the text field.
The factory default password is HomePlugAV. Assigning a specific password to a single adapter will exclude it from the remaining dLAN network.
If dLAN Cockpit is called up again later after a suc­cessful initial installation, for example to integrate a new adapter into a network, the application remem-
devolo dLAN 500 WiFi
38 dLAN network
bers the devices that were entered earlier. Enter the new device as described in the Adding an adapter section. The current network password is assigned automatically to the newly added device.
devolo dLAN 500 WiFi
Network configuration 39

6 Network configuration

The dLAN 500 WiFi has a built-in configuration inter­face that can be called up using a standard web brows­er. All settings for operating the device can be modified here.
6.1 Calling up the built-in configu­ration interface
You can access the built-in configuration interface for the dLAN 500 WiFi in different ways:
Using the dLAN Cockpit App on your smart-
phone or tablet, you can access the device's con­figuration interface by going to the dLAN Cockpit App overview page and tapping on the gear/arrow.
You can find more information on dLAN Cockpit App in Chapter 5.2 dLAN Cockpit App.
Using the dLAN Cockpit software under Start
All Programs devolo dLAN Cockpit, you
can get to the device's configuration interface by clicking on the corresponding tab.
Then the program determines the current IP address and starts the configuration in the web browser.
By default, you will come directly to the configuration interface. However, if a login password was set via the option Device configuration Security, you have to enter this first (refer to 6.4.1 Device security).
devolo dLAN 500 WiFi
40 Network configuration

6.2 Menu description

All menu functions are described in the corresponding interface as well as in the associated chapter in the manual. The sequence of the description in the manual follows the structure of the menu.
Click Save to save the settings of the respective area of the configuration interface.
Click Back to leave the respective area of the configu­ration interface.
Select the desired language in the language selection list.
The four central areas of the configuration interface are displayed on the left edge. Click the button of an area to move directly into it.
devolo dLAN 500 WiFi
In the Status overview area, you get general
information about all connected dLAN, Wi-Fi and LAN devices.
Network configuration 41
You can change or modify the various device set-
tings for security, network, dLAN and time under Device configuration.
You can change or modify Wi-Fi settings in the
WLAN configuration area.
The Management section is for resetting, secur-
ing and restoring your individual configurations. In addition, you can update the firmware of your dLAN 500 WiFi here.
devolo dLAN 500 WiFi
42 Network configuration

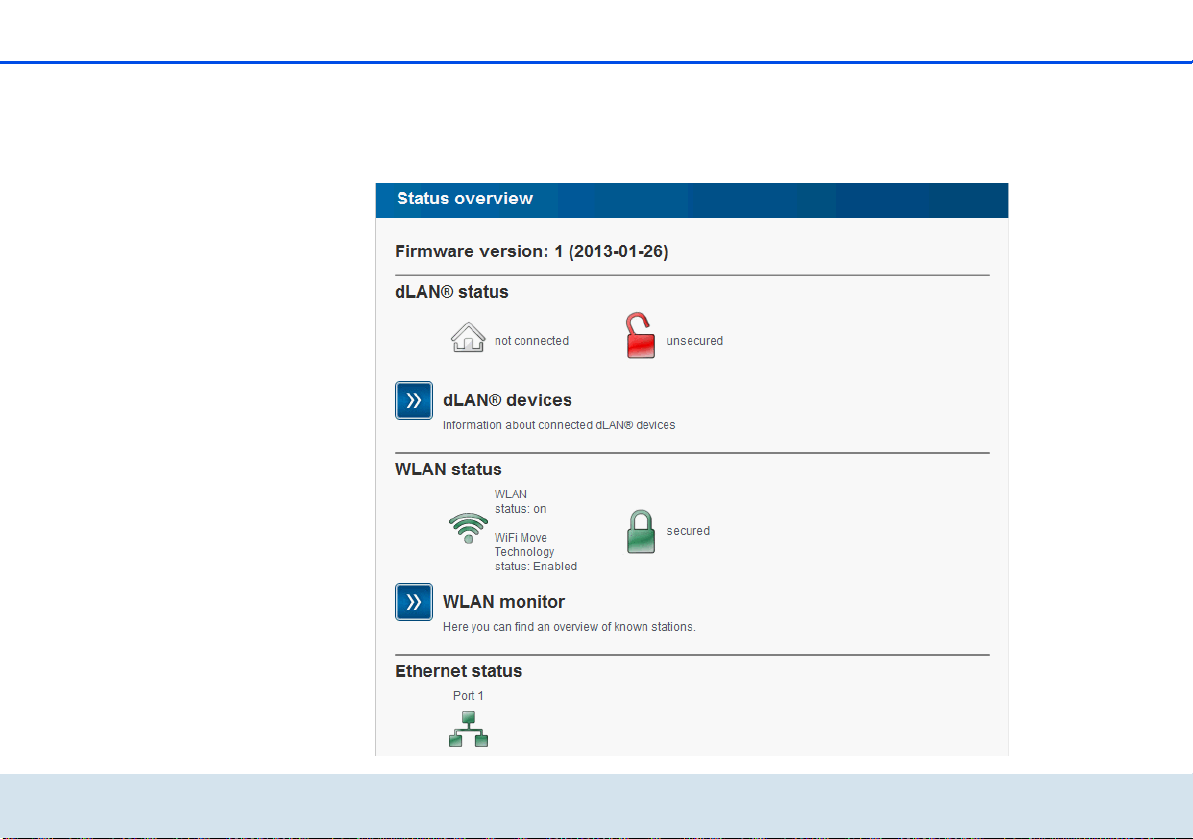

6.3 Status overview

In the Status overview area you can track the status of your connected dLAN, Wi-Fi and LAN devices.
devolo dLAN 500 WiFi
Network configuration 43

6.3.1 dLAN status

Here, you can see whether your devices are connected to a dLAN network. To display all connected dLAN de­vices, click either the house icon or the dLAN devices arrow. Each connected dLAN device, regardless of whether it is connected locally or remotely in the net-
You can add additional dLAN devices to your dLAN network by tapping or clicking on Add device. To do this, enter the security ID for the respective dLAN adapter in the Security ID field and confirm with Save.
work, is displayed with its MAC address, name and type. Clicking or tapping the lock icon brings you di­rectly to the dLAN settings (see 6.4.3 dLAN set- tings).
devolo dLAN 500 WiFi
44 Network configuration
Before the networking procedure, note the security IDs of all dLAN adapters. This unique identifier of each dLAN device is located on the label on the housing. It consists of 4 x 4 letters separated by dashes (e.g. ANJR-KMOR-KSHT-QRUV). Ensure that all dLAN adapters are connected to the power grid and computers or other network components as appro­priate.
devolo dLAN 500 WiFi
Network configuration 45

6.3.2 WLAN status

Here, you can see whether the Wi-Fi connection is switched on or switched off and whether Wi-Fi Move
Technology is activated (see 6.5.7 WiFi Move Technology). Clicking or tapping the Wi-Fi icon brings you directly to the WLAN configuration (see
6.5 WLAN configuration). Click on the WLAN
monitor arrow to have all of the known Wi-Fi devices
displayed. Each Wi-Fi station known since the last

6.3.3 Ethernet status

The status of the network connection is displayed in this area.
system start is displayed together with its name, MAC and IP address and the last login date, along with the speed if possible if there is an Internet connection and a time server was found.
Clicking or tapping the lock icon of the Access Point brings you directly to the Wi-Fi configuration area (see 6.5.1 Access point), where you can configure settings for Wi-Fi network security.
devolo dLAN 500 WiFi
46 Network configuration

6.4 Device configuration

In the device configuration area, you can modify set­tings for device security, network, dLAN, date and time and LED.
devolo dLAN 500 WiFi
Network configuration 47

6.4.1 Device security

In this area you can control the access to the configu­ration interface as well as enable and disable the func­tions of the interfaces and buttons on the dLAN 500 WiFi.
Password
You can set a login password for access to the config­uration interface.
By default, the built-in configuration interface of the dLAN 500 WiFi is not
protected with a password. However, we rec­ommend assigning a password when the in­stallation of the dLAN 500 WiFi is complete to protect it against tampering by third par­ties.
To do so, first enter (if present) the current pass-
word and then enter the desired new password twice. Now the configuration interface is pro­tected against unauthorised access with your indi­vidual password!
devolo dLAN 500 WiFi
48 Network configuration

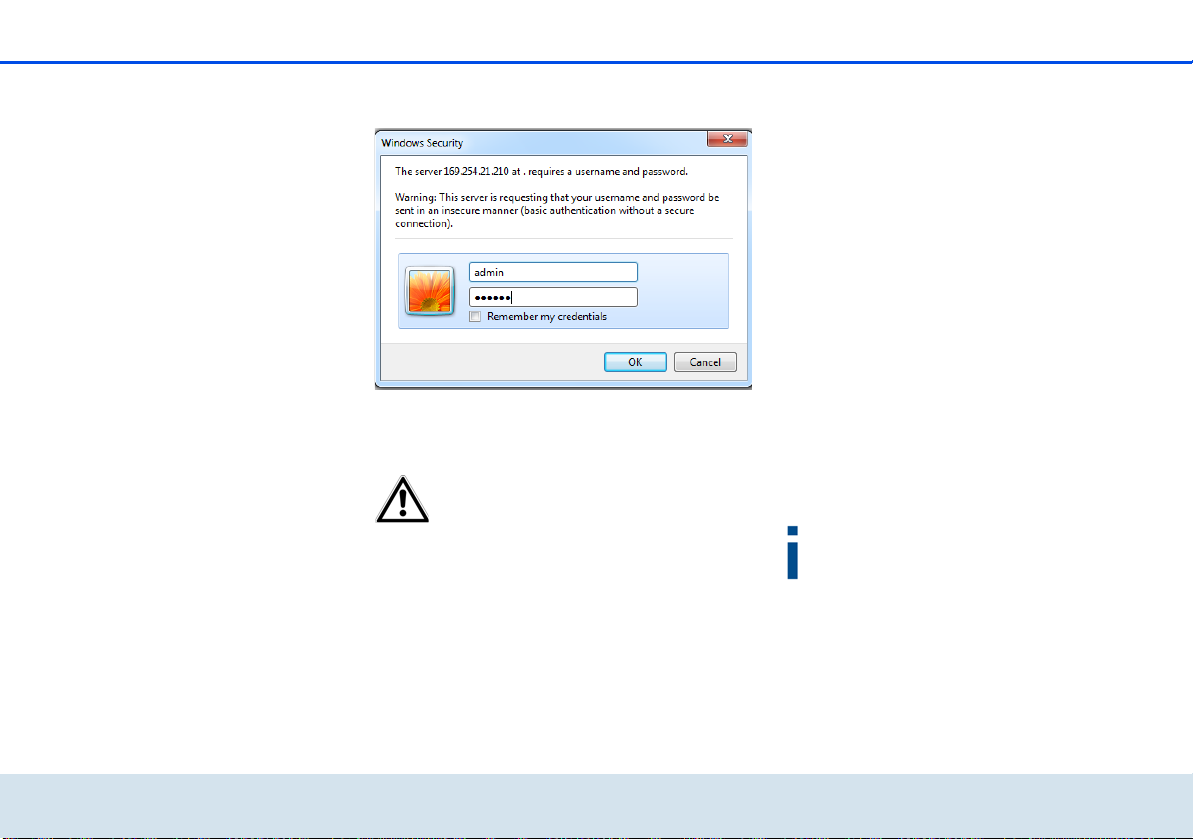

Call up the configuration interface again later; the
following window appears first:
Enter admin in the User name field and your
individual password in the Password field.
The admin user name cannot be changed.

6.4.2 Network settings

The dLAN 500 WiFi also communicates via the TCP/IP protocol as a component of your home network. The IP address required for this can either be entered manu­ally or obtained automatically from a DHCP server.
The option Use this to accept network settings automatically from a DHCP server is enabled in the factory defaults.
If a DHCP server is already present in the network for giving out IP addresses, have the option Use this to
accept network settings automatically from a DHCP server enabled so that the dLAN 500 WiFi au-
tomatically receives an address from it.
You can also assign a static IP address by making en­tries under IP address (e.g. '192.168.0.249') and Netmask (e.g. 255.255.255.0).
If you happen to forget the IP address of your dLAN 500 WiFi, proceed as described under
6.1 Calling up the built-in configuration in­terface.
devolo dLAN 500 WiFi
Network configuration 49
devolo dLAN 500 WiFi
50 Network configuration

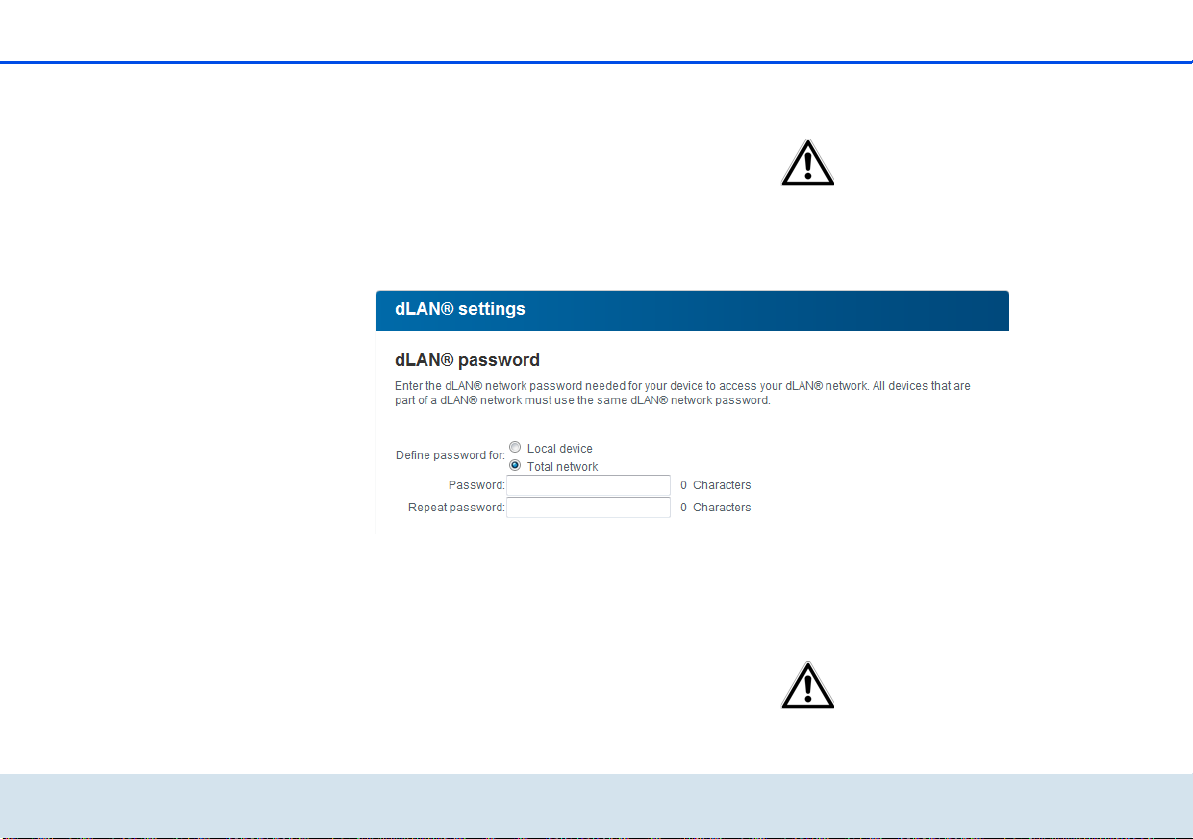

6.4.3 dLAN settings

In a dLAN network, all connected components must use the same password. The dLAN password can be defined in the dLAN Cockpit App or dLAN Cockpit with the dLAN encryption button (see 5 dLAN network) or at this location in the configuration inter­face. You can choose to configure the password local- ly or for the entire ("Total") network.

6.4.4 Time server

A time server is a server on the Internet whose task consists of providing the exact time. Most time servers are coupled with a radio clock.
The option Retrieve date and time automatically is activated by default so that the dLAN 500 WiFi can automatically synchronise the date and time.
If you only change the password for a local device, you exclude it from your complete dLAN network.
The dLAN default password is Home­PlugAV.
Select your Time zone and the Time server. If you have enabled the option Adjust to daylight saving time automatically, the dLAN 500 WiFi automati­cally adjusts to daylight saving time.
Synchronisation with an Internet time server has to be ensured in or­der to use the Wi-Fi time control, for example (see 6.5.5 WLAN time con-
devolo dLAN 500 WiFi
Network configuration 51
trol). In addition, the time server has to be ac- tivated, and an active Internet connection is also required.
devolo dLAN 500 WiFi
52 Network configuration

6.4.5 LED settings

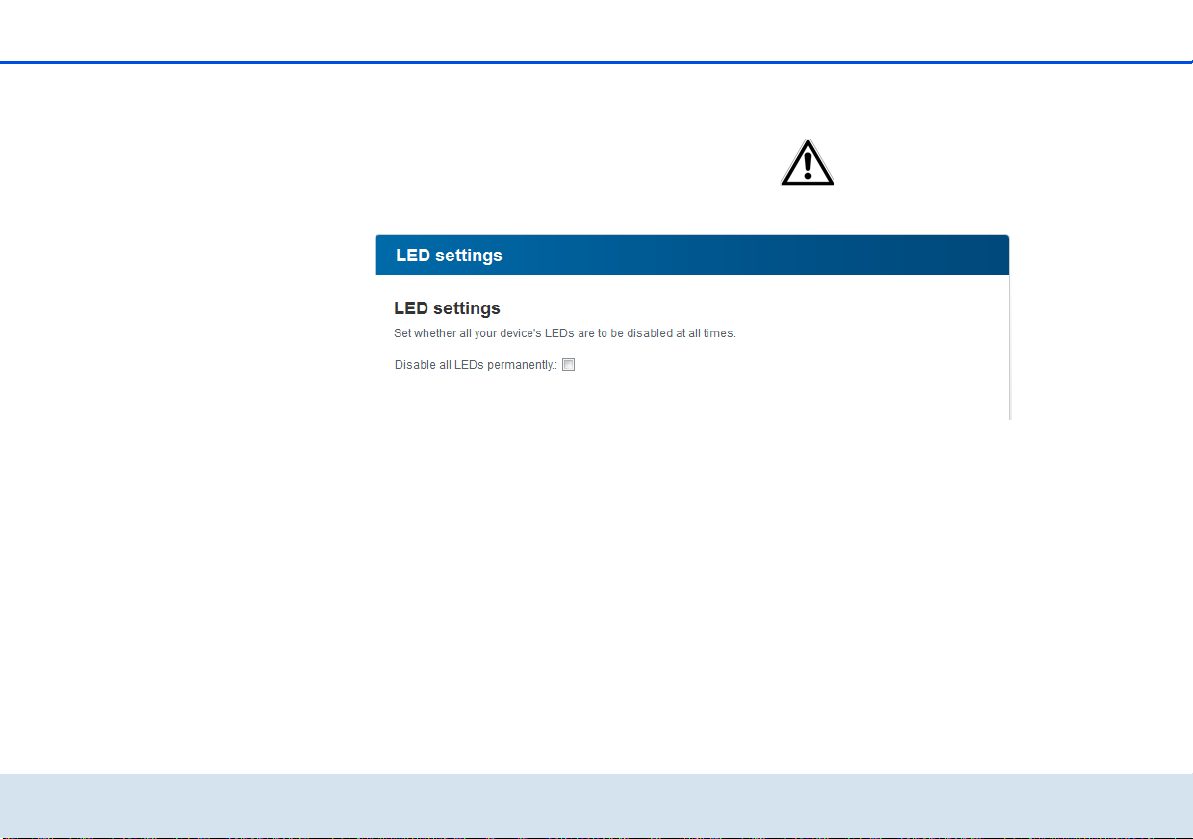

The LED status display can be deactivated by activating the function Disable all LEDs permantly in order to
prevent unwanted lighting, for example, in the master bedroom.
The LED status display is activated in the factory default state.
devolo dLAN 500 WiFi
Network configuration 53

6.5 WLAN configuration

In the WLAN configuration area, you can configure settings for the Wi-Fi network and its security.
devolo dLAN 500 WiFi
54 Network configuration
If you would like, you can completely shut off the Wi-Fi part of your dLAN 500 WiFi, e.g. if you want to operate it exclusively as a simple dLAN device via the built-in Ethernet connections. There are three different meth­ods for switching the Wi-Fi function on and off:
Press the ON/OFF button on the front panel of
the device. Detailed information on switching the device on and off can be found in Chapter 4.3.1 Wi-Fi button.
Use the Enable WLAN or Disable WLAN button
on the configuration interface under WLAN con- figuration.
Enable the Wi-Fi time control. For more informa-
tion, refer to Chapter 6.5.5 WLAN time con­trol.
The operating state of the device is displayed under 6.3 Status overview.
devolo dLAN 500 WiFi
Network configuration 55

6.5.1 Access point

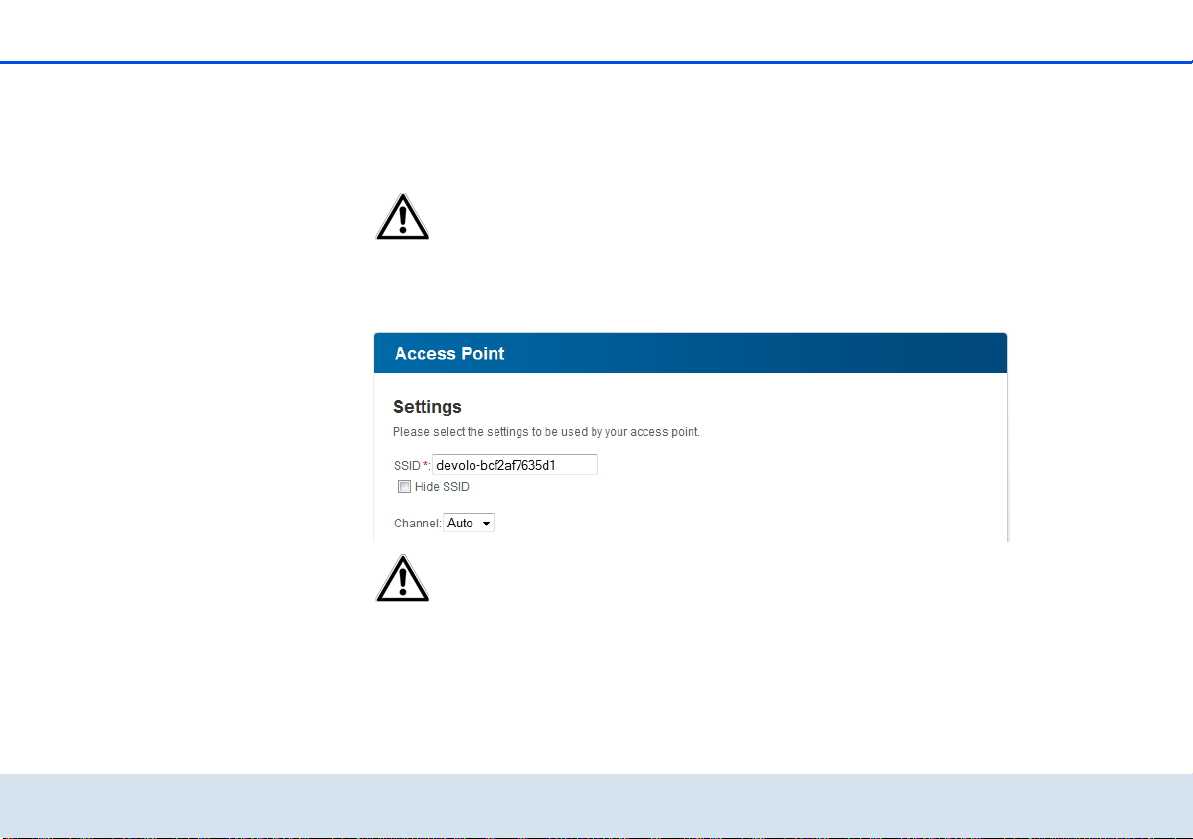

Since the dLAN 500 WiFi functions as an access point, you will have to configure various parameters for your wireless network.
Keep in mind that after saving this setting, you will be disconnected from any existing Wi-Fi connection to
In the factory default setting of the dLAN 500 WiFi, the Wi-Fi function is enabled and Wi-Fi WPA2 encryption is configured. The default Wi-Fi key is the Wi-Fi key of the dLAN 500 WiFi. You will find the key on the label on the back of the housing.
the dLAN 500 WiFi. In this case, configure the device via Ethernet or dLAN.
Settings
When activating the encryption, make sure that the Wi-Fi settings (SSID, encryption mode and encryption key) of the access point always correspond to the set­tings of the clients, as otherwise you will be (uninten­tionally) excluding devices from your network.
The SSID specifies the name of your wireless network. You can see this name when logging onto the Wi-Fi and thereby identify the correct subnet. If you enable the Hide SSID option, your wireless network remains hidden. In this case, potential network users must know the exact SSID and enter it manually to be able to set up a connection.
devolo dLAN 500 WiFi
56 Network configuration
Some Wi-Fi adapters have difficulty connecting to such hidden wireless networks. If the con­nection to a hidden SSID poses problems, first try to set up the connection with a visible SSID and only then try to hide it.
For operation as an access point, a (transmission) channel must be specified. There are 13 channels available. We recommend keeping the default setting Auto, since in this setting the dLAN 500 WiFi selects the channel regularly and independently. In other words, if the last connected station logs out, a search for a suitable channel is carried out immediately. If no stations are connected, the device automatically se­lects a channel every 15 minutes.
devolo dLAN 500 WiFi
Network configuration 57

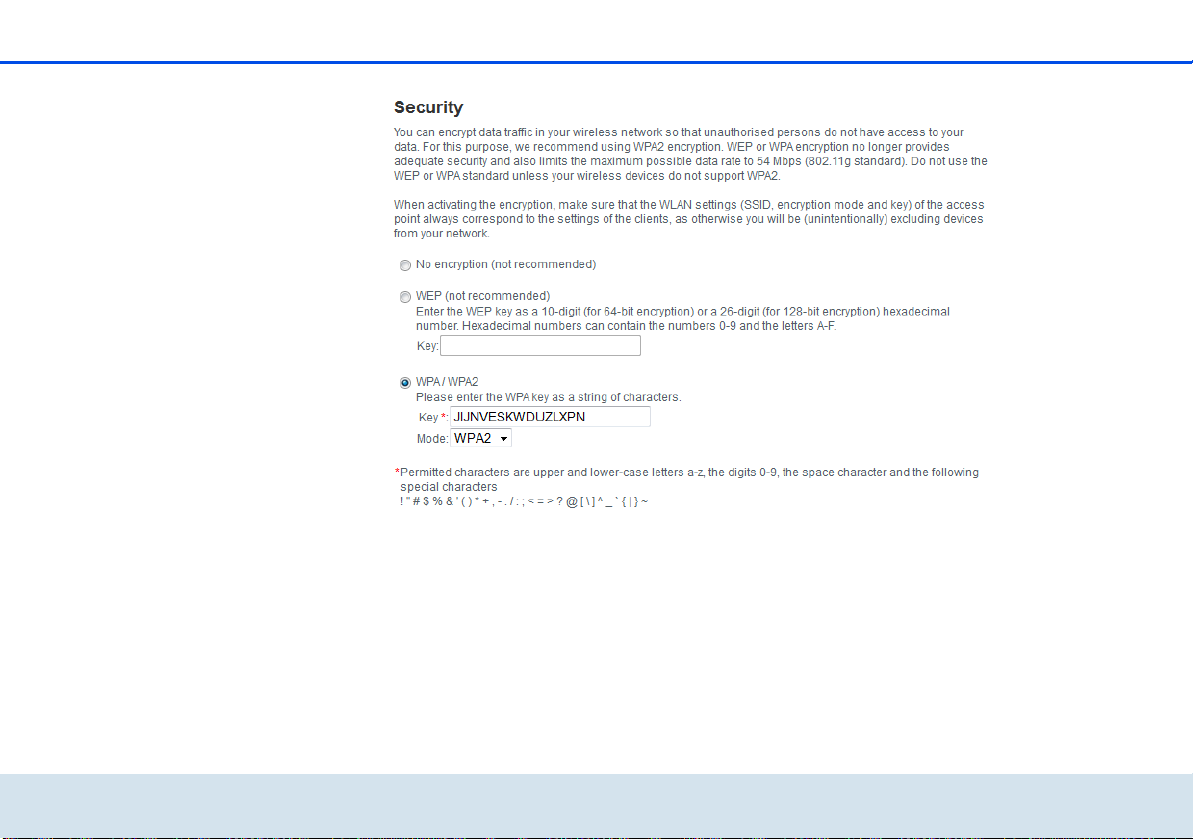

Security
Without encryption, not only are all data transmitted from client computers to the dLAN 500 WiFi in your wireless network without protection, but there is also no password prompt to establish the connection. If no other security measures were set up, such as a Wi-Fi fil­ter (see Chapter 6.5.3 WLAN filters), third parties can gain access to your network at any time and, for exam­ple, share your Internet connection. Each instance of access is visible to you in the Wi-Fi monitor (see Chap­ter 6.3.2 WLAN status).
To secure the data transmission in your wireless net­work there are two security standards available.
The older and weaker WEP standard can protect
communication with the help of a key having either 10 or 26 characters. To do so, enter a series of hexadecimal characters with the corre­sponding number of characters into the Key field.
A WEP key consists of a hexadecimal number which in turn consists of max. 26 characters (from 0 to 9 and A to F, e.g. "8AF34597FF5KK6LM4DF3OP2JK1"). No oth­er special characters (e.g. colons) may be used.
of up to 63 characters. You can simply enter this using the keyboard, without having to convert it into hexadecimal format first (as with WEP). Under Mode, you can limit access of clients to the dLAN 500 WiFi to the method you have selected.
Save all modified settings before leaving this configu­ration area again.
You should always encrypt the con­nections in your Wi-Fi. Otherwise an­yone within range could penetrate into your home network and, for ex­ample, share your Internet connec­tion. If possible, always select the better WPA2 encryption method. Only use WEP if one of your wireless terminal devices does not operate with a better standard.
The state-of-the-art WPA and WPA2 (Wi-Fi Pro-
tected Access) methods allow individualised keys consisting of letters and numbers with a length
devolo dLAN 500 WiFi
58 Network configuration
devolo dLAN 500 WiFi
Network configuration 59

6.5.2 Guest account

If you have friends or acquaintances visiting and you want to provide them with Internet access but without giving away the password for your Wi-Fi, you can set up a separate guest account in addition to the main In­ternet connection. The guest account can have its own SSID, time limit and Wi-Fi password. This way your vis­itors can surf the Internet without having access to your local network.
To set up a guest account, enable the Activate guest account option. You can also enable or disable the guest account in dLAN Cockpit App using the Acti- vate guest account button.
Define the name of the guest network in the SSID field (Service Set Identifier).
Automatic shutoff
If you would like to set a time limit for the guest ac­count, enable the option Automatically shut off guest account after ... and enter the desired time limit.
Note that guest access is subordinat­ed to the actual Wi-Fi configuration, and with it, is subject to the settings of the Wi-Fi time control. This means that guest access can only be used
within the times that are defined for the dLAN 500 WiFi under 6.5.5 WLAN time con- trol.
Security
You should also encrypt the guest account to prevent anyone in signal range from intruding into your home network and sharing your Internet connection. WPA and WPA2 (Wi-Fi Protected Access) security stand­ards are available for this.
WPA and WPA2 (Wi-Fi Protected Access) methods allow individualised keys consisting of letters and numbers with a length of up to 63 characters. You can simply enter this using the keyboard, without hav­ing to convert it into hexadecimal format first. Under Mode, you can limit access to the dLAN 500 WiFi to the method you have selected.
devolo dLAN 500 WiFi
60 Network configuration
devolo dLAN 500 WiFi
Network configuration 61

6.5.3 WLAN filters

In addition to encryption (see 6.5.1 Access point), you can secure your wireless network even more by us-
ing a Wi-Fi filter to limit access to Wi-Fi devices. Even if the encryption is switched off, the device will not es­tablish a connection.
The Wi-Fi filter should be used only as an additional option. By using it you could limit access to your wire­less network, but without encryption
devolo dLAN 500 WiFi
it would be relatively easy for third parties to eavesdrop on all of your data transmissions.
62 Network configuration
To use the Wi-Fi filter, enable the option Enable fil­ters. Now you can manually enter different network
devices to provide access to your dLAN 500 WiFi using what is known as their MAC address or you can select take them from a list of known devices (see 6.3.2 WLAN status WLAN monitor). Confirm each entry with Add.
Approved Wi-Fi stations
Network devices or stations connected to your dLAN 500 WiFi are automatically listed, that is, to en­able an already connected station for the dLAN 500 WiFi, simply select the MAC address of the respective device and confirm it with Add. This then appears under Approved WLAN stations. To remove an enabled station, select its MAC address and confirm it with Delete selected.
The Wi-Fi filter can only be set for stations connected directly to the ac­cess point (not the guest account).
The MAC address designates the hardware in­terface of each individual network device uniquely (e.g. the Wi-Fi adapter of a computer or the Ethernet port of a printer). It consists of six double-digit hexadecimal numbers, each separated by a colon (e.g. 00:0B:3B:37:9D:C4).
You can easily determine the MAC address of a Win­dows computer by opening the window with the com­mand prompt under Start All Programs Accessories Command Prompt. Enter the com­mand IPCONFIG /ALL here. The MAC address is dis­played under the designation Physical address.
After entering the MAC addresses, do not forget to click the Save button. If the entered values are incor­rect (e.g. because the colons are missing), a corre­sponding error message is displayed.
Keep in mind that you also have to enter the MAC address of your own computer if you are connected to the dLAN 500 WiFi not via the Ethernet port, but via Wi-Fi. Otherwise you will block your own access to the de­vice via Wi-Fi by activating the Wi-Fi filter!

6.5.4 Parental controls

You can regulate Internet access for specific stations based on time using this function. For instance, to pro­tect your children from excessive Internet use, you can define how long they may use the Internet per day.
Synchronisation with an Internet time server is neces­sary to be able to use the parental controls. In this
devolo dLAN 500 WiFi
Network configuration 63
case, the time server (Device configuration Date and time Obtain date and time automat­ically) for the dLAN 500 WiFi has to be enabled and
an active Internet connection is also required (see
6.4.4 Time server). The time server is enabled by
default.
If you would like to set up a daily time quota, enable the option Turn on parental controls. Now enter the MAC addresses for the stations for which you would like to set up a time quota. You can enter the MAC ad­dresses manually or select them from the list of current­ly known stations (see 6.3.2 WLAN status WLAN monitor). Confirm each entry with Add.
devolo dLAN 500 WiFi
64 Network configuration
WLAN stations with time limit
Here you can find a list all of the Wi-Fi stations for which the Internet access time is limited.
Each station is displayed with its MAC address, name, time remaining and the specified time quota.
If you would like to delete a station from this list, high­light the station and confirm with Delete selected.
Clicking or tapping on Edit brings you to the settings menu for the time quota. If you would like the time quota to be monitored, enable the option The time limit will be monitored.
The daily time quota can be specified in hours and minutes.
devolo dLAN 500 WiFi
A time quota can only be used if it matches the time periods defined in the WLAN time control and if the dLAN 500 WiFi is enabled and there is an Internet
connection. (see 6.5.5 WLAN time control).
The time quotas for the parental controls are de-
fined per day and the time periods for WLAN time control are defined per weekday.
Network configuration 65
If you expand an ongoing time quota, the change takes effect immediately; if you reduce an ongoing time quota, the change takes effect on the fol­lowing day.

6.5.5 WLAN time control

Synchronisation with an Internet time server has to be ensured in or­der to use Wi-Fi time control. In this case, the time server (Device config­uration Date and timeObtain date and time automatically) for the dLAN 500 WiFi has to be enabled and an active Internet connection is also required 6.4.4 Time server). The time server is enabled by default.
To be able to use the Wi-Fi time control, enable the op­tion Enable time control. The time control automati­cally switches your wireless network on and off at certain times of the day.
You can define two time periods during which your wireless network is to be enabled for each weekday. Then the time control automatically switches the wire­less network on or off.
Keep in mind that, as long as the dLAN 500 WiFi registers connected stations, the wireless network re­mains enabled. The wireless network is not switched off until the last sta­tion has logged off.
Manually switching the access point on or off (i.e. using a button) always has priority over automatic time control. The configured time control would take effect automatically during the next defined time period.
devolo dLAN 500 WiFi
66 Network configuration
devolo dLAN 500 WiFi
Network configuration 67

6.5.6 Wi-Fi Protected Setup

Wi-Fi Protected Setup (WPS) is one of the international encryption standards developed by the Wi-Fi Alliance for easily and quickly setting up a secure wireless net­work. The encryption keys of the respective Wi-Fi client
are transmitted automatically and continuously to the other Wi-Fi client(s) of the wireless network. The dLAN 500 WiFi offers two different variants for trans­mitting these encryption keys:
devolo dLAN 500 WiFi
68 Network configuration
WPS via PBC (Push Button Configuration):
Start the encryption process on the
dLAN 500 WiFi
either by tapping the WPS button on the
front panel of the device or
by pressing the Start setup button on the
user interface under WLAN configuration Wi-Fi Protected Setup (WPS).
Then press either the WPS key of the Wi-Fi client
you are adding or the WPS button on the configu­ration interface. Now the devices exchange their encryption keys and establish a secure Wi-Fi con­nection. The Wi-Fi LED on the front panel indi­cates the synchronisation process by flashing.
WPS via PIN:
To interconnect Wi-Fi stations securely in your
wireless network via PIN variants, enter an indi­vidualised key in the configuration interface under
WLAN configuration Wi-Fi Protected Setup (WPS) PIN and start the encryption pro- cess by pressing the Start setup button.
Open the configuration interface of the Wi-Fi cli-
ent to be added and transmit the PIN selected on the dLAN 500 WiFi. Confirm the encryption pro­cess as described there. Now the devices
exchange their encryption keys and establish a secure Wi-Fi connection. The Wi-Fi LED on the front panel indicates the synchronisation process by flashing.
Use of the WPS process implies either WPA or WPA2. For that reason, keep in mind the following automatic settings depending on the encryption standard (also refer to 6.4.1 Device security), i.e.
if under WLAN configuration Access Point
No encryption or WEP is selected in advance, WPA2 is set automatically. The newly generated password is displayed under Wi-Fi configura­tion Access Point in the Key field.
if under WLAN configuration Access Point
WEP is selected in advance, WPA2 is set auto-
matically. The newly generated password is dis­played under WLAN configuration Access Point in the Key field.
if under WLAN configuration Access Point
WPA is selected in advance, this setting remains
with the previously assigned password.
if under WLAN configuration Access Point
WPA2 is selected in advance, this setting remains
with the previously assigned password.
devolo dLAN 500 WiFi
Network configuration 69

6.5.7 WiFi Move Technology

Wi-Fi Move Technology is a function for synchronising the Wi-Fi settings of all dLAN 500 WiFi adapters con­nected to your home network.
WiFi Move Technology support enabled
Also press the dLAN button of the dLAN 500 WiFi
adapter for which the entire Wi-Fi configura­tion is to be transferred to all other
dLAN 500 WiFi adapters.
Then tap each dLAN button of the other
dLAN 500 WiFi adapters.
All dLAN 500 WiFi adapters are now continu-
ously connected to each other and, from now
on, share changes to the Wi-Fi configuration with each other automatically.
Wi-Fi configuration in factory de­faults: In the factory default settings of the dLAN 500 WiFi, the Wi-Fi function
is enabled and the Wi-Fi encryption WPA2 is configured. The default Wi-Fi
key is the Wi-Fi key of the corre­sponding device. You will find the key on the label on the back of the housing.
devolo dLAN 500 WiFi
70 Network configuration

6.6 Management

In the Management area you can reset the current configuration to the factory defaults, save it to your
computer as a file or restore it from there and update the firmware of the dLAN 500 WiFi.
devolo dLAN 500 WiFi
Network configuration 71

6.6.1 Resetting the configuration

With the Management Reset configuration com- mand, the dLAN 500 WiFi is reset to the original facto­ry defaults. In doing so, you lose your personal settings.
For backup purposes, all active configuration settings can be transmitted to your computer, stored there as a file and reloaded into the dLAN 500 WiFi. In this way, you can for example generate configurations for differ­ent network environments, with which you can set up the device quickly and easily.
The last-assigned dLAN password for the dLAN 500 WiFi is also reset. To re-secure your dLAN network individually, read further at 6.4.3 dLAN set- tings.
devolo dLAN 500 WiFi
72 Network configuration

6.6.2 Saving a configuration file

To save the active configuration to your computer as a file, select the corresponding button in the area Man-
agement Save configuration file. Then enter a storage location and name for the settings file.
devolo dLAN 500 WiFi
Network configuration 73

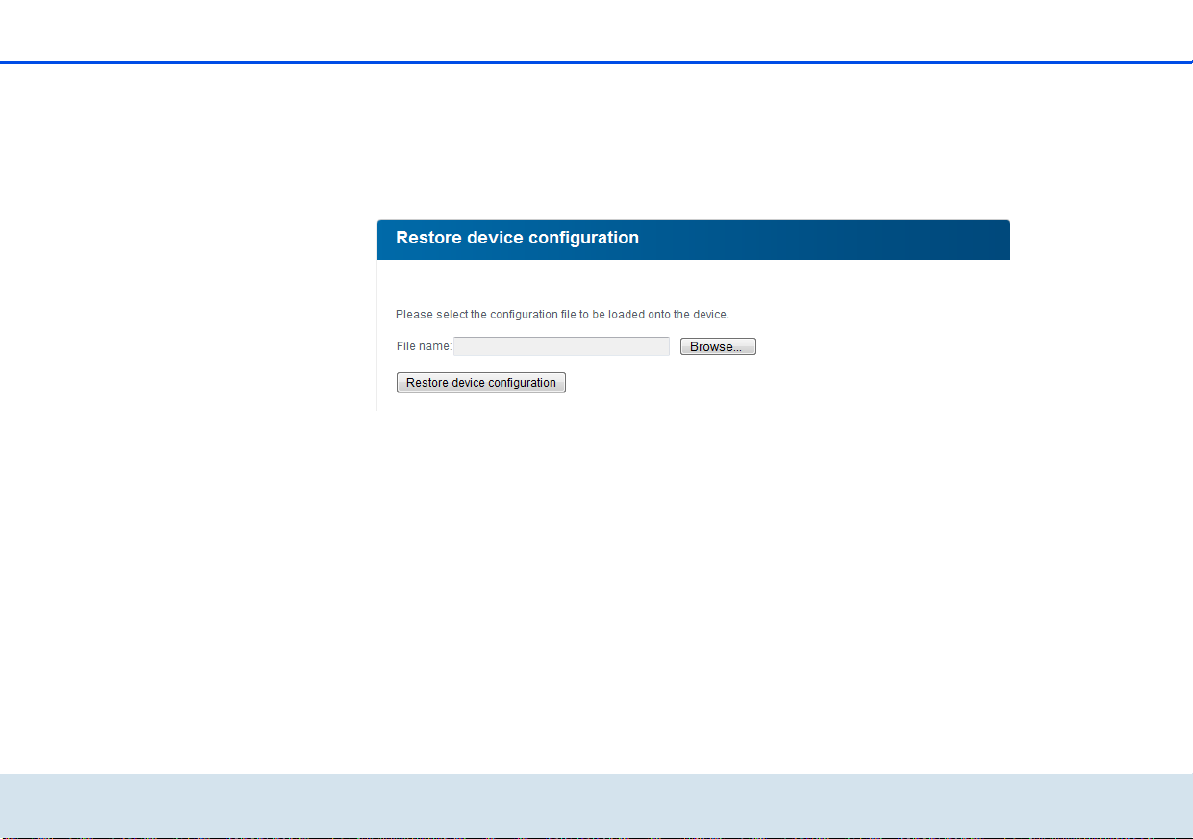

6.6.3 Restoring a configuration

An existing configuration file can be sent to the dLAN 500 WiFi in the Management Restore de- vice configuration area and enabled there. Select a suitable file via the Browse… button and start the op-
eration by clicking the Restore device configura- tion button.
devolo dLAN 500 WiFi
74 Network configuration

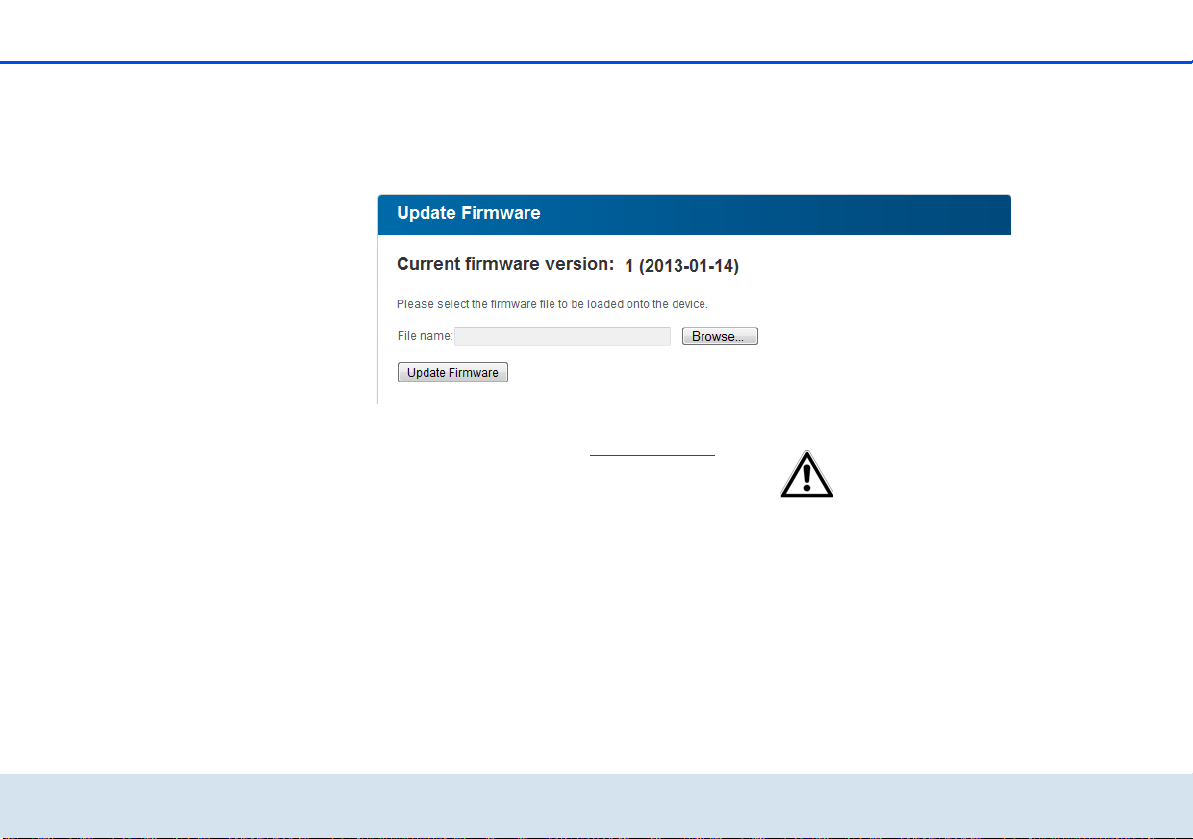

6.6.4 Update firmware

The firmware of the dLAN 500 WiFi includes the soft­ware for operating the device. If necessary, devolo of­fers new versions on the Internet as a file download,
To bring the firmware up to the latest version, first
go to the devolo website, www.devolo.com download the appropriate file for the dLAN 500 WiFi to your computer.
Then in the configuration dialogue, go to the area
Management Update Firmware. Click Browse… and select the downloaded file.
Then start the update procedure with the Update
Firmware button. After a successful update, the
dLAN 500 WiFi restarts automatically.
, and
for example, to modify existing functions or to extend the scope of function.
Ensure that the update procedure is not interrupted. To do so, it is best to connect your computer to the dLAN 500 WiFi via dLAN or LAN rath­er than Wi-Fi.
devolo dLAN 500 WiFi
Appendix 75
Fig. 9

7 Appendix

7.1 Bandwith optimisation

To significantly improve the transmission capacity of the network, we recommend that you comply with the following "connection rules":
Plug the device directly into a wall socket. Avoid
multiple sockets. This may impair the transmission of the dLAN signals.
Plug the devices into different outlets and avoid
using the same extension strip.
devolo dLAN 500 WiFi
76 Appendix

7.2 Disposal of old devices

To be used in the countries of the European Union and other European countries with a separate collecting sy­stem:
The icon with crossed-out wastebasket on the device means that this adapter is an electrical or electronic device that falls within the scope of application of the European Community WEEE Directive. These types of devices may no longer be disposed of with household waste. Rather they can be given to a municipal collection point free of charge. Contact your municipal government to find out the address and hours of the nearest collection point.

7.3 Warranty conditions

The devolo AG warranty is given to purchasers of devolo products in addition to the warranty conditions provided by law and in accor­dance with the following conditions:
1 Warranty coverage
a) The warranty covers the equipment delivered and all its parts.
Parts will, at devolo's sole discretion, be replaced or repaired free of charge if, despite proven proper handling and adherence to the operating instructions, these parts became defective due to fabrication and/or material defects. Alterna-
tively, devolo reserves the right to replace the defective pro­duct with a comparable product with the same specifications and features. Operating manuals and possibly supplied soft­ware are excluded from the warranty.
b) Material and service charges shall be covered by devolo, but
not shipping and handling costs involved in transport from the buyer to the service station and/or to devolo.
c) Replaced parts become property of devolo.
d) devolo is authorized to carry out technical changes (e.g. firm-
ware updates) beyond repair and replacement of defective parts in order to bring the equipment up to the current techni­cal state. This does not result in any additional charge for the customer. A legal claim to this service does not exist.
2Warranty period
The warranty period for this devolo product is three years. This period begins at the day of delivery from the devolo dealer. War­ranty services carried out by devolo do not result in an extension of the warranty period nor do they initiate a new warranty period. The warranty period for installed replacement parts ends with the war­ranty period of the device as a whole.
devolo dLAN 500 WiFi
Appendix 77
3Warranty procedure
a) If defects appear during the warranty period, the warranty
claims must be made immediately, at the latest within a period of 7 days.
b) In the case of any externally visible damage arising from trans-
port (e.g. damage to the housing), the person carrying out the transportation and the sender should be informed immedi­ately. On discovery of damage which is not externally visible, the transport company and the sender are to be immediately informed in writing, at the latest within 3 days of delivery.
c) Transport to and from the location where the warranty claim is
accepted and/or the repaired device is exchanged, is at the purchaser's own risk and cost.
d) Warranty claims are only valid if a copy of the original
purchase receipt is returned with the device. devolo reserves the right to require the submission of the original purchase receipt.
4 Suspension of the warranty
All warranty claims will be deemed invalid
a) if the label with the serial number has been removed from the
device,
b) if the device is damaged or destroyed as a result of acts of
nature or by environmental influences (moisture, electric shock, dust, etc.),
c) if the device was stored or operated under conditions not in
compliance with the technical specifications,
d) if the damage occurred due to incorrect handling, especially to
non-observance of the system description and the operating instructions,
e) if the device was opened, repaired or modified by persons not
contracted by devolo,
f) if the device shows any kind of mechanical damage, or
g) if the warranty claim has not been reported in accordance with
3a) or 3b).
5Operating mistakes
If it becomes apparent that the reported malfunction of the device has been caused by unsuitable hardware, software, installation or operation, devolo reserves the right to charge the purchaser for the resulting testing costs.
6 Additional regulations
The above conditions define the complete scope of devolo's legal liability.
a) The warranty gives no entitlement to additional claims, such as
any refund in full or in part. Compensation claims, regardless of the legal basis, are excluded. This does not apply if e.g. injury to persons or damage to private property are specifically covered by the product liability law, or in cases of intentional act or culpable negligence.
b) Claims for compensation of lost profits, indirect or consequen-
tial detriments, are excluded.
c) devolo is not liable for lost data or retrieval of lost data in
cases of slight and ordinary negligence.
d) In the case that the intentional or culpable negligence of
devolo employees has caused a loss of data, devolo will be liable for those costs typical to the recovery of data where peri­odic security data back-ups have been made.
e) The warranty is valid only for the first purchaser and is not
transferable.
f) The court of jurisdiction is located in Aachen, Germany in the
case that the purchaser is a merchant. If the purchaser does not have a court of jurisdiction in the Federal Republic of Ger­many or if he moves his domicile out of Germany after conclu­sion of the contract, devolo's court of jurisdiction applies. This is also applicable if the purchaser's domicile is not known at the time of institution of proceedings.
g) The law of the Federal Republic of Germany is applicable. The
UN commercial law does not apply to dealings between devolo and the purchaser.
devolo dLAN 500 WiFi
78 Appendix
devolo dLAN 500 WiFi

Index

B
Bar graph 33
C
CE 8
D
Date and time 50
Default Wi-Fi key DHCP server Disposal of old devices dLAN encryption dLAN house symbol dLAN password dLAN status
F
Factory default password 37
G
Gear/arrow 34
Generate secure password
I
Integrating the new adapter into the network 37
IP address
K
Key icon 34
L
LAN (Network connection) 25
23, 55, 69
48
76
50
33
50
43
37
48
LED status display
19, 28
Linux
23, 52
M
Mac (OS X) 19, 28
MAC address
62
N
Network password 37
P
Package contents 15, 22
Parental controls
62
R
Recycle bin 34
25
Reset
S
Safety notes 9
Security ID Software installation SSID System requirements
37, 44
18, 27
55
15, 22
T
Time server 50
Troubleshooting guide
34
W
Warranty 76
57
WEP Wi-Fi antenna Wi-Fi filter
25
61
devolo dLAN 500 WiFi
Wi-Fi key WiFi Move Technology Wi-Fi Protected Setup (WPS) Wi-Fi status Wi-Fi time control WLAN icon WPA WPA2
23, 55, 69
69
45
65
33
57, 59
57, 59
67
devolo dLAN 500 WiFi
Loading...
