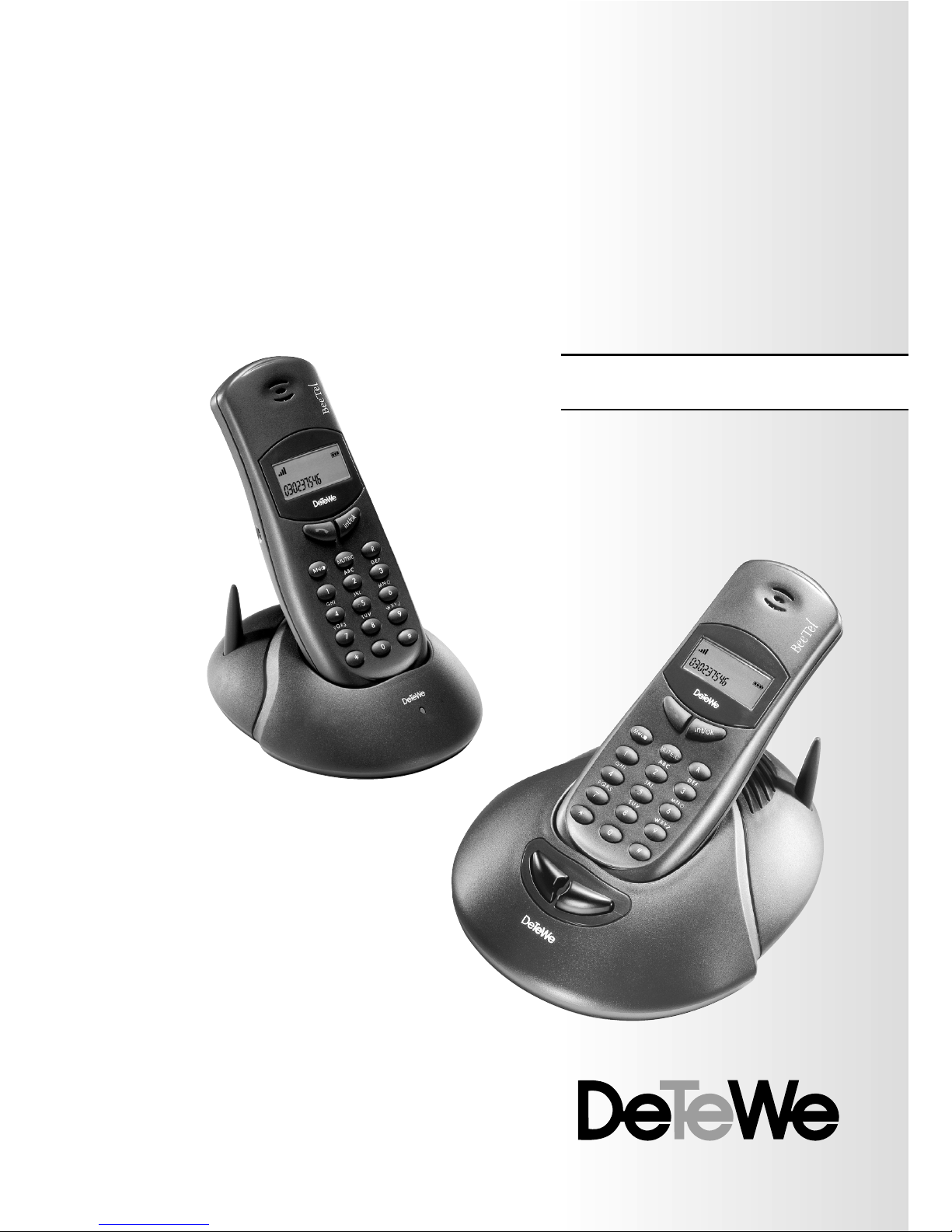

BeeTel / BeeTel XL
Cordless Telephone (DECT/GAP)
BeeTel voice/ BeeTel voice XL
Cordless Telephone (DECT/GAP) with Digital Answering Machine
User Instructions
Welcome to DeTeWe
Thank you for choosing a product from DeTeWe. Our product stands for the highest standard of quality, paired with
superior design.
This Instruction Manual will help you in setting up your BeeTel / BeeTel voice for first time use and answer all essential
questions you may have.
We wish you a lot of enjoyment from your BeeTel / BeeTel
voice.
Please read first……………………3
Important Safety Information ……4
Power supply ………………………4
Safety precautions …………………4
Usage ………………………………4
Installation site ………………………4
General ………………………………5
DECT and GAP ……………………6
Features …………………………….7
Factory defaults ……………………8
Installation …………………………8
Installation site and range …………8
Connecting the base station ………9
Installing/Removing the batteries …9
First-time use ………………………9
Commissioning sequence …………9
Charging the batteries …………10
First-time use ………………………10
Charging and operating times ……11
Charging display …………………11
Battery level warning………………11
Important information on the
batteries …………………………12
Designated use ……………………12
Displays, keys and audio
signals……………………………13
Display………………………………13
Symbol line …………………………13
7-Segment line ……………………13
Keys ………………………………14
Audio signals ………………………14
Readiness state ……………………14
Calling ……………………………15
Standard calling ……………………15
Block dialling ………………………15
Redial/Caller List …………………15
Speed-dialling ……………………15
Redial/Caller List …………………15
Accepting a call ……………………16
Ringer mute ………………………16
Speed dialling………………………16
Storing/Overwriting speed dial
numbers …………………………16
Dial/Check speed dial numbers …17
PIN protected calling………………18
Standard calling ……………………18
Block dialling ………………………18
During a call ………………………19
Mute microphone …………………19
Microphone off ……………………19
Microphone on ……………………19
Speaker volume……………………19
Call waiting …………………………19
Consultation/Transfer with
announcement …………………19
Toggle ………………………………19
Transfer without announcement …20
Telephone in ready state …………20
Keypad lock ………………………20
Paging ………………………………20
Programming ……………………21
PIN ………………………………21
Change PIN ………………………21
Access authorisation………………21
Programming blocked numbers …22
Programming PIN-protected
calling ……………………………22
Preselection (dial via different
network operators) ………………23
Reset (return to factory default
condition) …………………………23
Dialling Method ……………………24
Key click ……………………………24
Handset melody/volume …………24
Setting the date/time………………25
On-hold melody ……………………25
Base station melody/volume ……25
Operating your handset on
several base stations……………26
Enrolling With Base Station
Number (PARK) …………………26
1
Contents
Enrolling Without Base Station Num-
ber (PARK) ………………………26
Selecting a base station/
Enrolling a handset ……………27
Deleting a base station……………27
Several handsets at one base
station ……………………………28
Programming an internal call
number……………………………28
Deleting an internal call number …28
Single Call / Collective Call ………28
Answering machine ……………29
General ……………………………29
Operating elements ………………29
Control displays ……………………30
Master handset ……………………30
Programming the master handset 30
Recording announcement
texts/Memos ……………………31
Check/Delete announcement ……31
Switching the answering
machine on/off …………………31
Playing back and deleting
individual messages/memos …32
Delete all messages/texts ………33
Delete all messages ………………33
Delete all texts ……………………33
Setting the activation delay ………33
Setting the maximum message
duration …………………………33
Setting the total recording time …34
Incoming call monitoring …………34
Adjusting the volume ……………34
Allow/prohibit remote control ……34
Remote control ……………………35
Toll-free distance request …………36
Activate/Deactivate toll-free
distance request …………………36
Overview of answering machine
functions …………………………37
Answering machine functions with
other handsets …………………37
Appendix …………………………38
Care and Maintenance ……………38
Service and Warranty ……………38
Technical Data ……………………39
Accessories ………………………39
Index of keywords …………………40
2
3
Please read first
These user instructions will familiarise you with the operation of the various versions of the BeeTel.
• BeeTel : basic model
• BeeTel XL : as per the basic model, but with an additional handset and charging unit
• BeeTel with a small base:
like the basic model, thanks to its compact design without paging keys (see
page 20)
• BeeTel voice : Handset as per the BeeTel, with a digital
answering machine integrated in the
base station
• BeeTel voice XL: as per the BeeTel voice, with an additional handset and charging unit
Insofar as not otherwise specified, the operating procedures
stated refer to all versions. The chapter entitled "Answering
machine" refers only to the BeeTel voice and BeeTel voice
XL versions.
You can connect the BeeTel cordless telephone to the telephone connection yourself.
It is licensed in accordance with the EU Guideline
91/263/EEC for telecommunications equipment. The CE
symbol verifies the device’s compliance with the above
guideline.
Before using your telephone for the first time, please read
these user instructions carefully. Store the user instructions
in a safe place for future reference.
RegTP Official Notice 25/98 Availability 145/1998
General assignment of frequencies for general use of cordless telecommunications systems pursuant to the DECT
system.
…
4. This general assignment applies to cordless telecommu-
nications systems pursuant to the DECT system. They
may be used in the following frequency ranges only:
DECT System 1880-1900 MHz
The specification of the frequency range 1880-1900
MHz in the frequency utilisation plan applies initially to a
period of 10 years and extension of this period shall
depend on European harmonisation.
…
4
Important Safety Information
This product requires a 230 V alternating current power
supply. The device can only be switched off by removing
the AC adapter plug from the mains socket.
• Do not open either the base station, the handset nor the
charging unit (accessory), as this could expose you to
high voltages. Any and all repairs must be carried out by
qualified service personnel.
• Do not allow the charging unit and battery contacts to
come into contact with electrically conductive items, such
as keys, paperclips, rings or bracelets.
• Never expose the base station, handset or charging unit
to water or chemicals
• Please only use the mains adapter supplied and the type of
battery supplied (or batteries complying with the specifications in the technical data).
• Only place the handset in the base station or charging unit
when batteries are installed.
• Do not use a mains adapter that shows any signs of
damage (breaks or cracks in the housing).
• Do not operate the handset in vehicles or in areas where
there is a danger of explosion.
This handset, like any cordless telephone, operates using
radio signals, which cannot guarantee the establishment of
a connection under all conditions. Therefore, you should
never rely solely upon any cordless telephone for essential
communications (e.g. medical emergencies).
Do not install the base station, handset or charging unit
(accessory) in the vicinity of:
• Water, moisture or damp areas.
• Heat sources, direct sunlight or inadequately ventilated
areas.
• Devices which produce strong magnetic fields, electrical
appliances, fluorescent lamps, computers, radios, television sets, fax machines and telephone terminals.
• Areas where the equipment may be covered, its ventilation impaired, or where fluids could ingress into it.
• Areas where there is excessive dust, and areas subject to
vibration, shock or extreme temperature fluctuations.
Please install or store handsets and accessories out of
reach of small children.
Power supply
Safety
precautions
Usage
Installation site
5
General
With the BeeTel, you have purchased a cordless telephone
for operation on an analog terminal connection.
This telephone offers a variety of features that enable you
to make telephone calls more easily. To increase your
accessibility, you can operate up to five handsets on one
base station and also make toll-free internal calls between
these handsets.
You can enrol your handsets at up to a maximum of five
base stations and thus use the same handsets at different
locations. Furthermore, it is possible to operate the handsets on base stations made by other manufacturers if they
conform with the GAP standard.
The BeeTel (basic model) is shipped with the following
items:
• Base station with integrated charging unit
• Handset with two NiCd batteries
• Belt clip
• Mains adapter
• Telephone connection cable
• This instruction manual
The BeeTel XL is shipped with the following items:
As per BeeTel (basic model) plus:
• Second handset with two NiCd batteries
• Belt clip
• Charging unit with mains adapter
The BeeTel voice is shipped with the following items:
As per BeeTel (basic model) plus:
• Base station with integrated charging unit and digital
answering machine
The BeeTel voice XL is shipped with the following items:
As per BeeTel voice, plus
• Second handset with two NiCd batteries
• Belt clip
• Charging unit with mains adapter
Additional handsets, as well as charging units, are available
as accessories.
6
Your handset uses a digital radio signal between the base
station and the handset in compliance with the DECT (Digital Enhanced Cordless Telephone) standard. This digital
channel guarantees maximum voice quality without random
or background noise when operated according to the intended use. The BeeTel uses the Generic Access Profile
(GAP) for communication between the base station and
handset.
The Generic Access Profile (GAP) and DECT standard define methods which are used for digital cordless telephones
to establish connections. The GAP standard is not manufacture-specific, so it is possible to combine base stations
and handsets with each other that are made by different
vendors.
The basic functions (making and receiving calls) are always
possible with these combinations. Other functions (display
of call number or of call charges) which your BeeTel base
station provides together with your handset may not be
available with telephones that were made by other manufacturers.
DECT and
GAP
7
Features Your BeeTel provides you with the following features. More
detailed information on each feature can be found in the
respective description.
• Standard dialling
• Connection set-up / Block dialling
• Redial / Caller List, 10 numbers in common list, max. 30
digits per number, selection of entry in Caller List through
prefixed "C"
• Display of Caller ID, if the number is transmitted (CLIP /
Calling Line Identification Presentation)*
• Speed dialling, 10 destination numbers
• Preselection / Call-by-call support (connection via numerous network operators)
• Internal calls
• Display of internal Caller ID
• Single / Conference call option for internal calls
• Transfer of external calls (in the case of several handsets)
• Consultation in the case of external calls
• Flash-key function with 2 flash intervals (long/short)
• Handset volume adjustable in two increments
• Handset mute function
• Ringer mute for incoming calls
• Key-click on/off
• Keypad lock
• Display of signal strength
• Display of call duration
• Display of battery charging level
Furthermore, the BeeTel voice offers the following additio-
nal features:
• Integrated digital answering machine
• Message recording capacity of up to 16 minutes
• 2 announcement texts
• Memo function
• Display of time stamp
• Possibility for remote control
• Toll-free distance request
• All messages and texts retained in the event of a power
shortage
• Toggling
• 9 on-hold melodies
* The CLIP feature must be supported by your subscriber terminal
connection. Your network operator (e.g. Deutsche Telekom) can inform
you of whether this feature is supported.
8
Factory defaults BeeTel:
• Redial Stack/Caller List - No entries
• Speed-dial memory - No entries
• Preselection - No entry
• Authorisation - No restriction
• Blocked numbers - No entries
• Dialling mode - DTMF
• Signal key function - Flash, long
• Handset volume - Normal
• Key-click - On
• Melody / Volume - 3 / 4 (= Key *)
• PIN - Last 4 digits of serial
number (on underside of base station)
• Melody / Base station volume - 3 / 4
Additionally, in the case of the BeeTel voice:
• Recording quality - High quality (8 min.)
• Max. recording duration per call - 120 seconds
• Master handset - Handset 1
• Number of calls - 5
• Remote control - Off
• Toll-free distance request - Off
• On-hold melody - 1
• Date / Time - 01.01. 00:00
Installation
Install the base station at a central location in the vicinity of
which you will make telephone calls (not in the cellar or
attic). You should have free access to the base station - it
should not be placed in wall recesses or behind furniture.
Thick reinforced concrete walls and metal doors severely
limit the radio signal. Avoid installing the base station in
such locations. The base station should be placed near to a
window to facilitate operation outside of the building
A 230V mains socket and your telephone connection terminal must be near the installation site.
The radio signal has a range of
• up to 30 m in closed buildings
• up to 300 m outdoors when facing the base station
Factory
defaults
Installation
site and range
9
Connecting
the base
station
Installing/Re-
moving the
batteries
Commissio-
ning sequence
The connection ports are on the underside of the base station.
Use the enclosed cable to connect the telephone jack with
the telephone terminal connection of your network operator.
Insert the AC adapter plug cable into the adjacent port. Insert the AC adaptor plug into the 230V mains socket. With
the model "BeeTel with a small base," the LED on the base
station indicates the power supply.
The batteries are installed in the rear of the handset. Open
the cover and insert the batteries according to the polarity
specified.
First-time use
• Familiarise yourself with the operating elements (page 13).
• Install the telephone as described in the chapter entitled
"Installation" (page 8).
• Charge the batteries for approximately 10 - 14 hours by
inserting the handset into the separate charging unit
(accessory).
Your system is now ready to operate. You can make and
receive calls.
We recommend that you now make further settings:
• Change your PIN to prevent unauthorised changes to
your settings.
• Configure the telephone as you wish or as the technical
specifications make necessary (dialling method/signal key
function/authorisation, etc.).
• Store frequently required telephone numbers in the
speed-dial memory.
• Adjust the ringer volume and melody to your taste.
• If you wish to use additional handsets on this base station, prepare the enrolment of the additional handsets by
disconnecting the 230V power supply for at least 5
seconds and then reconnecting it (by pulling out and reinserting the AC adaptor plug). Enrol the handsets with the
base station within two minutes (page 26).
10
First-time use
Charging the batteries
The first time you use the telephone, it is possible that the
current charging status or the battery symbol is not displayed on the handset if it is not inserted into the charging unit.
Charge the batteries for 10 to 14 hours before you
use your handset for the first time.
The charging cycle must be completed before the battery display is activated.
During this first charging cycle, a solid, flashing battery symbol is displayed on the handset display, regardless of the
actual charging level of the batteries.
The maximum battery capacity is reached after three to five
complete charging and discharging cycles.
Place the handset in the base station/charging unit regularly, in order to achieve an optimum battery charge.
You will know if the first charging cycle has been completed
when you remove the handset from the charging unit via
the following indications:
No charging display / Battery symbol: First charging
cycle not yet complete, but you may already be able to use
the telephone.
Charging display / Battery symbol displayed: First charging cycle is complete. The current battery capacity is indicated by the respective display of the battery symbol.
You can use your BeeTel after charging the batteries for
just 2 to 3, even if the charging status display is not activated by a complete charging cycle! A battery can be charged
and discharged several hundred times during its service
life.
However, at some point, the battery will be expended. This
is indicated when the operating time (i.e. duration of a call
and readiness of the telephone) becomes significantly shorter than normal. When such a situation arises, it is time to
replace the batteries.
Always replace both batteries together, and always ensure
that batteries with the same capacity are used.
If you replace the batteries in the handset or remove them
and re-insert them, this is equivalent to using your BeeTel
for the first time.
11
In such a case, you will not see a battery symbol on the
display of your handset if it is not resting in the charging
unit, and you must repeat a complete charging cycle.
Please make note of the correct polarity when changing the
batteries. Also note that only battery types approved by the
manufacturer (page 39: "Technical Data") may be used.
Never use normal (primary cell) batteries! The manufacturer accepts no liability for malfunctions or damage if nonspecific battery types or normal batteries are used.
Charging time: (empty batteries) 10 - 14 hours to reach full
capacity
Call time: up to 10 hours
Standby: up to 100 hours
The charging status is indicated on the display by the FGHI
symbol, where:
FGHI Battery capacity 75…100%
FGH Battery capacity 50…75%
FG Battery capacity 25…50%
F Battery capacity les than 25%
F (flashing) indicates battery virtually dead;
please insert your handset into the base station/
charging unit without delay
FGHI Frame flashes (handset is in base station / charging
unit) – Charging status is being determined
If the handset is in the base station/charging unit, the flashing segments of the symbol indicate the charging process. An audible signal indicates that the handset is inserted correctly into the base station/charging unit.
An audible alarm in the form of 3 short "beeps" indicates
that the battery capacity is virtually expended: you then
have approx. 3 minutes of call time left.
Charging and
operating
times
Charging
display
Battery level
warning
Important information on the batteries
Your handset operates using two standard batteries (NiCd shipped with your telephone - can be exchanged for NiMH
batteries).
Use the batteries for their designated purpose only. Never
use a battery that is damaged or depleted.
Heat and cold decrease the efficiency and service life of the
batteries. The ambient temperature should be between 15
and 25 degrees Celsius. A handset fitted with a hot or a
cold battery may not function correctly at times, even if the
battery is fully charged.
Dispose of used batteries via a battery collection point;
Do not dispose of them in the household waste.
Never expose batteries to fire. Please direct any questions
to your specialist dealer.
If you do not use the base station/charging unit for an
extended period, please disconnect from the power supply.
Fully charged but inactive batteries take approx. two
months to discharge at room temperature.
Extreme temperatures can influence the charging efficiency
of batteries.
To achieve long operating times, you should discharge the
batteries from time to time by not inserting the handset into
the charging unit and leaving it switched on until it switches
itself off. Only use this method to discharge the batteries.
12
Designated
use
13

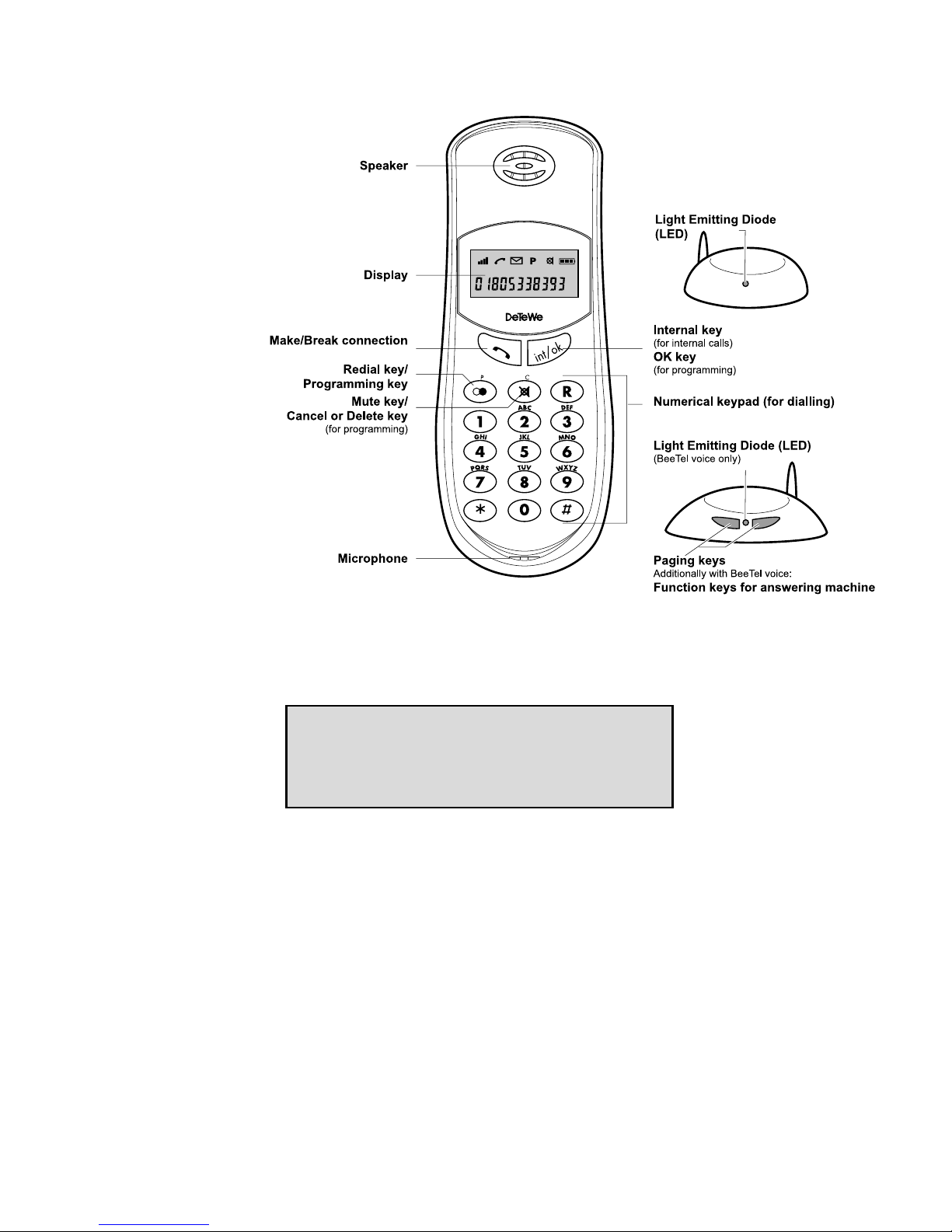

Displays, keys and audio signals
The display shows you information on the current connection
status or the respective programming status, partly in the form
of symbols and partly in the form of numbers and letters.
The symbols have the following meanings:
A Signal strength display in increments of 0, 25, 50, 75
and 100%
B Connection status, incoming call (flashes)
C Call in absence (Caller List)
D Programming mode / Speed-dialling
E Microphone off (Mute)
FGHI Battery charging status (for details, see page 10
"Charging the batteries)
-2- Number of the base station within range if the hand-
set is enrolled at more than one base station
1NT1 Internal call number of the handset.
Furthermore, call numbers or programming information are displayed in the second line.
Display
Symbol line
7-Segment line
ABCDEFGHI
-2- 1NT1
14
g Call / Accept call
(corresponds to the function "Pick-up/Put-down receiver")
or
Cancel programming procedure.
o Establish internal connection
or
Confirm programming (depending on status)
or
Link call numbers (Call-by-call).
w Redial key; press repeatedly to "page" through the
list of recently dialled numbers / Caller List
or
Enter a dial pause when storing speed-dial numbers
or
P (w) Depending on the status of your telephone,
pressing this key commences the Programming
mode
s Mute key (microphone off, "Mute")
or
Switches off the handset ringer for the current incoming call (for that call only)
or
C (s) Depending on the status of your telephone,
pressing this key performs a deletion action ("Clear").
R Signal key (T-Net feature / When used on a PBX).
1… 0 Numerical keypad for dialling numbers.
*, # Special keys when using DTMF (dual-tone
multifrequency).
Acknowledgement signal
(programming successful):
Warning signal (entry error)/
Leaving radio range:
The readiness state of the handset is defined as follows:
- The batteries are charged,
- The handset is enrolled with a base station and within
range of that base station,
- No programming is currently being undertaken,
- No calls are currently incoming,
- The keypad is not locked.
Keys
Audio signals
Readiness
state
15
Calling
Press g.
Enter the desired call number via the numerical keypad.
The number is dialled immediately.
The call number dialled
is displayed.
Enter the desired call number via the numerical keypad
or
Press w repeatedly ("P" flashes), until the desired call
number appears in the display (Redial/Caller List)
or
Press P (w) and the corresponding number under which the
call number is stored (speed-dialling).
Press g.
The call number displayed
is now dialled.
Call duration display:
After conclusion of the first minute of
the call, the call duration is displayed
in intervals of 5 seconds.
Your BeeTel contains a list (Redial Stack) of 10 memory
slots, in which the most recently dialled numbers and the
numbers of incoming calls are stored (depending on transmission of the call number by the respective network operator). The number displayed first is either the number dialled
most recently or the number of the last registered caller
Press w, ”P” flashes:
"Page" through the numbers in this
list by pressing the key repeatedly.
In order to distinguish between
dialled numbers and registered caller
numbers, the latter are preceded by
a "C".
ABCD E FGHI
Ç !“§$%&/()=
ABCD E FGHI
=!(=%§§(§)§
ABCDEFGHI
!§–$=
ABCDEFGHI
=!(=%§§(§)§
ABCDEFGHI
=!(=%§§(§)§
Standard
calling
Block dialling
Redial/Caller List
Speed-dialling
Redial/Caller
List
16
If 10 call numbers are already stored and a new number is
added to the list, the oldest number is deleted from the list.
Note : Call numbers comprising less than 4 digits (e.g.
internal numbers when a PBX is used) are not stored in
this list.
An incoming call is indicated on the handset and the base
station by the ringer (pp. 24 and 25) and also by the B
symbol flashing on the handset display.
To accept the call, press g.
If you are in the middle of a conversation when an incoming
call is indicated or do not wish to be disturbed by the ringer
for other reasons, press s. This mutes the ringer on your
handset (for this call only). The caller will continue to hear
the ringing tone and you can accept the call by pressing
g, as long as the caller hasn't hung up.
In the case of an internal call, pressing s twice rejects the
call. The caller then hears the busy signal.
You can store up to 10 frequently used call numbers in the
speed-dialling memory. These numbers occupy memory
slots 0…9.
The telephone is ready for use.
Start save function:
Press P (w).
Press the signal key R.
Press P (w) once again.
The content of the first memory
slot is now shown on the display (01).
Selecting a different memory slot:
Press P (w) repeatedly
(the next memory slot, respectively, is displayed)
or
Press the desired numerical key 0…9.
Confirm selection:
Press o.
Enter Call number:
A BCD E FGHI
=!–
Accepting a
call
Ringer mute
Speed dialling
Storing/Over-
writing call
numbers
17
A previously stored number is deleted when the first digit is
entered. If you wish to perform the change or delete the
digits, press C (s), and repeat if necessary. If you wish to
also save a dialling pause, press w.
Quit save function:
Press o.
The telephone is ready.
Select Call number:
Press P (w) and the desired numerical key.
The call number stored in this
memory slot is now shown on the
display, e.g. Memory slot 1.
Selecting a different memory slot:
Press P (w) repeatedly
(the next memory slot is displayed, respectively)
or
Press a numerical key 0…9.
Dial Call number:
Press g drücken
or
Press o, in order to add another call number or to insert
individual digits.
Adding additional call number (e.g. Call-by-call):
Select another speed-dialling memory slot (see above); "P"
flashes in the display”
or
Select the call number from the Redial Stack/Caller List
(page 15); "P" flashes in the display
or
Add single digits
Dialling a call number:
Press g
or
ABCD E FGHI
=! =!(=%§§(§)§
Dial/Check
speed-dial
numbers
18
Cancel:
Press C (s), repeatedly if necessary (until the ready state
is indicated on the display).
The telephone is ready for use and "PIN-protected calling"
is activated (page 22).
Press g.
Enter your PIN
Press o.
Enter the desired number using the digit keys. The number
is dialled immediately.
The dialled number is displayed.
Enter the desired call number via the numerical keypad
or
Press w, until the desired number appears on the display
(Redial Stack/Caller List)
or
Press P (w) and the numerical key corresponding to the
memory slot in which the number is stored (speed dialling).
Press g.
Enter your PIN.
Press o.
The call number shown in the
display is now dialled.
ABCDEFGHI
=!(=%§§(§)§
ABCDEFGHI
π⁄~
ABCDEFGHI
=!(=%§§(§)§
ABCDEFGHI
π⁄~
PIN protected
calling
Standard calling
Block dialling
19
You can perform various functions during a call.
You can deactivate (mute) the microphone, in order to discuss something in the room without the caller being able to
overhear you. Pressing the mute key a second time switches the microphone back on.
Press s,
The Mute symbol appears on the
display.
Press s again,
The mute symbol disappears.
You can adjust the handset speaker volume in two increments (loud / normal). A single press of the respective key
switches between the two settings. The setting selected is
stored even when the telephone is switched off.
To change the speaker volume:
Press P (w) #.
If an external call is received while you are already engaged in a call, this is indicated by the call-waiting signal in
the handset. If you then quit the current call, the waiting call
is signalled on the handset a short time later and you can
accept it by pressing g.
If several handsets are enrolled on your base station and
currently in operation, you can put an incoming external call
on hold and establish an internal call, allowing you to "toggle" between the callers or transfer the external call to another handset.
You are engaged in an external call:
Press o.
Dial the desired internal call number.
Consultation call.
Press o again; this reconnects you to the external call.
You can now toggle back and forth between callers with the
o key, without the separate callers being able to hear one
another.
ABCDEFGHI
!~†§
ABCDEFGHI
ABCDE FGHI
During a call
Mute
microphone
Microphone off
Microphone on
Speaker volume
Call waiting
Consultation/
Transfer with
announcement
Toggle
(BeeTel voice only)
20
Press g; the external call is now transferred to an internal
handset, and your handset is again ready.
You are engaged in an external call:
Press o.
Dial the desired internal call number
Press g; the external call is transferred to an internal handset and your handset is again
ready.
If the transferred call is not accepted, it is again announced
at your handset.
You can protect the keypad from unintentional activation /
dialling (e.g. during transportation). Calls can still be accepted as usual. The keypad lock is also removed when placing the handset in the base station or a charging unit. If
you have "displaced" your handset or wish to transmit a
(previously agreed) signal, you can "page" the handset by
pressing the corresponding key on the base station. The
paging signal is transmitted to all handsets enrolled on the
respective base station.
To activate/deactivate the keypad lock:
Press P (w) *,
The following symbol appears on the
display:
To page all available handsets:
(BeeTel / BeeTel XL):
Simultaneously press both keys on the base station for at
least 4 seconds; the ringer signal on all handsets enrolled
at this base station and available will now sound.
(BeeTel voice / BeeTel voice XL):
Please press the left key in order to page the handset, if
the answering machine is in idle mode (i.e. messages are
not being played). Pressing the left key again deactivates
the paging signal.
A BCDEFGHI
––––––––
ABCDEFGHI
!~†§
Transfer without
announcement
Telephone in
ready state
Keypad lock
Paging
(not included with
the model with the
small base)
21
Programming
Depending on the technical or personal requirements, it
may be that you wish to, or indeed have to, change various
"standard settings".
Some settings are protected against unintentional or unauthorised manipulation by a PIN (Personal Identification Number). This PIN comprises four (4) digits; the factory default
for the PIN is the last four digits of the serial number of your
base station (see underside of base station).
In order to achieve the desired security, you should change
your PIN as soon as possible. Make a note of the new PIN,
as resetting your PIN to the factory default in the event you
forget it can only be performed by service personnel at
charge. The PIN is stored in the base station and applies to
all handsets enrolled at that base station.
Enter the following key sequence:P (w)R0.
Press 2.
Enter the old PIN
Press o.
Enter the new PIN.
Press o.
Enter the new PIN a second time.
Press o.
You can configure special access authorisation for external
calls for each handset.
You have 3 different options in this context:
• No restriction (factory default)
• Limited authorisation via blocked call numbers (page 22)
• Internal authorisation only for outgoing calls ("PIN-protected calling", page 22).
Blocked number programming means that specific call
numbers beginning with the blocked number sequence can
no longer be called. Any attempt to call these numbers
results in the connection being cancelled. A maximum of 12
digits are available in this context, which can be broken
down as desired, with the separator between several
blocked numbers taking the form of the (R), which also
counts as a digit.
ABC D E FGHI
π⁄~ –––– ––––
ABC D E FGHI
π⁄~ !“§$
ABC D E FGHI
π⁄~
PIN
Change PIN
Access
authorisation
22
The entry of "00" and "019", for example, would mean that
all attempts to call an international number starting with
"00" or a "0190" service number would fail. Please remember when programming that these settings apply to all
forms of dialling, regardless of whether you use speed-dialling, the Redial Stack, the Caller List or manual entry of the
call number.
If “PIN-protected calling” has been programmed on a handset, after pressing the g key you will be prompted to enter
your PIN if you wish to dial a number. If you do not enter
your PIN or the PIN you have entered is incorrect, the
connection will be broken.
Enter the following key sequence: P (w)R0.
Press 7.
All handsets enrolled with the
base station are now displayed
(e.g. 1, 3, 5).
Press the numerical key corresponding to the respective
handset.
Enter the blocked number(s).
In the case of several blocked numbers, these are separated by pressing the signal key (e.g. 00R019).
Press o.
Enter the PIN.
Press o.
Enter the following key sequence: P (w)R0.
Press 6.
All handsets enrolled with the
base station are now displayed (e.g.
1, 3, 5).
Press the numerical key corresponding to the respective
handset.
Press o.
Enter the PIN.
Press o.
ABC D E FGHI
π⁄~
ABC D E FGHI
π⁄~ ! – § – %
ABC D E FGHI
π⁄~
ABC D E FGHI
===!)
ABC D E FGHI
∫¬øç ! – § – %
Programming
blocked numbers
Programming
PIN-protected
calling
23
Storing a preselection number (network operator access
code) facilitates your use of the possibilities of the new
telephone market. A stored number is automatically preceded with a "0", regardless of whether the number is selected manually or from a memory, e.g. Speed Dialling List,
Redial Stack, or Caller List.
Note: If you do not wish to dial via the stored preselection number (e.g. for international calls), store or dial
the number starting with the # key; in this case, the
preselection number is not selected.
Enter the following key sequence:P (w)R0.
Press 9.
Enter the preselection number or
press C (s) to delete digits.
Press o.
Note: The preselection function may not be used if
your BeeTel telephone is connected to a PBX. Storing a
preselection number in such an instance would result
in a faulty connection.
This procedure resets the following functions to their factory
defaults:
• Authorisation code,
• Blocked numbers,
• Preselection.
Enter the following key sequence:P (w)R0.
Press 0.
Press 8.
Press o.
Enter PIN.
Press o.
ABC D E FGHI
π⁄~
ABC D E FGHI
噂™†
ABC D E FGHI
=≠=!===
Preselection
Reset
24
You have various possibilities for setting the dialling method
and signal key functions. Depending on the use of the telephone, e.g. remote access to an answering machine or triggering specific PBX functions, it may be necessary to change the default setting.
The individual options are as follows:
Code
• Tone Pulse Dialling:: 1
• DTMF (Digital Multifrequency) with
signal key function Flash long: 2
• DTMF with Flash short: 3
Enter the following key sequence:P (w)R0.
Press 1.
Enter code as per table.
Press o.
You can activate or deactivate the audible key confirmation
tone as follows.
Enter the following key sequence:P (w)R.
Press 3.
You can program different ringer melodies and volumes to
distinguish between internal and external calls.
Enter the following key sequence:P (w)R.
Press 6 (internal)
or
Press 7 (external).
Select melody: 1…6
Select volume: 0 = very quiet; 7…9, *, #.
Press
o.
A BCD E FGHI
†ø~ $§
A BCD E FGHI
ABC D E FGHI
∂⁄å¬
Dialling
methods
Key click
Handset
melody/volume
25
In the case of the BeeTel voice / voice XL, the date and
time are stored for each message received and are displayed when that message is played back.
Enter the following key sequence:P (w)R0.
Press 0.
Press 1.
Enter the date: two-digit entry of the day and two-digit entry
of the month (e.g. 3 May = 0305)
Press o.
Enter the time: two-digit entry of the hour and two-digit
entry of the minutes (e.g.: "quarter past nine" = 0915)
Press o and g.
You can choose between 9 different on-hold melodies.
These are played back to the caller who is on-hold if you
transfer a call ("On-Hold").
Enter the following key sequence:(w)R0.
Press 0.
Press 6.
Select melody: 1…9
Press o.
You can program various ringer melodies and volumes for
the base station ringer.
Enter the following key sequence:P (w)R0.
Press 0.
Press 7.
Select melody: 1…6
Select volume: 0 = very quiet; 7…9, *, #.
Press
o.
ABC D E FGHI
∫å‚™ †ø~ $§
ABC D E FGHI
ªø¬∂ !
ABC D E FGHI
01 01 00 00
Setting the
date/time
(BeeTel voice only)
On-hold melody
(BeeTel voice only)
Base station
melody/
volume
(BeeTel voice only)
26
You can use your handset with several base stations. These
base stations can also be from other vendors, provided they
comply with the GAP (Generic Access Profile) Standard. This
Standard includes specific parameters for the interaction of
base station and handset. On account of the different components, not all features will be available. When operating your
handset in this mode, you should always refer to the operating instructions of both vendors.
If you wish to enrol your handset at a specific base station, but
are not sure whether it will work on account of the number of
the base stations in range, enrol your handset with the PARK.
The PARK is a globally unique code for base stations comprising up to 15 digits and is provided on the underside of the
base station.
Disconnect the base station from the mains power supply for at least 5 seconds; after reconnecting, you have 2
minutes to carry out the enrolment procedure.
Enter the following key sequence:P (w)R.
Press 1.
Enter the PARK (up to 15 digits).
Press o.
Enter PIN.
Press o.
If there are no other base stations in the vicinity of the base
station at which you wish to enrol your handset, you can
dispense with entering the PARK.
Disconnect the base station from the mains power supply for at least 5 seconds; after reconnecting, you have 2
minutes to carry out the enrolment procedure.
Enter the following key sequence:P (w)R.
Press 2.
Enter PIN.
Press o.
A BCD E FGHI
π⁄~
A BCD E FGHI
π⁄~
A BCD E FGHI
∫å‚™
Operating
your handset
on several
base stations
Enrolling With
Base Station
Number (PARK)
Enrolling With-
out Base Station
Number (PARK)
27
Your handset must generally be enrolled with all base stations
with which it is to be used (see page 26). Operation is then
realised at the next closest base station in the radio field by
means of corresponding enrolment, either manually or automatically (see below).
The number of the respective base station selected is displayed in the display of your BeeTel handset. When a call is not
currently in progress (Ready mode), your handset is able to
enrol itself automatically at the respective base station (depending on programming).
It is not possible to switch to the radio field of a different base
station during a call!
Please note the display and the acoustic warning of your
handset when entering the boundary area of a radio field.
When leaving the radio field, any call currently in progress is
terminated.
When arranging several base stations, you must be aware that
the greatest possible radio functionality is achieved when the
individual radio fields do not overlap, i.e. the distance between
the base stations should, depending on local conditions, amount to approx. 60 m in buildings and approx. 600 m outdoors.
Example: You want to use your handset both in the
office and at home. To this end (presupposing compatibility), your handset must be enrolled with both base
stations (see page 26). Enrolling the handset at the
desired operational base station is then performed via
the "Selecting a base station" procedure described
below.
Enter the following key sequence:P (w)R.
Press 4.
All base stations with which the
handset is enrolled are displayed.
Enter the number of the desired base station. Entering 0
results in automatic selection, i.e. the first available base
station is selected and immediate readiness established.
Enter the following key sequence:P (w)R.
Press 5.
All base stations with which the
handset is enrolled are displayed.
Enter the number of the desired base station. The last base
station with which the handset is still enrolled cannot be
deleted.
A BCD E FGHI
∂™¬ ! “ – – –
A BCD E FGHI
∫å‚™ = ! “ – – –
Selecting a base
station/Enrolling
a handset
Deleting a base
station
(not applicable
when automatic
selection is activa-
ted)
28
You can operate up to 5 handsets from one base station.
Thanks to the GAP Standard, handsets from other vendors
may also be used, providing these comply with the GAP
Standard. Please refer to the operating instructions of both
vendors should you use different makes of handset.
When enrolling (see page 26) at the base station, each handset is assigned an internal number. This is the next "free"
number within the base station, respectively.
You can change these internal numbers, insofar as numbers are still freely available.
In order to withdraw the enrolment for a specific handset,
its internal telephone number must be deleted from the
base station.
Enter the following key sequence:P (w)R0.
Press 4.
Those numbers that can be assigned
are now displayed on the handset
display.
Enter the desired number. The connection is terminated
and the handset is available under the new internal number
with immediate effect.
Enter the following key sequence:P (w)R0.
Press 5.
All numbers that have been assigned
are displayed on the handset display.
Enter the number you wish to delete.
Press o.
Enter PIN.
Press o.
If several handsets are operated on a base station, they can
be called either selectively or collectively.
Press o and enter the internal number (single call, internal call possible)
or
Press o and * (collective call, internal call possible with
first handset to be activated).
A BCD E FGHI
π⁄~
ABC D E FGHI
∂™¬(– “ § – %
ABC D E FGHI
!~†(– “ § – %
Several hand-
sets at one
base station
Programming an
internal call
number
Deleting an
internal call
number
Single Call /
Collective Call
29
Answering machine
(BeeTel voice / BeeTel voice XL)
Your BeeTel voice comes with a digital answering machine
integrated in the base station. The recording capacity amounts to a maximum of 16 minutes, depending on the recording quality.
You can record two different announcement texts; Announcement text 1 is for operation with message recording
activated, while Announcement text 2 is for operation without messages being recorded.
Once the memory capacity is exhausted, the answering
machine switches automatically from the "Announcement
with recording" mode (Announcement 1) to "Announcement
only" mode (Announcement 2). If no announcement has
been specified, the answering machine no longer records
any incoming messages.
Both the announcements and the recorded messages are
retained in the event of a power shortage. Before using for
the first time, it is imperative that at least one announcement be recorded; if no announcement has been recorded,
the answering machine cannot be activated.
New messages are indicated by the LED on the base station flashing.
In addition to the number of rings before the answering
machine intercepts an incoming call, you can also specify a
maximum length for incoming messages. In the event of a
pause of more than 5 seconds, the recording is stopped
automatically.
The Memo function allows you to record a message which
can be played back like a normal recorded message (see
page 31).
All functions of the answering machine, as well as its programming, are performed via the handset only. The precise
operating steps are described on the following pages. The
keys on the base station allow limited operation of the
answering machine. By operating the answering machine
via the base station keys, recorded messages are played
back via the speaker integrated in the base station.
General
Operating
elements
Left key Right key
Light Emitting Diode
(LED)
30
The LEDs on the base station and the display on the handset serve as control displays.
The base station LED indicates the following states:
Off - Answering machine is off
Steady - Answering machine is on with
announcement text 1
Long on / short off - Answ. mach. is on with announc. text 2
Flashes uniformly - Recording announcement
Flashes quickly - 10 seconds remaining to record
announcement text
Flashes rapidly - Answering machine is on, new
message(s) available
Long on /
2 x short flash - Answering machine is on, old
message(s) available
Long off / Short on - Answering machine is off, message(s)
available (either new or old)
The handset display texts have the following meanings:
å∂ (answering device) - Answering machine
ø¬∂ (old) - Old message(s)
~™ (new ) - New message(s)
∂⁄‚† (distance) - Remote control
∂⁄‚† ®™
(distance request)
- Remote request
ª⁄ (high) - 16 minutes
¬ø (low) - 8 minutes
å∂ ®™ç (Answering - Recording
device record)
¬ø¨∂‚π - Speaker
¬ø¨∂~™‚‚ - Volume
You can define a "Master Handset" per base station. This
gives you the option when operating the answering machine with the base station keys of tracing the message playback and information on old and new messages on the display of this handset.
Enter the following key sequence:o#.
Press 4.
All enrolled handsets
are displayed
Enter the number of the desired handset.
Press o.
Press g.
ABC D E FGHI
å∂ !~† ! “ – – –
Control displays
Master
handset
Programming the
master handset
31
The telephone is ready for use and the answering machine
is switched off.
- Enter the following key sequence:o#9
- Enter the code as follows
Record memo - 0
Announcement text 1 (with recording option) - 1
Announcement text 2 (without recording option) - 2
- After the prompt signal, speak the announcement text into
the handset microphone. Record your text in a quiet room
and speak as if you were talking normally on the telephone. An announcement text must be between 10 and 60
seconds long; in the case of Memos, the preset maximum
recording time for messages applies (10 … 960 s, see
page 33). The LED on the base station flashes slowly
while you are recording your texts. 10 seconds before the
maximum recording duration is reached (60 s), the LED
starts to flash quickly.
- To stop recording, press o.
- An acknowledgement tone confirms your announcement
text has been recorded correctly. The text is then played
back for you to check (announcement texts only, not
Memos).
- Terminate the connection by pressing g.
Each time you switch your answering machine on, the
announcement text currently programmed is played back
for you to check it. You can delete the announcement text
either by recording a new text or by deleting all announcement texts (see page 33).
The telephone is ready for use.
Operation via handset
- Enter the following key sequence: o#
- Enter code 1
- Enter code for announcement
text: Text 1 -
1
Text 2 - 2
Off - 0
- Terminate the connection by pressing g.
ABC D E FGHI
AD 0FF
Recording
announce-
ment texts/
Memos
Check/Delete
announce-
ment
Switching the
answering
machine
on/off
32
Operation via base station
- Press the right-hand key (for at least 2 seconds): Answering machine is on with Announcement text 1 and recording option, or answering machine is off
or
- Press the left-hand key (for at least 2 seconds): Answering machine is on with Announcement text 2, or answering machine is off
The answering machine can only be switched on when at least
one announcement text has been recorded and the remaining
message recording capacity amounts to at least 30 seconds.
The telephone is ready for use. While playing back a message / memo, no calls can be accepted and the caller hears the
busy signal.
Operation via handset
- Enter the key sequence:o#.
- Press o.
All messages are played back in
order, separated by an audible signal.
During playback:
-
Press *, to return to the start of the current message, or
press * repeatedly to jump back to the preceding message.
or
- Press #, in order to skip the current message and play
back the next message. Once the last message has been
played back, you will hear 3 "beeps".
or
-
Press C (s), in order to delete the current message.
- Terminate the connection by pressing g.
Operation via the base station
- Press the right-hand key: playback is started
All messages are played back in order, separated by an
audible signal.
During playback:
- Press the right-hand key: this skips the current message
and plays back the next message.
or
- Press the left-hand key during playback: this repeats the
current message from the start.
or
- Press the left-hand key during a pause: This returns you
to the previous message.
or
- Press both keys simultaneously: playback stops.
ABC D E FGHI
-02- NE
Playing back
and deleting
individual
messages/
memos
33
Messages can be deleted individually during playback (see
page 32) or completely (i.e. all messages) when the answering machine is in idle state. Only messages that have been
played back at least once can be deleted.
Operation via handset
- The answering machine is idle
- Enter the following key sequence: o#5.
An audible signal confirms the deletion.
- Terminate the connection by pressing g.
or
Operation via base station
- The answering machine is in idle state.
- Press both keys simultaneously for longer than 2 seconds.
An audible signal confirms the deletion.
Operation via handset
Enter the following key sequence:
o#8.
Enter PIN.
Press o.
Enter the number of incoming call signals required to trigger
the answering machine as the activation delay. If you set
this to "0", the answering machine intercepts all incoming
calls immediately, without the call being indicated at any
handset.
- Enter the following key sequence: o#7.
- Display of the current status.
e. g. 4 = 4 call signals
- Enter desired number
(0…9 / 0=immediately, without audible "ringing signal")
- Terminate connection by pressing g.
The maximum recording capacity is 960 seconds or 31
messages. You can specify a maximum recording time for
each message. The entry is made in "seconds"; the configurable time will be between 10 s and 960 s. A speech
pause of more than 5 seconds is interpreted as the end of
the message; the answering machine then switches itself
off before the defined eingestellten time.
ABC D E FGHI
‚†å®† $
ABC D E FGHI
π⁄~
Delete all
messages/texts
Delete all
messages
Delete all texts
Setting the
activation
delay
(does not apply if
toll-free distance
request is activa-
ted, page 36)
Setting the
maximum
message
duration
34
- Enter the following key sequence: o#3.
- The current setting is displayed.
010 = 10 seconds
960 = 960 seconds
- Enter the desired message duration as a three-digit number.
- Press o.
- Terminate the connection by pressing g.
You can set the recording capacity of your answering
machine to either 8 or 16 minutes. The higher capacity is
achieved through data compression, which results in a
slight impairment of the speech quality. This setting can be
changed at any time, and has no effect on existing messages.
- Enter the following key sequence:o#2.
- The current status is displayed.
1 = 16 minutes (Hi)
2 = 8 minutes (Lo)
- Enter the desired number.
- Terminate the connection by pressing g.
If the "Monitoring" function is activated, you can follow messages being recorded via the base station speaker. In this
context, you also have the option of intercepting the call via
a handset (g-key) and speaking directly with the caller.
- Enter the following key sequence: o#.
- Enter the numerical code 00
0 = Monitoring off
1 = Monitoring on
- Enter the desired number.
- Terminate the connection by pressing g.
The base station volume can be adjusted in 6 increments
and applies both to the playback of recorded messages and
the monitoring of incoming messages.
- Enter the following key sequence: o#.
- Enter the numerical code 01
1 … 6 = Volume (1 = quiet / 6 = loud)
ABC D E FGHI
å∂ ! ª⁄
ABC D E FGHI
å∂ ®™ç !(= ‚™ç
Setting the
total recording
time
Incoming call
monitoring
Adjusting the
volume
35
- Enter the desired number.
- Terminate the connection by pressing g.
You can specify whether or not you wish to allow remote
access to the answering machine. In order to use the remote
control, "DTMF" signals are required (telephone with dualtone multifrequency dialling or a code transmitter).
If remote access is prohibited, it is not possible to access
any of the answering machine functions remotely; the
answering machine can only be operated "locally" in this
context, i.e. via the keys on the base station or via the handset. If, however, you have allowed remote access, you can
perform all functions specified in the following chapter
"Remote control" on a remote basis.
- Enter the following key sequence:o#.
- Enter the numerical code 61
- Enter PIN and press o.
- Display of the current status.
0 = Remote control prohibited
1 = Remote control allowed
- Enter the desired number.
- Terminate the connection by pressing g.
In order to operate your answering machine remotely, socalled "DTMF" signals are required (telephone with dual-tone
multifrequency dialling or a code transmitter). Please note
that a maximum of 20 second are available between the
entry of each individual number. If you do not enter the
requisite number within this time, the connection is terminated.
• If your answering machine is switched on, you will hear the
announcement text. Interrupt this by entering "0". Your
entry will be acknowledged by 3 audible beeps. Enter the
PIN within 8 seconds of hearing this signal. Then select a
function from the following table:
• If your answering machine is switched off, your call will be
accepted after approx. 1 minute and you will hear a multiple signal sequence. Enter the PIN within 8 seconds of
hearing this signal. Then select a function from the following table:
ABC D E FGHI
∂⁄‚† !
ABC D E FGHI
π⁄~
Allow/prohibit
remote
control
Remote
control
## - Play back messages
## - During playback: skip forward one message
#* - During playback: skip to start of message;
Press repeatedly: skip back one message
#10 - Switch answering machine off
#11 - Switch answering machine on / Text 1
#12 - Switch answering machine on / Text 2
#21 - 16 minutes
#22 - 8 minutes
#5 - Delete all messages
#61PIN 0 - Remote control off
#621 - Distance request on
#620 - Distance request off
#7 0…9 - Number of rings before activation
#8PIN - Delete all texts
#90 - Record Memo *
#91 - Record Announcement text 1 *
#92 - Record Announcement text 2 *
* Recording is stopped by pressing
#
- Put down the receiver - Terminate remote access.
This function causes the answering machine to intercept calls
after the 5th ring, as long as no messages have been recorded.
However, as soon as a new message is available, the answering machine intercepts all subsequent calls after the 2nd ring.
The preconfigured recording time (page 33) is deactivated.
If you call your BeeTel voice in order to listen to any messages
on your answering machine via the remote control function, the
call is only intercepted after the 2nd ring if new messages have
been recorded and not yet played back (this also applies to a
recorded Memo). However, if your telephone rings more than
twice, you can terminate the connection before the answering
machine intercepts your call, and no charge is incurred.
- Enter the following key sequence:o#.
- Enter the numerical code 62
- Display of the current status.
0 = Distance request prohibited
1 = Distance request allowed
- Enter the desired number.
- Terminate the connection by pressing g.
ABC D E FGHI
∂⁄‚† ®™ !
36
Toll-free
distance
request
Activate/Deac-
tivate toll-free
distance request
37
Play back messages o# o Start
*
One mess. back
#
One mess. forward
c (s) Delete mess.
Set operating mode o#1 0 OFF
1 Announc. 1+ Rec.
2 Announc. 2
Total recording time o#2 1 16 minutes
2 8 minutes
Recording duration/Message
o#3 010…
960
s.
Master Handset o#4 1…5
Delete all old messages o#5
Remote control o#61 PIN o1 on
o#61 PI 0 off
Toll-free distance requ. o#621 on
o#610 off
Activation delay o#7 0…9
(0=immediately)
Delete all texts o#8 PIN o
Record o#9 0 Memo
1 Announc. text 1
2 Announc. text 2
Monitor incoming calls
at base station o#001 on
o#610 off
Base station volume
(monitoring/messages) o#01 1…6(volume)
When using third-party handsets with your BeeTel base station, all procedures are commenced as described in the corresponding user instructions.
Overview of
answering
machine func-
tions
Answering
machine
functions with
other handsets
38
Appendix
Your telephone is a product of the highest quality design and
workmanship and should therefore be treated with care. The
suggestions that follow will help you get the most out of this
product for a considerable length of time.
Observe all safety instructions on page 4. These instructions apply similarly to the handset, base station / charging
unit and the batteries (the complete telephone), as well as
to the accessories.
Before you clean the telephone, disconnect the base station /
charging unit from the mains. Wipe them with an anti-static cloth
or a soft, slightly damp leather cloth and then with a dry cloth.
Note: Never spray your telephone with a cleaning agent or
solvent. Clean the charging contacts of the handset and the
base station / charging unit with a lint-free cloth.
If your telephone or one of the accessories does not function properly, please contact your supplier's customer service. Before doing so, it may be advisable to disconnect the
mains adapter, reconnect it and briefly remove the batteries
- your telephone may possibly be in an undefined state, in
which case this measure will eliminate the "fault".
Your telephone has a warranty period of 12 months from
the date of purchase.
If a defect occurs that cannot be remedied with the help of
our Hotline, please send the entire telephone (with mains
adaptor, connection cable and a copy of the receipt, as well
as a precise description of the fault) to the following
address:
DeTeWe Deutsche Telephonwerke AG & Co.
Service Center Berlin
Wendenschlossstr. 142, D-12557 Berlin
If you send your telephone to us without prior consultation,
we will be forced to charge a handling fee in the event the
telephone is in flawless condition.
Care and
Maintenance
Service and
Warranty
39
Technical
Data
Accessories
Standard DECT / GAP
Frequency range 1880 - 1900 MHz
Transmission output 10 mW (mean value)
Range
Indoors approx. 30 m
Outdoors approx. 300 m
Power supply
Charging unit/Base station 230 V / 50 Hz
via mains adapter
Handset 2 NiCd-AA batteries,
e.g. Sanyo N-3U,
700 mAh NiCd
(can be swapped for NiMH)
Operating times (700 mAh NiCd)
Call time up to 10 hours
Standby time up to 100 hours
Operating temperature +0 °C to +40 °C
Storage temperature -5 °C to +45 °C
Dimensions
Handset H x W x D: 157 x 60 x 28 mm
Base station H x W x D: 75 x 143 x 180
mm
(with antenna)
Weight of handset 150 g (incl. batteries)
The following accessories are available:
• Additional handsets with charging unit for operation with
the base station (max. 5 handsets can be enrolled at one
base station)
Index of keywords
40
A
Access authorisation 21
Acknowledgement signal 14
Activation time 33
Announcement text 31
Answering machine 29
B
Battery 10
Battery level warning 11
Battery symbol 10
Block dialling 15
Blocked numbers 22
C
Call 16
Call monitoring 34
Call transfer 19
Call waiting 19
Caller list 15
Care 38
Charging display 11
Connecting 9
Consultation 19
Control displays 30
D
Date/Time 25
Deactivate ringer 16
DECT 6
Dialling method 24
Display 13
E
Enrol handset 27
Enrolment 26
F
Factory defaults 8
Features 7
First-time use 10
G
GAP 6
I
Installation site 4, 8
Internal call number 28
K
Key-click 24
Keypad lock 20
Keys 14
M
Maintenance 38
Master handset 30
Maximum message length 33
Melody 24, 25
Memo 31
Messages 32, 33
Microphone off (mute) 19
Microphone on (un-mute) 19
Model versions 3
Mute 19
Mute key 14
O
On-hold melody 25
Operating times 39
P
Paging 20
PIN 21
PIN-protected calling 18, 22
Power supply 4, 39
Preselection 23
41
R
Range 8, 39
Ready state 14
Recording capacity 29
Recording quality 29
Redial 15
Redial key 14
Remote control 34
Reset 23
Ringer Mute 16
S
Safety instructions 4
Scope of delivery 5
Select base station 27
Service 38
Signal key 14
Signals 14
Single call / Collective call 28
Speaker volume 19
Speed-dialling 15, 16
Symbols 13
T
Technical data 39
Toggle 19
Toll-free distance request 36
Total recording time 34
V
Volume 24, 25, 34
W
Warning signal 14
Warranty 38
The BeeTel cordless telephone fulfils the requirements of the
following EU Directives:
91/263/EWG Telecommunication terminal equipment
73/23/EWG Low-voltage devices
89/336/EWG Electromagnetic compatibility
The BeeTel bears the CE conformity symbol to verify this.
Mat. No. 72744.•••
Status: Date 10/00
Subject to technical changes
Loading...
