S16 0616 V3
Deta Electrical Company Ltd
Kingsway House Laporte Way
Luton Bedfordshire LU4 8RJ UK
Tel. 01582 544 544 Technical Helpline 01582 544 548
L1094

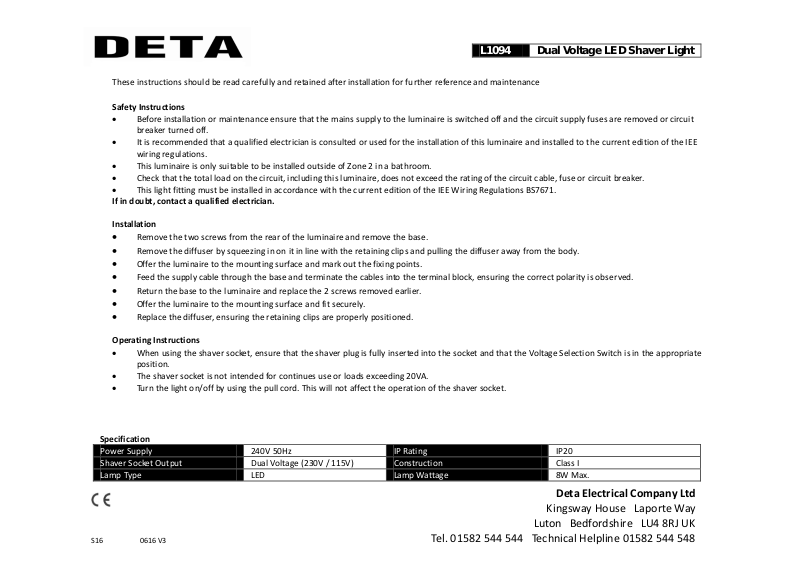

Dual Voltage LED Shaver Light
Power Supply
240V 50Hz
IP Rating
IP20
Shaver Socket Output
Dual Voltage (230V / 115V)
Construction
Class I
Lamp Type
LED
Lamp Wattage
8W Max.
Specification
These instructions should be read carefully and retained after installation for further reference and maintenance
Safety Instructions
Before installation or maintenance ensure that the mains supply to the luminaire is switched off and the circuit supply fuses are removed or circuit
breaker turned off.
It is recommended that a qualified electrician is consulted or used for the installation of this luminaire and installed to the current edition of the IEE
wiring regulations.
This luminaire is only suitable to be installed outside of Zone 2 in a bathroom.
Check that the total load on the circuit, including this luminaire, does not exceed the rating of the circuit cable, fuse or circuit breaker.
This light fitting must be installed in accordance with the current edition of the IEE Wiring Regulations BS7671.
If in doubt, contact a qualified electrician.
Installation
Remove the two screws from the rear of the luminaire and remove the base.
Remove the diffuser by squeezing in on it in line with the retaining clips and pulling the diffuser away from the body.
Offer the luminaire to the mounting surface and mark out the fixing points.
Feed the supply cable through the base and terminate the cables into the terminal block, ensuring the correct polarity is observed.
Return the base to the luminaire and replace the 2 screws removed earlier.
Offer the luminaire to the mounting surface and fit securely.
Replace the diffuser, ensuring the retaining clips are properly positioned.
Operating Instructions
When using the shaver socket, ensure that the shaver plug is fully inserted into the socket and that the Voltage Selection Switch is in the appropriate
position.
The shaver socket is not intended for continues use or loads exceeding 20VA.
Turn the light on/off by using the pull cord. This will not affect the operation of the shaver socket.
