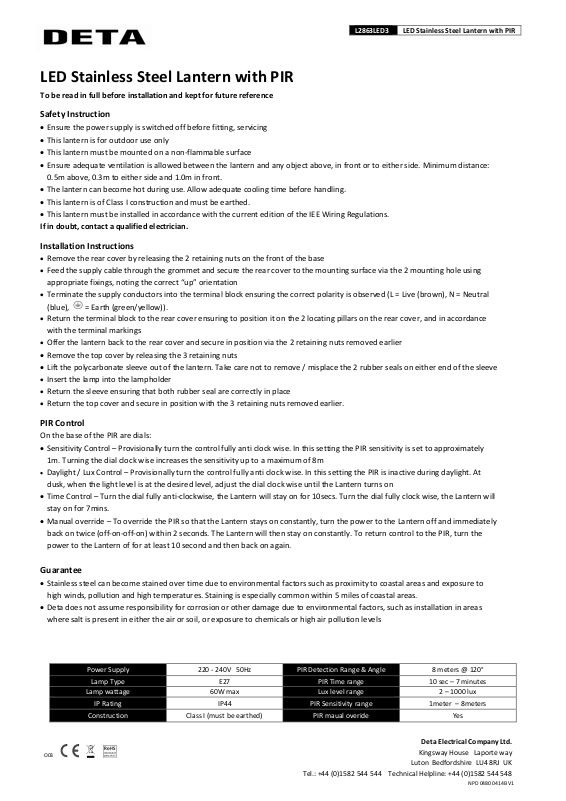

NPD 0480 0414B V1
L2863LED3
LED Stainless Steel Lantern with PIR
Power Supply
220 - 240V 50Hz
PIR Detection Range & Angle
8 meters @ 120°
Lamp Type
E27
PIR Time range
10 sec – 7 minutes
Lamp wattage
60W max
Lux level range
2 – 1000 lux
IP Rating
IP44
PIR Sensitivity range
1meter – 8meters
Construction
Class I (must be earthed)
PIR maual overide
Yes
LED Stainless Steel Lantern with PIR
To be read in full before installation and kept for future reference
Safety Instruction
Ensure the power supply is switched off before fitting, servicing
This lantern is for outdoor use only
This lantern must be mounted on a non-flammable surface
Ensure adequate ventilation is allowed between the lantern and any object above, in front or to either side. Minimum distance:
0.5m above, 0.3m to either side and 1.0m in front.
The lantern can become hot during use. Allow adequate cooling time before handling.
This lantern is of Class I construction and must be earthed.
This lantern must be installed in accordance with the current edition of the IEE Wiring Regulations.
If in doubt, contact a qualified electrician.
Installation Instructions
Remove the rear cover by releasing the 2 retaining nuts on the front of the base
Feed the supply cable through the grommet and secure the rear cover to the mounting surface via the 2 mounting hole using
appropriate fixings, noting the correct “up” orientation
Terminate the supply conductors into the terminal block ensuring the correct polarity is observed (L = Live (brown), N = Neutral
(blue), = Earth (green/yellow)).
Return the terminal block to the rear cover ensuring to position it on the 2 locating pillars on the rear cover, and in accordance
with the terminal markings
Offer the lantern back to the rear cover and secure in position via the 2 retaining nuts removed earlier
Remove the top cover by releasing the 3 retaining nuts
Lift the polycarbonate sleeve out of the lantern. Take care not to remove / misplace the 2 rubber seals on either end of the sleeve
Insert the lamp into the lampholder
Return the sleeve ensuring that both rubber seal are correctly in place
Return the top cover and secure in position with the 3 retaining nuts removed earlier.
PIR Control
On the base of the PIR are dials:
Sensitivity Control – Provisionally turn the control fully anti clock wise. In this setting the PIR sensitivity is set to approximately
1m. Turning the dial clock wise increases the sensitivity up to a maximum of 8m
Daylight / Lux Control – Provisionally turn the control fully anti clock wise. In this setting the PIR is inactive during daylight. At
dusk, when the light level is at the desired level, adjust the dial clock wise until the Lantern turns on
Time Control – Turn the dial fully anti-clockwise, the Lantern will stay on for 10secs. Turn the dial fully clock wise, the Lantern will
stay on for 7mins.
Manual override – To override the PIR so that the Lantern stays on constantly, turn the power to the Lantern off and immediately
back on twice (off-on-off-on) within 2 seconds. The Lantern will then stay on constantly. To return control to the PIR, turn the
power to the Lantern of for at least 10 second and then back on again.
Guarantee
Stainless steel can become stained over time due to environmental factors such as proximity to coastal areas and exposure to
high winds, pollution and high temperatures. Staining is especially common within 5 miles of coastal areas.
Deta does not assume responsibility for corrosion or other damage due to environmental factors, such as installation in areas
where salt is present in either the air or soil, or exposure to chemicals or high air pollution levels
Deta Electrical Company Ltd.
Kingsway House Laporte way
Luton Bedfordshire LU4 8RJ UK
Tel.: +44 (0)1582 544 544 Technical Helpline: +44 (0)1582 544 548
