PREMIUM AGED SPLIT OAK AND

YELLOW FLAME UNVENTED (VENT-FREE)

NATURAL GAS LOG HEATERS

Also Design-Certified As Vented Decorative Appliances When

Not Used With Hand-Held Thermostat Remote

OWNER’S OPERATION AND INSTALLATION MANUAL

CGD3924NRA

CCL3924NR CCL3930NR

24" and 30"

Remote Ready

(Yellow Flame Model Shown)

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be per-

formed by a qualified installer, service agency, or the gas supplier.

REMOTE

OFF

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-built fireplace, or in an approved ventless firebox. It is design-certified for these installations in accordance with ANS Z21.11.2. Exception: Do not install this appliance in a factory-built fireplace that includes instructions stating it has not been tested or should not be used with unvented gas logs.

WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

Air for Combustion and Ventilation

section on page 4 of this manual.

This appliance may be installed in an aftermarket,* manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

UNVENTED NATURAL GAS LOG HEATER

SAFETY INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of

carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Natural Gas: Natural gas is odorless. An

odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this heater.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

Heater base assembly becomes very hot when running heater. Keep children and adults away from hot surface to avoid burns or clothing ignition. Heater will remain hot for a time after shutdown. Allow surface to cool before touching.

Carefully supervise young children when they are in the room with heater. When using the handheld remote accessory, keep selector switch in the OFF position to prevent children from turning on burners with remote.

You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do

not use any phone in your building

• immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions

• if you cannot reach your gas supplier,

call the fire department

3. This heater shall not be installed in a bedroom or bathroom unless installed as a vented appliance (see Installing Damper Clamp Accessory, page 10).

4. Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes, and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. Inspect chimney flue for damage. If damaged, operate heater with flue damper closed.

5. If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

6. This log heater is designed to be smokeless. If logs ever appear to smoke, turn off heater and call a qualified service person.

Note:

During initial operation, slight smoking may occur due to log curing and heater burning manufacturing residues.

7. T o prevent the creation of soot, follow the instructions in Cleaning and Main- tenance, page 18.

8. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these products may create a white residue within burner box or on adjacent walls or furniture.

9. This heater needs fresh, outside air ventilation to run properly . This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is available. See Air for Combustion and Ventilation, pages 4 through 6. If heater keeps shutting off, see Trouble- shooting, pages 19 through 21.

10. Do not run heater

• where flammable liquids or vapors

are used or stored

• under dusty conditions

11. Do not use this heater to cook food or burn paper or other objects.

12. Do not use heater if any part has been exposed to or under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.

13. Do not operate heater if any log is broken. Do not operate heater if a log is chipped (dime-sized or larger).

For more information, visit www.desatech.com

107553

OWNER’S MANUAL

SAFETY INFORMATION

Continued

LOCAL CODES

Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas

14. Turn heater off and let cool before servicing, installing, or repairing. Make sure

Code, ANS Z223, also known as NFPA 54*. *Available from:

the remote selector switch is in the OFF position. Only a qualified service person should install, service, or repair heater.

15. Make sure the remote selector switch is in the OFF position when you are away from home for long periods of time.

16. This heater must not be connected to any external electrical source.

17. Operating heater above elevations of 4,500 feet may cause pilot outage.

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

Note:

Where listed vented decorative logs are required, thermostat operation is not permitted.

PRODUCT IDENTIFICATION

Back Log

Crossover Log

Front Log

Optional Remote Control

WARMER

COOLER

TEMP

AUTO

OFF

Piezo Ignitor

Optional Selector Switch

Base Grate

Flame Adjustment Knob

Figure 1 - Yellow Flame Vent-Free Gas Log Heater Shown (Logs May Vary by Model)

Control Knob

Burner

Middle Log

UNPACKING

CAUTION: Do not remove the metal data plates attached to the heater base assembly. The data plates contain important warranty information.

1. Remove logs and heater base assembly from carton.

Note:

Do not pick up heater base assembly by burners. This could damage heater. Always handle base assembly by grate.

2. Remove all protective packaging applied to logs and heater for shipment.

3. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought heater.

PRODUCT FEATURES

OPERATION

This heater is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by realistic dancing, yellow flames. This heater is designed for vent-free operation with flue damper closed. It has been tested and approved to ANS Z21.11.2 standard for unvented heaters. State and local codes in some areas prohibit the use of vent-free heaters. This heater may also be operated as a vented decorative (ANS Z21.60) product by opening flue damper (non-thermostat models only).

SAFETY PILOT

This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo ignitor. This system requires no matches, batteries, or other sources to light heater.

107553

For more information, visit www.desatech.com

UNVENTED NATURAL GAS LOG HEATER

REMOTE CONTROL ACCESSORIES

There are two optional remote controls that can be purchased separately for this log heater:

• hand-held ON/OFF remote

• hand-held thermostat remote See Accessories, page 27. The hand-held thermostat may not be used

where vented decorative listing is required.

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuelburning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space The information on pages 4 through 6 will

help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings exposed to the

outside atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 per pa-sec-m2) or less with openings gasketed or sealed

b. weather stripping has been

added on openable windows and doors

c. caulking or sealants are applied

to areas such as joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See

From Outdoors

If your home does not meet all of the three criteria above, proceed to

termining Fresh-Air Flow For Heater Location

and

Ventilation Air

, page 6.

, page 5.

and

-11

De-

Confined Space and Unconfined Space

The National Fuel Gas Code, ANS Z2123.1 defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

For more information, visit www.desatech.com

107553

OWNER’S MANUAL

AIR FOR COMBUSTION AND VENTILATION

Continued

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between

the rooms.

1. Determine the volume of the space (length x width x height). Length x Width x Height = _________________cu. ft. (volume of space)

Example:

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.

_________________ (volume of space) ÷ 50 cu. ft. = (Maximum Btu/Hr the space can support)

Example:

3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free heater ____________________Btu/Hr Gas water heater* ____________________Btu/Hr Gas furnace ____________________Btu/Hr Vented gas heater ____________________Btu/Hr Gas fireplace logs ____________________Btu/Hr Other gas appliances*+____________________Btu/Hr Total =____________________Btu/Hr * Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

_________________ Btu/Hr (maximum the space can support) _________________ Btu/Hr (actual amount of Btu/Hr used)

Example:

The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoin-

ing room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 6.

B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 6. C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) = 2560 cu. ft. (volume of space)

2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum Btu/Hr the space can support)

Example:

Gas water heater Vent-free heater + Total =

51,200 Btu/Hr (maximum the space can support) 79,000 Btu/Hr (actual amount of Btu/Hr used)

40,000 39,000 79,000

Btu/Hr Btu/Hr Btu/Hr

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

107553

National Fuel Gas Code, ANS Z223.1, Section 5.3

For more information, visit www.desatech.com

or applicable local codes.

Continued

UNVENTED NATURAL GAS LOG HEATER

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2). Follow the National Fuel

Gas Code, NFPA 54/ANS Z223.1, Section

5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

WARNING: Rework worksheet, adding the space of the adjoining unconfined space. The combined spaces must have enough fresh air to supply all appliances in both spaces.

Ventilation

Grills

Into Adjoining

Room,

Option 1

Figure 2 - Ventilation Air from Inside Building

Outlet Air

Remove

Door into

Adjoining

Room, Option

12"

Outlet Air

Ventilation Grills

Into Adjoining Room,

Option 2

Ventilated Attic

12"

To Attic

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the

National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation for required size of ventilation

grills or ducts.

IMPORTANT:

inlet or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

For more information, visit www.desatech.com

Do not provide openings for

Inlet Air

Figure 3 - Ventilation Air from Outdoors

Inlet Air

Crawl

Space

Ventilated

Crawl Space

107553

OWNER’S MANUAL

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

NOTICE: State or local codes may only allow operation of this appliance in a vented configuration. Check your state or local codes.

WARNING: A qualified service person must install heater. Follow all local codes.

WARNING: Make sure the selector switch is in the OFF position before installing heater.

WARNING: Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes, and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. A dirty chimney flue may create and distribute soot within the house. Inspect chimney flue for damage. If damaged, operate heater with flue damper closed.

WARNING: Never install the

heater

• in a bedroom or bathroom unless installed as a vented appliance, see page 10.

• in a recreational vehicle

• where curtains, furniture, clothing, or other flammable objects are less than 42 inches from the front, top, or sides of the heater

• in high traffic areas

• in windy or drafty areas

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls.

IMPORTANT:

ture to the air. Although this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Com- bustion and Ventilation, pages 4 through 6.

Vent-free heaters add mois-

CHECK GAS TYPE

Use only natural gas. If your gas supply is not natural gas, do not install heater. Call dealer where you bought heater for proper type heater.

INSTALLATION AND CLEARANCES (Vent-Free Operation Only)

LOG SIZING REQUIREMENTS

Minimum Firebox Size

Log Front Rear Size Height Depth Width Width*

24" 17" 13" 28" 21" 30" 17" 13" 34" 24"

*Measured at 13" depth Carefully follow the instructions below. This

will ensure safe installation into a masonry, UL127-listed manufactured fireplace, or listed vent-free firebox.

Minimum Clearances for Side Combustible Material, Side Wall, and Ceiling

A. Clearances from the side of the fire-

place cabinet to any combustible material and wall should follow diagram in Figure 4.

Example:

shelf, etc. is made of combustible material and protrudes 3 1/2" from the wall. This combustible material must be 4" from the side of the fireplace opening (see Figure 4).

Note:

into a manufactured firebox, follow firebox manufacturer’s instructions for minimum clearances to combustible materials.

B. Clearances from the top of the fireplace

opening to the ceiling should not be less than 42 inches.

The face of a mantel, book-

When installing your gas logs

Example

WARNING: Seal any fresh air vents or ash clean-out doors located on floor or wall of fireplace. If not, drafting may cause pilot outage or sooting. Use a heatresistant sealant. Do not seal chimney flue damper.

107553

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining wall.

MINIMUM FIREPLACE

CLEARANCE TO

COMBUSTIBLE MATERIALS

Log Size Side Wall Ceiling

24" 16" 42"

For more information, visit www.desatech.com

*Minimum 16 inches from Side Wall

Figure 4 - Minimum Clearance for Side Combustible Material, Side Wall, and Ceiling.

Continued

UNVENTED NATURAL GAS LOG HEATER

INSTALLATION

Continued

NOTICE: Manual control heaters may be used as a vented product. If so, you must always run heater with chimney flue damper open. If running heater with damper open, noncombustible material above fireplace opening is not needed. Go to

Clamp Accessory for Vented Operation

Minimum Noncombustible Material Clearances

If Not Using Mantel

Note:

If using a mantel, go to If Using

Mantel. If not using a mantel, follow the

information below. You must have noncombustible material(s)

above the fireplace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8" up (for all models). If noncombustible material is less than 12", you must install the fireplace hood accessory (24" and 30" models only). See Figure 5 for minimum clearances.

IMPORTANT:

minimum clearances, you must operate heater with chimney flue damper open. Go to Installing Damper Clamp Accessory for Vented Operation, page 10.

Installing Damper

, page 10.

If you cannot meet these

If Using Mantel

You must have noncombustible material(s) above the fireplace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8 inches up (for all models). If noncombustible material is less than 12", you must install the fireplace hood accessory (24" and 30" models only). Even

Noncombustible Requirements for Material Distance (A) Safe Installation

12" or more Noncombustible material okay. Between 8" and 12" Install fireplace hood accessory (GA6050, GA6052,

or GA6053, see

Less than 8" Noncombustible material must be extended to at

least 8". See cannot extend material, you must operate heater with flue damper open.

Heat Resistant Material

if noncombustible material is more than 12", you may need the hood accessory to deflect heat away from your mantel shelf. See Figure 5 and Figures 6 and 7 on page 9 for minimum clearances.

IMPORTANT:

minimum clearances, you must operate heater with chimney flue damper open. Go to Installing Damper Clamp Accessory for Vented Operation, page 10.

Accessories

Between 8" and 12"

(A)

If you cannot meet these

, page 27).

, above. If you

Figure 5 - Heat Resistant Material (Slate, Marble, Tile, etc.) Above Fireplace

For more information, visit www.desatech.com

107553

OWNER’S MANUAL

INSTALLATION

Continued

MANTEL CLEARANCES

In addition to meeting noncombustible material clearances, you must also meet required clearances between fireplace opening and mantel shelf. If you do not meet the clearances listed below, you will need a hood.

Determining Minimum Mantel Clearances

If you meet minimum clearance between mantel shelf and top of fireplace opening, a hood is not required (see Figure 6).

Determining Minimum Mantel Clearances When Using a Hood

If minimum clearances in Figure 6 are not met, you must have a hood. When using a hood there are still certain minimum mantel clearances required. Follow minimum clearances shown in Figure 7 when using hood.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirements of the national product standard. Follow all minimum clearances shown in this manual.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• operate the logs only with the flue damper open

• raise the mantel to an acceptable height

• remove the mantel

Mantel Shelf

18" 20" 22" 24"

Distances to Underside of Mantel

Underside of Mantel Shelf

All minimum distances are in inches

Top of Fireplace Opening

Minimum NonCombustible Material

10" 8" 6"

(A)

12"

Minimum NonCombustible Material Height

Figure 6 - Minimum Mantel Clearances Without Using Hood

8" Min.

Mantel Shelf

12" 15" 18"

Distances to Underside of Mantel

Underside of Mantel Shelf

All minimum distances are in inches

20"

Top of Fireplace Opening

Minimum NonCombustible Material

12" 10" 8" 6"

Hood (GA6050, GA6052)

Figure 7 - Minimum Mantel Clearances When Using Hood

FLOOR CLEARANCES

A. If installing appliance on the floor level,

you must maintain the minimum distance of 14" to combustibles (see Figure 8).

B. If combustible materials are less than

14" to the fireplace, you must install appliance at least 5" above the combustible flooring (see Figure 9).

107553

Combustible

14" Min.

Noncombustible Material

Material

Figure 8 - Minimum Fireplace Clearances If Installed at Floor Level

For more information, visit www.desatech.com

Hearth

5" Min.

Combustible Material

Figure 9 - Minimum Fireplace Clearances Above Combustible Flooring

Continued

UNVENTED NATURAL GAS LOG HEATER

INSTALLATION

Continued

INSTALLING DAMPER CLAMP ACCESSORY FOR VENTED OPERATION

Note:

When used as a vented heater, appliance must be installed only in a solid-fuel burning fireplace with a working flue and constructed of noncombustible material.

If your heater is a manually-controlled model, you may use this heater as a vented product. There are three reasons for operating your heater in the vented mode.

1. The fireplace does not meet the clear-

ance to combustibles requirements for vent-free operation.

2. State or local codes do not permit vent-

free operation.

3. You prefer vented operation. If reasons number 1 or 2 above apply to you,

you must permanently open chimney flue damper. You must install the damper clamp accessory (to order, see Accessories, page

27). This will insure vented operation (see Figure 10). The damper clamp will keep damper open. Installation instructions are included with clamp accessory.

See chart below for minimum permanent flue opening you must provide. Attach damper clamp so the minimum permanent flue opening will be maintained at all times.

Chimney Minimum Permanent

Height (ft.) Flue Opening (sq. ins.)

6' to 15' 39 sq. inches

15' to 30' 29 sq. inches

Area of Various Standard

Round Flues

Diameter (ins.) Area (sq. ins.)

5" 20 sq. inches 6" 29 sq. inches 7" 39 sq. inches 8" 51 sq. inches

Damper Clamp

Damper

Masonry Fireplace

Figure 10 - Attaching Damper Clamp

Manufactured Fireplace

INSTALLING HEATER BASE ASSEMBLY

CAUTION: Do not remove the metal data plates attached to the heater base assembly. The data plates contain important warranty information.

WARNING: You must secure this heater to fireplace floor. If not, heater will move when you adjust controls. Moving heater may cause a gas leak.

WARNING: If installing in a sunken fireplace, special care is needed. You must raise the fireplace floor to allow access to heater control panel. This will insure adequate air flow and guard against sooting. Raise fireplace floor with noncombustible material. Make sure material is secure.

CAUTION: Do not pick up heater base assembly by the burner. This could damage heater. Only handle base assembly by grates.

IMPORTANT:

ers are level. If heater is not level, heater will not work properly.

Make sure the heater burn-

Damper Clamp

Damper

Installation Items Needed

• hardware package (provided with heater)

• approved flexible gas hose (not provided) (if allowed by local codes)

• sealant resistant to propane/LP gas, not provided

• electric drill with 3/16" masonry drill bit

Note:

Install optional remote receiver and

hand-held remote kit (see Accessories, page

27) before installing gas log heater. See in-

stallation instructions included with the kit.

1. Apply pipe joint sealant lightly to male

threads of the fitting to be threaded into gas regulator. Connect approved flexible gas hose to gas regulator of heater (see Figure 11, page 11).

2. Locate masonry screws in hardware

package.

3. Position heater base assembly in fire-

place.

4. Mark screw locations through holes in

mounting flanges (see Figure 12, page

11). If installing in a brick-bottom fireplace, mark screw locations in mortar joint of bricks.

5. Remove heater base from fireplace.

6. Drill holes at marked locations using

3/16" masonry drill bit.

For more information, visit www.desatech.com

107553

OWNER’S MANUAL

INSTALLATION

Continued

7. Attach base assembly to fireplace floor using two masonry screws (in hardware package) (see Figure 12).

8. Connect to gas supply. See Connect- ing To Gas Supply.

Flexible Gas Hose (if allowed by local codes)

Fitting

Figure 11 - Attaching Flexible Gas Hose to Heater

Masonry Screw

Mounting Flanges

Figure 12 - Attaching Base Assembly to Fireplace Floor

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 1/2" NPT (National Pipe Thread) inlet connection to the pressure regulator.

WARNING: A qualified service person must connect heater to gas supply. Follow all local codes.

Installation Items Needed

Before installing heater, make sure you have the items listed below.

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench * An CSA design-certified equipment

shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the optional CSA designcertified equipment shutoff valve from your dealer. See Accessories, page 27.

WARNING: Never connect heater to private (non-utility) gas wells. This gas is commonly known as wellhead gas.

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to heater. If pipe is too small, undue loss of pressure will occur.

Approved Flexible Gas Hose (if allowed by local codes)

Gas Control

Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater (see Figure 13).

IMPORTANT:

Install equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Apply pipe joint sealant lightly to male threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.

CAUTION: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 12. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into heater controls. If sediment trap is not installed or is installed wrong, heater may not run properly.

CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when connecting it to gas piping and/or fittings.

CSA Design-Certified Equipment Shutoff Valve With 1/8" NPT Tap*

From Gas Meter (5" W.C.** to

10.5" W.C. Pressure)

Tee

3" Minimum

Joint

Pipe

Nipple

Cap

Sediment Trap

107553

Figure 13 - Gas Connection

* Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, page 27. ** Minimum inlet pressure for purpose of input adjustment.

For more information, visit www.desatech.com

Continued

UNVENTED NATURAL GAS LOG HEATER

Front

Back

Front

Back

INSTALLATION

Continued

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles forming show a leak. Correct all leaks at once.

Pressure Testing gas Supply Piping system

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either using compressed air or opening main gas valve located on or near gas meter.

4. Check all joints of gas supply piping system. Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 14).

2. Pressurize supply piping system by either using compressed air or opening main gas valve located on or near gas meter.

3. Check all joints from gas meter to equipment shutoff valve (see Figure 15). Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

4. Correct all leaks at once.

For more information, visit www.desatech.com

Pressure Testing Heater Gas Connections

1. Open equipment shutoff valve (see Figure 14).

2. Open main gas valve located on or near gas meter.

3. Make sure control knob of heater is in the OFF position.

4. Check all joints from equipment shutoff valve to control valve (see Figure 15). Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light heater (see Operating Heater, pages 15 through 17). Check all other internal joints for leaks.

7. Turn off heater (see To T urn Of f Gas to Appliance, page 16).

Equipment Shutoff Valve

Figure 14 - Equipment Shutoff Valve

Equipment Shutoff Valve

Gas Meter

Figure 15 - Checking Gas Joints

Open

POSITION

OFF

Closed

POSITION

Thermostat Gas Valve or Control Valve Location

INSTALLING REMOTE RECEIVER UNIT

1. Disconnect switch wires from the control valve.

2. Remove phillips head screws and heat shield.

3. Remove switch plate (see Figure 16). Discard after removing.

4. Install remote receiver unit onto gas log heater base using phillips head screws.

5. Connect wires as shown in Figure 18.

Screws

Wires

Figure 16 - Switch Plate and Wiring Harness (Switch Plate and Orientation May Vary Depending On Model)

Screws

Remote Receiver

Figure 17 - Installing Remote Receiver

White Wire From Receiver

Red Wire From Receiver

Figure 18 - Connecting Wires

Valve

107553

OWNER’S MANUAL

AUTO

OFF

INSTALLATION

Continued

INSTALLING WIRELESS REMOTE CONTROL ACCESSORY

Two 9-volt alkaline batteries (not included) are required to operate this heater with the wireless hand-held remote control set. One battery must be installed in the receiver and one in the hand-held remote control unit.

Note:

Only use alkaline batteries.

Installing 9-Volt Battery in Receiver

1. Locate back of receiver under front burner of heater.

2. Locate the battery clip mounted on the back of the receiver.

3. Slide a 9-volt battery through the clip.

4. Attach the terminal wires to the battery.

Receiver

Terminal

Battery Clip

9-Volt Battery

Figure 19 - Installing Receiver on the Back of the Base

Installing 9-Volt Battery (Not Included) in Hand-Held Remote Control Unit

1. Remove battery cover on back of remote control unit.

2. Attach terminal wires to the battery. Place battery into the battery housing.

3. Replace battery cover onto remote control unit.

Terminal Wires

9-Volt Battery

Figure 20 - Installing Battery in HandHeld Remote Control Unit

107553

Battery Housing

Wires

Battery Cover

Remote Control Unit

Figure 21 - Installing Battery in Hand-Held Remote Control Unit (CGHRCTA Series)

INSTALLING LOGS (CGD3924NRA)

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

CAUTION: After installation and periodically thereafter, check to ensure that no flame comes in contact with any log. With the heater set to HIGH, check to see if flames contact any log. If so, reposition logs according to the log installation instructions in this manual. Flames contacting logs will create soot.

Each log is marked with a number. These numbers will help you identify the log when installing. It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

1. Locate pegs on the bottom of back log (#1). Slide these pegs into the holes in the grate base behind the burner (see Figure 22).

2. Place the base of the middle log (#2) in the U-shaped slots of the grate base in front of the back log. The cutout on the right of the middle log should fit over the burner (see Figure 23). Make sure the front of the middle log is resting on the tabs of the grate base and the cutout area is centered over the burner “U” bend.

3. Locate the recesses on the back of the front log (#3). Fit these recesses between the posts of the grate base (see Figure 24).

For more information, visit www.desatech.com

Back Log (#1)

Peg

Hole in Grate Base

AUTO

OFF

O N

Burner

Figure 22 - Installing Back Log (#1)

Middle Log (#2)

Tab

Burner

Cutout

“U” Bend

U-Shaped Slot

Figure 23 - Installing Middle Log (#2)

Front Log (#3)

Recess

AUTO

OFF

Post

Figure 24 - Installing Front Log (#3)

Post

Continued

UNVENTED NATURAL GAS LOG HEATER

AUTO

O F F

INSTALLATION

1. Place the front log (#1) on the grate fin-

Continued

4. Locate the notches in the bottom of the crossover log (#4). Place the crossover

2. Place the base of the middle log (#2) in

log on top of the middle log and front log. Make sure the notches of the crossover log lines up with rectangular knobs on top of the middle and front logs (see Figure 25).

5. Add lava rock around base of heater. Do

3. Locate pegs on the bottom of back log (#3).

not place any lava rock on logs or burner.

Notches

Crossover Log (#4)

4. Locate pegs on the bottom of crossover

5. Locate pegs on the bottom of crossover

A U

T O

OFF

Rectangular Knobs

Figure 25 - Installing Crossover Log (#4)

6. Locate pegs on the bottom of crossover

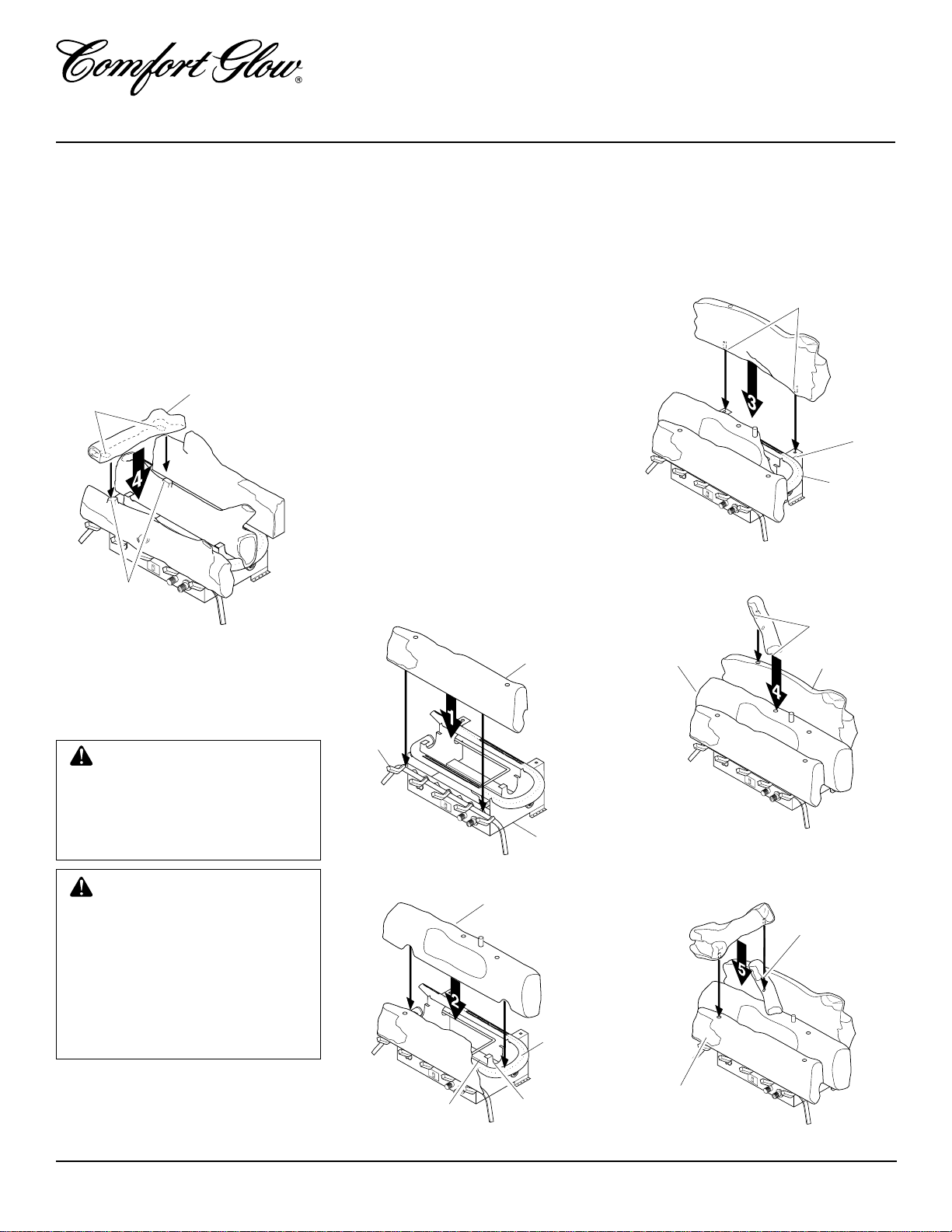

INSTALLING LOGS (CCL3924NR AND CCL3930NR)

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

For more information, visit www.desatech.com

Grate Fingers

Figure 26 - Installing Front Log (#1) (CCL3930NR Shown)

Figure 27 - Installing Middle Log (#2) (CCL3930NR Shown)

gers. Make sure the front log rests firmly between the grate fingers and the grate base (see Figure 26).

the U-shaped slots of the grate base. The cutout on the right of the middle log should fit over the burner (see Figure 27). Make sure the front of the middle log is resting on the tabs of the grate base.

Slide these pegs into the holes in the grate base behind the burner (see Figure 28).

log (#4). Slide these pegs into the holes located in middle log (#2) and back log (#3). See Figure 29 for placement.

log (#5). Slide these pegs into the holes located in crossover log (#4) and front log (#1). See Figure 30.

log (#6). Slide these pegs into the holes located in middle log (#2) and front log (#1). See Figure 31, page 15.

Front Log (#1)

AUTO

O F F

O N

Grate Base

Middle Log (#2)

Burner

AUTO

O F F

O N

Tab

U-Shaped Slot

7. For CCL3930NR only, locate holes on the bottom of crossover log (#7). Slide onto the pegs located in crossover log (#6) and middle log (#2). See Figure 32, page 15.

8. Add lava rock around base of heater. Do not place any lava rock on logs or burner.

Pegs

Hole in Grate Base

Burner

Figure 28 - Installing Rear Log (#3) (CCL3930NR Shown)

Pegs

Log #2 Log #3

A U T O

OFF

Figure 29 - Installing Crossover Log (#4) (CCL3930NR Shown)

Crossover Log (#4)

A U T O

OFF

Front Log (#1)

Figure 30 - Installing Crossover Log (#5) (CCL3930NR Shown)

107553

OWNER’S MANUAL

INSTALLATION

Continued

Pegs

Log #2

A U T O

OFF

Front Log (#1)

Figure 31 - Installing Crossover Log (#6) (CCL3930NR Shown)

Holes

Crossover Log (#6)

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only y our hand to push in or turn

the gas control knob. Ne ver use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part

has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Orange flame will also be present. Open damper or window to vent smell. This will only last a few hours.

Note:

Home owners generally prefer to operate their heater with the chimney damper closed. This will put all the heat into the room. However, there may be times you will desire the full flames of the Hi heat setting but will find the heat output excessive. You can open the chimney damper (if you have one) fully or partially to release some of the heat.

WARNING: Damper handle will be hot if heater has been running.

1. STOP! Read the safety information in columns 1 and 2.

2. Make sure equipment shutoff valve is fully open.

3. Set selector switch in the OFF position.

AUTO

O FF

O N

Pegs

Middle Log (#2)

Figure 32 - Installing Crossover Log (#7) to Model CCL3930NR Only

OPERATING HEATER

FOR YOUR SAFETY

READ BEFORE

LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must

be lighted by hand. When lighting the pilot, follow these instructions exactly .

B. BEFORE LIGHTING smell all

around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WARNING:

• If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed,

WARNING: Burners will come on automatically within one minute when the remote selector switch is in the ON position after the pilot is lit.

heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

• You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Flame Adjustment Knob

REMOTE OFF ON

Ignitor Button

Figure 33 - Control Knob and Ignitor Button Location

Selector Switch in OFF Position

4. Press in and turn control knob clockwise to the OFF position.

5. Wait f ive (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, columns 1 and 2. If you don’t smell gas, go to the next step.

Control Knob

Continued

107553

For more information, visit www.desatech.com

UNVENTED NATURAL GAS LOG HEATER

OPERATING HEATER

Continued

6. Press in and turn control knob counterclockwise to the PILOT position. Press in control knob for f ive (5) seconds (see Figure 33, page 15).

Note:

You may be running this heater for the first time after hooking up to gas supply. If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

7. With control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner. If needed, keep pressing ignitor button until pilot lights.

Note:

If pilot does not stay lit, contact a qualified service person or gas supplier for repairs. Until repairs ar e made, light pilot with match. T o light pilot with match, see Manual Light-

ing Procedure.

8. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out

when released, contact a qualified service person or gas supplier for repairs.

Note:

If pilot goes out, repeat steps

4 through 8, pages 15 and 16.

9. Slightly push in and turn control knob counterclockwise to the ON position.

10. Wait one minute and switch selector switch to the ON position to light burners.

11. Set flame adjustment knob to any level between HI and LO.

CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.

Pilot Burner

Figure 34 - Pilot

Ignitor Electrode

TO TURN OFF GAS

TO APPLIANCE

Shutting Off Heater

1. T urn control knob clockwise to the OFF position.

2a. Set selector switch in the OFF position. 2b. If Using Optional Hand-Held re-

mote: Set selector switch in the OFF position to keep from draining battery .

Shutting Off Burners Only (pilot stays lit)

You may shut off the burners and keep the pilot lit by doing one of the following:

1. T urn control knob clockwise to the PILOT position.

2. Use remote control manual OFF button.

3. Set selector switch in the OFF position.

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 6 under Lighting Instructions, pages 15 and 16.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow steps 9 through 11 under Light- ing Instructions, column 1.

OPTIONAL REMOTE

OPERATION

Note:

All remote control accessories must be purchased separately (see Accessories, page 27). Follow instructions included with the remote control.

Thermostat Control Operation

(Optional CGHRCTA Only) The thermostat control setting on the remote control unit can be set to any comfort level between WARMER and COOLER. The burner will turn on and off automatically to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

NOTICE: You must light the pilot before using the hand-held remote control unit. See

Instructions

1. After lighting, let pilot flame burn for

about one minute. Turn control knob to ON position. Adjust flame adjustment knob anywhere between HI and LO. Slide the selector switch to the REMOTE position. ers may light if hand-held remote ON button was on when selector switch was last turned off. You can now turn the burners on and off with the handheld remote control unit.

IMPORTANT:

lector switch in the REMOTE position when the pilot is not lit. This will drain the battery.

IMPORTANT:

ON/OFF buttons on the hand-held remote control unit for up to 3 seconds to assure proper operation.

on pages 15 and 16.

Do not leave the se-

Be sure to press the

CGHRC Series Operation:

2a. Press the ON/OFF button to turn the

burners on and off. When turning burners off, the pilot will remain lit.

Note:

Lighting

The burn-

WARNING: Make sure the selector switch is in the OFF position when you are away from home for long periods of time. Heater will come on automatically with selector switch in the ON position.

For more information, visit www.desatech.com

107553

OWNER’S MANUAL

OPERATING HEATER

Continued

CGHRCTA Series Operation:

2b. Press the AUTO/ON/OFF button on

the hand-held remote control (see Figure 36). The lights to the left of the button will show AUTO, ON, or OFF.

• In the ON mode, the burners will ignite. The heater is in manual mode when ON is lit.

• In the AUTO mode, the thermostat in the hand-held remote unit controls the room temperature. To increase the room temperature, pr ess the top arrow of the TEMP b utton. To lower the room temperature, press the bottom arrow of the TEMP button. At higher settings the heater will run longer.

Flame Adjustment Knob

IMPORTANT:

This remote contr ol has been specially engineered to take an air temperature sample every 5.5 minutes in the auto mode. It will not respond immediately to the temperature setting being turned up or down.

IMPORTANT:

The hand-held remote control unit must be near the heater. Do not keep the hand-held remote control unit too close to the heater. The thermostat on the hand-held remote control unit will heat up too quickly and turn the heater off.

3. To turn the burner off, press the AUTO/ON/OFF button until OFF lights. The pilot will remain lit.

Control Knob in On Position

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT FLAME PATTERN

Figure 37 shows a correct pilot flame pattern. Figure 38 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the heater will shut down.

If pilot flame pattern is incorrect, as shown in Figure 38

• turn heater off (see To Turn Off Gas to Appliance, page 16)

• see Troubleshooting, pages 19 through 21

Pilot Burner

Thermocouple

ON OFF REMOTE

Selector Switch in Remote Position

Figure 35 - Setting the Selector Switch, Control Knob, and Flame Adjustment Knob for Remote Operation

Shows Temperature Setting The Log Heater will Automati-

cally Cycle between Pilot and the Heat Setting that has been Selected

Figure 36 - Thermostat Hand-Held Remote Control Unit Selections (CGHRCTA Series Only)

Increases Room Temperature in AUTO Mode

Decreases Room Temperature in AUTO Mode

Turns Burner On or Off and Allows You to Choose the Auto Setting

Figure 37 - Correct Pilot Flame Pattern

Pilot Burner

Figure 38 - Incorrect Pilot Flame Pattern

Thermocouple

MAIN BURNER

Periodically inspect all burner flame holes with the heater running. All slotted burner flame holes should be open with yellow flame present. All round burner flame holes should be open with a small blue flame present. Some burner flame holes may become blocked by debris or rust, with no flame present. If so, turn off heater and let cool. Either remove blockage or replace burner. Blocked burner flame holes will create soot.

107553

For more information, visit www.desatech.com

UNVENTED NATURAL GAS LOG HEATER

CLEANING AND MAINTENANCE

WARNING: Turn off heater

and let cool before cleaning.

CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person. Heater may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

CLEANING BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2. Inspect burner, pilot, and primary air inlet holes on injector holder for dust and dirt (see Figure 39).

3. Blow air through the ports/slots and holes in the burner.

4. Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the injector holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Figure 40). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

Burner Tube

Injector Holder

Primary Air Inlet Holes

Figure 39 - Injector Holder On Outlet Burner Tube

Ports/Slots

Burner Tube

Pilot Assembly

Pilot Air Inlet Hole

Figure 40 - Pilot Inlet Air Hole

LOGS

• If you remove logs for cleaning, refer to Installing Logs, pages 13 through 15, to properly replace logs.

• Replace log(s) if broken or chipped (dime-sized or larger).

MAIN BURNER

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce specified heat

When Gas Quality Is Bad

• pilot will not stay lit

• burners will produce flames and soot

• heater will backfire when lit

You may feel your gas pressure is too low or gas quality is bad. If so, contact your local natural gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting.

If so, contact DESA International’s Technical Service Department at 1-800-DESA LOG (1-800-337-2564).

You can also visit DESA International’s technical service web site at

www.desatech.com.

For information or questions concerning hand-held remote or receiver, contact Tracking Technology at 1-800-301-0440 or

www.trackingtech.com.

For more information, visit www.desatech.com

107553

OWNER’S MANUAL

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s technical service web site at www.desatech.com.

Note:

All troubleshooting items are listed in

order of operation.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at ODS/pilot

When ignitor button is pressed, there is spark at ODS/pilot but no ignition

WARNING: Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater.

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode broken

7. Ignitor electrode positioned wrong

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. ODS/pilot is clogged

6. Gas regulator setting is not correct

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Tighten nut holding piezo ignitor to base panel of log set. Nut is located behind base panel

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace piezo ignitor

7. Replace piezo ignitor

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Clean ODS/pilot (see Cleaning and Maintenance, page 18) or replace ODS/ pilot assembly

6. Replace gas control

ODS/pilot lights but flame goes out when control knob is released

107553

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Equipment shutoff valve not fully open

4. Pilot flame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot

5. Thermocouple connection loose at control valve

6. Thermocouple damaged

7. Control valve damaged

www.desatech.com

For more information, visit www.desatech.com

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30 seconds

3. Fully open equipment shutoff valve

4. A) Contact local natural gas company

B) Clean ODS/pilot (see Cleaning and Maintenance, page 18) or replace ODS/ pilot assembly

5. Hand tighten until snug, then tighten 1/4 turn more

6. Replace thermocouple

7. Replace control valve

Continued

UNVENTED NATURAL GAS LOG HEATER

TROUBLESHOOTING

Continued

OBSERVED PROBLEM

Burner does light after ODS/pilot is lit

Delayed ignition burner

Burner backfiring during combustion

Slight smoke or odor during initial operation

POSSIBLE CAUSE

1. Burner orifice clogged

2. Inlet gas pressure is too low

3. Burner orifice diameter is too small

4. Thermopile leads disconnected or improperly connected

5. Burners will not come on in remote position

1. Manifold pressure is too low

2. Burner orifice clogged

1. Burner orifice is clogged or damaged

2. Damaged burner

3. Gas regulator defective

1. Not enough air

2. Gas regulator defective

3. Residues from manufacturing processes and logs curing

REMEDY

1. Clean burner (see Cleaning and Maintenance, page 18) or replace burner orifice

2. Contact local natural gas company

3. Replace burner orifice

4. Reconnect leads (see Wiring Diagram, page 27)

5. Replace battery in transmitter and receiver

1. Contact local natural gas company

2. Clean burner (see Cleaning and Mainte- nance, page 18) or replace burner orifice

1. Clean burner (see Cleaning and Mainte- nance, page 18) or replace burner orifice

2. Replace damaged burner

3. Replace gas control

1. Check burner for dirt and debris. If found, clean burner (see Cleaning and Maintenance, page 18)

2. Replace gas control

3. Problem will stop after a few hours of operation

Moisture/condensation noticed on windows

Heater produces a whistling noise when burner is lit

White powder residue forming within burner box or on adjacent walls or furniture

Remote does not function

For more information, visit www.desatech.com

1. Not enough combustion/ventilation air

1. Turning control knob to HI position

2. Air in gas line

3. Air passageways on heater blocked

4. Dirty or partially clogged burner orifice

1. When heated, vapors form furniture pol-

1. Battery is not installed. Battery power

when burner is cold

ish, wax, carpet cleaners, etc. turn into white powder residue

is low

www.desatech.com

1. Refer to Air for Combustion and Ventilation requirements (page 4)

1. Turn control knob to LO position and let warm up for a minute

2. Operate burner until air is removed from line. Have gas line checked by local natural gas company

3. Observe minimum installation clearances (see pages 7 through 9)

4. Clean burner (see Cleaning and Mainte- nance, page 18) or replace burner orifice

1. Turn heater off when using furniture polish, wax, carpet cleaners or similar products

1. Replace 9-volt batteries in receiver and remote control

107553

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

OWNER’S MANUAL

IMPORTANT:

supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

Operating heater where impurities in air exist may create odors. Cleaning

OBSERVED PROBLEM

Heater produces a clicking/ticking noise just after burner is lit or shut off

Heater produces unwanted odors

Heater shuts off in use (ODS operates)

Gas odor even when control knob is in OFF position

POSSIBLE CAUSE

1. Metal expanding while heating or contracting while cooling

1. Heater burning vapors from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See ment above)

2. Gas leak. See W arning statement at

top of page

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

1. Gas leak. See W arning statement at

top of page

2. Control valve defective

IMPORTANT

state-

REMEDY

1. This is common with most heaters. If noise is excessive, contact qualified service person

1. Open window and ventilate room. Stop using odor causing products while heater is running

2. Locate and correct all leaks (see Check- ing Gas Connections, page 12)

1. Open window and/or door for ventilation

2. Contact local natural gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 18)

1. Locate and correct all leaks (see Check- ing Gas Connections, page 12)

2. Replace control valve

Gas odor during combustion

107553

1. Foreign matter between control valve and burner

2. Gas leak. See W arning statement at

top of page

www.desatech.com

For more information, visit www.desatech.com

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Check- ing Gas Connections, page 12)

UNVENTED NATURAL GAS LOG HEATER

ILLUSTRATED PARTS BREAKDOWN

CGD3924NRA

For more information, visit www.desatech.com

107553

OWNER’S MANUAL

PARTS LIST

CGD3924NRA

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual.

KEY NO. PART NUMBER DESCRIPTION QTY.

1 103008-01 Back Log (#1) 1 2 103009-01 Middle Log (#2) 1 3 103010-01 Front Log (#3) 1 4 103011-01 Crossover Log (#4) 1 5 103779-01 ODS Pilot (NG) 1 6 098249-01 ODS Nut 2 7 103342-01 Burner Outlet Tube 1 8 098264-02 Male Connector 1 9 102843-01 Burner Clip 1 10 099056-16 Burner Orifice Injector 1 11 102966-01 Upper Bracket 1 12 102772-01 Burner 1 13 099387-12 Pilot Tube (Valve to Regulator) 1 14 103781-01 Gas Control Valve 1 15 103345-01 Lower Bracket 1 16 M11084-38 Screw, #8 x .38 7 17 102775-06CK Painted Base Assembly 1 18 098271-07 Ignitor Cable 1 19 102445-01 Piezo Ignitor 1 20 103587-02CK Plate, Switch 1 21 104099-01 Heat Shield 1 22 098304-01 Screw 2 23 103784-02 Flame Adjustment Knob 1 24 103784-01 Off-Pilot-On Knob 1 25 M12461-26 Screw, Hex Slt Wsr 10-32 x .38 4 26 100609-01 Pilot Tube (Regulator to Pilot) 1 27 099918-02 Pilot Regulator 1 28 099998-01 Switch 1 29 103284-02 Wiring Harness 1

107553

PARTS AVAILABLE — NOT SHOWN

100563-01 Warning Plate 1 103877-01 Lighting Instructions Plate 1 100565-01 Warning Plate Fastener 1 100639-01 Caution Decal 1 101137-02 Hardware Kit 1 104310-09 Information Video 1 GA6060 Lava Rock 1

For more information, visit www.desatech.com

UNVENTED NATURAL GAS LOG HEATER

ILLUSTRATED PARTS BREAKDOWN

CCL3924NR CCL3930NR

21 31

For more information, visit www.desatech.com

107553

OWNER’S MANUAL

PARTS LIST

CCL3924NR CCL3930NR

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual.

KEY CCL3924NR CCL3930NR NO. PART NUMBER PART NUMBER DESCRIPTION QTY.

1 105923-03 105923-02 Front Log (#1) 1 2 105924-03 105924-02 Middle Log (#2) 1 3 105925-03 105925-02 Back Log (#3) 1 4 105926-03 105926-02 Left Back Crossover Log (#4) 1 5 105927-03 105927-03 Left Top Crossover Log (#5) 1 6 105928-04 105928-02 Right Bottom Crossover Log (#6) 1 7 — 105929-02 Right Top Crossover Log (#7) 1 8 103779-01 103779-01 ODS Pilot (NG) 1 9 098249-01 098249-01 ODS Nut 2 10 098264-02 098264-02 Male Connector 1 11 102843-01 102843-01 Burner Clip 1 12 099056-16 099056-16 Burner Orifice Injector 1 13 102966-01 102966-01 Upper Bracket 1 14 102772-01 102772-01 Burner 1 15 099387-12 099387-12 Pilot Tube (Valve to Regulator) 1 16 103781-01 103781-01 Gas Control Valve 1 17 103345-01 103345-01 Lower Bracket 1 18 M11084-38 M11084-38 Screw, #8 x .38 7 19 102775-06CK 102775-06CK Painted Base Assembly 1 20 098271-07 098271-07 Ignitor Cable 1 21 102445-01 102445-01 Piezo Ignitor 1 22 103587-02CK 103587-02CK Plate, Switch 1 23 104099-01 104099-01 Heat Shield 1 24 098304-01 098304-01 Screw 2 25 103784-02 103784-02 Flame Adjustment Knob 1 26 103784-01 103784-01 Off-Pilot-On Knob 1 27 M12461-26 M12461-26 Screw, Hex Slt Wsr 10-32 x .38 4 28 100609-01 100609-01 Pilot Tube (Regulator to Pilot) 1 29 099918-02 099918-02 Pilot Regulator 1 30 103342-01 103342-01 Burner Outlet Tube 1 31 099998-01 099998-01 Switch 1 32 103284-02 103284-02 Wiring Harness 1

107553

PARTS AVAILABLE — NOT SHOWN

100563-01 100563-01 Warning Plate 1 103877-01 103877-01 Lighting Instructions Plate 1 100565-01 100565-01 Warning Plate Fastener 1 100639-01 100639-01 Caution Decal 1 101137-02 101137-02 Hardware Kit 1 104310-09 104310-09 Information Video 1 GA6060 GA6060 Lava Rock 1

For more information, visit www.desatech.com

UNVENTED NATURAL GAS LOG HEATER

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA International’s Technical Service Department at 1-800-DESA LOG (1-800337-2564).

When calling DESA International, have ready

• your name

• your address

• model and serial numbers of your heater

• how heater was malfunctioning

• type of gas used (propane/LP or natural

gas)

• purchase date Usually, we will ask you to return the defec-

tive part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), either contact your nearest Parts Central or call DESA International’s Parts Department at 1-800-972-7879 for referral information.

When calling DESA International, have ready

• model number of your heater

• the replacement part number

PARTS CENTRAL

These Parts Centrals are privately owned businesses. They have agreed to support our customer’s needs by providing original replacement parts and accessories.

Baltimore Electric

1348 Dixwell Avenue Hamden, CT 06514-0322 1-800-397-7553 203-248-7553 Parts Department

Portable Heater Parts

342 N. County Rd. 400 East Valparaiso, IN 46383-9704 All States 219-462-7441 1-800-362-6951 sales@portableheaterparts.com techservice@portableheaterparts.com

FBD

1349 Adams Street Bowling Green, KY 42103-3414 270-846-1199 1-800-654-8534 Fax: 1-800-846-0090 franktalk@aol.com

Master Parts Dist.

1251 Mound Ave NW Grand Rapids, MI 49504-2672 616-791-0505 1-800-446-1446 Fax: 616-791-8270 www.nbmc.com

Washer Equipment Co.

1715 Main Street Kansas City, MO 64108-2195 KS, MO, AR 816-842-3911 www.washerparts.com

Heater & Fireplace Store

58 Halbe Lane Cape May Court, NJ 08210-1110 609-390-9774 Parts Department

Dayton Hardware

P.O. Box 275 North Dayton Station Dayton, OH 45404-0275 All States 937-258-3721 OH 1-800-762-3426

Halco Enterprises

208 Carter Drive, Unit 21 West Chester, PA 19382-4500 610-430-7717 1-800-368-0803 www.halcoenterprises.com

Laportes Parts & Service

2444 N. 5th Street Hartsville, SC 29550-7704 803-332-0191 Parts Department

Cans Unlimited, Inc.

P.O. Box 645 Taylor, SC 29687-0013 All States 803-879-3009 1-800-845-5301 cuisales@aol.com

East Coast Energy Products

707 Broadway W. Long Branch, NJ 07764-1542 732-870-8809 1-800-755-8809 www.njplaza.com/ecep

For more information, visit www.desatech.com

107553

OWNER’S MANUAL

ACCESSORIES

Purchase these fireplace accessories from your local dealer. If they can not supply these accessories, either contact your nearest Parts Central (see page 26) or call DESA International’s Sales Department at 1-800972-7879 for referral information. You can also write to the address listed on the back page of this manual.

EQUIPMENT SHUTOFF VALVE - GA5010

Equipment shutoff valve with 1/8" NPT tap. Fits 1/2" NPT pipe.

FIREPLACE HOOD

Black - GA6050 Brass - GA6052 Antique Brass - GA6053

Helps deflect heat away from mantel or wall above fireplace.

LAVA ROCK - GA6060 (Not Shown)

Order when additional rock is desired. (3 lb. bag)

WARMER

COOLER

TEMP

AUTO

OFF

RECEIVER AND HAND-HELD THERMOSTAT REMOTE CONTROL KIT - CGHRCT SERIES

Allows the gas log heater to be operated in a manually or thermostatically-controlled mode. You can turn the gas log heater on and off without ever leaving the comfort of your easy chair.

RECEIVER AND HANDHELD REMOTE CONTROL KIT - CGHRC SERIES

Allows the gas log heater to be turned on and off by using a hand-held remote control.

DAMPER CLAMP - GA6080

(Not Shown)

Permanently opens chimney flue damper for vented operation. Can be used only with non-thermostat accessories.

SPECIFICATIONS

CGD3924NRA

Btu (Variable) 20,000/39,000 Type Gas Natural Gas

Only Ignition Piezo Manifold Pressure 3.5" W.C. Inlet Gas Pressure (in. of water)

Maximum 10.5"

Shipping Weight 30 lbs.

CCL3924NR

Btu (Variable) 20,000/39,000 Type Gas Natural Gas

Only Ignition Piezo Manifold Pressure 3.5" W.C. Inlet Gas Pressure (in. of water)

Maximum 10.5"

Shipping Weight 66 lbs.

CCL3930NR

Btu (Variable) 20,000/39,000 Type Gas Natural Gas

Only Ignition Piezo Manifold Pressure 3.5" W.C. Inlet Gas Pressure (in. of water)

Maximum 10.5"

Shipping Weight 70 lbs.

WIRING DIAGRAM

On Off

Remote

Thermopile

Receiver

Black

Red

White

TPTH TH

Gas Control

TPTH

107553

For more information, visit www.desatech.com

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model Serial No. Date Purchased

Always specify model and serial numbers when communicating with the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written

warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY

COMFORT GLOW VENT-FREE NATURAL GAS LOG HEATERS

DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA International who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For information about this warranty write:

INTERNATIONAL

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

107553 01

NOT A UPC

107553-01 Rev. A 05/00

Desa CCL3930NR, CCL3924NR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
