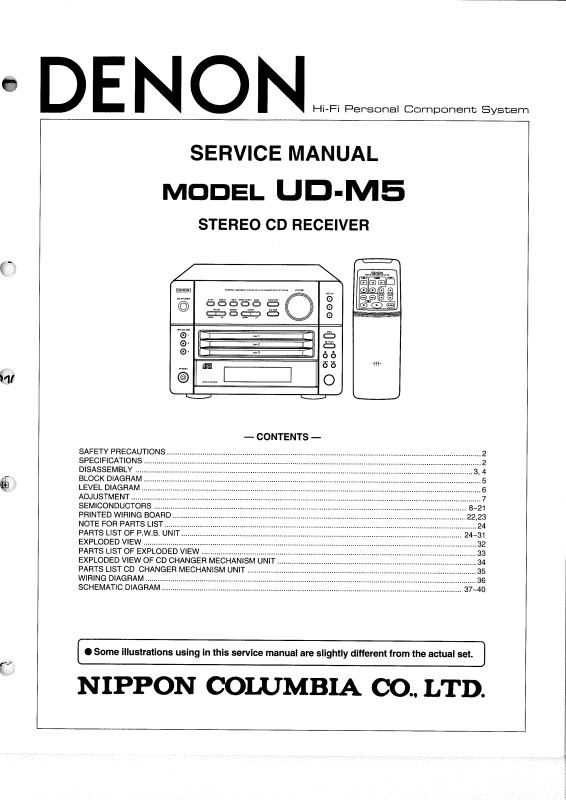

Denon UD-M5 Service Manual
Specifications and Main Features
- Tuner Section
- Frequency operational range: FM 87.50 MHz to 108.00 MHz , AM 520 to 1710 kHz (Canada and USA Units), AM
522 to 1611 kHz (European, Asia and UK Unit).
- For FM range, sensitivity rate is 1.5uV/75 Ohms whereas for Amplitude Modulated radio range, sensitivity is set to 20 pV
- The required stereo rate for FM ranges is 35dB(1 kHz).
- Output power rated level 30 W + 30 W at 6 Ohms (1kH with THD level of 10%)
- The jacks for audio input and output are TAPE MD AUX PRE Out(Mono), and the 3.5mm headphones analogue jack.
- CD Section of the Equipment
- PITCH WOBBLE/ FLUTTER: has exceeded quantifiable up to ( – 0.001 W peak)
- 44.1 k/Hz SPEAKING RATE:
- Source emitted: Solid State
- External connector jack VIDEO OUT for VCD for ASIA model
- Common Settings
- Voltage: 120 V AC 60 HZ (USA, Canada) 230V 50HZ (Europe, UK and Asia)
- For both USA and Canada models, the power consumption is 60W also the European, UK models draw the same power as well as the Asian which draw 70W.
- Overall dimension metric: C210( width) x146 (height)264 (depth)mm 8-17/64" x 5-3/4" x 15”
- The total weight is 5.5 kg or 12 pounds 2 ounces.
- Remote Control Unit (RC846, RC847 for Asia model)
- System for controlling unit from distance uses infrared rays.
- Power source: 2 x DC 1.5V R6P/ AA Batteries.
- Overall external dimensions: 66 (W) x 134(H) x 189 (D) mm
- Weight: -145 g (4.6 oz) without batteries
- Number of buttons: 54 (RC846), 55 (RC847)
