Denon PMD580 Service Manual

For U.S.A., Canada, Europe,
& Japan model

SERVICE MANUAL

MODEL

PMD580

Network Solid State Recorder

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

修理の際は、必ず取扱説明書を準備し操作方法を確認の上作業を行ってください。

D&M Holdings Inc.

PROFESSIONAL BUSINESS COMPANY

KAYABACHOTOWER,1-21-2SHINKAWA,CHUO-KU,TOKYO104-0033JAPAN

Telephone:03(6731)5588

Part no. 00M09CS855010

First Issue 2008.02

SECTION PAG E

1. TECHNICAL SPECIFICATIONS ..................................................................................................... 1

2. SERVICE MODE ............................................................................................................................ 2

3. SETTING THE MAC ADDRESS ..................................................................................................... 4

4. UPDATING THE FIRMWARE ......................................................................................................... 5

5. WIRING DIAGRAM .......................................................................................................................11

6. BLOCK DIAGRAM ........................................................................................................................ 13

7. SCHEMATIC DIAGRAM ............................................................................................................... 15

8. PARTS LOCATION ....................................................................................................................... 33

9. EXPLODED VIEW AND PARTS LIST .......................................................................................... 53

10. PACKING AND PARTS LIST ........................................................................................................ 55

11. IC DATA ........................................................................................................................................ 59

12. ELECTRICAL PARTS LIST .......................................................................................................... 77

TABLE OF CONTENTS

1. TECHNICAL SPECIFICATIONS

Digital Audio System

System ..................................................Solid State Recorder

Usable Media ................CF memory cards, Microdrive cards

Recording and media methods

MP3 .................................... MPEG1 Layer

WAV ..................................................16/24 bit linear PCM

Recording MP3 bit rate (selectable)

Mono ......................................... 160, 128, 96, 64, 32 kbps

Stereo .................................... 320, 256, 192, 128, 64 kbps

Sampling frequency .......................................44.1, 48 kHz

Number of channels ..............................2 (stereo), 1 (mono)

Audio Frequency response .............10 to 20,000Hz ± 1.0 dB

Signal-to-Noise Ratio IEC-A weighted ......................... 91 dB

Total Harmonic Distortion at 0 VU (PCM) ...................0.01 %

Dynamic Range ........................................................... 94 dB

III

compression

Inputs

Balanced Input

Type .................................. XLR (1:GND, 2:HOT, 3:COLD)

Input Sensitivity ..................... +4 dBu /–20 dBu /24 kohms

Unbalanced Input

Type ....................................................................RCA jack

Input Sensitivity ..............................500 mVrms /22 kohms

UNBALANCED DIGITAL IN

Type ....................................................................RCA jack

Input impedance ...................................................75 ohms

Standard input level .............................................0.5 Vp-p

Sampling frequency .......................................44.1 /48 kHz

Format ....................AES/EBU or SPDIF (IEC 958 Type II)

Balanced Digital Input

Type .................................. XLR (1:GND, 2:HOT, 3:COLD)

Sampling frequency .......................................44.1 /48 kHz

Format ....................AES/EBU or SPDIF (IEC 958 Type II)

Outputs

Balanced output

Type .................................. XLR (1:GND, 2:HOT, 3:COLD)

Level ..................... +18 dBu (+4dBu reference) /600 ohms

Unbalanced output

Type ....................................................................RCA jack

Standard level .........2 Vrms (+4dBu reference) /10 kohms

Balanced Digital output

Type .................................. XLR (1:GND, 2:HOT, 3:COLD)

Output impedance .............................................. 110 ohms

Standard output level ........................................... 3.5 Vp-p

Format ...AES/EBU or SPDIF (IEC 958 Type II) selectable

Unbalanced Digital output

Type ....................................................................RCA jack

Output impedance ................................................75 ohms

Standard output level ........................................... 0.5 Vp-p

Sampling frequency ........................................44.1/48 kHz

Format ....................AES/EBU or SPDIF (IEC 958 Type II)

LAN Interface

Format ........................................... 10Base-T/100Base-TX

Transmission rate ..........................................10/100 Mbps

Connector ......................................................... 8pin RJ-45

General

Power requirements

US model ..................................................AC120 V 60 Hz

European model ..........................AC100 - 240 V 50/60 Hz

Japan model .........................................AC100 V 50/60 Hz

Power consumption (U/N) ............................................ 26 W

Power consumption (F) ................................................ 18 W

Environmental conditions

Operational temperature .................. 5 - 35 °C (41 - 95 °F)

Operational humidity ..............25 - 85 %, no condensating

Storage temperature .................. –20 - 60 °C (–4 - 140 °F)

Headphone Output power ............18 mW+18 mW /32 ohms

Dimensions

Width ......................................................... 483 mm (19.0")

Height ............................................................52 mm (2.0")

Depth ......................................................... 344 mm (13.5")

Weight ........................................................3.7 kg (8.2 lbs)

Included accessories

Power cord (for US) .........................................................1

Power cord (for Europe) ...................................................2

Power cord (for Japan) .....................................................1

USB cable ........................................................................1

Audio cable ......................................................................2

CF door Screw. ................................................................2

Retainer ............................................................................1

User Guide .......................................................................1

CD-ROM (U/N) .................................................................1

Customer Registration Document (only for US) ...............1

Adapter (for Japan) ..........................................................1

• Specifi cations are subject to change without notice.

1

2. SERVICE MODE

2. サービスモード

Service mode can be performed with the following
procedures:

1. Press the POWER ON/OFF switch to turn on the power.
When the power is turned on, “Booting” then “Initial”
then “Loading” appear on the display, followed by the
track number and time. Once the display shown below
appears, follow the procedures below.

* If a CF card has not been loaded, “No Card” appears.

2. If you press and hold both the STOP/CANCEL button
and DISPLAY/LOCK button for several seconds, the
unit will enter Service mode.

The following display appears.

* In the mode mentioned below, pressing the STOP/CANCEL button

will cancel the operation. An operation executed by pressing the Jog
wheel cannot be canceled.

以下の手順に従い、サービスモードを実行できます。

POWER ON/OFF

1.

スイッチを押し、PMD580の電源を入

れます。電源を入れた後、ディスプレイにBooting

InitialLoadingと表示され、最後にトラックと時間

が表示されます。下記のように表示された後に、次の手
順を操作してください。

※ CF カードが挿入されていないときは、No Cardが表

示されます。

STOP/CANCEL

2.

ボタンと

DISPLAY/LOCK

ボタンを同時

に長押しすると、本機はサービスモードになります。

このとき、以下のように表示します。

Turn right the Jog wheel
one click.

Turn right the Jog wheel
one click.

Turn right the Jog wheel
one click.

ジョグダイヤルを時 計
方向に1クリック 回します 。

ジョグダイヤルを時 計
方向に1クリック 回します 。

ジョグダイヤルを時 計
方向に1クリック 回します 。

※以下の各モードでは、

れます。ジョグダイヤルを押して実行した場合はキャンセルできません。

Press the Jog wheel while
this display is shown.

表示中にジョグダイヤル
を押します。

Press the Jog wheel while
this display is shown.

表示中にジョグダイヤル
を押します。

STOP/CANCEL

ボタンを押すと操作がキャンセルさ

All LCD pixels are activated.

LCDが全点灯します。

The LEDs of the level meter, REC, REC
PAUSE, and PLAY buttons all light.

レベルメータ表示、

PLAY

ン、

ボタンの LED が全点灯します。

REC

ボタン、

REC PAUSE

ボタ

2

Turn right the Jog wheel
one click.

ジョグダイヤルを時 計
方向に1クリック 回します 。

Press the Jog wheel while
this display is shown.

表示中にジョグダイヤル
を押します。

Press the Jog wheel while
this display is shown.

The default values for the destination
(Europe, United States, or Japan) are set for
initialization.

1) Select “US” for the United States, “EU” for
Europe, or “JP” for Japan.

2) Press the Jog wheel. A read/write check

of the EEPROM is performed, which takes
1 minute. Then the default values for the
destination are written to the EEPROM.

各仕向け（ヨーロッパ、アメリカ、日本）によるデ
フォルト値を設定し、初期化できます。
① アメリカ向 け の 場 合 はUSを、ヨーロッパ向けの

場合はEUを、日本向けの場合はJPを選 択し

ます 。

② ジョグダイヤルを押すと、EEPROMのリード・

ライト・ チ ェ ック が 約 1分間実施され、その後に

仕向けに応じたデフォルト値 を EEPROM に書き
込みます。

All tracks are played in Repeat All mode.

Turn right the Jog wheel
one click.

Turn right the Jog wheel
one click.

ジョグダイヤルを時 計
方向に1クリック 回します 。

ジョグダイヤルを時 計
方向に1クリック 回します 。

表示中にジョグダイヤル
を押します。

Press the Jog wheel while
this display is shown.

表示中にジョグダイヤル
を押します。

Press the Jog wheel while
this display is shown.

表示中にジョグダイヤル
を押します。

全トラック繰り返し（Repeat All）モードで再生さ
れます。

ENABLE/DISABLE for the sensor of the Card
door can be set.

CFカードドアのセンサを ENABLE/DISABLE で

きます。

The Mac Address can be confi rmed.

Mac Addressを確認できます。

Turn right the Jog wheel
one click.

Turn right the Jog wheel
one click.

ジョグダイヤルを時 計
方向に1クリック 回します 。

ジョグダイヤルを時 計
方向に1クリック 回します 。

Press the Jog wheel while
this display is shown.

表示中にジョグダイヤル
を押します。

3

The Mac Address can be set.
(See “3. Setting the MAC ADDRESSS.”)

Mac Addressを設定できます。

（3. MAC ADDRESS設定方法を参照してください。）

(For Japan) （日本向けのみ）

Turn right the Jog wheel
one click.

ジョグダイヤルを時 計
方向に1クリック 回します 。

* When the Jog wheel is turned left, the mode changes

in reverse order with each click.

※ ジョグダイヤルを反時計方向に1クリック回すごとに

逆順でモードが変わります。

Press the Jog wheel while
this display is shown.

表示中にジョグダイヤル
を押します。

The lighting condition of the LED of each button
can be checked with the special tool connected
to the parallel connector.

• PLAY button ................ The PLAY LED lights.

• REC button ................. The REC LED lights.

• PREVIOUS button ...... The PLAY LED and

Extra2 LED light.

• NEXT button ............... The REC LED and

Extra1 LED light.

• EXTRA1 button ........... The Extra1 LED lights.

• EXTRA2 button ........... The Extra2 LED lights.

• STOP button ............... All LED goes off.

パラレル端子に専 用治具を接続して、各ボタン
LEDの点灯を確認できます。

PLAY

•

ボタン .......... PLAY LED 点灯

REC

•

ボタン ............ REC LED 点灯

PREVIOUS

•

NEXT

•

EXTRA1

•

EXTRA2

•

STOP

•

ボタン ...PLAY LED / Extra2 LED点灯

ボタン ........... REC LED / Extra1 LED点灯

ボタン ..... Extra1 LED 点灯

ボタン ..... Extra2 LED 点灯

ボタン .......... LED全消灯

3. If the STOP/CANCEL button is held pressed for several
seconds, the display will return to that previous from
Service mode.

STOP/CANCEL

3.

ボタンを長押しすると、サービスモード

から元の画面に戻ります。

4

3. SETTING THE MAC ADDRESS

3. MAC ADDRESS 設定方法

Set “Mac Address” in Service mode.

1. Press the POWER ON/OFF switch to turn on the power.

2. If you press and hold both the STOP/CANCEL button

and DISPLAY/LOCK button for several seconds,
the unit will enter Service mode.

 The following display appears.

Turn right the Jog wheel until “Mac Add Set” is displayed,
as shown below.

サービスモードにあるMac アドレス設定を行います。

POWER ON/OFF

1.

れます。

STOP/CANCEL

2.

に長押しすると、本機はサービスモードになります。

このとき、以下のように表示します。

ジョグダイヤルを時計方向に回し、下図の“Mac Add Set”を
表示させます。

スイッチを押し、PMD580の電源を入

ボタンと

DISPLAY/LOCK

ボタンを同時

3. Press the Jog wheel with “Mac Add Set” displayed.
The following display appears.

4. Set the Mac Address. Turn the Jog wheel until the target
digit is set then press the Jog wheel.

(Set each digit of the address from left to right in sequence.)

(Example) When the address is to be set to “91-15-00”

Once all 6 digits of the Mac Address have been set,
press the Jog wheel.

3.

Mac Add Setを表示させた状態で、ジョグダイヤルを

押します。このとき、以下のように表示します。

4.

次に、Macアドレスを設定します。ジョグダイヤルを回
して目的の数字を設定し、ジョグダイヤルを押します。

（アドレス設定は、左から順に設定します。）

（例）アドレスを91-15-00に設定したとき

Mac アドレス（6文字）を設定し終わったらジョグダイヤル
を押します。

5

4. UPDATING THE FIRMWARE

4. ファームウェアの書き換え

The updating method for the PDM580’s fi rmware is common
to all destinations. However, after updating, resetting is
required for the destination from the “EEPROM” settings
in Service mode. For details, see “EEPROM” settings in
Service mode.

Requirements for updating the firmware

• PMD580 to be updated

• CF card

• Personal computer

• Firmware updating fi le

Preparations for updating

1. Check the volume of the firmware updating file on your
PC. Check the free space of the CF card by accessing it
from My Computer of your PC or Windows Explorer.

2. Make sure that there is enough free space for the
firmware updating file, and check that there is no old
firmware updating file on the CF card.

If you find the old firmware updating file named

“PMD580up.bin” (the filename of the updating file),
delete it from the CF card.

3. Copy the new firmware updating file on your PC to the
“Root” folder of the CF card. Then it is recommended to
check the creation date of the firmware updating file after
copying it.

The filename of the firmware updating file is always

“PMD580up.bin.”

This completes the preparations for updating the

firmware.

PMD580のファームウェア更新方法については、各仕向け

による違いはありません。ただし、ファームウェアを更新し
た後にサービスモードの“EEPROM”設定により仕向けごと
の再設定をする必要があります。詳しくはサービスモード
の“EEPROM”設定をご覧ください。

ファームウェアの更新作業に必要なもの

•

書き換えたい PMD580

•

CFカード

•

パーソナル・コンピュータ

•

ファームウェア更新用ファイル

更新するための前準備

1.

ファームウェア更新用ファイルの容量をお手元のパソコ
ンにて確認してください。パソコンのマイコンピュータ
からアクセスするか、またはプログラムのエクスプロー
ラ等で CF カードの空き容量を確認します。

2.

確認した更新用ファイルの容量に対して充分な空き容量
を確保し、CF カードに古い更新用ファイルがないことを
確認します。
ファームウェア更新用ファイル名（更新用ファイル名は
常に同じ） “PMD580up.bin” が既に存在するときは、CF
カードに書き込まれている同一名ファイルを削 除しま
す。

3.

パソコン上でファームウェア更新用ファイルを CF カー
ドの“Root”フォルダにコピーします。
更新 用ファイルを CFカードにコピーした後は、更新用
ファイルの作成日時を確認することをお勧めします。
ファームウェア更新用ファイル名（更新用ファイル名は
常に同じ）は、“PMD580up.bin”です。

以上でファームウェアの更新する準備が整いました。

6

Updating the fi rmware

Load the prepared CF card into the PMD580 to update the
fi rmware.

ファームウェアの更新作業

前準備した CFカードを PMD580に挿入してファームウェ
アを更新します。

1. Insert the CF card to the Card compartment with the
PMD580 turned off and close the door. The USB cable
should not be connected to the PDM580.

2. Turn the PMD580 on.

The power indicator (blue) flashes, and after several

seconds “Booting” appears on the display.

Then after several tens of seconds, “Initial” then

“Loading” appear on the display in sequence, and finally
“Update? Yes” appears.

Note:

Once updating of the firmware begins, it cannot
be stopped. During updating, unplugging the AC
power cord, turning the power off, opening the Card
door, and any action on the operation panel must
be avoided, any of which may result in abnormal
updating and lead to trouble in operations.
If normal updating is aborted, a second attempt may
not be possible. Updating of the firmware must be
performed carefully.

1.

PMD580の電源をOFFにした状態で、前準備したCFカー
ドを CF カード挿入部に挿入し、ドアを閉めます。このと
きUSB ケーブルは PMD580 に接続しないでください。

2.

PMD580の電源を入れます。
電源インジケータ（青）が点滅し、数秒後にディスプレイ

“Booting”

が

さらに数 10 秒後、ディスプレイは “Initial” → “Loading
と表示し、最後に “Update? Yes” と表示します。

注意：

ファームウェアの更新が一旦始まると途中で停止させる
ことはできません。ファームウェア更新中は電源コード
を抜いたり、電源スイッチをOFFしたり、CFカードド
アを開けたり、操作パネルを操作したりすると、ファー
ムウェアが正常に更新されず、動作不良になることがあ
ります。そのような行為は絶対に行わないでください。
ファームウェアが正常に更新されなかったとき、再更新
もできない場合があります。ファームウェア更新作業は
操作などを含め十分注意して行ってください。

と表示します。

”

7

Updating procedures

更新作業の実施

1. To update the firmware, first press the Jog wheel with
“Update? Yes” displayed.

The following confirmation display appears.

• If the version of the fi rmware updating fi le is older than

the current one, “Old Ver?” appears.

• If the version of the fi rmware updating fi le is the same

as the current one, “Same Ver?” appears.

Answer the above prompt, and press the Jog wheel

again.

Updating of the firmware begins, and

appear repeatedly at

The time required for updating depends on the access

speed of the CF card and the volume of the firmware,
usually 4 to 5 minutes.

2. When updating is finished, “Finish” momentarily appears
on the display, and the Reboot circuit on the main board
is activated automatically, which turns the power OFF
then ON again. The subsequent procedures are the
same as those when turning the power on.

then then

during updating.

1.

ファ ームウェアを更 新 するときは、ディスプレ イに

“

Update? Yes” が表示されている状態で、ジョグダイヤル

を押してください。

このとき、以下の確認表示が表示されます。

•

ファームウェア更新用ファイルが現在本機のファ ーム
ウェアバージョンより古いとき、“Old Ver?”が表示され
ます。

•

ファームウェア更新用ファイルが現在本機のファ ーム
ウェアバージョンと同じとき、“Same Ver?”が表示され
ます。

上記内容確認後に、再度ジョグダイヤルを押します。

ファームウェア更 新が開始され、更新中は上 図の
の部分が

更新の時間はCFカードのスピードおよびファームウェア
の容量によって異なりますが、目安として約4〜5分です。

2.

更新が終了すると、ディスプレイに “Finish” が一瞬表示
され、同時にメインボードのReboot 回 路が自動的に働
き、電源OFF から ON に切り替わります。以降の動作は
電源を入れたときと同じ動作です。

を繰り返し表示します。

The power indicator (blue) flashes, and after several

seconds “Booting” appears on the display.

Then after several tens of seconds, “Initial” and “Loading”

appear on the display in sequence, and finally “Update?
Yes” appears. A Yes response completes updating of the
firmware.

In this mode, the same program can be written

repeatedly. To terminate updating of the firmware, follow
the procedures below to return to the normal operation
mode.

電源インジケーター（青）が点滅し、数秒後にディスプレイ
が“Booting”と表示します。

さらに数秒後、ディスプレイは “Initial” → “Loading” と
表示し、最後に “Update? Yes” と表示します。これで
ファームウェアの更新が完了となります。

この状態から何度でも同じプログラムを書き込むことは
可能です。ファームウェア更新を完全に終了するために
は以下の手順にて通常モードに移行してください。

8

Terminating updating and returning
to the normal mode

1. Turn right the Jog wheel one click with “Update? Yes”
displayed. “Update? No” appears on the display.

更新を終了し通常モードへの移行

1.

ディスプレイに “Update? Yes” が表示されている状態
で、ジョグダイヤルを時計方向に1 クリック回します。
ディスプレイが “Update? No” に変わります。

2. Press the Jog wheel. “Loading“ appears on the display,
the Card access light flashes, and the file recorded on
the CF card is loaded.

When loading of the file completes, the contents

recorded on the CF card appear.

2.

この状態でジョグダイヤルを押してください。ディスプ
レイに “Loading” が表示され、CF アクセスランプが点滅
しCF カードに記録されているファイルをロードします。

ファイルのロードが完了すると、CF カードに記 録した
ファイルの内容が表示されます。

9

Checking the fi rmware version

In Stop mode, you can check the fi rmware version with “F/W
version” of the Utility menu.

ファームウェアのバージョン確認

停止状態においてユーティリティメニューの“F/W version”に
よりファームウェアバージョンを確認することができます。

1. Press both the MENU/STORE button and the SHIFT
button in Stop mode. The Utility menu appears on the
display.

2. Turn right the Jog wheel until “U16 F/W version” is
displayed then press the Jog wheel.

A version number, such as “ver 1.00,” appears on the

display.

(Example: The version number is 1.00)

3. Press the Jog wheel to restore the previous display.

1.

停止状態において、

STORE

ニューに移行します。ディスプレイには、ユーティリティ
メニューが表示されます。

2.

ジョグダイヤルを時計方 向に回して、 “U16 F/W version
を表示させ、この状態でジョグダイヤルを押してください。

ディスプレイにバージョン “ver 1.00” が表示されます。

（表示例: Versionが1.00の場合）

3.

この状態でジョグダイヤルを押すと、ディスプレイが元
に戻ります。

ボタンを同時に押します。ユーティリティメ

SHIFT

ボタンを押しながら

MENU

/

”

4. Press the MENU/STORE button to return to the normal
operation mode from the Utility menu.

4.

ユーティリティメニューから通常モードに戻る場 合は

MENU/STORE

ボタンを押します。

10

5. WIRING DIAGRAM

W001

W003

WA04

W002

WB04

W004 W014

W010

W012

(F)

W015

W980 W005

J851

LCDUNITCABLE

W011

MAIN PWB

AUDIO
INTERFACE
PCB

AUDIO
IN

BAL-R

AUDIO
IN
BAL-L

POWER SUPPLY PCB

AUDIO
IN
UNBAL

CED

RS232C INTERFACE PCB(U)/
PARALLEL PCB(F)

CF CONNECTOR:J008

ALPS:
SCFB1A0500&SCFB3A0200

HEADPHONES PCB

AUDIO
OUT

BAL-R

AUDIO
OUT
BAL-L

AUDIO
OUT
UNBAL

CED

DIGTAL
IN BAL

DIGTAL
OUT

BAL

SPDIF
IN/OU
T

REMO
TE

LAN

D-SUB
9IN(U) /
15PIN(F)

RS-232C
DRV(U)

uPD4721

CPU:EP9315

EEROM:
AT24C16AN

USB
CONTROLE
R:ISP1582

RTC:
RS5C372

FLASH:JS2
8F128P30T85

DIT/DIR:
CS8420

SDRAM:MT
48LC64M4A2

ETHERNET
TRANCEIVE
R:78Q2120C

-64T-B

AUDIO
SELECTOR
:LC78211

ELE.VOL:
TC9459BFG

SDRAM:MT
48LC64M4A2

USB
CONNECT
OR:J051

POWER
LED PCB

FRONT PCB

LCD

UNIT

SW

SW

SW

LED METER

SW

SW

SWSW

ENCODER PCB

JOG
SW

SUB CPU:
uPD78F9222

CODEC

:

CS4271

J703 J702

J011

J850

J800

JB04

J001

J502

(J652)(F)

J052

J012(F)

JD06

JD07

J014J004

BATTER

Y:CR2032

DOOR
SW

J007

J852

J704

J710

JA04

J501

J701

INLET
J700

J015

JC03

LED

ELE.VOL:
TC9459BFG

RELAY

RELAY

DIG
SELECTOR:
SN65LVD348

ER SW
TRANS:

RELAY:
FTR-F1

LUPTER:
GP1S58V

POWER
SW:
1SDKLA

HEAD
PHONE

HEAD
PHONE VOL

11 12

6. BLOCK DIAGRAM

L

XLR INPUT

R

LINE

IN

PUT

L

R

LINE OUTPUT

L

R

XLR OUTPUT

L

R

AES/EBU OUTPUT

AES/EBU INPUT

SPDIF OUTPUT

14.7456MHz

SPDIF INPUT

32.768kHz

HEADPHONE

INLET

+3VU/SUB U-COM

AC100V

〜

AC230V

+14V/AUDIO

-14V/AUDIO

+5V

PROCESSOR
EP9315

FLASH MEMORY
JS28F128P30T85

SDRAM
MT48LC64M4A2 ×2

CF
CONNE
CTOR

ADDRESS BUFFER

TC74LCX16244FT

DATA BUFFER
TC74LCX16245FT

USB
CONTROLLER
ISP1582

USB
CONNE
CTOR

ETHERNET
CONTROLLER
78Q2120C09A­64CGT

ETHERN
ET
CONNE
CTOR

KEY&JOG

RTC
RS5C372A

EEPROM
AT24C16AN

LCD UNIT

LCD BUS
SN74LV273APW

 ×2

SN74LV244APW

D-SUB
9PIN
(

U/N

)

RC-232C DRIVER
UPD4721GS

TALLY BUS
SN74LV541APW
SN74LV125APW

D-SUB(F)

15PIN

LED METER

METER BUS
SN74LV138APW ×2

CODEC
CS4271

DIR/DIT
CS8420

AUDIO CLOCK
SELECTOR
SN74LV125APW

INPUT
VOLUME
TC9459BFG

OUTPUT
VOLUME/ATT
TC9459BFG

SPDIF LEVEL CHANGER
TC74HCU04AF

AES/SPDIF INPUT
SELECTOR

LINE DRIVER
SN65LVDM179

ATT

ALC

ALC

AUDIO
SELECTOR
LC78211

(

2/3

)

AUDIO
SELECTOR
LC78211
(1/3)

ATT

MULTI POWER SUPPLY

SUB U-COM
UPD78F9222

RELAY

RELAY

TRANS

TRANS

ER SW
TRANS

DA

AD

DIT

DIR

SRC

LED DRIVER

NJU3716AM

CF
DOOR
SW

13 14

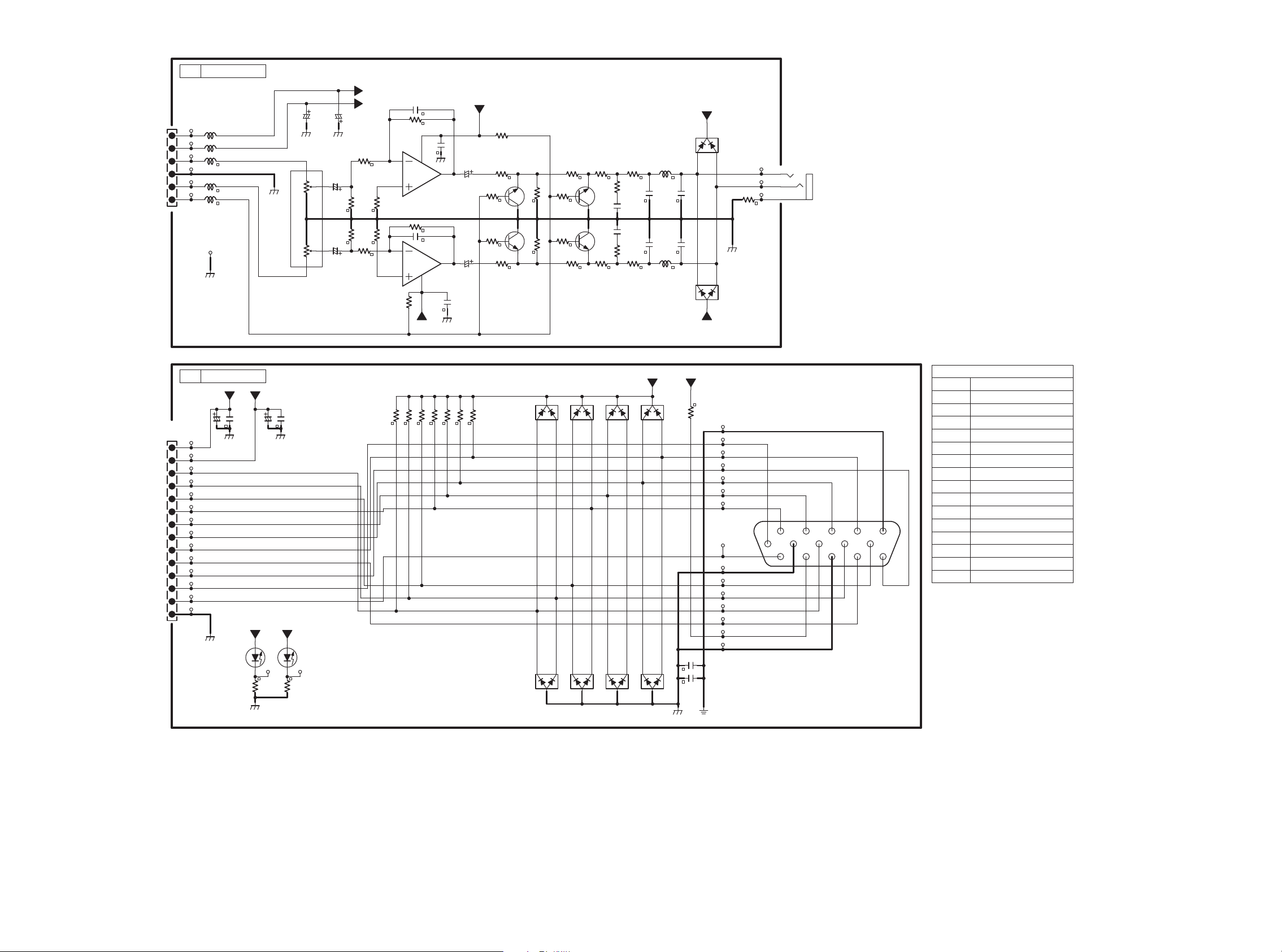

7. SCHEMATIC DIAGRAM

AMUTEC-

8420_INT

TP49

0

R073

MUTE_OUT

DAN202K

D007

1

2

3

SN74LV04APW

Q010

34

OPEN

R087

D-GND

1.2k

R074

TPF150

TPF151

OPEN

C040

TALLY_MUTE

TPF152

0

R402

SN74LV125APW

Q005

56

4

Q406

DTA114TUA T106

+3VU

+3.3VD

OPEN

D009

1

2

3

+3.3VD

OPEN

D008

1

2

3

+3.3VD

OPEN

R072

OPEN

R075

D-GND

D-GND

0

R076

DTC114EK

Q401

47k

R403

D-GND

D-GND

SN74LV04APW

Q010

56

0

R448

100u/6

C004

+1.8V

680

R020

D001
OPEN

12

680

R005

TPF143

D-GND

680

R011

TPF22

UDZSTE

3.6B

D006

S001

OPEN

13

0

R003

1k

R024

NJM2387DL2

Q003

VIN

1

GND

5

CTL2ADJ

4

VOUT

3

OPEN

C016

D003

OPEN

12

1k

R021

+3.3VD

TPF10

POFF_IN-

+3.3VD

TPF03

1k

R019

TPF01

0.1u

C001

1k

R013

+5V_PANEL

100u/6

C002

D-GND

100u/6

C007

1k

R012

1k

R006

TPF08

0

R451

1k

R010

100

R018

10k

R044

D004
OPEN

12

0

R450

330

R017

TPF144

0.1u

C011

D-GND

0.1u

C012

TPF06

1u

C003

0.1u

C005

0.1u

C423

+3.3VC

0.1u

C013

D-GND

0.1u

C008

0.1u

C014

0.1u

C424

47k

R031

10k

R015

C425

0.01u

0.1u

C017

10k

R004

0

R014

47k

R030

10k

R009

OPEN

Q007

+3.3VD

+5V

TPF142

D-GND

47k

R029

NJM2387DL2

Q004

VIN

1

GND

5

CTL2ADJ

4

VOUT

3

100u/6

C006

0

RU74

D-GND

D002

OPEN

12

TPF04

D-GND

4.7

R007

+3.3VD

+5V

47k

R001

TPF147

TPF09

TPF02

+5V_I/O

100k

R039

100u/16

C018

NJM2387DL2

Q002

VIN

1

GND

5

CTL2ADJ

4

VOUT

3

100k

R036

TPF145

100k

R032

100k

R034

D-GND

SN74LV125APW

Q005

23

1

VDD3.3V

NJM2387DL2

Q001

VIN

1

GND

5

CTL2ADJ

4

VOUT

3

FG-4

D-GND

FG-1

D-GND

FG-2

D-GND

FG-5

D-GND

D-GND

FG-3

0

R288

0

R289

0

R290

0

R291

0

R292

0

R293

0

R294

0

R295

0

R296

0

R297

CF_POWER

4271_RST-

SDA

ESCLK

ELRCK

EMCLK

ESDI0

ESDI1

SDI_SEL

MCLK_SEL

ESDOUT

OMCK_SEL

SPCLK

8420_RST-

+3.3VD

+5VD

+5VD

D-GND

TPU02 TPU04 TPU06 TPU08 TPU10 TPU12

TPU17

TPU14

TPU01 TPU03 TPU05 TPU07 TPU11TPU09 TPU13 TPU15

CODEC/CPU_MUTE

POWER_OFF_EN

CPU_MODE

AES/SPDIF

TPU16

Q020

MT48LC32M16A

VSSQ

12

VDD

1

VDD

14

VDD

27

VDDQ

3

VSSQ

6

VSS

54

VSS

41

VDDQ

9

VSSQ46VDDQ

43

VSS

28

VDDQ

49

VSSQ

52

D-GND

+3.3VC

0.1u

C052

0.1u

C051

0.1u

C053

0.1u

C054

0.1u

C055

0.1u

C056

0.1u

C057

0.1u

C058

D-GND

D-GND

0.1u

C059

Q021

MT48LC32M16A

VSSQ

12

VDD

1

VDD

14

VDD

27

VDDQ

3

VSSQ

6

VSS

54

VSS

41

VDDQ

9

VSSQ46VDDQ

43

VSS

28

VDDQ

49

VSSQ

52

0.1u

C062

D-GND

D-GND

0.1u

C060

0.1u

C067

0.1u

C063

+3.3VC

0.1u

C064

0.1u

C061

D-GND

0.1u

C066

Q015

GND

7

VCC

14

+3.3VD

D-GND

0.1u

C403

+3.3VD

D-GND

Q404

GND

10

VCC

20

0.1u

C197

0.1u

C195

+3.3VD

D-GND

Q402

GND

10

VCC

20

D-GND

0.1u

C196

Q403

GND

10

VCC

20

+3.3VD

+3.3VD

D-GND

Q036

GND

7

VCC

14

0.1u

C178

D-GND

Q005

GND

7

VCC

14

+3.3VD

0.1u

C177

Q037

GND

8

VCC

16

+3.3VD

0.1u

C175

D-GND

Q038

GND

8

VCC

16

0.1u

C154

D-GND

+3.3VD

D-GND

+3.3VD

Q039

GND

10

VCC

20

0.1u

C176

Q300

GND

7

VCC

14

+3.3VD

D-GND

0.1u

C422

Q040

GND

7

VCC

14

D-GND

+5V

0.1u

C155

+3.3VD

D-GND

Q010

GND

7

VCC

14

0.1u

C410

0.1u

C125

Q029

GND

7

VCC

14

D-GND

+3.3VD

+3.3VD

Q026

GND

7

VCC

14

0.1u

C153

D-GND

J001

B8B-PH-SM3-TB

1

2

3

4

5

6

7

8

TPU20

TPU21

TPU18

TPU19

0RU21

0RU22

0RU23

0RU24

0RU25

0RU26

0RU27

0

R008

OPEN

R038

OPEN

R041

OPEN

R033

OPEN

R035

OPEN

R037

22FMN-BMTTN-A-TFT

J014

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

TPU45

TPU44

FG-7

0.1u

CU54

D-GND

FG-8

0.1u

CU55

0

RU90

J008

51

J008

52

TC74LCX16244FT

Q122

GND

21

VCC7VCC18VCC31VCC

42

GND28GND34GND

39

GND

15

GND

45

GND10GND

4

TC74LCX16245FT

Q123

GND

21

VCC7VCC18VCC31VCC

42

GND28GND34GND

39

GND

15

GND

45

GND10GND

4

+3.3VD

+3.3VD

D-GND

D-GND

0.1u

C023

0.1u

C024

ALC

+3.3VD

0.1u

C009

D-GND

Q124

GND

7

VCC

14

SCL

0.1u

C015

+3.3VD

Q125

GND

7

VCC

14

D-GND

CS7-

USB_EOT

RD-

WR-

CS_N

RD_N

WR_N

47

R268

47

R269

47

R276

TC74VCX08FT

Q125

13

12

11

TC74VCX08FT

Q125

9

10

8

10

RU20

10

RU65

10

RU64

OPENRU18

OPEN

RU19

4.7

RU29

TC74VCX08FT

Q125
4

5

6

TC74VCX08FT

Q125
1

2

3

OPEN

RU63

TC74VCX32FT

Q124

9

10

8

TC74VCX32FT

Q124

13

12

11

OPEN

R453

10

RU16

10

R275

10

RU17

10

R277

10

R409

10

R433

0

R408

TC74VCX32FT

Q124

4

5

6

TC74VCX32FT

Q124

1

2

3

OPEN

R479

27

R091

OPEN

RU62

OPEN

RU59

27

R279

27

R280

OPEN

RU61

OPEN

R482

0
R481

+3.3VD

OPEN

R480

4.7

R278

R469

OPEN

OPEN

RU60

0

RU66

4.7

RU67

OPEN

RU68

Q127

OPEN

1

2

4

Q127

GND

3

VCC

5

OPEN

RU71

OPEN

RU72

OPENRU73

OPEN

Q128
1

2

4

Q128

GND

3

VCC

5

OPEN

Q129

1234

5678

D-GND

D-GND

OPEN

RU77

OPENRU75

OPENRU76

D-GND

OPEN

RU78

OPEN

RU79

0

RU69

OPEN

RU70

OPEN

Q130

1

CLR

2

D

4

PR

5

Q

6

Q

3

CLK

OPEN

Q130 13

CLR

12

D

10

PR

9

Q

8

Q

11

CLK

Q130

GND

7

VCC

14

D-GND

+3.3VD +3.3VD +3.3VD

OPEN

C025

OPEN

C026

OPEN

C027

+3.3VD

OPEN

C028

D-GND

OPENRU81

OPENRU80

D-GND

OPEN

RU82

PRST-

OPEN

RU83

OPEN

RU84

OPEN

RU85

+3.3VD

OPENRV08

OPENRV09

OPENRV10

OPENRV11

OPENRV12

OPENRV13

+3.3VD

OPENRU86

0

RV23

OPEN

C183

D-GND

OPEN

RV24

D-GND

TC74LCX14FT

Q029

56

TPU42

0

RU32

D-GND

0

RU31

TC74LCX14FT

Q029

34

TPU41

2

2

1u

C029

D-GND

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

UNBAL_MUTE

RV42 0

J053

2

CF CARD POWER

CPU AROUND POWER

CPU POWER

FROM POWER

P. SW

SCL

SDA

4271_RST-

ESCLK

ELRCK

ESDI1

EMCLK

SDI_SEL

ESDOUT

OMCK_SEL

ESDI0

AMUTEC-

8420_RST-

8420_INT

+3.3VD

+5VD

D-GND

TO REAR PCB

TO POWER SUPPLY PCB

+5V

+5V

D-GND

D-GND

POWER_OFF_REQ

POWER_OFF_EN

CPU_MODE

AES/SPDIF

2/4

2/6

3/6

1/4

NC

MCLK_SEL

SPCLK

1:ON 0:OFF

ALC

UNBAL_MUTE

CF CONNCTER

(1/10W) (1/10W)

(1/10W) (1/10W)

(1/10W) (1/10W)

(1/10W)

4/4

3/4

2/4

4/4

3/4

1/4 2/4

1/4

3/6

2/6

15 16

P101 00MWI09CS1010

SN74LV08APW

Q015

1

2

3

CPU_MODE

R089

OPEN

D-GND

D-GND

PRST-

LAN_INT

8420_INT

+3.3VC

X001

14.7456MHZ
12

D-GND

R097

10k

X002

TFX-02

12

C047

10p

C046

10p

RDLED

D013

TLGU1002A(T02)

12

D014

TLSU1002(T02)

12

D-GND

CS1-

RD­WR-

R170

OPEN

R174

OPEN

D-GND

+3.3VC

MT48LC32M16A

Q020

23

A0

24

A1

25

A2

26

A3

29

A4

31

A6

32

A7

33

A8

22

A10

35

A11

36

A12

20

BA0

19

CS#

18

RAS#

17

CAS#

16

WE#

15

DQML

39

DQMH

38

CLK

2

DQ0

4

DQ1

5

DQ2

7

DQ3

8

DQ4

10

DQ5

11

DQ6

13

DQ7

42

DQ8

44

DQ9

45

DQ10

47

DQ11

48

DQ12

50

DQ13

51

DQ14

53

DQ15

40

NC

30

A5

34

A9

21

BA1

37

CKE

MT48LC32M16A

Q021

23

A0

24

A1

25

A2

26

A3

29

A4

31

A6

32

A7

33

A8

22

A10

35

A11

36

A12

20

BA0

19

CS#

18

RAS#

17

CAS#

16

WE#

15

DQML

39

DQMH

38

CLK

2

DQ0

4

DQ1

5

DQ2

7

DQ3

8

DQ4

10

DQ5

11

DQ6

13

DQ7

42

DQ8

44

DQ9

45

DQ10

47

DQ11

48

DQ12

50

DQ13

51

DQ14

53

DQ15

40

NC

30

A5

34

A9

21

BA1

37

CKE

JS28F128P30T85(FOR PMD580)

Q022

29

A1

25

A2

24

A3

23

A4

21

A6

20

A7

19

A8

7

A10

6

A11

5

A12

4

A13

2

A15

1

A16

55

A17

18

A18

17

A19

16

A20

44

RST#

34

DQ0

36

DQ1

39

DQ2

41

DQ3

47

DQ4

49

DQ5

51

DQ6

53

DQ7

35

DQ8

37

DQ9

40

DQ10

42

DQ11

48

DQ12

50

DQ13

52

DQ14

54

DQ15

27

RFU

22

A5

8

A9

3

A14

15

WP#

46

ADV#

45

CLK

30

CE#

32

OE#

11

A21

10

A22

9

A23

26

A24

14

WE#

56

WAIT

43

VPP

38

VCCQ

13

VCC

33

VCC

12

VSS

28

VSS

31

VSS

D-GND

+3.3VC

+1.8V

D-GND

SN74LV08APW

Q015

4

5

6

D-GND

SOFT_RST-

PRST-

+3.3VD

+3.3VC

TP20

R090

10k

R092

10k

R093

10k

R094

10k

R0951kR096

1k

R171

10k

R172

10k

R173

2.2k

R178

10k

R179

10k

R181

10k

R214

OPEN

R180

22

R182 15
R183 15
R184 15
R185 15
R186 15
R187 15
R188 15
R189 15
R190 15
R191 15
R192 15
R193 15
R194 15
R195 15
R196 15
R197 15

R204 15

R213 15

R210 15

R203 15

R207 15

R212 15

R208 15

R198 15

R211 15

R199 15

R205 15

R202 15

R209 15

R206 15

R200 15
R201 15

R158 56

R088

10k

R132 1M

R167

560

R169

560

R176

47k

R177

47k

C068

0.1u

C069

0.1u

C070

0.1u

C071

0.1u

C050

0.01u

C065 0.1u

C088 0.01u

D018

ESD PROTECTOR(6802)

D-GND

R404 0

R405 0

R411

0

R410 0

C045

0.1u

+3.3VC

D-GND

TP21
TP22

R413

47k

R412

0

C401

0.01u

C090

0.01u

C089

0.1u

D019

ESD PROTECTOR(6802)

SN74LV244APW

Q404

1A1

2

1A2

4

1A3

6

1A4

8

2A1

11

1Y1

18

2A2

13

2A3

15

2A4

17

1G

1

2G

19

1Y2

16

1Y3

14

1Y4

12

2Y1

9

2Y2

7

2Y3

5

2Y4

3

SN74LV273APW

Q402

1D

3

2D

4

3D

7

5D

13

1Q

2

2Q

5

3Q

6

4Q

9

4D

8

7D

17

8D

18

CLK

11

6D

14

CLR

1

5Q

12

6Q

15

7Q

16

8Q

19

SN74LV273APW

Q403

1D

3

2D

4

3D

7

5D

13

1Q

2

2Q

5

3Q

6

4Q

9

4D

8

7D

17

8D

18

CLK

11

6D

14

CLR

1

5Q

12

6Q

15

7Q

16

8Q

19

R414

0

OPEN

R415

LCPT_WR-

PRST-

D-GND

LCPT_RD-

TP23

TP25

TP26

EP9315-CBZ-E1

Q018

U10

DA0

Y9

DA1

L19

RSTO#

U12

BOOT[1]

T15

INT0

V9

DA2

U9

DA3

V13

TREQA

Y7

DA4

W7

DA5

Y6

DA6

W6

DA7

T1

DA8

P3

DA9

P2

DA10

L20

PRST#

U15

INT1

Y14

BOOT[0]

B19

WAIT#

N3

DA11

N1

DA13

N2

DA12

M2

DA14

L4

DA15

L3

DA16

L2

DA17

L1

DA18

K4

DA19

K2

DA20

J1

DA21

F2

DA22

A2

DA28

B4

DA27

E2

DA23

U1

AD0

R2

AD1

R1

AD2

N4

AD3

P1

AD4

M4

AD5

M3

AD6

M1

AD7

Y10

AD8

W9

AD9

U13

NC

V16

INT2

W17

INT3/INTRQ

H17

RTCXTALO

Y8

AD10

W8

AD11

V8

AD12

U8

AD13

V7

AD14

F3

DA24

D2

DA25

Y5

AD15

D8

AD16

A6

AD17

A3

AD18

J17

RTCXTALI

B2

DA31

C4

DA29

D5

AD19

C3

AD20

K3

AD21

K1

AD22

E1

AD23

D1

AD24

F4

AD25

M20

CS0#

C1

CS1#

B1

CS2#

C2

CS3#

E4

CS6#

A1

CS7#

E3

DA26

B3

DA30

A7

RD#

B7

WR#

G1

SDCS0#

G2

SDCS1#

H4

SDCS2#

F1

SDCS3#

G4

SDCLK

D4

SDCLKEN

H3

RAS#

H2

CAS#

G3

SDWE#

P17

XTALI

N17

XTALO

J2

DQMO#

J3

DQM1#

J4

DQM2#

H1

DQM3#

U16

PWMOUT

Y18

RDLED

W16

GRLED

TPF138

OPEN

R478

TP52

TP51

TP50

R175
OPEN

TPF153 TPF154

R382

10k

R385 0
R386 0

R383 0

R384 0

R387 0

R388 0

R389 0

R390 0

R391 0

R392 0

R393 0

R394 0

R395 0

R396 0

R397 0

100u/6

C151

D-GND

TP59

R099 15
R100 15
R101 15
R102 15
R103 15
R104 15
R105 15
R106 15
R107 15
R108 15
R109 15
R110 15
R111 15
R112 15
R113 15
R114 15
R115 15
R116 15
R117 15
R118 15
R119 15
R120 15
R121 15
R122 15
R123 15
R124 15

R131 15

R126 15
R127 15
R128 15
R129 15
R130 15

R133 15
R134 15
R135 15
R136 15
R137 15
R138 15
R139 15
R140 15
R141 15
R142 15
R143 15
R144 15
R145 15
R146 15
R147 15
R148 15
R149 15
R150 15
R151 15
R152 15
R153 15
R154 15
R155 15
R156 15
R157 15

R159 22
R160 0
R161 0
R162 0
R163 0

R164 0
R165 0
R166 0
R168 0

C0488pC049

8p

R499

47k

LVM_CLR-

RS5C372A

Q105

1234

5678

20H-1

B101

1

2

1SS301

D110

1

2

3

USB_INT

ISP1582BS

Q111

1

AGND

2

RPU

3

DP

4

DM

5

AGND

6

RREF

7

RESET_N

8

EOT

9

DREQ

10

DACK

11

DIOR

12

DIOW

13

DGND

14

INT

15

CS_N16RD_N17WR_N18A019A120A221Vcc(I/O)22A323A424A525A626DGND27A728VCC1V8

29

DGND

30

DATA0

31

DATA1

32

DATA2

33

DATA3

34

Vcc(I/O)

35

DATA4

36

DATA5

37

DATA6

38

DATA7

39

DATA8

40

DATA9

41

DGND

42

DATA10

43

DATA1144DATA1245DATA1346DATA1447DATA15

48

Vcc(I/O)

49

VBUS

50

VCC1V8

51

XTAL252XTAL1

53

Vcc54Vcc

55

WAKEUP

56

SUSPEND

GND

57

10p

CU33

10p

CU34

USB_SUSPEND

USB_WAKEUP

USB_INT

USB_CS-

+3.3VD

0

RU01

0.1u

CU45

0.01u

CU44

10k

RU03

10k

RU04

12kRU07

1.5k

RU02

10k

RU05

10k

RU06

USB_DREQ

USB_RST-

0.1u

CU41

0.1u

CU38

4.7u/10

CU37

0

RU08

0.1u

CU36

0.01u

CU35

0.1u

CU39

0.01u

CU40

0.1u

CU42

0.01u

CU43

0

RU110RU12

10k

RU10

1M

RU09

0.01u

CU46

USB_DACK

USB_EOT

TPU22 TPU26

TPU25 TPU27

CS7-

SRPT_CLR-

MCLK_SEL

SDI_SEL

OMCK_SEL

SN74LV04APW

Q010

13

12

SN74LV04APW

Q010

1110

SN74LV04APW

Q010

98

TPU43

12MHz

X103

12

0

RU39

47RU41

47RU42

47RU43

47RU44

47RU45

47RU88

47RU46
47RU47
47RU48
47RU49
47RU50

47RU51
47RU52
47RU53
47RU54

AD[2]

AD[3]

AD[4]

Q156

OPEN

OPEN

RU40

47RU89

47RU91

47RU92

47RU93

47RU94

47RU95

47RU96

47RU97

47RU98

47RU99

47RV 01

47RV 02

47RV 03

47RV 04

47RV 05

47RV 06

47RV 07

DA2[0-11]

D-GND

J051

DBB-4R-D14T-4D

1

2

3

4

5

6

7

8

TP61
TP62
TP63

TP121

47k

R125

D-GND

2.2k

R218

2.2k

R217

+3.3VC

SCL

SDA

22

R098

22R219

OPENR267

MAX3207E

Q157

123

456

+3.3VD

D-GND

0.1u

C010

D-GND

0

R272

OPEN

R273

CS_IN

0R048

0

R049

0

R064

DLW21SN900SQ2L

L151

1

3

4

2

33R065
33R066
33R067
33R068
33R069

33R070
33R077

R078 33

CS_N

RD_N

WR_N

10RU30

Q126
2SC2712-GR(TE85L)

39k

RU58

10k

RU33

+3.3VD

VBUS_IN

OPENR274

R283 OPEN

DA[0]

AD2[0-10]

DA3[0-15]

33RV14

33RV15

33RV16

L152

60(100MHz)

1u

C126

330

R016

2

2

0

CU47

DA[0-31]

DA[31]

DA[30]

DA[29]

DA[28]

DA[27]

DA[26]

DA[25]

DA[24]

DA[23]

DA[22]

DA[21]

DA[20]

DA[19]

DA[18]

DA[17]

DA[16]

DA[15]

DA[14]

DA[13]

DA[12]

DA[11]

DA[10]

DA[9]

DA[8]

DA[7]

DA[6]

DA[5]

DA[4]

DA[3]

DA[2]

DA[1]

DA[0]

AD[24]

AD[23]

AD[22]

AD[21]

AD[20]

AD[19]

AD[18]

AD[17]

AD[16]

AD[15]

AD[14]

AD[13]

AD[12]

AD[11]

AD[10]

AD[9]

AD[8]

AD[7]

AD[6]

AD[5]

AD[4]

AD[3]

AD[2]

DQM3-

DQM2-

DQM1-

DQM0-

SDWE-

CAS-

RAS-

SDCLKEN

SDCLK

SDCS0-

AD[24]

AD[23]

AD[22]

AD[21]

AD[20]

AD[19]

AD[18]

AD[17]

AD[16]

AD[15]

AD[14]

AD[13]

AD[12]

AD[11]

AD[10]

AD[9]

AD[8]

AD[7]

AD[6]

AD[5]

AD[4]

AD[3]

AD[2]

DA[15]

DA[14]

DA[13]

DA[12]

DA[11]

DA[10]

DA[9]

DA[8]

DA[7]

DA[6]

DA[5]

DA[4]

DA[3]

DA[2]

DA[1]

DA[0]

DA[31]

DA[30]

DA[29]

DA[28]

DA[27]

DA[26]

DA[25]

DA[24]

DA[23]

DA[22]

DA[21]

DA[20]

DA[19]

DA[18]

DA[17]

DA[16]

AD[15]

AD[14]

AD[12]

AD[11]

AD[10]

AD[9]

AD[8]

AD[7]

AD[6]

AD[5]

AD[4]

AD[3]

AD[2]

CAS-

DA[13]
DA[14]AD[15]

SDCLK

AD[10]

AD[9]

AD[8]

AD[7]

AD[6]

AD[5]

AD[4]

AD[3]

AD[2]

AD[11]
AD[12]
AD[14]

DA[1]

DA[10]

RAS-

DA[11]
DA[12]

DA[7]
DA[8]
DA[9]

DQM0-

SDCLKEN

DA[15]

DA[0]

SDWE-

SDCS0-

DQM1-

DA[3]

DA[2]

DA[4]
DA[5]
DA[6]

SDCLK

CAS-

DQM3-

SDCS0-

SDWE-

SDCLKEN

DQM2-

RAS-

AD[0-24]

AD[4]

AD[3]

DA2[0-15]

DA2[0-15]

DA2[0]

DA2[1]

DA2[2]

DA2[3]

DA2[4]

DA2[5]

DA2[7]

DA2[8]

DA2[9]

DA2[10]

DA2[11]

DA2[12]

DA2[13]

DA2[14]

DA2[15]

PRST-

LCPT_WR-

LCPT_RD-

MCLK_SEL

SRPT_CLR-

SDI_SEL

OMCK_SEL

DA2[0]

DA2[1]

DA2[2]

DA2[3]

LCD_RW

LCD_RS

LCD_E

LCD_DB4

LCD_DB5

LCD_DB6

LCD_DB7

LVM_CLR-

AD[0-24]AD[0-24]

USB_INT

USB_DREQ

USB_DACK

USB_EOT

DA[15]

DA[14]

DA[13]

DA[12]

DA[11]

DA[10]

DA[9]
DA[8]
DA[7]
DA[6]
DA[5]

DA[3]
DA[2]
DA[1]
DA[0]

DA[4]

DA[0-31]

DA[0]

DA[1]

DA[2]

DA[3]

DA[4]

DA[5]

DA[6]

DA[7]

DA[8]

DA[9]

DA[10]

DA[11]

DA[12]

DA[13]

DA[14]

DA[15]

DA2[0-15]

DA2[0]

DA2[1]

DA2[2]

DA2[3]

DA2[4]

DA2[5]

DA2[6]

DA2[7]

DA2[8]

DA2[9]

DA2[10]

DA2[11]

DA2[12]

DA2[13]

DA2[14]

DA2[15]

DA2[0-11]

DA2[6]

AD[1]

AD[0]

AD[1]

AD[0]

AD[1]

AD[1]

AD[0]

AD[2]

AD[7]
AD[6]
AD[5]
AD[4]
AD[3]
AD[2]
AD[1]
AD[0]

DA[0]

AD2[0-10]

AD2[7]
AD2[6]
AD2[5]
AD2[4]
AD2[3]

AD2[2]

AD2[0]

AD2[1]

DA3[0-15]

DA3[15]

DA3[14]

DA3[13]

DA3[12]

DA3[11]

DA3[10]

DA3[9]

DA3[8]

DA3[7]

DA3[6]

DA3[5]

DA3[4]

DA3[3]

DA3[2]

DA3[1]

DA3[0]

AD[10]

AD[9]

AD[8]

AD2[10]

AD2[9]

AD2[8]

(SDCLK=133MHz)

(8MX16bit×4banks_SDRAM)

(SDCLK=133MHz)

BOOT(1)
BOOT(0)

PRSTN
RSTON

(128MB_FLASH_MEMORY)

(8MX16bit×4banks_SDRAM)

(CR2032)

USB CONNECTOR

VBUS

D-

D+

GND

SHELL SHIELD

SHELL SHIELD

6/6

1/4

5/64/6

2/4

LCD_BUS

(3216)

(3216)

(3216)

(3216)

NO CONNECT

NO CONNECT

17 18

P101 00MWI09CS1010

J005
OPEN

10 9

87

6

12

34

5

11

12

1314

1516

1718

1920

D-GND

+3.3VD

Q018

ES9315-CBZ-E1

R17

ROW0

U20

ROW1

B16

MCEHN

A19

IOWRN

A16

MCREGN

T19

ROW2

R18

ROW3

C17

MCWRN

T20

ROW4

R20

ROW5

P19

ROW6

P20

ROW7

N18

COL0

N19

COL1

N20

COL2

C15

MCELN

D13

MCDAENN

C16

IORDN

C14

MCDIR

M18

COL3

L17

COL5

M17

COL4

M19

COL6

L18

COL7

H20

XP

J18

XM

J19

YP

J20

YM

K20

SXP

K19

SXM

K18

SYP

B14

MCD1

A14

VS2

K17

SYM

F18

EGPIO4

E20

EGPIO5

F19

EGPIO6

G17

EGPIO7/DMARQ

F20

EGPIO8

G18

EGPIO9

G19

EGPIO10

G20

EGPIO11

A17

EGPIO12

B17

EGPIO13

B18

MCRDN

D14

MCADENN

D12

MCWAITN

A20

MCRESETN

D15

EGPIO14

A18

EGPIO15/DASP

U7

P0

V6

P1

Y4

P2

D16

WP

C12

READY

W5

P3

U6

P4

W4

P5

U5

P6

B20

TRST#

B15

MCBVD2

C13

MCD2

U4

P7

V3

P8

W2

P9

U3

P10

V2

P11

W1

P12

T3

P13

R4

P14

U2

P15/YSCL

V1

P16/XECL

R3

P17/AC

T4

SPCLK

Y1

HSYNC

B13

VS1

A15

MCBVD1

T5

V/CSYNC

T2

BLANK

P4

BRIGHT

W19

SLA0

W18

SLA1

W14

EECLK

Y15

EEDAT

D18

ARST#

Y20

ABITCLK/SCLK0

V14

ASYNC/SFRM0

E16

ASDI/SSPRX

V12

TDI

W13

TMS

Y16

ASDO/SSPTX

W15

SCLK1

Y17

SFRM1

U14

SSPRX1

V15

SSPTX1

Y13

TDO

W12

TCK

E19

EGPIO3/TEN

F17

EGPIO2

D20

EGPIO1

E18

EGPIO/R1

KEY_COL[0-2,4]

KEY_ROW[0-3,5]

ESDOUT

ESDI0

ELRCK

ESCLK

EMCLK

D-GND

+3.3VC

R235

OPEN

D-GND

+3.3VC

J007

3P PH CON.BASE(TAPE)

1

2

3

C087

100u/16

D017

OPEN

12

D-GND

+5V

BD45302G

Q024

VDD

5

GND3

ER1SUB

2

VOUT

4

D-GND

R227

OPEN

11 10

TC74LCX14FT

Q029

13 12

+3.3VD

SN74LV08APW

Q015

13

12

11

SN74LV08APW

Q015

9

10

8

R248

10k

+3.3VD

RDLED

PRST-

R220

10k

R221

10k

R222

10k

R223

10k

R224 10k

R229

10k

R231

10k

R232

10k

R233

10k

R234

10k

R245

2.2k

R258
100k

R230 0

R246

47k

R247

47k

R226

56

L009

BLM18BD601SN1D

L010

BLM18BD601SN1D

C072

0.1u

TP10

R236 51

R239 0
R240 0

TP04
TP03
TP02
TP01

C082 OPEN

C083 OPEN

C086 OPEN

C085 OPEN

C084 OPEN

D-GND

DVR_STB

SPT_DATA

SPCLK

Q112

SN74LV00APW

1234567

8 9 10 11 12 13 14

D-GND D-GND

+3.3VC

C402

0.1u
DVR_CLK

R436

0

S002

OPEN

13

R256

0

TP11
TP12
TP13
TP14
TP15
TP16
TP17

TP19

R426

OPEN

R427

OPEN

R428

OPEN

R429

OPEN

R430

OPEN

R425

OPEN

R424

OPEN

R423

OPEN

R422

OPEN

R421

OPEN

R420

OPEN

R419

OPEN

R418

OPEN

R417

OPEN

R416

OPEN

+3.3VC

R432 0

10k

R071

AMUTEC-

0

R058

10kR057

SN74LV04APW

Q010

12

CODEC/CPU_MUTE

TPF23

TPF24

TPF25

TPF27

TPF28

TPF29

TPF30

TPF31

TPF32

TPF26

TPF34 TPF35

+3.3VC

10k

R052

10k

R054

1u

C022

OPEN

R055

D-GND

AT24C16AN

Q009

1

A0

2

A1

3

A2

4

GND

5

SDA

6

SCL

7

WP

8

VCC

0.1u

C021

OPEN

R053
R237 51
R238 51

C426

4.7u

R483
470k

D-GND

R485

0

R486

0

R487

0

R488

0

TPF155

TPF156

TPF158

TPF159

+3.3VD

R306

OPEN

+3.3VC

R056

OPEN

47k

R303

TP60

C073

OPEN

C074

OPEN

R228

47k

1k

R215

R216
100k

C438

0.1u

CPU_MODE

+3.3VD

DAN202K

D025

123

DTA114EK

Q043

USB_EOT

0R489

10k

R431

SDA

USB_DACK

0RU13

ESDI1

USB_DREQ

TP18

TPU33

TPU35

ENCORDER_A
ENCORDER_B

REMOTE
78211_STB

RU55

OPEN

R257

OPEN

TPU59

WP

READY

VS1

VS2
MCD1
MCD2

nIOWR

nIORD

nMCRD

MCBVD1
MCBVD2

nMCWR

MCDIR
nMCEL

nMCEH

nMCREG
nMCDAEN
nMCADEN

nMCRESET

TPV01

TPV02

TPV03

TPV04

TPV05

TPV06

TPV07

TPV08

TPV09

TPV10

TPV11

TPV12

TPV13

TPV14

TPV15

TPV16

TPV17

TPV18

TPV19

TPV20

TP64
TP65

TP66
TP67

TP68
TP69

TP70
TP71

TP72
TP73
TP75
TP76
TP77
TP78
TP79
TP80
TP81
TP82

TP83
TP84
TP85

TP123

POFF_IN-

TP28

TP29
TP30

USB_CS-

0R344

SCL

0R022
0R023

0R025
0R026
0R027
0R028
0R040
0R042
0R043

0R045
0R046

22k

R079

nMCWAIT

2

KEY_COL[4]

KEY_COL[2]

KEY_COL[1]

CODEC/CPU_MUTE

KEY_ROW[0]
KEY_ROW[1]
KEY_ROW[2]
KEY_ROW[3]

KEY_COL[0]

KEY_ROW[5]

TO LCD UNIT

LED_A

LED_K

MCPU H MUTE ON

REST SW

6/6

5/6

4/4

3/4

1/6

(1/10W)

19 20

P101 00MWI09CS1010

BLM18PG600SN1D

L011

C122

0.1u

C124

0.1u

D-GND

C121

0.1u

C115

0.1u

C103

1u

C094

0.1u

D-GND

C110

0.1u

+3.3VC

D-GND

C112

0.1u

C102

0.1u

C106

1u

C101

0.1u

C117

0.1u

D-GND

C111

0.1u

EP9315-CBZ-E1

Q018

P18

PLL_VDD

R19

PLL_GND

R13

VDDCORE

L16

VDDCORE

T13

VDDCORE

H18

ADC_VDD

H19

ADC_GND

N5

VDDCORE

E9

VDD

E12

VDD

F5

VDD

G5

VDD

G6

VDD

G15

VDD

G16

VDD

T8

VDDCORE

M5

VDDCORE

R8

VDDCORE

H16

VDD

P5

VDD

K5

VDD

P6

VDD

R5

VDD

R6

VDD

P15

VDD

P16

VDD

R15

VDD

R16

VDD

T9

VDD

T12

VDD

F14

VDDCORE

F7

VDDCORE

E7

VDDCORE

E15

GND

F6

GND

F15

GND

F16

GND

J5

GND

L5

GND

M16

GND

N15

GND

N16

GND

R7

GND

N6

VDDCORE

T7

GND

R14

GND

T14

GND

T10

GND

T11

GND

E8

VDDCORE

E13

VDDCORE

H8

GND

H9

GND

H10

GND

H11

GND

K16

VDDCORE

H5

VDDCORE

H12

GND

H13

GND

J8

GND

J9

GND

J10

GND

J11

GND

J12

GND

J13

GND

K8

GND

K9

GND

K10

GND

K11

GND

K12

GND

E14

VDDCORE

J16

VDDCORE

K13

GND

L8

GND

L9

GND

L10

GND

L11

GND

L12

GND

L13

GND

M8

GND

M9

GND

M10

GND

M11

GND

N13

GND

M12

GND

M13

GND

N8

GND

N9

GND

N10

GND

N11

GND

N12

GND

E11

GND

E10

GND

E6

GND

E5

GND

C0931uC095

0.1u

C114

0.1u

100u/6

C179

D-GND

C116

0.1u

+1.8V

+3.3VC

C100

10u/16

C105

1u

C098

0.1u

100u/6

C152

C113

0.1u

BLM18PG600SN1D

L012

D-GND

C107

0.1u

C092

1u

C097

0.1u

C118

0.1u

C123

0.1u

+1.8V

C120

0.1u

C119

0.1u

D-GND

D-GND

C104

1u

C096

0.1u

C091

10u/16

C109

0.1u

D-GND

C108

0.1u

C099

0.1u

TPF73

TPF65

47k

R435

TPF54

Q026

SN74LV125APW

12 11

13

TPF78

RXD

TPF68

TPF59

R495

OPEN

TPF66

Q026

SN74LV125APW

98

10

0.01uC409

TPF70

+3.3VD

TPF81

+3.3VD

TPF63

OPEN

R307

TPF62

Q026

SN74LV125APW

56

4

TPF76

TPF74

TPF57

TP58

47k

R434

ESD PROTECTOR(6802)

D118

Q026

SN74LV125APW

23

1

TPF55

TPF79

TPF82

CTS

TPF60

R493

0

TPF71

R260

10k

R494

OPEN

TPF72

TPF64

TXD

TPF56

OPEN

R305

TPF77

R492

0

TPF67

EP9315-CBZ-E1

Q018

V20

TXD0

T17

RXD0

W10

IDESC1#

U17

USBM0

V10

IDESC0#

V19

CTS#

V17

RTS#

C19

IORDY

Y12

DTR#

U11

DSR#

U19

TXD1

U18

RXD1

T18

TXD2

W20

RXD2

C10

TXCLK

D19

DIOR#/HR#/HS#

V11

IDEDA2

V18

USBP0

E17

DIOW#

D11

TXEN

C11

MIITXD0

A12

TXERR

B11

MIITXD1

A11

MIITXD2

D10

MIITXD3

A8

RXCLK

A10

RXDVAL

B10

RXERR

A9

MIIRXD0

B9

MIIRXD1

D9

MIIRXD2

D17

USBM2

A13

CLD

C9

MIIRXD3

C20

DMACK#

W11

IDEDA1

Y11

IDEDA0

V4

DD15

C8

MDC

B8

MDIO

T6

DD14

Y19

USBP1

C18

USBP2

B12

CRS

T16

USBM1

W3

DD0

Y2

DD1

C7

DD2

B6

DD3

A5

DD4

V5

DD13

Y3

DD12

D7

DD5

C6

DD6

B5

DD7

A4

DD8

D6

DD9

C5

DD10

D3

DD11

R491

0

TPF58

+3.3VD

0.1uC408

TPF53

TPF69

D-GND

TP57

TPF80

TPF83

R490

0

TPF61

Q029

TC74LCX14FT

98

RTS

TPF75

R452

OPEN

RU56

0

R298

0

VDD3.3V

J013

B4B-PH-SM3

1

2

3

4

+3.3VD

D-GND

C436

0.1u

TPF168

TPF169

TPF170

TPF171

R301

0

R302

0

J008

SCFB1A0500

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

TC74LCX00FT(EL.K)

Q117

1234567

891011121314

TC74LCX00FT(EL.K)

Q119

1234567

891011121314

TC74HC123AF-TP1NEW:C-MOS

Q118

12345678

910111213141516

D-GND

+3.3VD

+3.3VD

+3.3VD

0.1u

CU31

100k

R454

1u

CU51

0.22u

CU52

0.47u

CU53

0.1u

CU48

680k

R299

100k

R300

0.1u

CU49

CF_POWER

ACCESS_LED

CPU_MODE

WP

VS1

VS2

READY

MCD1

MCD2

MCBVD1

MCBVD2

MCDIR

nMCREG

nMCDAEN

nMCADEN

nMCRESET

nMCWAIT

TP27

TC74LCX16244FT

Q122

O5

9

O6

11

O7

12

O8

13

O9

14

I6

38

O10

16

O11

17

O12

19

O3

6

O0

2

I7

37

I8

36

I9

35

I10

33

I11

32

I12

30

I13

29

O1

3

O2

5

O13

20

I14

27

O4

8

O14

22

O15

23

OE1

1

OE2

48

OE3

25

OE4

24

I15

26

I5

40

I4

41

I3

43

I2

44

I1

46

I0

47

AD2[0-10]

D-GND

BnMCREG

BnMCRESET

TC74LCX16245FT

Q123

1B6

9

1B7

11

1B8

12

2B1

13

2B2

14

1A7

38

2B3

16

2B4

17

2B5

19

1B4

6

1B1

2

1A8

37

2A1

36

2A2

35

2A3

33

2A4

32

2A5

30

2A6

29

1B2

3

1B3

5

2B6

20

2A7

27

1B5

8

2B7

22

2B8

23

DIR1

1

1OE

48

2OE

25

2DIR

24

2A8

26

1A6

40

1A5

41

1A4

43

1A3

44

1A2

46

1A1

47

DA3[0-15]

TPF177

TPF178

TPF179

TPF180

TPF181

TPF182

TPF183

TPF184

TPF185

TPF186

TPF187

TPF188

TPF189

TPF190

TPF191

33R368

33R351
33

R352

33

R353

33

R354

33

R355

33R356

OPEN

R465

D-GND

33

R357

33

R358

33

R359

33R360
33

R361

33R362

33R363

33R364
33R365

33R366

33R367

22

R369

22R370

33R371

33

R372

33R373

33R374

82R375

10k

R376

82R377

OPEN

R378

D-GND

33R379

33R437

33R438
33

R439

33

R440

33

R441

33

R442

33

R443

TPV21

OPEN

R241

OPENR242

10k

R243

OPEN

R244

OPEN

R261

OPENR262

OPEN

R263

10k

R264

+3.3VD

+3.3VD

CF_IN

TP86
TP87

TP88
TP89

TP90
TP91
TP92
TP93
TP94
TP95
TP96
TP97
TP98

TP99
TP100
TP101

TP106

TP107
TP108

TP109
TP110

TP111

TP112
TP113
TP114

TP54

TP56

TP115
TP116

TP117
TP118

Q029

TC74LCX14FT

12

ALC

DOOR­CF_IN

47k

RU34

+3.3VD

0

R059

0R445

0R444

0R447

0R449

0R461

0R462

0R463

0R464

R400 0

0

R401

0

R407

0

R406

0R225

0R345

0R047

+3.3VD

VBUS_IN

0RU57

10kR266

nMCRD

nIORD

nIOWR

nMCWR

0R459

0R460

Q159

TC7SZ32F

123

45

D-GND

0.1u

C128

33k

RV21

33k

RV22

nMCEH

nMCEL

0R381

47R380

BnMCRESET

BnMCREG

TPV22

TPV23

0R446

0R270

D050 D051

D053

D055

D057

D052

D054

D056

D060

D062

D064

D066D067

D065

D063

D061

D058D059

RV31

10k

RV32

OPEN

0

RV34

0

RV35

0

RV28

0RV25

0

RV26

0

RV27

OPEN

RV30

0

RV29

Q161
TC7SZU04F

123

45

TC7SZU04F

Q160

123

45

+3.3VD

0.1u

C020

D-GND

+3.3VD

0.1u

C019

MIIRXD0

RXERR

RXDVAL

RXCLK

MIITXD3

MIITXD2

MIITXD1

MIITXD0

TXERR

TXEN

TXCLK

CRS
CLD

MDIO

MDC

MIIRXD3

MIIRXD2

MIIRXD1

AD2[0-10]

AD2[0]

AD2[1]

AD2[2]

AD2[3]

AD2[4]

AD2[5]

AD2[6]

AD2[7]

AD2[8]

AD2[9]

AD2[10]

CA[0-10]

CA[0]

CA[1]

CA[2]

CA[3]

CA[4]

CA[5]

CA[6]

CA[7]

CA[8]

CA[9]

CA[10]

CD[0-15]

CD[0]

CD[1]

CD[2]

CD[3]

CD[4]

CD[5]

CD[6]

CD[8]

CD[9]

CD[11]

CD[12]

CD[13]

CD[14]

CD[15]

DA3[0-15]

DA3[0]

DA3[1]

DA3[2]

DA3[3]

DA3[4]

DA3[5]

DA3[6]

DA3[7]

DA3[8]

DA3[9]

DA3[10]

DA3[11]

DA3[12]

DA3[13]

DA3[14]

DA3[15]

CD[3]

CD[4]

CD[5]

CD[6]

CD[7]

CA[2]

CA[1]

CA[0]

CD[0]

CD[1]

CD[2]

CD[11]

CD[12]

CD[13]

CD[14]

CD[15]

CD[8]

CD[9]

CD[10]

CA[10]

CA[9]

CA[8]

CA[7]

CA[6]

CA[5]

CA[4]

CA[3]

CD[7]

CD[10]

nRESET

A09

nREG/nDMACK

A10

D11

A08

GND

A02

nCE2

BVD1/nSTSCHG

D10

A00

nIORD

D09

A01

BVD2/nSPKR

nIOWR

nOE

D08

nWE

nINPACK/nDMARQ

D07

nCE1

RDY/BSY/IREQ

WP/nIOIS16

D06

D15

GND

nCD2

D05

D14

D02

nCD1

D04

D13

D01

D03

D12

D00

CF CARD CONNECTOR
(EJECTOR:SCFB3A0300)

nWAIT

nVS1

A07

Vcc

A06

A05

A04

A03

Vcc

nCSEL

nVS2

4/6

4/4

3/4

2/4

1/4

H:TURN ON L:TURN OFF

LAN_BUS

1/6

21 22

P101 00MWI09CS1010

SN74LV138APW

Q037

1

A

2

B

3

C

4

G2A

5

G2B

6

G1

15

Y0

14

Y1

13

Y2

12

Y3

11

Y4

10

Y5

9

Y6

7

Y7

SN74LV541APW

Q039

A1

2

A3

4

A5

6

Y1

18

Y2

17

Y3

16

Y4

15

A7

8

1G

1

Y5

14

Y6

13

Y7

12

Y8

11

2G

19

A2

3

A4

5

A6

7

A8

9

78Q2120C09A-64CGT

Q042

27

TXCLK

28

TXEN

12

PHYAD4

26

TXER

29

TXD0

54

NC

30

TXD1

32

TXD3

24

RXCLK

23

RXDV

25

RXER

22

RXD0

21

RXD1

56

NC

20

RXD2

18

MDC

19

RXD3

17

MDIO

34

CRS

33

COL

6

RST#

7

PWRDN

46

TECH0

45

TECH1

16

PHYAD0

1

ISODEF

44

TECH2

61

TXOP

62

TXON

52

RXIP

51

RXIN

50

RPTR

40

LEDL

39

LEDTX

38

LEDRX

37

LEDCOL

49

LEDFDX

36

LEDBTX

48

LEDBT

47

ANEGA

64

PCSBP

35

INTR

4

CKIN

59

XTLP

13

PHYAD3

15

PHYAD1

58

XTLN

63

VCC

57

VCC

43

VCC

41

VCC

11

VCC

8

VCC

60

GND

55

GND

53

GND

42

GND

10

GND

9

GND

2

ISO

14

PHYAD2

5

GND

3

GND

31

TXD2

NJU3716AM-TE1

Q120

13

DATA

14

CLK

15

STB#

16

CLR#

12

SO

18

VSS

17

P1

19

P2

20

P3

21

P4

22

P5

23

P6

1

P7

2

P8

3

P9

4

P10

5

P11

7

P12

8

P13

9

P14

10

P15

11

P16

24

VDD

6

VSS

Q005

SN74LV125APW

98

10

D-GND

DA[0]

D-GND

+3.3VD

SRPT_CLR-

+3.3VD

D-GND

NJU3716AM-TE1

Q121

13

DATA

14

CLK

15

STB#

16

CLR#

12

SO

18

VSS

17

P1

19

P2

20

P3

21

P4

22

P5

23

P6

1

P7

2

P8

3

P9

4

P10

5

P11

7

P12

8

P13

9

P14

10

P15

11

P16

24

VDD

6

VSS

TP43

SN74LV138APW

Q038

1

A

2

B

3

C

4

G2A

5

G2B

6

G1

15

Y0

14

Y1

13

Y2

12

Y3

11

Y4

10

Y5

9

Y6

7

Y7

+3.3VD

TP44

TP39

TP40

TP41
TP42

TP47 TP32

TP33
TP34

Q040

SN7438NS(R)

1

2

3

Q040

SN7438NS(R)

4

5

6

Q040

SN7438NS(R)

9

10

8

Q040 SN7438NS(R)

12

13

11

TP45

+3.3VD

+3.3VD

D-GND

D-GND

+3.3VD

+3.3VD

D-GND

D-GND

D-GND

D-GND

D-GND

+3.3VD

+3.3VD

LAN_INT

+5V_PANEL

100u/6

C165

100u/6

C169

+3.3VD

100u/16

C168

+5V_I/O

D-GND

D-GND

D-GND

KEY_ROW[0-3,5]

KEY_COL[0-2,4]

X004 FCX-03(25MHz)X’TAL

12

0

R350

10k

R348

10kR308

10k

R309

22k

R310

10kR311

10kR312

10kR313

10kR314

10k

R315

0R338
0R339

0R340
0R341

0

R342

0

R343

5.1k

R337

3.3k

R328

3.3k

R329

3.3k

R330

3.3k

R332

4.7k

R331

4.7k

R326

5.1k

R327

33R317
33R318
33R319
33R320
33R321
33R322
33R323

0.1u

C173

0.1u

C174

0.1u

C166

0.1u

C167

0.1u

C170

0.1u

C157

0.1u

C159

0.1u

C160

0.1u

C162

0.1u

C163

0.1u

C164

C158

8p

Q036

TC74LCX00FT(EL.K)

13

12

11

PRST-

33R316

33R324
33R325

Q036

TC74LCX00FT(EL.K)

4

5

6

Q036

TC74LCX00FT(EL.K)

1

2

3

0

R346

0

R347

0.1u

C171

0.1u

C172

D023

ESD PROTECTOR(6802)

Q036

TC74LCX00FT(EL.K)

10

9

8

Q005

SN74LV125APW

12

11

13

D-GND

LCPT_WR-

LCPT_RD-

OPEN

R466

OPEN

R467

OPEN

R468

OPEN

R470

OPEN

R471

+3.3VD

TPF85

TPF84

TPF86

TPF87

TPF88

TPF89

TPF90

TPF91

TPF92

TPF93

TPF95

TPF96

TPF97

TPF98

TPF99

TPF100

TPF101

TPF102

0.1u

C421

100u/16

C420

TPF116

TPF117 TPF119

TPF120

TPF121

TPF122

TPF123

TPF124

TPF125

TPF126

TPF127

TPF128

TPF129

TPF130

TPF131

TPF132

TPF133

0

R474

10k

R475

SN74LV125APW

Q300

98

10

SN74LV125APW

Q300

23

1

SN74LV125APW

Q300

56

4

SN74LV125APW

Q300

1211

13

+3.3VD

OPEN

R484

D-GND

L013
OPEN

L017

BLM18BD601SN1D

L018

BLM18BD601SN1D

L019

BLM18BD601SN1D

L112

BLM18BD601SN1D

100u/6

C182

47k

R496

OPEN

R497

0

R498

L650

TLA-6T118LF-T
12345678

9 1011 1213141516

+3.3VD

+3.3VD

0.1u

C198

0.1u

C199

D-GND

R33351R33451R335

51

R336

51

R398

75

R399

75

0.1u

C200

D-GND

0

R284

0

R285

0

R286

0

R287

POWER_OFF_EN

10k

R304

+3.3VD

C161

8p

TPF172 TPF173

TPF174TPF175

CS1_WR04-

CS1_RD04-

DA[0]

LVM_CLR-

CS1_RD04-

CS1_WR04-

TALLY_MUTE

OPEN

RU35

OPEN

RU36

BLM18BD601SN1D

L113

USB_SUSPEND

10k

RU38

D-GND

STOP_COMMAND

STOP_COMMAND

TPF118

TPF137

47k

R472

47k

R473

47k

R476

47k

R477

RXD

RTS

TXD

CTS

+3VU

TPF103 TPF104 TPF105 TPF106 TPF107

+3.3VD

+5VD

+3VU

TPF109

TPF110

TPF111

TPF112

TPF113

TPF114

TPF115

ACCESS_LED

TPU31

TPU32

LCD_RST-

4.7k

R255

+3.3VD

+3.3VD

D024

ESD PROTECTOR(6802)

OPENC078

OPEN

C076

D-GND

56p

C427

56p

C428

56p

C429

56pC430

56p

C431

56p

C432

56pC433

TPF37

TPF38

TPF39

TPF40

TPF41

TPF42

TPF141

4.7k

R252

4.7kR253

4.7k

R254

4.7k

R259

MUTE_OUT

REMOTE

DVR_CLK

SPT_DATA

78211_STB

+3.3VD

78211_RST-

DVR_STB

TPU28

TPU29

DOOR-

OPEN

RU37

ATT20dB

TPU30

FH12-34S-0.5SV

J011

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

ENCORDER_A
ENCORDER_B

BLM18BD601SN1D

L002

BLM18BD601SN1D

L001

BLM18BD601SN1D

L004

47kR085

47k

R084

NSAD500F

D016

123

TPF18

TPF19

TPF20

J015

B4B-PH-SM3

1

2

3

4

J012

14FMN-BMTTN-A-TFT

1

2

3

4

5

6

7

8

9

10

11

12

13

14

AES/SPDIF
CF_POWER
ATT20dB

OPEN

RU14

OPEN

RU15

OPEN

RU28

RD-

WR-

DA2[0-11]

CS1-

AD[2]

AD[3]

AD[4]

20FMN-BMTTN-A-TFT

J004

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

OPEN

R349

L014 BLM18BD601SN1D

L016 BLM18BD601SN1D

BLM18BD601SN1DL120

OPEN

R251

OPEN

R250

OPEN

R249

10u/16

C437

TPU49TPU46TPU47TPU48

TPU50

TPU51

TPU52

TPU53

TPU54

TPU55

TPU56

TPU57

TPU58

L015 BLM18BD601SN1D

TP35

TP119

TP120

J052

B7B-PH-SM3-TB

1

2

3

4

5

6

7

OPEN

R281

0

R282

TPF139

TPF140

0R060
0R061
0R062

0R050

0R051

0R063

CS_IN

+3.3VD

RV36

OPEN

RV37 OPEN

RV38

OPEN

RV39

OPEN

RV40 0

RV41 0

2

2

UNBAL_MUTE

2

2

2

DA2[0]

DA2[1]

DA2[2]

DA2[3]

DA2[4]

DA2[5]

DA2[6]

DA2[7]

RXCLK
RXDVAL
RXERR
MIIRXD0
MIIRXD1
MIIRXD2
MIIRXD3

MDC

CRS

MIITXD2

MIITXD0

TXERR

TXEN

TXCLK

CLD

DA2[8]

DA2[9]

DA2[10]

DA2[11]

DA2[0-11]

MIITXD3

MIITXD1

MDIO

+5V_PANEL

KEY_ROW[0]

KEY_ROW[1]

KEY_ROW[2]

KEY_ROW[3]

KEY_ROW[5]
KEY_COL[0]

KEY_COL[1]

KEY_COL[2]

LCD_RS

LCD_DB5

LCD_DB6

LCD_DB7

LCD_RW

LCD_E

LCD_DB4

KEY_COL[4]

PLAYER ONLY

RECODER ONLY

LAN_RST-

PLAY_COMMAND

TRACK+:NEXT

TRACK-:PREVIOUS

EXTRA2 COMMAND
EXTRA1 COMMAND

TALLY_RD

PLAY_TALLY

REC_TALLY

KEY_OUT

KEY_IN

LED_CONT.

TALLY_IN

TALLY_OUT

LAN_TXD+

LAN_TXD-

LAN_RXD+

LAN_RXD-

LAN_COM.

EXTRA1_COMMAND

REC_COMMAND

+5V_I/O

EXTRA2_COMMAND

TRACK-

LAN ACC2

D_GND

TAP_LAN

PLAY_TALLY

+3.3VD

LAN ACC1

D_GND

PLAY_COMMAND

TRACK+

REC_TALLY

LED METER

+5V_PANEL

+3.3VD

D_GND

D_GND

KEY_ROW0

KEY_ROW1

KEY_ROW2

KEY_ROW3

KEY_COL0

KEY_COL1

KEY_COL2
KEY_COL4

+3.3VD

PLAY_LED

REC_LED

DATA
CLR-

STB

CLK

KEY_ROW5

+3.3VD

STOP_COMMAND

STOP_TALLY

STOP_TALLY

+3.3VU

D_GND

S-STB

RXD
RTS
TXD

CTS

REMOTE

+5VD

CK

DATA

78211_STB

MUTE

+3VU

D_GND

ACCESS_LED

DOOR-

TO_D-SUB PCB(U/N)

TO_D-SUB PCB(F)

TO_DISPLAY PCB

TO_REAR PCB

D_GND

RES

RS

R/W

E

DB4

DB5

DB6

DB7

LCD_CONT.

4/4 3/4

1/4 2/4

1/4

2/4

3/4

4/4

3/4

4/4

4/4

3/4

2/4

1/4

78211_RST-

9459_STB

ATT20dB

GND

ENCORDER_A
ENCORDER_B

LAN_TXD+

LAN_RXD+

LAN_RXD-

REC_COMMAND

EXTRA_TALLY

EXTRA_TALLY

LCD_BUS

LAN_BUS

4271_RST­8420_RST-

SOFT_RST­LCD_RST-

USB_WAKEUP
USB_RST-

78211_RST-

23 24

P101 00MWI09CS1010

+5VD

+5VD

LD06

L-5K7-H5

1

36

4

2

TPF587+5VD

DD05

DAN202K

123

DD06

DAP202K

123

TPF595

TPF597

TPF100
TPF102

TPF527

TPF553

TPF550

TPF555

TPF559

JB04

B6B-PH-K-S

1

2

3

4

5

6

TPF569

TPF571

TPF574

TPF576

TPF577

TPF579

TPF594

BLM11B601S

LB02

BLM11B601S

LB01

A-GND

+14V

A-GND

-14V

JY-5032A*030

JB02

3

3

1

1

2

2

4

G

BLM11B601S

LB03

BLM11B601S

LB04

A-GND

A-GND

RF59
OPEN

-14V

TPF113

TPF120

TPF121
TPF122
TPF123

TPF124

TPF125

TPF126

+14V

-14V

QD02

TC74HCU04AF

1234567

8 9 10 11 12 13 14

LB10

RY-12W

81765

234

QB02

2SC4116-Y

+14V

0

RD31

CD18

1000p

0

RD27

CD17
1000p

0.01u

CD16

10u/16CD15

RD10

75

CD04

1000p

10

RD15

OPEN

RD25

OPEN

RD26

10k

RB30

10k

RB16

10k

RB18

4pCB18

2pCB20

16k

RB28

22k

RB26

150kRB20

180kRB22

22

RB12

22

RB14

270

RB06

1.2kRB08

1.2kRB10

330p

CB06

330p

CB08

100k

RB02

100k

RB04

0

RF58

0

RF54

0

RF55

10k

RF56

2.7k

RF60

100u/25

CB32

100u/25

CB31

A-GND

TPF548

TPF551

TPF566

-14V

A-GND

+14V

A-GND

100p

CB35

QB08

2SC3326

2.7k

RB50

2.7k

RB49

100

RB44

BLM11B601

LB07

QB05

2SC3326

BLM11B601

LB08

100p

CB36

2.7k

RB47

100

RB46

QB07

2SC3326

100

RB43

2.7k

RB48

100

RB45

QB06

2SC3326

BLM11B601

LB05

BLM11B601

LB06

TPF115

TPF116

TPF118

QB10

2SC3326

RF57

OPEN

+14V

39pCB40

39pCB41

1.5k

RB57

1.5k

RB58

100k

RB54

100k

RB53

100

RB51

100

RB52

100u/25

CB14

100u/25

CB16

DB08

DAP202K

3

2

1

0

RD08

A-GND

TPF153

JD08

JD09

0

RD14

10

RD16

2.7kRB55

2.7kRB56

BD04

STYLE PIN

BD05

STYLE PIN

A-GND

LD02

BLM18BD102SN1D

LD03

BLM18BD102SN1D

220p

CD11

220p

CD12

0.1u

CB22

0.1u

CB24

0.1u

CB10

0.1u

CB12

0.1u

CD13

0.1u

CD08

0.1u

CB43

0.1u

CB42

TPF003

RD12

22

220

RD11

0

RD13

RD20

1M

JY-5032A*030

JB01

3

3

1

1

2

2

4

G

TPF127

0.1u

CB09

DB07

DAP202K

3

2

1

LB09

RY-12W

81765

234

270

RB05

330p

CB07

1.2kRB07

+14V

0.1u

CB11

100k

RB01

QB01

2SC4116-Y

1.2kRB09
100k

RB03

A-GND

330p

CB05

22

RB13

10k

RB29

-14V

2pCB19

0.1u

CB21

10k

RB23

180kRB21

A-GND

100u/25

CB13

150kRB19

10k

RB15

16k

RB27

A-GND

22

RB11

0.1u

CB23

22k

RB25

100u/25

CB15

10k

RB17

4p

CB17

+14V

JY-5032A*030

JD03

3

3

1

1

2

2

4

G

JY-5033U*030JD01

3

3

1

1

2

2

4

G

JD02

YKC21-3248

1

2

3

4

5

JY-5033U*030

JA01

3

3

1

1

2

2

4

G

+14V

LB12

BLM18BD102SN1D

47p

CB81

-14V

100k

RB83

NE5532DR

QB15

2

3

1

8

15k

RB78

-14V

0.1u

CB57

+14V

560

RB66

15k

RB75

3.3k

RB72

27kRB36

5.1k

RB40

0.1u

CB29

3.3k

RB69

12k

RB68

10k

RB79

12k

RB73

15k

RB77

10k

RB80

1000p

CB66

5.1k

RB39

0.1uCB84

OPA2134UA

QB14

6

5

7

47p

CB82

220p

CB59

220p

CB62

15k

RB76

5.1k

RB88

1000p

CB61

1000p

CB67

47k

RB64

LB13

BLM18BD102SN1D

18kRB82

0.1u

CB83

12k

RB74

-14V

OPEN

RF63

220p

CB58

5.1k

RB87

0.1u

CB30

1000p

CB60

A-GND

12k

RB67

56k

RB38

56k

RB37

NE5532DR

QB11

6

5

7

4

3.3k

RB70

560

RB65

+14V

100k

RB84

A-GND

27kRB35

OPEN

RF64

OPA2134UA

QB14

2

3

1

8

4

0.1u

CB56

18kRB81

A-GND

47k

RB63

NE5532DR

QB11

2

3

1

8

NE5532DR

QB15

6

5

7

4

3.3k

RB71

220p

CB63

LB11

BLM18BD102SN1D

RD47 47k

D-GND

CD19 0.22u

D-GND

RD54

0

CD38 0.1u

RF38 0

RD81

0

CD22

0.1u

XD01

OPEN12

CA51

1u

D-GND

CS8420-CSZR

QD04

4

RXP

5

RXN

10

RMCK

16

OSCLK

17

OLRCK

21

OMCK

13

ISCLK

12

ILRCK

28

SCL/CCLK

1

SDA/CDOUT

2

AD0/CS#

27

AD1/CDIN

26

TXP

25

TXN

19

INT

20

U

24

H/S#

8

FILT

6

VA+

7

AGND

23

VD+

22

DGND

15

TCBL

11

RERR

9

RST#

18

SDOUT

14

SDIN

3

EMPH#/AD2

RD45 47k

CD42

1u

RD83
0 1/10W

CD35

OPEN

RD51 51

RD56 OPEN

CA53

2700p

ESD PROTECTOR(6802)

DD07

OPEN

RD88

RD48 47k

RD55

0

RD38

47k

RF39 0

CD34

OPEN

RD86

1k

CD41

0.1u

D-GND

RD84 47k

RD87

0 (1/10W)

ESD PROTECTOR(6802)

DD08

+3.3VD

RD52 51

OPEN

RD42

CD25

0.1u

CD24

1u

0.1u

CD30

0.1u

CD29

CA54
2700p

RD49 47k

+5VD

RD59

0

D-GND

CD37

1u

RD72 0

A-GND

RD85 10k

0.01u

CD28

CD20 0.022u

0.01u

CD31

RD79 51

RD39

620

RD89

0 (1/10W)

CD33

0.1u

RD53 51

TP49

CD36

0.1u

+5VA

CD21

1u

RD57

47k

CS4271

QD05

17

AINA18AINB

15

VQ116VQ219VQ3

12

SDA/CDIN(M1)

13

AD0/CS#

14

RST#

5

SCLK4LRCK7SDIN

6

SDOUT

24

AOUTA-

23

AMUTEC#

25

AOUTA+

27

AOUTB-

28

BMUTEC#

26

AOUTB+

2

XTI

1

XTO

20VA21

AGND

9

VD

10

VL

8

DGND

11

SCL/CCLK(M0)

3

MCLK

22

FILF+

D-GND

RD73 0

RF37 0

D-GND

RD80

0

RD82

10k

CD39 1u

RD40

0 (1/10W)

RD46 47k

RD60

22k

+5VD

RD50 51

RD41

1U

+5VA

CA52

0.1u

RD58 OPEN

0.01u

CD26

0.01u

CD27

RD44

110

D-GND

RD09

120

0

RD07

0

RD18

QD03

SN65LVDS3487D

1

1A

2

1Y

3

1Z

4
1,2EN

5

2Z

6

2Y

7

2A

8

GND93A

10

3Y

11

3Z

12

3,4EN

13

4Z

14

4Y

15

4A

16

Vcc

0

RD36

OPEN

RD35

OPEN

RD34

RD19

1M

0RD29

0

RD24

0

RD17

CD14
1000p

10RD32

10RD33

10

RD22

10

RD23

0

RD04

TPF152

0

RD03

0

RD01

RD02

110

QD01

SN65LVDM179D

1
Vcc

2

R

3

D

4
GND5Y

6

Z

7

B

8

A

OPEN

RD28

OPEN

RD05

OPEN

RD06

+3.3VD

0.1u

CD07

0.1u

CA88

A-GND

A-GND

0.1u

CA87

+14V

-14V

100k

RA01

100k

RA02

100k

RA75

OPA2134UA

QA05

2

3

1

8

4

0.1u

CA12

0.1u

CA11

+14V

-14V

OPA2134UA

QA05

6

5

7

BLM11B601

LA01

BLM11B601

LA02

47pCA03

47pCA04

47p

CA05

180

RA19

4.7k

RA17

180

RA20

4.7k

RA18

47p

CA09

47p

CA10

RA51

47k

RA52

47k

RA53

47k
RA54

47k

27k

RA56

RA58

8.2k

CA86

OPEN

RA57

8.2k

27k

RA55

CA85

OPEN

RA59

47k

RA60

47k

10

RA72

10

RA73

10

RA74

RA83

47k

RA65

47k

+14V

-14V
RA76

OPEN

0.1u

CA25

A-GND

+14V

0.1u

CA26

-14VA-GND

10k

RA43

10k

RA41

10k

RA42

10k

RA44

10k

RA46

10k

RA48

10k

RA47

10k

RA45

0RF67

A-GND

47u/25

CA07

47u/25

CA08

→

OPEN

RF61

13

2

OPEN

RA06

OPEN

RA05

RA07

330

RA08

150

RA04

5.6k

RA03

5.6k

220k

RA12

A-GND

47p

CA17

RA27

330

0

RF68

JY-5033U*030

JA02

3

3

1

1

2

2

4

G

RA23

5.6k

RA28

150

A-GND

47u/25

CA19

47u/25

CA20

47pCA15

BLM11B601

LA03

100k

RA21

RA24

5.6k

→

OPEN

RF62

13

2

OPEN

RA25

A-GND

OPEN

RA26

47pCA16

100k

RA22

BLM11B601

LA04

0.1u

CA23

180

RA40

47p

CA22

OPA2134UA

QA06

6

5

7

180

RA39

4.7k

RA38

+14V

-14V

0.1u

CA24

OPA2134UA

QA06

2

3

1

8

4

47p

CA21

4.7k

RA37

QA01

2SC3326

10k

RA09

10k

RA10

220k

RA11

10k

RA29

10k

RA30

RA13

1k

RA14

1k

QA02

2SC3326

RA16

1k

RA15

1k

RA33

1k

220k

RA31

220k

RA32

RA34

1k

QA03

2SC3326

QA04

2SC3326

RA35

1k

RA36

1k

A-GND

RA86

1k

RA85

1k

RA62

1k

RA63

1k

47u/25

CA27

47u/25

CA28

100k

RA49

A-GND

100k

RA50

A-GND

0.1u

CA31

47u/25

CA90

47u/25

CA89

47u/25

CA83

47u/25

CA84

47u/25

CA33

A-GND

-14V

OPEN

RF03

CA39
OPEN

0.1u

CA35

+14V

0

RF23

A-GND

OPEN

RF04

OPEN

RF02

CA37

OPEN

0.1u

CA34

OPEN

RF01

47u/25

CA32

CA38

OPEN

CA36

OPEN

TC9459BFG-EL

QA11

1

NC

2

VSS

3

L-OUT

4

NC

5

L-IN

6

L-LD1

7

L-LD2

8

L-A-GND

9

NC

10

CS1

11

NC

12

GND

13

CK

14

NC15NC

16
DATA

17

STB

18

NC

19
CS2

20
NC

21

R-A-GND

22

R-LD2

23

R-LD1

24

R-IN

26
R-OUT
25
NC

27
VDD

28
NC

0

RF22

10

RF07

10

RF09

10

RF08

RA66

1k

RA82

1k

A-GND

-14V

A-GND

+14V

0.1u

CA29

0.1u

CA30

0

RA89

RA91

OPEN

RA90

OPEN

0

RA88

3.9k

RA67

0

RA81

LC78211

QA09

1

L1

2

L2

3

L3

4

L4

5

LCOM1

6

L5

7

L6

8

LCOM2

9

L7

10

L8

11

LCOM3

12

VEE

13

CE

14

DI

15

CL16VSS

17

S

18

RES

19

VDD

20

RCOM3

21

R8

22

R7

23

RCOM2

24

R6

26

RCOM1

25

R5

27

R4

28

R3

29

R2

30

R1

RA61

1k

RA87

1k

RA64

1k

RA84

1k

0.1u

CA49

+14V

A-GND

-14V

0.1u

CA50

RF31

OPEN

RF30

OPEN

A-GND

A-GND

10k

RA96

10k

RA97

RA98

39k

RF36 0

RF35 0

RF29 OPEN

470pCA47

91

RF33

91

RF32

RF28OPEN

470pCA48

680RF27

10k

RF25

10k

RF24

680

RF26

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

OPEN

RA93

OPEN

RA92

A-GND

A-GND

A-GND

A-GND

RA99

39k

10k

RB59

10k

RB60

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

A-GND

RD78 0

RD77 0

RD76 0

RD75 0

RD74 0

10

RF53

0

RB98

CB49
OPEN

CB48

OPEN

TC9459BFG-EL

QB12

1

NC

2

VSS

3

L-OUT

4

NC

5

L-IN

6

L-LD1

7

L-LD2

8

L-A-GND

9

NC

10

CS1

11

NC

12

GND

13

CK

14

NC15NC

16

DATA

17

STB

18

NC

19

CS2

20

NC

21

R-A-GND

22

R-LD2

23

R-LD1

24

R-IN

26

R-OUT

25

NC

27

VDD

28

NC

OPEN

RB62

OPEN

RB92

10

RF52

+14V

A-GND

CB51

OPEN

CB50

OPEN

0

RB97

A-GND

A-GND

-14V

0.1u

CB46

47u/25

CB44

10

RF51

OPEN

RB61

47u/25

CB45

OPEN

RB91

0.1u

CB47

A-GND

0

RB89

0

RB90

A-GND

0

RD37

0

RF05

0

RB94

RB96

0

RB93

OPEN

+14V

+14V

OPEN

RB95

+14V

OPEN

RF06

+14V

OPEN

RF20

0

RF21

TPF539

TPF525

TPF524

TPF520

TPF517

TPF521

TPF530

TPF519

TPF518

TPF516

TPF533

TPF522

TPF535

TPF536

TPF537

RD71

51

QD07

SN74LV04APW

34

QD07

SN74LV04APW

56

QD08

SN74LV125APW

12 11

13

RD70

51

QD08

SN74LV125APW

98

10

QD06

SN74LV125APW

1211

13

QD08

SN74LV125APW

23

1

QD06

SN74LV125APW

56

4

QD08

SN74LV125APW

56

4

QD07

SN74LV04APW

12

QD06

SN74LV125APW

23

1

QD06

SN74LV125APW

98

10

RD68

51

RD69

51

RD67

51

RD66

51

RD6251RD63

51

RD61

OPEN

RD64 OPEN

RD65 OPEN

RB85

0 1/8W

+14V

-14V

RB86

0 1/8W

A-GND

A-GND

0.1u

CB88

0.1u

CB87

+14V

-14V

0.1u

CA45

0.1u

CA46

A-GND

A-GND

TPF192

TPF193

TPF194

TPF195

TPF196

TPF197

TPF198

TPF199

TPF200

TPF201

TPF202

TPF203 TPF204

TPF205

TPF206

TPF207

TPF208

TPF209

TPF210

TPF211

TPF212

TPF213

TPF214

TPF215

TPF216

TPF217

TPF218

TPF219

TPF220

TPF221

TPF222

TPF223
TPF224

TPF225

TPF226

TPF227

TPF228

TPF229

TPF230

TPF231

TPF232

TPF233

TPF234

TPF235

TPF236

TPF237

TPF238

TPF239

TPF240

TPF241

TPF242

TPF243

TPF362

TPF245

TPF246

TPF247

TPF248

TPF249

TPF250

TPF251

TPF252

TPF253

TPF254

TPF255

TPF256

TPF257

TPF258

TPF259TPF260

TPF261

TPF262

TPF263

TPF264

TPF265

TPF266

TPF267

TPF268

TPF269

TPF270

TPF271

TPF272

TPF273

TPF274

TPF275

TPF276

TPF277

TPF278

TPF279

TPF280

TPF283

TPF284

TPF285

TPF286

TPF287

TPF288

TPF289

TPF290

TPF291

TPF292

TPF293

TPF294

TPF295

TPF296

TPF297

TPF298

TPF299

TPF300

TPF301

TPF302

TPF303

TPF304

TPF305

TPF306

TPF307

TPF308

TPF309

TPF310

TPF312

TPF313

TPF314

TPF316

TPF320

TPF323

TPF324

TPF325

TPF326

TPF327

TPF328

TPF329

TPF330

TPF331

TPF332

TPF333

TPF334

TPF335

TPF336

TPF337

TPF338

TPF339

TPF340

TPF341

TPF342

TPF343

TPF344

TPF346

TPF347

D-GND

TPF349

TPF351

TPF353

TPF355 TPF357

TPF359

TPF361

TPF363

TPF365

TPF366

TPF367

TPF368

TPF369

TPF370

TPF371

TPF372

TPF373

TPF374

TPF375

TPF376

TPF377

TPF378

TPF379

TPF380

TPF381

TPF382

TPF383

TPF384

TPF385

TPF386

TPF387

TPF388

TPF389

TPF390

TPF391

TPF392

TPF393

TPF394

TPF395

TPF396

TPF397

TPF398

TPF399

TPF400

TPF401

TPF402

TPF590

TPF591

TPF405

TPF406

TPF592

TPF585

TPF583

TPF581

TPF588

TPF589

TPF413

TPF582

TPF584

TPF416TPF417TPF418

TPF419TPF420

TPF421

TPF422

TPF423TPF424

TPF425

TPF426

TPF427

TPF428

TPF429

TPF430

TPF431

TPF432

TPF433

TPF434

TPF435

TPF436

TPF437

TPF438

TPF439

TPF440

TPF364

TPF442

TPF443

TPF444TPF445

TPF446

TPF447

TPF448

TPF449

TPF450

TPF451

TPF452

TPF453

TPF454

TPF455

TPF130

TPF142

TPF148

TPF149

TPF150

TPF158

TPF159

TPF470

TPF471

TPF472

TPF473

TPF474

TPF475

TPF478

TPF001

TPF000

TPF499

TPF498

TPF497

TPF496

TPF495

TPF494

TPF493

TPF492

TPF491

TPF490

TPF489

TPF488

TPF487

TPF486

TPF485

TPF484

TPF483

TPF482 TPF481

TPF480

TPF479

TPF476

TPF441

TPF167

TPF162

TPF161TPF160

TPF157

TPF156

TPF155

TPF002

TPF244

TPF128

TPF129

TPF138

TPF140

TPF145

TPF146

TPF147TPF151

TPF154

TPF467

TPF477

TPF469

TPF468

TPF466

TPF465

TPF464

TPF463

TPF462

TPF461

TPF460

TPF459

TPF458

TPF457

TPF456

TPF415

TPF414

TPF411

TPF410

TPF407

TPF404

TPF360

TPF358

TPF356

TPF354

TPF352

TPF350

TPF348

TPF191

TPF190

TPF189

TPF188

TPF187

TPF186

TPF185

TPF184

TPF183

TPF182

TPF181

TPF180

TPF179
TPF178
TPF177

→

OPEN

RB31

1

3

2

→

OPEN

RB32

13

2

TPF176

RB33

56

RB34

56

10k

RB24

TPF175

TPF174

TPF173

TPF172

TPF171

TPF170

TPF169

7pCB27

7pCB28

TPF168

TPF166

OPEN

RB41

OPEN

RB42

TPF165

TPF164

TPF163

RC13

0

TPF652

TPF653

RC07 0

TPF651

RC0475

TPF668

JC05

JC02

TM11R-5M2-88LP

1

2

3

4

5

6

7

8

D-GND

TPF666

RC12

0

RC0375

DLP11SN161SL2 COMMON MODE CHOKE COI

LC02

1

23

4

470

RC15

+3.3VD

470

RC14

RC22

OPEN

RC06 0

RC0175

D-GND

RC08

0

DLP11SN161SL2 COMMON MODE CHOKE COI

LC01

1

23

4

RC11

0

RC0275

TPF602

TPF657

TPF661

D-GND

TPF656

RC09

OPEN

RC21

OPEN

TPF655

TPF670

TPF645

RC24

OPEN

RC05 0

RC10

0

TPF667

DC02

TLGU1002A(T02)

12

TPF650

RC23

OPEN

TPF654

DC01

TLOU1002(ORG)

12

JC04

1

TPF563

TPF558

TPF557

TPF560

TPF564

TPF562

TPF568

TPF565

JC01

YKB21-5265

1

2

3

RC16

1k

D-GND

CC01

0.1u

DC03

DAN202K

123

DC04

DAP202K

123

D-GND

TPF646

TPF612

TPF611

TPF613

TPF545

TPF546

JD06

20FMN-BMTTN-A-TFT

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

TPF529

TPF538

TPF523

TPF526

0

RD94

0

RD92

0

RD90

0

RD91

TPF534

TPF532

TPF531

DD01

DAN202K

123

DD02

DAP202K

123

DD04
DAP202K

1

2

3

DD03

DAN202K

1

2

3

TPF131

DA01

DAN202K

1

2

3

DA02

DAP202K

1

2

3

+14V

-14V

DA03

DAN202K

1

2

3

DA04

DAP202K

1

2

3

+14V

-14V

DA05

DAN202K

123

DA06

DAP202K

123

+14V

-14V

DB05

DAN202K

123

DB06

DAP202K

123

-14V

+14V

DB02

DAP202K

123

DB01

DAN202K

123

DB03

DAN202K

123

DB04

DAP202K

123

+14V

-14V

-14V
+14V

TPF132

0

RA69

0RA70

0

RA79

0

RA78

TPF133

TPF134

TPF135

TPF136

TPF137

TPF139

TPF141

TPF143

0

RA68

0

RA80

TPF412

OPEN

RF65

OPEN

RF66

0

RA71

0

RA77

B4B-PH-SM4-TB

JC03

1

2

3

4

RC17 0

RC18

0

RC19 0

RC20 0

TPF144

BLM11B601S

LC03

BLM11B601S

LC04

D-GND

TPF603

TPF608

TPF660

TPF669

QD07

GND

7

VCC

14

CD47 0.1u

D-GND

CD46 0.1u

+3.3VD

CD45

0.1u

QD08

GND

7

VCC

14

QD06

GND

7

VCC

14

QD07

SN74LV04APW

13

12

QD07

SN74LV04APW

11

10

QD07

SN74LV04APW

98

A-GND

TPF004

+14V

100u/25

CA92

TPF005

RC50

0 1/10W

TPF006

100u/25

CA91

-14V

RC51

0 1/10W

0.1u

CA95

2k

RC56

10k

RC55

TLGU1002A(T02)

DA07

12

0 (1/10W)

RC54

330

RC60

NJM2387DL2

QA15

VIN

1

GND

5

CTL2ADJ

4

VOUT

3

1k

RC58

+14V

100k

RC59

0.1u

CA93

1k

RC57

A-GND

0 (1/10W)

RC61

B5B-EH-TS

JA04

1

2

3

4

5

RC52

0 1/10W

RC53

0 1/10W

A-GND

TPF007

TPF008

TPF009

TPF010

TPF011

TPF013

TPF015

TPF014

TPF012

TPF016

TPF017

22FMN-BMTTN-A-TFT

JD07

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

TPF671

TPF672

10u/25

CB38

10u/25

CB39

47u/25

CB25

47u/25

CB26

10u/25

CB53

10u/25

CB52

47u/25

CB55

47u/25

CB54

22u/25

CB64

22u/25

CB65

10u/25

CB85

10u/25

CB86

100u/25

CA94

47uCD32

100u/25

CD40

100u/25

CD23

10u/25

CA42

10u/25

CA41

10u/25

CA43

10u/25

CA44

TPF018

TPF019
TPF020

TPF021

NE5532DR

QB03

6

5

7

8

NE5532DR

QB03

2

3

1

4

NE5532DR

QB09

6

5

7

8

NE5532DR

QB09

2

3

1

4

NE5532DR

QB04

6

5

7

8

NE5532DR

QB04

2

3

1

4

NE5532DR

QA08

2

3

1

4

NE5532DR

QA08

6

5

7

8

NE5532DR

QA10

6

5

7

4

NE5532DR

QA10

2

3

1

8

NE5532DR

QA13

2

3

1

8

NE5532DR

QA13

6

5

7

4

NE5532DR

QA12

6

5

7

8

NE5532DR

QA12

2

3

1

4

NE5532DR

QA07

2

3

1

4

NE5532DR

QA07

6

5

7

8

+5VA

TPF022

TPF023

TPF024

TPF025

TPF026

100k

RA95

100k

RA94

+3.3VD

+3.3VD

DA08
DAN202K

123

DA09

DAP202K

123

+5VA

A-GND

+5VD

JA03

YKC21-3091

1

2

3

4

JB03

YKC21-3091

1

2

3

4

TPF028

TPF029

TPF031

TPF030

TPF032

TPF033

TPF036

TPF037

TPF034

TPF035

TPF038

TPF039

TPF040

TPF041

TPF042

TPF043

TPF044

TPF045

TPF046

+5VD

+5VD

NE5532DR

QA16

2

3

1

8

+14V

0.1u

CA72

A-GND

100k

RF74

220k

RF18

A-GND

33k

RF82

560

RF84

A-GND

10u/25

CA60

10u/25

CA58

1k

RF80

A-GND

3k

RF78

A-GND

100k

RF76

2SC4116GR

QA20

2SC4116GR

QA18

+14V

10k

RF86

1k

RF88

A-GND

56K

RF92

1M

RF94

10u/25

CA64

OPEN

RF90

10u/25

CA62

DTC114TE

QA24

DTC114TE

QA22

DTC144EUT106

QA26

+14V

10kRF16

1SS302

DA12

123

100u/25

CA66

47K

RF96

1SS302

DA14

1

2

3

1k

RF98

10u/25

CA68

100

RF72

10u/25

CA56

100k

RF70

NE5532DR

QA16

6

5

7

4

15kRF12

220p

CA70

22k

RF14

15k

RF10

0.1u

CA74

-14V

A-GND

A-GND

A-GND

22k

RF13

0.1u

CA73

NE5532DR

QA17

6

5

7

4

-14V

10u/25

CA67

15kRF11

A-GND

15k

RF99

220pCA69

NE5532DR

QA17

2

3

1

8

A-GND

A-GND

10u/25

CA55

A-GND

+14V

100k

RF75

100k

RF69

0.1u

CA71

3k

RF77

100

RF71

100k

RF73

1k

RF97

1SS302

DA13

1

2

3

47K

RF95

1SS302

DA11

123

100u/25

CA65

DTC114TE

QA23

56K

RF91

1MRF93

10u/25

CA63

OPEN

RF89

10u/25

CA61

DTC114TE

QA25

DTC144EU T106

QA27

10k

RF15

+14V

10u/25

CA57

1k

RF79

10u/25

CA59

2SC4116GR

QA19

2SC4116GR

QA21

10k

RF85

+14V

560

RF83

A-GND

1k

RF87

33k

RF81

100RD00

TPF983

TPF984

TPF985

TPF986

TPF987

TPF996

TPF997

TPF998

TPF999

TPF995

TPF994

TPF993

TPF992

TPF991

TPF990

TPF989

TPF988

TPF615

TPF616

TPF617

TPF618

TPF619

TPF620

TPF621

TPF622

TPF623

TPF624

TPF625

TPF626

TPF627

TPF628

TPF629

TPF630

TPF631

TPF632

TPF633

TPF635

TPF634

TPF636

TPF637

TPF638

TPF639

RN2111

QA28

+3.3VD

TPF673

220K

RF40

220K

RF41

D-GND

0.1u

CD48

RF42

OPEN

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

D-GND

-14V

220K

RB99

RN2111

QA30

A-GND

DTC114TE

QA31

A-GND

100k

RF19

DTC114TE

QA33

DTC114TE

QA34

DTC114TE

QA32

+14V

4.7k

RF45

4.7k

RF44

4.7k

RF43

BD08

STYLE PIN

A-GND

+5VD

LD04

BLM18B102SN1D

LD05

BLM18B102SN1D

OPEN

CD50

OPEN

CD51

0

RD93

+5VD

0

RC27

0

RC28

0

RC29

0

RC30

0

RC31

0

RC33

0

RC34

0

RC35

0

RC36

0

RC38

0

RC39

0

RC40

0

RC41

0

RC42

0

RC43

0

RC44

0

RC45

0

RC46

0

RC47

0

RC48

0

RC66

0

RC67

0

RC68

0

RC69

0

RC70

0

RC71

RD97

62

220p

CD52

220p

CD53

D-GND

4.7k

RC32

4.7k

RC37

JC09

D-GND

0

RC72

RC73 0

RC74 0

RC75 0

RC76 0

RC77

0

-14V

220k

RC78

D-GND

D-GND

LD01

L-5K7-H5

1

3

6

4

2

D-GND

0

RD43

RD30

620

0

RD98

20p

CD10

20p

CD09

RD21

51

RD99

560

CA81

47p

CA82

47p

CA13

47p

CA14

47p

CB33

47p

CB34

47p

CA01

47p

CA02

47p

RF34

OPEN

D-GND

RZ01 0

RZ11 0

RZ05 0
RZ06 0

RZ09 0

RZ08 0

RZ10 0

RZ03 0
RZ04 0

RZ02 0

RZ07 0

RZ12 0

RZ13

0

RZ14 0
RZ15 0
RZ16 0
RZ17 0
RZ18 0

RZ19 0
RZ20 0
RZ21 0
RZ22 0
RZ23 0
RZ24 0
RZ25 0
RZ26 0
RZ27 0
RZ28 0
RZ29 0
RZ30 0
RZ31 0
RZ32 0
RZ33 0
RZ34 0
RZ35 0
RZ36 0

D-GND D-GNDA-GND A-GND

D-GND

D-GND

D-GND

0

RD95

0

RD96

0

RF47

0

RF48

0

RF49

RZ37 0
RZ38 0
RZ39 0
RZ40 0
RZ41 0
RZ42 0
RZ43 0
RZ44 0

A-GND

0

CD43

0

RF46

0

RF50

0

RC62

0

RC63

0

RC64

0

RC65

0

CA80

0

CB89

0

CA06

0

CA18

0

CB01

0

CB03

0CB02

0

CB04

0

CD01

0

CD02

0

CD05

0

CD06

2

2

2

2

2

2

2

2

2

2

2

1k

RZ45

2

2

2

2

2

2

2

2

2

2

2

2

2

2

1k

LA05

2

2 1k

LA06

A-GND

UNBAL_MUTE

2

2

2

UNBAL_MUTE

2

2

2

2

2

0

RZ51

JD00

B2B-PH-K

1

2

2

0

RZ52

0

RZ53

TPF674

2

2

2

2

TPF675

TPF676

DTA114EUA

QA50

QA49
2SC3326
QA48
2SC3326

RC81

470

RC80
470

+3.3VD

220k

RC82

-14V

2

2

2

CD03

1000p

2

4271_RST-

SDA

SCL

AMUTEC-

8420_INT

SCL
SDA

OMCK_SEL

SDI_SEL

ESDOUT

MCLK_SEL

MUTE

SPCLK

ESDI0

ESDI1

ESDI0

8420_RST-

TAP_LAN

9459_STB
DATA
CK

LAN_TXD+

LAN_TXD-

LAN_RXD+

LAN_RXD-

9459_STB

EMCLK

ALC_IM
ATT20dB

MUTE

78211_RST-

78211_STB
DATA

CK

ESCLK
ELRCK

SCL

SDA

4271_RST-

ESCLK

ELRCK

ESDI1

EMCLK

MCLK_SEL

ESDOUT

SDI_SEL

ESDI0

OMCK_SEL

SPCLK

AMUTEC-

8420_RST-

8420_INT

AES/SPDIF

ALC_IM

ATT20dB

REMOTE

CK

DATA

78211_STB

MUTE

78211_RST-

9459_STB

LAN_ACC1

LAN_ACC2

LAN_TXD+

LAN_TXD-

LAN_RXD+

LAN_RXD-

TAP_LAN

LAN_ACC1

LAN_ACC2

REMOTE

AES/SPDIF

I/O A UNIT

〜J010(MAIN UNIT)

〜J002(MAIN UNIT)

SPDIF OUT

MUTE

A_GND

Lch AUDIO

Rch AUDIO

+14V

-14V

SPCLK

D_GND

Lch

Rch

COLD

HOT

HOT

COLD

COLD

HOT

GND

VCC

TO W008

LINE OUTPUT

SPDIF IN

AES/EBU AES/EBU

INPUT

OUTPUT

Lch

Lch

Lch

Rch

Rch

Rch

LINE INPUT

XLR OUTPUT

XLR INPUT

DIGITAL IN/OUT

ESDIO

ESDOUT

ELRCK

ESCLK

EMCLK

4271_RST-

SDA

SCL

8420_INT

8420_RST

AES/SPDIF

RIGHT

LEFT

NC4

NC3

TD-

TD+

NC2

NC1

RD+

RD-

REMOTE

AMUTEC-

D_GND

LAN_TXD-

DATA

ATT20dB

LAN ACC1

TAP_LAN

LAN ACC2

78211_STB

LAN_RXD+

REMOTE

D_GND

LAN_RXD-

78211_RST-

MUTE

+5VD

+3.3VD

+3VU

LAN_TXD+

9459_STB

CK

+3.3VD

+5VD

OMCK_SEL

SDI_SEL

MCLK_SEL

ESDI1

RXD+

TXD-

TXD+

RXD-

-14V

+14V

A-GND

CODEC,SRC/DIT POWER

A-GND

A-GND

UNBAL_MUTE

ALC_IM

ALC(Lch) ALC(Rch)

INPUT_SELECTOR

INPUT_VOLUME

ADC_REFERANCE_Vref

Audio_CODEC

Audio_DIT

Audio_Clock_Selector

OUTPUT_VOLUME

LPF

LAN_CONNECTER

REMOTE_Control

HEAD_PHONES_OUT

D_GND

+3VU

25 26

P201 00MWI09CS2010

D-GND

TPF895

TPF852

R8500R8510R8520R8530R854

0

R855

0

R856

0

R857

0

82

R87582R876

TPF853

TPF854

TPF855

TPF856

TPF857

TPF858

TPF859

TPF860

TPF861

TPF862

TPF863

TPF865

TPF866

TPF867

TPF868

TPF869

TPF890

S863

SKHMPW

13

R858 0

S862

SKHMPW

13

TPF872

TPF873

TPF874

TPF875

TPF876

TPF877

TPF878

TPF879

TPF880

TPF851

TPF864

S850

SKPMAPE010

12

S851

SKPMAPE010

12

S852

SKPMAPE010

12

S858

SKHMPW

13

TPF893

TPF871

+5V

D-GND

D-GND

+3.3VD

C854

0.01u

C851

0.01u

82

R874

82

R873

D881 SML-512UWT86

12

R859 0
R860 0

TPF882

TPF883

TPF884

TPF885

TPF886

TPF887

TPF888

TPF889

C864

0.01u

470

R889

470

R890

470

R891

470

R892

C852

1U

C850

0.1u

C853

0.1u

C856

0.1u

C855

1U

C865

1U

S860

SKPMAPE010

12

TPF103

TPF104

TPF598

TPF119

TPF117

TPF114

TPF112

TPF110

TPF109

TPF108

TPF107

TPF106

NJU3716AM-TE1

Q853

13

DATA

14

CLK

15

STB#

16

CLR#

12

SO

18

VSS

17

P1

19

P2

20

P3

21

P4

22

P5

23

P6

1

P7

2

P8

3

P9

4

P10

5

P11

7

P12

8

P13

9

P14

10

P15

11

P16

24

VDD

6

VSS

D-GND

+3.3VD

R902 0
R903 0
R904 0
R905 0

J852

IMSA-9616S-14A

1

2

3

4

5

6

7

8

9

10

11

12

13

14

100

R906

D-GND

TPF870

D-GND

TPF899

TPF902

TPF904

TPF905

TPF906

TPF907

C863

0.1u

C857

0.01u

NJU3716AM-TE1

Q852

13

DATA

14

CLK

15

STB#

16

CLR#

12

SO

18

VSS

17

P1

19

P2

20

P3

21

P4

22

P5

23

P6

1

P7

2

P8

3

P9

4

P10

5

P11

7

P12

8

P13

9

P14

10

P15

11

P16

24

VDD

6

VSS

TPF932

R900 0

TPF934

R898 0

TPF935

C858

1U

R899 0

TPF936

R901 0

TPF949

+3.3VD

D-GND

D851

SML-512MW(T86)

12

D862

SML-512UW(T86)

12

D858

SML-512DW(T86)

12

82

R87782R87882R87982R88082R88182R88282R883

82

R86182R86282R86382R86482R86582R86682R867

120

R884

120

R885

120

R886

120

R887

120

R888

120

R868

120

R869

120

R870

120

R871

120

R872

TPF950

TPF952

TPF953

TPF954

TPF956

TPF957

TPF958

TPF959

TPF951

TPF948

TPF947

TPF946

TPF945

TPF960

TPF937

TPF938

TPF939

TPF940

TPF941

TPF942

TPF943

TPF944

TPF955

TPF933

TPF931

TPF930

TPF929

TPF928

TPF927

TPF926

TPF925

TPF924

TPF923

TPF922

TPF921

TPF920

TPF919

TPF918

TPF917

TPF916

TPF915

TPF914

TPF913

TPF912

TPF911

TPF910

TPF909

TPF908

R524 0

R521 0

R520 0

R519 0
R523

0

J850

IMSA-9631S-34

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

J851

JB20-05HG

1

2

3

4

5

C860

22p

C861

22p

C859 22p

TPF903

TPF901

TPF900

TPF898

TPF850

TPF897

TPF894

TPF896

D-GND

C862

0.1u

4.7u/35

C512

0

R500

32009-1200010N

J503

1

2

TXD

9

8RTS

3

RXD

7CTS

4

6

5

0.01u

C513

D-GND

22k R5034.7u/35C514

D500

TLGU1002A(T02)

12

0.1u

C518

FG

TPF500

D-GND

22 R506

100p

C507

10k

R511

D-GND

0.01u

C503

0.01u

C511

D-GND

BLM11B601L500

TPF503

22 R507

D-GND

SN74LV125APW

Q501

56

4

0.01u

C517

TPF528

J50310

C527

1000p

100p

C506

4.7u/35

C500

SN74LV125APW

Q501

23

1

+3VU

0.01u

C526

4.7u/35

C510

D-GND

D-GND

4.7u/35

C516

0.01u

C509

100p

C504

100p

C505

SN74LV125APW

Q501

98

10

22 R505

D-GND

UPD4721GS-GJG

Q500

1

VDD

2

C1

3

Vcc

4

C1-

5

C5+

6

C5-

7

Din1

8

Din2

9

Rout1

10

Rout211Rin2

12

Rin1

13

Dout2

14

Dout1

15

Vdna

16

STBY

17

Vss

18

C4-

19

GND

20

C4+

TPF505

D-GND

4.7u/35

C502

22 R508

TPF504

4.7u/35

C508

SN74LV125APW

Q501

1211

13

R501

270

0

R509

22k R504

D-GND

Q501

SN74LV125APW

GND
7

VCC

14

TPF501

0.01u

C501

1k

R502

BLM11B601L501

0.01u

C515

TPF502

+3VU

22R517

TPF515

TPF511

TPF514

0R518

10u/16

C521

22R514

22R515

D-GND

TPF512

TPF513

D-GND

+3VU

22R516

TPF509
TPF510

R522 0

TPF578

TPF575

TPF573

TPF572

TPF570

TPF567

TPF599

TPF556

TPF554

TPF552

TPF105

TPF547

TPF544

TPF543

TPF542

TPF541

TPF540

TPF561

TPF101

TPF549

TPF580

TPF586

TPF593

+3VU

D-GND

0.1u

C522

TPF596

S861

SPPW810400

123

4

5

6

R8940R895

0

R897

0

R896

0

C867

OPEN

C866 1u

D883

ESD PROTECTOR(6802)

C868

0.1u

R893

4.7k

TP05

TPF881

TPF891
TPF892

C869

OPEN

+3.3VD

D-GND

D852

SML-512MW(T86)

12

D853

SML-512MW(T86)

12

D854

SML-512MW(T86)

12

D855

SML-512MW(T86)

12

D856

SML-512MW(T86)

12

D857

SML-512MW(T86)

12

D859

SML-512DW(T86)

12

D860

SML-512DW(T86)

12

D861

SML-512DW(T86)

12

D867

SML-512MW(T86)

12

D868

SML-512MW(T86)

12

D869

SML-512MW(T86)

12

D870

SML-512MW(T86)

12

D871

SML-512MW(T86)

12

D872

SML-512MW(T86)

12

D873

SML-512MW(T86)

12

D874

SML-512DW(T86)

12

D875

SML-512DW(T86)

12

D876

SML-512DW(T86)

12

D877

SML-512DW(T86)

12

D878

SML-512UW(T86)

12

D850

SML-512MW(T86)

12

7P FFC CONNECTOR FMN-B

J501

1

2

3

4

5

6

7

B7B-PH-SM3-TB

J502

1

2

3

4

5

6

7

TPF971

TPF972

TPF973

D-GND

R970

0

S970

EC11B15242AE

B

C

A1

2

TPF974

R971

0

S5B-PH-K-S

J970

1

2

3

4

5

TPF970

TPF980

TPF981

R980

330

TPF982

D980

SML-312BC4T

12

W980

JB20-02HG

1

2

D-GND

D-GND

D882 SML-512UWT86

12

D879 SML-512UW(T86)

12

D880 SML-512UW(T86)

12

D-GND

D-GND

D863 SML-512MW(T86)

12

D864 SML-512MW(T86)

12

D865

SML-512MW(T86)

12

D866 SML-512MW(T86)

12

D-GND

D-GND

TPF961

BLM11B601L502

BLM11B601L503

P17
P18
P19
P20
P21
P22
P23
P24
P25
P26
P27
P28

P12

P11

P10

P9

P8

P7

P6

P5

P4

P3

P1
P2

P12

P11

P10

P9

P8

P7

P6

P5

P4

P3

P2

P1P17

P18

P19

P20

P21

P22

P23

P24

P25

P26

P27

P28

P29
P30
P31
P32

P13
P14
P15
P16

P32

P31

P30

P29

P16

P15

P14

P13

PANEL UNIT

ENCORDER_B

ENCORDER_A

D_GND

+5V

+3.3VD

D_GND

KEY_ROW0

KEY_ROW1

KEY_ROW2

KEY_ROW3

KEY_COL0

KEY_COL1

KEY_COL2

KEY_COL4

+3.3VD

PLAY_LED

REC_LED

ACCESS_LED

〜

J011(MAIN UNIT)

PLAY/PAUSE

REC_PAUSECANCEL

REC

DISPLAY

PLAY/PAUSE

SHIFT

MENU

REC

D_GND

TO W015

KEY_ROW5

DATA

CLR-

STB

CLK

DOOR­D_GND

RES

RS

R/W

E

DB4

DB5

DB6

DB7

TXD

D_GND

CTS

S-STB
RXD

+3.3VU

RTS

GND

E

DB7

CAP1N

CAP1P

DB6

DB5

VO

R/W

VOUT

RES

DB4

RS

+3.3V

-60 -50 -40 -30 -20 -15 -12 -10 -6 -2 0(dB)

L

R

ENCODER_A

ENCODER_B

GND

KEY_ROW5
KEY_COL1

ENTER

JOG_SW

D-SUB9P
RS-232C

(2/4)

(4/4)

(1/4)

(3/4)

CTS

TXD

+3VU

TO MAIN UNIT

RXD

RTS

232C_ON

TO POWER UNIT

PIN No.

1

2

3

4

5

6

7

8

9

SIGNAL Name

DSUB15P RS232C Control) for U/N

Ground

Signal Ground

NC

NC

CTS

RTS

TXD

RXD

TO MAIN UNIT

I/O C UNIT

TO LCD UNIT

DOOR SENSOR

ACCESS LAMP

D_GND

TO J704

KEY-MATRIX

REC

PAUS E

JOG UNIT

〜J703(POWER UNIT)

TO W006

LED_A(WHT)
LED_K(ORG)

STB LED UNIT

OVER

27 28

P203 00MWI09CS2030

P205 00MWI09CS3050

P204 00MWI09CS2040

P202 00MWI09CS2020

J700

AC INLET
M1910-D

1

L

2

N

3

C700

0.01u

R700

1M

C701

0.22u
C702

470p

C703

470p

D700

S1WBA60

3

2

1

4

C704
120u/400V

D701

ST03D-170

T700

4

2

9

10

11

12

8

1

3

7

5

6

C705

680p

J705

FG3

D702

FMB 26L

132

C713

1000p

C714

1000p

L702

100uH

RIE9-866200

12

43

R712

OPEN

R713

OPEN

R711

33

1/2W

L700

LF-4Z-E503H

43

12

Q700

MIP3E50MY

G1S2D

3

R703

15 1/4W

D705

PC-123Y22

1

23

4

C709

0.47u

C708

0.47u

C710

470p

G700

470NR-07D

Q701

TL431CZ

A

2

REF

1

C

3

R-GND

R709

OPEN

D-GND

L706
10uH

L708
10uH

D715

RB051L-40TE 25+C

D717

RB051L-40TE 25+C

Q717

2SA1797

Q715

BA9741FS

12345678

9 10111213141516

D-GND D-GND

D-GND

D-GND

Q704

BD9781HFP

1

VIN

3

RT

7

EN

2

SW

5

FB

6

INV

GND

4

D712

RB051L-40

L704
56uH
CDRH127/LD

D-GND

C725

10u

D-GND

D-GND

D-GND

R758

OPEN

D-GND

Q712

23

1

Q712

98

10

Q712

SN74LV125APW

12 11

13

D-GND

+3VU

Q709
UPD78F9222(DN-C640X)

1

VSS

2

P121/X1

3

P122/X2

4

P123

5

VDD

6

RESET

7

P31

8

P30

9

P40

10

P41/INTP3

11

P42

12

TXD

13

RXD

14

P45

15

P130

16

P23/ANI3

17

P22/ANI2

18

P21/ANI1

19

P20/ANI0

20

AVRE F

+3VU

D-GND

+3VU

+3VU

Q712

SN74LV125APW

GND

7

VCC

14

+3VU

D-GND

+3VU

TPF724

TPF725

Q703

NJM2387DL2

VI

1

VADJ 4

GND

5

VO

3

CNT

2

D-GND

X700

10MHZ

D-GND

TPF740

TPF741

TPF742

TPF743

TPF744

TPF745

TPF746

TPF749

TPF700
TPF701

TPF702

TPF703

TPF704

D-GND

TPF728

TPF733

TPF738
TPF739

D-GND

D-GND

L703

FTR-F1

8

1

75

24

J701

B2P3-VH

1

2

TPF705

TPF706

TPF709

TPF720

TPF721

TPF722

Q712

5

6

4

D-GND

J711

D-GND

L707
68uH

C724
680u/35V

RJH-35V681MI6#-S1

C728

680u/35V

RJH-35V681MI6#-S1

R719

OPEN

R720

OPEN

R710

OPEN

D-GND

UDZSTE-173.6B

D710

D-GND

D-GND

DTA114EK

Q713

+3VU

D-GND

TPF707

TPF713

TPF712

TPF708

TPF711

TPF710

TPF716

TPF715

TPF714

TPF718

TPF717

TPF719

R701

56

R702

56

C707

47u/25

DAN202K

D703

1

2

3

R704

15

R705

5.6k

R706

33k

R707

18k

R708

22k

Q702

DTC114EK

C712

47u/35

D708

OPEN

12

R718

2.2k

R727

0 1/10W

R714

47k

R715

0

Q705

DTC114EK

R728

10k

R717

0

D709

DAP202K

1

2

3

R716

10k

R775

10k

C734

8200p

R779

10k

R776

20k

R777

10k

C735

330p

C720
10u/50

R729

680

R730

1k

R731

1k

R732

100k

C723

100u/16

R742

0

R743

0

DAN202K

D711

1

2

3

R744

10k

Q706

DTC114EK

Q708

2SC4116-Y

R721 1K

R722 0 1/10W

R723

0 1/10W

C719

100u/16

R726

0 1/10W

R733

10k

R734

390k

C727
4700p

R735

150k

R738

10k

R736

39k

D713

OPEN

12

R741

270

TPF729

TPF730

TPF731

TPF732

Q707
DTC114EK

D-GND

TPF734

TPF737

+3VU

R759

180

R760

1.2k

Q710

DTC114EK

Q711

DTC114EK

R747 100k

R748 100k

R753 100k

R751 100k

R752 10k

R754 100k

R755 100k

R756 100k

R757 10k

R761 100k

R762 100k

R763 100k

R764 100k

R765 100k

R766

220

22

R767

22

R768

22

R769

22

R770

22

R771

R772

0

R773 100k

Q714

DTC114EK

TPF748

R780

10k

R782

10k

R784

10k

R788

10k

R790

8.2k

0.01u

C718

C736

33u/25

R786

220

R792

100

R793

47

C741

560u/35V

C744

560u/35V

D718
OPEN

12

R796

2.2k

D716

OPEN

12

D714

OPEN

12

R797

220

D719

OPEN

12

R745

100k

R746

OPEN

C747

100u/16

D-GND

S701

OPEN

13

D-GND

R798

100k

S702

OPEN

13

TPF723

TPF726

TPF727

C743

10u/25

C746

10u/25

D-GND

L705
68uH

TPF750

TPF751

TPF752

TPF753

TPF754

TPF755

TPF756

TPF757

TPF758

TPF759

TPF760

R787

220

Q716

2SA1797

R994

OPEN

R995

0

Q718

2SC4672

F700

1.25A

C715

560u/35V

R991

470

R993

0 1/10W

D-GND

J707

L701

33uH

R789

100k

R795
120k

R794

5.6k

R781

10k

1SDKLA10200

S700

12

J708

J709

001L

002L

R791

2.2k

R737

2.2k

R799

OPEN

Q719

ICP-N50T 2A

TPF761

TPF762

TPF763

TPF764

D-GND

C750

4700p

C751
4700p

C739

8200p

R785

62k

C752

8200p

R829

3.3k

R992

470

R830

3.3k

C753

8200p

BD02

STILE PIN

BD03

STILE PIN

C706

0.1u

C711

0.1u

C716

0

C717

0.1u

C721

0.1u

C722

0.1u

C726

0.1u

C731

0.1u

C732

0.1u

C742

0.1u

C745

0.1u

C749

0.1u

C738

0.1u

C737

0.1u

C733

1U

D-GND

D-GND

C730

27p

C729

27p

R831

0(1/6W)

BD06

STILE PIN

Q720

DTC114EK

D-GND

C754

0.1u

D720

GP1S58V

1

23

4

D-GND D-GND

R724

0

TPF765

TPF766

TPF767

TPF768

0

R832

R774

33k

R783

33k

R778

75k

C740

0.47u

R739

33k

TPF747

B5B-EH-TS

J710

1

2

3

4

5

D-GND

TPF769

TPF770

B8B-PH-SM3-TB

J702

1

2

3

4

5

6

7

8

7P FFC CONNECTOR FMN-B

J704

1

2

3

4

5

6

7

B2B-PH-SM3-TB

J703

1

2

680(1/8W 2125)

R740

J706

EARTH

BD07

STILE PIN

C755 0.22u

D706

ERZV09D270

2

B2B-PH-SM3-TB

J790

1

2

+3VU

D-GND

R996

0

R997

0

2

2

2

2

2

TPF810

TPF811

2

+5V

(1/4)

(2/4)

(3/4)

(4/4)

"NOTE ON SAFETY: The parts marked with are IMPORTANT PARTS on the safety.

Please use the parts having the designated parts number without fail"

+5V

NC

D_GND

D_GND

POWER_OFF_REQ

POWER_OFF_EN

CPU_MODE

LED_A

LED_K

(STB LED UNIT)

(MAIN UNIT)

〜J001

(IO C UNIT)

〜J501

+3VU

CTS

TXD

RTS

RXD

232C_ON

D_GND

POWER_OFF

POWER_SENCE

E3:UL TSC 2.5A
E2:ET
JP:ATSC 2.5A

(FOR JP)

(FOR E2,E3)

TO W005

TO W980

TO W003

W002

W001

L710:TFC16-8-16

(FERRITE)

W020:TFP2014-T

W016,W018

ULTUBE

A-GND

A-GND

+14V

-14V

GND_A

TO W003

〜JA04

(IO A UNIT)

+3VU

D_GND

N:R993 560,R704 560 D706 ERZV09D270

POWER UNIT

29 30

P301 00MWG09CS3010

D-GND

FG

C654

0.01u

+5V

R664

0

DAN202K

D658

123

DAN202K

D657

123

DAN202K

D656

123

DAN202K

D655

123

DAP202K

D659

123

+3.3VD

DAP202K

D660

123

DAP202K

D661

123

DAP202K

D662

123

TPF625

TPF626

TPF627

TPF628

TPF629

TPF630

TPF633

TPF634

TPF635

TPF637

TPF639

TPF642

TPF643

R663

10k

R662

10k

R661

10k

R660

10k

R659

10k

R658

10k

R657

10k

D-GND

C652

100u/16

TPF600

TPF604

TPF605

TPF606

TPF607

TPF609

+5V

TPF610

TPF614

+3.3VD

C650

100u/16

D-GND

TPF615

TPF616

TPF617

TPF618

TPF619

TPF601

D-GND

D652

OPEN

12

D653

OPEN

12

D-GND

+3.3VD+5V

560

R654

270

R655

TPF658

TPF659

C655

1000p

C651

0.1u

C653

0.1u

J651

YKF42-8524N

12

13 12311

4

610 91487

5

15

TPF111

TPF644

J652

14FMN-BMTTN-A-TFT

1

2

3

4

5

6

7

8

9

10

11

12

13

14

FG

PLAY COMMAND

REC COMMAND

TRACK(+) COMMAND

TRACK(-) COMMAND

EXTRA1 COMMAND

EXTRA2 COMMAND

DSUB-15P GPIO

TALLY COMMON(GND)

PLAY TALLY

REC TALLY

COMMAND COMMON(GND)

TALLY POWER SUPPLY(+5V)

〜J012(MAIN UNIT)

TO W012

PIN No.

1

2

6

10

14

12

9

13

11

8

5

7

15

3

4

STOP TALLY

STOP COMMAND

SIGNAL Name

DSUB15P GPIO(Parallel Control) for J

EXTRA TALLY

+3.3VD

STOP TALLY

PLAY TALLY

EXTRA TALLY

EXTRA2.COM

TRACK-

D_GND

EXTRA1.COM

REC.COM

+5V_I/O

PLAY.COM

TRACK+

REC TALLY

STOP.COM

I/O B UNIT

GND_A

-14V

C811

OPEN

GND_A

GND_A

Q801
NJM4556M

2

3

1

8

+14V

R820

OPEN

-14V

Q801

NJM4556M

6

5

7

4

DAN202K

D801

123

R802

4

6

5

GND_A

GND_A

DAP202K

D802

123

R802

10k

RK0971220

31

2

+14V

R819

OPEN

+14V

J801

YKB21-5265

1

2

3

-14V

GND_A

OPEN

(MUTE OFF)

R809

OPEN (MUTE_ON)

R810

TPF809

TPF808

TPF807

TPF801

TPF802

TPF803

TPF804

TPF805

TPF806

Q803

2SC3326

Q802

2SC3326

Q805

2SC3326

Q804

2SC3326

J800
S6B-PH-SM3 CON.BASE

1

2

3

4

5

6

R822

330

R818

0

C813

2200p

C814

2200p

R817

0

R815

82

R816

82

R812

82

R811

82

R814 47k

R813 47k

R804

22k

R826

10k

R827

10k

R805

15k

R806

15k

R807

47k

R808 47k

C803

47u/16V

C804

47u/16V

C805 22p

C806 22p

C809
220u/16

C810

220u/16

R803

22k

C801

47u/25

C802

47u/25

R823

330

R824

330

R825

330

GND_A

BD01

STILE PIN(N.U)

L801

0

L802

0

C815

470p

C816

470p

L805

0

L803

BLM18BD102SN1D

L804

BLM18BD102SN1D

C808

0.1u

C807

0.1u

L808

BLM18BD102SN1D

L810

BLM18BD102SN1D

L811

BLM18BD102SN1D

L806

BLM21PG221SN1D

L807

BLM21PG221SN1D

C812

OPEN

HP JACK UNIT

-14V

+14V

LIN

GND_A

RIN

MUTE

〜J506(I/O A UNIT)

TO W004

HEAD PHONE JACK

31 32

P302 00MWG09CS3020

P303 00MWG09CS3030

8. PARTS LOCATION

P101 A

B101 E10
C002 G6
C004 D3
C006 F6
C007 D2
C010 B5
C011 G6
C013 F7
C016 E7
C018 G4
C040 F9
C045 D9
C046 C5
C047 C5
C048 D4
C049 D4
C065 D4
C073 F2
C074 F1
C078 D9
C082 E2
C083 E2
C084 E2
C085 E2
C086 D2
C087 C10
C088 D4
C091 D3
C100 D5
C123 D3
C125 E2
C126 A5
C128 C2
C151 C7
C152 D5
C153 D2
C154 B6
C155 G2
C157 F7
C158 F8
C159 E7
C161 F7
C165 B8
C168 G4
C169 G8
C173 G9
C174 G8
C175 B7
C176 F2
C177 D6
C178 D8
C179 E5
C182 F7
C195 E2
C196 G4
C197 E2
C199 F8
C402 D8
C403 F1
C408 C4
C409 C4
C410 F2
C420 C8
C422 G3
C424 D7
C426 E2
C427 D9
C428 D9
C429 D9
C430 D9
C431 D9
C432 D9
C433 D9
C436 C1
C437 G3
C438 E2
CU31 C4
CU33 B4
CU34 B4
CU37 C4
CU46 A4
CU47 A5
CU48 C4
CU49 C3
CU53 C4
D001 G6
D002 C2
D003 D1
D004 F6
D006 D7
D007 E9
D008 E9
D009 E9
D013 D3
D014 D3
D016 C9
D017 D10

D018 D4
D025 E2
D110 D9
D118 C3
J001 G5
J004 H8
J005 E1
J007 C10
J008 B2
J011 C8
J012 H3
J013 C1
J014 H9
J015 G7
J051 A5
J052 G3
L001 C9
L002 D9
L004 C9
L011 D3
L012 D5
L013 G3
L014 G8
L015 G8
L016 G8
L017 C8
L018 C8
L019 C8
L112 C8
L113 D8
L120 G8
L151 A5
L152 A5
L650 G8
Q005 E6
Q007 F6
Q009 E3
Q010 F2
Q015 F1
Q018 E4
Q022 C6
Q024 F2
Q026 D2
Q029 E2
Q036 D8
Q037 C7
Q038 B7
Q039 F2
Q040 G2
Q042 F8
Q043 E2
Q105 D5
Q111 B5
Q112 D8
Q117 C4
Q118 C5
Q119 C4
Q120 G10
Q121 G9
Q126 A4
Q156 A4
Q157 A5
Q159 C2
Q300 G4
Q401 E8
Q402 E2
Q403 G4
Q404 E2
Q406 F8
R011 D3
R016 D9
R020 D2
R021 D2
R022 E7
R023 E6
R025 E6
R026 D5
R027 E6
R028 E6
R030 D7
R031 D7
R033 G6
R034 D3
R035 C2
R037 F6
R038 F6
R040 E6
R041 D1
R042 E6
R043 E6
R044 D7
R045 E6
R046 E6
R047 E9
R050 B6
R051 C6
R056 D8

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

R057 D8
R058 F2
R060 G9
R061 G9
R062 G9
R063 G3
R065 C6
R066 B6
R067 B6
R068 B6
R069 B6
R070 B6
R071 D8
R072 E9
R073 E8
R074 E8
R075 F8
R076 E9
R077 B6
R078 B6
R079 E7
R084 C9
R085 D9
R087 F8
R088 F1
R096 D5
R125 F1
R132 D4
R133 F3
R134 F3
R135 F4
R136 F4
R137 F4
R138 F4
R139 F4
R140 F4
R153 F5
R154 F4
R155 F4
R156 F5
R157 F5
R158 F5
R159 F5
R160 F5
R161 F4
R162 F4
R163 F5
R164 F4
R165 F4
R166 F4
R167 D3
R168 F4
R169 D3
R170 E5
R173 F5
R182 D6
R183 D6
R184 D6
R185 D6
R186 D6
R187 D6
R188 D6
R189 C6
R190 C5
R191 D5
R192 D5
R193 D5
R194 D5
R195 D5
R196 D5
R197 D5
R198 D7
R199 D7
R200 D7
R201 D7
R202 D7
R203 D7
R204 D7
R205 C7
R206 C7
R207 D7
R208 D7
R209 D7
R210 D7
R211 D7
R212 D7
R213 D7
R215 F2
R217 F5
R218 F5
R225 C2
R227 E2
R228 F2
R229 E6
R230 D5
R232 D5
R234 D3

R235 D3
R236 D5
R240 D3
R245 D3
R246 G1
R247 G1
R248 G1
R249 D9
R250 D9
R251 D9
R252 D9
R253 D9
R254 D9
R255 D9
R257 D10
R259 D9
R260 D2
R267 D5
R272 D6
R273 D6
R281 C5
R282 C5
R284 G7
R285 G7
R286 G8
R287 G8
R288 C1
R289 B1
R290 G1
R291 G1
R292 C5
R293 C6
R294 G6
R295 G6
R296 B10
R297 B10
R298 C4
R299 C4
R300 C4
R301 C2
R302 C2
R303 E7
R318 E8
R319 E8
R320 E8
R321 E8
R322 E7
R323 E7
R324 E8
R325 E8
R327 E7
R330 E8
R337 F7
R338 F7
R339 F7
R340 F8
R341 F8
R343 D8
R344 E7
R345 E6
R346 F7
R347 F8
R352 C2
R354 C2
R360 C2
R362 C2
R364 C2
R366 C2
R371 C3
R372 C2
R374 C2
R375 C3
R376 C3
R381 C3
R382 F5
R383 F5
R385 E5
R386 E5
R394 D2
R397 E2
R398 G7
R399 G8
R400 C3
R401 C3
R404 C5
R405 C5
R406 C3
R407 C3
R410 D4
R411 D4
R414 D8
R415 D8
R416 C8
R417 C8
R418 C8
R419 C8
R420 D3

R421 D8
R422 D3
R423 D4
R434 D2
R435 D2
R436 G1
R448 F2
R450 B7
R452 E2
R461 C2
R462 C2
R466 G8
R467 F8
R468 F8
R470 F9
R471 F9
R472 G3
R473 G3
R476 G3
R477 G3
R478 F2
R483 E2
R484 G2
R485 C8
R486 C8
R487 C8
R488 C8
R489 D8
R490 D2
R491 D2
R494 D2
R496 F9
R497 D8
R498 D8
R499 F2
RU02 A4
RU08 B4
RU09 A4
RU10 A4
RU11 A5
RU12 A5
RU14 F10
RU15 G9
RU21 G10
RU22 G10
RU23 G10
RU24 G9
RU25 G9
RU26 G9
RU27 G9
RU28 G8
RU33 A4
RU34 D9
RU35 G9
RU36 G9
RU37 F9
RU38 G3
RU39 A4
RU40 A4
RU42 C5
RU44 C5
RU47 C5
RU49 C5
RU52 C5
RU54 C5
RU55 E6
RU56 C4
RU57 E3
RU58 A4
RU88 C5
RU89 C5
RU91 F3
RU92 F3
RU93 F3
RU94 F3
RU95 F3
RU96 F3
RU97 F3
RU98 F3
RU99 F4
RV01 F4
RV21 C2
RV22 C2
RV25 C3
RV26 C4
RV27 C3
RV29 C4
RV30 C4
RV31 C4
S001 D7
S002 G1
X001 D4
X002 C5
X004 F8
X103 B4

33 34

P101 B

35 36

C001 G6
C003 D2
C005 F7
C008 D1
C009 B9
C012 D3
C014 D2
C015 B9
C017 G4
C019 C6
C020 D4
C021 E3
C022 E3
C023 B2
C024 B2
C025 B7
C026 B8
C027 B8
C028 B7
C050 F1
C051 D6
C052 D6
C053 C6
C054 C6
C055 D6
C056 C5
C057 C5
C058 D5
C059 D7
C060 C7
C061 D6
C062 D7
C063 D7
C064 C7
C066 D6
C067 D6
C068 D6
C069 C6
C070 C6
C071 D6
C072 E1
C076 D9
C089 D6
C090 D6
C092 E4
C093 E4
C094 E4
C095 E4
C096 E4
C097 E4
C098 E4
C099 E4
C101 E4
C102 E4
C103 E4
C104 E5
C105 E4
C106 E4
C107 E4
C108 E4
C109 E4
C110 E4
C111 E4
C112 E4
C113 E4
C114 E4
C115 E4
C116 E4
C117 E4
C118 E5
C119 E4
C120 E4
C121 E4
C122 E5
C124 D5
C160 F8
C162 F8
C163 F8
C164 E8
C166 C8
C167 G3
C170 H8
C171 F8
C172 F8
C183 C8
C198 F8
C200 G8
C401 F1
C421 C8
C423 F9
C425 G4

CU35 B5
CU36 B5
CU38 B4
CU39 B5
CU40 B5
CU41 B5
CU42 B5
CU43 B5
CU44 B5
CU45 B5
CU51 C4
CU52 C4
CU54 A2
CU55 A3
D019 F1
D023 F8
D024 D9
D050 C4
D051 C4
D052 B4
D053 B4
D054 B4
D055 B4
D056 B4
D057 B4
D058 D3
D059 D3
D060 C4
D061 C4
D062 B4
D063 B4
D064 B4
D065 B4
D066 C4
D067 C4
L009 C10
L010 C10
Q001 G6
Q002 D3
Q003 F6
Q004 D2
Q020 C6
Q021 C7
Q122 B3
Q123 B2
Q124 B9
Q125 B9
Q127 B7
Q128 B8
Q129 B7
Q130 B8
Q160 C6
Q161 D4
R001 G5
R003 G6
R004 G6
R005 G6
R006 G6
R007 D2
R008 F7
R009 D2
R010 G6
R012 D3
R013 D3
R014 D1
R015 F7
R017 E7
R018 E7
R019 F7
R024 D2
R029 G5
R032 G6
R036 F7
R039 D2
R048 B5
R049 B5
R052 E3
R053 E3
R054 E3
R055 E3
R059 B2
R064 B5
R089 E4
R090 E4
R091 B8
R092 E3
R093 E4
R094 E3
R095 D4
R097 D5
R098 D5

R099 F3
R100 F3
R101 F3
R102 F3
R103 F3
R104 F3
R105 F3
R106 F3
R107 F3
R108 F3
R109 F4
R110 F4
R111 F4
R112 F4
R113 F4
R114 F4
R115 F4
R116 F4
R117 F4
R118 F4
R119 F4
R120 F4
R121 F4
R122 F4
R123 F5
R124 F5
R126 F5
R127 F5
R128 F5
R129 F5
R130 F5
R131 F5
R141 E3
R142 E3
R143 E3
R144 E3
R145 E3
R146 E3
R147 E3
R148 F3
R149 F5
R150 F5
R151 F5
R152 E5
R171 E5
R172 D4
R174 E5
R175 F1
R176 F1
R177 F1
R178 D6
R179 C6
R180 F1
R181 D6
R214 D6
R216 E2
R219 D5
R220 E2
R221 E2
R222 E2
R223 E2
R224 D2
R226 E2
R231 D5
R233 D4
R237 D3
R238 D3
R239 E5
R241 B4
R242 C4
R243 C4
R244 C4
R256 C10
R258 D10
R261 C4
R262 C4
R263 C4
R264 C4
R266 C2
R268 C8
R269 C9
R270 B3
R274 B5
R275 C9
R276 C9
R277 C9
R278 B9
R279 B9
R280 B9
R283 B5
R304 F9

R305 D2
R306 D5
R307 D2
R308 F2
R309 F2
R310 F2
R311 F2
R312 F2
R313 F2
R314 F2
R315 F2
R316 E7
R317 E7
R326 E8
R328 E8
R329 E8
R331 E8
R332 E8
R333 F8
R334 F8
R335 F7
R336 F8
R342 F8
R348 G3
R349 G4
R350 G4
R351 C2
R353 C2
R355 C2
R356 C4
R357 C3
R358 C2
R359 C2
R361 C2
R363 C2
R365 C2
R367 C2
R368 C3
R369 C3
R370 C3
R373 C2
R377 C3
R378 C3
R379 C3
R380 C3
R384 E5
R387 E2
R388 E2
R389 E2
R390 E2
R391 F2
R392 F2
R393 D9
R395 E2
R396 E2
R402 F2
R403 F2
R408 B8
R409 B9
R412 F1
R413 F1
R424 D4
R425 D4
R426 D4
R427 D4
R428 D4
R429 D4
R430 D4
R431 E5
R432 E5
R433 B9
R437 C3
R438 C3
R439 C3
R440 C3
R441 C3
R442 C3
R443 C3
R444 B3
R445 B3
R446 B4
R447 C3
R449 C3
R451 D2
R453 B9
R454 C4
R459 B3
R460 B3
R463 C3
R464 C3
R465 C2

R469 B9
R474 G4
R475 G3
R479 B9
R480 C10
R481 C10
R482 B9
R492 D2
R493 D2
R495 D2
RU01 B4
RU03 B5
RU04 B5
RU05 B5
RU06 B5
RU07 B5
RU13 B5
RU16 C9
RU17 C9
RU18 C9
RU19 C9
RU20 C9
RU29 C9
RU30 B5
RU31 E2
RU32 E2
RU41 C5
RU43 C5
RU45 C5
RU46 C5
RU48 C5
RU50 C5
RU51 C5
RU53 C5
RU59 B9
RU60 C9
RU61 B9
RU62 B8
RU63 B9
RU64 C8
RU65 C9
RU66 B10
RU67 B9
RU68 B8
RU69 B8
RU70 B8
RU71 B7
RU72 B7
RU73 C7
RU74 F7
RU75 B7
RU76 B7
RU77 B7
RU78 B8
RU79 B7
RU80 B7
RU81 B8
RU82 B8
RU83 B8
RU84 B7
RU85 B8
RU86 C9
RU90 B1
RV02 F4
RV03 F4
RV04 F4
RV05 F4
RV06 F4
RV07 F4
RV08 C8
RV09 C8
RV10 C8
RV11 C8
RV12 C8
RV13 C8
RV14 B4
RV15 B4
RV16 B4
RV23 B9
RV24 B9
RV28 D4
RV32 D4
RV34 D4
RV35 C6
RV36 G7
RV37 G7
RV38 G8
RV39 G8
RV40 G3
RV41 G3

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

37 38

P201 A

BD04 F11
BD05 C11
BD08 F7
CA01 B3
CA02 B3
CA03 B3
CA04 B3
CA05 B3
CA06 B3
CA07 B3
CA08 B3
CA09 C3
CA10 C3
CA11 C3
CA12 C3
CA13 B1
CA14 B1
CA15 B1
CA16 B1
CA17 B1
CA18 B2
CA19 B1
CA20 B2
CA21 C1
CA22 C2
CA23 C2
CA24 C1
CA25 C2
CA26 C2
CA27 C3
CA28 C2
CA29 F3
CA30 F3
CA31 E2
CA32 F5
CA33 F4
CA34 F5
CA35 F4
CA36 F5
CA37 F4
CA38 F5
CA39 F4
CA41 F3
CA42 F4
CA43 E4
CA44 E5
CA45 D4
CA46 D5
CA47 E4
CA48 E5
CA49 E4
CA50 E5
CA51 D4
CA52 D4
CA53 D5
CA54 D5
CA55 E3
CA56 E1
CA57 E3
CA58 E1
CA59 D3
CA60 D1
CA61 D3
CA62 D1
CA63 D3
CA64 D2
CA65 D4
CA66 D2
CA67 E4
CA68 E2
CA69 E4
CA70 E2
CA71 E3
CA72 E2
CA73 D3
CA74 D2
CA80 A5
CA81 A4
CA82 A4
CA83 B5
CA84 B4
CA85 B4
CA86 B4
CA87 B4
CA88 B4
CA89 B5
CA90 B4
CA91 E11
CA92 E10
CA93 E11
CA94 D11
CA95 D11
CB01 B7
CB02 B5
CB03 B7
CB04 B5
CB05 B7
CB06 B6
CB07 B7
CB08 B5
CB09 C7
CB10 C6
CB11 C7
CB12 C6
CB13 C6
CB14 C4

CB15 C7
CB16 C5
CB17 C6
CB18 C4
CB19 C6
CB20 C5
CB21 C6
CB22 C4
CB23 C6
CB24 C5
CB25 C5
CB26 D4
CB27 D5
CB28 D4
CB29 C4
CB30 D5
CB31 C7
CB32 C7
CB33 B8
CB34 B8
CB35 B8
CB36 B8
CB38 B8
CB39 B8
CB40 C8
CB41 C8
CB42 C8
CB43 C8
CB44 E8
CB45 E7
CB46 E8
CB47 E7
CB48 D8
CB49 D7
CB50 D8
CB51 D7
CB52 E8
CB53 E7
CB54 D5
CB55 D6
CB56 E6
CB57 D6
CB58 D6
CB59 D6
CB60 D5
CB61 D6
CB62 E6
CB63 D6
CB64 E5
CB65 E6
CB66 E6
CB67 E6
CB81 E8
CB82 E7
CB83 E8
CB84 F8
CB85 F8
CB86 F8
CB87 F7
CB88 F7
CB89 A9
CC01 B14
CD01 B10
CD02 B10
CD03 A12
CD04 B12
CD05 B11
CD06 B11
CD07 B10
CD08 B12
CD09 B11
CD10 B11
CD11 B11
CD12 B11
CD13 C11
CD14 B11
CD15 C10
CD16 C10
CD17 C10
CD18 C11
CD19 D10
CD20 D10
CD21 D10
CD22 D10
CD23 D9
CD24 D9
CD25 D9
CD26 D10
CD27 D10
CD28 D10
CD29 D10
CD30 E6
CD31 E6
CD32 F6
CD33 F7
CD34 F6
CD35 F6
CD36 F6
CD37 F6
CD38 E6
CD39 E6
CD40 E6
CD41 F6
CD42 F7
CD43 F11
CD45 E9

CD46 E10
CD47 F10
CD48 C10
CD50 A12
CD51 A12
CD52 D9
CD53 D9
DA01 B3
DA02 B3
DA03 B2
DA04 B1
DA05 B4
DA06 B4
DA07 D11
DA08 D5
DA09 D5
DA11 D4
DA12 D2
DA13 E4
DA14 E2
DB01 B7
DB02 B7
DB03 B6
DB04 B5
DB05 A8
DB06 A8
DB07 B7
DB08 B6
DC01 A14
DC02 A15
DC03 B14
DC04 B14
DD01 B9
DD02 B9
DD03 B12
DD04 B12
DD05 B11
DD06 B11
DD07 D10
DD08 E6
JA01 A3

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

JA02 A1
JA03 A4
JA04 E11
JB01 A7
JB02 A5
JB03 A8
JB04 F7
JC01 A13
JC02 A14
JC03 C14
JC04 A14
JC05 C14
JC09 C11
JD01 A9
JD02 A12
JD03 A11
JD06 F11
JD07 F9
JD08 F11
JD09 F1
LA01 B2
LA02 B3
LA03 B1
LA04 B2
LA05 B4
LA06 B4
LB01 B7
LB02 B7
LB03 B5
LB04 B6
LB05 B8
LB06 B8
LB07 B8
LB08 B8
LB09 B7
LB10 B6
LB11 F8
LB12 F8
LB13 F7
LC01 B15
LC02 B14

LC03 B13
LC04 B13
LD01 B12
LD02 B11
LD03 B11
LD04 B12
LD05 A12
LD06 B12
QA01 C3
QA02 C3
QA03 C1
QA04 C2
QA05 C3
QA06 C1
QA07 B4
QA08 C2
QA09 F2
QA10 F3
QA11 F4
QA12 E4
QA13 D4
QA15 D11
QA16 E2
QA17 E3
QA18 D2
QA19 D3
QA20 D2
QA21 D3
QA22 D2
QA23 D4
QA24 D1
QA25 D3
QA26 D1
QA27 D3
QA28 F10
QA30 F9
QA31 F8
QA32 F8
QA33 F8
QA34 F8
QB01 B8

QB02 B6
QB03 C6
QB04 C5
QB05 B8
QB06 B8
QB07 B8
QB08 B8
QB09 C8
QB10 B6
QB11 D5
QB12 D8
QB14 D6
QB15 E8
QD01 B10
QD02 C11
QD03 C10
QD04 D9
QD05 F6
QD06 E9
QD07 E10
QD08 F10
RA01 B3
RA02 B3
RA03 B3
RA04 B3
RA05 B3
RA06 B3
RA07 B3
RA08 B3
RA09 B3
RA10 B3
RA11 C3
RA12 C3
RA13 C3
RA14 C3
RA15 C3
RA16 C3
RA17 C3
RA18 C3
RA19 C3
RA20 C3

RA21 B1
RA22 B1
RA23 B1
RA24 B2
RA25 B1
RA26 B2
RA27 B1
RA28 B2
RA29 B1
RA30 B2
RA31 C1
RA32 C2
RA33 C1
RA34 C2
RA35 C1
RA36 C2
RA37 C1
RA38 C2
RA39 C1
RA40 C2
RA41 C3
RA42 C2
RA43 C3
RA44 C2
RA45 C3
RA46 C2
RA47 C3
RA48 C2
RA49 C2
RA50 C2
RA51 B4
RA52 B4
RA53 B4
RA54 B4
RA55 B4
RA56 B4
RA57 B5
RA58 B4
RA59 B4
RA60 B4
RA61 F1

RA62 F1
RA63 F1
RA64 F1
RA65 F1
RA66 F1
RA67 F1
RA68 F1
RA69 F1
RA70 F1
RA71 E1
RA72 E1
RA73 E1
RA74 E1
RA75 E2
RA76 E2
RA77 E2
RA78 F2
RA79 F2
RA80 F2
RA81 F2
RA82 F2
RA83 F2
RA84 F2
RA85 F2
RA86 F2
RA87 F2
RA88 F3
RA89 F3
RA90 F4
RA91 F3
RA92 E5
RA93 E4
RA94 E5
RA95 E4
RA96 E5
RA97 E4
RA98 E5
RA99 E4
RB01 B7
RB02 B6
RB03 B7

RB04 B5
RB05 B7
RB06 B6
RB07 C7
RB08 C6
RB09 C7
RB10 C6
RB11 C6
RB12 C4
RB13 C6
RB14 C5
RB15 C6
RB16 C4
RB17 C6
RB18 C5
RB19 C6
RB20 C4
RB21 C7
RB22 C5
RB23 C6
RB24 C4
RB25 C7
RB26 C5
RB27 C6
RB28 C4
RB29 C6
RB30 C5
RB31 D6
RB32 C4
RB33 C6
RB34 C4
RB35 D5
RB36 D4
RB37 D5
RB38 D4
RB39 D5
RB40 D4
RB41 D5
RB42 D4
RB43 B8
RB44 B8

RB45 B8
RB46 B8
RB47 B8
RB48 B8
RB49 B8
RB50 B8
RB51 B8
RB52 B8
RB53 B8
RB54 B8
RB55 C8
RB56 C8
RB57 C8
RB58 C8
RB59 C8
RB60 C8
RB61 D7
RB62 D8
RB63 D7
RB64 D5
RB65 D7
RB66 D5
RB67 D6
RB68 D6
RB69 D6
RB70 D6
RB71 D6
RB72 E6
RB73 E6
RB74 E6
RB75 E6
RB76 E5
RB77 E6
RB78 E6
RB79 E8
RB80 E7
RB81 E8
RB82 E7
RB83 F8
RB84 F7
RB85 F7

RB86 F7
RB87 E8
RB88 E7
RB89 D7
RB90 D8
RB91 D7
RB92 D8
RB93 D7
RB94 D7
RB95 D8
RB96 D8
RB97 E7
RB98 E8
RB99 F8
RC01 A14
RC02 A14
RC03 A14
RC04 A14
RC05 B15
RC06 A15
RC07 B15
RC08 B14
RC09 B14
RC10 A14
RC11 A14
RC12 B14
RC13 B14
RC14 B14
RC15 B15
RC16 B13
RC17 B15
RC18 B15
RC19 B14
RC20 B14
RC21 B15
RC22 B15
RC23 B14
RC24 B14
RC27 F9
RC28 F9
RC29 F9

RC30 F9
RC31 F9
RC32 F9
RC33 F9
RC34 F9
RC35 F9
RC36 F9
RC37 G9
RC38 F9
RC39 F9
RC40 F9
RC41 G9
RC42 F10
RC43 F10
RC44 G10
RC45 F10
RC46 B13
RC47 F10
RC48 F10
RC50 E11
RC51 E11
RC52 E11
RC53 E11
RC54 E11
RC55 D11
RC56 D11
RC57 D11
RC58 D11
RC59 D11
RC60 D11
RC61 D11
RC62 F11
RC63 F11
RC64 F11
RC65 F11
RC66 F10
RC67 F8
RC68 F9
RC69 F11
RC70 F11
RC71 C13

RC72 C12
RC73 C13
RC74 C13
RC75 C13
RC76 C13
RC77 C15
RC78 F10
RD00 F7
RD01 B9
RD02 B10
RD03 B9
RD04 B10
RD05 B10
RD06 B10
RD07 B12
RD08 B13
RD09 A13
RD10 B12
RD11 B12
RD12 B12
RD13 B12
RD14 B11
RD15 B11
RD16 B11
RD17 B11
RD18 B11
RD19 B11
RD20 B10
RD21 B10
RD22 B10
RD23 B10
RD24 B10
RD25 B10
RD26 B9
RD27 B9
RD28 B10
RD29 C11
RD30 C11
RD31 C11
RD32 C10
RD33 C10

RD34 C10
RD35 C10
RD36 C9
RD37 D9
RD38 D9
RD39 D10
RD40 D10
RD41 D10
RD42 D10
RD43 B10
RD44 D10
RD45 D10
RD46 D10
RD47 E9
RD48 E9
RD49 D10
RD50 D10
RD51 E9
RD52 D9
RD53 D9
RD54 D9
RD55 D10
RD56 D10
RD57 D9
RD58 D10
RD59 D10
RD60 E9
RD61 E9
RD62 E9
RD63 E9
RD64 E9
RD65 F10
RD66 E9
RD67 E9
RD68 F10
RD69 E10
RD70 E10
RD71 E10
RD72 E6
RD73 E6
RD74 E6

RD75 F5
RD76 F5
RD77 F5
RD78 F5
RD79 F5
RD80 F6
RD81 F6
RD82 F6
RD83 E6
RD84 F5
RD85 E6
RD86 E6
RD87 E5
RD88 F7
RD89 F7
RD90 F10
RD91 G10
RD92 G10
RD93 C9
RD94 F11
RD95 F5
RD96 F5
RD97 B12
RD98 D9
RD99 B11
RF01 F4
RF02 F5
RF03 F4
RF04 F5
RF05 F4
RF06 F4
RF07 E4
RF08 E5
RF09 F5
RF10 D2
RF11 E3
RF12 E2
RF13 E3
RF14 E2
RF15 D3
RF16 D1

RF18 F3
RF19 F9
RF20 F5
RF21 F5
RF22 F5
RF23 F4
RF24 E5
RF25 E4
RF26 E5
RF27 E4
RF28 E5
RF29 E4
RF30 E5
RF31 E4
RF32 E5
RF33 E4
RF34 E9
RF35 E6
RF36 E6
RF37 E6
RF38 E6
RF39 E6
RF40 B10
RF41 B10
RF42 D10
RF43 F8
RF44 F8
RF45 F8
RF46 D5

RF47 B9
RF48 F6
RF49 C9
RF50 C4
RF51 D7
RF52 D8
RF53 D8
RF54 B6
RF55 B6
RF56 B6
RF57 B6
RF58 B6
RF59 B6
RF60 B6
RF61 B3
RF62 B2
RF63 E8
RF64 E7
RF65 E8
RF66 E7
RF67 B3
RF68 B2
RF69 E3
RF70 E2
RF71 E3
RF72 E2
RF73 E3
RF74 E2
RF75 D3

RF76 D2
RF77 E3
RF78 E1
RF79 D3
RF80 D1
RF81 D3
RF82 D1
RF83 D3
RF84 D1
RF85 D3
RF86 D2
RF87 D3
RF88 D2
RF89 D3
RF90 D2
RF91 D4
RF92 D2
RF93 D4
RF94 D2
RF95 D4
RF96 D2
RF97 E4
RF98 E2
RF99 D3
RZ01 D9
RZ02 E9
RZ03 E10
RZ04 E10
RZ05 D10

RZ06 C10
RZ07 C10
RZ08 C10
RZ09 F10
RZ10 G11
RZ11 F12
RZ12 G11
RZ13 C12
RZ14 F11
RZ15 B12
RZ16 F10
RZ17 C11
RZ18 B10
RZ19 G3
RZ20 G3
RZ21 G4
RZ22 G4
RZ23 G5
RZ24 F4
RZ25 F3
RZ26 E3
RZ27 E3
RZ28 E4
RZ29 E4
RZ30 E4
RZ31 E2
RZ32 D2
RZ33 D2
RZ34 D3

RZ35 C3
RZ36 C3
RZ37 F7
RZ38 E7
RZ39 G7
RZ40 F7
RZ41 E7
RZ42 E7
RZ43 C8
RZ44 C8
XD01 F6

39 40

P201 B

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

41 42

P202 A

P202 B

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

C850 A5
C851 A5
C852 A5
C853 A5
C854 A5
C855 A6
C856 B9
C857 B9
C858 B9
C859 B8
C860 B7
C861 B7
C862 B7
C863 B9
C864 B9
C865 B9

C866 B7
C867 B8
C868 B7
C869 B8
D850 B2
D851 B11
D852 B11
D853 B11
D854 B12
D855 B12
D856 B12
D857 B12
D858 B13
D859 B13
D860 B13
D861 B13

D862 B14
D863 A13
D864 A14
D865 A13
D866 A14
D867 B11
D868 B11
D869 B11
D870 B12
D871 B12
D872 B12
D873 B12
D874 B13
D875 B13
D876 B13
D877 B13

D878 B14
D879 A11
D880 A11
D881 A12
D882 A12
D883 B8
J850 B6
J851 B14
J852 B7
Q852 B8
Q853 B9
R850 A6
R851 A6
R852 A6
R853 A6
R854 A6

R855 A6
R856 A6
R857 A6
R858 A6
R859 A6
R860 A6
R861 B11
R862 B11
R863 B11
R864 B12
R865 B12
R866 B12
R867 B12
R868 B13
R869 B13
R870 B13

R871 B13
R872 B14
R873 B13
R874 A14
R875 A13
R876 A13
R877 B11
R878 B11
R879 B11
R880 B12
R881 B12
R882 B12
R883 B12
R884 B13
R885 B13
R886 B13

R887 B14
R888 B14
R889 A10
R890 A10
R891 A12
R892 A10
R893 B8
R894 A14
R895 A13
R896 A11
R897 A11
R898 A9
R899 A9
R900 A9
R901 A9
R902 A9

R903 A9
R904 A9
R905 A9
R906 B2
S850 A14
S851 A12
S852 A13
S858 A4
S860 A11
S861 B1
S862 B4
S863 B3

43 44

P203 A

P203 B

P204 A P205 A

D980 A1
R980 A2
W980 A2

P205 BP204 B

J970 B1
R970 B1
R971 B1
S970 A3

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

C500 B3
C501 B3
C502 C3
C503 B2
C504 B3
C505 B3
C506 B3
C507 A3
C508 C1
C509 C1
C510 C1

C511 C1
C512 C2
C513 C2
C514 B2
C515 B2
C516 C2
C517 C2
C518 A2
C521 A2
C522 B2
C526 C3

C527 C3
D500 B2
J501 A1
J502 A2
J503 B3
L500 B3
L501 B3
L502 A3
L503 B3
Q500 B2
Q501 A2

R500 B3
R501 B2
R502 A2
R503 B2
R504 B2
R505 B1
R506 B1
R507 B2
R508 B2
R509 C2
R511 B2

R514 B1
R515 A1
R516 A1
R517 A1
R518 A1
R519 A2
R520 A2
R521 A2
R522 B1
R523 B2
R524 A2

45 46

P301 A

BD02 F6
BD03 D6
BD06 B6
BD07 D6
C700 C2
C701 D1
C702 E1
C703 G1
C704 F3
C705 E4
C706 D4
C707 D5
C708 D4
C709 D4
C710 F5
C711 E6
C712 F6
C713 B4
C714 B4
C715 B5
C716 F10
C717 B7
C718 B7
C719 B7
C720 F7
C721 F7
C722 F8
C723 F8
C724 C8
C725 C9
C726 C9
C727 C9
C728 B9
C729 D7
C730 D7
C731 D7
C732 F7
C733 E8
C734 E9
C735 E9
C736 E9
C737 E9
C738 E9
C739 E9
C740 E8
C741 D9
C742 D9
C743 D9
C744 F9
C745 F8
C746 F9
C747 B7
C749 E9
C750 E9
C751 E9
C752 D9
C753 E9
C754 A3
C755 F2
D700 G3
D701 E3
D702 B4
D703 D4
D705 E6
D706 B5
D708 B7
D709 C7
D710 B9
D711 B10
D712 C9
D713 C10
D714 F7
D715 D8
D716 D10
D717 F8
D718 E10
D719 F8

D720 A2
G700 C1
J701 B1
J702 A8
J703 A4
J704 F6
J705 F1
J707 A10
J708 C3
J709 D3
J710 E10
J711 F10
L700 E2
L701 A5
L702 B5
L703 C7
L704 B9
L705 D8
L706 D9
L707 F8
L708 F9
Q700 D5
Q701 F5
Q702 E6
Q703 F7
Q704 C9
Q705 B10
Q706 C10
Q707 C6
Q708 C8
Q709 D7
Q710 A6
Q711 A6
Q712 F6
Q713 F7
Q714 E7
Q715 E9
Q716 D8
Q717 E8
Q718 D8
Q719 B6
Q720 B10
R700 D1
R701 D4
R702 D4
R703 D5
R704 E6
R705 E6
R706 E6
R707 E6
R708 E6
R709 E6
R710 E6
R711 B4
R712 B6
R713 A5
R714 B10
R715 B10
R716 B10
R717 C7
R718 B7
R719 B7
R720 B7
R721 C8
R722 B8
R723 B8
R724 B10
R726 B8
R727 C7
R728 F7
R729 F8
R730 F8
R731 F8
R732 F8
R733 C9
R734 C9
R735 C9

R736 C9
R737 C9
R738 C9
R739 B10
R740 A3
R741 C10
R742 B10
R743 B10
R744 C10
R745 C6
R746 C6
R747 D7
R748 D7
R751 D7
R752 E7
R753 D7
R754 D7
R755 D7
R756 C6
R757 D7
R758 A6
R759 A6
R760 A6
R761 E7
R762 E7
R763 D7
R764 E7
R765 E7
R766 F7
R767 F6
R768 F6
R769 F6
R770 F7
R771 F7
R772 F6
R773 E6
R774 E8
R775 E8
R776 E9
R777 E9
R778 E9
R779 E9
R780 E9
R781 E8
R782 E9
R783 E8
R784 E9
R785 E9
R786 D8
R787 D8
R788 D9
R789 D9
R790 D9
R791 D10
R792 E8
R793 E8
R794 E9
R795 E9
R796 F10
R797 F8
R798 D7
R799 B10
R829 D9
R830 E9
R831 B6
R832 B10
R991 D8
R992 D8
R993 D5
R994 E6
R995 E6
S700 B2
S701 B6
S702 C6
T700 D5
X700 D8

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

47 48

P301 B

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

49 50

P302 A

BD01 A1
C801 B1
C802 B2
C803 D2
C804 D2
C805 C2
C806 C2
C807 C2
C808 C2
C809 B1
C810 B2
C811 C1
C812 C1

C813 C1
C814 C1
C815 C1
C816 C1
D801 D2
D802 D1
J800 A2
J801 E1
L801 C1
L802 C1
L803 C1
L804 C1
L805 C1

L806 B2
L807 B2
L808 B2
L810 B2
L811 B2
Q801 C2
Q802 C1
Q803 C1
Q804 C1
Q805 C1
R802 D2
R803 C2
R804 C2

R805 C2
R806 C2
R807 C2
R808 C2
R809 C2
R810 C2
R811 B1
R812 B1
R813 B1
R814 B1
R815 C1
R816 C1
R817 C1

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

P302 B

R818 C1
R819 C1
R820 C1
R822 C1
R823 C1
R824 C1
R825 C1
R826 C2
R827 C2

P303 A

C650 A1
C651 A1
C652 A2
C653 A2
C654 B2
C655 B2
D652 A2
D653 A2
D655 A2
D656 A2
D657 A2
D658 A2
D659 B2
D660 B2
D661 B2

D662 B2
J651 B3
J652 A1
R654 A2
R655 A2
R657 A1
R658 A2
R659 A2
R660 A1
R661 A1
R662 A1
R663 A2
R664 A2

P303 B

51 52

鉛フリー半田

半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。

Lead-free Solder

When soldering, use the Lead-free Solder (Sn-Ag-Cu).

53 54

9. EXPLODED VIEW AND PARTS LIST

5128

5104

SYMBOL STYLE PARTS NAME

STEEL / BLACK

STEEL / CHROMATE

(U)

MATERIAL / FINISHMARK

(A)

+F.H.M.SCREW

5110

+B.H.M.SCREW

+B.H.TAP TITE SCREW(B TYPE)

5405

TOOTHED LOCK WASHERS

5126

002D

5126

ø3x8(U)

x4

5126

ø3x8(U)

x6

012D
x 2

006D

5125

+B.H.TAP TITE SCREW(P TYPE)

+B.H.TAP TITE SCREW W/WASHER

5183

+B.H.M.SCREW

004D

009L

022D(U)

020D

002B

044B

040B

032B

054B

018B

004B

008B

x2

006B

042B

025B

028B

026B

024B

010B

5202

V990

5205

016B

014B

5302

5204

004G
x4

030G

002G

5303(F)

L710
L720

020G

905G

920G

922G

046B

048B

906G

908G

024G

5101

5210

5203(U,N)

5301

J700

002L

001L

034B

5128

ø3x8(U)

x3

5110

ø3x6(A)

x5

5110

ø3x6(A)

5110

ø3x6(A)

5125

ø3x8(U)

x2

5125

ø2x6(A)

x2

030B

x2

5110

ø3x6(A)

x6

5110

ø3x6(A)

x6

5183

ø2x3(B)

x4

5405

ø4(R)

5110

ø3x6(A)

5125

ø3x8(U)

x2

5125

ø3x8(U)

x4

5128

ø3x8(U)

x4

5128

ø3x8(U)

x2

5128

ø3x8(U)

x4

5128

ø3x8(U)

x2

5128

ø3x8(U)

x3

10. PACKING AND PARTS LIST

002S

004S

006T

Z007

Z001

016Z

Z005

Z004

004T

008T

002T

FRONT

F

R

006S

004S

010S

010T

010S

008S

INST

002Z,004Z

Z001

016Z

Z002
(for UK)

016Z

016Z

Z001
(for Europe)

006Z

N1SU1SF1S

POS. NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

006B 1 00M238H355020 LENS LENS ACCESS LED
008B 2 00M204N122110 ADHESIVE ADHESIVE FOR LENS

010B 1 00M09CS105022 FRONT CHASSIS FRONT INNER CHASSIS
014B 1 00M43BS160010 HP BRACKET HP BRACKET FOR HP PWB
018B 1 00M43BS154220 HP VOL KNOB SILVER HP VOL KNOB

024B 1 00M09CS162010 DOOR CF DOOR
025B 1 00M20BS861050 CF CAUTION LABEL LABEL FOR CF DOOR
026B 1 00M2912259020 ACCESSORY HOLE BUSH FOR CF DOOR
028B 2 00M49AS112010 SHAFT SHAFT CF DOOR

030B 3 00M39BS270010 BUTTON BUTTON:SHIFT/EDIT/LOCK
032B 1 00M43BS158110 WINDOW LCD WINDOW

034B 1 00M43BS056010 BUFFER

BUFFER FOR F,
CHASSIS LCD WINDOW

040B 1 00M39BS158020 LED WINDOW LEVEL WINDOW
042B 1 00M09CS270013 BUTTON BUTTON 4PCS
044B 1 412510001004P JOG KNOB JOG KNOB
046B 1 00M43BS270250 BUTTON SILVER POWER BUTTON
048B 1 00M43BS121012 LINK POWER BUTTON LINK

054B 1 00M09CS067010 USB B CAP USB B CAP
056B 2 456110001008P ADHESIVE ADHESIVE

002G 1 00M43BS105213 MAIN CHASSIS MAIN CHASSIS
004G 4 00M416H057010 LEG LEG

020G 1 00M371K010020 SCREW GND SCREW
022G 1 00M54050400R0 SCREW GND WASHER

926G 1 00D1290272003 RJ45 DUST COVER(DCMJST) FOR LAN CONNECTOR
928G 1 00D1290272003 RJ45 DUST COVER(DCMJST) FOR LAN CONNECTOR

009L /N1S 1 00M43BS861050

PACKING

002T /F1S 1 00M09CS851110 USER MANUAL(F) USER MANUAL(F)
002T /N1S 1 00M09CS851250 USER MANUAL(U,N) USER MANUAL(U,N)
002T /U1S 1 00M09CS851250 USER MANUAL(U,N) USER MANUAL(U,N)
004T /N1S 1 00M09CS851010 USER MANUAL(CD-ROM) USER MANUAL(CD-ROM)
004T /U1S 1 00M09CS851010 USER MANUAL(CD-ROM) USER MANUAL(CD-ROM)

Z001 /F1S 1 00MZC02001220 # VCTF 3 X 2.00 3P FOR JAPAN
Z001 /N1S 1 00MZC02003190 # AC CORD 3P FOR N 10A 250V AC # AC CORD 3P FOR N 10A 250V AC
Z001 /U1S 1 00MZC01802110 # AC CORD 3P FOR U 10A 125V AC # AC CORD 3P FOR U 10A 125V AC
Z002 /N1S 1 00MZC01804100 AC 250V 10A FOR UK
Z008 /F1S 1 00MYP04000830 KPR-25 AC ADAPTOR DENTORI KPR-25 AC ADAPTOR DENTORI

55 56

57 58

11. IC DATA

78Q2120

PACKAGE PIN DESIGNATIONS

(TOP VIEW)

AT24C16B

PIN CONFIGURATION

Pin Name Function

A0 - A2 No Connect

SDA Serial Data

SCL Serial Clock Input

WP Write Protect

GND Ground

VCC Power Supply

59

8-LEAD SOIC

A0
A1
A2

GND

1
2
3
4

VCC

8

WP

7

SCL

6

SDA

5

CS4271

2.5 V to 5 V

3.3 V to 5 V 5 V

Hardware or

2

C/SPI

I

Control Data

Reset

Serial
Audio

Input

Serial
Audio

Output

Register / Hardware

Configuration

Level TranslatorLevel Translator

Internal Voltage

Reference

Mixer

Selectable

Interpolation

Filter

Selectable

Interpolation

Filter

ΔΣ Modulator

ΔΣ Modulator

Low-Latency

Anti-Alias Filter

Low-Latency

Anti-Alias Filter

Volume

Control

Volume

Control

High Pass Filter &

DC Offset Calibration

PCM Serial Interface / Loopback

High Pass Filter &

DC Offset Calibration

Internal

Oscillator

External

Mute Control

Switched Capacitor

DAC and Filter

Switched Capacitor

DAC and Filter

Multibit

Oversampling

ADC

Multibit

Oversampling

ADC

Left and
Right Mute
Controls

Left
Differential
Output

Right
Differential
Output

Left Input

Right Input

PIN DESCRIPTION

1

2

3

4

5

6

7

28-Pin TSSOP

28

27

26

25

24

23

22

128

9

10

11

20

19

18

7121

AD0/CS

RST VQ1

13

16

5141

CETUMBOTX

-BTUOAITX

+BTUOAKLCM

+ATUOAKCRL

-ATUOAKLCS

CETUMATUODS

+TLIFNIDS

DNGADNGD

AVDV

3QVLV

BNIAKLCC/LCS

ANIANIDC/ADS

VQ2

60

CS8420

ILRCK
ISCLK

SDIN

RXP

RXN

AGND

VA+

Serial
Audio
Input

Receiver

Misc.
Control

H/S

FILT RERR VD+

Clock &
Data
Recovery

RMCK

AES3
S/PDIF
Decoder

CDOUT

Sample
Rate
Converter

C&Ubit
Data
Buffer

Control
Port &
Registers

SCL/
CCLK

AD1/
CDIN

AD0/CSINT

AES3
S/PDIF
Encoder

Output
Clock
Generator

KCMOTSR EMPH U TCBL SDA/

DGND

Serial
Audio
Output

Driver

OLRCK
OSCLK
SDOUT

TXP

TXN

PIN DESCRIPTION

61

EP9315

PIN BGA PINOUT

62

ISP1582

3.3 V

1.5 kΩ

RPU

RREF

12.0 kΩ

RESET_N

V

CC

2

6

7

53, 54

3.3 V

to or from USB

HI-SPEED USB
TRANSCEIVER

POWER-ON

RESET

analog supply

VOLTAGE

REGULATORS

13, 26,
29, 41

BLOCK DIAGRAM

12 MHz

DMDP

43495251

1, 5

V

SoftConnect

internal
reset

digital
supply

VCC1V8 SUSPEND WAKEUPAGNDDGND

BUS

NXP SIE/PIE

SYSTEM

CONTROLLER

5556

XTAL2XTAL1

ISP1582

MEMORY

MANAGEMENT

UNIT

INTEGRATED

RAM

(8 kB)

I/O pad

supply

21, 34, 4828, 50

V

CC(I/O)

DMA

HANDLER

DMA

REGISTERS

MICRO-

CONTROLLER

HANDLER

OTG SRP
MODULE

DREQ DIOR

DACK

9101112

DMA

INTERFACE

MICRO-

CONTROLLER

INTERFACE

DIOW

30 to 33,
35 to 40,

42 to 47

18 to 20,
22 to 25,

27

15

16

17

14

004aaa199

8

EOT

16

DATA
[

]

15:0

8

]

A[7:0

CS_N

RD_N

WR_N

INT

PIN CONFIGURATION

terminal 1

index area

CCVCC

SUSPEND

WAKEUP

V

XTAL1

56555453525150494847464544

1 42

AGND DATA10

2 41

RPU DGND

3 40

DP DATA9

4 39

DM DATA8

5 38

AGND DATA7

6 37

RREF DATA6

RESET_N DATA5

7 36

8 35

EOT DATA4

9 34

DREQ V

10 33

DACK DATA3

11 32

DIOR DATA2

12 31

DIOW DATA1

13 30

DGND

14 29

INT

ISP1582BS

15161718192021222324252627

A0A1A2

CS_N

RD_N

WR_N

Transparent top view

XTAL2

VCC1V8

V

BUSVCC(I/O)

V

A3A4A5

CC(I/O)

DATA15

DATA14

A6

DATA13

DATA12

A7

DGND

DATA11

43

CC(I/O)

DATA0

DGND

28

004aaa536

VCC1V8

63

JS28F128P30

Notes:

1. A1 is the least significant address bit.

2. A23 is valid for 128-Mbit densities and above; otherwise, it is a no connect (NC).

3. A24 is valid for 256-Mbit densities; otherwise, it is a no connect (NC).

4. Synchronous burst read operation is currently not supported for the TSOP package. The synchronous
read input signals (i.e. ADV# and CLK) should be tied off to support asynchronous reads. See Section

Intel StrataFlash®

Embedded Memory (P30)

56-Lead T SOP Pinout

14 mm x 20 mm

Top View

1

3
4

2

5

7
8

6

9

11
12

10

13

15
16

14

17

19
20

18

21

23
24

22

25

27
28

26

56

54
53

55

52

50
49

51

48

46
45

47

44

42
41

43

40

38
37

39

36

34
33

35

32

30
29

31

A14
A13
A12

A10

A9

A11

A23

A21

VSS

A22

VCC

WP#

A20

WE#

A19

A8
A7

A18

A6

A4
A3

A5

A2

RFU
VSS

A24

WAIT

DQ15
DQ7

A17

DQ14

DQ13
DQ5

DQ6

DQ12

ADV#
CLK

DQ4

RST#

A16

DQ3

VPP

DQ10

VCC

Q

DQ9

DQ2

DQ1

DQ0
VCC

DQ8

OE#

CE#
A1

VSS

A15

DQ11

56-LEAD TSOP PINOUT (64/128/256-MBIT)

LC78211

LEVEL SHIFT

LATCH

SHIFT REGISTER

CONTROL

64

MT48LC64M4A2

-

NC

-

NC

DQ0

-

NC
NC

-

NC

DQ1

-

NC

-

NC

-

-

-

-

-

-

-

-

-

-

-

-

-

DQ0

-

NC

DQ1

-

NC

DQ2

-

NC

DQ3

-

NC

-

NC

-

-

-

-

-

-

-

-

-

-

-

-

Pin Assignment (Top View) 54-Pin TSOP

VDD

DQ0

DDQ

V

DQ1
DQ2

VssQ

DQ3
DQ4

V

DDQ

DQ5
DQ6

VssQ

DQ7

DD

V

DQML

WE#
CAS#
RAS#

CS#

BA0
BA1

A10

A0
A1
A2
A3

DD

V

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28

Vss

DQ15

VssQ

DQ14
DQ13

V

DDQ

DQ12
DQ11

VssQ

DQ10
DQ9

V

DDQ

DQ8

Vss
NC
DQMH
CLK
CKE

A12
A11
A9
A8
A7
A6
A5
A4

Vss

x8x16 x16x8 x4x4

-

DQ7

-

NC

DQ6

-

NC

DQ5

-

NC

DQ4

-

NC

-

-

DQM

-

-

-

-

-

-

-

-

-

-

-

-

NC

-

NC

DQ3

-

NC
NC

-

NC

DQ2

-

NC

-

-

DQM

-

-

-

-

-

-

-

-

-

-

-

RS5C372A

Note: The # symbol indicates signal is active LOW. A dash (–) indicates x8 and x4 pin function is

same as x16 pin function.

65

SN65LVDM179

FUNCTION TABLE(TOP VIEW)

Receiver

INPUTS OUTPUT

Open

H = "H" Level, L = "L" Level, ? = indeterminate

Driver

INPUT OUTPUTS

Open

H = "H" Level, L = "L" Level

SN65LVDS3487

1A
1Y
1Z

1,2EN

2Z
2Y
2A

GND

(TOP VIEW)

1

16

2

15

3

14

4

13

5

12

6

11

7

10

8

9

V

CC

4A
4Y
4Z
3,4EN
3Z
3Y
3A

LOGIC DIAGRAM

1

1A

2A

3A

4A

4

7

9

12

15

1,2EN

3,4EN

10

14

13

2

1Y

3

1Z

6

2Y

5

2Z

3Y

11

3Z

4Y

4Z

66

SN74LV04A

SN74LV125A

FUNCTION TABLE

H : High Level

L : Low Level

(TOP VIEW)

1OE

1A
1Y

2OE

2A
2Y

GND

LOGIC DIAGRAM (POSITIVE LOGIC)

1

1OE

2

1A 1Y

4

2OE

5

2A 2Y

3

6

1

2

3

4

5

6

7

V

14

CC

13

4OE

12

4A

11

4Y

10

3OE

9

3A

8

3Y

10

3OE

9

3A 3Y

13

4OE

12

4A 4Y

8

11

67

SN74LV138A

(TOP VIEW)

16

15

14

13

12

11

10

V

CC

Y0
Y1
Y2
Y3
Y4
Y5

9

Y6

G2A
G2B

G1

Y7

GND

A

1

B

2

C

3

4

5

6

7

8

FUNCTION TABLE

ENABLE INPUTS SELECT INPUTS OUTPUTS

G1 G2A G2B C B A Y0 Y1 Y20 Y3 Y4 Y5 Y6 Y7

XHXXXXHHHHHHHH

XXHXX XHHHHHHHH

LXXXXXHHHHHHHH

HLLLLLLHHHHHHH

HLLLLHHLHHHHHH

HLLLHLHHLHHHHH

HLLLHHHHHLHHHH

HL L H L L HHHH L HHH

HLLHLHHHHHHLHH

HLLHHLHHHHHHLH

HL L HHHHHHHHHH L

SN74LV244A

FUNCTION TABLE

H : High Level

L : Low Level

X : Don't care

Z : High impedance

68

SN74LV273A

OUTPUT

SN74LV541A

(TOP VIEW) FUNCTION TABLE

H : High Level

L : Low Level

X : Don't care

(TOP VIEW)

FUNCTION TABLE

OE1

A1
A2
A3
A4
A5
A6
A7
A8

GND

1

2

3

4

5

6

7

8

9

10

20

19

18

17

16

15

14

13

12

11

V

CC

OE2
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8

LOGIC DIAGRAM (POSITIVE LOGIC)

OE1

OE2

1

19

218

A1

(each buffer/driver)

INPUTS

OE1 OE2 A

L L L L

L LH H

H XX Z

X H X Z

Y1

OUTPUT

Y

To Seven Other Channels

69

TC74HCU04A

TC74LCX16244

(TOP VIEW)

OE1

1Y1

1Y2

GND

1Y3

1Y4

V

CC

2Y1

2Y2

GND

2Y3

2Y4

3Y1

3Y2

GND

10

11

12

13

14

15

1

2

3

4

5

6

48

47

46

45

44

43

OE2

1A1

1A2

GND

1A3

1A4

OE1

OE2

1A1-1A4 1Y1-1Y4

2A1-2A4

2Y1-2Y4

3Y1-3Y4

4Y1-4Y4

OE3

OE4

3A1-3A4

4A1-4A4

1/4

V

7

8

9

42

41

40

39

38

37

36

35

34

CC

2A1

2A2

GND

2A3

2A4

3A1

3A2

GND

3Y3

3Y4

V

CC

4Y1

4Y2

4Y3

4Y4

OE4

16

17

18

19

20

22

23

24

33

32

31

30

29

2821GND

27

26

3A3

3A4

V

CC

4A1

4A2

GND

4A3

4A4

OE3

70

TC74LCX16245

(TOP VIEW)

1

1DIR

2

1B1

48

47

OE1

1A1

1DIR

2DIR

OE1

OE2

1B2

GND

1B3

1B4

V

CC

1B5

1B6

GND

1B7 11

1B8

2B1

2B2

GND

2B3

2B4

10

12

13

14

15

16

17

3

4

5

6

7

8

9

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

1A2

GND

1A3

1A4

V

CC

1A5

1A6

GND

1A7

1A8

2A1

2A2

GND

2A3

2A4

1A1

1B1

2B1

2A1

1/8

V

CC

2B5

2B6

GND

2B7

2B8

2DIR

18

19

20

22

23

24

31

30

29

2821

27

26

25

V

CC

2A5

2A6

GND

2A7

2A8

OE2

71

TC9459BFG

(TOP VIEW)

BLOCK DIAGRAM

Same as

Lch 7 to 91 decoder

Lch latch circuit Rch latch circuit

Shift register (24 bit)

Level shift circuit

Rch 7 to 91 decoder

L-ch

72

uPD4721

EC11B15242AE

73

NJU3716A

BLOCK DIAGRAM

SHIFT

REGISTER

CONTROL CIRCUIT

LATCH

CIRCUIT

74

RCU7276Y-B

BLOCK DIAGRAM

PIN CONFIGURATION

LCD Connector

Pin No. Pin No. NameSignal

Backlight Power Supply
Connector

75

CR2032 (SANYO)

The exchange of the battery (IEC60065, UL60065).

CAUTION

Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

76

電池

(IEC60065, UL60065)

の交換について

注意

電池を誤って交換すると爆発する危険があります。
同一又は同等の型のものにのみ交換してください。

12. ELECTRICAL PARTS LIST

PARTS INFORMATION

ABBREVIATION AND MARKS

ANT. : ANTENNA BATT. : BATTERY

CAP. : CAPACITOR CER. : CERAMIC

CONN. : CONNECTING DIG. : DIGITAL

HP : HEADPHONE MIC. : MICROPHONE

μ-PRO : MICROPROCESSOR REC. : RECORDING

RES. : RESISTOR SPK : SPEAKER

SW : SWITCH TRANSF. : TRANSFORMER

TRIM. : TRIMMING TRS. : TRANSISTOR

VAR. : VARIABLE X’TAL : CRYSTAL

NOTE ON SAFETY :

Symbol Fire or electrical shock hazard. Only original

parts should be used to replaced any part marked with

symbol . Any other component substitution (other

than original type), may increase risk of fire or electrical

shock hazard.

NOTE: "nsp" PART IS LISTED FOR REFERENCE ONLY, D&M

WILL NOT SUPPLY THESE PARTS.

77

PWB

NAME

POS.

VERS.

NO.

COLOR

J700 1 00MYJ04002450 !3P AC INLET M1910-D EMUDEN

L710 1 00MFC50220 010 TFC-16-8-16 ( TROIDAL FERRITE CLAMP)

L720 1 00MYJ90014730 TFP2014-T

QTY PART NO. PART NAME DESCRIPTION

L730 1 00MFC20310010 FERRITE CORE : KITAGAWA FPC-31-12-3 FPC-31-12-3 Ferrite core 100MHZ >30

V990 1 00MKZ03302210 RCU7276Y-B LCD UNIT FOR PMD580 DISPLAY LCD UNIT

W002 1 00MYE05040950 SRA-UL1015 AWG18 L=9CM

W016 1 00M43BS152010 ULTUBE (INNER DIA.Ø4.6-L36) RoHS
W018 1 00M43BS152010 ULTUBE (INNER DIA.Ø4.6-L36) RoHS

5101 99MZZ09CS1000

P101 B101 1 00MYJ14000080 20H-1T (CR2032 HOLDER) SANYO

P101 C002 1 00MEY10700620 100µF/ 6.3V 100µF/6.3V
P101 C004 1 00MEY10700620 100µF/ 6.3V 100µF/6.3V
P101 C006 1 00MEY10700620 100µF/6.3V 100µF/6.3V
P101 C007 1 00MEY10700620 100µF/ 6.3V 100µF/6.3V

P101 C018 1 00MEY10701620 100µF/16V 100µF/16V

P101 C087 1 00MEY10701620 10 0µF/16V 100µF/16V

P101 C091 1 00MEY10601620 10µF/16V 10µF/16V

P101 C100 1 00MEY10601620 10µF/16V 10µF/16V

MAIN PCB ASSY

Ω

P101 C126 1 00 MEY10501670 SVSP1C 1µF/16V SVSP1C 1µF/16V

P101 C151 1 00MEY1070 0620 100µF/6.3V 100µF/ 6.3V
P101 C152 1 00MEY10700 620 100µF/ 6.3V 100µF/6.3V

P101 C165 1 00MEY10700 620 100µF/ 6.3V 100µF/6.3V
P101 C168 1 00ME Y10701620 100µF/16V 100µF/16V
P101 C169 1 00MEY10700 620 100µF/ 6.3V 100µF/6.3V

P101 C179 1 00MEY1070 0620 100µF/6.3V 100µF/ 6.3V

P101 C182 1 00MEY10700 620 100µF/ 6.3V 100µF/6.3V

P101 C420 1 00MEY10701620 10 0µF/16V 100µF/16V

P101 C437 1 00MEY10 601620 10 µF/16V 10µF/16V

P101 CU37 1 00MEL47501010 APXA100AR A4R7MD55G 4.7µF/10V (PXA)

P101 D006 1 00D2760683943 UDZS3.6B-TE17
P101 D007 1 00D2760560901 DAN202KT146 +C

P101 D013 1 00D3939631903 TLGU1002A(T02)
P101 D014 1 00MHI10038050 TLSU1002A(T02)
P101 D016 1 00MHZ30012060 NSAD500F SURGE ABSORBER
P101 D018 1 00D2760833900 ESD PROTECTOR(6802)
P101 D019 1 00D2760833900 ESD PROTECTOR(6802)

P101 D023 1 00D2760833900 ESD PROTECTOR(6802)
P101 D024 1 00D2760833900 ESD PROTECTOR(6802)

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

78

PWB

NAME

P101 D025 1 00D2760560901 DAN202KT146 +C DAN202K ROHM

P101 D050 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D051 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D052 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D053 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D054 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D055 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D056 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D057 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D058 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D059 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B

P101 D060 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D061 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D062 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D063 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D064 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D065 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D066 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B
P101 D067 1 00MHZ30018210 UDZS3.6B (3.6V ZENER DIODE) UDZS TE-17 3.6B

P101 D110 1 00MHZ21005000 1SS301,DAN202U UMT TYPE 1SS301,DAN202U UMT TYPE
P101 D118 1 00D2760833900 ESD PROTECTOR(6802)

POS.

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

P101 J001 1 00MYJ07019780 B8B-PH-SM4-TB (LF)(SN) B8B-PH-SM3-TB JST
P101 J004 1 00MYJ07014260 20FMN-BMTTN-A-TFT
P101 J007 1 00D2051072904 3P PH CON.BASE(TAPE) +REF
P101 J008 1 00MYJ90014750 SCFB1A0500(HEADER)

P101 J011 1 00MYJ070 61010 FH12-3 4S-0.5SV FH12-34S-0.5SV
P101 J012 1 00MYJ07014200 14P FFC CONNECTOR FMN-BMTTN-TP
P101 J013 1 00D2051072917 4P PH CON BASE(TAPE) +REF
P101 J014 1 00MYJ07014280 22FMN-BMTTN-TFT JST 22FMN-BMTTN-TFT JST
P101 J015 1 00D2051072917 4P PH CON BASE(TAPE) +REF

P101 J051 1 00MYJ90014770 UBB-4R-D14T-4D
P101 J052 1 00MYJ07019770 B7B-PH-SM4-TB (LF)(SN)

P101 J088 1 00MYJ90014760 SCFB3A0300(EJECTOR)

P101 L001 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE
P101 L002 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE
P101 L004 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE
P101 L009 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE

P101 L010 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE
P101 L011 1 00MFN31010060 BLM18PG600SN1D EMI FILTER BLM11P600S
P101 L012 1 00MFN31010060 BLM18PG600SN1D EMI FILTER BLM11P600S
P101 L014 1 00MFC90020110 BLM18BD601SN1D
P101 L015 1 00MFC90020110 BLM18BD601SN1D
P101 L016 1 00MFC90020110 BLM18BD601SN1D
P101 L017 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE
P101 L018 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE
P101 L019 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE

P101 L112 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE
P101 L113 1 00MFC90020110 BLM18BD601SN1D BLM11B601S CHIP FERRITE

P101 L120 1 00MFC90020110 BLM18BD601SN1D

P101 L151 1 00MFN21010060 DLW21SN900SQ2L DLW21SN900SQ2L

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

79

PWB

NAME

POS.

P101 L152 1 00MFN31030030 BLM21PG600SN1D 2012 3A BLM21PG600SN1

P101 L650 1 00MTP93570010 PULSE TRANS. TLA-6T118LF-T TDK

P101 Q001 1 00MHC12252090 NJM2387DL2
P101 Q002 1 00MHC12252090 NJM2387DL2
P101 Q003 1 00MHC12252090 NJM2387DL2
P101 Q004 1 00MHC12252090 NJM2387DL2
P101 Q005 1 00D2622785905 SN74LV125APWRG4 +C
P101 Q009 1 00MHC10259990 AT24C16BN-SH-T

P101 Q010 1 00D2622515900 SN74LV04APW-EL2 +C
P101 Q015 1 00D2622517908 SN74LV08APW-EL2 +REF

P101 Q020 1 00MHC1048099F MT48LC32M16A2P-75
P101 Q021 1 00MHC1048099F MT48LC32M16A2P-75
P101 Q022 1 00MHJ09CSX02F JS28F128P30T85(FOR PMD580) JS28F128P30T85(FOR PMD580)
P101 Q024 1 00MHC10234210 BD45302G RESET 3.0V
P101 Q026 1 00D2622785905 SN74LV125APWRG4 +C
P101 Q029 1 00MHC10474050 TC74LCX14FT TC74LCX14FT

P101 Q036 1 00MHC011705K0 TC74LCX00FT(EL.K)
P101 Q037 1 00D2622514901 SN74LV138APW-EL2 +C
P101 Q038 1 00D2622514901 SN74LV138APW-EL2 +C
P101 Q039 1 00D2622641900 SN74LV541APW-EL2 +C

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

P101 Q040 1 00D2620945909 SN7438NS-R +C

P101 Q042 1 00MHC10003600

P101 Q043 1 00D2690083901 DTA114EKT96 +C DTA114YK (ROHM)

P101 Q105 1 00MHC10036770 RS5C372A-E2

P101 Q112 1 00D2622519906 SN74LV00APW-EL2 +C
P101 Q117 1 00MHC011705K0 TC74LCX00FT(EL.K)
P101 Q118 1 00MHC712300Z0 CMOS LOGIC IC 74HC123 (FLAT) CMOS LOGIC IC 74HC123 (FLAT)
P101 Q119 1 00MHC011705K0 TC74LCX00FT(EL.K)

P101 Q120 1 00MHC10244090 NJU3716AM-TE1
P101 Q121 1 00MHC10244090 NJU3716AM-TE1
P101 Q122 1 00MHC10488050 TC74LCX16244FT
P101 Q123 1 00MHC10197050 TC74LCX16245FT
P101 Q124 1 234810006503S TC74VCX32FT
P101 Q125 1 234810007506S TC74VCX08FT
P101 Q126 1 00MHX327121A0 2SC2712(G) PKG TE85L

P101 Q157 1 00MHC10258990 MAX3207E
P101 Q159 1 00MHC012505K0 TC7SZ32F(TE85L) TC7SZ32F(TE85L)

P101 Q160 1 00D2623415902 TC7SZU04F TC7SZU04F
P101 Q161 1 00D2623415902 TC7SZU04F TC7SZU04F

78Q2120C09A-64GCT (ETHERNET
TRANSCEIVER)

P101 Q300 1 00D2622785905 SN74LV125APWRG4 +C

P101 Q401 1 00D2690082902 DTC114EKT96 +C
P101 Q402 1 00D2623242900 SN74LV273APW-EL2 +REF
P101 Q403 1 00D2623242900 SN74LV273APW-EL2 +REF
P101 Q404 1 00D2622959906 SN74LV244APW +REF
P101 Q406 1 00MBA10012210 DTA114TU (ROHM)

P101 R003 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω ± 5% 1/10W
P101 R007 1 00MNI05047110 4.7Ω ±5% 1/10W 4.7 Ω ± 5% 1/10W

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

80

PWB

NAME

P101 R008 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω ± 5% 1/10W
P101 R014 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω ± 5% 1/10W

P101 R256 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω ± 5% 1/10W

P101 R450 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω ± 5% 1/10W
P101 R451 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω ± 5% 1/10W

P101 RU01 1 00MRI05000180 0Ω ±5% 1/8W
P101 RU07 1 00MNM11202020 GRT1060120210 12kW ±1% GRT1060120210 12K Ω ±1%
P101 RU08 1 00MRI05000180 0Ω ±5% 1/8W
P101 RU11 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω ± 5% 1/8W
P101 RU12 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω ± 5% 1/8W
P101 RU74 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω ± 5% 1/10W

P101 X001 1 00MJX14005100 XTAL 14.7456MHz (HC-49/U03C)
P101 X002 1 00MJX00002460 TFX-02(32.768kHz)
P101 X004 1 00MJX25003460 25.000MHz X'TAL (FCX-03)
P101 X103 1 00 MJX12009 350 12 MHz( SMD-49)

POS.

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

5200 nsp

5201 nsp
P201 CA07 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2
P201 CA08 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2

P201 CA19 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2

P201 CA20 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2
P201 CA27 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2
P201 CA28 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2

P201 CA32 1 00MOA47602520 47µF M 25V RA-2
P201 CA33 1 00MOA47602520 47µF M 25V RA-2

P201 CA41 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA42 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA43 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA44 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2

P201 CA55 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA56 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA57 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA58 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA59 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2

MOTHER PWB ASSY

AUDIO IO PCB ASSY

P201 CA60 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA61 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA62 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA63 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA64 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA65 1 00MOA10702520 100µF M 25V RA-2 10 µF M 25V RA-2
P201 CA66 1 00MOA10702520 100µF M 25V RA-2 10 µF M 25V RA-2
P201 CA67 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CA68 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2

P201 CA83 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2
P201 CA84 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2
P201 CA89 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2

P201 CA90 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

81

PWB

NAME

POS.

P201 CA91 1 00MOA10702520 100µF M 25V RA-2
P201 CA92 1 00MOA10702520 100µF M 25V RA-2
P201 CA94 1 00MOA10702520 100µF M 25V RA-2

P201 CB13 1 00MOA10702520 100µF M 25V RA-2
P201 CB14 1 00MOA10702520 100µF M 25V RA-2
P201 CB15 1 00MOA10702520 100µF M 25V RA-2
P201 CB16 1 00MOA10702520 100µF M 25V RA-2

P201 CB25 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2
P201 CB26 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2

P201 CB31 1 00MOA10702520 100µF M 25V RA-2
P201 CB32 1 00MOA10702520 100µF M 25V RA-2
P201 CB38 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CB39 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2

P201 CB44 1 00MOA47602520 47µF M 25V RA-2
P201 CB45 1 00MOA47602520 47µF M 25V RA-2

P201 CB52 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CB53 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CB54 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2
P201 CB55 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

P201 CB64 1 00MOA22602520 22µF M 25V RA-2 22 µF M 25V RA-2
P201 CB65 1 00MOA22602520 22µF M 25V RA-2 22 µF M 25V RA-2

P201 CB85 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2
P201 CB86 1 00MOA10602520 10µF M 25V RA-2 10 µF M 25V RA-2

P201 CD15 1 00MOA10601620 10 µF M 16V RA-2

P201 CD23 1 00MOA10702520 100µF M 25V RA-2

P201 CD32 1 00MOA47602520 47µF M 25V RA-2 47 µF M 25V RA-2

P201 CD40 1 00MOA10702520 100µF M 25V RA-2

P201 DA01 1 00D2760560901 DAN202KT146 +C
P201 DA02 1 00D2760559909 DAP202KT146 +C
P201 DA03 1 00D2760560901 DAN202KT146 +C
P201 DA04 1 00D2760559909 DAP202KT146 +C
P201 DA05 1 00D2760560901 DAN202KT146 +C
P201 DA06 1 00D2760559909 DAP202KT146 +C
P201 DA07 1 00D3939631903 TLGU1002A(T02)
P201 DA08 1 00D2760560901 DAN202KT146 +C
P201 DA09 1 00D2760559909 DAP202KT146 +C

P201 DA11 1 00MHZ20018050 1SS302 (TE85L,F) (TOSHIBA)
P201 DA12 1 00MHZ20018050 1SS302 (TE85L,F) (TOSHIBA)
P201 DA13 1 00MHZ20018050 1SS302 (TE85L,F) (TOSHIBA)
P201 DA14 1 00MHZ20018050 1SS302 (TE85L,F) (TOSHIBA)

P201 DB01 1 00D2760560901 DAN202KT146 +C
P201 DB02 1 00D2760559909 DAP202KT146 +C
P201 DB03 1 00D2760560901 DAN202KT146 +C
P201 DB04 1 00D2760559909 DAP202KT146 +C
P201 DB05 1 00D2760560901 DAN202KT146 +C
P201 DB06 1 00D2760559909 DAP202KT146 +C
P201 DB07 1 00D2760559909 DAP202KT146 +C
P201 DB08 1 00D2760559909 DAP202KT146 +C

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

82

PWB

NAME

P201 DC01 1 00MHI10202050 TLOU1002A(T02)
P201 DC02 1 00D3939631903 TLGU1002A(T02)
P201 DC03 1 00D2760560901 DAN202KT146 +C
P201 DC04 1 00D2760559909 DAP202KT146 +C

P201 DD01 1 00D2760560901 DAN202KT146 +C
P201 DD02 1 00D2760559909 DAP202KT146 +C
P201 DD03 1 00D2760560901 DAN202KT146 +C
P201 DD04 1 00D2760559909 DAP202KT146 +C
P201 DD05 1 00D2760560901 DAN202KT146 +C
P201 DD06 1 00D2760559909 DAP202KT146 +C
P201 DD07 1 00D2760833900 ESD PROTECTOR(6802)
P201 DD08 1 00D2760833900 ESD PROTECTOR (6802)

P201 JA01 1 00D2051254007 XLR IN (JY-5033U) JY-5033U*030
P201 JA02 1 00D2051254007 XLR IN (JY-5033U) JY-5033U*030
P201 JA03 1 00MYT02021200 YKC21-3091N 14X14 RA 2L2P W/R NI FLM-GND
P201 JA04 1 00MYP06010450 B5B-EH-TS (LF)(SN) 5P RADIAL TAPING B5B-EH 5P RADIAL TAPING

P201 JB01 1 00D2051255006 XLR OUT (JY-5032A) JY-5032A*030
P201 JB02 1 00D2051255006 XLR OUT (JY-5032A) JY-5032A*030
P201 JB03 1 00MYT02021200 YKC21-3091N 14X14 RA 2L2P W/R NI FLM-GND
P201 JB04 1 00MYJ06006260 B6B-PH-K-S (LF)(SN) HP CONNECTOR B6B-PH-K-S

POS.

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

P201 JC01 1 00MYJ01080220 YKB21-5265 6.3mm STREO PHONE JACK
P201 JC02 1 00MYJ90014700 TM11R-5M2-88-LP HIROSE RJ45 LAN
P201 JC03 1 00MYJ07019740 B4B-PH-SM4-TB (LF)(SN) LAN CONNECTOR B4B-PH-SM4

P201 JD01 1 00D2051254007 XLR IN (JY-5033U) JY-5033U*030
P201 JD02 1 00MYT02021220 YKC21-3248V 14X14 RA 2L2P BLK NI FLM-GND RCA2P(BLK/BLK)
P201 JD03 1 00D2051255006 XLR OUT (JY-5032A) JY-5032A*030
P201 JD06 1 00MYJ07014260 20FMN-BMTTN-A-TFT
P201 JD07 1 00MYJ07014280 22FMN-BMTTN-TFT JST 22FMN-BMTTN-TFT JST

P201 LA01 1 00MFC90020110 BLM18BD601SN1D
P201 L A02 1 00MFC90020110 BLM18BD601SN1D
P201 L A03 1 00MFC90020110 BLM18BD601SN1D
P201 L A04 1 00MFC90020110 BLM18BD601SN1D
P201 LA05 1 00MNN05102610 1kΩ ±5% 1/16W 1K OHM 1/16W +- 5%
P201 LA06 1 00MNN0 5102610 1kΩ ±5% 1/16W 1K OHM 1/16W +- 5%

P201 LB01 1 00MFC90020110 BLM18BD601SN1D
P201 LB02 1 00MFC90020110 BLM18BD601SN1D
P201 LB03 1 00MFC90020110 BLM18BD601SN1D
P201 LB04 1 00MFC90020110 BLM18BD601SN1D
P201 LB05 1 00MFC90020110 BLM18BD601SN1D
P201 LB06 1 00MFC90020110 BLM18BD601SN1D
P201 LB07 1 00MFC90020110 BLM18BD601SN1D
P201 LB08 1 00MFC90020110 BLM18BD601SN1D
P201 LB09 1 00D2140127003 RELAY(RY-12W)

P201 LB10 1 00D2140127003 RELAY(RY-12W)
P201 LB11 1 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER
P201 LB12 1 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER
P201 LB13 1 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER

P201 LC01 1 00MFN21020040 DLP11SN161SL2 COMMON MODE CHOKE COILS
P201 LC02 1 00MFN21020040 DLP11SN161SL2 COMMON MODE CHOKE COILS
P201 LC03 1 00MFC90020110 BLM18BD601SN1D
P201 LC04 1 00MFC90020110 BLM18BD601SN1D

P201 LD01 1 00MTP41042010 PULS TRANS FOR CD PULS TRANS FOR CD

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

83

PWB

NAME

POS.

P201 LD02 1 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER
P201 LD03 1 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER
P201 LD06 1 00MTP41042010 PULS TRANS FOR CD PULS TRANS FOR CD

P201 QA01 1 00D2730414906 2SC3326(A/B) +C
P201 QA02 1 00D2730414906 2SC3326(A/B) +C
P201 QA03 1 00D2730414906 2SC3326(A/B) +C
P201 QA04 1 00D2730414906 2SC3326(A/B) +C
P201 QA05 1 00D2631071901 OPA2134UA +C OPA2134UA
P201 QA06 1 00D2631071901 OPA2134UA +C OPA2134UA
P201 QA07 1 00MHC10137370 NE5532DR TEXAS INSTRUMENTS NE5532DR
P201 QA08 1 00MHC10137370 NE5532DR TEXAS INSTRUMENTS NE5532DR
P201 QA09 1 00MHC10308030 LC78211 LC78211

P201 QA10 1 00MHC10137370 NE5532DR TEX AS INSTRUMENTS NE5532DR
P201 QA11 1 00MHC10486050 TC9459BFG-EL
P201 QA12 1 00MHC10137370 NE5532DR TEXAS INSTRUMENTS
P201 QA13 1 0 0MHC10137370 NE5532DR TEXAS INSTRUMENTS
P201 QA15 1 00MHC12252090 NJM2387DL2
P201 QA16 1 00MHC10137370 NE5532DR TEX AS INSTRUMENTS NE5532DR
P201 QA17 1 00MHC10137370 NE5532DR TEXAS INSTRUMENTS NE5532DR
P201 QA18 1 00MHX300012B0 2SC4081(R.S) 2SC4116(GR.BL)
P201 QA19 1 00MHX300012B0 2SC4081(R.S) 2SC4116(GR.BL)

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

P 201 Q A2 0 1 0 0 MH X3 41161 C0 2 SC 4116 GR
P201 QA21 1 00MHX300012B0 2SC4081(R.S) 2SC4116(GR.BL)
P 201 Q A2 2 1 0 0 MB A2 11110 00 D TC11 4T E, RN1111 DT C114 TE, R N1111
P 201 Q A2 3 1 0 0 MB A2 11110 00 D TC11 4T E, RN1111 DT C114 TE, R N1111
P 201 Q A 24 1 0 0 MB A2 11110 00 D TC11 4T E, RN1111 DT C114 TE, R N1111
P 201 Q A2 5 1 0 0 MB A2 11110 00 D TC11 4T E, RN1111 DT C114 TE, R N1111
P201 QA26 1 00MBA20021210 DTC144EC (ROHM)
P201 QA27 1 00MBA20021210 DTC144EC (ROHM)
P201 QA28 1 0 0MBA121110 0 0 DTA114T E /RN2111 DTA114TE /RN2 111

P201 QA3 0 1 00MBA12111000 D TA114TE /RN2 111 DTA114 TE / RN 2111
P 201 Q A31 1 0 0M B A2 111100 0 D TC11 4TE ,R N1111 DTC 114T E, RN 1111
P 201 Q A3 2 1 0 0 MB A2 11110 00 D TC11 4T E, RN1111 DT C114 TE, R N1111
P 201 Q A3 3 1 0 0 MB A2 11110 00 D TC11 4T E, RN1111 DT C114 TE, R N1111
P 201 Q A3 4 1 0 0 MB A2 11110 00 D TC11 4T E, RN1111 DT C114 TE, R N1111

P201 QB01 1 00MHX341161C0 2SC4116GR
P 201 Q B0 2 1 0 0 MH X3 41161 C0 2 SC 4116 GR
P201 QB03 1 00MHC10137370 NE5532DR TEXAS INSTRUMENTS
P201 QB04 1 00MHC10137370 NE5532DR TEXAS INSTRUMENTS
P201 QB05 1 00D2730414906 2SC3326(A/B) +C
P201 QB06 1 00D2730414906 2SC3326(A/B) +C
P201 QB07 1 00D2730414906 2SC3326(A/B) +C
P201 QB08 1 00D2730414906 2SC3326(A/B) +C
P201 QB09 1 00MHC10137370 NE5532DR TEXAS INSTRUMENTS

P201 QB10 1 00D2730414906 2SC3326(A/B) +C
P201 QB11 1 00MHC10137370 NE5532DR TEXAS INSTRUMENTS NE5532DR
P201 QB12 1 00MHC10486050 TC9459BFG-EL
P201 QB14 1 00D2631071901 OPA2134UA +C OPA2134UA
P201 QB15 1 00MHC10137370 NE5532DR TEXAS INSTRUMENTS

P201 QD01 1 00D2623125904 SN65LVDS179DGK-EL2 +REF
P201 QD02 1 00MHC700400Z0 CMOS 74HCU04 FLAT TAPING
P201 QD03 1 00MHC10022370 SN65LVD3487D
P201 QD04 1 00MHC10019880 CS8420-CSZR
P201 QD05 1 00MHC12271990 CS4271-CZZR CODEC
P201 QD06 1 00D2622785905 SN74LV125APWRG4 +C

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

84

PWB

NAME

P201 QD07 1 00D2622515900 SN74LV04APW-EL2 +C
P201 QD08 1 00D2622785905 SN74LV125APWRG4 +C

P201 RB85 1 00MNI05000110 0Ω ±5% 1/10W
P201 RB86 1 00MNI05000110 0Ω ±5% 1/10W

P201 RC50 1 00MNI05000110 0Ω ±5% 1/10W
P201 RC51 1 00MNI05000110 0Ω ±5% 1/10W
P201 RC52 1 00MNI05000110 0Ω ±5% 1/10W
P201 RC53 1 00MNI05000110 0Ω ±5% 1/10W
P201 RC54 1 00MNI05000110 0Ω ±5% 1/10W
P201 RC61 1 00MNI05000110 0Ω ±5% 1/10W

P201 RD40 1 00MNI05000110 0Ω ±5% 1/10W
P201 RD41 1 00MDK98105200 1UF 10V F 1UF 10VDC 1608

P201 RD83 1 00MNI05000110 0Ω ±5% 1/10W
P201 RD87 1 00MNI05000110 0Ω ±5% 1/10W
P201 RD89 1 00MNI05000110 0Ω ±5% 1/10W

P201 RZ01 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ02 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ03 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ04 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ05 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ06 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ07 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ08 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ09 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%

POS.

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

P201 RZ14 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ16 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ18 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ19 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%

P201 RZ20 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ21 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ22 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ23 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ24 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ25 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ26 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ27 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ28 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ29 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%

P201 RZ30 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ31 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ32 1 00MRI05000180 0Ω ±5% 1/8W 0 Ω 1/8W ± 5%
P201 RZ33 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ34 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ35 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ36 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ37 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ38 1 00MNI05000110 0
P201 RZ39 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%

±5% 1/10W 0 Ω 1/10W ± 5%

Ω

P201 RZ40 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ41 1 00MRH05103010 0.01Ω ±5% 1W SL1 0.01 Ω ± 5% 1W SL1
P201 RZ42 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ43 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%
P201 RZ44 1 00MNI05000110 0Ω ±5% 1/10W 0 Ω 1/10W ± 5%

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

85

PWB

NAME

POS.

P20 2 D850 1 00MHI10124210 SML-512MW
P20 2 D851 1 00MHI10124210 SML-512MW
P20 2 D852 1 00MHI10124210 SML-512MW
P20 2 D853 1 00MHI10124210 SML-512MW
P20 2 D854 1 00MHI10124210 SML-512MW
P20 2 D855 1 00MHI10124210 SML-512MW
P20 2 D856 1 00MHI10124210 SML-512MW
P20 2 D857 1 00MHI10124210 SML-512MW
P20 2 D858 1 00MHI10123210 SML-512DW
P20 2 D859 1 00MHI10123210 SML-512DW

P20 2 D860 1 00MHI10123210 SML-512DW
P20 2 D861 1 00MHI10123210 SML-512DW
P202 D862 1 00MHI10116210 SML-512UW RED LED SML-512UW RED LED
P20 2 D863 1 00MHI10124210 SML-512MW
P20 2 D864 1 00MHI10124210 SML-512MW
P20 2 D865 1 00MHI10124210 SML-512MW
P20 2 D866 1 00MHI10124210 SML-512MW
P20 2 D867 1 00MHI10124210 SML-512MW
P202 D868 1 00MHI10124210 SML-512MW
P20 2 D869 1 00MHI10124210 SML-512MW

P20 2 D870 1 00MHI10124210 SML-512MW
P20 2 D871 1 00MHI10124210 SML-512MW
P20 2 D872 1 00MHI10124210 SML-512MW
P20 2 D873 1 00MHI10124210 SML-512MW
P20 2 D874 1 00MHI10123210 SML-512DW
P20 2 D875 1 00MHI10123210 SML-512DW
P20 2 D876 1 00MHI10123210 SML-512DW
P20 2 D877 1 00MHI10123210 SML-512DW
P202 D878 1 00MHI10116210 SML-512UW RED LED SML-512UW RED LED
P202 D879 1 00MHI10116210 SML-512UW RED LED SML-512UW RED LED

VERS.

NO.

COLOR

5202 nsp

QTY PART NO. PART NAME DESCRIPTION

FRONT PCB ASSY

P202 D880 1 00MHI10116210 SML-512UW RED LED SML-512UW RED LED
P202 D881 1 00MHI10116210 SML-512UW RED LED SML-512UW RED LED
P202 D882 1 00MHI10116210 SML-512UW RED LED SML-512UW RED LED
P202 D883 1 00D2760833900 ESD PROTECTOR(6802)

P202 J850 1 00MYJ07027360 IMSA-9631S-34
P202 J851 1 00MYB00067530 PHR5/JB20-05HG UL1571 AWG28 CONNECTIVE W
P202 J852 1 00MYJ07061740 IMSA-9616S-14Y903 FFC ZIFCONNECTOR P=1.0

P202 Q852 1 00MHC10244090 NJU3716AM-TE1
P202 Q853 1 00MHC10244090 NJU3716AM-TE1

P202 S850 1 00MSP01013830 SKPMAPE010 KPM-901
P202 S851 1 00MSP01013830 SKPMAPE010 KPM-901
P202 S852 1 00MSP01013830 SKPMAPE010 KPM-901
P202 S858 1 00MSP01013320 TACT SWITCH SKHMPW

P202 S860 1 00MSP01013830 SKPMAPE010 KPM-901
P202 S861 1 00MSM01013300 SPPW810400 SENSOR TYPE MINI PUSH SWITCH
P202 S862 1 00MSP01013320 TACT SWITCH SKHMPW
P202 S863 1 00MSP01013320 TACT SWITCH SKHMPW

5203 nsp

P203 C500 1 00MOA47505020 4.7µF M 50V RA-2
P203 C502 1 00MOA47505020 4.7µF M 50V RA-2
P203 C508 1 00MOA47505020 4.7µF M 50V RA-2

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

RS232C INTERFACE PCB ASSY

86

PWB

NAME

P203 C510 1 00MOA47505020 4.7µF M 50V RA-2
P203 C512 1 00MOA47505020 4.7µF M 50V RA-2
P203 C514 1 00MOA47505020 4.7µF M 50V RA-2
P203 C516 1 00MOA47505020 4.7µF M 50V RA-2
P20 3 C521 1 00MOA10601620 10µF M 16V RA-2

P203 D500 1 00D3939631903 TLGU1002A(T02)

P203 J501 1 00MYJ07014130 7P FFC CONNECTOR FMN-BMTTN -TD 7P FFC CONNECTOR FMN-BMTTN -TD
P203 J502 1 00MYJ07019770 B7B-PH-SM4-TB (LF)(SN) B7B-PH-SM3-TB
P203 J503 1 00D2051243005 9P DSUB KIT

P203 L500 1 00MFC90020110 BLM18BD601SN1D BLM11B601
P203 L501 1 00MFC90020110 BLM18BD601SN1D BLM11B601
P203 L502 1 00MFC90020110 BLM18BD601SN1D BLM11B601
P203 L503 1 00MFC90020110 BLM18BD601SN1D BLM11B601

P203 Q500 1 00MHC10292060 UPD4721GS-GJG IC RS232C
P203 Q501 1 00D2622785905 SN74LV125APWRG4 +C

POS.

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

5204 nsp
P204 J970 1 00MYJ06006450 S5B-PH-K-S (LF)(SN) S5B-PH-K-S

P204 S970 1 00MSR01030150 EC11B15242AE EC11B15242AE ENCODER

5205 nsp
P20 5 D980 1 00MHI10127210 SML312BC4TT86

P205 W980 1 00MYB00183300 PHR2/JB20-02HG UL1571 AWG28 CONNECTIVE W

5300 nsp

5301 nsp
P301
P301 C702 1 00MDK17471527 DE0910 B 471K -KX 470PF 250V #DE0910 B 471K -KX 470PF 250V
P301
P301
P301
P301 C707 1 00MOA47602520 47µF M 25V RA-2
P301 C708 1 00MDK48474200 0.47µF 50V GRM42-6 F 474Z50PT 0.47µF 50V GRM42-6 F 474Z50PT
P301 C709 1 00MDK48474200 0.47µF 50V GRM42-6 F 474Z50PT 0.47µF 50V GRM42-6 F 474Z50PT

P301
P301 C712 1 00MOA47603520 47µF M 35V RA-2
P301 C715 1 00MEF56703526 RJH-35V561MI5#-S1
P301 C719 1 00MOA10701620 100µF M 16V RA-2

C701 1 00MDF17224570 # ECQU2A224ML 0.22µF/250V #DE1E3KX152MB4BL01

C703 1 00MDK17471527 DE0910 B 471K -KX 470PF 250V #DE0910 B 471K -KX 470PF 250V
C704 1 00MEA12740090 ! 120µF 400V SIDE-TYPE
C705 1 00MDK17681527 #DE1B3KX681KB5B

C710 1 00MDK17471527 DE0910 B 471K -KX 470PF 250V DE0910 B 471K -KX 470PF 250V

ENCODER PCB ASSY

STANDBY LED PCB ASSY

POWER & HP /PARALLEL PWB ASSY

POWER PCB ASSY

P301 C720 1 00MOA10605020 10µF M 50V RA-2
P301 C723 1 00 MOA10701620 100 µF M 16V R A-2
P301 C724 1 00MEF68703516 RJH-35V681MI6#-S1
P301 C728 1 00MEF68703516 RJH-35V681MI6#-S1

P301 C736 1 00MOA33602520 33µF M 25V RA-2

P301 C741 1 00MEF56703526 RJH-35V561MI5#-S1
P301 C743 1 00MOA10602520 10µF M 25V RA-2
P301 C744 1 00MEF56703526 RJH-35V561MI5#-S1
P301 C746 1 00MOA10602520 10µF M 25V RA-2

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

87

PWB

NAME

POS.

P301 C747 1 00MOA10701620 100µF M 16V RA-2

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

P301

P301
P301
P301 D702 1 00MHE10010080 !FMB26L
P301 D703 1 00D2760560901 DAN202KT146 +C DAN202K ROHM
P301
P301 D706 /N1S 251010002108P ERZV09D270
P301 D709 1 00D2760559909 DAP202KT146 +C

P301 D710 1 00D2760683943 UDZS3.6B-TE17
P301 D711 1 00D2760560901 DAN202KT146 +C DAN202K ROHM
P301 D712 1 00D2760684900 RB051L-40TE25 +C
P301 D715 1 00D2760684900 RB051L-40TE25 +C
P301 D717 1 00D2760684900 RB051L-40TE25 +C

P301 D720 1 00MHW10036320 GP1S58V PHOTE INTERLUPTER

P301
P301
P301 F700 /U1S 1 00D2061039076 #FUSE 2.5A

P301

P301
P301 J702 1 00MYJ07019780 B8B-PH-SM4-TB (LF)(SN) B8B-PH-SM3-TB JST
P301 J703 1 00MYJ07019720 B2B-PH-SM4-TB (LF)(SN) B2B-PH-SM3-TB JST
P301 J704 1 00MYJ07014130 7P FFC CONNECTOR FMN-BMTTN -TD 7P FFC CONNECTOR FMN-BMTTN -TD
P301 J705 1 00MYL01010240 GND TERMINAL FOR PCB EARTH LUG
P301 J707 1 00MYL01010240 GND TERMINAL FOR PCB EARTH LUG
P301 J708 1 00D2020040909 FUSE CLIP(TAPE) FUSE CLIP
P301 J709 1 00D2020040909 FUSE CLIP(TAPE) FUSE CLIP

C755 1 00MDF17224570 # ECQU2A224ML 0.22µF/250V #DE1E3KX152MB4BL01

D700 1 00MHD20031290 S1WB(A)60 30A 600V S1WB(A)60 30A 600V
D701 1 00MHV00001290 ST03D-170 TRANKILLER ST03D-170 TRANKILLER

D705 1 00D2623047008 PC123Y22 PC-123Y22 PHOTO CUPLER

F700 /F1S 1 00D2061035067 FUSE(2.5A)T(A)MINI
F700 /N1S 1 00D2061089013 #FUSE (ET1.25A)

G700 1 00MHV00033020 #ERZV07D471 # ERZV07D471

J701 1 00D2050581001 2P VH CON BASE (White) CONNECTOR 2P B3P-VH

P301 J710 1 00MYP06010450 B5B-EH-TS (LF)(SN) 5P RADIAL TAPING B5B-EH 5P RADIAL TAPING

P301
P301 L701 1 00MLU80333070 CDRH8D43-330NC CDRH8D43-330NC
P301 L702 1 00MLC11040190 100UH COM.MODE COIL 100UH COM.MODE COIL
P301 L703 1 00D2140195006 RELAY FTR-F1
P301 L704 1 00MLU80563010 CDRH127/LDNP-560MC
P301 L705 1 00MLU80683020 CDRH8D43-680NC
P301 L706 1 00MLU12103010 NL322522-100J NL322522-100K
P301 L707 1 00MLU80683020 CDRH8D43-680NC
P301 L708 1 00MLU12103010 NL322522-100J NL322522-100K

P301 Q700 1 00MHC10180020 MIP3E50MY
P301 Q701 1 00MHC33036590 TL431CZ PROG.VOLTAGE REFERENCE
P301 Q702 1 00D2690082902 DTC114EKT96 +C
P301 Q703 1 00MHC12252090 NJM2387DL2
P301 Q704 1 00D2623506905 BD9781HFP-TR
P301 Q705 1 00D2690082902 DTC114EKT96 +C
P301 Q706 1 00D2690082902 DTC114EKT96 +C
P301 Q707 1 00D2690082902 DTC114EKT96 +C
P 301 Q7 08 1 0 0M H X3 41161 C0 2 SC 4116 GR
P301 Q709 1 00MHS43BSN01F UPD78F9222(DNC640)

P301 Q710 1 00D2690082902 DTC114EKT96 +C
P301 Q711 1 00D2690082902 DTC114EKT96 +C
P301 Q712 1 00D2622785905 SN74LV125APWRG4 +C

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

L700 1 00MLC25060010 LF-4Z-E503H # LF-4Z-E503H

88

PWB

NAME

P301 Q713 1 00D2690083901 DTA114EKT96 +C
P301 Q714 1 00D2690082902 DTC114EKT96 +C
P301 Q715 1 00MHC10226210 BA9741FS-E2 2CH DC/DC
P301 Q716 1 00MHX117971A0 2SA1797 2SA1797
P301 Q717 1 00MHX117971A0 2SA1797 2SA1797
P301 Q718 1 00MHX346721A0 2SC4672 Q 2SC4672 Q
P301 Q719 1 00D2680077901 ICP-N50T

P301 Q720 1 00D2690082902 DTC114EKT96 +C

P301 R700 1 00MRC05105012 1MΩ ±5% 1W RCR60 L15 1M Ω ±5% 1W RCR60 L15
P301 R703 1 00MRI05150140 15Ω ±5% 1/4W 15 Ω ± 5% 1/4W
P301 R704 /F1S 00MNN05150610
P301 R704 /N1S 00MNN05561610
P301 R704 /U1S 00MNN05150610

P301 R711 1 00MRI05330120 33Ω ±5% 1/2W 33 Ω ± 5% 1/2W

P301 R722 1 00MNI05000110 0Ω ±5% 1/10W
P301 R723 1 00MNI05000110 0Ω ±5% 1/10W
P301 R724 1 00MNN05000610 0Ω ±5% 1/16W
P301 R726 1 00MNI05000110 0Ω ±5% 1/10W
P301 R727 1 00MNI05000110 0Ω ±5% 1/10W

POS.

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

P301 R831 1 00MFC90090010 ZBF503D-00(TA)-01 ZBF503D-00(TA)-01

P301 R993 /F1S 00MNI05000110 0 Ω ±5% 1/10W
P 301 R 99 3 / N1 S 1 00 M NI 05 56 1110 5 60 Ω ±5% 1/10W
P301 R993 /U1S 1 00MNI05000110 0Ω ±5% 1/10W

P301 S700 1 00MSP01013820 SDKLA1-BP1 TV5 250V 5A 1SDKLA10200
P301 T700 1 00MTS12900110 #ER SW TRANS
P301 X700 1 00D3990796900 X'TAL(10MHZ/SMT) +REF

5302 nsp
P302 C801 1 00MOA47602520 47µF M 25V RA-2
P302 C802 1 00MOA47602520 47µF M 25V RA-2
P302 C803 1 00MEG47601650 47µF/ 16V 47µF 16V
P302 C804 1 00MEG47601650 47µF/ 16V 47µF 16V
P302 C809 1 00MOA22701620 220µF M 16V RA-2
P302 C810 1 00MOA22701620 220µF M 16V RA-2

P302 C813 1 00MDK96222300 2200PF (GR39)

P302 D801 1 00D2760560901 DAN202KT146 +C DAN202K ROHM
P302 D802 1 00D2760559909 DAP202KT146 +C DAP202K

P302 J800 1 00D2050863994 6P PH CON.BASE(L) +REF
P302 J801 1 00MYJ01080220 YKB21-5265 6.3mm STREO PHONE JACK

HEAD PHONES PCB ASSY

P302 L803 1 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER
P302 L804 1 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER
P302 L806 1 00D2350147909 E.FIL(BLM21PG221SN1)+2125
P302 L807 1 00D2350147909 E.FIL(BLM21PG221SN1)+2125
P302 L808 1 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER
P302 L810 1 00MFN31010030 BLM18B10 2SN1D BLM11B102S 1608 EMIFILTER
P302 L811 1 00MFN31010030 BLM18B102SN1D BLM11B102S 1608 EMIFILTER

P302 Q801 1 00MHC10045090 NJM4556AM-TE1
P302 Q802 1 00D2730414906 2SC3326(A/B) +C
P302 Q803 1 00D2730414906 2SC3326(A/B) +C

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

89

PWB

NAME

POS.

P302 Q804 1 00D2730414906 2SC3326(A/B) +C
P302 Q805 1 00D2730414906 2SC3326(A/B) +C

P302 R802 1 00MRM01031250 RK0971220 10K A (D-CUT REV) RK0971220 10K A (D-CUT REV)

NO.

VERS.

COLOR

QTY PART NO. PART NAME DESCRIPTION

5303 nsp

P303 C650 1 00MOA10701620 100µF M 16V RA-2
P303 C651 1 0 0MDK98104200 GRM39F104Z16 0.1UF MURATA
P303 C652 1 00MOA10701620 100µF M 16V RA-2
P303 D655 1 00D2760560901 DAN202KT146 +C DAN202K ROHM
P303 D656 1 00D2760560901 DAN202KT146 +C DAN202K ROHM
P303 D657 1 00D2760560901 DAN202KT146 +C DAN202K ROHM
P303 D658 1 00D2760560901 DAN202KT146 +C DAN202K ROHM
P303 D659 1 00D2760559909 DAP202KT146 +C DAP202K

P303 D660 1 00D2760559909 DAP202KT146 +C DAP202K
P303 D661 1 00D2760559909 DAP202KT146 +C DAP202K
P303 D662 1 00D2760559909 DAP202KT146 +C DAP202K

P303 J651 1 00MYJ90001550 YKF42-8524N
P303 J652 1 00MYJ07014200 14P FFC CONNECTOR FMN-BMTTN-TP

PARALLEL IO PCB ASSY

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

90
