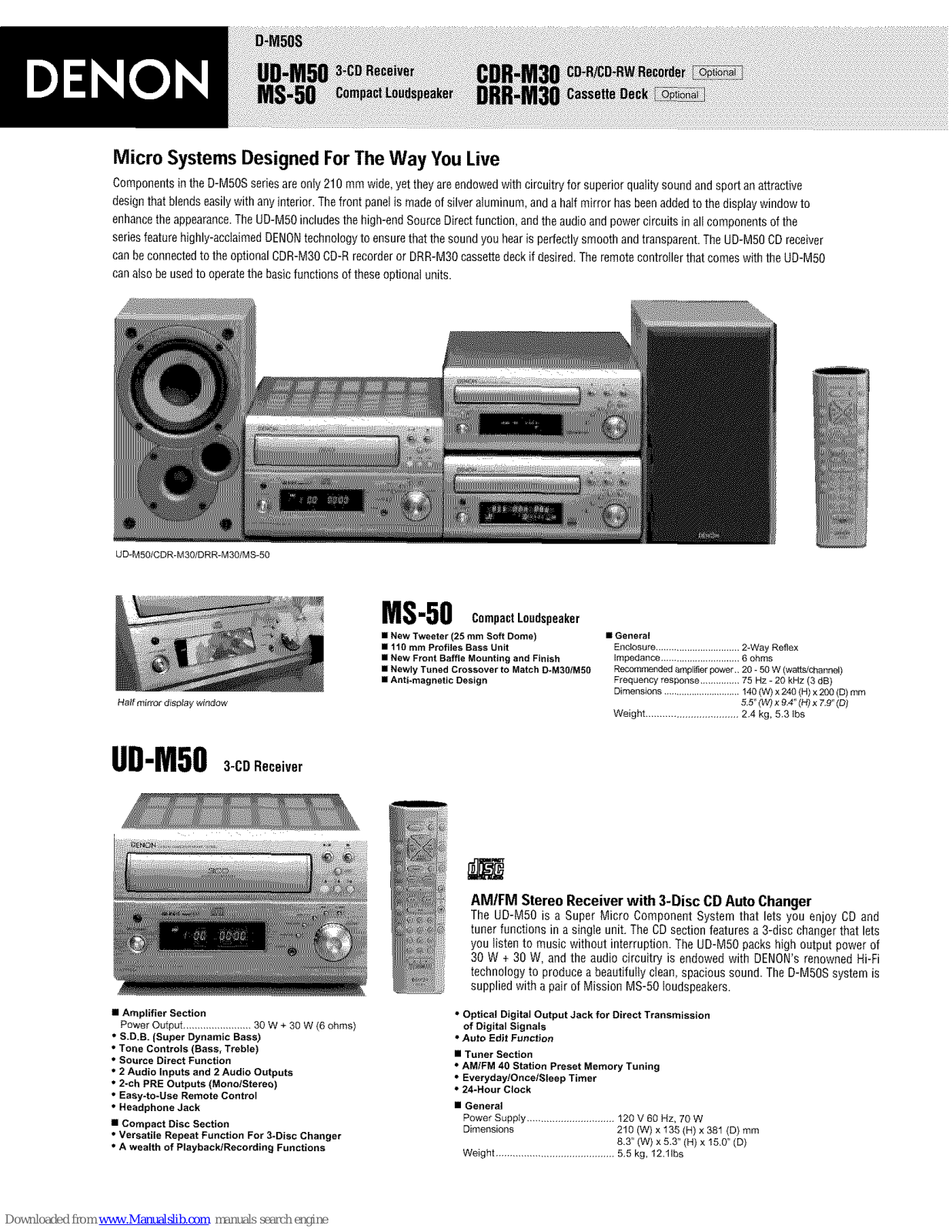

Denon D-M50S, UD-M50, MS-50, CDR-M30, DRR-M30 Overview

Micro Systems Designed ForThe Way YouLive

Componmttsin the D-M50S seriesareonly 210 mm wide, yet they are endowedwith circuitry for superior quality sound andsport an attractive
designtha bends easy w h any interior. The front panel is madeof silver aluminum, and a half mirror has beenadded to the displaywindow to

enhance heappearance The UD-M50 includes the high-end Source Direct function, and the audio and power drcuits in allcomponents of the
seriesfeature highly-acclaimed DENONtechnologyto ensure that the sound you hearis perfectlysmooth and transparent. TheUD-M50 CD receiver
canbeconnected to the optional CDR-M30 CD-R recorderor DRR-M30 cassettedeckif desired.The remotecontroller that comes with the UD-M50

canalso be usedto operatethe basic functions of these optional units.

UD-M5OICDR-M3OIDRR-M3OIMS-50

Half mirror disotay v¢indow

UD-M50

3-CDReceiver

B_lS'50 CompactLoudspeaker

• New Tweeter (25 mm Soft Dome)

• 110 mm Profiles Bass Unit

• New Front Baffle Mounting and Finish

• Newly Tuned Crossover to Match D_M30/MS0

• Anti*magnetic Design

• General

Enclosure ................................ 2-Way Reflex

impedance .............................. 6 ohms

Recomn_ended _mplifier powel 20 - 50 W (watts/channel)

Frequency response ............... 75 Hz - 20 kHz (3 dB)

Dimensions .............................. 140 (W) x 240 (H) x 200 (D) mm

55"(W) x94"(H)x79"(O I

Weight ................................. 24 kg, 53 Ibs

• Amplmer Section

Power Output ........................ 30 W + 30 W (6 ohms)

• S.D.B. {Super Dynamic Bass)

• Tone Controls (Bass, Treble)

• Source Direct Function

• 2 Audio inputs and 2 Audio Outputs

• 2-ch PRE Outputs (MonotStereo)

• Easy-to-Use Remote Control

• Headphone Jack

• Compact Disc Section

• Versatile Repeat Function For 3-Disc Changer

• A wealth of Playback/Recording Functions

AM/FM Stereo Receiver with 3-Disc CD Auto Changer
Tire UD-M50 is a Super Micro Component System that lets you enjoy CD and

tuner functions in a sing)e unit, The CDsection features a 3-disc changer that lets
you listen to music without interruption. The UD-M50 packs high output power of
30 W + 30 W, and the audio circuitry is endowed with DENON's renowned Hi-Fi
technology to produce a beautifully clean, spacious sound. The D-MSOSsystem is
supplied with a pair of Mission MS-50 loudspeakers.

• Optical Digital Output Jack for Direct Transmission

of Digital Signals

• Auto Edit Function

• Tuner Section

• AM/FM 40 Station Preset Memory Tuning

• EverydaytOnce/Sleep Timer

• 24-Hour Clock

• General

Power Supply ............................... 120 V 60 Hz, 70 W

Dimensions 210 (W) x 13_ (H) x 381 (D) mm

83" (W) x53" (H) x 150" (D)

Weight .......................................... 55 kg, t2 llbs

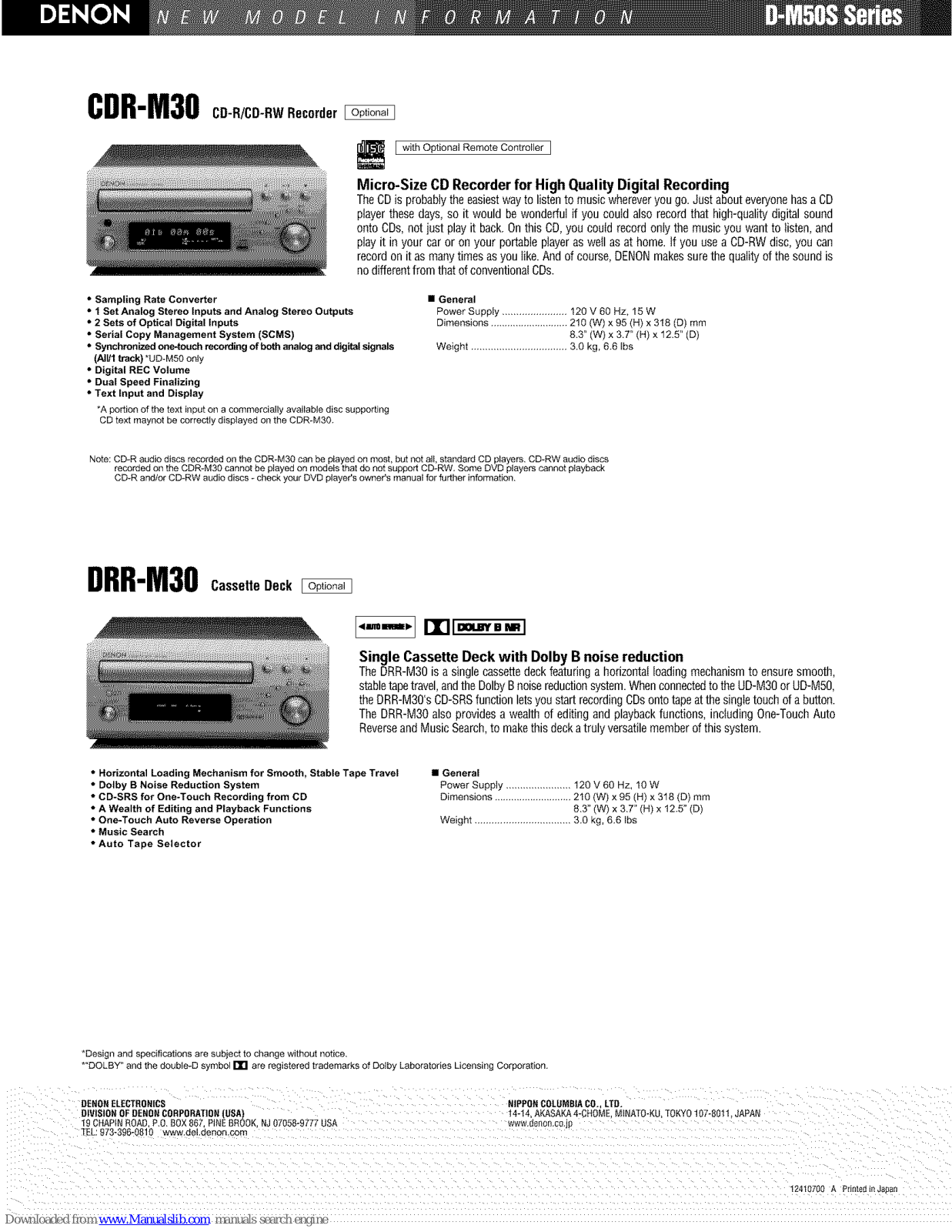

CDR-M30CO-.,CO-.,W.°°o,,or

E wah Optional Remote Controller ]

Micro-Size CD Recorder for HighQuality Digital Recording
TheCDis probablythe easiestway to Iisteeto music wherever you go.Just abouteveryonehasa CD

playerthese days, so it would bewonderful if you could also record that high-quality digital sound
onto CDs,not just playit back. On this CD,you could record only the music you want to listen, and

play it in your car or on your portable playerasw5{Iasat home. if you usea CD-RWdisc, you can
record onit as manytimes asyou like.Andof course,DENONmakessurethe quality ofthe sound is

nodifferentfrom that ofconventionatCDs.

• Sampling Rate Converter

• I Set Analog Stereo inputs and Analog Stereo Outputs

• 2 Sets of Optical Digital inputs

• Serial Copy Management System (SCMS)

• Synchronized one-touch recording of both ansiog and digital signals
(An/l track) *UD-M50 only

• Digital REC Volume

• Dual Speed Finalizing

• Text input and Display

*A portion of the text input on a commercially available disc suppolting

CD text maynot be correctly displayed on the CDR-MJO

• General

Power Supply ....................... 120 V 60 Hz, 15 W

Dimensions ............................ 210 (W) x 95 (H) x 318 (D) mm

83" (W)x 37" (H) x125" (D)

Weight .................................. 30 kg, 66 Ibs

Note: CD-R audio discs recorded on the CDR-MJO can be played on most, but not all, standard CD players CD-RW audio discs

recorded on the CDR-MJ0 cannot be played on models that do not support OD-RW Some DVD players cannot playback
CD-R and/or OD-RW audio discs - check your DVD player's owneCs manual for further information

DRR-M30co..,,.°.°,

rrll=ur e

Single Cassette Deck with DolbyB noise reduction

The DRR-MJOis a siegle cassettedeckfeaturingahodzonta_Ioadiegmechanismto ensuresmooth,
stabletapetravel,andthe DolbyB noise reductionsystem.Whenconnectedto theUD-MJOor UD-M50,
the DRR-MJO'sCD-SRSfunctionletsyou start recordingCDsontotapeatthe singletouch of abutton.
The DRR-MJOalso provides a wealth of editing and playback functions, including One-Touch Auto

Reverseand Music Search,to makethis deckatruly versatilememberofthis system.

• Horizontal Loading Mechanism for Smooth, Stable Tape Travel

• Dolby B Noise Reduction System

• CD-SRS for One-Touch Recording from CD

• A Wealth of Editing and Playback Functions

• One-Touch Auto Reverse Operation

• Music Search

• Auto Tape Selector

• General

Power Supply ....................... 120 V 60 Hz, 10 W

Dimensions ............................ 210 (W) x 95 (H) x 318 (D) mm

83" (W) x 37' (H) x 125" (D)

Weight .................................. 30 kg, 66 Ibs

*Design and specifications are subject to change without notice
*"DOLBY" and the doubls-D symbol I1n are registered trademarks of DoJby Laboratories Licensing Corporation
