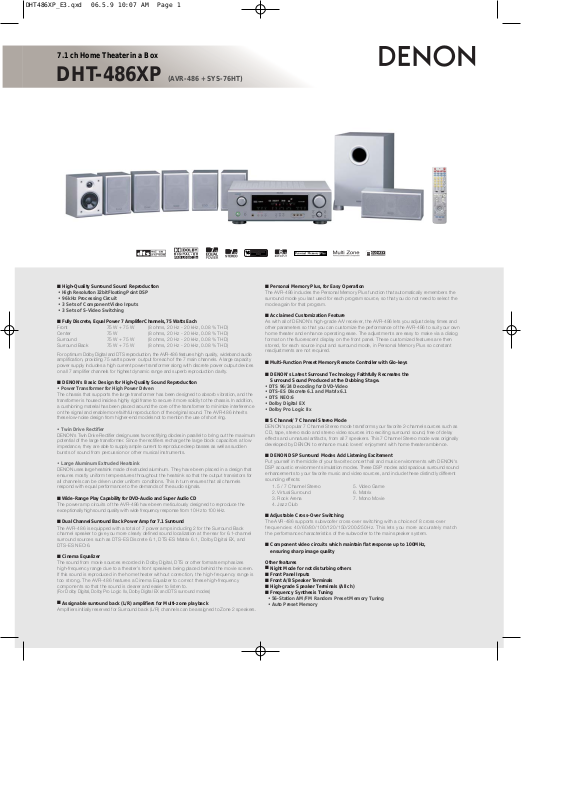

Denon DHT-486XP User Manual

7.1 ch Home Theater in a Box

DHT-486XP (AVR-486 + SYS-76HT)

■ High-Quality Surround Sound Reproduction

• High Resolution 32bit Floating Point DSP

• 96 kHz Processing Circuit

• 3 Sets of Component Video Inputs

• 3 Sets of S-Video Switching

■ Fully Discrete, Equal Power 7 Amplifier Channels, 75 Watts Each

Front 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Center 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Surround 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)
Surround Back 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

For optimum Dolby Digital and DTS reproduction, the AVR-486 features high quality, wideband audio
amplification, providing 75 watts power output for each of the 7 main channels. A large capacity
power supply includes a high current power transformer along with discrete power output devices
on all 7 amplifier channels for highest dynamic range and superb reproduction clarity.

■ DENON's Basic Design for High-Quality Sound Reproduction

• Power Transformer for High Power Driven

The chassis that supports the large transformer has been designed to absorb vibration, and the
transformer is housed inside a highly rigid frame to secure it more solidly to the chassis. In addition,
a cushioning material has been placed around the core of the transformer to minimize interference
on the signal and enable more faithful reproduction of the original sound. The AVR-486 inherits
these low-noise design from higher-end models not to mention the use of short ring.

• Twin Drive Rectifier

DENON's Twin Drive Rectifier design uses two rectifying diodes in parallel to bring out the maximum
potential of the large transformer. Since the rectifiers recharge the large block capacitors at low
impedance, they are able to supply ample current to reproduce deep basses as well as sudden
bursts of sound from percussion or other musical instruments.

• Large Aluminum Extruded Heatsink

DENON uses large heatsink made of extruded aluminum. They have been placed in a design that
ensures mostly uniform temperatures throughout the heatsink so that the output transistors for
all channels can be driven under uniform conditions. This in turn ensures that all channels
respond with equal performance to the demands of the audio signals.

■ Wide-Range Play Capability for DVD-Audio and Super Audio CD

The power amp circuits of the AVR-486 have been meticulously designed to reproduce the
exceptionally high sound quality with wide frequency response from 10 Hz to 100 kHz.

■ Dual Channel Surround Back Power Amp for 7.1 Surround

The AVR-486 is equipped with a total of 7 power amps including 2 for the Surround Back
channel speaker to give you more clearly defined sound localization at the rear for 6.1-channel
surround sources such as DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, Dolby Digital EX, and
DTS-ES NEO:6.

■ Cinema Equalizer

The sound from movie sources recorded in Dolby Digital, DTS or other formats emphasizes
high-frequency range due to a theater’s front speakers being placed behind the movie screen.
If this sound is reproduced in the home theater without correction, the high-frequency range is
too strong. The AVR-486 features a Cinema Equalizer to correct these high-frequency
components so that the sound is clearer and easier to listen to.
(For Dolby Digital, Dolby Pro Logic IIx, Dolby Digital EX and DTS surround modes)

■

Assignable surround back (L/R) amplifiers for Multi-zone playback

Amplifiers initially reserved for Surround back (L/R) channels can be assigned to Zone 2 speakers.

■ Personal Memory Plus, for Easy Operation

The AVR-486 includes the Personal Memory Plus function that automatically remembers the
surround mode you last used for each program source, so that you do not need to select the
mode again for that program.

■ Acclaimed Customization Feature

As with all of DENON’s high-grade A/V receiver, the AVR-486 lets you adjust delay times and
other parameters so that you can customize the performance of the AVR-486 to suit your own
home theater and enhance operating ease. The adjustments are easy to make via a dialog
format on the fluorescent display on the front panel. These customized features are then
stored, for each source input and surround mode, in Personal Memory Plus so constant
readjustments are not required.

■ Multi-Function Preset Memory Remote Controller with Glo-keys

■ DENON's Latest Surround Technology Faithfully Recreates the

Surround Sound Produced at the Dubbing Stage.

• DTS 96/24 Decoding for DVD-Video

• DTS-ES Discrete 6.1 and Matrix 6.1

• DTS NEO:6

• Dolby Digital EX

• Dolby Pro Logic IIx

■ 5 Channel/ 7 Channel Stereo Mode

DENON's popular 7 Channel Stereo mode transforms your favorite 2-channel sources such as
CD, tape, stereo radio and stereo video sources into exciting surround sound, free of delay
effects and unnatural artifacts, from all 7 speakers. This 7 Channel Stereo mode was originally
developed by DENON to enhance music lovers' enjoyment with home theater ambience.

■ DENON DSP Surround Modes Add Listening Excitement

Put yourself in the middle of your favorite concert hall and music environments with DENON's
DSP acoustic environment simulation modes. These DSP modes add spacious surround sound
enhancements to your favorite music and video sources, and include these distinctly different
sounding effects:

1. 5 / 7 Channel Stereo 5. Video Game

2. Virtual Surround 6. Matrix

3. Rock Arena 7. Mono Movie

4. Jazz Club

■ Adjustable Cross-Over Switching

The AVR-486 supports subwoofer cross-over switching with a choice of 8 cross-over
frequencies: 40/60/80/100/120/150/200/250Hz. This lets you more accurately match
the performance characteristics of the subwoofer to the main speaker system.

■ Component video circuits which maintain flat response up to 100MHz,
ensuring sharp image quality

Other features

■

Night Mode for not disturbing others

■ Front Panel Inputs

■ Front A/B Speaker Terminals

■ High-grade Speaker Terminals (All ch)

■ Frequency Synthesis Tuning

• 56-Station AM/FM Random Preset Memory Tuning

• Auto Preset Memory

DHT-486DV

Input/Output Terminals for Every A/V System (AVR-486)

Audio Inputs

8 Analog Inputs CD, (TUNER), DVD/VDP, TV/DBS,

6 Analog EXT. Inputs FRONT L/R, CENTER,

3 Digital Inputs OPTICAL X 1

Audio Outputs

1 Analog PRE OUT Terminal SUBWOOFER
2 Analog REC OUT Terminals VCR, CDR/TAPE

Video Inputs

3 Component Video Inputs DVD/VDP, TV/DBS, VCR
4 Composite Inputs DVD/VDP, TV/DBS, VCR, V.AUX(FRONT)
3 S-Video Inputs DVD/VDP, TV/DBS, VCR

Video Outputs

1 Component Video Output MONITOR
2 Composite Outputs VCR, MONITOR
2 S-Video Outputs VCR, MONITOR

AUX, VCR, CDR/TAPE, V.AUX(FRONT)

SURROUND L/R, SUBWOOFER

COAXIAL X 2

Specifications

■

AVR-486

Power Amplifier Section

Rated output *THD figures are power amp stage values.

Front 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Center 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Surround 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Surround Back 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Preamplifier Section

Input sensitivity/Impedance

Output level/Load impedance

SUBWOOFER 1.2 V/10 kohms

CDR/TAPE, VCR 200 mV/47 kohms
Frequency response 10 Hz - 100 kHz (+1, -3 dB) (Tone Defeat On)
Signal-to-noise ratio 98 dB (IHF-A weighted) (Tone Defeat On)
Tone control Treble: ±10 dB at 10 kHz

FM Section

Tuning frequency range 87.5 - 107.9 MHz
Usable sensitivity 1.0 µV (11.2 dBf)

AM Section

Tuning frequency range 520 - 1710 kHz
Usable sensitivity 18 µV

General

Power supply AC 120 V, 60 Hz
Power consumption 4.3 A
Dimensions 17-3/32” (W) x 5-25/32” (H) x 1-23/64” (D)

Weight 24 lbs 8 oz, 11.1 kg

■ 7.1 ch Speaker System: SYS-76HT
SC-A76 (Satellite speaker system)

Type 2-way 2 speakers
Magnetic shielding Yes
Imepedance 6 ohms
Dimensions 4 23/32" (W) x 7 3/32" (H) x 6 9/64" (D)

Weight 3 lbs 8 oz, 1.6 kg

SC-C76 (Center speaker system)

Type 2-way 3 speakers
Magnetic shielding Yes
Imepedance 6 ohms
Dimensions 10 3/64" (W) x 4 23/32"(H) x 6 9/64" (D)

Weight 4 lbs 10 oz, 2.1 kg

DSW-76 (Subwoofer system with built-in Amplifier)

Driver unit 20 cm Woofer x1
Amplifier Output 100 W (4 ohms, 55Hz, 0.7%THD)
LF Direct Mode Yes
Imepedance 4 ohms
Power supply AC 120 V, 60 Hz
Dimensions 10 1/32" (W) x 14 1/64" (H) x 17 1/64" (D)

Weight 25 lbs 13 oz, 11.7 kg

110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)

110 W (6 ohms, 1 kHz, 0.7 % THD)

110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)

110 W (6 ohms, 1 kHz, 0.7 % THD)

CD, DVD/VDP, TV/DBS, VCR, CDR/TAPE, AUX,V.AUX(FRONT)
200 mV/47 kohms

Bass: ±10 dB at 100 Hz

434 (W) x 147 (H) x 417 (D) mm

120 (W) x 180 (H) x 156 (D) mm

266 (W) x 120 (H) x 156 (D) mm

262 (W) x 357 (H) x 434 (D) mm (with feet)

AVR-486’s back panel

Denon Electronics (USA), LLC.

19C Chapin Road, Suite 205 Pine Brook, N.J. 07058-9385 USA
TEL: [phone] www.usa.denon.com

Denon Canada Inc.

505 Apple Creek Blvd, Unit 5, Markham, Ontario, Canada L3R 5B1
TEL: [phone] www.denon.ca

DHT-486DV (AVR-486 + DVD-556 + SYS-76HT) is also available.

* Design and specifications are subject to change without notice.
* ”Dolby”, “Dolby Digital”, “Pro Logic II”, “Dolby Digital EX” and the double-D device are

registered trademarks of Dolby Laboratories Licensing Corporation.

* DTS is registered trademarks of DTS Technology.
