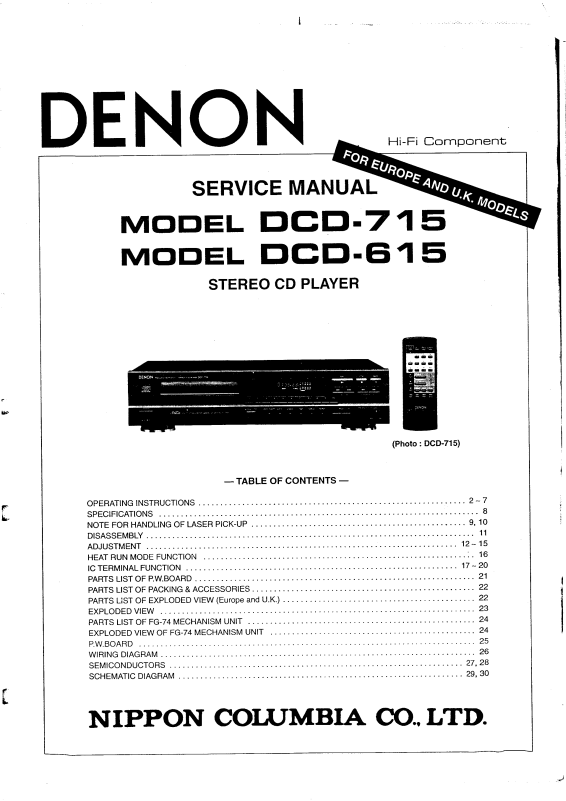

Denon DCD-615, DCD-715 Service Manual
Specifications and Main Features
- Model: DCD-715, DCD-615
- Type: CD Stereo System
- Frequency Response Range: 2 ~ 20,000Hz
- Dynamic Range Value: 98 dB
- Ratio Between a Desired Signal and Background: 107 dB (DCD-715), 106 dB (DCD-615)
- Degree of Harmonic Distortion: 0.003% (1 kHz)
- Separation: 103 dB (1 kHz): DCD-715; 100 dB: DCD-615
- Voltage Output: 0.2-2.0V
- Power Supply Frequency: 50 Hz , Voltage: ~ 230 V
- Power Rating: 10W
- Measurements: Width 434 (17-3/32") x Height 105 (4-1/8") x Depth 280 (11-1/32") mm
- Product Weight: 3.8 kg
- Functionalities: Auto search, Intelligent repeat function, manual search and programming, space auto insert, specific time edits e.t.c.
- Visual display included: Amplitude modulation in engaged modes, track number, the time and even music calendar.
- Remote Control Unit: RC-241 operates using infrared pulse system powered by two AAA batteries.
- Other Characteristics: Wireless unit for the remote, Playable 8cm CD singles with less requirements with regard to the use of an adapter, Synchronised recording function, Dual super linear converter.
Frequently Asked Questions
Q.): DCD-715 and DCD-615, how much power do they consume?
A: 10W is the electric power rating with regard to both models.
Q: Is an adaptor needed in order to play 8cm CD singles?
A: No, 8cm CD singles can be played without an adaptor.
Q: What is the frequency range of the DCD 715 and DCD 615?
A: The frequency range is 2 Hz to 20,000 Hz.
Q: What type of output does the DCD 715 and DCD 615 provide?
A: The output ranges in voltage between 0.2V to 2.0V.
Q: How do I turn on the CD player?
A: It can be done by pressing on the buttons attached to the front panel or by using a remote control unit that comes within the package.
Q: Are there any repeat playback options available in DCD 715 and DCD 615?
A: Yes, both the modals support repeat playback.
Q: What is the remote control used with DCD 715 and DCD 615?
A: The remote control used is the RC-241.
Q: What is the total weight of DCD 715 and DCD 615?
A: The total weight for both the modals is 3.8 kgs.
