Denon AVR-X4500H User manual

Page 1
Contents Connections Playback Settings Tips Appendix
.
AVR-X4500H
INTEGRATED NETWORK AV RECEIVER
Owner’s Manual
Front panel Display Rear panel Remote Index
1
Page 2
Contents Connections Playback Settings Tips Appendix
Accessories
Inserting the batteries Operating range of the remote control unit
Features
High quality sound High performance Easy operation
Part names and functions
Front panel Display Rear panel Remote control unit
Connections
Speaker installation Connecting speakers
Before connecting speakers Speaker configuration and “Amp Assign” settings Connecting 5.1-channel speakers Connecting 7.1-channel speakers Connecting 9.1-channel speakers Connecting 11.1-channel speakers Connecting 7.1-channel speakers: Bi-amp connection of front
speakers Connecting 7.1-channel speakers: Second pair of front speakers Connecting multi-zone speakers
Connecting a TV
Connection 1 : TV equipped with an HDMI connector and
9
compatible with the ARC (Audio Return Channel) / eARC
9
10
10 13 17
18
18 22 24 28
32 40
40 44 46 47 51 59
65 66 67
(Enhanced Audio Return Channel) Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
Connection 3 : TV equipped without an HDMI connector
Connecting a playback device
Connecting a set-top box (Satellite tuner/cable TV) Connecting a DVD player or Blu-ray Disc player Connecting a Blu-ray Disc player compatible with the Denon Link
HD function Connecting a video camcorder or game console Connecting a turntable
Connecting a USB memory device to the USB port Connecting an FM/AM antenna Connecting to a home network (LAN)
Wired LAN Wireless LAN
Connecting an external control device
REMOTE CONTROL jacks TRIGGER OUT jacks
Connecting the power cord
72
73
75 76
77
78 79
80 81 82
83 84 86
86 87
88
88 89
90
Front panel Display Rear panel Remote Index
2
Page 3
Contents Connections Playback Settings Tips Appendix
Playback
Basic operation
Turning the power on Selecting the input source Adjusting the volume Turning off the sound temporarily (Muting) Playback a DVD player/Blu-ray Disc player
Playing a USB memory device
Playing files stored on USB memory devices
Listening to music on a Bluetooth device
Playing music from Bluetooth device Pairing with other Bluetooth devices Reconnecting to this unit from a Bluetooth device
92
92 92 93 93 93
94
95
98
99 101 102
Listening to FM/AM broadcasts
Listening to FM/AM broadcasts Tuning in by entering the frequency (Direct Tune) RDS Search PTY Search TP Search Radio text Changing the tune mode (Tune Mode) Tuning in to stations and presetting them automatically (Auto
Preset Memory) Presetting the current broadcast station (Preset Memory) Listening to preset stations Specify a name for the preset broadcast station (Preset Name) Skipping preset broadcast stations (Preset Skip) Cancelling Preset Skip
Listening to Internet Radio
Listening to Internet Radio
Playing back files stored on a PC or NAS
Playing back files stored on a PC or NAS
103
104 106 106 107 108 108 109
109 110 110 111 112 113
114
115
116
117
Front panel Display Rear panel Remote Index
3
Page 4
Contents Connections Playback Settings Tips Appendix
Getting the HEOS App
HEOS Account Playing from streaming music services Listening to the same music in multiple rooms
AirPlay function
Playing songs from your iPhone, iPod touch or iPad Playing iTunes music with this unit Perform iTunes playback operations with the remote control unit
of this unit Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2)
Spotify Connect function
Playing Spotify music with this unit
Convenience functions
Adding to HEOS Favorites Playing back HEOS Favorites Deleting a HEOS Favorites Adjusting the volume of each channel to match the input source
(Channel Level Adjust) Adjusting the tone (Tone) Displaying your desired video during audio playback (Video
Select) Adjusting the picture quality for your viewing environment (Picture
Mode) Playing the same music in all zones (All Zone Stereo)
120
121 122 125
129
130 130
131
132
133
133
134
135 135 136
137 138
139
140 141
Selecting a sound mode
Selecting a sound mode Direct playback Pure Direct playback Auto surround playback Description of sound mode types Sound mode that can be selected for each input signal
HDMI Control function
Setting procedure
Smart Menu function Sleep timer function
Using the sleep timer
Quick select plus function
Calling up the settings Changing the settings
Panel lock function
Disabling all key button operations Disabling all button operations except VOLUME Canceling the Panel lock function
142
143 144 145 145 146 150
154
154
155 157
158
159
160 161
162
162 162 163
Front panel Display Rear panel Remote Index
4
Page 5
Contents Connections Playback Settings Tips Appendix
Remote lock function
Disabling the sensor function of the remote control unit Enabling the remote sensor function
Web control function
Controlling the unit from a web control
Playback in ZONE2/ZONE3 (Another room)
Connecting ZONE Playback in ZONE2/ZONE3
Settings
Menu map
Menu operations
164
164 164
165
165
167
167 173
175
179
Audio
Center Level Adjust Subwoofer Level Adjust Bass Sync Surround Parameter Restorer Audio Delay Volume Audyssey Graphic EQ
Video
Picture Adjust HDMI Setup Output Settings Component Video Out On Screen Display 4K Signal Format TV Format
Inputs
Input Assign Source Rename Hide Sources Source Level Input Select
®
180
180 180 181 181 187 188 189 190 193
195
195 197 202 206 206 207 209
210
210 212 212 213 213
Front panel Display Rear panel Remote Index
5
Page 6
Contents Connections Playback Settings Tips Appendix
Speakers Audyssey® Setup
Procedure for speaker settings (Audyssey® Setup) Error messages Retrieving Audyssey® Setup settings
Manual Setup
Amp Assign Speaker Config. Distances Levels Crossovers Bass Front Speaker 2ch Playback
Network
Information Connection Wi-Fi Setup Settings Network Control Friendly Name Diagnostics
214 214
216 222 224
225
225 233 238 239 240 241 242 242
245
245 245 246 248 250 250 251
HEOS Account
You have not signed in You have already signed in
General
Language ECO ZONE2 Setup / ZONE3 Setup Zone Rename Quick Select Names Trigger Out 1 / Trigger Out 2 Front Display Firmware Information Usage Data Save & Load Setup Lock Reset
Operating external devices with the remote control unit
Registering preset codes Operating devices Initializing registered preset codes Specifying the operating zone with the remote control Resetting the remote control unit
252
252 252
253
253 253 257 259 259 260 260 261 264 265 266 266 267
268
269 272 275 275 275
Front panel Display Rear panel Remote Index
6
Page 7
Contents Connections Playback Settings Tips Appendix
Tips
Tips Troubleshooting
Power does not turn on / Power is turned off Operations cannot be performed through the remote control unit Display on this unit shows nothing No sound comes out Desired sound does not come out Sound is interrupted or noise occurs No video is shown on the TV The menu screen is not displayed on the TV The color of the menu screen and operations content displayed
on the television is different from normal AirPlay cannot be played back USB memory devices cannot be played back Bluetooth cannot be played back The Internet radio cannot be played back Music files on PC or NAS cannot be played back Various online services cannot be played The HDMI Control function does not work Cannot connect to a wireless LAN network When using HDMI ZONE2, the devices does not function properly Update/upgrade error messages
Resetting factory settings Resetting network settings
277 279
280 281 281 282 283 286 287 289
289 290 291 292 293 294 295 295 296 297 298
299 300
Appendix
About HDMI Video conversion function Playing back a USB memory devices Playing back a Bluetooth device Playing back a file saved on a PC or NAS Playing back Internet Radio Personal memory plus function Last function memory Sound modes and channel output Sound modes and surround parameters Types of input signals, and corresponding sound modes Explanation of terms Trademark information Specifications Index License
301 304 306 307 308 309 309 309 310 312 315 318 327 330 336 339
Front panel Display Rear panel Remote Index
7
Page 8
Quick Start Guide
Safety Instructions
Cautions on Using Batteries
Notes on radio
Cable labels
Sound calibration
microphone stand
Sound calibration
microphone
AM loop antenna
FM indoor antenna
Power cord
Remote control unit
(RC-1219)
R6P/AA batteries
External antennas for
Bluetooth/wireless
connectivity
Contents Connections Playback Settings Tips Appendix
Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Front panel Display Rear panel Remote Index
8
Page 9
Batteries
30° 30°
Approx. 7 m
Contents
Connections Playback Settings Tips Appendix
Inserting the batteries
Slide the rear cover off the remote control unit in the
1
arrow direction.
.
Insert two batteries correctly into the battery
2
compartment as indicated.
.
Put the rear cover back on.
3
NOTE
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
0
periods. If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
0
compartment and insert new batteries.
Operating range of the remote control unit
Point the remote control unit at the remote sensor when operating it.
.
Front panel Display Rear panel Remote Index
9
Page 10
Contents
Connections Playback Settings Tips Appendix
Features
High quality sound
With discrete circuit technology, the power amplifier provides
0
identical quality for all 9-channels (165 Watts x 9-channels)
For optimum realism and stunning dynamic range, the power amplifier section features discrete power devices (not integrated circuitry). By using high current, high power discrete power devices, the amplifier is able to easily drive high quality speakers.
Dolby Atmos (v
0
This unit is equipped with a decoder that supports Dolby Atmos audio format. The placement or movement of sound is accurately reproduced by the addition of overhead speakers, enabling you to experience an incredibly natural and realistic surround sound field.
DTS:X (v
0
This unit is equipped with the DTS:X decoder technology. DTS:X brings the home theater experience to new heights with its immersive object based audio technology which removes the bounds of channels. The flexibility of objects allows for sound to be scaled large or small and moved around the room with greater accuracy than ever before leading to a richer immersive audio experience.
p. 319)
p. 322)
DTS Virtual:X (v p. 322)
0
DTS Virtual:X technology features DTS’s proprietary virtual height and virtual surround processing to deliver an immersive sound experience from any type of input source (stereo to 7.1.4 channel) and speaker configuration.
DTS Virtual:X is not for use when Height speakers are connected.
z
Audyssey LFC™ (Low Frequency Containment) (v
0
Audyssey LFC™ solves the problem of low frequency sounds disturbing people in neighboring rooms or apartments. Audyssey LFC™ dynamically monitors the audio content and removes the low frequencies that pass through walls, floors and ceilings. It then applies psychoacoustic processing to restore the perception of low bass for listeners in the room. The result is great sound that no longer disturbs the neighbors.
Discrete subwoofers and Audyssey Sub EQ HT™ (v
0
The unit has two subwoofer output capability and can adjust the level and delay for each subwoofer individually. Audyssey Sub EQ HT™ makes the integration seamless by first compensating for any level and delay differences between the two subwoofers and then applying Audyssey MultEQ® XT32 to both subwoofers together for improved deep bass response and detail.
p. 192)
p. 215)
Front panel Display Rear panel Remote Index
10
Page 11
Contents Connections Playback Settings Tips Appendix
Denon’s unique high quality playback technology “Denon Link
0
HD” (v p. 326)
This unit is equipped with our exclusive “Denon Link HD” technology. When connected to a Denon disc player that has Denon Link HD, the sound localization becomes more precise, with increased detail and definition. The system works by carrying the critical clock timing signals via the dedicated Denon Link HD connection, minimizing the jitter caused by conventional digital connections. This effect can be applied to an audio source of any media from a Blu-ray Disc player.
Front panel Display Rear panel Remote Index
11
Page 12
Auro-3D
FHL FHR
SHL
SHR
TS
FL FR
SW
SL SR
C
FHL FHR
SHL
SHR
TS
FL FR
SW
SL SR
C
0
Contents
Connections Playback Settings Tips Appendix
This unit is equipped with an Auro-3D decoder. With Auro-3D, Front Height (FHL + FHR), Surround Height (SHL + SHR) and Top Surround (TS/optional) are added to a conventional 5.1-channel system to achieve a natural and realistic sound field that is three-dimensional and fully immersive.
You will be able to fully enjoy Auro-3D playback if you properly place the speakers for Auro-3D.
2 Auro-3D playback
.
Auro-3D does not support a Dolby Atmos configuration using Top Front, Top Middle or Top Rear speakers.
0
But it is possible to support both an Auro-3D and Dolby Atmos by adding Front Height and Rear Height speakers* to a 5.1 configuration.
For an optimum Auro-3D experience Surround Height speakers are strongly recommended.
z
Front panel Display Rear panel Remote Index
2 Dolby Atmos playback
.
12
Page 13
4K
Up scaling
Up to 1080p
Contents
Connections Playback Settings Tips Appendix
High performance
4K 60Hz input/output supported
0
Digital video processor upscales analog video signals (SD
0
resolution) to HD (720p/1080p) and 4K (v
p. 204)
.
When 4K Ultra HD (High Definition) is used, an input/output speed of 60 frames per second (60p) is achieved for video signals. When connected to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy the sense of realism only available from high-definition images, even when viewing fast-moving video. This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit videos. By processing the video at the original resolution, this unit lets you enjoy flawless, high-definition picture quality.
This unit also supports HDR (High Dynamic Range) and BT.2020 wide color gamut.
HDCP 2.2
0
.
This unit is equipped with a 4K video upscaling function that allows analog video or SD (Standard Definition) video to be output via HDMI at 4K (3840 × 2160 pixels) resolution. This function enables the device to be connected to a TV using a single HDMI cable, and produces high definition images for any video source.
Equipped with HDMI ZONE2 output (v
0
The ZONE2 multi-room output includes an HDMI output that lets you enjoy a different A/V source in that room, with another program playing in the main room.
This unit is compatible with HDCP 2.2 copyright protection standard.
Front panel Display Rear panel Remote Index
13
p. 167)
Page 14
83
OutIn
Contents
HDMI connections enable connection to various digital AV
0
Connections Playback Settings Tips Appendix
devices (8 inputs, 3 outputs)
0
The device is equipped with a AirPlay® function in addition to network functions such as Internet radio etc. (v p. 129)
.
For connection to a broad range of digital sources, this unit features 8 HDMI inputs, including 1 on the front panel that lets you quickly and conveniently connect a camcorder, game console or other HDMI­equipped device. There are dual HDMI outputs for the main room, and a third HDMI output for another room.
eARC (Enhanced Audio Return Channel) function compatibility
0
The eARC function is compatible with conventional ARC function­compatible audio formats in addition to multichannel linear PCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X and other audio

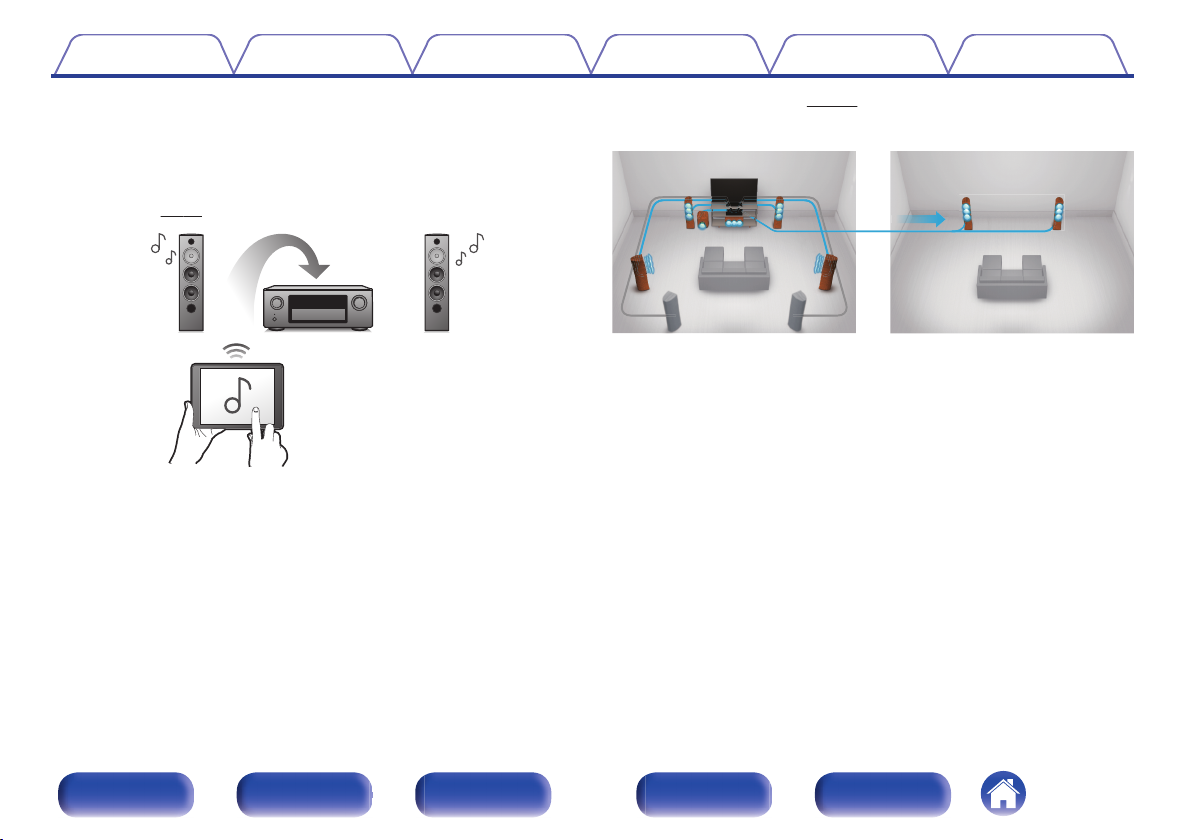

You can enjoy a wide variety of content, including listening to Internet Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music library from an iPhone®, iPad®, iPod touch® or iTunes®.
0
Supports AirPlay 2® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
.
formats a conventional ARC function cannot transmit. Additionally, connecting to an eARC function-compatible television enables enjoyment of higher-quality surround playback of the audio content played from your television.
Front panel Display Rear panel Remote Index
14
Page 15
MAIN ZONE】【ZONE2】/【ZONE3】
Contents
Connections Playback Settings Tips Appendix
Playback of DSD and FLAC files via USB and networks
0
This unit supports the playback of high resolution audio formats such as DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality playback of high resolution files.
Wireless connection with Bluetooth devices can be carried out
0
easily (v p. 98)
.
You can enjoy music simply by connecting wirelessly with your smartphone, tablet, PC, etc.
Multi-Room audio (v p. 141)
0
.
You can select and play back the respective inputs in MAIN ZONE, ZONE2 and ZONE3. In addition, when the All Zone Stereo function is used, the music being played back in MAIN ZONE can be enjoyed in all the zones at the same time. This is useful when you want to let the BGM propagate throughout the whole house.
Energy-saving design
0
This unit is equipped with an ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use, and also an auto-standby function that automatically turns off the power supply when the unit is not in use. This helps reduce unnecessary power use.
Front panel Display Rear panel Remote Index
15
Page 16
Contents
0
Compatible with the “Denon 2016 AVR Remote” Appz for
Connections Playback Settings Tips Appendix
performing basic operations of the unit with an iPad, iPhone or Android™ devices (Google, Amazon Kindle Fire)
.
Along with many new features, the graphics and user interface have been completely overhauled. The new app gives you full control of the AVR as well as access to its setup menu for detailed adjustments from your phones or tablets. “Denon 2016 AVR Remote” App also gives you quick access to the receiver's status display, option menus, Denon Blu­ray Disc player control, and online owner's manual for your convenience.
Download the appropriate “Denon 2016 AVR Remote” App for your iOS or
z
Android devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless LAN) network that the iPhone or iPod touch is connected to.
HEOS provides streaming music from your favorite online music
0
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your favorite music anywhere and everywhere around your home. By utilizing your existing home network and the HEOS App (available for iOS, Android and Amazon devices), you can explore, browse, and play music from your own music library or from many online streaming music services.
When multiple HEOS devices are connected to the same network, HEOS devices can be grouped to play back the same music on all devices simultaneously, or different music can be played on each separate HEOS device.
Front panel Display Rear panel Remote Index
16
Page 17
Contents Connections Playback Settings Tips Appendix
Easy operation
“Setup Assistant” provides easy-to-follow setup instructions
0
First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc.
Easy to use Graphical User Interface
0
This unit is equipped with a Graphical User Interface for improved operability.
Front panel Display Rear panel Remote Index
17
Page 18
wq re yt
u
Contents
Connections Playback Settings Tips Appendix
Part names and functions
Front panel
.
For details, see the next page.
Front panel Display Rear panel Remote Index
18
Page 19
wq reyt
u
Contents
.
Power operation button (X)
A
Connections Playback Settings Tips Appendix
Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). (v
Power indicator
B
p. 92)
This is lit as follows according to the power status:
Green: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI Pass Through” is set to “On” (v
0
When “HDMI Control” is set to “On” (v
0
0
When “Network Control” is set to “Always On” (v p. 250)
p. 199)
p. 197)
SOURCE SELECT knob
C
This selects the input source. (v
Remote control sensor
D
p. 92)
This receives signals from the remote control unit. (v p. 9)
Display
E
This displays various pieces of information. (v
MASTER VOLUME knob
F
This adjusts the volume level. (v
Door
G
p. 93)
p. 22)
When you are using buttons and/or connectors behind the door, press the bottom of the door to open it. Be careful not to catch your fingers when closing the door.
.
Front panel Display Rear panel Remote Index
19
Page 20
io Q0qw r t y ue
Contents
Connections Playback Settings Tips Appendix
With the door open
.
ZONE2 ON/OFF button
A
This turns the power of ZONE2 (another room) on/off. (v
ZONE2 SOURCE button
B
This selects the input source for ZONE2. (v p. 173)
ZONE3 ON/OFF button
C
This turns the power of ZONE3 (another room) on/off. (v
ZONE3 SOURCE button
D
This selects the input source for ZONE3. (v
p. 173)
p. 173)
p. 173)
STATUS button
E
Each press of this switches the status information that is shown on the display.
Information button (INFO)
F
This displays the status information on the TV screen. (v
Cursor buttons (uio p)
G
These select items.
OPTION button
H
This displays the option menu on the TV screen.
DIMMER button
I
Each press of this switches the brightness of the display. (v
QUICK SELECT buttons
J
With a single press of any of these buttons, you can call up various settings you’ve registered to each button such as the input source, volume level and sound mode settings. (v
p. 159)
p. 265)
p. 260)
Front panel Display Rear panel Remote Index
20
Page 21
Q3 Q7Q1 Q2 Q6Q5Q4
Contents Connections Playback Settings Tips Appendix
BACK button
M
This returns to the previous screen.
ENTER button
N
This determines the selection.
SETUP button
O
p. 179)
.
AUX1-HDMI connector
K
This is used to connect HDMI output compatible devices such as video camcorders and game consoles. (v p. 81)
L
USB port (T)
This is used to connect USB storages (such as USB memory devices). (v p. 83)
This displays the menu on the TV screen. (v
SETUP MIC jack
P
This is used to connect the supplied Sound calibration microphone.
p. 217)
(v
Headphones jack (PHONES)
Q
This is used to connect headphones. When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
0
headphones.
Front panel Display Rear panel Remote Index
21
Page 22
Q0 Q1 Q2
iuoyt
rewq
Contents Connections Playback Settings Tips Appendix
Display
.
Input signal indicators
A
The respective indicator will light corresponding to the input signal. (v p. 213)
Decoder indicators
B
These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running.
C
Audyssey® indicator
This lights when “MultEQ® XT32”, “Dynamic EQ”, “Dynamic Volume” or “Audyssey LFCTM” has been set up. (v
p. 190)
Tuner reception mode indicators
D
These light up according to the reception conditions when the input source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in. STEREO: Lights up when receiving FM stereo broadcasts. RDS: Lights up when receiving RDS broadcasts.
Monitor output indicator
E
These light according to the HDMI monitor output setting. When set to “Auto(Dual)”, the indicators light according to connection status.
MULTI ZONE indicator
F
This lights up when ZONE2 or ZONE3 (another room) power is turned on. (v
p. 173)
Front panel Display Rear panel Remote Index
22
Page 23
Q0 Q1 Q2
iuo
Contents Connections Playback Settings Tips Appendix
Input/output signal channel indicators
L
The channel for input/output signals is displayed according to the setting configured for “Channel Indicators”. (v p. 261)
When “Channel Indicators” is set to “Output” (Default)
0
These light when audio signals are being output from the speakers. When “Channel Indicators” is set to “Input”
0
These light corresponding to the channels that include the input signals.
.
Sleep timer indicator
G
This lights when the sleep mode is selected. (v
MUTE indicator
H
This blinks while the sound is muted. (v
Volume indicator
I
Information display
J
p. 157)
p. 93)
The input source name, sound mode, setting values and other information are displayed here.
Front speaker indicator
K
This lights according to the setting of the front A and B speakers.
When playing HD Audio sources, the A indicator lights when a signal from an extension channel (a channel other than the front, center, surround, surround back, front height, front wide or LFE channel) is input.
Front panel Display Rear panel Remote Index
23
Page 24
Q
2
Q
3
Q
5
Q
6
Q
4
qw y itrue
Q0oqQ1
Contents
Rear panel
Connections Playback Settings Tips Appendix
.
For details, see the next page.
Front panel Display Rear panel Remote Index
24
Page 25
qw re
q
qwe
Contents Connections Playback Settings Tips Appendix
TRIGGER OUT jacks
B
Used to connect devices equipped with the trigger function. (v p. 89)
Digital audio connectors (DIGITAL AUDIO)
C
Used to connect devices equipped with digital audio connectors.
“Connection 2 : TV equipped with an HDMI connector and
0
incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)” (v p. 75)
“Connection 3 : TV equipped without an HDMI
.
Bluetooth/wireless LAN antenna connectors
A
Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. (v p. 87)
Place the external antennas for Bluetooth/wireless connectivity
A
evenly over the screw terminal of rear. Turn clockwise until the antennas is fully connected.
B
Rotate the antenna upwards for best reception.
C
0
connector” (v “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 78)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 79)
0
RS-232C connector
D
Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.
Perform the operation below beforehand.
Turn on the power of this unit.
A
Turn off the power of this unit from the external controller.
B
Check that the unit is in the standby mode.
C
p. 76)
.
Front panel Display Rear panel Remote Index
25
Page 26
yitu
Q0oQ1
Contents
.
REMOTE CONTROL jacks
E
Connections Playback Settings Tips Appendix
Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. (v p. 88)
Denon Link HD connector
F
Used to connect a Denon Link HD compatible Blu-ray Disc player. (v
p. 80)
SIGNAL GND terminal
G
Used to connect a ground wire for the turntable. (v p. 82)
NETWORK connector
H
Used to connect to a LAN cable when connecting to a wired LAN network. (v p. 86)
Video connectors (VIDEO)
I
Used to connect devices equipped with video connectors.
“Connection 3 : TV equipped without an HDMI
0
connector” (v p. 76) “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 78)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 79)
0
HDMI connectors
J
Used to connect devices equipped with HDMI connectors.
“Connection 1 : TV equipped with an HDMI connector and
0
compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)” (v
“Connection 2 : TV equipped with an HDMI connector and
0
p. 73)
incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)” (v p. 75)
“Connecting a set-top box (Satellite tuner/cable TV)” (v
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 79)
0
“Connecting a Blu-ray Disc player compatible with the Denon Link
0
HD function” (v
AC inlet (AC IN)
K
p. 80)
Used to connect the power cord. (v p. 90)
p. 78)
Front panel Display Rear panel Remote Index
26
Page 27
Q2 Q3 Q5 Q6Q4
Contents Connections Playback Settings Tips Appendix
PRE OUT connectors
O
Used to connect a subwoofer with built-in amplifier or an external power amplifier.
.
FM/AM antenna terminals (ANTENNA)
L
Used to connect FM antennas and AM loop antennas. (v p. 84)
Analog audio connectors (AUDIO)
M
Used to connect devices equipped with analog audio connectors.
“Connecting a set-top box (Satellite tuner/cable TV)” (v
0
“Connecting a DVD player or Blu-ray Disc player” (v
0
“Connecting a turntable” (v
0
Speaker terminals (SPEAKERS)
N
p. 82)
p. 79)
Used to connect speakers. (v p. 40)
p. 78)
“Connecting the subwoofer” (v
0
“Connecting 11.1-channel speakers” (v p. 59)
0
“Connecting ZONE” (v
0
Component video connectors (COMPONENT VIDEO)
P
Used to connect devices equipped with component video connectors.
“Connection 3 : TV equipped without an HDMI
0
connector” (v “Connecting a set-top box (Satellite tuner/cable TV)” (v p. 78)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 79)
0
p. 76)
NOTE
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
0
discharge may cause permanent damage to the unit.
p. 41)
p. 167)
Front panel Display Rear panel Remote Index
27
Page 28
SOUND MODE
SOUND MODE
RC-1219
POWER
POWER
AVR CONTROL
AVR CONTROL
QUICK SELECT
QUICK SELECT
TUNE
TUNE
TUNE
TUNE
PURE
PURE
MOVIE
MOVIE
GAME
GAME
MUSIC
MUSIC
GAME
GAME
CB
CBL/
SAT
Blu-ray
Blu-ray
DVDVD
AUX1
AUX1
AUX2
AUX2
INTERNET
R
ADIO
ADIO
VOLUME
VOLUME
OPTION
OPTION
INFO
INFO
BACK
BACK
SETUP
SETUP
CH/
PAGE
PAGE
MENU
MENU
Z2
Z 3
Z 3
1
1 2 3 4
2 3
4 5 6
7 8 9
ENTER
ENTER
0
+10
+10
GHI
GHI
JKL
JKL
MNO
MNO
PQRS
PQR S
TUV
TUV
ABC
ABC
. /
. /
DEF
DEF
SLEEPEP
WXYZ
WXY Z
MAIN
MAIN
PHONO
PHONO
DEV.V. TV AVR
DEVICE
DEVICE TV
MEDIAIA
PLAYERER
CD
CD
Bluetooth
Bluetooth
TUNER
TUNER
TV
AUDIO
AUDIO
MENU
MENU
INP
INPUT
MUTE
MUTE
ECO
ECO
ENTER
ENTER
USB
USB
e
t
r
y
q w
Contents
Connections Playback Settings Tips Appendix
Remote control unit
AVR operation buttons (AVR CONTROL MAIN, Z2, Z3)
A
These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit.
“Playback in ZONE2/ZONE3” (v
0
“Menu operations” (v p. 179)
0
“Specifying the operating zone with the remote control” (v
0
Front panel Display Rear panel Remote Index
Operation mode indicators
B
The “AVR” operation mode indicator lights when the unit is being operated. The “DEV.” indicator lights when an external device is being operated. The “TV” indicator lights when the TV is being operated.
Device operation buttons (DEVICE X / DEVICE MENU)
C
These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons.
p. 268)
(v
Input source select buttons
D
These select the input source.
“Selecting the input source” (v
0
“Playback in ZONE2/ZONE3” (v
0
QUICK SELECT buttons (1 – 4)
E
p. 92)
These call up settings registered to each button, such as input source, volume level and sound mode settings. (v
Channel/page search buttons (CH/PAGE df)
F
These select radio stations registered to presets or switch pages. (v p. 110)
28
p. 173)
p. 275)
p. 173)
p. 159)
Page 29
SOUND MODE
SOUND MODE
RC-1219
POWER
POWER
AVR CONTROL
AVR CONTROL
QUICK SELECT
QUICK SELECT
TUNE
TUNE
TUNE
TUNE
PURE
PURE
MOVIE
MOVIE
GAME
GAME
MUSIC
MUSIC
GAME
GAME
CB
CBL/
SAT
Blu-ray
Blu-ray
DVDVD
AUX1
AUX1
AUX2
AUX2
INTERNET
R
ADIO
ADIO
VOLUME
VOLUME
OPTION
OPTION
INFO
INFO
BACK
BACK
SETUP
SETUP
CH/
PAGE
PAGE
MENU
MENU
Z2
Z 3
Z 3
1
1 2 3 4
2 3
4 5 6
7 8 9
ENTER
ENTER
0
+10
+10
GHI
GHI
JKL
JKL
MNO
MNO
PQRS
PQR S
TUV
TUV
ABC
ABC
. /
. /
DEF
DEF
SLEEPEP
WXYZ
WXY Z
MAIN
MAIN
PHONO
PHONO
DEV.V. TV AVR
DEVICE
DEVICE TV
MEDIAIA
PLAYERER
CD
CD
Bluetooth
Bluetooth
TUNER
TUNER
TV
AUDIO
AUDIO
MENU
MENU
INP
INPUT
MUTE
MUTE
ECO
ECO
ENTER
ENTER
USB
USB
Q2
Q1
Q0
o
i
u
Q3
Contents
Connections Playback Settings Tips Appendix
MUTE button (:)
G
This mutes the output audio.
“Turning off the sound temporarily (Muting)” (v p. 93)
0
“Turning off the sound temporarily (Muting) (ZONE2/
0
ZONE3)” (v p. 174)
Information button (INFO)
H
This displays the status information on the TV screen. (v p. 265)
Cursor buttons (uio p)
I
These select items.
BACK button
J
This returns to the previous screen.
System buttons
K
These perform playback related operations.
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. (v
Number / Character buttons
L
These enter letters or numbers into the unit.
“Listening to FM/AM broadcasts” (v
0
“Operating external devices with the remote control unit” (v
0
Remote control signal transmitter
M
This transmits signals from the remote control unit. (v p. 9)
29
Front panel Display Rear panel Remote Index
p. 104)
p. 104)
p. 268)
Page 30
SOUND MODE
SOUND MODE
RC-1219
POWER
POWER
AVR CONTROL
AVR CONTROL
QUICK SELECT
QUICK SELECT
TUNE
TUNE
TUNE
TUNE
PURE
PURE
MOVIE
MOVIE
GAME
GAME
MUSIC
MUSIC
GAME
GAME
CB
CBL/
SAT
Blu-ray
Blu-ray
DVDVD
AUX1
AUX1
AUX2
AUX2
INTERNET
R
ADIO
ADIO
VOLUME
VOLUME
OPTION
OPTION
INFO
INFO
BACK
BACK
SETUP
SETUP
CH/
PAGE
PAGE
MENU
MENU
Z2
Z 3
Z 3
1
1 2 3 4
2 3
4 5 6
7 8 9
ENTER
ENTER
0
+10
+10
GHI
GHI
JKL
JKL
MNO
MNO
PQRS
PQR S
TUV
TUV
ABC
ABC
. /
. /
DEF
DEF
SLEEPEP
WXYZ
WXY Z
MAIN
MAIN
PHONO
PHONO
DEV.V. TV AVR
DEVICE
DEVICE TV
MEDIAIA
PLAYERER
CD
CD
Bluetooth
Bluetooth
TUNER
TUNER
TV
AUDIO
AUDIO
MENU
MENU
INP
INPUT
MUTE
MUTE
ECO
ECO
ENTER
ENTER
USB
USB
W1
Q5
Q4
Q8
Q6 Q7
Q9
Q9
W0
W2
Contents
Connections Playback Settings Tips Appendix
POWER button (X)
N
This turns the power on/off.
“Turning the power on” (v p. 92)
0
“Playback in ZONE2/ZONE3” (v
0
TV operation buttons (TV X / TV MENU / TV INPUT)
O
These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons.
p. 273)
(v
P
ECO Mode button (G)
This switches to ECO Mode. (v p. 253)
VOLUME buttons (df)
Q
These adjust the volume level.
“Adjusting the volume” (v
0
“Adjusting the volume (ZONE2/ZONE3)” (v
0
OPTION button
R
This displays the option menu on the TV screen.
ENTER button
S
This determines the selection.
SETUP button
T
This displays the menu on the TV screen. (v
SOUND MODE buttons
U
These select the sound mode. (v p. 142)
SLEEP button
V
This sets the sleep timer. (v p. 157)
p. 173)
p. 93)
p. 174)
p. 179)
30
Front panel Display Rear panel Remote Index
Page 31
R
L
R
L
Contents Connections Playback Settings Tips Appendix
o
Contents
Speaker installation 32
Connecting speakers 40
Connecting a TV 72
Connecting a playback device 77
Connecting a USB memory device to the USB port 83
Connecting an FM/AM antenna 84
Connecting to a home network (LAN) 86
Connecting an external control device 88
Connecting the power cord 90
NOTE
Do not plug in the power cord until all connections have been completed.
0
However, when the “Setup Assistant” is running, follow the instructions in the “Setup Assistant” (page 9 in the separate “Quick Start Guide”) screen for making connections. (During “Setup Assistant” operation, the input/output connectors do not conduct current.)
Do not bundle power cords together with connection cables. Doing so can result in
0
noise.
o
Cables used for connections
Provide necessary cables according to the devices you want to connect.
Speaker cable
.
Subwoofer cable
HDMI cable
.
.
Component video cable
.
Video cable
Coaxial digital cable
Optical cable
.
.
.
Audio cable
.
LAN cable
Front panel Display Rear panel Remote Index
31
.
Page 32
C
FL FR
SBL
SBR
SB
SW1
SW2
SL SR
Contents Connections Playback Settings Tips Appendix
Speaker installation
Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room. Speaker installation is explained using this example of a typical installation.
FL/FR
(Front speaker left/ right):
C (Center speaker):
SL/SR
(Surround speaker left/ right):
SBL/SBR
.
(Surround back speaker left/right):
SW 1/2 (Subwoofer):
Front panel Display Rear panel Remote Index
32
Place the FRONT left and right speakers an equal distance from the main listening position. The distance between each speaker and your TV should also be the same.
Place the CENTER speaker in between the front speakers and above or below your TV.
Place the SURROUND left and right speakers an equal distance to the left and right sides of the main listening position. If you don’t have surround back speakers, move the surround speakers slightly behind your listening position.
Place the SURROUND BACK left and right speakers an equal distance from the main listening position and directly behind the main listening position. When using a single surround back speaker (SB), place it directly behind the listening position.
Place the SUBWOOFER at a convenient location near the front speakers. If you have two subwoofers, place them asymmetrically across the front of your room.
Page 33
FHL FHR
TRR
TRL
TFR
TFL
RHL RHR
TMR
TML
Contents Connections Playback Settings Tips Appendix
.
FHL/FHR
(Front height speaker left/right):
TFL/TFR
(Top front speaker left/right):
TML/TMR
(Top middle speaker left/right):
TRL/TRR
(Top rear speaker left/right):
RHL/RHR
(Rear height speaker left/right):
Place the FRONT HEIGHT left and right speakers directly above the front speakers. Mount them as close to the ceiling as possible and aim them towards the main listening position.
Mount the TOP FRONT left and right speakers on the ceiling slightly in front of your main listening position and aligned with the left and right front speakers.
Mount the TOP MIDDLE left and right speakers directly above the main listening position and aligned with the left and right front speakers.
Mount the TOP REAR left and right speakers on the ceiling slightly behind your main listening position and aligned with the left and right front speakers.
Place the REAR HEIGHT left and right speakers directly behind the main listening position. Mount them as close to the ceiling as possible and aligned with the left and right front speakers.
Front panel Display Rear panel Remote Index
33
Page 34
FHL FHR
SHL
SHR
TS
FL FR
SW
SL SR
C
Contents Connections Playback Settings Tips Appendix
.
SHL/SHR
(Surround height speaker left/right):
TS
(Top surround speaker):
For the best Auro-3D experience Surround Height speakers are recommended,
0
however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.
Place the SURROUND HEIGHT left and right speakers directly above the surround speakers.
Place the TOP SURROUND speaker directly above the main listening position and aligned with the center channel speaker.
Front panel Display Rear panel Remote Index
34
Page 35
FDL FDR
BDL BDR
SDL SDR
Contents
.
Connections Playback Settings Tips Appendix
About Dolby Atmos Enabled speakers
Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward­pointing speaker that is placed on the floor.
You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling.
FDL/FDR
(Front Dolby speaker left/right):
on the front speaker. For a Dolby Atmos Enabled integrated with a front speaker, place the Dolby Atmos Enabled speaker instead of the front speaker.
Place the FRONT Dolby Atmos Enabled speaker
.
SDL/SDR
(Surround Dolby speaker left/right):
Place the SURROUND Dolby Atmos Enabled speaker on the surround speaker. For a Dolby Atmos Enabled speaker integrated with a surround speaker, place the Dolby Atmos Enabled speaker instead of the surround speaker.
Place the BACK Dolby Atmos Enabled speaker on
BDL/BDR
(Back Dolby speaker left/right):
the surround back speaker. For a Dolby Atmos Enabled speaker integrated with a surround back speaker, place the Dolby Atmos Enabled speaker instead of the surround back speaker.
Front panel Display Rear panel Remote Index
35
Page 36
z
1
z2
z3
z4
z5
Point slightly downwards
Front height speaker
z1 30° - 45°
z4 125° - 150°
z2 30° - 55°
z3 65° - 100°
z5 135° - 150°
GViewed from the sideH
Top front speaker Top rear speaker
Front speaker Surround
speaker
Surround back speaker
Point slightly downwards
Rear height speaker
Top middle / Top surround speaker Surround height speaker
TS
SL
TRL
RHL RHR
FHL
TML
TFL
FL
SR
TRR
FHR
TMR
TFR
FR
C

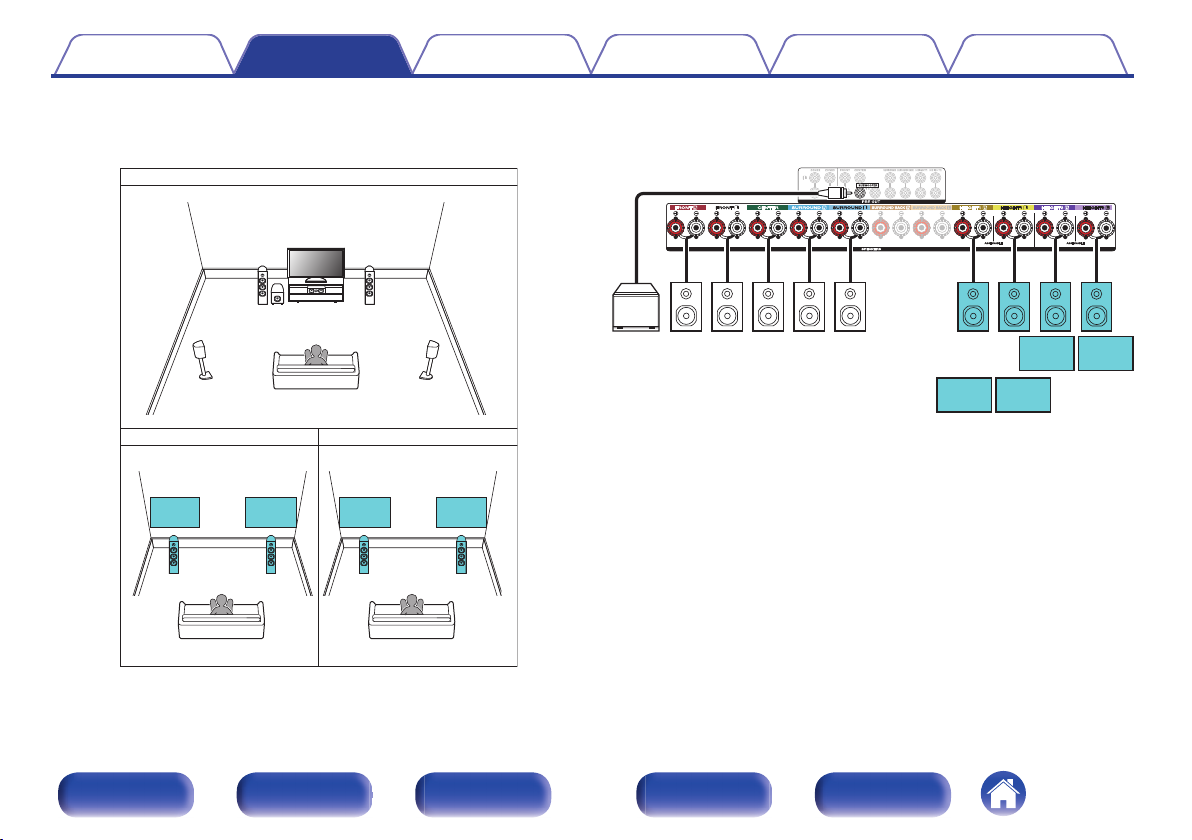

Height speakers layout
GViewed from the topH
SHRSHL
Contents
This unit is compatible with Dolby Atmos and DTS:X which offers an even wider
0
and deeper surround sensation. Dolby Atmos is not supported in a 5.1-channel or less speaker configuration.
0
DTS:X can be selected regardless of the speaker configuration.
0
Auro-3D recommends adding FRONT HEIGHT and SURROUND HEIGHT
0
speakers to a 5.1 speaker configuration. Optionally, you may substitute REAR HEIGHT, Dolby Atmos Enabled speakers instead of FRONT HEIGHT and SURROUND HEIGHT speakers for Dolby Atmos, DTS:X and Auro-3D playback.
Use the illustration below as a guide for how high each speaker should be
0
installed. The height does not need to be exactly the same.
Connections Playback Settings Tips Appendix
.
.
For the best Auro-3D experience Surround Height speakers are recommended,
0
however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.
Front panel Display Rear panel Remote Index
36
Page 37
z1
z2
z3
FL
SW
C
SL
SBL
FR
SR
SBR
Listening
position
z1
z2
FL
SW
C
SL
FR
SR
Contents
Connections Playback Settings Tips Appendix
When 7.1-channel speakers are installed using
o
surround back speakers
.
z1 22° - 30° z2 90° - 110° z3 135° - 150°
When using a single surround back speaker, place it directly behind the listening
0
position.
When 5.1-channel speakers are installed
o
.
z1 22° - 30° z2 120°
Front panel Display Rear panel Remote Index
37
Page 38
FHL FHR
C
FL FR
SW
SL SR
RHL RHR
TRR
TRL
TFR
TFL
C
FL FR
SW
SL SR
Contents
Connections Playback Settings Tips Appendix
o
Layout including height speakers and ceiling speakers
n
Height speaker layout example
Combination of 5.1-channel layout and front height/rear height speakers.
.
n
Ceiling speaker layout example
Combination of 5.1-channel layout and top front/top rear speakers.
.
Front panel Display Rear panel Remote Index
38
Page 39
C
FL FR
FDL FDR
SW
SL SR
SDL SDR
FHL FHR
SHL
SHR
TS
FL FR
SW
SL SR
C
Contents Connections Playback Settings Tips Appendix
n
Dolby Atmos Enabled speaker layout example
Combination of 5.1-channel layout and front Dolby/surround Dolby speakers.
.
Front panel Display Rear panel Remote Index
n
Auro-3D layout example
Combination of 5.1-channel speakers with Front Height/Surround Height/Top Surround speakers.
.
For the best Auro-3D experience Surround Height speakers are recommended,
0
however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.
39
Page 40
Contents
Connections Playback Settings Tips Appendix
Connecting speakers
Here we connect the speakers in the room to this unit.
Before connecting speakers
NOTE
Disconnect this unit’s power plug from the power outlet before connecting the
0
speakers. Also, turn off the subwoofer. Connect so that the speaker cable core wires do not protrude from the speaker
0
terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and - sides touch each other. (“Protection circuit” (v
Never touch the speaker terminals while the power cord is connected. Doing so
0
could result in electric shock. When the “Setup Assistant” (page 9 in the separate “Quick Start Guide”) is running, follow the instructions in the “Setup Assistant” screen for making connections. (Power is not supplied to the speaker terminals while the “Setup Assistant” is running.)
Use speakers with an impedance of 4 – 16 /ohms.
0
p. 326))
Front panel Display Rear panel Remote Index
NOTE
Carry out the following settings when using a speaker with an impedance of 4 – 6
0
Ω/ohms.
1. Press and hold the main unit’s STATUS and ZONE3 SOURCE at the same
time for at least 3 seconds.
zVideo Format < PAL>” appears on the display.
2.
Use u or i on the main unit three times.
zSp. Impedance <8ohms>” appears on the display.
3.
Use o or p on the main unit to select the impedance.
8ohms (Default):
6ohms:
4ohms:
4. Press the main unit’s ENTER to complete the setting.
Select when the impedance for all of the connected speakers is 8 Ω/ohms or over.
Select when the impedance for any of the connected speakers is 6 Ω/ohms.
Select when the impedance for any of the connected speakers is 4 Ω/ohms.
40
Page 41
SW2SW1
Contents
Connections Playback Settings Tips Appendix
o
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly.
Peel off about 10 mm of sheathing from the tip of the
1
speaker cable, then either twist the core wire tightly or terminate it.
.
Turn the speaker terminal counterclockwise to loosen it.
2
.
Insert the speaker cable’s core wire to the hilt into the
3
speaker terminal.
.
Turn the speaker terminal clockwise to tighten it.
4
o
Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer. Two subwoofers can be connected to this unit.
To use two subwoofers, set “Subwoofer” to “2 spkrs” in the “Speaker Config.” setting. (v p. 233)
The level and distance can be set separately for Subwoofer 1 and Subwoofer 2.
.
.
Front panel Display Rear panel Remote Index
41
Page 42
Contents Connections Playback Settings Tips Appendix
About the cable labels (supplied) for channel identification
o
The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable. Attach the cable label corresponding to each speaker to each speaker cable.
This makes it easy to connect the correct cable to the speaker terminals on the rear panel.
Speaker Color
FRONT L White
FRONT R Red
CENTER Green
SURROUND L Light Blue
SURROUND R Blue
SURROUND BACK L Beige
SURROUND BACK R Brown
FRONT HEIGHT L Light Yellow
FRONT HEIGHT R Yellow
TOP FRONT L Light Yellow
TOP FRONT R Yellow
TOP MIDDLE L Light Purple
TOP MIDDLE R Purple
TOP REAR L Light Purple
TOP REAR R Purple
Front panel Display Rear panel Remote Index
SURROUND HEIGHT L Light Purple
SURROUND HEIGHT R Purple
REAR HEIGHT L Light Purple
REAR HEIGHT R Purple
FRONT DOLBY L Light Yellow
FRONT DOLBY R Yellow
SURROUND DOLBY L Light Purple
SURROUND DOLBY R Purple
BACK DOLBY L Light Purple
BACK DOLBY R Purple
TOP SURROUND Black
SUBWOOFER 1 Black
SUBWOOFER 2 Black
42
Speaker Color
Page 43
Speaker
This unit
Contents Connections Playback Settings Tips Appendix
Attach the cable label for each channel to its speaker cable as shown in the diagram.
Refer to the table and attach the label to each speaker cable. Then, make connection so that the color of the speaker terminal
matches that of the cable label.
G How to attach the cable labels H
.
Front panel Display Rear panel Remote Index
43
Page 44
Contents
Connections Playback Settings Tips Appendix
Speaker configuration and “Amp Assign” settings
This unit has a built-in 9-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign” settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback. (v p. 225)
Perform “Amp Assign” settings to suit the number of rooms and speaker configuration to be installed. (v
Playback speaker in each zone
MAIN ZONE ZONE2 ZONE3
5.1-channel playback
7.1-channel playback 7.1ch + ZONE2 47
9.1-channel playback 9.1ch (Default) 51
11.1-channel playback 11.1ch 59
7.1-channel playback (bi-amp connection of front speakers)
Second front speakers 7.1ch + Front B 66
7.1-channel playback 2-channel
7.1-channel playback 2-channel (Pre-out) 2-channel
5.1-channel playback (bi-amp connection of front speakers)
5.1-channel playback 2-channel
7.1-channel playback 1-channel
The sound mode that can be selected varies according to the speaker configuration. See “Sound modes and channel output” (v p. 310) for the sound modes that are supported.
The following pages provide basic connection examples.
2-channel (Pre-out) 2-channel (Pre-out)
(Speaker out)
2-channel
(Speaker out)
(Speaker out)
(Speaker out)
2-channel (Pre-out) 7.1ch + ZONE2 67
(Speaker out)
2-channel (Pre-out) 5.1ch (Bi-Amp) + ZONE2 68
2-channel
(Speaker out)
1-channel
(Speaker out)
p. 225)
“Amp Assign” settings
Can be set in all “Amp Assign” modes.
7.1ch (Bi-Amp) 65
7.1ch + ZONE3 67
5.1ch + ZONE2/3 69
7.1ch + ZONE2/3-MONO 70
Connection
page
46
Front panel Display Rear panel Remote Index
44
Page 45
T.REARSUBWOOFER
T.FRONTSURR.BACKSURROUNDCENTERFRONT
CENTER SURROUND SURROUNDFRONTFRONT CENTER SURROUND SURROUNDFRONTFRONT HEIGHT1 HEIGHT1HEIGHT1 HEIGHT1
SUBWOOFER
12
HEIGHT2
HEIGHT2
HEIGHT2
SURR.BACK SURR.BACK
SPEAKERS
Speakers/Amp Assign
PRE OUT
Assign Mode 11.1ch
Back
Contents
Connections Playback Settings Tips Appendix
Refer to the example connection for “Example connection for the Auro-3D
9.1-channel system” (v p. 57) when playing Auro-3D with a 9.1­channel system using the basic 5.1-channel system and the front height and surround height speakers. Also refer to the connection example for “Example connection for the Auro-3D 10.1-channel system” (v p. 62) when playing Auro-3D with a
10.1-channel system by adding the top surround speaker.
In addition to the connections described in
0
p.46 - 70, this unit allows for various
speaker connections with the “Amp Assign” setting. Also refer to the menu screen in “View Terminal Config.” on the “Amp Assign”
setting screen, which shows how to make connections in your environment.
.
Front panel Display Rear panel Remote Index
45
Page 46
FL
SW C
SL
FR
SR
FR FL C SR SL
SW
Contents Connections Playback Settings Tips Appendix
Connecting 5.1-channel speakers
This serves as a basic 5.1-channel surround system.
.
.
Front panel Display Rear panel Remote Index
46
Page 47
FL
SW C
SL
FR
SR
SBRSBL
SBLSBR
CSRSL
SW
FR FL
Contents Connections Playback Settings Tips Appendix
Connecting 7.1-channel speakers
Example connections when using surround back speakers
o
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.
.
.
Set “Floor” - “Layout” to “5ch & SB” in the menu when connecting in this
0
configuration. (v
p. 228)
Front panel Display Rear panel Remote Index
When using a single surround back speaker, connect it to the SURROUND BACK
0
L terminal.
47
Page 48
C
FL FR
SW
SL SR
TML TMR
FR FL C SR SL
SW
TMLTMR
Contents Connections Playback Settings Tips Appendix
Example connections when using ceiling speakers
o
This 7.1-channel surround system is the same as a basic 5.1-channel system but with ceiling speakers.
.
.
Set “Floor” - “Layout” to “5ch” and “Height Sp” to “2ch” in the menu when connecting in this configuration. (v p. 228)
0
The top front or top rear speakers can be connected instead of the top middle speakers. In this case, set the ceiling speakers to be connected under “Height” - “Layout” in the
0
menu. (v p. 229)
Front panel Display Rear panel Remote Index
48
Page 49
FL
SW C
SL
FHR
FR
SR
FHL
FHR FHL
FR FL C SR SL
SW
Contents Connections Playback Settings Tips Appendix
Example connections when using height speakers
o
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.
.
.
Set “Floor” - “Layout” to “5ch” and “Height Sp” to “2ch” in the menu when connecting in this configuration. (v p. 228)
0
The rear height speakers can be connected instead of the front height speakers. In this case, set the height speakers to be connected under “Height” - “Layout” in the menu.
0
(v p. 229)
Front panel Display Rear panel Remote Index
49
Page 50
C
SWFL FR
SL SR
FDL FDR
FR FL C SR SL
SW
FDR FDL
Contents Connections Playback Settings Tips Appendix
Example connections when using Dolby Atmos Enabled speakers
o
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby speakers.
.
.
Set “Floor” - “Layout” to “5ch” and “Dolby Sp” to “2ch” in the menu when connecting in this configuration. (v p. 228)
0
The surround Dolby speakers can be connected instead of the front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under “Height” -
0
“Layout” in the menu. (v p. 229)
Front panel Display Rear panel Remote Index
50
Page 51
C
FL FR
SBL
SBR
SW
SL SR
TML TMR
FR FL C SR SL
SW
SBR SBL
TMR TML
HEIGHT 1
z
Contents
Connections Playback Settings Tips Appendix
Connecting 9.1-channel speakers
This system, which is based on a 5.1-channel system, plays back up to 9.1-channels at the same time. You can connect speakers for up to 11-channels for MAIN ZONE. When you connect speakers for 10 or more channels, the output speakers automatically
switch according to the input signal and sound mode.
Example connection when using one set of ceiling speakers
o
.
Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this
0
configuration. (v
Front panel Display Rear panel Remote Index
p. 228)
.
The top front or top rear speakers can be connected instead of the top middle
z
speakers. In this case, set the ceiling speakers to be connected under “Height” ­“Layout” in the menu. (v p. 229)
51
Page 52
C
FL FR
SW
SL SR
TRL TRR
TFL TFR
HEIGHT 1
z
TFR TFL
FR FL C SR SL
SW
HEIGHT 2
z
TRR TRL
Contents Connections Playback Settings Tips Appendix
Example connection when using two sets of ceiling speakers
o
.
Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this
0
configuration. (v
Front panel Display Rear panel Remote Index
p. 228)
.
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
z
settings. (v
p. 58)
52
Page 53
C
FL FR
SBL
SBR
SW
SL SR
FHL FHR
FR FL C SR SL
SW
SBR SBL
FHR FHL
HEIGHT 1
z
Contents
Example connection when using one set of height speakers
o
Connections Playback Settings Tips Appendix
.
Set “Height” - “Height Sp” to “2ch” in the menu when connecting in this
0
configuration. (v
Front panel Display Rear panel Remote Index
p. 228)
.
The rear height speakers can be connected instead of the front height speakers.
z
In this case, set the height speakers to be connected under “Height” - “Layout” in the menu. (v p. 229)
53
Page 54
C
FL FR
SW
SL SR
FHL FHR
RHL RHR
HEIGHT 1
z
FHR FHL
HEIGHT 2
z
RHR RHL
FR FL C SR SL
SW
Contents Connections Playback Settings Tips Appendix
Example connection when using two sets of height speakers
o
.
Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this
0
configuration. (v
Front panel Display Rear panel Remote Index
p. 228)
.
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
z
settings. (v
p. 58)
54
Page 55
C
SBL
SBR
SW
SL SR
FL
FR
FDL FDR
FR FL C SR SL
SW
SBR SBL
FDR FDL
HEIGHT 1
z
Contents
Example connection when using one set of Dolby Atmos Enabled speakers
o
Connections Playback Settings Tips Appendix
.
Set “Height” - “Dolby Sp” to “2ch” in the menu when connecting in this
0
configuration. (v
Front panel Display Rear panel Remote Index
p. 228)
.
The surround Dolby or back Dolby speakers can be connected instead of the
z
front Dolby speakers. In this case, set the Dolby Atmos Enabled speakers to be connected under “Height” - “Layout” in the menu. (v p. 229)
55
Page 56
C
SW
SL SR
FL
FR
FDL FDR
SDL SDR
HEIGHT 1
z
FR FL C SR SL
SW
FDR FDL
HEIGHT 2
z
SDR SDL
Contents Connections Playback Settings Tips Appendix
Example connection when using two sets of Dolby Atmos Enabled speakers
o
.
Set “Height” - “Dolby Sp” to “4ch” in the menu when connecting in this
0
configuration. (v
Front panel Display Rear panel Remote Index
p. 228)
.
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
z
settings. (v
p. 58)
56
Page 57
FL FR
SW
SL SR
C
FHL FHR
SHL SHR
FHR FHL SHR SHL
FR FL C SR SL
SW
HEIGHT 1
z
1
HEIGHT 2
z1z
2
Contents
Example connection for the Auro-3D 9.1-channel system
o
Connections Playback Settings Tips Appendix
This speaker configuration is optimized for Auro-3D playback.
.
Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this
0
configuration. (v
p. 228)
Next, set “Height” - “Layout” to “Front Height & Surr. Height”. (v
Front panel Display Rear panel Remote Index
p. 229)
.
You can change the combination of the HEIGHT1 and HEIGHT2 channels in
z1
the settings. (v p. 58) For the best Auro-3D experience Surround Height speakers are
z2
recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.
57
Page 58
Contents
Channels output from the HEIGHT1 and HEIGHT2 speaker terminals can be changed to the following patterns according to the speaker systems being used. Set this from “Amp Assign” in the menu. (v p. 225)
Number of height/
ceiling speakers
2 speakers None
None 2 speakers
4 speakers None
2 speakers 2 speakers
None 4 speakers Front Dolby & Surround Dolby Front Dolby Surround Dolby
For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in
z
place of Surround Height speakers.
Connections Playback Settings Tips Appendix
Combination of height speakers to be used Connected terminals
Number of Dolby
Speakers
Combination pattern HEIGHT1 SPEAKER HEIGHT2 SPEAKER
Front Height Front Height -
Top Front Top Front -
Top Middle Top Middle -
Top Rear Top Rear -
Rear Height Rear Height -
Front Dolby Front Dolby -
Surround Dolby Surround Dolby -
Back Dolby Back Dolby -
Front Height & Top Middle Front Height Top Middle
Front Height & Top Rear Front Height Top Rear
Front Height & Rear Height
Front Height & Surr. Height Front Height Surr. Height
Top Front & Top Rear Top Front Top Rear
Top Front & Rear Height Top Front Rear Height
Top Middle & Rear Height Top Middle Rear Height
Front Dolby & Top Rear Front Dolby Top Rear Front Dolby & Rear Height Front Dolby Rear Height Front Height & Surr. Dolby Front Height Surround Dolby
Top Front & Surr. Dolby Top Front Surround Dolby
z
Front Height Rear Height
Front panel Display Rear panel Remote Index
58
Page 59
C
FL FR
SBL
SBR
SW
SL SR
TRL TRR
TFL TFR
HEIGHT 1
z
TFR TFLSBR SBL
FR FL C SR SL
SW
TRR TRL
HEIGHT 2
z
Power amplifier
Contents
Connections Playback Settings Tips Appendix
Connecting 11.1-channel speakers
This system, which is based on a 5.1-channel system, plays back up to 11.1-channels at the same time. You can connect speakers for 11-channels for MAIN ZONE by using an external power amplifier.
Example connection when using two sets of ceiling speakers
o
p. 228)
.
Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this
0
configuration. (v
Front panel Display Rear panel Remote Index
.
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
z
settings. (v
p. 63)
59
Page 60
C
FL FR
SBL
SBR
SW
SL SR
FHL FHR
RHL RHR
RHR RHL
HEIGHT 2
z
FHR FHL
HEIGHT 1
z
SBR SBL
FR FL C SR SL
SW
Power amplifier
Contents
Example connection when using two sets of height speakers
o
.
Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this
0
configuration. (v
p. 228)
Connections Playback Settings Tips Appendix
Front panel Display Rear panel Remote Index
.
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
z
settings. (v
p. 63)
60
Page 61
C
SBL
SBR
SW
SL SR
FL
FR
FDL FDR
SDL SDR
SBR SBL
FR FL C SR SL
SW
SDR SDL
HEIGHT 2
z
Power amplifier
FDR FDL
HEIGHT 1
z
Contents
Example connection when using two sets of Dolby Atmos Enabled speakers
o
.
Set “Height” - “Dolby Sp” to “4ch” in the menu when connecting in this
0
configuration. (v
p. 228)
Connections Playback Settings Tips Appendix
Front panel Display Rear panel Remote Index
.
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the
z
settings. (v
p. 63)
61
Page 62
FL FR
SW
SL SR
C
FHL FHR
SHL SHR
TS
FHR FHL
FR FL C SR SL
SW
TS
SHR SHL
Power amplifier
HEIGHT 1
z
1
HEIGHT 2
z1z
2
Contents
Example connection for the Auro-3D 10.1-channel system
o
Connections Playback Settings Tips Appendix
This speaker configuration is optimized for Auro-3D playback.
.
Set “Height” - “Height Sp” to “5ch” in the menu when connecting in this
0
configuration. (v Next, set “Height” - “Layout” to “Front Height & Surr. Height”.  (v
p. 228)
p. 229)
.
z1
z2
You can change the combination of the HEIGHT1 and HEIGHT2 channels in the settings. (v
p. 64)
For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.
Front panel Display Rear panel Remote Index
62
Page 63
Contents Connections Playback Settings Tips Appendix
The combination of the HEIGHT1 and HEIGHT2 channels can be changed to the following patterns according to the speaker system being used. Set this from “Amp Assign” in the menu. (v
Combination of height speakers to be used Connected terminals
Number of height/
ceiling speakers
2 speakers None
4 speakers None
None 2 speakers
2 speakers 2 speakers
None 4 speakers
Number of Dolby
Speakers
p. 225)
Combination pattern HEIGHT1 SPEAKER HEIGHT2 PRE OUT
Front Height Front Height -
Top Front Top Front -
Top Middle Top Middle -
Top Rear Top Rear -
Rear Height Rear Height -
Front Height & Top Middle Front Height Top Middle
Front Height & Top Rear Front Height Top Rear
Front Height & Rear Height
Front Height & Surr. Height Front Height Surr. Height
Top Front & Top Rear Top Front Top Rear
Top Front & Rear Height Top Front Rear Height
Top Middle & Rear Height Top Middle Rear Height
Front Dolby Front Dolby -
Surround Dolby Surround Dolby -
Back Dolby Back Dolby -
Front Dolby & Top Rear Front Dolby Top Rear Front Dolby & Rear Height Front Dolby Rear Height Front Height & Surr. Dolby Front Height Surround Dolby Front Height & Back Dolby Front Height Back Dolby
Top Front & Surround Dolby Top Front Surround Dolby
Top Front & Back Dolby Top Front Back Dolby
Front Dolby & Surround Dolby Front Dolby Surround Dolby
Front Dolby & Back Dolby Front Dolby Back Dolby
z
Front Height Rear Height
Front panel Display Rear panel Remote Index
63
Page 64
Contents Connections Playback Settings Tips Appendix
Combination of height speakers to be used Connected terminals
Number of height/
ceiling speakers
5 speakers None
For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in
z
place of Surround Height speakers.
Number of Dolby
Speakers
Combination pattern HEIGHT1 SPEAKER HEIGHT2 PRE OUT
Front Height & Surr. Height & Top
Front Height & Rear Height & Top
Surround
Surround
z
Front Height Surround Height Top Surround
Front Height Rear Height Top Surround
SUBWOOFER2 PRE
OUT
Front panel Display Rear panel Remote Index
64
Page 65
FHL
SW
C
SL
SBL
FHR
SR
SBR
FL
(Bi-Amp)
FR
(Bi-Amp)
wqwq
(R) (L)
SBR SBL
CSRSL
SW
FHR FHL
zz
FLFR
Contents
Connections Playback Settings Tips Appendix
Connecting 7.1-channel speakers: Bi-amp connection of front speakers
This system plays back 7.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.
You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.
.
NOTE
When making bi-amp connections, be sure to remove the short-circuiting plate or
0
wire between the speaker’s woofer and tweeter terminals.
.
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
z
be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. (v p. 229)
Front panel Display Rear panel Remote Index
65
Page 66
FHL
SW
C
SL
SBL
FHR
SR
SBR
FLFL
(B) (A)
FRFR
(A) (B)
FHR FHLFR
(A)FL(A)
zz
FR (B)FL(B)
SBR SBL
CSRSL
SW
Contents
Connections Playback Settings Tips Appendix
Connecting 7.1-channel speakers: Second pair of front speakers
This system enables switching playback between front speakers A and B as desired. You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically
switch according to the input signal and sound mode.
.
Front panel Display Rear panel Remote Index
.
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
z
be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. (v p. 229)
66
Page 67
MAIN ZONE
ZONE2
FHL
FL
SW
C
SL
SBL
FHR
FR
SR
SBR
ZONE2
L
ZONE2
R
ZONE2RZONE2
L
SBR SBL
FR FL C SR SL
SW
FHR FHL
zz
Contents
Connections Playback Settings Tips Appendix
Connecting multi-zone speakers
7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3)
o
This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2. (Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 7.1ch + ZONE3)).
You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.
Front panel Display Rear panel Remote Index
.
.
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
z
be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. (v p. 229)
67
Page 68
SW
C
SL
SR
ZONE2
L
ZONE2
R
FL
(Bi-Amp)
FR
(Bi-Amp)
MAIN ZONE
ZONE2
wqwq
(R) (L)
CSRSL
SW
FLFR
ZONE2RZONE2
L
Contents
5.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback
o
Connections Playback Settings Tips Appendix
(ZONE2)
This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers in MAIN ZONE.
.
Front panel Display Rear panel Remote Index
.
68
Page 69
FL
SW
C
SL
FR
SR
ZONE2
L
ZONE2
R
ZONE3
L
ZONE3
R
MAIN ZONE
ZONE2 ZONE3
ZONE3RZONE3
L
FR FL C SR SL
SW
ZONE2RZONE2
L
Contents Connections Playback Settings Tips Appendix
5.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2) + 2-channel playback (ZONE3)
o
This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2 and ZONE3.
.
Front panel Display Rear panel Remote Index
.
69
Page 70
FHL
FL
SW
C
SL
SBL
FR
SR
SBR
ZONE2
Mono
ZONE3
Mono
FHR
MAIN ZONE
ZONE2 ZONE3
ZONE3
Mono
ZONE2
Mono
SBR SBL
FR FL C SR SL
SW
FHR FHL
zz
Contents
7.1-channel playback (MAIN ZONE) + 1-channel playback (ZONE2) + 1-channel playback (ZONE3)
o
Connections Playback Settings Tips Appendix
This type of configuration plays back 7.1-channels in MAIN ZONE and 1-channel (monaural) in ZONE2 and ZONE3. You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers
automatically switch according to the input signal and sound mode.
.
Front panel Display Rear panel Remote Index
.
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
z
be connected to the HEIGHT1 speaker terminals. Set the speaker to be connected from “Height” - “Layout” in the menu. (v p. 229)
70
Page 71
L
L
R
R
L
L
R
R
L
L
R
R
L
L
R
R
L
L
R
R
CENTER
RL
FRONT
AUDIO
SUB-
WOOFER
2
AUDIO
SUB-
WOOFER
1
AUDIO
SURROUND
BACK
RL
SURROUND
RL
RL
HEIGHT2 HEIGHT1
RL
Subwoofer
(Primary)
Power amplifier
Subwoofer
(Secondary)
Contents Connections Playback Settings Tips Appendix
Connecting an external power amplifier
o
You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced.
Select the terminal to use and connect the device.
When using just one surround back speaker, connect it to the left channel (L) terminal.
0
.
Front panel Display Rear panel Remote Index
71
Page 72
No
Yes
Is the TV equipped with an HDMI connector?
Yes No
Is the TV compatible with the ARC / eARC?
Contents Connections Playback Settings Tips Appendix
Connecting a TV
Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit. How to connect a TV depends on the connectors and functions equipped on the TV. ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel) function plays TV audio on this unit by sending the TV audio signal to this unit via
HDMI cable.
.
“Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)” (v
p. 73)
“Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)” (v p. 75)
“Connection 3 : TV equipped without an HDMI connector” (v
p. 76)
Front panel Display Rear panel Remote Index
72
Page 73
(ARC)
IN
HDMI
TV
Contents
Connections Playback Settings Tips Appendix
Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
Use an HDMI cable to connect a TV that is compatible with the ARC / eARC function to this unit. Set “HDMI Control” to “On” or “ARC” to “On” when using a TV that supports the ARC function. (v Using an eARC function-compatible television enables audio playback from the speaker connected to this unit, regardless of “HDMI Control” and “ARC”
settings in the menu.
p. 199)
.
Front panel Display Rear panel Remote Index
73
Page 74
Contents Connections Playback Settings Tips Appendix
When using the ARC / eARC function, connect to the HDMI MONITOR 1 connector.
0
eARC function settings may be required depending on the eARC function-compatible television you are using. Make sure eARC is set to on if this setting exists on your
0
television. For more information, check your television’s owner’s manual. When an ARC and an eARC function-compatible televisions are connected, the eARC function-compatible television is prioritized.
0
Use a “High Speed HDMI Cable with Ethernet” when using an ARC / eARC function-compatible television.
0
Front panel Display Rear panel Remote Index
74
Page 75
OUT
OPTICAL
OUT IN
IN
HDMI
TV
Contents
Connections Playback Settings Tips Appendix

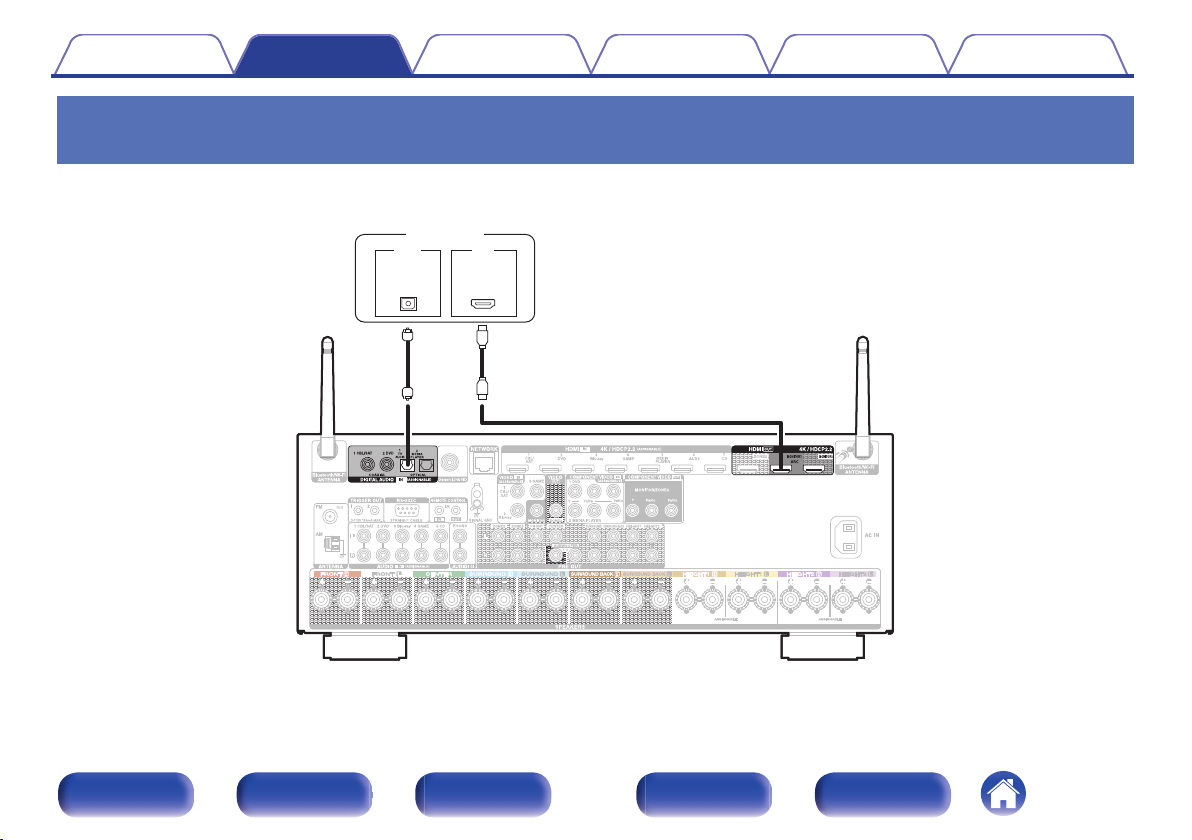

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) / eARC (Enhanced Audio Return Channel)
Use an HDMI cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.
.
Front panel Display Rear panel Remote Index
75
Page 76
OUT
OPTICAL
OUT
IN
VIDEO
COMPONENT VIDEO
YP
B PR
IN
IN
TV
or
Contents
Connections Playback Settings Tips Appendix
Connection 3 : TV equipped without an HDMI connector
Use a component video or a video cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.
.
Front panel Display Rear panel Remote Index
76
Page 77
Contents Connections Playback Settings Tips Appendix
Connecting a playback device
This unit is equipped with three types of video input connectors (HDMI, component video and composite video) and three types of audio input connectors (HDMI, digital audio and audio).
Select input connectors on this unit according to the connectors equipped on the device you want to connect. If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections. In the HDMI connection, audio and video signals can be transmitted through a single HDMI cable.
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 78)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 79)
0
“Connecting a Blu-ray Disc player compatible with the Denon Link HD function” (v p. 80)
0
“Connecting a video camcorder or game console” (v p. 81)
0
“Connecting a turntable” (v p. 82)
0
Connect devices to this unit as indicated by the input sources printed on the audio/video input connectors of this unit.
0
The source that is assigned to the HDMI IN, DIGITAL AUDIO IN, COMPONENT VIDEO IN, VIDEO IN and AUDIO IN connectors can be changed. See “Input Assign” on how
0
to change the input source assigned to the input connectors. (v To play back audio signals that are input to this unit on a TV connected via HDMI, set in the menu “HDMI Audio Out” to “TV”. (v p. 197)
0
To enjoy content that is copyright protected by HDCP 2.2, use a playback device and TV compatible with HDCP 2.2 only.
0
p. 210)
Front panel Display Rear panel Remote Index
77
Page 78
R
L
R
L
OUT
HDMI
OUT
COAXIAL
AUDIO
AUDIO
RL
OUT
OUT
VIDEO
VIDEO
or
Satellite tuner /
Cable TV
Satellite tuner /
Cable TV
(HDMI incompatible device)
Contents
Connections Playback Settings Tips Appendix
Connecting a set-top box (Satellite tuner/cable TV)
This explanation uses the connection with a satellite tuner/cable TV STB as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to.
.
Front panel Display Rear panel Remote Index
78
Page 79
R
L
R
L
R
L
R
L
OUT
HDMI
OUT
COAXIAL
AUDIO
AUDIO
RL
OUT
VIDEO
COMPONENT VIDEO
YP
B PR
OUT
OUT
HDMI
AUDIOVIDEO
AUDIO
RL
OUT
OUT
VIDEO
(HDMI incompatible device)
DVD player
DVD player
Blu-ray Disc
player
or
(HDMI incompatible device)
Blu-ray Disc player
Contents Connections Playback Settings Tips Appendix
Connecting a DVD player or Blu-ray Disc player
This explanation uses the connection with a DVD player or Blu-ray Disc player as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to.
.
When connecting a Blu-ray Disc player that is compatible with Denon Link HD, see “Connecting a Blu-ray Disc player compatible with the Denon Link HD
0
function” (v
p. 80).
Front panel Display Rear panel Remote Index
79
Page 80
Link HD
Denon
OUT
HDMI
Blu-ray Disc
player
Contents
Connections Playback Settings Tips Appendix
Connecting a Blu-ray Disc player compatible with the Denon Link HD function
By making a Denon Link HD connection to a player compatible with the Denon Link HD function, you can enjoy higher quality playback compared with when only the HDMI connector connection is made.
Both HDMI and Denon Link HD connections are required for this
0
connection method. Set “Input Mode” on the menu to “Auto” or “HDMI”. (v p. 213)
0
Front panel Display Rear panel Remote Index
80
Page 81
OUT
HDMI
Video
camcorder
Contents
Connections Playback Settings Tips Appendix
Connecting a video camcorder or game console
This explanation uses the connection with a video camcorders as an example. Connect a playback device to this unit, such as a video camcorder or game console.
.
Front panel Display Rear panel Remote Index
81
Page 82
GND
AUDIO
OUT
L
R
(MM cartridge)
Turntable
Contents
Connections Playback Settings Tips Appendix
Connecting a turntable
This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer.
If you set this unit’s input source to “Phono” and you accidentally increase the volume without having a turntable connected, you may hear a hum noise from the speakers.
NOTE
The earth terminal (SIGNAL GND) of this unit is not for safety grounding
0
purposes. If this terminal is connected when there is a lot of noise, the noise can be reduced. Note that depending on the turntable, connecting the ground line may have the reverse effect of increasing noise. In this case, it is not necessary to connect the ground line.
Front panel Display Rear panel Remote Index
82
Page 83
USB memory
device
Contents Connections Playback Settings Tips Appendix
Connecting a USB memory device to the USB port
For operating instructions see “Playing a USB memory device” (v p. 94).
.
Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter,
0
use that device’s supplied AC adapter.
NOTE
USB memory devices will not work via a USB hub.
0
It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.
0
Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.
0
Front panel Display Rear panel Remote Index
83
Page 84
q we
AM loop antenna
(supplied)
FM indoor antenna
(supplied)
White
Black
Contents
Connections Playback Settings Tips Appendix
Connecting an FM/AM antenna
Connect the antenna, tune in to a broadcast and then move the antenna to the location where there is least noise. Then use tape, etc. to fix the antenna in this location. (“Listening to FM/AM broadcasts” (v p. 103))
If you are unable to receive a good broadcast signal, we recommend installing an
0
outdoor antenna. For details, inquire at the retail store where you purchased the unit.
NOTE
Make sure the AM loop antenna lead terminals do not touch metal parts of the
0
panel.
.
Front panel Display Rear panel Remote Index
84
Page 85
Nail, tack, etc.
Projecting part
Square hole
Stand
Loop antenna
Contents
o
Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
.
Standing alone
Use the procedure shown above to assemble. When assembling, refer to “AM loop antenna assembly”.
Connections Playback Settings Tips Appendix
.
o
AM loop antenna assembly
Put the stand section through the bottom of the loop
1
antenna from the rear and bend it forward.
Insert the projecting part into the square hole in the
2
stand.
.
Front panel Display Rear panel Remote Index
85
Page 86
Internet
Modem
PC
Router
To WAN side
To LAN port
To LAN port
NAS
(Network Attached
Storage)
LAN port /
Ethernet
connector
LAN port /
Ethernet
connector
Contents
Connections Playback Settings Tips Appendix
Connecting to a home network (LAN)
This unit can connect to a network using a wired LAN or wireless LAN. You can connect this unit to your home network (LAN) to enable various
types of playback and operations as described below.
Playback of network audio such as Internet Radio and from your media
0
server(s) Playback of streaming music services
0
Using the Apple AirPlay function
0
Operation on this unit via the network
0
Operation with the HEOS wireless multi-room sound system
0
Firmware Update
0
For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.
Wired LAN
To make connections via wired LAN, use a LAN cable to connect the router to this unit as shown in the figure below.
.
Front panel Display Rear panel Remote Index
86
Page 87
Internet
Modem
Router with access point
To WAN side
Contents Connections Playback Settings Tips Appendix
Wireless LAN
When using this unit, we recommend you use a router equipped with the following
When connecting to the network via wireless LAN, connect the external antennas for Bluetooth/wireless connectivity connection to the rear panel and stand them upright.
See “Wi-Fi Setup” on how to connect to a wireless LAN router. (v p. 246)
0
functions:
Built-in DHCP server
0
This function automatically assigns IP addresses on the LAN. Built-in 100BASE-TX switch
0
When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or greater.
Only use a shielded STP or ScTP LAN cable (readily available at electronics
0
stores). (CAT-5 or greater recommended) The normal shielded-type LAN cable is recommended.
0
If a flat-type cable or unshielded-type cable is used, other devices could be affected by noise.
When using this unit connected to a network with no DHCP function, configure the
0
IP address, etc. in “Network”. (v
p. 245)
NOTE
The types of routers that can be used depend on the ISP. Contact your ISP or a
0
computer shop for details. This unit is not compatible with PPPoE. A PPPoE compatible router is required if
0
your contracted line is not set using PPPoE. Do not connect a NETWORK connector directly to the LAN port / Ethernet
0
connector on your computer. Various online services may be discontinued without prior notice.
0
.
Front panel Display Rear panel Remote Index
87
Page 88
AUX OUT
Infrared sensor
Infrared
retransmitter
Output
Input
Device fitted with REMOTE CONTROL IN connectors
Contents
Connections Playback Settings Tips Appendix
Connecting an external control device
REMOTE CONTROL jacks
When this unit is installed in a location where the remote control signals cannot reach (installation in a cabinet etc.), it can still be controlled by the remote control by connecting a remote control receiver unit (sold separately).
You can also use it to remotely control ZONE2 and ZONE3 (another rooms).
Front panel Display Rear panel Remote Index
.
88
Page 89
12 V DC/150 mA trigger-compatible device
Contents Connections Playback Settings Tips Appendix
TRIGGER OUT jacks
When a device with TRIGGER IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit. The TRIGGER OUT jack outputs a maximum 12 V DC/150 mA electrical signal.
.
NOTE
Use a monaural mini-plug cable for connecting the TRIGGER OUT jacks. Do not use a stereo mini-plug cable.
0
If the permissible trigger input level for the connected device is larger than 12 V DC/150 mA, or has shorted, the TRIGGER OUT jack cannot be used. In this case, turn off the
0
power to the unit, and disconnect it.
Front panel Display Rear panel Remote Index
89
Page 90
Power cord (supplied)
To household power outlet
(AC 230 V, 50/60 Hz)
Contents
Connections Playback Settings Tips Appendix
Connecting the power cord
After completing all the connections, insert the power plug into the power outlet.
.
Front panel Display Rear panel Remote Index
90
Page 91
Contents Connections Playback Settings Tips Appendix
o
Contents
Basic operation
Turning the power on 92
Selecting the input source 92
Adjusting the volume 93
Turning off the sound temporarily (Muting) 93
Selecting a sound mode 142
Playback a device
Playing a DVD player/Blu-ray Disc player 93
Playing a USB memory device 94
Listening to music on a Bluetooth device 98
Listening to FM/AM broadcasts 103
Playback network audio/service
Listening to Internet Radio 114
Playing back files stored on a PC or NAS 116
Getting the HEOS App 120
AirPlay function 129
Spotify Connect function 133
Convenience functions
Convenience functions 134
HDMI Control function 154
Smart Menu function 155
Sleep timer function 157
Quick select plus function 159
Panel lock function 162
Remote lock function 164
Other functions
Web control function 165
Playback in ZONE2/ZONE3 (Another room) 167
Front panel Display Rear panel Remote Index
91
Page 92
SOUND MODE
SOUND MODE
AVR CONTROL
AVR CONTROL
QUICK SELECT
QUICK SELECT
TUNE
TUNE
TUNE
TUNE
PURE
PURE
MOVIE
MOVIE
GAME
GAME
MUSIC
MUSIC
OPTION
OPTION
INFO
INFO
BACK
BACK
SETUP
SETUP
CH/
PAGE
PAGE
MENU
MENU
Z2
Z 3
Z 3
1
1 2 3 4
2 3
4 5 6
7 8 9
ENTER
ENTER0
+10
+10
GHI
GHI
JKL
JKL
MNO
MNO
PQRS
PQR S
TUV
TUV
ABC
ABC
. /
. /
DEF
DEF
SLEEPEP
WXYZ
WXY Z
MAIN
MAIN
DEV.V. TV AVR
DEVICE
DEVICE TV
MENU
MENU
ECO
ECO
ENTER
ENTER
POWER
POWER
GAME
GAME
CB
CBL/
SAT
Blu-ray
Blu-ray
DVDVD
AUX1
AUX1
AUX2
AUX2
INTERNET
R
ADIO
ADIO
PHONO
PHONO
MEDIAIA
PLAYERER
CD
CD
Bluetooth
Bluetooth
TUNER
TUNER
TV
AUDIO
AUDIO
INP
INPUT
VOLUME
VOLUME
MUTE
MUTE
USB
USB
VOLUME
df
POWER
X
MUTE
:
Input source
select buttons
Contents Connections Playback Settings Tips Appendix
Basic operation
Turning the power on
Press POWER X to turn on power to the unit.
1
You can press the input source select button when the unit is in standby mode to
0
turn on the power. You can also switch the power to standby by pressing X on the main unit.
0
Selecting the input source
Press the input source select button to be played back.
1
The desired input source can be selected directly.
You can also select the input source by turning SOURCE SELECT on the main
0
unit.
92
.
Front panel Display Rear panel Remote Index
Page 93
Contents Connections Playback Settings Tips Appendix
Adjusting the volume
Use VOLUME df to adjust the volume.
1
The variable range differs according to the input signal and channel level setting.
0
You can also adjust the master volume by turning MASTER VOLUME on the main
0
unit.
Turning off the sound temporarily (Muting)
Press MUTE :.
1
MUTE indicator on the display flashes.
0
: appears on the TV screen.
0
The sound is reduced to the level set at “Mute Level” in the menu. (v p. 189)
0
To cancel mute, either adjust the sound volume or press MUTE : again.
0
Playback a DVD player/Blu-ray Disc player
The following describes the procedure for playing DVD player/Blu-ray Disc player.
Prepare for playback.
1
Turn on the power of the TV, subwoofer and player.
A
Change the TV input to the input of this unit.
B
Press POWER X to turn on power to the unit.
2
Press DVD or Blu-ray to switch an input source for a
3
player used for playback.
Play the DVD player or Blu-ray Disc player.
4
o
Surround playback (v p. 142)
Front panel Display Rear panel Remote Index
93
Page 94
SOUND MODE
SOUND MODE
POWER
POWER
AVR CONTROL
AVR CONTROL
QUICK SELECT
QUICK SELECT
TUNE
TUNE
TUNE
TUNE
PURE
PURE
MOVIE
MOVIE
GAME
GAME
MUSIC
MUSIC
GAME
GAME
CB
CBL/
SAT
Blu-ray
Blu-ray
DVDVD
AUX1
AUX1
AUX2
AUX2
INTERNET
R
ADIO
ADIO
VOLUME
VOLUME
INFO
INFO
SETUP
SETUP
MENU
MENU
Z2
Z 3
Z 3
1
1 2 3 4
2 3
4 5 6
7 8 9
ENTER
ENTER0
+10
+10
GHI
GHI
JKL
JKL
MNO
MNO
PQRS
PQR S
TUV
TUV
ABC
ABC
. /
. /
DEF
DEF
SLEEPEP
WXYZ
WXY Z
MAIN
MAIN
PHONO
PHONO
DEV.V. TV AVR
DEVICE
DEVICE TV
MEDIAIA PLAYERER
CD
CD
Bluetooth
Bluetooth
TUNER
TUNER
TV
AUDIO
AUDIO
MENU
MENU
INP
INPUT
MUTE
MUTE
ECO
ECO
OPTION
OPTION
BACK
BACK
ENTER
ENTER
CH/
PAGE
PAGE
USB
USB
CH/PAGE
df
BACK
OPTION
USB
1 8 9 3 2
uio p
ENTER
Contents
Connections Playback Settings Tips Appendix
Playing a USB memory device
Playing back music files stored on a USB memory device.
0
Only USB memory devices conforming to mass storage class standards
0
can be played on this unit. This unit is compatible with USB memory devices in “FAT16” or
0
“FAT32” format. The audio format types and specifications supported by this unit for
0
playback are as follows. See “Playing back a USB memory devices” (v p. 306) for details.
WMA
0
MP3
0
WAV
0
MPEG-4 AAC
0
FLAC
0
Apple Lossless
0
DSD
0
.
Front panel Display Rear panel Remote Index
94
Page 95
Nature 01
Nature 02
Nature 03
Nature 04
Various Artists
Various Artists
Various Artists
Various Artists
Nature 05
Various Artists
USB Music -
Naure 01
Play Now
Play Next
Add to End of Queue
Play Now & Replace Queue
Nature
Cancel
Contents
Connections Playback Settings Tips Appendix
Playing files stored on USB memory devices
Insert a FAT32 formatted USB memory device into the
1
USB port.
Press USB to switch the input source to “USB”.
2
Select the name of this unit.
3
Browse the music on your USB memory device and
4
select something to play.
When you select something to play you will be asked how you want to
0
queue up your music.
Play Now:
Play Now & Replace Queue:
Play Next:
Add to End of Queue: Adds the item to the end of the queue.
Front panel Display Rear panel Remote Index
95
.
Inserts the item into the queue after the currently playing track and plays the selected item immediately.
Clears the queue and plays the selected item immediately.
Inserts the item into the queue after the current song and plays it when the current song ends.
Page 96
Nature 01 - Various Artists
NOW PLAYING
-2:212:45
Nature
Contents Connections Playback Settings Tips Appendix
5
Use ui to select the “Play Now” or “Play Now & Replace Queue”, then press ENTER.
Playback starts.
.
Operation buttons
1 3 2 8 9
CH/PAGE d f
When an MP3 music file includes album art data, the album art can be displayed while
0
playing the file.
Playback
Pause
Stop
Skip to previous track / Skip to next track
Switch to the previous page/next page in the list display
Function
NOTE
Note that Denon will accept no responsibility whatsoever for any problems arising with
0
the data on a USB memory device when using this unit in conjunction with the USB memory device.
Front panel Display Rear panel Remote Index
96
Page 97
Contents Connections Playback Settings Tips Appendix
o
Operations accessible through the option menu
“Adjusting the volume of each channel to match the input source
0
(Channel Level Adjust)” (v p. 137) “Adjusting the tone (Tone)” (v p. 138)
0
“Displaying your desired video during audio playback (Video
0
Select)” (v p. 139) “Playing the same music in all zones (All Zone Stereo)” (v p. 141)
0
Front panel Display Rear panel Remote Index
97
Page 98
SOUND MODE
SOUND MODE
POWER
POWER
AVR CONTROL
AVR CONTROL
QUICK SELECT
QUICK SELECT
TUNE
TUNE
TUNE
TUNE
PURE
PURE
MOVIE
MOVIE
GAME
GAME
MUSIC
MUSIC
GAME
GAME
CB
CBL/
SAT
Blu-ray
Blu-ray
DVDVD
AUX1
AUX1
AUX2
AUX2
INTERNET
R
ADIO
ADIO
VOLUME
VOLUME
INFO
INFO
SETUP
SETUP
CH/
PAGE
PAGE
MENU
MENU
Z2
Z 3
Z 3
1
1 2 3 4
2 3
4 5 6
7 8 9
ENTER
ENTER0
+10
+10
GHI
GHI
JKL
JKL
MNO
MNO
PQRS
PQR S
TUV
TUV
ABC
ABC
. /
. /
DEF
DEF
SLEEPEP
WXYZ
WXY Z
MAIN
MAIN
PHONO
PHONO
DEV.V. TV AVR
DEVICE
DEVICE TV
MEDIAIA PLAYERER
CD
CD
TUNER
TUNER
TV
AUDIO
AUDIO
MENU
MENU
INP
INPUT
MUTE
MUTE
ECO
ECO
Bluetooth
Bluetooth
OPTION
OPTION
ENTER
ENTER
BACK
BACK
USB
USB
1 8 9 3 2
OPTION
Bluetooth
POWER
X
BACK
Contents Connections Playback Settings Tips Appendix
Listening to music on a Bluetooth device
Music files stored on Bluetooth devices such as smartphones, digital music players, etc. can be enjoyed on this unit by pairing and connecting this unit with the Bluetooth device.
Communication is possible up to a range of about 30 m.
NOTE
To play back music from a Bluetooth device, the Bluetooth device needs to
0
support the A2DP profile.
98
.
Front panel Display Rear panel Remote Index
Page 99
Contents
Connections Playback Settings Tips Appendix
Playing music from Bluetooth device
In order to enjoy music from a Bluetooth device on this unit, the Bluetooth device must first be paired with this unit.
Once the Bluetooth device has been paired, it does not need to be paired again.
Prepare for playback.
1
Connect the supplied external antennas for Bluetooth/wireless
A
connectivity to the Bluetooth/wireless LAN antenna connectors on the rear panel. (v p. 25) Press POWER X to turn on power to the unit.
B
Press Bluetooth.
2
When using for the first time, the unit will go into the pairing mode automatically and “Pairing...” will appear on the display of the unit.
Activate the Bluetooth settings on your mobile device.
3
Select this unit when its name appears in the list of
4
devices displayed on the screen of the Bluetooth device.
Connect to the Bluetooth device while “Pairing” is being displayed on the display of the unit. Perform the connection with the Bluetooth device close to the unit (about 1 m).
Play music using any app on your Bluetooth device.
5
The Bluetooth device can also be operated with the remote
0
control of this unit. The next time the Bluetooth button is pressed on the remote
0
control unit, this unit automatically connects to the last Bluetooth device that was connected.
Front panel Display Rear panel Remote Index
99
Page 100
Contents Connections Playback Settings Tips Appendix
Operation buttons Function
1 3 2 8 9
Press STATUS on this unit during playback to switch the display between Title
0
name, Artist name, Album name, etc.
Playback
Pause
Stop
Skip to previous track / Skip to next track
Front panel Display Rear panel Remote Index
100
Loading...
