Denon AVP-A1HDCI User Manual 2

AV SURROUND PRE-AMPLIFIER

AVP-A1HDCI

Owner’s Manual

 GraphicalUserInterface

Use this manual in combination with the operating guide displayed on the GUI screen.

GUI Menu Operation (vpage 24) GUI Menu Map (vpage 25) Language (vpage 44) Remote Control Unit Operations (vpage 77)

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

FIGURE A

EXAMPL E OF ANTENN A GROUNDING

AS PER NATIONAL ELECTR ICAL CODE

"/5&//"

-&"%*/ 8*3&

(306/% $-".1

&-&$53* $ 4&37*$& &26*1.& /5

"/5&//" %*4$)"3 (&6/*5 /&$4&$5 *0/ 

(306/%* /($0/%6$ 5034 /&$4&$5 *0/ 

(306/%$- ".14

108&34&3 7*$&(306 /%*/( &-&$530 %&4:45&. /&$"35 1"35)

/&$/"5*0 /"-&-&$5 3*$"-$0% &

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning ﬂash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

SAFETY INSTRUCTIONS

1. Read Instructions – All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions – The safety and operating instructions should be retained for future reference.

3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should be followed.

5. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

6. Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should

follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. A product and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization – This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will ﬁt into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to ﬁt, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

15. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

16. Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

17. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

18. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of ﬁre or electric shock.

19. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. Never spill liquid of any kind on the product.

20. Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualiﬁed service personnel.

21. Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions:

a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to

restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this

indicates a need for service.

22. Replacement Parts – When replacement parts are required, be sure the

service technician has used replacement parts speciﬁed by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁre, electric shock, or other hazards.

23. Safety Check – Upon completion of any service or repairs to this product,

ask the service technician to perform safety checks to determine that the product is in proper operating condition.

24. Wall or Ceiling Mounting – The product should be mounted to a wall or

ceiling only as recommended by the manufacturer.

25. Heat – The product should be situated away from heat sources such as

radiators, heat registers, stoves, or other products (including ampliﬁers) that produce heat.

FCC Information (For US customers)

1. COMPLIANCE INFORMATION Product Name: AV Surround Pre-Ampliﬁer Model Number: AVP-A1HDCI This product contains FCC ID: BV2- MPGBR052.

This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this

product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation.

Denon Electronics (USA), LLC 100 Corporate Drive, Mahwah, NJ 07430-2041 Tel. 201-762-6500 (Main)

2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modiﬁcation not expressly approved by DENON may void your authority, granted by the FCC, to use the product.

3. CAUTION

• To comply with FCC RF exposure compliance requirement, separation distance of at least 20 cm must be maintained between the antenna of this product and all persons.

• This product and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

4. NOTE

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the product into an outlet on a circuit different from that to which the receiver is connected.

• Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help.

NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION

• Do not let foreign objects into the unit.

• Ne pas laisser des objets étrangers dans l’appareil.

• Do not let insecticides, benzene, and thinner come in contact with the unit.

• Ne pas mettre en contact des insecticides, du benzène et un diluant avec l’appareil.

• Avoid high temperatures. Allow for sufﬁcient heat dispersion when installed in a rack.

• Eviter des températures élevées.

Tenir compte d’une dispersion de chaleur

sufﬁsante lors de l’installation sur une étagère.

• Keep the unit free from moisture, water, and dust.

• Protéger l’appareil contre l’humidité, l’eau et la poussière.

• Unplug the power cord when not using the unit for long periods of time.

• Débrancher le cordon d’alimentation lorsque l’appareil n’est pas utilisé pendant de longues périodes.

IC Information (For Canadian customers)

1. PRODUCT This product contains IC 6963A-MPGBR052. This product complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

(1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

APPAREIL

Cet appareil contiens IC 6963A- MPGBR052.

Cet appareil est conforme à la norme CNR-210 du Canada. L

aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

2. CAUTION

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the

equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

ATTENTION Aﬁn de réduire le risque d’interférence aux autres utilisateurs, il faut choisir le type d’antenne et son gain de façon à

ce que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne soit pas supérieure au niveau requis pour l’obtention d’une communication satisfaisante.

’utilisation de ce dispositif est autorisée seulement

• Handle the power cord carefully. Hold the plug when unplugging the cord.

• Manipuler le cordon d’alimentation avec précaution.

Tenir la prise lors du débranchement du

cordon.

* (For apparatuses with ventilation holes)

• Do not obstruct the ventilation holes.

• Ne pas obstruer les trous d’aération.

• Never disassemble or modify the unit in any way.

• Ne jamais démonter ou modiﬁer l’appareil d’une manière ou d’une autre.

Contents

Getting Started Accessories ·····················································································3

Cautions on Handling ·····································································3 Cautions on Installation ·································································3 About the Remote Control Unit ····················································3

Inserting the Batteries ·······························································3, 4 Operating Range of the Remote Control Unit ································4

Part Names and Functions ····························································4

Front Panel ·················································································4, 5 Display ···························································································5 Rear Panel ······················································································6 Remote Control Unit ······································································ 7

Connections Preparations ····················································································8

Cables Used for Connections ························································8 Video Conversion Function ····························································9 Speaker Layout ···········································································10

Connecting to the Power Amp ····················································10

POA-A1HDCI Connection and Operation ·····························10 ~ 12

Connecting Equipment with HDMI connectors ···················12, 13 Connecting the Monitor ·······························································13 Connecting the Playback Components ······································13

DVD Player ···················································································13 Record Player ···············································································14 CD Player ·····················································································14 iPod® ····························································································14 TV/CABLE Tuner ··········································································15 Satellite Receiver ·········································································15

Connecting the Recording Components ···································· 16

Digital Video Recorder ·································································16 Video Cassette Recorder ·····························································17 CD Recorder / MD Recorder / Tape Deck ····································17

Connections to Other Devices ·····················································18

Components Equipped with a DENON LINK connector ·············· 18 Video Camera / Game Console ···················································· 18 Component with Multi-channel Output connectors ·····················18 USB Port ······················································································19 XM Connector ·············································································· 19 Antenna terminals ·······································································20 Network Audio ············································································· 21 Multi Zone ····················································································22 External Controller ·······································································23

Connecting the Power Cord ························································23 Once Connections are Completed ··············································23

GUI Menu Operations Example of the Display of the GUI Mark at a Title ····················24

Example of Display of Default Values ········································24 Examples of GUI Screen Displays ···············································24

Example: Browse Menu (Top Menu) ··········································· 24 Example: Menus with Illustrations (Auto Setup) ··························24 Cursor Position Display ································································ 24

Operations ·····················································································24 GUI Menu Map ··············································································25

Auto Setup Preparations ··················································································26

Auto Setup ···················································································· 26

a Auto Setup ········································································ 26, 27 Error Messages·······································································28

s Option ·····················································································28 d Parameter Check ····································································28

Manual Setup Speaker Setup ··············································································29

a Speaker Conﬁguration····························································· 29 s Subwoofer Setup ···································································· 29 d Distance ·················································································· 30 f Channel Level ·········································································30 g Crossover Frequency ························································ 30, 31 h THX Audio Setup····································································· 31 j Surround Speaker ···································································31

HDMI Setup ···················································································32

a Color Space ·············································································32 s RGB Range ·············································································32 d Auto Lip Sync ··········································································32 f Audio ·······················································································32 g Monitor Out ············································································32 h HDMI Control ··········································································32

Audio Setup ··················································································33

a EXT. IN Setup·········································································· 33 s 2ch Direct/Stereo ···································································· 33 d Downmix Option ·····································································34 f Auto Surround Mode ······························································34 g Manual EQ ··············································································34

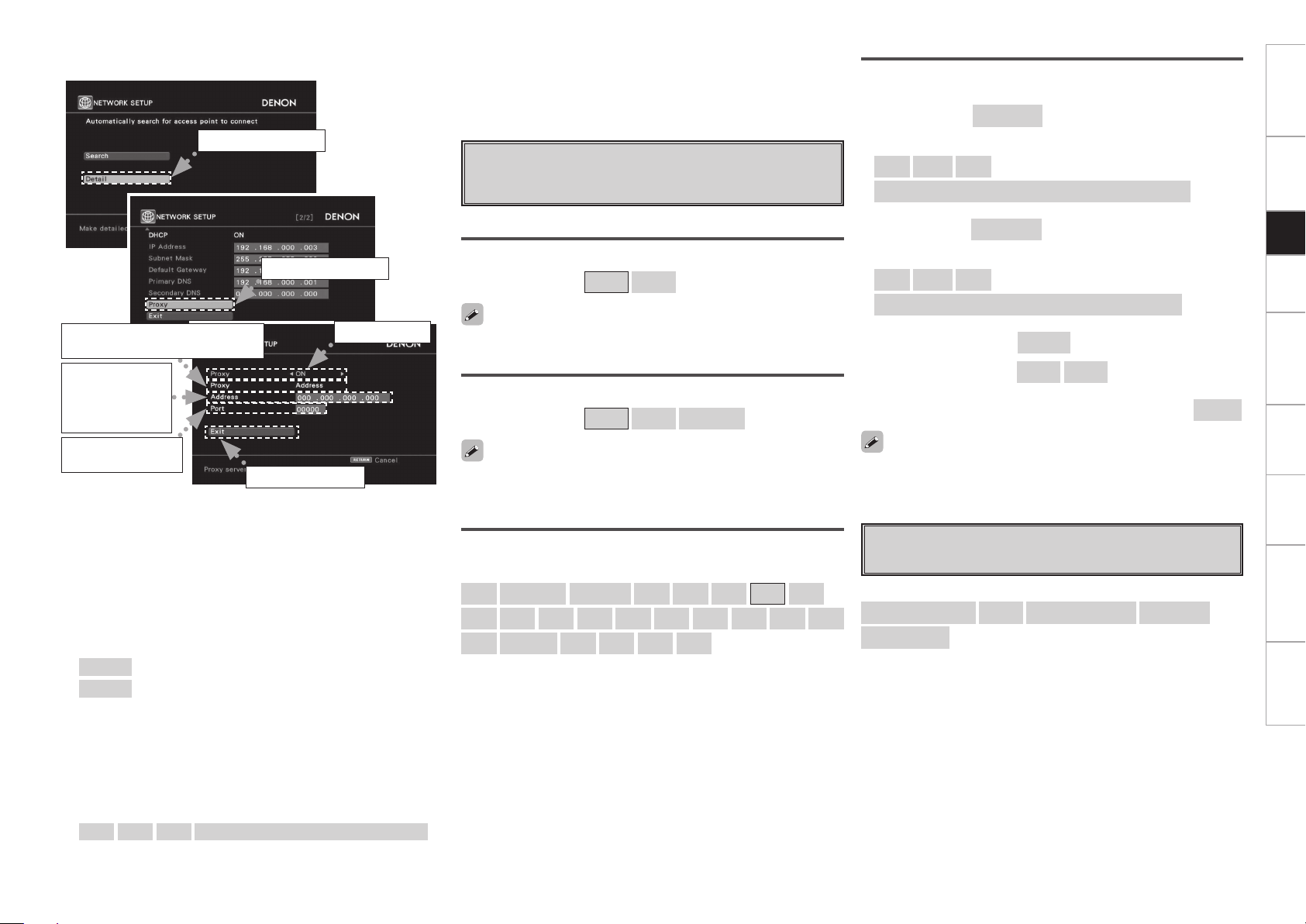

Network Setup ·············································································35

a Network Setup ································································35 ~ 38 s Other ·······················································································38 d Network Information ·······························································38

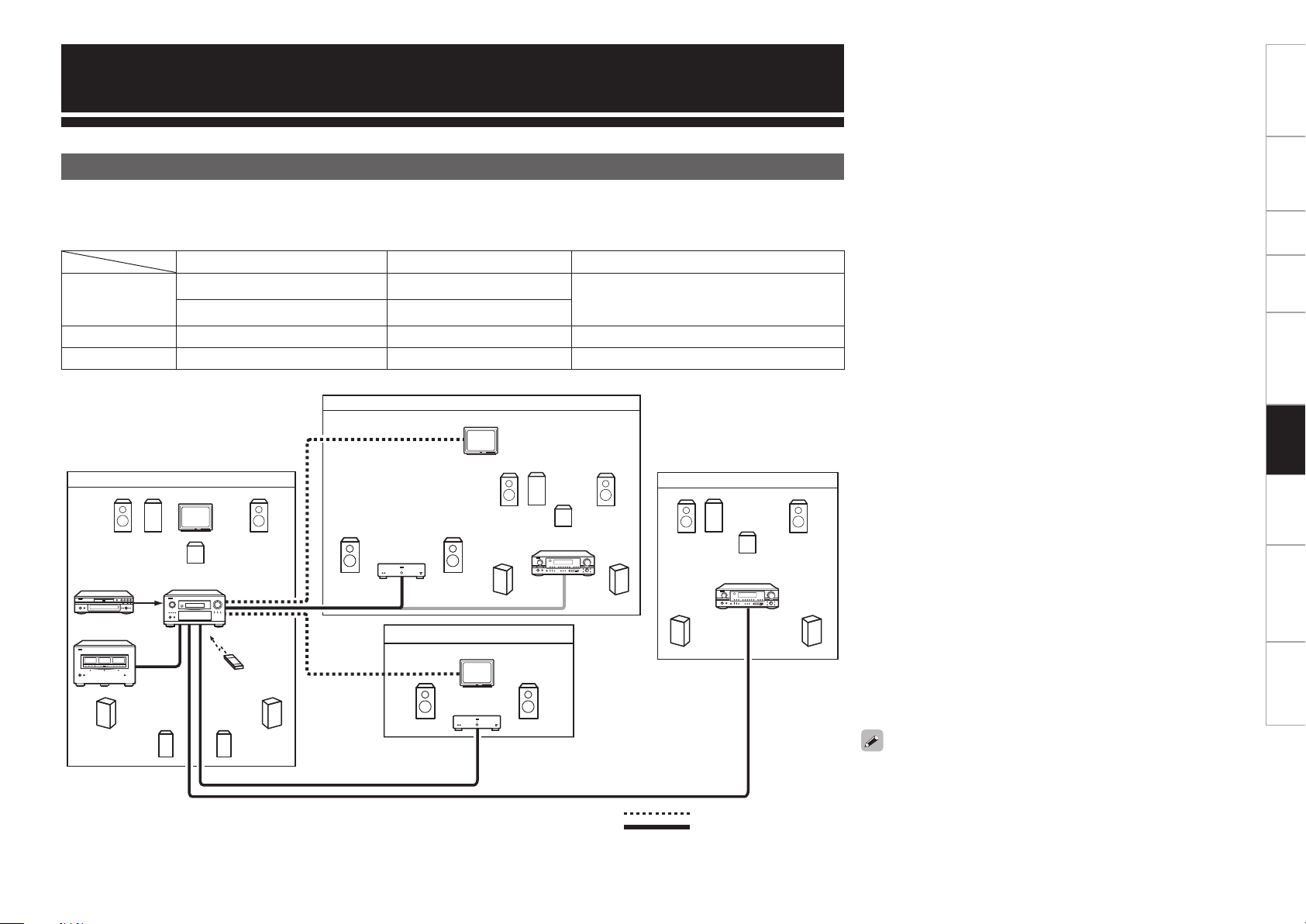

Zone Setup ····················································································39

a ZONE2 ····················································································39 s ZONE3 ····················································································39 d OSD ························································································39

Option Setup ·················································································40

a Pre-out Assign········································································· 40 s XLR Out Polarity······································································ 41 d POA Setting ············································································41 f Volume Control ·······································································41 g Source Delete ·········································································41 h GUI ····················································································41, 42 j Quick Select Name ·································································42 k Trigger Out 1 ···········································································42 l Trigger Out 2 ···········································································42 A0 Trigger Out 3 ···········································································42 A1 Trigger Out 4 ···········································································42 A2 Transducer Setup ····································································42 A3 Digital Out ··············································································· 43 A4 Remote ID··············································································· 43 A5 2Way Remote ········································································· 43 A6 Dimmer ··················································································· 43 A7 Setup Lock ·············································································· 43 A8 Maintenance Mode ·································································43 A9 Firmware Update ····································································43 S0 Add New Feature ····································································44

Language ·······················································································44

Source Select Input Source Selection ·································································45

Settings Related to Playing Input Sources ··························45, 46

a Play ·························································································46 s Auto Preset ············································································· 46 d Preset Skip ··············································································46 f Preset Name ··········································································· 46 g Video ················································································· 46, 47 h Input Mode ·············································································47 j Rename··················································································· 47 k Source Level ···········································································47 l Input Att. ················································································· 48 A0 Playback Mode (iPod)······························································ 48 A1 Assign ···············································································48, 49 A2 Playback Mode········································································ 49 A3 Still Picture ·············································································· 49 A4 Antenna Aiming ······································································49



Surround Mode HOME THX CINEMA ·····································································50

Surround Playback of 2-channel Sources ·····································50 Playing Multi-channel Sources (Dolby Digital, DTS, etc.) ············· 50

Standard Playback ········································································50

Surround Playback of 2-channel Sources ·····································50 Playing Multi-channel Sources (Dolby Digital, DTS, etc.) ············· 51 Dolby Headphone ········································································51

DSP Simulation Playback ····························································51 Stereo Playback ············································································ 51 Direct Playback ·············································································52

Playback in the PURE DIRECT Mode ···········································52

Parameter Audio ·····························································································52

a Surround Parameters ······················································52 ~ 54 s Tone ·················································································· 54, 55 d Room EQ ················································································55 f Dynamic EQ ············································································ 55 g RESTORER ·············································································55 h Night Mode ············································································· 55 j Audio Delay ·············································································56

Picture Adjust ···············································································56

a Contrast ··················································································56 s Brightness ···············································································56 d Chroma Level ··········································································56 f Hue ·························································································56 g DNR ························································································56 h Enhancer ················································································· 56 j Sharpness ···············································································56

Information Status ····························································································56

a MAIN ZONE ············································································ 56 s ZONE2/3/4 ··············································································56

Audio Input Signal ········································································57 HDMI Information ·········································································57

a Signal Information ··································································· 57 s Monitor1 ·················································································57 d Monitor2 ·················································································57

Auto Surround Mode ···································································57 Quick Select ··················································································57 Preset Station ···············································································57

Playback Remote Control Unit Operations Preparations ··················································································58

Turning the Power On ··································································58 Operations During Playback ·························································58

Playing Video and Audio Equipment ··········································58

Basic Operation ············································································58

Listening to FM/AM Broadcasts ·················································59

Basic Operation ············································································59 Presetting Radio Stations (Preset Memory) ·································59 Listening to Preset Stations ···················································59, 60 RDS (Radio Data System) ····························································60 RDS Search ··················································································60 PTY Search ···················································································60 TP Search ·····················································································61 RT (Radio Text) ·············································································61

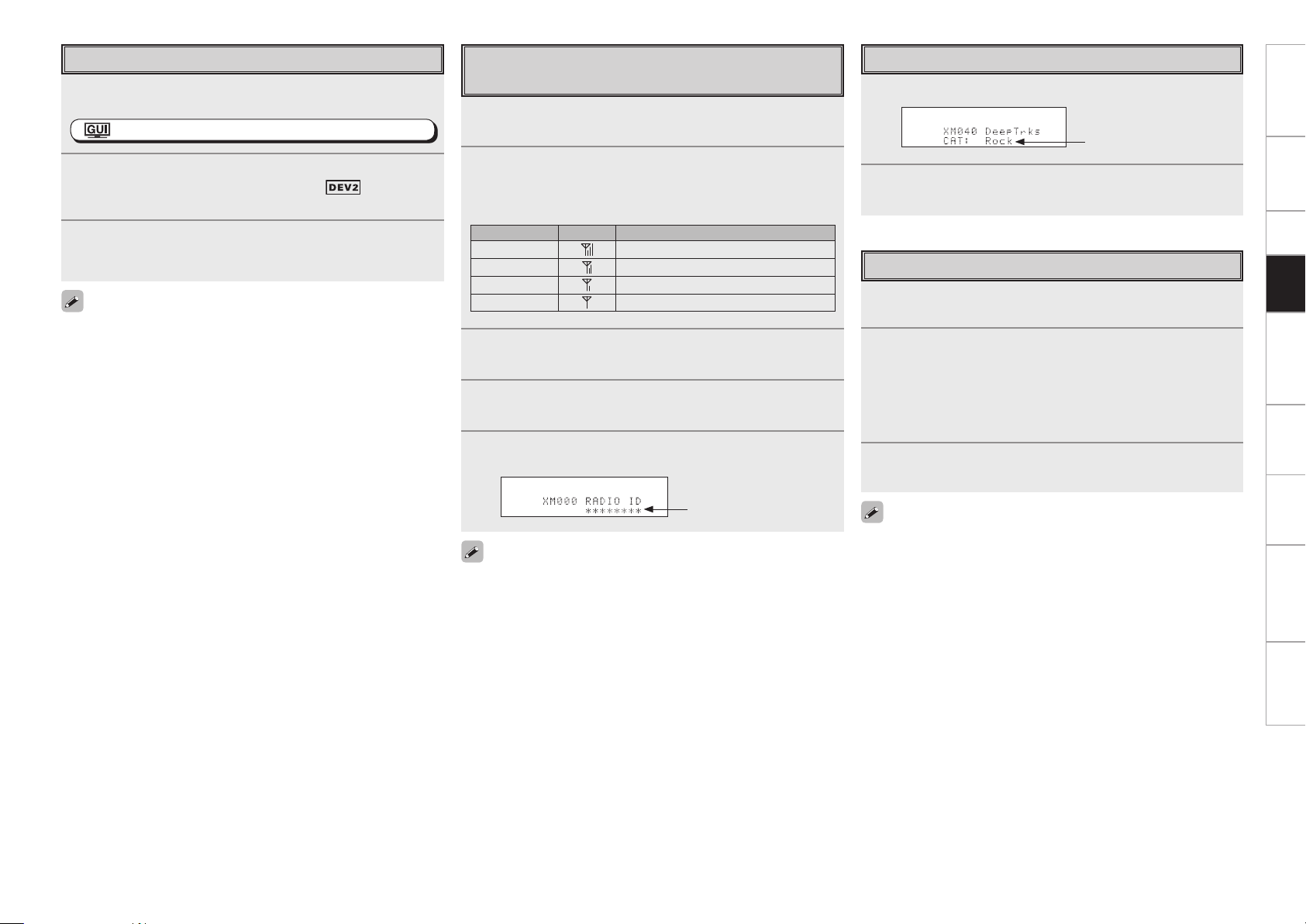

Listening to XM Satellite Radio Programs ·································61

Basic Operation ············································································62 Checking the XM Signal Strength and Radio ID ···························62 Searching Categories ··································································· 62 Accessing XM Radio Channels Directly ······································· 62

Listening to HD Radio™ Stations ···············································63

Basic Operation ············································································63 Selecting Audio Programs ····························································64 Check the HD Radio Reception Information ································ 64

iPod® Playback ·············································································64

Basic Operation ············································································64 Listening to Music ·······································································65 Viewing Still Pictures or Videos on the iPod ································65

Playing Network Audio, USB Memory Devices or Rhapsody ············································66

Basic Operation ············································································67 Listening to Internet Radio ···························································68 Playing Files Stored on a Computer ·············································69 Playing Files Stored on USB Memory Devices ······················ 69, 70 Listening to Rhapsody ·································································70 Operating the AVP-A1HDCI Using a Browser (Web control) ··············································71, 72

Other Operations and Functions

Other Operations ·······································································72

Playing Super Audio CD ······························································· 72 Recording on an External Device (REC OUT mode) ····················73

Convenient Functions ··································································74

HDMI Control Function ································································ 74 Channel Level ··············································································75 Fader Function ·············································································75 Quick Select Function ·································································· 75 Personal Memory Plus Function ·················································· 75 Last Function Memory ·································································76 Backup Memory ···········································································76 Resetting the Microprocessor ·····················································76

Main Remote Control Unit ··························································77

Operating DENON Audio Components ········································77 Presetting ·····················································································77 Operating Preset Components ············································77 ~ 79 Setting the Remote ID ································································· 80 Learning Function ········································································80 System Call Function ···································································81 Punch Through Function ······························································ 81 Setting the Time the Backlight Stays Lit ······································82 Adjusting the Backlight’s Brightness ···········································82 Resetting the Main Remote Control Unit ····································82

Sub Remote Control Unit Operations ··································83, 84

Switching Zones ··········································································85 Setting the Zone for Which the Sub Remote Control Unit is Used (ZONE SELECT LOCK Mode) ··········································85 Setting the Remote ID ································································· 85 Resetting the Settings ·································································85

Multi-Zone Connections and Operations Multi-Zone Connections ······························································86

Multi-Zone Operations ·································································87

Turning the Power On and Off ·····················································87 Selecting the Input Source ···························································87 Adjusting the Volume ···································································87 Turning off the Sound Temporarily ··············································87

Other Information ······························································88 ~ 102

Troubleshooting ······························································ 103 ~ 107

Speciﬁcations ··············································································108

List of preset codes ··········································· End of this manual



r t u

Q4Q3

Getting Started

Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Thank you for purchasing this DENON product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference.

Accessories

Check that the following parts are supplied with the product.

q Owner’s manual ...................................................................... 1

w Warranty (for North America model only) ................................1

e Service station list ...................................................................1

r Power cord (Cord length: Approx. 5 ft /1.5 m) ........................ 1

t Main remote control (RC-1067) ............................................... 1

y LR6/AA batteries (for RC-1067) ............................................... 2

u Sub remote control (RC-1070) ................................................. 1

i R03/AAA batteries (for RC-1070) .............................................2

o FM indoor antenna ..................................................................1

Q0 AM loop antenna (small, for AM broadcasts) .......................... 1

Q1 AM loop antenna (large, for HD Radio broadcasts) .................1

Q2 Dipole antenna (for HD Radio broadcasts) .............................. 1

Q3 Rod antenna for wireless LAN connection .............................. 1

Q4 Setup microphone (Cord length: Approx. 7.6 m) ..................... 1

Cautions on Handling

• Before turning the power switch on

Check once again that all connections are correct and that there are

no problems with the connection cables.

•

Power is supplied to some of the circuitry even when the unit is set to the standby mode. When traveling or leaving home for long periods of time, be sure to unplug the power cord from the power outlet.

• About condensation

If there is a major difference in temperature between the inside of

the unit and the surroundings, condensation (dew) may form on the operating parts inside the unit, causing the unit not to operate properly.

If this happens, let the unit sit for an hour or two with the power

turned off and wait until there is little difference in temperature before using the unit.

• Cautions on using mobile phones

Using a mobile phone near this unit may result in noise. If so, move

the mobile phone away from this unit when it is in use.

• Moving the unit

Turn off the power and unplug the power cord from the power

outlet.

Next, disconnect the connection cables to other system units before

moving the unit.

•

Note that the illustrations in these instructions may differ from the actual unit for explanation purposes.

•

Light Emitting Diodes (LED) are used in the AVP-A1HDCI circuit. When powered on, a green light shows inside part of the AVPA1HDCI, however this is not a fault.

About the Remote Control Unit

In addition to the AVP-A1HDCI, the included main remote control unit (RC-1067) can also be used to operate the equipment listed below.

q DENON system components w Non-DENON system components

• By setting the preset memory (vpage 77 ~ 79)

• By using the learn function (vpage 80)

Inserting the Batteries

q Lift the clasp and remove the rear lid.

(RC-1067) (RC-1070)

w Load the two batteries properly as indicated by the marks in the

battery compartment.

(RC-1067) (RC-1070)

R03/AAA

LR6/AA



Cautions on Installation

Note: For proper heat dispersal, do not install this unit in a conﬁned space, such as a bookcase or similar enclosure.

b Note

Wall

e Put the rear cover back on.

q w e r t

yioQ0 u

Q1 Q2 Q3 Q4

NOTE

• Replace the batteries with new ones if the set does not operate even when the remote control unit is operated close to the unit.

• The supplied batteries are only for verifying operation.

• When inserting the batteries, be sure to do so in the proper direction, following the “q” and “w” marks in the battery compartment.

• To prevent damage or leakage of battery ﬂuid:

• Do not use a new battery together with an old one.

• Do not use two different types of batteries.

• Do not attempt to charge dry batteries.

• Do not short-circuit, disassemble, heat or dispose of batteries in

ﬂames.

• If the battery ﬂuid should leak, carefully wipe the ﬂuid off the inside of the battery compartment and insert new batteries.

• Remove the batteries from the remote control unit if it will not be in use for long periods.

• When replacing the batteries, have the new batteries ready and insert them as quickly as possible.

Operating Range of the Remote Control Unit

Point the remote control unit at the remote sensor when operating it.

Part Names and Functions

For buttons not explained here, see the page indicated in parentheses ( ).

Front Panel

Getting Started

Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

(RC-1070)

30°

Approx. 7 m

(RC-1067)

NOTE

The set may function improperly or the remote control unit may not operate if the remote control sensor is exposed to direct sunlight, strong artiﬁcial light from an inverter type ﬂuorescent lamp or infrared light.

q Power operation button (ON/STANDBY) ·····························(58) w Power indicator ·······································································(58) e Power switch (hON jOFF) ·················································· (58) r Door ···························································································· (5) t QUICK SELECT buttons / indicators ······································(75) y MASTER VOLUME control knob ············································(58) u Master volume indicator

i Display ························································································(5) o Remote control sensor ·····························································(4) Q0 SOURCE SELECT knob ···························································(45) Q1 SOURCE button ·······································································(45) Q2 TUNING PRESET button ·························································(59) Q3 ZONE2/3/4 / REC SELECT button ····································(73, 87) Q4 VIDEO SELECT button ····························································(46)



uQ4Q8Q9 o iQ1

Q0Q6 Q2

Q3Q5Q7 y

wq e r

q w er t y u i o Q0 Q1 Q2

Q3Q4Q5Q6Q7Q8Q9W0W1W2W3W4W5W6W7W8W9

Getting Started

GWith the door openH

Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Display

q DIRECT/STEREO button ····························(51) w Headphones jack (PHONES) ················ (58, 73) e CINEMA button ·········································· (50) r RESTORER button ······································ (55) t MUSIC button ············································· (50) y NIGHT button ············································· (55) u MENU button ·············································· (24) i CH SEL / ENTER button ······················· (24, 75) o RETURN button ·········································· (24) Q0 V.AUX INPUT connectors ·························· (18) Q1 ROOM EQ button ······································· (55) Q2 SETUP MIC jack ·········································· (26) Q3 DYNAMIC EQ button ·································· (55) Q4 STATUS button ··········································(57) Q5 DIMMER button ·········································· (43)

Q6 SCALE button ·············································(47) Q7 USB port ······················································ (19) Q8 ZONE4 ON/OFF button ······························ (87) Q9 ZONE3 ON/OFF button ······························ (87) W0 ZONE2 ON/OFF button ······························ (87) W1 AUDIO DELAY button ································(56) W2 Cursor buttons (uio p) ·························· (24) W3 GAME button ·············································· (50) W4 INPUT MODE button ·································· (47) W5 7CH STEREO button ··································· (51) W6 DSP SIMULATION button ·························· (51) W7 HOME THX CINEMA button ······················ (50) W8 STANDARD button ····································· (51) W9 PURE DIRECT button ································· (52)

q Input signal indicators w Input signal channel indicators

These light when digital signals are input.

e Information display

The input source name, surround mode, setting

values and other information are displayed here.

r Output signal channel indicators t Surround speaker indicators

These light according to the settings of the

surround A and B speakers.

y Monitor output indicators

These light according to the HDMI monitor

output setting. When set to “Auto (Dual)”, the indicators light according to the connection status.

u Master volume indicator i AUDYSSEY DYNAMIC EQ indicator

This lights when the Dynamic EQ is selected.

o AUDYSSEY MULTEQ XT indicator

This lights when the room equalizer is selected.

Q0 Recording output source indicator

This lights when the REC OUT mode is

selected.

Q1 NIGHT indicator

This lights when the night mode is selected.

Q2 Multi zone indicators

These light when the power for the respective

zone is turned on.

Q3 RESTORER indicator

This lights when the RESTORER mode is

selected.

Q4 ADVANCED AL24 indicator

This lights when Advanced AL24 Processing is

activated (vpage 92).

Q5 D.LINK indicator

This lights when playing using DENON LINK

connections.

Q6 Input mode indicators Q7 HDMI indicator

This lights when playing using HDMI

connections.

Q8 Decoder indicators

These light when the respective decoders are

operating.

Q9 Tuner reception mode indicators

These light according to the reception conditions

when the input source is set to “TUNER” or “HD Radio”.

• AUTO

This lights when in the auto tuning mode.

• RDS

These light when receiving RDS broadcasts.

• STEREO

In the FM mode, this lights when receiving analog stereo broadcasts.

• TUNED

This lights when the broadcast is properly tuned in.



W1 i W0

W2W3 W4

Q9 Q8 Q7 Q6 Q5 Q4 Q3 Q2 Q1Q0 o i

w e r t y u

Rear Panel

Getting Started

Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

q CONTROL LINK connector ························· (11) w RS-232C connector ····································· (23) e Analog audio connectors (AUDIO) ··········· (14) r RCA PRE OUT connectors ··················· (11, 22) t EXT. IN connectors ····································· (18) y AC inlet (AC IN) ··········································· (23) u AC OUTLETS ··············································· (23)

i XLR PRE OUT connectors ·························· (11) o HD Radio antenna terminals

(DTU ANTENNA) ········································ (20)

Q0 COMPONENT VIDEO connectors ········ (13, 22) Q1 Digital audio connectors

(OPTICAL / COAXIAL / BNC) ··············· (13, 22)

Q2 HDMI connectors ········································ (12)

Q3 ETHERNET connector ································ (21) Q4 USB port ······················································ (19) Q5 XM connector (SAT TU) ····························· (19) Q6 WLAN ANTENNA terminal ························ (21) Q7 FM/AM antenna terminals

(TUNER ANTENNA) ····································(20)

Q8 DENON LINK connector ····························· (18)

Q9 TRIGGER OUT jacks ···································(23) W0 REMOTE CONTROL jacks ··························(22) W1 XLR audio connectors (CD) ······················· (14) W2 DOCK CONTROL jack ································· (14) W3 SIGNAL GND terminal ·······························(14) W4 VIDEO / S-VIDEO connectors ···················· (13)



t y u

Q6 Q7

t y

Getting Started

Remote Control Unit

Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

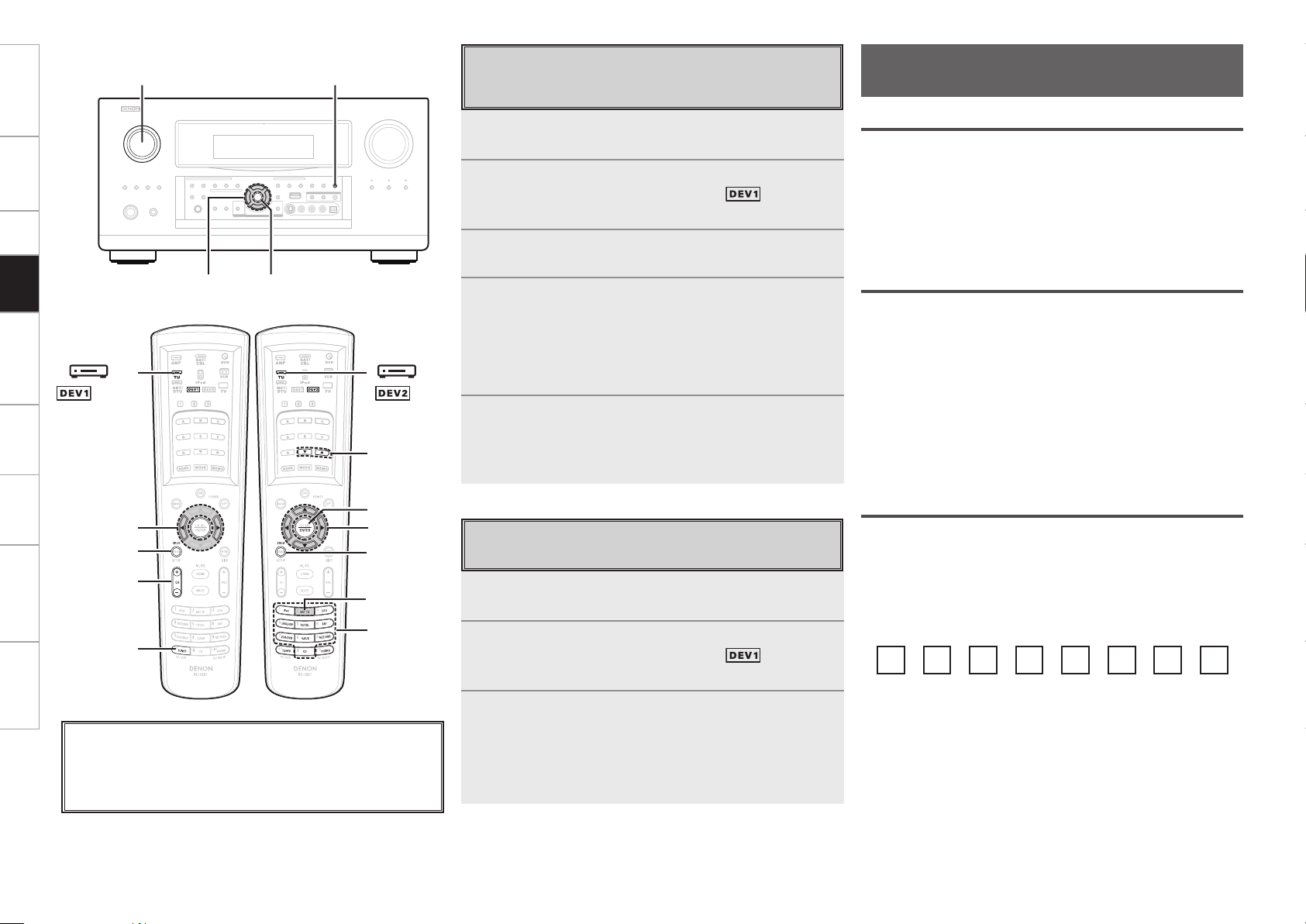

n Main remote control unit (RC-1067) n Sub remote control unit (RC-1070)

q Signal transmission indicator ···················(77) w Mode select buttons ··································(77) e Quick select / System call buttons ····· (75, 81) r Surround mode buttons ···················· (50 ~ 52) t System buttons ···································· (78, 79) y Audio delay button (A. DL) ························ (56) u Tuner system buttons ·························· (59, 79) i Input mode button (INPUT) ······················· (47) o MENU button ·············································· (24) Q0 Cursor buttons (uio p) ························· (24) Q1 Parameter / Search button

(PARA / SRCH) ·························· (52, 60, 62, 65)

Q2 Monitor select (M. SEL) /

HOME button ········································ (32, 77)

Q3 Channel buttons (CH) ····················· (59, 65, 78) Q4 Input source select /

Number buttons ··································· (45, 58)

Q5 Remote control signal transmitter ·············(4) Q6 Device select indicators (DEV1 / DEV2) ···(77) Q7 ZONE3 / ZONE4 select indicators

(Z3 / Z4) ······················································· (87)

Q8 RESTORER button (RSTR) ························· (55) Q9 Night button (NGT) ···································· (55) W0 Test tone button (TEST) ····························(30) W1 Surround speaker select button (SPKR) ···· (31) W2 POWER buttons ·········································· (58) W3 Channel select (CH SEL) /

ENTER button ······································· (24, 75)

W4 Return button (RTN) ·································· (24) W5 Master volume control buttons (VOL) ·····(58) W6 Muting button (MUTE) ························ (58, 87) W7 Main remote control unit setup button

(RC SETUP) ················································· (77)

The time for which the backlight stays on can be changed (vpage 82 “Setting the Time the Backlight Stays Lit”).

NOTE

The ZONE2 mode QUICK SELECT (1 ~ 3), A. DL,

RSTR, NGT, INPUT, SPKR, TEST and surround

mode buttons cannot be used.



q ZONE indicators ········································· (85) w Advanced setup button ·····························(85) e Input source select buttons ······················· (45) r CHANNEL buttons ································ (65, 84) t SHIFT button ··············································· (59) y MENU button ·············································· (24) u Cursor buttons (uio p) ························· (24) i SEARCH button ······························(60, 62, 65) o REPEAT button ··········································· (65) Q0 RANDOM button ········································(65) Q1 Remote control signal transmitter ·············(4) Q2 ZONE SELECT button ································ (85) Q3 Zone power on/off buttons

(ZONE ON / ZONE OFF) ····························· (87)

Q4 Master volume control buttons

(VOLUME) ··················································(58)

Q5 Muting button (MUTE) ························ (58, 87) Q6 ENTER button ············································· (24) Q7 RETURN button ·········································· (24) Q8 System buttons ······························ (59, 83, 84) Q9 ALL MUSIC/FAVORITES

(DIRECT PLAY) button ······························ (83)

W0 USB (DIRECT PLAY) button ·······················(83)

NOTE

The AUX-1, AUX-2, AUX-3 and OPTION buttons cannot be used.

Preparations

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Connections

Connections for all compatible audio and video signal formats are described in these operating instructions. Please select the types of connections suited for the equipment you are connecting. With some types of connections, certain settings must be made on the AVP-A1HDCI. For details, refer to the instructions for the respective connection items below.

NOTE

• Do not plug in the power cord until all connections have been completed.

• When making connections, also refer to the operating instructions of the other components.

• Be sure to connect the left and right channels properly (left with left, right with right).

• Do not bundle power cords together with connection cables. Doing so can result in humming or noise.

Cables Used for Connections

Select the cables according to the equipment being connected.

Audio cables Video cables

Coaxial digital connections

(Orange)

Coaxial digital (75 Ω/ohms pin-plug) cable

Optical digital connections

Optical cable

BNC digital connections

BNC (75 Ω/ohms) cable

Analog connections (XLR)

Balanced cable

Analog connections (stereo, RCA)

(White)

(Red)

Stereo pin-plug cable

Analog connections (monaural, for subwoofer)

(Black)

Pin-plug cable

DENON LINK connections

DENON LINK cable

Network connections (wired LAN)

Component video connections

(Green)

(Blue)

(Red)

S-Video connections

Video connections

(Green)

(Blue)

(Red)

(Yellow)

Component video cable

BNC (75 Ω/ohms) cable

S-Video cable

75 Ω/ohms pin-plug video cable

Audio and video cables

HDMI connections

19-pin HDMI cable

Signal direction

Audio signal: Video signal:

Output

Input

Output

Connections

(Y)

(PB/CB)

(PR/CR)

(Y)

(PB/CB)

(PR/CR)

Input

Ethernet cable

Input

Output

Input

Output



Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Video Conversion Function

• This function automatically converts various formats of video signals input to the AVP-A1HDCI into the format used to output the video signals from the AVP-A1HDCI to a monitor.

• The AVP-A1HDCI’s video input/output circuitry is compatible with the following four types of video

Connections

signals: Digital video signals: HDMI Analog video signals: Component video, S-Video and Video

GFlow of video signals inside the AVP-A1HDCIH

MAIN ZONE

ZONE3

High picture

quality playback

GFlow of video signals for ZONE3H

ZONE3

monitor

S-Video connector

Video connector Video connector

Video inputs Video outputs

High picture

quality playback

ZONE2

High picture

quality playback

HDMI connector

Component video

connectors

S-Video connector

Video connector

Video inputs Video outputs

: When 480i/576i signals are input

GFlow of video signals for ZONE2H

Component video

connectors

HDMI connector

Component video

S-Video connector

Video connector

Component video

connectors

Monitor

ZONE2

monitor

• When not using this function, connect a monitor output with the same type of connector as the video input connector.

• The resolution of the HDMI input-compatible monitor connected to the AVP-A1HDCI can be checked at GUI menu “Information” – “HDMI Information” – “Monitor1” or “Monitor2” (vpage 57).

NOTE

• For optimum video performance, THX recommends that you set the conversion mode to “OFF” to use video signals pass through system without up conversion.

Example: View video input from a component video on the component video monitor.

• HDMI signals cannot be converted into analog signals.

• 1080p component input video signals cannot be output to anything other than component video connectors.

• 480p/576p, 1080i and 720p component video input signals cannot be converted into S-Video or Video format.

• When a non-standard video signal from a game machine or some other source is input, the video conversion function might not operate.

S-Video connector

Video connector

Video inputs Video outputs

: When 480i/576i signals are input

S-Video connector

Video connector



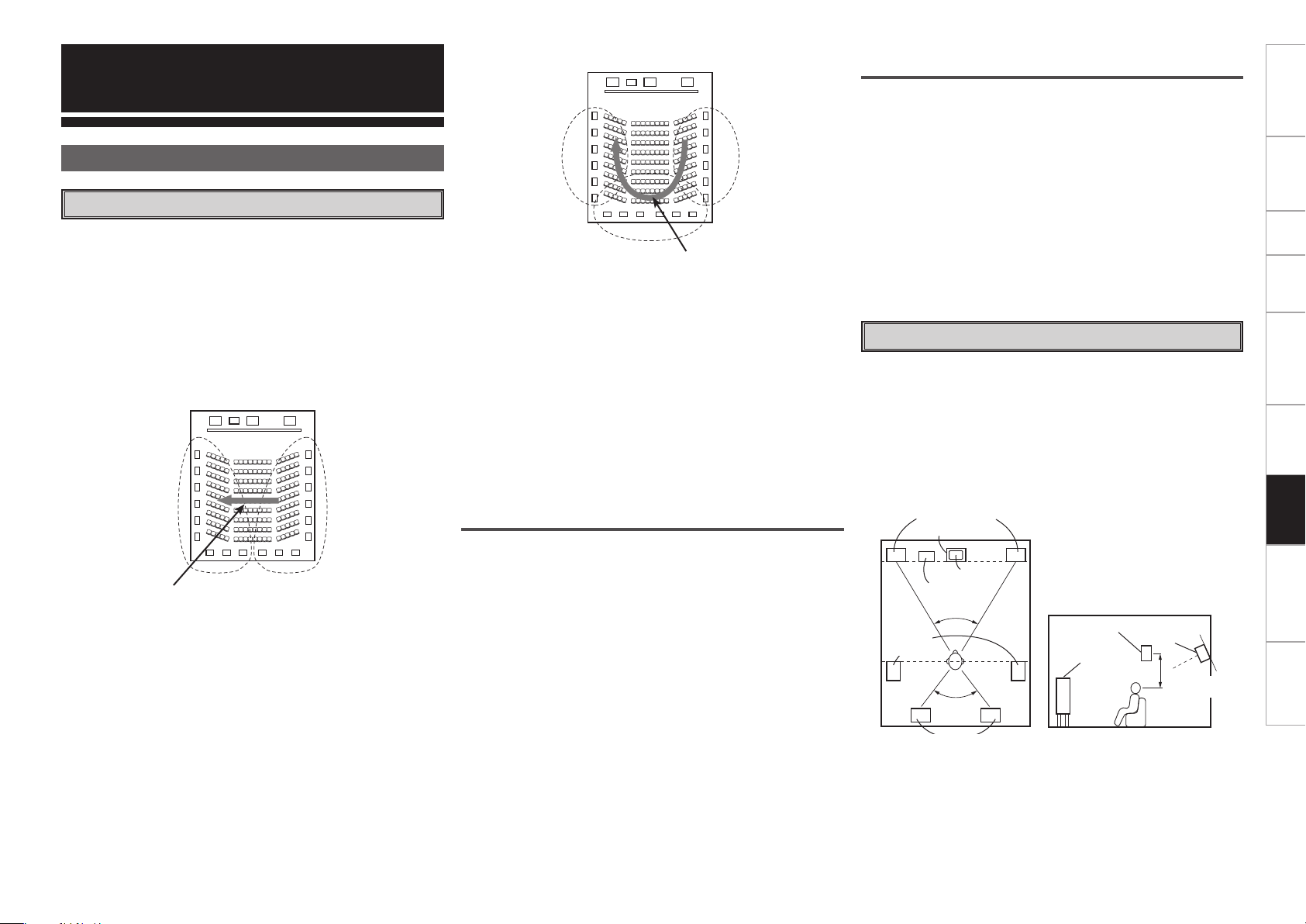

Speaker Layout

Connecting to the Power Amp

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

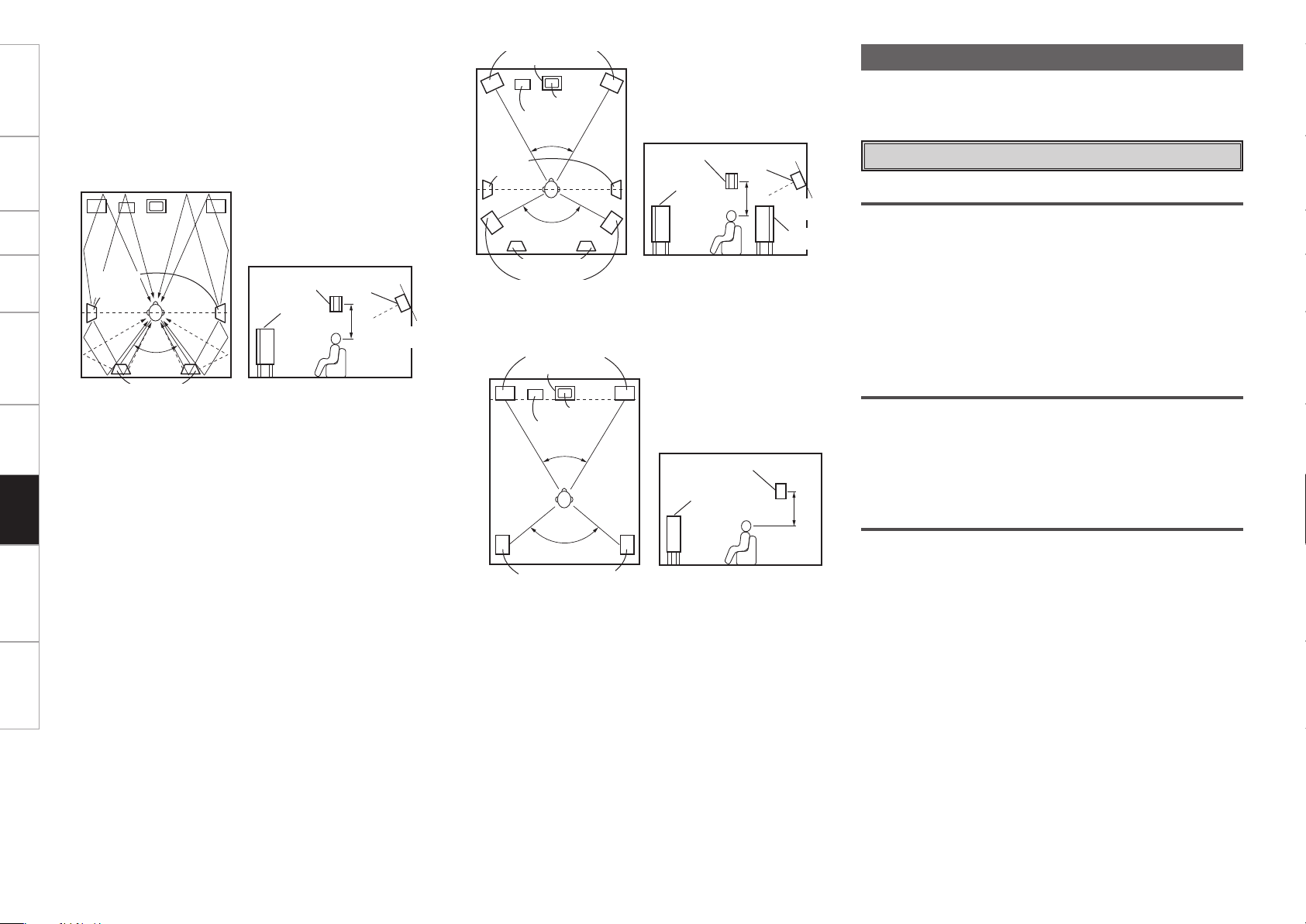

The illustration below shows a basic example of installation of the ampliﬁer combined with 8 speakers and a monitor.

Subwoofer Center speaker

Surround back speakers

Front speakers

Place the front speakers to the sides of the monitor or screen and

Surround speakers

as ﬂush with the screen surface as possible.

Two surround back speakers are required to use the THX Ultra2 Cinema,THX Music mode and THX Games mode. Set the surround back speakers so that the distance to the listening position is the same for both the left and right speakers. It is also recommended that the deviations of the distance from the listening position to L and R channel speakers (front left (FL) and front right (FR), surround left (SL) and surround right (SR), surround back left (SBL) and surround back right (SBR)) is less than 2 ft (60 cm).

• Connect the AVP-A1HDCI pre-out terminal to the power amp (sold separately).

• AVP-A1HDCI has a RCA pre-out terminal and XLR pre-out terminal. Connect accordingly with the power amp you want to use.

• The polarity of the XLR pre-out terminal can be switched using GUI menu “Manual Setup” – “Option Setup” – “XLR Out Polarity” (vpage 41).

• Connect the speakers to the power amp.

• Refer to the owner’s manual of each piece of equipment when making connections.

POA-A1HDCI Connection and Operation

• When connecting the AVP-A1HDCI to the power amp POA-A1HDCI with a control link cable (included with the POA-A1HDCI), you can perform the following control operations.

•

POA-A1HDCI channel input selection and power amp settings

•

Link POA-A1HDCI to AVP-A1HDCI On/Standby control

•

Link POA-A1HDCI meter operation to AVP-A1HDCI display on/off control (vpage 43)

•

Updating POA-A1HDCI ﬁrmware (vpage 43)

• Up to 2 POA-A1HDCI units can be connected. Refer to the POA-A1HDCI owner's manual for making connections and POA-A1HDCI settings.

• For instructions for connecting speakers, please refer to the POA-A1HDCI owner’s manual.

• When using just one surround back speaker, connect it to the left channel (SBL).

Connections

The table below shows a typical speaker conﬁguration for the AVP-A1HDCI.

FRONT

CENTER

SURROUND ASURROUND

SURROUND BACK

L R L R L R L R 1 only

9.1-channels

7.1-channels

6.1-channels

5.1-channels

3.1-channels

2.1-channels

2-channels

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

– – – – – – – –

– – – – – – – – –

– – – – – – –

– –

S S

– – – –

– – – – –

b The AVP-A1HDCI can be connected to a maximum of 3 subwoofers.

SUBWOOFER

(b)

–

S S

S S S

0

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

(R)

(L) (L) (L)

(R)

*/ */

(L)

(R) (R)

w q

w qw q

w q

w qw qw q

w q

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

SPEAKERS

XLR

RCA

(R)

(L) (L) (L)

(R)

*/ */

(L)

(R) (R)

w q

w qw q

w q

w qw qw q

w q

Connections

When using Subwoofer 2 or 3, set GUI menu “Manual Setup” – “Speaker Setup” – “Subwoofer

Setup” (vpage 29).

n Connecting the RCA pre-out terminal (Example : 9.3-channels)

Connections

Subwoofer 1

Subwoofer 2 Subwoofer 3

n Connecting the XLR pre-out terminal (Example : 9.3-channels)

b L : Left

R : Right

AVP-A1HDCI

Subwoofer 3

Subwoofer with built-in ampliﬁer

Subwoofer 2 Subwoofer 1

b L : Left R : Right

AVP-A1HDCI

Subwoofer with built-in ampliﬁer

POA-A1HDCI

Front

speaker (R)



Surround speaker-

B (R)

Surround speaker-

A (R)

Surround

back

speaker

(R)

Center

speaker

Surround

back

speaker

(L)

Surround speaker-

A (L)

Surround speaker-

B (L)

Front

speaker (L)

Front

speaker (R)

Surround speaker-

B (R)

Surround speaker-

A (R)

Surround

back

speaker

(R)

Center

speaker

Surround

back

speaker

(L)

Surround speaker-

A (L)

Surround speaker-

B (L)

The default AVP-A1HDCI balance model XLR pre-out terminal pin alignment is as shown. q : GROUND w : HOT e : COLD

Front

speaker (L)

065

)%.*

Operations

Connect AVP-A1HDCI and POA-A1HDCI with the

control link cable.

b The control link cable is included with the POA-A1HDCI. b AVP-A1HDCI can be connected and control to up to 2 POA-

A1HDCI units.

Refer to the POA-A1HDCI user’s manual for how to connect.

Set the POA-A1HDCI’s control selector switch to

“AVP”.

Set the POA-A1HDCI’s mode select switch according

to the number of POA-A1HDCI units you are connecting.

When connecting 1 unit : “1” When connecting 2 units : 1st unit “1”, 2nd unit “2”

b Refer to the POA-A1HDCI owner’s manual for details.

Switch the AVP-A1HDCI and POA-A1HDCI power

on.

Depending on the number of POA-A1HDCI units to

be connected, set GUI menu “Option Setup” – “POA Setting” – “POA LINK” to either “ON (Single)” or “ON (Dual)” (vpage 41).

Connecting Equipment with HDMI connectors

With HDMI connections, the video and audio signals can be transferred with a single cable.

DVD

player

Monitor

Compatible audio

format

2-channel linear PCM

Multi-channel linear PCM

Dolby Digital, DTS Bitstream DVD-Video

DSD

Dolby Digital Plus, Dolby TrueHD, DTS-HD

In order to play the digital video and audio signals of a DVD- Video or DVD-Audio disc using HDMI/DVI connections, both the connected DVD player and monitor must be equipped for a copyright protection system called “HDCP” (High-bandwidth Digital Content Protection). HDCP is a copy protection technology consisting of data encoding and mutual identiﬁcation of the devices. The AVP-A1HDCI is HDCP-compatible. For details on the DVD player or monitor you are using, refer to its operating instructions.

Details

2ch 32-192 kHz 16/20/24 bits

8ch 32-192 kHz 16/20/24 bits

2/5.1ch

2.8224 MHz 1 bit

Bitstream

Discs

(examples)

CD, DVD-Video, DVD-Audio

DVD-Audio

SACD

HD DVD, Blu-ray Disc

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Connections

Use GUI menu “Option Setup” – “POA Setting”

– “LINK Check” to check the connection.

• By default, HDMI sound is output from the speaker of the power amp connected to AVP-A1HDCI.

• To output the sound from the TV, make the settings at GUI menu “Manual Setup” – “HDMI Setup” – “Audio” – “TV” (vpage 32).

b The AVP-A1HDCI is supported to the feature of HDMI listed below.

• 30 and 36 bit Deep Color

• xvYCC

• Auto Lipsync Correction

When connecting with an HDMI/DVI converter cable

(adapter)

• HDMI video signals are theoretically compatible with the DVI format.

When connecting to a monitor, etc., equipped with a DVI-D

connector, connection is possible using an HDMI/DVI converter cable, but depending on the combination of components in some cases the video signals will not be output.

• When connecting using an HDMI/DVI converter adapter, the video signals may not be output properly due to poor connections with the connected cable, etc.



Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

47*%&0

7*%&0

$0.10/&/57*%&0

: 1# 13

7*%&0

)%.*

*/ */

47*%&0

065

"6%*07*%&0

$0.10/&/57*%&0

: 1# 13

7*%&0

065 065

"6%*0

$0"9*"-

065

065065

)%.*

NOTE

• Use a CPPM-compatible DVD player to play DVD-Audio discs that are copyright-protected by CPPM.

• The audio signals output from the HDMI connector (sampling frequency, bit rate, etc.) may be restricted by the connected

Connections

device.

• Video signals are not output properly when using devices that are not HDCP-compatible.

• Video signals are not output if the input video signals do not match the monitor’s resolution. In this case, switch the DVD player’s resolution to a resolution with which the monitor is compatible.

• If the GUI menu “Manual Setup” – “HDMI Setup” – “Audio” setting (vpage 32) is set to “Amp”, the sound may be interrupted when the monitor’s power is turned off.

• Use a cable on which the HDMI logo is indicated (a certiﬁed HDMI product) for connection to the HDMI connector. Normal playback may not be possible when using a cable other than one on which the HDMI logo is indicated (a non-HDMI-certiﬁed product).

• If the monitor or DVD player does not support Deep Color, Deep Color signal transfer is not possible.

• If the monitor or DVD player does not support xvYCC, xvYCC signal transfer is not possible.

• If the monitor does not support “Auto Lipsync Correction” function, this function will not work.

• The AVP-A1HDCI is compatible with the HDMI’s CEC (Consumer Electronics Control) function. Please note the following.

• It may not work depending on the device it is connected to and

its setup.

• It does not operate with televisions or players that are not

compatible with HDMI’s CEC.

Connecting the Monitor

• Connect the cables to be used (vpage 9 “Video Conversion

Function”).

• With HDMI connections, the video and audio signals can be transferred with a single cable.

• To output the audio signals to the monitor with HDMI connections, set GUI menu “Manual Setup” – “HDMI Setup” – “Audio” to “TV” (vpage 32).

Monitor

Connecting the Playback Components

Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect correctly.

DVD Player

• Connect the cables to be used.

• With HDMI connections, the video and audio signals can be transferred with a single cable.

DVD player

• When the AVP-A1HDCI and DVD player are connected using an HDMI cable, also connect the AVP-A1HDCI and monitor using an HDMI cable.

• If the connected monitor or DVD player only has a DVI-D connector, use an HDMI/DVI converter cable. When using a DVI cable, no audio signals are transmitted.

• Use a Deep Color compatible cable for connection to Deep Color compatible devices.



NOTE

• The component video connectors may be indicated differently on your monitor. For details, see the monitor’s operating instructions.

• The audio signals output from the HDMI connectors are only the HDMI input signals.

• Connect an HDP (High-Deﬁnition Player) in the same way.

• When using an optical cable or a BNC cable for the digital audio connection, make the settings at GUI menu “Source Select” – “DVD” – “Assign” – “Digital” (vpage 48).

• When using a BNC cable for the component video connection, make the settings at GUI menu “Source Select” – “DVD” – “Assign” – “Component” (vpage 48).

Record Player

(/%

"6%*0

065

"6%*0

$0"9*"-

065

3-3-

065

9-3 065

"4%3

CD Player

iPod

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Turntable (MM cartridge)

Connect the cables to be used.

CD player

Use a DENON Control Dock for iPod (ASD-1R, sold separately) to connect the iPod to the AVP-A1HDCI. For instructions on the Control Dock for iPod settings, refer to the Control Dock for iPod’s operating instructions.

Connections

Example :

iPod

• When connecting a record player with an MC cartridge, use a commercially available MC head ampliﬁer or a step-up transformer.

• Induction humming (a booming sound) may be produced from the speakers if the volume is raised with no record player connected.

• With some record players, noise may be generated when the ground wire is connected. If so, disconnect the ground wire.

NOTE

The AVP-A1HDCI’s SIGNAL GND terminal is meant to reduce noise when a record player is connected. This is not a safety ground terminal.

• When using an optical cable or a BNC cable for the digital audio connection, make the settings at GUI menu “Source Select” – “CD” – “Assign” – “Digital” (vpage 48).

• The default analog audio input setting is “RCA”. When using a balanced cable for the analog audio connection, make the settings at GUI menu “Source Select” – “CD” – “Assign” – “Analog” (vpage

49).

NOTE

The default AVP-A1HDCI balance model XLR input connectors pin alignment is as shown. q : GROUND w : HOT e : COLD

• With the default settings, the iPod can be used connected to the VCR (iPod) connector.

• To assign the iPod to a connector other than VCR (iPod), make the settings at GUI menu “Source Select” – “(input source to which iPod dock assigned)” – “Assign” – “iPod dock” (vpage 49).



Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

47*%&0

065

"6%*07*%&0

$0.10/&/57*%&0

: 1# 13

7*%&0

065 065

"6%*0

065065

015*$"-

47*%&0

065

"6%*07*%&0

$0.10/&/57*%&0

: 1# 13

7*%&0

065 065

"6%*0

065

)%.*

$0"9*"-

065

TV/CABLE Tuner

Satellite Receiver

Connect the cables to be used.

Connections

TV tuner

Connect the cables to be used.

DBS / BS tuner

• When using a coaxial digital cable or a BNC cable for the digital audio connection, make the settings at

GUI menu “Source Select” – “TV/CBL” – “Assign” – “Digital” (vpage 48).

• When using a BNC cable for the component video connection, make the settings at GUI menu “Source

Select” – “TV/CBL” – “Assign” – “Component” (vpage 48).



• When using an optical cable or a BNC cable for the digital audio connection, make the settings at GUI

menu “Source Select” – “SAT” – “Assign” – “Digital” (vpage 48).

• When using a BNC cable for the component video connection, make the settings at GUI menu “Source

Select” – “SAT” – “Assign” – “Component” (vpage 48).

Connecting the Recording Components

47*%&0 47*%&0

3-3-

"6%*0 "6%*07*%&0 7*%&0

*/065

015*$"- 015*$"-

065

"6%*0 "6%*0

065

7*%&0 7*%&0

065

)%.*

$0.10/&/57*%&0

: 1# 13

065

Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect correctly.

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Digital Video Recorder

Connect the cables to be used.

Digital video recorder

Connections

• Make analog connections if you wish to record analog audio signals.

• When recording to a digital video recorder, it is necessary that the type of cable used with the playback source equipment be the same type that is connected to the AVP-A1HDCI DVR-1 OUT connector. Example: TV IN → S-Video cable : DVR-1 OUT → S-Video cable TV IN → Video cable : DVR-1 OUT → Video cable

• Connect a DVR-2 in the same way.

• When using a component video cable or a BNC cable for the component video connection make the settings at GUI menu “Source Select” – “DVR-1” or “DVR-2” – “Assign” – “Component” (vpage 48).

NOTE

• Do not connect the output of the component connected to the AVPA1HDCI’s OPTICAL2 output connector to any input connector other than OPTICAL2.

• Do not connect the output of the component connected to the AVPA1HDCI’s OPTICAL3 output connector to any input connector other than OPTICAL3.



Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

47*%&0 47*%&0

3-3-

065

"6%*0 "6%*07*%&0 7*%&0

*/065

015*$"- 015*$"-

065

"6%*0 "6%*07*%&0 7*%&0

065

)%.*

3-3-

*/ */065

015*$"- 015*$"-

065

"6%*0"6%*0

"6%*0

Video Cassette Recorder

CD Recorder / MD Recorder / Tape Deck

Connect the cables to be used.

Video cassette recorder

Connections

Make analog connections if you wish to record analog audio signals, or digital connections if you wish to record digital audio signals, depending on the types of connectors on the components being used.

CD recorder / MD recorder / Tape deck

• When recording to a VCR, it is necessary that the type of cable used with the playback source equipment be the same type that is connected to the AVP-A1HDCI VCR OUT connector. Example: TV IN → S-Video cable : VCR OUT → S-Video cable TV IN → Video cable : VCR OUT → Video cable

• When using a component video cable or a BNC cable for the video connection, make the settings at GUI menu “Source Select” – “VCR” – “Assign” – “Component” (vpage 48).

NOTE

Do not connect the output of the component connected to the AVP-A1HDCI’s OPTICAL4 output connector to any input connector other than OPTICAL4.



NOTE

Do not connect the output of the component connected to the AVP-A1HDCI’s OPTICAL4 output connector to any input connector other than OPTICAL4.

Connections to Other Devices

%&/0/-*/,

"6%*0

47*%&0

065

"6%*07*%&0

7*%&0

065 065

015*$"-"6%*0

065

46#

800'&3

$&/5&3 463306/%

#"$,

463306/%

'30/5

"6%*0

Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect correctly.

Components Equipped with a DENON LINK connector

Multi-channel playback is possible with DVD-Audio discs, Super Audio CD, etc.

DVD player

Video Camera / Game Console

Video camera / Game console

Component with Multi-channel Output connectors

DVD player / Super Audio CD player / External decoder

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Connections

To use with DENON LINK connections, make the settings at GUI menu “Source Select” – “(input source)” – “Assign” – “Digital” – “DENON LINK” (vpage 48).

• To play the analog input signals input to the EXT. IN connectors,

press the INPUT MODE button on the main unit or INPUT button on the main remote control unit and select “EXT. IN” or make the settings at GUI menu “Source Select” – “(input source)” – “Input Mode” – “Input Mode” – “EXT. IN” (vpage 47).

• The video signal can be connected in the same way as a DVD player

(vpage 13).

• To play copyright-protected discs, connect the AVP-A1HDCI’s EXT. IN connector with the DVD player’s analog multi-channel output connector.



Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

USB Port

XM Connector

n Front panel n Rear panel

Connections

USB memory device USB memory device

• The AVP-A1HDCI is an XM Ready® receiver. You can receive XM® Satellite Radio by connecting to the XM Mini-Tuner and Home Dock (includes home antenna, each sold separately) and subscribing to the XM service.

• Plug the XM Mini-Tuner and Home Dock into the XM connector on the rear panel.

• Position the Home Dock antenna near a south-facing window to receive the best signal.

For details, see “Listening to XM Satellite Radio Programs” (vpage

61).

When making connections, also refer to the operating instructions of

the XM Mini-Tuner and Home Dock.

XM Mini-Tuner and Home Dock

• In the initial status, USB memory devices can be used by connecting them to the USB port on the front panel.

• To change the port to be used, see “USB Select” on page 49.

• For instructions on playing the ﬁles on a USB memory device, see page 69, 70.

NOTE

• Set to the USB port you want to use.

• The AVP-A1HDCI is equipped with two USB ports, one each on the front and rear panels. It is not possible to use the set with USB memory devices connected to both the ports at the same time. Select the USB port you want to use at the GUI menu “Source Select” – “NET/USB” – “Playback Mode” – “USB Select”.

• Do not use the extension cable for connecting the USB memory deveice to the AVP-A1HDCI’s USB port.

Use of the extension cable may cause harmful interference.



NOTE

Keep the power cord unplugged until the XM Mini-Tuner and Home Dock connection have been completed.

Antenna terminals

An F-type FM antenna cable plug can be connected directly.

AM/FM

AM loop antenna (small, supplied)

Direction of broadcasting station

FM antenna

HD Radio™ broadcast

HD Radio broadcast is a service that is only available within the United States.

Direction of broadcasting station

AM loop antenna

FM antenna

(large, for HD Radio broadcasting, supplied)

• To prevent interference, install at least 3.3 feet/ 1 m away from the antenna connected to the AVP-A1HDCI’s other AM tuner terminal.

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Connections

(White)

AM outdoor antenna

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC which provides guidelines for proper grounding and, in particular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

(Black)

Ground

AM loop antenna assembly

Remove the vinyl tie and take out the connection line.

a. With the antenna on top of

any stable surface.

Mount

75 Ω/ohms Coaxial cable

FM indoor antenna (supplied)

75 Ω/ohms Coaxial cable

FM indoor antenna (dipole, for HD Radio broadcasting, supplied)

Connect to the AM antenna terminals.

Bend in the reverse direction.

b. With the antenna attached

to a wall.

Installation hole Mount on wall, etc.

(White)

(Black)

Ground

AM outdoor antenna

Connection of AM antennas

1. Push the

lever.

2. Insert the conductor.

NOTE

• Do not connect two FM antennas simultaneously.

• Even if an external AM antenna is used, do not disconnect the AM loop antenna.

• Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.

3. Return the lever.

0

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Network Audio

[Wired LAN]

Connections

Router

[Wireless LAN]

Internet

Modem

To WAN side

To LAN port

Modem

To WAN side

Router with access point

Computer

LAN port/Ethernet

connector

Computer

Rod antenna (supplied)

Turn clockwise.

Required system n Broadband Internet connection

A broadband line connection to the Internet is required in order to use the AVP-A1HDCI’s Internet radio function and ﬁrmware update.

n Modem

This is a device that is connected to the broadband line to communicate with the Internet. Some are integrated with the router.

n Router

• When using the AVP-A1HDCI, we recommend you use a router equipped with the following functions:

· Built-in DHCP (Dynamic Host Conﬁguration Protocol) server This function automatically assigns IP addresses on the LAN.

· Built-in 100BASE-TX switch When connecting multiple devices, we recommend a switching

hub with a speed of 100 Mbps or greater.

• When using with a wireless LAN, prepare a broadband router with built-in access point.

n Ethernet cable (CAT-5 or greater recommended)

Use for wired LAN.

• The AVP-A1HDCI does not come with an Ethernet cable.

• Some ﬂat type Ethernet cables are easily affected by noise.

We recommend using a normal type cable.

• If the sound is broken in an environment in which there is much power supply noise from electric products or in a noisy network environment, use a shielded type Ethernet cable.

n Computer

A computer with the following speciﬁcations is required to use a media server:

• OS

Windows® XP Service Pack2, Windows Vista

• Software (Prepare one of the following.)

· .NET Framework 1.1 and Windows Media Connect (Windows XP)

· Windows Media Player ver.11

· DLNA-compatible server software

• Internet browser

Microsoft Internet Explorer 5.01 or later

• LAN port

• 300 MB or more free disk space

b Free disk space is required to store music and video ﬁles. The

following sizes are approximate.

Format Bit rate Per minute Per hour

MP3 / WMA

MPEG-4 AAC

WAV (LPCM)

FLAC

128 kbps Approx. 1 MB Approx. 60 MB 192 kbps Approx. 1.5 MB Approx. 90 MB 256 kbps Approx. 2 MB Approx. 120 MB 392 kbps Approx. 3 MB Approx. 180 MB 1400 kbps Approx. 10 MB Approx. 600 MB 1080 kbps Approx. 7.7 MB Approx. 464 MB

For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.

NOTE

• A contract with an ISP is required to connect to the Internet. No additional contract is needed if you already have a broadband

connection to the Internet.

• The types of routers that can be used depend on the ISP. Contact an ISP or a computer shop for details.

• Depending on the server, video ﬁles may be displayed, but they cannot be played on the AVP-A1HDCI.

n Others

• If you have an Internet provider contract for a line on which

network settings are made manually, make the settings at GUI menu “Manual Setup” – “Network Setup” (vpage 35 ~ 38).

• With the AVP-A1HDCI, it is possible to use the DHCP and Auto IP

functions to make the network settings automatically.

• When using a broadband router (DHCP function), the AVP-A1HDCI

sets the IP address, etc., automatically.

When using the AVP-A1HDCI connected to a network with no

DHCP function, make the settings for the IP address, etc., at GUI menu “Manual Setup” – “Network Setup” (vpage 35 ~ 38).

• The AVP-A1HDCI is not compatible with PPPoE. A PPPoE-

compatible router is required if you have a contract for a line of the type with which the PPPoE is set.

• Depending on the ISP with which you have your contract, it may

be necessary to make proxy server settings to use the Internet radio function. If you made proxy server settings on the computer to connect to the Internet, make the proxy server settings on the AVP-A1HDCI in the same way.



Multi Zone

"6%*0

*/ */

7*%&0

"6%*0

7*%&0 7*%&0

7*%&0

$0.10/&/57*%&0

: 1# 13

47*%&0

"69 065

"6%*0

*/

015*$"-

"6%*0

*/

015*$"-

ZONE2 or ZONE3 Pre-out Connections

• If another power ampliﬁer or pre-main (integrated) ampliﬁer is connected, the ZONE2 or ZONE3 pre-out (variable or ﬁxed level) connectors can be used to play a different program source in ZONE2 or ZONE3 the same time (vpage 86, 87).

• To the monitor output of ZONE2, various formats of video signals input by the video conversion function are automatically converted and output (vpage 9).

• To the monitor output of ZONE3, video signals input from the S video terminal or video terminal is output (vpage 9).

• The ZONE2 (ZONE3) video out is only for ZONE2 (ZONE3).

ZONE2

Power amplier

Monitor

ZONE3

Monitor

Power amplier

NOTE

• For the audio output, use high quality pin-plug cords so that no induction humming or noise is produced.

• For instructions on installing and operating separately sold devices, refer to the respective devices’ operating instructions.

• To conduct multi-zone playback, see “Multi-Zone Connections and Operations” (vpage 86, 87).

ZONE2 or ZONE4 Optical Connections

The AVP-A1HDCI is equipped with Optical output connectors for ZONE2 and ZONE4. If a bit-stream amp is rigged-up, these zones can also be used to enjoy home theater.

AV amplier

(ZONE2)

AV amplier

(ZONE4)

Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Connections

Input

Infrared retransmitter

Output

Infrared sensor

Extension jack for future use.

• Connect the monitor for ZONE2 the same as the “ZONE2 or ZONE3 Pre-out Connectors” (vSee left column).

• If the signal inputted to ZONE2 is analog, change to PCM(2-channel) signal, and output it from ZONE2 optical output connectors.



Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

External Controller

Connecting the Power Cord

Wait until all connections have been completed before connecting the power cord.

Connections

RS-232C connector

This connector is used for an external controller.

b If you use an external controller to operate

the unit via the RS-232C terminal, you must confirm the following beforehand.

q Turn on the AVP-A1HDCI’s power. w Turn off the AVP-A1HDCI’s power from the

external controller.

e AVP-A1HDCI enters the standby status.

• When using in combination with an RF Remote Controller (RC-7000CI, sold separately) and RF Remote Receiver (RC-7001RCI, sold separately) two-way communication with an RF Remote Controller is possible.

The AVP-A1HDCI’s status information as well as iPod and Internet audio music ﬁles can be browsed

watching the RF Remote Controller’s display. For details, refer to the operating instructions of the respective devices.

• When used in combination with an RF Remote Controller and RF Remote Receiver, make the settings at GUI menu “Manual Setup” – “Option Setup” – “2Way Remote” – “Used” (vpage 42).

• When using the 2-way remote control unit, connect to the Port 1 RS-232C connector.

•

If GUI menu “Manual Setup” – “Option Setup” – “2Way Remote”is set to “Used”, you cannot use port 1 of the RS-232C connector for the external controller.

To household

power outlet

Power cord

(included)

(AC 120 V, 60 Hz)

Connection to the AC outlets

• These outlets supply power to external audio devices.

• The power supplied from this outlets turns on and off together with the set’s power switch.

• Audio equipment with a total power consumption of 120 W (1 A) can be connected.

NOTE

• Insert the AC plugs securely. Incomplete connections could cause noise.

• Only use the AC outlets to plug in audio devices. Do not use them as power supplies for hairdryers or anything other than audio equipment. In addition, do not connect audio devices such as high electricity consumption power ampliﬁers (e.g. POA-A1HDCI).

Once Connections are Completed



Trigger output jacks

The power of an external device equipped with a trigger input jack can be turned on and off in association with operations on the AVP-A1HDCI. For details, see GUI menu “Manual Setup” – “Option Setup” – “Trigger Out 1”, “Trigger Out 2”, “Trigger Out 3” or “Trigger Out 4” (vpage 42).

• Output level: 250 mA/12 V Check the trigger input conditions of the connected device.

Turning the Power On (vpage 58)

AUTO S ETUP

1 2 3 4 5

Start

RETURN

Pre-ou t Assign XLR Ou t Polarity

Config . 9.1 SW 1SP

STEP1 Speaker Det ection Please place the microphone at ear height at main li stening position.

Start Auto Setup

Enter Cancel

Assign

Input Mode

Video

Rename

GUI Menu Operations

With the AVP-A1HDCI, settings and operations for most functions can be performed by operating while looking at the GUI menus displayed on the monitor screen.

Examples of GUI Screen Displays

Some typical examples are described below.

Example: Browse Menu (Top Menu)

Getting Started Connections Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Cursor Position Display

n Icon

Switch the selected item

Switch to the next item

The GUI cannot be superimposed when xvYCC signals and component 1080p signal, computer’s resolution (e.g.VGA) are input.

Example of the Display of the GUI Mark at a Title

Items for which this mark is indicated at the title can be operated from the GUI. We recommend performing such operations from the GUI.

Auto Setup

Optimize settings for speakers in use.

This is the GUI icon for this setting item or for the menu series to which this item belongs.

Example of Display of Default Values

In lists of selectable items or adjustable ranges, the item surrounded by a border is the default value.

[Selectable items]

9.1 7.1 5.1

Selected item

name

List of subsequent items

Guidance text for item

at cursor position

Example: Menus with Illustrations

(Auto Setup)

Operation guidance text

Guidance text for item at cursor

position

Operation step indicators

Illustration

Operation

button guidance

Selected item

Switch the selected item

n List

Selected item

Switch to the next item

b Switch the selected item using

ui.

Operations

The same operation is possible on the main unit or remote control unit.

Press the MENU button.

The GUI menu is displayed.

b To operate from the main remote control unit, be sure to set the

remote control unit to the AMP mode.

Press the u i p button to select the menu to be set

or operated.

b To return to the previous item, press the o or RETURN button.

Press the ENTER button to enter the setting.

Press the MENU button to nish.

Setup



Getting Started Connections Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

GUI Menu Map

n Status

n Audio Input Signal n HDMI Information n Auto Surround Mode

Setup

n Quick Select n Preset Station

n Audio

n Picture Adjust

Information

(vpage 56, 57)

• MAIN ZONE

• ZONE2/3/4

Parameter

(vpage 52 ~ 56)

• Surround Parameters

· Mode

· Decoder

· Cinema EQ

· DRC

· D.COMP

· LFE

· Center Image

· Panorama

· Dimension

· Center Width

· Delay Time

· Effect

· Effect Level

· Room Size

· AFDM

· SB CH Out

· Input Channel

· Subwoofer Att.

· Subwoofer

· Default

• Tone

· Tone Defeat

· Bass

· Treble

· Front

· Center

· Surround

· Surround Back

· Subwoofer

• Room EQ

• Dynamic EQ

• RESTORER

• Night Mode

• Audio Delay

• Contrast

• Brightness

• Chroma Level

• Hue

• DNR

• Enhancer

• Sharpness

Source Select

n TUNER (FM/AM)

• Play

• Auto Preset

• Preset Skip

• Preset Name

• Video

· Video Select

· i/p Scaler

· Resolution

• Input Mode

• Rename

• Source Level

(vpage 45 ~ 49)

n PHONO

• Video

· Video Select

· i/p Scaler

· Resolution

• Input Mode

• Rename

• Source Level

• Input Att.

Surround Mode

(vpage 50 ~ 52)

n STEREO n DIRECT n STANDARD n DOLBY HEADPHONE

(When using headphones)

n DOLBY PLIIx, DOLBY PLII or

DOLBY PL

n DTS NEO:6 n neural n HOME THX CINEMA n 7CH STEREO n WIDE SCREEN n SUPER STADIUM n ROCK ARENA n JAZZ CLUB n CLASSIC CONCERT n MONO n VIDEO GAME n MATRIX

When “Screensaver” is set to “ON”, the screensaver is activated if no operation is performed for about 3 minutes.

n CD, DVD, HDP, TV/CBL, SAT, VCR, DVR-1, DVR-2, V.AUX

• Play (iPod) • Video

• Playback Mode (iPod) · Video Select

• Assign · Video Convert

· HDMI

· Digital · i/p Scaler

· Component · Resolution

· Analog · Progressive Mode (CD only) (Excluding CD)

· iPod dock · Aspect (Excluding CD)

• Input Mode

• Rename

• Source Level

• Input Att.

Auto Setup

n Auto Setup

• STEP1: Speaker Detection

• STEP2: Measurement

• STEP3: Calculation

• STEP4: Check

• STEP5: Store

Manual Setup

n Speaker Setup (vpage 29 ~ 31)

• Speaker Conﬁguration

• Subwoofer Setup

• Distance

• Channel Level

• Crossover Frequency

• THX Audio Setup

• Surround Speaker

n HDMI Setup (vpage 32)

• Color Space

• RGB Range

• Auto Lip Sync

• Audio

• Monitor Out

• HDMI Control

n Audio Setup (vpage 33, 34)

• EXT. IN Setup

· Mode

· Surround Back Input

· Surround Speaker

· Subwoofer Level

· Input Att.

• 2ch Direct/Stereo

• Downmix Option

• Auto Surround Mode

• Manual EQ

(Excluding CD)

(vpage 26 ~ 28)

(vpage 29 ~ 44)

n NET/USB

• Play

• Playback Mode

• Still Picture

• Video

· Video Select

· i/p Scaler

· Resolution

• Input Mode

• Rename

• Source Level

n Option

• Room EQ

• Direct Mode

• Mic Select

n Network Setup (vpage 35 ~ 38)

• Network Setup

• Other

· Power Saving

· Character

· PC Language

· Rhapsody Account

• Network Information

n Zone Setup (vpage 39)

• ZONE2, ZONE3

· Bass

· Treble

· HPF

· Lch Level

· Rch Level

· Channel

· Volume Level

· Volume Limit

· Power On Level

· Mute Level

· Video Convert

• OSD

(ZONE2 only)

n XM

• Play

• Preset Skip

• Antenna Aiming

• Video

· Video Select

· i/p Scaler

· Resolution

• Input Mode

• Rename

• Source Level

n Parameter Check

• Speaker Conﬁguration Check

• Distance Check

• Channel Level Check

• Crossover Check

• EQ Check

• Restore

n Option Setup (vpage 40 ~ 44)

• Pre-out Assign

• XLR Out Polarity

• POA Setting

• Volume Control

· Volume Limit

· Power On Level

· Mute Level

• Source Delete

• GUI

· Screensaver

· Wall Paper

· Format

· Text

· Master Volume

· NET/USB / iPod / Tuner

• Quick Select Name

• Trigger Out 1

• Trigger Out 2

• Trigger Out 3

• Trigger Out 4

• Transducer Setup

• Digital Out

• Remote ID

• 2Way Remote

• Dimmer

• Setup Lock

• Maintenance Mode

• Firmware Update

• Add New Feature

n Language (vpage 44)

n HD Radio

• Play

• Auto Preset

• Preset Skip

• Preset Name

• Video

· Video Select

· i/p Scaler

· Resolution

• Input Mode

• Rename

• Source Level



Auto Setup

• Audyssey MultEQ problems in the listening environment to create the best audio experience for your home theater.

• It optimizes a large listening area where one or more listeners are seated.

Measurements are performed by placing the calibrated microphone

(DM-A505Z) successively at multiple positions throughout the listening area as shown in Example q. For best results, it is strongly recommended to measure 6 or more positions so that the measurements have the proper spatial weighting.

Even if the listening environment is small as shown in Example w,

measuring at multiple points throughout the listening environment results in more effective correction.

XT automatically measures the acoustical

Preparations

Connect the included calibrated setup microphone to

the SETUP MIC jack on the main unit.

The “Auto Setup” screen appears automatically.

Sound receptor

Place the microphone at ear height on a tripod or stand

with the microphone pointing directly up towards the ceiling.

Auto Setup

Optimize settings for speakers in use.

F Menu tree F

Auto Setup

a Auto Setup

s Option

d Parameter Check

a Auto Setup

The settings are performed automatically.

GAuto setup ﬂowH

STEP1: Speaker Detection

Getting Started Connections Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Setup

Example q Example w

( :Measuring positions)

About the main listening position (*M)

The main listening position refers to the most central position where one would normally sit within the listening environment. MultEQ XT uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

To make manual adjustments to the settings, see pages 29 ~ 31.

Setup

microphone

b It is not recommended to hold it in your hand. Be sure that the

path from microphone to the speakers is not blocked by objects. Avoid placing the microphone close to a seat back or wall as sound reﬂections may give inaccurate results.

When using a subwoofer, make the following settings before starting the auto setup procedure:

• Defeat the volume and crossover controls if possible

• If this is not possible then set

•

Volume: “12 o’clock” position

•

Crossover frequency: “Maximum/Highest Frequency”

•

Low pass ﬁlter: “Off”

•

Standby mode: “Off”

NOTE

• Do not disconnect the setup microphone until the auto setup procedure is completed.

• When using headphones, unplug the headphones before starting the auto setup procedure.

STEP2: Measurement (2 to 8 positions)

STEP3: Calculation

STEP4: Check

STEP5: Store



Getting Started Connections Playback Remote Control Multi-Zone Information Troubleshooting Speciﬁcations

Start

Start Auto Setup. The Audyssey MultEQ XT Auto Setup process automatically calculates the size, level, distance, bass management crossover frequency, and optimal settings for each speaker and subwoofer. Audyssey MultEQ XT corrects acoustical distortions within the listening area. Before starting, connect and position all your speakers. Once started, MultEQ XT will play a series of test tones through each speaker.

Setup

If an error message appears during the measurements, check “Error Messages” (vpage 28), take the advised action, then start the measurements again.

Conﬁguration

The speaker system to be measured can be selected ahead of time here.

[Selectable items]

z1: This can be set when “Subwoofer” is set to “1SP”. z2: This can be set when “Subwoofer” is set to “2SP L/R” or “2SP

MIX”.

z3: This can be set when “Subwoofer” is set to “3SP L/R/LFE” or

“3SP MIX”.

Setting the correct speaker conﬁguration can reduce the time required to measure during the auto setup procedure as the system will not have to look for speakers that are not connected.

9.1

9.2

9.3

7.1

7.2

7.3

5.1

5.2

5.3

Subwoofer

The conﬁguration of the measuring subwoofer can be selected beforehand.

[Selectable items]

1SP 2SP L/R 2SP MIX

3SP L/R/LFE 3SP MIX

Pre-out Assign

Change the pre-out assignment.

[Selectable items]

Normal Free Assign

XLR Out Polarity

Set to switch the XLR pre-out terminal polarity.

[Selectable items]

Set each channel.

XLR XLR (INV)

STEP1 : Speaker Detection

The speaker connection and polarity are detected at the ﬁrst measurement position. The following attributes are also determined at this time: “Speaker Size”, “Speaker Distance”, “Channel Level”, “Crossover Frequency”. Once the measurements are completed, the results are displayed.

NOTE

• Loud test tone may be played during Audyssey MultEQ XT Automatic Speaker Setup. This is part of normal operation. If there is background noise in room, these test tones will increase in volume.

• Do not stand between the speakers and setup microphone or allow obstacles in the path while the measurements are being made. This will cause inaccurate readings.

• Quiet the listening environment before beginning measurements and refrain from talking. Turn off air conditioning units or other devices that emit noise if at all possible as measurements may be affected by these sounds.

• Operating the

MASTER VOLUME knob on the main unit or the VOL

+/– buttons on the remote control unit during the measurements will

cancel the measurements.

• Do not change the speaker connections or subwoofer volume after “STEP1”.

STEP2: Measurement

After completing a measurement position, move the microphone to the next position.

Measure at least 6 positions (main listening position and at least 5 other surrounding positions). For best results it is recommend measuring 6

or more positions (with a maximum of 8 positions).

STEP3: Calculation

When “Calculate” is selected at “STEP2”, the measurements taken are analyzed automatically to determine how the speaker system interacts with the room.

The time required for this analysis depends on the number of speakers connected. The higher the number of speakers, the longer the time required for analysis.

STEP4: Check

Once the auto setup procedure is complete, a measuring result check screen appears. Select any item whose results you want to check to review the results.

Values that are different from the actual distance may be set for speakers with built-in ﬁlters (subwoofers, etc.). This is because ﬁlters add electrical delay to the signal that should be compensated.

STEP5: Store

The auto setup measurement results are stored in the AVP-A1HDCI.

NOTE

Do not turn the power off while the settings are being stored.


