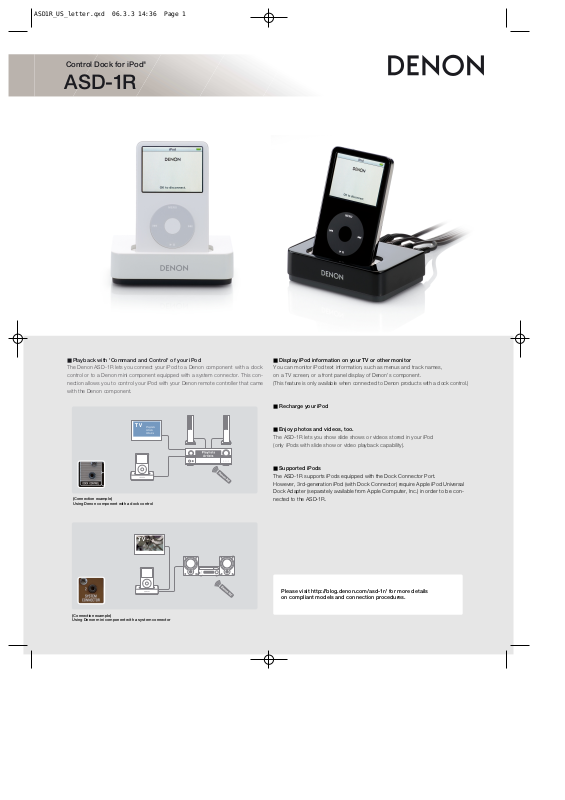

Control Dock for iPod
ASD-1R
®
■ Playback with 'Command and Control' of your iPod
The Denon ASD-1R lets you connect your iPod to a Denon component with a dock
control or to a Denon mini component equipped with a system connector. This connection allows you to control your iPod with your Denon remote controller that came
with the Denon component.
(Connection example)
Using Denon component with a dock control
■ Display iPod information on your TV or other monitor
You can monitor iPod text information, such as menus and track names,
on a TV screen, or a front panel display of Denon's component.
(This feature is only available when connected to Denon products with a dock control.)
■ Recharge your iPod
■ Enjoy photos and videos, too.
The ASD-1R lets you show slide shows or videos stored in your iPod
(only iPods with slide show or video playback capability).
■ Supported iPods
The ASD-1R supports iPods equipped with the Dock Connector Port.
However, 3rd-generation iPod (with Dock Connector) require Apple iPod Universal
Dock Adapter (separately available from Apple Computer, Inc.) in order to be connected to the ASD-1R.
(Connection example)
Using Denon mini component with a system connector
Please visit http://blog.denon.com/asd-1r/ for more details
on compliant models and connection procedures.
ASD-1R
■ ASD-1R connection ports
or
Dock control
Specifications
System
connector
Audio Input
S-Video
Input
AC Plug
Dimensions 104(W) x 28.5(H) x 76.5(D)mm
Weight 220g
Accessories
Operating instruction
AV/Control cable (6.5FT/2m)
System connector cable (3.2FT/1m)
AC adapter
Universal adapter (5)
*Design and specifications are subject to change without notice.
*iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
