CliQ Power Supplies for DIN Rail Applications
Content About us
About us 2
60 W 1 Phase Plastic CliQ Power Supply 3
60 W 1 Phase Metal CliQ Power Supply 5
120 W 1 Phase CliQ Power Supply 7
240 W 1 Phase CliQ Power Supply 9
Delta Group is the world‘s largest provider of switching power supplies and a major source for power management solutions, components, visual displays, industrial auto­mation, networking products and renewable energy solutions. Established in 1971, Delta Group has sales ofces worldwide and man­ufacturing plants in Taiwan, Thailand, China, Mexico and Europe.
480W 1 Phase CliQ Power Supply
60 W 3 Phase CliQ Power Supply
120 W 3 Phase CliQ Power Supply
240 W 3 Phase CliQ Power Supply
11
13
15
17
480 W 3 Phase CliQ Power Supply 19
Product Overview
21
As a global leader in power electronics, Delta is committed to environment protection and has implemented green, lead-free produc­tion and recycling and waste management programs for many years. Delta‘s mission continues to be: „To provide innovative en­ergy saving products for a better quality of life.“
With vigorous business growth of 18% per year since 1994, Delta achieved annual sales of 5.2 billion USD in 2007. Currently, Delta Electronics Group has more than 50,000 employees worldwide working in sales, R&D and manufacturing facilities.
21
60 W 1 Phase Plastic CliQ Power
L
N
+
-
DC OK
Adj ust
24V 2.5A
100 -240V ~1.5A
50- 60Hz
geprufte
i
nnova
60 W 1 Phase Plastic CliQ Power
Supply
DRP024V060W1AZ
Features:
● Ease of wire connection to terminals
● Compact design for easy handling
● Overload protection
● Overvoltage protection
● Thermal protection
● Power boost 150% for 3 seconds
● Expected life time: 10 years
●
diode)
Redundancy: Yes (with external oring
Supply

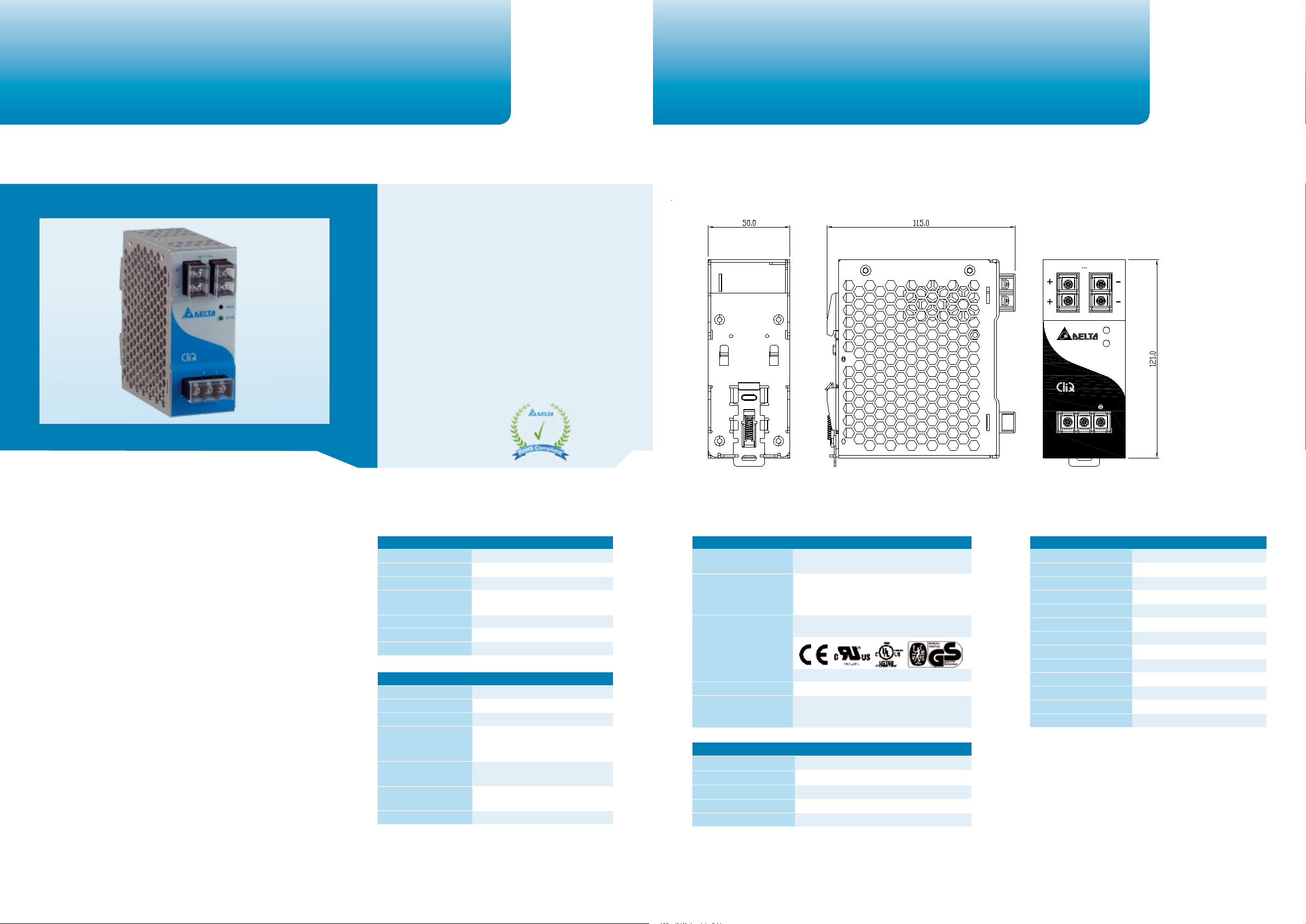

Mechanical drawings
1 Phase 60 W CliQ DIN Rail Power Supply
The new CliQ DRP024V060W1AZ is the latest offering from
one of the world‘s largest power supply manufacturers -
Delta.
The product offers a nominal output voltage of 24 V, a wide
temperature range from -20°C to +75°C and a minimum hold-
up time of 20 ms.
The state-of-the-art design is made to withstand harsh indus-
trial environments. The rugged, ultra-compact plastic case is
shock and vibration resistant according to IEC 60068-2.
The 60 watts CliQ DIN Rail power supply provides overvolt-
age, overload and thermal protection.
Due to the wide input voltage range from 85 to 264 Vac, the
Delta’s CliQ power supply is worldwide usable.
Multiple output terminals for fast wiring and easy installation.
● RoHS compliant
INPUT SPECIFICATIONS
Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)
Input frequency 47 Hz - 63 Hz
Nominal current 1.1 A @ 115 Vac, 0.7 A @ 230 Vac
Inrush current limitation l²t (+25°C) typ.
Power factor Conform to EN 61000-3-2 STD
Efciency > 85% typ.
Leakage current < 1 mA
Output power 60 W
Output voltage range 22 V - 28 V
Output current 2.5 A
Residual ripple / peak
switching (20 MHz)
(at nominal values)
Mains buffering at nominal
load (typ.)
Line regulation < 0.5% typ. (@ 85 - 264 Vac input,
Load regulation < 1% typ. (with rated input, 0 - 100% load)
30 A @ 115 Vac, 60 A @ 230 Vac typ.
OUTPUT SPECIFICATIONS
< 50 mV / < 240 mVpp
> 20 ms @ 115 Vac, > 125 ms @ 230 Vac
100% load)
SAFETY
EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;
EN 61204-3 (Class B on AC & Class A on DC side)
Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,
1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,
GS, CCSAus to CSA C22.2 No. 60950-1: 03
Voltage dips Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
ENVIRONMENTAL
Operating ambient temperature -20°C ... +75°C *
Storage temperature -25°C ... +85°C
Humidity operation < 95%
Note (*) * Operating amb. < 0°C to -20°C derate power by 1% / °C
Operating amb. > 50°C derate power by 2.5% / °C Operating amb. > 70°C derate power by 4% / °C
MECHANICAL DESIGN
Case cover Plastic (PC)
Dimensions (L x W x H) 126 mm x 32 mm x 113 mm
Unit weight / box 0.325 kg
MTBF > 800,000 hrs
Noise Sound pressure level (SPL) < 40 dBA
Cooling Convection
Input terminal M4 x 3
Output terminal M4 x 2
Mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27
Vibration IEC 60068-2-6
Protection structure EN 60950 meet IPX0
3
4
60 W 1 Phase Metal CliQ Power Supply
Ad just
DC OK
+
-
24V 2.5 A
100 -240V ~ 1.5A
50- 60Hz
N
L
60 W 1 Phase Metal CliQ Power Supply
DRP024V060W1AA
Features:
● Ease of wire connection to terminals
● Compact design for easy handling
● Overload protection
● Overvoltage protection
● Thermal protection
● Power boost 150% for 3 seconds
● Expected life time: 10 years
●
diode)
● RoHS compliant
Redundancy: Yes (with external oring
Mechanical drawings
1 Phase 60 W CliQ DIN Rail Power Supply
The new CliQ DRP024V060W1AA is the latest offering from
one of the world‘s largest power supply manufacturers -
Delta.
The product offers a nominal output voltage of 24 V, a wide
temperature range from -20°C to +75°C and a minimum hold-
up time of 20 ms.
The state-of-the-art design is made to withstand harsh indus-
trial environments. The rugged, ultra-compact metal case is
shock and vibration resistant according to IEC 60068-2.
The 60 watts CliQ DIN Rail power supply provides overvolt-
age, overload and thermal protection.
Due to the wide input voltage range from 85 to 264 Vac, the
Delta’s CliQ power supply is worldwide usable.
Multiple output terminals for fast wiring and easy installation.
INPUT SPECIFICATIONS
Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)
Input frequency 47 Hz - 63 Hz
Nominal current 1.1 A @ 115 Vac, 0.7 A @ 230 Vac
Inrush current limitation l²t (+25°C) typ.
Power factor Conform to EN 61000-3-2 STD
Efciency > 85% typ.
Leakage current < 1 mA
Output power 60 W
Output voltage range 22 V - 28 V
Output current 2.5 A
Residual ripple / peak
switching (20 MHz)
(at nominal values)
Mains buffering at nominal
load (typ.)
Line regulation < 0.5% typ. (@ 85 - 264 Vac input,
Load regulation < 1% typ. (with rated input, 0 - 100% load)
30 A @ 115 Vac, 60 A @ 230 Vac typ.
OUTPUT SPECIFICATIONS
< 50 mV / < 240 mVpp
> 20 ms @ 115 Vac, > 125 ms @ 230 Vac
100% load)
SAFETY
EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;
EN 61204-3 (Class B on AC & Class A on DC side)
Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,
1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,
GS
Voltage dips Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
ENVIRONMENTAL
Operating ambient temperature -20°C ... +75°C *
Storage temperature -25°C ... +85°C
Humidity operation < 95%
Note (*) * Operating amb. < 0°C to -20°C derate power by 1% / °C
Operating amb. > 50°C derate power by 2.5% / °C
MECHANICAL DESIGN
Case cover Aluminium (Al5052)
Dimensions (L x W x H) 121 mm x 32 mm x 120 mm
Unit weight / box 0.370 kg
MTBF > 800,000 hrs
Noise Sound pressure level (SPL) < 40 dBA
Cooling Convection
Input terminal M4 x 3
Output terminal M4 x 2
Mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27
Vibration IEC 60068-2-6
Protection structure EN 60950 meet IPX0
65
1 Phase CliQ DIN Rail Power Supply
24V 5 A
Ad just
DC O K
L N
100 -240 V~ 2A 5 0-60H z
120 W 1 Phase CliQ Power Supply
120 W 1 Phase CliQ Power Supply
DRP024V120W1AA
Features:
● Ease of wire connection to terminals
● Compact design for easy handling
● Overload protection
● Overvoltage protection
● Thermal protection
● Power boost 150% for 3 seconds
● Expected life time: 10 years
●
diode)
● RoHS compliant
Redundancy: Yes (with external oring

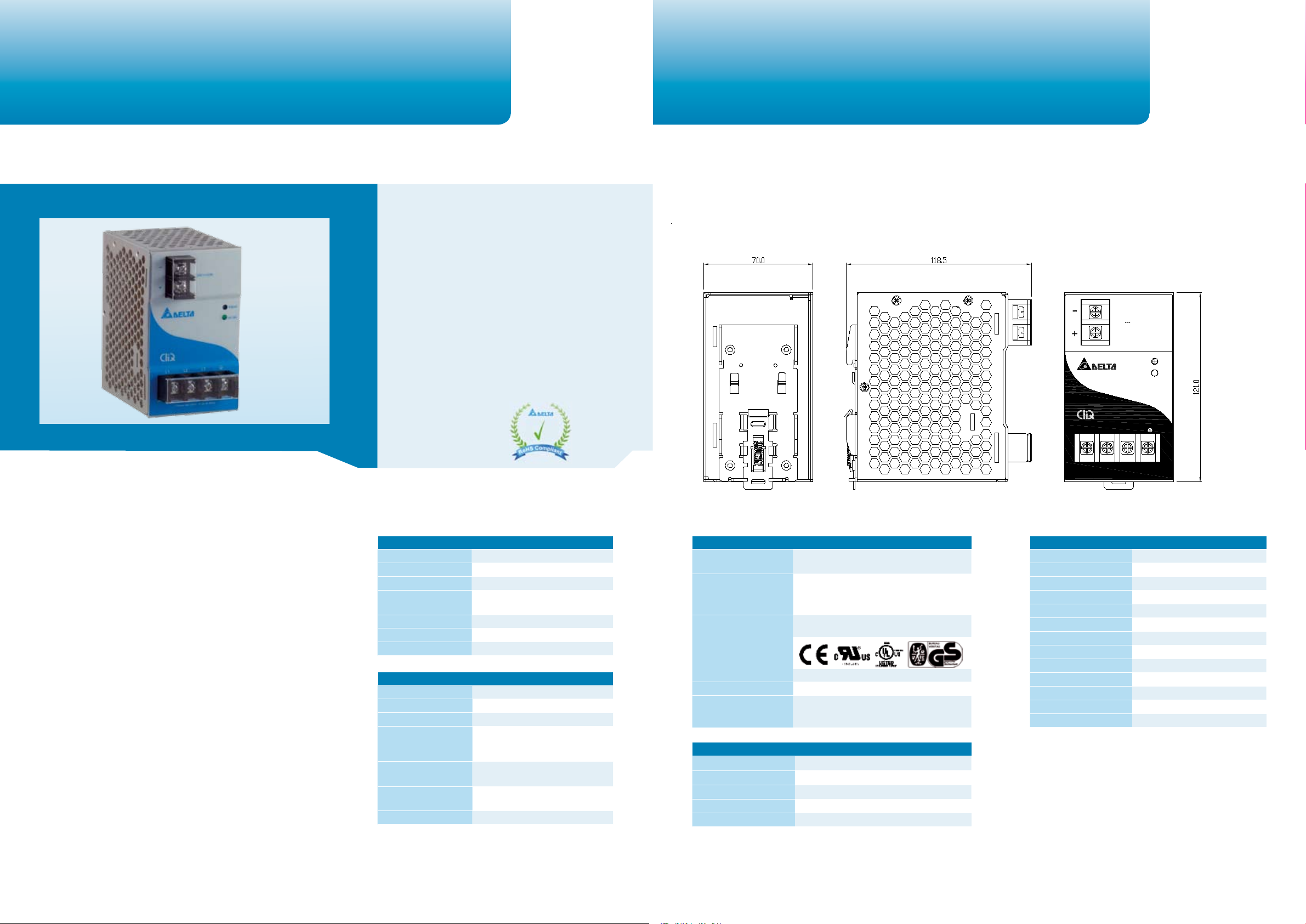

Mechanical drawings
1 Phase 120 W CliQ DIN Rail Power Supply
The new CliQ DRP024V120W1AA is the latest offering from
one of the world‘s largest power supply manufacturers -
Delta.
The product offers a nominal output voltage of 24 V, a wide
temperature range from -20°C to +75°C and a minimum hold-
up time of 20 ms.
The state-of-the-art design is made to withstand harsh indus-
trial environments. The rugged, ultra-compact metal case is
shock and vibration resistant according to IEC 60068-2.
The 120 watts CliQ DIN Rail power supply provides overvolt-
age, overload and thermal protection.
Due to the wide input voltage range from 85 to 264 Vac, the
Delta’s CliQ power supply is worldwide usable.
Multiple output terminals for fast wiring and easy installation.
INPUT SPECIFICATIONS
Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)
Input frequency 47 Hz - 63 Hz
Nominal current 1.4 A @ 115 Vac, 0.8 A @ 230 Vac
Inrush current limitation l²t (+25°C) typ.
Power factor Conform to EN 61000-3-2 STD
Efciency > 84% typ.
Leakage current < 1 mA
Output power 120 W
Output voltage range 22 V - 28 V
Output current 5 A
Residual ripple / peak
switching (20 MHz)
(at nominal values)
Mains buffering at nominal
load (typ.)
Line regulation < 0.5% typ. (@ 85 - 264 Vac input,
Load regulation < 1% typ. (with rated input, 0 - 100% load)
< 80 A @ 115 Vac
OUTPUT SPECIFICATIONS
< 50 mV / < 240 mVpp
> 35 ms @ 115 Vac, > 70 ms @ 230 Vac
100% load)
SAFETY
EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;
EN 61204-3 (Class B on AC & Class A on DC side)
Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,
1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,
GS
Voltage dips Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
ENVIRONMENTAL
Operating ambient temperature -20°C ... +75°C *
Storage temperature -25°C ... +85°C
Humidity operation < 95%
Note (*) * Operating amb. > 50°C derate power by 2.5% / °C
MECHANICAL DESIGN
Case cover Aluminium (Al5052)
Dimensions (L x W x H) 121 mm x 50 mm x 115 mm
Unit weight / box 0.540 kg
MTBF > 800,000 hrs
Noise Sound pressure level (SPL) < 40 dBA
Cooling Convection
Input terminal M4 x 3
Output terminal M4 x 2 (2 pcs.)
Mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27
Vibration IEC 60068-2-6
Protection structure EN 60950 meet IPX0
87
240 W 1 Phase CliQ Power Supply
Adj ust
DC OK
24V 10A
100 -240V ~5 A 50-60 Hz
L N
240 W 1 Phase CliQ Power Supply
DRP024V240W1AA
Features:
● Ease of wire connection to terminals
● Compact design for easy handling
● Overload protection
● Overvoltage protection
● Thermal protection
● Power boost 150% for 3 seconds
● Expected life time: 10 years
●
diode)
● RoHS compliant
Redundancy: Yes (with external oring

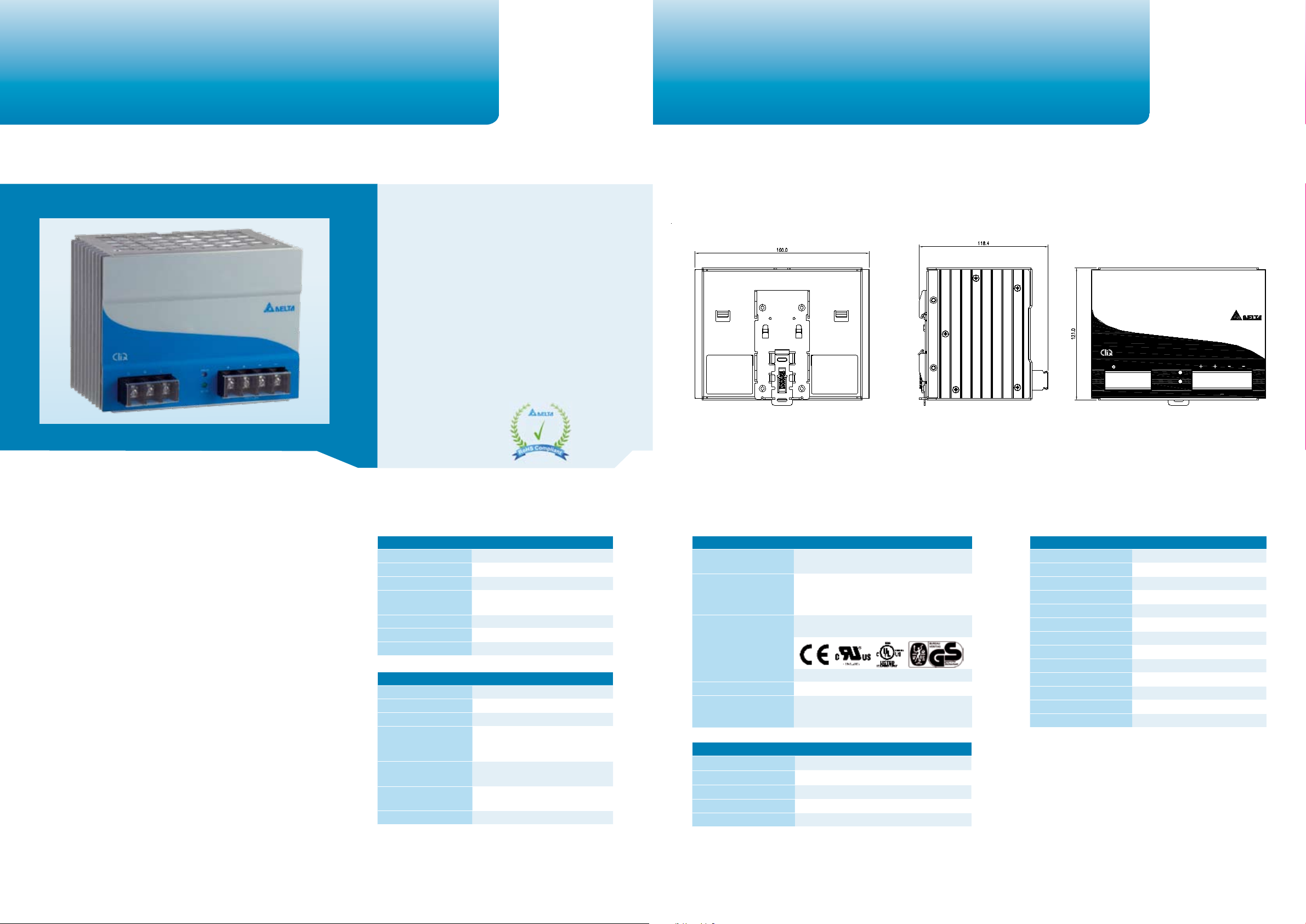

Mechanical drawings
1 Phase 240 W CliQ DIN Rail Power Supply
The new CliQ DRP024V240W1AA is the latest offering from
one of the world‘s largest power supply manufacturers -
Delta.
The product offers a nominal output voltage of 24 V, a wide
temperature range from -20°C to +75°C and a minimum hold-
up time of 20 ms.
The state-of-the-art design is made to withstand harsh indus-
trial environments. The rugged, ultra-compact metal case is
shock and vibration resistant according to IEC 60068-2.
The 240 watts CliQ DIN Rail power supply provides overvolt-
age, overload and thermal protection.
Due to the wide input voltage range from 85 to 264 Vac, the
Delta’s CliQ power supply is worldwide usable.
Multiple output terminals for fast wiring and easy installation.
INPUT SPECIFICATIONS
Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)
Input frequency 47 Hz - 63 Hz
Nominal current 2.9 A @ 115 Vac, 1.5 A @ 230 Vac
Inrush current limitation l²t (+25°C) typ.
Power factor Conform to EN 61000-3-2 STD
Efciency > 84% typ.
Leakage current < 3.5 mA
Output power 240 W
Output voltage range 22 V - 28 V
Output current 10 A
Residual ripple / peak
switching (20 MHz)
(at nominal values)
Mains buffering at nominal
load (typ.)
Line regulation < 0.5% typ. (@ 85 - 264 Vac input,
Load regulation < 1% typ. (with rated input, 0 - 100% load)
No damage at I²t ratings for all I/P devices shall not exceed their rating
OUTPUT SPECIFICATIONS
< 50 mV / < 240 mVpp
> 20 ms @ 115 Vac & 230 Vac
100% load)
SAFETY
EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;
EN 61204-3 (Class B on AC & Class A on DC side)
Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,
1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,
GS
Voltage dips Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
ENVIRONMENTAL
Operating ambient temperature -20°C ... +75°C *
Storage temperature -25°C ... +85°C
Humidity operation < 95%
Note (*) * Operating amb. > 50°C derate power by 2.5% / °C
Operating amb. > 70°C derate power by 4% / °C
MECHANICAL DESIGN
Case cover Aluminium (Al5052)
Dimensions (L x W x H) 121 mm x 85 mm x 118.5 mm
Unit weight / box 1.040 kg
MTBF > 300,000 hrs
Noise Sound pressure level (SPL) < 40 dBA
Cooling Convection
Input terminal M4 x 3
Output terminal M4 x 2 (2 pcs.)
Mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27
Vibration IEC 60068-2-6
Protection structure EN 60950 meet IPX0
109
480W 1 Phase CliQ Power Supply
100 0-24 0V~ 8A 50 -60H z
24V 20A
N L
Adju st
DC OK
480 W 1 Phase CliQ Power Supply
DRP024V480W1AA
Features:
● Ease of wire connection to terminals
● Compact design for easy handling
● Overload protection
● Overvoltage protection
● Thermal protection
● Power boost 150% for 3 seconds
● Expected life time: 10 years
●
diode)
● RoHS compliant
Redundancy: Yes (with external oring
Mechanical drawings
1 Phase 480 W CliQ DIN Rail Power Supply
The new CliQ DRP024V480W1AA is the latest offering from
one of the world‘s largest power supply manufacturers -
Delta.
The product offers a nominal output voltage of 24 V, a wide
temperature range from -20°C to +75°C and a minimum hold-
up time of 20 ms.
The state-of-the-art design is made to withstand harsh indus-
trial environments. The rugged, ultra-compact metal case is
shock and vibration resistant according to IEC 60068-2.
The 480 watts CliQ DIN Rail power supply provides overvolt-
age, overload and thermal protection.
Due to the wide input voltage range from 85 to 264 Vac, the
Delta’s CliQ power supply is worldwide usable.
Multiple output terminals for fast wiring and easy installation.
INPUT SPECIFICATIONS
Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)
Input frequency 47 Hz - 63 Hz
Nominal current 5.7 A @ 115 Vac, 2.8 A @ 230 Vac
Inrush current limitation l²t (+25°C) typ.
Power factor Conform to EN 61000-3-2 STD
Efciency > 86% typ.
Leakage current < 1 mA
Output power 480 W
Output voltage range 22 V - 28 V
Output current 20 A
Residual ripple / peak
switching (20 MHz)
(at nominal values)
Mains buffering at nominal
load (typ.)
Line regulation < 0.5% typ. (@ 85 - 264 Vac input,
Load regulation < 1% typ. (with rated input, 0 - 100% load)
No damage at I²t ratings for all I/P devices shall not exceed their rating
OUTPUT SPECIFICATIONS
< 50 mV / < 240 mVpp
> 20 ms @ 115 Vac & 230 Vac
100% load)
SAFETY
EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;
EN 61204-3 (Class B on AC & Class A on DC side)
Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,
1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,
GS
Voltage dips Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
ENVIRONMENTAL
Operating ambient temperature -20°C ... +75°C *
Storage temperature -25°C ... +85°C
Humidity operation < 95%
Note (*) * Operating amb. > 50°C derate power by 2.5% / °C
MECHANICAL DESIGN
Case cover Aluminium (Al5052)
Dimensions (L x W x H) 121 mm x 160 mm x 115 mm
Unit weight / box 1.800 kg
MTBF > 300,000 hrs
Noise Sound pressure level (SPL) < 40 dBA
Cooling Convection
Input terminal M4 x 3
Output terminal M4 x 2 (2 pcs.)
Mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27
Vibration IEC 60068-2-6
Protection structure EN 60950 meet IPX0
1211
60 W 3 Phase CliQ Power Supply
L1 L3L2
24V 2.5 A
Adj ust
DC O K
3 Pha se 400 -500V ~ 0.3A 5 0-60H z
60 W 3 Phase CliQ Power Supply
DRP024V060W3AA
Features:
● Ease of wire connection to terminals
● Compact design for easy handling
● Overload protection
● Overvoltage protection
● Thermal protection
● Power boost 150% for 3 seconds
● Expected life time: 10 years
●
diode)
● RoHS compliant
Redundancy: Yes (with external oring
Mechanical drawings
3 Phase 60 W CliQ DIN Rail Power Supply
The new CliQ DRP024V060W3AA is the latest offering from
one of the world‘s largest power supply manufacturers -
Delta.
The product offers a nominal output voltage of 24 V, a wide
temperature range from -20°C to +75°C and a minimum hold-
up time of 20 ms.
The state-of-the-art design is made to withstand harsh indus-
trial environments. The rugged, ultra-compact metal case is
shock and vibration resistant according to IEC 60068-2.
The 60 watts CliQ DIN Rail power supply provides overvolt-
age, overload and thermal protection.
Due to the wide input voltage range from 320 to 575 Vac and
450 to 800 Vdc, the Delta’s CliQ power supply is worldwide
usable.
Multiple output terminals for fast wiring and easy installation.
INPUT SPECIFICATIONS
Input voltage range 320 - 575 Vac (DC input range 450 - 800 Vdc)
Input frequency 47 Hz - 63 Hz
Nominal current 0.3 A @ 400 Vac approx.
Inrush current limitation l²t (+25°C) typ.
Power factor Conform to EN 61000-3-2 STD
Efciency > 86% @ 3 x 400 Vac, > 85% @ 3 x 500 Vac
Leakage current < 3.5 mA
Output power 60 W
Output voltage range 22 V - 28 V
Output current 2.5 A
Residual ripple / peak
switching (20 MHz)
(at nominal values)
Mains buffering at nominal
load (typ.)
Line regulation < 0.5% typ. (@ 320 - 575 Vac input,
Load regulation < 1% typ. (with rated input, 0 - 100% load)
< 30 A @ 400 Vac
OUTPUT SPECIFICATIONS
< 50 mV / < 240 mVpp
> 30 ms @ 3 x 400 Vac, > 60 ms @ 3 x 500 Vac
100% load)
SAFETY
EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;
EN 61204-3 (Class B on AC & Class A on DC side)
Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,
1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,
GS
Voltage dips Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
ENVIRONMENTAL
Operating ambient temperature -20°C ... +75°C *
Storage temperature -25°C ... +85°C
Humidity operation < 95%
Note (*) * Operating amb. > 50°C derate power by 2.5% / °C
MECHANICAL DESIGN
Case cover Aluminium (Al5052)
Dimensions (L x W x H) 121 mm x 70 mm x 118.5 mm
Unit weight / box 0.560 kg
MTBF > 500,000 hrs
Noise Sound pressure level (SPL) < 40 dBA
Cooling Convection
Input terminal M4 x 4; 600 V rating
Output terminal M4 x 2 (2 pcs.); 600 V rating
Mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27
Vibration IEC 60068-2-6
Protection structure EN 60950 meet IPX0
1413
120 W 3 Phase CliQ Power Supply
24V 5A
L1 L 3L2
Adj ust
DC O K
3 Pha se 400- 500V ~ 0.5A 50 -60H z
120 W 3 Phase CliQ Power Supply
DRP024V120W3AA
Features:
● Ease of wire connection to terminals
● Compact design for easy handling
● Overload protection
● Overvoltage protection
● Thermal protection
● Power boost 150% for 3 seconds
● Expected life time: 10 years
●
diode)
● RoHS compliant
Redundancy: Yes (with external oring
Mechanical drawings
3 Phase 120 W CliQ DIN Rail Power Supply
The new CliQ DRP024V120W3AA is the latest offering from
one of the world‘s largest power supply manufacturers -
Delta.
The product offers a nominal output voltage of 24 V, a wide
temperature range from -20°C to +75°C and a minimum hold-
up time of 20 ms.
The state-of-the-art design is made to withstand harsh indus-
trial environments. The rugged, ultra-compact metal case is
shock and vibration resistant according to IEC 60068-2.
The 120 watts CliQ DIN Rail power supply provides overvolt-
age, overload and thermal protection.
Due to the wide input voltage range from 320 to 575 Vac and
450 to 800 Vdc, the Delta’s CliQ power supply is worldwide
usable.
Multiple output terminals for fast wiring and easy installation.
INPUT SPECIFICATIONS
Input voltage range 320 - 575 Vac (DC input range 450 - 800 Vdc)
Input frequency 47 Hz - 63 Hz
Nominal current 0.5 A @ 400 Vac approx.
Inrush current limitation l²t (+25°C) typ.
Power factor Conform to EN 61000-3-2 STD
Efciency > 86% @ 3 x 400 Vac, > 85% @ 3 x 500 Vac
Leakage current < 3.5 mA
Output power 120 W
Output voltage range 22 V - 28 V
Output current 5 A
Residual ripple / peak
switching (20 MHz)
(at nominal values)
Mains buffering at nominal
load (typ.)
Line regulation < 0.5% typ. (@ 320 - 575 Vac input,
Load regulation < 1% typ. (with rated input, 0 - 100% load)
< 30 A @ 400 Vac
OUTPUT SPECIFICATIONS
< 50 mV / < 240 mVpp
> 35 ms @ 3 x 400 Vac, > 70 ms @ 3 x 500 Vac
100% load)
SAFETY
EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;
EN 61204-3 (Class B on AC & Class A on DC side)
Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,
1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,
GS
Voltage dips Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
ENVIRONMENTAL
Operating ambient temperature -20°C ... +75°C *
Storage temperature -25°C ... +85°C
Humidity operation < 95%
Note (*) * Operating amb. > 50°C derate power by 2.5% / °C
MECHANICAL DESIGN
Case cover Aluminium (Al5052)
Dimensions (L x W x H) 121 mm x 70 mm x 118.5 mm
Unit weight / box 0.720 kg
MTBF > 500,000 hrs
Noise Sound pressure level (SPL) < 40 dBA
Cooling Convection
Input terminal M4 x 4; 600 V rating
Output terminal M4 x 2 (2 pcs.); 600 V rating
Mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27
Vibration IEC 60068-2-6
Protection structure EN 60950 meet IPX0
1615
240 W 3 Phase CliQ Power Supply
Adj ust
DC OK
24V 10A
3 Phas e 400-5 00V~ 0.8 A5 0-60H z
L3L2L 1
3 Phas e 400-5 00V~ 0.8 A5 0-60H z
L3L2L 1
240 W 3 Phase CliQ Power Supply
DRP024V240W3AA
Features:
● Ease of wire connection to terminals
● Compact design for easy handling
● Overload protection
● Overvoltage protection
● Thermal protection
● Power boost 150% for 3 seconds
● Expected life time: 10 years
●
diode)
● RoHS compliant
Redundancy: Yes (with external oring
Mechanical drawings
3 Phase 240 W CliQ DIN Rail Power Supply
The new CliQ DRP024V240W3AA is the latest offering from
one of the world‘s largest power supply manufacturers -
Delta.
The product offers a nominal output voltage of 24 V, a wide
temperature range from -20°C to +75°C and a minimum hold-
up time of 20 ms.
The state-of-the-art design is made to withstand harsh indus-
trial environments. The rugged, ultra-compact metal case is
shock and vibration resistant according to IEC 60068-2.
The 240 watts CliQ DIN Rail power supply provides overvolt-
age, overload and thermal protection.
Due to the wide input voltage range from 320 to 575 Vac and
450 to 800 Vdc, the Delta’s CliQ power supply is worldwide
usable.
Multiple output terminals for fast wiring and easy installation.
INPUT SPECIFICATIONS
Input voltage range 320 - 575 Vac (DC input range 450 - 800 Vdc)
Input frequency 47 Hz - 63 Hz
Nominal current 0.8 A @ 400 Vac approx.
Inrush current limitation l²t (+25°C) typ.
Power factor Conform to EN 61000-3-2 STD
Efciency > 87% @ 3 x 400 Vac, > 86% @ 3 x 500 Vac
Leakage current < 3.5 mA
Output power 240 W
Output voltage range 22 V - 28 V
Output current 10 A
Residual ripple / peak
switching (20 MHz)
(at nominal values)
Mains buffering at nominal
load (typ.)
Line regulation < 0.5% typ. (@ 320 - 575 Vac input,
Load regulation < 1% typ. (with rated input, 0 - 100% load)
< 40 A @ 400 Vac
OUTPUT SPECIFICATIONS
< 50 mV / < 240 mVpp
> 35 ms @ 3 x 400 Vac, > 60 ms @ 3 x 500 Vac
100% load)
SAFETY
EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;
EN 61204-3 (Class B on AC & Class A on DC side)
Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,
1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,
GS
Voltage dips Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
ENVIRONMENTAL
Operating ambient temperature -20°C ... +75°C *
Storage temperature -25°C ... +85°C
Humidity operation < 95%
Note (*) * Operating amb. > 50°C derate power by 2.5% / °C
Operating amb. > 70°C derate power by 4% / °C
MECHANICAL DESIGN
Case cover Aluminium (Al5052)
Dimensions (L x W x H) 121 mm x 85 mm x 120.5 mm
Unit weight / box 0.990 kg
MTBF > 300,000 hrs
Noise Sound pressure level (SPL) < 40 dBA
Cooling Convection
Input terminal M4 x 4; 600 V rating
Output terminal M4 x 2 (2 pcs.); 600 V rating
Mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27
Vibration IEC 60068-2-6
Protection structure EN 60950 meet IPX0
1817
480 W 3 Phase CliQ Power Supply
100 0-24 0V~ 8A 50 -60Hz
24V 20A
N L
Adju st
DC OK
480 W 3 Phase CliQ Power Supply
DRP024V480W3AA
Features:
● Ease of wire connection to terminals
● Compact design for easy handling
● Overload protection
● Overvoltage protection
● Thermal protection
● Power boost 150% for 3 seconds
● Expected life time: 10 years
●
diode)
● RoHS compliant
Redundancy: Yes (with external oring
Mechanical drawings
3 Phase 480 W CliQ DIN Rail Power Supply
The new CliQ DRP024V480W3AA is the latest offering from
one of the world‘s largest power supply manufacturers -
Delta.
The product offers a nominal output voltage of 24 V, a wide
temperature range from -20°C to +75°C and a minimum hold-
up time of 20 ms.
The state-of-the-art design is made to withstand harsh indus-
trial environments. The rugged, ultra-compact metal case is
shock and vibration resistant according to IEC 60068-2.
The 480 watts CliQ DIN Rail power supply provides overvolt-
age, overload and thermal protection.
Due to the wide input voltage range from 320 to 575 Vac and
450 to 800 Vdc, the Delta’s CliQ power supply is worldwide
usable.
Multiple output terminals for fast wiring and easy installation.
INPUT SPECIFICATIONS
Input voltage range 320 - 575 Vac (DC input range 450 - 800 Vdc)
Input frequency 47 Hz - 63 Hz
Nominal current 1.6 A @ 400 Vac approx.
Inrush current limitation l²t (+25°C) typ.
Power factor Conform to EN 61000-3-2 STD
Efciency > 87% @ 3 x 400 Vac, > 86% @ 3 x 500 Vac
Leakage current < 3.5 mA
Output power 480 W
Output voltage range 22 V - 28 V
Output current 20 A
Residual ripple / peak
switching (20 MHz)
(at nominal values)
Mains buffering at nominal
load (typ.)
Line regulation < 0.5% typ. (@ 320 - 575 Vac input,
Load regulation < 1% typ. (with rated input, 0 - 100% load)
< 50 A @ 400 Vac
OUTPUT SPECIFICATIONS
< 50 mV / < 240 mVpp
> 20 ms @ 3 x 400 Vac, > 40 ms @ 3 x 500 Vac
100% load)
SAFETY
EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;
EN 61204-3 (Class B on AC & Class A on DC side)
Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,
1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,
GS
Voltage dips Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
ENVIRONMENTAL
Operating ambient temperature -20°C ... +75°C *
Storage temperature -25°C ... +85°C
Humidity operation < 95%
Note (*) * Operating amb. > 50°C derate power by 2.5% / °C
MECHANICAL DESIGN
Case cover Aluminium (Al5052)
Dimensions (L x W x H) 121 mm x 160 mm x 115 mm
Unit weight / box 1.710 kg
MTBF > 300,000 hrs
Noise Sound pressure level (SPL) < 40 dBA
Cooling Convection
Input terminal M4 x 4; 600 V rating
Output terminal M4 x 2 (2 pcs.); 600 V rating
Mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27
Vibration IEC 60068-2-6
Protection structure EN 60950 meet IPX0
2019
Product Overview
geprufte
i
nnova
1 Phase CliQ DIN Rail Power Supply 3 Phase CliQ DIN Rail Power Supply
Output (DC)
Output power 60 W 60 W 120 W 240 W 480 W 60 W 120 W 240 W 480 W
Output voltage range 22 V - 28 V 22 V - 28 V 22 V - 28 V 22 V - 28 V 22 V - 28 V 22 V - 28 V 22 V - 28 V 22 V - 28 V 22 V - 28 V
Output current 2.5 A 2.5 A 5 A 10 A 20 A 2.5 A 5 A 10 A 20 A
Residual ripple/peak switching
(20 MHz) (at nominal values)
Mains buffering at nominal load (typ.) > 20 ms @ 115 Vac,
Line regulation < 0.5% typ. (@ 85 - 264 Vac input,
Load regulation < 1% typ.
Input (AC)
Input voltage range 85 - 264 Vac
Input frequency 47 Hz - 63 Hz 47 Hz - 63 Hz 47 Hz - 63 Hz 47 Hz - 63 Hz 47 Hz - 63 Hz 47 Hz - 63 Hz 47 Hz - 63 Hz 47 Hz - 63 Hz 47 Hz - 63 Hz
Nominal current 1.1 A @ 115 Vac, 0.7 A @ 230 Vac 1.1 A @ 115 Vac, 0.7 A @ 230 Vac 1.4 A @ 115 Vac, 0.8 A @ 230 Vac 2.9 A @ 115 Vac, 1.5 A @ 230 Vac 5.7 A @ 115 Vac, 2.8 A @ 230 Vac 0.3 A @ 400 Vac approx. 0.5 A @ 400 Vac approx. 0.8 A @ 400 Vac approx. 1.6 A @ 400 Vac approx.
Efciency > 85% typ. > 85% typ. > 84% typ. > 84% typ. > 86% typ. > 86% @ 3 x 400 Vac,
Power factor Conform to EN 61000-3-2 STD Conform to EN 61000-3-2 STD Conform to EN 61000-3-2 STD Conform to EN 61000-3-2 STD Conform to EN 61000-3-2 STD Conform to EN 61000-3-2 STD Conform to EN 61000-3-2 STD Conform to EN 61000-3-2 STD Conform to EN 61000-3-2 STD
Inrush current limitation I²t (+25°C) typ. 30 A @ 115 Vac,
Leakage current < 1 mA < 1 mA < 1 mA < 3.5 mA < 1 mA < 3.5 mA < 3.5 mA < 3.5 mA < 3.5 mA
Mechanical design
Case cover Plastic (PC) Aluminium (AI5052) Aluminium (AI5052) Aluminium (AI5052) Aluminium (AI5052) Aluminium (AI5052) Aluminium (AI5052) Aluminium (AI5052) Aluminium (AI5052)
Dimensions (L x W x H) 126 mm x 32 mm x 113 mm 121 mm x 32 mm x 120 mm 121 mm x 50 mm x 115 mm 121 mm x 85 mm x 118.5 mm 121 mm x 160 mm x 115 mm 121 mm x 70 mm x 118.5 mm 121 mm x 70 mm x 118.5 mm 121 mm x 85 mm x 120.5 mm 121 mm x 160 mm x 115 mm
Unit weight / box 0.325 kg 0.370 kg 0.540 kg 1.040 kg 1.800 kg 0.560 kg 0.720 kg 0.990 kg 1.710 kg
MTBF > 800,000 hrs > 800,000 hrs > 800,000 hrs > 300,000 hrs > 300,000 hrs > 500,000 hrs > 500,000 hrs > 300,000 hrs > 300,000 hrs
Noise Sound pressure level (SPL) < 40 dBA Sound pressure level (SPL) < 40 dBA Sound pressure level (SPL) < 40 dBA Sound pressure level (SPL) < 40 dBA Sound pressure level (SPL) < 40 dBA Sound pressure level (SPL) < 40 dBA Sound pressure level (SPL) < 40 dBA Sound pressure level (SPL) < 40 dBA Sound pressure level (SPL) < 40 dBA
Cooling Convection Convection Convection Convection Convection Convection Convection Convection Convection
Input terminal M4 x 3 M4 x 3 M4 x 3 M4 x 3 M4 x 3 M4 x 4; 600 V rating M4 x 4; 600 V rating M4 x 4; 600 V rating M4 x 4; 600 V rating
Output terminal M4 x 2 M4 x 2 M4 x 2 (2 pcs.) M4 x 2 (2 pcs.) M4 x 2 (2 pcs.) M4 x 2 (2 pcs); 600 V rating M4 x 2 (2 pcs); 600 V rating M4 x 2 (2 pcs); 600 V rating M4 x 2 (2 pcs); 600 V rating
Mounting rail Standard TS35 mounting rail Standard TS35 mounting rail Standard TS35 mounting rail Standard TS35 mounting rail Standard TS35 mounting rail Standard TS35 mounting rail Standard TS35 mounting rail Standard TS35 mounting rail Standard TS35 mounting rail
Shock proof IEC 60068-2-27 IEC 60068-2-27 IEC 60068-2-27 IEC 60068-2-27 IEC 60068-2-27 IEC 60068-2-27 IEC 60068-2-27 IEC 60068-2-27 IEC 60068-2-27
Vibration IEC 60068-2-6 IEC 60068-2-6 IEC 60068-2-6 IEC 60068-2-6 IEC 60068-2-6 IEC 60068-2-6 IEC 60068-2-6 IEC 60068-2-6 IEC 60068-2-6
Protection structure EN 60950 meet IPX0 EN 60950 meet IPX0 EN 60950 meet IPX0 EN 60950 meet IPX0 EN 60950 meet IPX0 EN 60950 meet IPX0 EN 60950 meet IPX0 EN 60950 meet IPX0 EN 60950 meet IPX0
Safety / Environmental
EMC / Emissions Class B / EN55022, CISPR22, Class B;
Immunity EN 61000-4-2, 1995; EN 61000-4-3,
Approvals UL508, EN 60950, cULus 60950,
DRP024V060W1AZ
DRP024V060W1AA DRP024V120W1AA DRP024V240W1AA DRP024V480W1AA DRP024V060W3AA DRP024V120W3AA DRP024V240W3AA DRP024V480W3AA
< 50 mV / < 240 mVpp < 50 mV / < 240 mVpp < 50 mV / < 240 mVpp < 50 mV / < 240 mVpp < 50 mV / < 240 mVpp < 50 mV / < 240 mVpp < 50 mV / < 240 mVpp < 50 mV / < 240 mVpp < 50 mV / < 240 mVpp
> 125 ms @ 230 Vac
100% load)
(with rated input, 0 - 100% load)
(DC input range 120 - 375 Vdc)
60 A @ 230 Vac
FCC Tilte 47; EN 61204-3 (Class B on AC & Class A on DC side)
1998; EN 61000-4-4, 1995; IEC 61000-4­5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
> 20 ms @ 115 Vac, > 125 ms @ 230 Vac
< 0.5% typ. (@ 85 - 264 Vac input, 100% load)
< 1% typ. (with rated input, 0 - 100% load)
85 - 264 Vac (DC input range 120 - 375 Vdc)
30 A @ 115 Vac, 60 A @ 230 Vac
Class B / EN55022, CISPR22, Class B; FCC Tilte 47; EN 61204-3 (Class B on AC & Class A on DC side)
EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4, 1995; IEC 61000­4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
> 35 ms @ 115 Vac,
> 20 ms @ 115 Vac & 230 Vac > 20 ms @ 115 Vac & 230 Vac > 30 ms @ 3 x 400 Vac,
> 70 ms @ 230 Vac
< 0.5% typ. (@ 85 - 264 Vac input, 100% load)
< 1% typ. (with rated input, 0 - 100% load)
85 - 264 Vac (DC input range 120 - 375 Vdc)
< 0.5% typ. (@ 85 - 264 Vac input, 100% load)
< 1% typ. (with rated input, 0 - 100% load)
85 - 264 Vac (DC input range 120 - 375 Vdc)
< 80 A @ 115 Vac No damage at I²t ratings for all I/P de-
vices shall not exceed their rating
Class B / EN55022, CISPR22, Class B; FCC Tilte 47; EN 61204-3 (Class B on AC & Class A on DC side)
EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4, 1995; IEC 61000­4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Class B / EN55022, CISPR22, Class B; FCC Tilte 47; EN 61204-3 (Class B on AC & Class A on DC side)
EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4, 1995; IEC 61000­4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
< 0.5% typ. (@ 85 - 264 Vac input, 100% load)
< 1% typ. (with rated input, 0 - 100% load)
85 - 264 Vac (DC input range 120 - 375 Vdc)
No damage at I²t ratings for all I/P devices shall not exceed their rating
Class B / EN55022, CISPR22, Class B; FCC Tilte 47; EN 61204-3 (Class B on AC & Class A on DC side)
EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4, 1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000­4-12 or IEEE C62.41; EN 61000-3-2,
> 60 ms @ 3 x 500 Vac
< 0.5% typ. (@ 320 - 575 Vac input, 100% load)
< 1% typ. (with rated input, 0 - 100% load)
320 - 575 Vac (DC input range 450 - 800 Vdc)
> 85% @ 3 x 500 Vac
> 35 ms @ 3 x 400 Vac, > 70 ms @ 3 x 500 Vac
< 0.5% typ. (@ 320 - 575 Vac input, 100% load)
< 1% typ. (with rated input, 0 - 100% load)
320 - 575 Vac (DC input range 450 - 800 Vdc)
> 86% @ 3 x 400 Vac, > 85% @ 3 x 500 Vac
> 35 ms @ 3 x 400 Vac, > 60 ms @ 3 x 500 Vac
< 0.5% typ. (@ 320 - 575 Vac input, 100% load)
< 1% typ. (with rated input, 0 - 100% load)
320 - 575 Vac (DC input range 450 - 800 Vdc)
> 87% @ 3 x 400 Vac, > 86% @ 3 x 500 Vac
> 20 ms @ 3 x 400 Vac, > 40 ms @ 3 x 500 Vac
< 0.5% typ. (@ 320 - 575 Vac input, 100% load)
< 1% typ. (with rated input, 0 - 100% load)
320 - 575 Vac (DC input range 450 - 800 Vdc)
> 87% @ 3 x 400 Vac, > 86% @ 3 x 500 Vac
< 30 A @ 400 Vac < 30 A @ 400 Vac < 40 A @ 400 Vac < 50 A @ 400 Vac
Class B / EN55022, CISPR22, Class B; FCC Tilte 47; EN 61204-3 (Class B on AC & Class A on DC side)
EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4, 1995; IEC 61000­4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Class B / EN55022, CISPR22, Class B; FCC Tilte 47; EN 61204-3 (Class B on AC & Class A on DC side)
EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4, 1995; IEC 61000­4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Class B / EN55022, CISPR22, Class B; FCC Tilte 47; EN 61204-3 (Class B on AC & Class A on DC side)
EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4, 1995; IEC 61000­4-5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
Class B / EN55022, CISPR22, Class B; FCC Tilte 47; EN 61204-3 (Class B on AC & Class A on DC side)
EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4, 1995; IEC 61000-4­5, 1995; EN 61000-4-6, 1996; EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41; EN 61000-3-2, 1994
1994
EN 50178, EN 60204, GS, CCSAus to
UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS
UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS
UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS
UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS
UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS
UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS
UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS
UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS
CSA C22.2 No. 60950-1: 03
Voltage dips Conform to EN 61000-4-11 Conform to EN 61000-4-11 Conform to EN 61000-4-11 Conform to EN 61000-4-11 Conform to EN 61000-4-11 Conform to EN 61000-4-11 Conform to EN 61000-4-11 Conform to EN 61000-4-11 Conform to EN 61000-4-11
Galvanic isolation Input to output: 4 KVac
Input to ground: 1.5 KVac Output to ground: 1.5 KVac
Input to output: 4 KVac Input to ground: 1.5 KVac Output to ground: 1.5 KVac
Input to output: 4 KVac Input to ground: 1.5 KVac Output to ground: 1.5 KVac
Input to output: 4 KVac Input to ground: 1.5 KVac Output to ground: 1.5 KVac
Input to output: 4 KVac Input to ground: 1.5 KVac Output to ground: 1.5 KVac
Input to output: 4 KVac Input to ground: 1.5 KVac Output to ground: 1.5 KVac
Input to output: 4 KVac Input to ground: 1.5 KVac Output to ground: 1.5 KVac
Input to output: 4 KVac Input to ground: 1.5 KVac Output to ground: 1.5 KVac
Input to output: 4 KVac Input to ground: 1.5 KVac Output to ground: 1.5 KVac
Operating ambient temperature -20 °C ~ 75 °C * -20 °C ~ 75 °C * -20 °C ~ 75 °C * -20 °C ~ 75 °C * -20 °C ~ 75 °C * -20 °C ~ 75 °C * -20 °C ~ 75 °C * -20 °C ~ 75 °C * -20 °C ~ 75 °C *
Storage temperature -25 °C ~ 85 °C -25 °C ~ 85 °C -25 °C ~ 85 °C -25 °C ~ 85 °C -25 °C ~ 85 °C -25 °C ~ 85 °C -25 °C ~ 85 °C -25 °C ~ 85 °C -25 °C ~ 85 °C
Humidity operation < 95 % < 95 % < 95 % < 95 % < 95 % < 95 % < 95 % < 95 % < 95 %
Note (*) * Operating amb. < 0°C until -20°C
derate power by 1% / °C; Operating amb. > 50°C derate power by 2.5% / C;
* Operating amb. < 0°C until -20°C derate power by 1% / °C; Operating amb. > 50°C derate power by 2.5% / °C
* Operating amb. > 50°C derate power by 2.5% / °C
* Operating amb. > 50°C derate power by 2.5% / °C; Operating amb. > 70°C derate power by 4% / °C
* Operating amb. > 50°C derate power by 2.5% / °C
* Operating amb. > 50°C derate power by 2.5% / °C
* Operating amb. > 50°C derate power by 2.5% / °C
* Operating amb. > 50°C derate power by 2.5% / °C; Operating amb. > 70°C derate power by 4% / °C
* Operating amb. > 50°C derate power by 2.5% / °C
Operating amb. > 70°C derate power by 4% / °C
2221
www.deltaenergysystems.com
ASIA
Delta Electronics (Thailand) Public Company Limited
909 Moo 4, E.P.Z., Bangpoo Industrial Estate, Tambon Prakasa, Amphur Muang Samutprakarn, Samutprakarn 10280, Thailand Tel: (662) 709-2800 Fax: (662) 709-2827 E-mail: vl@delta.co.th
09 May 2008
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
