Delta VFD-007B, VFD-037B, VFD-022B, VFD-015B, VFD-055B Getting Started

English- 1

Preface

Thank you for choosing DELTA’s high-performance VFD-B Series. The VFD-B Series is
manufactured with high-quality components and materials and incorporates the latest microprocessor
technology available.

 Getting Started

This quick start will be helpful in the installation and parameter setting of the AC motor drives. To
guarantee safe operation of the equipment, read the following safety guidelines before
connecting power to the AC motor drives. For detail information, refer to the VFD-B User Manual
on the CD supplied with the drive.

DANGER!

1. AC input power must be disconnected before any wiring to the AC motor drive is made.

2. A charge may still remain in the DC-link capacitors with hazardous voltages, even if the power has
been turned off. To prevent personal injury, please ensure that power has been turned off before
opening the AC motor drive and wait ten minutes for the capacitors to discharge to safe voltage levels.

3. Never reassemble internal components or wiring.

4. The AC motor drive may be destroyed beyond repair if incorrect cables are connected to the
input/output terminals. Never connect the AC motor drive output terminals U/T1, V/T2, and W/T3
directly to the AC mains circuit power supply.

5. Ground the VFD-B using the ground terminal. The grounding method must comply with the laws of the
country where the AC motor drive is to be installed. Refer to the Basic Wiring Diagram.

6. VFD-B series is used only to control variable speed of 3-phase induction motors, NOT for 1-phase
motors or other purpose.

7. VFD-B series shall NOT be used for life support equipment or any life safety situation.

WARNING!

1. DO NOT use Hi-pot test for internal components. The semi-conductor used in the AC motor drive is
easily damaged by high-pressure.

2. There are highly sensitive MOS components on the printed circuit boards. These components are
especially sensitive to static electricity. To prevent damage to these components, do not touch these
components or the circuit boards with metal objects or your bare hands.

3. Only quality person is allowed to install, wire and maintain AC motor drive.

CAUTION!

1. Some parameter settings will cause the motor to run immediately after applying power.

2. DO NOT install the AC motor drive in a place subjected to high temperature, direct sunlight, high

humidity, excessive vibration, corrosive gases or liquids, or airborne dust or metallic particles.

3. Only use AC motor drives within specification. Failure to comply may result in fire, explosion or electric

shock.

4. To prevent personal injury, please keep children and unqualified people away from the equipment.

5. When the motor cable between the AC motor drive and motor is too long, the layer insulation of the

motor may be damaged. Please use a frequency inverter duty motor or add an AC output reactor to
prevent damage to the motor. Refer to appendix B Reactor for details.

6. The rated voltage for the AC motor drive must be ≤240V (≤480V for 460V models, ≤600V for 575V

models) and the mains supply current capacity must be ≤5000A RMS (≤10000A RMS for the ≥40hp
(30kW) models).

English- 2

Specifications

Voltage Class 230V Class

Model Number VFD-XXXB 007 015 022 037 055 075 110 150 185 220 300 370
Max. Applicable Motor Output (kW) 0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37
Max. Applicable Motor Output (hp) 1.0 2.0 3.0 5.0 7.5 10 15 20 25 30 40 50

Rated Output Capacity (kVA) 1.9 2.5 4.2 6.5 9.5 12.5 18.3 24.7 28.6 34.3 45.7 55.0

Rated Output Current (A) 5.0 7.0 11 17 25 33 49 65 75 90 120 145
Maximum Output Voltage (V)

3-Phase Proportional to Input Voltage

Output Frequency (Hz) 0.1~400 Hz

Output Rating

Carrier Frequency (kHz) 1-15 1-9

Single/3-phase 3-phase

Rated Input Current (A)

11.9/

5.7

15.3/

7.6

22/

15.5

20.6 26 34 50 60 75 90 110 142

Input Current for 1-phase
models when using 3-phase
power

7.0 9.4 14.0 --

Rated Voltage/Frequency

Single/3-phase

200-240V,50/60Hz

3-phase

200-240V, 50/60Hz

Voltage Tolerance

±10%(180~264 V)

Input Rating

Frequency Tolerance ±5%(47~63 Hz)

Cooling Method

Natural

Fan Cooled

Weight (kg) 2.7 3.2 4.5 6.8 8 10 13 13 13 13 36 36

Voltage Class 460V Class

Model Number VFD-XXXB 007 015 022 037 055 075 110 150 185 220 300 370 450 550 750

Max. Applicable Motor Output
(kW)

0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75

Max. Applicable Motor Output (hp) 1.0 2.0 3.0 5.0 7.5 10 15 20 25 30 40 50 60 75 100

Rated Output Capacity (kVA) 2.3 3.2 4.2 6.5 9.9 13.7 18.3 24.4 28.9 34.3 45.7 55.6 69.3 84 114
Rated Output Current (A) 2.7 4.2 5.5 8.5 13 18 24 32 38 45 60 73 91 110 150
Maximum Output Voltage (V) 3-phase Proportional to Input Voltage
Output Frequency (Hz) 0.1~400 Hz

Output Rating

Carrier Frequency (kHz) 1-15 1-9 1-6

3-phase

Rated Input Current (A)

3.2 4.3 5.9 11.2 14 19 25 32 39 49 60 63 90 130 160
Rated Voltage 3-phase 380 to 480 V
Voltage Tolerance ±10%(342~528 V)

Input Rating

Frequency Tolerance ±5%(47~63 Hz)

Cooling Method Natural Fan Cooled
Weight (kg) 2.7 3.2 4.5 6.8 8 10 13 13 13 13 36 36 36 50 50

Voltage Class 575V Class
Model Number VFD-XXXB 007 015 022 037 055 075 110 150 185 220 300 370 450 550 750
Max. Applicable Motor Output

(kW)

0.75 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55 75

Max. Applicable Motor Output (hp) 1.0 2.0 3.0 5.0 7.5 10 15 20 25 30 40 50 60 75 100

Rated Output Capacity (kVA) 1.7 3.5 4.5 7.5 10 13.4 18.9 21.9 26.9 33.9 40.8 51.8 61.7 79.7 99.6
Rated Output Current (A) 1.7 3.5 4.5 7.5 10 13.5 19 22 27 34 41 52 62 80 100
Maximum Output Voltage (V) 3-phase Proportional to Input Voltage
Output Frequency (Hz) 0.1~400 Hz

Output Rating

Carrier Frequency (kHz)

1-10 1-8 1-6

3-phase

Rated Input Current (A)

1.2 3.1 4.0 8.3 10.3 13.8 18.2 22 27.7 32 41 52 62 74 91

Rated Voltage 3-phase 500 to 600 V
Voltage Tolerance -15~+10% (425~660V)

Input Rating

Frequency Tolerance ±5% (47~63Hz)

Cooling Method Natural Fan Cooled
Weight (kg) 2.7 3.2 4.5 6.8 8 10 13 13 13 13 36 36 36 50 50

English- 3

General Specifications

Control System SPWM(Sinusoidal Pulse Width Modulation) control (V/f or sensorless vector control)

The Resolution of
Frequency Setting and
Output Frequency

0.01Hz

Torque Characteristics

Including the auto-torque, auto-slip compensation; starting torque can be 150% at

1.0Hz

Overload Endurance 150% of rated current for 1 minute

Skip Frequency Three zones, settings range 0.1-400Hz

Accel/Decel Time 0.1 to 3600 seconds (4 Independent settings for Accel/Decel time)

Stall Prevention Level 20 to 250%, setting of rated current

DC Brake

Operation frequency 0.1-400.0Hz, output 0-100% rated current
Start time 0-60 seconds, stop time 0-60 seconds

Regenerated Brake
Torque

Approx. 20%(up to 125% possible with option brake resistor or brake unit externally
mounted, 1-15HP brake chopper built-in)

Control Characteristics

V/f Pattern Adjustable V/f pattern, 1.5 power curve, 1.7 power curve, square and cube curve

Keypad Setting by

Frequency
Setting

External

Signal

Potentiometer-5kΩ/0.5W, 0 to +10VDC; -10 to +10VDC, 4 to 20mA RS-485 interface;
Multi-Function Inputs 1 to 6 (15 steps, Jog, up/down)

Keypad Set by RUN, STOP and JOG

Operation
Setting
Signal

External

Signal

2 wires/3 wires (Fwd, Rev, EF), JOG operation, RS-485 serial interface (MODBUS),
process logic control

Multi-Function Input
Signal

Multi-step selection 0 to 15, Jog, accel/decel inhibit, first to forth accel/decel switches,
counter, PLC operation, external Base Block (NC, NO), auxiliary motor control is
invalid, ACI/AVI/AUI selections, driver reset, UP/DOWN key settings, sink/source
selection

Multi-Function Output
Indication

AC drive operating, frequency attained, non-zero, Base Block, fault indication,
local/remote indication, PLC operation indication, auxiliary motor output, driver is
ready, overheat alarm, emergency stop

Operating Characteristics

Analog Output Signal Output frequency/current/voltage/frequency command/speed/factor

Alarm Output Contact Contact will be On when it malfunctions (1 Form C contact or 3 open collector outputs)

Operation Functions

AVR, accel/decel S-Curve, over-voltage/over-current stall prevention, fault records,
reverse inhibition, momentary power loss restart, DC brake, auto torque/slip
compensation, auto tuning, adjustable carrier frequency, output frequency limits,
parameter lock/reset, vector control, counter, PG feedback control, PID control, fan &
pump control, external counter, PLC, MODBUS communication, abnormal reset,
abnormal re-start, power-saving, sleep/revival function, digital frequency output, fan
control, sleep/wake frequency, master/auxiliary frequency, 1st/2nd frequency source
selections

Protection Functions

Over voltage, over current, under voltage, under current, external fault, overload,
ground fault, overheating, electronic thermal, IGBT short circuit

Display Keypads

8-key, 7-segment LED with 5-digit, 8 status LEDs, master frequency, output frequency,
output current, custom units, parameter values for setup and lock, faults, RUN, STOP,
RESET, FWD/REV, JOG

Enclosure Rating IP20

Pollution Degree 2

Installation Location Altitude 1,000 m or lower, keep from corrosive gasses, liquid and dust

Ambient Temperature -10oC to 40oC Non-Condensing and not frozen

Storage/ Transportation
Temperature

-20 oC to 60 oC

Ambient Humidity Below 90% RH (non-condensing)

Environmental Conditions

Vibration 9.80665m/s2 (1G) less than 20Hz, 5.88m/s2 (0.6G) at 20 to 50Hz

Approvals

English- 4

Basic Wiring Diagram

Users must connect wiring according to the following circuit diagram shown below.

AVI

ACI
AUI

ACM

4~20mA

-10~+10V

+10V

5K

3

2

1

Power supply
+10V 20mA

Master Frequency
0 to 10V 47k

Analog Signal Common

Main circuit (power) terminals

Control circuit terminals

FWD
REV
JOG

EF
MI1
MI2
MI3
MI4

MI6
TRG

MI5

DCM

+24V

Sw1

Sink

Source

Factory Setting:
SINK Mode

FWD/STOP

REV/STOP

JOG

E.F.

Multi-s tep 1

Multi-s tep 2

Mult i-s tep 3

Multi-step 4

RESET

Accel/Decel prohibit

Counter

Digital Signal Common

Factory
setting

* Don't apply voltage to
above terminals .directly

Please refer to Figure 4
for wi rin g of S IN K
mode and SOURCE
mode.

R(L1)
S(L2)

T(L3 )

Fuse/NFB(None Fuse Breaker)

SA

OFF

ON

MC

MC

RB

RC

+2/B1

B2

Jumper

Br ake r es istor
(optional)

DC reactor
(optional)

+1

Recommended Circuit
when power supply
is turned OFF by a
fault output

R(L1)

S(L2)

T(L3 )

E

Analog Multi-function Output
Terminal
Factory setting: Analog freq.
/ current meter

0~10VDC/2mA

U(T1)

V(T2)

W(T3)

IM

3~

MO1

MO2

MO3

AFM

ACM

RA

RB

RC

MCM

RS-485

Motor

Factory setting:
indicates during operation
48V50mA

Factory setting:
Freq. Setting Indication

Factory setting:
Low-voltage Indication

Multi-function
Photocoulper Output

Analog Signal common

Seri al in terf ace

1: EV 2: GND

5:Reserved

6:

3: SG-

4: SG+

Reserved

DFM

DCM

Digital Frequency Output
Terminal
Factory default: 1:1
Duty=50%

Digital Si gnal Common

48V50mA

48V50mA

E

Please refer to control
Ter minal Explanation.

The wiring for the models
may be differ ent. Refer to
the following figures for detail.

* Three phase input power may apply to single
phase drives.
* For the single phase drives, the AC input
li ne can be co n n e c t e d t o a n y two o f t h e t h re e
input terminals R, S, T.

Brake resitor/unit (optional

)

Refer to user manual for the use of
special brake resistor/unit.

E

E

E

Shield ed leads & cable

English- 5

+2/B1

B2

Jumper

Bra ke r esisto r
(option al)

DC choke
(optional)

+1

Figure 1 for models of VFD-B Series
VFD007B21A/23A/43A/53A,

V

FD015B21A/21B/23A/23B/43A/53A,

VFD022B23B/43B/53A

+1

+2/B1

B2

Jumper

VFDB

-(minus sign)

BR

BR

DC chock
(optional)

Brake unit(VFDB)/
bra ke resis tor(BR) is optional

F igure 2 for models of VFD-B S erie s
VFD022B21A, VFD037B23A/43A/53A

+1

+2

Jum per

VFDB

-(minus sign)

DC c ho ck
(optional)

+1

Brake unit/brake resistor(option al)

Figure 3 f o r models of VFD- B Series

VFD150B23A/43A/53A, VFD2 20B23A/43A/53A,
VFD300B23A/43A/53A, VFD370B23A/43A/53A, VFD450B43A/53A,
VFD550B43A/43C/53A, VFD750B43A/43C/53A

VFD055B23A/43A/53A, VFD075B23A/43A/53A, VFD110B23A/43A/53A,

VFD185B23A/43A/53A,

Figure 4 Wiring for SINK mode and SOURCE mode

A. SINK mode B. SOURCE mode

*Don't appl y the mains voltage
directly to above terminals.

FWD/STOP

REV/STOP

Multi-s tep1

Multi-step2

Multi-s tep3

Multi-s tep4

+24V

MI1
MI2
MI3

MI4

MI5
MI6

Factory
setting

FWD

REV

DCM

Sink

Source

SW1

E

RESET

Accel./Decel. prohibit

Digital Signal Common

Counter

JOG

JOG

E.F.

EF

TRG

Sink

Source

SW1

*Don't apply the mains voltage
directly to above terminals.

FWD/STOP

REV/STOP

Multi-step1

Multi-step2

Multi-step3

Multi-step4

+24V

MI1
MI2
MI3

MI4

MI5
MI6

Factory
setting

FWD

REV

DCM

E

RESET

Accel./Decel. prohibit

Counter

JOG

JOG

E.F.

EF

TRG

English- 6

Description of the Digital Keypad

The digital keypad includes two parts: Display panel and keypad. The display panel provides the
parameter display and shows the operation status of the AC drive and the keypad provides
programming and control interface.

U

F
H

VFD-PU01

JOG

LED Display

Display frequency, current, voltage
and error, etc.

Status Display

Display of drive status

Part Number

Left key

M

oves cursor to the left

RUN key

RUN

RESET

STOP

STOP/RESET

UP and DOWN Key

Sets the parameter
number and changes the
numerical data, such as
Master Frequency.

JOG

Jog operation selector

MODE

Display mode selector

Operation Steps of the Digital Keypad

MODEMODE

MODE

MODE

START

U

F

H

Selection mode

To shift cursor

To set parameters

U

F

H

U

F
H

U

F
H

GO START

U

F
H

PROG
DATA

to set the parameters.

NOT E: I n the selecti on mo de, press

MODE

to retu rn to the selec tion mode.

NOTE: I n the parameter setting mode, you can pres s

MODE

PROG
DATA

PROG
DATA

PROG
DATA

U

F
H

U

F
H

U

F
H

U

F
H

move t o pre vious d isplay

U

F
H

parameter set successfully

para meter set error

MODE

START

U

F

H

U

F

H

U

F

H

U

F

H

U

F

H

English- 7

To mo dify data

To set di re ctio n

START

U

F

H

U

F

H

U

F

H

or

U

F
H

or

U

F
H

U

F
H

Power Terminals and Control Terminals

1HP to 3HP (0.75 to 2.2kW) VFD007B21A/23A/43A/53A, VFD015B21A/21B//23A/23B/43A/53A,

VFD022B23B/43B/53A

L1

/

T

S

/

/

U

V

W

/

/

/

T3

T2

T1

+2

/

B1

R

L2

L3

+1 B2

Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm

2

)

Power Terminal
Torque: 18 kgf-cm (15.6 in-lbf)
Wire Gauge: 10-18 AWG (5.3-0.8 mm

2

) stranded

wire, 12-18 AWG (3.3-0.8 mm

2

) solid wire

Wire Type: Copper only, 75°C

English- 8

3HP to 5HP (2.2 to 3.7kW) VFD022B21A, VFD037B23A/43A/53A

+1

+2

B

1

-

B

2

R/L1 S/L2 T/L3

Screw Torque :

Wire Gauge :

18Kgf-cm

18~10AWG

U/T1 V/T2 W/T3

7.5 HP to 15 HP (5.5kW to 11kW) VFD055B23A/43A/53A, VFD075B23A/43A/53A,
VFD110B23A/43A/53A

POWER

IM

MOTOR3

Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2mm

2

)

Power Terminal
Torque: 18 kgf-cm (15.6 in-lbf)
Wire Gauge: 10-18 AWG (5.3-0.8mm

2

)

Wire T

yp

e: Stranded copper only, 75°C

Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2mm

2

)

Power Terminal
Torque: 30Kgf-cm (26 in-lbf)
Wire: 8-12 AWG (8.4-3.3mm

2

)

Wire Type: Stranded Copper only, 75°C

NOTE: To connect 6 AWG (13.3 mm

2

) wires, use

Recognized Ring Terminals

English- 9

20 HP to 30 HP (15kW to 22kW) VFD150B23A/43A/53A, VFD185B23A/43A/53A,
VFD220B23A/43A/53A

3

IM

POWER

S/L2

R/L1

- ( ) ( )

+ DC DC

T/L3

+1-+2

MOTOR

W/T3V/T2

40 HP to 50 HP (30 to 37kW) 230V (VFD300B23A, VFD370B23A)
75 HP to 100 HP (55 to 75kW) 460V (VFD550B43C, VFD750B43C)
75 HP to 100 HP (55 to 75kW) 575V (VFD550B53A, VFD750B53A)

POWER

ALARM

W/T3S/L2R/L1 T/L3 +2+1 U/T1 V/T2

(173in-lbf)

Screw Torque:

200kgf-cm

POWER

IM

MOTOR

3

CHARGE

Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm

2

)

Power Terminal
Torque: 30Kgf-cm (26 in-lbf)
Wire: 2-8 AWG (33.6-8.4 mm

2

)

Wire Type: Stranded Copper only, 75°C

NOTE: To connect 6 AWG (13.3 mm

2

) wires, use

Recognized Ring Terminals

Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm

2

)

Power Terminal
Torque: 200kgf-cm (173 in-lbf)
Wire Gauge: 1 - 3/0 AWG (42.4-85 mm

2

)

Wire Type: Stranded copper only, 75°C

English- 10

40 HP to 60 HP (30 to 45kW) 460V (VFD300B43A, VFD370B43A, VFD450B43A)
40 HP to 60 HP (30 to 45kW) 575V (VFD300B53A, VFD370B53A, VFD450B53A)

R/L1

+1

+2 -

S/L2 T /L3 U/T1 V/T2 2/T3

POWER

IM

MOTOR

3

CHARGE

POWER

ALARM

75-100 HP (55-75kW) 460V (VFD550B43A, VFD750B43A)

T/L3S/L2R/L1

POWER

+1

V/T2U/T1

+2

200kgf-cm

(173in-lbf)

Screw Torque:

IM
3

W/T3

MOTOR

Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm

2

)

Power Terminal
Torque: 58.7kgf-cm (50.9 in-lbf) max.
Wire Gauge: 2-6AWG (33.6-13.3 mm

2

)

Wire Type: Stranded copper only, 75°C

Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm

2

)

Power Terminal
Torque: 200 kgf-cm (173 in-lbf)
Wire: VFD550B43A : 2/0 AWG (67.4 mm

2

)

VFD750B43A: 3/0 AWG (85 mm

2

)

Wire Type: Stranded copper only, 75°C

English- 11

Terminal Explanations

Terminal Symbol Explanation of Terminal Function

R, S, T R/L1, S/L2, T/L3 AC line input terminals (1-phase/3-phase)

U, V, W U/T1, V/T2, W/T3

AC drive output terminals for connecting 3-phase
induction motor

P1, P2 +1, +2 Connections for DC Choke (optional)

P-B, P2/B1~B2 +2/B1~B2 Connections for Brake Resistor (optional)

P2~N, P2/B1~N +2~(-), +2/B1~(-) Connections for External Brake Unit (VFDB series)

Earth connection, please comply with local regulations.

Control Terminals Explanations

Terminal

Symbol

Terminal Function

Factory Settings (SINK)

ON: Connect to DCM

FWD Forward-Stop command ON: Run in FWD direction, OFF: Stop acc. to Stop Method

REV Reverse-Stop command ON: Run in REV direction, OFF: Stop acc. to Stop Method

JOG Jog command ON: JOG operation, OFF: Stop acc. to Stop Method

EF External fault

ON: External Fault. Display “EF” and stop acc. To Stop

Method.

OFF: No fault

TRG External counter input ON: At every pulse counter is advanced by 1.

MI1-6 Multi-function Input 1-6

Refer to Pr.04-04 to Pr.04-09 for programming the Multi-

function Inputs.

DFM

Digital Frequency Meter
(Open Collector Output)

Max: 48V
50m A

DFM-DCM

100%

50%

Internal Circuit

Pulse voltage output monitor signal, proportional to output

frequency
Duty-cycle: 50%
Ratio: Pr.03-07
Min. load: 10KΩ
Max. current: 50mA
Max. voltage: 48VDC.

+24V DC Voltage Source +24VDC, 20mA: used for SOURCE mode

DCM Digital Signal Common Common for digital inputs and used for SINK mode.

RA

Multi-function Relay
output (N.O.) a

RB

Multi-function Relay
output (N.C.) b

RC

Multi-function Relay
common

Resistive Load: 5A(N.O.)/3A(N.C.) 240VAC

5A(N.O.)/3A(N.C.) 24VDC

Inductive Load: 1.5A(N.O.)/0.5A(N.C.) 240VAC

1.5A(N.O.)/0.5A(N.C.) 24VDC

Refer to Pr.03-00 for programming

MO1

Multi-function Output 1
(Photocoupler)

MO2

Multi-function Output 2
(Photocoupler)

MO3

Multi-function Output 3
(Photocoupler)

Maximum 48VDC, 50mA
Refer to Pr.03-01 to Pr.03-03 for programming

MO1~MO3-DCM

MO1~MO3

MCM

Internal Circuit

Max: 48Vdc
50mA

English- 12

Terminal

Symbol

Terminal Function

Factory Settings (SINK)

ON: Connect to DCM

MCM

Multi-function output
common

Common for Multi-function Outputs

+10V

Potentiometer power
supply

+10VDC 20mA

AVI

Analog voltage Input

ACM

AVI

+10V

Internal Circuit

AVI cir c u it

Impedance: 47kΩ
Resolution: 10 bits
Range: 0 ~10VDC = 0 ~ Max. Output Frequency (Pr.01-00)
Selection: Pr.02-00, Pr.02-13, Pr.10-00
Set-up: Pr.04-00 ~ Pr.04-03

ACI

Analog current Input

ACM

ACI

Internal Circuit

ACI circuit

Impedance: 250Ω
Resolution: 10 bits
Range: 4 ~ 20mA =0 ~ Max. Output Frequency (Pr.01-00)
Selection: Pr.02-00, Pr.02-13, Pr.10-00
Set-up: Pr.04-11 ~ Pr.04-14

AUI

Auxiliary analog voltage
input

ACM

AUI

+10~-10V

Internal Circuit

AUI circuit

Impedance: 47kΩ
Resolution: 10 bits
Range:-10 ~ +10VDC=0~Max. Output Frequency(Pr.01-00)

Selection: Pr.02-00, Pr.02-13, Pr.10-00

Set-up: Pr.04-15 ~ Pr.04-18

AFM

Analog output meter

Internal Circuit

ACM circuit

AFM

ACM

0~10V

Max. 2mA

ondometer

0 to 10V, 2mA

Impedance: 470Ω

Output current 2mA max

Resolution: 8 bits

Range: 0 ~ 10VDC

Function: Pr.03-05

ACM

Analog control signal
(common)

Common for AVI, ACI, AUI, AFM

**Control signal wiring size: 18 AWG (0.75 mm2) with shielded wire.

Summary of Parameter Settings

a: The parameter can be set during operation.

Pr. Explanation Settings

Factory

Setting

NOTE

Group 0 User Parameters

00-00 Identity Code of the AC

motor drive

Read-only ##

00-01 Rated Current Display

of the AC motor drive

Read-only #.#

English- 13

Pr. Explanation Settings

Factory

Setting

NOTE

00-02 Parameter Reset

08: Keypad lock
09: All parameters are reset to factory

settings (50Hz, 220V/380V/575V)

10: All parameters are reset to factory

settings (60Hz, 220V/440V/575V)

00

a00-03

Start-up Display
Selection

00: Display the frequency command

value (LED F)

01: Display the actual output frequency

(LED H)

02: Display the content of user-defined

unit (LED U)

03: Multifunction display, see Pr.00-04
04: FWD/REV command

00

a00-04

Content of Multi
Function Display

00: Display output current (A)
01: Display counter value (C)
02: Display process operation (1.tt)
03: Display DC-BUS voltage (

u

)

04: Display output voltage (E)
05: Output power factor angle (n)
06: Display output power (P)

07: Display actual motor speed (HU)
08: Display the estimated value of torque

as it relates to current (t)
09: Display PG numbers/10ms (G)
10: Display analog feedback signal value

(b) (%)
11: Display AVI (U1.) (%)
12: Display ACI (U2.) (%)
13: Display AUI (U3.) (%)
14: Display the temperature of heat sink

(°C)

00

a00-05

User-Defined
Coefficient K

0.01 to 160.00 1.00

00-06 Software Version Read-only #.##
00-07 Password Input 00 to 65535 00
00-08 Password Set 00 to 65535 00

00-09 Control Method

00: V/f Control
01: V/f + PG Control
02: Vector Control

03: Vector + PG Control

00

00-10 Reserved

Group 1 Basic Parameters

01-00

Maximum Output
Frequency (Fmax)

50.00 to 400.00 Hz 60.00

01-01

Maximum Voltage
Frequency (Fbase)

0.10 to 400.00 Hz 60.00

220.0

440.0

01-02

Maximum Output
Voltage (Vmax)

230V series: 0.1V to 255.0V
460V series: 0.1V to 510.0V
575V series: 0.1V to 637.0V

575.0

English- 14

Pr. Explanation Settings

Factory

Setting

NOTE

01-03

Mid-Point Frequency
(Fmid)

0.10 to 400.00 Hz 0.50

1.7

3.4

01-04

Mid-Point Voltage
(Vmid)

230V series: 0.1V to 255.0V
460V series: 0.1V to 510.0V
575V series: 0.1V to 637.0V

4.8

01-05

Minimum Output
Frequency (Fmin)

0.10 to 400.00 Hz 0.50

1.7

3.4

01-06

Minimum Output
Voltage (Vmin)

230V series: 0.1V to 255.0V
460V series: 0.1V to 510.0V
575V series: 0.1V to 637.0V

4.8

01-07

Output Frequency
Upper Limit

1 to 120%

100

01-08

Output Frequency
Lower Limit

0 to100 %

0

a01-09 Accel Time 1 0.01 to 3600.0 sec 10.0
a01-10 Decel Time 1 0.01 to 3600.0 sec 10.0
a01-11 Accel Time 2 0.01 to 3600.0 sec 10.0
a01-12 Decel Time 2 0.01 to 3600.0 sec 10.0

01-09 ~ 01-12: Factory setting for models of 30hp (22kW) and above is 60sec.

a01-13 Jog Acceleration Time 0.1 to 3600.0 sec 1.0
a01-14 Jog Frequency 0.10 Hz to 400.00 Hz 6.00

a01-15

Auto acceleration /
deceleration (refer to
Accel/Decel time
setting)

00: Linear Accel/Decel
01: Auto Accel, Linear Decel
02: Linear Accel, Auto Decel
03: Auto Accel/Decel (Set by load)

04: Auto Accel/Decel (set by Accel/Decel

Time setting)

00

01-16 Acceleration S-Curve 00 to 07 00
01-17 Deceleration S-Curve 00 to 07 00

a01-18 Accel Time 3 0.01 to 3600.0 sec 10.0
a01-19 Decel Time 3 0.01 to 3600.0 sec 10.0
a01-20 Accel Time 4 0.01 to 3600.0 sec 10.0
a01-21 Decel Time 4 0.01 to 3600.0 sec 10.0

01-18 ~ 01-21: Factory setting for models of 30hp (22kW) and above is 60sec.

a01-22 Jog Deceleration Time 0.1 to 3600.0 sec 1.0

01-23 Accel/Decel Time Unit

00: Unit: 1 sec
01: Unit: 0.1 sec

02: Unit: 0.01 sec

01

Group 2 Operation Method Parameters

a02-00

Source of First Master
Frequency Command

00: Digital keypad (PU01) UP/DOWN

keys or Multi-function Inputs

UP/DOWN. Last used frequency

saved.

00

English- 15

Pr. Explanation Settings

Factory

Setting

NOTE

a02-00

Source of First Master
Frequency Command

01: 0 to +10V from AVI
02: 4 to 20mA from ACI
03: -10 to +10Vdc from AUI
04: RS-485 serial communication (RJ-

11). Last used frequency saved.

05: RS-485 serial communication (RJ-

11). Last used frequency not saved.

06: Combined use of master and auxiliary

frequency command
(See Pr. 02-10 to 02-12)

00

a02-01

Source of First
Operation Command

00: Digital keypad (PU01)
01: External terminals. Keypad

STOP/RESET enabled.
02: External terminals. Keypad

STOP/RESET disabled.
03: RS-485 serial communication (RJ-

11). Keypad STOP/RESET enabled.

04: RS-485 serial communication (RJ-

11). Keypad STOP/RESET disabled.

00

02-02 Stop Method

00: STOP: ramp to stop; E.F.: coast to

stop
01: STOP: coast to stop; E.F.: coast to

stop
02: STOP: ramp to stop; E.F.: ramp to

stop
03: STOP: coast to stop; E.F.: ramp to

stop

00

02-03

PWM Carrier Frequency
Selections

230V&460V:1-5hp/0.75-3.7kW: 1-15kHz

7.5-25hp/5.5-18.5kW: 01-15kHz
30-60hp/22-45kW: 01-09kHz
75-100hp/55-75kW: 01-06kHz

575V: 1-15hp/0.75-11kW: 01-10 kHz

20-60hp/15-45kW: 01-08 kHz
75-100hp/55-75kW: 01-06kHz

15
09
06
06
06
06
06

02-04 Motor Direction Control

00: Enable forward/reverse operation
01: Disable reverse operation

02: Disabled forward operation

00

02-05

2-wire/3-wire Operation
Control Modes

00: 2-wire: FWD/STOP, REV/STOP
01: 2-wire: FWD/REV, RUN/STOP

02: 3-wire operation

00

02-06 Line Start Lockout

00: Disable. Operation status is not

changed even if operation command

source Pr.02-01 and/or Pr.02-14 is

changed.
01: Enable. Operation status is not

changed even if operation command

source Pr.02-01 and/or Pr.02-14 is

changed.
02: Disable. Operation status will change

if operation command source Pr.02-

01 and/or Pr.02-14 is changed.

00

English- 16

Pr. Explanation Settings

Factory

Setting

NOTE

03: Enable. Operation status will change

if operation command source Pr.02­01 and/or Pr.02-14 is changed.

02-07

Loss of ACI Signal (4­20mA)

00: Decelerate to 0 Hz
01: Coast to stop and display “EF”

02: Continue operation by last frequency

command

00

a02-08 Up/Down Mode

00: Based on accel/decel time
01: Constant speed

02: Based on accel/decel time, but

frequency command will be 0 when

stopped.

00

a02-09

Accel/Decel Rate of
Change of UP/DOWN
Operation with Constant
Speed

0.01~1.00 Hz/msec 0.01

a02-10

Source of the Master
Frequency Command

00: Digital keypad (PU01) UP/DOWN

keys or Multi-function Inputs

UP/DOWN. Last used frequency

saved.
01: 0 to +10V from AVI
02: 4 to 20mA from ACI
03: -10 to +10Vdc from AUI

04: RS-485 serial communication (RJ-

11). Last used frequency saved.

00

a02-11

Source of the Auxiliary
Frequency Command

00: Digital keypad (PU01) UP/DOWN

keys or Multi-function Inputs

UP/DOWN. Last used frequency

saved.
01: 0 to +10V from AVI
02: 4 to 20mA from ACI
03: -10 to +10Vdc from AUI

04: RS-485 serial communication (RJ-

11). Last used frequency saved.

00

a02-12

Combination of the
Master and Auxiliary
Frequency Command

00: Master frequency + auxiliary

frequency
01: Master frequency - auxiliary

frequency

00

a02-13

Source of Second
Frequency Command

00: Digital keypad (PU01) UP/DOWN

keys or Multi-function Inputs

UP/DOWN. Last used frequency

saved.
01: 0 to +10V from AVI
02: 4 to 20mA from ACI

03: -10 to +10Vdc from AUI
04: RS-485 serial communication (RJ-

11). Last used frequency saved

05: RS-485 serial communication (RJ-

11). Last used frequency not saved.

00

English- 17

Pr. Explanation Settings

Factory

Setting

NOTE

06: Combined use of master and auxiliary

frequency command (See Pr. 02-10

to 02-12)

a02-14

Source of Second
Operation Command

00: Digital keypad (PU01)
01: External terminals. Keypad

STOP/RESET enabled.
02: External terminals. Keypad

STOP/RESET disabled.
03: RS-485 serial communication (RJ-

11). Keypad STOP/RESET enabled.

04: RS-485 serial communication (RJ-

11). Keypad STOP/RESET disabled.

00

a02-15

Keypad Frequency
Command

0.00 ~ 400.00Hz 60.00

Group 3 Output Function Parameters

03-00

Multi-Function Output
Relay (RA1, RB1, RC1)

08

03-01

Multi-Function Output
Terminal MO1

01

03-02

Multi-Function Output
Terminal MO2

02

03-03

Multi-Function Output
Terminal MO3

00: No function
01: AC drive operational
02: Master frequency attained
03: Zero speed
04: Over torque detection
05: Base-Block (B.B.) indication
06: Low-voltage indication
07: Operation mode indication
08: Fault indication
09: Desired frequency attained 1
10: PLC program running
11: PLC program step completed
12: PLC program completed
13: PLC program operation paused
14: Terminal count value attained
15: Preliminary count value attained
16: Auxiliary motor No.1
17: Auxiliary motor No.2
18: Auxiliary motor No.3
19: Heat sink overheat warning
20: AC motor drive ready
21: Emergency stop indication
22: Desired frequency attained 2
23: Software brake signal
24: Zero speed output signal
25: Under-current detection
26: Operation indication (H>=Fmin)
27: Feedback signal error
28: User-defined low-voltage detection

29: Brake control (Desired frequency

attained 3)

20

03-04 Desired Frequency

Attained 1

0.00 to 400.00 Hz 0.00

English- 18

Pr. Explanation Settings

Factory

Setting

NOTE

03-05 Analog Output Signal

00: Analog frequency meter
01: Analog current meter

02: Output voltage
03: Output frequency command

04: Output motor speed
05: Load power factor (cos90

o

to Cos0o)

00

a03-06 Analog Output Gain 01 to 200% 100
a03-07 Digital Output

Multiplying Factor

01 to 20 01

a03-08 Terminal Count Value 00 to 65500 00
a03-09 Preliminary Count Value 00 to 65500 00

03-10

Desired Frequency
Attained 2

0.00 to 400.00 Hz 0.00

03-11

EF Active When
Preliminary Count Value
Attained

00: Preliminary count value attained, no

EF display
01: Preliminary count value attained, EF

active

00

03-12 Fan Control

00: Fan always ON
01: 1 minute after AC motor drive stops,

fan will be OFF
02: AC motor drive runs and fan ON, AC

motor drive stops and fan OFF
03: Fan ON to run when preliminary

heatsink temperature attained

00

03-13

Brake Release
Frequency

0.00 to 400.00Hz 0.00

03-14

Brake Engage
Frequency

0.00 to 400.00Hz 0.00

Group 4 Input Function Parameters

a04-00 AVI Analog Input Bias 0.00~200.00 % 0.00

04-01 AVI Bias Polarity

00: Positive bias
01: Negative bias

00

a04-02 AVI Input Gain 1 to 200 % 100

04-03

AVI Negative Bias,
Reverse Motion
Enable/Disable

00

01

04-04 Multi-Function Input

Terminal 1 (MI1)

02

04-05 Multi-Function Input

Terminal 2 (MI2)

00: No AVI negative bias command
01: Negative bias: REV motion enabled
02: Negative bias: REV motion disabled
00: No function
01: Multi-Step speed command 1
02: Multi-Step speed command 2
03: Multi-Step speed command 3
04: Multi-Step speed command 4
05: External reset (N.O.)
06: Accel/Decel inhibit
07: Accel/Decel time selection command

1
08: Accel/Decel time selection command

2
09: External base block (N.O.)

English- 19

Pr. Explanation Settings

Factory

Setting

NOTE

03 04-06 Multi-Function Input

Terminal 3 (MI3)

04

04-07 Multi-Function Input

Terminal 4 (MI4)

05

04-08 Multi-Function Input

Terminal 5 (MI5)

06

04-09 Multi-Function Input

Terminal 6 (MI6)

10: External base block (N.C.)
11: Up: Increment master frequency
12: Down: Decrement master frequency
13: Counter reset
14: Run PLC program

15: Pause PLC program
16: Auxiliary motor No.1 output disable
17: Auxiliary motor No.2 output disable
18: Auxiliary motor No.3 output disable
19: Emergency stop (N.O.)
20: Emergency stop (N.C.)
21: Master frequency selection AVI/ACI
22: Master frequency selection AVI/AUI
23: Operation command selection

(keypad/external terminals)
24: Auto accel/decel mode disable
25: Forced stop (N.C.)
26: Forced stop (N.O.)
27: Parameter lock enable (N.O.)
28: PID function disabled
29: Jog FWD/REV command
30: External reset (N.C.)
31: Source of second frequency

command enabled
32: Source of second operation

command enabled
33: One shot PLC
34: Proximity sensor input for simple

Index function
35: Output shutoff stop (NO)
36: Output shutoff stop (NC)

04-10

Digital Terminal Input
Debouncing Time

1 to 20 (*2ms) 01

a04-11 ACI Analog Input Bias 0.00~200.00 % 0.00

00: Positive bias

04-12 ACI Bias Polarity

01: Negative bias

00

a04-13

ACI Input Gain 01 to 200 % 100

04-14

ACI Negative Bias,
Reverse Motion
Enable/Disable

00: No ACI negative bias command
01: Negative bias: REV motion enabled

02: Negative bias: REV motion disabled

00

a04-15

AUI Analog Input Bias 0.00~200.00 % 0.00

00: Positive bias

04-16 AUI Bias Polarity

01: Negative bias

00

a04-17 AUI Input Gain 01 to 200 % 100

04-18

AUI Negative Bias
Reverse Motion
Enable/Disable

00: No AUI negative bias command
01: Negative bias: REV motion enabled

02: Negative bias: REV motion disabled

00

English- 20

Pr. Explanation Settings

Factory

Setting

NOTE

04-19 AVI Analog Input Delay 0.00 to 10.00 sec

0.05

04-20 ACI Analog Input Delay

0.00 to 10.00 sec 0.05

04-21 AUI Analog Input Delay

0.00 to 10.00 sec 0.05

00: 0.01Hz

04-22

Analog Input Frequency
Resolution

01: 0.1Hz

01

04-23

Gear Ratio for Simple
Index Function

4 ~ 1000 200

04-24

Index Angle for Simple
Index Function

0.0 ~360.0

o

180.0

a04-25

Deceleration Time for
Simple Index Function

0.00 ~100.00 sec 0.00

Group 5 Multi-Step Speed and PLC Parameters

a05-00 1st Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-01 2nd Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-02 3rd Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-03 4th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-04 5th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-05 6th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-06 7th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-07 8th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-08 9th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-09 10th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-10 11th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-11 12th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-12 13th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-13 14th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

a05-14 15th Step Speed

Frequency

0.00 to 400.00 Hz 0.00

05-15 PLC Mode

00: Disable PLC operation
01: Execute one program cycle
02: Continuously execute program cycles
03: Execute one program cycle step by

step
04: Continuously execute program cycles

step by step

00

English- 21

Pr. Explanation Settings

Factory

Setting

NOTE

05-16 PLC Forward/ Reverse

Motion

00 to 32767 (00: FWD, 01: REV) 00

05-17 Time Duration of 1st

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-18 Time Duration of 2nd

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-19 Time Duration of 3rd

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-20 Time Duration of 4th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-21 Time Duration of 5th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-22 Time Duration of 6th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-23 Time Duration of 7th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-24 Time Duration of 8th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-25 Time Duration of 9th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-26 Time Duration of 10th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-27 Time Duration of 11th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-28 Time Duration of 12th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-29 Time Duration of 13th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-30 Time Duration of 14th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

05-31 Time Duration of 15th

Step Speed

00 to 65500 sec or 00 to 6550.0 sec 00

00: 1 sec

05-32 Time Unit Settings

01: 0.1 sec

00

05-33

The Amplitude of
Wobble Vibration

0.00~400.00 Hz

0.00

05-34 Wobble Skip Frequency 0.00~400.00 Hz 0.00

Group 6 Protection Parameters

390.0V

780.0V

975.0V

06-00

Over-Voltage Stall
Prevention

230V series: 330.0V to 410.0V
460V series: 660.0V to 820.0V
575V series: 825.0V to1025.0V

00: Disable over-voltage stall prevention

06-01

Over-Current Stall
Prevention during Accel

20 to 250% 170

06-02

Over-Current Stall
Prevention during
Operation

20 to 250% 170

English- 22

Pr. Explanation Settings

Factory

Setting

NOTE

06-03

Over-Torque Detection
Mode (OL2)

00: Disabled
01: Enabled during constant speed

operation. After the over-torque is

detected, keep running until OL1 or

OL occurs.
02: Enabled during constant speed

operation. After the over-torque is

detected, stop running.
03: Enabled during accel. After the over-

torque is detected, keep running until

OL1 or OL occurs.
04: Enabled during accel. After the over-

torque is detected, stop running.

00

06-04

Over-Torque Detection
Level

10 to 200% 150

06-05

Over-Torque Detection
Time

0.1 to 60.0 sec 0.1

06-06

Electronic Thermal
Overload Relay
Selection

00: Standard motor (self cooled by fan)
01: Special motor (forced external

cooling)
02: Disabled

02

06-07

Electronic Thermal
Characteristic

30 to 600 sec 60

06-08 Present Fault Record

06-09 Second Most Recent

Fault Record

06-10

Third Most Recent Fault
Record

06-11

Fourth Most Recent
Fault Record

00: No fault
01: Over current (oc)
02: Over voltage (ov)
03: Over heat (oH)
04: Over load (oL)
05: Over load (oL1)
06: External fault (EF)
07: IGBT protection (occ)
08: CPU failure (cF3)
09: Hardware protection failure (HPF)
10: Excess current during acceleration

(ocA)
11: Excess current during deceleration

(ocd)
12: Excess current during steady state

(ocn)
13: Ground fault (GFF)

14: Reserved
15: CF1

16: CF2
17: Reserved
18: Motor over-load (oL2)
19: Auto Acel/Decel failure (CFA)
20: SW/Password protection (codE)
21: External Emergency Stop (EF1)
22: Phase-Loss (PHL)

00

English- 23

Pr. Explanation Settings

Factory

Setting

NOTE

23: Preliminary count value attained, EF

active (cEF)
24: Under-current (Lc)

25: Analog feedback signal error (AnLEr)
26: PG feedback signal error (PGErr)

06-12

Under-Current
Detection Level

00~100% (00: Disabled)

00

06-13

Under-Current
Detection Time

0.1~ 3600.0 sec

10.0

06-14

Under-Current
Detection Mode

00: Warn and keep operating
01: Warn and ramp to stop
02: Warn and coast to stop

03: Warn, after coast to stop, restart

(delay 06-15 setting time)

00

06-15

Under-Current
Detection Restart Delay
Time (Lv)

1~600 Min.

10

06-16

User-Defined Low­Voltage Detection Level

00: Disabled
230V: 220 to 300VDC
460V: 440 to 600VDC

575V: 520 to 780VDC

00

06-17

User-Defined Low­Voltage Detection Time

0.1~ 3600.0 sec 0.5

06-18 Reserved

Group 7 Motor Parameters

a07-00 Motor Rated Current 30 to 120% 100
a07-01 Motor No-Load Current 01 to 90% 40
a07-02 Torque Compensation 0.0 to 10.0 0.0
a07-03 Slip Compensation

(Used without PG)

0.00 to 3.00 0.00

07-04 Number of Motor Poles 02 to 10 04

07-05

Motor Parameters Auto
Tuning

00: Disable
01: Auto tuning R1
02: Auto tuning R1 + no-load test

00

07-06

Motor Line-to-line
Resistance R1

00~65535 mΩ

00

07-07 Reserved
07-08 Motor Rated Slip 0.00 to 20.00 Hz 3.00
07-09 Slip Compensation Limit 0 to 250% 200
07-10 Reserved
07-11 Reserved

07-12

Torque Compensation
Time Constant

0.01 ~10.00 Sec 0.05

07-13

Slip Compensation
Time Constant

0.05 ~10.00 sec 0.10

07-14

Accumulative Motor
Operation Time (Min.)

00 to 1439 Min. 00

07-15

Accumulative Motor
Operation Time (Day)

00 to 65535 Day 00

Group 8 Special Parameters

English- 24

Pr. Explanation Settings

Factory

Setting

NOTE

08-00 DC Brake Current Level 00 to 100% 00

08-01

DC Brake Time during
Start-Up

0.0 to 60.0 sec 0.0

08-02

DC Brake Time during
Stopping

0.0 to 60.0 sec 0.0

08-03 Start-Point for DC Brake 0.00 to 400.00Hz 0.00

08-04

Momentary Power Loss
Operation Selection

00: Operation stops after momentary

power loss
01: Operation continues after momentary

power loss, speed search starts with

the Master Frequency reference

value
02: Operation continues after momentary

power loss, speed search starts with

the minimum frequency

00

08-05

Maximum Allowable
Power Loss Time

0.1 to 5.0 sec 2.0

08-06

B.B. Time for Speed
Search

0.1 to 5.0 sec 0.5

08-07

Current Limit for Speed
Search

30 to 200% 150

08-08

Skip Frequency 1 Upper
Limit

0.00 to 400.00 Hz 0.00

08-09

Skip Frequency 1 Lower
Limit

0.00 to 400.00 Hz 0.00

08-10

Skip Frequency 2 Upper
Limit

0.00 to 400.00 Hz 0.00

08-11

Skip Frequency 2 Lower
Limit

0.00 to 400.00 Hz 0.00

08-12

Skip Frequency 3 Upper
Limit

0.00 to 400.00 Hz 0.00

08-13

Skip Frequency 3 Lower
Limit

0.00 to 400.00 Hz 0.00

08-14 Auto Restart After Fault 00 to 10 (00=disable) 00

08-15 Auto Energy Saving

00: Disable
01: Enable

00

08-16 AVR Function

00: AVR function enable
01: AVR function disable

02: AVR function disable for decel.

00

380
760

08-17 Software Brake Level

230V series: 370 to 430V
460V series: 740 to 860V

575V series: 925 to1075V

950

08-18

Base-block Speed
Search

00: Speed search starts with last

frequency command
01: Starts with minimum output frequency

00

08-19

Speed Search during
Start-up

00: Speed search disable
01: Speed search enable

00

English- 25

Pr. Explanation Settings

Factory

Setting

NOTE

a08-20

Speed Search
Frequency during Start­up

00: Setting frequency
01: Maximum operation frequency (01-

00)

00

08-21

Auto Reset Time at
Restart after Fault

00 to 60000 sec

600

a08-22

Compensation
Coefficient for Motor
Instability

00~1000

00

Group 9 Communication Parameters

a09-00

Communication
Address

01 to 254 01

a09-01 Transmission Speed

00: Baud rate 4800bps
01: Baud rate 9600bps
02: Baud rate 19200bps

03: Baud rate 38400bps

01

a09-02

Transmission Fault
Treatment

00: Warn and keep operating
01: Warn and ramp to stop
02: Warn and coast to stop

03: No warning and keep operating

03

a09-03 Time-out Detection

0.0 ~ 60.0 seconds

0.0: Disable

0.0

a09-04

Communication
Protocol

00: 7,N,2 (Modbus, ASCII)
01: 7,E,1 (Modbus, ASCII)
02: 7,O,1 (Modbus, ASCII)
03: 8,N,2 (Modbus, RTU)
04: 8,E,1 (Modbus, RTU)
05: 8,O,1 (Modbus, RTU)

00

09-05 Reserved

09-06 Reserved

a09-07 Response Delay Time 00 ~ 200 msec

00

Group 10 PID Control Parameters

10-00

Input terminal for PID
Feedback

00: Inhibit PID operation
01: Negative PID feedback from external

terminal (AVI) 0 to +10V
02: Negative PID feedback from external

terminal (ACI) 4 to 20mA
03: Positive PID feedback from external

terminal (AVI) 0 to +10V
04: Positive PID feedback from external

terminal (ACI) 4 to 20mA

00

10-01

Gain over PID Detection
value

0.00 to 10.00 1.00

a10-02 Proportional Gain (P)

0.0 to 10.0

1.0

a10-03 Integral Gain (I)

0.00 to 100.00 sec (0.00=disable)

1.00

a10-04 Derivative Control (D)

0.00 to 1.00 sec

0.00

10-05

Upper Bound for
Integral Control

00 to 100% 100

English- 26

Pr. Explanation Settings

Factory

Setting

NOTE

10-06

Primary Delay Filter
Time

0.0 to 2.5 sec 0.0

10-07 PID Output Freq Limit 0 to 110% 100

10-08

Feedback Signal
Detection Time

0.0 to 3600.0 sec 60.0

a10-09

Treatment of the
Erroneous Feedback
Signals

00: Warn and keep operation
01: Warn and RAMP to stop

02: Warn and COAST to stop

00

10-10 PG Pulse Range 1 to 40000 600

10-11 PG Input

00: Disable PG
01: Single phase
02: Forward / Counterclockwise rotation

03: Reverse / Clockwise rotation

00

a10-12

ASR (Auto Speed
Regulation) control (with
PG only) (P)

0.0 to 10.0 1.0

a10-13

ASR (Auto Speed
Regulation) control (with
PG only) (I)

0.00 to 100.00 (0.00 disable) 1.00

10-14

Speed Control Output
Frequency Limit

0.00 to 100.00 Hz 10.00

10-15

Sample time for
refreshing the content of
210DH and 210EH

0.01~1.00 seconds 0.10

10-16

Deviation Range of PID
Feedback Signal Error

0.00~100.00% 100.00

Group 11 Fan & Pump Control Parameters

11-00 V/f Curve Selection

00: V/f curve determined by Pr.01-00 to

Pr.01-06
01: 1.5 power curve
02: 1.7 power curve
03: Square curve

04: Cube curve

00

11-01

Start-Up Frequency of
the Auxiliary Motor

0.00 to 400.00 Hz 0.00

11-02

Stop Frequency of the
Auxiliary Motor

0.00 to 400.00 Hz 0.00

11-03

Time Delay before
Starting the Auxiliary
Motor

0.0 to 3600.0 sec 0.0

11-04

Time Delay before
Stopping the Auxiliary
Motor

0.0 to 3600.0 sec 0.0

11-05

Sleep/Wake Up
Detection Time

0.0 ~6550.0 sec 0.0

11-06 Sleep Frequency 0.00~Fmax 0.00

11-07 Wakeup Frequency 0.00~Fmax 0.00

English- 27

Fault Codes

Fault

Name

Fault Descriptions Corrective Actions

Over current

Abnormal increase
in current.

IGBT protection

(Insulated Gate
Bipolar Transistor)

1. Check if motor power corresponds with the AC motor drive
output power.

2. Check the wiring connections to U, V, W for possible short
circuits.

3. Check the wiring connections between the AC motor drive
and motor for possible short circuits, also to ground.

4. Check for loose contacts between AC motor drive and motor.

5. Increase the Acceleration Time.

6. Check for possible excessive loading conditions at the
motor.

7. If there are still any abnormal conditions when operating the
AC motor drive after a short-circuit is removed and the other
points above are checked, it should be sent back to
manufacturer.

Over voltage

The DC bus
voltage has
exceeded its
maximum
allowable value.

1. Check if the input voltage falls within the rated AC motor
drive input voltage range.

2. Check for possible voltage transients.

3. DC-bus over-voltage may also be caused by motor
regeneration. Either increase the Decel. Time or add an
optional brake resistor (and brake unit).

4. Check whether the required brake power is within the
specified limits.

Overheating

Heat sink
temperature too
high

1. Ensure that the ambient temperature falls within the
specified temperature range.

2. Make sure that the ventilation holes are not obstructed.

3. Remove any foreign objects from the heatsinks and check
for possible dirty heat sink fins.

4. Check the fan and clean it.

5. Provide enough spacing for adequate ventilation.

Low voltage

The AC motor
drive detects that
the DC bus voltage
has fallen below its
minimum value.

1. Check whether the input voltage falls within the AC motor
drive rated input voltage range.

2. Check whether the motor has sudden load.

3. Check for correct wiring of input power to R-S-T (for 3-phase
models) without phase loss.

Overload

The AC motor
drive detects
excessive drive
output current.

1. Check whether the motor is overloaded.

2. Reduce torque compensation setting in Pr.7-02.

3. Take the next higher power AC motor drive model.

NOTE: The AC motor drive can withstand up to 150% of the

rated current for a maximum of 60 seconds.

Overload 1

Internal electronic
overload trip

1. Check for possible motor overload.

2. Check electronic thermal overload setting.

3. Use a higher power motor.

4. Reduce the current level so that the drive output current
does not exceed the value set by the Motor Rated Current
Pr.7-00.

English- 28

Fault

Name

Fault Descriptions Corrective Actions

Overload 2

Motor overload.

1. Reduce the motor load.

2. Adjust the over-torque detection setting to an appropriate
setting (Pr.06-03 to Pr.06-05).

GFF hardware
error

CC (current
clamp)

OC hardware
error

OV hardware
error

Return to the factory.

Communication
Error

1. Check the RS485 connection between the AC motor drive

and RS485 master for loose wires and wiring to correct pins.

2. Check if the communication protocol, address, transmission

speed, etc. are properly set.

3. Use the correct checksum calculation.

4. Please refer to group 9 in the chapter 5 for detail information.

Over-current
during
acceleration

1. Short-circuit at motor output: Check for possible poor

insulation at the output lines.

2. Torque boost too high: Decrease the torque compensation

setting in Pr.7-02.

3. Acceleration Time too short: Increase the Acceleration Time.

4. AC motor drive output power is too small: Replace the AC

motor drive with the next higher power model.

Over-current
during
deceleration

1. Short-circuit at motor output: Check for possible poor

insulation at the output line.

2. Deceleration Time too short: Increase the Deceleration Time.

3. AC motor drive output power is too small: Replace the AC

motor drive with the next higher power model.

Over-current
during steady
state operation

1. Short-circuit at motor output: Check for possible poor

insulation at the output line.

2. Sudden increase in motor loading: Check for possible motor

stall.

3. AC motor drive output power is too small: Replace the AC

motor drive with the next higher power model.

External Fault

1. Input EF (N.O.) on external terminal is closed to GND. Output

U, V, W will be turned off.

2. Give RESET command after fault has been cleared.

Emergency stop

1. When the multi-function input terminals MI1 to MI6 are set to

emergency stop (setting 19 or 20), the AC motor drive stops
output U, V, W and the motor coasts to stop.

2. Press RESET after fault has been cleared.

Internal EEPROM
can not be
programmed.

Return to the factory.

Internal EEPROM
can not be read.

Return to the factory.

English- 29

Fault

Name

Fault Descriptions Corrective Actions

U-phase error

V-phase error

W-phase error

Return to the factory.

OV or LV

Current sensor
error

OH error

Return to the factory.

Software
protection failure

Return to the factory.

Password is
locked.

Keypad will be locked. Turn the power ON after power OFF to
re-enter the correct password. See Pr.00-07 and 00-08.

Auto accel/decel
failure

1. Check if the motor is suitable for operation by AC motor drive.

2. Check if the regenerative energy is too large.

3. Load may have changed suddenly.

Ground fault

When (one of) the output terminal(s) is grounded, short circuit
current is more than 50% of AC motor drive rated current, the
AC motor drive power module may be damaged.

NOTE: The short circuit protection is provided for AC
motor drive protection, not for protection of the user.

1. Check whether the IGBT power module is damaged.

2. Check for possible poor insulation at the output line.

External Base
Block.

(Refer to Pr. 08-

06)

1. When the external input terminal (B.B) is active, the AC motor

drive output will be turned off.

2. Deactivate the external input terminal (B.B) to operate the AC

motor drive again.

Analog
feedback error
or ACI open
circuit

1. Check parameter settings and wiring of Analog feedback

(Pr.10-00).

2. Check for possible fault between system response time and

the feedback signal detection time (Pr.10-08).

PG feedback
signal error

1. Check parameter settings and signal type of PG feedback

(Pr.10-10 and Pr.10-11).

2. Check if the wiring of PG card is correct.

Auto Tuning
Error

1. Check cabling between drive and motor

2. Retry again

EF when
preliminary
count value
attained

1. Check counter trigger signal

2. Check Pr.03-09, Pr.03-11setting

Under Current

1. Check Load current

2. Check Pr.06-12 to Pr.06-15 setting

Phase Loss

Check Power Source Input if all 3 input phases are connected
without loose contacts.

English- 30

Dimensions are in mm [inch]

H1

H

W

W1 D

F

Model Name W H D W1 H1 F

007B23A/43A/53A, 015B21B/23B,

022B23B/43B/53A

118.0
[4.65]

185.0
[7.28]

145.0
[5.71]

108.0
[4.25]

173.0
[6.81]

5.5

[0.22]

007B21A, 015B21A/23A/43A/53A

118.0
[4.65]

185.0
[7.28]

160.0
[6.30]

108.0
[4.25]

173.0
[6.81]

5.5

[0.22]

022B21A, 037B23A/43A/53A

150.0
[5.91]

260.0

[10.24]

160.2
[6.31]

135.0
[5.32]

244.3
[9.63]

6.5

[0.26]

055B23A/43A/53A,
075B23A/43A/53A,

110B23A/43A/53A

200.0
[7.88]

323.0

[12.72]

183.2
[7.22]

185.6
[7.31]

303.0

[11.93]

7.0

[0.28]

150B23A/43A/53A,
185B23A/43A/53A,

220B23A/43A/53A

250.0
[9.84]

403.8

[15.90]

205.4
[8.08]

226.0
[8.90]

384.0

[15.12]

10.0

[0.39]

English- 31

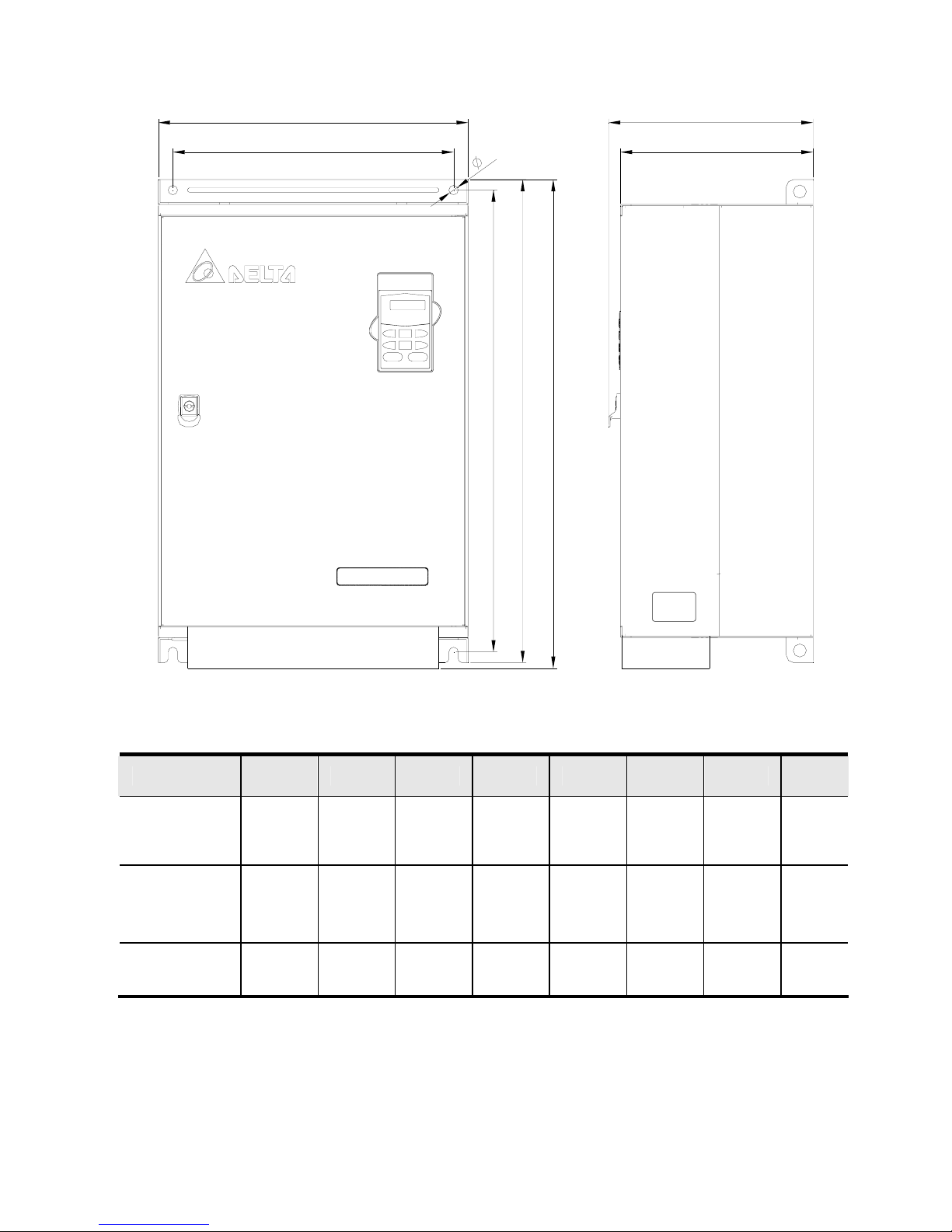

Dimensions are in mm [inch]

H1

H

W1

W

F

D1

D

H2

Model Name W H D1 W1 H1 F D H2

300B43A/53A,
370B43A/53A,

450B43A/53A

370.0

[14.57]

589.0

[23.19]

260.0

[10.24]

335.0

[13.19]

560.0

[22.05]

13.0

[0.51]

- -

300B23A,
370B23A,

550B43C/53A,

750B43C/53A

370.0

[14.57]

589.0

[23.19]

260.0

[10.24]

335.0

[13.19]

560.0

[22.05]

13.0

[0.51]

-

595.0

[23.43]

550B43A,

750B43A

425.0

[16.73]

660.0

[25.98]

264.0

[10.39]

385.0

[15.16]

631.0

[24.84]

13.0

[0.51]

280.0

[11.02]

-
