UNISAW

ﬁ

Left Tilt 10″ Tilting Arbor Saw

(Model 36-960)

INSTRUCTION MANUAL

D AT E D 6-27-00 PA RT NO. 422-40-651-0003

Page 2

SAFETY RULES

W oodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are cert ain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, i f normal safety precautions are overlooked or ignored, personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards, goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won t make up for poor judgment, carelessness or inattention. Always use common sense and exercise caution in the workshop. If a procedure feels dangerous, don t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your personal safety is your responsibility.

This machine was designed for certain applications only. Delta Machinery strongly recommends that this machine not be modified and/or used for any application other than that for which it was designed. If you have any questions relative to a particular applica tion, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product.

Technical Service Manager Delt a Machinery 4825 Highway 45 North P. O. Box 2468 Jackson, TN 38302-2468 (IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)

W ARNING: FAILURE TO FOLLOW THESE RULES

M AY RESULT IN SERIOUS PERSONAL INJURY

1. FOR YOUR OWN SAFETY, READ INSTRUCTION MANU AL BEFORE OPERATING THE TOOL. Learn the tool s application and limitations as well as the specific hazards peculiar to it.

2. KEEPGUARDS IN PLACE and in working order.

3. ALW A YS WEAR EYE PROTECTION.

4. GROUND ALL TOOLS. If tool is equipped with threeprong plug, it should be plugged into a three-hole electrical receptacle. If an adapter is used to accommodate a twoprong receptacle, the adapter lug must be att ached to a known ground. Never remove the third prong.

5. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.

6. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.

7. DON T USE IN DANGEROUS ENVIRONMENT.Don t use power tools in damp or wet locations, or expose them to rain. Keep work area well-lighted.

8. KEEP CHILDREN AND VISITORS AW AY.All children and visitors should be kept a safe distance from work area.

9. MAKE WORKSHOP CHILDPROOF with p adlocks, master switches, or by removing starter keys.

10. DON T FORCE TOOL. It will do the job better and be safer at the rate for which it was designed.

11. USE RIGHT TOOL. Don t force tool or att achment to do a job for which it was not designed.

12. WEAR PROPER APPAREL. No loose clothing, gloves, neckties, rings, bracelets, or other jewelry to get caught in moving p art s. Nonslip footwear is recom-mended. W ear protective hair covering to contain long hair.

13. ALW AYS USE SAFETY GLASSES. W ear safety glasses. Everyday eyeglasses only have impact resist ant lenses; they are not safety glasses. Also use face or dust mask if cutting operation is dusty.

14. SECURE WORK. Use clamps or a vise to hold work when practical. It s safer than using your hand and frees both hands to operate tool.

15. DON T OVERREACH. Keep proper footing and balance at all times.

16. MAINTAIN TOOLS IN TO P CONDITION. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.

17. DISCONNECT TOOLS before servicing and when changing accessories such as blades, bits, cutters, etc.

18. USE RECOMMENDED ACCESSORIES. The use of accessories and attachments not recommended by Delta may cause hazards or risk of injury to people.

19. REDUCE THE RISK OF UNINTENTIONAL S TA R TING.Make sure switch is in OFF position before plugging in power cord.

20. NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is accident ally cont acted.

21. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform it s intended function. Check for alignment of moving parts, binding of moving pa rts, breakage of p a rts, mounting, and any other conditions that may af fect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this instruction manual. Have defective switches replaced by authorized service center. Do not use tool if switch does not turn it on and of f.

22. DIRECTION OF FEED. Feed work into a blade or cutter against the direction of rot ation of the blade or cutter only.

23. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF.Don t leave tool until it comes to a complete stop.

24. DRUGS, ALCOHOL, MEDICATION. D o not operate tool while under the influence of drugs, alcohol or any medication.

25. MAKE SURE TOOL IS DISCONNECTED FROM POWER SUPPLY while motor is being mounted, connected or reconnected.

26. WHEN THE TO OL IS NOT IN USE, the switch should be locked in the OFF position to prevent unauthorized use of the tool.

27. W ARNING: The dust generated by cert ain woods and wood product s can be injurious to your health. Always operate machinery in well ventilated areas and provide for proper dust removal. Use wood dust collection systems whenever possible.

Page 3

ADDITIONAL SAFETY RULES FOR CIRCULAR SAW S

1. W ARNING: Do not operate your saw until it is completely assembled and installed according to the instruc tions.

2.IF YOU ARE NOT thoroughly familiar with the opera tion of circular saws, obt ain advice from your supervisor, instructor, or other qualified person.

3. A LW A Y S use guard, splitter and anti-kickback fingers on all thru-sawing operations. Thru-sawing operations are those when the blade cuts completely through the workpiece as in ripping or cross-cutting.

4. A LW A Y S hold the work firmly against the miter gage or fence.

5. NEVER use the fence as a cut-of f gage when crosscutting.

6. MOVE the rip fence out of the way when crosscutting.

7. NEVER perform any operation free-hand which means using your hands to support or guide the workpiece. Always use either the fence or miter gage to posi tion and guide the work.

8. A LW AY S use a push stick for ripping narrow stock. Refer to ripping applications in instruction manual where the push stick is covered in deta il.

9. A VOID kickbacks (work thrown back toward you) by: A. Keeping blade sharp. B. Keeping rip fence parallel to the saw blade. C. Keeping splitter and anti-kickback fingers and

guard in place and operating.

D. Not releasing the work before it is pushed all the

way past the saw blade.

E. Not ripping work that is twisted or warped or does

not have a straight edge to guide along the fence.

10. AVOID awkward operations and hand positions

where a sudden slip could cause your hand to move into the cutting tool.

11. A LW A Y S keep hands and fingers away from the

blade.

12. NEVER stand or have any part of your body in line

with the p ath of the saw blade.

13. NEVER reach behind or over the cutting tool with

either hand for any reason.

14. DIRECTION OF FEED. Feed work into blade or cutter

against the direction or rot ation of the blade or cutter only.

15. D O N O T feed the material too fast while cutting. Feed

the material only fast enough so that the blade will cut.

16. NEVER attempt to free a st alled saw blade without

first turning the saw OFF.

17. NEVER st art the saw with the workpiece pressed against the blade.

18. NEVER turn the saw O N before clearing the t able of all object s (tools, scrap s of wood, etc.).

19. A LW AYS STO P the saw before removing scrap pieces from the table.

20. NEVER perform layout, assembly or set-up work on the table while the saw is operating.

21. PROVIDE adequate support to the rear and sides of the saw table for wide or long workpieces.

22. WHEN cutting mouldings, NEVER run the stock be tween the fence and the moulding cutterhead.

23. NEVER use solvents t o clean plastic pa rt s. Solvents could possibly dissolve or otherwise damage the material. Only a soft damp cloth should be used to clean plastic parts.

24. SHOULD any part of your circular saw be missing, damaged, or fail in any way, or any electrical components fail to perform properly, shut off switch and remove plug from power supply outlet. Replace missing, damaged or failed p arts before resuming operation.

25. ADDITIONAL INFORMATION regarding the safe and proper operation of this product is available from the National Safety Council, 1121 Spring Lake Drive, It asca, IL 60143-3201, in the Accident Prevention Manual for Industrial Operations and also in the Safety Data Sheets provided by the NSC. Please also refer to the American National Standards Institute ANSI 01.1 Safety Require ments for Woodworking Machinery and the U.S. Department of Labor OSHA 191 0.213 Regulations.

26. DUST CREATED BY POWER SANDING, SAWING, AND OTHER CONSTRUCTION ACTIVITIES contains chemicals from building materials that are known to cause cancer, and birth defects or other reproductive harm.

Some examples of these chemicals are:

Lead from lead-based pa ints Crystalline Silica from bricks and cement Arsenic and Chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how of ten you do this type of work. To reduce your exposure to these chemicals:

Use wet sanding methods. W ork in a well-ventilated area.

W ork with approved safety equipment. (St andard dust masks D O N O T filter out the harmful microscopic particles of these chemicals.)

S AVE THESE INSTRUCTIONS. Refer to them of ten and use them to instruct others.

FOREWORD

The Platinum Edition 10″ Unisaw is a very powerful machine. The motor is single phase, 3 horse power, 230 volt motor that turns the circular blade at 4000 RPMs.

The Unisaw is a versatile machine, in that it can do precision ripping, cross-cutting, dadoing, moulding and tenoning.

Page 4

U NPACKING AND CLEANING

Carefully unpack the saw and fence system from the shipping containers. Clean all loose p arts and remove the protective coating from the machined surfaces of the saw table. This coating may be removed with a sof t cloth moistened with WD-40

ﬁ

(do not use acetone, gasoline, or lacquer thinner for this purpose). Figures 1, 2, 3, 4, and 5, illustrate the saw and all loose items supplied with the machine.

Fig. 1

Diameter of Arbor

/8″ (16 mm)

Diameter of Blade 10 ″ (254 mm) Blade Speed (with 3450 rpm motor) 4000 rpm

C a p acities:

Maximum depth of cut 3

/8″ (79 mm)

Maximum rip to right of blade

W ith Biesemeyer Commercial Saw Fence System 50″ (1270 mm)

Maximum rip to left o f blade

W ith Biesemeyer Fence 12″ (305 mm)

Maximum thickness of cut at 45” 2

/8″ (54 mm)

Dist ance; front of t able to center of blade 16

/16″ (427 mm)

Table in front of saw blade

At maximum depth of cut 12

/4″ (3 11 mm)

Maximum widt h of dado

/16″ (21 mm)

Table:

Height 34 ″ (864 mm) Size with Extension Win g

And Biesemeyer Table Board 74″ x 27 ″ (1880x686

mm)

T-Slot Miter Gage Groove

/8″ x 3/4″ (10x19 mm)

Overall Dimensions:

Height 36

/4″ (933 mm)

Width with Wings and Guide Bar 45

/8″ (1152 mm)

Width with Win g

And Biesemeyer 50″ Guide Bar 84″ (2134 mm)

Depth 35

/4″ (908 mm)

Depth with Biesemeyer Rip Fence 42″ (1067 mm)

MACHINE DATA

1. Unisaw

2. Switch

3. Motor cover

4. Blade guard and splitter bracket

5. Support rod

8″ Internal tooth washer

7. 5/8-18 Jamb nut

8. Upper bracket for splitter

9. Lower bracket for support rod

10.

16″ l.D. Flat washers (2)

11.

16″ l.D. Lockwashers (3)

Fig. 2

12.

16-18 x 1 ″ Hex head cap screws (4)

13 . Arbor wrenches (2)

14.

4″ and

8″ Hex wrenches

15 . Miter gage 16 . Flat washer for miter gage 17 . Handle for miter gage handle 18 . Cap for miter gage handle 19 . Storage hook for arbor wrenches

20. #10 x

2″ hex washer head screws (10)

21 . Hanger for miter gage

22. Hangers for rip fence (2) 23 . Flat head screw for mounting switch 24 . Flat washer for mounting switch 25 . Hex nut for mounting switch 26 . Gasket for motor cover

27. Cable tie 28 . Latch for motor cover 29 . Square cornered cast iron extension wing (right) 30 . Square cornered cast iron extension wing (lef t) 3 1 . Mounting hardware

Page 5

BIESEMEYER FENCE SYSTEM

NOTE: A common hardware package is used for several different models, therefore you may have leftover hardware.

1 - Rear Rail 2 - Front Rail 3 - Guide Tube 4 - T-Square

ﬁ

Fence Assembly 5 - Cable Strap 6 - Template for aligning front rail to saw t able

for fastening front and rear rails to right extension table 7 - 1

/2″ long flat head Phillip s screws (12)

8 - 1

/4″ O.D. Flat Washers (12)

9 -

/4-20 hex nuts (12)

for fastening rear rail to saw table 10 -

/8-24 x 11/4″ long hex head cap screws (2)

11 -

/8″ O.D. flat washers (2)

12 - Lock washers (2)

Fig. 3

for fastening front rail to saw table 13 -

/8-16 x 11/4″ long flat head Phillip s screws (2)

14 -

/8″ O.D. flat washers (2)

15 - Lock washers (2) 16 -

/8-16 hex nuts (2 )

for fastening guide tube to front rail 17 -

/2 long hex screws (9)

18 - Lock washers (9) leg hardware

19 - Legs (4) 20 -

/8″ long wood screws #8 (16)

21 -

/4-20 x 11/2″ long flat head phillip s screws (8)

22 -

/4″ flat washers (8)

23 -

/4-20 hex nuts (8 )

rear extension table 24 Table board 25 10-32 hex head screw (2) 26 10-32 nut (2) 27 Flat washer (4) 28 Lock washer (2)

Fig. 4

21 22

Fig. 5

Page 6

ASSEMBLY

INSTRUCTIONS

W ARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE SAW TO THE POWER SOURCE UNTIL THE SAW IS COMPLETELY ASSEMBLED AND YOU HAVE READ AND UNDERSTOOD THE ENTIRE OWNER S MANUAL.

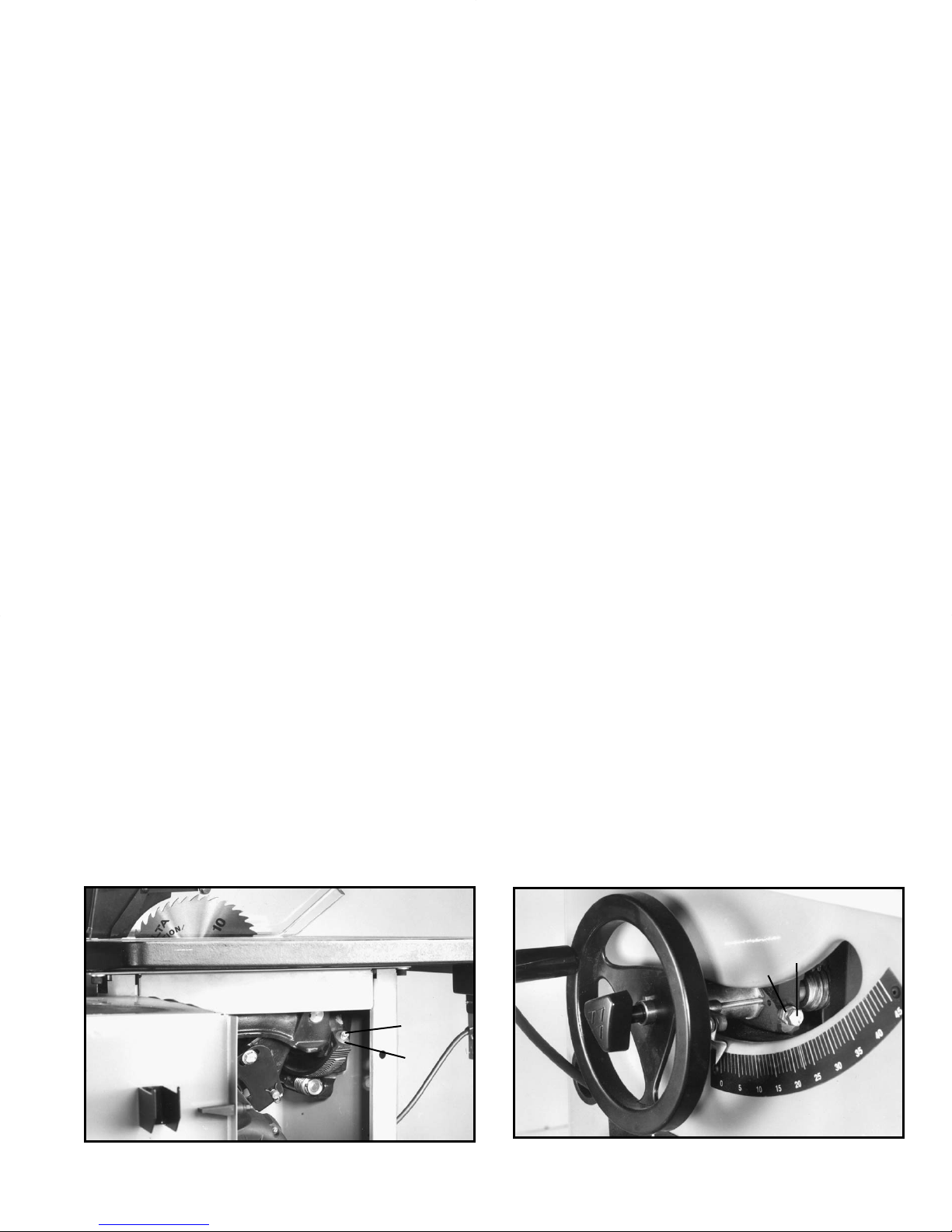

ASSEMBLING BLADE TILTING MECHANISM HANDLE

1.Inst all fiber washer (A) Fig. 6, on the blade tilting mechanism shaft (B). Inst all key (C), into shaf t keyway.

2.Inst all handwheel (D) onto shaft (B) Fig. 6. Make sure the groove (E), in the handwheel lines up with the key (C).

3.Inst all lock knob (F) Fig. 7, into threaded end of the shaft (B). Hand-tighten lock knob at this time.

ASSEMBLING EXTENSION WINGS

Assemble the extension wings (A) Fig. 8 and Fig. 10, to the saw table using the six

/8″-24x11/4″ hex head screws

(B) and washers supplied. Use a straight edge (C) Fig. 9, to make sure the extension wings (A) are level with the saw table before tightening the screws (B) Fig. 8 and Fig.

10. NOTE: When assembling the left extension wing, do not install the lef t front screw and washer at this time, it will be installed when assembling the on/off switch.

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Page 7

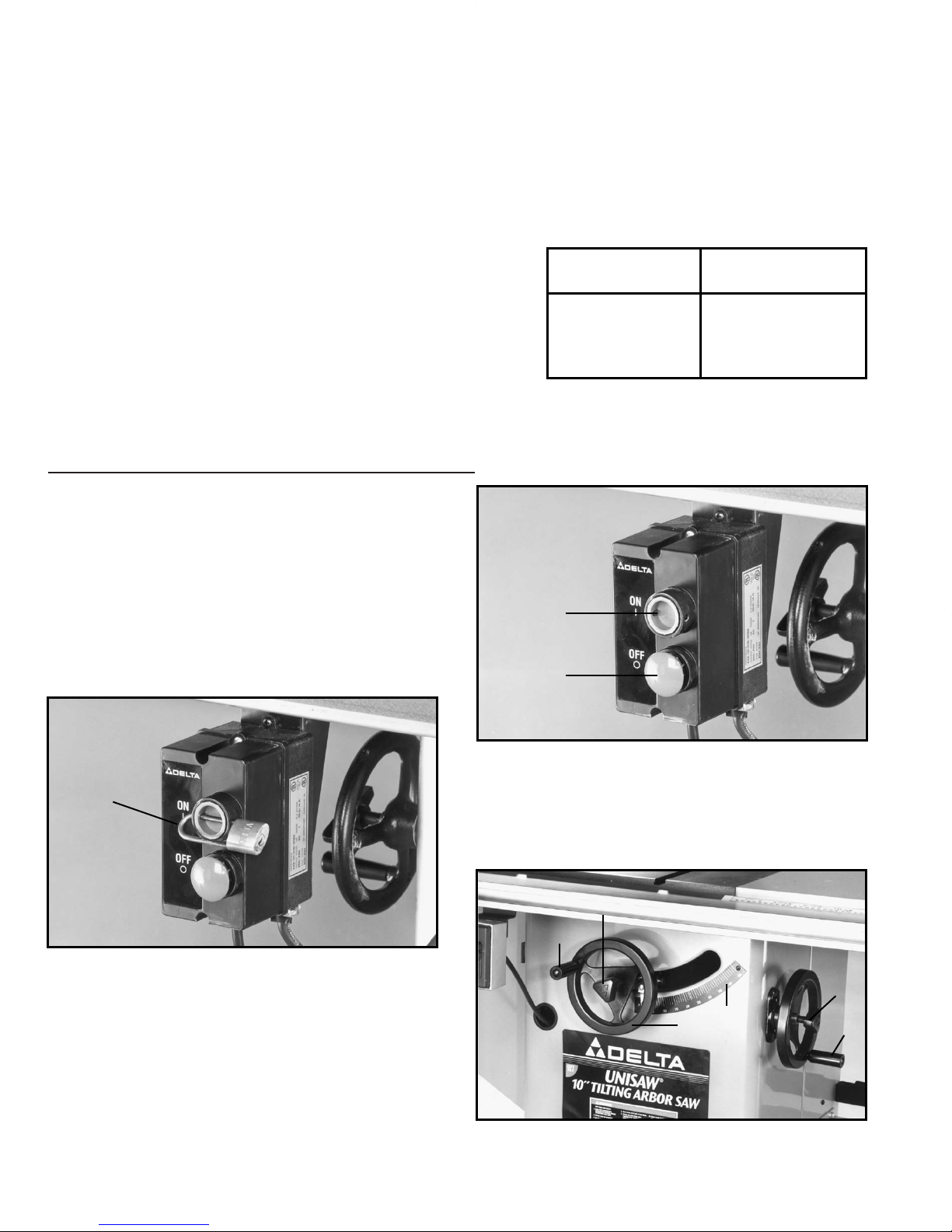

ASSEMBLING ON/OFF SWITCH

1. Loosely assemble switch and switch bracket (A) Fig. 12, to the inside front lip of the lef t extension wing with hex flat head screw (D), flat washer (E), and hex nut (F) through hole (G) Fig. 11 .

2.Att ach the side of switch bracket (A) Fig. 12, to the inside of extension wing at the front of the saw using the

/8″-24x11/4″ screw and flat washer.

3. Tighten screws (C) and (D), Fig. 12, securely.

ASSEMBLING BLADE GUARD AND SPLITTER ASSEMBLY

1. MAKE CERTAIN THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE.

2. Remove the table insert and saw blade from the machine by following instructions under section

REMOVING SAW BLADE.

3. The inside splitter mounting bracket (A) Fig. 13, is assembled to the inside of the saw and aligned at the factory. To check the alignment of the bracket (A) to the inside arbor flange, remove screw and splitter fastener plate (B) Fig. 13.

4. Using a straight edge (C) Fig. 14, check to see if the splitter bracket (A) is aligned with the inside blade flange (D). Check both the top and bottom of bracket (A) with top and bottom of flange (D).

5. If an adjustment is necessary, loosen two screws (F) Fig. 15, and adjust splitter bracket (A) until it is aligned with the blade flange; tighten two screws (F). Loosely reassemble screw and plate removed in STEP 3.

Fig. 11

Fig. 12

Fig. 13

Fig. 14

Fig. 15

Page 8

6. Insert threaded end of support rod (G) Fig. 16, through slot in back of saw and through hole (H) Fig. 16, in rear trunnion. Fasten support rod (G) Fig. 16, to trunnion using star washer and nut (J) Fig. 17. NOTE: Thread nut (J) onto threaded end of support rod as far as possible by hand. Using a wrench to hold nut (J) Fig. 17, tighten rod (G) Fig. 18, using a small screwdriver (K) or similar device through hole in end of rod (G) as shown.

7. Assemble lower bracket (L) Fig. 19, to rod (G) and snug up with 2 one inch-long hex head screws (S) and lockwashers, from underneath bracket (L).

8. Assemble splitter bracket (M) Fig. 20, to lower bracket (L), using one inch-long hex head screw (N), lockwasher and flat washer. Do not fully tighten screw (N) at this time.

9. Fasten splitter and guard assembly (P) Fig. 21, to bracket (M) using one inch-long hex head screw (V) and flat washer.

Fig. 16

Fig. 17

Fig. 18

Fig. 19

Fig. 20

Fig. 21

Page 9

10. Assemble splitter (P) Fig. 22, inside the splitter mounting bracket as shown. Push splitter (P) down as far as possible, making certain bottom edge (T) of splitter (P) is p arallel with t able surface, and tighten screw (B).

11. Reassemble the saw blade (U) Fig. 22.

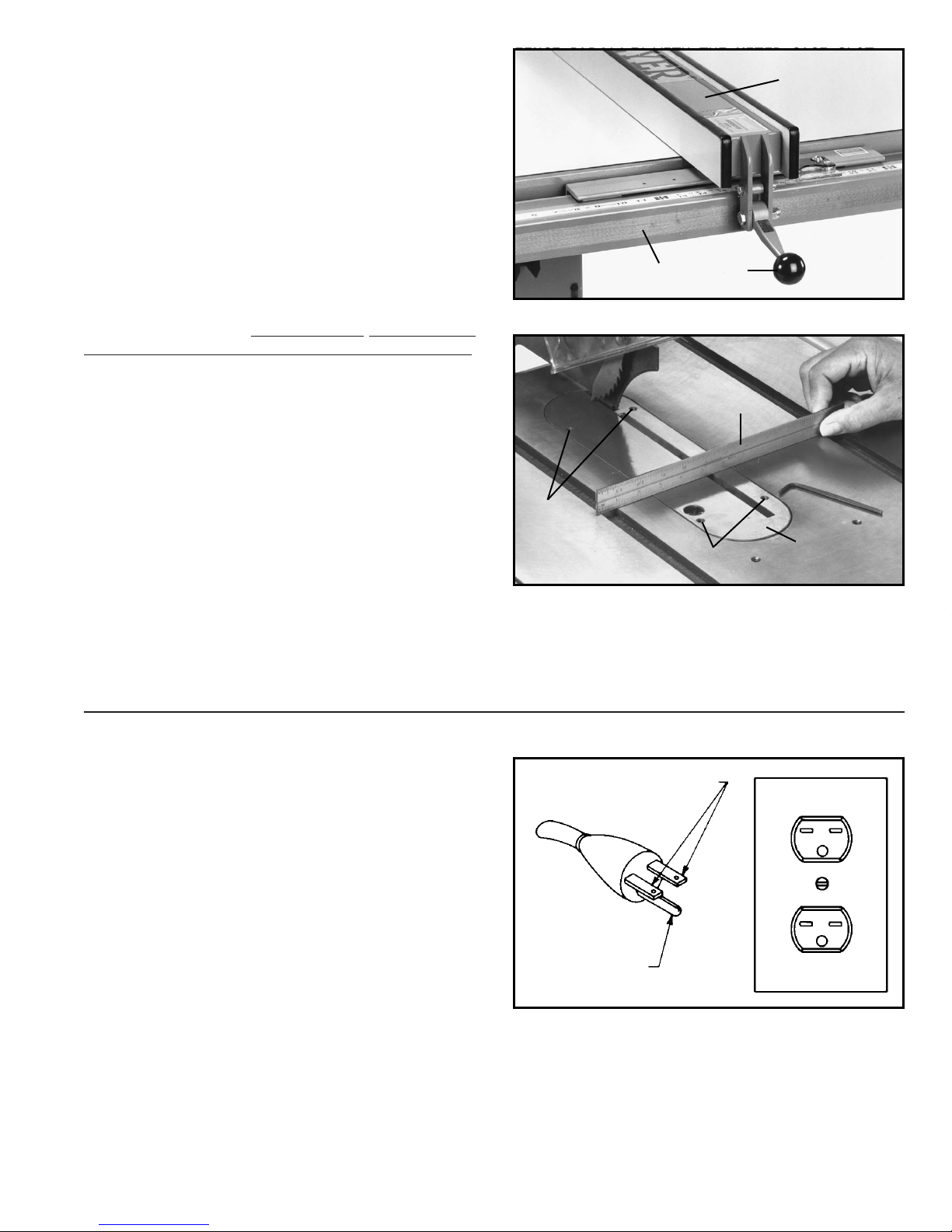

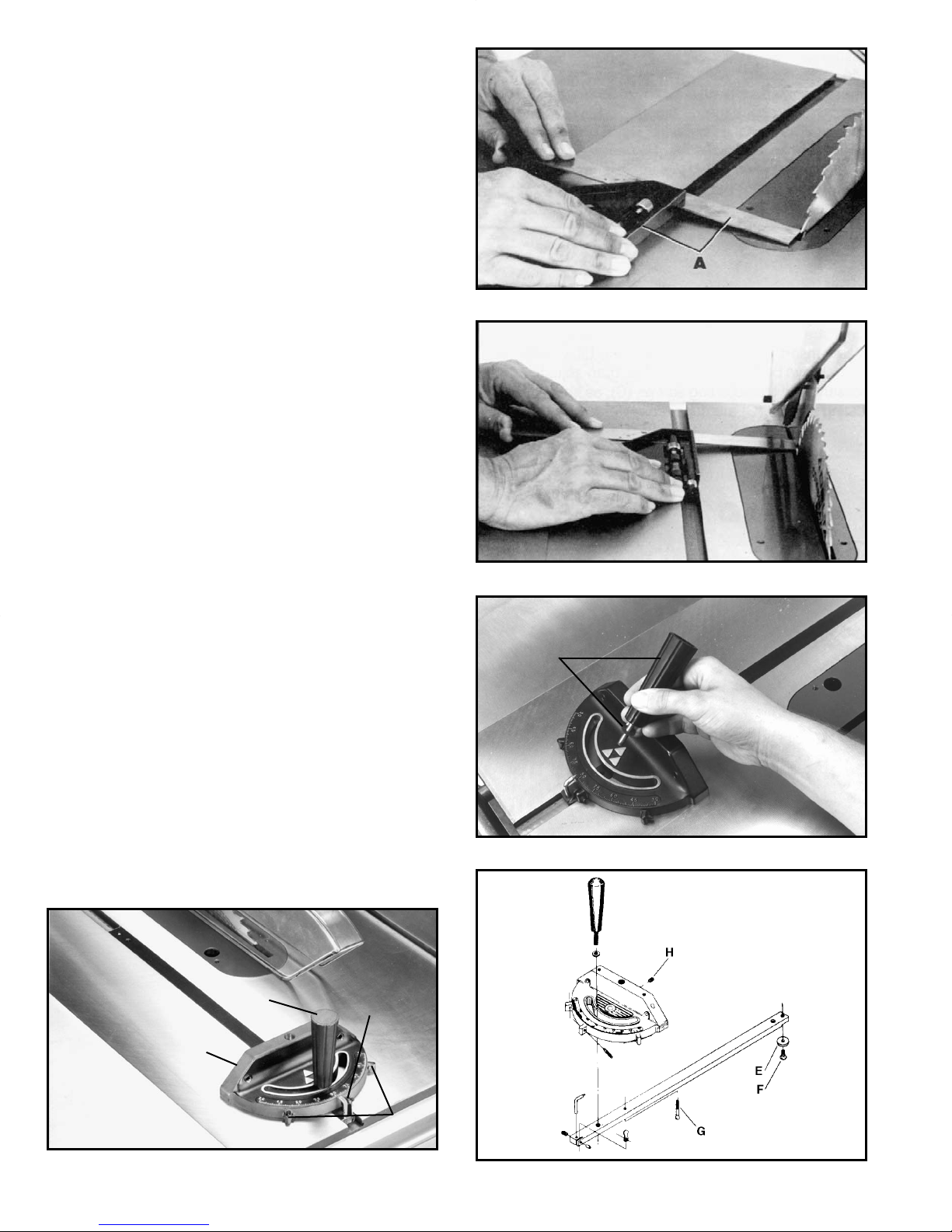

12. Using a straight edge (A) Fig. 23, and square (B) Fig. 24, align splitter (P) with the saw blade and table by moving bracket s (M) and (L) until the splitter (P) is in perfect alignment with the blade and square with the table. After alignment is made, tighten hex head screw (N), and two screws (S) Fig. 24.

13. IMPORTA NT: For cert ain cutting operations such as dadoing and moulding where you are not cutting completely through the workpiece, the blade guard and splitter assembly cannot be used. Loosen screws (B) and (V) Fig. 25. Lif t up and swing blade guard and splitter assembly to the rear of the saw. CAUTION: Always return the blade guard and splitter assembly to it s proper operating position for normal thru-sawing operations.

BIESMEYER FENCE

ASSEMBLY

ASSEMBLING GUIDE RAILS

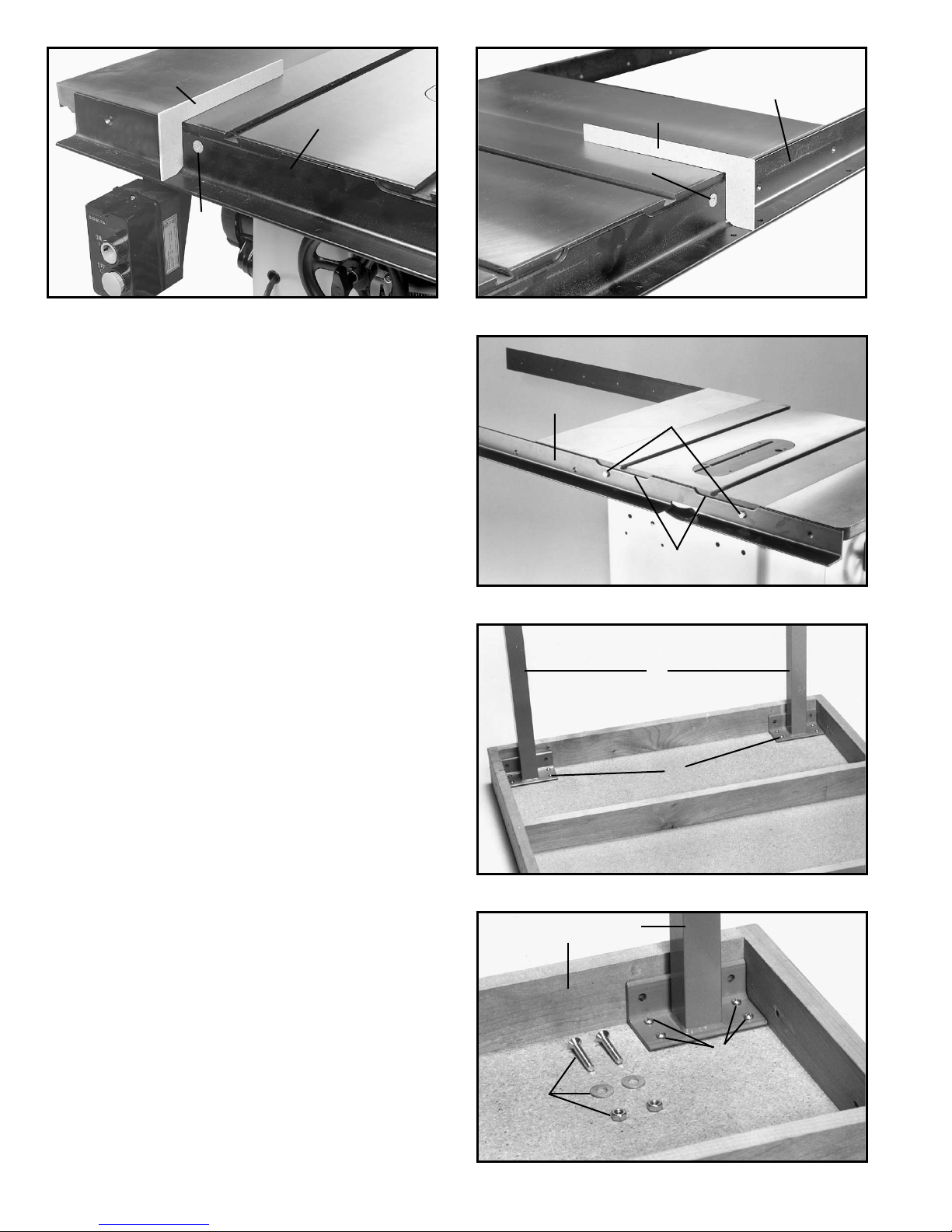

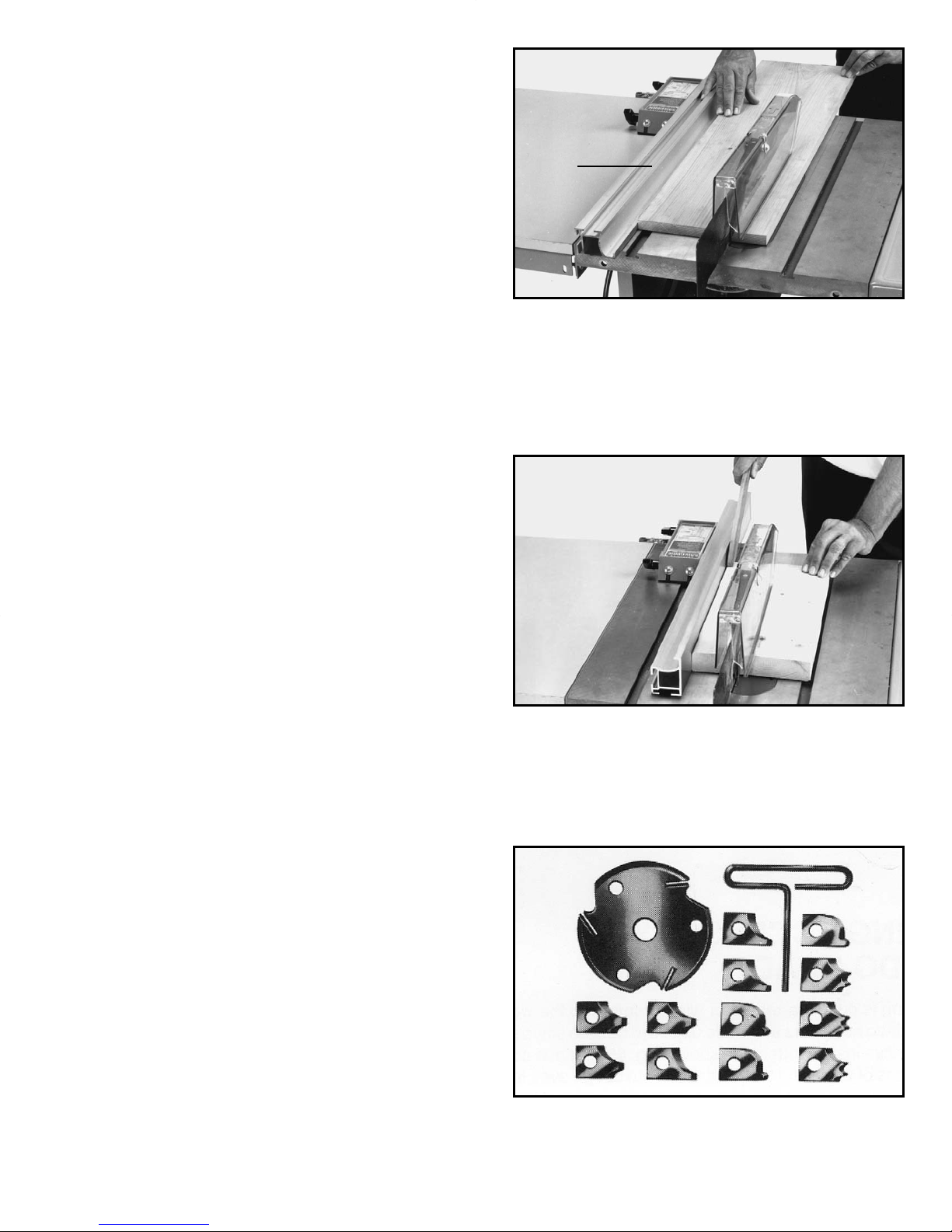

1. Assemble the front rail (A) Fig. 26, to front of saw table using the two

/8-16 x 11/4″ flat head Phillip s screws

(B),

/8″ flat washers, lockwashers and 3/8-16 hex nut s

supplied. Screws (B) are inserted through the two holes in the front rail, as shown in Fig. 26, and through the two through holes in the front of the saw table and fastened to the t able with the flat washers, lockwashers and hex nuts. IMPORTA N T: Do not completely tighten front rail mounting hardware at this time.

Fig. 22

Fig. 23

Fig. 24

Fig. 25

Fig. 26

Page 10

2. Using template (D) Figures 27 and 28, to check and adjust front rail at both ends of the saw t able as shown, to make sure rail (A) is parallel with table surface and tighten rail mounting hardware (B). IMPORTA N T: Template (D) must be on the saw table when checking, not on extension wing.

3. Assemble rear rail (E) Fig. 29, to rear of saw t able using the two

/8-24 x 11/4″ hex head screws (F), 7/8″ O.D.

flat washers, and lockwashers as shown. NOTE: When mounting, the two screws (F) are threaded into the threaded holes in the saw table, as shown.

4. Make cert ain top edge of rail (E) Fig. 29 is below table surface and that top edge of cut-outs (G) are below miter gage slots before tightening screws (F).

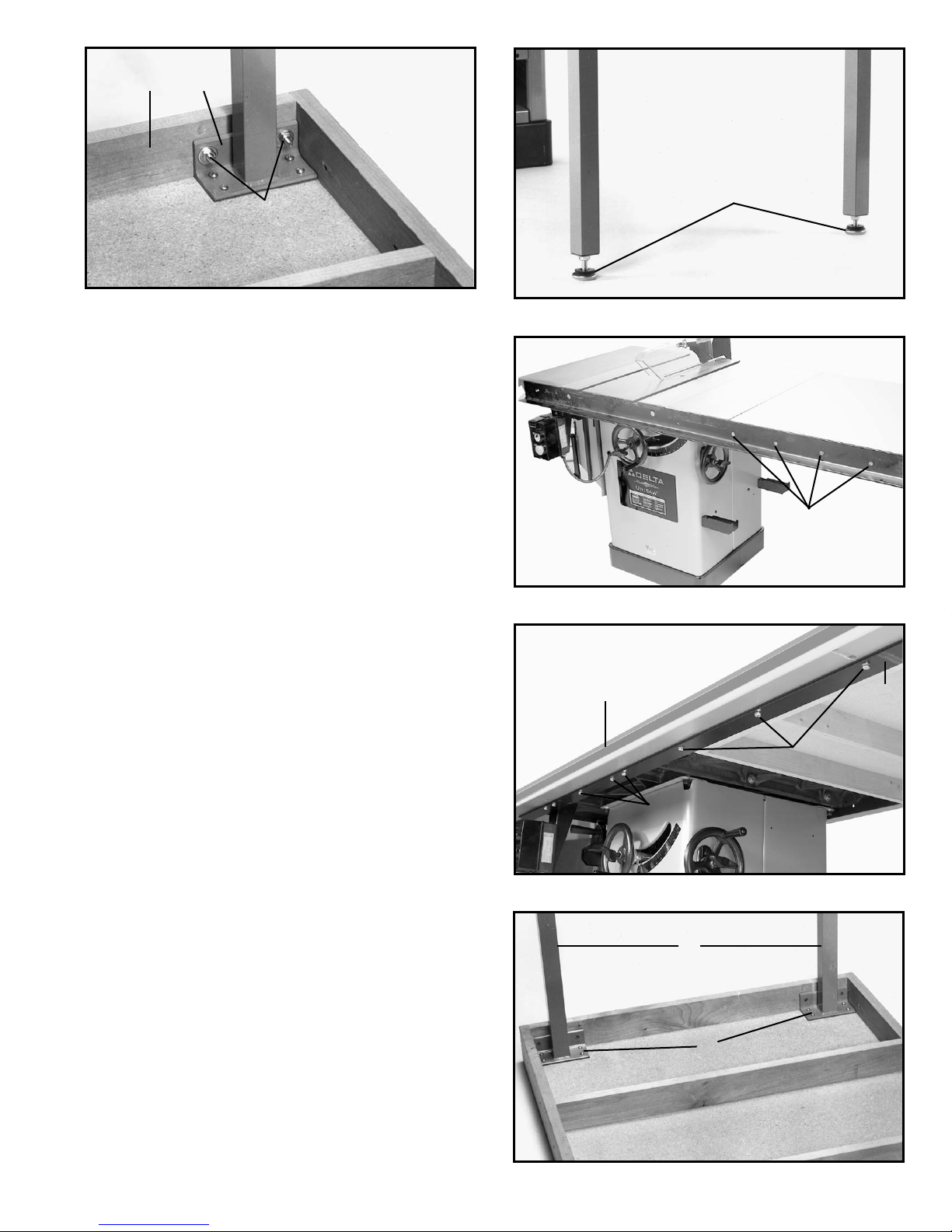

ASSEMBLING TABLE LEGS TO EXTENSION TABLE

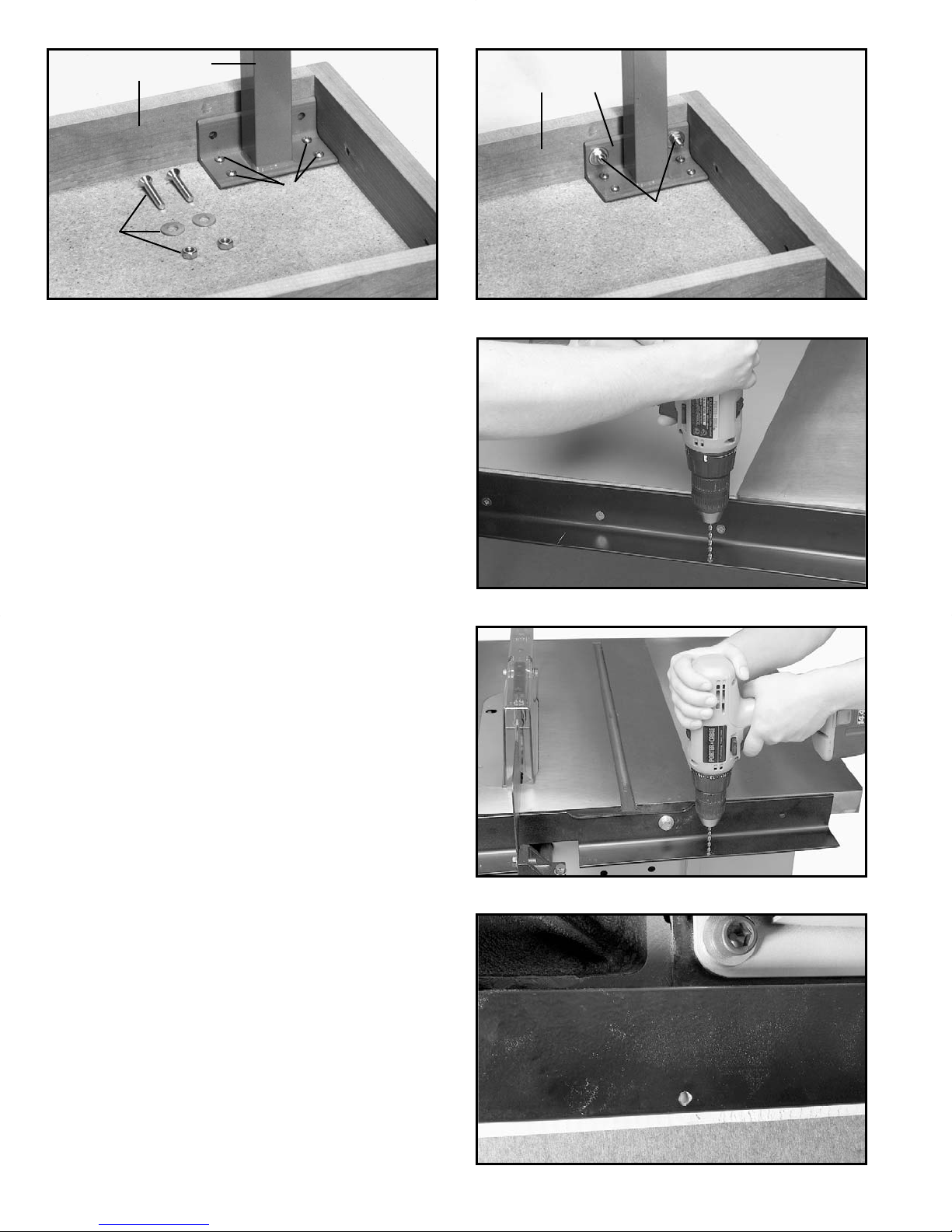

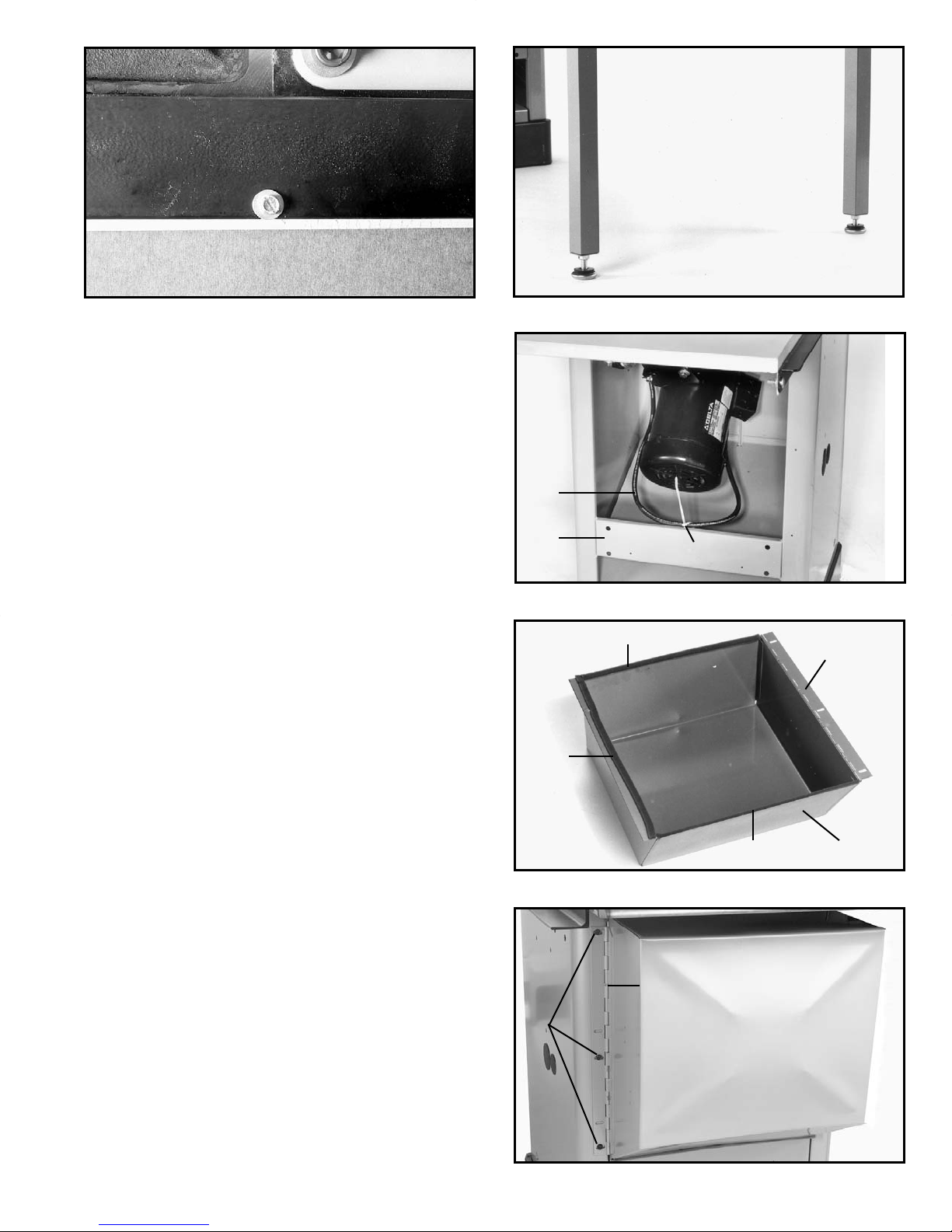

1. Position the two legs (H) Fig. 30, at the two far corners of the inside of one end of the extension table, as shown, and mark the position of the eight holes to be drilled into the bottom of the table. IMPORTANT : If your saw will be used with a mobile base underneath the saw base and table legs, the position of the legs may have to be changed to fit onto the mobile base. Remove the two legs (H) and using a

/16″ drill bit, drill the eight holes

/2″

deep. Replace the two legs and fasten to the bottom of the table using the eight

/4″ wood screws (I) supplied.

2. Figure 31 illustrates one of the legs (H) fastened to the bottom of the extension t able with the four wood screws (I). Using a

/4″ drill bit, drill two through holes

through the end piece (J) of the table, measuring the holes from the outside frame of the table. The holes are to be drilled 1

/4″ from the top (laminate side), and 13/8″ and 4

/8″

from the side.

Fig. 27

Fig. 28

Fig. 29

Fig. 30

Fig. 31

Page 11

3. Fasten the leg bracket (L) Fig. 32, to the end piece (J) of the table using the two 1

/2″ flat head Phillip s screws, flat

washers and hex nut s (M) Figs. 31 and 32. Fasten the remaining leg to the extension table in the same manner.

ASSEMBLING EXTENSION TABLE TO FRONT AND REAR RAILS

1. Place t able assembly (N) Fig. 34, in position between the two rails, as shown. Make sure end of table (N) is flush against extension wing (P). Using a straight edge make sure t able (N) is in the same plane and level with saw table (P). Lightly t ap table up or down and adjust leveling screws (R) Fig. 33, in bottom of legs to accomplish this. When the table (N) Fig. 34 is level and in the same plane with saw table ( P), drill

/4″ through holes (S) Fig. 34 through the

front and rear holes in the guide rail closest to the extension wing. Fasten both front and rear rail to table using the 1

/2″ flat head Phillip s screws, flat washers, and

hex nuts. Using a level make sure table (N) is in the same plane and level with saw table (P). Drill

/4″ through holes

(S) Fig. 34 through the front and rear holes remaining in the guide rail.

2.Af ter the holes have been drilled in the edge of the front and rear extension table board, fasten both front and rear rail to table using the 1

/2″ flat head Phillip s screws, flat

washers, and hex nuts (M) Fig. 31.

ASSEMBLING GUIDE TUBE TO FRONT RAIL

Lay the guide tube (B) on the saw table as shown in Fig. 35, and line up the threaded holes on bottom of guide tube (B) with the through holes (D) on the front rail (A). Fasten the guide tube to the rail using

/2″ hex screws and

lockwashers in all of the holes.

REAR SUPPORT TABLE MOUNTING INSTRUCTIONS

1. Position the two legs (H) Fig. 36, at the two far corners of the inside of one end of the extension table, as shown, and mark the position of the eight holes to be drilled into the bottom of the table. Remove the two legs (H) and using a

/16″ drill bit, drill the eight holes 1/2″ deep. Replace the two

legs and fasten to the bottom of the table using the eight

Fig. 32

Fig. 33

Fig. 34

Fig. 35

Fig. 36

Page 12

/4″ wood screws (I) supplied.

2. Figure 37 illustrates one of the legs (H) fastened to the bottom of the extension table with the four wood screws (I). Using a

/4″ drill bit, drill two through holes through the

end piece (J) of the t able, measuring the holes from the outside frame of the t able. The holes are to be drilled

/4″

from the bottom, and 1

/4″ and 41/4″ from the side.

3. Fasten the leg bracket (L) Fig. 38, to the end piece (J) of t he table using the two 1

/2″ flat head Phillip s screws,

flat washers and hex nuts (M) Figs. 37 and 38. Fasten the remaining leg to the extension table in the same manner.

4. Position the t able onto the rear rail, making sure there is clearance for the miter gage slots and blade guard, and mark the spots to be drilled in the rear rail to attach the rear support table. NOTE: DRILL THE HOLES

″″

FROM

THE EDGE OF THE RAIL, AND 7

″″

FROM EACH EDGE OF THE REAR TABLE SO THAT THERE WILL BE PROPER CLEARANCE FOR ATTACHING THE HARDWARE.

5. Use a

/16″ drill bit to drill the two holes in the rear rail,

approximately 7

/2″ from each corner of the t able board,

Fig. 39 & 40.

6.Af ter the holes are drilled in the rear rail, position the

Fig. 39

Fig. 40

Fig. 41

Fig. 37

Fig. 38

Page 13

table board back onto the rear rail, and drill through the holes in the rear rail through the t able board, Fig. 41.

7. Fasten the rear table board to the rear rail with two 1032 screws, lockwashers, flat washers, and nuts, Fig. 42.

8. Level the t able by adjusting the t able legs in the rear table board, Fig. 43.

FASTENING MOTOR CORD TO SAW FRAME

1. IMPORTA N T: Turn the blade tilting handwheel counterclockwise as far as it will go until the saw blade is in the 45 degree position.

2. IMPORTA N T: Turn the blade raising and lowering handwheel counterclockwise as far as it will go.

3. Fasten motor cord (A) Fig. 44 to the saw frame cross member (B), using the cable tie (C) supplied with the saw. CAUTION: Before tightening the cable tie, make cert ai n that cord (A) is free of any interference from the motor or saw blade at all possible positions of the motor.

Af ter the cable tie is tightened, cut of f excess t ail of cable tie (C) Fig. 44.

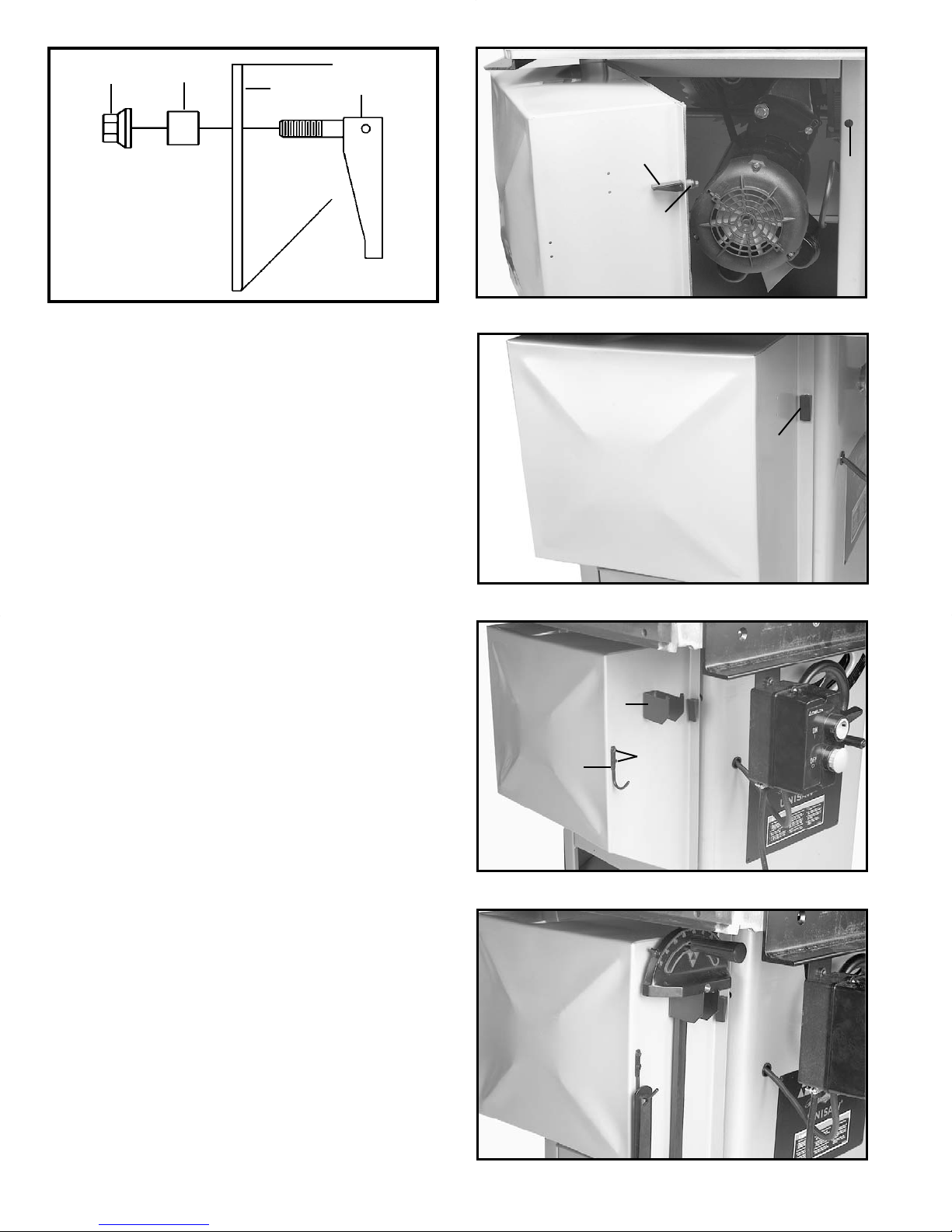

ASSEMBLING MOTO R COVER

1. Measure the three sides of the motor cover, (the sides without the hinges), and cut gasket to fit each side. Remove the protective p aper from the gasket material supplied with the machine and apply gasket (A) Fig. 45, to three sides of the back of the motor cover (B). NOTE: Do not apply gasket to the hinged side (C) of the motor cover (B) Fig. 45.

2. Assemble hinged side (C) Fig. 46, of motor cover (B)

Fig. 42

Fig. 43

Fig. 44

Fig. 45

Fig. 46

Page 14

to the lef t rear of the saw cabinet using three

/2″ sheet

met al screws (D).

3. Insert locking lever (E) Fig. 47, through the hole in the right edge of motor cover (B). Assemble spacer (F) over threads of lever (E), and fasten lever to motor cover with lock nut (G) Fig. 47.

4. W ith locking lever (E) in the raised position, as shown in Fig. 48, swing the free end of motor cover (B) toward the front of the cabinet until end (H) of locking lever fully enters and engages with the pre-drilled hole (J) in the cabinet.

5. While holding motor cover against cabinet, push down on lever (E) Fig. 49, to lock motor cover (B) in position on the saw cabinet.

6. To open motor cover (B) Fig. 49, pull up on lever (E), and swing motor cover outward.

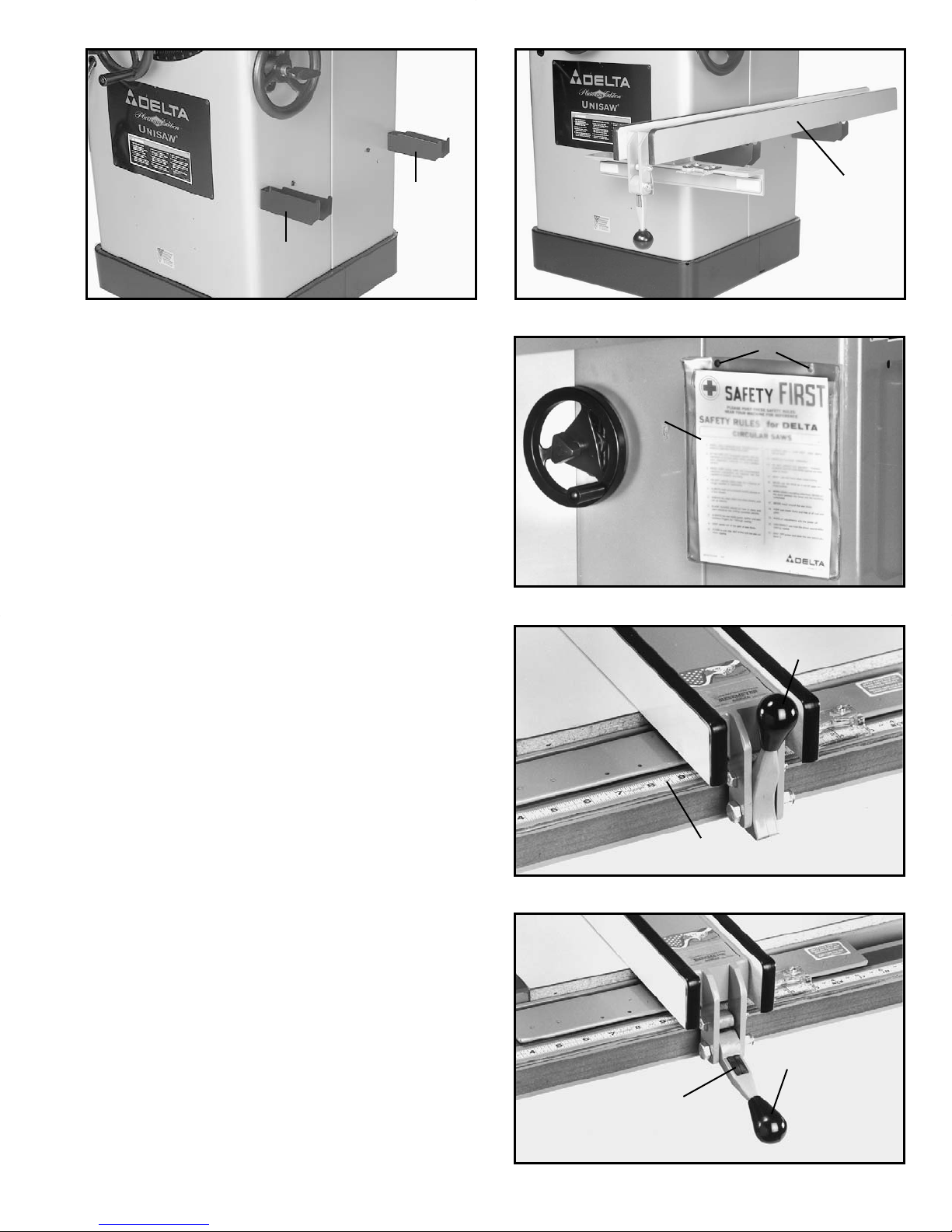

ASSEMBLING MITER GAGE AND WRENCH HOLDER BRACKETS

Assemble the miter gage holder bracket (A) Fig. 50, and wrench holder bracket (B) to the four thru-holes on the front of the motor cover using the four

/2″ sheet met al

screws supplied, two of which are shown at (C).

Fig. 47

Fig. 48

Fig. 49

Fig. 50

Fig. 51

Page 15

Fig. 51, illustrates the miter gage and wrenches stored on the two holder brackets.

ASSEMBLING RIP FENCE HOLDER BRACKETS

Assemble the rip fence holder brackets (A) and (B) Fig. 52, to the four holes located in the right hand side of the saw cabinet using four

/2″ sheet meta l screws supplied.

Figure 53 illustrates the Biesemeyer fence (C), (when not in use), positioned on the two holder brackets.

AT TACHING LITERATURE HOLDER TO SAW CABINET

A literature holder (A) Fig. 54, is supplied with your saw to provide storage and protection for the machine s instruction manual, pa rt s list, etc., so they may be readily available for reference. Two push rivet s (B) are supplied to attach the literature holder to the right side of the saw cabinet, as shown in Fig. 54.

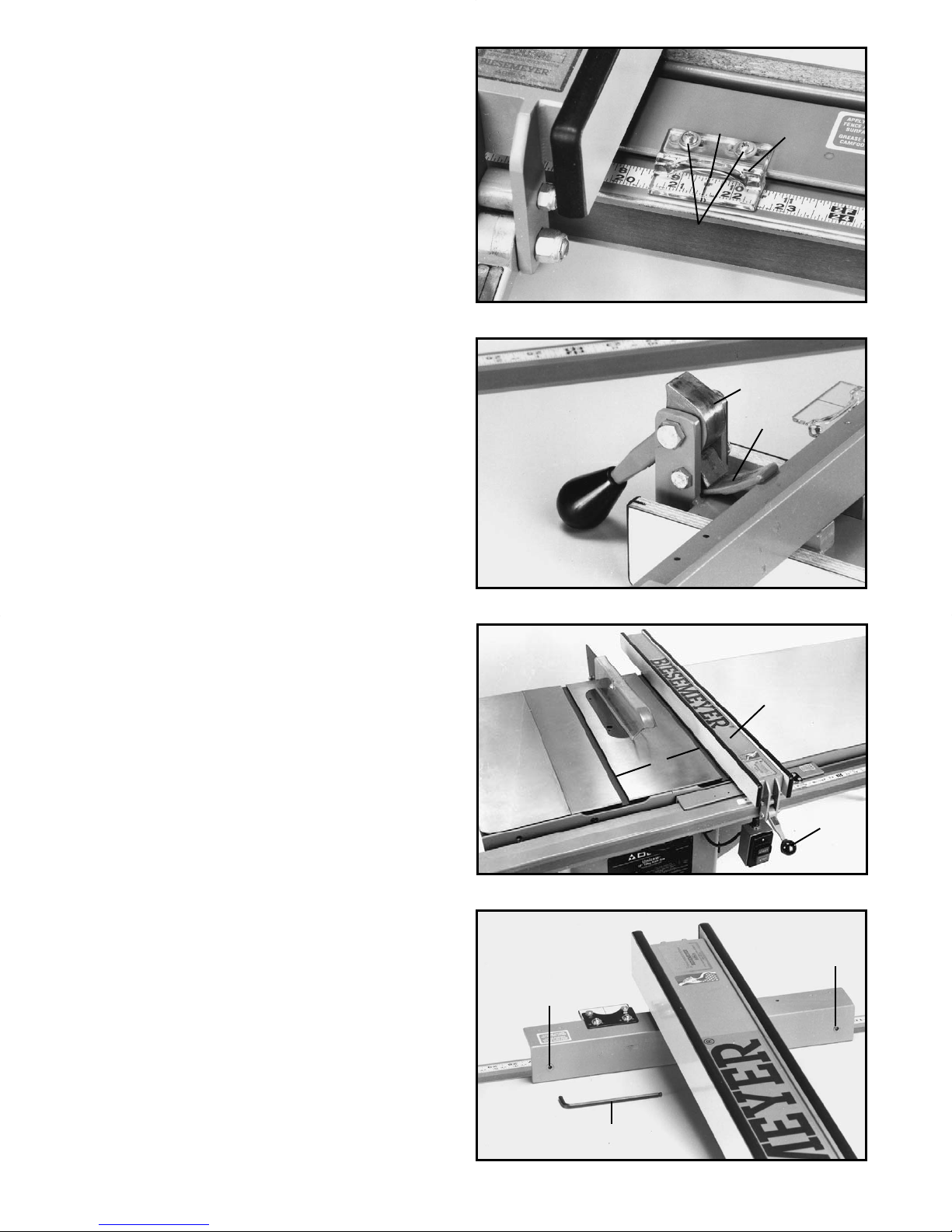

FENCE OPERATION

IMPORTA N T: Before operating fence, make sure the fence is adjusted parallel to the miter gage slot, as explained later on in this manual.

1. To place the fence on the guide rail, lif t up clamp (A) Fig. 55, and place the fence over the rail and gently push fence onto rail (B) Fig. 55.

2. To move the fence along the guide rail, simply lift u p clamp lever (A) as shown in Fig. 55, slide fence to desired position on rail, and push down on clamp lever (A) Fig. 56,

Fig. 52

Fig. 53

Fig. 54

Fig. 55

Fig. 56

Page 16

to lock fence in position. NOTE: A magnet (B) Fig. 56, is provided to hold clamp handle (A) in the up position when moving the fence.

3. The distance the fence is positioned away from the blade is indicated by the witness line (C) Fig. 57, located on the cursor (D). If it is necessary to adjust the cursor (D), make a test cut with the fence locked in position. Measure the width of the finished cut and adjust the cursor (D) by loosening the two screws (E), adjusting the cursor (D) until the witness line (C) is aligned with the same marking on the scale as the finished cut. Then tighten the two screws (E).

FENCE LUBRICATION

1. Apply p aste wax to fence, and guide tube, sliding surfaces weekly.

2. Apply grease to cam lock (A) and cam foot (B) Fig. 58, monthly, to prevent wear.

ADJUSTING FENCE PARALLEL TO MITER GAGE SLOTS

The fence (A) Fig. 59, must be adjusted so it is pa rallel to the miter gage slots (B). To check and adjust, move fence (A) until the bottom edge of the fence is in line with the edge of one of the miter gage slots as shown in Fig. 59, and push down on the fence clamping lever (C). Check to see if the fence (A) is p arallel to the miter gage slot, the entire length of the t able. If an adjustment must be made, lift up fence locking lever (C) and raise fence up off t he guide tube, as shown in Fig. 60. Slightly tighten or loosen one of the two adjusting screws (D) or (E) Fig. 60, using a

/16″ alIen wrench (F), not supplied. Replace the fence on

the guide tube and check again to see if the edge of the fence is p arallel with the miter gage slot the entire length of the slot. Repeat this adjustment until you are sure the fence is p arallel with the miter gage slot.

IMPORTANT: VERY LITTLE MOVEMENT OF

Fig. 57

Fig. 58

Fig. 59

Fig. 60

Page 17

SCREWS (D) AND (E) IS NECESSARY TO ADJUST THE FENCE PARALLEL WITH THE MITER GAGE SLOT.

ADJUSTING CLAMPING ACTION OF FENCE LOCKING HANDLE

When the fence locking handle (A) is pushed to the down position, as shown in Fig. 61, the fence assembly (B) should be completely clamped to the guide tube (C). If the fence assembly (B) is not completely clamped to the guide tube (C) when the handle (A) is pushed down, as shown in Fig. 61, lift up handle (A) and raise fence assembly (B) up off the guide tube (C). Slightly tighten the two adjusting screws (D) and (E) Fig. 60, using the

/16″ allen wrench (F)

(not supplied). When adjusting screws (D) and (E) Fig.

60. the screws should be tightened to an equal amount. Place fence on guide tube and recheck, adjust if necessarry.

IMPORTA N T: AFTER ADJUSTING THE CLAMPING ACTION OF THE FENCE LOCKING HANDLE, CHECK TO SEE IF THE FENCE IS PARALLEL TO THE MITER GAGE SLOT A N D ADJUST IF NECESSARY.

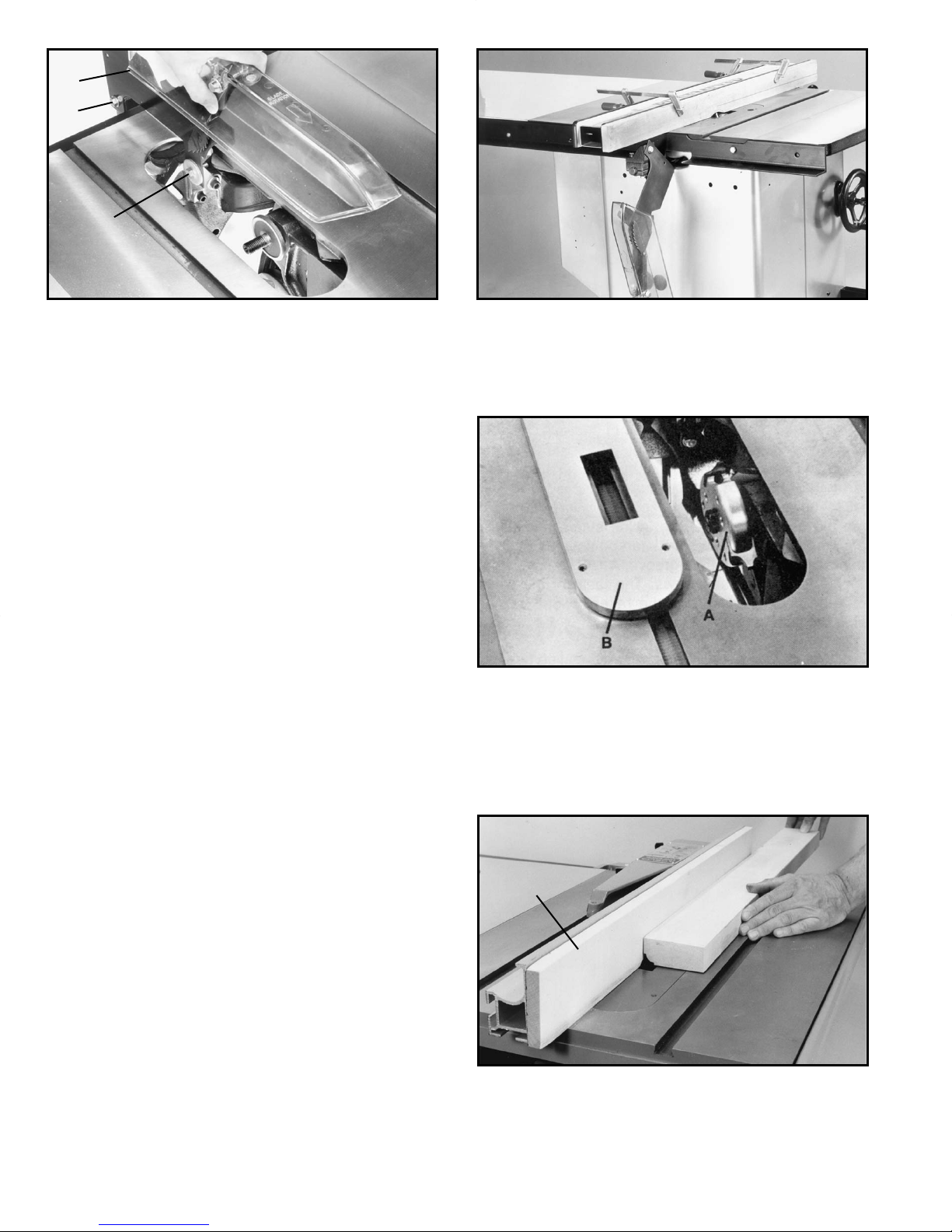

ADJUSTING TABLE INSERT

Place a straight edge (B) across the table at both ends of the table insert as shown in Fig. 62. The table insert (A) should always be level with the table. If an adjustment is necessary, turn the adjusting screws (C), as needed. Four adjusting screws (C) are supplied.

CONNECTING SAW TO POWER SOURCE

GROUNDING INSTRUCTIONS

CAUTION: THIS TO O L MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRIC SHOCK.

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The motor is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified electrician.

Improper connection of the equipment-grounding conductor can result in risk of electric shock. The con ductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If rep air or replacement of the electric cord or plug is necessary, do not connect the equipment grounding conductor to a live terminal.

Fig. 61

Fig. 62

Fig. 63

CURRENT CARRYING PRONGS

GROUNDING PRONG

240

VOLT

Page 18

Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded.

Repair or replace damaged or worn cord immediately.

SINGLE PHASE OPERATION

THREE HORSEPOWER MOTO R S

The motor supplied with the Unisaw is single phase, 3 horsepower, and is designed to be operated from a 220-240 volt power system only.

The single phase motor is intended to be used on a circuit that has an electrical outlet and plug that looks like the one illustrated in Fig. 63. Make cert ain the tool is connected to an outlet having the same configuration as the plug (NEMA L15R). No adapter is available, or should be used with the tool. CAUTION: IN A L L CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERL Y GROUNDED. IF YOU ARE NOT SURE, HAVE A CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE.

If you desire to operate the tool with an extension cord, use a proper extension cord and make certain it is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in l ine v olt age resulting in loss of power and overheating. Fig. 64, shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. T he smaller the gage number, the heavier the cord.

OPERATING CONTROLS

AND ADJUSTMENTS

STARTING AND STOPPING THE SAW

1. To apply power to the machine, push ON button (A) Fig. 65.

2. To stop the machine, push OFF button (B).

LOCKING SWITCH IN THE OFF

POSITION

IMPORTA N T: When the tool is not in use the switch should be locked in the OFF position using a padlock (A) Fig. 66, to prevent unauthorized use of the tool.

BLADE RAISING MECHANISM

The saw blade is raised and lowered with the front handwheel (A) Fig. 67. W ith the exception of hollow

Fig. 65

Total L en gth of Gage of extension

cord in feet cord to use

50 14 A W G

100 12 AW G

Over 100 Not recommended

Fig. 66

Fig. 67

Fig. 64

Page 19

ground blades, the blade should be raised

/8″ to 1/4″ above

the top surface of the material being cut. With hollow ground blades, the blade should be raised the maximum to provide greater clearance. T o raise the saw blade, loosen lock knob (B) Fig. 67, and turn the handwheel (A), clockwise. To lower the saw blade, turn handwheel (A) counterclockwise.

The saw blade is locked at any height by turning the lock knob (B) Fig. 67, clockwise. Due to the wedge action of this locking device, only a small amount of force is required to lock the blade raising mechanism securely. Any added force merely puts unnecessary strain on the locking device.

Limit stop s for raising or lowering are permanently built into the mechanism and need no further adjustment.

BLADE TILTING MECHANISM

The blade tilting mechanism allows the blade to be tilted up to 45 degrees to the left. To tilt the saw blade to an angle, loosen lock knob (D) Fig. 67, and turn handwheel (C) until the pointer (F) indicates the

desired angle of tilt on scale (E). To lock the saw blade at the desired angle, tighten lock knob (D).

IMPORTA N T: ALW AYS LOCK THE BLADE IN POSITION BEFORE APPLYING POWER TO THE SAW .

ADJUSTING 90 AND 45 DEGREE POSITIVE STOP S

Positive stops are provided to quickly and accurately position the blade at 90 and 45 degrees to the table. To check and adjust the positive stops, proceed as follows:

1. DISCONNECT SAW FROM POWER SOURCE.

2. Raise the saw blade all the way to the top and turn the blade tilting handwheel clockwise as far as it will go.

3. Using a combination square, check to see if the blade is 90 degrees to the table.

4. If an adjustment is necessary, turn the blade tilting handwheel counterclockwise one turn.

5. Loosen locknut (A) Fig. 68, and turn adjusting screw (B) counter clockwise, one turn.

6. Turn the blade tilting handwheel until the blade is 90 degrees to the table.

7. Turn adjusting head screw (B) clockwise, until it just contacts the casting on the front trunnion, then tighten locknut (A).

8. Check to see if the tilt indicator pointer point s to the zero mark on the scale. Adjust if necessary.

9. Turn the blade tilting handwheel counterclockwise as far as it will go. Using a combination square, check to see if the blade is at 45 degrees to the table.

10 . If an adjustment is necessary, turn the blade tilting handwheel clockwise one turn, until the adjusting screw (D) Fig. 69, and locknut (C) are in view, in the opening in the front of the saw cabinet, as shown in Fig. 69.

Fig. 68

Fig. 69

Page 20

11. Loosen locknut (C), and turn adjusting screw (D) counter clockwise, on turn.

12. Turn the blade tilting handwheel until the blade is 45 degrees to the table.

13. Turn adjusting head screw (D) clockwise, until it just contacts the casting on the front trunnion, then tighten locknut (C), until it is locked into place.

14. Check to see if the tilt indicator pointer point s to the 45 degree mark on the scale. Adjust if necessary

ADJUSTING TABLE

The saw table has been aligned at the factory so the miter gage slots are p arallel to the saw blade; however, i t i s recommended to check the alignment before initial operation as follows:

1. DISCONNECT THE MACHINE FROM THE POWER SOURCE.

2. Place a combination square (A) Fig. 70, on the table with one edge of the square in the miter gage slot, as shown, and adjust the square so the rule just touches one of the teeth on the saw blade at the forward position, as shown in Fig. 70. Lock the square in this position.

3. Rotate the saw blade so that the same tooth you used in STEP 2 i s in the rear position, as shown in Fig. 71, and check this dist ance. Both the front and rear measurements should be identical.

4. If an adjustment is necessary, loosen the four screws that hold the t able to the saw cabinet.

5. Shif t the t able until a position is found which brings the saw blade in the center of the table insert slot, and parallel to the miter gage slot.

6. T ighten the four screws that were loosened in STEP 4 .

MITER GAGE OPERATION AND ADJUSTMENT

Insert the miter gage bar into the miter gage slot and assemble the washer and lock handle (A) Fig. 72, to the miter gage bar as shown.

The miter gage is equipped with adjustable index stop s at 90 degrees and 45 degrees right and left. Adjustment to the index stops can be made by tightening or loosening the three adjusting screws (B) Fig. 73.

To rotate the miter gage, loosen lock knob (A) Fig. 73, and move the body of the miter gage (C), to the desired angle.

Fig. 70

Fig. 71

Fig. 72

Fig. 73

Fig. 74

Page 21

The miter gage body will stop at 90 degrees and 45 degrees both right and left. To rot ate the miter gage body past these point s, the stop link (D) Fig. 73, must be moved up and out of the way.

The head of the miter gage pivots on a special t apered screw (G) Fig. 74, that fastens the head to the miter gage bar. If the miter gage head does not pivot freely, o r pivot s too freely, it can be adjusted by loosening set screw (H) Fig. 74, and turning the screw (G) in or out. Be certain to tighten screw (H) after adjustment is made.

MAINTENANCE

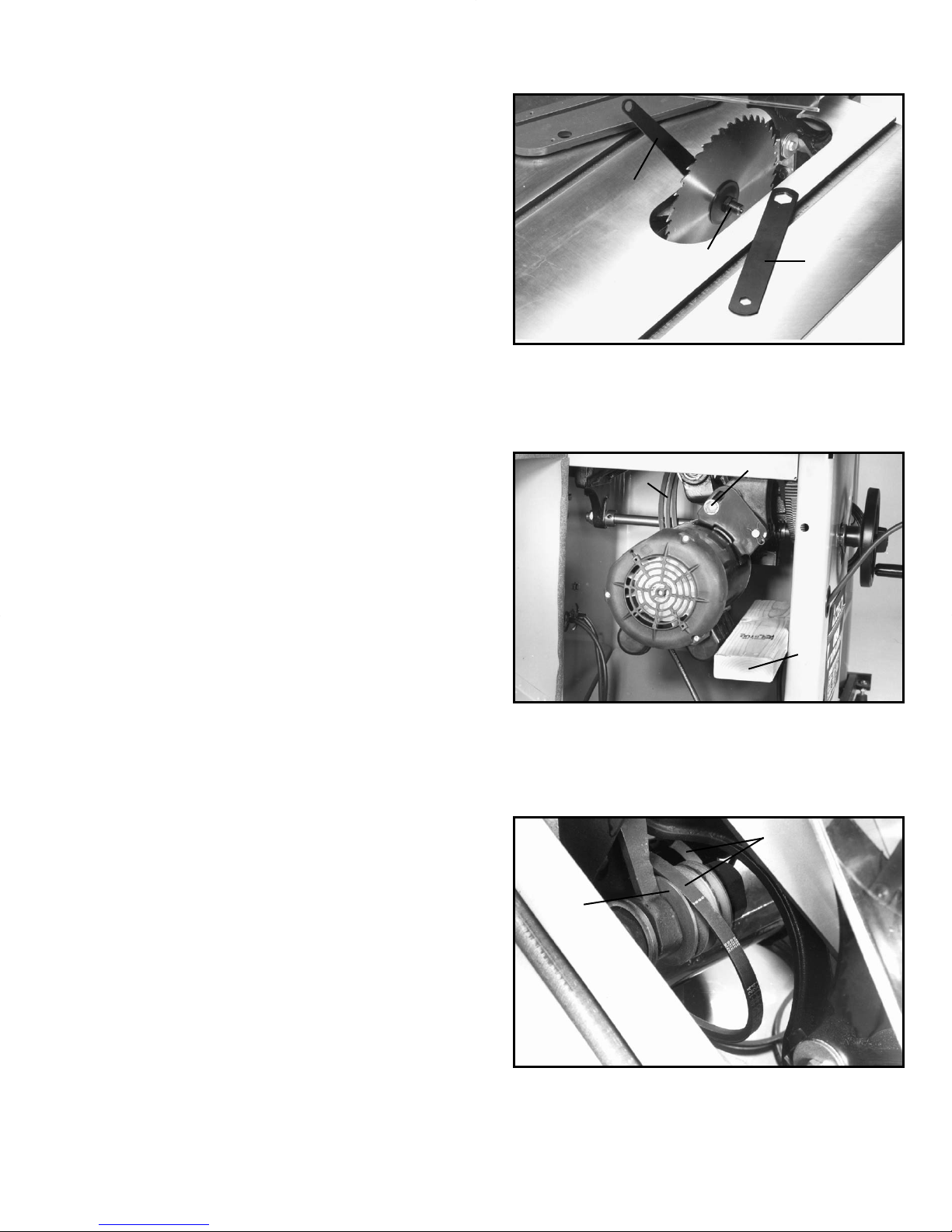

CHANGING THE SAW BLADE

1. MAKE CERTAIN THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE.

2. NOTE: Two wrenches are supplied with the saw for changing the saw blade; a box end wrench and open end wrench.

3. Remove table insert and raise saw blade to it s maximum height.

4. Place the open end wrench (B) Fig. 75, on the flats of the saw arbor to keep the arbor from turning, and using wrench (A), turn the arbor nut (C) counterclockwise. Remove arbor nut, blade flange and saw blade.

5. Assemble the new blade, making certain the teeth are pointing down at the front of the saw table and assemble ou tside blade flange and arbor nut. W ith wrench (B) Fig. 75, on the flat s of the arbor to keep it from turning, tighten arbor nut by turning wrench (A) clockwise.

6. Replace t able insert. NOTE: Use only 10″ saw blades with

/8″ arbor holes,

rated for at least 3450 RPMs.

REPLACING BELTS AND ADJUSTING BELT TENSION

1. DISCONNECT THE MACHINE FROM THE POWER SOURCE.

2. Remove the blade and table insert, (see the section on CHANGING THE SAW BLADE).

3. Open motor cover door to gain access to the motor.

4. Place a block of wood (C) Fig. 76, between the motor and saw cabinet as shown. NOTE: It may be necessary to raise the saw arbor in order to insert the wooden block. Lower the saw arbor until the motor conta c ts the wood.

5. Loosen bolt (D) Fig. 76, and continue to lower the saw arbor until all tension is removed from the belts (E) Fig. 77 and tighten bolt (D) Fig. 76.

6. Raise the saw arbor slightly and remove the block of wood (C) Fig. 76.

7. Lower the saw arbor. Remove the belts (E) Fig. 76, one at a time from the motor pulley.

8. Remove the belts (E) Fig. 77, one at a time from the arbor pulley (F).

9. Assemble the three new belt s, one at a time in the grooves of the arbor pulley (F) Fig. 77, and onto the motor pulley.

10. When the new belts are assembled on the arbor pulley (F) Fig. 77 and the motor pulley, loosen screw (D)

Fig. 75

Fig. 76

Fig. 77

Page 22

Fig. 76, and carefully let the motor rest on the belts.

11. Correct belt tension is when there is approximately

/4″

deflection in the center span of the pulleys, using light finger pressure. After tension is applied, tighten screw (D) Fig. 76.

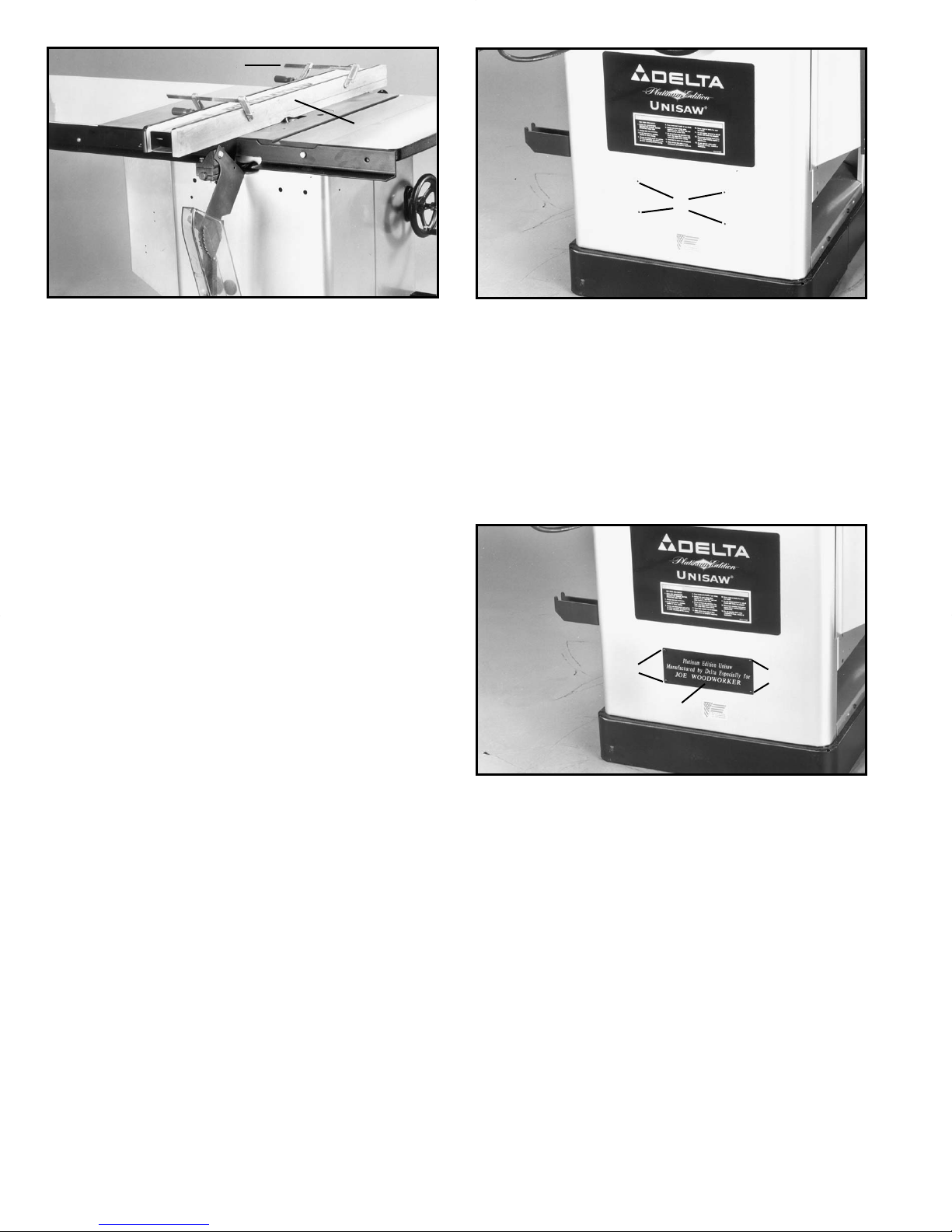

PROTECTING CAST IRON TABLE FROM RUST

To clean and protect cast iron tables from rust, you will need the following materials: A pushblock from a jointer, a sheet of medium Scotch-Brite Blending Hand Pad, a can of WD-40ﬁ, a can of degreaser, a can of TopCoteﬁAerosol. Apply the WD-40ﬁand polish the table surface with the Scotch-Brite pad using the pushblock as a holddown. Degrease the table, then apply the TopCoteﬁ.

OPERATION

Common sawing operations include ripping and crosscutting plus a few other standard operations of a fundament al nature. As with all power tools, there is a cert ain amount of hazard involved with the operation and use of the tool. Using the tool with the respect and caution demanded as far as safety precautions are concerned, will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or completely ignored, personal injury to the operator can result. The following information describes the safe and proper method for performing the most common sawing operations.

NOTE: THE USE OF ATTACHMENTS AND ACCESSORIES NOT RECOMMENDED BY DELTA M AY RESULT IN THE RISK OF INJUR Y TO PERSONS AND/OR DAMAGE TO THE TOOL.

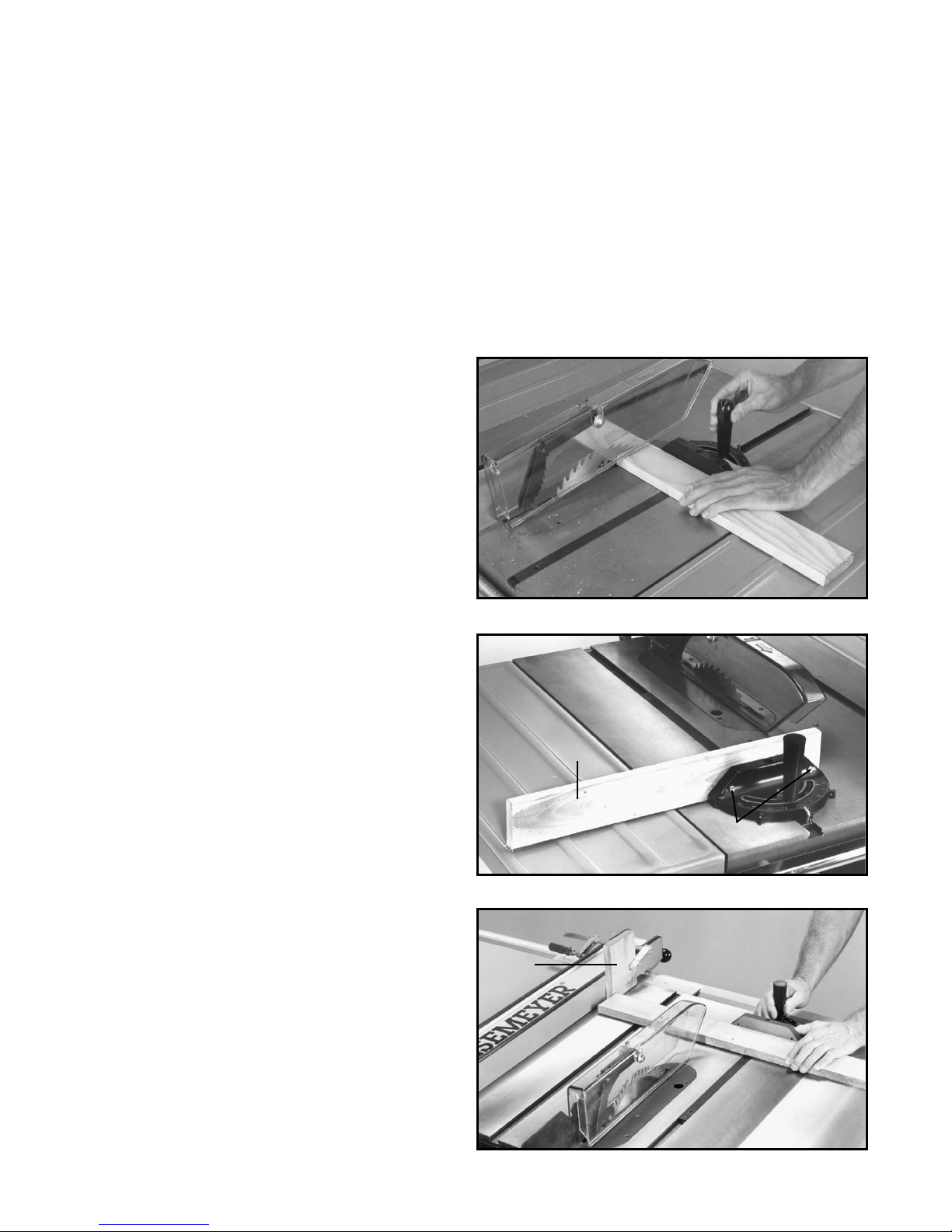

CROSS-CUTTING

Cross-cutting requires the use of the miter gage to position and guide the work. Place the work against the miter gage and advance both the gage and work toward the saw blade, as shown in Fig. 78. The miter gage may be used in either t able slot. When bevel cutting (blade tilted), use the right miter gage slot so that the blade tilt s away from the miter gage and your hands.

Start the cut slowly and hold the work firmly against the miter gage and the table. One of the rules in running a saw is that you never hang onto or touch a free piece of work. Hold the supported piece, not the free piece that is cut off. The feed in cross-cutting continues until the work is cut in two, and the miter gage and work are pulled back to the st arting point. Before pulling the work back, it is good practice to give the work a little sideways shif t to move the work slightly away from the saw blade. Never pick up any short length of free work from the table while the saw is running. A smart operator never touches a cutoff piece unless it is at least a foot long.

For added safety and convenience the miter gage can be fitted with an auxiliary wood-facing (C), as shown in Fig. 79, that should be at least 1 inch higher than the maximum depth of cut, and should extend out 12 inches or more to one side or the other depending on which miter gage slot is being used. This auxiliary wood-facing (C) can be fastened to the front of the miter gage by using two wood screws (A) Fig. 79, through the holes provided in the miter gage body and into the wood-facing.

W ARNING: NEVER USE THE FENCE AS A C UT-OFF GAGE WHEN CROSS-CUTTING.

Fig. 78

Fig. 79

Fig. 80

Page 23

When cross-cutting a number of pieces to the same length, a block of wood (B), can be clamped to the fence and used as a cut-off gage as shown in Fig. 80. It is important that this block of wood always be positioned in front of the saw blade as shown. Once the cut-off length is determined, secure the fence and use the miter gage to feed the work into the cut.

This block of wood allows the cut-off piece to move freely along the t able surface without binding between the fence and the saw blade, thereby lessening the possibility of kickback and injury to the operator.

RIPPING

Ripping is the operation of making a lengthwise cut through a board, as shown in Fig. 81, and the rip fence (A) is used to position and guide the work. One edge of the work rides against the rip fence while the flat side of the board rests on the table. Since the work is pushed along the fence, it must have a straight edge and make solid contact with the table. The saw guard must be used. The guard has anti-kickback fingers to prevent kickback, and a splitter to prevent the wood from closing behind the blade.

Start the motor and advance the work holding it down and against the fence. Never stand in the line of the saw cut when ripping. Hold the work with both hands and push it along the fence and into the saw blade as shown in Fig.

81. The work can then be fed through the saw blade with one or two hands. A f ter the work is beyond the saw blade and anti-kickback fingers, the hand is removed from the work. When this is done the work will either stay on the table, tilt up slightly and be caught by the rear end of the guard or slide off the t able to the floor. Alternately, the feed can continue to the end of the table, after which the work is lifted and brought back along the out side edge of the fence. The cut-of f stock remains on the table and is not touched with the hands until the saw blade is stopped, unless it is a large piece allowing safe removal. When ripping boards longer than three feet, it is recommended that a work support be used at the rear of the saw to keep the workpiece from falling off the saw t able.

If the ripped work is less than 4 inches wide, a push stick should always be used to complete the feed, as shown in Fig. 82. The push stick can easily be made from scrap material as explained in the section CONSTRUCTING A PUSH STICK. When ripping stock 2 inches or narrower, assemble an auxiliary wood facing to the fence, as explained in the section USING AUXILIARY WOOD FACING ON RIP FENCE and use a push stick.

USING ACCESSORY MOULDING CUTTERHEAD

Moulding is cutting a shape on the edge or face of the work. Cutting mouldings with a moulding cutterhead in the circular saw is a fast, safe and clean operation. The many

Fig. 81

Fig. 82

Fig. 83

Page 24

dif ferent knife shapes available make it possible for the operator to produce almost any kind of mouldings, such as various styles of corner moulds, picture frames, t able edges, etc.

The moulding head consists o f a cutterhead in which can be mounted various shapes of steel knives, as shown in Fig. 83. Each of the three knives in a set is fitted into a groove in the cutterhead and securely clamped with a screw. The knife grooves should be kept free of sawdust, which would prevent the cutter from seating properly.

IMPORTA N T: For certain cutting operations such as dadoing and moulding where you are not cutting completely through the workpiece, the blade guard and splitter assembly cannot be used. Loosen screws (G) and (H) Fig. 84. Lif t up and swing blade guard and splitter assembly (W) Fig. 84, to the rear of the saw as shown in Fig. 85. CAUTION: Always return and fasten the blade guard and splitter assembly to its proper operating position for normal thru-sawing operations.

The moulding cutterhead (A) Fig. 86, is assembled to the saw arbor as shown. Also, the accessory moulding cutterhead table insert (B), must be used in place of the st andard table insert.

It is necessary when using the moulding cutterhead to add wood-facing (C) to the face of the rip fence, as shown in Fig. 87. The wood-facing is attached to the fence with two clamps, as shown in Fig. 85. When attaching wood facing to a fence,

inch stock is usually suit able for most work,

although an occasional job may require 1 inch facing.

Position the wood-facing over the cutterhead with the cutterhead below the surface of the table. Turn the saw on and raise the cutterhead. Th e cu tterhead will cut its own groove in the wood-facing. Fig. 87, shows a typical moulding operation. NEVER USE MOULDING CUTTERHEAD IN A BEVEL POSITION.

IMPORTA N T: NEVER RUN THE STO C K BETWEEN THE FENCE AND THE MOULDING CUTTERHEAD AS IRREGULAR SHAPED

Fig. 84

Fig. 85

Fig. 86

Fig. 87

Page 25

WOOD WILL CAUSE KICKBACK.

When moulding end grain, the miter gage is used. The feed should be slowed up at the end of the cut to prevent splintering.

In all cut s, attention should be given the grain, making the cut in the same direction as the grain whenever possible.

A LW AYS INSTALL BLADE GUARD AFTER OPERATION IS COMPETE. USING ACCESSORY DADO HEAD

IMPORTA N T: THE BLADE GUARD AN D SPLITTER ASSEMBLY CANNOT BE USED WHEN DADOING OR MOULDING AND MUST BE REMOVED OR SWUNG TO THE REAR OF THE SAW .

Dadoing is cutting a rabbet or wide groove into the work. Most dado head sets are made up of two outside saws and four or five inside cutters, as shown in Fig. 88. Various combinations of saws and cutters are used to cut grooves from

/8″ to 13/16″ for use in shelving, making joint s,

tenoning, grooving, etc. The cutters are heavily swaged and must be arranged so that this heavy portion falls in the gullet s of the out side saws, as shown in Fig. 89. The saw and cutter overlap is shown in Fig. 90, (A) being the o utside saw, (B) an inside cutter, and (C) a p aper washer or washers which can be used as needed to control the exact width of groove. A

/4″ groove is cut by using the two

outside saws. The teeth of the saws should be positioned so that the raker on one saw is beside the cutting teeth on the other saw.

The dado head set (D) Fig. 91, is assembled to the saw arbor as shown. IMPORTA NT: The blade guard and splitter assembly cannot be used when dadoing and must be removed or swung to the rear of the saw as explained previously in this manual. Auxiliary jigs, fixtures, push

Fig. 88

Fig. 91

Fig. 92

Fig. 89 Fig. 90

Page 26

sticks and feather boards should also be used. Also, the accessory dado head t able insert (E) Fig. 91, must be used in place of the standard table insert.

Fig. 92, shows a typical dado operation using the miter gage as a guide.

W ARNING: NEVER USE THE DADO HEAD IN A BEVEL POSITION.

IMPORTANT: A LW AYS INSTAL L BLADE GUARD AFTER OPERATION IS COMPLETED.

USING AUXILIARY WOOD FACING ON RIP FENCE

It is necessary when performing special operations such as moulding to add wood facing (A) Fig. 93, to one or both sides of the rip fence, as shown. The wood facing is attached to the fence with two clamp s (B).

/4 inch stock is

suit able for most work although an occasional job may require 1 inch facing.

A wood facing should be used when ripping thin material

Fig. 93

Fig. 94

Fig. 95

Page 27

PARTS, SERVICE O R W ARRANTY ASSISTANCE

All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network of Porter-Cable/Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional information regarding your Delta quality product or to obtain p arts, service, warranty assistance, or the location of the nearest service outlet, please call 1-888-848-5175.

Printed in U.S.A.

Two Year Limited Warranty

Delt a will rep air or replace, at it s expense and at its option, any Delt a machine, machine p art, o r machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer notifies his supplying distributor of the alleged defect within two years from the date of delivery to him, of the product and provides Delta Machinery with reasonable opportunity to verify the defect by inspection. Delta Machinery may require that electric motors be returned prep aid to the supplying distributor or authorized service center for inspection and repair or replacement. Delt a Machinery will not be responsible for any asserted defect which has resulted from misuse, abuse or repair or alteration made or specifically authorized by anyone other than an authorized Delt a service facility or represent ative. Under no circumst ances will Delta Machinery be liable for incident al or consequential damages resulting from defective product s. This warranty is Delta Machinery s sole warranty and sets forth the customer s exclusive remedy, with respect to defective products; all other warranties, express or implied, whether of merchant ability , fitness for purpose, or otherwise, are expressly disclaimed by Delta .
