Page 1
INSTRUCTION MANUAL
10" Dual Bevel Compound
Power Miter Saw
(Model 36-085)
PART NO. 901694 - 08-31-01
Copyright © 2001 Delta Machinery
ESPAÑOL: PÁGINA 19
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call
1-800-223-7278 (In Canada call 1-800-463-3582).
Page 2
GENERAL SAFETY RULES
Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, certain
hazards are involved with the operation of the product. Using the machine with respect and caution will considerably lessen
the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards, goggles, dust masks, and hearing protection can reduce the potential for injury, but even the best safety measures, will not make up for poor judgment,
carelessness or inattention. Always use common sense
and exercise caution
in the workshop. If a procedure feels danger-
ous, don’t try it. Select an alternate procedure that is safer. REMEMBER: Your personal safety is your responsibility.
This machine was designed for certain applications only. DO NOT modify and/or use it for any application other than that for
which it was designed. If you have questions relative to a particular application, DO NOT use the machine until you have first
contacted Delta to determine if it can or should be performed on the product.
Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY!
2
1. FOR YOUR OWN SAFETY, READ INSTRUCTION
MANUAL BEFORE OPERATING THE TOOL. Learn the tool’s
application and limitations as well as the specific hazards peculiar to it.
2. KEEP GUARDS IN PLACE and in working order.
3. ALWAYS WEAR EYE PROTECTION.
Wear safety glasses.
Everyday eyeglasses only have impact resistant lenses; they
are not safety glasses. Also use face or dust mask if cutting
operation is dusty. These safety glasses must conform to
ANSI Z87.1 requirements. Note: Approved glasses have Z87
printed or stamped on them.
4. REMOVE ADJUSTING KEYS AND WRENCHES. Form a
habit of checking to see that keys and adjusting wrenches are
removed from tool before turning it “on.
5. KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents.
6. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use
power tools in damp or wet locations, or expose them to rain.
Keep work area well-lighted.
7. KEEP CHILDREN AND VISITORS AWAY. All children and
visitors should be kept a safe distance from work area.
8. MAKE WORKSHOP CHILDPROOF – with padlocks,
master switches, or by removing starter keys.
9. DON’T FORCE TOOL. It will do the job better and be safer
at the rate for which it was designed.
10. USE RIGHT TOOL. Don’t force tool or attachment to do a
job for which it was not designed.
11. WEAR PROPER APPAREL. No loose clothing, gloves,
neckties, rings, bracelets, or other jewelry to get caught in moving parts. Nonslip footwear is recommended. Wear protective
hair covering to contain long hair.
12. SECURE WORK. Use clamps or a vise to hold work when
practical. It’s safer than using your hand and frees both hands
to operate tool.
13. DON’T OVERREACH. Keep proper footing and balance at
all times.
14. MAINTAIN TOOLS IN TOP CONDITION. Keep tools sharp
and clean for best and safest performance. Follow instructions
for lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing and when changing accessories such as blades, bits, cutters, etc.
16. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by Delta may
cause hazards or risk of injury to persons.
17. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure switch is in “OFF” position before plugging in power
cord.
In the event of a power failure, move switch to the
“OFF” position.
18. NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the cutting tool is accidentally contacted.
19. CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be carefully
checked to ensure that it will operate properly and perform its
intended function – check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any
other conditions that may affect its operation. A guard or other
part that is damaged should be properly repaired or replaced.
20. DIRECTION OF FEED. Feed work into a blade or cutter
against the direction of rotation of the blade or cutter only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
POWER OFF. Don’t leave tool until it comes to a complete
stop.
22.
STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE WHEN OPERATING A POWER
TOOL. DO NOT USE TOOL WHILE TIRED OR UNDER
THE INFLUENCE OF DRUGS, ALCOHOL, OR MEDICATION. A moment of inattention while operating power tools
may result in serious personal injury.
23. MAKE SURE TOOL IS DISCONNECTED FROM POWER
SUPPLY while motor is being mounted, connected or re-connected.
24. THE DUST GENERATED by certain woods and wood
products can be injurious to your health. Always operate
machinery in well ventilated areas and provide for proper dust
removal. Use wood dust collection systems whenever possible.
25.
WARNING: SOME DUST CREATED BY
POWER SANDING, SAWING, GRINDING, DRILLING,
AND OTHER CONSTRUCTION ACTIVITIES contains
chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other
masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work
with approved safety equipment, such as those dust masks
that are specially designed to filter out microscopic particles.
Page 3
33
ADDITIONAL SAFETY RULES FOR
MITER SAWS
1. USE ONLY CROSS-CUTTING SAW BLADES. When
using carbide tipped blades, be certain that they have a negative hook angle. Do not use blades with deep gullets. These
can deflect and contact the guard.
2. DO NOT OPERATE the miter saw until it is completely
assembled and installed according to the instructions.
3. IF YOU ARE NOT thoroughly familiar with the operation of compound miter saws, obtain advice from your
supervisor, instructor or other qualified person.
4. DO NOT perform any operation freehand. Secure or
clamp workpiece firmly against fence.
5. KEEP HANDS OUT OF PATH of saw blade. If the
workpiece you are cutting would cause your hand to be
within hazard zone of the saw blade, the workpiece should
be clamped in place before making cut.
6. BE SURE blade is sharp, runs freely and is free of
vibration.
7. ALLOW the motor to come up to full speed before
starting cut.
8. KEEP motor air slots clean and free of chips.
9. ALWAYS MAKE SURE all clamp handles are tight
before cutting, even if the table is positioned in one of the
positive stops.
10. BE SURE blade and flanges are clean and that arbor
screw is tightened securely.
11. USE only blade flanges specified for your saw.
12. NEVER use blades larger or smaller in diameter than
ten inches.
13. NEVER apply lubricants to the blade when it is
running.
14. ALWAYS check the blade for cracks or damage prior
to operating the tool. Replace cracked or damaged blades
immediately.
15. NEVER use blades recommended for operation at less
than 6000 RPM.
16. DO NOT operate the saw without guards in place.
17. ALWAYS keep the lower blade guard in place and
operating properly.
18. NEVER reach around or behind saw blade.
19. MAKE SURE blade is not contacting workpiece before
switch is turned on.
20. NEVER lock the switch in the “ON” position.
21. AFTER COMPLETING CUT, release power switch
and wait for coasting blade to stop before returning saw to
raised position.
22. TURN OFF tool and wait for saw blade to stop before
moving workpiece or changing settings.
23. DO NOT remove jammed or cut-off pieces until blade
has stopped.
24. NEVER cut ferrous metals or masonry.
25. NEVER recut small pieces.
26. PROVIDE adequate support to the sides of the saw
table for long workpieces.
27. NEVER use the miter saw in an area with flammable
liquids or gases.
28. NEVER use solvents to clean plastic parts. Solvents
could possibly dissolve or otherwise damage the material.
Only a soft damp cloth should be used to clean plastic
parts.
29. DISCONNECT power before changing blades or
servicing.
30. DISCONNECT saw from power source and clean the
machine before leaving it.
31. MAKE SURE the work area is clean before leaving the
machine.
32. USING attachments and accessories other than those
recommended by Delta may result in the risk of injuries.
33. MAKE SURE that the stabilizer bar is fully extended
before operating the tool.
34.
IMPORTANT: When the tool is not in use, the
switch should be locked in the “OFF” position to
prevent unauthorized use.
35. IF ANY PART of this tool is missing, damaged, or fails
in any way, or if any electrical component fails to perform
properly, shut off the switch and remove the plug from the
power supply outlet. Replace missing, damaged or failed
parts before resuming operation.
36. ADDITIONAL INFORMATION regarding the safe and
proper operation of this product is available from the
National Safety Council, 1121 Spring Lake Drive, Itasca, IL
60143-3201, in the Accident Prevention Manual for
Industrial Operation and also in the Safety Data Sheets provided by the NSC. Please also refer to the American
National Standard Institute ANSI 01.1 Safety Requirements
for Woodworking Machinery and the U.S. Department of
Labor OSHA 1910.213 Regulations
.
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
Page 4
4
CONNECTING TOOL TO POWER SOURCE
POWER CONNECTIONS
A separate electrical circuit should be used for your tools. This circuit should not be less than #12 wire and should be
protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3prong grounding type plugs and matching receptacle which will accept the tool’s plug. Before connecting the motor to
the power line, make sure the switch is in the “OFF” position and be sure that the electric current is of the same characteristics as indicated on the tool. All line connections should make good contact. Running on low voltage will damage the motor..
WARNING: DO NOT EXPOSE THE TOOL TO RAIN OR OPERATE THE TOOL IN DAMP LOCATIONS.
MOTOR SPECIFICATIONS
Your tool is wired for 120 volt, 60 HZ alternating current. Before connecting the tool to the power source, make sure
the switch is in the “OFF” position. The no-load speed of the motor is 5200 RPM.
GROUNDING INSTRUCTIONS
WARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.

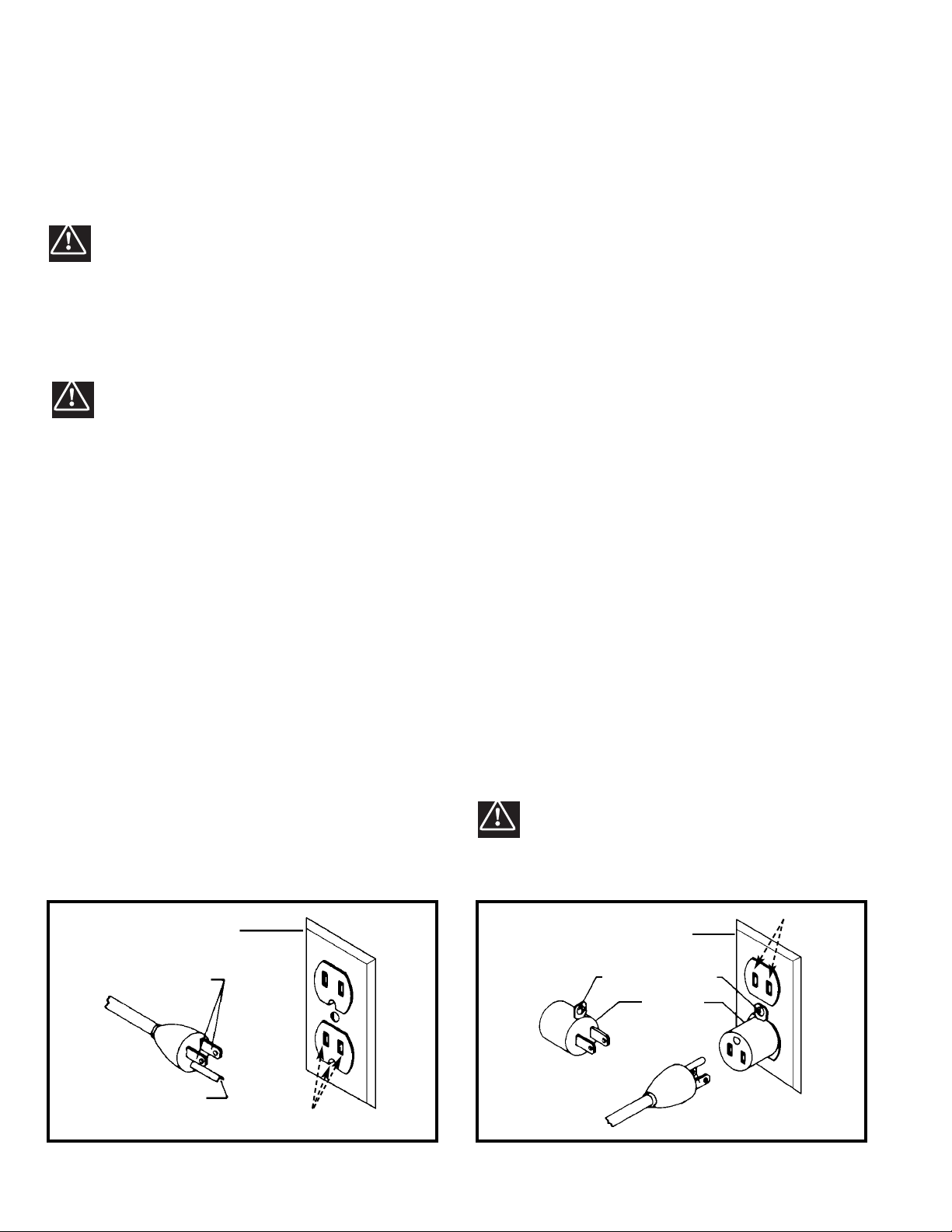

Fig. 1 Fig. 2
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
GROUNDING
MEANS
ADAPTER
2. Grounded, cord-connected tools intended for use on
a supply circuit having a nominal rating less than 150
volts:
If the tool is intended for use on a circuit that has an outlet
that looks like the one illustrated in Fig. 1, the tool will have a
grounding plug that looks like the plug illustrated in Fig. 1. A
temporary adapter, which looks like the adapter illustrated in
Fig. 2, may be used to connect this plug to a matching 2-conductor receptacle as shown in Fig. 2 if a properly grounded
outlet is not available. The temporary adapter should be used
only until a properly grounded outlet can be installed by a
qualified electrician. The green-colored rigid ear, lug, and the
like, extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box.
Whenever the adapter is used, it must be held in place with a
metal screw.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.
NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.
WARNING: IN ALL CASES, MAKE CERTAIN THAT
THE RECEPTACLE IN QUESTION IS PROPERLY
GROUNDED. IF YOU ARE NOT CERTAIN, HAVE A
QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.
1. All grounded, cord-connected tools:
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can result in risk of electric shock. The conductor with
insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If
repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor
to a live terminal.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt as to whether the tool is properly grounded.
Use only 3-wire extension cords that have 3-prong grounding
type plugs and matching 3-conductor receptacles that
accept the tool’s plug, as shown in Fig. 1
Repair or replace damaged or worn cord immediately.
HOLES
HOLES
Page 5
5
Use proper extension cords. Make sure your extension
cord is in good condition and is a 3-wire extension cord
which has a 3-prong grounding type plug and matching
receptacle which will accept the tool’s plug. When using an
extension cord, be sure to use one heavy enough to carry
the current of the tool. An undersized cord will cause a
drop in line voltage, resulting in loss of power and overheating. Fig. 3, shows the correct gauge to use depending
on the cord length. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
EXTENSION CORDS
Fig. 3
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC TOOLS
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120
up to
25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to
25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to
25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to
25 14 AWG
12-16 120 25-50 12 AWG
12-16 120
GREATER THAN 50 FEET NOT RECOMMENDED
OPERATING INSTRUCTIONS
FOREWORD
Delta Model 36-085 is a 10" compound, dual-bevel miter saw designed to cut wood, plastics, and aluminum. This saw
can bevel cut both right and left Compound angle and bevel cutting are both easy and accurate. This saw can crosscut up to 5-3/4" x 2-3/8", miter at 45 degrees both left and right 4-1/8" x 2-3/8", bevel at 45 degrees both left and
right 5-7/8" x 1-9/16”, and compound 45 degrees x 45 degrees, 4-1/8" x 1-9/16". Positive miter stops are located at 0,
22.5, 31.62, and 45 degrees both left and right, and the tool will bevel between 0 and 45 degrees, both left and right.
UNPACKING AND CLEANING
Carefully unpack the tool and all loose items from the shipping container(s). Remove the protective coating from all
unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor
paste wax.
Page 6
6
IMPORTANT: DO NOT LIFT THE MITER SAW BY THE
SWITCH HANDLE. THIS ACTION CAN CAUSE MISALIGNMENT. ALWAYS LIFT THE MACHINE BY THE
BASE OR CARRYING HANDLE.

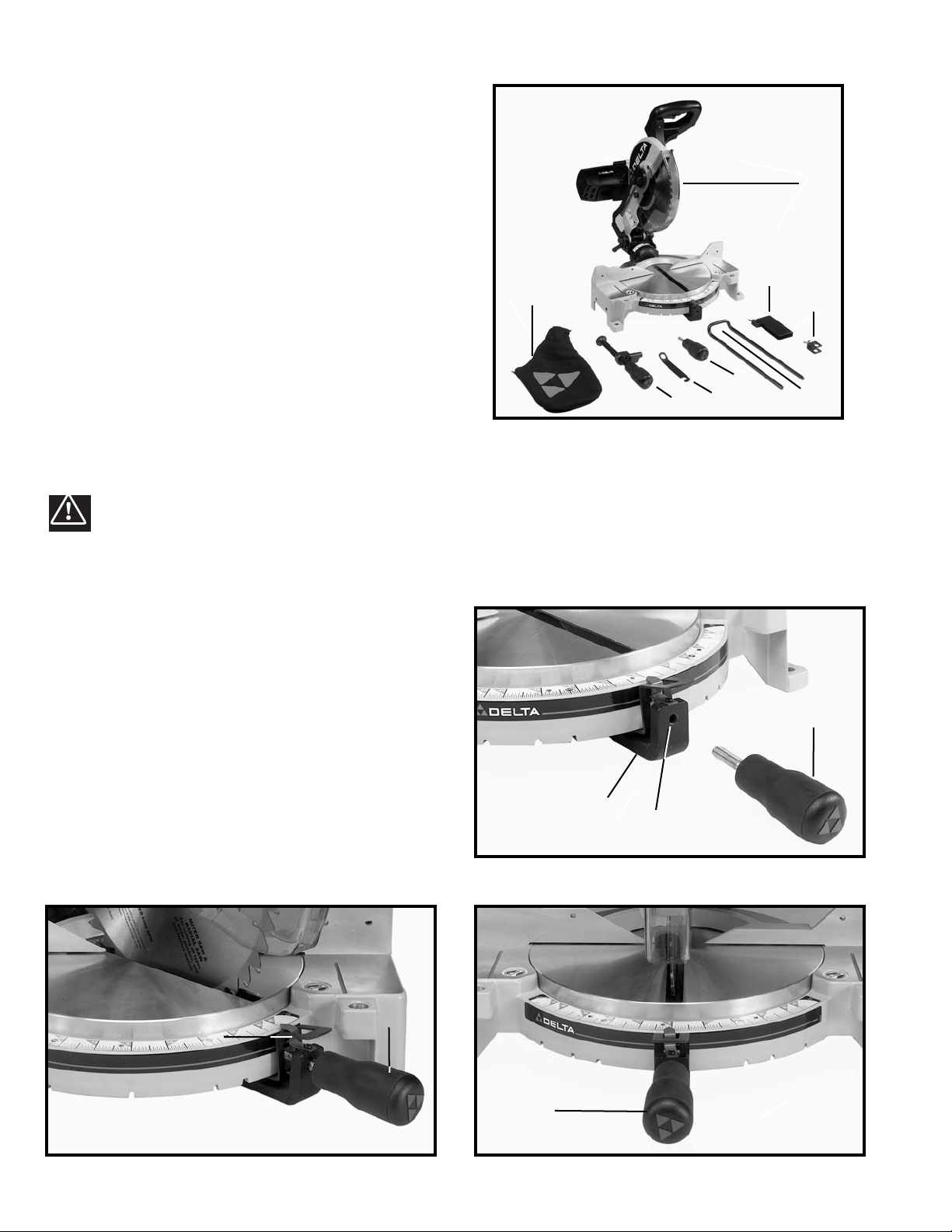

1 - Miter Saw
2 - Dust Bag
3 - Work Clamp
4 - Wrench
Fig. 4
2
4
3
1
ASSEMBLY INSTRUCTIONS
WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE TOOL TO THE POWER SOURCE
UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE
ENTIRE OWNER’S MANUAL.
ATTACHING TABLE LOCK HANDLE
Fig. 5
Fig. 7Fig. 6
1. Thread the table lock handle (A) Fig. 5, into the hole
(B) in the arm bracket (C).
2. Figure 6 illustrates the table lock handle (A) attached
to the saw.
ROTATING TABLE TO
0 DEGREE POSITION
1. Loosen the table lock handle (A) Fig 6 one or two
turns and depress the index lever (B).
2. Rotate the table to the left until the index stop
engages with the 0 degree positive stop (Fig. 7). Tighten
table lock handle (A).
A
B
C
B
A
A
5
6
7
5 - Table Lock Handle
6 - Extension (2)
7 - Stock Stop
8 - Retaining Bracket (2)
8
CARTON CONTENTS
Page 7
7
Fig. 8
Fig. 9
Fig. 10
A
B
B
C
D
E

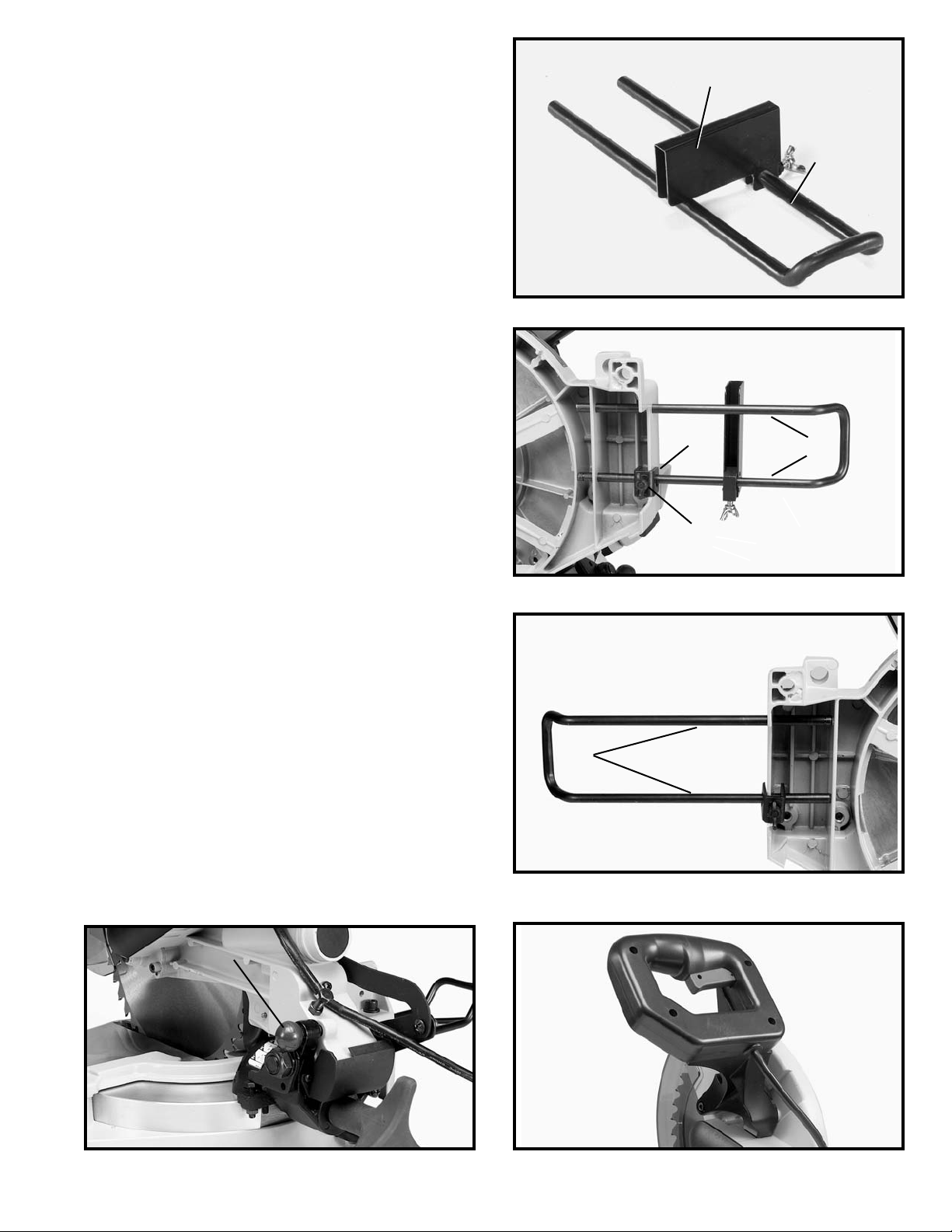

ATTACHING STOCK STOP
AND TABLE EXTENSIONS
1. Decide on which side of the saw table you want the
stock stop (A) Fig. 8, and attach the stock stop (A) on the
table extension (B).
2. Insert the ends of table extension (B) Fig. 9 into the
two holes on the end of the saw base and into the two
holes of retaining bracket (C). Tighten the screw (D) to
hold the table extension in place.
3. Attach the left hand table extension (E) Fig. 10 in the
same manner.
Fig. 11 Fig. 12
MOVING CUTTINGHEAD TO
THE UP POSITION
1. Push down on the switch handle, and pull out the
cuttinghead lock knob (B) Fig. 11.
2. Move the cutting head to the up position (Fig. 12).
B
Page 8
8

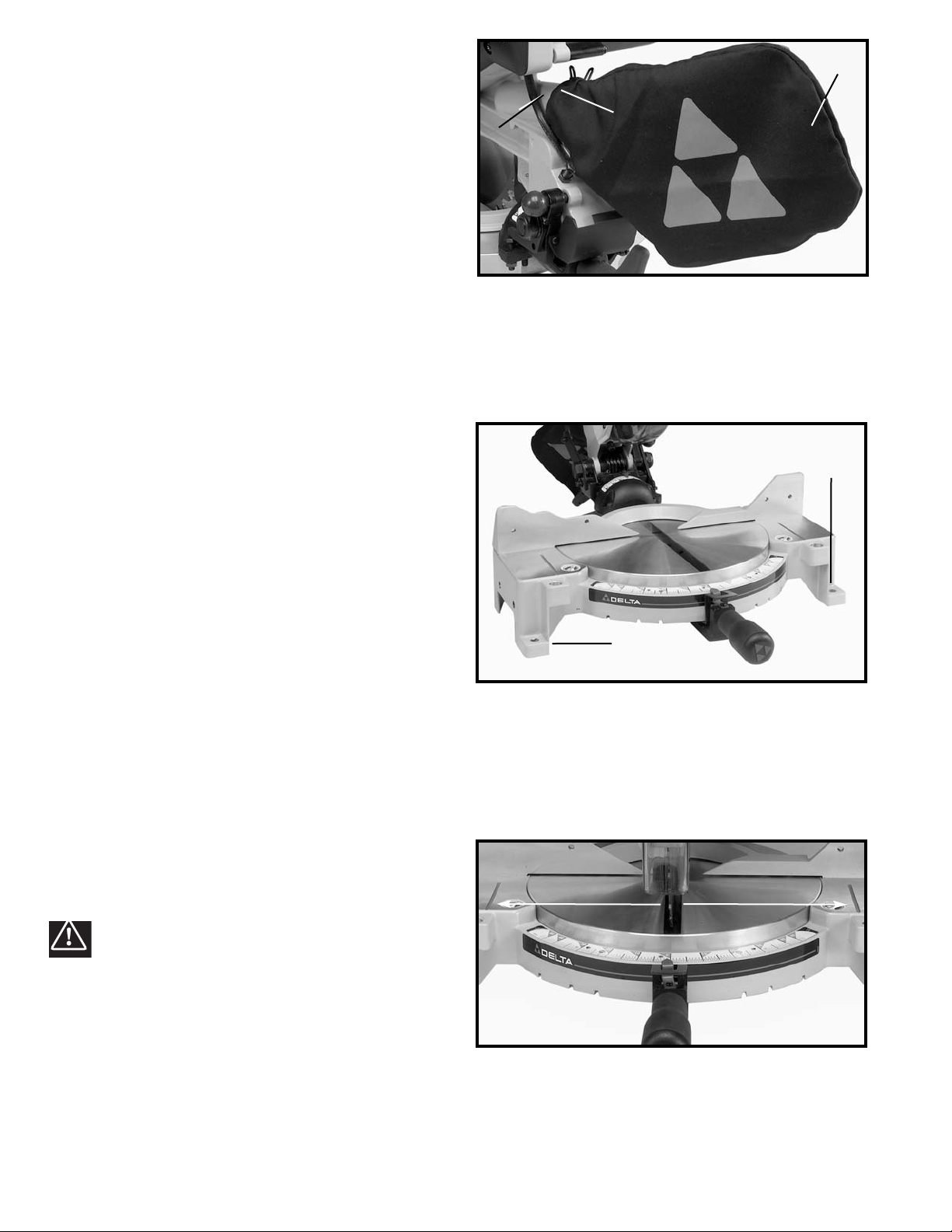

OPERATING CONTROLS AND ADJUSTMENTS
TABLE HAZARD AREA
WARNING: THE AREA INSIDE THE TWO RED
LINES (A) FIG. 15 ON THE TABLE IS DESIGNATED
AS A HAZARD ZONE. NEVER PLACE YOUR
HANDS INSIDE THIS AREA WHILE OPERATING
THE TOOL.
Fig. 15
A
Fig. 13
FASTENING MACHINE TO SUPPORTING SURFACE
Fig. 14
ATTACHING
DUST BAG
1. Attach the dust bag (A) Fig. 13, to the dust spout
(B). Be certain that the wire ring (C) is engaged in the
spout groove.
Before operating this tool, firmly mount it to a sturdy
workbench or other supporting surface. Four holes are
provided, two of which are shown at (A) Fig. 14, for this
purpose.
If the tool is to be moved frequently, mount it to a 3/4″
piece of plywood. Clamp the plywood to a supporting
surface using “C” clamps.
A
C
B
A
A
Page 9
9
Fig. 17
Fig. 16

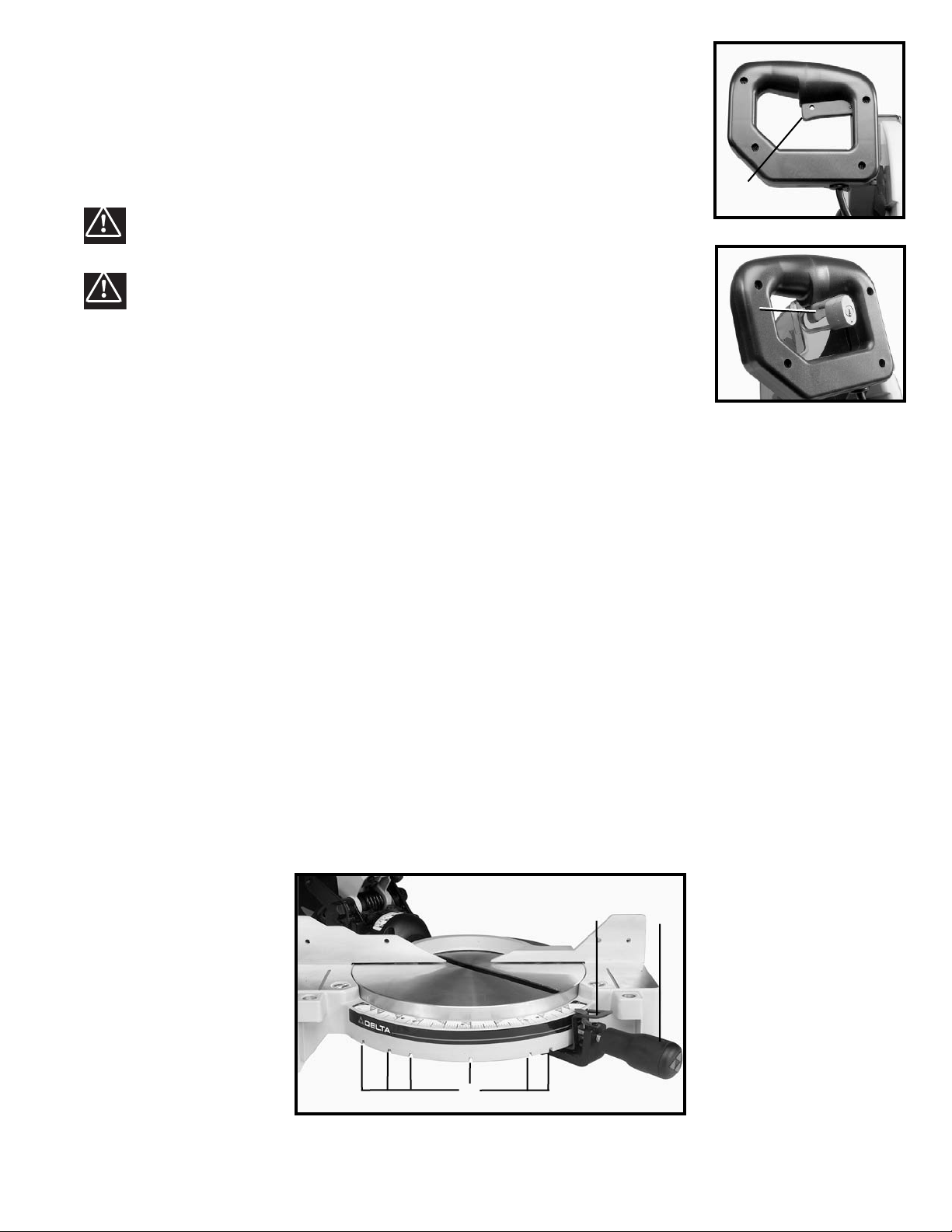

STARTING AND STOPPING THE MACHINE
To start the machine, squeeze the trigger (A) Fig. 16. To stop the machine, release the
trigger.
This miter saw is equipped with an automatic electric blade brake. As soon as the
trigger (A) Fig. 16, is released, the electric brake will be activated and will stop the blade
in seconds.
WARNING: A TURNING SAW BLADE CAN BE HAZARDOUS. AFTER COMPLETING THE
CUT, RELEASE THE TRIGGER (A) FIG. 16 TO ACTIVATE THE BLADE BRAKE. KEEP THE
CUTTINGHEAD DOWN UNTIL THE BLADE HAS COME TO A COMPLETE STOP
.
WARNING: THE TORQUE DEVELOPED DURING BRAKING MAY LOOSEN THE
ARBOR SCREW THAT HOLDS THE BLADE. CHECK THIS ARBOR SCREW OFTEN.
CAUTION: Prior to each operation, clean the blade area and underneath the table for
chips and other debris. Such items can cause kickbacks and personal injury. Be certain
that the machine is unplugged before making this inspection.
LOCKING SWITCH IN THE “OFF” POSITION
IMPORTANT: When the tool is not in use, the switch should be locked in the
“OFF” position, using a padlock (B) Fig. 17 with a 3/16" diameter shackle to
prevent unauthorized use of the saw.
B
A
Fig. 18
B
A
C
ROTATING TABLE FOR MITER CUTTING
The miter saw will cut any angle from a straight 0 degree cut to 47 degrees right and left. Loosen the lock handle (A)
Fig. 18 one or two turns. Depress the index lever (B), and move the control arm. Tighten the lock handle at the desired
angle.
This tool is equipped with positive stops at the 0, 22.5, 31.62, and 45 degree right and left positions. Simply loosen
lock handle (A) Fig. 18, and move the control arm until the bottom of the index lever (B) engages into one of the
positive stops (C). Tighten the lock handle (A). To disengage the positive stop, depress index lever (B) and move the
handle.
The 31.62 positive stops aid in the cutting of crown molding. Refer to the “CUTTING CROWN MOLDING” section of
this manual.
IMPORTANT: ALWAYS TIGHTEN LOCK HANDLE (A) FIG. 18 BEFORE CUTTING.
Page 10
10

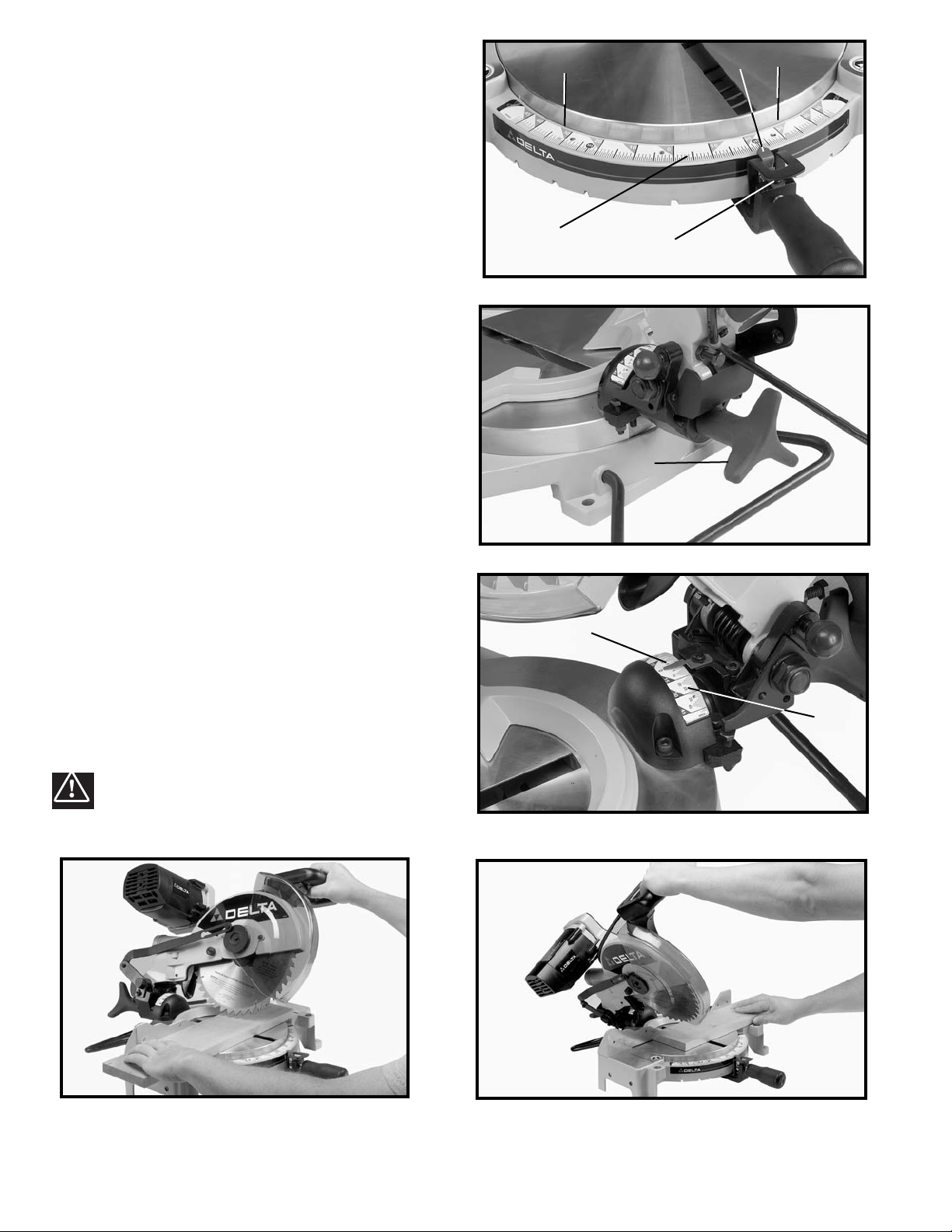

POINTER AND SCALE
A pointer (B) Fig. 19 indicates the actual angle of cut. Each
line on the scale (C) represents 1 degree. When the pointer
is rotated from one line to the next on the scale, the angle of
cut is changed by 1 degree.
ADJUSTING POINTER
To adjust, loosen screw (D) Fig. 19, adjust the pointer, and
tighten the screw (D).
A
Fig. 20
TILTING CUTTINGHEAD FOR
BEVEL CUTTING
The cuttinghead of the saw can be tilted to cut any bevel
angle from 0 degrees to 45 degrees, left or right. Loosen the
bevel lock handle (A) Fig. 20, tilt the cutting arm to the
desired angle, and tighten the lock handle.
Positive stops are provided to rapidly position the saw
blade at 0 and 45 degrees to the table. Refer to the section
of this manual titled “ADJUSTING 0 AND 45 DEGREE
BEVEL STOPS.” The bevel angle of the cutting arm is
determined by the position of the pointer (A) Fig. 21, on the
scale (B). NOTE: Engage the 0 degree positive stop when
making all cuts other than bevel cuts.
A triangle indicator is also provided on the bevel scale at the
33.85 degree bevel angle for cutting crown moulding. Refer
to the “CUTTING CROWN MOLDING” section of this
manual.
A
B
Fig. 21
Fig. 19
A
D
A
B
C
Fig. 21A
Fig. 21B
IMPORTANT: See figs. 21A and 21B for correct hand
position when bevel cutting. Be certain to always keep
the hands outside of the table hazard area marked in red
on the table. (See “Table Hazard Area” in “OPERATING
CONTROLS AND ADJUSTMENTS” in this manual.
\Warning: Never cross the arms to bevel cut. Use
Figs. 21A and 21B as examples when making
bevel cuts.
IMPORTANT: Engage 0 degree stop when not making
bevel cuts.
Page 11
11
Fig. 22 Fig. 23

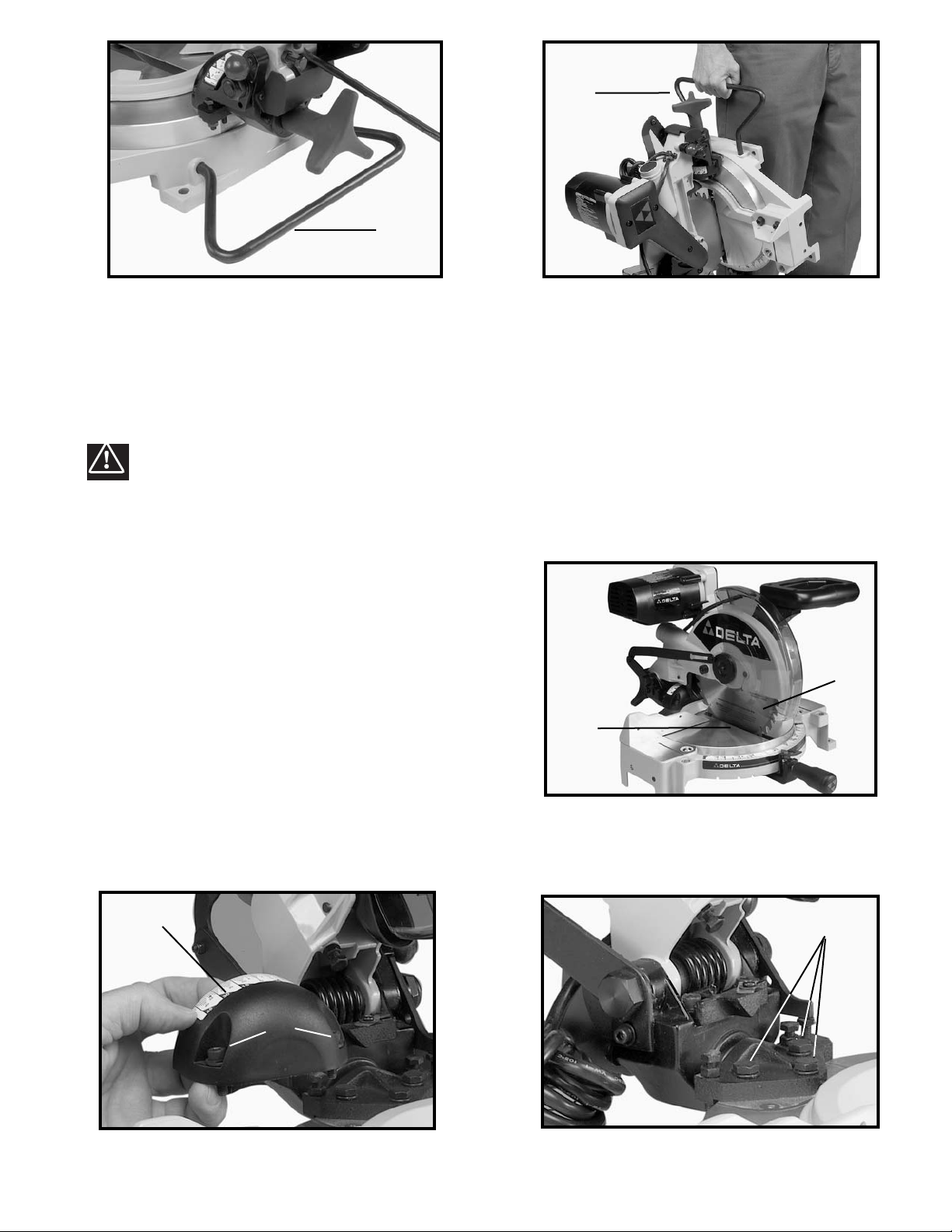

REAR SUPPORT/CARRYING HANDLE
A rear stabilizer bar (A) Fig. 22, is provided to prevent the miter saw from tipping to the rear when the cuttinghead is
returned to the up position after a cut has been made. For maximum support the bar (A) should be pulled out as far
as possible.
WARNING: BE CERTAIN THAT THE STABILIZER BAR IS FULLY EXTENDED WHEN MAKING CUTS.
The support bar (A) (Fig. 23) also acts as a carrying handle when transporting the saw.
Fig. 24
Fig. 25
B
A
A
A
A
ADJUSTING THE BLADE
PARALLEL TO TABLE SLOT
1. DISCONNECT TOOL FROM POWER SOURCE.
2. Lower the cutting arm. The saw blade (A) Fig. 24
should be parallel to the left edge (B) of the table opening.
3. Loosen the two socket head screws (B) Fig. 25, and
remove the bevel cover (A) Fig. 25.
4. To adjust, loosen the three screws (A) Fig. 26, and
move the cutting arm until the blade is parallel with the
left edge (B) Fig. 24 of the table opening. Tighten the
three screws (A) Fig. 26.
5. Re-attach bevel cover.
Fig. 26
A
B
Page 12
12
Fig. 27
Fig. 28

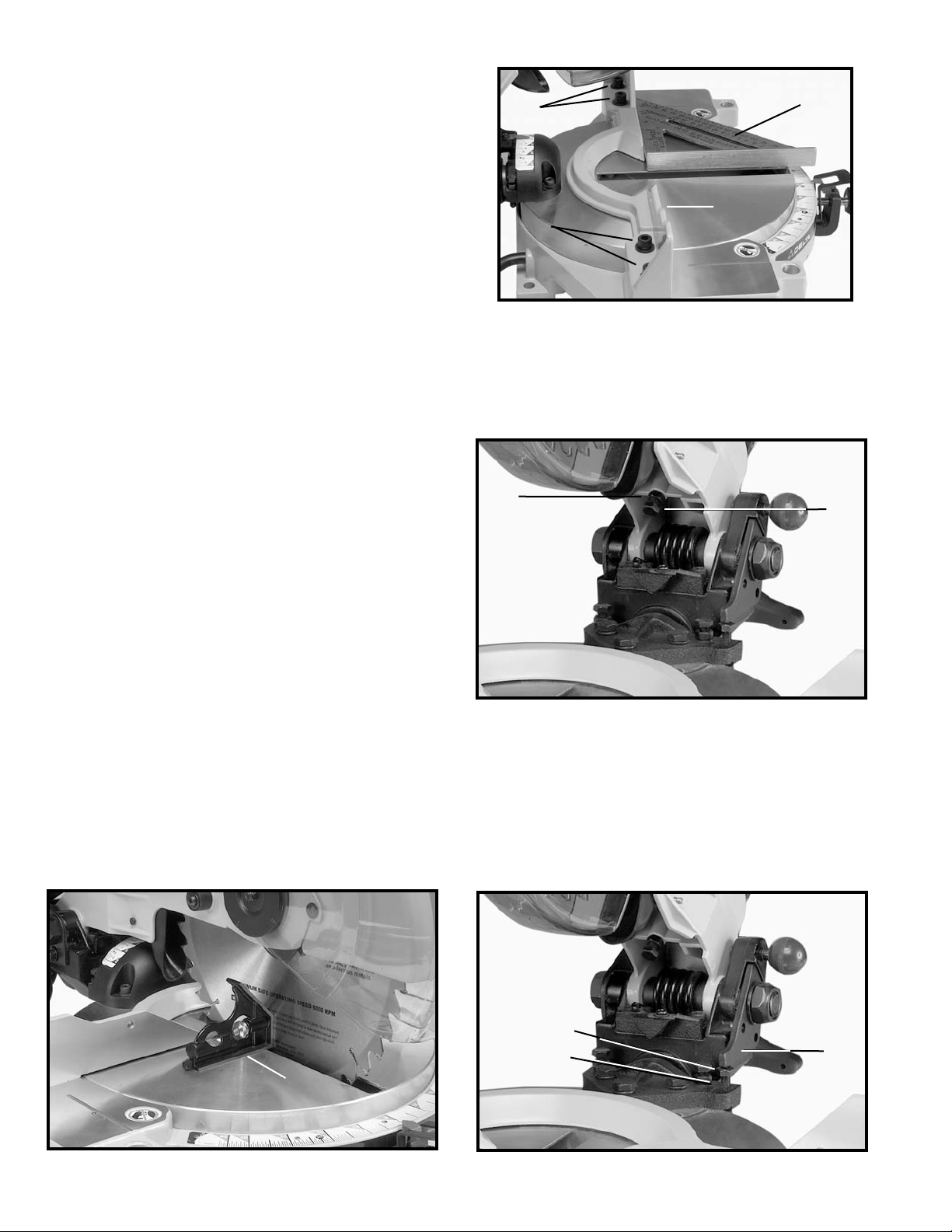

ADJUSTING THE FENCE
90 DEGREES TO THE BLADE
The fence (A) Fig. 27 should be adjusted so that it is 90
degrees to the blade. To adjust:
1. DISCONNECT TOOL FROM POWER SOURCE.
2. First, adjust the blade so that it is parallel to the table
slot.
3. Use a square (B) Fig. 27 with one end against the
fence (A) and the other end against the slot in the table.
4. Loosen the four screws (C) Fig. 27, adjust the fence
90 degrees to the table opening, and tighten the four
screws (C).
ADJUSTING DOWNWARD
TRAVEL OF SAW BLADE
1. DISCONNECT TOOL FROM POWER SOURCE.
2. The downward travel of the saw blade should be
limited to prevent the saw blade from contacting metal
surfaces on the machine. Make this adjustment by loosening the locknut (A) Fig. 28 and turning the adjusting
screw (B) in or out. NOTE: The bevel cover has been
removed in Fig. 28 for clarity.
3. Lower the blade as far as possible. Check again to
see that the saw is disconnected from the power
source. Rotate the blade by hand to make certain the
teeth do not contact any metal surfaces.
4. After the downward travel of the saw blade has been
adjusted, tighten locknut (A) Fig. 28.
C
C
B
A
B
Fig. 29
Fig. 30
A
C
B
D
ADJUSTING 0 AND 45 DEGREE BEVEL STOPS
1. DISCONNECT TOOL FROM POWER SOURCE.
A
Page 13
13
2. Set the saw blade on the “0” degree positive miter stop.
3. Use one end of a square (A) Fig. 29 on the table and the other end against the blade. Check to see if the blade is
0 degrees to the table (Fig. 29).

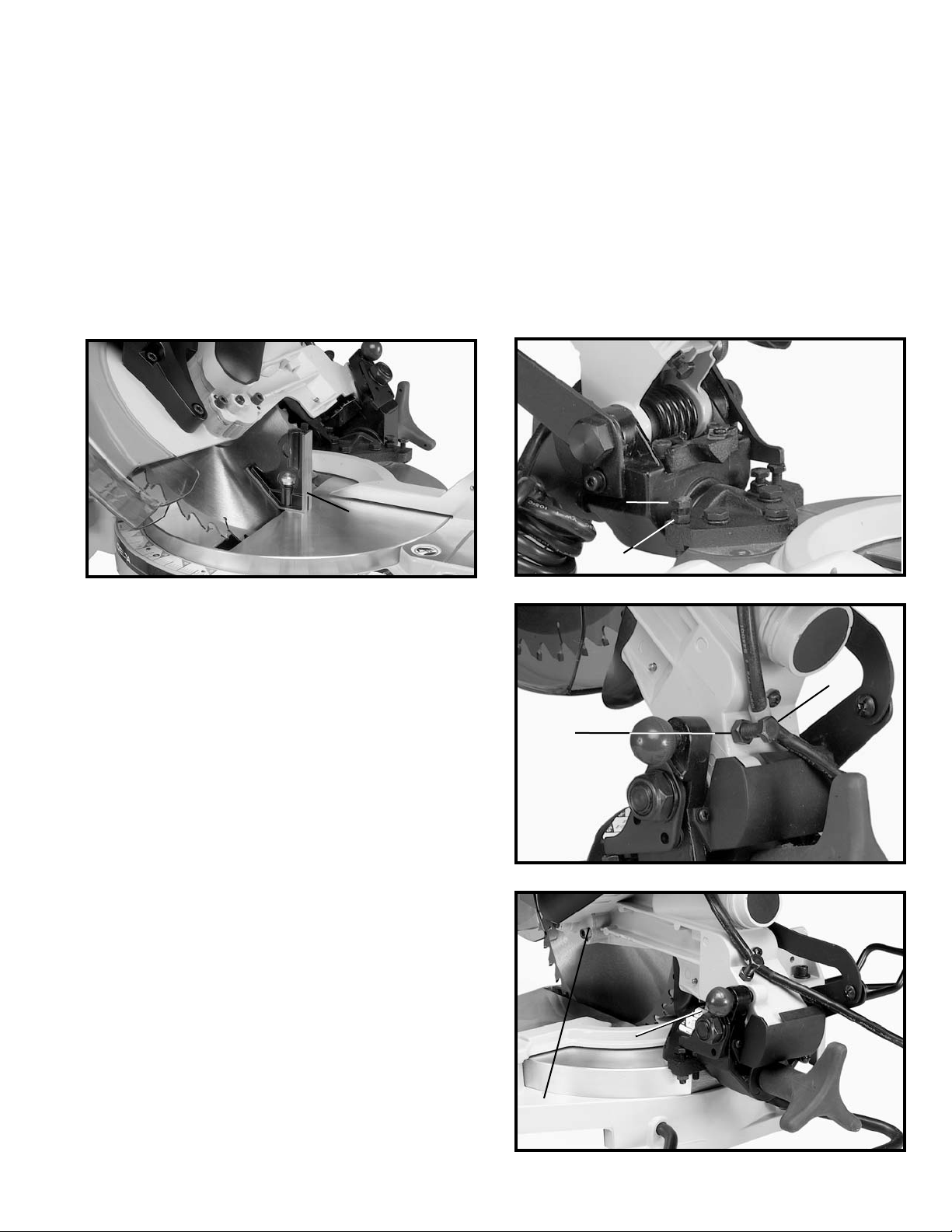

4. If an adjustment is necessary, loosen the locknut (B) Fig. 30, and turn the screw (C) until head of the screw (C)
contacts the 0 degree bevel stop (D) when the blade is 90 degrees to the table. Tighten locknut (B). NOTE: The bevel
cover has been removed in Fig. 30 for clarity.
5. Loosen the bevel lock handle and move the cutting arm all the way to the left bevel position and tighten bevel lock
handle.
6. Use a square (A) Fig. 31, to see if the blade is at 45 degrees to the table.
7. If not, loosen locknut (E) Fig. 32, and turn the screw (F) until the screw (F) contacts the 0 degree bevel stop when
blade is 45 degrees to the table. Tighten locknut (E).
8. Repeat steps 6-7 for the right bevel.
Fig. 31
Fig. 32
Fig. 34
LOCKING CUTTINGHEAD
IN THE DOWN POSITION
When transporting the saw, the cuttinghead should
always be locked in the down position. This can be
accomplished by lowering the cutting arm (A) Fig. 34, and
pushing in cutting head lock knob (B) until it engages with
hole in cutting arm. IMPORTANT: NEVER CARRY THE
TOOL BY THE SWITCH HANDLE. THIS ACTION MAY
CAUSE MISALIGNMENT. ALWAYS LIFT THE TOOL BY
THE BASE OR THE CARRYING HANDLE.
A
B
A
E
F
B
A
Fig. 33
ADJUSTING TENSION
OF THE CUTTINGHEAD
RETURN SPRING
The tension of the cuttinghead return spring has been
adjusted at the factory so that the cuttinghead returns to
the up position after a cut has been made. However, to readjust the spring tension:
1. DISCONNECT TOOL FROM POWER SOURCE.
Loosen the locknut (A) Fig. 33, and turn the screw (B)
clockwise to increase or counterclockwise to decrease
the spring tension. After the spring tension has been
adjusted, tighten locknut (A).
Page 14

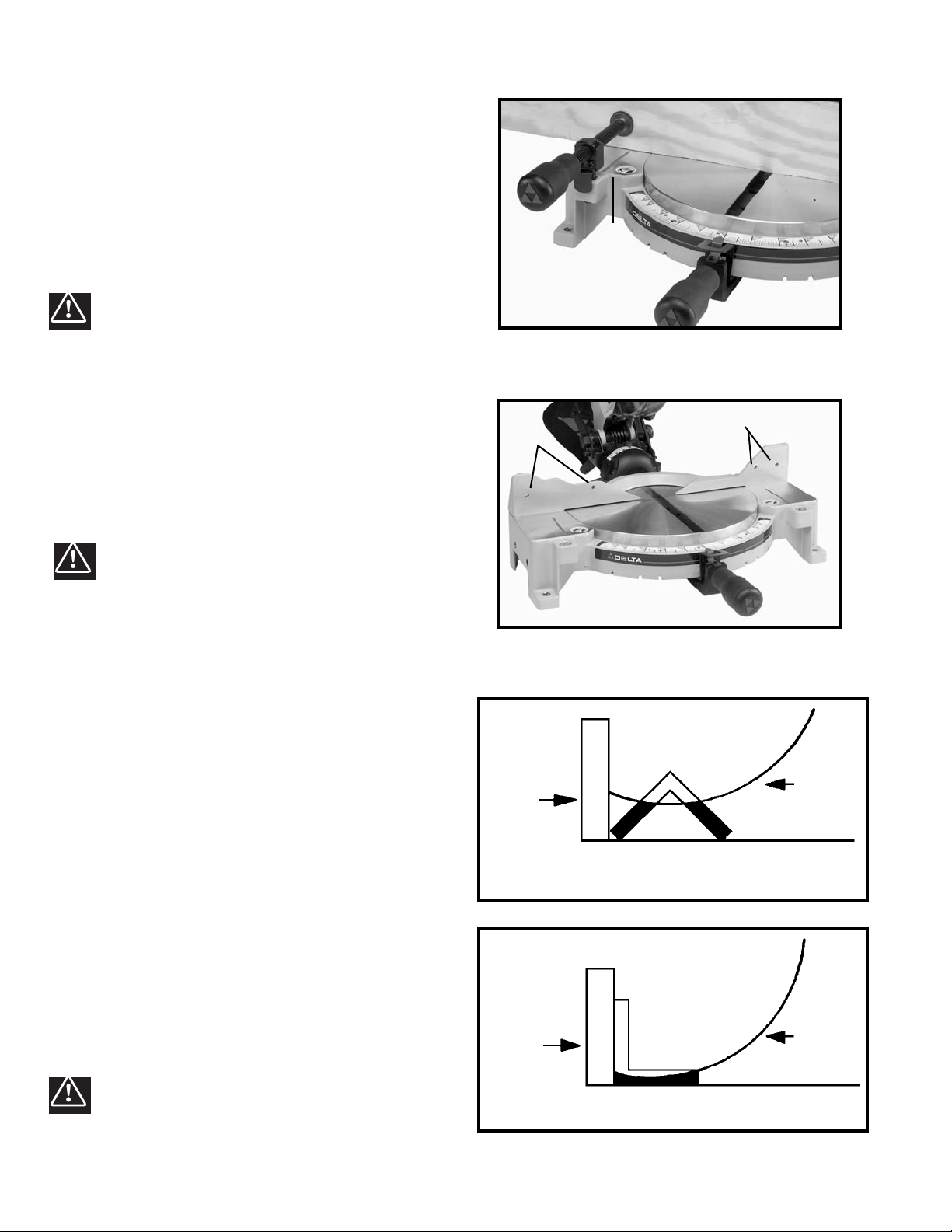

TYPICAL OPERATIONS AND HELPFUL HINTS
1. Before cutting, be certain that the cutting arm and
table are at their correct settings and are firmly locked in
place. Also, determine that the workpiece is the right size
for the saw.
2. Firmly clamp the workpiece to the table against the
fence. Fig. 35 illustrates the work clamp (A) used to
clamp the workpiece to the fence. The clamp (A) can also
be used on the right side of the machine.
3. For best results, cut at a slow, even cutting rate.
4.WARNING: If the workpiece causes your hand
to be within the hazard zone of of the saw
blade, clamp the workpiece in place before
making the cut (Fig. 35.)
5. Never attempt freehand cutting (wood that is not held
firmly against the fence and table).
14
Fig. 35
AUXILIARY WOOD FENCE
WARNING: When performing multiple or
repetitive cut-off operations that result in
small cut-off pieces (one inch or less), the saw
blade can possibly catch the cut-off pieces and project them out of the machine or into the blade guard
and housing, possibly causing damage and/or injury.
An auxiliary wood fence can help minimize the danger.
Holes are provided in the fence (A) Fig. 36 to attach an
auxiliary fence. This auxiliary fence is constructed of
straight wood approximately 1/2 inch thick by 3 inches
high by 20 inches long. NOTE: The auxiliary fence (A) is
used ONLY with the saw blade in the 0 degree bevel
position (90 degrees to the table). When bevel cutting
(blade tilted) the auxiliary fence will have to be removed.
Fig. 37
Fig. 38
CUTTING ALUMINUM
Aluminum extrusions such as used for making aluminum
screens and storm windows can be cut with the compound miter saw. Position the material so the blade is
cutting through the smallest cross-section, as shown in
Fig. 37. The wrong way to cut aluminum angles is illustrated in Fig. 38. Apply a stick wax to the blade before
cutting aluminum stock. Stick wax is available at most
industrial mill supply houses. The stick wax provides
proper lubrication and keeps chips from adhering to the
blade.
WARNING: NEVER APPLY LUBRICANT TO
THE BLADE WHILE THE TOOL IS RUNNING.
FENCE
BLADE
WRONG
FENCE
BLADE
RIGHT
Fig. 36
A
A
A
Page 15
15
Fig. 41
Fig. 42
CUTTING CROWN MOLDING
One of the many features of a compound miter saw is the ease of cutting crown molding. The following is an example
of cutting both inside and outside corners on 52/38 degree wall angle crown molding. NOTE: When cutting 45 degree
wall angle crown molding, follow the same procedure for both inside and outside corners. The only difference will be
that the bevel position will always be at 30 degrees but the miter position will be 35.25 degrees to the right or left.
1. Move the table to the 31.62 degree right miter position and lock the table in position. NOTE: A positive stop is
provided to find this angle quickly.
2. Tilt the saw blade to the 33.85 degree left bevel position and tighten bevel lock handle. NOTE: A triangle indicator
is provided on the bevel scale to find this angle quickly.
3. Place the crown molding on the table with the CEILING EDGE of the molding against the fence, and make the cut
(Fig. 41). NOTE: The piece of crown molding used for the outside corner will always be on the right hand side of the
blade,(A) Fig. 41. The piece of crown molding used for the inside corner will always be on the left hand side of the
blade, (B) Fig. 41.
4. To make the matching halves of the inside and outside corners, rotate the table to the 31.62 degree left miter position and tighten table lock handle. NOTE: A positive stop is provided to find this angle quickly.
5. Place the crown molding on the table with the WALL EDGE of the crown molding against the fence and make the
cut. Again, the piece of crown molding used for the outside corner will always be on the right side of the blade, (C) Fig.
42. The piece of crown molding used for the inside corner will always be on the left side of the blade (D) Fig. 42

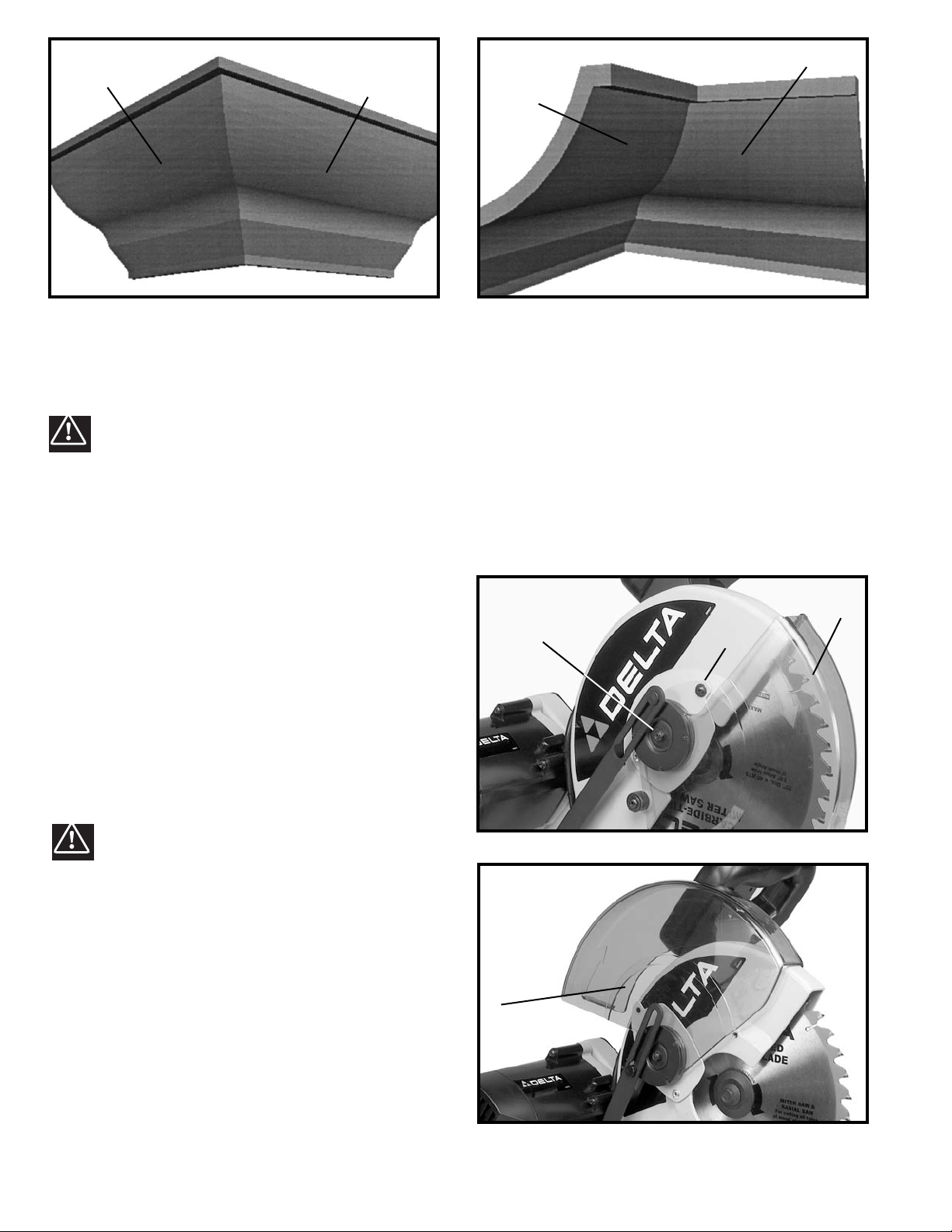

6. Fig. 43 illustrates the two outside corner pieces.
7. Fig. 44 illustrates the two inside corner pieces.
A
B
CD

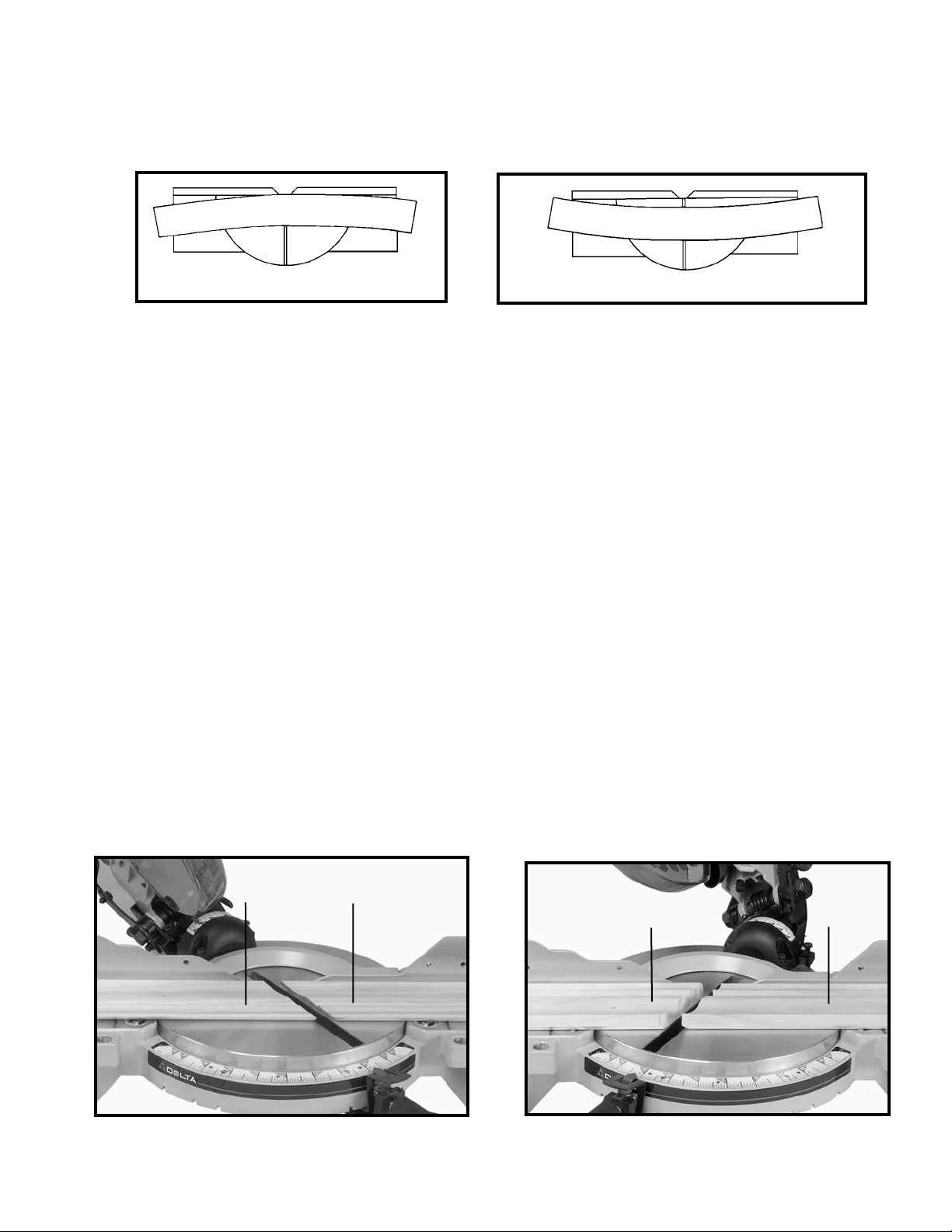

CUTTING BOWED MATERIAL
If the workpiece is bowed, position it on the table with the bowed part up and against the fence (Fig. 39).
If the material is positioned the wrong way (Fig. 40), the workpiece will pinch the blade near the completion of the cut.
Fig. 39
Fig. 40
RIGHT
WRONG
Page 16

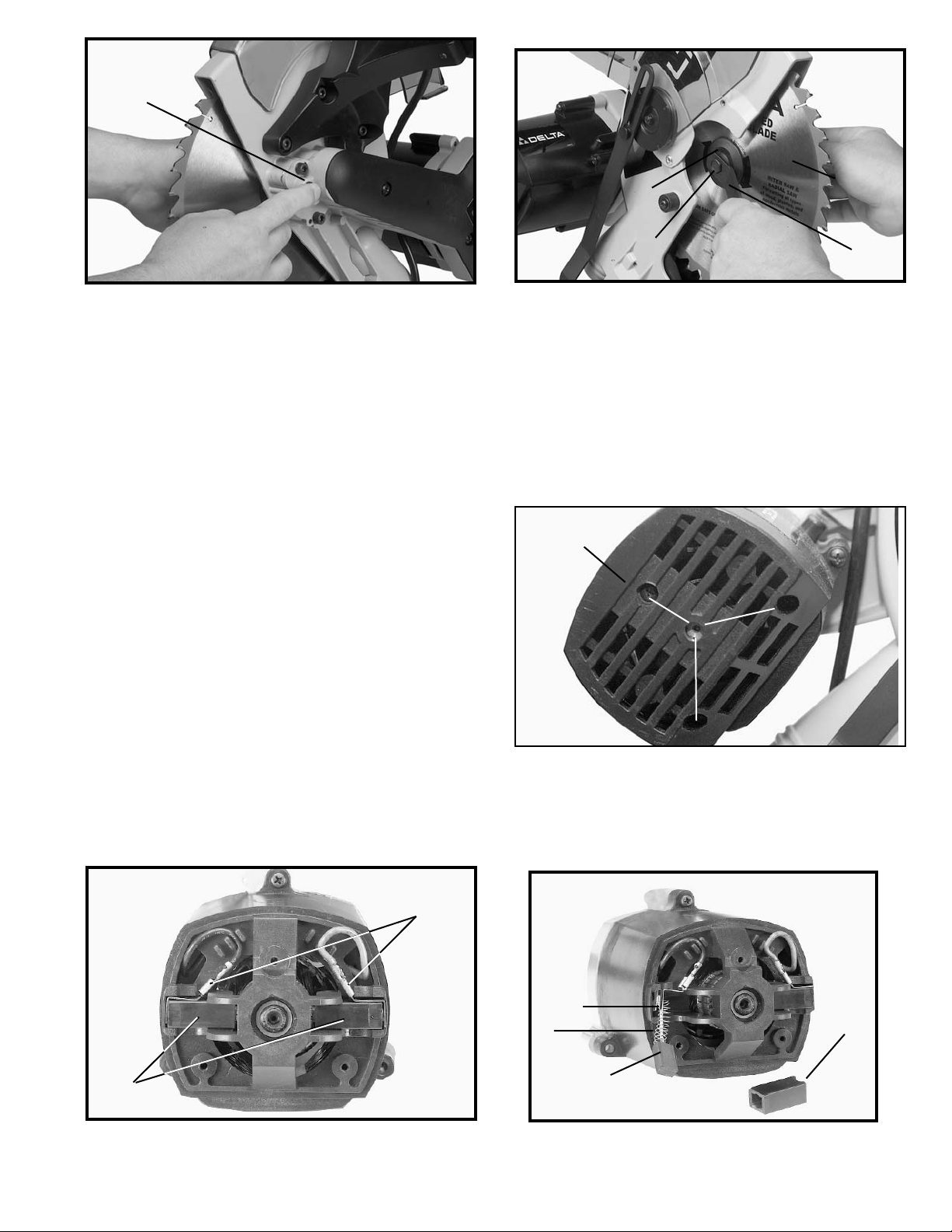

2. Remove the screw (A) Fig. 45, and rotate the cover
(B) to the rear (Fig. 46).
3. Depress the arbor lock (A) Fig. 47, to keep the blade
from turning.
4. Use the supplied wrench (D) Fig. 48 to loosen the
arbor screw (E). Turn it clockwise.
5. Remove the arbor screw (E), outside blade flange
(F), and saw blade (G) from the saw arbor.
6. Attach the new blade. BE CERTAIN THAT THE
TEETH OF THE SAW BLADE ARE POINTING DOWN
AT THE FRONT. Use the supplied wrench to attach the
outside blade flange (F) Fig. 48, and the arbor screw (E).
At the same time, depress the arbor lock to keep the
blade from turning.
7. Replace the screw and cover (moved to the rear in
STEP 2).
WARNING: REMOVE THE WRENCH BEFORE
TURNING THE POWER ON.
16
Fig. 43 Fig. 44
C
A
D
B
MAINTENANCE
CHANGING THE BLADE
WARNING: USE ONLY CROSS-CUTTING BLADES. WHEN USING CARBIDE TIPPED BLADES, BE CER-
TAIN THAT THEY HAVE A NEGATIVE HOOK ANGLE. USE ONLY 10″″DIAMETER SAW BLADES RATED FOR
6000 RPM OR HIGHER AND HAVE 5/8″″DIAMETER ARBOR HOLES.
1. DISCONNECT TOOL FROM POWER SOURCE.
Fig. 45
Fig. 46
B
A
B
ADJUSTING BLADE GUARD
1. After an extended period of time, the movable
blade guard (B) Fig. 45 might move erratically when the
cuttinghead is lowered. This can be easily corrected by
slightly tightening the nut (C) Fig. 45 until the lower
blade guard moves smoothly.
2. As soon as the cuttinghead begins to lower, the
lower blade guard (B) Fig. 45 should begin to move. If it
does not, loosen the nut (C) slightly until the blade guard
(B) moves smoothly.
C
Page 17
17
Fig. 49
Fig. 50
Fig. 51
BRUSH INSPECTION
AND REPLACEMENT
CAUTION: BEFORE INSPECTING THE BRUSHES,
DISCONNECT THE TOOL FROM THE POWER
SOURCE.
Brush life varies, depending on the load on the motor.
Check the brushes after the first 50 hours of use for a
new machine, or after a new set of brushes has been
installed. After the first check, examine them after about
every 10 hours of use until replacement is necessary. To
inspect the brushes:
1. Remove three screws (A) Fig. 49, and remove motor
cover (B).
2. The brushes are located in the two holders (C) Fig. 50.
Remove spade type terminal connectors (D) and pull out
brush holders (C).
3. Fig. 51 illustrates one of the brushes (E) removed
from the holder (C). When the carbon on either brush (E)
is worn to 3/16″ in length or if either spring (F) or shunt
wire (G) (beneath spring) is burned or damaged in any
way, replace both brushes. If the brushes are found
serviceable after removing, reinstall them in the same
position as removed.
C
D
C
F
A
Fig. 47
Fig. 48
A
F
E
D
G
B
E
G
Page 18
18
Two Year Limited Warranty
Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which
in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years
and provides Delta with reasonable opportunity to verify the alleged defect by inspection. Delta may require that electric
motors be returned prepaid to a motor manufacturer’s authorized station for inspection and repair or replacement. Delta
will not be responsible for any asserted defect which has resulted from normal wear, misuse, abuse or repair or alteration
made or specifically authorized by anyone other than an authorized Delta service facility or representative. Under no circumstances will Delta be liable for incidental or consequential damages resulting from defective products. This warranty
is Delta’s sole warranty and sets forth the customer’s exclusive remedy, with respect to defective products; all other warranties, express or implied, whether of merchantability, fitness for purpose, or otherwise, are expressly disclaimed by Delta.
Printed in U.S.A.
ACCESSORIES
A complete line of accessories is available from your Delta Supplier, Porter-Cable • Delta Factory Service Centers,
and Delta Authorized Service Stations. Please visit our Web Site
www.deltamachinery
.com
for a catalog or
for the name of your nearest supplier.
WARNING: Since accessories other than those offered by Delta have not been tested
with this product, use of such accessories could be hazardous. For
safest operation, use
only Delta recommended accessories with this product.
PARTS, SERVICE OR WARRANTY ASSISTANCE
All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network
of Porter-Cable • Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional
information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).
Page 19
3636363636
The following are trademarks of PORTER-CABLE
·
DELTA (Las siguientes son marcas registradas de PORTER-CABLE S.A.): BAMMER
®
,
INNOVATION THAT WORKS
®
, JETSTREAM®, LASERLOC®, OMNIJIG®, POCKET CUTTER®, PORTA-BAND®, PORTA-PLANE®, PORTER-
CABLE
®
, QUICKSAND®, SANDTRAP®, SAW BOSS®, SPEED-BLOC®, SPEEDMATIC®, SPEEDTRONIC®, STAIR-EASE®, THE PROFESSION-
AL EDGE
®
, THE PROFESSIONAL SELECT®, TIGER CUB®, TIGER SAW®, TORQBUSTER®, WHISPER SERIES®, DURATRONIC™, FLEX™,
FRAME SAW™, MICRO-SET™, MORTEN™, NETWORK™, RIPTIDE™, TRU-MATCH™, WOODWORKER’S CHOICE™, THE AMERICAN
WOOD SHOP™ (design) , AUTO-SET™, B.O.S.S.™, BUILDER’S SAW™, CONTRACTOR’S SAW™, DELTA™, DELTACRAFT™, HOMECRAFT™, JET-LOCK™, KICKSTAND™, THE LUMBER COMPANY™ (design). MICRO-SET™, Q3™, QUICKSET II™, QUICKSET PLUS™,
SAFEGUARD II™, SANDING CENTER™, SIDEKICK™, UNIFENCE™, UNIGUARD™, UNIRIP™, UNISAW™, VERSA-FEEDER™ .
Trademarks noted with ™ and ® are registered in the United States Patent and Trademark Office and may also be registered in other countries. Las Marcas Registradas con el signo de ™ y ® son registradas por la Oficina de Registros y Patentes de los Estados Unidos y también pueden estar registradas en otros países.
PORTER-CABLE • DELTA SERVICE CENTERS
(CENTROS DE SERVICIO DE PORTER-CABLE
• DELTA)
Parts and Repair Service for Porter-Cable •Delta Power Tools are Available at These Locations
(Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable
•
Delta)
Authorized Service Stations are located in many large cities. Telephone 800-438-2486 or 731-541-6042 for assistance locating one.
Parts and accessories for Porter-Cable
·
Delta products should be obtained by contacting any Porter-Cable·Delta Distributor, Authorized
Service Center, or Porter-Cable
·
Delta Factory Service Center. If you do not have access to any of these, call 800-223-7278 and you will
be directed to the nearest Porter-Cable·Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están ubicadas en muchas
grandes ciudades. Llame al 800-438-2486 ó al 731-541-6042 para obtener asistencia a fin de localizar una. Las piezas y los accesorios
para los productos Porter-Cable
·
Delta deben obtenerse poniéndose en contacto con cualquier distribuidor Porter-Cable
·
Delta, Centro
de Servicio Autorizado o Centro de Servicio de Fábrica Porter-Cable
·
Delta. Si no tiene acceso a ninguna de estas opciones, llame al
800-223-7278 y le dirigirán al Centro de Servicio de Fábrica Porter-Cable
·
Delta más cercano.
ARIZONA
Tempe 85282 (Phoenix)
2400 West Southern Avenue
Suite 105
Phone: (602) 437-1200
Fax: (602) 437-2200
CALIFORNIA
Ontario 91761 (Los Angeles)
3949A East Guasti Road
Phone: (909) 390-5555
Fax: (909) 390-5554
San Leandro 94577 (Oakland)
3039 Teagarden Street
Phone: (510) 357-9762
Fax: (510) 357-7939
FLORIDA
Davie 33314 (Miami)
4343 South State Rd. 7 (441)
Unit #107
Phone: (954) 321-6635
Fax: (954) 321-6638
Tampa 33609
4538 W. Kennedy Boulevard
Phone: (813) 877-9585
Fax: (813) 289-7948
GEORGIA
Forest Park 30297 (Atlanta)
5442 Frontage Road,
Suite 112
Phone: (404) 608-0006
Fax: (404) 608-1123
ILLINOIS
Addison 60101 (Chicago)
311 Laura Drive
Phone: (630) 628-6100
Fax: (630) 628-0023
Woodridge 60517 (Chicago)
2033 West 75th Street
Phone: (630) 910-9200
Fax: (630) 910-0360
MARYLAND
Elkridge 21075 (Baltimore)
7397-102 Washington Blvd.
Phone: (410) 799-9394
Fax: (410) 799-9398
MASSACHUSETTS
Braintree 02185 (Boston)
719 Granite Street
Phone: (781) 848-9810
Fax: (781) 848-6759
Franklin 02038 (Boston)
Franklin Industrial Park
101E Constitution Blvd.
Phone: (508) 520-8802
Fax: (508) 528-8089
MICHIGAN
Madison Heights 48071 (Detroit)
30475 Stephenson Highway
Phone: (248) 597-5000
Fax: (248) 597-5004
MINNESOTA
Minneapolis 55429
4315 68th Avenue North
Phone: (763) 561-9080
Fax: (763) 561-0653
MISSOURI
North Kansas City 64116
1141 Swift Avenue
P.O. Box 12393
Phone: (816) 221-2070
Fax: (816) 221-2897
St. Louis 63119
7574 Watson Road
Phone: (314) 968-8950
Fax: (314) 968-2790
NEW YORK
Flushing 11365-1595 (N.Y.C.)
175-25 Horace Harding Expwy.
Phone: (718) 225-2040
Fax: (718) 423-9619
NORTH CAROLINA
Charlotte 28270
9129 Monroe Road, Suite 115
Phone: (704) 841-1176
Fax: (704) 708-4625
OHIO
Columbus 43214
4560 Indianola Avenue
Phone: (614) 263-0929
Fax: (614) 263-1238
Cleveland 44125
8001 Sweet Valley Drive
Unit #19
Phone: (216) 447-9030
Fax: (216) 447-3097
OREGON
Portland 97230
4916 NE 122 nd Ave.
Phone: (503) 252-0107
Fax: (503) 252-2123
PENNSYLVANIA
Willow Grove 19090
520 North York Road
Phone: (215) 658-1430
Fax: (215) 658-1433
TEXAS
Carrollton 75006 (Dallas)
1300 Interstate 35 N, Suite 112
Phone: (972) 446-2996
Fax: (972) 446-8157
Houston 77055
West 10 Business Center
1008 Wirt Road, Suite 120
Phone: (713) 682-0334
Fax: (713) 682-4867
WASHINGTON
Renton 98055 (Seattle)
268 Southwest 43rd Street
Phone: (425) 251-6680
Fax: (425) 251-9337
Printed in U.S.A.
CANADIAN PORTER-CABLE • DELTA SERVICE CENTERS
ALBERTA
Bay 6, 2520-23rd St. N.E.
Calgary, Alberta
T2E 8L2
Phone: (403) 735-6166
Fax: (403) 735-6144
BRITISH COLUMBIA
8520 Baxter Place
Burnaby, B.C.
V5A 4T8
Phone: (604) 420-0102
Fax: (604) 420-3522
MANITOBA
1699 Dublin Avenue
Winnipeg, Manitoba
R3H 0H2
Phone: (204) 633-9259
Fax: (204) 632-1976
ONTARIO
505 Southgate Drive
Guelph, Ontario
N1H 6M7
Phone: (519) 836-2840
Fax: (519) 767-4131
QUÉBEC
1515 ave.
St-Jean Baptiste,
Québec, Québec
G2E 5E2
Phone: (418) 877-7112
Fax: (418) 877-7123
1447, Begin
St-Laurent, (Montréal),
Québec
H4R 1V8
Phone: (514) 336-8772
Fax: (514) 336-3505
Loading...
