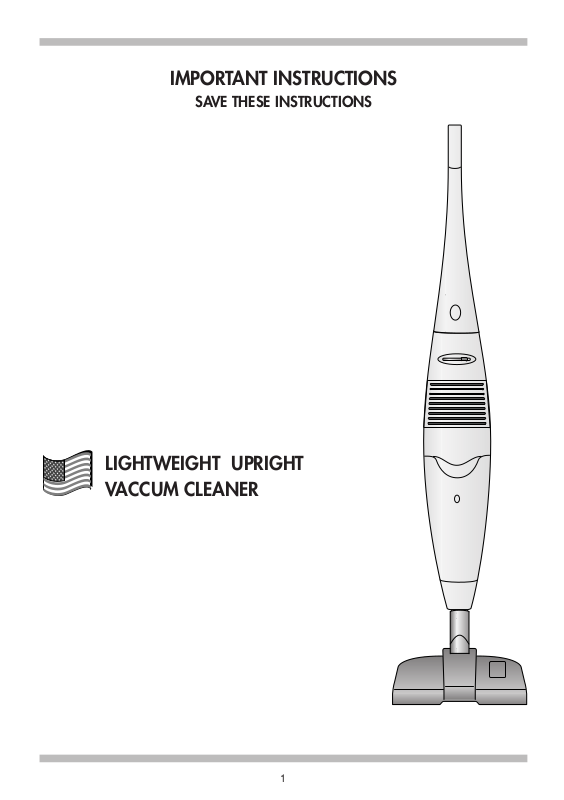

DeLonghi Upright Vacuum Cleaner User Manual

1

IMPORTANT INSTRUCTIONS

SAVE THESE INSTRUCTIONS

LIGHTWEIGHT UPRIGHT
VACCUM CLEANER

2

1

3

5

2

4

6

8

9

7

10

Fig. 1 Fig. 2

Fig. 6

Fig. 3

Fig. 4

Fig. 5

3

Fig. 9

Fig.12

Fig. 13 Fig. 14

Fig. 8Fig. 7

Fig. 10 Fig. 11

4

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, includ­ing the following:

READ THE INSTRUCTIONS BEFORE USING THIS APPLIANCE

Warning:

To reduce the risk of fire, electric shock, or injury:

1) Do not use outdoors or on wet surfaces.

2) Close supervision is necessary when any appliance is used by or near children.
Do not allow vacuum to be used as a toy or to run unattended at any time.

3) Keep hair, loose clothing , fingers, feet and all parts of body away from openings, rotating ag­itator and other moving parts. Do not operate cleaner in bare feet or when wearing open toe
shoes or sandals.

4) Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

5) Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.

6) Avoid picking up hard , sharp objects with the cleaner. They may damage the cleaner and the
bag.

7) Always turn off this appliance before connecting or disconnecting motorized nozzle.

8) Do not use without dust bag or filters in place . Change bag frequently when picking up very
fine materials such as powder.

9) Use extra care when cleaning on stairs.

10) Do not put any object into openings. Do not use with any opening blocked; keep free of dust,
lint , hair, or anything that may reduce air flow.

11) Do not pull or carry by cord, use a cord as a handle, close door on cord or pull cord around
sharp edges or corners. Do not run appliance over cord. Keep cord away from heated sur­faces.

12) Always disconnect cord from electrical outlet before servicing the cleaner.

13) Unplug cleaner when not in use. Turn off all controls before unplugging.

14) Do not unplug by pulling on cord. To unplug , grasp the plug, not the cord. Never handle plug
or appliance with wet hands.

15) The use of an extension cord is not recommended.

16) Do not use with damaged cord or plug. If appliance is not working as it should , has been
dropped, damaged, left outdoors, or dropped into water, take it to a service center.

17) Use vaccum cleaner only for its intended use as described in the instructions. Use only attach­ments recommended.

18) To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than
the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper
outlet. Do not change the plug in any way.

SAVE THESE INSTRUCTIONS!

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY

The manufacturer reserves the right to modify the appliance and/or accessories supplied without prior notice.

5

Dear Customer,

Thank you for the confidence you have placed in our company.
All our products are the result of consolidated experience in the design and production of ap-

pliances for household cleaning, and have been subject to meticulous technical tests.
This manual is designed to help you make the most of your appliance and to fully appreciate its
superb quality.

We are certain that if you follow our suggestions, this appliance will give you absolute satisfac­tion and many years of service, while also easing your daily household cleaning tasks.

COMPONENTS DESCRIPTION

1) Handgrip

2) On/off switch

3) Suction power control

(Electronic model only)

4) Air exhaust micro-filter hatch cover

5) Full-bag indicator

6) Dust bag holder hatch cover

7) Carpet/floor brush

8) Upholstery nozzle

9) Crevice tool

10)Extension tube

SETTING UP FOR USE
Assembling the handgrip

To fit the handgrip to the body of the broom,
simply push it in firmly until it clicks into
place (fig.1).
To disengage, press on the spring clips with
one hand while pulling the handgrip up­wards with the other (fig.2).

Fitting on the accessories

To fit your machine with the correct accesso­ry, simply push in the attachment until firmly
in place.
a)

Carpet/floor brush: effectively vacuums
up dust from both hard floors and car­pets or rugs.
For hard floors, the brush lever should be
set to the bristles extended symbol

().
For carpets or rugs, the lever should be
set to the opposite bristles withdrawn

symbol ( ) (fig.3).

B)

Multi-purpose upholstery nozzle: partic­ularly suitable for cleaning sofas, chairs,
upholstery, car interiors, blankets, mat­tresses, drapes, curtains, etc. (fig.4).

C)

Crevice tool: Ideal for cleaning corners,
skirting boards, etc. (fig. 5).

Cleaning under low furniture

Remove attachment (if any) and carefully fit
the extension tube onto the handgrip. Fit the
recommended attachment and proceed to
clean the desired area. To obtain maximum
suction power, rotate the cleaner left or right
whilst using forward and backward move­ments (Fig. 6).

Cleaning high areas or ceilings

Fit the handgrip with the extension tube and
the recommended attachment. Use both
hands to hold the appliance.

Operating Instructions

Unwind the power cord and plug in the ma­chine. The cord storage hook swivels for
quick release (fig.7).

Switching on the machine

To operate the machine, switch (2) must be
on

I position. The Electronic model has a

slide switch for electronic suction control.
It is recommended to position the slide switch
to the minimum setting before switching on
the machine (fig. 8).
Electronic controls allow you to adjust suc­tion power to the surface to be cleaned.

• Maximum power: for carpets, corners, bor­ders, heavy dirt (grit, bread crumbs, etc.).

• Medium power: for energy saving and

6

reduced noise when cleaning hard floors
and upholstery.

• Minimum power: indispensable for vacu­uming delicate textiles and upholstery, to
avoid strong suction on the fabric which
may tear the fabric and reduce cleaning
performance.

CLEANING AND MAINTENANCE

Before carrying out cleaning or mainte­nance, always remove the plug from the
power socket.

Full-bag indicator (5)

The full-bag indicator is on the lower part of the
broom and is activated when the suction hose is
blocked or the dust bag is excessively full.

Changing the dust bag

Remove hatch cover (6) by pulling it out­wards (fig.9)
Release the dust bag.
Fit with a new dust bag, making sure to
slide the cardboard collar correctly into its
grooves (fig. 10-11).
Replace the hatch cover and secure in place
by pressing until it locks (fig.12).

Care of the motor filter

In order to maintain the maximum suction ef­ficiency, and to ensure that the motor is ade­quately cooled and that the air vented from
the appliance contains no dust particles, the
motor filter should be cleaned regularly.
Wash the motor filter in water with a little
household detergent, and allow to dry thor­oughly before replacing (fig.13).

Replacing the microfilter/s

The electrostatic 3M-filter assures a high­quality out-put of air as it retains dust, pol­lens, etc.
To maintain its efficiency, the micro-filter
should be changed every 2-3 months.
To replace the micro-filter, lift the front air
exhaust grille and remove filter. Replace with
a new filter and close the grille pressing it
down firmly (Fig. 14).

Storing the machine

Store leaning against a wall with the power
head with brush down to prevent slipping.
Or else, hang on the wall by the hole in the
handgrip on a nail, hook, or a screw with
plug.
