DeLonghi PORTABLE AIR-CONDITIONERS TECHNICAL INFORMATION

TECHNICAL INFORMATIONS

PORTABLE AIR-CONDITIONERS

JANUARY '94 - New package

In the next packages of portable air-conditioners there will be modified pieces of polystyle: the basement and the
four angulars.
We inform you that it will be possible to replace the new polystyle basement on the old package, only if you change
the four angulars too.
There is , anyway, the chance to replace only the new polystyle basement and that is to put between the basement
itself and the angulars, a piece of plastic or wood (i.e. - it is possible to use the castor stoppers of the air­conditioners), to avoid the wood central strands of the old angulars damage the new basement which is completely
made of polystyle.

August '94 - Air conditioner PAC ASR production '93 - '94

We want to inform you that on the above appliance from production 1993 onwards, a new type of electronic delayer
( code 521340 ) has been mounted. The compressor relay is directly mounted on this electronic device.

Particular of the wiring diagram

of the new electronic delayer.

Azzurro Light blue
Arancio Orange
Blu Blue
Marrone Brown
Nero Black
Viola Violet

OCTOBER '94 - Electronic board of PINGUINO model PAC19E

The electronic board, for Pinguino PAC19E manufactured in 1989 with code 521223, is not available anymore. It
is possible to replace it with the electronic board with code 521255, but it is necessary to follow the instruction below.

OLD BOARD 521223 INTERCHANGEABLE BOARD 521255

Azzurro Light blue
Arancio Orange
Blu Blue
Marrone Brown
Nero Black
Viola Violet

The operation to be done are the following:

- the three connection for the ventilator speeds [grey(LO) - black (CV) - brown (HI)], for the water pump [Orange (P)]
remain the same for the two boards.

- it is necessary to use the float switch with code 512048

- the light blue wire coming from the terminal block position 2 (see old diagram) must be connected to NEUTRAL (N) of the
new board.

- the blue wire coming from terminal block position 1 (see old diagram) must be connected to LIVE (TH) of the new board.

- the new board must be mounted in order to be well insulated from the appliance frame.

Pag. 1

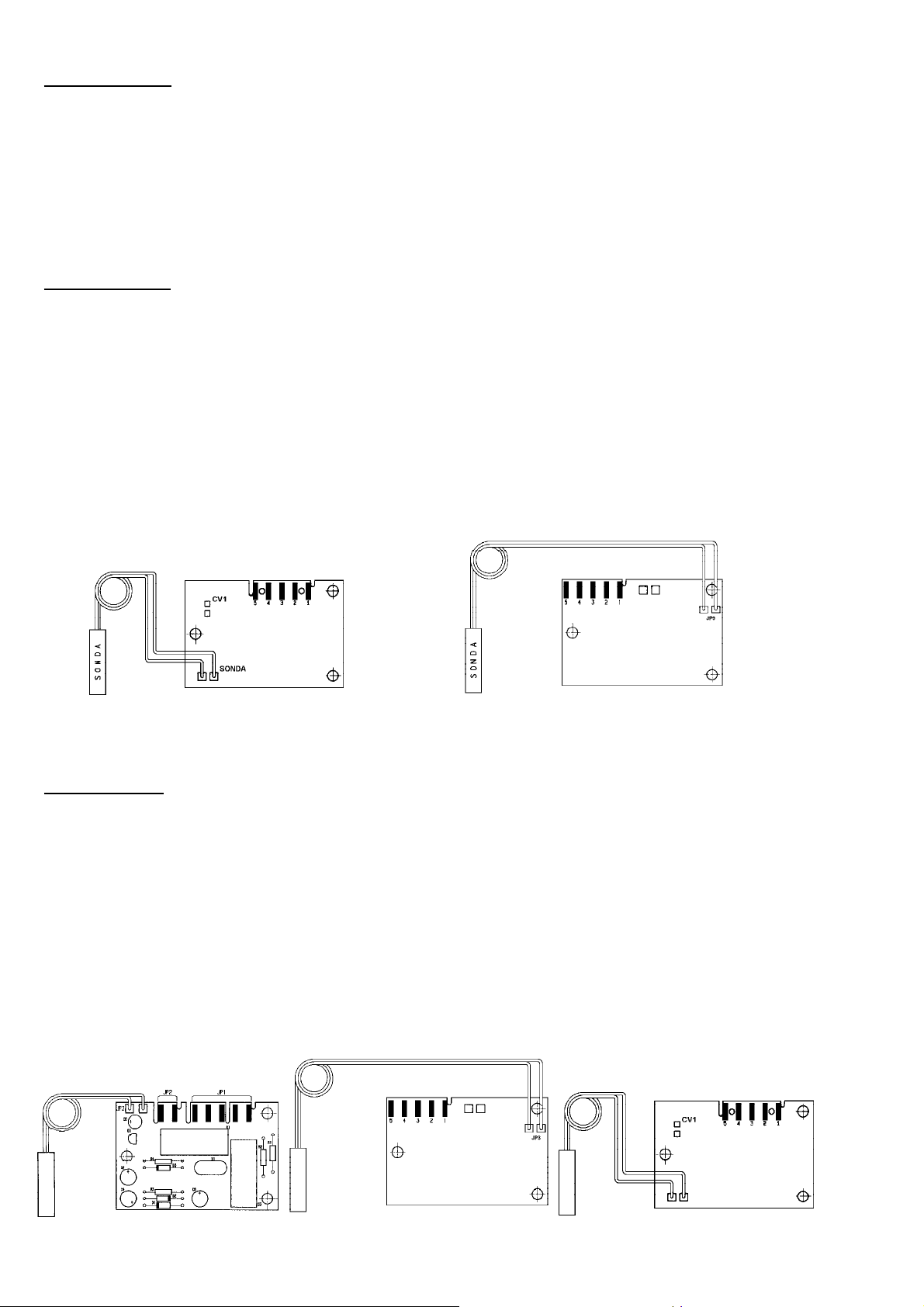

JANUAR '95 - NEW CONTROL BOARD FOR PAC 36 PRODUCED IN 1995

In the mobile air conditioner PAC36, produced in 1995, there has been mounted a different electronic control board
than in 1994. The two boards differ from each other in one of the cable-connectors, which number of connections has
been reduced from four to three. Because of this difference the two boards are not interchangeable. For conditioners
from 1994 with the old board, please order spare part nr. 521436; for conditioners build in 1995, please order spare
part nr. 521444.
You can recognize the year of production by the serial number. Conditioners, which serial number starts with 4, are
build in 1994; those which start with 5, are constructed in 1995.
Please countercheck with figures below, which is the board you have to order.

OLD NEW

521436 521444

(Serie.nr. 4 01...) (Serie.nr. 5 01...)

alla scheda termostato
to thermostat electronic board
zu der Thermostat-Platine
à la fiche du thermostat
a la ficha del termostato

COD. 521444

3 2 1

4 3 2 1

SM

ð

Ambient probe

Sonda ambiente

Sonde ambiance

Sonda de ambiente

Raumtemperaturfühler

to relay board

alla scheda rele'

zu Zeitschaltuhr und IGA

au programmateur et IGA

al programmador y IGA

a la ficha reles

à la fiche des relais

zu der Relais-Platine

al timer e IGA

to timer and IGA

COD. 521436

ð

4 3 2 1

SAUI

SM

alla scheda termostato
to thermostat electronic board
zu der Thermostat-Platine
à la fiche du thermostat
a la ficha del termostato

ð

4 3 2 1

Ambient probe

Sonda ambiente

Sonde ambiance

Sonda de ambiente

Raumtemperaturfühler

ð

to relay board

alla scheda rele'

zu Zeitschaltuhr und IGA

au programmateur et IGA

al programmador y IGA

a la ficha reles

à la fiche des relais

zu der Relais-Platine

al timer e IGA

to timer and IGA

SAUI

FEBRUARY '95: PAC 19ECO; PAC 25 AND PAC 25 ECO: NEW ELECTRONIC BOARD FOR FLOAT SWITCH

In the airconditioners Pac 19 Eco, Pac 25 and Pac 25 Eco you might find two diffrent types of electronic boards for the float
switch.
You can easely distinguish the two boards by their size and the different wire connections.One board has two multiple
connectors and some single wires soldered on it, the other has three multiple connectors and no sigle wires on it (see figure
underneath).
The boards are not interchangeable: you have to order the board mounted origionally.
Referens can be made also to the series number.
The conditioners with board code 521289 have a single "A" at the end of the series number.
The conditioners with board code 521573 have an double "AA" at the end of the series number.
You will also find the code number printed on the board itself.

N° Serie of Model with board 521289: 5 23 P27253 A
N° Serie of Model with board 521573: 5 23 P27253 AA

OLD BOARD

521289

soldered wires

DE'LONGHI CODE

multiple connectors

(on the back-side)

letter to recognize the

production variation

NEW BOARD

521573

multiple connectors

DE'LONGHI CODE

TECHNICAL INFORMATION : Pag. 2

lla scheda termostato

to thermostat electronic board

zu der Thermostat-Platine

à la fiche du thermostat

a la ficha del termostato

TECHNICAL INFORMATIONS

PORTABLE AIR-CONDITIONERS

MARCH '95: PAC 26 WITH NEW ELECTRONIC

The portable air conditioner, model PAC 26, produced from March 95 (from Serial nr. 5 09 P 11000 A) onwards, there has
been introduced a different set of electronic boards (thermostat - control- and relay board). As consequence, you could
find in this year of production two different sets of electronic boards.
While the functions of the conditioner have not been changed, the connections on the boards as well as the distribution of
the various electronic components are different and the boards are not interchangeable.
On appliances with the Serial nr. until 5 09 P 11000A you will have to order the electronic boards according the exploded

view of 1993 and the wiring diagrams according to the tecnical documentation nr. 94025, on appliances with serial nr. from
5 09 P 11000A please order according to the exploded view of '95 and follow the wiring diagrams of documentation nr.

95002.

The main differences between new and old boards are shown below, in order that you might easily distinguish one from
another. THERMOSTAT BOARD

OLD (521348) NEW (521447)

to control board (14 wires) to control board (10 wires)

521348.0

Manufacturers code Manufacturers code on backside

Microprocessor and all main electronic components Only few electronic components

CONTROL BOARD

OLD (521339) NEW (521446)

Sonda ambiente
Ambient probe
Raumtemperaturfühler
Sonde ambiance
Sonda de ambiente

alla scheda termostato

to thermostat electronic board
zu der Thermostat-Platine
à la fiche du thermostat
a la ficha del termostato

Sonda ambiente

Ambient probe

Raumtemperaturfühler

Sonde ambiance

Sonda de ambiente

ð

ð

alla scheda rele'

to relay board

zur Relais-Platine

à la fiche des relais

a la ficha reles

ð

ð

ð

alla scheda rele'

to relay board

zu der Relais-Platine

à la fiche des relais

a la ficha reles

ð

ð

a

ð

ð

al timer e pressostato

to timer and pressure switch

zu Uhr und Druckschalter

Control board only half size and

few electronic components

al gallegiante
to float switch
zum Schwimmer

al timer e pressostato

to timer and pressure switch

zu Uhr und Druckschalter

Control board full size with micro-

processor and electronic components

TECHNICAL INFORMATION : Pag. 3

al gallegiante
to float switch
zum Schwimmer

MARCH '95: PAC 26 WITH NEW ELECTRONIC (CONTINUATION)

RELAY BOARD

OLD (521338) NEW (521448)

RESISTOR VE

RESISTOR VE

Note the different positions of relais, resitor (VE) between both boards and the long connector on the old board and the many
separated ones on the new board.

SEPTEMBER '95: PAC 36 WITH NEW RELAY BOARD

On the relay board of the air-conditioner model PAC 36 has been changed the position of the compressor connections.
The two wires are now connected to the position 3 and 4 of the 6-pole-connector instead being connected directly onto
the relay as with the old version. Both types of relay board are interchangeable, following the wiring diagram below.

Because of the interchangeability, the code number of the board has remained invaried.

OLD VERSION NEW VERSION

CVC

CSR

Black

Brown

Black

Brown
Brown

CVE
PA

N

Blue

Blue

Red

White

Violet
Pink

L

è

Position 3 - IVE
Position 6 - IVE

Position L - IVC
Position 7 - IVC

CVC

CSR

Black
Brown

Brown
Brown
Black

Blue

8

9

11

10

12

7

Red

6

White

5

Blue

4

Blue

3

Violet

2

Pink

1

N
PA
CVE

L

è

Position 3 - IVE
Position 6 - IVE

è

Compressor
Position L - IVC
Position 7 - IVC

è

Blue

Compressor

R1 Rele' compressore CSR

Compressor relay CSR
Verdichter-Relais CSR
Relais compresseur CSR
Relé compressor CSR

R3 Rele' max velocità del ventilatore evaporatore VE

Max speed evaporator ventilator relay VE
Verdampfer-Ventilator Relais (max Geschwindigkeit) VE
Ventilateur évaporateur relais (max vitesse) VE
Relé del ventilador evaporador (max velocidad) VE

R2 Rele' min velocità del ventilatore evaporatore VE

Min speed evaporator ventilator relay VE
Verdampfer-Ventilator Relais (min Geschwindigkeit) VE
Ventilateur évaporateur relais (min vitesse) VE
Relé del ventilador evaporador (min velocidad) VE

R4 Rele' del ventilatore condensatore VC

Condenser ventilator relay VC
Verflüssiger-Ventilator Relais VC
Relais du ventilateur condensateur VC
Relé del ventilador condensador VC

TECHNICAL INFORMATION : Pag. 4

TECHNICAL INFORMATIONS

multiple connector

PORTABLE AIR-CONDITIONERS

MARCH '96: PAC 19ECO / PAC 25ECO / PAC 26ECO

From 1996 onwards the above mentioned ECO air conditioners will be produced also with SICOM COMPRESSORS (code
no 512914). However appliances with the new SICOM compressor will have a different gas charge (225g instead of 240g)

then those with Aspera compressors.
In contrary to the ASPERA Compressors, which you can use either for FREON as for ECO type air conditioners, you cannot
do this with the SICOM compressors. Only the compressor for the ECO type air conditioners can be used in the FREON
type conditioners, but not vice versa. (SICOM uses syntecic oil in the compressors for the FREON type conditioners which
is not suitable for propan gas.) You can distinguish the SICOM compressors with mineral oil from the ones with syntetic
oil consulting the rating plate of the compressor. (See figure below!)

SICOM ..... ES has syntetic oil SICOM .....EU (or US) has the mineral oil

SICOM

AE 5470 ES

Which Compressor (ASPERA OR SICOM) originally has been mounted onto the air conditioner you can see easely consulting
the gas charge on the rating plate:
225 g stands for SICOM COMPRESSOR
240 g stands for ASPREA COMPRESSOR.

In case you exchange those two compressor types, take care of the different gas charge.

SICOM

AE 5470 EU (US)

MARCH '96: PAC 25 ECO / PAC 19 ECO / PAC 25 (MODEL R22)

Since February '96, the above mentioned air conditioner models will be produced with a different electronic float switch
board. As the wire connections on the boards are different, both electronic boards are not interchangeable. You will have

to order the original type of electronic board as well as to use the specific wiring diagram belonging to the electronic board.
While the old board (code no. 521573) has three cable connectors soldered onto it, the new one (code 521604) has one
"normal" connector as well as a line of stamped wiring leads for the new card-edge connector (see figure below).

Appliances with the new board have been signed with the letters "SN" behind the serial number or the type specification.

OLD FLOAT SWITCH BOARD 521573

NEW FLOAT SWITCH BOARD 521604

wiring leads for the card

edge connector

multiple connectors

DE'LONGHI CODE

DE'LONGHI CODE

TECHNICAL INFORMATION : Pag. 5

SEPTEMBER '96: - NEW SIDE PANELS FOR ALL AIR CONDITIONERS TYPE PAC A1, G1 AND PAC ASR

We inform you that on the above mentioned air conditioners models from serial no. 9614... onwards the side panels with
their corrisponding upper brackets (close to the control panel) has been modified.
IMPORTANT: You can only interchange the side panels by changing side panel and corrisponding bracket together.

Description Old New Description New

code no. code no. code no.
Right side panel white 706988 709139 Bracket 690476
Right side panel gray 709235 709233 Bracket 690476
Left side panel white 706990 709140 Bracket 690476
Left side panel gray 709236 709234 Bracket 690476

SEPTEMBER '96: - DEHUMIDIFIER MODELS: DH25 - DH250R - DS105 - DN125 - DR155

We inform you that in all the above mentioned Dehumidifier models has been introduced a new electronic antifrost device.
Depending on our supplier you can find either the antifrost board IMIT (code no.521705) or ASTREL (code no. 521631) ­see also figure below. Both boards have the same function and the same temperature of intervention, but they differ in their
wire connection, eg. wire no. 1 on IMIT board becomes wire no. 5 on the ASTREL board. Therefore we recommend you
to use as spare part the board originally mounted in your dehumidifier.
In order to distinguish the boards from please consult the letter combination behind the type specification. If the second
letter is "I" you will have the IMIT board - if the second letter is "A" you will have the ASTREL board. No second letter, that
is "-", means the known MECHANIC ANTIFROST THERMOSTAT.

Eg. TYPE: DH25 "AI" means IMIT antifrost board - TYPE: DH25 "SA" means ASTREL antifrost board.
For further details as electric diagrams, values of the antifrost probes please consult the new technical sheets:
DH 25 (*) TECHNICAL SHEET No.96007
DH 250R TECHNICAL SHEET No.96068
DS 105 TECHNICAL SHEET No.96070
DN 125 TECHNICAL SHEET No.96068
DR 155 TECHNICAL SHEET No.96071

COMPONENT SIDE

IMIT

521705

(*) In this model you might find the ASTREL electronic board already from serial no. 6 28 ..... onwards without identification.

From Sept. it follows the describt identification mode.

COMPONENT SIDE

ASTREL

521631

SEPTEMBER '96 - DEHUMIDIFIER MODEL: DN400

We inform you that in the above mentioned Dehumidifier model has been introduced a new electronic antifrost device.
Depending on our supplier you can find either the antifrost board ASTREL (code no. 521606); IMIT (code no.521704) or
ASTREL (code no. 521701) - see also figure below.
All boards have the same function and the same temperature of intervention but they have different wire connections and
are therefore not interchangeable so that you have to order the board originally mounted into your dehumidifier.
You can find out which board has been mounted into your dehumidifier consulting the second letter behind the type
specification, which can be "A" for ASTREL board(521701); "B" for ASTREL board (521606) or "I" for IMIT board (521704).
Example:
Type: DN400 "SA" - ASTREL antifrost board (code no. 521701)
Type: DN400 "SB" - ASTREL antifrost board (code no. 521606)
Type: DN400 "SI" - IMIT antifrost board (code no. 521704)
Type: DN400 "S-" - MECHANIC antifrost board (code no. 521407)

DN400 "SA"

DN400 "SB"

ASTREL 521606

ASTREL 521701

DN400 "SI"

IMIT 521704

PROBE

PROBE

COMPONENT SIDE

COMPONENT SIDE

PROBE

TECHNICAL INFORMATION : Pag. 6

TECHNICAL INFORMATIONS

PORTABLE AIR-CONDITIONERS

SEPTEMBER '96: - DEHUMIDIFIERS MODELS: DH25 - DH250R - DS105 - DN125 - DR155

We inform you that the identification for the two different compressors (ASPERA and SICOM) used in our dehumidifiers
is not longer valid for 1996.

While the dehumidifiers produced this year, until September, do not have any final letter ("N"; "R" and "Q") on the serial no.
in order to identify the two different compressors there will be introduced a new identification for production variations from
the end of September as explained below.
However the compressor type used in the dehumidifiers can also be recognized by the freon charge stated on the rating
plate.

NOTE: CHARGE (R22) 0.265Kg stands always for the ASPERA COMPRESSOR

CHARGE (R22) 0.300Kg stands always for the SICOM COMPRESSOR

SEPTEMBER '96: DEHUMIDIFIERS MODELS: DH25 - DH250R - DS105 - DN125 - DR155 - DN400

We inform you, that from September '96 on all our DEHUMIDIFIERS all the product variations will be stated not anymore
with letters at the end of the serial number but behind the TYPE specification, e.g. TYPE DH25 "SI".
The first letter stands for the compressor type: "A" for ASPERA compressor - "S" for SICOM compressor.
The second letter stands for the antifrost device: "-" for mecanic antifrost thermostat; "A" for ASTREL electronic board;
"I" for IMIT electronic board (*).
This can give you the following combinations:

DH 25 "A-" - ASPERA compressor and MECANIC ANTIFROST THERMOSTAT

DH 25 "AA" - ASPERA compressor and ASTREL ELECTRONIC BOARD
DH 25 "AI" - ASPERA compressor and IMIT ELECTRONIC BOARD
DH 25 "S-" - SICOM compressor and MECANICALLY ANTIFROST THERMOSTAT
DH 25 "SA" - SICOM compressor and ASTREL ELECTRONIC BOARD
DH 25 "SI" - SICOM compressor and IMIT ELECTRONIC BOARD

(*) On the DN400 there is also the possibility for the second letter "B" to indicate the third electronic board (see the
technical information page 6)

January '97: Dehumidifier models: DS105 ; DN125; DH25; DH250R; DR155; DN125ECO

We inform you that from the December production '96 of the above mentioned dehumidifier models, the compressor relay
(code 521405) on all appliances produced with the SICOM compressor, has been replaced by a PTC relay with code
no. 521709. Appliances which have this new PTC instead of the compressor relay have been marked with the first letter "T.."

(=SICOM compressor + PTC) after the type specification.
Furthermore, on appliances with SICOM compressor and PTC, which are marked by the first letter "T.." after the TYPE

specification, has been eliminated the start capacitor. Instead of the wires going to the capacitor, you will find a bridge between
the connections 3 and 4 of the PTC. For further informations please consult the corresponding updated technical sheet.

IMPORTANT: The compressor capacitor can only be eliminated and the connections on the PTC bridged on appliances with
SICOM compressor and PTC, never on models which have the ASPERA compressor.

MARCH’97: - ALL WATER COOLED AIR CONDITIONER MODELS (PAC 19 / 25 / 26 / 29 / 30)

In case of possible customer complains about difficulties to open the tap of the water tank, please open the tap with an
appropriate tool, remove the gasket and clean the tap as well as the tank from any possible traces of lubricant before
inserting a new gasket (code n° 531857).

JUNE'97: PAC A2ECO - PAC G2ECO - PAC C21ECO - PAC 19ECO - PAC 25ECO- PAC ASR / G / L - PAC 35

In all above mentioned air conditioners has been introduced a new time delay / time delay plus antifrost probe. Because
of normative reasons, you must not replace new boards with older ones you might still have in stock, but you have to use
the new boards. On all old appliances the new board can replace the old ones.
Find below the table with new and old spare part numbers:
new board old board used on air conditioner model
521765 replaces 521401 PAC: ASR / -ASG / -ASL / -GSR/M / -GSR/HPM
521766 521584 PAC 35
521767 521340 PAC: 19ECO / -25ECO / -A2ECO / -AL2ECO / -G2ECO / -C21ECO

JUNE'97: PAC G2ECO - G1/M - GSR/M

We inform you, that in the production '97 of the above mentioned air conditioners has been modified the wiring diagram .
For any repair work on the electric cirquit please consult the updated technical documentations as follows:

Model Number technical sheet

PAC G2 ECO 96010/1
PAC G1/M 96031/1
PAC GSR/M 95019/1

TECHNICAL INFORMATION : Pag. 7

JUNE '97: - PAC GSR/M - PAC GSR/E

We inform you that the above mentioned air conditioners are being produced from serial number 6 46 04 P... with a new
Matsushiata compressor, so that you can find from now on two different compressors in this air conditioner models:
a) Sanyo 806.967.45 spare part no.512202 (known from previous productions)
b) Matsushita 2P20C8R235A-SA with spare part no. 512928

Both compressors are not interchangeable.
Which compressor has been mounted into your air conditioner you can find out consulting the gas charge declare on
the rating plate.
NOTE: CHARGE (R22) 0.580Kg stands always for the SANYO COMPRESSOR

CHARGE (R22) 0.540Kg stands always for the MATSUSHITA COMPRESSOR

Furthermore the compressor type used in the appliance will be declared with the first letter on the aluminium label behind
the type specification:
The first letter "S.." stands for SANYO compressors.
The first letter "M.." stands for MATSUSHITA compressors.

JUNE '97: PAC 25ECO - PAC 29ECO: NEW FLOAT SWITCH BOARD

We inform you, that during the production '97 there has been introduced a new float-switch-board on both above mentione
air conditioners. As the new board is fitted with a specical protected relay, you can replace the old boards with the new ones,
but do never replace the new board with the old type ones.
The new board has spare part number 521793 and replaces the old board with spare part number 521604.

You find the board in appliances from serial number 7 14 05 P... onwards.

Furthermore, appliances with the new board are signed with the second letter "..D" on the aluminum lable behind the type
specification on the rating plate.

The new board can also be used as alternative to replace board 521604 on appliances PAC25 and PAC29 which use freon
as refrigerant.

JUNE '97: NEW ELECTRONIC ON PAC 26 ECO

We inform you, that in the PAC 26ECO has been introduced with the '97 production a complete new set of electronic boards
which are not interchangeable with the old ones.
If you have to exchange a board, please consult the following table for the spare part number as well as technical sheet number
for the electrical diagram and verify the board with the following figures.

FROM SERIAL N° CONTROL BOARD THERMOSTAT BOARD RELAY BOARD

BEGIN OF PRODUCTION 521552 521553 521554

TO SERIAL N°

7 05 05P...

SPECIAL SIGN OF

RECOGNITION

- NON -

TECHNICAL SHEET

96008/1

Big size - includes temp.

probe and microprocessor

different cable conntectors

Only one

cableconnector

Commutating by relay/

many small cable

connector blocks

FROM SERIAL N° SWITCH BOARD THERMOSTAT BOARD POWER BOARD

7 05 05P... 521742 521726 521743

TO SERIAL N°

- - - - -

SPECIAL SIGN OF

RECOGNITION:

2ND LETTER "C" BEHIND

TYPE SPECIFICATION

TECHNICAL SHEET

96008/1

Small size - without temp.

probe / only one cable

conntector towards

thermostat board

Two

cable connectors

instead of one

Includes all important

electronic components

connector for temp.

probe, as well as

capacitors for fan motors

TECHNICAL INFORMATIONS : Pag.8

TECHNICAL INFORMATIONS

PORTABLE AIR-CONDITIONERS

JUNE '97: - NEW ELECTRONIC ON PAC 26 (FREON R22)

We inform you, that in the PAC 26(FREON R22) has been introduced with the '97 production a complete new set of electronic
boards which are not interchangeable with the old ones.
If you have to exchange a board, please consult the following table for the spare part number as well as technical sheet number
for the electrical diagram and verify the board with the following figures.

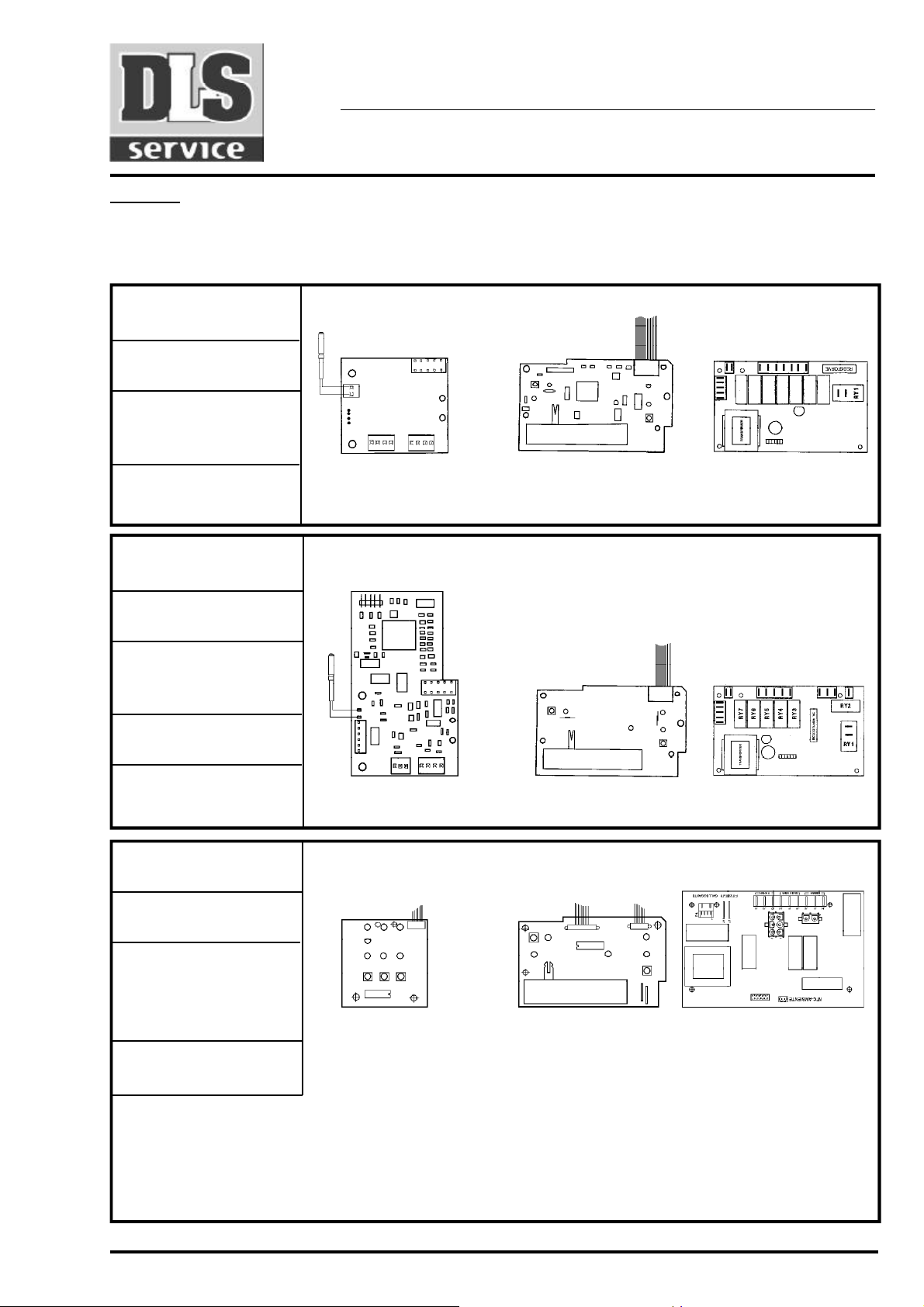

FROM SERIAL N° CONTROL BOARD THERMOSTAT BOARD RELAY BOARD

- - - - - 521339 521348 521338

TO SERIAL N°

5 09 P 1100A

SPECIAL SIGN OF

RECOGNITION

- NONE -

TECHNICAL SHEET

94025

Small size - includes
temp.probe - two four
pole connectors - few
electronic components

With microprocessor

and many electronic

components

One long

cableconnector

FROM SERIAL N° CONTROL BOARD THERMOSTAT BOARD RELAY BOARD

5 09 P 1100A 521446 521447 521448

TO SERIAL N°

7 05 05 P ...

SPECIAL SIGN OF

RECOGNITION

- NONE -

TECHNICAL SHEET

95002/1

Big size - includes temp.

probe and microprocessor

different cable conntectors

Only temperature

relulation (without

microprocessor)

Many small cable
connector blocks

FROM SERIAL N° SWITCH BOARD THERMOSTAT BOARD POWER BOARD

7 05 05 P ... 521730 521729 521731

TO SERIAL N°

- - - - -

SPECIAL SIGN OF

RECOGNITION

2ND LETTER "..C" BEHIND

TYPE SPECIFICATION

TECHNICAL SHEET

95002/1

Small size - without temp.

probe or microprocessor

only one cable conntector

towards thermostat board

Only temperature

relulation (without

microprocessor) - two

cable connectors

instead of one

Includes all important

electronic components

connector for temp.

probe, as well as

capacitors for fan motors

IMPORTANT:

While until the production of '97 you could find either the E.B.M. or the OLMO Condenser ventilator, and exchanging the
start capacitor you could interchange these two motor types, with the new electronic of '97 marked with 2nd letter "C"
behind the type secification, it is only possible to use the E.B.M. condenser ventilator, as the start capacitor is already
incorporated in the power board with code 521731!

TECHNICAL INFORMATION : Pag. 9

JUNE '97: - NEW ELECTRONIC ON PAC 36

We inform you, that in the PAC 36 has been introduced with the '97 production a complete new set of electronic boards which

are not interchangeable with the old ones.

If you have to exchange a board, please consult the following table for the spare part number as well as technical sheet
number for the electrical diagram and verify the board with the following figures.

FROM SERIAL N° CONTROL BOARD THERMOSTAT BOARD RELAY BOARD

-BEGIN OF PRODUCTION- 521436 521437 521435
TO SERIAL N°

4 52 P ....

SPECIAL SIGN OF

RECOGNITION

- NONE -

TECHNICAL SHEET

94058

SA

Temperature regulation

Two four pole connec­tors in the bottom for
probes and timer

Two four pole connectors;

the connections for the

compressor on top of the

compressor relay

FROM SERIAL N° CONTROL BOARD THERMOSTAT BOARD RELAY BOARD

5 01 P .... 521444 521437 521435

TO SERIAL N°

SPECIAL SIGN OF

SA

RECOGNITION

- NONE -

TECHNICAL SHEET

95001/1

Temperature regulation

same as above

One four and one three pole

conectors in the bottom.

Not interchangeable with board

above

One four and one six pole

connectors; the connections

for the compressor have

been changed to positions

3+4 of the six pole connector

interchangeable with

board above

(same spare part number)

FROM SERIAL N° SWITCH BOARD THERMOSTAT BOARD POWER BOARD

- - - - - 521727 521726 521728

TO SERIAL N°

- - - - -

SPECIAL SIGN OF

RECOGNITION

2ND LETTER "C" BEHIND

TYPE SPECIFICATION

TECHNICAL SHEET

95001/1

Small size - without temp.

probe or microprocessor
only one cable conntector
towards thermostat board

Only temperature

relulation - two

cable connectors

instead of one

Includes all important electronic

components connector for temp.

probe, as well as capacitors for

fan motors

NONE OF THESE BOARDS IS INTERCHANGEABLE WITH THE ONES ABOVE

TECHNICAL INFORMATION : Pag. 10

TECHNICAL INFORMATIONS

PORTABLE AIR-CONDITIONERS

AUGUST ’97: PAC GSR/HPM - PAC GSR/HPE

We inform you that the above mentioned air conditioners are being produced from serial number 6 50 04 P... with a new
SANYO compressor, so that you can find from now on two different compressors in this air conditioner models:
a) SANYO 806.835.45 spare part no.512216 (known from previous productions)
b) SANYO 806.967.45 28 with spare part no. 512202 (used also in GSR/M and GSR/E model)

Both compressors are not interchangeable.
Which compressor has been mounted into your air conditioner you can find out consulting the gas charge declare on
the rating plate.
NOTE: CHARGE (R22) 0.600Kg stands always for the SANYO 806.835.45 COMPRESSOR

CHARGE (R22) 0.540Kg stands always for the SANYO 806.967.45 28 COMPRESSOR

Together with the new compressor has also changed the for-way- valve-group. You can recognise the new for way valve
by the missing liquid separator (bottle). This new for-way-valve with code n° 738459 can only be used with the new
compressor SANYO 806.967.45 28 and is not interchangeable with the old one with code n° 735530.

OCTOBER ’97: RESET OF “DIRTY FILTER” SIGNAL (YELLOW LED FLASHING) ON PAC 180 AND NEW SERIES
OF WALL MOUNTED AIR CONDITIONERS.

In order to turn off the flashing yellow LED, which indicates dirty filters, press the "forced function switch" on the command
board of the indoor unit for ca. 6 seconds. You will hear a double beep (beep - beep) and the LED turns off. This operation
has to be done with the appliance functioning.

NOVEMBER ’97: ALL DEHUMIDIFIER MODELS

We inform that in all dehumidifier models can be used a new antifrost board IMIT with code nr. 5248000100 for the DN400
only and code nr 5248000200 for all other models. This new board is perfectly interchangeable with the ASTREL board
with code 521701 for the DN400 and ASTREL board 521631 for all other models, but not with the IMIT boards, as the sequence
of the wires in the connector is different.

Dehumidifiers which mount the new boards are signed with the second letter “..A” behind the type specification.

TECHNICAL INFORMATION : Pag. 11
