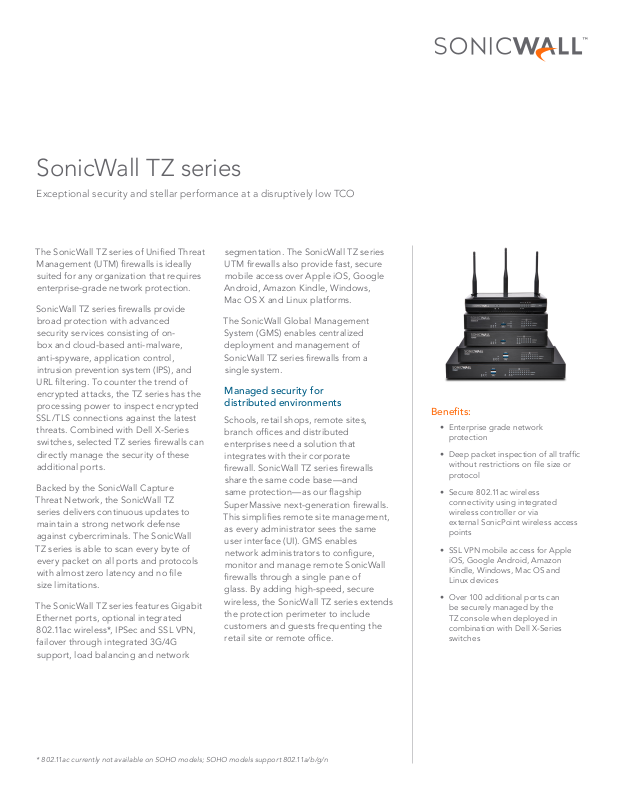

SonicWall TZ series

Exceptional security and stellar performance at a disruptively low TCO

The SonicWall TZ series of Unied Threat

Management (UTM) rewalls is ideally suited for any organization that requires enterprise-grade network protection.

SonicWall TZ series rewalls provide broad protection with advanced security services consisting of onbox and cloud-based anti-malware, anti-spyware, application control, intrusion prevention system (IPS), and URL ltering. To counter the trend of encrypted attacks, the TZ series has the processing power to inspect encrypted SSL/TLS connections against the latest threats. Combined with Dell X-Series switches, selected TZ series rewalls can directly manage the security of these additional ports.

Backed by the SonicWall Capture

Threat Network, the SonicWall TZ

series delivers continuous updates to maintain a strong network defense against cybercriminals. The SonicWall

TZ series is able to scan every byte of

every packet on all ports and protocols with almost zero latency and no le size limitations.

The SonicWall TZ series features Gigabit

Ethernet ports, optional integrated

802.11ac wireless*, IPSec and SSL VPN, failover through integrated 3G/4G support, load balancing and network

segmentation. The SonicWall TZ series UTM rewalls also provide fast, secure mobile access over Apple iOS, Google Android, Amazon Kindle, Windows, Mac OS X and Linux platforms.

The SonicWall Global Management

System (GMS) enables centralized deployment and management of SonicWall TZ series rewalls from a single system.

Managed security for distributed environments

Schools, retail shops, remote sites, branch ofces and distributed enterprises need a solution that integrates with their corporate rewall. SonicWall TZ series rewalls share the same code base—and same protection—as our agship SuperMassive next-generation rewalls.

This simplies remote site management,

as every administrator sees the same user interface (UI). GMS enables network administrators to congure, monitor and manage remote SonicWall rewalls through a single pane of glass. By adding high-speed, secure wireless, the SonicWall TZ series extends the protection perimeter to include customers and guests frequenting the retail site or remote ofce.

Benets:

• Enterprise grade network protection

• Deep packet inspection of all trafc without restrictions on le size or protocol

• Secure 802.11ac wireless connectivity using integrated wireless controller or via external SonicPoint wireless access points

• SSL VPN mobile access for Apple iOS, Google Android, Amazon Kindle, Windows, Mac OS and Linux devices

• Over 100 additional por ts can be securely managed by the TZ console when deployed in combination with Dell X-Series switches

* 802.11ac currently not available on SOHO models; SOHO models support 802.11a/b/g/n

SonicWall TZ600 series

For emerging enterprises, retail and branch ofces looking for security performance at a value price, the SonicWall TZ600 nextgeneration rewall secures networks with enterprise-class features and uncompromising performance.

Specication TZ600 series

Firewall throughput 1.5 Gbps

Full DPI throughput 500 Mbps

Anti-malware throughput 500 Mbps

IPS throughput 1.1 Gbps

IMIX throughput 900 Mbps

Max DPI connections 125,000

New connections/sec 12,000

Power LED Test LED

USB port (3G/4G WAN failover)

Link and activity indicator LEDs

Expansion module

Console port

8x1-GbE switch (congurable)

X0 LAN port X1 WAN port

SonicWall TZ500 series

For growing branch ofces and SMBs, the SonicWall TZ500 series delivers highly effective, no-compromise protection with network productivity and optional integrated 802.11ac dual-band wireless.

Specication TZ500 series

Firewall throughput 1.4 Gbps

Full DPI throughput 400 Mbps

Anti-malware throughput 400 Mbps

IPS throughput 1.0 Gbps

IMIX throughput 700 Mbps

Max DPI connections 100,000

New connections/sec 8,000

Optional 802 .11ac wireless

Secure

power

Power LED Test LED 6x1-GbE switch

USB port (3G/4G WAN failover)

Link and activity indicator LEDs

Console port

(congurable)

X0 LAN port X1 WAN port

Secure

power

SonicWall TZ400 series

For small business, retail and branch ofce locations, the SonicWall TZ400 series delivers enterprise-grade protection. Flexible wireless deployment is available with optional 802.11ac dual-band wireless integrated into the rewall.

Specication TZ400 series

Firewall throughput 1.3 Gbps

Full DPI throughput 300 Mbps

Anti-malware throughput 300 Mbps

IPS throughput 900 Mbps

IMIX throughput 500 Mbps

Max DPI connections 90,000

New connections/sec 6,000

Optional 802 .11ac wireless

Power LED Test LED 5x1-GbE switch

USB port (3G/4G WAN failover)

Link and activity indicator

Console port

(congurable)

X0 LAN port X1 WAN port

Secure

power

LEDs

SonicWall TZ300 series

The SonicWall TZ300 series offers an all-in-one solution that protects networks from attack. Unlike consumer grade products, the

SonicWall TZ300 series rewall combines effective intrusion prevention, anti-malware and content/URL ltering with optional

802.11ac integrated wireless and broadest secure mobile platforms support for laptops, smartphones and tablets.

Specication TZ300 series

Firewall throughput 750 Mbps

Full DPI throughput 100 Mbps

Anti-malware throughput 100 Mbps

IPS throughput 300 Mbps

IMIX throughput 200 Mbps

Max DPI connections 50,000

New connections/sec 5,000

Optional 802 .11ac wireless

Power LED Test LED

USB port (3G/4G WAN failover)

Link and activity indicator LEDs

Console port

3x1-GbE switch (congurable)

X0 LAN port X1 WAN port

Secure

power

SonicWall SOHO series

For wired and wireless small and home ofce environments, the SonicWall SOHO series delivers the same business-class protection large organizations require at a more affordable price point.

Specication SOHO series

Firewall throughput 300 Mbps

Full DPI throughput 50 Mbps

Anti-malware throughput 50 Mbps

IPS throughput 100 Mbps

IMIX throughput 60 Mbps

Max DPI connections 10,000

New connections/sec 1,8 00

Optional 802 .11n wireless

Power LED Test LED

Link and activity indicator LEDs

USB port (3G/4G WAN failover)

Extensible architecture for extreme scalability and performance

The Reassembly-Free Deep Packet Inspection (RFDPI) engine is designed from the ground up with an emphasis on providing security scanning at a high performance level, to match both the inherently parallel and ever-growing nature of network trafc. When combined with multi-core processor systems, this parallel-centric software architecture scales up perfectly to

NSA or SuperMassive

Corporate

Headquarters

Console port

3x1-GbE switch (congurable)

X0 LAN port X1 WAN port

Secure

power

address the demands of deep packet inspection at high trafc loads. The SonicWall TZ Series platform relies on processors that, unlike x86, are optimized for packet, crypto and network processing while retaining exibility and programmability in the eld — a weak point for ASICs systems. This exibility is essential when new code and behavior updates are necessary to protect against new attacks that require updated and more sophisticated detection techniques.

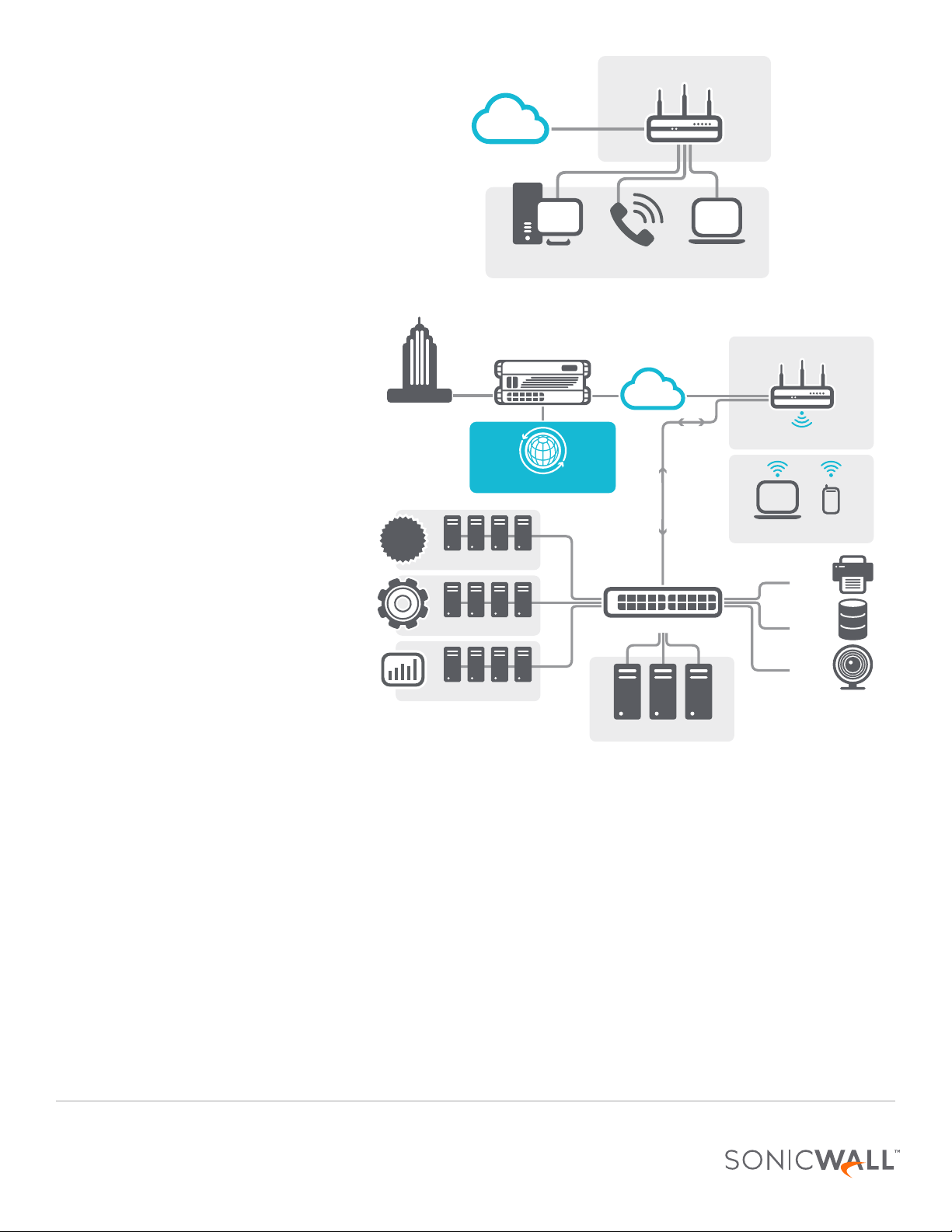

SOHO

Home office

Internet

TZ400

Global Management System

TZ600

18 port

X-Series switch

Small

branch office

Large

branch office

Reassembly-Free Deep Packet Inspection (RFDPI) engine

The RFDPI engine provides superior threat protection and

application control without compromising performance. This patented engine inspects the trafc stream to detect threats at Layers 3-7. The RFDPI engine takes network streams through extensive and repeated normalization and decryption in order to neutralize advanced evasion techniques that seek to confuse detection engines and sneak malicious code into the network. Once a packet undergoes the necessary preprocessing, including SSL decryption, it is analyzed against

a single proprietary memory representation of three signature databases: intrusion attacks, malware and applications. The connection state is then advanced to represent the position of the stream relative to these databases until it encounters a state of attack, or another “match” event, at which point a pre-set action is taken. As malware is identied, the SonicWall rewall terminates the connection before any compromise can be achieved and properly logs the event. However, the engine can also be congured for inspection only or, in the case of application detection, to provide Layer 7 bandwidth management services for the remainder of the application stream as soon as the application is identied.

Packet assembly-based process

Packet

disassembly

Traffic out

Inspection capacity

Min Max

Traffic in

Inspection time

Less More

Proxy

Scanning

When proxy

becomes full or

content too large,

files bypass

scanning.

Global management and reporting

For larger, distributed enterprise deployments, the optional SonicWall Global Management System (GMS) provides administrators a unied, secure and extensible platform to manage SonicWall security appliances and Dell X-Series switches. It enables enterprises to easily consolidate the management of security appliances, reduce administrative and troubleshooting complexities and governs all operational

Packet reassembly-free process

Traffic in

Inspection time

Less More

Reassembly-free packet

scanning eliminates proxy

and content size limitations.

Traffic out

Inspection capacity

Min Max

SonicWall stream-based architectureCompetitive proxy-based architecture

aspects of the security infrastructure including centralized

policy management and enforcement, real-time event monitoring, analytics and reporting, and more. GMS also meets the rewall change management requirements of enterprises through a workow automation feature. GMS provides a better way to manage network security by business processes

and service levels that dramatically simplify the lifecycle

management of your overall security environments rather than

on a device-by-device basis.
