Dell™ S2440L Monitor User's Guide

About Your Monitor Setting Up the Monitor Operating the Monitor Troubleshooting Appendix

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries, Intel is a registered trademark of Intel Corporation in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Model S2440Lb

July 2012 Rev. A00

Back to Contents Page

About Your Monitor

Dell™ S2440L Monitor User's Guide

Package Contents Product Features Identifying Parts and Controls Monitor Specifications Plug and Play Capability LCD Monitor Quality and Pixel Policy Maintenance Guidelines

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.

Monitor

Stand Riser

Stand Base

Power Cable

Power Adapter

VGA Cable

Cable Tie

Drivers and Documentation media Quick Setup Guide

Product and Safety Information Guide

Product Features

The Dell Professional S2440L flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD) and LED backlight. The monitor features include:

■ S2440L: 60.97 cm (24-inch) viewable area display (measured diagonally). 1920 x 1080 resolution, plus full-screen support for lower resolutions.

■ Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■ Tilt capability.

■ Plug and play capability if supported by your system.

■ On -Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■ Software and documentation media includes an Information File (INF), Image Color Matching File (ICM), Dell Display Manager software application and product documentation.

■ Energy Saver feature for Energy Star compliance.

■ Security lock slot.

■ Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.

■ EPEAT silver Rating.

■ Dell Display Manager Software included (comes in the CD shipped with the monitor).

■ Arsenic-Free glass and Mercury-Free for the panel only.

■ High Dynamic Contrast Ratio (8,000,000:1).

■ 0.5 W standby power when in the sleep mode.

■ Energy Gauge shows the energy level being consumed by the monitor in real time.

Identifying Parts and Controls

Front View

Label Description

Function buttons (For more information, see Operating the

Monitor)

2 Power On/Off button (with LED indicator)

Front panel controls

Back View

Back View with monitor stand

Label Description Use

1 Security lock slot Secure monitor with security cable lock. 2 Regulatory label List the regulatory approvals. 3 Barcode serial number label Refer to this label if you need to contact Dell for technical support. 4 Stand release button Release stand from monitor. 5 Cable management clip Use to organize cables by routing them through the clip.

Side View

Bottom View

Bottom view without monitor stand

Label Description Use

1 Audio Line-out Connect your speakers.* 2 HDMI connector Connect your computer HDMI cable. 3 VGA connector Connect your computer VGA cable. 4 DC power cord connector Connect the power cable.

*Headphone usage is not supported for the audio line out connector.

Monitor Specifications

Flat Panel Specifications

Model S2440L Screen type Active matrix - TFT LCD Panel type VA Screen dimensions 60.9 cm (24-inch diagonal viewable image size)

Preset display area:

Horizontal Vertical

Pixel pitch 0.277 mm

Viewing angle

Luminance output

Contrast ratio

Faceplate coating Glare with hard-coating 3H Backlight LED edgelight system

Response time

Color depth 16.7 million colors Color gamut CIE1976 (86%)*

*S2440L color gamut (typical) is based on CIE1976 (86%) and CIE1931 (72%) test standards.

531.36 mm (20.92 inches)

298.89 mm (11.77 inches)

178° (vertical) typical 178° (horizontal) typical

Panel 280 cd/m² (Typ.) Monitor 250 cd/m² (Typ.)

5000 to 1 (typical) 8M to 1 (typical Dynamic Contrast On)

12 ms (typical) 6 ms (typical) with Overdrive

Resolution Specifications

Model S2440L Horizontal scan range 30 kHz to 83 kHz (automatic) Vertical scan range 56 Hz to 76 Hz (automatic) Maximum preset resolution 1920 x 1080 at 60 Hz

Supported Video Modes

Model S2440L Video display capabilities (HDMI playback) 480p, 480i, 576p, 576i, 720p, 1080p, 1080i

Preset Display Modes

S2440L

Display Mode

VESA, 720 x 400 31.5 70.1 28.3 -/+ VESA, 640 x 480 31.5 60.0 25.2 -/VESA, 640 x 480 37.5 75.0 31.5 -/VESA, 800 x 600 37.9 60.3 40.0 +/+ VESA, 800 x 600 46.9 75.0 49.5 +/+ VESA, 1024 x 768 48.4 60.0 65.0 -/VESA, 1024 x 768 60.0 75.0 78.8 +/+ VESA, 1152 x 864 67.5 75.0 108.0 +/+ VESA, 1280 x 1024 64.0 60.0 108.0 +/+ VESA, 1280 x 1024 80.0 75.0 135.0 +/+ VESA, 1920 x 1080 67.5 60.0 148.5 +/+

Horizontal Frequency

(kHz)

Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (Horizontal/Vertical)

Electrical Specifications

Model S2440L

Video input signals

Synchronization input signals

Input

AC/DC adapter*

voltage/frequency/current

Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on green)

Delta adapter ADP-40DD B: 100 VAC to 240 VAC / 50 Hz to 60 Hz + (Max.), Lite-On adapter PA-1041-71: 100 VAC to 240 VAC / 50 Hz or 60 Hz +

Analog RGB, 0.7 Volts +/- 5%, positive polarity at 75 ohm input impedance HDMI, 600mV for each differential line, 100 ohm input impedance per differential pair

3 Hz / 1.5 A

3 Hz / 1.2 A

(Max.)

Output voltage/current Output: 12 VDC / 3.33 A

Inrush current

*Qualified Compatible AC/DC adapters:

CAUTION: To avoid damage to the monitor, use only the adapter designed for this particular Dell monitor.

Manufacturer Model Polarity

Delta ADP-40DD BA

Lite-On PA-1041-71TP-LF

120 V : 30 A (Max) 240 V : 60 A (Max)

Physical Characteristics

Model S2440L

Connector type 15-pin D-subminiature, blue connector; HDMI

Signal cable type

Dimensions (with stand)

Height 417.9 mm (16.45 inches) Width 567.4 mm (22.34 inches) Depth 190.8 mm (7.51 inches)

Dimensions (without stand)

Height 334.9 mm (13.18 inches) Width 567.4 mm (22.34 inches) Depth 43.5 mm (1.71 inches)

Stand dimensions

Height 137.1 mm (5.4 inches) Width 190.8 mm (7.51 inches) Depth 190.8 mm (7.51 inches)

Weight

Analog: attachable, D-Sub, 15 pins, shipped detached from the monitor Digital: HDMI

Weight with packaging 6.09 kg (13.43 lb) Weight with stand assembly and cables 5.03 kg (11.09 lb)

Weight without stand assembly 3.66 kg (8.07 lb)

Weight of stand assembly 0.87 kg (1.92 lb) Front frame gloss 90~100 gloss unit

Environmental Characteristics

Model S2440L

Temperature

Operating 0 °C to 40 °C

Non-operating

Humidity

Operating 10% to 80% (non-condensing)

Non-operating

Altitude

Operating 5,000 m (16,404 ft) max Non-operating 12,192 m (40,000 ft) max

Thermal dissipation

Storage: -20 °C to 60 °C (-4 °F to 140 °F) Shipping: -20 °C to 60 °C (-4 °F to 140 °F)

Storage: 5% to 90% (non-condensing) Shipping: 5% to 90% (non-condensing)

85.30 BTU/hour (maximum)

61.42 BTU/hour (typical)

Power Management Modes

If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as Power Save Mode*. If the computer detects input from the keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature:

VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption

Normal operation Active Active Active white 25 W (maximum) ** Active-off mode Inactive Inactive Blanked Amber Less than 0.5 W

Switch off - - - Off Less than 0.5 W

18 W (typical)

The OSD functions only in the normal operation mode. When any button is pressed in the Active-off mode, one of the following messages will be displayed:

Activate the computer and the monitor to gain access to the OSD.

NOTE: This monitor is ENERGY STAR®-compliant.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor. ** Maximum power consumption with max luminance.

Pin Assignments

VGA Connector

Pin Number

15-pin Side of the Connected Signal Cable

1 Video-Red 2 Video-Green 3 Video-Blue 4 GND 5 Self-test

6 GND-R 7 GND-G 8 GND-B

9 Computer 5 V/3.3 V 10 GND-sync 11 GND 12 DDC data 13 H-sync 14 V-sync 15 DDC clock

HDMI Connector

Pin Number

10 TMDS CLOCK+ 11 TMDS CLOCK SHIELD 12 TMDS CLOCK-

19-pin Side of the Connected Signal Cable

1 TMDS DATA 2+ 2 TMDS DATA 2 SHIELD 3 TMDS DATA 24 TMDS DATA 1+ 5 TMDS DATA 1 SHIELD 6 TMDS DATA 17 TMDS DATA 0+ 8 TMDS DATA 0 SHIELD 9 TMDS DATA 0-

13 CEC 14 Reserved (N.C. on device) 15 DDC CLOCK (SCL) 16 DDC DATA (SDA) 17 DDC/CEC Ground 18 +5V POWER 19 HOT PLUG DETECT

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor

LCD Monitor Quality and Pixel Policy

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: support.dell.com.

Maintenance Guidelines

Cleaning Your Monitor

CAUTION: Read and follow the safety instructions before cleaning the monitor. WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:

To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air. Use a lightly-dampened, warm cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor. If you notice white powder when you unpack your monitor, wipe it off with a cloth. Handle your monitor with care as a darker-colored monitor may get scratched and show white scuff marks more than a lighter-colored monitor. To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.

Back to Contents Page

Setting Up the Monitor

Dell™ S2440L Monitor User's Guide

Attaching the Stand Connecting the Monitor Organizing Your Cables Removing the Monitor Stand

Attaching the Stand

NOTE: The stand riser and stand base are detached when the monitor is shipped from the factory.

1. Assemble the stand riser to stand base. a. Attach the stand riser to the stand base. b. Tighten the thumbscrew below the stand base.

2. Attach the stand assembly to the monitor. a. Place the monitor on a soft cloth or cushion near the edge of desk. b. Align the stand assembly bracket to the monitor groove.

c. Insert the bracket towards monitor until it locked in place.

Connecting Your Monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

To connect your monitor to the computer:

1. Turn off your computer and disconnect the power cable.

Connect the blue (VGA) cable from your monitor to the computer.

NOTE: If your computer supports an HDMI connector, connect the HDMI cable (can be purchased separately) to the monitor and the

HDMI connector to your computer.

NOTE: Do not connect the VGA/HDMI cable to the computer at the same time.

2. Connect either the HDMI cable, or the VGA display connector cable to the corresponding video port on the back of your computer. Do not connect both cables

on the same computer. Use both cables only when they are connected to two different computers with appropriate video systems.

Connecting the blue VGA cable

Connecting the HDMI cable

CAUTION: The graphics are used for the purpose of illustration only. Appearance of the computer may vary.

Organizing Your Cables

After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) organize all cables as shown above.

Removing the Monitor Stand

NOTE: To prevent scratches on the LCD screen while removing the stand, ensure that the monitor is placed on a soft, clean surface. NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for the set-up

instructions.

To remove the stand:

1. Place the monitor on a flat surface.

2. Press and hold the stand release button.

3. Remove the stand.

Back to Contents Page

Operating the Monitor

Dell™ S2440L Monitor User's Guide

Power On the Monitor Using the Front Panel Controls Using the On-Screen Display (OSD) Menu Setting the Maximum Resolution Using the Tilt

Power On the Monitor

Press the button to turn on the monitor

Using the Front Panel Controls

Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls, an OSD shows the numeric values of the characteristics as they change.

The following table describes the front panel buttons:

Front Panel Button Description

Use this button to choose from a list of preset color modes.

Shortcut key/ Preset Modes

Use this button to directly access the "Brightness/Contrast" menu.

Shortcut key/

Brightness/Contrast

Use the MENU button to launch the On-Screen Display (OSD) and select the OSD Menu. See Accessing the Menu System

Use this button to go back to the main menu or exit the OSD main menu.

Exit

Use the Power button to turn the monitor On and Off. The white light indicates the monitor is On and fully functional. An amber light indicates the power save mode.

Power

(with power light

indicator)

Front Panel Button

Use the buttons on the front of the monitor to adjust the image settings.

Front Panel Button Description

Down

Back

Use the Up button to adjust (increase ranges) items in the OSD menu.

Use the Down button to adjust (decrease ranges) items in the OSD menu.

Use the OK button to confirm your selection.

Use the Back button to go back to the previous menu.

Using the On-Screen Display (OSD) Menu

Accessing the Menu System

NOTE: If you change the settings and then either proceed to another menu or exit the OSD menu, the monitor automatically saves those changes. The changes are also saved if you change the settings and

then wait for the OSD menu to disappear.

1. Press the

button to launch the OSD menu and display the main menu.

Main Menu for analog (VGA) input

Main Menu for digital (HDMI) input

NOTE: Auto Adjust is only available when you use the analog (VGA) connector.

Press the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the following table for a complete list of all the options

2. available for the monitor.

Press the button once to activate the highlighted option.

Press and button to select the desired parameter.

5. Press to enter the slide bar and then use the and buttons, according to the indicators on the menu, to make your changes.

6. Select the button to return to the main menu.

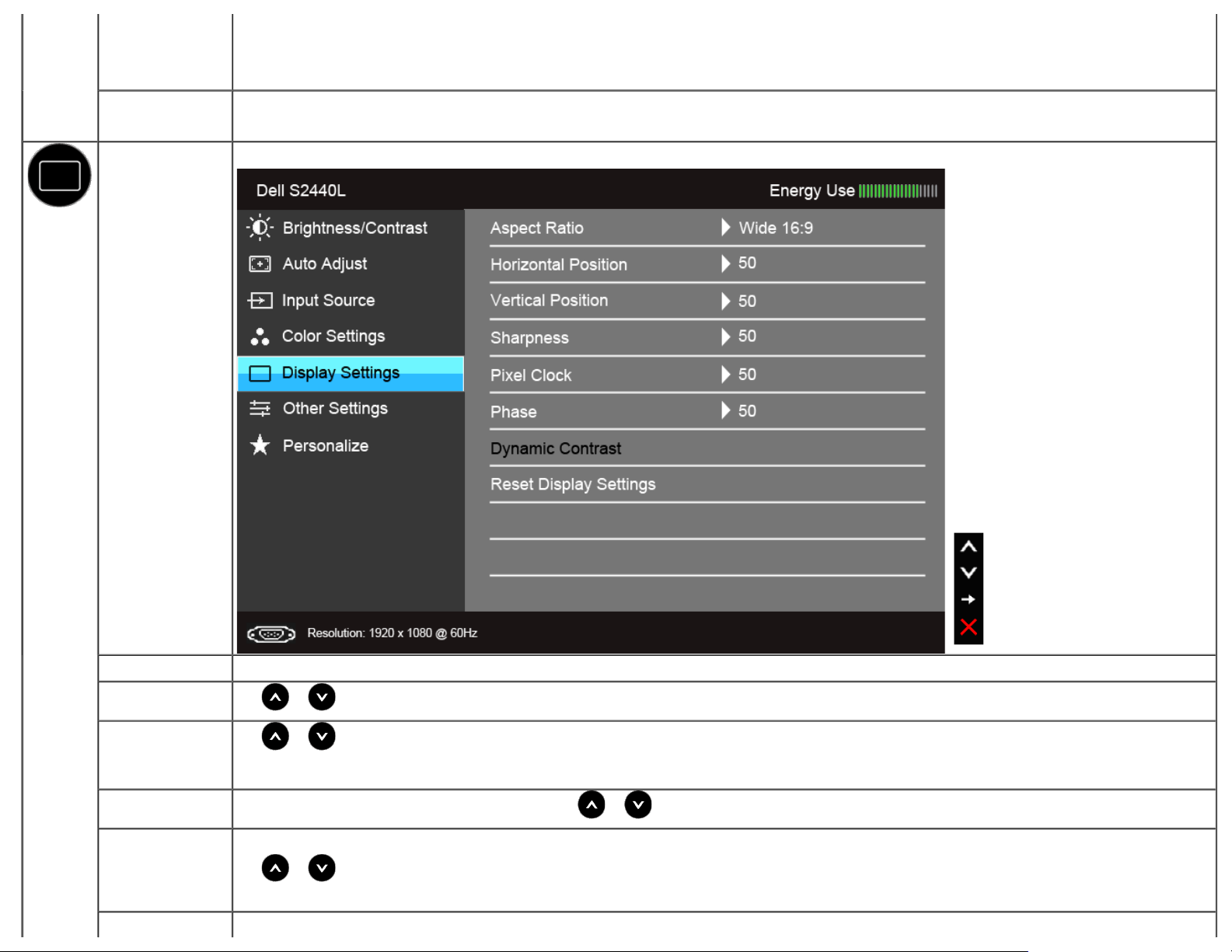

Icon Menu and

Submenus Brightness/Contrast Use this menu to activate Brightness/Contrast adjustment.

Description

Brightness Brightness adjusts the luminance of the backlight.

Press the button to increase the brightness and press the button to decrease the brightness (min 0 / max 100).

NOTE: Manual adjustment of Brightness is disabled when Energy Smart or Dynamic Contrast is switched On.

Contrast Adjust the Brightness first, and then adjust the Contrast only if further adjustment is necessary.

Press the

button to increase the contrast and press the button to decrease the contrast (min 0 / max 100).

The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.

Auto Adjust Even though your computer recognizes your monitor on startup, the Auto Adjustment function optimizes the display settings for use with your particular setup.

Auto Adjustment allows the monitor to self-adjust to the incoming video signal. After using Auto Adjustment, you can further tune your monitor by using the Pixel Clock (Coarse) and Phase (Fine) controls under Display Settings.

NOTE: In most cases, Auto Adjust produces the best image for your configuration. NOTE: Auto Adjust option is only available when you are using the analog (VGA) connector.

Input Source Use the Input Source menu to select between the different video signals that may be connected to your monitor.

Auto Select

Press

to select Auto Select, the monitor scans for available input sources.

VGA

Select the VGA input when you are using the analog (VGA) connector. Press

to select the VGA input source.

HDMI

Color Settings

Select HDMI input when you are using the HDMI connector. Press Use Color Settings to adjust the color setting mode.

to select the HDMI input source.

Input Color Format Allows you to set the video input mode to:

RGB: Select this option if your monitor is connected to a computer or DVD player using the VGA cable. YPbPr: Select this option if your monitor is connected to a DVD player by YPbPr to VGA cable; or if the DVD color output setting is not RGB.

Preset Modes When you select Preset Modes, you can choose Standard, Multimedia, Movie, Game, Text, Warm, Cool or Custom Color from the list.

Standard: Loads the monitor's default color settings. This is the default preset mode. Multimedia: Loads color settings ideal for multimedia applications. Movie: Loads color settings ideal for movies. Game: Loads color settings ideal for most gaming applications. Text: Loads brightness and sharpness settings ideal for viewing texts. Warm: Increase the color temperature. The screen appears warmer with a red/yellow tint. Cool: Decreases the color temperature. The screen appears cooler with a blue tint.

Custom Color: Allows you to manually adjust the color settings. Press the and buttons to adjust the three colors (R, G, B) values and create your own

preset color mode.

Hue

This feature can shift the color of the video image to green or purple. This is used to adjust the desired flesh tone color. Use

or to adjust the hue from '0' to '100'.

Press to increase the green shade of the video image.

Press to increase the purple shade of the video image.

Saturation

This feature can adjust the color saturation of the video image. Use

or to adjust the saturation from '0' to '100'.

Press to increase the monochrome appearance of the video image.

Press to increase the colorful appearance of the video image.

NOTE: Saturation adjustment is available only when you select Movie or Game preset mode.

NOTE:: Hue adjustment is available only when you select Movie or Game preset mode.

Demo Mode Splits the screen into two for viewing the images under the normal and enhanced Movie preset mode side by side.

You can also press

and simultaneously to enable/disable this mode.

NOTE: Demo mode is available only when you select Movie preset mode.

Image Enhance

Makes upsized images higher quality by removing image fading and roughness of edge.

NOTE: Image Enhance is available only when you select Standard, Multimedia, Movie, or Game preset mode.

Reset Color SettingsReset your monitor color settings to the factory settings.

Display Settings Use the Display Settings to adjust image.

Aspect Ratio Adjusts the image ratio to Wide 16:9, 4:3, or 5:4.

Horizontal Position

Use

or to adjust the image left or right. Minimum is '0' (-). Maximum is '100' (+).

Vertical Position

Use

or to adjust the image up or down. Minimum is '0' (-). Maximum is '100' (+).

NOTE: Horizontal Position and Vertical Position adjustments are only available for "VGA" input.

Sharpness

This feature can make the image look sharper or softer. Use

or to adjust the sharpness from '0' to '100'.

Pixel Clock The Phase and Pixel Clock adjustments allow you to adjust your monitor to your preference.

Use or to adjust for best image quality.

Phase If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase (fine), again.

NOTE: Pixel Clock and Phase adjustments are only available for "VGA" input.

Dynamic Contrast Allows you to increase the level of contrast to provide sharper and more detailed image quality.

Press the

button to select the Dynamic Contrast "On" or "Off" .

NOTE: Dynamic Contrast provides higher contrast if you select Game or Movie preset mode.

Reset Display

Select this option to restore default display settings.

Settings Other Settings Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen, and so on.

Language Language options set the OSD display to one of the eight languages (English, Spanish, French, German, Simplified Chinese or Japanese).

Menu Transparency

Select this option to change the menu transparency by pressing the

and buttons (Minimum: 0 ~ Maximum: 100).

Menu Timer OSD Hold Time: sets the length of time the OSD will remain active after the last time you pressed a button.

Use or to adjust the slider in 1 second increments, from 5 to 60 seconds.

Menu Lock Controls user access to adjustments. When Lock is selected, no user adjustments are allowed. All buttons are locked.

NOTE:

Lock function – Either soft lock (through the OSD menu) or hard lock (press and hold the button above the power button for 10 seconds) Unlock function– Only hard unlock (press and hold the button above the power button for 10 seconds)

Energy Smart To turn on or off dynamic dimming.

The dynamic dimming feature automatically reduces the screen's brightness level when the displayed image contains a high proportion of bright areas.

DDC/CI DDC/CI (Display Data Channel/Command Interface) allows your monitor parameters (brightness, color balance, and etc.) to be adjustable via the software on your computer.

You can disable this feature by selecting "Disable". Enable this feature for best user experience and optimum performance of your monitor.

LCD Conditioning Helps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. You can enable this feature by selecting

"Enable".

Factory Reset Reset all OSD settings to the factory preset values.

Personalize Users can choose a feature from "Preset Modes", "Brightness/Contrast", "Auto Adjust", "Input Source", or "Aspect Ratio" and set it as a shortcut key.

NOTE: This monitor has a built-in feature to automatically calibrate the brightness to compensate for LED aging.

OSD Warning Messages

When the Energy Smart or Dynamic Contrast feature is enabled (in these preset modes: Game or Movie), the manual brightness adjustment is disabled.

When the monitor does not support a particular resolution mode, you will see the following message:

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is 1920 x 1080.

You will see the following message before the DDC/CI function is disabled:

When the monitor enters the Power Save mode, the following message appears:

Activate the computer and wake up the monitor to gain access to the OSD

. If you press any button other than the power button, one of the following messages will appear depending on the selected input: VGA/HDMI input

If either VGA, or HDMI input is selected and the corresponding cable is not connected, a floating dialog box as shown below appears.

It is recommended that you use the supplied power adapter. If not, you will see the message as shown below.

See Solving Problems for more information.

Setting the Maximum Resolution

To set the maximum resolution for the monitor:

Windows Vista

, Windows® 7, Windows® 8:

1. For Windows® 8 only, select the Desktop tile to switch to classic desktop.

2. Right-click on the desktop and click Screen Resolution.

3. Click the Dropdown list of the Screen Resolution and select 1920 x 1080.

4. Click OK. If you do not see 1920 x 1080 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures: If you have a Dell desktop or portable computer:

Go to support.dell.com, enter your service tag, and download the latest driver for your graphics card.

If you are using a non-Dell computer (portable or desktop):

Go to the support site for your computer and download the latest graphic drivers. Go to your graphics card website and download the latest graphic drivers.

Using the Tilt

NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for set up instructions.

Tilt

With the stand attached to the monitor, you can tilt the monitor for the most comfortable viewing angle.

NOTE: The stand is detached when the monitor is shipped from the factory.

Back to Contents Page

Troubleshooting

Dell™ S2440L Monitor User's Guide

Self-Test Built-in Diagnostics In-Store Demo Common Problems Product Specific Problems

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-Test

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove all the digital and analog cables from the back of computer.

3. Turn on the monitor.

The floating dialog box should appear on-screen (against a black background), if the monitor cannot sense a video signal and is working correctly. While in self-test mode, the power LED remains white. Also, depending upon the selected input, one of the dialogs shown below will continuously scroll through the screen.

4. This box also appears during normal system operation, if the video cable becomes disconnected or damaged.

5. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor. If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning properly.

Built-in Diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).

2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.

3. Press and hold Button 1 and Button 4 on the front panel simultaneously for 2 seconds. A gray screen appears.

4. Carefully inspect the screen for abnormalities.

5. Press Button 4 on the front panel again. The color of the screen changes to red.

6. Inspect the display for any abnormalities.

7. Repeat steps 5 and 6 to inspect the display in green, blue, black, white and text screens. The test is complete when the text screen appears. To exit, press Button 4 again. If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

In-Store Demo

To enter InStore OSD Mode Detach/Disconnect all cables. Make sure the monitor is in “On” mode. Press and hold Button 2 and Button 4 for 5 seconds.

To exit InStore OSD Mode Press the power button once. If power is cut off during demo, resume the demo after power is restored.

Common Problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

No Video/Power LED off No picture

No Video/Power LED on No picture or no brightness

Poor Focus Picture is fuzzy, blurry, or ghosting

Common Symptoms What You Experience Possible Solutions

Ensure that the video cable connecting the monitor and the computer is properly connected and secure. Verify that the power outlet is functioning properly using any other electrical equipment. Ensure that the power button is depressed fully. Ensure that the correct input source is selected via the Input Source Select menu.

Increase brightness & contrast controls via OSD. Perform monitor self-test feature check. Check for bent or broken pins in the video cable connector. Run the built-in diagnostics. Ensure that the correct input source is selected via the Input Source Select menu.

Perform Auto Adjust via OSD.

Shaky/Jittery Video Wavy picture or fine movement

Missing Pixels LCD screen has spots

Stuck-on Pixels LCD screen has bright spots

Brightness Problems Picture too dim or too bright

Geometric Distortion Screen not centered correctly

Horizontal/Vertical Lines Screen has one or more lines

Adjust the Phase and Pixel Clock controls via OSD. Eliminate video extension cables. Reset the monitor to Factory Settings. Change the video resolution to the correct aspect ratio (16:9).

Perform Auto Adjust via OSD. Adjust the Phase and Pixel Clock controls via OSD. Reset the monitor to Factory Settings. Check environmental factors. Relocate the monitor and test in another room.

Cycle power on-off. Pixel that is permanently off is a natural defect that can occur in LCD technology. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: support.dell.com.

Reset the monitor to Factory Settings. Auto Adjust via OSD. Adjust brightness & contrast controls via OSD.

Reset the monitor to Factory Settings. Auto Adjust via OSD. Adjust horizontal & vertical controls via OSD.

NOTE: When using HDMI input, the positioning adjustments are not available.

Reset the monitor to Factory Settings. Perform Auto Adjust via OSD. Adjust Phase and Pixel Clock controls via OSD. Perform monitor self-test feature check and determine if these lines are also in self-test mode. Check for bent or broken pins in the video cable connector. Run the built-in diagnostics.

NOTE: When using HDMI input, the Pixel Clock and Phase adjustments are not available.

Synchronization Problems Screen is scrambled or appears torn Reset the monitor to Factory Settings.

Safety Related Issues Visible signs of smoke or sparks

Intermittent Problems Monitor malfunctions on & off

Missing Color Picture missing color

Wrong Color Picture color not good

Image retention from a static image left on the monitor for a long period of time

Faint shadow from the static image displayed appears on the screen

Perform Auto Adjust via OSD. Adjust Phase and Pixel Clock controls via OSD. Perform monitor self-test feature check to determine if the scrambled screen appears in self-test mode. Check for bent or broken pins in the video cable connector. Restart the computer in the safe mode.

Do not perform any troubleshooting steps. Contact Dell immediately.

Ensure that the video cable connecting the monitor to the computer is connected properly and is secure. Reset the monitor to Factory Settings. Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.

Perform monitor self-test feature check. Ensure that the video cable connecting the monitor to the computer is connected properly and is secure. Check for bent or broken pins in the video cable connector.

Change the Color Setting Mode in the Color Settings OSD to Graphics or Video depending on the application. Try different Color Preset Settings in Color Settings OSD. Adjust R/G/B value in Color Settings OSD if the Color Management is turned off. Change the Input Color Format to PC RGB or YPbPr in the Advance Setting OSD. Run the built-in diagnostics.

Use the Power Management feature to turn off the monitor at all times when not in use (for more information, see

Power Management Modes

Alternatively, use a dynamically changing screensaver.

Product Specific Problems

Screen image is too small Image is centered on screen, but does

Cannot adjust the monitor with the buttons on the front panel

No Input Signal when user controls are pressed

The picture does not fill the entire screen.

Back to Contents Page

Specific Symptoms What You Experience Possible Solutions

not fill entire viewing area OSD does not appear on the screen

No picture, the LED light is blue.

The picture cannot fill the height or width of the screen

NOTE: When choosing HDMI mode, the Auto Adjust function will not be available.

Check the Scaling Ratio setting in the Image Setting OSD. Reset the monitor to Factory Settings.

Turn off the monitor, unplug the power cord, plug it back, and then turn on the monitor. Check whether the OSD menu is locked. If yes, press and hold the button above the Power button for 10 seconds to unlock (for more information, see Menu Lock

Check the signal source. Ensure the Computer is not in the power saving mode by moving the mouse or pressing any key on the keyboard. Check whether the signal cable is plugged in properly. Re-plug the signal cable if necessary. Reset the computer or video player.

Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen. Run the built-in diagnostics.

Back to Contents Page

Appendix

Dell™ S2440L Monitor User's Guide

Safety Instructions FCC Notice (U.S. Only) and Other Regulatory Information Contacting Dell

WARNING: Safety Instructions

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

For information on safety instructions, see the Product Information Guide.

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1. Visit support.dell.com.

2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.

3. Click Contact Us on the left side of the page.

4. Select the appropriate service or support link based on your need.

5. Choose the method of contacting Dell that is convenient for you.

Back to Contents Page

Setting Up Your Monitor

Dell™ S2440L Monitor User's Guide

Setting the display resolution

For maximum display performance with Microsoft® Windows® operating systems, set the display resolution to 1920 x 1080 pixels by performing the following steps:

In Windows Vista

1. For Windows® 8 only, select the Desktop tile to switch to classic desktop.

2. Right-click on the desktop and click Screen Resolution.

3. Click the Dropdown list of the Screen Resolution and select 1920 x 1080.

4. Click OK. If you do not see the recommended resolution as an option, you may need to update your graphics driver. Please choose the scenario below that best describes the

computer system you are using, and follow the given steps.

1: If you have a Dell™ desktop or a Dell™ portable computer with internet access.

, Windows® 7, Windows® 8:

2: If you have a non Dell™ desktop, portable computer, or graphics card.

Back to Contents Page

Setting Up Your Monitor

Dell™ S2440L Monitor User's Guide

If you have a Dell™ desktop or a Dell™ portable computer with internet access

1. Go to http://support.dell.com, enter your service tag, and download the latest driver for your graphics card.

2. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 x 1080 again. NOTE: If you are unable to set the resolution to 1920 x 1080, please contact Dell™ to inquire about a graphics adapter that supports these resolutions.

Back to Contents Page

Setting Up Your Monitor

Dell™ S2440L Monitor User's Guide

If you have a non Dell™ desktop, portable computer, or graphics card

In Windows Vista®, Windows® 7, Windows® 8:

1. For Windows® 8 only, select the Desktop tile to switch to classic desktop.

2. Right-click on the desktop and click Personalization.

3. Click Change Display Settings.

4. Click Advanced Settings.

5. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).

6. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com

7. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 x 1080 again. NOTE: If you are unable to set the recommended resolution, please contact the manufacturer of your computer or consider purchasing a graphics adapter that

will support the video resolution.

Back to Contents Page

OR http://www.NVIDIA.com ).

Dell S2440L, 320-9801 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
