Setting Up Your Inspiron Laptop

INSPIRON

This section provides information about setting
up your Inspiron 1318 laptop and connecting
peripherals.

Before Setting Up Your Computer

When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.

Restricting airflow around your Inspiron
computer may cause it to overheat. To prevent
overheating ensure that you leave at least

10.2 cm (4 in) at the back of the computer and a
minimum of 5.1 cm (2 in) on all other sides. You
should never put your computer in an enclosed
space, such as a cabinet or drawer when it is
powered on.

NOTICE: Placing or stacking heavy or sharp
objects on the computer may result in
permanent damage to the computer.

5

Setting Up Your Inspiron Laptop

Connect the AC Adapter

Connect the AC adapter to the computer and
then plug it into a wall outlet or surge protector.

CAUTION: The AC adapter works with
electrical outlets worldwide. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or improperly connecting the cable
to a power strip or electrical outlet may
cause fire or equipment damage.

6

Check the Wireless Switch

If you plan to use wireless connections, make
sure the wireless switch is in the “On” position.

Using The Wireless Switch

To turn on the wireless switch, slide it from the
rear to the front of the computer until it clicks
into place.

- Off - On

Setting Up Your Inspiron Laptop

Connect the Network Cable (optional)

If you plan to use a wired network connection,
plug in the network cable.

Press the Power Button

7

Setting Up Your Inspiron Laptop

Windows Vista® Setup

Your Dell computer is preconfigured with
Windows Vista. To set up Windows Vista for
the first time, follow the instructions on the
screen. These steps are mandatory and may
take up to 15 minutes to complete. The screens
will take you through several procedures
including accepting license agreements,
setting preferences and setting up an Internet
connection.

NOTICE: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable.

8

Connect to the Internet (Optional)

NOTE: ISPs and ISP offerings vary by

country.

To connect to the Internet, you need an external
modem or network connection and an Internet
service provider (ISP). Your ISP will offer one
or more of the following Internet connection
options:

DSL connections that provide high-speed •
Internet access through your existing
telephone line or cellular telephone service.
With a DSL connection, you can access the
Internet and use your telephone on the same
line simultaneously.

Cable modem connections that provide high-•
speed Internet access through your local
cable TV line.

Satellite modem connections that provide •
high-speed Internet access through a
satellite television system.

Setting Up Your Inspiron Laptop

Dial-• up connections that provide Internet
access through a telephone line. Dial­up connections are considerably slower
than DSL and cable (or satellite) modem
connections. Your computer does not have
an integrated modem. An optional USB
modem must be used for dialup service with
this computer.

Wireless LAN • connections that provide
Internet access using WiFi 802.11
technology. Wireless LAN support requires
optional internal components that may or
may not be installed in your computer based
on decisions made at the time of purchase.

NOTE: If an external USB modem or
WLAN adapter is not part of your original
order you can purchase one from the Dell
website at dell.com.

Setting Up a Wired Internet Connection

If you are using a dial-up connection, connect
the telephone line to the external USB modem
(optional) and to the telephone wall jack
before you set up your Internet connection. If
you are using a DSL or cable/satellite modem
connection, contact your ISP or cellular
telephone service for setup instructions.

Setting Up a Wireless Connection

Before you can use your wireless Internet
connection, you need to connect to your
wireless router. To set up your connection to a
wireless router:

Save and close any open files, and exit any 1.
open programs.

Click 2. Start

Follow the instructions on the screen to 3.
complete the setup.

→ Connect To.

9

Setting Up Your Inspiron Laptop

Setting Up Your Internet Connection

To set up an Internet connection with a provided
ISP desktop shortcut:

Save and close any open files, and exit any 1.
open programs.

Double-click the ISP icon on the Microsoft2.
Windows

®

desktop.

®

Follow the instructions on the screen to 3.
complete the setup.

If you do not have an ISP icon on your desktop
or if you want to set up an Internet connection
with a different ISP, perform the steps in the
following section.

NOTE: If you cannot connect to the Internet
but have successfully connected in the
past, the ISP might have a service outage.
Contact your ISP to check the service
status, or try connecting again later.

10

NOTE: Have your ISP information ready. If
you do not have an ISP, the Connect to the
Internet wizard can help you get one.

Save and close any open files, and exit any 1.
open programs.

Click 2. Start

→ Control Panel.

Under 3. Network and Internet, click Connect

to the Internet.

The Connect to the Internet window appears.

Click either 4. Broadband (PPPoE) or Dial-up,
depending on how you want to connect:

Choose a. Broadband if you will use a
DSL, satellite modem, cable TV modem,
or Bluetooth

®

wireless technology

connection.

Chose b. Dial-up if you will use an optional
USB dial-up modem or ISDN.

NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.

Follow the instructions on the screen and 5.
use the setup information provided by your
ISP to complete the setup.

Setting Up Your Inspiron Laptop

11

A

9

9

A

Using Your Inspiron Laptop

Your Inspiron 1318 has several indicators,

INSPIRON

buttons, and features that provide information
at-a-glance and time-saving shortcuts for
common tasks.

Device Status Lights

The device status lights located to the left of the
power button provide information for wireless
communication and keyboard input options.

12

1 2 3 4 5

1

Num Lock light – Turns on when

the numeric keypad (Num Lock key) is
enabled.

2

Caps Lock light – Turns on when

the uppercase letter (Caps Lock key) is
enabled.

3

Scroll Lock light – Turns on when

the scroll lock function is enabled.

Using Your Inspiron Laptop

4

WiFi status light – Turns on when

wireless networking is enabled.

Use the wireless switch located at the
front, right side of the computer to quickly
turn all wireless communication On and
Off.

Using The Wireless Switch

To turn on the wireless switch, slide it
away from the front of the computer until it
clicks into place.

- Off - On

5

Bluetooth® status light (optional)

– Turns on when a card with Bluetooth

wireless technology is enabled.

NOTE: The card with Bluetooth
wireless technology is an optional
feature.

To turn off Bluetooth wireless, right-click
the bluetooth icon in the notification
area of your desktop, and click Disable
Bluetooth Radio or use the wireless
switch.

13

Using Your Inspiron Laptop

Right Side Features

2

1

14

1

Wireless On/Off switch – Use this

switch to rapidly turn all wireless devices
Off or On such as WLAN cards and internal
cards with Bluetooth wireless technology.

The wireless switch may be in the Off
position when your computer is shipped to
you. To turn the switch On, slide the switch
away from the front of the computer until it
clicks into place.

- Off - On

5

4

3

NOTE: This switch can be deactivated

through Dell QuickSet or the BIOS
(system setup program).

Using Your Inspiron Laptop

12 cm

2

ExpressCard slot – Supports one

ExpressCard. The computer ships with a
plastic blank installed in the slot.

3

Optical Drive – Plays or burns only

standard-size and shape (12 cm) CDs, and
DVDs. Ensure that the side with print or
writing is facing upward when inserting
discs.

NOTE: Do not use non-standard-size
or shape discs (including mini-CDs
and mini-DVDs) or you will damage
the drive.

4

USB 2.0 connector – Connects a

USB device, such as a mouse, keyboard,
printer, external drive, or MP3 player.

5

Security cable slot – Used to attach a

commercially available antitheft device to
the computer.

NOTE: Before you buy an antitheft
device, ensure that it works with the
security cable slot on your computer.

15

Using Your Inspiron Laptop

Left Side Features

1

16

1

AC adapter connector – Connects to

the AC adapter to power the computer and
charge the battery when the computer is
not in use.

2

VGA connector – Connects to a

monitor or projector.

3

Network connector – If you are

using a cabled network signal, this
connects your computer to a network or
broadband device.

4

5

4

3

2

USB connector – Connects to a

USB device, such as a mouse, keyboard,
printer, external drive, or MP3 player.

5

IEEE 1394 connector – Connects to

high-speed serial multimedia devices,
such as digital video cameras.

Using Your Inspiron Laptop

SD/MMC - MS/Pro - xD

Front Side Features

1

Audio Out/ Headphone connector

– Connects one pair of headphones, or

sends audio to a powered speaker or
sound system.

2

Audio In/ Microphone connector –

Connects to a microphone or input signal
for use with audio programs.

3

8-in-1 Media card reader – Provides a

fast and convenient way to view and
share digital photos, music, videos, and
documents stored on the following digital

1

2

3

memory cards:

Secure digital (SD) memory card•
SDHC (Secure Digital High Capacity) •

card
Multi Media Card (MMC)•
Memory Stick•
Memory Stick PRO•
xD-Picture Card (type - M and type - H)•

17

Using Your Inspiron Laptop

Computer Base and Keyboard Features

1

2

4

3

1

Touch pad – Provides the functionality of

a mouse to move the cursor, drag or move
selected items, and left-click by tapping
the surface.

2

Touch pad buttons – Provide left- and

right-click functions those on like a mouse.

18

3 Keyboard –

The settings for this keyboard can be
personalized by using Dell QuickSet. For
more information, see the Dell Technology
Guide.

4

Media Controls – Controls CD, DVD, and

media playback.

Using Your Inspiron Laptop

Media Controls

To use the media controls, lightly touch the symbol and then release. The control’s symbol will shine
for 2 seconds to confirm your selection then fade away.

Eject the disc

Play the previous track or chapter

Stop

Play or pause

Play the next track or chapter

Mute the sound

Turn down the volume

Turn up the volume

19

Using Your Inspiron Laptop

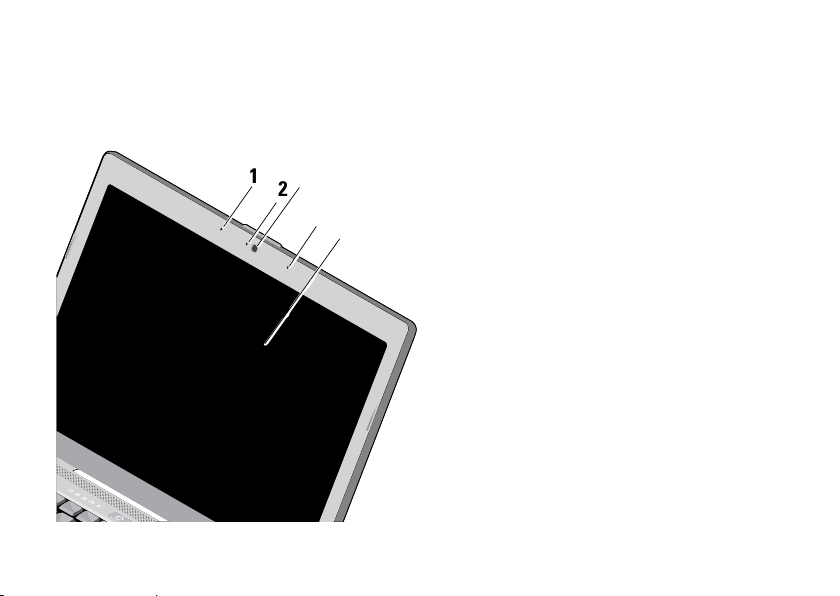

Display Features

The display panel holds an optional camera and
accompanying dual microphones.

1

3

2

4

5

20

1

Left digital array microphone – Combines

with the right digital array microphone
to provide high quality sound for video
chatting and voice recording.

2 Camera activity indicator (optional) –

Light that indicates when the camera is
on an off. Based on selections you made
when purchasing your computer, your
computer may not include a camera.

3

Camera (optional) – Built-in camera for

video capture, conferencing, and chat.
Based the on selections you made when
purchasing your computer, your computer
may not include a camera.

4

Right digital array microphone – Combines

with the left digital array microphone
to provide high quality sound for video
chatting and voice recording.

5

Display – Your display can vary based on

selections you made when purchasing
your computer. For more information about
displays, see the Dell Technology Guide.

Removing and Replacing the Battery

CAUTION: Using an incompatible battery

may increase the risk of fire or explosion.
This computer should only use a battery
purchased from Dell. Do not use batteries
from other computers.

CAUTION: Before removing the battery,
shut down the computer, and remove
external cables (including the AC adapter).

To remove the battery:

Shut down the computer and turn it over. 1.

Slide the battery release latch until it clicks 2.
into place.

Slide the battery out. 3.

Using Your Inspiron Laptop

To replace the battery, slide it into the bay until it

clicks into place.

21

Using Your Inspiron Laptop

12 cm

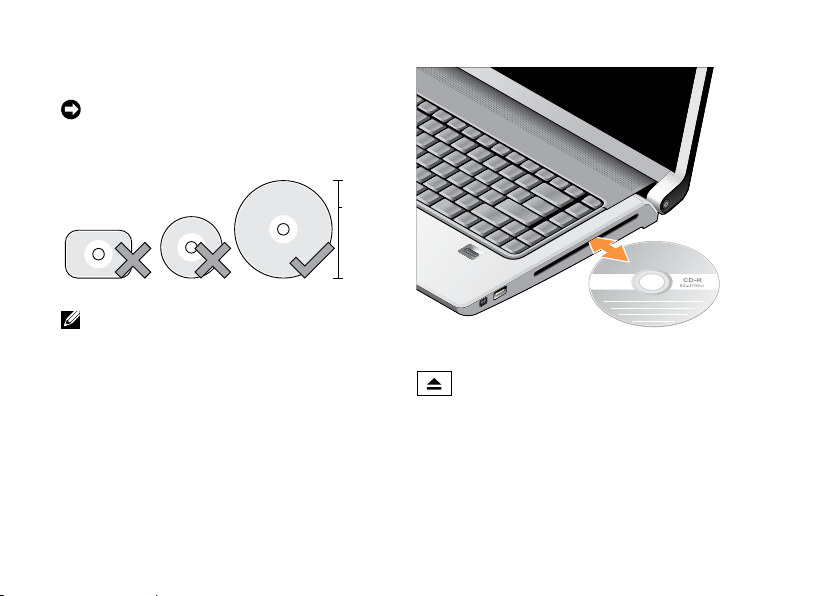

Using the Optical Disc Drive

NOTICE: Do not use non-standard-size or

shape discs (including mini-CDs and mini­DVDs) or you will damage the drive.

NOTE: Do not move the computer while
playing or recording CDs and DVDs.

Place the disc in the center of the disc slot, with
the label facing upwards and gently push the
disc into the slot. The drive will automatically
pull the disc in and begin reading its content.

22

To eject a disc from the drive, gently
touch the eject control. The control will flash to
confirm a few seconds before ejecting the disc.

Using Your Inspiron Laptop

Software Features

NOTE: For more information about the

features described in this section, see
the Dell Technology Guide on your hard
drive or on the Dell Support website at

support.dell.com.

Productivity and Communication

You can use your computer to create
presentations, brochures, greeting cards, fliers,
and spreadsheets. You can also edit and view
digital photographs and images. Check your
purchase order for software installed on your
computer.

After connecting to the Internet, you can access
websites, setup an e-mail account, upload and
download files, and so on.

Entertainment and Multimedia

You can use your computer to watch videos,
play games, create your own CDs, listen to
music and internet radio stations. Your optical

disc drive may support multiple disc media
formats including CDs and DVDs.

You can download or copy pictures and video
files from portable devices, such as digital
cameras and cell phones. Optional software
applications enable you to organize and create
music and video files that can be recorded to
disc, saved on portable products such as MP3
players and handheld entertainment devices, or
played and viewed directly on connected TVs,
projectors, and home theater equipment.

Customizing the Desktop

You can customize your desktop to change the
appearance, resolution, wallpaper, screensaver,
and so on by accessing the Personalize
appearance and sounds window.

To access the display properties window:

Right-click an open area of the desktop.1.

Click 2. Personalize, to open the Personalize
appearance and sounds window and learn
more about your customization options.

23

Using Your Inspiron Laptop

Customizing Your Energy Settings

You can use the power options in your operating
system to configure the power settings on your
computer. Microsoft

®

Windows Vista® provides

three default options:

Balanced• — This power option offers full
performance when you need it and saves
power during periods of inactivity.

Power saver• — This power option saves
power on your computer by reducing system
performance to maximize the life of the
computer and by reducing the amount of
energy consumed by your computer over its
lifetime.

High performance• — This power option
provides the highest level of system
performance on your computer by adapting
processor speed to your activity and by
maximizing system performance.

24

Backing Up Your Data

It is recommended that you periodically back
up files and folders on your computer. To back
up files:

Click 1. Start

→ Control Panel→ System

and Maintenance→ Welcome Center→
Transfer files and settings.

Click 2. Back up files or Back up computer.

Click 3. Continue on Your User Account Control
dialog box and follow the instructions in
the Back up Files wizard. This section
provides troubleshooting information for your
computer. If you can not solve your problem
using the following guidelines, see “Using
Support Tools” on page 31 or “Contacting
Dell” on page 46.

Solving Problems

INSPIRON

CAUTION: Only trained service personnel
should remove the computer cover. See
the

Service Manual

website at support.dell.com for advanced
service and troubleshooting instructions.

on the Dell Support

Network Problems

Wireless Connections

If the network connection is lost —

The wireless switch may be off. To turn on the
wireless switch, slide it from the rear to the
front of the computer until it clicks into place.

- Off - On

The wireless router is offline or wireless has
been disabled on the computer.

Check your wireless router to ensure it is •
powered on and connected to your data
source (cable modem or network hub).

Re-establish your connection to the wireless •
router:

Save and close any open files, and exit a.
any open programs.

Click b. Start

Follow the instructions on the screen c.
to complete the setup.

→ Connect To.

25

Solving Problems

Wired Connections

If the network connection is lost — The

network cable is loose or damaged.

Check the cable to ensure it is plugged in •
and not damaged.

The link integrity light on the integrated network
connector lets you verify that your connection is
working and provides information on the status:

Green — A good connection exists between •
a 10-Mbps network and the computer.

Orange — A good connection exists between •
a 100-Mbps network and the computer.

Yellow — A good connection exists between •
a 1000-Mbps network and the computer.

Off — The computer is not detecting a •
physical connection to the network.

NOTE: The link integrity light on the network
connector is only for the wired cable
connection. The link integrity light does not
provide status for wireless connections.

26

Power Problems

If the power light is off — The computer is

either turned off or is not receiving power.

Reseat the power cable into both the •
power connector on the computer and the
electrical outlet.

If the computer is plugged into a power strip, •
ensure that the power strip is plugged into
an electrical outlet and that the power strip
is turned on. Also temporarily bypass power
protection devices, power strips, and power
extension cables to verify that the computer
turns on properly.

Ensure that the electrical outlet is working •
by testing it with another device, such as a
lamp.

Check the AC adapter cable connections. If •
the AC adapter has a light, ensure that the
light on the AC adapter is on.

Solving Problems

If the power light is solid white and the
computer is not responding — The display may

not be connected or powered on. Ensure that
the display is properly connected and then turn
it off then back on.

If the power light is blinking white — The
computer is in standby mode. Press a key on the
keyboard, move the pointer on the trackpad or a
connected mouse, or press the power button to
resume normal operation.

If the power light is solid amber — The
computer has a power problem or an internal
device malfunction. For assistance contact Dell,
see “Contacting Dell” on page 46.

If the power light is blinking amber — The
computer is receiving electrical power, but a
device might be malfunctioning or incorrectly
installed. You may have to remove and then
reinstall the memory modules (for information on
removing and replacing memory modules, see
the Service Manual on the Dell Support website
at support.dell.com).

If you encounter interference that hinders
reception on your computer — An unwanted

signal is creating interference by interrupting or
blocking other signals. Some possible causes of
interference are:

Power, keyboard, and mouse extension •
cables.

Too many devices connected to a power •
strip.

Multiple power strips connected to the same •
electrical outlet.

Memory Problems

If you receive an insufficient memory
message—

Save and close any open files and exit any •
open programs you are not using to see if
that resolves the problem.

See the software documentation for •
minimum memory requirements. If
necessary, install additional memory (See

27

Solving Problems

the Service Manual on the Dell Support
website at support.dell.com).

Reseat the memory modules (See the •
Service Manual on the Dell Support website
at support.dell.com) to ensure that your
computer is successfully communicating
with the memory.

If you experience other memory problems —

Ensure that you are following the memory •
installation guidelines (see the Service
Manual on the Dell Support website at
support.dell.com).

Check if the memory module is compatible •
with your computer. Your computer supports
DDR2 memory. For more information about
the type of memory supported by your
computer, see “Basic Specifications” on
page 50.

Run the Dell Diagnostics (see “Dell •
Diagnostics” on page 34).

28

Reseat the memory modules (see the •
Service Manual on the Dell Support website
at support.dell.com) to ensure that your
computer is successfully communicating
with the memory.

Lockups and Software Problems

If the computer does not start up — Ensure

that the power cable is firmly connected to the
computer and to the electrical outlet.

If a program stops responding — End the
program:

Press <Ctrl><Shift><Esc> simultaneously.1.

Click 2. Applications.

Click the program that is no longer 3.
responding

Click 4. End Task.

Solving Problems

If a program crashes repeatedly — Check the
software documentation. If necessary, uninstall
and then reinstall the program.

NOTE: Software usually includes
installation instructions in its
documentation or on CD.

If the computer stops responding —

NOTICE: You might lose data if you are

unable to perform an operating system
shutdown.

Turn the computer off. If you are unable to get a
response by pressing a key on your keyboard or
moving your mouse, press and hold the power
button for at least 8 to 10 seconds until the
computer turns off. Then restart your computer.

If a program is designed for an earlier
Microsoft

®

Windows® operating system —

Run the Program Compatibility Wizard. The
Program Compatibility Wizard configures a
program so that it runs in an environment
similar to non-Windows Vista operating system
environments.

Click 1. Start

→ Control Panel→

Programs→ Use an older program with this
version of Windows.

In the welcome screen, click 2. Next.

Follow the instructions on the screen.3.

If a solid blue screen appears — Turn the
computer off. If you are unable to get a
response by pressing a key on your keyboard or
moving your pointer or mouse, press and hold
the power button for at least 8 to 10 seconds
until the computer turns off. Then restart your
computer.

29

Solving Problems

If you have other software problems —

Back up your files immediately.•

Use a virus-scanning program to check the •
hard drive or CDs.

Save and close any open files or programs •
and shut down your computer through the
Start

Check the software documentation or •
contact the software manufacturer for
troubleshooting information:

menu.

Ensure that the program is compatible –
with the operating system installed on
your computer.

Ensure that your computer meets the –
minimum hardware requirements needed
to run the software. See the software
documentation for information.

Ensure that the program is installed and –
configured properly.

30

Verify that the device drivers do not –
conflict with the program.

If necessary, uninstall and then reinstall –
the program. Dell Support Center

Using Support Tools

INSPIRON

The Dell Support Center helps you find
the service, support, and system-specific
information you need. For more information
about Dell Support Center and available support
tools, click the Services tab at support.dell.com.

Dell Support Center

The Dell Support Center helps you find
the service, support, and system-specific
information you need. For more information
about Dell Support Center and available support
tools, click the Services tab at support.dell.com.

Click the
application. The home page provides links to
access:

Self Help (Troubleshooting, Security, System •
Performance, Network/Internet, Backup/
Recovery, and Windows Vista)

icon in the taskbar to run the

Alerts (technical support alerts relevant to •
your computer)

Assistance from Dell (Technical Support with •
DellConnect
and Tutorials, How-To Help with Dell on Call,
and Online Scan with PCCheckUp)

About Your System (System Documentation, •
Warranty Information, System Information,
Upgrades & Accessories)

The top of the Dell Support Center home page
displays your system’s model number along with
its service tag and express service code.

For more information about the Dell Support
Center, see the
hard drive or on the Dell Support website at
support.dell.com.

™

, Customer Service, Training

Dell Technology Guide

on your

31

Using Support Tools

System Messages

If your computer has an issue or error, it may
display a System Message that will help you
identify the cause and action needed to resolve
the issue.

NOTE: If the message you received is not
listed in the following examples, see the
documentation for either the operating
system or the program that was running
when the message appeared. Alternatively
you could see the Service Manual on the
Dell Support website at support.dell.com
or see “Contacting Dell” on page 46 for
assistance.

Alert! Previous attempts at booting this system
have failed at checkpoint [nnnn]. For help
in resolving this problem, please note this
checkpoint and contact Dell Technical
Support — The computer failed to complete

the boot routine three consecutive times for the

32

same error see “Contacting Dell” on page 46 for
assistance.

CMOS checksum error — Possible motherboard
failure or RTC battery low. Replace the battery.
See the Service Manual on the Dell Support
website at support.dell.com or see “Contacting
Dell” on page 46 for assistance.

CPU fan failure — CPU fan has failed. Replace
the CPU fan. See the Service Manual on the Dell
Support website at support.dell.com.

Hard-disk drive failure — Possible hard disk
drive failure during HDD POST see “Contacting
Dell” on page 46 for assistance.

Hard-disk drive read failure — Possible hard
disk drive failure during HDD boot test see
“Contacting Dell” on page 46 for assistance.

Keyboard failure — Keyboard failure or loose
cable.

Using Support Tools

No boot device available — No bootable
partition on hard disk drive, the hard disk drive
cable is loose, or no bootable device exists.

If the hard drive is your boot device, ensure •
that the cables are connected and that the
drive is installed properly and partitioned as
a boot device.

Enter system setup and ensure that the boot •
sequence information is correct (see the
Service Manual on the Dell Support website
at support.dell.com).

No timer tick interrupt — A chip on the system
board might be malfunctioning or motherboard
failure (see the Service Manual on the Dell
Support website at support.dell.com).

USB over current error — Disconnect the USB
device. Your USB device needs more power for
it to function properly. Use an external power
source to connect the USB device, or if your
device has two USB cables, connect both of
them.

NOTICE - Hard Drive SELF MONITORING
SYSTEM has reported that a parameter has
exceeded its normal operating range. Dell
recommends that you back up your data
regularly. A parameter out of range may or may
not indicate a potential hard drive problem —

S.M.A.R.T error, possible hard disk drive failure.
This feature can be enabled or disabled in the
BIOS setup (see “Contacting Dell” on page 46
for assistance).

Hardware Troubleshooter

If a device is either not detected during
the operating system setup or is detected
but incorrectly configured, you can use the
Hardware Troubleshooter to resolve the
incompatibility.

To start the Hardware Troubleshooter:

Click 1. Start

→ Help and Support.

33

Using Support Tools

Type 2. hardware troubleshooter in
the search field and press <Enter> to start
the search.

In the search results, select the option that 3.
best describes the problem and follow the
remaining troubleshooting steps.

Dell Diagnostics

If you experience a problem with your
computer, perform the checks in “Lockups and
Software Problems” on page 28 and run the
Dell Diagnostics before you contact Dell for
technical assistance.

It is recommended that you print these
procedures before you begin.

NOTICE: Dell Diagnostics works only on
Dell computers.

NOTE: The
is optional and may not ship with your
computer.

34

Drivers and Utilities

media

See the System Setup section in the Service
Manual to review your computer’s configuration
information, and ensure that the device that
you want to test displays in the system setup
program and is active.

Start the Dell Diagnostics from your hard drive
or from the

Starting Dell Diagnostics From Your Hard Drive

The Dell Diagnostics is located on a hidden
diagnostic utility partition on your hard drive.

Drivers and Utilities

NOTE: If your computer cannot display a
screen image, see “Contacting Dell” on
page 46.

Ensure that the computer is connected to an 1.
electrical outlet that is known to be working
properly.

Turn on (or restart) your computer.2.

When the DELL3.
immediately. Select Diagnostics from the
boot menu and press <Enter>.

™

logo appears, press <F12>

media.

Using Support Tools

NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft

®

Windows®
desktop; then, shut down your computer
and try again.

NOTE: If you see a message stating that no
diagnostics utility partition has been found,
run the Dell Diagnostics from the

and Utilities

media.

Drivers

Press any key to start the Dell Diagnostics 4.
from the diagnostics utility partition on your
hard drive.

Starting Dell Diagnostics From the Drivers and
Utilities Media

Insert the1.

Drivers and Utilities

media.

Shut down and restart the computer. 2.
When the DELL logo appears, press <F12>
immediately.

NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft

®

Windows®

desktop; then, shut down your computer
and try again.

NOTE: The next steps change the boot
sequence for one time only. On the next
start-up, the computer boots according to
the devices specified in the system setup
program.

When the boot device list appears, highlight 3.
CD/DVD/CD-RW and press <Enter>.

Select the 4. Boot from CD-ROM option from
the menu that appears and press <Enter>.

Type 1 to start the CD menu and press 5.
<Enter> to proceed.

Select 6. Run the 32 Bit Dell Diagnostics from
the numbered list. If multiple versions are
listed, select the version appropriate for your
computer.

When the Dell Diagnostics 7. Main Menu
appears, select the test you want to run.

35

Restoring Your Operating System

You can restore your operating system in the

INSPIRON

following ways:

System • Restore returns your computer to an
earlier operating state without affecting data
files. Use System Restore as the first solution
for restoring your operating system and
preserving data files.

Dell • Factory Image Restore returns your
hard drive to the operating state it was
in when you purchased the computer.
Both procedures permanently delete all
data on the hard drive and remove any
programs installed after you received the
computer. Use Dell Factory Image Restore
only if System Restore did not resolve your
operating system problem.

If you received an Operating System disc •
with your computer, you can use it to restore
your operating system. However, using the

36

Operating System disc also deletes all data
on the hard drive. Use the disc only if System
Restore did not resolve your operating
system problem.

System Restore

The Windows operating systems provide
a System Restore option which allows
you to return your computer to an earlier
operating state (without affecting data files) if
changes to the hardware, software, or other
system settings have left the computer in an
undesirable operating state. Any changes that
System Restore makes to your computer are
completely reversible.

NOTICE: Make regular backups of your
data files. System Restore does not monitor
your data files or recover them.

Restoring Your Operating System

NOTE: The procedures in this document
were written for the Windows default view,
so they may not apply if you set your Dell

™

computer to the Windows Classic view.

Starting System Restore

Click 1. Start

.

In the 2. Start Search box, type System
Restore and press <Enter>.

NOTE: The User Account Control window
may appear. If you are an administrator on
the computer, click Continue; otherwise,
contact your administrator to continue the
desired action.

Click 3. Next and follow the remaining prompts
on the screen.

In the event that System Restore did not resolve
the issue, you may undo the last system restore.

Undoing the Last System Restore

NOTE: Before you undo the last system

restore, save and close all open files and
exit any open programs. Do not alter, open,
or delete any files or programs until the
system restoration is complete.

Click 1. Start

.

In the 2. Start Search box, type System
Restore and press <Enter>.

Click 3. Undo my last restoration and click
Next.

37

Restoring Your Operating System

Dell Factory Image Restore

NOTICE: Using Dell Factory Image Restore

permanently deletes all data on the hard
drive and removes any programs or drivers
installed after you received your computer.
If possible, back up the data before using
these options. Use Dell Factory Image
Restore only if System Restore did not
resolve your operating system problem.

NOTE: Dell Factory Image Restore may
not be available in certain countries or on
certain computers.

Use Dell Factory Image Restore only as the
last method to restore your operating system.
These options restore your hard drive to the
operating state it was in when you purchased
the computer. Any programs or files added
since you received your computer—including
data files—are permanently deleted from
the hard drive. Data files include documents,
spreadsheets, e-mail messages, digital photos,

38

music files, and so on. If possible, back up all
data before using Factory Image Restore.

Dell Factory Image Restore

Turn on the computer. When the Dell logo 1.
appears, press <F8> several times to access
the Vista Advanced Boot Options Window.

Select 2. Repair Your Computer.

The 3. System Recovery Options window
appears.

Select a keyboard layout and click 4. Next.

To access the recovery options, log on as a 5.
local user. To access the command prompt,
type administrator in the User name
field, then click OK.

Click 6. Dell Factory Image Restore. The Dell
Factory Image Restore welcome screen
appears.

NOTE: Depending upon your configuration,
you may need to select Dell Factory Tools,
then Dell Factory Image Restore.

Restoring Your Operating System

Click 7. Next. The Confirm Data Deletion
screen appears.

NOTICE: If you do not want to proceed with
Factory Image Restore, click Cancel.

Click the checkbox to confirm that you want 8.
to continue reformatting the hard drive and
restoring the system software to the factory
condition, then click Next.

The restore process begins and may take
five or more minutes to complete. A message
appears when the operating system and
factory-installed applications have been
restored to factory condition.

Click 9. Finish to reboot the system.

Operating System Reinstallation

Before you Begin

If you are considering reinstalling the Windows
operating system to correct a problem with a
newly installed driver, first try using Windows
Device Driver Rollback. If Device Driver

Rollback does not resolve the problem, then
use System Restore to return your operating
system to the operating state it was in before
you installed the new device driver. See “Using
Microsoft Windows System Restore” on
page 36.

NOTICE: Before performing the installation,
back up all data files on your primary
hard drive. For conventional hard drive
configurations, the primary hard drive is the
first drive detected by the computer.

To reinstall Windows, you need the following
items:

Dell Operating System

• media

Dell Drivers and Utilities

• media

NOTE: The
contains drivers that were installed during
the assembly of the computer. Use the
Dell Drivers and Utilities media to load any
required drivers. Depending on the region
from which you ordered your computer, or

Dell Drivers and Utilities

media

39

Restoring Your Operating System

whether you requested the media, the

Drivers and Utilities
System

media may not ship with your

media and

Dell

Operating

computer.

Reinstalling Windows Vista

The reinstallation process can take 1 to 2 hours
to complete. After you reinstall the operating
system, you must also reinstall the device
drivers, virus protection program, and other
software.

Save and close any open files and exit any 1.
open programs.

Insert the 2.

Operating System

disc.

Click 3. Exit if the Install Windows message
appears.

Restart the computer.4.

When the DELL logo appears, press <F12> 5.
immediately.

40

NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft

®

Windows®
desktop; then, shut down your computer
and try again.

NOTE: The next steps change the boot
sequence for one time only. On the next
start-up, the computer boots according to
the devices specified in the system setup
program.

When the boot device list appears, highlight 6.
CD/DVD/CD-RW Drive and press <Enter>.

Press any key to 7. Boot from CD-ROM.
Follow the instructions on the screen to
complete the installation.

Getting Help

INSPIRON

If you experience a problem with your computer,
you can complete the following steps to
diagnose and troubleshoot the problem:

See “Solving Problems” on page 1. 25 for
information and procedures that pertain to
the problem your computer is experiencing.

See “Dell Diagnostics” on page 2. 34 for
procedures on how to run Dell Diagnostics.

Fill out the “Diagnostic Checklist” on 3.
page 45.

Use Dell’s extensive suite of online services 4.
available at Dell Support (support.dell.com)
for help with installation and troubleshooting
procedures. See “Online Services” on
page 42 for a more extensive list of Dell
Support online.

If the preceding steps have not resolved the 5.
problem, see “Contacting Dell” on page 46.

NOTE: Call Dell Support from a telephone
near or at the computer so that the support
staff can assist you with any necessary
procedures.

NOTE: Dell’s Express Service Code system
may not be available in all countries.

When prompted by Dell’s automated telephone
system, enter your Express Service Code to
route the call directly to the proper support
personnel. If you do not have an Express
Service Code, open the Dell Accessories folder,
double-click the Express Service Code icon, and
follow the directions.

NOTE: Some of the following services
are not always available in all locations
outside the continental U.S. Call your local
Dell representative for information on
availability.

41

Getting Help

Technical Support and Customer Service

Dell’s support service is available to answer
your questions about Dell hardware. Our
support staff uses computer-based diagnostics
to provide fast, accurate answers.

To contact Dell’s support service, see “Before
You Call” on page 45 and then see the contact
information for your region or go to

support.dell.com.

DellConnect™

DellConnect is a simple online access tool that
allows a Dell service and support associate to
access your computer through a broadband
connection, diagnose your problem and repair it
all under your supervision. For more information,
go to support.dell.com and click DellConnect.

42

Online Services

You can learn about Dell products and services
on the following websites:

www.dell.com•

www.dell.com/ap• (Asian/Pacific countries

only)

www.dell.com/jp• (Japan only)

www.euro.dell.com• (Europe only)

www.dell.com/la• (Latin American and

Caribbean countries)

www.dell.ca• (Canada only)

You can access Dell Support through the
following websites and e-mail addresses:

Dell Support websites

support.dell.com•

support.jp.dell.com• (Japan only)

support.euro.dell.com• (Europe only)

Getting Help

Dell Support e-mail addresses

[email protected]•

[email protected]•

[email protected]• (Latin America and

Caribbean countries only)

[email protected]• (Asian/Pacific
countries only)

Dell Marketing and Sales e-mail addresses

[email protected]• (Asian/Pacific
countries only)

[email protected]• (Canada only)

Anonymous file transfer protocol (FTP)

ftp.dell.com•

Log in as user: anonymous, and use your
e-mail address as your password.

AutoTech Service

Dell’s automated support service–AutoTech–
provides recorded answers to the questions

most frequently asked by Dell customers about
their portable and desktop computers.

When you call AutoTech, use your touch-tone
telephone to select the subjects that correspond
to your questions. For instructions on accessing
the telephone number to call your region, see
“Contacting Dell” on page 46.

Automated Order-Status Service

To check on the status of any Dell products that
you have ordered, you can go to
support.dell.com, or you can call the automated
order-status service. A recording prompts you
for the information needed to locate and report
on your order. For the telephone number to call
your region, see “Contacting Dell” on page 46
for problems with your order.

If you have a problem with your order, such as
missing parts, wrong parts, or incorrect billing,
contact Dell for customer assistance. Have your
invoice or packing slip handy when you call. For
the telephone number to call for your region,
see “Contacting Dell” on page 46.

43

Getting Help

Product Information

If you need information about additional
products available from Dell, or if you would like
to place an order, visit the Dell website at
www.dell.com. For the telephone number to call
for your region or to speak to a sales specialist,
see “Contacting Dell” on page 46.

Returning Items for Repair Under Warranty or for Credit

Prepare all items being returned, whether for
repair or credit, as follows:

Call Dell to obtain a Return Material 1.
Authorization Number, and write it clearly
and prominently on the outside of the box.

For the telephone number to call for your 2.
region, see “Contacting Dell” on page 46.

Include a copy of the invoice and a letter 3.
describing the reason for the return.

44

Include a copy of the Diagnostics Checklist 4.
(see “Diagnostic Checklist” on page 45),
indicating the tests that you have run and
any error messages reported by the Dell
Diagnostics (see “Dell Diagnostics” on
page 34).

Include any accessories that belong with 5.
the item(s) being returned (power cables,
software, guides, and so on) if the return is
for credit.

Pack the equipment to be returned in the 6.
original (or equivalent) packing materials.

You are responsible for paying shipping 7.
expenses. You are also responsible for
insuring any product returned, and you
assume the risk of loss during shipment to
Dell. Collect On Delivery (C.O.D.) packages
are not accepted.

Returns that are missing any of the 8.
preceding requirements will be refused at
Dell’s receiving dock and returned to you.

Getting Help

Before You Call

NOTE: Have your Express Service Code

ready when you call. The code helps Dell’s
automated-support telephone system direct
your call more efficiently. You may also be
asked for your Service Tag (located on the
back or bottom of your computer).

Remember to fill out the following Diagnostics
Checklist. If possible, turn on your computer
before you call Dell for assistance and call from
a telephone at or near the computer. You may be
asked to type some commands at the keyboard,
relay detailed information during operations, or
try other troubleshooting steps possible only at
the computer itself. Ensure that the computer
documentation is available.

Diagnostic Checklist

Name:•

Date:•

Address:•

Phone number:•

Service Tag (bar code on the back or bottom •
of the computer):

Express Service Code:•

Return Material Authorization Number (if •
provided by Dell support technician):

Operating system and version:•

Devices:•

Expansion cards:•

Are you connected to a network? Yes /No•

Network, version, and network adapter:•

Programs and versions:•

45

Getting Help

See your operating system documentation
to determine the contents of the computer’s
start-up files. If the computer is connected to
a printer, print each file. Otherwise, record the
contents of each file before calling Dell.

Error message, beep code, or diagnostic •
code:

Description of problem and troubleshooting •
procedures you performed:

Contacting Dell

For customers in the United States, call
800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active
Internet connection, you can find contact
information on your purchase invoice,
packing slip, bill, or Dell product catalog.

Dell provides several online and telephone­based support and service options. Availability
varies by country and product, and some
services may not be available in your area.

46

To contact Dell for sales, technical support, or
customer service issues:

Visit 1. support.dell.com.

Verify your country or region in the 2. Choose
A Country/Region drop-down menu at the
bottom of the page.

Click 3. Contact Us on the left side of the page.

Select the appropriate service or support link 4.
based on your need.

Choose the method of contacting Dell that is 5.
convenient for you.

Getting Help

47

Finding More Information and Resources

If you need to: See:

INSPIRON

reinstall your operating system. your Operating System disc.

run a diagnostic program for your computer,
reinstall Notebook System Software (NSS), or
update drivers for your computer, and readme
files.

learn more about your operating system,
maintaining peripherals, RAID, Internet,
Bluetooth

®

, networking, and e-mail.

the

Drivers and Utilities

NOTE: Drivers and documentation updates
can be found on the Dell
at support.dell.com.

the Dell Technology Guide installed on your
hard drive.

disc.

™

Support website

upgrade your computer with new or additional
memory, or a new hard drive.

reinstall or replace a worn or defective part.

48

the Service Manual on the Dell Support website
at support.dell.com.

NOTE: In some countries, opening and
replacing parts of your computer may void
your warranty. Check your warranty and
return policies before working inside your
computer.

If you need to: See:

find safety best practices information for your
computer.

review Warranty information, Terms and
Conditions (U.S. only), Safety instructions,

the safety and regulatory documents that
shipped with your computer and also see the
Regulatory Compliance Homepage at:
www.dell.com/regulatory_compliance.

Regulatory information, Ergonomics
information, and End User License Agreement.

find your Service tag/Express Service Code—

the back or bottom of your computer.
You must use the service tag to identify your
computer on support.dell.com or to contact
technical support.

find drivers and downloads.

access technical support and product help.

the Dell

support.dell.com.

check on your order status for new purchases.

find solutions and answers to common
questions.

locate information for last-minute updates
about technical changes to your computer or
advanced technical-reference material for
technicians or experienced users.

Finding More Information and Resources

™

Support website at

49

Basic Specifications

System Model

INSPIRON

Dell Inspiron 1318

This section provides basic information that you
may need when setting up, updating drivers for,
and upgrading your computer. For more detailed
specifications, see the Service Manual on the
Dell Support website at support.dell.com.

NOTE: Offerings may vary by region.
For more information regarding the
configuration of your computer, click
Start

→ Help and Support and select
the option to view information about your
computer.

50

Processor

Intel

®

®

Core™ 2 Duo

®

Celeron

Types Intel

Intel® Celeron® Dual­Core

®

Intel

Pentium™ Dual-

Core

L2 cache 512 KB, 1 MB, 2 MB

or 4 MB per core

External bus
frequency

533 MHz, 667 MHz or
800 MHz

Basic Specications

Express Card

ExpressCard
controller

ExpressCard
connector

Cards supported ExpressCard/34 (34

ExpressCard
connector size

Mobile Intel Express
(GM 965)

one ExpressCard slot
(54 mm)

mm)

ExpressCard/54 (54
mm)

1.5 V and 3.3 V

26 pins

Memory

Connectors two internally-

accessible SO-DIMM
sockets

Capacities 512 MB, 1 GB, and

2 GB

Memory type 667 MHz DDR2

SODIMM

Memory
configuration
possible

NOTE: For instructions on upgrading your
memory, see the Service Manual on the
Dell Support website at support.dell.com.

1 GB, 1.5 GB, 2 GB,
3 GB, 4 GB

51

Basic Specications

Computer Information

System Chipset Mobile Intel Express

(GM 965)

Data bus width 64 bits

DRAM bus width dual channel (2)

64-bit buses

Processor address

32 bits

bus width

Flash EPROM 2 MB

Graphics bus PCI -E X16

PCI Bus 32 bits

52

Communications

Modem type External V.92 56K USB

Modem

Modem controller Hardware Modem

Modem interface Universal Serial Bus

(USB)

Network adapter 10/100/1000 Ethernet

LAN on system board

Wireless internal WLAN (Mini-

Card), Mini-Card with
Bluetooth

®

wireless

technology

Basic Specications

Video

video controller Intel 965 GM

video memory Up to 384 MB of

system memory

LCD interface LVDS

Camera (optional)

Pixel 2.0 megapixel

Video resolution 320x240 ~1600x1200

(640x480 at 30fps)

Diagonal viewing
angle

66°

Audio

Audio type 2 channel High

Definition Audio

Audio controller IDT STAC9228

Stereo conversion 24-bit (analog-to-

digital and digital-to­analog)

Internal Interface Intel High Definition

Audio

External Interface microphone-in

connector, stereo
headphones/
speakers connector

Speaker two 4-ohm speakers

Internal speaker
amplifier

Volume controls

2 watt per channel
into 4 ohms

program menus,
media control buttons

53

Basic Specications

Ports and Connectors

Audio

microphone connector,
two stereo headphone/
speakers connectors

IEEE 1394a 4-pin serial connector

Mini-Card one Type IIIA Mini

Card slot

Network adapter RJ-45 port

USB two 4-pin USB 2.0-

compliant connectors

Video 15-hole connector

54

Display

Type (TrueLife) 13.3-inch WXGA

TrueLife

Dimensions:

Height 286.08 mm (11.26 in)

Width 178.8 mm (7.03 in)

Diagonal 337.8 mm (13.29 in)

Maximum resolution 1280 x 800

Refresh rate 60 Hz

Operating angle 0° (closed) to 140°

Luminance 250 min. 300 typ. cd/

m² (LED 5 point avg)

200 min. 220 typ. cd/
m² (CCFL 5 point avg)

Basic Specications

Viewing Angles:

Horizontal ±40° (CCFL) min.

±50° (LED) min

Vertical +15°/

–

30° (CCFL) min.

–

50° (LED) min.

+40°/

Pixel pitch 0.2235 mm

Controls brightness can be

controlled through
keyboard shortcuts
(see Dell Technology
Guide for more
information.)

Keyboard

Number of keys 86/103 (U.S. and

Canada); 87/104
(Europe); 90/107
(Japan)

Layout QWERTY/AZERTY/

Kanji

Touchpad

X/Y position

240 cpi
resolution (graphics
table mode)

Size:

Width 63.1 mm (2.48 in)

sensor-active area

Height 37.1 mm (1.46 in)

rectangle

55

Basic Specications

Battery

Type 4-cell/6-cell/9-cell

“smart” lithium ion

Depth 67.6 mm (2.66 inches)

(9 cell)

47.5 mm (1.87 inches)
(4, 6 cell)

Height 20.4 mm (0.8 in)

Width 209.9 mm (8.26 in)

Weight 0.48 kg (1.06 lb) (9 cell)

0.33 kg (0.7 lb) (4, 6
cell)

Voltage 11.1 VDC

Charge time

4 hours

(approximate):

Computer off

56

Battery

Operating time Battery operating

time varies depending
on operating
conditions and can be
significantly reduced
under certain power­intensive conditions.

See Dell Technology
Guide for more
information..

Life span
(approximate)

300 discharge/charge
cycles

Temperature range:

Operating 0° to 35°C (32° to 95°F)

Storage

–

40° to 65°C (–40° to

149°F)

Coin-cell battery CR-2032

Basic Specications

AC Adapter

Input voltage 100–240 VAC

Input current

1.5 A/1.6 A

(maximum)

Input frequency 50–60 Hz

Output power 65 W or 90 W

Ouput current (90 W) 5.62 A (maximum at

4-second pulse)

4.62 A (continuous)

Ouput current (65 W) 3.9 A (maximum at

4-second pulse)

3.34 A (continuous)

Rated output voltage 19.5 +/- 1 VDC

Dimensions:

65 W

Height 29.0 mm (1.14 in) )

AC Adapter

Width 46.2 mm (1.83 in)

Depth 107.0 mm (4.21in)

Weight (with cables) 0.25 kg (0.55 lb)

90 W (E-Series)

Height 34.2 mm (1.35 in)

Width 60.9 mm (2.39 in)

Depth 153.42 mm (6.04 in)

Weight (with cables) 0.46 kg (1.01 lb)

Temperature range

Operating 0° to 35°C (32° to

95°F)

Storage

–

40° to 65°C (–40° to

149°F)

57

Basic Specications

Physical

Height 25.4 mm to 38.37 mm

(1 in to 1.51 in)

Width 318 mm (12.55 in)

Depth 238 mm (9.37 in)

Weight (with 4-cell
battery):

Configurable to less
than

2.14 kg (4.72 lb)

58

Computer Environment

Temperature range:

Operating 0° to 35°C (32° to

95°F)

Storage

–

40° to 65°C (–40° to

149°F)

Relative humidity (maximum):

Operating 10% to 90%

(noncondensing)

Storage 5% to 95%

(noncondensing)

Maximum vibration (using a random-vibration
spectrum that simulates user environment):

Operating 0.66 GRMS

Storage 1.3 GRMS

Maximum shock (measured with hard drive
in head-parked position and a 2-ms half-sine
pulse):

Operating 110 G

Storage 163 G

Altitude (maximum):

Operating

Storage

–

15.2 to 3048 m

–

(

50 to 10,000 ft)

–

15.2 to 10,668 m

–

(

50 to 35,000 ft)

Basic Specications

Airborne contaminant
level

G2 or lower as
defined by ISA­S71.04-1985

59

Index

A

INSPIRON

AC adapter

size and weight 57

airflow, allowing 5

AutoTech 43

B

backups

creating 24

C

calling Dell 45

CDs, playing and creating 23

chipset 52

computer capabilities 23

computer, setting up 5

60

connect(ing)

to the Internet 8

using dial-up 9

via DSL 9

via WLAN 9

conserving energy 24

Contacting Dell online 46

customer service 42

customizing

your desktop 23

your energy settings 24

D

damage, avoiding 5

data, backing up 24

DellConnect 42

Index

Dell Diagnostics 34

Dell Factory Image Restore 36

Dell Support Center 31

Dell support website 49

Dell Technology Guide

for further information 48

Diagnostic Checklist 45

disc drive

supported disc sizes 22

discs

ejecting 22

using 22

drivers and downloads 49

DVDs, playing and creating 23

E

email addresses

for technical support 43

energy

conserving 24

expansion bus 52

F

finding more information 48

FTP login, anonymous 43

H

hardware problems

diagnosing 34

Hardware Troubleshooter 33

help

getting assistance and support 41

I

Internet connection 8

ISP

Internet Service Provider 8

61

Index

M

memory problems

solving 27

memory support 51

™

Microsoft

Windows Vista® 8

N

network connection

fixing 26

network speed

testing 25

O

order status 43

P

power problems, solving 26

power strips, using 6

62

problems, solving 25

processor 50

products

information and purchasing 44

R

reinstalling Windows 36

resources, finding more 48

restoring factory image 38

S

setup, before you begin 5

shipping products

for return or repair 44

software features 23

software problems 28

solving problems 25

specifications 50

support email addresses 43

Index

support sites

worldwide 42

System Messages 32

system reinstall options 36

System Restore 36

T

technical support 42

V

ventilation, ensuring 5

W

warranty returns 44

Windows, reinstalling 36

Windows Vista

Program Compatibility Wizard 29

reinstalling 40

setup 8

®

wired network

network cable, connecting 7

wireless network connection 25

wireless switch 6, 13, 25

63

64

Printed in the U.S.A.

0XXXXXA00

www.dell.com | support.dell.com
