Cable Routing Procedures for
Dell™ PowerEdge™ R310 & R410
Systems

By Greg Henderson, Riyad Moe, Chris Kitten and Jose L. Flores

Dell™ │ Datacenter Infrastructure Engineering

June 2010

Cable Routing Procedures for Dell™ PowerEdge™ R310 & R410 Systems

THIS WHITE PAPER IS FOR INFORMATIONAL PURPOSES ONLY, AND MAY CONTAIN TYPOGRAPHICAL
ERRORS AND TECHNICAL INACCURACIES. THE CONTENT IS PROVIDED AS IS, WITHOUT EXPRESS
OR IMPLIED WARRANTIES OF ANY KIND.

© 2010 Dell Inc. All rights reserved. Reproduction of this material in any manner whatsoever without
the express written permission of Dell Inc. is strictly forbidden. For more information, contact Dell.

Dell

, the

DELL

logo, the

Page ii

DELL

badge, and

PowerEdge

are trademarks of Dell Inc.

Cable Routing Procedures for Dell™ PowerEdge™ R310 & R410 Systems

Contents

Introduction ........................................................................................................................................................... 2

Section 1: Cabling a Dell™ PowerEdge™ R310 or R410 With a Cable Management Arm (CMA) .......... 2

1.1 Connecting the CMA Cables to the System ....................................................................................... 2

1.2 Installing the Inner CMA Attachment Bracket .................................................................................... 3

1.3 Routing the Power Cables Through the Strain Reliefs ...................................................................... 3

1.4 Routing the Cables Through the CMA ................................................................................................. 3

1.5 Left-Side Mounting Instructions ........................................................................................................... 4

1.6 Right-Side Mounting Instructions ......................................................................................................... 6

Section 2: Cabling a Dell™ PowerEdge™ R310 or R410 System Without a CMA ...................................... 7

2.1 Routing the Cables ................................................................................................................................... 7

2.2 Removing the CMA Brackets for Shallow Racks ................................................................................. 7

Section 3: Replacing a Power Supply on a PowerEdge™ R310 or R410 System With a CMA ................ 8

Section 4: Cabling a PowerEdge™ R310 or R410 System Installed in Static Rails .................................... 9

Table of Figures

Figure 1: System with Cables Installed

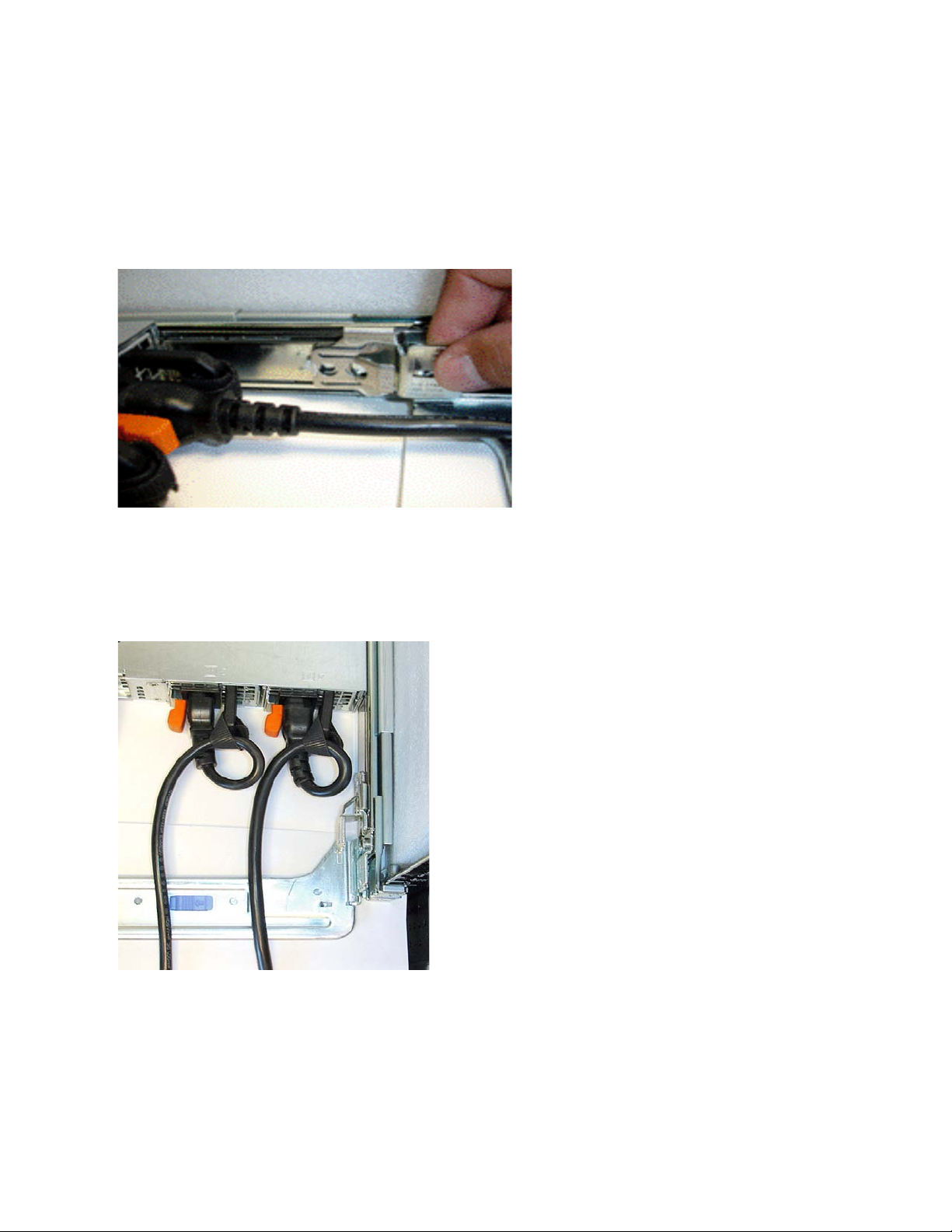

Figure 2: Attaching the Inner CMA Attachment Bracket
Figure 3: Routing Power Cables Through the Strain Reliefs

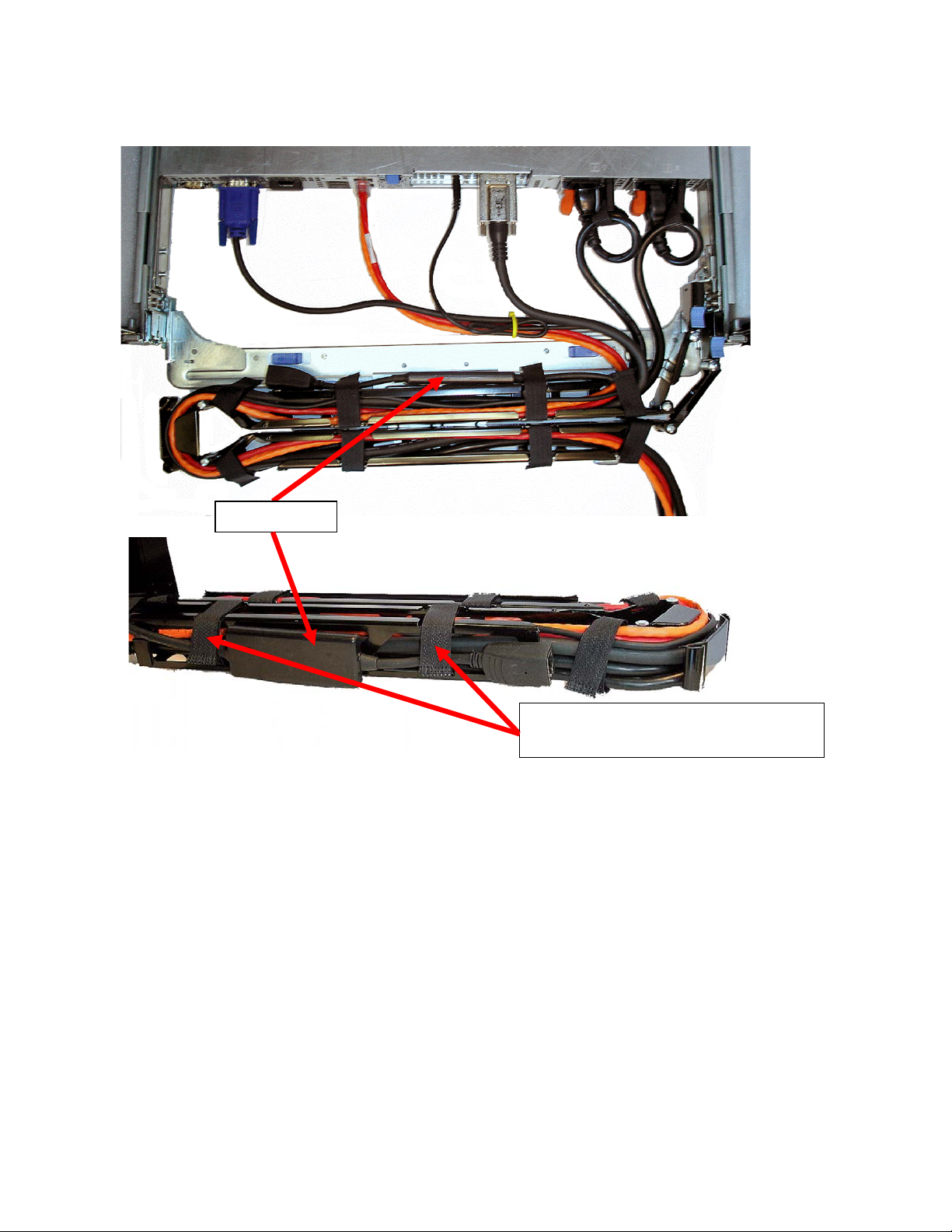

Figure 4: Routing the Cables Through the CMA
Figure 5: Attaching the KVM Dongle to the CMA Basket

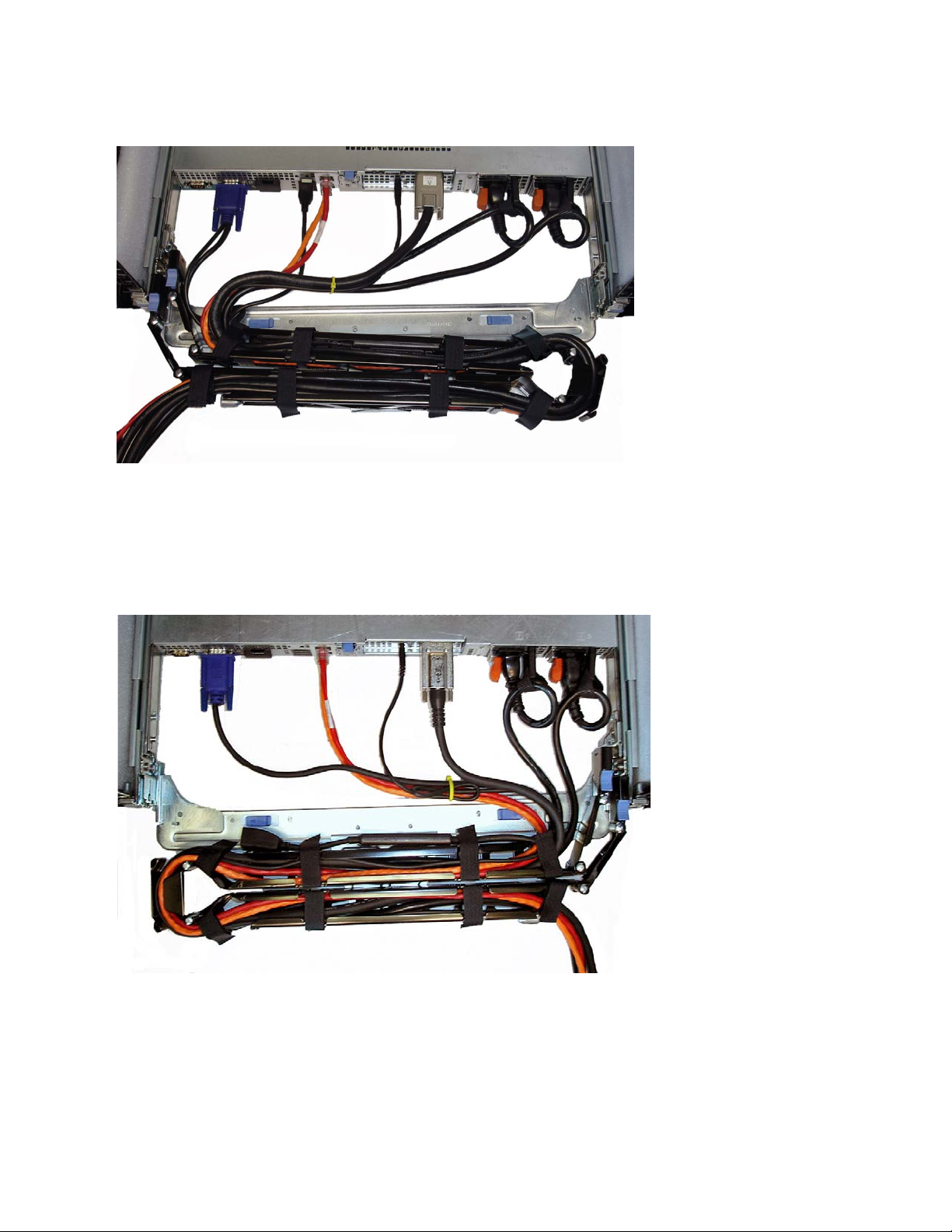

Figure 6: Left-Side Mounted CMA Installation
Figure 7: Right-Side Mounted CMA Installation
Figure 8: Cable Routing Without a CMA

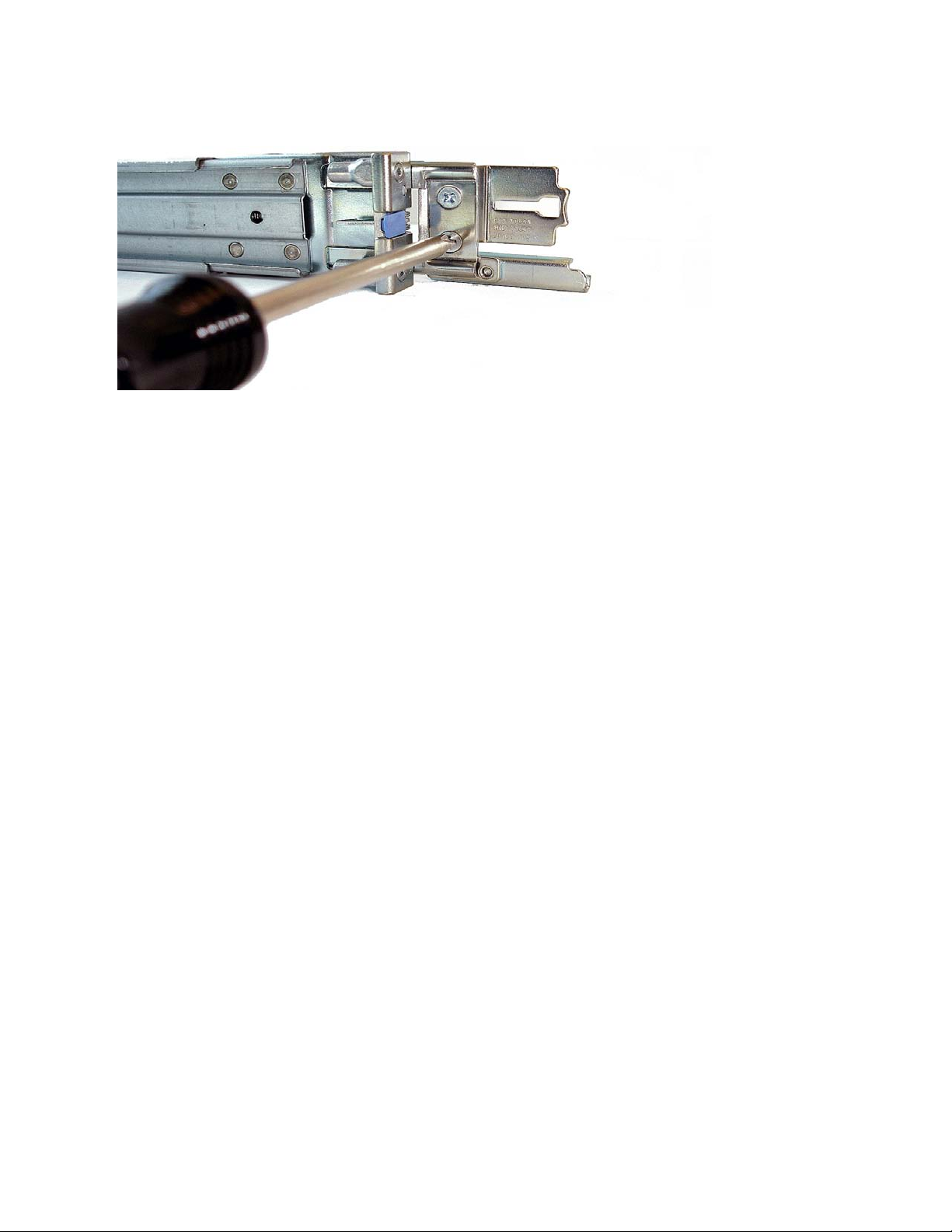

Figure 9: Removing the CMA Brackets for Shallow Racks

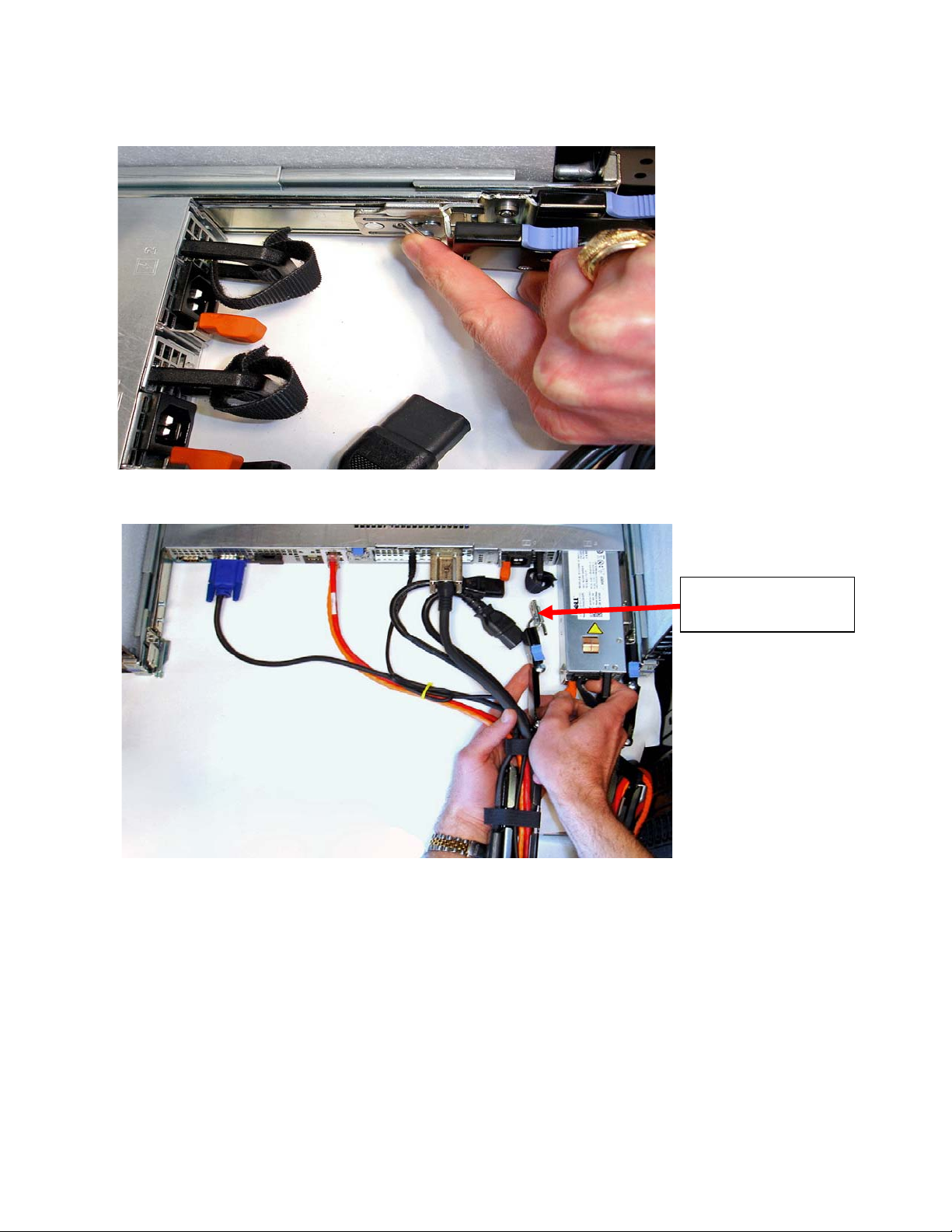

Figure 10: Disconnecting the Inner CMA Attachment Bracket
Figure 11: Replacing the Outer Power Supply
Figure 12: Cabling a System Installed in Static Rails

................................................................................................................... 2

..................................................................................... 3

.............................................................................. 3

.................................................................................................. 4

.................................................................................... 5

...................................................................................................... 6

................................................................................................... 6

................................................................................................................ 7

.................................................................................. 8

.......................................................................... 9

...................................................................................................... 9

.......................................................................................... 10

Page 1

Cable Routing Procedures for Dell™ PowerEdge™ R310 & R410 Systems

Introduction

This white paper covers recommended cable routing procedures for Dell™ PowerEdge™ R310 & R410
systems in the following racks:

• PowerEdge™ 4210/2410

• PowerEdge™ 4820/4220/2420

If you are using the optional CMA, following these procedures will allow you to extend the system
from the rack for service without powering down or disconnecting the cables. If you are not using the
CMA, following these procedures will ensure secure attachment and strain relief of the cables behind
the system. For guidelines on how to route cables within the rack, refer to the Dell

Guide for Rack Enclosure

white paper.

Best Practices

Section 1: Cabling a Dell™ PowerEdge™ R310 or R410 With a Cable Management Arm (CMA)

This section details how to cable a PowerEdge™ R310 or R410 system using a CMA. If you are cabling
the system without the optional CMA, refer to Section 2.

Follow the instructions contained in the
the rack. Once installed, use these instructions to install the cables. All illustrations in the following
sections were created using a PowerEdge™ R410 system.

NOTE: PowerEdge™ R310 & R410 systems are not compatible with previous generation rails and
CMAs.

Rack Installation Guide

in the rail kit to install the server into

1.1 Connecting the CMA Cables to the System

Attach the CMA tray to the back of the rails as described in the
in the CMA kit. Connect all applicable cables to the rear of the system and verify that all connections
are secure. See Figure 1.

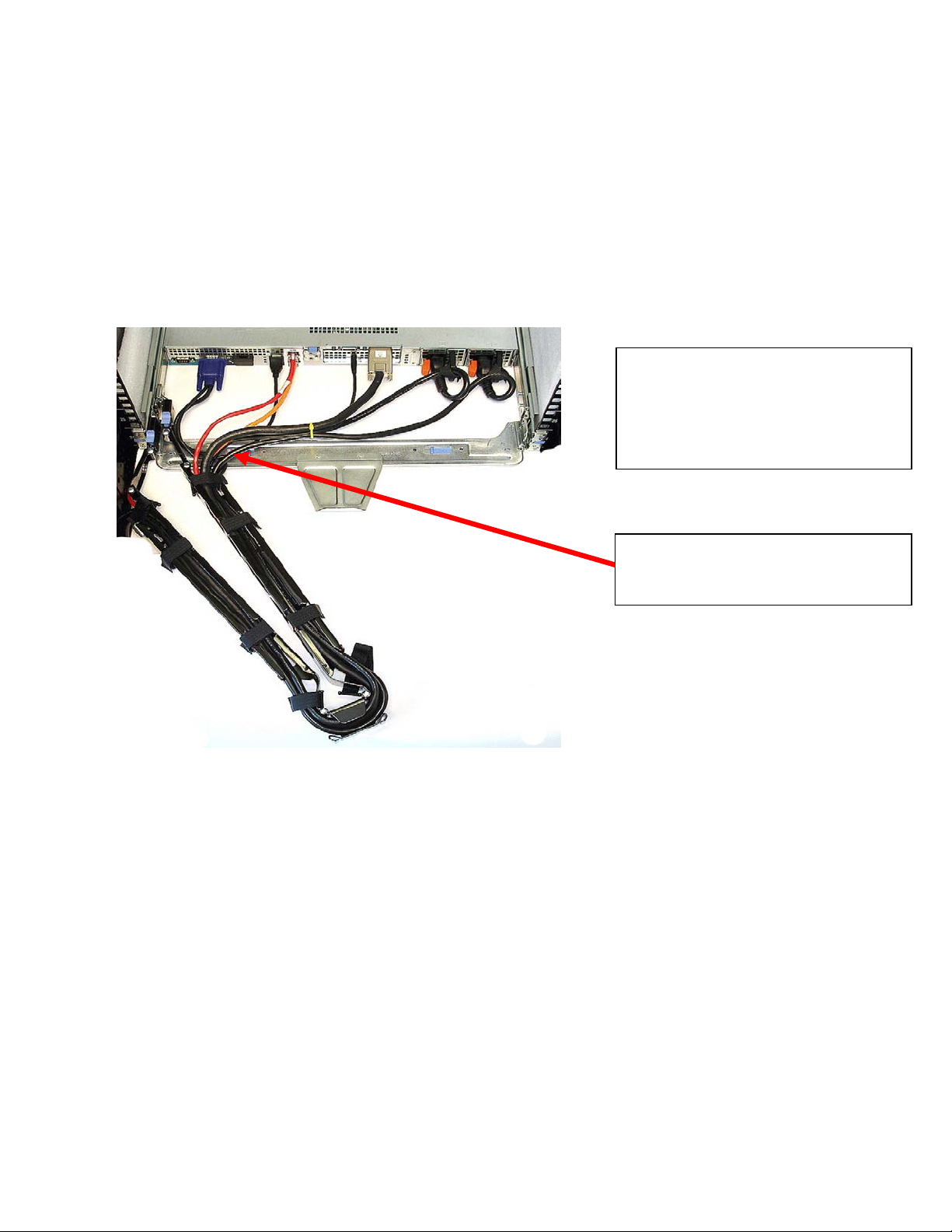

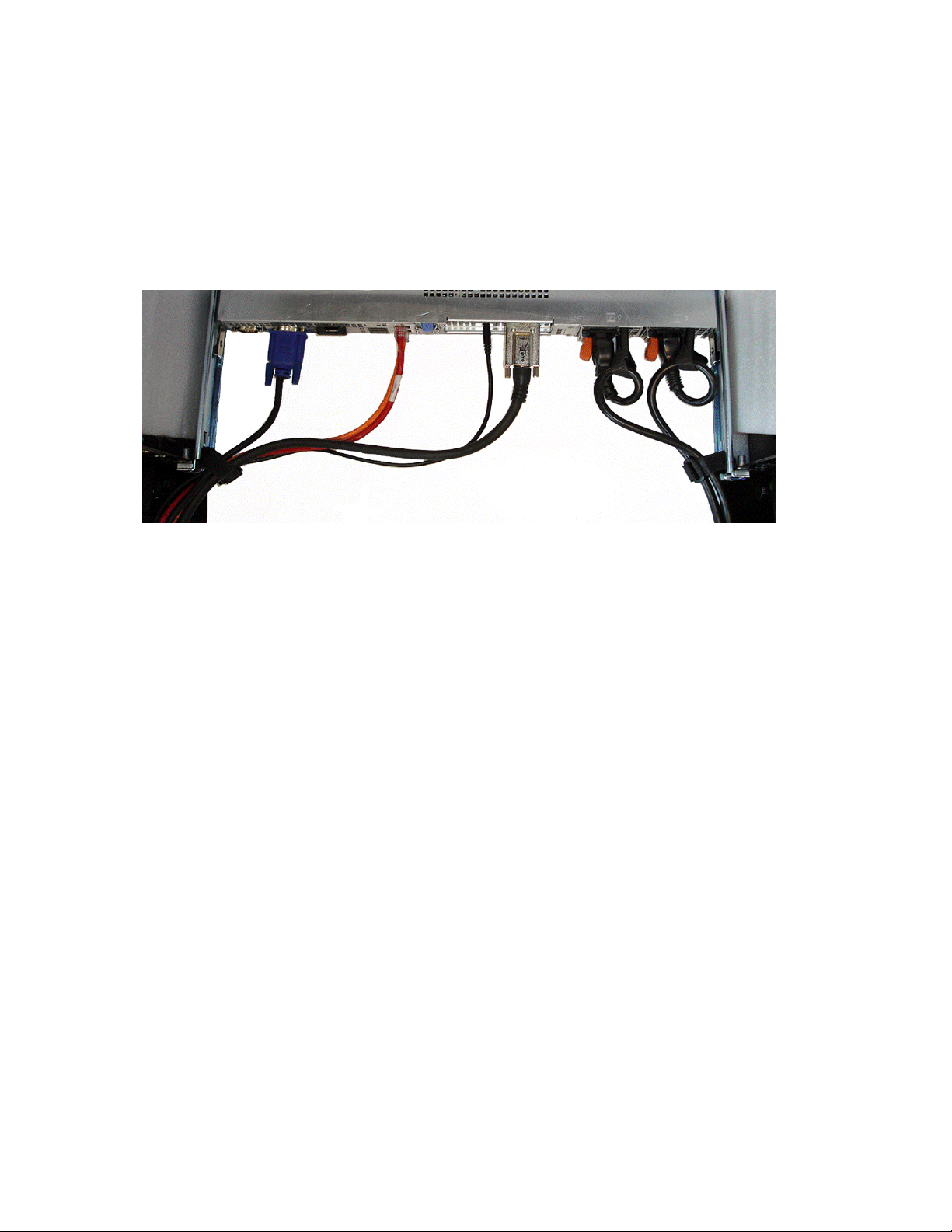

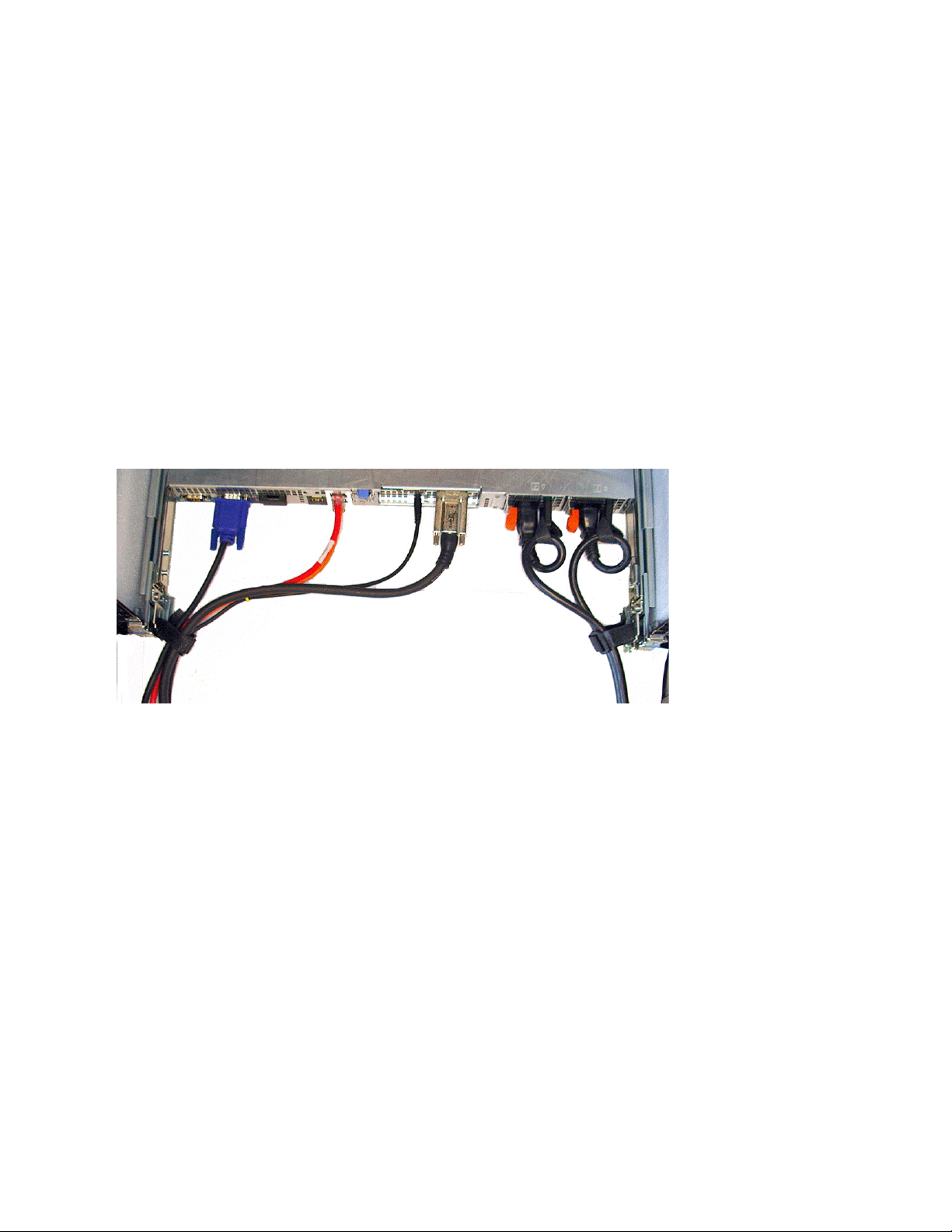

Figure 1: System with Cables Installed

CMA Installation Instructions

provided

Page 2
