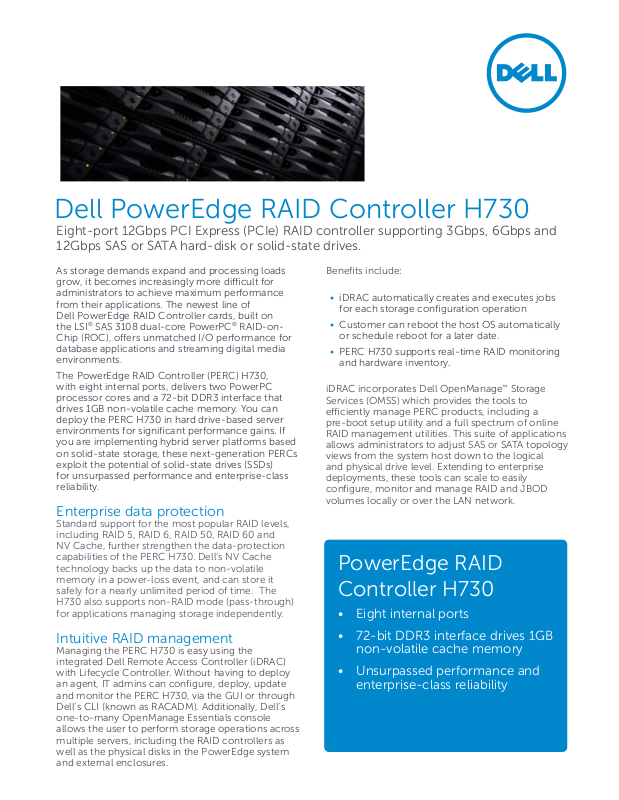

Dell PowerEdge RAID Controller H730
Eight-port 12Gbps PCI Express (PCIe) RAID controller supporting 3Gbps, 6Gbps and
12Gbps SAS or SATA hard-disk or solid-state drives.
As storage demands expand and processing loads
grow, it becomes increasingly more dicult for
administrators to achieve maximum performance
from their applications. The newest line of
Dell PowerEdge RAID Controller cards, built on
the LSI® SAS 3108 dual-core PowerPC® RAID-on-
Chip (ROC), oers unmatched I/O performance for
database applications and streaming digital media
environments.
The PowerEdge RAID Controller (PERC) H730,
with eight internal ports, delivers two PowerPC
processor cores and a 72-bit DDR3 interface that
drives 1GB non-volatile cache memory. You can
deploy the PERC H730 in hard drive-based server
environments for signicant performance gains. If
you are implementing hybrid server platforms based
on solid-state storage, these next-generation PERCs
exploit the potential of solid-state drives (SSDs)
for unsurpassed performance and enterprise-class
reliability.
Enterprise data protection
Standard support for the most popular RAID levels,
including RAID 5, RAID 6, RAID 50, RAID 60 and
NV Cache, further strengthen the data-protection
capabilities of the PERC H730. Dell’s NV Cache
technology backs up the data to non-volatile
memory in a power-loss event, and can store it
safely for a nearly unlimited period of time. The
H730 also supports non-RAID mode (pass-through)
for applications managing storage independently.
Benets include:
• iDRAC automatically creates and executes jobs
for each storage conguration operation
• Customer can reboot the host OS automatically
or schedule reboot for a later date.
• PERC H730 supports real-time RAID monitoring
and hardware inventory.
iDRAC incorporates Dell OpenManage™ Storage
Services (OMSS) which provides the tools to
eciently manage PERC products, including a
pre-boot setup utility and a full spectrum of online
RAID management utilities. This suite of applications
allows administrators to adjust SAS or SATA topology
views from the system host down to the logical
and physical drive level. Extending to enterprise
deployments, these tools can scale to easily
congure, monitor and manage RAID and JBOD
volumes locally or over the LAN network.
PowerEdge RAID
Controller H730
• Eight internal ports
Intuitive RAID management
Managing the PERC H730 is easy using the
integrated Dell Remote Access Controller (iDRAC)
with Lifecycle Controller. Without having to deploy
an agent, IT admins can congure, deploy, update
and monitor the PERC H730, via the GUI or through
Dell’s CLI (known as RACADM). Additionally, Dell’s
one-to-many OpenManage Essentials console
allows the user to perform storage operations across
multiple servers, including the RAID controllers as
well as the physical disks in the PowerEdge system
and external enclosures.
• 72-bit DDR3 interface drives 1GB
non-volatile cache memory
• Unsurpassed performance and
enterprise-class reliability
Feature PowerEdge RAID Controller H730 technical specication
Solution provided
Value/performance RAID and non-RAID (pass-through) solution for high-density servers (1U or 2U) with
the exibility to use both SATA and SAS HDDs, SSDs, and pass-through drive congurations
Physical dimensions 167.6 mm (6.6 in) x 64.4 mm (2.5 in) (MD2 low prole)
Connectors Two internal HD Mini-SAS SFF8643
Device support Up to 255 (SAS, SATA)
Host bus type
8-lane, PCI Express 3.0 compliant
Data transfer rates Up to 12Gbps per port
SAS controller LSI SAS 3108 1200MT/s PowerPC 476 dual-core 12Gbps ROC
Cache memory 1GB 1333MT/s DDR3 SDRAM
RAID levels 0, 1, 5, 6
RAID spans 10, 50, 60
Non-RAID (Pass-through)
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after power loss during array rebuild or reconstruction/RLM
Check Consistency for background data integrity
Physical disk power management (Dimmer Switch™)
4K native sector support
Workload proles
Key RAID and data protection
features
Support for TRIM/UNMAP Commands for SAS/SATA SSDs
NVRAM “Wipe” feature- protects proprietary data once card is decommissioned
SED drive support
Load balancing
Fast initialization for quick array setup
Congurable stripe size up to 1MB
SSD support
Patrol read for media scanning and repairing
DDF compliant Conguration on Disk (COD)
S.M.A.R.T. support
Global and dedicated hot spare with revertible hot-spare support: automatic rebuild, enclosure anity,
emergency SATA
CTRL-R
RAID management
Dell OpenManage Storage Services
Additional management:
UEFI (HII)
CEM
Operating temperature Maximum ambient temperature: 60°C
Operating voltage +3.3V
Optional SSD optimization Dell FastPath™ rmware feature: delivers high IOPs performance on SSD arrays
®
Windows Server® 2008 R2 SP1
Virtualization options:
VMware® ESXi 5.1
VMware 6.0
Operating systems
Microsoft
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R1 & R2
Red Hat® Enterprise Linux® 5.8
Red Hat Enterprise Linux 6.5
SUSE® Linux Enterprise Server 10 SP4
SUSE Linux Enterprise Server 11 SP3
Warranty
Up to ve-year warranty available for controller (up to the length of purchased system warranty)
Three-year warranty for battery
End-to-end technology solutions
Reduce IT complexity, lower costs and eliminate ineciencies by making IT and business solutions work harder for you.
You can count on Dell for end-to-end solutions to maximize your performance and uptime. A proven leader in Servers,
Storage and Networking, Dell Enterprise Solutions and Services deliver innovation at any scale. And if you’re looking to
preserve cash or increase operational eciency, Dell Financial Services™ has a wide range of options to make technology
acquisition easy and aordable. Contact your Dell Sales Representative for more information.**
Learn More at Dell.com/PERC.
